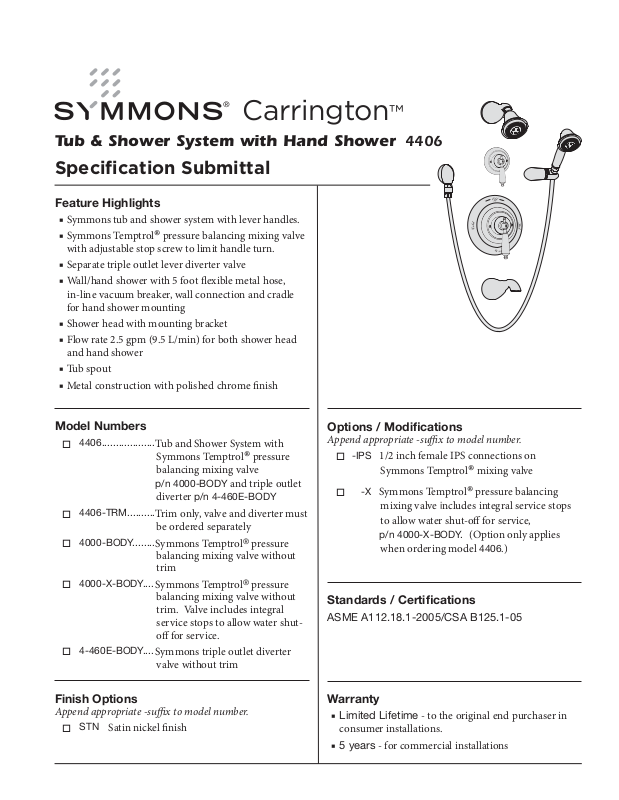

Page 1
Carrington™
Tub & Shower System with Hand Shower 4406
Specifi cation Submittal
Feature Highlights
Symmons tub and shower system with lever handles. ■
Symmons Temptrol ■
with adjustable stop screw to limit handle turn.
Separate triple outlet lever diverter valve ■
Wall/hand shower with 5 foot exible metal hose, ■
in-line vacuum breaker, wall connection and cradle
for hand shower mounting
Shower head with mounting bracket ■
Flow rate 2.5 gpm (9.5 L/min) for both shower head ■
and hand shower
Tub spout ■
Metal construction with polished chrome nish ■
pressure balancing mixing valve
®
Model Numbers
4406...................
4406-TRM..........
4000-BODY........
4000-X-BODY....
4-460E-BODY....
Tub and Shower System with
Symmons Temptrol
balancing mixing valve
p/n 4000-BODY and triple outlet
diverter
Trim only, valve and diverter must
be ordered separately
Symmons Temptrol® pressure
balancing mixing valve without
trim
Symmons Temptrol® pressure
balancing mixing valve without
trim. Valve includes integral
service stops to allow water shuto for service.
Symmons triple outlet diverter
valve without trim
p/n 4-460E-BODY
Finish Options
Append appropriate -su x to model number.
STN
Satin nickel nish
pressure
®
Options / Modifi cations
Append appropriate -su x to model number.
-IPS
1/2 inch female IPS connections on
Symmons Temptrol
-X
Symmons Temptrol® pressure balancing
mixing valve
to allow water shut-o for service,
p/n 4000-X-BODY. (Option only applies
when ordering model
includes integral service stops
mixing valve
®
4406.)
Standards / Certifi cations
ASME A112.18.1-2005/CSA B125.1-05
Warranty
Limited Lifetime ■ - to the original end purchaser in
consumer installations.
5 years ■
- for commercial installations
Page 2
Dimensions Carrington Tub and Shower System, 4406
Note: Dimensions subject to change without notice.
Symmons Industries, Inc. ■ 31 Brooks Drive ■ Braintree, MA 02184
(800) 796-6667, (781) 848-2250
Website: www.symmons.com
©2008 Symmons Industries, Inc. Printed in U.S.A.
■ Fax (800) 961-9621, (781) 843-3849
■ Email: customerservice@symmons.com
■ 063008
