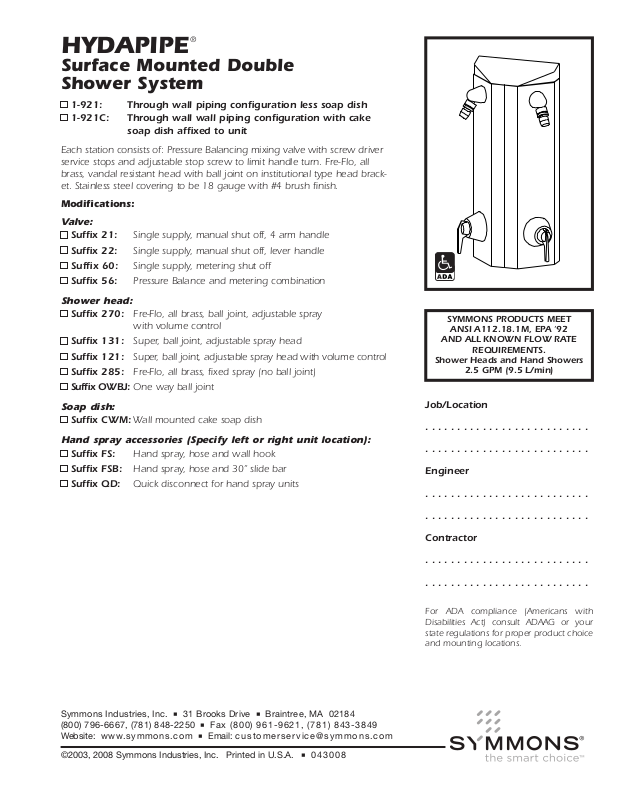

HYDAPIPE

Surface Mounted Double Shower System

1-921: Through wall piping conﬁguration less soap dish 1-921C: Through wall wall piping conﬁguration with cake

soap dish afﬁxed to unit

Each station consists of: Pressure Balancing mixing valve with screw driver service stops and adjustable stop screw to limit handle turn. Fre-Flo, all brass, vandal resistant head with ball joint on institutional type head bracket. Stainless steel covering to be 18 gauge with #4 brush ﬁnish.

Modiﬁcations:

Valve:

Sufﬁx 21: Single supply, manual shut off, 4 arm handle

Sufﬁx 22: Single supply, manual shut off, lever handle

Sufﬁx 60: Single supply, metering shut off

Sufﬁx 56: Pressure Balance and metering combination

Shower head:

Sufﬁx 270: Fre-Flo, all brass, ball joint, adjustable spray

with volume control

Sufﬁx 131: Super, ball joint, adjustable spray head

Sufﬁx 121: Super, ball joint, adjustable spray head with volume control

Sufﬁx 285: Fre-Flo, all brass, ﬁxed spray (no ball joint)

Sufﬁx OWBJ: One way ball joint

SYMMONS PRODUCTS MEET

ANSI A112.18.1M, EPA ‘92

AND ALL KNOWN FLOW RATE

REQUIREMENTS.

Shower Heads and Hand Showers

2.5 GPM (9.5 L/min)

Soap dish:

Sufﬁx CWM: Wall mounted cake soap dish

Hand spray accessories (Specify left or right unit location):

Sufﬁx FS: Hand spray, hose and wall hook

Sufﬁx FSB: Hand spray, hose and 30” slide bar

Sufﬁx QD: Quick disconnect for hand spray units

Job/Location

. . . . . . . . . . . . . . . . . . . . . . . . . .

Engineer

. . . . . . . . . . . . . . . . . . . . . . . . . .

Contractor

. . . . . . . . . . . . . . . . . . . . . . . . . .

For ADA compliance (Americans with Disabilities Act) consult ADAAG or your state regulations for proper product choice and mounting locations.
