1-7520-X

127mm

6 1/2''

165mm

12''

305mm

2 5/8" 67mm

15"

381mm

approx. 6"-152mm right or left

approx.

36"

914mm

approx.

41"

1041mm

approx.

30"

762mm

7/8"

22mm

5/8"

16mm

1/4''

6mm

1/4"

6mm

4''

102mm

21''

533mm

31 3/8" 797mm

30 1/2" 775mm

finished wall

hot and cold inlets

shower discharge

floor line

Male 1/2'' I.P.S. thread must protrude 7/8''

(22mm) from finished wall for proper

installation of street ell and flange.

adjustment

proper backing

screw bar support into stud or install

All piping including valve inlets and outlets 3/4" except where noted otherwise.

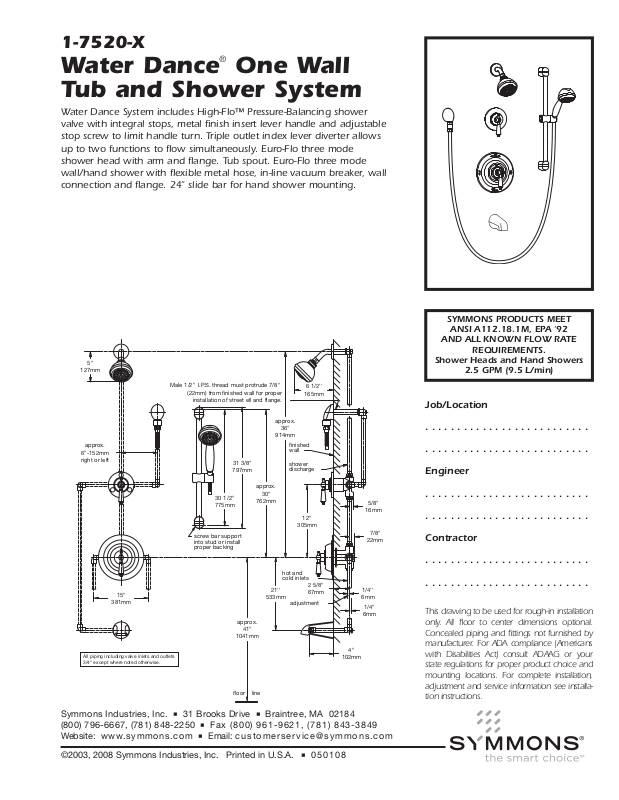

Water Dance ® One Wall Tub and Shower System

Water Dance System includes High-Flo™ Pressure-Balancing shower valve with integral stops, metal ﬁnish insert lever handle and adjustable stop screw to limit handle turn. Triple outlet index lever diverter allows up to two functions to ﬂow simultaneously. Euro-Flo three mode shower head with arm and ﬂange. Tub spout. Euro-Flo three mode wall/hand shower with ﬂexible metal hose, in-line vacuum breaker, wall connection and ﬂange. 24” slide bar for hand shower mounting.

SYMMONS PRODUCTS MEET

ANSI A112.18.1M, EPA ‘92

AND ALL KNOWN FLOW RATE

REQUIREMENTS.

Shower Heads and Hand Showers

2.5 GPM (9.5 L/min)

Symmons Industries, Inc. ■ 31 Brooks Drive ■ Braintree, MA 02184 (800) 796-6667, (781) 848-2250 ■ Fax (800) 9 6 1 - 9 6 21, (781) 8 4 3 - 3 8 4 9 Website: www.symmons. c o m ■ Email: c us t o me r s er v i c e @ sy m m on s . co m

Job/Location

. . . . . . . . . . . . . . . . . . . . . . . . . .

Engineer

. . . . . . . . . . . . . . . . . . . . . . . . . .

Contractor

. . . . . . . . . . . . . . . . . . . . . . . . . .

This drawing to be used for rough-in installation only. All ﬂoor to center dimensions optional. Concealed piping and ﬁttings not furnished by manufacturer. For ADA compliance (Americans with Disabilities Act) consult ADAAG or your state regulations for proper product choice and mounting locations. For complete installation, adjustment and service information see installation instructions.
