1-7470-X
5"
127mm
6 1/2''
165mm
12''
305mm
2 5/8"
67mm
15"
381mm
approx.
6"-152mm
right or left
approx.
40"
1016mm
approx.
41"
1041mm
approx.
30"
762mm
7/8"
22mm
5/8"
16mm
20"
508mm
10"
254mm
approx.
36"
914mm
1/4''
6mm
1/4"
6mm
3/4"
3/4"
1/2"
25 1/2"
648mm
24 5/8"
625mm
finished
wall
hot and
cold inlets
shower
discharge
floor line
Male 1/2'' I.P.S. thread must protrude 7/8''
(22mm) from finished wall for proper
installation of street ell and flange.
adjustment
screw bar support
into stud or install
proper backing
All piping including valve inlets and outlets
3/4" except where noted otherwise.
Water Dance ® Two Wall
Shower System
Water Dance System includes High-Flo™ Pressure-Balancing shower
valve with integral stops, metal finish insert lever handle and adjustable
stop screw to limit handle turn. Triple outlet index lever diverter allows
up to two functions to flow simultaneously. Euro-Flo three mode
shower head with arm and flange. Four Euro-Flo adjustable body
sprays. Euro-Flo three mode wall/hand shower with flexible metal hose,
in-line vacuum breaker, wall connection and flange. 24” slide bar for
hand shower mounting.
SYMMONS PRODUCTS MEET
ANSI A112.18.1M, EPA ‘92
AND ALL KNOWN FLOW RATE
REQUIREMENTS.
Shower Heads and Hand Showers
2.5 GPM (9.5 L/min)
Symmons Industries, Inc. ■ 31 Brooks Drive ■ Braintree, MA 02184
(800) 796-6667, (781) 848-2250 ■ Fax (800) 9 6 1 - 9 6 21, (781) 8 4 3 - 3 8 4 9
Website: www.symmons. c o m ■ Email: c us t o me r s er v i c e @ sy m m on s . co m
Job/Location
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
Engineer
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
Contractor
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .

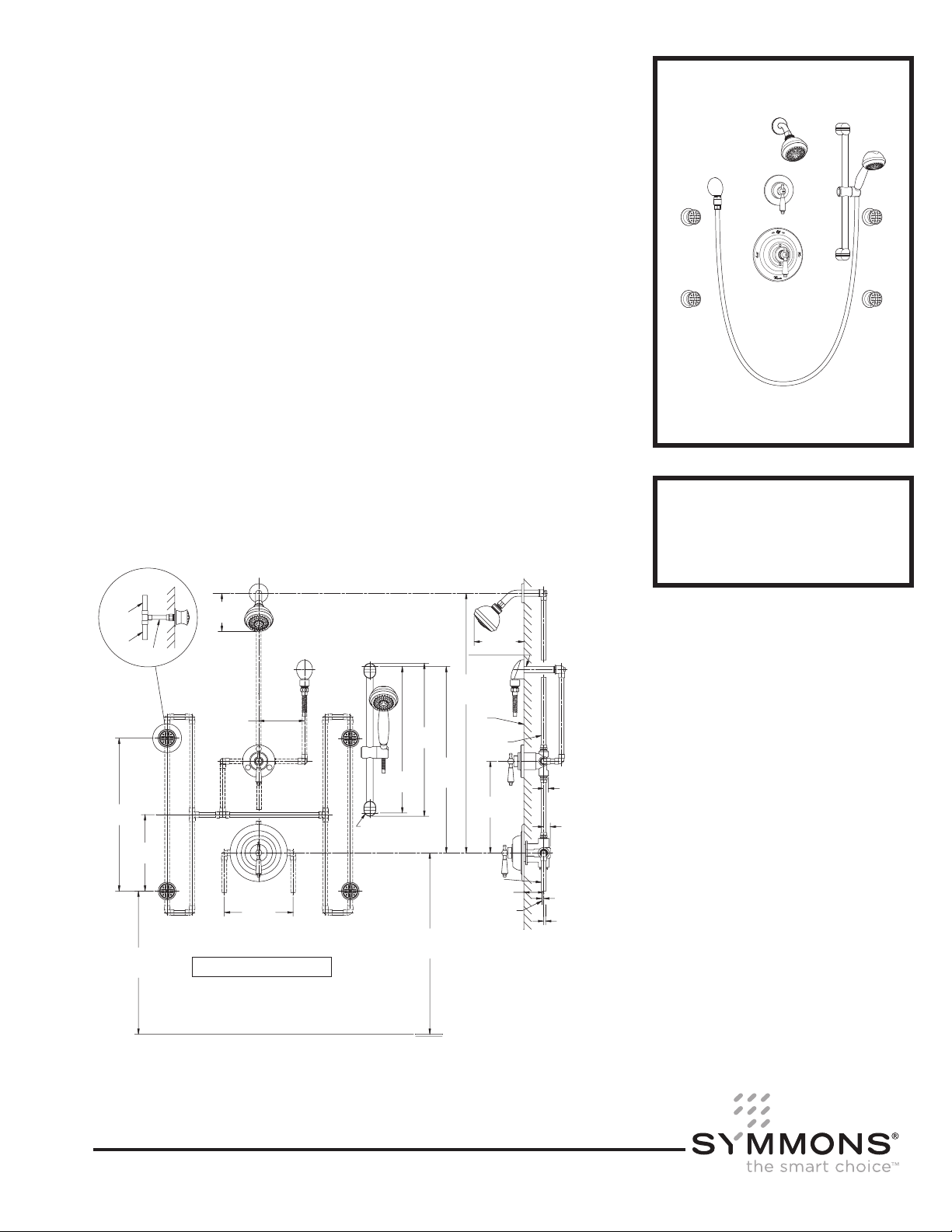

This drawing to be used for rough-in installation
only. All floor to center dimensions optional.
Concealed piping and fittings not furnished by
manufacturer. For ADA compliance (Americans
with Disabilities Act) consult ADAAG or your
state regulations for proper product choice and
mounting locations. For complete installation,
adjustment and service information see installation instructions.
©2003, 2008 Symmons Industries, Inc. Printed in U.S.A. ■ 050108
