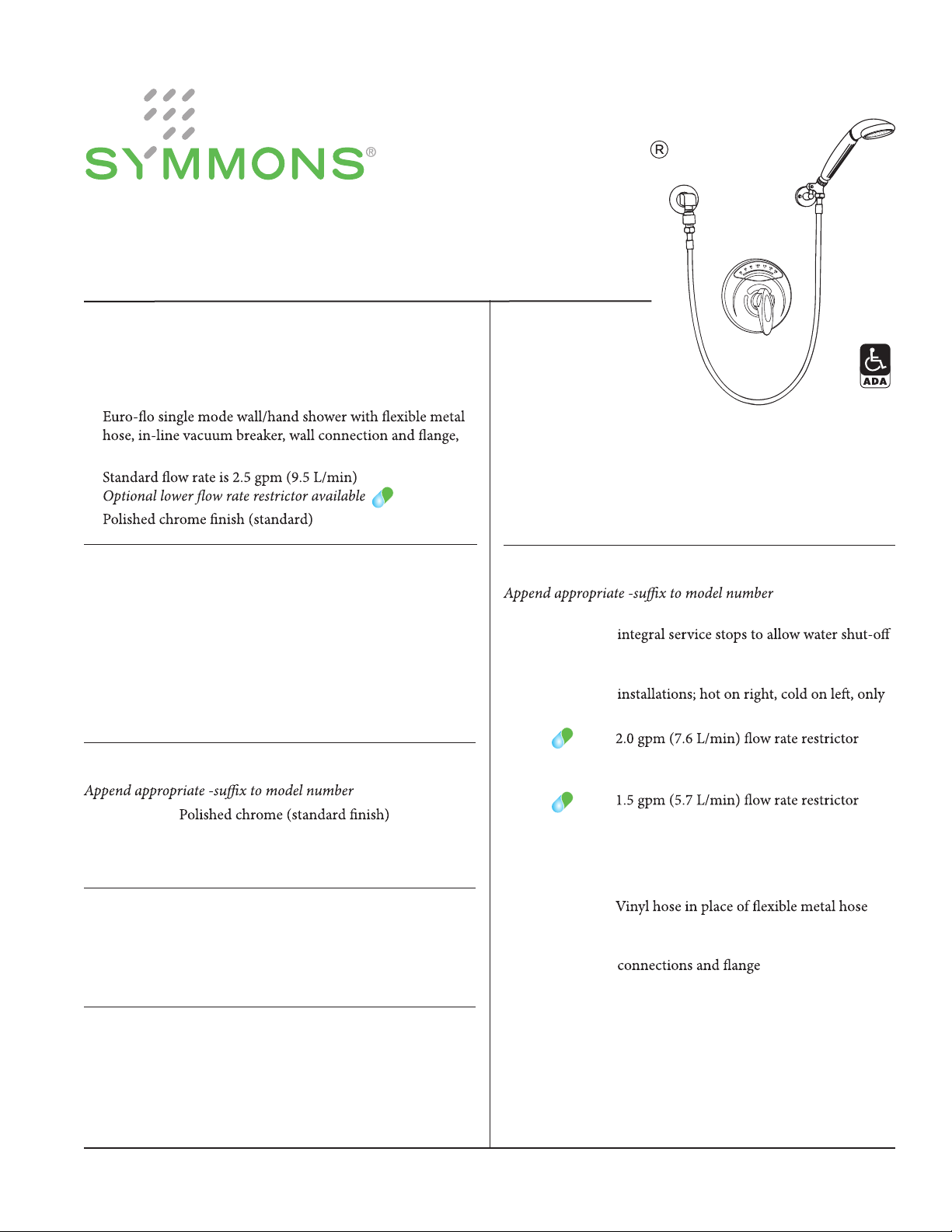

Page 1
Location:
Visu-Temp
Hand Shower System, 1-25VT-FS
Specification Submittal
Feature Highlights
■ Symmons Visu-Temp® pressure-balancing mixing valve
with Clear-vue™ thermometer and adjustable stop screw to
limit handle turn, #VT-1
■
#FS-KIT that includes wand #460C
■
■
Model Numbers
1-25VT-FS
Hand Shower System with Symmons Visu-Temp
pressure-balancing mixing valve
Finish Options / Modifications
-
Standards / Certifications
ASME A112.18.1-2005/CSA B125.1-05
Options / Modifications
Symmons Visu-Temp mixing valve includes
®
-X
-REV
-2.0
-1.5
-72
-R
L/HS
®
for service
Reverse coring in valve for back to back
available with integral stops, option -X
(Requires substituting hand shower wand
with #EF-100)
(Requires substituting hand shower wand
with #EF-100)
6 foot hand shower hose in place of standard
5 foot hose
Hand Shower wand not included,
Includes hose, in-line vacuum breaker, wall
Warranty
■ Limited Lifetime - to the original end purchaser in
consumer installations.
■ 5 years - for commercial installations
Quick-disconnect on hand shower
-QD
Vandal resistant
-VP
Elevated vacuum breaker in place of in-line
-VB
vacuum breaker
Page 2
Dimensions Visu-Temp Hand Shower System, 1-25VT-FS
Male 1/2” I.P.S. thread must protrude 3/8” (10mm) from
finished wall for proper installation of street ell and flange.
Note: Dimensions subject to
change without notice.
Symmons Industries, Inc. ■ 31 Brooks Drive ■ Braintree, MA 02184
(800) 796-6667, (781) 848-2250
Website: www.symmons.com
©2011 Symmons Industries, Inc. Printed in U.S.A.
■ Fax (800 ) 961-96 2 1 , (781) 664-13 00
■ Email: custome rse rvice@symm ons .com
■ ZV-945 Rev 0 05/15/13
NOTE: 2-1/2” (64mm) m in.
3” (76mm) m ax. O n 2”x4”
construction, use 2-1/2”
(64mm) m in. r ough-in.
Valve inlets and outlets a r e
1/2” (13mm) IPS connections.
