Symcom MP8000 Software Manual

MP8000

SOFTWARE

Instruction Manual

REVISION 0-B-030818

Copyright © 2018 Littelfuse. All rights reserved.

Page A

MP8000 Software

REV. 0-B-030818

All brand or product names appearing in this document are the trademark or registered
trademark of their respective holders. No Littelfuse trademarks may be used without written
permission. Littelfuse products appearing in this document may be covered by U.S. and
Foreign patents.

Littelfuse, Inc. reserves all rights and benefits afforded under federal and international
copyright and patent laws in its products, including without limitation software, firmware,
and documentation.

The information in this document is provided for informational use only and is subject to
change without notice. Littelfuse, Inc. has approved only the English language document.

Page 1

MP8000 Software

REV. 0-B-030818

TABLE OF CONTENTS

SECTION PAGE

1.0 Introduction ..............................................................................................................................................................................................2

1.1 Manual Overview ................................................................................................................................................................................2

1.2 System Requirements ..........................................................................................................................................................................2

2.0 Getting Started ......................................................................................................................................................................................... 3

2.1 Unzipping and running .........................................................................................................................................................................3

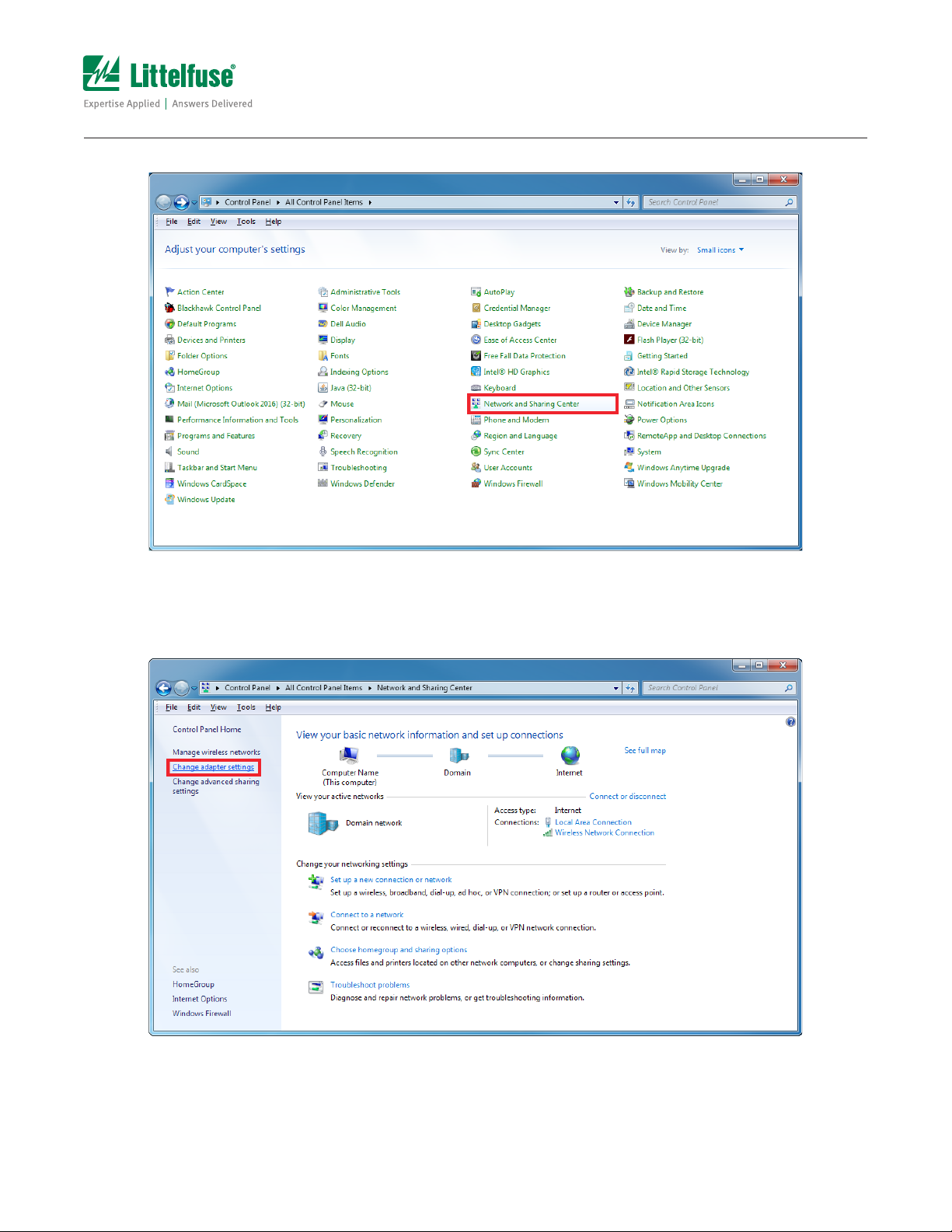

2.2 Connection Diagrams ..........................................................................................................................................................................7

3.0 Real-time Screen Overview ................................................................................................................................................................ 12

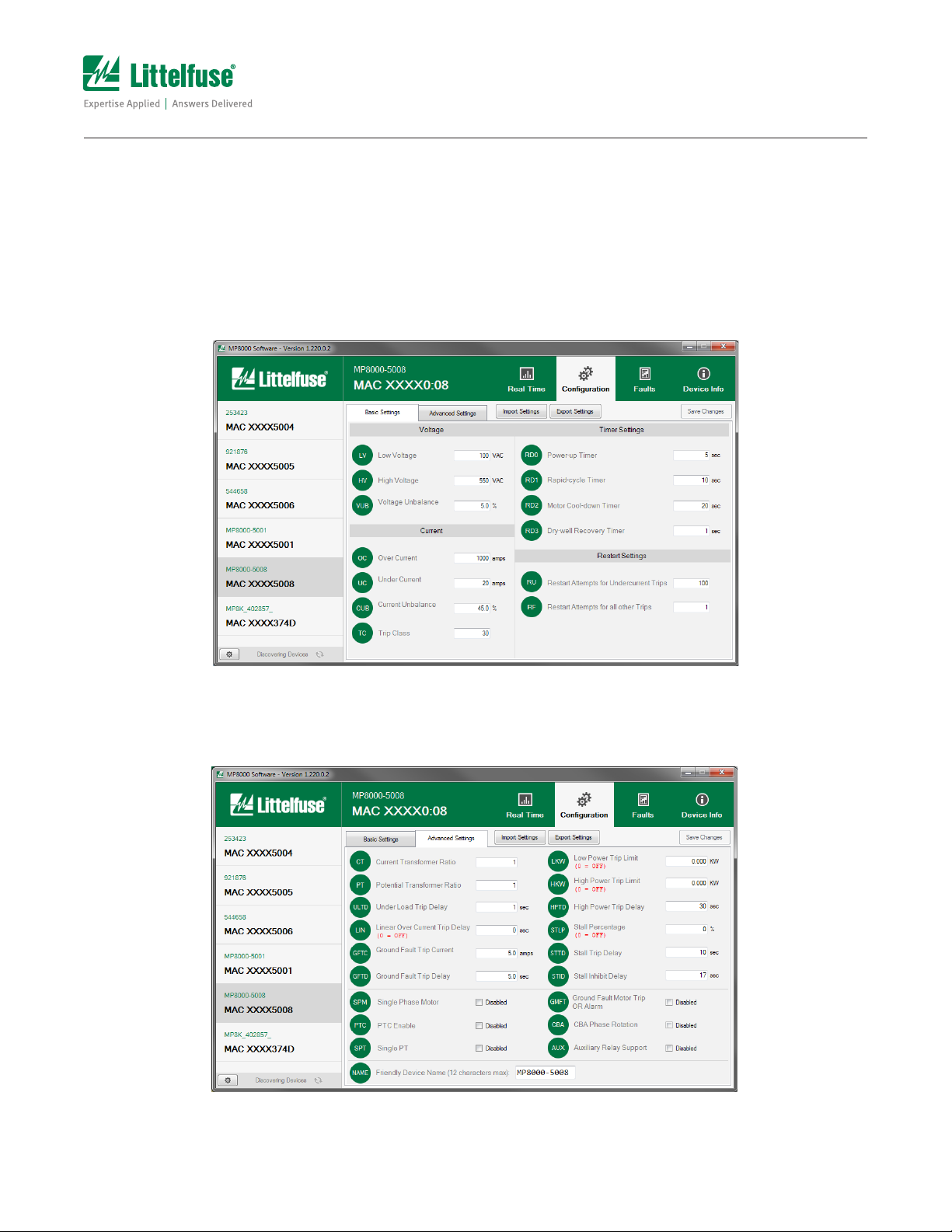

4.0 Configuration Screen Overview .........................................................................................................................................................13

4.1 Basic Configuration Screen ...............................................................................................................................................................13

4.2 Advanced Configuration Screen ........................................................................................................................................................13

5.0 Fault Log Screen Overview .................................................................................................................................................................14

6.0 Device Info Screen Overview ............................................................................................................................................................. 15

7.0 Troubleshooting .....................................................................................................................................................................................16

7.1 No Units Are Discovered ...................................................................................................................................................................16

7.2 .NET Version Error .............................................................................................................................................................................16

7.3 Configuration Settings Fail to Write .................................................................................................................................................17

Page 2

MP8000 Software

REV. 0-B-030818

1.0 INTRODUCTION

1.1 Manual Overview

The MP8000 Software manual describes the features and abilities of the MP8000 software. The MP8000
software program is designed to interact with the MP8000 Motor Relay product. The software allows a user to
see real time values, change configuration settings, and view device fault logs and information. In addition, this
manual includes a troubleshooting section for dealing with possible issues that could arise when dealing with
the software.

1.2 System Requirements

In order to run and use the MP8000 Software program, the following system requirements must be met in
order to assure proper functionality of the software.

OPERATING SYSTEM

.NET FRAMEWORK

CPU

RAM

ETHERNET

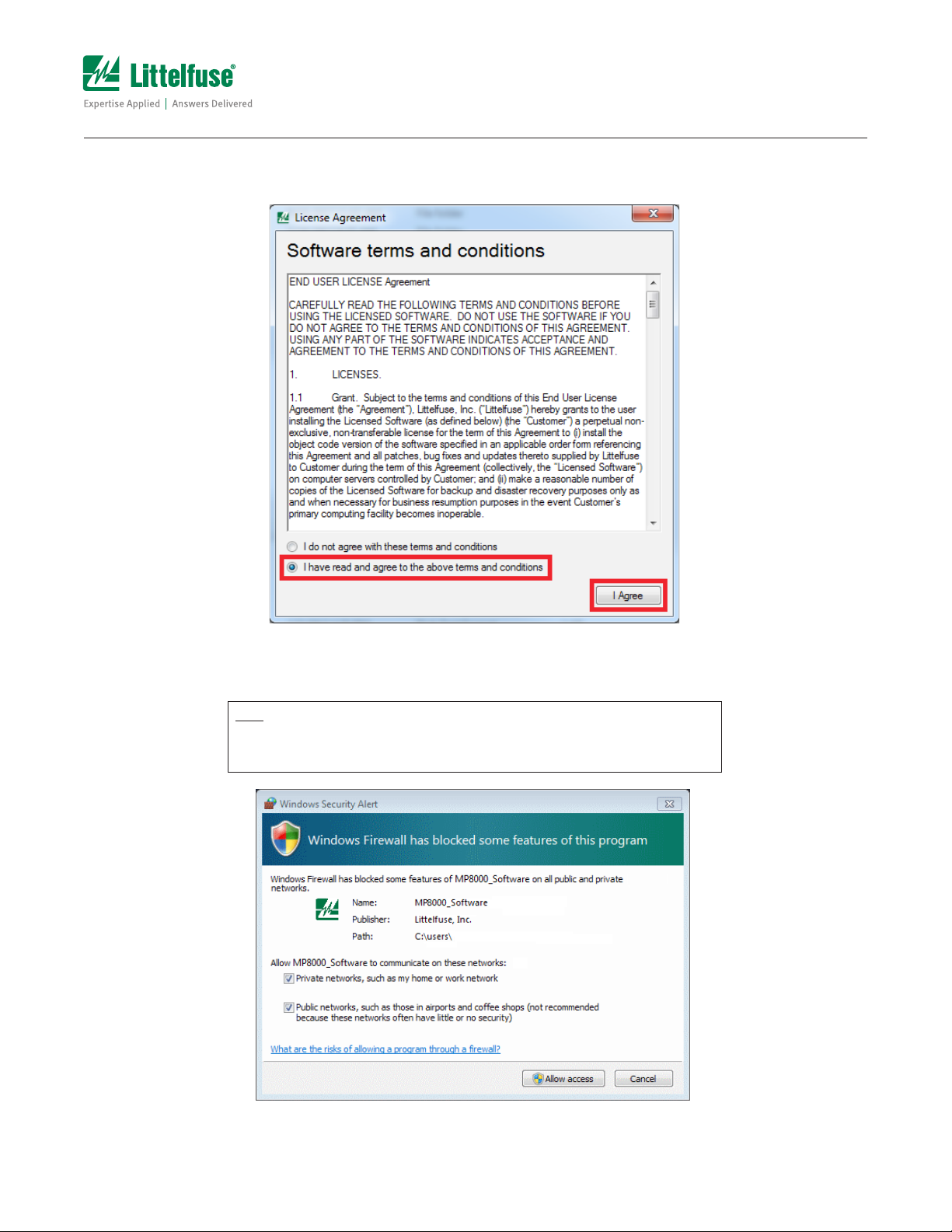

NOTE: This software can be run without administrative privileges. HOWEVER, this program

communicates with MP8000 devices over TCP/IP. More specifically, the software listens
for MP8000 broadcast packets on UDP port 17186, and connects to and reads data from
an MP8000 over Modbus. As such, the program must be allowed through the firewall settings on
the computer it is running on to insure proper functionality. Allowing a program through a firewall
may require administrator permissions.

Microsoft Windows 7 or later (32 or 64 bit)

.NET Framework version 4.5 or greater

Intel Core i5 or better recommended

4GB or greater

Ethernet port or compatible USB-to-Ethernet adapter

Page 3

MP8000 Software

REV. 0-B-030818

2.0 GETTING STARTED

This section of the document describes the process of unzipping, installing, and running the MP8000 Software
program. Unless the files have been acquired by a different source, an active internet connection is required to
download the program files necessary for running the MP8000 Software program.

2.1 Unzipping and running

Step 1: Extract the ZIP folder (if you haven’t already) after downloading.

1a. Click the “Extract all files” button

Figure 2.1 – Extracting all files

MP8000 Software

REV. 0-B-030818

1b. Make sure the “Show extracted files when complete” checkbox is selected, then click the

“Extract” button at the bottom of the window.

Page 4

Figure 2.2 – Actually Extracting

Step 2: Once the program files are extracted, run the program by double-clicking on the .exe file.

Figure 2.3 – Extracted files
