SymCom Motor Saver 460-SP Installation Instructions Manual

BE SURE POWER IS DISCONNECTED PRIOR TO INSTALLATION!

FOLLOW NATIONAL, STATE, AND LOCAL CODES!

READ THESE INSTRUCTIONS ENTIRELY BEFORE

INSTALLATION!

INSTALLATION INSTRUCTIONS

FOR SYMCOM’S MOTORSAVER



MODEL 460-SP

The Model 460-SP MotorSaver is a voltage monitor designed to protect
single-phase motors regardless of size. The MotorSaver



is used on 190­240 (95-120) VAC, 50 to 60 Hz motors to protect from damage caused by low
voltage and high voltage.

CONNECTIONS

1. Mount the MotorSaver in a convenient location in or near the motor

control panel. If the location is wet or dusty, the MotorSaver should
be mounted in a NEMA 4 or 12 enclosure. The MotorSaver can be
mounted to a back panel using two #6 or #8 x 5/8 screws or can be
snapped onto a DIN rail.

2. Connect L1 and L2 on the MotorSaver’s terminal strip to the LINE SIDE

of the motor starter (See Figure 1).

3. Connect the output relay to the circuitry to be controlled. For motor control,

connect the normally open contact in series with the magnetic coil of the
motor starter (See Figure 1). For alarm operation, connect the
normally closed contact in series with the control circuit (See Figure 2).

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

1-Phase Voltage

CONTROL VOLTAGE

24-240 VAC

460-SP

FIGURE 1: CONTROL WIRING DIAGRAM

LIGHT

3-Phase Voltage

CONTROL VOLTAGE

24-240 VAC

460-SP

FIGURE 2: ALARM WIRING DIAGRAM

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

SETTINGS

1. Line voltage adjustment: Rotate the “VOLTAGE ADJ. (VAC)” to the nominal
line voltage feeding the motor to be protected.

2. Restart delay adjustment: Rotate the “RESTART (SEC)” adjustment to the
desired position. The restart delay is the time between the MotorSaver®
seeing acceptable voltage and the MotorSaver® closing its output contacts.
For compressor applications, the restart delay should be set for the
approximate time it takes for the head pressure to bleed off of the
compressor. For other applications, the restart delay is typically set between
2 and 10 seconds.

100

5001

VOLTAGE ADJ. (VAC) RESTART (SEC)

MODEL 460-SP

220

230

20 250

240

200

19

0

208

LED STATUS

RUN

RESTART DELAY

HIGH / LOW VOLTAGE

GREEN

GREEN

RED

21

4

5

6

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

CONGRATULATIONS!!

YOU HAVE JUST INSTALLED THE FINEST

MOTOR PROTECTION AVAILABLE!!

POWER-UP

Turn on the power to the motor. The MotorSaver’s green RUN light will blink
during the RESTART delay. After the RESTART delay, the MotorSaver® will
energize its output contacts and the green RUN light will illuminate. If the
contacts do not energize and the RUN light does not illuminate, see the
TROUBLESHOOTING section.

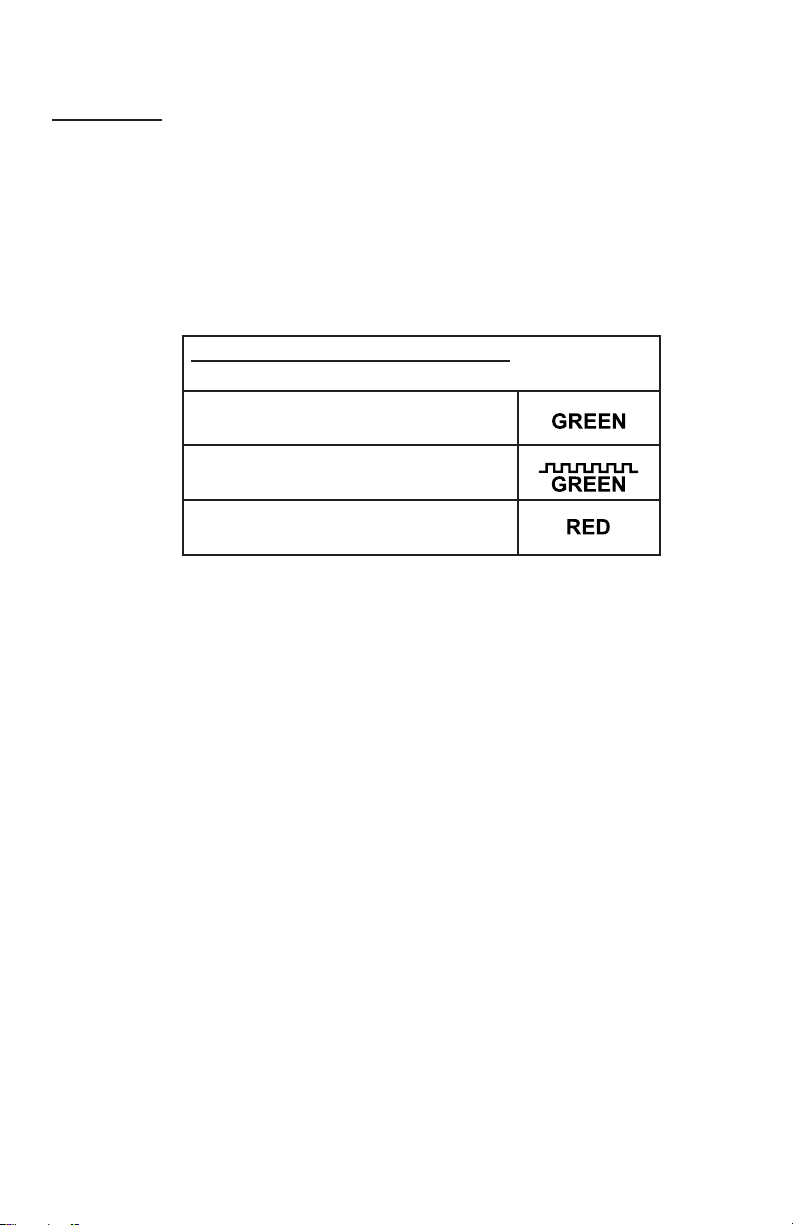

DIAGNOSTIC INDICATOR LIGHTS

RUN

RESTART DELAY

HIGH / LOW VOLTAGE

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

TROUBLESHOOTING

SYMPTOM

LIGHT

PATTERN

SOLUTION

No lights are on.

The unit seems

completely dead.

N / A

Measure the voltage. If the voltage is below
75 VAC, the MotorSaver



does not have
enough power to operate its internal elec­tronics.
If the voltage is correct, call SymCom at
1-800-843-8848 or 1-605-348-5580.

Red light is on

steady.

The voltage is out of tolerance. Measure
the input voltage. If the voltage is 7% above
or below the nominal voltage as selected
by the LINE VOLTAGE ADJUST, the
MotorSaver



is functioning properly. If the
voltage is within ±7% of the selected line
voltage, call SymCom at
1-800-843-8848 or 1-605-348-5580.

Green light blinks

and motor is not

running.

The MotorSaver



is in restart delay.

Green light is on

steady, but motor

does not start.

The MotorSaver



is in run mode. Ensure
other control devices are allowing the
motor to start. Check control circuit for
loose wires or malfunctioning switches.

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

SPECIFICATIONS

1 - Phase Line Voltage 190 - 240 (95-120) VAC

Frequency 50* - 60 Hz

High Voltage (% of setpoint)

Trip 110% ±1%

Reset 107% ±1%

Low Voltage (% of setpoint)

Trip 90% ±1%

Reset 93% ±1%

Trip Delay Time

Low Voltage 4 Seconds Fixed

High Voltage 4 Seconds Fixed

Restart Delay Time

After a complete power loss 1-500 Seconds Adjustable

Output Contact Rating - SPDT

Pilot Duty 480 VA @ 240 VAC

General Purpose 10 A @ 240 VAC

Power Consumption 6 Watts (maximum)

Weight 14 oz

Enclosure Polycarbonate

Terminal

Torque 6 Inch-Pounds

Wire AWG 12 - 20 AWG

Safety Marks

UL UL508 (File # E68520)

CE IEC 60947-6-2

Standards Passed

Electrostatic Discharge (ESD)

IEC 1000-4-2, Level 3, 6 kv contact,
8 kv air

Radio Frequency Immunity, Radiated 159 MHz, 10 V/m

Fast Transient Burst

IEC 1000-4-4, Level 3, 3.5 kv input
power and controls

*NOTE: 50 Hz will increase all delay timers by 20%

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]

SymCom warrants its microcontroller based products against defects in material or workmanship
for a period of ve (5) years* from the date of manufacture. All other products manufactured by
SymCom shall be warranted against defects in material and workmanship for a period of two (2)
years from the date of manufacture. For complete information on warranty, liability, terms, and
conditions, please refer to the SymCom Terms and Conditions of Sale document.

DIMENSIONS

Surge

IEC

IEC 1000-4-5, Level 3, 4kv line-to-line;
Level 4, 4kv line-to-ground

ANSI / IEEE

C62.41 Surge and Ring Wave Compliance
to a level of 6kv line-to-line

Hi-potential Test

Meets UL508 (2 x rated V +1000V for 1
minute)

Environmental

Temperature Range

Ambient Operating: -20° - 70° C (-4° - 158°F)
Ambient Storage: -40° - 80° C (-40° - 176°F)

Class of Protection IP20, NEMA 1 (Finger Safe)

Relative Humidity 10-95%, non-condensing per IEC 68-2-3

2.350
