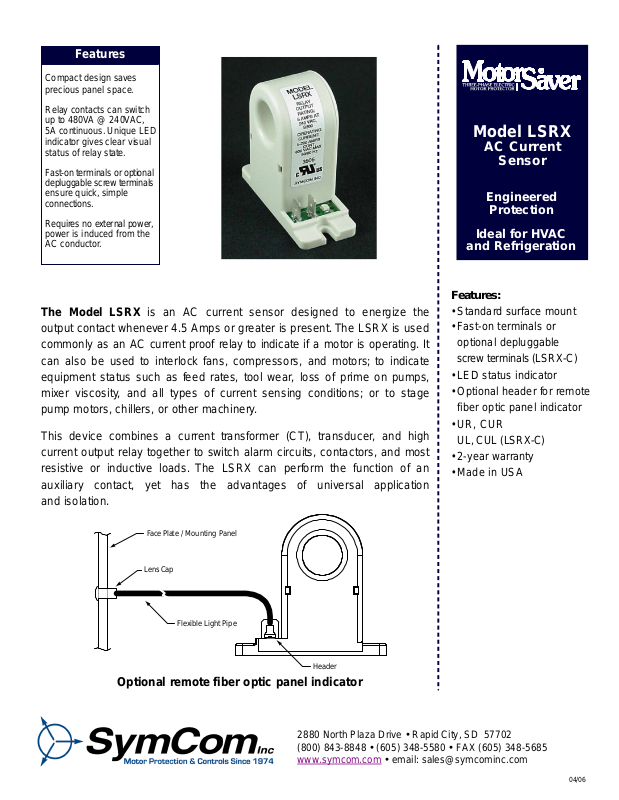

Symcom LSRX Catalog Page

Features

www.symcom.com

Compact design saves
precious panel space.

Relay contacts can switch
up to 480 VA @ 240VAC,
5A continuous.Unique LED

indicator gives clear visual
status of relay state.

Fast-on terminals or optional
depluggable screw terminals
ensure quick, simple
connections.

Requires no external power,
power is induced from the
AC conductor.

The Model LSRX is an AC current sensor designed to energize the
output contact whenever 4.5 Amps or greater is present. The LSRX is used
commonly as an AC current proof relay to indicat e if a motor is operating. It
can also be used to interlock fans, c ompressors, and motors; to indicate
equipment status such as feed rates, tool wear, loss of prime on pumps,
mixer viscosity , and all types of current sensing conditions; or to stage
pump motors, chillers, or other machinery.

This device combines a current transformer (CT), transducer, and high
current output relay together to switch alarm circuits, contactors, and most
resistive or inductive loads. The LSRX can perform the function of an
auxiliary contact, yet has the advantages of universal application
and isolation.

Model LSRX

AC Current

Sensor

Engineered

Protection

Ideal for HVAC

and Refrigeration

Features:

• Standard surface mount

• Fast-on te rminals or
optional depluggable
screw terminals (LSRX-C)

• LED status indicator

• Optional header for remote
fiber optic panel indicator

• UR, CUR
UL, CUL (LSRX-C)

• 2-year warranty

• Made in USA

Face Plate /Mounting Panel

LensCap

Flexible Light Pipe

Header

Optional remote fiber optic panel indicator

2880 North Plaza Drive • Rapid City, SD 57702
[phone]• [phone] • FAX [phone]

• email: sales@symcomi nc.com

04/06

Specifications

www.symcom.com

•

Operating Points

•

Special Options

Specifications

Model LSRX

Model LSRX

Operating Current
Minimum Pull-in Current
Po wer
Relay

Maximum Conductor Diameter
Output Terminals

LSRX.................................................... 0.25” quick-connect fast-ons

LSRX-C .............................................… depluggable screw terminals

Wire Size.........................................…. 12-26 AWG

Torque Rating .................................…. 4.5 in.-lbs.

Output Relay Status Indicator
Weight
Operating Temperature
Agency Approval

.................................................. Induced from AC conductor

Output Rating ........................……… 480V A @ 240V A C, B300

............................................................ 5A General Purpose

Electrical Life.................................. 1x106 operations at rated load

Mechanical Life.............................. 1x107 operations

................................................ 0.15 lbs.

LSRX ..............................................

LSRX-C ..........................................

Caution: This product should not be relied upon solely in life or safety applications.
*Conductors may be looped for lower current applications.

.............................. 5-200A Continuous

.................. 4.5A (typical), 5.0A (max.)*

...... 0.7 in.

.......... LED

...................... -20° to 70°C

UR, CUR
UL, CUL

C

L

Model LSRX-C

SymCom warrants its microprocessor based products againstdefects in material or workmanship for a periodof
five(5) years from the dateof manufacture. All other productsmanufactured by SymCom shall be warranted
against defects inmaterial and workmanship for a period oftwo (2) years from thedate of manufacture. For
complete information on warranty, liability, terms, returns, and cancellations, please refer to theSymCom Terms
and Conditions of Saledocument.
