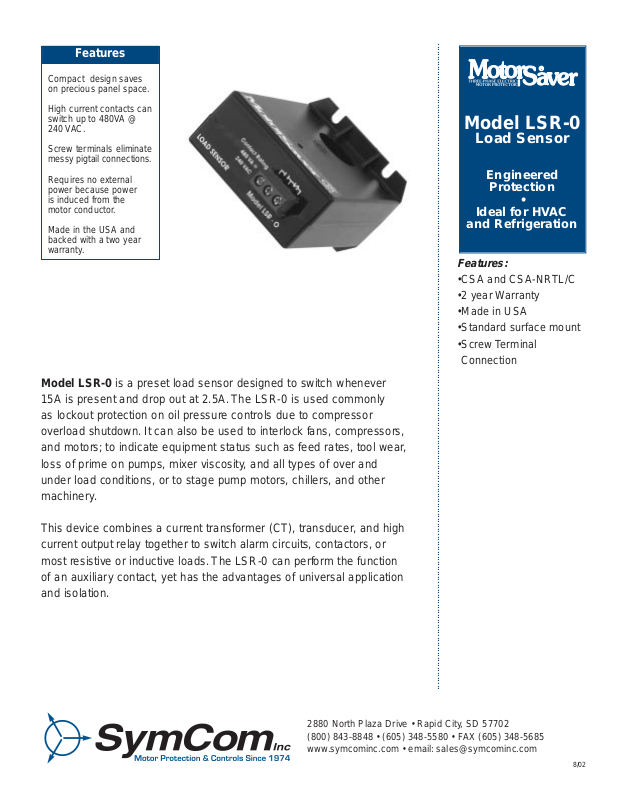

Features
................................................................................................................................................................................................................................................................
Compact design saves
on precious panel space.
High current contacts can
switch up to 480VA @
240 V A C.
Screw terminals eliminate
messy pigtail connections.
Requires no external
power because power
is induced from the
motor conductor.
Made in the USA and
backed with a two year
warranty.
Model LSR-0
Load Sensor
Engineered
Protection
•
Ideal for HVAC
and Refrigeration
Features:
•CSA and CSA-NRTL/C
•2 year Warranty
•Made in USA
•Standard surface mount
•Screw Terminal
Connection
Model LSR-0 is a preset load sensor designed to switch whenever
15A is present and drop out at 2.5A.The LSR-0 is used commonly
as lockout protection on oil pressure controls due to compressor
overload shutdown.It can also be used to inter lock fans, compressors,
and motors; to indicate equipment status such as feed rates, tool wear,
loss of prime on pumps, mixer viscosity, and all types of over and
under load conditions, or to stage pump motors, chillers, and other
machinery.
This device combines a current transformer (CT), transducer, and high
current output relay together to switch alarm circuits, contactors, or
most resistive or inductive loads.The LSR-0 can perform the function
of an auxiliary contact, yet has the advantages of universal application
and isolation.
8/02
2880 North Plaza Drive • Rapid City, SD 57702
(800) 843-8848 • (605) 348-5580 • FAX (605) 348-5685
www.symcominc.com • email:sales@symcominc.com
..................................................................................................................................................................................................................................................................
Specifications
Amperage Ratings ....................................135A MAX Continuous
T urn-on Threshold ....................................Fixed, 15A (max)*
T urn-off Threshold....................................2.5 Amps (min)
Power ........................................................Induced from conductor
Isolation ....................................................600 VA C rms
Relay Output Rating ................................480 VA @ 240 VAC
Caution:This product should not be relied upon solely in life or safety applications.
*Conductors may be looped for smaller motor applications.
Ordering Information
Specifications
•
Operating Points
•
Special Options
Model LSR-0
SymCom warrants its microprocessor based products against defects in material or workmanship for a period
of five (5) years from the date of manufacture.All other products manufactured by SymCom shall be warranted
against defects in material and workmanship for a period of two (2) years from the date of manufacture. For
complete information on warranty, liability, terms, returns, and cancellations, please refer to the SymCom Ter ms
and Conditions of Sale document.
Model #
Amperage
Range
Output Rating
Tr ip Point
Trip
Point
Adj.
Output
Status
LED
Sensor
Power
LED
Relay
Status
LED
LSR-0
0-135A
480VA@240VAC
Induced
No No No
NO
