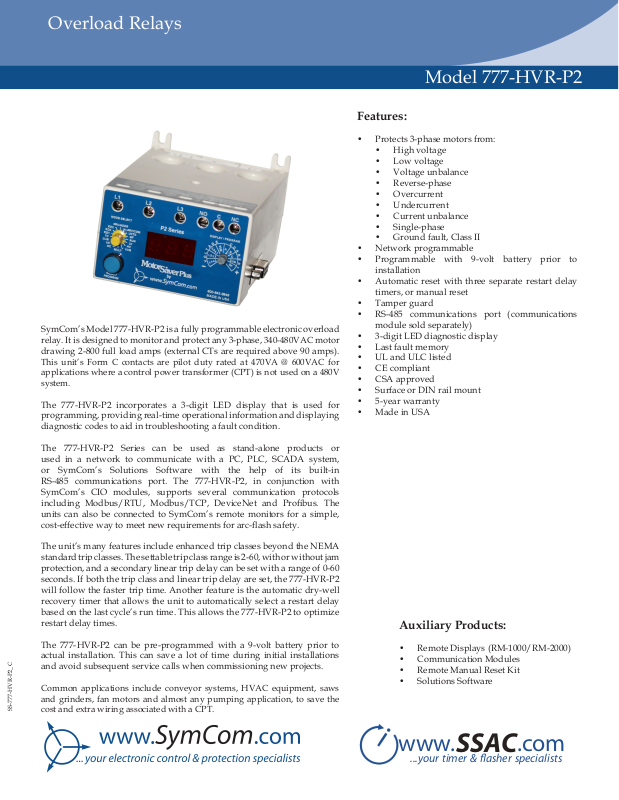

Page 1
Overload Relays
SymCom’s Model 777-HVR-P2 is a fully programmable electronic overload
relay. It is designed to monitor and protect any 3-phase, 340-480VAC motor
drawing 2-800 full load amps (external CTs are required above 90 amps).
This unit’s Form C contacts are pilot duty rated at 470VA @ 600VAC for
applications where a control power transformer (CPT) is not used on a 480V
system.
The 777-HVR-P2 incorporates a 3-digit LED display that is used for
programming, providing real-time operational information and displaying
diagnostic codes to aid in troubleshooting a fault condition.
Model 777-HVR-P2
Features:
• Protects 3-phase motors from:
• High voltage
• Low voltage
• Voltage unbalance
• Reverse-phase
• Overcurrent
• Undercurrent
• Current unbalance
• Single-phase
• Ground fault, Class II
• Network programmable
• Programmable with 9-volt battery prior to
installation
• Automatic reset with three separate restart delay
timers, or manual reset
• Tamper guard
• RS-485 communications port (communications
module sold separately)
• 3-digit LED diagnostic display
• Last fault memory
• UL and ULC listed
• CE compliant
• CSA approved
• Surface or DIN rail mount
• 5-year warranty
• Made in USA
The 777-HVR-P2 Series can be used as stand-alone products or
used in a network to communicate with a PC, PLC, SCADA system,
or SymCom’s Solutions Software with the help of its built-in
RS-485 communications port. The 777-HVR-P2, in conjunction with
SymCom’s CIO modules, supports several communication protocols
including Modbus/RTU, Modbus/TCP, DeviceNet and Probus. The
units can also be connected to SymCom’s remote monitors for a simple,
cost-effectivewaytomeetnewrequirementsforarc-ashsafety.
The unit’s many features include enhanced trip classes beyond the NEMA
standard trip classes. The settable trip class range is 2-60, with or without jam
protection, and a secondary linear trip delay can be set with a range of 0-60
seconds. If both the trip class and linear trip delay are set, the 777-HVR-P2
will follow the faster trip time. Another feature is the automatic dry-well
recovery timer that allows the unit to automatically select a restart delay
based on the last cycle’s run time. This allows the 777-HVR-P2 to optimize
restart delay times.
The 777-HVR-P2 can be pre-programmed with a 9-volt battery prior to
actual installation. This can save a lot of time during initial installations
and avoid subsequent service calls when commissioning new projects.
Common applications include conveyor systems, HVAC equipment, saws
and grinders, fan motors and almost any pumping application, to save the
SS-777-HVR-P2_C
cost and extra wiring associated with a CPT.
Auxiliary Products:
• Remote Displays (RM-1000/RM-2000)
• Communication Modules
• Remote Manual Reset Kit
• Solutions Software
www. .com
SSAC
...your timer & asher specialists
Rev. 0810
Page 2
Specications
Functional Specications
Programmable Operating Points
LV-Low Voltage Threshold
HV-High Voltage Threshold
VUB-Voltage Unbalance Threshold
MULT-# of Conductors or CT Ratio (xxx:5)
OC-Overcurrent Threshold
UC-Undercurrent Threshold
CUB-Current Unbalance Threshold
TC-Overcurrent Trip Class and Linear Overcurrent
Trip Delay
RD1-Rapid-cycle Timer
RD2-Restart Delay after all faults except
undercurrent (motor cool-down timer)
RD3-Restart Delay after undercurrent (dry-well
recovery timer)
#RU- Number of restarts after all undercurrent faults
ADDR-RS485 Address
#RF-Number of restarts after all faults except
undercurrent
COM-Communications setting
UCTD-Undercurrent Trip Delay
GF-Ground Fault Current Threshold
Input Characteristics
Supply Voltage
Frequency
Motor Full Load Amp Range
Output Characteristics
Output Contact Rating - SPDT (Form C)
Pilot Duty
Expected Life
Mechanical
Electrical
General Characteristics
Operating Temperature
Ambient Operating
Ambient Storage
Accuracy at 25o C (77o F)
Voltage
Current
Timing
Ground Fault
Repeatability
Voltage
Current
Maximum Input Power
Pollution Degree
Class of Protection
Relative Humidity
Terminal Torque
Standards Passed
Electrostatic Discharge (ESD)
Radio Frequency Immunity (RFI), Conducted
Radio Frequency Immunity (RFI), Radiated
Fast Transient Burst
Short Circuit
Surge
IEC
ANSI/IEEE
Hi-potential Test
Vibration
Shock
Safety Marks
UL
CE
Max Conductor Size through 777-P2
Dimensions
Weight
Mounting Method
340-523V
341-528V
2-25% or 999 (disabled)
1-10, 100, 150, 200, 300, 400, 500, 600, 700, 800
(20-100A) ÷ MULT of 80-140% of CT Primary
(0, 10-98A) ÷ MULT or 40-140% of CT Primary
2-50% or 999 (disabled)
02-60, J02-J60; L00-L60 or oFF
0-999 seconds
2-500 minutes
2-500 minutes, A (automatic)
0, 1, 2, 3, 4, A (automatic)
A01-A99
0, 1, oc1, 2, oc2, 3, oc3, 4, oc4, A, ocA (automatic)
C00-C07
2-999 seconds (standard)
(3-20A) ÷ MULT or 12-40% of CT Primary or oFF
340-480VAC
50/60Hz
2-20A (looped conductors required), 20-90A (direct), 90-800A
(external CTs required)
470VA@600VAC, B600
1 x 106 operations
1 x 105 operations at rated load
-20o to 70o C (-4o to 158o F)
-40o to 80o C (-40o to 176o F)
± 1%
± 3% (<100A direct)
± 0.5 second
± 15% (<100A)
± 0.5% of nominal voltage
± 1% (<100A direct)
10 W
3
IP20
10-95%, non-condensing per IEC 68-2-3
7 in.-lbs.
IEC 61000-4-2, Level 3, 6kV contact, 8kV air
IEC 61000-4-6, Level 3 10V
IEC 61000-4-3, Level 3 10 V/m
IEC 61000-4-4, Level 3, 3.5 kV input power
100kA
61000-4-5 Level 3, 2kV line-to-line; Level 4, 4kV line-to-ground
C62.41 Surge and Ring Wave Compliance to a level of 6kV
line-to-line
Meets UL508 (2 x rated V + 1000V for 1 minute)
IEC 68-2-6, 10-55Hz, 1mm peak-to-peak, 2 hours, 3 axis
IEC 68-2-27, 30g, 3 axis, 11ms duration, half-sine pulse
UL508, UL1053
IEC 60947-1, IEC 60947-5-1
0.65” with insulation
3.05 H x 3.85 W x 5.05 D in. (77.47 x 97.79 x 128.27 mm)
1.2 lbs. (544.31 g)
Surface mount (4 - #8 screws) or DIN Rail Mount
Enclosure Dimensions
0.200 [5.08]
3.100 [78.74]
3.600 [91.44]
3.850 [97.79]
OPTIONAL LOOP HOLES
A B C
MAIN CONDUCTORPASS HOLES
D. 0.650 [16.51]
3.600 [91.44]
3.850 [97.79]
inches (millimeters)
2.280
[57.91]
1.200
[30.48]
2.650
[67.31]
4.700
[119.38]
3.050
[77.47]
5.050
[128.27]
How to order:
Part Number: 777-HVR-P2
