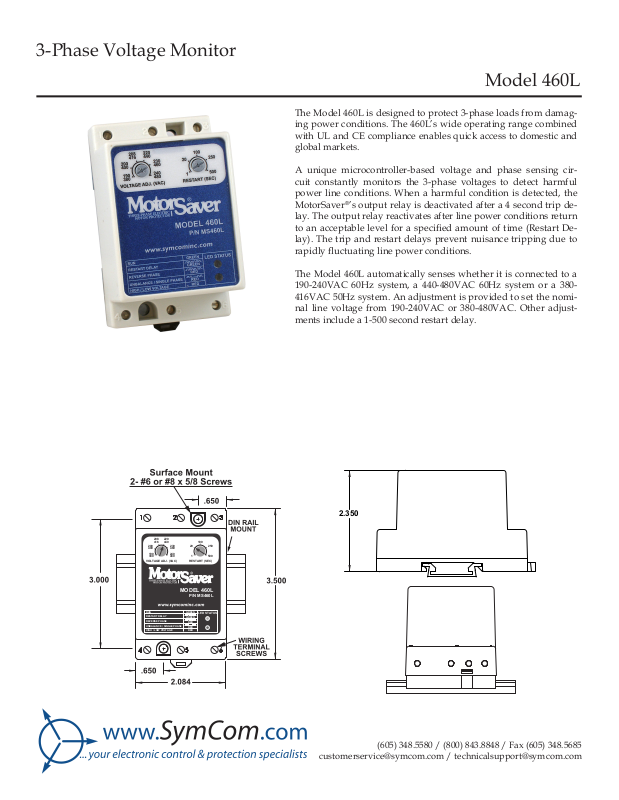

Symcom 460L Catalog Page

3-Phase Voltage Monitor

Model 460L

The Model 460L is designed to protect 3-phase loads from damag­ing power conditions. The 460L’s wide operating range combined
with UL and CE compliance enables quick access to domestic and
global markets.

A unique microcontroller-based voltage and phase sensing cir­cuit constantly monitors the 3-phase voltages to detect harmful
power line conditions. When a harmful condition is detected, the
MotorSaver®’s output relay is deactivated after a 4 second trip de­lay. The output relay reactivates after line power conditions return
to an acceptable level for a specied amount of time (Restart De­lay). The trip and restart delays prevent nuisance tripping due to

rapidly uctuating line power conditions.

The Model 460L automatically senses whether it is connected to a
190-240VAC 60Hz system, a 440-480VAC 60Hz system or a 380­416VAC 50Hz system. An adjustment is provided to set the nomi­nal line voltage from 190-240VAC or 380-480VAC. Other adjust­ments include a 1-500 second restart delay.

220

208

440

416

200
400

190
380

VOLTAGE ADJ. (VAC) RESTART (SEC)

RUN

RESTART DELAY

REVERSE PHASE

UNBALANCE / SINGLE PHASE

HIGH / LOW VOLTAGE

230
460

240
480

MODEL 460L

100

20 250

P/N MS460L

GREEN

LED STATUS

GREEN

RED

RED
RED

2.350

5001

[phone] / [phone] / Fax [phone]

[e-mail] / [e-mail]

Specications

Functional Specications

Low Voltage (% of setpoint)

Trip

Reset
High Voltage (% of setpoint)

Trip

Reset
Voltage Unbalance (NEMA)

Trip

Reset
Trip Delay Time

Low, High and Unbalanced Voltage

Single-phasing faults (> 25% unbalance)
Restart Delay Time
After a Fault

After a Complete Power Loss

Input Characteristics

Supply Voltage

Frequency

Output Characteristics

Output Contact Rating-1 Form C 10A General Purpose @240VAC

General Characteristics

Operating Temperature
Ambient
Storage
Power Consumption
Wire Gauge
Terminal Torque
Class of Protection

Relative Humidity

Standards Passed

Electrostatic Discharge (ESD)
Radio Frequency Immunity, Radiated
Fast Transient Burst

Surge

IEC

ANSI/IEEE

Hi-potential Test
Safety Marks
UL
CE

Dimensions

Weight
Mounting Methods

90% +1%
93% +1%

110% +1%
107% +1%

6% xed

4.5%

4 seconds
1 second

1-500 seconds adjustable
1-500 seconds adjustable

190-480VAC Order # 460L-OEM

50/60Hz (Note: 50 Hz will increase all delay timers by 20%)

Pilot Duty 480VA@240VAC, B300

o

-20

to 70o C (-4o to 158o F)

-40o to 80o C (-40o to 176o F)

6 Watts (max.)

Solid or Stranded 12 - 20AWG, one per terminal
6 in.-lbs.

IP20, NEMA 1 (nger-safe)
10-95%, non-condensing per IEC 68-2-3

IEC 1000-4-2, Level 3, 6kV contact,8kV air
150 MHz, 10V/m
IEC 1000-4-4, Level 3, 3.5kV input power & controls

IEC 1000-4-5, Level 3, 4kV line-to-line

Level 4, 4kV line-to-ground

C62.41 Surge and Ring Wave Compliance

to a level of 6kV line-to-line

Meets UL508 (2 x rated V + 1000V for 1 minute)

UL508

IEC 60947-6-2

2.08” W x 3.5” H x 2.35” D

14 oz.

DIN Rail or Surface Mount (with #8 screws)

How to order:
Part Number: 460L
