Symcom 201-XXX-SP-DPDT Installation Guide

INSTALLATION
INSTRUCTIONS

Rapid City, SD, USA, 08/2009

MODEL 201-XXX-SP-DPDT

Revision A1

II_201-XXX-SP-DPDT_A1

2880 North Plaza Drive, Rapid City, South Dakota 57702

[phone] · [phone] · fax [phone]

BE SURE POWER IS DISCONNECTED PRIOR TO INSTALLATION!

FOLLOW NATIONAL, STATE AND LOCAL CODES.

SymCom’s MotorSaver
phase motors regardless of size. The MotorSaver
protect from damage caused by low voltage. The 201-XXX-SP-DPDT products feature two isolated
Form C relay outputs.

READ THESE INSTRUCTIONS ENTIRELY BEFORE INSTALLATION.

®

Model 201-XXX-SP-DPDT is a voltage monitor designed to protect single-

®

is used on 120V or 240V, 501/60 Hz motors to

CONNECTIONS

1. Mount the MotorSaver® in a convenient location in or near the motor control panel. If the
location is wet or dusty, it should be mounted in a NEMA 4 or 12 enclosure.

2. Mount the SymCom P/N OT08 socket to the motor control back panel.

3. Connect L1 and L2 (terminals 2 & 7 on the relay socket) to the LINE SIDE of the motor starter
(Figure 2).

4. Connect the output relays to the circuitry to be controlled. For motor control, connect a normally
open contact in series with the magnetic coil of the motor starter as shown in Figure 2. The 201­XXX-SP-DPDT has two sets of isolated relay contacts so that two separate circuits can be
connected. For alarm operation, connect a normally closed contact in series with the control
circuit as in Figure 2.

5. Plug the relay into the relay socket.

1

50 Hz will increase all delay times by 20%.

© 2009 SymCom, Inc. All Rights Reserved 2

Figure 1: Pin-Out Diagram

Figure 2: Typical Wiring Diagram for MODEL 201-XXX-SP-DPDT

With Motor & Alarm Control

© 2009 SymCom, Inc. All Rights Reserved 3

SETTING

LINE VOLTAGE ADJUSTMENT: Rotate the VOL T ADJUSTMENT (VAC) knob to the nominal line

voltage feeding the motor to be protected.

Figure 3: Voltage Adjustment (201-100-SP-DPDT Model Shown)

OPERATION

Apply power to the motor. The MotorSaver’s green RUN light will blink during the 2 second restart
delay. Once the restart delay time has expired, the MotorSaver
the green RUN light will illuminate.

If the contacts do not energize and the green RUN light does not illuminate, see the troubleshooting
section.

STATUS LIGHT PATTERN

RUN GREEN

RESTART DELAY

LOW VOLTAGE RED

Table 1: Diagnostic Indicator Lights

®

will energize its output contacts and

GREEN

© 2009 SymCom, Inc. All Rights Reserved 4

TROUBLESHOOTING

SYMPTOM

No lights are on -

the unit seems

completely dead

Red light is on steady

Green light blinks and

motor is not running

Green light is on steady,

but motor does not start

LIGHT

PATTERN

N/A

RED

GREEN

GREEN

SOLUTION

Measure the voltage. If the Line Supply voltage
is extremely low, the MotorSaver
have enough power to operate its internal
electronics. See specifications for allowable
voltage ranges. If the voltage is correct, call
SymCom at [phone] or [phone].

The voltage is too low. Measure the line
voltage. If the voltage is 7% or more below the
nominal voltage as selected by the LINE
VOLTAGE ADJUST, the MotorSaver
functioning properly. If the voltage is within 7%,
call SymCom at [phone] or (605) 348-

5580.

®

The MotorSaver
delay and will energize its contacts when

is timing through the restart

finished.

®

The MotorSaver

is in run mode. Ensure other
control devices are allowing the motor to start.
Check control circuit for loose wires or
malfunctioning switches.

®

does not

®

is

© 2009 SymCom, Inc. All Rights Reserved 5

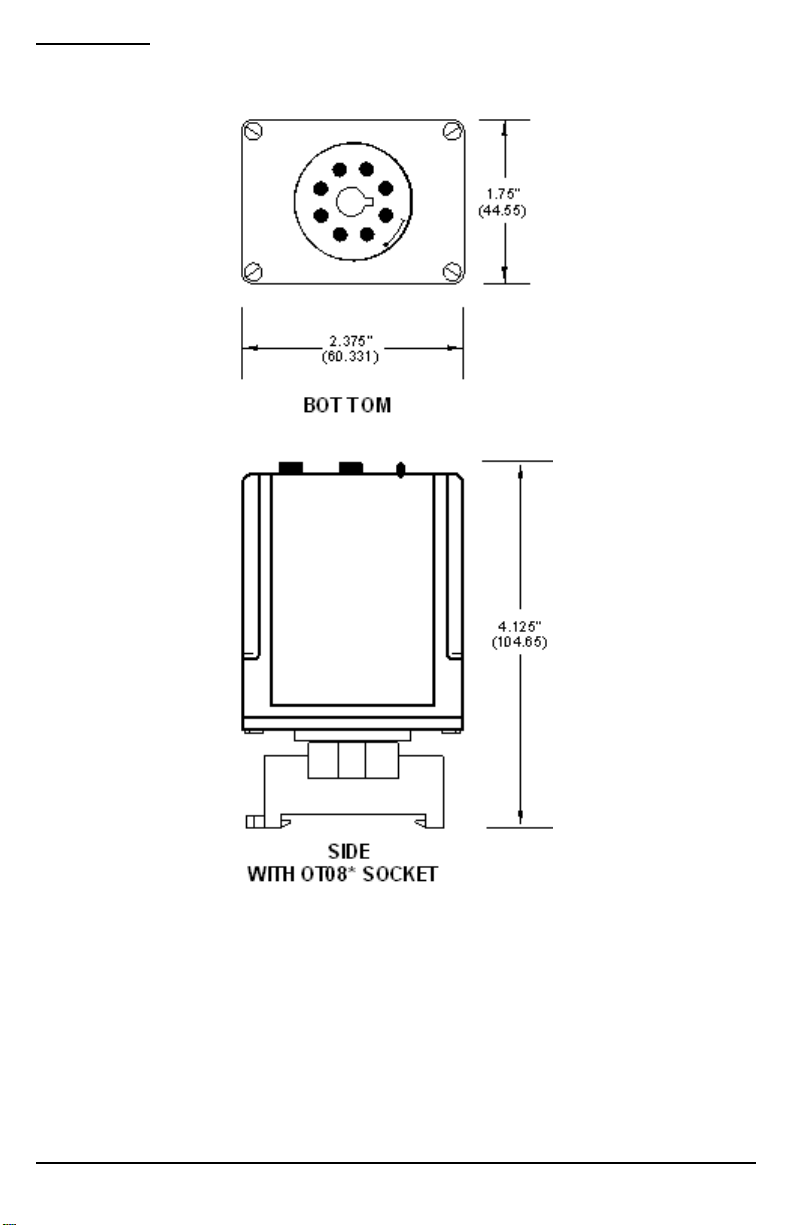

DIMENSIONS

*The OT08 octal socket is 35mm DIN rail compatible. The use of OT08 octal sockets is required for
Model 201-XXX-SP-DPDT to qualify as UL Listed devices.

© 2009 SymCom, Inc. All Rights Reserved 6

MOTOR SAVER® 201-XXX-SP-DPDT SPECIFICATIONS

Functional Specifications

Adjustments/Settings

Low Voltage (% of setpoint)

Trip

Reset

Trip Delay Times

Low voltage 4 seconds

Restart Delay Times

After a fault

After a complete power loss
Input Characteristics
Line Supply Voltage

201-100-SP-DPDT

201-200-SP-DPDT
Frequency 502/60 Hz
Output Characteristics
Output Contact Rating – DPDT
Pilot Duty

General Purpose
General Characteristics
Environmental
Ambient Operating Temperature

3

Relative Humidity
Maximum Input Power 5 W
Standards Passed

Electrostatic Discharge (ESD)

Radio Frequency Immunity, Radiated

Fast Transient Burst

Surge Immunity

IEC

ANSI/IEEE

Hi-Potential Test
Safety Marks

UL listed (OT08 octal socket required)

CE
Dimensions 1.750” H x 2.375” W x 4.125” D (with socket)
Weight
Enclosure
Mounting Methods Plugs into 8-Pin OT08 Socket
Wire Gauge 12-22 AWG Solid or Stranded
Terminal Torque 12 in. - lb.

90%±1%
93%±1%

2 seconds
2 seconds

95-120VAC
190-240VAC

480VA @ 240VAC
10A @ 240VAC

-40° to 70°C (-40° to 158°F)
10-95%, non-condensing per IEC 68-2-3

IEC 61000-4-2, Level 3, 6kV contact, 8kV air
150 MHz, 10V/m
IEC 61000-4-4, Level 3, 3.5kV input power and

controls

IEC 61000-4-5, Level 3, 4kV line-to-line; Level 4,

4kV line-to-ground

C62.41 Surge and Ring Wave Compliance to a

level of 6kV line-to-line

Meets UL508 (2 x rated V +1000V for 1 minute)

UL508 (File #E68520)
IEC 60947-6-2

9 oz.
Polycarbonate

2

50 Hz will increase all delay times by 20%.

3

The ambient air temperature is the air temperature directly surrounding the product.

© 2009 SymCom, Inc. All Rights Reserved 7
