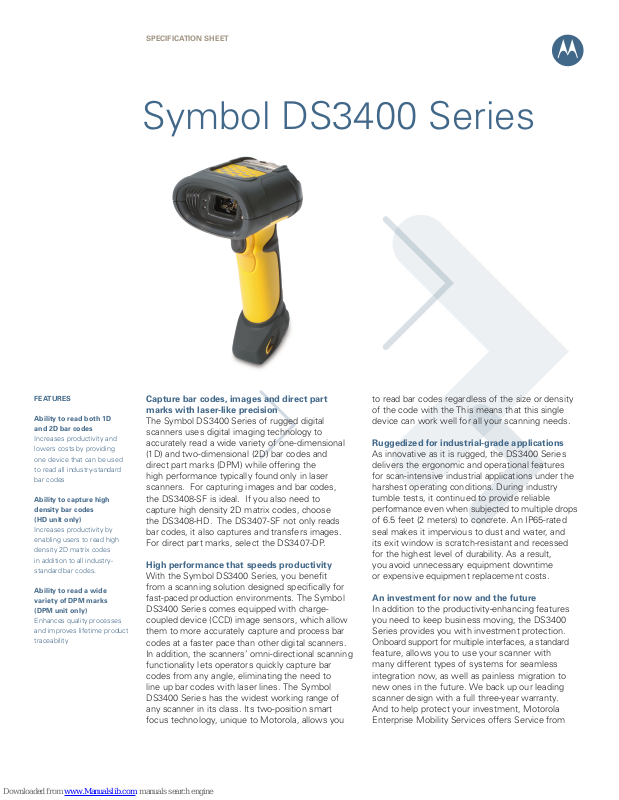

SPECIFICATION SHEET

Symbol DS3400 Series

FEATURES

Ability to read both 1D
and 2D bar codes

Increases productivity and
lowers costs by providing
one device that can be used
to read all industry-standard
bar codes

Ability to capture high
density bar codes
(HD unit only)

Increases productivity by
enabling users to read high
density 2D matrix codes
in addition to all industry­standard bar codes.

Ability to read a wide
variety of DPM marks
(DPM unit only)

Enhances quality processes
and improves lifetime product
traceability

Capture bar codes, images and direct part
marks with laser-like precision

The Symbol DS3400 Series of rugged digital
scanners uses digital imaging technology to
accurately read a wide variety of one-dimensional
(1D) and two-dimensional (2D) bar codes and
direct part marks (DPM) while offering the
high performance typically found only in laser
scanners. For capturing images and bar codes,
the DS3408-SF is ideal. If you also need to
capture high density 2D matrix codes, choose
the DS3408-HD. The DS3407-SF not only reads
bar codes, it also captures and transfers images.
For direct part marks, select the DS3407-DP.

High performance that speeds productivity

With the Symbol DS3400 Series, you benefit
from a scanning solution designed specifically for
fast-paced production environments. The Symbol
DS3400 Series comes equipped with charge­coupled device (CCD) image sensors, which allow
them to more accurately capture and process bar
codes at a faster pace than other digital scanners.
In addition, the scanners’ omni-directional scanning
functionality lets operators quickly capture bar
codes from any angle, eliminating the need to
line up bar codes with laser lines. The Symbol
DS3400 Series has the widest working range of
any scanner in its class. Its two-position smart
focus technology, unique to Motorola, allows you

to read bar codes regardless of the size or density
of the code with the This means that this single
device can work well for all your scanning needs.

Ruggedized for industrial-grade applications

As innovative as it is rugged, the DS3400 Series
delivers the ergonomic and operational features
for scan-intensive industrial applications under the
harshest operating conditions. During industry
tumble tests, it continued to provide reliable
performance even when subjected to multiple drops
of 6.5 feet (2 meters) to concrete. An IP65-rated
seal makes it impervious to dust and water, and
its exit window is scratch-resistant and recessed
for the highest level of durability. As a result,
you avoid unnecessary equipment downtime
or expensive equipment replacement costs.

An investment for now and the future

In addition to the productivity-enhancing features
you need to keep business moving, the DS3400
Series provides you with investment protection.
Onboard support for multiple interfaces, a standard
feature, allows you to use your scanner with
many different types of systems for seamless
integration now, as well as painless migration to
new ones in the future. We back up our leading
scanner design with a full three-year warranty.
And to help protect your investment, Motorola
Enterprise Mobility Services offers Service from

SPECIFICATION SHEET

Symbol DS3400 Series

Omni-directional scanning

Speeds reading time by
eliminating the need to line
up the bar code with the
scan line

Rugged and reliable
design that includes a

6.5 ft. drop-to-concrete
specification and IP65
seal rating

Ensures reliability and
performance in rough
environments by protecting
against damage

Integrated image capture
and transfer capabilities
(Symbol DS3407 only)

Reduces the costs
associated with operating
and maintaining multiple
devices by integrating the
technology needed for
image capture and transfer

Multiple interfaces
(Symbol DS3408 only)

Protects your investment
by allowing migration to
future hosts with only a
cable change

Two-position smart focus

Unique to the Symbol
DS3400 Series, this feature
allows users to optimize the
scanner for their application
by providing them with a
choice of two focus positions

the Start with Comprehensive Coverage. This
unique service goes far beyond normal wear and
tear to include accidental damage to exit windows,
scan elements and more at no additional charge.

For more information about the Symbol DS3400
Series, please contact us at +1.800.722.6234 or
+1.631.738.2400 or visit us on the Web at
www.symbol.com/ds3400.

Symbol DS3400 Series Specifications

Physical Characteristics

Dimensions: 7.34 in. H x 4.82 in. W x 2.93 in. D

18.65 cm H x 12.25 cm W x 7.43 cm D

Weight (w/o cable): 12.56 oz./356 gm

Input Voltage: 5 volts +/- 10%

Operating Current: 250mA (average)

Power Sources: Depending on host:
Host power; External power supply

Color: Twilight Black/Yellow

Performance Characteristics

Light Source 650 nm visible laser diode

Resolution 640 x 480

Min Element Width: 5 mil/0.127 mm

Nominal Working From 1 in./2.5 cm to 14 in./35 cm on
Distance: 100% UPC/EAN symbols

Print Contrast: 25% minimum reflective difference

Roll (Tilt)1: +/- 180 degrees from normal

Pitch2: +/- 60 degrees from normal

Skew (Yaw)3: +/- 50 degrees from normal

Decoding Capability

1D Codes: UPC.EAN, UPC.EAN with Supplementals,
UCC.EAN 128, JAN 8 & 13, Code 39,
Code 39 Full ASCII, Code 39 Trioptic,
Code 128, Code 128 Full ASCII, Codabar
(NW7), Interleaved 2 of 5, Discrete 2
of 5, Code 93, MSI, Code 11, Code 32,
Bookland EAN, IATA, UCC/EAN RSS and
RSS variants

2D Codes: PDF417, microPDF417, MaxiCode,
DataMatrix (ECC 2000), Composite
Codes, QR Code

Postal Codes: U.S. Postnet, U.S. Planet, U.K. Postal, Japan
Postal, Australian Postal, Dutch Postal

DPM Marks Data matrix marks applied by dot peening,
(DPM unit only): laser etching, molding, stamping or casting
methods to multiple substrates including
metal, plastic or glass

Interfaces Supported: RS232, Keyboard Wedge, Wand
Emulation, Scanner Emulation, IBM
468X/469X, USB and Synapse

User Environment

Operating Temp: 32° to 122° F/0° to 50° C

Storage Temp: -40° to 158° F/-40° to 70° C

Humidity: 5% to 95% relative humidity, noncondensing

Drop Specs: Unit functions normally after repeated

6.5 ft./2 m drops to concrete

Ambient Light Immune to direct exposure to normal
Immunity: office and factory lighting conditions, as
well as direct exposure to sunlight

Sunlight: 10,000 ft. candles/107,644 LUX

Electrostatic Conforms to 15 kV air discharge and 8 kV
Discharge (ESD): of contact discharge

Regulatory Information

Electrical Safety: Certified to UL1950, CSA C22.2 No. 950,
EN60950/IEC950

Laser Safety: CDRH Class II, IEC Class 2

EMI/RFI: FCC Part 15 Class B, ICES-003 Class B,
European Union EMC Directive,
Australian SMA

1 - Roll (Tilt): Controlled by rotating the wrist clockwise or counterclockwise
2 - Pitch: Controleed by dropping or raising the wrist
3 - Skew (Yaw): Controlled by rotating the wrist from left to right or vice versa
