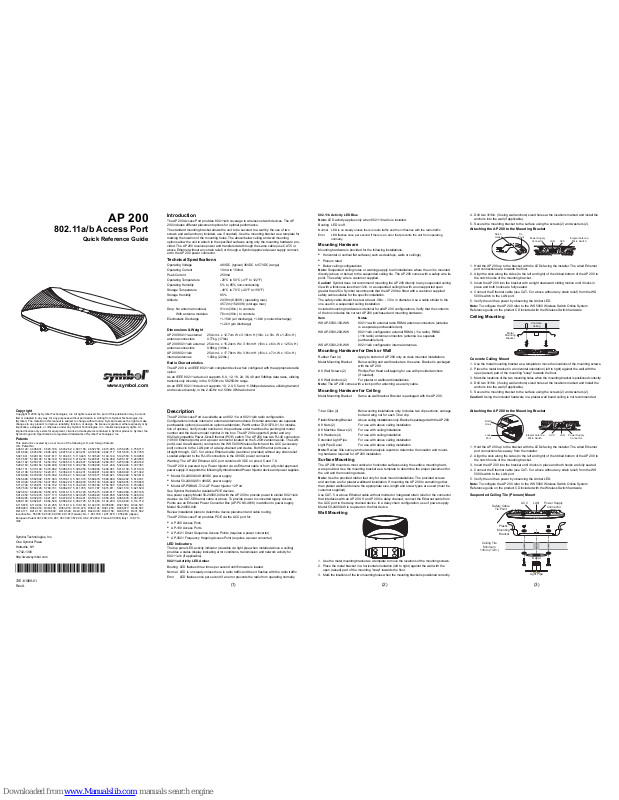

Introduction
The AP 200 Access Port provides 802.11a/b coverage to wireless network devices. The AP
200 includes different placement options for optimal performance.
The standard mounting bracket allows the unit to be secured to a wall by the use of two
screws and wall anchors (included, use if needed). Use the mounting bracket as a template for
marking the location of the mounting holes. The above/below ceiling and wall mounting
options allow the unit to attach to the specified surfaces using only the mounting hardware provided. The AP200 receives power and transfers data through the same cable (use CAT-5 or
above Ethernet without any strain relief) or through a Symbol approved power supply connected to the AP 200 power connector.
Technical Specifications
Operating Voltage 48VDC (typical) 36VDC to 57VDC (range)
Operating Current 10mA to 150mA
Peak Current 250mA
Operating Temperature -20°C to 50°C (-4°F to 122°F)
Operating Humidity 5% to 85% non-condensing
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Storage Humidity 85%
Altitude 2438m (8,000ft.) (operating max)
4572m (15,000ft.) (storage max)
Drop: No antenna modules) 91cm (36in.) to concrete
With antenna modules 76cm (30in.) to concrete
Electrostatic Discharge +/-15kV (air discharge); +/-8kV (contact discharge);
+/-2kV (pin discharge)
Dimensions & Weight
AP 200 802.11a external 25.4cm L x 12.7cm W x 3.18cm H (10in. L x 5in. W x 1.25in. H)
antenna connectors 0.77kg (1.7lbs)
AP 200 802.11a/b external 25.4cm L x 15.24cm W x 3.18cm H (10in. L x 6in. W x 1.25in. H)
antenna connectors 0.86kg (1.9lbs.)
AP 200 802.11a/b 25.4cm L x 17.78cm W x 3.81cm H (10in. L x 7in. W x 1.5in. H)
internal antennas 1.00kg (2.2lbs.)
Radio Characteristics
The AP 200 is an IEEE 802.11a/b compliant device when configured with the appropriate radio
option.
As an IEEE 802.11a device it supports 6, 9, 12, 18, 24, 36, 48 and 54Mbps data rates, utilizing
transmit-only diversity, in the 5.15GHz to 5.825GHz range.
As an IEEE 802.11b device it supports 1.0, 2.0, 5.5 and 11.0Mbps data rates, utilizing transmit
and receive diversity, in the 2.4GHz to 2.5GHz ISM radio band.
Description
The AP 200 Access Port is available as an 802.11a or 802.11a/b radio configuration.
Configurations include internal or external antenna modules. External antennas are separate
purchasable options (see add-on options addendum, Part Number 72-61070-01, for installation of options). Verify model number on the purchase order matches the packing list model
number and the device model number in the box. The AP200 supports Symbol and any
802.3af compatible Power-Over-Ethernet (POE) switch. The AP200 has two RJ-45 connectors
(10/100 Ethernet ports) and a power connector located on the 5.2GHz antenna side. The LAN
port (Local Area Network) connects to the WS 5000 Wireless Switch and the ACC (accessory
port) connects to the LAN port of a daisy-chained end device. Both Ethernet ports use a
straight through, CAT- 5 or above Ethernet cable (customer provided) without any strain relief.
Located adjacent to the RJ-45 connectors is the 48VDC power connector.
Warning: The AP200 Ethernet ACC port contains 48 VDC on pins 4,5 and 7,8.
The AP 200 is powered by a Power Injector via an Ethernet cable or from a Symbol approved
power supply. It supports the following Symbol-branded Power Injector device and power supplies.
• Model 50-24000-049 48VDC power supply
• Model 50-24000-051 48VDC power supply
• Model AP-PSBIAS-T-12-AF Power Injector 12 Port
See Symbol Website for Available POEdevices.
Use power supply Model 50-24000-049 with the AP 200 to provide power to similar 802.11a/b
devices via CAT-5 Ethernet cable or above. To provide power to converted legacy Access
Points use an Ethernet Power Converter Box (AP-PCNV-4818) in addition to power supply
Model 50-24000-049.
Review installation plans to determine device placement and cable routing.
The AP 200 Access Port provides POE via the ACC port for:
• AP 200 Access Ports
• AP-100 Access Ports
• AP-4121 Direct Sequence Access Points (requires a power converter)
• AP-3021 Frequency Hopping Access Point (requires a power converter)
LED Indicators
The top panel LED activity indicator (viewable via light pipe when installed above a ceiling)
provides a status display indicating error conditions, transmission and network activity for
802.11 a/b (if applicable).
802.11a Activity LED Amber
Booting LED flashes three times per second until firmware is loaded.
Normal LED is on steady unless there is radio traffic and then it flashes with the radio traffic.
Error LED flashes once per second if an error prevents the radio from operating normally.
802.11b Activity LED Blue
Note: LED activity applies only when 802.11b radio is installed.
Booting LED is off.
Normal LED is on steady unless there is radio traffic and then it flashes with the radio traffic.
Error LED flashes once per second if there is an error that prevents the unit from operating
normally.
Mounting Hardware
Mounting hardware is provided for the following installations.
• Horizontal or vertical flat surfaces (such as desktops, walls or ceilings)
• Plenum rated
• Below ceiling configurations
Note: Suspended ceiling notes or warnings apply to all installations where the unit is mounted
directly (above or below) to the suspended ceiling tile. The AP200 comes with a safety wire tie
point. The safety wire is customer supplied.
Caution! Symbol does not recommend mounting the AP 200 directly to any suspended ceiling
tile with a thickness less than 1/2in. or a suspended ceiling tile with an unsupported span
greater than 26in. Symbol recommends that the AP 200 be fitted with a customer supplied
safety cable suitable for the specific installation.
The safety cable should be steel at least .06in. - .10in. in diameter. Use a cable similar to the
one used in a suspended ceiling installation.
Included mounting hardware is identical for all AP 200 configurations. Verify that the contents
of the box includes the correct AP 200 purchased and mounting hardware:
Item Notes
WSAP-5030-100-WW 802.11a with external radio RSMAantenna connectors (antenna
is a separate purchasable item).
WSAP-5030-200-WW 802.11a/b configuration external RSMA(.11a radio), RBNC
(.11b radio) antenna connectors (antenna is a separate
purchasable item).
WSAP-5030-210-WW 802.11a/b configuration internal antennas.
Mounting Hardware for Desk or Wall
Rubber Feet (4) Apply to bottom of AP 200 only on desk mounted installations
Metal Mounting Bracket Below ceiling and wall bracket are the same. Bracket is packaged
with the AP 200.
# 8 Wall Screws (2) Phillips Pan Head self-tapping for use with provided anchors
(if needed).
# 8 Wall Anchors (2) For plaster or wallboard installations.
Note: The AP 200 comes with a lock port for attaching a security cable.
Mounting Hardware for Ceiling
Metal Mounting Bracket Same as wall bracket. Bracket is packaged with the AP 200.
T-bar Clips (2) Below ceiling installations only. Includes two clip sections, carriage
bolt and wing nut for each T-bar clip.
Plastic Mounting Bracket Above ceiling installations only. Bracket is packaged with the AP200.
# 8 Nuts (2) For use with above ceiling installation
# 8 Machine Screws (2) For use with ceiling installation
# 8 Washers (4) For use with ceiling installation
Extended Light Pipe For use with above ceiling installation
Light Pipe Decal For use with above ceiling installation
Note: Review Site survey and network analysis reports to determine the location and mounting hardware required for AP 200 installation.
Surface Mounting
The AP 200 mounts to most vertical or horizontal surfaces using the surface mounting hardware provided. Use the mounting bracket as a template to determine the proper placement for
the unit and the mounting screws.
Note: Use the provided rubber feet only for desk mount installations. The provided screws
and anchors are for plaster wallboard installation. If mounting the AP200 to something other
than plaster wallboard ensure the appropriate size, length and screw types are used (must be
customer supplied).
Use CAT- 5 or above Ethernet cable without molded or integrated strain relief on the connector
that interfaces with an AP 200. If an AP200 is daisy chained, connect the Ethernet cable from
the ACC port to the daisy chained device. In a daisy chain configuration, use of power supply
Model 50-24000-49 is required on the first device.
Wall Mounting
1. Use the metal mounting bracket as a template to move the locations of the mounting screws.
2. Place the metal bracket in a horizontal orientation (left to right) against the wall with the
open (raised) part of the mounting "snap" towards the floor.
3. Mark the locations of the two mounting holes when the mounting bracket is positioned correctly.
4. Drill two 3/16in. (if using wall anchors) sized holes at the locations marked and install the
anchors into the wall (if applicable).
5. Secure the mounting bracket to the surface using the screws (2) and washers (2).
Attaching the AP 200 to the Mounting Bracket
1. Hold the AP 200 up to the bracket with the LEDs facing the installer. The wired Ethernet
port connections are towards the floor.
2. Align the slots along the sides (to the left and right) of the ribbed bottom of the AP200 to
the notch hooks of the mounting bracket.
3. Insert the AP 200 into the bracket with a slight downward sliding motion until it locks in
place and both hooks are fully seated.
4. Connect the Ethernet cable (use CAT- 5 or above without any strain relief) from the WS
5000 switch to the LAN port.
5. Verify the unit has power by observing the Amber LED.
Note: To configure the AP200 refer to the WS 5000 Wireless Switch Online System
Reference guide on the product CD included with the Wireless Switch hardware
Ceiling Mounting
Concrete Ceiling Mount
1. Use the metal mounting bracket as a template to move the locations of the mounting screws.
2. Place the metal bracket in a horizontal orientation (left to right) against the wall with the
open (raised) part of the mounting "snap" towards the floor.
3. Mark the locations of the two mounting holes when the mounting bracket is positioned correctly.
4. Drill two 3/16in. (if using wall anchors) sized holes at the locations marked and Install the
anchors into the wall (if applicable).
5. Secure the mounting bracket to the surface using the screws (2) and washers (2).
Caution! Using the included hardware in a plaster wall board ceiling is not recommended.
Attaching the AP 200 to the Mounting Bracket
1. Hold the AP 200 up to the bracket with the LEDs facing the installer. The wired Ethernet
port connections face away from the installer.
2. Align the slots along the sides (to the left and right) of the ribbed bottom of the AP200 to
the notch hooks of the mounting bracket.
3. Insert the AP 200 into the bracket until it locks in place and both hooks are fully seated.
4. Connect the Ethernet cable (use CAT- 5 or above without any strain relief) from the WS
5000 switch to the LAN port.
5. Verify the unit has power by observing the Amber LED.
Note: To configure the AP200 refer to the WS 5000 Wireless Switch Online System
Reference guide on the product CD included with the Wireless Switch hardware
Suspended Ceiling Tile (Plenum) Mount
AP 200
802.11a/b Access Port
Quick Reference Guide
www.symbol.com
Copyright
Copyright © 2003 by Symbol Technologies, Inc. All rights reserved. No part of this publication may be modified or adapted in any way, for any purposes without permission in writing from Symbol Technologies, Inc.
(Symbol). The material in this manual is subject to change without notice. Symbol reserves the right to make
changes to any product to improve reliability, function, or design. No license is granted, either expressly or by
implication, estoppels, or otherwise under any Symbol Technologies, Inc., intellectual property rights. An
implied license only exists for equipment, circuits and subsystems contained in Symbol products. Symbol, the
Symbol logo and Spectrum24 are registered trademarks of Symbol Technologies, Inc.
Patents
This product is covered by one or more of the following U.S. and foreign Patents:
U.S. Patent No.
4,460,120; 4,496,831; 4,593,186; 4,603,262; 4,607,156; 4,652,750; 4,673,805; 4,736,095; 4,758,717;
4,816,660; 4,845,350; 4,896,026; 4,897,532; 4,923,281; 4,933,538; 4,992,717; 5,015,833; 5,017,765;
5,021,641; 5,029,183; 5,047,617; 5,103,461; 5,113,445; 5,130,520; 5,140,144; 5,142,550; 5,149,950;
5,157,687; 5,168,148; 5,168,149; 5,180,904; 5,216,232; 5,229,591; 5,230,088; 5,235,167; 5,243,655;
5,247,162; 5,250,791; 5,250,792; 5,260,553; 5,262,627; 5,262,628; 5,266,787; 5,278,398; 5,280,162;
5,280,163; 5,280,164; 5,280,498; 5,304,786; 5,304,788; 5,306,900; 5,321,246; 5,324,924; 5,337,361;
5,367,151; 5,373,148; 5,378,882; 5,396,053; 5,396,055; 5,399,846; 5,408,081; 5,410,139; 5,410,140;
5,412,198; 5,418,812; 5,420,411; 5,436,440; 5,444,231; 5,449,891; 5,449,893; 5,468,949; 5,471,042;
5,478,998; 5,479,000; 5,479,002; 5,479,441; 5,504,322; 5,519,577; 5,528,621; 5,532,469; 5,543,610;
5,545,889; 5,552,592; 5,557,093; 5,578,810; 5,581,070; 5,589,679; 5,589,680; 5,608,202; 5,612,531;
5,619,028; 5,627,359; 5,637,852; 5,664,229; 5,668,803; 5,675,139; 5,693,929; 5,698,835; 5,705,800;
5,714,746; 5,723,851; 5,734,152; 5,734,153; 5,742,043; 5,745,794; 5,754,587; 5,762,516; 5,763,863;
5,767,500; 5,789,728; 5,789,731; 5,808,287; 5,811,785; 5,811,787; 5,815,811; 5,821,519; 5,821,520;
5,823,812; 5,828,050; 5,850,078; 5,861,615; 5,874,720; 5,875,415; 5,900,617; 5,902,989; 5,907,146;
5,912,450; 5,914,478; 5,917,173; 5,920,059; 5,923,025; 5,929,420; 5,945,658; 5,945,659; 5,946,194;
5,959,285; 6,002,918; 6,021,947; 6,047,892; 6,050,491; 6,053,413; 6,056,200; 6,065,678; 6,067,297;
6,068,190; 6,082,621; 6,084,528; 6,088,482; 6,092,725; 6,101,483; 6,102,293; 6,104,620; 6,114,712;
6,115,678; 6,119,944; 6,123,265; 6,131,814; 6,138,180; 6,142,379; D305,885; D341,584; D344,501;
D359,483; D362,453; D363,700; D363,918; D370,478; D383,124; D391,250; D405,077; D406,581;
D414,171; D414,172; D418,500; D419,548; D423,468; D424,035; D430,158; D430,159; D431,562
Invention No. 55,358; 62,539; 69,060; 69,187 (Taiwan); No. 1,601,796; 1,907,875; 1,955,269 (Japan);
European Patent 367,299; 414,281; 367,300; 367,298; UK 2,072,832; France 81/0938; Italy 1,138,713
3/02
Symbol Technologies, Inc.
One Symbol Plaza
Holtsville, NY
11742-1300
http://www.symbol.com
72E-61069-01
Rev.A
(1)
(2)
(3)
Power Supply
Connector
LAN ACC
Integral Antenna
Micro Switch
Tie
Point
Notch
Hook
Concrete
Ceiling
Metal
Mounting
Bracket
Power Supply
Connector
LAN
Notch
Hook
ACC
Integral Antenna
Micro Switch
Lock
Port
Light Pipe
Safety Cable
Tie Point
ACC LAN Power Supply
Connector
Ceiling Tile
Minimum
13mm (1/2in.)
Plastic
Mounting
Bracket
Decal
Page 2

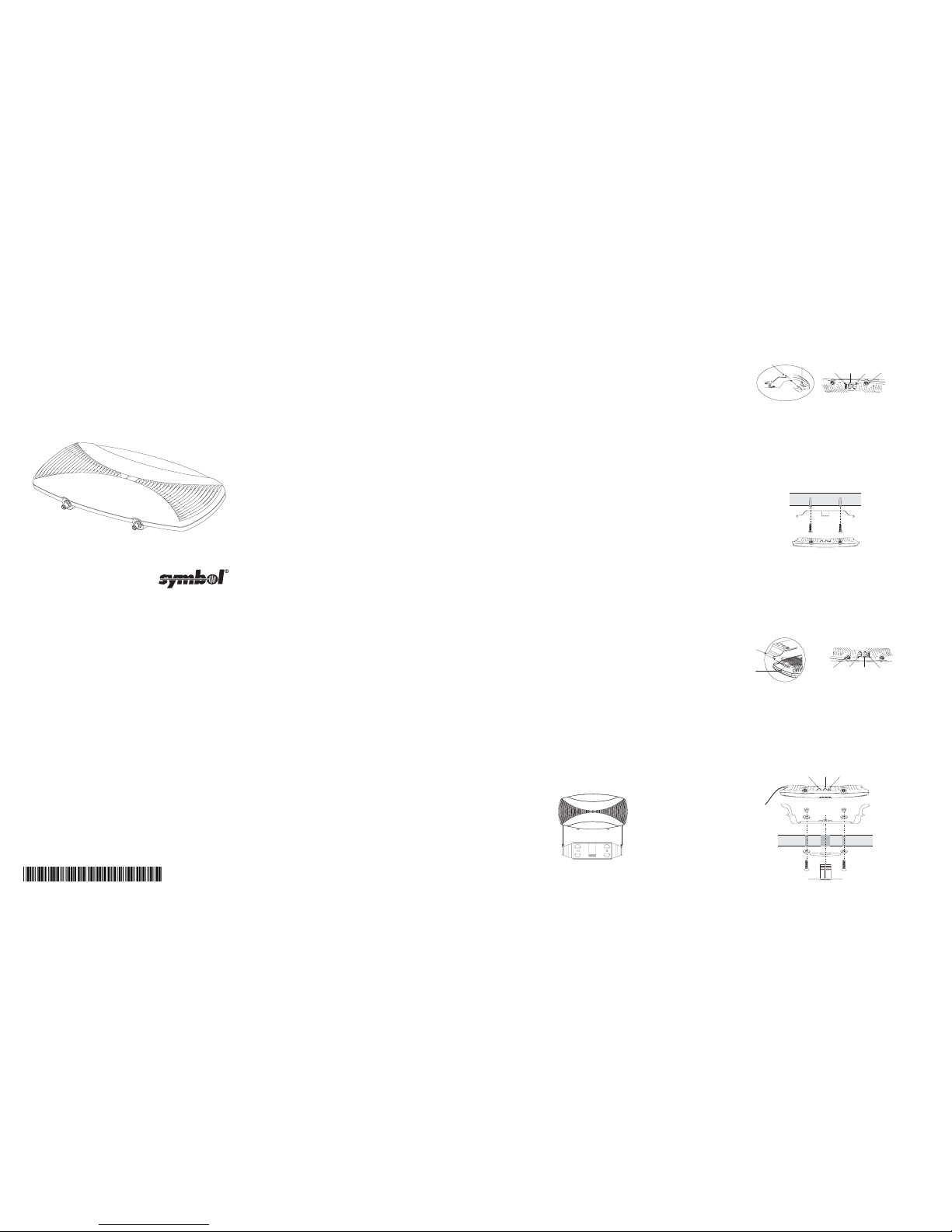

1. Place the plastic mounting bracket flat against the ceiling tile and use the mounting bracket
as a template to mark the locations of the two mounting holes and the light pipe (the large
hole in the center of the bracket).
2. Use the screws to tap the holes at the locations marked and cut out the marked location of
the light pipe.
3. Install a screw and washer in each hole below the ceiling tile.
4. Place the plastic bracket flat above the ceiling tile, lining up the mounting bracket holes with
the screws.
5. Place one of the washers over each of the screws that are lined up and through the mounting bracket holes.
6. Secure the mounting bracket to the ceiling tile fastening a nut to each screw.
7. Place the decal on the light pipe and install it into the opening in the ceiling tile and into the
mounting bracket so it fits into the mounting bracket light pipe opening.
Note: When the AP 200 is installed on a thin [approximately 1.27cm (1/2in. thick)] ceiling tile, a
gap of about .64cm (.25in.) - .76cm (.30in.) from the light pipe face to the ceiling tile is normal.
Caution! Symbol does not recommend mounting the AP 200 directly to any suspended ceiling
tile with a thickness less than 1.27cm (1/2in.) or a suspended ceiling tile with an unsupported
span greater than 66cm (26in.). Symbol recommends that the AP200 be fitted with a customer supplied safety cable suitable for the specific installation. The safety cable should be
steel at least .15cm (.06in.) - .25cm (.10in.) in diameter. Use a cable similar to cable used in a
suspended ceiling installation.
Attaching the AP 200 to the Mounting Bracket
1. Insert the end of the AP 200 (either non-antenna side) into the opening of the installation
bracket.
2. Press down on the other end of the AP 200 until it locks in place (the plastic bracket has
some flex in it and snaps in place).
3. Connect the Ethernet cable (use CAT- 5 or above without any strain relief) to the LAN port.
4. Verify the unit has power by observing the Amber LED.
Note: To configure the AP200 refer to the WS 5000 Wireless Switch Online System
Reference guide on the product CD included with the Wireless Switch hardware

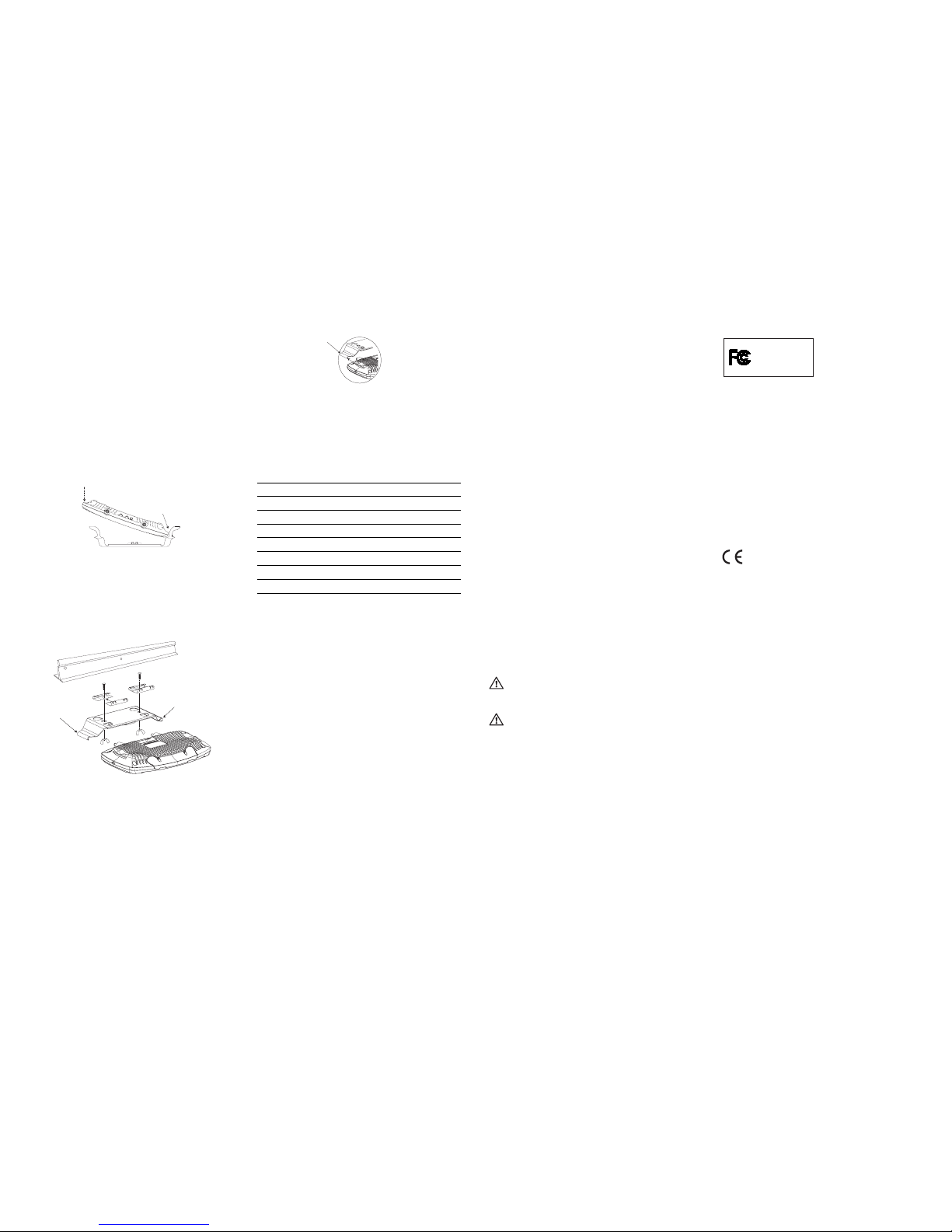

Below Suspended Ceiling (T-Bar) Mount
1. Determine the suspended (below) ceiling mounting location of the AP 200.
2. Loosely assemble the two clip halves by holding the clip halves facing each other clip
side up (place the long channel section of one clip half on top of the other) so they form a
"U" shape.
3. Place the flat side of the assembled T-bar clip on the opposite side of the "notch-hook" so
that the opening formed in the center of the clip aligns with the center holes on each end of
the metal mounting bracket.
4. Insert the carriage bolt through the T-bar clip and mounting bracket.
5. Use the wing nut to finger tighten the clip to the bracket. The wing nut secures the clip from
the "notch-hook" side. Repeat steps 2 through 5 for the other T-bar clip.
6. Attach the mounting bracket to the suspended ceiling T-bar with the clips. Spread the clip
halves to allow insertion of the ceiling T- bar's bottom flange.
7. Compress the halves until they fully engage the T-bar flange.
8. Secure the bracket to the T-bar by tightening the wing nut holding the clips.
Attaching the AP 200 to the Suspended Ceiling Mounting Bracket
1. Hold the AP 200 up to the bracket with the LEDs facing towards the ground.
2. Face the power/data port connectors away from the extended open metal (raised) part on
the bracket.
3. Align the slot openings along the sides (on the left and right) of the ribbed bottom of the AP
200 to the notch hooks of the mounting bracket.
4. Insert the AP 200 into the bracket until it locks in place and both hooks are fully seated.
5. Connect the Ethernet cable (use CAT- 5 or above without any strain relief) to the LAN port.
6. Verify the unit has power by observing the Amber LED.
Note: To configure the AP200 refer to the WS 5000 Wireless Switch Online System
Reference guide on the product CD included with the Wireless Switch hardware.
Available Options
Contact a Symbol sales associate for available AP200 radio and antenna options.
Radio or Antenna Option Part Number
.11a Internal antenna WSM-5040-110-WW
.11a External RSMA Dipole antenna ML-5299-APA1-01
.11b radio with external antenna connectors WSM-5030-200-WW
.11b radio with internal antenna WSM-5030-210-WW
.11b External RBNC dipole antenna ML 2499-APA1-00
.11b External RBNC high performance single antenna ML 2499-HPA1-00
.11b Twin high performance diversity antennas ML 2499-DVA1-00
.11b Mountable F-plane antenna 48-450115-01
Customer Support
Symbol Technologies provides its customers with prompt and accurate customer support. Use
the Symbol Support Center as the primary contact for any technical problem, question or support issue involving Symbol products.
If the Symbol Customer Support specialists cannot solve a problem, access to all technical
disciplines within Symbol becomes available for further assistance and support. Symbol
Customer Support responds to calls by email, telephone or fax within the time limits set forth in
individual contractual agreements.
When contacting Symbol Customer Support, please provide the following information:
• Device serial number
• Product name or model number
• Software type and version number
North American Contacts
Inside North America, contact Symbol at:
Symbol Technologies, Inc.
One Symbol Plaza
Holtsville, New York 11742-1300
Telephone: 1-631-738-2400/1-800-SCAN 234
Fax: 1-631-738-5990
Symbol Support Center (for warranty and service information):
Telephone: 1-631-738-6213/1-800-653-5350
Fax: (631) 563-5410
Email: support@symbol.com
International Contacts
Outside North America, contact Symbol at:
Symbol Technologies, Inc.
Symbol Place
Winnersh Triangle, Berkshire, RG41 5TP
United Kingdom
0800-328-2424 (Inside UK)
+44 118 945 7529 (Outside UK)
Web Support sites
MySymbolCare
http://www.symbol.com/services/msc
Symbol Services Homepage
http://symbol.com/services
Symbol Software Updates
http://symbol.com/services/downloads
Symbol Developer Program
http://software.symbol.com/devzone
Symbol Knowledge Base
http://kb.symbol.com/register.asp
Additional Information
Obtain additional information by contacting Symbol at:
• 1-800-722-6234, inside North America
• +1-631-738-5200, in/outside North America
•
http://www.symbol.com/
Legal Information
Regulatory Information
All Symbol devices are designed to be compliant with rules and regulations in locations they
are sold and will be labeled as required.
Any changes or modifications to Symbol Technologies equipment, not expressly approved by
Symbol Technologies, could void the user's authority to operate the equipment.
Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could cause damage and may violate regulations.
This device is to be used only with Symbol Technologies Wireless Switch.
Applying the Regulatory Country Stamp
Regulatory labels are applied to the device signifying the radio(s) are approved for use in the
following countries: United States, Canada, Australia, Japan & Europe 1,2.
Note 1: For 2.4GHz Products: Europe includes, Austria, Belgium, Croatia, Denmark, Estonia,
Finland, France, Germany, Greece, Iceland, Ireland, Italy, Liechtenstein, Luxembourg,
Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, United Kingdom.
Note 2: The use of 5GHz RLAN's has varying restrictions of use; please refer to the Symbol
Declaration of Conformity (DoC) for details at http://www2.symbol.com/doc/
In addition to the list above other countries may require a regulatory stamp to be affixed to the
product.
Please refer to www.symbol.com/ for the list of countries where mandatory stamps are
required.
For countries that require regulatory label, a sheet of stamps may be enclosed within
the package.
If the appropriate stamps are not provided, please contact your supplier.
To apply the country stamp:
1. Peel the stamp appropriate to the country where this device is to be used.
2. Apply the country stamp in the space provided on the regulatory label
Operation of the device without a regulatory label or the correct country Stamp is illegal.
FCC RF Exposure Guidelines
Safety Information
The device complies with internationally recognized standards covering Specific
Absorption Rate (SAR) related to human exposure to electromagnetic fields from radio
devices.
It is advisable to use the device only in the normal operating position.
Remote and Standalone Antenna Configurations.
To comply with FCC RF exposure requirements, antennas that are mounted externally at
remote locations or operating near users at stand-alone desktops of similar configurations
must operate with a minimum separation distance of 20cm from all persons.
Power Supply
Use only Symbol approved power supplies 50-24000-049 output rated 48VDC and minimum
1.1amp or 50-24000-050 output rated 48VDC and minimum .25amp. The power supply is certified to EN60950 with SELV outputs. Use of alternative power supply will invalidate any
approval given to this device and may be dangerous.
Hinweis: Benutzen Sie nur eine Symbol Technologies genehmigt Stromversorgung 50-24000049 in den Ausgabe: 48VDC und minimum 1.1A. oder 50-24000-050 in den Ausgabe: 48VDC
und minimum .25A. Die Stromversorgung ist bescheinigt nach EN60950 mit SELV Ausgaben
• Model 50-24000-049 48VDC power supply
•
Model 50-24000-050 48VDC power supply
• Model AP-PSBIAS-T-12-AF Power Injector-12 Port
Radio Frequency Interference Requirements
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
•
Consult the dealer or an experienced radio/TV technician for help.
Radio Transmitters (Part 15)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Radio Frequency Interference Requirements - Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Radio Transmitters
This device complies with RSS 210 of Industry & Science Canada. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Label Marking: The Term "IC:" before the radio certification only signifies that Industry Canada
technical specifications were met.
Marking and European Economic Area (EEA)
The use of 2.4GHz RLAN's, for use through the EEA, have the following restrictions:
• Maximum radiated transmit power of 100mW EIRP in the frequency range 2.400GHz -
2.4835GHz
•
France, equipment is restricted to 2.4465GHz - 2.4835GHz frequency range
• Belgium outside usage, the equipment is restricted to 2.460GHz - 2.4835 GHz
frequency range
• Italy requires a user license for outside usage.
The use of 5GHz RLAN's has varying restrictions for use within the EEA; please refer to the
Symbol Declaration of Conformity (DoC) for details at http://www2.symbol.com/doc/
Statement of Compliance
Symbol Technologies, Inc., hereby, declares that this device is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
A Declaration of Conformity may be obtained from http://www2.symbol.com/doc/
Other Countries
Mexico - Restrict Frequency Range to: 2.450GHz - 2.4835GHz.
Israel - Restrict Frequency Range to: 2.418GHz - 2.457GHz.
Sri Lanka- Restrict Frequency Range to: 2.400GHz - 2.430GHz.
(4)
(5) (7)
Plastic
Mounting
Bracket
1
2
T-Bar
Wing
Nut
T-Bar Clip
Halves
Apart
Wing
Nut
T-Bar Clip
Halves
Together
Notch
Hook
Notch
Hook
Notch
Hook
Tested to Comply
With FCC Standards
For Home or Office Use
Symbol Technologies Inc.
(6)
Loading...
