AP-0621 Series Access Point
Installation Guide
Zebra and the Zebra head graphic are registered trademarks of ZIH Corp. The Symbol logo is a
registered trademark of Symbol Technologies, Inc., a Zebra Technologies company.
© 2015 Symbol Technologies, Inc.
Table of Contents
1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1 Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2 Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.3 Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4 Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.5 Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.0 Hardware Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1 Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.2 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.3 Access Point Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.4 Wall Mount Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.5 Suspended Ceiling T-Bar Installation . . . . . . . . . . . . . . . . . . . . . . 11
2.6 Above the Ceiling (Plenum) Installation . . . . . . . . . . . . . . . . . . . . 13
2.7 LED Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.0 Defining a Basic Configuration . . . . . . . . . . . . . . . . . . . . . . . 17
4.0 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.1 Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.2 Physical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.3 Radio Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.0 Regulatory Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
6.0 Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Introduction
1 Introduction
The AP-0621 Series access point links wireless 802.11a/b/g/n devices to the RFS Series controller or
NX Series service platform, enabling the growth of your wireless network with a cost-effective
alternative to standard access points. The AP-0621 Series is an enterprise class 802.11n access point,
installed in minutes anywhere a CAT-5e (or better) cable is located.
An AP-0621 Series access point operates in dependent mode only, and requires adoption and
management by a RFS Series controller or NX Series service platform to receive its configuration.
An AP-0621 Series access point ships with a single dual-band radio supporting the
802.11a/b/g/n radio bands. For more information on available SKUs, refer to the following:
Part Number Description
AP-0621-60010-US 802.11a/b/g/n single radio, integrated antenna, standard
power, United States model
AP-0621-60020-US 802.11a/b/g/n single radio, external antenna, standard
power, United States model
AP-0621-60010-WR 802.11a/b/g/n single radio, integrated antenna, standard
power, World Wide model
1
AP-0621-60020-WR 802.11a/b/g/n single radio, external antenna, standard
power, World Wide model
The AP-0621 Series access point is approved under MODEL: NCAP-500.
Its recommended the access point receive power and transfer data through the same CAT-5e (or
better) Ethernet cable using a Power Injector. The Power Injector (Part No. AP-PSBIAS-2P2-AFR) is an
802.3af PoE injector. For information, see “
Power Injector System” on page 7.
A separate power supply (Part No. PWRS-147376-01R) is also available if you do not wish to use a
Power Injector. This standard power supply just supplies power to the access point’s power connector
and does not converge power and Ethernet within a single cable connection.
The AP-0621 Series access point requires adoption by a FS Series controller or NX Series service
platform to receive its configurations. For information, see “
Defining a Basic Configuration” on
page 17.
2
!
AP-621 Series Access Point Installation Guide
1.1 Document Conventions
The following graphical alerts are used in this guide to indicate notable situations:
NOTE Tips, hints, or special requirements that you should take note of.
CAUTION Care is required. Disregarding a caution can result in data loss or
equipment malfunction.
WARNING! Indicates a condition or procedure that could result in personal injury or
equipment damage.
1.2 Warnings
• Read all installation instructions and site survey reports, and verify correct equipment
installation before connecting the access point.
• Verify any device connected to this unit is properly wired and grounded.
• Verify there is adequate ventilation around the device, and ambient temperatures meet
equipment operation specifications.
Introduction
1.3 Site Preparation
• Consult your site survey and network analysis to determine specific equipment placement,
power drops etc.
• Assign installation responsibility to the appropriate personnel.
• Identify and document where all installed components are located.
• Ensure adequate, dust-free ventilation to all installed equipment.
• Prepare Ethernet port connections.
• Verify cabling is within the maximum 100 meter allowable length.
1.4 Package Contents
The access point ships with the following:
• One AP-0621 Series access point
• Installation Guide (This Guide)
• Rubber Wall Mount Spacers (4)
• LED light pipe and badge
• Wall mount screw and anchor kit
1.5 Features
• One RJ-45 console connector
• One RJ-45 Ethernet connector
• LED Indicators
• Safety wire tie point
• Wall mount slots
• Clips for suspended T-Bar mounting
• DC power connector
3
An AP-0621 Series access point has one RJ-45 connector supporting an 10/100/1000 Ethernet port
connection and requires 802.3af compliant power from an external source.
The access point contains runtime firmware which enables the unit to boot after either a power up
or a watchdog reset. The runtime firmware on the access point can be updated via the Ethernet
interface.
4
AP-621 Series Access Point Installation Guide
2 Hardware Installation
2.1 Installation Instructions
An AP-0621 Series access point can attach to a wall, mount under a suspended T-Bar or mount above
a ceiling. Selecting a mounting option based on the physical environment of the coverage area. Do
not mount the access point in a location that has not been approved in a site survey.
To prepare for an installation, perform the following:
1. Verify the contents of the box includes the intended access point and accessory hardware.
2. Review site survey and network analysis reports to determine the location and mounting
position for the access point.
3. Connect a CAT-5e or better Ethernet cable to a PoE compatible device and run the cable to
the installation site. Ensure there is sufficient cable slack to perform the installation steps.
4. Determine whether the access point is powered using a Power Injector system, combining
data and power to the access point’s GE1/PoE port or is powered from a conventional power
adapter providing power only to the access point’s DC-48V connector.
2.2 Precautions
Before installing an access point:
• Verify the intended deployment location is not prone to moisture or dust.
• Verify the environment has a continuous temperature range between 0° C to 40° C.
Hardware Installation
2.3 Access Point Placement
For optimal performance, install the access point away from transformers, heavy-duty motors,
fluorescent lights, microwave ovens, refrigerators and other industrial equipment. Signal loss can
occur when metal, concrete, walls or floors block transmission. Install the access point in an open
area or add access points as needed to improve coverage.
Antenna coverage is analogous to lighting. Users might find an area lit from far away to be not bright
enough. An area lit sharply might minimize coverage and create dark areas. Uniform antenna
placement in an area (like even placement of a light bulb) provides even, efficient coverage.
Place the access point using the following guidelines:
• Install the access point at an ideal height of 10 feet from the ground.
• Orient the access point antennas vertically for best reception.
• Point the access point antennas downward if attaching to the ceiling (external antenna
models only).
To maximize the access point’s radio coverage area, conduct a site survey to define and document
radio interference obstacles before installing the access point.
5
2.3.1 Antenna Options
Two antenna suites are supported for the single radio, dual-band, AP-0621 Series access point. One
antenna suite supporting the 2.4 GHz band, and another antenna suite supporting the 5 GHz band.
Select an antenna best suited to the intended operational environment of your access point.
6
AP-621 Series Access Point Installation Guide
The 2.4 GHz antenna suite includes the following models:
Part Number Antenna Type Approximate Gain (dBi)
ML-2452-APA2-01 Dipole 3
ML-2452-HPA5-036 Dipole 2.9
ML-2499-HPA3-01R Dipole 4.6
ML-2499-APA2-01R Dipole 2
ML-2452-APA2GA1-01 Dipole 2
ML-2452-PNA5-01R Panel 4.5
ML-2452-PTA3M3-36 Patch 5
ML-2499-SD3-01R Patch 4.8
Internal Antenna PIFA 2.4
Hardware Installation
The 5 GHz antenna suite includes the following models:
Part Number Antenna Type Approximate Gain (dBi)
ML-2452-APA2-01 Dipole 5
ML-2452-HPA5-036 Dipole 4.9
ML-5299-APA1-01R Dipole 2
ML-5299-HPA1-01R Dipole 5
ML-2452-APA2GA1-01 Dipole 1
ML-2452-PNA5-01R Panel 5
ML-2452-PTA3M3-36 Patch 3
ML-5299-PTA1-0R Patch 5
Internal Antenna PIFA 5.3
For a more exhaustive overview of the antennas and associated components supported, refer to the
Enterprise Wireless LAN Antenna Specification Guide available at www.zebra.com/support
7

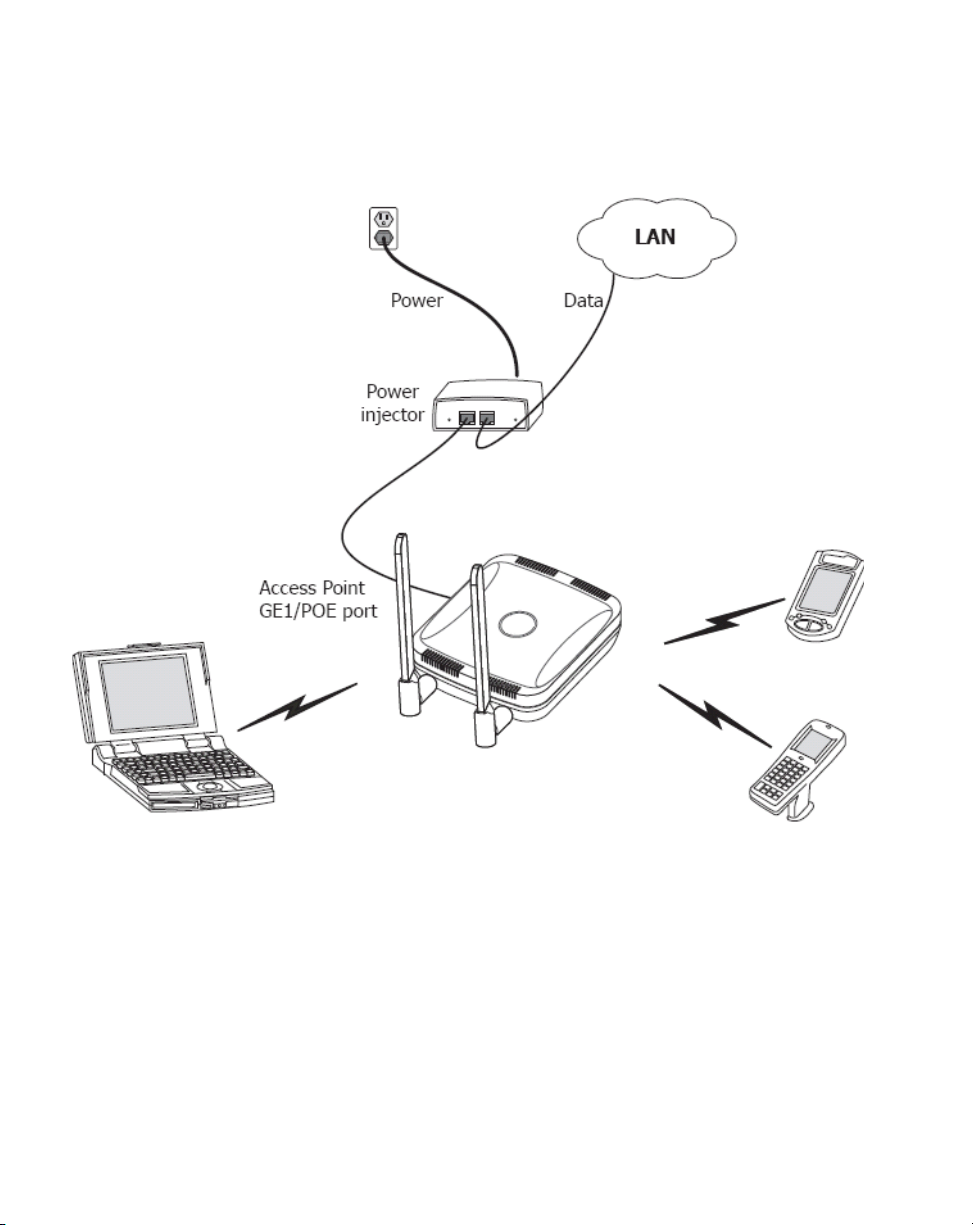

2.3.2 Power Injector System
The access point can receive power via an Ethernet cable connected to the GE1/PoE port.
When users purchase a WLAN solution, they often need to place access points in obscure locations.
In the past, a dedicated power source was required for each access point in addition to the Ethernet
infrastructure. This often required an electrical contractor to install power drops at each access point
location. The Power Injector merges power and Ethernet into one cable, reducing the burden of
installation and allowing optimal access point placement in respect to the intended coverage area.
The Power Injector (Part No. AP-PSBIAS-2P2-AFR) is an 802.3af PoE injector. The access point can
only use a Power Injector when connecting to the access point’s GE1/PoE port. The Power Injector is
separately ordered and not shipped with the access point. A separate Power Injector is required for
each access point comprising the network.
The Power Injector has no On/Off power switch. The Injector receives power and is ready for device
connection and operation as soon as AC power is applied. Refer to the guide shipped with the Power
Injector for a description of the device’s LEDs. The Power Injector can be installed free standing, on
an even horizontal surface or wall mounted using the Power Injector’s wall mounting key holes.
8
AP-621 Series Access Point Installation Guide
The following guidelines should be adhered to before cabling the Power Injector to an Ethernet source
and an access point:
• Do not block or cover airflow to the Power Injector.
• Keep the Power Injector away from excessive heat, humidity, vibration and dust.
• The Power Injector isn’t a repeater, and does not amplify the Ethernet signal. For optimal
performance, ensure the Power Injector is placed as close as possible to the Ethernet
switch. This allows the access point to be deployed away from power drops.
• Ensure the cable length from the Ethernet source (host) to the Power Injector and access
point does not exceed 100 meters (333 ft).
