Symantec™ Gateway Security
400 Series

Installation Guide

Supported models:

Models 420, 440, 460, and 460R

Symantec Gateway Security 400 Series
Installation Guide

The software described in this book is furnished under a license agreement and may be used only in
accordance with the terms of the agreement.

Documentation version 2.1
June 23, 2004

Copyright notice

Copyright  1998–2004 Symantec Corporation.
All Rights Reserved.
Any technical documentation that is made available by Symantec Corporation is the copyrighted work

of Symantec Corporation and is owned by Symantec Corporation.
NO WARRANTY. The technical documentation is being delivered to you AS-IS and Symantec

Corporation makes no warranty as to its accuracy or use. Any use of the technical documentation or
the information contained therein is at the risk of the user. Documentation may include technical or
other inaccuracies or typographical errors. Symantec reserves the right to make changes without prior
notice.

No part of this publication may be copied without the express written permission of Symantec
Corporation, 20330 Stevens Creek Blvd., Cupertino, CA 95014.

Trademarks

Symantec, the Symantec logo, and Norton AntiVirus are U.S. registered trademarks of Symantec
Corporation. LiveUpdate, LiveUpdate Administration Utility, Symantec AntiVirus, and Symantec
Security Response are trademarks of Symantec Corporation.

Other brands and product names mentioned in this manual may be trademarks or registered
trademarks of their respective companies and are hereby acknowledged.

Printed in the United States of America.
10987654321

Technical support

As part of Symantec Security Response, the Symantec global Technical Support group maintains
support centers throughout the world. The Technical Support group’s primary role is to respond to
specific questions on product feature/function, installation, and configuration, as well as to author
content for our Web-accessible Knowledge Base. The Technical Support group works collaboratively
with the other functional areas within Symantec to answer your questions in a timely fashion. For
example, the Technical Support group works with Product Engineering as well as Symantec Security
Response to provide Alerting Services and Virus Definition Updates for virus outbreaks and security
alerts.

Symantec technical support offerings include:

■ A range of support options that give you the flexibility to select the right amount of service for any

size organization

■ Telephone and Web support components that provide rapid response and up-to-the-minute

information

■ Upgrade insurance that delivers automatic software upgrade protection

■ Content Updates for virus definitions and security signatures that ensure the highest level of

protection

■ Global support from Symantec Security Response experts, which is available 24 hours a day, 7 days

a week worldwide in a variety of languages for those customers enrolled in the Platinum Support
program

■ Advanced features, such as the Symantec Alerting Service and Technical Account Manager role,

offer enhanced response and proactive security support

Please visit our Web site for current information on Support Programs. The specific features available
may vary based on the level of support purchased and the specific product that you are using.

Licensing and registration

See “Licensing” on page 37.

Contacting Technical Support

Customers with a current maintenance agreement may contact the Technical Support group by phone
or online at www.symantec.com/techsupp.

Customers with Gold or Platinum support agreements may contact Gold or Platinum Technical
Support at https://www-secure.symantec.com/gold or https://www-secure.symantec.com/platinum.
When contacting the Technical Support group, please have the following:

■ Product release level

■ Hardware information

■ Available memory, disk space, NIC information

■ Operating system

■ Version and patch level

■ Network topology

■ Router, gateway, and IP address information

■ Problem description

■ Error messages/log files

■ Troubleshooting performed prior to contacting Symantec

■ Recent software configuration changes and/or network changes

Customer Service

To contact Enterprise Customer Service online, go to www.symantec.com/techsupp, select the
appropriate Global Site for your country, then select the enterprise Continue link. Customer Service is
available to assist with the following types of issues:

■ Questions regarding product licensing or serialization

■ Product registration updates such as address or name changes

■ General product information (features, language availability, local dealers)

■ Latest information on product updates and upgrades

■ Information on upgrade insurance and maintenance contracts

■ Information on Symantec Value License Program

■ Advice on Symantec’s technical support options

■ Nontechnical presales questions

■ Missing or defective CD-ROMs or manuals

Contents

Chapter 1 Introducing the Symantec Gateway Security 400 Series

Intended audience .............................................................................................................................................8

Document structure ..........................................................................................................................................8

Where to get more information .......................................................................................................................8

Checking the components list ..........................................................................................................................9

Replacement CD-ROMs ...................................................................................................................................10

Chapter 2 Installing the Symantec Gateway Security 400 Series

Planning for installation ................................................................................................................................11

Installing the appliance ..................................................................................................................................12

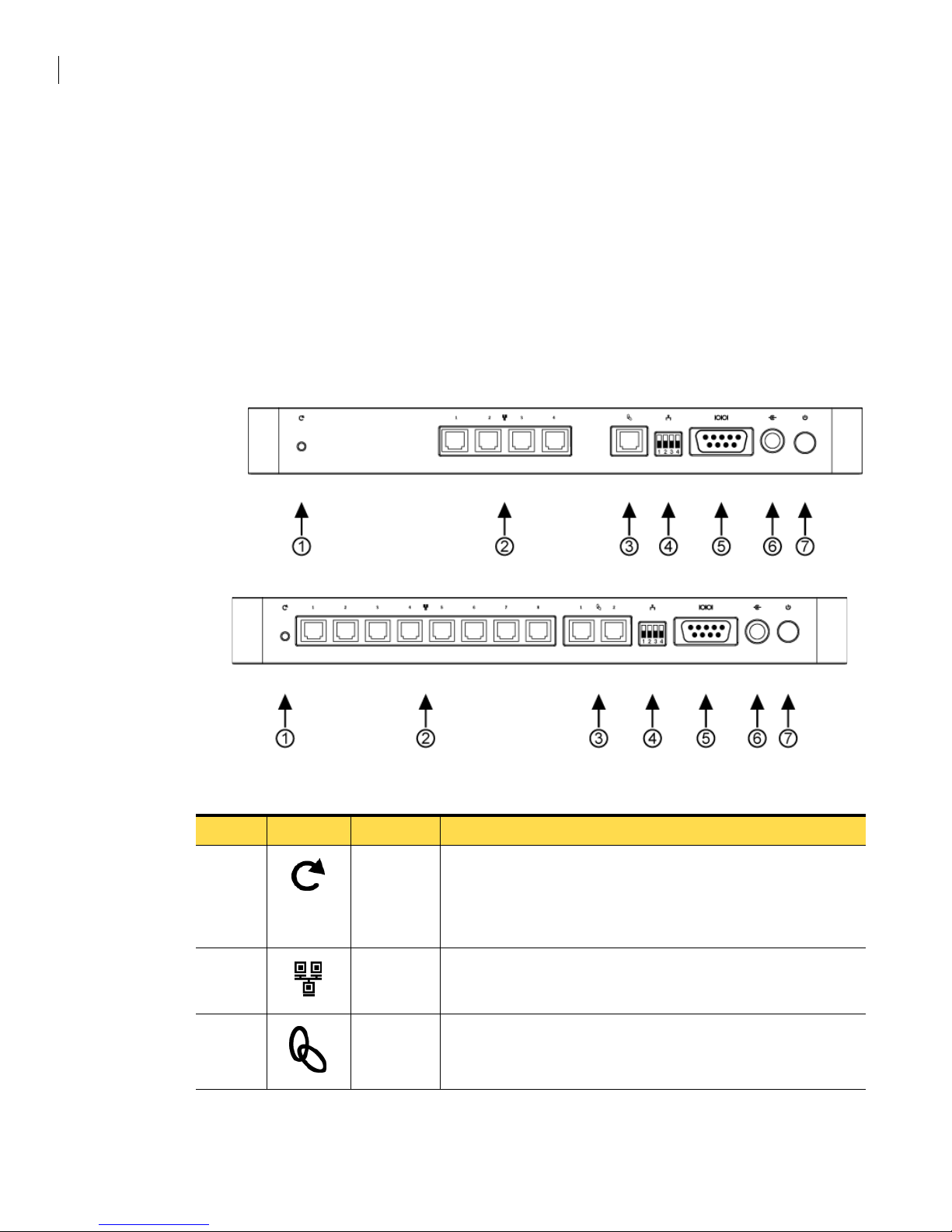

Back panel connectors and controls .....................................................................................................12

Connecting the appliance to the network ............................................................................................13

Powering the appliance ...........................................................................................................................13

Configuring the appliance ..............................................................................................................................14

Chapter 3 Running the Setup Wizard

About the Setup Wizard .................................................................................................................................15

Understanding connection types ..................................................................................................................15

DHCP ..........................................................................................................................................................16

DSL .............................................................................................................................................................17

PPPoE .........................................................................................................................................................17

PPTP ...........................................................................................................................................................17

Static IP address .......................................................................................................................................18

Dial-up/ISDN ............................................................................................................................................18

Running the Setup Wizard .............................................................................................................................19

Before you begin ......................................................................................................................................19

Starting the Setup Wizard ......................................................................................................................20

Setting up Dialup/ISDN ..........................................................................................................................20

Configuring a DHCP connection ............................................................................................................21

Configuring a DSL connection ...............................................................................................................22

Configuring a static IP address connection .........................................................................................22

Completing the Setup Wizard ................................................................................................................23

Accessing the Security Gateway Management Interface (SGMI) .............................................................24

Joining SESA .....................................................................................................................................................24

Appendix A Developing a pre-installation security plan

About developing a security plan ..................................................................................................................25

Defining your security policy ........................................................................................................................25

Before writing your security plan .........................................................................................................26

Becoming security-conscious .................................................................................................................26

Educating users ................................................................................................................................................27

Involving the user community ..............................................................................................................27

Filling out worksheets .....................................................................................................................................27

Defining your organization ....................................................................................................................27

Site hardware/software information ....................................................................................................29

TCP/IP address .........................................................................................................................................30

6 Contents

Allowed TCP/IP services .........................................................................................................................31

Web service information ........................................................................................................................32

Access lists ................................................................................................................................................33

Defining your network architecture .....................................................................................................34

Appendix B Licensing

Appendix C Specifications and safety

Product specifications ....................................................................................................................................43

Safeguard instructions ...................................................................................................................................44

Product certifications .....................................................................................................................................45

Appendix D LEDs and DIP switches

About LEDs .......................................................................................................................................................47

Interpreting the LEDs .............................................................................................................................48

LiveUpdate LED status ............................................................................................................................48

DIP switches .....................................................................................................................................................49

Appendix E About troubleshooting

Accessing troubleshooting information ......................................................................................................51

Index

Chapter

Introducing the Symantec Gateway
Security 400 Series

This chapter includes the following topics:

■ Intended audience

■ Document structure

■ Where to find more information

■ Checking the components list

1

■ Replacement CD-ROMs

Symantec Gateway Security 400 Series appliances are Symantec’s integrated security solution for the
Remote Office/Branch Office (ROBO) and small office environments, with support for secure wireless LANs
in any size office.

Symantec Gateway Security 400 Series provides integrated security by offering six security functions in
the base product:

■ Firewall

■ IPSec Virtual Private Networks (VPNs) with hardware-assisted 3DES and AES encryption

■ Intrusion detection

■ Intrusion protection

■ Static content filtering

■ Antivirus policy enforcement (AVpe)

All of these features are designed specifically for the remote or branch office. These appliances are perfect
for stand-alone environments or as a complement to Symantec Gateway Security 5400 Series appliances
deployed at hub sites.

Symantec Gateway Security 400 Series models are wireless-capable. They have special wireless firmware
and a CardBus slot that can accommodate an optional Symantec wireless network card consisting of an
integrated 802.11b/g radio and separate antenna, to allow the highest possible integrated security for
wireless LANs, when used with clients running the Symantec Client VPN software.

You can manage the Symantec Gateway Security 400 Series using the Security Gateway Management
Interface (SGMI), an HTML-based graphical user interface. The SGMI lets you manage all facets of the
appliance configuration. Refer to the Symantec Gateway Security 400 Series Administrator’s Guide for
details.

You can also manage some of the security gateway’s configuration using the Symantec Management
Console. With the Symantec Event Manager, you can use the Symantec Management Console to manage
security gateway alerts, logging, and reporting functions. With the Symantec Advanced Manager, you can
use the Symantec Management Console for scalable management of multiple security gateways.

8 Introducing the Symantec Gateway Security 400 Series

Intended audience

Intended audience

This manual is intended for system managers or administrators responsible for administering the
Symantec Gateway Security 400 Series appliances.

Document structure

This manual is structured as follows:

Table 1-1 Document structure

Chapter Title Content

Chapter 2 Installing the Symantec Gateway

Security 400 Series

Chapter 3 Running the Setup Wizard Tells you how to run the Setup Wizard to establish initial

Appendix A Developing a pre-installation security

plan

Appendix B Licensing Tells you how to obtain license files and lists the details of

Appendix C Specifications and safety Lists the product specifications, safeguard instructions,

Appendix D LEDs and DIP switches Describes the functions of the system LEDs and switches.

Appendix E About troubleshooting Tells you where to find troubleshooting information.

Where to find more information

The Symantec Gateway Security 400 Series functionality is described in the following manuals:

■ Symantec™ Gateway Security 400 Series Quick Start Card

This card briefly describes how to physically install and connect the appliance.

■ Symantec™ Gateway Security 400 Series Getting Started Guide

This guide lists the tasks the user will want to perform after they have finished physically installing
and connecting the appliance.

■ Symantec™ Gateway Security 400 Series Installation Guide

The guide you are reading covers the physical installation of the appliance, the initial setup of the
appliance, and the Security Gateway Management Interface (SGMI).

■ Symantec™ Gateway Security 400 Series Administrator’s Guide

This guide describes the features and components of the standalone version of the Symantec Gateway
Security 400 Series with the SGMI and provides step-by-step instructions for configuring and using
the appliance.

■ Symantec™ Event Manager and Advanced Manager for Security Gateways (Group 2) v2.1 Integration

Guide

This guide describes how to integrate the Symantec security gateway into the Symantec Enterprise
Security Architecture (SESA) environment.

Tells you how to install the appliance.

WAN connectivity. You can also run the Setup Wizard after
the initial setup to change the appliance configuration.

Lays out basic guidelines for developing an overall security
plan and provides a checklist for assessing your security
issues.

the Symantec Gateway Security Appliance license and
warranty agreement.

and certifications.

■ Symantec™ Event Manager and Advanced Manager for Security Gateways (Group 2) v2.1

Administrator’s Guide

This guide describes how to administer Symantec security gateways from the SESA environment using

the Symantec Advanced Manager and Symantec Event Manager products.

Checking the components list

After carefully unpacking the appliance, compare the actual kit contents with the components listed in

Table 1-2 to ensure that you have received all ordered components.

Table 1-2 Components list

Part Description

Appliance A single stand-alone device.

Checking the components list

9Introducing the Symantec Gateway Security 400 Series

Cables

■ Cat 5 Ethernet cable

■ Null modem serial console cable

■ Power supply with an adapter appropriate for the country in which the appliance

will operate

Printed documentation Symantec Gateway Security 400 Series Quick Start Card, Symantec Security Gateway

400 Series Release Notes

Symantec Gateway Security
400 Series software CD-ROM

AVp e

■ AVpe client activation registration file

The following documentation in PDF format:

■ Symantec Gateway Security 400 Series Administrator’s Guide (PDF)

■ Symantec Gateway Security 400 Series Getting Started Guide (PDF)

■ Symantec Gateway Security 400 Series Installation Guide (PDF)

■ Symantec Gateway Security 400 Series Quick Start Card (PDF)

■ Symantec Gateway Security 400 Series Release Notes (PDF)

■ Symantec Gateway Security 400 Series Help (JAR file)

■ Adobe Acrobat Reader

420

■ Model 420 firmware

440

■ Model 440 firmware

460

■ Model 460/460R firmware

Too ls

■ SYMC TFTP (Windows and DOS)

Symantec Client VPN Version

8.0 CD-ROM (460R only)

Symantec Client VPN software

The following documentation in PDF format:

■ Symantec Client VPN User’s Guide

■ Symantec Client VPN Getting Started Card

■ Symantec Client VPN Release Notes

10 Introducing the Symantec Gateway Security 400 Series

Replacement CD-ROMs

Replacement CD-ROMs

You may need to replace the media due to a defective or lost CD-ROM. If you need a replacement CD-ROM
because it is defective, contact Customer Support.

If you require a new CD-ROM because you have lost it, contact your Sales Representative to purchase a new
media kit.

Chapter

Installing the Symantec Gateway
Security 400 Series

This chapter includes the following topics:

■ Planning for installation

■ Installing the appliance

■ Configuring the appliance

This chapter describes how to prepare and install the Symantec Gateway Security 400 Series appliance,
including how to connect it to the network and turn on the power.

2

Planning for installation

Before installing your appliance, remove plastic cover sheet from the top of the appliance.

Select an appropriate location using the following guidelines:

■ Smooth and level surface

Place the appliance on a smooth and level surface, such as the top of a computer table. Make sure that

the area is clear of dust and debris.

■ Plenty of air circulation

Ensure that there is adequate space (at least 1 inch) on all sides of the appliance to allow for air

circulation to cool the machine. Never place objects or paper on top of the appliance.

■ Proper power source

Install the appliance near a power source that is adequate and near enough the appliance that the

power cord is not strained, stretched, or in danger of coming unplugged.

■ Appliance and cables away from high-traffic areas

Install the appliance in an area that is out of the way of foot traffic.

■ Prepare the appliance

Remove the plastic cover sheet from the top of the appliance.

Note: On the left side and bottom of the appliance is a seal with the Symantec logo, certification logos,
country where the unit was manufactured, the MAC address of the LAN card, and a unique bar-coded serial
number. Breaking this seal or opening the appliance in any way voids your warranty.

12 Installing the Symantec Gateway Security 400 Series

Installing the appliance

Installing the appliance

This section describes the installation of the Symantec Gateway Security 400 Series models 420, 440, 460,
and 460R, including:

■ Back panel connectors and controls

■ Connecting the appliance

■ Powering the appliance

Back panel connectors and controls

Figure 2-1 shows the back panel of models 420 and 440 and Figure 2-2 shows the back panel of models 460

and 460R. The numbers in both figures correspond to Table 2-1.

Figure 2-1 Models 420 and 440 back panel

Figure 2-2 Models 460 and 460R back panel

Table 2-1 describes the connectors, controls, and icons on the back panel of all the models.

Table 2-1 Symantec Gateway Security 400 Series back panel controls

Location Icon Feature Description

1 Restart When you press this button, current connections and all client VPN

tunnels are lost, all Gateway-to-Gateway VPN tunnels that were previously
connected re-establish after the appliance restarts, and the initial
hardware self-test is run.

This button is recessed. Press it gently and quickly with a paper clip.

2 LAN ports Models 420 and 440 have four Ethernet ports and models 460 and 460R

have eight Ethernet ports to which you connect RJ-45 connectors from the
nodes that the appliance protects.

3 WAN port Models 420 and 440 have one Ethernet port and models 460 and 460R have

two Ethernet ports to which you connect RJ-45 connectors from an outside
network (such as an intranet) or the Internet.

Installing the appliance

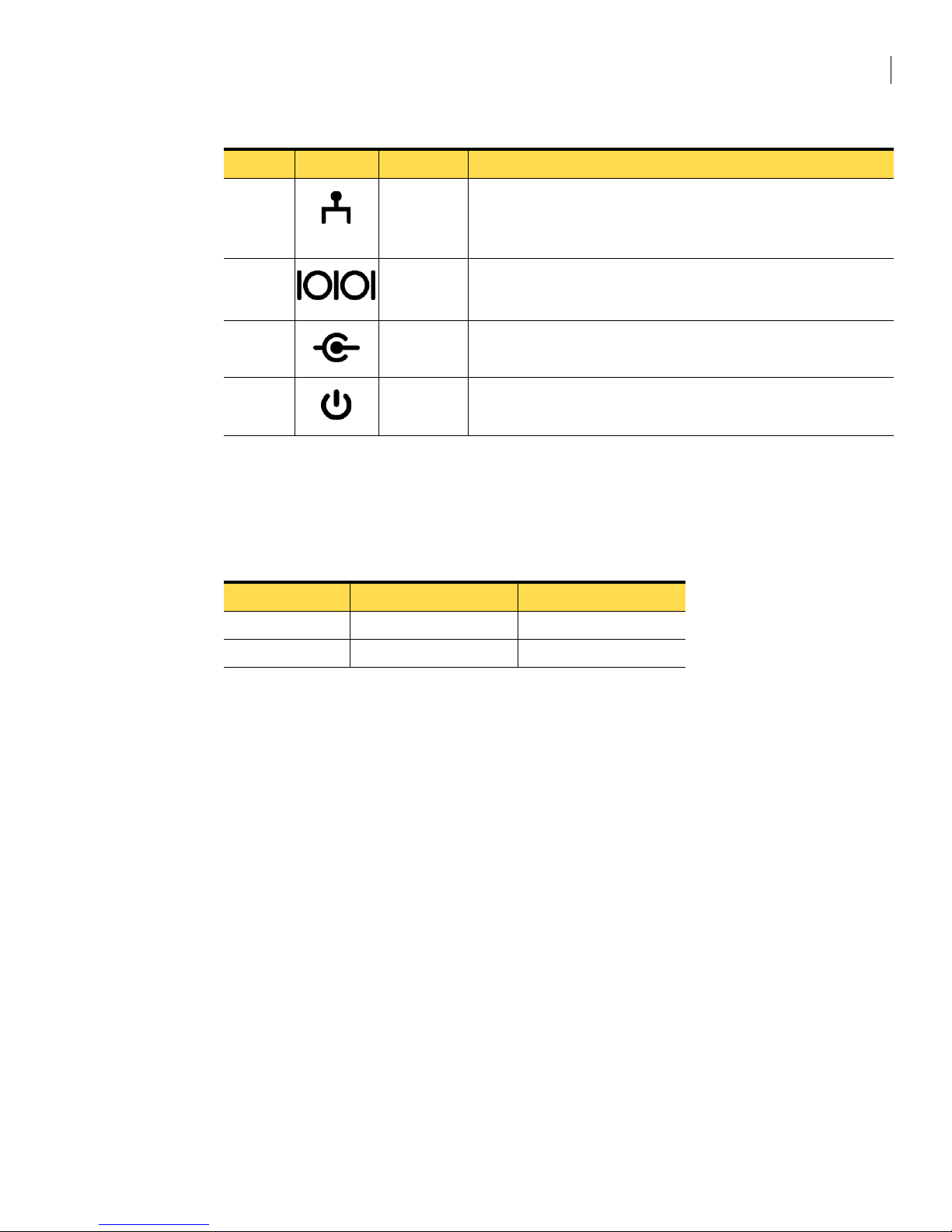

Table 2-1 Symantec Gateway Security 400 Series back panel controls (Continued)

Location Icon Feature Description

4 DIP switches The DIP switches are shown in the on (up) position. The default position is

off (down). DIP switches provide additional functionality to the appliance.
Genera lly, they are on ly used when pe rforming tasks that i nvolve manua lly
updating the appliance.

13Installing the Symantec Gateway Security 400 Series

5Serial

(modem) port

6 Power socket Connect the power cord.

7 Power on/off Turns the power supply to the appliance on or off.

Connecting the appliance to the network

You install the appliance by connecting it to your network using the LAN and WAN ports on the back panel.
Symantec Gateway Security 400 Series models 420, 440, 460, and 460R have different numbers of LAN and
WAN ports; each is described in Table 2-2.

Table 2-2 Port distribution on models 420, 440, 460, and 460R

Model LAN ports (Ethernet) WAN ports (Ethernet)

420/440 4 1

460/460R 8 2

Generally, the WAN and serial ports provide connectivity to an outside network or the Internet, while the
nodes that you are protecting connect directly to the LAN ports. See the examples in Chapter 3 of the
Symantec Gateway Security 400 Series Administrator’s Guide for more information.

All the appliances have one serial port. If you use a modem and dial-up
connection to provide Internet connectivity, you connect the modem to the
serial port.

Refer to the back panel location numbers in Figure 2-1 and Figure 2-2 when performing these steps.

To connect your appliance

1 In the WAN port (3) (WAN 1 on model 460 or 460R), plug in the RJ-45 connector from the outside

network or your Internet connection.

2 For a dial-up Internet connection, connect the modem to the serial port (5).

See the Symantec Gateway Security 400 Series Administrator’s Guide. A serial modem cable is not

included.

3 In one of the LAN ports (2), plug in the RJ-45 connector from a node that the appliance will protect.

The LAN ports are not ordered; you can plug any cable from a node into any of the LAN ports. The node

will be assigned an IP address by the DHCP server by default.

4 Repeat step 3 for up to four different nodes on models 420 and 440 or eight different nodes on models

460 and 460R.

Switches can be connected to any of the LAN ports to connect additional nodes beyond the 4 or 8 node

limit.

Powering the appliance

Use the back panel location numbers in Figure 2-1 and Figure 2-2 when you perform these steps.

14 Installing the Symantec Gateway Security 400 Series

Configuring the appliance

To power your appliance

1 Plug the power cord into the power socket on the back panel (6).

2 Connect the power cord from the appliance into an electrical outlet.

3 To turn on the appliance, press the power switch on the back panel (7).

The appliance power is functioning correctly if the LEDs on the front panel illuminate. See “LEDs and

DIP switches” on page 47.

Configuring the appliance

Once you have completed the physical installation of the appliance, you must log in and begin system
configuration. The first time that you log in to the appliance, the Setup Wizard begins and guides you
through an initial configuration. Proceed to “Running the Setup Wizard” on page 15.

Running the Setup Wizard

This chapter includes the following topics:

■ About the Setup Wizard

■ Understanding connection types

■ Running the Setup Wizard

■ Accessing the Security Gateway Management Interface (SGMI)

■ Joining SESA

About the Setup Wizard

Chapter

3

The Setup Wizard guides you through the steps required to connect your Symantec Gateway Security 400
Series WAN port (WAN 1 on models 460 and 460R) to the Internet, a corporate network, or any other
external private or public network.

Understanding connection types

To connect the appliance to an outside or internal network, you must understand your connection type.

First, determine if you have a dial-up or dedicated account. Typical dial-up accounts are analog (through a
normal phone line connected to an external modem) and ISDN (through a special phone line). Typical
dedicated accounts are broadband cable, DSL, T1/E1, or T3 connected to a terminal adaptor.

Table 3-1 and Table 3-2 describe the supported connection types, including the following information:

■ The Connection type column correlates to the option button you click on the Main Setup tab or in the

Setup Wizard.

■ The Services column defines the types of accounts or protocols that are associated with the connection

type.

■ The Network termination types column lists the physical devices that a particular connection type

typically uses to connect to the Internet or a network.

16 Running the Setup Wizard

Understanding connection types

Once you have determined your specific type of connection, refer to the appropriate configuration section
later in this chapter.

Note: Connect only RJ-45 cables to the WAN ports.

Table 3-1 Dial-up connection types

Connection type Services Network termination types

Analog or ISDN Plain Old Telephone Service

(POTS)

Integrated Services Digital
Network (ISDN)

Analog dial-up modem

Digital dial-up modem

An ISDN modem is sometimes called a terminal adaptor.

Table 3-2 Dedicated connection types

Connection type Services Network termination types

DHCP Broadband cable Cable modem

Digital Subscriber Line (DSL) DSL modem with Ethernet cable

Direct Ethernet connection Ethernet Cable (usually an enclave network)

PPPoE PPPoE ADSL modem with Ethernet cable

Static IP (Static IP &
DNS)

PPTP PPTP DSL modem with Ethernet cable

Broadband cable Cable modem

Digital Subscriber Line (DSL) DSL modem

T1 Channel Service Unit/Digital Service Unit (CSU/DSU)

Direct Ethernet connection Ethernet cable (usually an enclave network)

DHCP

The following connection methods are supported by Symantec Gateway Security 400 Series:

■ DHCP

■ DSL

■ PPPoE

■ PPTP

■ Static IP address

■ Dial-up/ISDN

Dynamic Host Configuration Protocol (DHCP) automates the network configuration of computers. It lets a
network with many clients extract configuration information from a single DHCP server. In the case of a
dedicated Internet account, the users are the clients extracting information from the ISP’s DHCP server,
and IP addresses are only assigned to connected accounts.

The account you have with your ISP may use DHCP to allocate IP addresses to you. Account types that
frequently use DHCP are broadband cable and DSL. ISPs may authenticate broadband cable connections
using the MAC address or physical address of your computer or gateway.

DSL

PPPoE

Understanding connection types

17Running the Setup Wizard

If you are using the security gateway on a pre-existing broadband cable connection, you can change the
appliance to match the existing MAC address. If this is a new connection, you can obtain the physical
address in the Setup Wizard for your ISP.

DSL ISPs may provide Internet service by allocating IP addresses by DHCP, or they may assign your
account a static IP address.

DSL ISPs also use Point-to-Point Protocol over Ethernet (PPPoE) or Point-to-Point Tunneling Protocol
(PPTP) technologies for user authentication of network connections.

Point-to-Point Protocol over Ethernet (PPPoE) is used by many Asymmetrical Digital Subscriber Line
(ASDL) providers. It is a specification for connecting many users on a network to the Internet through a
single dedicated medium, such as a DSL account.

You can specify whether you connect or disconnect your PPPoE account manually or automatically. This is
useful to verify connectivity.

You can configure the appliance to connect only when an Internet request is made from a user on the LAN
(for example, browsing to a Web site) and disconnect when the connection is idle (unused). This feature is
useful if your ISP charges on a per-usage time basis.

You can use multiple logins (if your ISP account allows multi-session PPPoE) to obtain additional IP
addresses for the WAN. These are called PPPoE sessions. The login may be the same user name and
password as the main session or may be different for each session, depending on your ISP. Up to five
sessions or IP addresses are allowed for models 420 and 440 and up to three sessions for each WAN port on
models 460 and 460R. LAN hosts are bound to a session on the Computers tab in the SGMI.

PPTP

Note: Multiple IP addresses on a WAN port are only supported for PPPoE connections.

By default, all settings are associated with Session 1. For multi-session PPPoE Accounts, configure each
session individually. If you have multiple PPPoE accounts, assign each one to a different session in the
SGMI.

Before configuring the WAN ports to use a PPPoE account, gather the following information:

■ User name and password

All PPPoE accounts require user names and passwords. Get this information from your ISP before

configuring PPPoE.

■ Static IP address

You may have purchased or are assigned a static IP address for the PPPoE account.

Point-to-Point-Tunneling Protocol (PPTP) is a protocol that enables secure data transfer from a client to a
server by creating a tunnel over a TCP/IP-based network. Symantec Gateway Security 400 Series
appliances act as a PPTP access client (PAC) when you connect to a PPTP Network Server (PNS), generally
with your ISP.

Some ADSL ISPs charge for connection time. The Symantec Gateway Security 400 Series reduces these
costs by only connecting to your ISP when you use the Internet, and disconnecting when you are idle.

Before beginning PPTP configuration, gather the following information:

■ PPTP server IP address

IP address of the PPTP server at the ISP.

18 Running the Setup Wizard

Understanding connection types

Static IP address

■ Static IP address

IP address assigned to your account.

■ Account information

User name and password to log in to the account.

When you get an account with an ISP, you may have the option to purchase a static (permanent) IP address.
This lets you run a server, such as a Web or FTP server, because the address remains the same, all of the
time. Any type account (dial-up or broadband) can have a static IP address.

The appliance forwards any DNS lookup requests to the specified DNS server for name resolution. The
appliance supports up to three DNS servers. When you specify multiple DNS servers, they are used in
sequence. For example, after the first server is used, the next request is forwarded to the second server and
so on.

If you have a static IP address with your ISP or are using the appliance behind another security gateway
device, select Static IP and DNS for your connection type. You can specify your static IP address and the IP
addresses of the DNS servers you want to use for name resolution.

Before configuring the appliance to connect with your static IP account, gather the following information:

■ Static IP address, netmask, and default gateway addresses

Contact your ISP or IT department for this information.

■ DNS addresses

You must specify the IP address for at least one, and up to three, DNS servers. Contact your ISP or IT
department for this information. You do not need DNS IP address entries for dynamic Internet
accounts or accounts where a DHCP server assigns the IP addresses.
If you have a static IP address with PPPoE, configure the appliance for PPPoE.

See “PPPoE” on page 17.

Dial-up/ISDN

There are two basic types of dial-up accounts: analog and ISDN. Analog uses a modem that connects to a
regular telephone line (using an RJ-11 connector). ISDN is a digital dial-up account type that uses a special
telephone line.

On the Symantec Gateway Security 400 Series appliance, you can use a dial-up account as your primary
connection to the Internet, or as a backup to your dedicated account. In backup mode, the appliance
automatically dials the ISP if the dedicated connection fails. The appliance re-engages the dedicated
account when it is stable; usually 30 to 60 seconds.

You can configure a primary and a backup dial-up account. You can also connect or disconnect your
account manually. You may configure a backup dial-up account if your primary dedicated account fails.
First, you must connect the modem to the appliance. Then, you use the SGMI to configure the dial-up
account.

Running the Setup Wizard

You must use an external modem for dial-up accounts. You connect both analog and ISDN modems to the
appliance through the serial port on the rear panel. Figure 3-1 shows the serial port on the rear panel of the
model 420 and 440 appliances. Figure 3-2 shows the serial port on the rear panel of the model 460 and 460R
appliances.

Figure 3-1 Rear panel of Symantec Gateway Security model 420 and 440 appliances

Serial port

Figure 3-2 Rear panel of Symantec Gateway Security model 460 and 460R appliances

Serial port

Before configuring the appliance to use your dial-up account as either the primary or backup connection,
gather the following information and equipment:

19Running the Setup Wizard

Account information User name, which may be different from your account name, and associated password.

Dial-up numbers Requires at least one, and up to three, telephone numbers.

Static IP address Some ISPs assign static IP addresses to their accounts.

Modem/cables An external modem and a serial cable to connect the modem to the serial port on the back of the

appliance.

Modem
documentation

You may need to consult your modem’s documentation for modem command or model
information.

Running the Setup Wizard

The Setup Wizard runs the first time that you browse to the appliance. You can also run it again to
reconfigure the appliance by clicking WAN/ISP in the left pane of the SGMI, and then clicking Run Setup
Wizard on the Main Setup tab in the right pane.

Using the SGMI, you can change any information you enter in the Setup Wizard, except the language. You
can change the language by running the Setup Wizard again, and selecting a different language.

You cannot change the WAN connectivity information from the SESA Console.

Before you begin

Before proceeding with the Setup Wizard, plug in the cable from your modem which is connected to the
Internet or from your intranet into the WAN port (WAN 1 on models 460 and 460R) on the back of your
appliance. After you plug in the appropriate cables, check that the Link LED (on the WAN port itself) is
illuminated, restart your computer, and then begin the Setup Wizard.

If the WAN port is active (has an active Internet or intranet connection plugged in to it), the Setup Wizard
guides you through configuring LiveUpdate and changing your administrator password. If the WAN port is
not active, the Setup Wizard guides you through entering ISP-specific connection parameters.

20 Running the Setup Wizard

Running the Setup Wizard

LiveUpdate lets customers keep their Symantec products up-to-date with the latest revision. You should
run LiveUpdate as soon as your appliance is connected to the Internet. If new LiveUpdate packages are
available, the appliance restarts after the package is downloaded and applied, but your configuration is
preserved.

Note: You should configure the LiveUpdate service for automatic updates. This ensures that the appliance
always provides the highest level of security available.

Starting the Setup Wizard

Configuring the appliance using the Setup Wizard consists of three parts: starting the Setup Wizard,
configuring for your connection type, and then completing the Setup Wizard.

Note: If your connection type is DHCP and the appliance is connected to the WAN, when you start the Setup
Wizard the appliance automatically detects and configures DHCP for you.

To start the Setup Wizard

1 Install the appliance according to the instructions in “Installing the Symantec Gateway Security 400

Series” on page 11.

2 Open your browser and browse to the appliance IP address.

By default, the IP address is 192.168.0.1.

3 In the Symantec Gateway Security 400 Series Language Selection panel, select a language.

When you select a language, it is the language in which the Setup Wizard proceeds, as well as the
language which is used on the appliance.

4 Click the right-arrow >> button.

5 In the Welcome to the Setup Wizard panel, click Next>>.

6 Proceed to the instructions for your connection type.

■ “Setting up Dialup/ISDN” on page 20.

■ “Configuring a DHCP connection” on page 21.

■ “Configuring a DSL connection” on page 22.

■ “Configuring a static IP address connection” on page 22.

Setting up Dialup/ISDN

The following procedures walk you through configuring a primary dial-up connection. For information on
setting up a back-up dial-up account, see the Symantec Gateway Security 400 Series Administrator’s Guide.

Before performing these procedures, you must complete the tasks in “Starting the Setup Wizard” on
page 20.

To set up dial-up or ISDN

1 Run the Setup Wizard.

See “Starting the Setup Wizard” on page 20.

2 In the Connection Types panel, click Dialup/ISDN.

Running the Setup Wizard

3 In the Dialup or ISDN Connection panel, under User account information and dialup numbers, do the

following:

User Name Type the account user name.

Password Type the account password.

Verify Password Retype the account password.

Dial-up Telephone 1 Type the primary dial-up telephone number.

Dial-up Telephone 2 Optionally, type a backup dial-up telephone number.

4 Under ISP-provided static IP address, in the IP address text boxes, type the static IP address, if you have

one.

5 Under Modem Settings, do the following:

Model Select the model of your modem.

Line Speed Select the speed at which you want to connect.

Initialization String Type an initialization string.

For all the modems listed in the Model drop-down list, the initialization string is provided. If
you select Other, you must type an initialization string.

21Running the Setup Wizard

Dial Type Select the dial type.

Line Type Select the type of telephone line.

Idle Time Out Type the amount of time, in minutes, after which the connection is closed if idle.

Dial String Type a dial string.

Redial String Type a redial string.

6 Click Next>>.

7 Skip to “Completing the Setup Wizard” on page 23.

Configuring a DHCP connection

Before performing these procedures, you must complete the tasks in “Starting the Setup Wizard” on
page 20.

Note: If your connection type is DHCP, and the appliance is connected to the WAN, when you start the
Setup Wizard the appliance automatically detects and configures DHCP for you.

To configure a DHCP connection

1 Begin the Setup Wizard.

See “Starting the Setup Wizard” on page 20.

2 In the Connection Types panel, click DHCP.

3 In the Broadband Cable Connection panel, in the Computer or gateway MAC address text boxes, type

the physical MAC address.

Change this value only if required to do so by your ISP.

4 Click Next>>.

5 Skip to “Completing the Setup Wizard” on page 23.

22 Running the Setup Wizard

Running the Setup Wizard

Configuring a DSL connection

Before performing these procedures, you must complete the tasks in “Starting the Setup Wizard” on
page 20.

To configure a DSL connection

1 Run the Setup Wizard.

See “Starting the Setup Wizard” on page 20.

2 In the Connection Types panel, click DSL.

3 In the Broadband ADSL/SDSL Connection Authentication panel, select the user authentication service.

4 If you selected PPPoE, in the Broadband ADSL/SDSL Connection with PPPoE panel, do the following:

User Name Type the account user name.

Password Type the account password.

Verify Password Retype the account password.

Connect on Demand To establish the connection on an as-needed basis, check this check box.

Idle Time Out Type the time, in minutes, after which the connection closes if idle.

Static IP address Type the static IP address.

5 If you selected PPTP, in the Broadband ADSL Connection with PPTP panel, do the following:

User Name Type the account user name.

Password Type the account password.

Verify Password Retype the account password.

Server IP Address Type the server IP address.

Connect on Demand To establish the connection on an as-needed basis, check this check box.

Idle Time Out Type the time, in minutes, after which the connection closes if idle.

Static IP address Type the static IP address.

6 Click Next>>.

7 Skip to “Completing the Setup Wizard” on page 23.

Configuring a static IP address connection

Before performing these procedures, you must complete the tasks in “Starting the Setup Wizard” on
page 20.

To configure a static IP address connection

1 Run the Setup Wizard.

See “Starting the Setup Wizard” on page 20.

2 In the Connection Types panel, click Static IP.

3 In the Broadband connection using a Static IP panel, do the following:

IP Address Type the static IP address.

Network Mask Type the network mask.

IP Address Type the static IP address.

Default Gateway Type the IP address of the default gateway.

DNS 1 Type the IP address of the first Domain Name Service (DNS) server used to translate

DNS 2 Optionally, type the IP address of an additional DNS server used to translate addresses.

DNS 3 Optionally, type the IP address of an additional DNS server used to translate addresses.

4 Click Next>>.

5 Skip to “Completing the Setup Wizard” on page 23.

Completing the Setup Wizard

Before performing these procedures, you must complete the tasks in “Starting the Setup Wizard” on
page 20 and the procedures that are specific to the type of connection you have.

To complete the Setup Wizard

1 In the System Information panel, do the following:

Running the Setup Wizard

23Running the Setup Wizard

addresses.

Security Gateway Host Name Type the name of the gateway host.

You can leave the default value, change it if required by your ISP, or leave it
blank.

Domain Name Optionally, type the domain name.

admin’s Password Type the administrator account password.

The administrator user name is always admin.

Verify Password Retype the administrator account password.

Block ICMP Requests To not permit PING requests, click Enable. To permit PING requests, click

Disable.

2 Click Next>>.

3 In the LiveUpdate Settings panel, do the following:

Run LiveUpdate Now To run LiveUpdate after the Setup Wizard is complete, check this check box.

Enable Scheduler To run Scheduler, check this check box.

LiveUpdate Server Type the IP address of the LiveUpdate server.

Frequency Select the frequency with which LiveUpdate checks for updates. The default frequency is

Daily.

Preferred Time (UTC) Type the time of day at which you want LiveUpdate to check for updates.

The time is based on a 24-hour clock. The format is HH:MM, where HH is hour and MM is
minutes. For example, to run the Live Update at 5:30 pm, type 17:30.

4 Click Next>>.

5 In the Confirmation panel, review the settings, and then do one of the following:

■ To make changes, click <<Back.

■ To save the settings and restart the appliance, click Apply Settings.

It takes a few minutes for the appliance to apply the settings and restart.

24 Running the Setup Wizard

Accessing the Security Gateway Management Interface (SGMI)

Accessing the Security Gateway Management Interface (SGMI)

Once you have completed the Setup Wizard, you can configure the other features of the appliance using the
SGMI.

You should configure your browser to check for newer versions of stored pages, every visit to the page,
before accessing the SGMI.

To access the SGMI

◆ Browse to 192.168.0.1 (the IP address of the appliance).

This is the default IP address of the appliance. Once you have logged in to the SGMI, you can change the
IP address.
The administrator user name is always admin. The SGMI login is case-sensitive. To assign or change
the admin password, click on Administration in the left pane and then click on the Basic Management
tab.

For more information about configuring the appliance, see Symantec Gateway Security 400 Series
Administrator’s Guide.

Joining SESA

To join the Symantec Enterprise Security Architecture (SESA) environment, refer to Appendix D of the
Symantec Gateway Security 400 Series Administrator’s Guide.

Appendix

Developing a pre-installation
security plan

This chapter includes the following topics:

■ About developing a security plan

■ Defining your security policy

■ Educating users

■ Filling out worksheets

A

About developing a security plan

This appendix provides basic guidelines for developing an overall security plan. Developing a security plan
is the first step in your installation process and helps you to collect the information needed to install
Symantec Gateway Security 400 Series.

Developing a security plan consists of three basic steps:

■ Defining your security policy

■ Educating your users

■ Filling out worksheets

Defining your security policy

Before configuring your security gateway, you must understand exactly what network resources and
services you want to protect. It is crucial to have a carefully designed network security policy to guard the
valuable resources and information of your organization.

Ideally, you should capture your security policy in a document that describes your organization’s network
security needs and concerns. Creating this document is the first step in building an effective overall
network security system and must be done prior to installation.

Your security plan details your security plan policy implementation. Based on the security concerns and
trade-offs of your overall policy, your security plan should contain a set of tasks. One of these tasks should
consist of establishing procedures and rules for access to resources located on your network. These
resources include:

■ Host computers and servers

■ Wo rk s ta t io n s

■ Connection devices (gateways, routers, bridges, and repeaters)

■ Terminal servers and remote access servers

26 Developing a pre-installation security plan

Defining your security policy

■ Networking and applications software

■ Information in files and databases

Symantec Gateway Security 400 Series is the main tool for enforcing security, letting you define a security
policy that allows or denies access to specific resources throughout your network.

Before writing your security plan

Before you write rules to implement your plan using the Symantec Gateway Security 400 Series
Administrator’s Guide and Symantec Advanced Manager and Symantec Event Manager Administrator’s
Guide, answer the following questions:

■ How many points of entry exist into your network?

■ A security gateway defends a single point of entry. Every point of entry should be protected by a

security gateway.

■ A Virtual Private Network (VPN) server also defends a single point of entry. You must decide what

access the VPN server is going to provide for resources that exist behind the security gateway.

■ Any desktop or laptop connected to the network is a potential point of entry.

■ What types of services do you want to allow for internal users?

■ To what hosts, subnets, and users do you want to allow these services?

■ What external users will you allow to access your network? Which hosts or subnets will you allow them

to access? During what hours? For what period of time?

■ What types of services do you want to allow for external users?

■ What type of authentication will you require for external users? (Symantec recommends strong

authentication for any access from public networks.)

■ If you are implementing VPN tunnels between internal and external hosts, what types of traffic will be

allowed over these tunnels?

■ Will you place your Web server inside or outside of your protected network?

Becoming security-conscious

Developing and implementing a security plan for the security gateway you are installing should be only one
part of your overall security policy. The security gateway offers the best protection against uninvited entry
into your network. However, the security gateway cannot guard against entry by people who pirate
passwords, any more than a sophisticated lock can stop a thief in possession of the right key.

Formulate goals

Take the time to formulate the specific goals of your security plan. Identify the resources you are
protecting and all possible threats. Protecting your resources from unauthorized external users may be
only one of your goals. You may also need to limit internal access to certain systems to specific users and
groups, within specific time periods. You will need to define these users and groups for the firewall and how
to configure special services to be passed through these systems. Symantec Gateway Security 400 Series
Administrator’s Guide explains how to define users and user groups.

Review issues

Review your organization’s specific issues in detail before you configure the server. Your network’s
security depends on planning sound policies, implementing them carefully, and verifying that they work as
intended.

Educating users

Your overall site policy involves a numbers of tasks. Of these, user education is critical. Publish your
company’s security policy. Make sure that your users are informed of the determination of would-be
invaders and the sophistication of available password guessing programs. Make sure that they understand
how common security breaches are and how costly they can be. These facts alone dictate that users should
be encouraged to select passwords that are difficult to crack and to change passwords regularly.

Involving the user community

When developing the details of your security plan, you should solicit the input of group managers or
leaders on what services they require, for what users, and so on. Explain to users the need for network
security to protect private information, intellectual property, and your business plans.

Notifying affected users

Before implementing policies, notify the user community of your proposed policies. Doing so in advance
can prevent unnecessary frustration on the part of your users.

For instance, if you plan to pass all email through a dedicated server, or if external users will be disallowed
from accessing certain systems by Telnet, consider passing these changes along before implementation.
Consulting users prior to implementation may save you the time needed to fine-tune those policies later.

Educating users

27Developing a pre-installation security plan

Taking a pro-active stance

Again, keep in mind that configuring a set of authorization rules on the security gateway is just one piece of
your overall security plan. To be effective, this plan should also include:

■ Physical security of key systems (especially the security gateway)

■ Security risk training for users

■ Guidelines on passwords

■ Proprietary information policies

■ Network planning

Filling out worksheets

Use the following set of policy planning worksheets to aid in the planning process. Use these worksheets to
help implement the specific tasks of your security plan and to assist you during the installation process.

Defining your organization

Begin by defining your organization. Here is where you explore your existing security policy, if any. Note
who will be assigned as administrators, types of authentication, and how your administrators will be
contacted.

To define your existing organization

1 Does your organization have a security policy?

_____ Yes _____ No

If you checked No, refer to the first part of this appendix for information relating to the development of

a security policy.

2 Number of users behind your security gateway: _____

28 Developing a pre-installation security plan

Filling out worksheets

3 Do you plan to establish special groups or users with different levels of access or control that other

groups and users will not have?

_____ Yes _____ No

4 Name of the primary administrator:

____________________________________

5 What are your network access points?

________________________________________________________________________________

________________________________________________________________________________

6 Use Table A-1 to list all persons involved in administering the system.

Table A-1 Administrator names

Name Email Phone Pager

7 Are organization computer resources accessible by remote dial-in?

_____ Yes _____ No

8 Are organization computer resources accessible by network?

_____ Yes _____ No

9 What communications servers are used?

______________________________________________________________________________

______________________________________________________________________________

10 Do you plan to manage the security gateway remotely?

_____ Yes _____ No

11 Do you plan to implement a wireless network?

_____ Yes _____ No

12 Do you have other Symantec security gateways on your network now?

_____ Yes _____ No

13 If Yes, what product and version? __________________________________________

14 Do you have other third-party firewalls on your network now?

_____ Yes _____ No

15 If Yes, what brand and version? __________________________________________

16 Have you created network diagram?

_____ Yes _____ No

Site hardware/software information

Before you begin the installation process, collect some basic hardware information such as: product serial
numbers, type and quantity of interface cards, server memory, and the number and type of computers that
compose your network.

To collect hardware information for your site

1 Type the MAC address of the appliance:

____________________________________

Filling out worksheets

29Developing a pre-installation security plan

2 Type the number of host computers of each type that compose your network:

_____ UNIX _____ Windows

_____ Other: (type)

______

3 List the types of operating system in your network:

______________________________________________________________________

4 What kind of Internet connection do you have? What speed?

______________________________________________________________________

5 Type the name of your Internet Service Provider (ISP):

___________________________________________________________

6 Does your site have, or plan to have, more than one Internet access point?

_____ Yes _____ No

7 Are there any other Internet connections besides the firewall (such as modems connected to

workstations)?

_____ Yes _____ No

8 Will you be using Symantec Client VPN?

_____ Yes _____ No

30 Developing a pre-installation security plan

Filling out worksheets

TCP/IP address

It is important to think about the TCP/IP requirements for your site. This includes information about
running Domain Name Services (DNS), types and names of domains on your network, and making a list of
protocols used at your site.

To collect TCP/IP address information

1 Do you currently run Domain Name Services (DNS) on your network?

_____ Yes _____ No

2 What type of DNS is in use at your site?

_____ Single domain _____ Multiple domains

_____ Subdomains

3 What type of name service do you provide?

_____ Primary name services _____ Secondary name services

4 List the DNS service supported by this site:

_______________________________________

5 Do you have an internal name server?

_____ Yes _____ No

6 Do you have someone at your site who is knowledgeable about, and comfortable working with DNS and

how to configure it properly?

_____ Yes _____ No

7 Check the address types being used at your site:

_____ Registered IP address

_____ Unregistered IP address

_____ Private IP address (RFC 1918)

Your connection to the Internet must have at least one public network address. Symantec is not
responsible for acquiring or registering public IP addresses. The internal (behind the firewall)
addresses do not have to be legal or registered. Symantec strongly recommends that you use private,
RFC 1918-compliant addresses internally.

8 List the address ranges you currently use in your network.

______________________________________________________________________

______________________________________________________________________

9 List the protocols you use in your network.

______________________________________________________________________

______________________________________________________________________

10 Will you be using network news services (NNTP protocol)?

_____ Yes _____ No

11 If yes, and you have your own internal NNTP server, type its IP address and the address of the server

that will be supplying you with news feeds.

_____ Internal server: ________________________________

_____ External news server: ____________________________

Allowed TCP/IP services

Use the following tables to define all of the allowed TCP/IP services in your network.

To define allowed TCP/IP services

1 Use Table A-2 and check the access type (if any) you will allow for the following services:

Table A-2 Allowed TCP/IP access type

Access group

All users (Everyone)

Filling out worksheets

DNS

FTP

HTTP

HTTPS

SMTP

POP3

RADIUS Auth

Te ln et

IPsec

PPTP

LiveUpdate

SESA

Real Audio

PCA

TFTP

31Developing a pre-installation security plan

SNMP

Computer Group 1

Computer Group 2

Computer Group 3

Computer Group 4

No access

2 Use Table A-3 to list the names of any special services you wish to pass through the firewall.

Table A-3 Special services names

Service name Service port number Service type

Server name

(UDP/TCP)

3 Use Table A-4 to list your TCP/IP services.

Table A-4 TCP/IP services

FTP

Group Authentication

32 Developing a pre-installation security plan

Filling out worksheets

Table A-4 TCP/IP services (Continued)

Te ln et

HTTP

Other

Group Authentication

Over time, you will likely refine these permissions. You should make periodic updates to this list.

4 Do you need transparent inbound access from the outside Internet’s gateway?

_____ Yes _____ No

Web service information

Use the following section to define information about your Web services.

To define your Web services

1 Will you be using a Web server?

_____ Yes _____ No

2 If yes, select the location of the Web server:

_____ Internal to the Symantec Gateway Security 400 Series

_____ External to the Symantec Gateway Security 400 Series

3 Notate the Web server name and IP address:

Name:_______________ Address:____________________

4 Will you be using an external caching/proxy server? If yes, notate the server name and IP address.

_____ Yes _____ No

Proxy server name:_____________ Address:______________

Access lists

Filling out worksheets

33Developing a pre-installation security plan

List those entities and users to which you plan to write rules to allow access through the Symantec Gateway
Security 400 Series.

Entities allowed through the Symantec Gateway Security 400 Series

Use Table A-5 to list all allowed entity identifications.

Table A-5 Entity identification

IP address/DNS name Entity type Internal/external

Users allowed through the Symantec Gateway Security 400 Series

Use Table A-6 to list all allowed user identities.

Table A-6 User identification

User name Account name Group name

Allowed Web sites

Use Table A-7 to list all Web sites users can view that are specified in content filtering Allow lists.

Table A-7 Allowed Web sites

Web site name URL Comments

34 Developing a pre-installation security plan

Filling out worksheets

Table A-7 Allowed Web sites (Continued)

Web site name URL Comments

Denied Web sites

Use Table A-8 to list all denied Web sites that are specified in content filtering Deny lists.

Table A-8 Denied Web sites

Web site name URL Comments

Defining your network architecture

In the following section, list all of the entities that comprise your network. Show all routers and computer
systems that will be directly affected by, or connected to, the security gateway and its directly-connected
networks. Label each network component with its IP address and network mask.

Use Table A-9 to create a list of all internal servers. Your external network consists of at least the Symantec
Gateway Security 400 Series security gateway and a router.

Table A-9 Internal network servers

Service

Host name

IP address

DNS name services Mail server Web server Other server

Table A-9 Internal network servers (Continued)

DNS name services Mail server Web server Other server

Subnet mask

Use Table A-10 to list your host system addresses.

Table A-10 Host internal and external IP addresses

Host Internal/external IP addresses

Use Table A-11 to list your router IP addresses.

Table A-11 Router IP addresses

Filling out worksheets

35Developing a pre-installation security plan

Router IP addresses

Your external network can also include external servers, such as an external Web server. Use Table A-12 to
list all external network servers.

Table A-12 External network servers

DNS name services Mail server Web server Other server

Service

Host name

IP address

Subnet mask

36 Developing a pre-installation security plan

Filling out worksheets

Appendix

B

Licensing

This chapter includes the following topics:

■ SYMANTEC GATEWAY SECURITY APPLIANCE (300/400 SERIES) LICENSE AND WARRANTY

AGREEMENT

■ SYMANTEC GATEWAY SECURITY APPLIANCE (300/400 SERIES) CLIENT-TO-GATEWAY VPN

ADDITIVE LICENSE AND 8.0 MEDIA KIT

SYMANTEC GATEWAY SECURITY APPLIANCE (300/400 SERIES)
LICENSE AND WARRANTY AGREEMENT

SYMANTEC CORPORATION AND/OR ITS SUBSIDIARIES (“SYMANTEC”) IS WILLING TO
LICENSE THE SOFTWARE INCLUDED WITH THE APPLIANCE YOU HAVE PURCHASED TO YOU
AS AN INDIVIDUAL, THE COMPANY, OR THE LEGAL ENTITY THAT WILL BE UTILIZING THE
SOFTWARE (REFERENCED BELOW AS “YOU OR YOUR”) AND TO PROVIDE WARRANTIES ON
THE APPLIANCE ONLY ON THE CONDITION THAT YOU ACCEPT ALL OF THE TERMS OF THIS
LICENSE AND WARRANTY AGREEMENT. READ THE TERMS AND CONDITIONS OF THIS
LICENSE AND WARRANTY AGREEMENT CAREFULLY BEFORE USING THE APPLIANCE. THIS
IS A LEGAL AND ENFORCEABLE CONTRACT BETWEEN YOU AND SYMANTEC. BY OPENING
THIS PACKAGE, BREAKING THE SEAL, CLICKING ON THE “AGREE” OR “YES” BUTTON OR
OTHERWISE INDICATING ASSENT ELECTRONICALLY, REQUESTING A LICENSE KEY OR
USING THE SOFTWARE AND THE APPLIANCE, YOU AGREE TO THE TERMS AND CONDITIONS
OF THIS AGREEMENT. IF YOU DO NOT AGREE TO THESE TERMS AND CONDITIONS, CLICK
ON THE “I DO NOT AGREE” OR “NO” BUTTON IF APPLICABLE AND DO NOT USE THE
SOFTWARE AND THE APPLIANCE.

1. Software License:

The software (the “Software”) which accompanies the appliance You have purchased (the “Appliance”) is
the property of Symantec or its licensors and is protected by copyright law. While Symantec continues to
own the Software, You will have certain rights to use the Software after Your acceptance of this license.
This license governs any releases, revisions, or enhancements to the Software that the Licensor may
furnish to You. Except as may be modified by a Symantec license certificate, license coupon, or license key
(each a “License Module”) which accompanies, precedes, or follows this license, and as may be further
defined in the user documentation accompanying the Appliance and/or the Software, Your rights and
obligations with respect to the use of this Software are as follows:

You may:

A.________________ use the Software solely as part of the Appliance.

B. ________________ make copies of the printed documentation which accompanies the Appliance as
necessary to support Your authorized use of the Appliance; and

C. ________________ after written notice to Symantec and in connection with a transfer of the Appliance,
transfer the Software on a permanent basis to another person or entity, provided that You retain no copies

38 Licensing

SYMANTEC GATEWAY SECURITY APPLIANCE (300/400 SERIES) LICENSE AND WARRANTY AGREEMENT

of the Software, Symantec consents to the transfer and the transferee agrees in writing to the terms and
conditions of this agreement.

You may not:

A. ________________ sublicense, rent or lease any portion of the Software; reverse engineer, decompile,
disassemble, modify, translate, make any attempt to discover the source code of the Software, or create
derivative works from the Software;

B. ________________ use, if You received the Software distributed on an Appliance containing multiple
Symantec products, any Symantec software on the Appliance for which You have not received a permission
in a License Module; or

C. ________________ use the Software in any manner not authorized by this license.

2. Content Updates:

Certain Symantec software products utilize content that is updated from time to time (e.g., antivirus
products utilize updated virus definitions; content filtering products utilize updated URL lists; some
firewall products utilize updated firewall rules; vulnerability assessment products utilize updated
vulnerability data, etc.; collectively, these are referred to as "Content Updates"). You may obtain Content
Updates for each Software functionality which You have purchased and activated for use with the
Appliance for any period for which You have (i) purchased a subscription for Content Updates for such
Software functionality; (ii) entered into a support agreement that includes Content Updates for such
Software functionality; or (iii) otherwise separately acquired the right to obtain Content Updates for such
Software functionality. This license does not otherwise permit You to obtain and use Content Updates.

3. Limited Warranty:

Symantec warrants that the Software will perform on the Appliance in substantial compliance with the
written documentation accompanying the Appliance for a period of thirty (30) days from the date of
original purchase of the Appliance. Your sole remedy in the event of a breach of this warranty will be that
Symantec will, at its option, repair or replace any defective Software returned to Symantec within the
warranty period or refund the money You paid for the Appliance.

Symantec warrants that the hardware component of the Appliance (the “Hardware”) shall be free from
defects in material and workmanship under normal use and service and substantially conform to the
written documentation accompanying the Appliance for a period of three hundred sixty-five (365) days
from the date of original purchase of the Appliance. Your sole remedy in the event of a breach of this
warranty will be that Symantec will, at its option, repair or replace any defective Hardware returned to
Symantec within the warranty period or refund the money You paid for the Appliance.

The warranties contained in this agreement will not apply to any Software or Hardware which:

A. ________________ has been altered, supplemented, upgraded or modified in any way; or

B. ________________ has been repaired except by Symantec or its designee.

Additionally, the warranties contained in this agreement do not apply to repair or replacement caused or
necessitated by: (i) events occurring after risk of loss passes to You such as loss or damage during
shipment; (ii) acts of God including without limitation natural acts such as fire, flood, wind earthquake,
lightning or similar disaster; (iii) improper use, environment, installation or electrical supply, improper
maintenance, or any other misuse, abuse or mishandling; (iv) governmental actions or inactions; (v) strikes
