1
X
12
AGES 14+
INSTRUCTION MANUAL
IMPLEMENT STANDARD: GB/T26701-2011
Main characteristics
Four-axis structure is applied,which makes the quadcopter more flexible and rapid
when flying.It has the characteristics of wind-resistant and can be flied indoor or
outdoor.
Modular design structure is applied, more simple for assembly and convenient for
maintenance.
With 360°3D eversion function and throwing flight function .
The materials and specification mentioned in this instruction manual or the parts
inside this package is for reference only.Our company won’t be responsible for any
adaption of the outer package.Nor shall we keep our customers informed in advance.
Any information updates or changes,please be subject to our website .
Built-in 6 axis gyroscope for precise hovering in the sky.
4CH 2.4G REMOTE CONTROL QUADCOPTER
-1-
PREFACE
Dear customers:
Hello!
Thank you for purchasing our flying model.Please read this instruction manual
carefully in order to master the skill required quickly and operate this product
more safely.In the mean time, please well keep the original of this instruction
manual for future reference.
IMPORTANT INSTRUCTION
1.This product is not a toy but one precisive equipment that integrating mechanics
and electronics with expertise of aerodynamics and high-frequency transmitting.
It requires to be correctly assembled and debugged so as to prevent the accident
from being happened.The product owner should operate or control it in safe way.
Please noted that we won’t take any responsibility for any wrong operation as this
may result in severe injury or loss of property and we can not control the
operating process during the time when the user assemble or use this product.
2.This product is suitable to be used by people who has operating experience in
flying model or age no less than 14 years old.
3.The flying ground we required should be the local field and legal for remote
control flying.
4.Once this product is sold , we won’t be responsible for any safety responsibility
during the time the user operates or uses or controls this product.
5.If there is any problem occurred during the time of using, operating or repairing,
please reach our sales agent for details.The sales agent that we authorized will
provide you with the technical support and after-sale service.
SAFTY CAUTIONS
This R/C flying model is a high dangerous commodity.Please make sure that
it should be flied far away from the crowd.Please also pay more attention to the
phenomenon such as incorrect assembly or damaged model or incorrect
connection of electronic control equipment.Please also pay attention to the flying
safety when operating and know more about the accident that may be happened
due to your own negligence.
1. Keep it far away from the barrier or crowd.
2.Keep it far away from the moisten environment.
3.Use this product correctly and avoid operating by your own.
4. Keep it far away from the high-speed rotating part and heat source.
5. Please conform to the sequence of power ON/OFF.As the picture below shown,
incorrect sequence of power ON/OFF may cause this product out of control and
affect your own safety or others. Please form a good habit of switching on or
switching off this product correctly.
-2-
ABOUT CONTENTS
Product included
following contents:
Quadcopter
2.4G Remote controller
USB charging wire
Instruction manual
Screwdriver
Blade(4 pieces)
Introduction of transmitter
Remote control Installing
the battery
Battery Cover
Step 1: First of all, press
the ON/OFF power switch.
Step 2:Turn on the quadcopter button,
and place the quadcopter on
horizontal position .
READY TO FLY YOUR QUAD COPTER
Forward and
backward
trimmer
-3-
A
B
Step 3: Push the throttle lever to the highest position
and then pull it back to the lowest position,this time
there will be one clear sound sending out from the
transmitter,this shows that the quad copter has
entered into the pre-fly state.
TIPS: When matching signal, keep the
quad copter on horizontal position
to fast matching and start a stable
flight.
CAUTIONS:
1.When the indicator of the transmitter appears eternal bright,however, the
indicator of the helicopter appears slow flashing, this means that decoding is
not successful. This time please disconnect the power both of the quad
copter and transmitter, then repeat the pre-flying steps.
2.If the quadcopter is tilting to one side abruptly or spinning while hovering,
please switch off the power both of the quad copter and transmitter and then
repeat the pre-flying steps.
3.When the indicator of the quad copter keeps flashing slowly, it means that the
quad copter has entered into the low voltage protection state.This time you
need to charge the quadcopter.
FUNCTIONS MODE SWITCH, FINE-TUNING
RESET AND LEVEL CALIBRATION
-4-
ILLUSTRATION ON CONTROLLING THE QUAD COPTER
(MODE 1, DEFAULTED MODE WHEN STARTING)
Operating direction
Push the throttle up or down, the quadcopter
flies upward or downward.
Push the direction lever up or down,the
quadcopter flies forward or backward.
Pull the direction lever left or right,the
quadcopter flies to left side or right side.
Pull the throttle left or right, the
quadcopter turns to left or right.
Fine-tuning operation
-5-
Operating direction
Push the throttle up or down, the quadcopter
flies upward or downward.
Push the direction lever up or down,the
quadcopter flies forward or backward.
ILLUSTRATION ON HOW TO CONTROL
THE QUAD COPTER (MODE 2)
Pull the direction lever left or right,the
quadcopter flies to left side or right side.
Pull the throttle left or right, the
quadcopter turns to left or right.
Fine-tuning operation
-6-
FLIGHT CONTROL
Low Speed: Press the High/Low speed switch for one
time, the buzz will send out one sound.
High Speed: Please press High/Low speed switch once
again, the buzz will send out two sounds.
3D EVERSION AND THROWING FLIGHT
INSTRUCTIONS
1.When you are familiar with the
basic operation, you can play some
awesome & thrilling stunt operation.
First of all,fly the four-axial aircraft
to the height of more than 3 meters,
press the 3D Eversion switch on the
right above of the transmitter,then
push the right rudder (in any direction)
and then you can make 360 degree
3D tumbling operation in any direction
and make successive tumbling stunt
performance as well.
3 meters
-7-
BATTERY CHARGING
Battery charging
Take out the USB charging wire, connect one end to the quad copter, then insert
the USB port of the USB charging wire to the USB port of the computer (or the
USB port of the power adapter) to charge the battery.During the time of charging,
the red indicator of the USB will be OFF.
When it is fully charged, the red indicator will be ON.
Caution:
1.When using the computer for charging,
please remember to pull out the
charging line before shutting down
the computer.
2.Please pay attention to aim correctly
to the correct polarity when connecting
the USB wire with the battery.Please make
sure the polarityshould not be upside down.
Charging time: about 50 minutes ;Flying time: about 4 minutes
CAUTIONS WHEN CHARGING
1.When charging,please put this product on the dried or ventilated area and
keep it far away from heat source or explosive product.
2.When charging, please remove the batteries from the quad copter.All the
charging process should be under the guidance of the adult so as not to
cause accident.
3.When finish flying, please do not charge the battery which surface
temperature is still not cooled down.Otherwise it may cause swollen battery
or even cause fire disaster.
4.During the process of battery charging, falling down or striking by the outer
force should be avoided.Otherwise it may cause short-circuited within the
battery and thus may cause danger.
5.In order to make sure safety, please make sure that you need to use the
original USB charging wire that made from our factory. When the battery is
used for a long time or appears aging or swollen,please replace them timely.
6.When the batteries are fully charged, if you do not remove it from the charger
for a long time, the battery may discharge automatically, which may cause
battery exhaustion. When the battery voltage that the charger has tested is
lower than the rated voltage, the charger will re-charge the battery until it is
fully charged. Charging or discharging too often or repeated charging or
discharging may reduce the using life of the batteries.
-8-

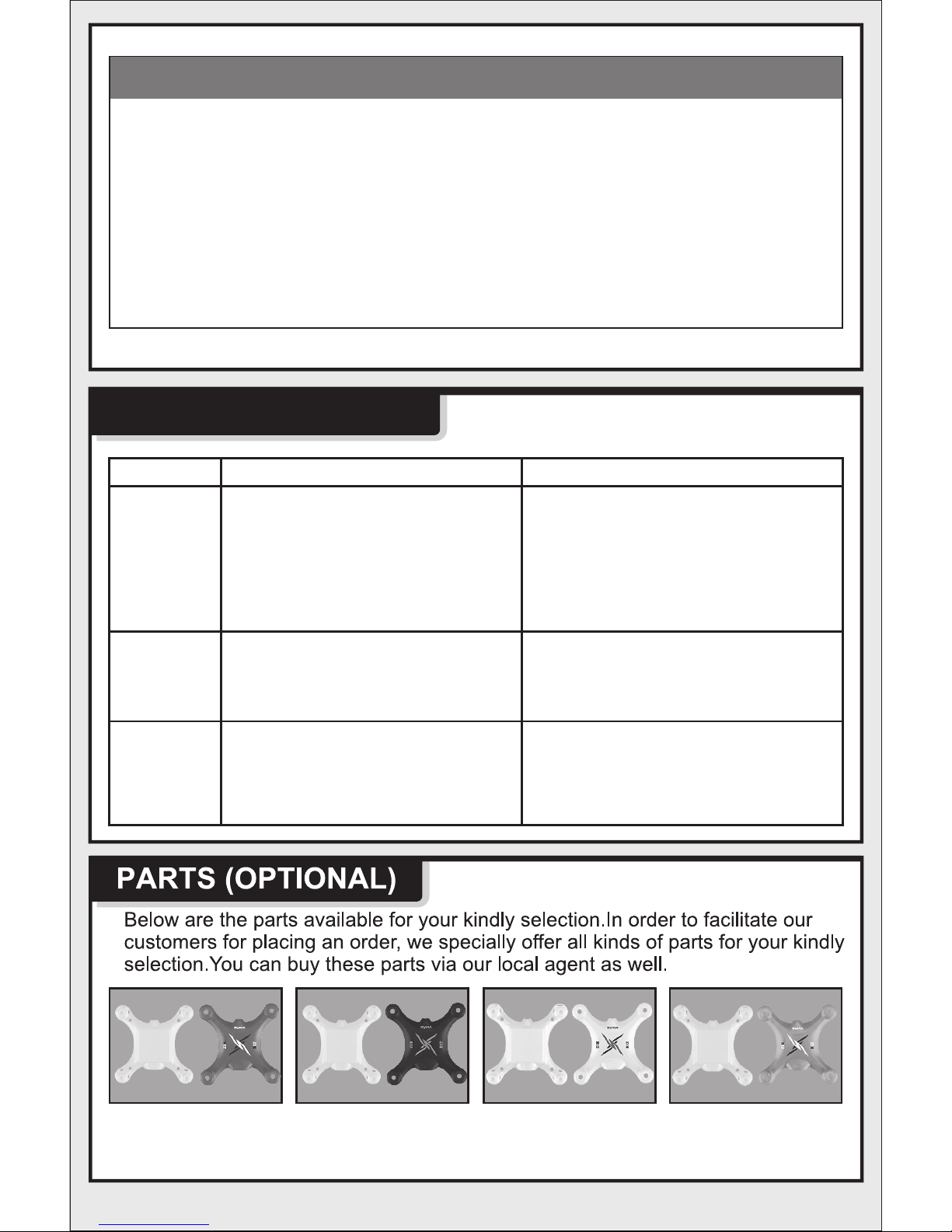

X12-01A
X12-01B X12-01C X12-01D
1. Battery should be put in the dried or ventilated place with environment
temperature about 18-25 ℃.
2.In order to enhance the using life of the battery, please avoid repeat charging
or excessive discharging.
3.When the battery needs to be stored for a long time, please charge the
battery first.That is to say, charge the battery for about 50-60% of the volume
and then well store it.
4.If you do not use it for more than 1 months, it’s highly recommended that you
need to check the battery voltage every month so as to make sure the voltage
no less than 3V. Otherwise please do by following No.(3) mentioned.
BATTERY REPAIR & MAINTENANCE
TROUBLE SHOOTING
Symptom Reason Troubleshooting
No response
from the
aircraft
1.Matching freguency is not successfully
made.
2.Insufficient power with the aircraft or
transmitter.
1.Re-Matching: First of all, switch on the
power of the transmitter,then switch on
the power of the aircraft and place it on
the level ground, finally pushing the
throttle lever to the highest and then
pull it back to the starting position.
2.Replace the battery of the transmitter
or charge the aircraft.
The reaction
of aircraft is
not smart or
intermitting
signal.
1.Insufficient power with the transmitter.
2.Antenna of the aircraft is snapped off.
1.Replace the batteries inside the
transmitter.
2.Re-welding the antenna.
The aircraft
can not make
hovering or tilt
flying to one
side.
1.The aircraft is not placed on the level
ground when Matching freguency.
2.The trimmer key on the transmitter is
not reset.
1.Re-Matching freguency.
2.Reset the trimmer key on the transmitter,
details please kindly check Page3
Functional Adjusting of Flying Resetting.
3.Level calibration
Fuselage-red
Fuselage-greenFuselage-white
Fuselage-black
-9-
X12-02
X12-03 X12-04 X12-05
X12-06
X12-07 X12-08
USB
X12-09
02
01
02
01
03
04
04
05
06
07
09
09
09
09
08
05
Blades Motor A Motor B Circuit board
Battery Transm
Soft mat
-10-
７０ｍｍ
７０ｍｍ
７０ｍｍ
４５ｍｍ
４５ｍｍ
6
２７ｍｍ
２７ｍｍ
3.7V/100mAh
01
02
03
2
2
1
04
05
06
1
2
2
09
07
08
1
1
4
The company has the right of final interpretation
of this instruction manual statement.
Code Description Quantity Code Description Quantity Code Description Quantity
Circuit board
Battery
Soft mat
