SERVICE MANUAL

DVD RECORDER

ZC320MW8

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all
Funai Equipment. The service procedures recommended by Funai and
described in this service manual are effective methods of performing
service operations. Some of these service special tools should be used
when and as recommended.

It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk
of personal injury to service personnel. The possibility exists that improper
service methods may damage the equipment. It also is important to
understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE.
Funai could not possibly know, evaluate and advice the service trade of all
conceivable ways in which service might be done or of the possible
hazardous consequences of each way. Consequently, Funai has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a
service procedure or tool which is not recommended by Funai must first
use all precautions thoroughly so that neither his safety nor the safe
operation of the equipment will be jeopardized by the service method
selected.

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1

Laser Beam Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-1

Cabinet Disassembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5-1

How to Initialize the DVD Recorder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6-1

Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1

Function Indicator Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8-1

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9-1

Schematic Diagrams / CBA’s and Test Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10-1

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-11-1

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12-1

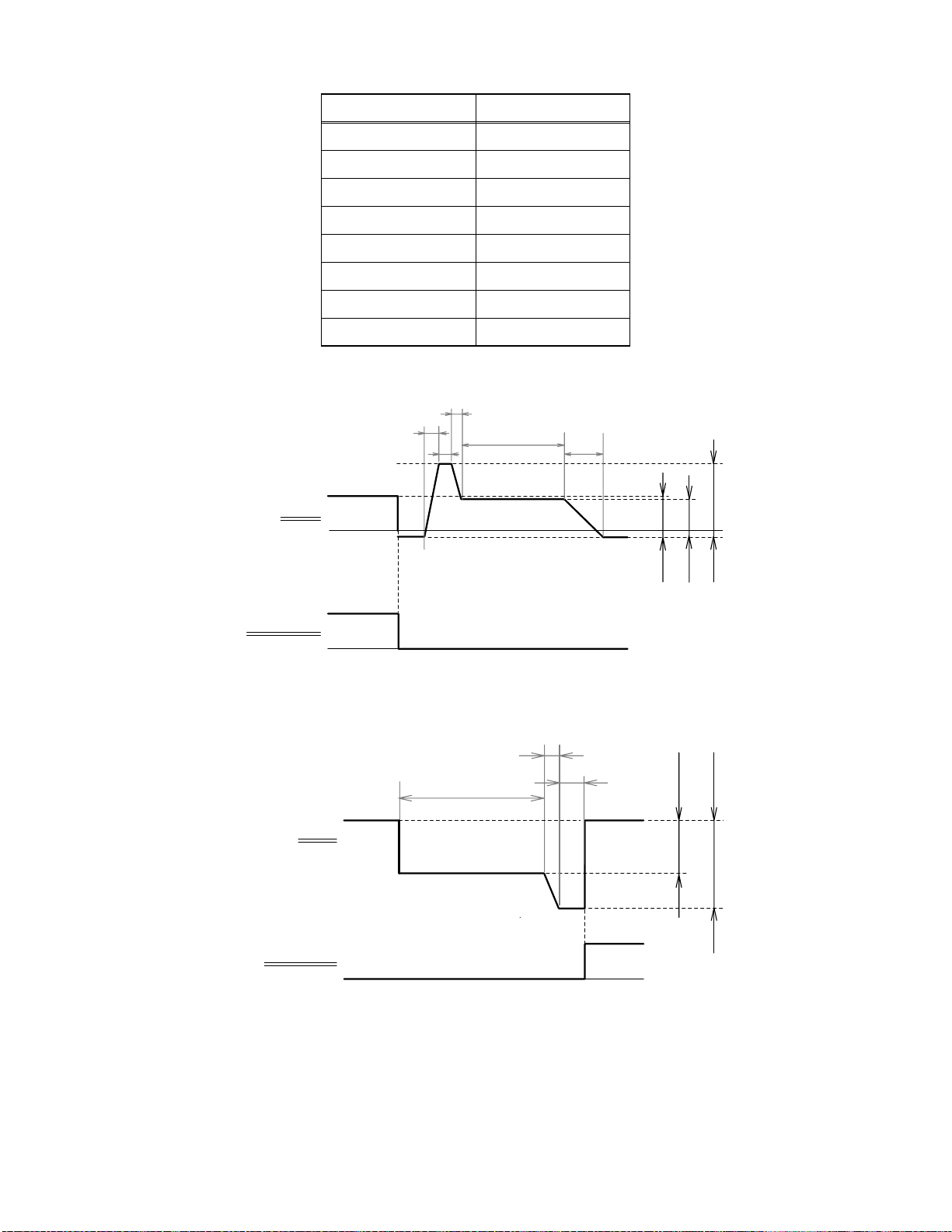

System Control Timing Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13-1

IC Pin Function Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-1

Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15-1

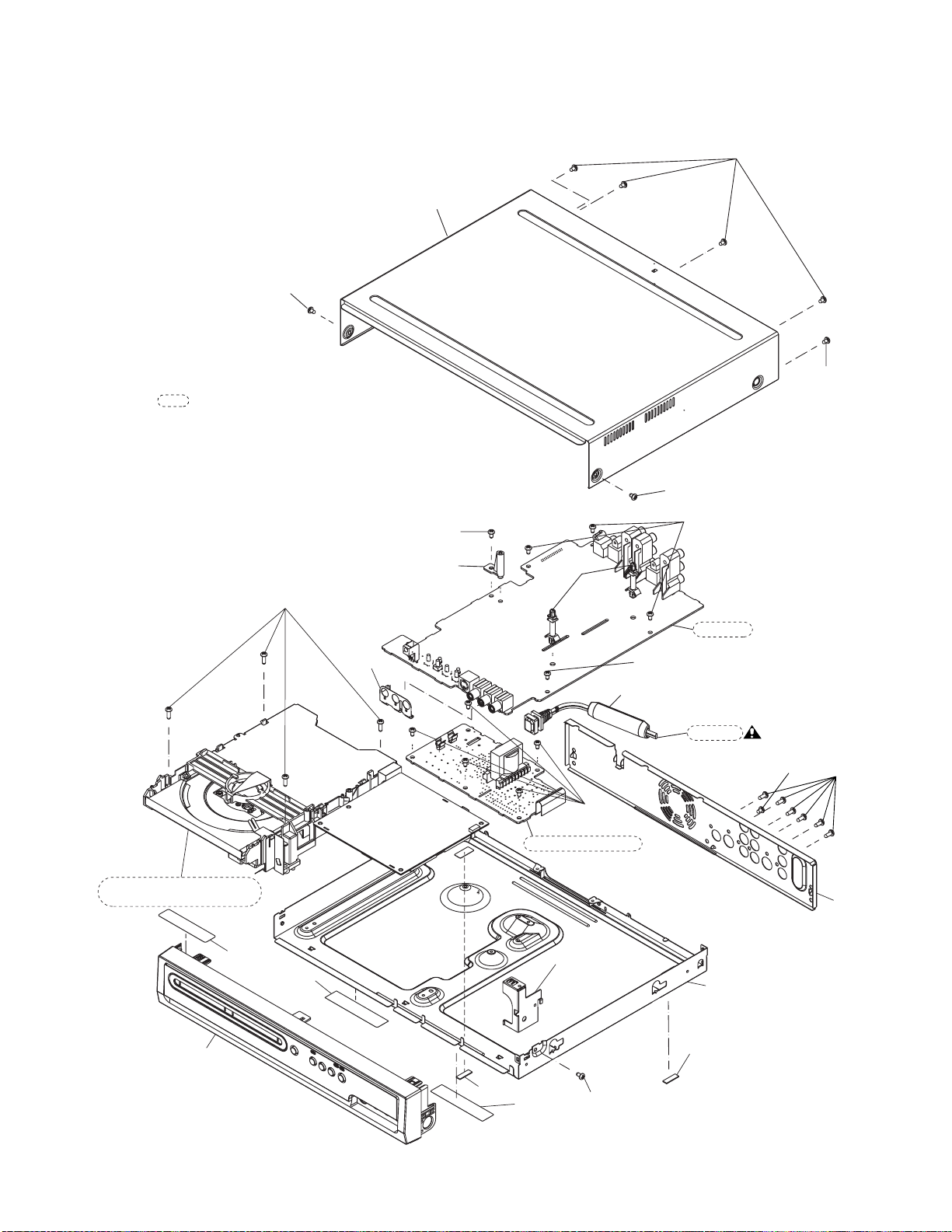

Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16-1

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-17-1

Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18-1

Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

SPECIFICATIONS

Item Conditions Unit Nominal Limit

1. VIDEO

1-1. Video Output 75 Ω load Vp-p 1.0
1-2. S-Video Output
Y (Luminance) 75 Ω load Vp-p 1.0
C (Chrominance) 75 Ω load Vp-p 0.286
1-3. Component Output
Y (Luminance) 75 Ω load Vp-p 54.9
Cb (U) 75 Ω load Vp-p 52.5
Cr (V) 75 Ω load Vp-p 52.5

2. AUDIO

2-1. Output Level Vrms 2.0
2-2. Frequency Response
DVD-VIDEO LPCM fs = 96 kHz Hz 4 - 44 k

fs = 48 kHz Hz 4 - 22 k
Audio CD fs = 44.1 kHz Hz 4 - 20 k
2-3. Signal/Noise Ratio
DVD-VIDEO LPCM dB 120
CD dB 120
REC & Playback Input: 2 Vrms, Rec Speed: XP dB 90
2-4. Dynamic Range
DVD-VIDEO LPCM dB 90
CD dB 90
REC & Playback Input: 2 Vrms, Rec Speed: XP dB 90
2-5. THD+N 1 kHz, 0 dB
DVD-VIDEO LPCM % 0.01
CD % 0.01
REC & Playback Input: 2 Vrms, Rec Speed: XP % 0.01

Notes:

1. All Items are measured without pre-emphasis unless otherwise specified.

2. Power supply: AC 120 V, 60 Hz

3. Load imp.: 100 kΩ

4. Room ambient: 5 °C ~ 40 °C

1-1-1 E7EAASP

LASER BEAM SAFETY PRECAUTIONS

This DVD player uses a pickup that emits a laser beam.

Do not look directly at the laser beam coming
from the pickup or allow it to strike against your
skin.

The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep
your eyes at least 30 cm away from the pickup lens when the diode is turned on. Do not look directly at the laser
beam.

CAUTION: Use of controls and adjustments, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.

Drive Mechanism Assembly

Laser Beam Radiation

Laser Pickup

Turntable

Location: Inside Top of DVD mechanism.

1-2-1 RL4NLSP

IMPORTANT SAFETY PRECAUTIONS

Product Safety Notice

Some electrical and mechanical parts have special
safety-related characteristics which are often not
evident from visual inspection, nor can the protection
they give necessarily be obtained by replacing them
with components rated for higher voltage, wattage,
etc. Parts that have special safety characteristics are
identified by a # on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/or other
hazards. The Product’s Safety is under review
continuously and new instructions are issued
whenever appropriate. Prior to shipment from the
factory, our products are carefully inspected to confirm
with the recognized product safety and electrical
codes of the countries in which they are to be sold.
However, in order to maintain such compliance, it is
equally important to implement the following
precautions when a set is being serviced.

Precautions during Servicing

A. Parts identified by the # symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise
blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation tape

2) PVC tubing

3) Spacers

4) Insulators for transistors

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before
soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film
resistors, fusible resistors, etc.).

G. Check that replaced wires do not contact sharp

edges or pointed parts.

H. When a power cord has been replaced, check that

5 - 6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations.
J. Be careful that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the
AC outlet.

1-3-1 DVDN_ISP

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts, and
wires have been returned to their original positions. Afterwards, do the following tests and confirm the specified
values to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between
soldered terminals, and between terminals and
surrounding metallic parts. (See Fig. 1)

Table 1: Ratings for selected area

Chassis or Secondary Conductor

Primary Circuit

AC Line Voltage Clearance Distance (d), (d’)

120 V ≥ 3.2 mm (0.126 inches)

Note: This table is unofficial and for reference only. Be

sure to confirm the precise values.

2. Leakage Current Test

Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals,
antenna terminals, video and audio input and output
terminals, microphone jacks, earphone jacks, etc.) is
lower than or equal to the specified value in the table
below.

Measuring Method (Power ON):

Insert load Z between B (earth ground, power cord plug
prongs) and exposed accessible parts. Use an AC
voltmeter to measure across the terminals of load Z.
See Fig. 2 and the following table.

d' d

Fig. 1

Exposed Accessible Part

Z

AC Voltmeter
(High Impedance)

Earth Ground

B

Power Cord Plug Prongs

Table 2: Leakage current ratings for selected areas

AC Line Voltage Load Z Leakage Current (i) Earth Ground (B) to:

120 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

0.15 µF CAP. & 1.5 kΩ RES.
Connected in parallel

i ≤ 0.5 mA Peak Exposed accessible parts

1-3-2 DVDN_ISP

Fig. 2

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is
indicated as shown.

Top View

Out

2. For other ICs, pin 1 and every fifth pin are
indicated as shown.

Pin 1

3. The 1st pin of every male connector is indicated as
shown.

Pin 1

Input

In

Bottom View

5

10

Pb (Lead) Free Solder

When soldering, be sure to use the Pb free solder.

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

Instructions for Connectors

1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.

2. FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an
angle.

FFC Cable

Connector

CBA

* Be careful to avoid a short circuit.

2. Remove the flat pack-IC with tweezers while
applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.

2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)

1-4-1 DVDN_SN

3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when
removing it.

With Soldering Iron:

1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

CBA

Masking
Tape

Tweezers

Hot-air
Flat Pack-IC
Desoldering
Machine

Flat Pack-IC

Fig. S-1-2

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

2. Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)

Sharp
Pin

Fine Tip
Soldering Iron

3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

Fig. S-1-4

1-4-2 DVDN_SN

With Iron Wire:

1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA
contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.

Hot Air Blower

2. Installation

1. Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.

2. The “●” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC
is indicated by a " " mark.

Fig. S-1-7

To Solid
Mounting Point

CBA

Tweezers

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip
Soldering Iron

Flat Pack-IC

or

Presolder

Flat Pack-IC

CBA

Fig. S-1-8

Fig. S-1-6

1-4-3 DVDN_SN

Instructions for Handling Semi­conductors

Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is
properly grounded to remove any static electricity that
may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate
with proper grounding (1 MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.

<Incorrect>

<Correct>

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or
Copper Plate

1-4-4 DVDN_SN

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.

[1] Top Cover

[2] Front Assembly

[3] DVD Mechanism &
DVD Main CBA Assembly

[4] Power Supply CBA

[5] Rear Panel

[6] AV CBA

[7] Front Bracket

2. Disassembly Method

ID/

Loc.

No.

Part

Fig.

No.

Removal

Remove/*Unhook/

Unlock/Release/

Unplug/Desolder

Note

Note:

(1) Identification (location) No. of parts in the figures
(2) Name of the part
(3) Figure Number for reference
(4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or
desoldered.
P = Spring, L = Locking Tab, S = Screw,
CN = Connector
* = Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)

(5) Refer to “Reference Notes.”

Reference Notes

1. CAUTION 1: Locking Tabs (L-1) and (L-2) are
fragile. Be careful not to break them.

(S-1)

[1] Top Cover

(S-1)

[1] Top Cover D1 7(S-1) ---

Front

[2]

Assembly
DVD

Mechanism

[3]

& DVD Main
CBA
Assembly

Power

[4]

Supply
CBA

[5] Rear Panel D5 6(S-5), (S-6) ---

[6] AV CBA D5

Front

[7]

Bracket

↓

(1)

↓

(2)

D2 *5(L-1), *3(L-2) 1

4(S-3), *CN101,
*CN701,

D3

PCB Support / PCB
Spacers

D4 5(S-4), *CN1070 ---

5(S-7),
Front Earth Plate,
Holder Main PCB

D5 (S-8) ---

↓

(3)

↓

(4)

---

---

(5)

(S-1)

(S-1)

Fig. D1

↓

1-5-1 E7EAADC

(S-4)

(S-4)

(L-1)

(L-2)

(L-2)

[2] Front Assembly

(S-3)

(L-1)

(L-1)

(S-3)

[3] DVD
Mechanism
& DVD Main
CBA Assembly

Fig. D2

CN701

(S-7)

Holder Main PCB

[4] Power Supply
CBA

CN1070

Fig. D4

(S-7)

[6] AV CBA

PCB Support /
PCB Spacers

CN101

Fig. D3

Front Earth Plate

[7] Front
Bracket

(S-5)

(S-6)

[5] Rear Panel

(S-8)

Fig. D5

1-5-2 E7EAADC

3. How to Eject Manually

Note: When rotating the gear, be careful not to damage the gear.

1. Remove the Top Cover.

2. Rotate the gear in the direction of the arrow manually as shown below until the tray descends.

3. Pull the tray out manually and remove a disc.

View for A

A

Rotate this gear in
the direction of the arrow

1-5-3 E7EAADC

HOW TO INITIALIZE THE DVD RECORDER

To put the program back at the factory-default,
initialize the DVD recorder as the following procedure.

1. Turn the DVD recorder on.

2. Confirm that no disc is loaded or that the disc tray
is open. To put the DVD recorder into the Version
display mode, press [CM SKIP], [1], [2], and [3]
buttons on the remote control in the order.
Fig. a appears on the screen.

*1: "
*2: Firmware Version differs depending on the
models, and this indication is one example.

Fig. a Version Display Mode Screen

" differs depending on the models.

*******

F/W VERSION DISP

MODEL NAME :

FE VERSION :
BE VERSION :
TT VERSION :

LD ADJUSTMENT :
DISC ADJUSTMENT :

DEFAULT SETTING : ENTER
EXIT : RETURN

*****

R40_005_082
RL4A10210S1E
T40015RDU

OK
OK

3. Press [OK] button, then the DVD recorder starts
initializing. When the initializing is completed, the
DVD recorder exits the Version display mode and
turns off the power automatically.

* To move into the Normal mode from the

Version display mode, press [RETURN] button
on the remote control instead of [OK] button.

* When [STANDBY-ON] button is pressed

before [OK] button is pressed, the DVD
recorder exits the Version display mode, then
the power turns off.

1-6-1 E7EAANT

FIRMWARE RENEWAL MODE

1. Turn the power on and remove the disc on the tray.

2. To put the DVD recorder into version up mode,
press [CM SKIP], [6], [5], and [4] buttons on the
remote control unit in the order. Then the tray will
open automatically.
Fig. a appears on the screen.

* Firmware Version differs depending on the
models, and this indication is one example.

Firm Update Mode

Please insert a disc.

ver. RL4A10210S1E

Current
F/W version
is displayed.

Fig. a Version Up Mode Screen

3. Load the disc for version up.
Fig. c appears on the screen. The file on the top is
highlighted as the default.
When there is only one file to exist, Step 4 will
start automatically.

* Firmware Version differs depending on the
models, and this indication is one example.

Firm Update Mode ver. RL4A10210S1E

Disc name
is displayed.

VOL_200703250934

1 RL4A10210S1E
2 RL4A10211S1E
3 RL4A10212S1E
4 RL4A10213S1E

Files included
in the disc are
displayed.

1 / 1

4. Select the firmware version pressing arrow
buttons, then press [OK].
Fig. d appears on the screen. The DVD recorder
starts updating.

* Firmware Version differs depending on the
models, and this indication is one example.

Firm Update Mode ver. RL4A10210S1E

(*1)

File Loading...

Fig. d Programming Mode Screen

The appearance shown in (*1) of Fig. d is
described as follows.

No. Appearance State

1 File Loading... Sending files into the memory

Firmware

2

Updating...

Writing new version data

XX% Complete.
Firmware

--­Update Failure

Failed in updating

5. After updating is finished, the tray opens
automatically.
At this time, no button is available.

6. Pull out the AC code once, then insert it again.

Fig. c Update Disc Screen

1-7-1 E7EAAFW

FUNCTION INDICATOR SYMBOLS

Note: If an error occurs, a message with the error number appears on the screen.

Recording Error

Message Solution

Can not record on this disc.

This program is not allowed to
be recorded.

This disc is protected and not
recordable.

You cannot record on this disc as
Power Calibration Area is full.

Insert the recordable disc, and
ensure the disc status satisfies
the recording requirements.

You cannot record copy
prohibited programs.

Release the disc protect
setting in the Disc Setting
menu.

Error message

E35

Error

No.

1 An error occurs during data reading. -

2

3

4 An error occurs with OPC. ­5 During recovery in a record. -

6

7 An error occurs in a format. ­8 It cannot start an encode. -

9

10

11

12

13 It is a reply that “ATAPI is not readable.” -

14

15

16 An error occurs in Finalize Close. ­17 An error occurs in Rec Stop Close. ­18 An error occurs in PCA Full (DVD_R). ­19 Safety Stop occurs during editing. ­20 High Speed Disc. 2
21 The disc is not formatted. 5
22 Disc Error has occurred. 3

24

25 During the Macrovision picture input. 11
26 During the CGMS picture input. 12

29 Disc Protected Disc. 6

Error No.

Error Description Priority

There is no reply for 15 seconds in Test
Unit Ready.

Cannot write the data after trying three
times.

An error occurs even if recovery has been
tried three times.

NV_PCK/RDI_PCK is not in encoded
data.

Encode Pause condition continued for 10
minutes.

Encode Pause condition continued in
normal REC condition for 10 minutes.

Difference in the address and can not get
StreamID of RDI/VIDEO.

Cannot write the data after recovering
SMALL VMGI.

Cannot write the data after DVD-R
Reverse Track.

The disc except DVD-R/RW or finalized
DVD-R.

-

-

-

-

-

-

-

-

-

1

1-8-1 E7EAAFIS

Message Solution

Disc is full.
(No area for new recording)

You cannot record on this disc
as Power Calibration Area is
full.

This disc is already finalized.

Can not record on this disc. Repeat the same operation.

You cannot record more than
49 titles on the disc.(The
maximum is 49.)

You cannot record more than
254 chapters on the disc.(The
maximum is 254.)

This program is not recordable
in +VR mode.

The disc has no recording
compatibility.
Set “Make Recording
Compatible” to “ON” to convert
the disc.

Insert the recordable disc with
enough recording space.

Insert a new disc. 35 PCA is Full. (in REC start) 4

Release the finalizing for this
disc.

Delete unnecessary titles. 43 Its recording capacity has been reached. 9

Delete unnecessary chapter
marks.

You cannot record copy
prohibited programs.

Set “Make Recording
Compatible” to “ON” to rewrite
the menu, after that you will
record to disc.

Error

No.

Error Description Priority

30 No avilable recording space. 10

36 It is finalized. (Video Format Disc) 8

37 Access to Memory Area range outside. ­38 Sector Address is wrong. ­39 BUP writing error of chapter editing. -

44 The 254 chapter has been reached. 10

45 During the CGMS picture input. 12

Trying to record onto the +VR formatting

46

disc that had been recorded by the other
recorder.

7

If an error occurs during the timer recording, one of the following error numbers (40 to 42) or the above error
messages (error number: 1 to 39 and 43 to 46) is displayed on the recording menu after timer recording.
(Once the screen of the program line is exited, the program line for the error will be cleared.)
(No Error Message is displayed for the error No. 40 ~ 42.)

mer Programming

Ti

z MON JAN/01 2:00AM

JANE30 PM PM E1

Error

No.

40

41 Power failed -

1 / 1

Error Description Priority

- Some portion has not been recorded
because of program overlapping.

- Recording did not start at the start time.

A program with the error number is grayed out and asterisked on the timer programming list.

Message Solution

Error message is not
displayed.

error number

- Set the timer programming
correctly.

- Set the timer programming
before the start time.

Turn the power on and set the
clock correctly then set timer
programming again.

Insert the recordable disc. 42 No disc when recording -

-

1-8-2 E7EAAFIS

BLOCK DIAGRAMS

System Control Block Diagram

IC1502

IC1501

(SUB MICRO CONTROLLER)

EV+3.3V

Q1501

RESET

1 2

14

RESET

26 REG-CONT2

POW-SW

REG-CONT

3

52

30

P-DOWN

PWSW

53

EV+5V

Q1502

C1501

(BACKUP CAPACITOR)

7

VCC

VIDEO-SW1

41

42 VIDEO-SW2

43 VIDEO-SW3

44 VIDEO-MUTE

SENSOR

REMOTE

RE2001

27

REMOTE

37 POFF-SELECT

AUDIO-SW1

AUDIO-SW2

39

40

EV+3.3V

X OUT

X IN

8

9

TIMER

D2003

58

TIMER-LED

REC

D2002

XC OUT

XC IN

12

11

POWER

D2001

59

REC-LED

60

POWER-LED

SWITCHING

1

KEY-1

OPEN/CLOSE

SW3011

2

KEY-2

SUB-RXD

SUB-TXD

SYS-RESET

2219182029

SUB-SCLK

RDY

POW-SW

REG-CONT

REG-CONT2

TO POWER SUPPLY

BLOCK DIAGRAM

PWSW

VIDEO-SW1

VIDEO-SW2

VIDEO-SW3

TO VIDEO

VIDEO-MUTE

POFF-SELECT

BLOCK DIAGRAM

Q1511

AUDIO-SW1

AUDIO-SW2

POFF-SELECT

TO AUDIO

BLOCK DIAGRAM

X1501

8MHz

RESONATOR

1-9-1

32.768KHz

X1502

X'TAL

IC106

EV+2.8V

+1.2V

CN101 CN1051

REGULATOR

P-ON+1.2V

111V2CONT

IC107

RESETEV+2.8V

IC101

(MAIN MICRO CONTROLLER)

CN1101

27 27SYS-RESET

CN701

R25

SYS-RESET

30 30SUB-RXD

28 28SUB-TXD

26 26SUB-SCLK

V25

P22

W26

SUB-TXD

SUB-RXD

SUB-SCLK

AV CBA

29 29RDY

X501

B4

RDY

27MHz

X'TAL

L1

CLK 27 IN

24

IC501

DVD MAIN CBA UNIT

E7EAABLS

Digital Signal Process Block Diagram

VIDEO-C

VIDEO-Y(I/P)

F2

D/A

VIDEO

REC VIDEO SIGNAL PB VIDEO SIGNAL REC AUDIO SIGNAL PB AUDIO SIGNAL

VIDEO-Pr/Cr

VIDEO-Pb/Cb

J3

F1

K5

D/A

D/A

D/A

ENCODER

VIDEO

I/F

TO VIDEO

BLOCK

DIAGRAM

IC701 (VIDEO DECODER)

/CVBS

VIDEO-Y

VIDEO-C

10813

DECODER A/D

45-50

U4,W1,W3,

Y2,AA1,AA2

A/D

DECODER

39-44

U2,U3,V1

P3,T3,T5,

SPDIF

AUDIO-L

AUDIO-R

P1

D3

R4

D1

D/A

D/A

M1N3M2

NUNUNU

AUDIO

I/F

TO AUDI O

AIMS

E12

BLOCK

DIAGRAM

MD

MC

Y26

U24

SYSCLK

M3

T22

NU

LRCK

K2

BCK

K1

DATA

DVD-AUDIO-MUTE

N4

T23

DVD-AUDIO-MUTE

(MAIN MICRO CONTROLLER)

IC101

IC201

RF/

ERROR AMP

CN201

LPC

LPC

TILT

PICK

IC301

TRACKING

-UP

FOCUS

MOTOR

DRIVER

BACK-END

DIGITAL

SIGNAL

FRONT-END

DIGITAL

SIGNAL

PROCESS

PROCESS

P-ON+3.3V

TRAY OPEN

IC202

CN301

CN1001

OP AMP

IC302

MOTOR

DRIVER

IC104 (FLASH MEMORY)

FLASH MEMORY

CN1002

DDR SDRAM

IC102 (DDR2 SDRAM)

DVD MAIN CBA UNIT

RELAY CBA

DVD MECHANISM

1-9-2

SLED

MOTOR

M

SPINDLE

MOTOR

M

E7EAABLD

Video Block Diagram

TO SYSTEM CONTROL

BLOCK DIAGRAM

IC1022

(INPUT SELECT)

POFF-SELECT

REC VIDEO SIGNAL PB VIDEO SIGNAL

JK2101

C

3 4

Y

S-VIDEO

IN2

2

1

FRONT

VIDEO-IN2

JK2102

REAR

BUFFER

Q1601

15

B

1

2

SW CTL

10

WF3

JK2202

S-VIDEO OUT

C

2

1

3 4

Y

JK2201

13

VIDEO-OUT

14

VIDEO-Y

JK2203

15

OUT

11

VIDEO-Pb/Cb

OUT

VIDEO-Pr/Cr

OUT

10

JK2105

S-VIDEO

IN1

C

2

1

3 4

Y

4

(VIDEO DRIVER)

6dB

IC1021

2

VIDEO-IN1

JK2106

BIAS

1

AV CBA

DRIVER

2dB

AMP

8dB

-6dB

LPF DRIVER

4dB

AMP

IC1401 (VIDEO DRIVER)

3

AMP

2dB

AMP

LPF DRIVER

4dB

AMP

1

2dB

AMP

LPF DRIVER

4dB

AMP

6

DRIVER

2dB

AMP

LPF

4dB

AMP

8

MUTE

5

VIDEO-MUTE

131915

TO SYSTEM CONTROL

BLOCK DIAGRAM

8

2214

10

WF5

WF4

WF1 WF2

CN1101

CN701

VIDEO-Y(I/P)

BUFFER

Q1304

BUFFER

Q1303

VIDEO-Y(I/P)-OUT

VIDEO-C-OUT

VIDEO-Pb/Cb-OUT

VIDEO-Pr/Cr-OUT

VIDEO-Y/CVBS-IN

77

99

33

55

20 20

22 22VIDEO-C-IN

VIDEO-C

VIDEO-Pb/Cb

VIDEO-Pr/Cr

VIDEO-Y/CVBS

VIDEO-C

TO DIGITAL

SIGNAL

PROCESS

BLOCK

DIAGRAM

TO SYSTEM

CONTROL

BLOCK DIAGRAM

IC1301

(VIDEO INPUT SELECT)

MUTE

VIDEO-SW1

VIDEO-SW2

VIDEO1

MUTEC2C1

LPF

MUTE

VIDEO2

LPF

CONTROL

LOGIC

Y2

Y1

VIDEO-SW3

24

22 23

DVD MAIN CBA UNIT

1-9-3

E7EAABLV

Audio Block Diagram

REC AUDIO SIGNAL PB AUDIO SIGNAL

DIGITAL

JK2206

BUFFER

Q1241

AUDIO OUT

(COAXIAL)

(OP AMP)

IC1201

OP

JK2103

AUDIO(L)

-IN2

SW CTL

FRONT

JK2104

9 10

Q1102

AUDIO(R)

-IN2

AUDIO-SW2

AUDIO-SW1

AV CBADVD MAIN CBA UNIT

Q1101

13

6

7

AMP

IN2

AMP

JK2106

14

REAR

AUDIO(L)

-IN1

(R-CH)

AUDIO(R)

4

IN1

OP

-IN1

5

IN2

3

2

AMP

1

REAR

AUDIO(L)

-OUT1

AUDIO(R)

-OUT1

JK2201

TO SYSTEM CONTROL

BLOCK DIAGRAM

4

14

A

C

L

H

H

(INPUT SELECT)

IC1022

MUTE-ONDRIVE

Q1203 Q1201

1

AMP

2

OP

7

6

AMP

MUTE-ON

Q1202

13

L

3

5

12

POFF-SELECT

AC

11
9

SW CTL

IC1101

IC1102

AMP

Q1513

11

IN1

(L-CH)

(AUDIO INPUT SELECT)

(OP AMP)

Q1512

OP

WF7

CN1051

CN101

33SPDIF

SPDIF

WF6

AUDIO(L)-OUT

17 17

CN701 CN1101

AUDIO-L

AUDIO(R)-OUT

DVD-AUDIO-MUTE

AUDIO(L)-IN

15 15

18 18

11 11

DVD-AUDIO-MUTE

AUDIO-R

AUDIO(R)-IN

13 13

IC802 (AUDIO A/D CONVERTER)

13

L-CH

789

LRCK

14

R-CH

BCK

DATA

AUDIO A/D

CONVERTER

101112

MD

MC

AIMS

6

SYSCLK

TO SYSTEM CONTROL

BLOCK DIAGRAM

TO DIGITAL

SIGNAL

1-9-4

PROCESS

BLOCK

DIAGRAM

E7EAABLA

Power Supply Block Diagram

TO

DVD MAIN

CBA UNIT

P-ON+1.8V

6,7

CN101

EV+10.5V

25-27

CN1051

P-ON+5V

P-ON+3.3V

20-22

15-17

EV+2.8V

10-12

IC1504

+1.8V

1 2

REG.

TO

SYSTEM

CONTROL

BLOCK

PWSW

POW-SW

REG-CONT2

REG-CONT

DIAGRAM

AL-30V

EV+10.5V

4

EV+3.3V

EV+1.2V

P-ON+3.3V

P-ON+5V

VIDEO+5V

INSEL+5V

AUDIO+10V

EV+5V

REG.

+3.3V

IC1503

1 2

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

SW+5V

Q1053

SW+10.5V

Q1054

"Ce symbole reprèsente un fusible à fusion rapide."

"This symbol means fast operating fuse."

CAUTION !

For continued protection against fire hazard,

Risk of fire-replace fuse as marked.

replace only with the same type fuse.

ATTENTION : Pour une protection continue les risqes

d'Incele n'utiliser que des fusible de même type.

F

A V

4

+3.3V

Q1063

D1063

REG.

CN1070CN1060

1-3 EV+10.5V 1-3

RECTIFIER

20

6-9 EV+5V 6-9

D1058

10-12

EV+5V

10-12

21-26

EV+2.8V

27 AL-30V 27

21-26

RECTIFIER

19

Q1506

SW+5V

Q1057

Q1505

Q1056

RECTIFIER

RECTIFIER

D1056

18

171516

D1054

14

13

12

117

Q1060

COLD

T1001

3

BRIDGE

RECTIFIER

D1001-D1004

LINE

FILTER

L1001

5

4

F

F1001

HOT CIRCUIT. BE CAREFUL.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F1001) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

1A 250V

AC1001

AC CORD

A V

1-9-5

Q1002

SW

Q1001

SW

CTL

2

IC1001

ERROR

VOLTAGE DET

8

4 1

3

HOT

SW

CTL

Q1003

POWER SUPPLY CBA AV CBA

E7EAABLP

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using
replacement components rated for higher voltage,
wattage, etc. Replacement parts that have these
special safety characteristics are identified in this
manual and its supplements; electrical components
having such features are identified by the mark “#” in
the schematic diagram and the parts list. Before
replacing any of these components, read the parts list
in this manual carefully. The use of substitute
replacement parts that do not have the same safety
characteristics as specified in the parts list may create
shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these
drawings for ordering. The correct part number is
shown in the parts list, and may be slightly
different or amended since these drawings were
prepared.

2. All resistance values are indicated in ohms
(K = 10

3. Resistor wattages are 1/4W or 1/6W unless
otherwise specified.

4. All capacitance values are indicated in µF
(P = 10

5. All voltages are DC voltages unless otherwise
specified.

3

, M = 106).

-6

µF).

1-10-1 R2N_SC

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON
THE FOLLOWING PAGES:

1. CAUTION:

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE

F

A V

SAME TYPE FUSE.
ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQES D'INCELE N'UTILISER
QUE DES FUSIBLE DE MÊME TYPE.
RISK OF FIRE-REPLACE FUSE AS MARKED.

This symbol means fast operating fuse.
Ce symbole represente un fusible a fusion rapide.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, first check to see that all components in the power supply circuit are not
defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components
in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the
parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are
listed with their part numbers in the parts list section of the service manual.

4. Voltage indications for PLAY and REC mode on the schematics are as shown below:

2

1

(Unit: Volt)

The same voltage for
both PLAY & REC modes

5.0

3

5.0
(2.5)

Indicates that the voltage
is not consistent here.

PLAY mode
REC mode

5. How to read converged lines

1-D3
Distinction Area

Line Number
(1 to 3 digits)

3

1-B1

AREA D3

2

AREA B1

Examples:

1. "1-D3" means that line number "1" goes to the line number
"1" of the area "D3".

1

1-D3

2. "1-B1" means that line number "1" goes to the line number
"1" of the area "B1".

ABCD

6. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.
: Used to indicate a test point with a component lead on foil side.
: Used to indicate a test point with no test pin.
: Used to indicate a test point with a test pin.

1-10-2 R2N_SC

AV 1/4 Schematic Diagram

* NOTE

IC1502

R3112N191A-TR-FA
/R3112N191A-TR-FB
/BU4219G-TR

PST3619NR

Group A Group B

C1509 0.015 0.1

These components (IC1502, C1509)
can be used in any models.
However, you cannot mix components under
Group A with the ones under Group B.
You can choose either Group. The difference
between Group A and Group B is shown below.

1-10-3

E7EAASCAV1

AV 2/4 Schematic Diagram

1-10-4

E7EAASCAV2

AV 3/4 Schematic Diagram

1-10-5

E7EAASCAV3

AV 4/4 Schematic Diagram

1-10-6

E7EAASCAV4

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

Power Supply Schematic Diagram

F

A V

CAUTION !

For continued protection against fire hazard,
replace only with the same type fuse.
ATTENTION : Pour une protection continue les risqes
d'Incele n'utiliser que des fusible de même type.
Risk of fire-replace fuse as marked.

"This symbol means fast operating fuse."
"Ce symbole reprèsente un fusible à fusion rapide."

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

1-10-7

E7EAASCP

DVD Main 1/5 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC101.
IC101 is divided into five and shown as IC101 (1/5) ~ IC101 (5/5) in this DVD Main Schematic Diagram Section.

1-10-8

E7EAASCD1

DVD Main 2/5 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC101.
IC101 is divided into five and shown as IC101 (1/5) ~ IC101 (5/5) in this DVD Main Schematic Diagram Section.

1-10-9

E7EAASCD2

DVD Main 3/5 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC101.
IC101 is divided into five and shown as IC101 (1/5) ~ IC101 (5/5) in this DVD Main Schematic Diagram Section.

1-10-10

E7EAASCD3

DVD Main 4/5 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC101.
IC101 is divided into five and shown as IC101 (1/5) ~ IC101 (5/5) in this DVD Main Schematic Diagram Section.

1-10-11

E7EAASCD4

DVD Main 5/5 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC101.
IC101 is divided into five and shown as IC101 (1/5) ~ IC101 (5/5) in this DVD Main Schematic Diagram Section.

1-10-12

E7EAASCD5

AV CBA Top View

1-10-13

BE7EAAF01011

AV CBA Bottom View

PIN 3 OF
CN1101

WF5WF4

WF5WF4

PIN 5 OF
CN1101

WF1

PIN 7 OF
CN1101

WF2

PIN 9 OF
CN1101

WF6

WF6

PIN 17 OF
CN1101

WF7

WF6

PIN 3 OF
CN1051

WF3

C1231
PLUS LEAD

1-10-14

BE7EAAF01011

Power Supply CBA Top View

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

Because a hot chassis ground is present in the power
supply circut, an isolation transformer must be used.
Also, in order to have the ability to increase the input
slowly, when troubleshooting this type power supply
circuit, a variable isolation transformer is required.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

F

A V

CAUTION !

For continued protection against fire hazard,
replace only with the same type fuse.
ATTENTION : Pour une protection continue les risqes
d'Incele n'utiliser que des fusible de même type.
Risk of fire-replace fuse as marked.

"This symbol means fast operating fuse."
"Ce symbole reprèsente un fusible à fusion rapide."

1-10-15

BE7EAAF01031

Power Supply CBA Bottom View

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

Because a hot chassis ground is present in the power
supply circut, an isolation transformer must be used.
Also, in order to have the ability to increase the input
slowly, when troubleshooting this type power supply
circuit, a variable isolation transformer is required.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

F

A V

CAUTION !

For continued protection against fire hazard,
replace only with the same type fuse.
ATTENTION : Pour une protection continue les risqes
d'Incele n'utiliser que des fusible de même type.
Risk of fire-replace fuse as marked.

"This symbol means fast operating fuse."
"Ce symbole reprèsente un fusible à fusion rapide."

1-10-16

BE7EAAF01031

WF1

Pin 7 of CN1101

WAVEFORMS

WF5

Pin 5 of CN1101

VIDEO-Y 0.2V 20µsec

WF2

Pin 9 of CN1101

VIDEO-C 0.2V 20

WF3

C1231 PLUS LEAD

VIDEO-Cr

WF6

Pin 17 of CN1101

µ

sec

AUDIO(L)-OUT

WF7

Pin 3 of CN1051

0.2V 20µsec

1V 0.5ms

VIDEO-CVBS 0.5V 20

WF4

Pin 3 of CN1101

VIDEO-Cb

0.2V 20µsec

µ

µ

sec

SPDIF 1V 0.1

sec

NOTE:

Input: COLOR BAR SIGNAL
(WITH 1KHz AUDIO SIGNAL)

1-11-1

RL4NFWF

WIRING DIAGRAM

FRONT

DIGITAL

VIDEO

VIDEO

REAR

AUDIO(R)

-IN2

AUDIO(L)

-IN2

VIDEO

-IN2

S-VIDEO

IN2

AUDIO OUT

(COAXIAL)

AUDIO

(R)-OUT1

AUDIO

(L)-OUT1

VIDEO

-OUT

-Pr/Cr

OUT

-Pb/Cb

OUT

VIDEO

-Y OUT

AUDIO

(R)-IN1

AUDIO

(L)-IN1

VIDEO

-IN1

S-VIDEO

OUT

S-VIDEO

IN1

CN1070 CN1060

POWER

SUPPLY

CBA

1515

EV+10.5V 11

EV+10.5V 33

GND 55

EV+10.5V 22

GND 44

EV+5V 99

EV+5V 66

EV+5V 1111

EV+5V 1212

GND 1313

EV+5V 1010

EV+5V 77

EV+5V 88

GND 1717

GND 1414

GND

GND 1616

NU 1919

GND 1818

NU 2020

CN1101

EV+2.8V 2525

EV+2.8V 2121

EV+2.8V 2222

EV+2.8V 2323

EV+2.8V 2424

SUB-RXD 3030
RDY 2929
SUB-TXD 2828
SYS-RESET 2727
SUB-SCLK 2626
GND 2525
GND 2424
GND 2323
VIDEO-C-IN 2222
GND 2121
VIDEO-Y/CVBS-IN
AUDIO+5V 1919
DVD-AUDIO-MUTE
AUDIO(L)-OUT
GND
AUDIO(R)-OUT
GND
AUDIO(R)-IN 1313
GND 1212
AUDIO(L)-IN 1111
GND
VIDEO-C-OUT 99
GND 88
VIDEO-Y(I/P)-OUT
GND 66
VIDEO-Pr/Cr-OUT
GND
VIDEO-Pb/Cb-OUT

AL-30V 2727

NU 2828

EV+2.8V 2626

2020

1818
1717
1616

CN701

1515
1414

1010

77

55
44
33

DVD MAIN CBA UNIT

AV CBA

30

GND 30

29

GND 29
GND 28

28
27

EV+10.5V 27

26

EV+10.5V 26

25

EV+10.5V 25

24

GND 24

23

GND 23

22

P-ON+5V 22

21

P-ON+5V 21

20

P-ON+5V 20

19

GND 19

18

GND 18
P-ON+3.3V 17

17

P-ON+3.3V 16

16

P-ON+3.3V 15

15

CN1051

GND 14

14

GND 13

13

EV+2.8V 12

12

EV+2.8V 11

11

EV+2.8V 10

10

GND 9

9

GND 8

8

P-ON+1.8V 7

7

P-ON+1.8V 6

6

GND 5

5

GND 4

4

SPDIF 3

3

GND 2

2

1V2CONT 1

1

SW1

17 2

SL(-)

16 3

SL(+)

15 4

CN101

GND

14 5

T-SCN2

13 6

T-SCN3

12 7

VH(-)

11 8

HW(-)

10 9

910

HW(+)

CN301

HV(-)

811

HV(+)

712

HU(-)

613

HU(+)

514

VCC

415

U

316

V

217
118

W

AC CORD

FCS(+)

TRK(+)

TRK(-)

LDD-IIN4
LDD-IIN3
LDD-IIN2

LDD-IINR

LDD-VDD
LDD-VDD

LDD-ENABLE

LDD-OSCEN

GND

LDD-WEN4

GND

LDD-WEN3

GND

LDD-WEN2

CN201

LDD-SEL1

PD-VC

PD-VSW

RF(+)

RF(-)

PD/FSPD-VCC

GND
GND

FPD-VC

FSPD-VSW

FSPD-VOUT

CN1001

1
2FCS(-)
3
4
5TILT(+)
6TILT(-)
7
8
9

10

NU

11
12
13
14
15
16
17
18
19
20
21
22
23
24

F

25

G

26

H

27

E

28
29
30

A

31

B

32

C

33

D

34
35
36
37
38
39
40

RELAY CBA

CN1002

CN1003

FOCUS
ACTUATOR

TRACKING
ACTUATOR

TILT
ACTUATOR

DVD-LD

CD-LD

DVD/CD LASER DIODE DRIVE

DVD MECHANISM & DVD MAIN CBA ASSEMBLY

PICKUP

PDIC

FPDIC

M

SLED

MOTOR

1
2
3
4
5
6
7
8

9
10
11

1

2

3

M

SPINDLE

MOTOR

DVD MECHANISM

1-12-1

E7EAAWI

SYSTEM CONTROL TIMING CHARTS

Tray ejection

No

Power on

INNER-SW

open?

No

Tray insertion

INNER-SW

open?

Ye s

To disc

distinction

Ye s

[ Tray Open ]

button is pressed.

Tray insertion

Push Close

[ Tray Open ]

button is pressed.

INNER-SW

open?

Ye s

SLED

moves

Tray ejection

No

1-13-1 R4NTI

Parameter

Tray open

Tray ejection direction

SLED

V*: Voltage T*: Event timer

V0: 2.40 V T1: 0.050 s
V1: 4.25 V T2: 2.000 s
V2: 2.00 V T3: 0.008 s
V3: 2.36 V T4: 0.006 s
V4: 4.26 V T5: 0.066 s

T6: 1.500 s
T7: 0.800 s
T8: 0.005 s

T4

T3

T1

T2

T5

Tray close

Tray insertion direction

open

INNER-SW

close

Tray ejection direction

SLED

Tray insertion direction

open

INNER-SW

close

T6

T8

T7

V0V2V1

V3

V4

1-13-2 R4NTI

Push close

Threshold level

0.08 V

0.02 s

Push Close
detection

1-13-3 R4NTI

IC PIN FUNCTION DESCRIPTIONS

IC1501 (SUB MICRO CONTROLLER)

Pin

IN/

No.

OUT

1 IN KEY-1 Key Data Input 1
2 IN KEY-2 Key Data Input 2
3 IN POW-SW Abnormal Voltage Detection
4 - NU Not Used

5-

6 IN VCC +3.3V Power Supply
7 IN VCC +3.3V Power Supply
8 OUT XOUT Main Clock Output

9 IN XIN Main Clock Input
10 - GND Ground
11 IN XCIN Sub Clock Input
12 OUT XCOUT Sub Clock Output
13 - GND Ground

14 IN RESET

15 - NU Not Used
16 - NU Not Used
17 - NU Not Used

18 OUT SUB-TXD

19 IN SUB-RXD

20 OUT SUB-SCLK

21 - NU Not Used

22 OUT

23 - NU Not Used
24 - NU Not Used
25 - NU Not Used

26 OUT

27 IN REMOTE Remote Signal Input
28 - NU Not Used

29 IN RDY

30 IN P-DOWN

31 - NU Not Used
32 - NU Not Used

Signal

Name

FLASH­VPP

SYS­RESET

REG­CONT2

Function

Flash Writing Voltage

Micro Controller Reset
Signal

Transmission Data to Main
Micro Controller

Reception Data from Main
Micro Controller

Communication Clock with
Main Micro Controller

System Reset Signal

Power Regulator Control
Signal

Ready/Busy communication
Control with Main Micro
Controller

Power Voltage Down
Detector Signal

Pin

IN/

No.

OUT

33 - NU Not Used
34 - NU Not Used

IN/

35

OUT

36 OUT

37 OUT

38 - NU Not Used

39 OUT

40 OUT

41 OUT

42 OUT

43 OUT

44 OUT

45 - NU Not Used
46 - NU Not Used
47 - NU Not Used
48 - NU Not Used
49 - NU Not Used
50 - NU Not Used
51 - NU Not Used

52 OUT

53 OUT PWSW Power On Signal Output
54 - NU Not Used
55 - NU Not Used
56 - NU Not Used
57 - NU Not Used
58 OUT

59 OUT

60 OUT

61 - GND Ground
62 - NU Not Used
63 - NU Not Used
64 - NU Not Used

Signal

Name

FLASH­SDA

FLASH­SCL

POFF­SELECT

AUDIO­SW2

AUDIO­SW1

VIDEO­SW1

VIDEO­SW2

VIDEO­SW3

VIDEO­MUTE

REG­CONT

TIMER-LED Timer LED Control Signal

REC-LED

POWER­LED

Serial Data Signal for Flash

Serial Clock Signal for Flash

Power Off Select Signal

Audio Input Select Signal

Audio Input Select Signal

Video Input Select Signal

Video Input Select Signal

Video Input Select Signal

Video Mute Control Signal

Power Regulator Control
Signal

Recording LED Control
Signal

Power LED Control Signal

Function

1-14-1 E7EAAPIN

LEAD IDENTIFICATIONS

ECB

24

1

KRC103M-AT/P
KTA1267-GR-AT/P
KTC3199-GR-AT/P

13

12

PQ070XF01SZHMM1697AJBE

ECB

1234

KTA-1266-GR-AT/P
KTA1271-Y-AT/P
KTC3203-Y-AT/P

2SK3757(Q)

GDS

KIA4558P/P

85

14

KTB1151-Y-U/P

E C B

49

64

MN101C77AFP1

48

1

PS2561A-1(W)

1

2

33

16

1: Anode

4

2: Cathode

3

3: Emitter
4: Collector

32

17

UTC4580E

1

CD4052BNSR
CD4053BNSR
MM1637XVBE

16

1

58

4

9

8

MM1509XNRE

64

123

BU4219G-TR
R3112N191A-TR-FA
R3112N191A-TR-FB
PST3619NR

54

123

Note:

A: Anode

5

K: Cathode
E: Emitter
C: Collector
B: Base
R: Reference
G: Gate
D: Drain
S: Source

1-15-1 E7EAALE

Cabinet

EXPLODED VIEWS

2L010

A3

2L010

2L010

See Electrical Parts List
for parts with this mark.

Some Ref. Numbers are
not in sequence.

2L010

2L040

2L044

DVD Mechanism &
DVD Main CBA Assembly

A11

2L050

A6

2B24

2B15

2B10

A28

2L041

Power Supply CBA

2B11

2L040

AV CBA

AC1001

A2

2L011

2L020

A4

A1X

A5

A5

A8

2L042

1-16-1 E7EAACEX

Packing

X1

S2

Unit

S3

S2

S2

Upper Side Lower Side

X20

X22

X5 X2

X4

A8

S2

Some Ref. Numbers
are not in sequence.

S1

1-16-2 E7EAAPEX

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTE: Parts that are not assigned part numbers
(---------) are not available.

Ref. No. Description Part No.

A1X FRONT ASSEMBLY E7EAAUD 1VM222817
A2 CHASSIS E7EAAUD 1VM121061
A3 TOP COVER E7EAAUD 1VM121062
A4 REAR PANEL E7EAAUD 1VM222811
A5 FOOT H5100UD 0VM406940A
A6 MODEL NO.LABEL E7EAAUD ---------­A8 RFID LABEL(NO PRINTING) E9A80UD ---------­A11 TELEPHONE NO. LABEL H9670UD ---------­A28 HOLDER EAS(H9410UD) MAKER

2B10 PCB SUPPORT/PCB SPACERS KGLS-14S XP0U027WD001
2B11 FRONT BRACKET E7EAAUD 1VM323518
2B15 HOLDER MAIN PCB E7EAAUD 1VM323486
2B24 FRONT EARTH PLATE E7EAAUD 1VM323762
2L010 SCREW C-TIGHT M3X5 BIND HEAD + GBCC3050
2L011 SCREW C-TIGHT M3X5 BIND HEAD + GBCC3050
2L012 SCREW C-TIGHT M3X5 BIND HEAD + GBCC3050
2L020 SCREW B-TIGHT M3X8 BIND HEAD+ GBHB3080
2L040 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060
2L041 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060
2L042 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060
2L044 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060
2L050 SCREW S-TIGHT M3X10 BIND HEAD+ GBJS3100

NO.EM150DR

PACKING

S1 GIFT BOX CARTON E7EAAUD 1VM323582
S2 SIDE PAD E7EAAUD 1VM222834
S3 UNIT BAG V4010PA 0VM406453B

ACCESSORIES

X1 REMOTE CONTROL UNIT NA473UD NA473UD
X2 BATTERY R03-B500/01S XB0M451CZB01
X4 ACCESSORY BAG E5795ED 0VM416059
X5 AV CORD 1000/BLACK WPZ0102TM018
X20# OWNERS MANUAL E7EAAUD 1VMN23375
X22 QUICK GUIDE E7EAAUD 1VMN23376

0VM415877

20070227 1-17-1 E7EAACA

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------)
are not available.

2. Tolerance of Capacitors and Resistors are noted
with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

DVD MECHANISM & DVD MAIN CBA
ASSEMBLY

Ref. No. Description Part No.

DVD MECHANISM & DVD MAIN CBA
ASSEMBLY

N78F3DUN

AV CBA

Ref. No. Description Part No.

AV CBA (SUB-A)
Consists of the following:

CAPACITORS

C1061 ELECTROLYTIC CAP. 2200µF/6.3V M(105C) CE0KMASTH222
C1064 ELECTROLYTIC CAP. 470µF/16V M CE1CMASDL471
C1070 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101
C1075 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1076 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101
C1081 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1082 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101
C1101 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1102 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101
C1121 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1122 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1123 CHIP CERAMIC CAP.(1608) CH J 33pF/50V CHD1JJ3CH330
C1124 CHIP CERAMIC CAP.(1608) CH J 33pF/50V CHD1JJ3CH330
C1125 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1135 ELECTROLYTIC CAP. 220µF/16V M CE1CMASDL221
C1152 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101
C1171 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C1172 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C1175 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1176 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1181 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C1182 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C1185 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1186 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1201 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1202 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1203 CHIP CERAMIC CAP.(1608) CH J 270pF/50V CHD1JJ3CH271
C1204 CHIP CERAMIC CAP.(1608) CH J 270pF/50V CHD1JJ3CH271
C1205 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470
C1206 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470

1VSA15617

Ref. No. Description Part No.

C1211 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1212 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471
C1221 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1222 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1231 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471
C1232 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101
C1241 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1245 ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470
C1301 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1302 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1303 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1304 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1305 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1306 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1313 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1314 ELECTROLYTIC CAP. 22µF/16V M CE1CMASDL220
C1315 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101
C1316 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1331 CHIP CERAMIC CAP.(1608) CH J 33pF/50V CHD1JJ3CH330
C1332 CHIP CERAMIC CAP.(1608) CH J 33pF/50V CHD1JJ3CH330
C1333 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1334 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1335 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1337 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1338 ELECTROLYTIC CAP. 100µF/6.3V M NP CP0KMASNC101
C1405 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1406 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0
C1407 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0
C1408 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0
C1409 ELECTROLYTIC CAP. 22µF/16V M CE1CMASDL220
C1410 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1411 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1413 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1414 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1415 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101
C1417 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1419 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102
C1420 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471
C1421 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471
C1501 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102
C1502 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1503 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1506 CHIP CERAMIC CAP.(1608) CH J 22pF/50V CHD1JJ3CH220
C1507 CHIP CERAMIC CAP. CH J 18pF/50V CHD1JJ3CH180
C1508 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

If C1509 is 0.015µF, then IC1502 is R3112N191A-TR-FA, R3112N191A-TR-FB or
BU4219G-TR.

C1509 CHIP CERAMIC CAP.(1608) B K 0.015µF/50V CHD1JK30B153
IC1502 VOLTAGE DETECT R3112N191A-TR-FA QSZBA0TRC021
IC1502 VOLTAGE DETECT R3112N191A-TR-FB QSZBA0TRC022
IC1502 RESET IC BU4219G-TR QSZBA0TRM090

If C1509 is 0.1µF, then IC1502 is PST3619NR.

C1509 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104
IC1502 SYSTEM RESET IC PST3619NR QSZBA0TMM151
C1511 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1512 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C1513 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C1520 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1575 ELECTROLYTIC CAP. 100µF/6.3V M(105C) CE0KMASTH101
C1576 ELECTROLYTIC CAP. 100µF/6.3V M(105C) CE0KMASTH101

20070227 1-18-1 E7EAAEL

Ref. No. Description Part No.

C1577 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1578 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1601 ELECTROLYTIC CAP. 4.7µF/25V M CE1EMASDL4R7
C1602 ELECTROLYTIC CAP. 4.7µF/25V M CE1EMASDL4R7
C1801 ELECTROLYTIC CAP. 22µF/6.3V M CE0KMASDL220
C1802 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101
C1803 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1804 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1806 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1809 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101
C1810 ELECTROLYTIC CAP. 4.7µF/25V M CE1EMASDL4R7
C1811 ELECTROLYTIC CAP. 4.7µF/25V M CE1EMASDL4R7
C2002 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C2003 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C2004 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101

CONNECTORS

CN1051 AV-MAIN FFC(30PIN) WX1E7C50-004 WX1E7C50-004
CN1070 FFC CONNECTOR IMSA-9615S-28A-PP-A JC96J28ER007
CN1101 WIRE ASSEMBLY 28PIN FFC 28PIN/85MM WX1E7EAA-001

DIODES

D1060 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1061 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1062 ZENER DIODE MTZJT-774.3A QDTA0MTZJ4R3
D1065 PCB JUMPER D0.6-P10.0 JW10.0T
D1070 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1161 ZENER DIODE MTZJT-775.1C QDTC0MTZJ5R1
D1301 ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2
D1302 ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2
D1303 ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2
D1304 ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2
D1311 ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2
D1312 ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2
D1313 ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2
D1314 ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2
D1507 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1508 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1509 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D2001 LED(RED) 204HD/E NPQZ00204HDE
D2002 LED(RED) 204HD/E NPQZ00204HDE
D2003 LED(YELLOW) 204YD/E NPQZ00204YDE

ICS

IC1021 IC 75 Ω DRIVER MM1509XNRE QSZBA0TMM169
IC1022 IC ANALOG MULTIPLEXER CD4053BNSR NSZBA0TTY093
IC1101 IC SWITCHING CD4052BNSR NSZBA0TTY091
IC1102 IC OP AMP UTC4580E NSZBA0T2H010
IC1201 IC OP AMP KIA4558P/P NSZBA0SJY035
IC1301 VIDEO SWITCH MM1697AJBE QSZBA0TMM150
IC1401 DRIVER FOR DVD MM1637XVBE QSZBA0TMM102
IC1501 IC MICROCONTROLLER MN101C77AFP1 QSZAB0RMS080

If IC1502 is R3112N191A-TR-FA, R3112N191A-TR-FB or BU4219G-TR, then
C1509 is 0.015µF.

IC1502 VOLTAGE DETECT R3112N191A-TR-FA QSZBA0TRC021
IC1502 VOLTAGE DETECT R3112N191A-TR-FB QSZBA0TRC022
IC1502 RESET IC BU4219G-TR QSZBA0TRM090
C1509 CHIP CERAMIC CAP.(1608) B K 0.015µF/50V CHD1JK30B153

If IC1502 is PST3619NR, then C1509 is 0.1µF.

IC1502 SYSTEM RESET IC PST3619NR QSZBA0TMM151
C1509 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104
IC1503 VOLTAGE REGULATOR PQ070XF01SZH QSZBA0SSH054
IC1504 VOLTAGE REGULATOR PQ070XF01SZH QSZBA0SSH054

COILS

L1051 COIL SEALED POWER INDUCTORS

CWKBNP-470K

LLF4700KV002

Ref. No. Description Part No.

L1052 POWER INDUCTORS CWKBNP-180K LLF1800KV002
L1054 CHOKE COIL 22µH-K LLBD00PKV021
L1055 CHOKE COIL 22µH-K LLBD00PKV021
L1056 CHOKE COIL 22µH-K LLBD00PKV021
L1241 INDUCTOR(100µH K) LAP02TA101K LLAXKATTU101
L1242 INDUCTOR(0.47µH K) LAP02TAR47K LLAXKATTUR47
L1301 PCB JUMPER D0.6-P5.0 JW5.0T
L1401 PCB JUMPER D0.6-P5.0 JW5.0T
L2001 INDUCTOR(100µH K) LAP02TA101K LLAXKATTU101

TRANSISTORS

Q1053 TRANSISTOR KTB1151-Y-U/P NQEY0KTB1151
Q1054 TRANSISTOR (PB FREE) KTA1271-Y-AT/P NQSYKTA1271P
Q1056 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1057 TRANSISTOR KTC3203-Y-AT/P NQSYKTC3203P
Q1063 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1101 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1102 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1201 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1202 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1203 TRANSISTOR KTA1266-Y-AT/P NQSYKTA1266P
Q1241 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1303 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1304 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1501 TRANSISTOR KTA1266-Y-AT/P NQSYKTA1266P
Q1502 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1505 NPN TRANSISTOR KRC103M-AT/P NQSZKRC103MP
Q1506 NPN TRANSISTOR KRC103M-AT/P NQSZKRC103MP
Q1511 NPN TRANSISTOR KRC103M-AT/P NQSZKRC103MP
Q1512 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1513 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1601 TRANSISTOR KTA1266-Y-AT/P NQSYKTA1266P

RESISTORS

R1062 CHIP RES. 1/10W J 620 Ω RRXAJR5Z0621
R1065 CHIP RES. 1/10W J 620 Ω RRXAJR5Z0621
R1066 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473
R1067 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181
R1068 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181
R1070 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473
R1072 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681
R1073 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473
R1074 CHIP RES. 1/10W J 620 Ω RRXAJR5Z0621
R1076 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472
R1077 CHIP RES. 1/10W J 1.1k Ω RRXAJR5Z0112
R1090 CHIP RES. 1/10W J 1.8k Ω RRXAJR5Z0182
R1101 CHIP RES.(1608) 1/10W F 68k Ω RRXAFR5H0683
R1102 CHIP RES.(1608) 1/10W F 68k Ω RRXAFR5H0683
R1103 CHIP RES.(1608) 1/10W F 68k Ω RRXAFR5H0683
R1104 CHIP RES.(1608) 1/10W F 68k Ω RRXAFR5H0683
R1107 CHIP RES. 1/10W J 18k Ω RRXAJR5Z0183
R1108 CHIP RES. 1/10W J 18k Ω RRXAJR5Z0183
R1109 CHIP RES. 1/10W J 18k Ω RRXAJR5Z0183
R1110 CHIP RES. 1/10W J 18k Ω RRXAJR5Z0183
R1113 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R1114 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R1115 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222
R1116 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222
R1117 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R1120 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223
R1121 CHIP RES.(1608) 1/10W F 33k Ω RRXAFR5H0333
R1122 CHIP RES.(1608) 1/10W F 33k Ω RRXAFR5H0333
R1139 CHIP RES. 1/10W J 300 Ω RRXAJR5Z0301
R1140 CHIP RES. 1/10W J 750 Ω RRXAJR5Z0751

20070227 1-18-2 E7EAAEL

Ref. No. Description Part No.

R1153 CHIP RES. 1/10W J 62 Ω RRXAJR5Z0620
R1154 CHIP RES. 1/10W J 62 Ω RRXAJR5Z0620
R1173 CHIP RES. 1/10W J 180k Ω RRXAJR5Z0184
R1174 CHIP RES. 1/10W J 180k Ω RRXAJR5Z0184
R1183 CHIP RES. 1/10W J 180k Ω RRXAJR5Z0184
R1184 CHIP RES. 1/10W J 180k Ω RRXAJR5Z0184
R1201 CHIP RES.(1608) 1/10W F 3.6k Ω RRXAFR5H0362
R1202 CHIP RES.(1608) 1/10W F 3.6k Ω RRXAFR5H0362
R1203 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332
R1204 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332
R1205 CHIP RES.(1608) 1/10W F 11k Ω RRXAFR5H0113
R1206 CHIP RES.(1608) 1/10W F 11k Ω RRXAFR5H0113
R1213 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R1221 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1222 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1223 CHIP RES. 1/10W J 470 Ω RRXAJR5Z0471
R1224 CHIP RES. 1/10W J 470 Ω RRXAJR5Z0471
R1225 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R1226 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R1232 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1233 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1242 CHIP RES. 1/10W J 1.8k Ω RRXAJR5Z0182
R1243 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222
R1244 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222
R1245 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R1246 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221
R1248 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1301 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R1302 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R1304 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R1311 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R1312 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R1313 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R1331 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R1333 CHIP RES. 1/10W J 470 Ω RRXAJR5Z0471
R1334 CHIP RES. 1/10W J 470 Ω RRXAJR5Z0471
R1335 CHIP RES. 1/10W J 3k Ω RRXAJR5Z0302
R1336 CHIP RES. 1/10W J 12k Ω RRXAJR5Z0123
R1337 CHIP RES. 1/10W J 3k Ω RRXAJR5Z0302
R1338 CHIP RES. 1/10W J 12k Ω RRXAJR5Z0123
R1403 CHIP RES. 1/10W J 3k Ω RRXAJR5Z0302
R1405 CHIP RES. 1/10W J 3.9k Ω RRXAJR5Z0392
R1406 CHIP RES.(1608) 1/10W F 220 Ω RRXAFR5H0221
R1407 CHIP RES.(1608) 1/10W F 220 Ω RRXAFR5H0221
R1408 CHIP RES.(1608) 1/10W F 220 Ω RRXAFR5H0221
R1409 CHIP RES.(1608) 1/10W F 220 Ω RRXAFR5H0221
R1420 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750
R1421 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750
R1422 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750
R1423 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750
R1424 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750
R1430 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750
R1501 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332
R1502 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332
R1503 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473
R1506 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473
R1507 CHIP RES. 1/10W J 470 Ω RRXAJR5Z0471
R1508 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1513 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101
R1514 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473
R1515 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101
R1516 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473
R1518 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473

Ref. No. Description Part No.

R1519 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101
R1520 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473
R1524 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101
R1527 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101
R1528 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473
R1531 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101
R1532 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473
R1533 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R1534 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223
R1535 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473
R1536 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472
R1537 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472
R1538 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472
R1539 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R1546 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472
R1547 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472
R1564 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473
R1565 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473
R1571 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222
R1572 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R1573 CHIP RES.(1608) 1/10W F 1.5k Ω RRXAFR5H0152
R1574 CHIP RES.(1608) 1/10W F 680 Ω RRXAFR5H0681
R1575 CHIP RES. 1/10W F 15k Ω RRXAFR5H0153
R1576 CHIP RES.(1608) 1/10W F 3.9k Ω RRXAFR5H0392
R1577 CHIP RES.(1608) 1/10W F 10k Ω RRXAFR5H0103
R1578 CHIP RES.(1608) 1/10W F 10k Ω RRXAFR5H0103
R1579 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473
R1580 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473
R1585 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272
R1586 CHIP RES. 1/10W J 1.5k Ω RRXAJR5Z0152
R1588 PCB JUMPER D0.6-P5.0 JW5.0T
R1591 CARBON RES. 1/4W J 120 Ω RCX4JATZ0121
R1592 CARBON RES. 1/4W J 120 Ω RCX4JATZ0121
R1593 CARBON RES. 1/4W J 120 Ω RCX4JATZ0121
R1601 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101
R1602 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681
R1604 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681
R1605 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221
R1606 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221
R1607 PCB JUMPER D0.6-P5.0 JW5.0T
R1621 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R1622 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R1623 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472
R1625 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682
R1626 CHIP RES. 1/10W J 82k Ω RRXAJR5Z0823
R1627 CHIP RES. 1/10W J 82k Ω RRXAJR5Z0823
R1628 CHIP RES. 1/10W J 120k Ω RRXAJR5Z0124
R1629 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473
R1630 CHIP RES. 1/10W J 120k Ω RRXAJR5Z0124
R1631 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473
R2001 CHIP RES. 1/10W J 33 Ω RRXAJR5Z0330
R2004 CHIP RES. 1/10W J 6.8k Ω RRXAJR5Z0682
R2010 CHIP RES. 1/10W J 27 Ω RRXAJR5Z0270
R3001 CHIP RES. 1/10W J 300 Ω RRXAJR5Z0301
R3002 CHIP RES. 1/10W J 620 Ω RRXAJR5Z0621
R3003 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R3004 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222
R3005 CHIP RES. 1/10W J 6.8k Ω RRXAJR5Z0682
R3023 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

SWITCHES

SW3005 TACT SWITCH SKQSAF001A SST0101AL041
SW3008 TACT SWITCH SKQSAF001A SST0101AL041

20070227 1-18-3 E7EAAEL

Ref. No. Description Part No.

SW3009 TACT SWITCH SKQSAF001A SST0101AL041
SW3011 TACT SWITCH SKQSAF001A SST0101AL041
SW3012 TACT SWITCH SKQSAF001A SST0101AL041

MISCELLANEOUS

JC1 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
JC2 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
JC3 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
JC6 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
JK2101 DIN SOCKET DIN-405A JXEL040YUQ03
JK2102 RCA JACK(YELLOW) MTJ-032-05B-20(B110) JXRL010LY135
JK2103 RCA JACK(WHITE) MTJ-032-05B-22(B110) JXRL010LY136
JK2104 RCA JACK(RED) MTJ-032-05A-21(B110) JYRL010LY029
JK2105 S TYPE JACK MDC-050V-2.4 LF(B110 JXEL040LY003
JK2106 RCA JACK 3PIN MSD-243V-07 NI FE LF JXRL030LY124
JK2201 RCA JACK 3PIN MSD-243V-07 NI FE LF JXRL030LY124
JK2202 S TYPE JACK MDC-050V-2.4 LF(B110 JXEL040LY003
JK2203 RCA JACK 3PIN MSD-243V-18 NI FE LF JXRL030LY132
JK2206 RCA JACK(BLACK) MSP-251V-01 NI FE LF JXRL010LY125
RE2001 SENSOR REMOTE RECEIVER KSM-602LU2S USESJRSKK048
X1501 CERAMIC RESONATOR ZTT8.00MT47 FY0805PLN004
X1502 RESONATOR XTAL 32.768kHz QTF38-

32.768K125P15L

FXC323LQUA03

POWER SUPPLY CBA

Ref. No. Description Part No.

POWER SUPPLY CBA
Consists of the following:

CAPACITORS

C1001# ACROSS THE LINE CAP. 0.068µF/250V CT2E683DC016
C1002# SAFETY CAP. 2200pF/250V CCD2EMA0E222
C1003 ELECTROLYTIC CAPACITOR

C1004 CERAMIC CAP. B K 0.01µF/500V CCD2JKP0B103
C1005 CERAMIC CAP. B K 220pF/500V CCD2JKP0B221
C1006 CERAMIC CAP.(AX) X K 5600pF/16V CCA1CKT0X562
C1008 CERAMIC CAP.(AX) B K 3300pF/50V CA1J332TU011
C1009 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1010 POLYESTER FILM CAP. (PB FREE) 0.022µF/

C1011 CERAMIC CAP. B K 220pF/500V CCD2JKP0B221
C1055 ELECTROLYTIC CAP. 22µF/50V M CE1JMASDL220
C1058 ELECTROLYTIC CAP. 3300µF/6.3V M(105C) CE0KMZATH332
C1059 CERAMIC CAP. CH J 47pF/50V CCD1JJSCH470
C1060 ELECTROLYTIC CAP. 4700µF/6.3V M(105C) CE0KMZATH472
C1063 ELECTROLYTIC CAP. 1000µF/16V M(105C) CE1CMASTH102
C1065 CERAMIC CAP.(AX) B K 0.033µF/50V CA1J333TU011
C1077 CERAMIC CAP.(AX) B K 0.033µF/50V CA1J333TU011
C1078 CERAMIC CAP.(AX) B K 0.033µF/50V CA1J333TU011
C1080 CERAMIC CAP.(AX) B K 0.047µF/50V CA1J473TU011

ZR200TA151K16DB

100V J

CONNECTOR

CN1060 PW-AV FFC(28PIN) WX1E7C50-006 WX1E7C50-006

DIODES

D1001 DIODE 1N5397-B NDLZ001N5397
D1002 DIODE 1N5397-B NDLZ001N5397
D1003 DIODE 1N5397-B NDLZ001N5397
D1004 DIODE 1N5397-B NDLZ001N5397
D1005 PCB JUMPER D0.6-P5.0 JW5.0T
D1006 RECTIFIER DIODE BA157 NDQZ000BA157
D1007 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1008 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1009 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1010 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1011 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

1VSA15620

CA2D151DYG03

CA2A223DT018

Ref. No. Description Part No.

D1012 ZENER DIODE MTZJT-7718B QDTB00MTZJ18
D1013 RECTIFIER DIODE BA157 NDQZ000BA157
D1054 RECTIFIER DIODE BA157 NDQZ000BA157
D1056 SCHOTTKY BARRIER DIODE SB240-B/P NDQZ000SB240
D1058 SCHOTTKY BARRIER DIODE SB340 NDQZ000SB340
D1059 ZENER DIODE MTZJT-776.8B QDTB0MTZJ6R8
D1063 RECTIFIER DIODE FR302 NDWZ000FR302
D1064 ZENER DIODE MTZJT-7713B QDTB00MTZJ13
D1067 ZENER DIODE MTZJT-776.8B QDTB0MTZJ6R8

IC

IC1001# PHOTOCOUPLER PS2561A-1(W) QPEWPS2561A1

COILS

L1001# LINE FILTER 27MH TLF14CB2730R4 LLBG00ZTU034
L1006 BEAD CORE B16 RH 3.5X10X1.3 XL03010XM001
L1007 BEAD CORE B16 RH 3.5X10X1.3 XL03010XM001

TRANSISTORS

Q1001 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1002# FET 2SK3757(Q) QFWZ02SK3757
Q1003 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1060 TRANSISTOR KTA1267-Y-AT/P NQSYKTA1267P

RESISTORS

R1002 CARBON RES. 1/4W J 680k Ω RCX4JATZ0684
R1003 CARBON RES. 1/4W J 1.8M Ω RCX4JATZ0185
R1004 CARBON RES. 1/4W J 1.8M Ω RCX4JATZ0185
R1005 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821
R1006 CARBON RES. 1/4W J 820k Ω RCX4JATZ0824
R1007 METAL OXIDE FILM RES. 2W J 2.2 Ω RN02JZLZ02R2
R1008 METAL OXIDE FILM RES.(STRAIGHT 1W J 15k ΩRN01JZLZ0153

R1009 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682
R1010 METAL OXIDE FILM RES. 2W J 0.75 Ω RN02R75ZU001
R1011 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R1012 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R1013 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R1014 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R1015 CARBON RES. 1/4W J 470k Ω RCX4JATZ0474
R1016 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R1063 CARBON RES. 1/4W J 10 Ω RCX4JATZ0100
R1084 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153
R1085 CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182
R1089 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R1092 CARBON RES. 1/4W G 5.6k Ω RCX4GATZ0562
R1093 CARBON RES. 1/4W G 2.7k Ω RCX4GATZ0272
R2012 PCB JUMPER D0.6-P5.0 JW5.0T
R2013 CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182

MISCELLANEOUS

AC1001# AC CORD W/O A GND WIRE UL/CSA/1660/NO/

F1001# FUSE CURRENT PEG20C0NG001 PEG20C0NG001
FH1001 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002
FH1002 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002
T1001# SWITCHING TRANS 6755-S05 LTT2PC0KT014

BLACK

WAC0162LW010

20070227 1-18-4 E7EAAEL

© 2007 Funai Electric Co., Ltd.

All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed,
downloaded or stored in any storage medium, in any form or for any purpose without the express prior written
consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto
is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content
herein without the obligation to notify any person or organization of such changes.

with the design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way
without the express written consent of Funai. All other trademarks used herein remain the exclusive property of
their respective owners. Nothing contained in this manual should be construed as granting, by implication or
otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any
other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights
to the fullest extent of the law.

ZC320MW8

E7EAAUD
2007-3-21
