Sylvania T5 347V DATASHEET

www.sylvania.com

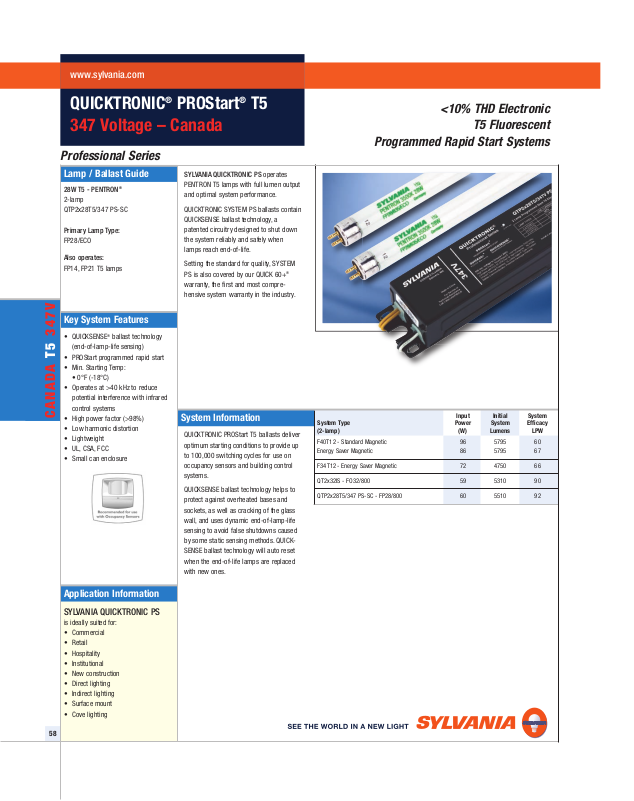

QUICKTRONIC®PROStart®T5

347 Voltage – Canada

Professional Series

Lamp / Ballast Guide

28W T5 - PENTRON

2-lamp
QTP2x28T5/347 PS-SC

Primary Lamp Type:

FP28/ECO

Also operates:

FP14, FP21 T5 lamps

®

Key System Features

• QUICKSENSE®ballast technology
(end-of-lamp-life sensing)

• PROStart programmed rapid start

• Min. Starting Temp:

• 0°F (-18°C)

• Operates at >40 kHz to reduce
potential interference with infrared
control systems

CANADA T5 347V

• High power factor (>98%)

• Low harmonic distortion

• Lightweight

• UL, CSA, FCC

• Small can enclosure

SYLVANIA QUICKTRONIC PS operates
PENTRON T5 lamps with full lumen output
and optimal system performance.

QUICKTRONIC SYSTEM PS ballasts contain
QUICKSENSE ballast technology, a
patented circuitry designed to shut down
the system reliably and safely when
lamps reach end-of-life.

Setting the standard for quality, SYSTEM
PS is also covered by our QUICK 60+
warranty, the first and most compre­hensive system warranty in the industry.

System Information

QUICKTRONIC PROStart T5 ballasts deliver
optimum starting conditions to provide up
to 100,000 switching cycles for use on
occupancy sensors and building control
systems.

QUICKSENSE ballast technology helps to
protect against overheated bases and
sockets, as well as cracking of the glass
wall, and uses dynamic end-of-lamp-life
sensing to avoid false shutdowns caused
by some static sensing methods. QUICK­SENSE ballast technology will auto reset
when the end-of-life lamps are replaced
with new ones.

<10% THD Electronic

T5 Fluorescent

Programmed Rapid Start Systems

®

Input Initial System
System Type Power System Efficacy
(2-lamp) (W) Lumens LPW

F40T12 - Standard Magnetic 96 5795 60
Energy Saver Magnetic 86 5795 67

F34T12 - Energy Saver Magnetic 72 4750 66

QT2x32IS - FO32/800 59 5310 90

QTP2x28T5/347 PS-SC - FP28/800 60 5510 92

Application Information

SYLVANIA QUICKTRONIC PS

is ideally suited for:

• Commercial

• Retail

• Hospitality

• Institutional

• New construction

• Direct lighting

• Indirect lighting

• Surface mount

• Cove lighting

58

SPECIFICATION DATA

ELECTRONIC

BALLAST

Lamp 2

Lamp 1

Yellow

Red

Blue

Black

White

Catalog # Date Type

Project Prepared by

Comments

T5 PROStart

®

347

Professional Series

<10% THD Electronic T5 Fluorescent 347V Systems

Input Rated Ballast Input1System
Item Current Lamp Lumens No. of Factor System1Power Efficacy
Number Description (AMPS) Type (lm) Lamps (BF) Lumens (Watts) (lm/W) BEF

QTP Fixed Output

49185 QTP2x28T5/347 PS-SC 0.18 FP28T5/ECO 2900 2 0.95 5510 60 92 1.58

0.135 FP21T5/ECO 2100 2 0.98 4115 46 89 2.13

0.10 FP14T5/ECO 1350 2 1.00 2700 32 84 3.13

1: At 35°C lamp ambient temperature.
2: Ballast Efficiency Factor (BEF) shown = (Ballast Factor x 100) divided by Input Power (Note: calculation based on lowest wattage value).

Installation Notes

• Install in accordance with National & Local Electric Code

• Ground ballast case

2-Lamp QTP

Fixed output only

Dimensions:

Overall: 9.5" L x 1.68" W x 1.18" H
Mounting: 8.90"

Product Weight:

1.6 lbs each (approx)

Wiring:

Leads only (no connectors provided)

Height

8.70 mm
Slot

Width

Mounting

Length

Length

Performance Guide

Data based upon SYLVANIA PENTRON
lamps shown. QUICKTRONIC®PS
ballasts are also compatible with

2

other lamp manufacturers equivalent
lamp types that meet ANSI standards.

Specifications

Starting Method: Programmed

Rapid Start

Ballast Factor: 0.95
Circuit Type: Series
Lamp Frequency: > 40 kHz
Lamp CCF: Less than 1.6
Starting Temp: 0°F (-18°C)
Input Frequency: 50/60 Hz
Low THD: <10%
Power Factor: >98%
Voltage Range: ±10% of Rated Input

UL Listed Class P, Type 1, Outdoor
CSA Certified
70°C Max Case Temperature
FCC 47CFR Part 18 Non-Consumer
Class A Sound Rating
ANSI C62.41 Cat. A Transient Protection
Dynamic End-of-Lamp-Life Sensing
Remote Mounting (Max. wire length
from ballast case to lampholder):
up to 8 feet

3 Data based on PENTRON 28W lamp

types for primary ballast application. See
the Sylvania QUICKTRONIC
Ballast Technology and Specification
Guide (ECS-ELECTRONIC) for other
PENTRON combinations.

System Life / Warranty

QUICKTRONIC products are covered
by our QUICK 60+®warranty, a
comprehensive lamp and ballast
system warranty. For additional
details, refer to our QUICK 60+
warranty bulletin.

®

Electronic

®

3

NEW!

CANADA T5 347V

Item Number 49185 QTP 2 x 28 T5/347 PS - SC

QUICKTRONIC PROFESSIONAL

Number of Lamps

Specifications subject to change without notice.

Case Size

Starting

Line Voltage

Primary Lamp Wattage

OSRAM SYLVANIA
National Customer
Service and Sales Center

1-800-LIGHTBULB
(1-800-544-4828)
www.sylvania.com

59
