www.sylvania.com
QUICKTRONIC® POWERSENSE®
T5 Dimming UNV Systems
High Efficiency Series
Lamp / Ballast Guide
28W T5 - PENTRON® lamps
1-lamp QHE1x28T5/UNV DIM
2-lamp QHE2x28T5/UNV DIM
Primary Lamp Type
FP28
Also operates:
FP35, FP21, FP14
Key System Features
• Industry’srstballastthatcombines
dimming inputs from 0-10V and/
or two-wire AC dimming providing
maximum flexibility
• POWERSENSEcompatibilitywithlow
voltage and power line dimmers
• HighEfciency
• Lamp Detection Technology
• Universal voltage (120-277V)
• 100-1% Dimming Range
• PROStart® programmed rapid start
• Anti-ash circuitry – turns on in
dimmed mode
• Lightweight and low prole
• Operates at >42kHz
• QUICKSENSE ballast technology
(end-of-lamp-life sensing)
• QUICK 60+ ballast and lamp warranty
• RoHS compliant
• Lead-free solder and manufacturing
process
Application Information
SYLVANIA QUICKTRONIC
POWERSENSE ballasts
are ideally suited for:
• Occupancy sensors
• Daylight harvesting
• Energy management
• Load shedding
• Commercial
• Retail
• Hospitality
• Institutional
• Schools
• New construction
• Retrot
SYLVANIA QUICKTRONIC High Efficiency
POWERSENSE T5 electronic ballasts offer
several advantages:
• Wide Dimming Range: operate linear
fluorescent T5 PENTRON lamps over
a 100-1% dimming range and provide
true versatility in controls selection.
• Industry’s Most Adaptable Dimming
Ballast: ballasts feature micro-controller
technology for compatibility with:
• low voltage controls
• power line uorescent dimmers
• any line voltage from 120V to 277V
• Unmatched Performance with
Patented Lamp Detection Technology:
• Eliminates variations in brightness
from lamp-to-lamp
• Provides uniform lighting throughout
the dimming range
• Eases installation and trouble-
shooting by recognizing failed
lamps, faulty wiring or loose
connections and shutting down.
System Information
QUICKTRONIC POWERSENSE ballasts operate
from standard low voltage (0-10VDC)
fluorescent controllers or compatible 2-wire
power line fluorescent dimmers, making
them ideal for individual office lighting or
automated building applications, both in
new construction and retrofit projects.
For the individual office or conference room,
installation can be streamlined by using a
2-wire power line dimmer; eliminating the
need for additional control wires.
For more advanced systems, such as
daylight harvesting or building automation
applications, standard low voltage devices
(0-10VDC, Class 1 or 2) are used to
control the lighting system. In this daylight
harvesting example, each lighting fixture
(or fixture row) is controlled by it’s own
photosensor; regulating the light output
to compensate for changes in natural
daylight. Depending upon the specific
application, energy savings of up to 60%
compared to fixed output electronic
systems can be realized.
When the problem is corrected,
the system restarts automatically.
RoHS Compliant: QUICKTRONIC
POWERSENSE T5 ballasts are RoHS
compliant and feature lead-free solder
and manufacturing process
SAVINGS PER YEAR* vs LIGHT LEVEL
(QHE T5 POWERSENSE Ballast)
$15.00
$11.44
$10.00
$5.00
Savings per Year ($)
$0.00
0% 25% 50% 75% 100%
* FP28 lamps with QUICKTRONIC QHE T5 POWERSENSE ballast
* Based on 4000 hrs/yr, $0.11/kWh, and 120V operation
* Savings per Year (@Light Level) = Cost of operation (100% Light Level) - Cost of operation (@Light Level)
All QUICKTRONIC
POWERSENSE ballasts
include a line voltage
protection circuit, which
protects the ballast in
the event that line voltage
Window / Natural Light Source
is inadvertently applied
to the low voltage
control inputs.
Fluorescent Controllable
Lighting Systems
QUICK60+® Warranty: Setting the
standard for quality, QUICKTRONIC
POWERSENSE T5 ballasts are covered
by a QUICK60+® warranty, the first
comprehensive system warranty in
the industry
1 Lamp Fixture
Light Level (%)
DAYLIGHT HARVESTING SCENARIO
Fixture
Light
1
Sensor 1
Fixture
Light
2
Sensor 2
Fixture
Light
3
Sensor 3
Desired Illuminance E
Constant setpoint value
POWERSENSE
T5 DIM
r
ECS238R2 - 8/2012
SPECIFICATION DATA
Catalog # Date Type
Project Prepared by
Comments
T5 POWERSENSE
High Efficiency
QUICKTRONIC® POWERSENSE® Controls Information
Fluorescent Building
Controls Powerline 0-10 VDC Photo Occupancy Management
Manufacturer Controllers Controllers Cells Sensors Systems
SYLVANIA
www.sylvania.com/controls
Acuity Brand Controls
www.acuitybrandscontrols.com
Blue Ridge Technologies
www.brtint.com
CONTROLS
Cooper Greengate
POWERSENSE
http://greengate.coopercontrol.com
Hunt Dimming
www.huntdimming.com
Lehigh Electric Products
www.lehighdim.com
Leviton
www.leviton.com
Sensor Switch
www.sensorswitch.com
Siemens Building Technology
http://sbt.siemens.com
Starfield Controls
www.starfieldcorp.com
Watt Stopper
www.wattstopper.com
X X X X X
X X X X X
X X X X X
X X X X
X X X
X X X
X X X X
X X
X
X X X X
X X X X X
Controls Guide
Contact the companies listed for their
2-wire Fluorescent/Powerline controls
and/or 0-10V controls information.
T5 POWERSENSE Dimming Ballast
50725 QHE1x28T5/UNV DIM-TC
50726 QHE2x28T5/UNV DIM-TCL
Please contact controls manfacturer to order/specify controls. For the latest controls list go to www.sylvania.com.
Also, for more information, refer to the LCA (Lighting Controls Association) site: http://lightingcontrolsassociation.org.
WARNING:
Install and wire these ballast and controls in accordance with the National Electrical Code (NEC), all applicable Federal, State
and local electrical codes, as well as the specific instructions provided with the compatible control that you purchased.
Installation should be performed by qualified personnel only.
These instructions are guidelines only. Installation may vary for different controls/fixtures/applications. Be sure to follow
the control instructions and all applicable codes and standards when installing dimming systems.
Please contact controls manufacturer listed in the OSRAM SYLVANIA Inc. controls cross reference for compatible
controls and instruction wiring
NOTES: 1. Dimming ballasts source < 0.5mA (0-10VDC control input).
2. Powerline controls must be rated for the type (e.g. Fluorescent Phase-control) and size
(e.g. 600W, 1000W, 1500W & 2000W etc.) of the connected load. Do NOT use incandescent powerline controls;
incandescent dimmers are not rated for fluorescent loads and are NOT compatible with POWERSENSE ballasts.
Control Specifications/model numbers may change.
Please consult manufacturers listed for their latest control models and to order their controls.
OSRAM SYLVANIA
National Customer
Service and Sales Center
1-800-LIGHTBULB
(1-800-544-4828)
www.sylvania.com
Specifications subject to change without notice.
2-wire Powerline Control with POWERSENSE Ballasts

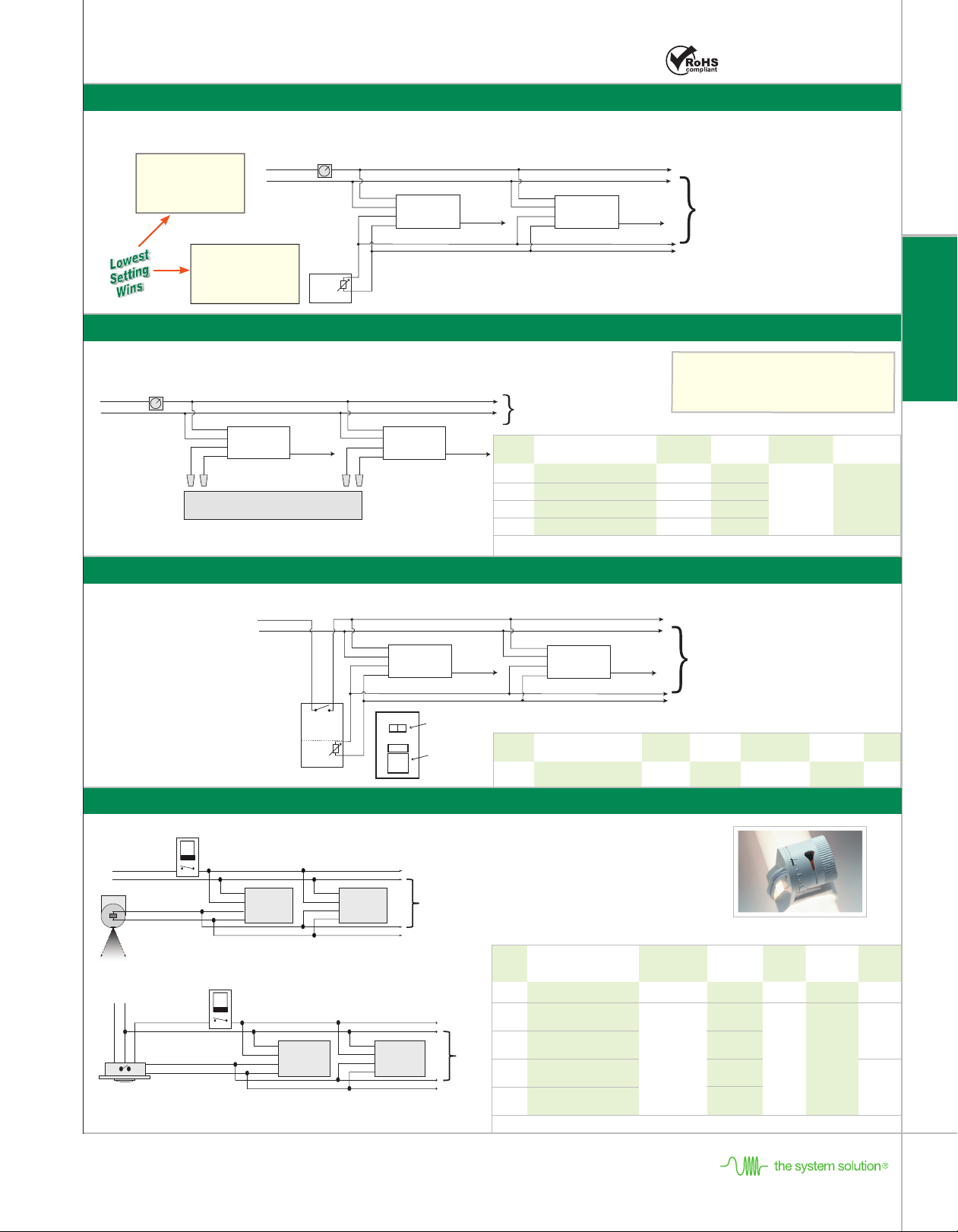

QUICKTRONIC® POWERSENSE® T5 Dimming UNV - Dimming Control Wiring Examples
Photo Sensor 0-10V Wiring Example
0-10V DC Control with POWERSENSE Ballasts
Red
Red
3-Way Wiring
0-10V
Control
NOTE: Gray and violet wires are for SYLVANIA QUICKTRONIC
POWERSENSE dimming ballasts only. If 0-10V control is not
used, the gray and violet wires must be capped off separately.
Green (Ground)
Green (Ground)
Red
Blk
108
106
White (Neutral)
Black Black
Black
Black
Black
To
Fluorescent
Lamps
To
Fluorescent
Lamps
Violet (+) Violet (+)
Violet
Gray (–)
Gray (–)
Gray
White
White
White
To
Additional
Ballasts
Dimming
Ballast
AC Phase Cut & 0-10V
Dimming
Ballast
AC Phase Cut & 0-10V
Industry’s 1st Ballast That Allows POWERLINE Fluorescent Control AND 0-10Vdc Control Input Simultaneously
Black (Hot)
LINE
Neutral (White)
Fluorescent AC Dimming
No Control Wires
• Occupant Wallbox Dimming
• Lighting Panel Dimming
• Excellent for Retrofit
0-10Vdc Low Voltage
Industry Standard Interface
• Daylight Harvesting
• Building Management
• Demand Response Override
2-wire
Fluorescent
Powerline Dimmer
Black
Black
White
Violet (+)
Gray (-)
For 2-wire Powerline wiring, individually insulate (cap-off)
all unused Violet & Gray leads as shown.
2-wire Powerline AND 0-10Vdc Control with POWERSENSE Ballasts
2-wire
Fluorescent
120 or 277V
Black (Hot)
LINE
Neutral (White)
Powerline Dimmer
Black
0-10V
Control
Violet
Black
White
Violet (+)
Gray (-)
Gray
DIMMING
BALLAST
Class 1 or Class 2 circuit
To
Fluorescent
Lamps
Black
White
Violet (+)
Gray (-)
DIMMING
BALLAST
To
Fluorescent
Lamps
Wallbox Style 2-wire Powerline Control Wiring Example
2-wire Powerline Control with POWERSENSE Ballasts
To
Additional
DIMMING
BALLAST
CAUTION:
To
Fluorescent
Lamps
Black
White
Violet (+)
Gray (-)
DIMMING
BALLAST
To
Fluorescent
Lamps
Ballasts
Item OSRAM SYLVANIA Voltage
Number Description Rating Rating Type Wiring
45165 ELMC-SL3WHP-FLPCWBX120 120 VAC 1000VA
45166 ELMC-SL3WHP-FLPCWBX277 277 VAC 1200VA
45163 ELMC-SL3WSP-FLPCWBX120 120 VAC 600VA
45164 ELMC-SL3WSP-FLPCWBX277 277 VAC 600VA
*For additional information refer to ELOGIC™ Lighting Controls product information bulletins LMS068.
ELOGIC™ MANUAL CONTROL SLIDE FLUORESCENT PHASE CUT DIMMER
To
Additional
Ballasts
Specification-grade controls are available for 120V or 277V
operation of controllable analog electronic fluorescent ballasts.
Controls must be suitably rated for both the type (e.g. Fluorescent
Phase-control) and size (e.g. 600W of the connected load.
Powerline Control Specs:
Fluorescent Single Pole
Phase cut or 3-way
WIRING & CONTROLS
POWERSENSE
OSRAM SYLVANIA National Customer Service and Sales Center 1-800-LIGHTBULB (1-800-544-4828) www.sylvania.com
Specifications subject to change without notice.
Wallbox Style 0-10V Control with Power Switch Wiring Example
120 or 277V
Black (Hot)
LINE
Neutral (White)
Black
Line
0-10Vdc
Wallbox
Control with
Line Voltage
Switch
Voltage
Switch
0-10V
Control
Daylight Harvesting and Occupancy Control Wiring Example
Optional Dimmer
*
Black (Hot)
White (Neutral)
Sensor
Black
(Hot)
*
For two-wire manual AC phase cut dimming controls see SYLVANIA ELOGIC™
Lighting Controls product information bulletin LMS068.
White
POWERSENSE
Black
Dimming
0-10V Dimming Output
for Daylight Harvesting
For two-wire manual AC phase cut dimming controls see SYLVANIA ELOGIC™
*
Lighting Controls product information bulletin LMS068.
Black
(Occupancy Sw. Hot)
White (Neutral)
0-10V Dimming Output
for Daylight Harvesting
Violet (+)
Ballast
Gray (–)
Optional Dimmer
*
White
Black
Violet (+)
Gray (-)
POWERSENSE
Dimming
Ballast
0-10V DC Control with POWERSENSE Ballasts
Black
White
DIMMING
Violet (+)
BALLAST
Gray (-)
Class 1 or Class 2 circuit
Black
On/Off
POWERSENSE
Dimming
Ballast
Switch (120/277V)
Slide Dimmer
0-10V
To Additional
Ballasts
(Maximum of 10 total).
White
Black
Violet (+)
Gray (–)
Violet
Gray
POWERSENSE
Dimming
Ballast
White
Black
Violet (+)
Gray (-)
Black
White
To
Fluorescent
Lamps
Item OSRAM SYLVANIA Input Dimming Maximum
Number Description Voltage Control Power Rating Wiring Color
45167 ELMC-SL3W-TVWBX/UNV 120/277 0-10V
1500VA @277V or 3-way
Occupancy
Item OSRAM SYLVANIA Sensing Control Sensor Mounting
Number Description Function Method Method Power Method
45030 ELSC-DLH-TVLAMP/BUS Daylight Harvesting N/A 0-10V From Ballast To Lamp
45032 ELSC-DLOCIRM-TV1RCEIL/UNV
45033 ELSC-DLOCIR-TV1RCEIL/UNV
To
Additional
Ballasts
45034 ELSC-DLOCIRM-TV1RREC/UNV
45035 ELSC-DLOCIR-TV1RREC/UNV
DIMMING
Violet (+)
BALLAST
Gray (-)
ELOGIC™ WALLBOX STYLE 0-10V DIMMER WITH POWER SWITCH
ELOGIC™ DAYLIGHT HARVESTING AND OCCUPANCY CONTROLS ORDERING INFORMATION
*For additional information refer to ELOGIC™ Lighting Controls product information bulletins ECS101 and ECS106.
To
Fluorescent
Lamps
Daylight
Harvesting
+
Occupancy
Sensing
To
Additional
Ballasts
Microphonics
Passive Infrared
Microphonics
Passive Infrared
1200VA @120V Single Pole
Passive
Infrared +
™
0-10V
+
Passive
Infrared +
™
Power
ON/OFF
switch
Line voltage
120/277AC
No power
pack required
White
Ceiling
Recessed

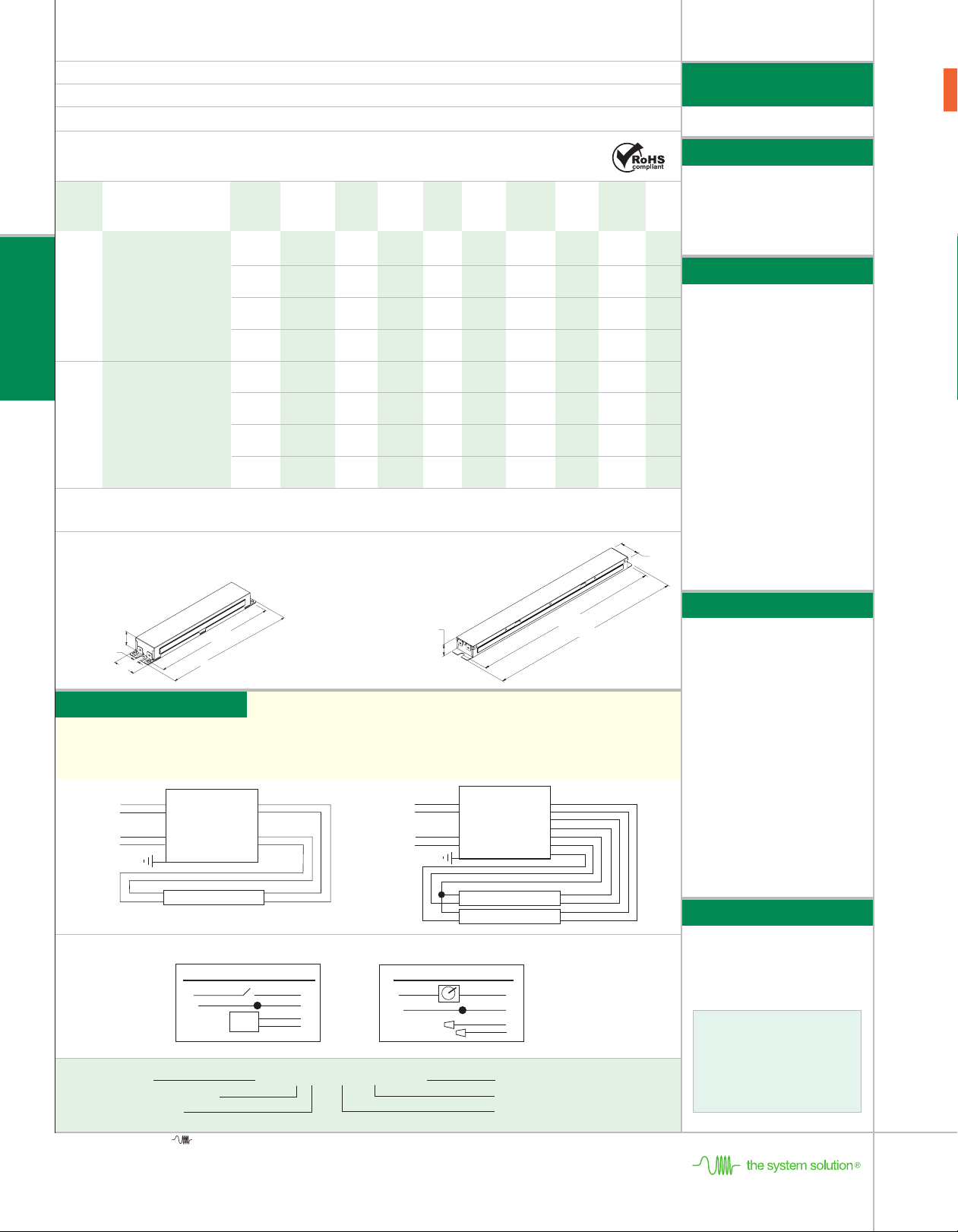

SPECIFICATION DATA
POWERLINE CONTROL
LINE
BLACK
NEUTRAL
WHITE
INSULATE
UNUSED LEADS
VIOLET
(+)
GREY (-)
QTP2x28T5/UNV DIM TCL
Black
White
Violet (+)
Grey (-)
Red
Red
Blue
Blue
LAMP 1
ELECTRONIC
BALLAST
Catalog # Date Type
Project Prepared by
Comments
T5 POWERSENSE
High Efficiency
®
High Efficiency Electronic T5 Fluorescent Controllable Lighting Systems
Mounting
411.3mm
(16.2")
Red
Red
Blue
Blue
Yel/Blk
Yellow
Yellow
Length
425mm
(16.7")
3
Input Rated1 Ballast1 Input1 System
Item OSRAM SYLVANIA Current Lamp1 Lumens No. of Factor System1 Mean1 Power (W) Efficacy
Number Description (AMPS) Type (lm) Lamps (BF) Lumens Lumens 120V 277V (lm/W) BEF
50725 QHE 1x28T5/UNV DIM-TC 0.27/0.12 FP28T5 2900 1 1.00 2900 2695 32 31 94 3.23
0.01 29 27 6 6
0.34/0.14 FP35T5 3650 1 1.00 3650 3395 41 40 91 2.50
0.01 37 34 6 6
0.21/0.09 FP21T5 2100 1 1.00 2100 1955 25 25 84 4.00
0.01 21 20 6 6
0.14/0.06 FP14T5 1350 1 1.00 1350 1255 17 17 79 5.88
T5 DIM
0.01 14 13 5 5
50726 QHE 2x28T5/UNV DIM-TCL 0.53/0.23 FP28 2900 2 1.00 5800 64 62 91/93 1.61
POWERSENSE
Formally
: 0.01 58 10
QTP 2x28T5/UNV DIM-TCL
0.67/0.29 FP35 3650 2 1.00 7300 81 79 90/92 1.27
0.01 73 10
0.40/0.18 FP21 2100 2 1.00 4200 49 86 2.04
0.01 42 9
0.29/0.13 FP14 1350 2 1.00 2700 34 79 2.94
0.01 27 8
1: Rated lamp lumens and performance data based on PENTRON lamps.
2: At 35°C lamp ambient temperature.
3: Ballast Efficiency Factor (BEF) shown = (Ballast Factor x 100) divided by Input Power (note: calculation based on lowest wattage value)
Dimensions: 1 lamp enclosure
Overall: 9.5" L x 1.68" W x 1.0" H (241 x 43 x 25 mm)
Mounting: 8.90" (226 mm)
Weight: 1.1 lbs each (500 g)
Length
Mounting
Length
Output Wiring: Lamp wiring for dimming ballasts can differ significantly from non-dimming ballasts
and from other manufacturers dimming ballasts. Take care to connect lamp lead wires as shown on
Height
8.70 mm
Slot
Width
Installation Notes
Dimensions: 2 lamp enclosure
Overall: 16.7" L x 1.68" W x 1.0" H (425 x 43 x 25 mm)
Mounting: 16.2" (411 mm)
Weight: 2.1 lbs each (950 g)
Wiring:
Leads Only
Height
25.4mm
(1.0")
the applicable ballast diagram. Lamp Seasoning: For optimal performance, fluorescent lamps may require seasoning for up to 12 hours prior to low
temperature starting & low level dimming. Refer to NEMA LSD 23-2002 Lighting Systems Division: Recommended Practice - Lamp Seasoning for
Fluorescent Dimming Systems
1 lamp
Black
White
Violet (+)
Grey (-)
ELECTRONIC
BALLAST
Red
Red
Blue
Blue
2 lamp
Black
White
Violet (+)
Grey (-)
ELECTRONIC
BALLAST
Performance Guide
Data shown based upon SYLVANIA
PENTRON® lamp(s). QUICKTRONIC®
POWERSENSE ballasts are also compatible
2
with other lamp manufacturers equivalent
lamp types that meet ANSI specifications.
Starting Method: Programmed Rapid Start
Circuit Type: Series
Lamp Frequency: >40kHz
Lamp CCF: Less than 1.7
Starting Temp: 50°F/10°C minimum
Input Voltage: 120-277V, ±10%
Input Frequency: 50/60 Hz
THD: <10% @ Full Output
Power Factor: >98% @ Full Output
UL Listed Class P, Type 1 Outdoor
CSA or C/UL Certified
70°C Max Case Temperature
FCC 47CFR Part 18 Non-Consumer
Class A Sound Rating
RoHS Compliant
4
ANSI C62.41 Cat. A Transient Protection
No Remote or Tandem Wiring
4 Complies with European Union Restriction of
Width
43mm
(1.68")
Hazardous Substances Directive.
5 FP14 lamp starting temperature 60°F/16°C
Control Information
QUICKTRONIC POWERSENSE ballasts
are compatible with a wide range of
low voltage (0-10VDC) and power line
fluorescent controllers available from
various manufacturers.
Low Voltage Control Specs: Ballast will
source up to 0.5mA for 0-10VDC control
purposes. May be wired as a Class 1 or
Class 2 circuit-consult Local and National
Electrical Codes.
Power Line Control Specs: Specificationgrade fluorescent controls are available
for 120V or 277V operation of controllable
analog electronic fluorescent ballasts.
Controls must be suitably rated for both the
type (e.g. Fluorescent Phase-control) and
size (e.g. 600W) of the connected load.
Specifications
Data based on FP28
5
LAMP 1
Input & Control Wiring Options:
Item Number 50726 QHE 2 x 28T5 / UNV DIM-TCL
LOW-VOLTAGE CONTROL
LINE
NEUTRAL
Class 1 or
Class 2
0-10V
< 0.5mA
DC
BLACK
WHITE
VIOLET (+)
GREY (-)
POWERLINE CONTROL
LINE
NEUTRAL
INSULATE
UNUSED LEADS
QUICKTRONIC High Efficiency
Number of Lamps (2)
SYLVANIA, PENTRON, QUICKSENSE, the system solution, QUICK60+, PROStart, POWERSENSE and See the World in a New Light are registered trademarks of OSRAM SYLVANIA Inc.
ELOGIC is a trademark of OSRAM SYLVANIA Inc. QUICKTRONIC is a registered trademark of OSRAM AG.
LAMP 1
LAMP 1
LAMP 2
BLACK
WHITE
VIOLET
(+)
GREY (-)
System Type - DIMMING/Case Size
Line Voltage (120-277V)
Primary Lamp Wattage
System Life / Warranty
QUICKTRONIC products are covered by the
QUICK 60+® warranty, a comprehensive
lamp and ballast system warranty. For
additional details, refer to the QUICK 60+
warranty bulletin.
OSRAM SYLVANIA
National Customer
Service and Sales Center
1-800-LIGHTBULB
(1-800-544-4828)
www.sylvania.com
Specifications subject to change without notice.
©2012 OSRAM SYLVANIA
Loading...
