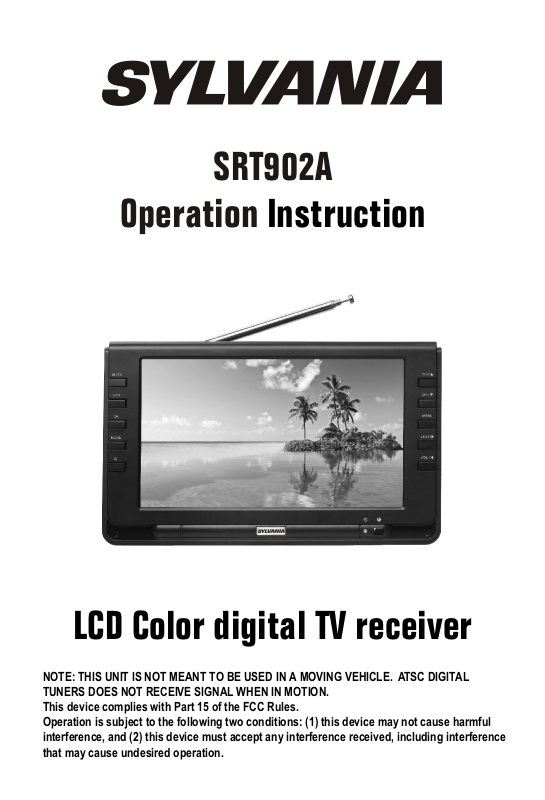

SRT902A
Operation Instruction
LCD Color digital TV receiver
NOTE: THIS UNIT IS NOT MEANT TO BE USED IN A MOVING VEHICLE. ATSC DIGITAL
TUNERS DOES NOT RECEIVE SIGNAL WHEN IN MOTION.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Contents
I Precautions
II Accessories
III Appearance
IV Description of Panel Buttons
V Remote Controller Operation Instruction
VI Basic Operation
VII TV Menu Operation
7.1. TV/AV Image Quality Adjustment
7.2. Sound Adjustment
7.3. Time Adjustment
7.4. Settings
7.5. Program search
VIII Operations in CARD mode
1
2
3
4
5
7
8
8
8
9
10
11
12
IX Before Repair
X Technical Parameter
XI Stand Assemble Instruction Manual
14
15
16
I Precautions
Storage
1. Keep this product away from extremely hot or cold places. The
storage temperature ranges from -40 to 60 and the working
temperature from -5 to 40 .
2. Do not use this product at damp environment like bathtubs, wash
basins, kitchens, washtubs, as well as basements, swimming pools
or similar places.
3. Do not expose your TV set to high humidity, dust or oil smoke.
4. Do not throw or drop this product.
5. Do not subject this device to the inside of a case or strong vibrations,
avoiding strong collision.
6. Do not push on or scrub this product with sharp objects.
Maintenance
1. Disconnect all cables of this device at first before cleaning.
2. Wipe the enclosure, screen and keys using soft cloth with a little
soft detergent on.
3. Do not use polishing cloth, abstergent, and all types of propellants or
chemical detergents like alcohol and benzene to clean your device.
Warning!
1. Do not watch television programs or turn your TV set on for your
own and others' safety.
2. It is very dangerous to watch television programs or operate the
TV set while driving.
Special Notice
1. Bright spots or dark spots may appear on the screen. This is a
normal phenomenon associated with the active matrix display
technology and is not a sign of malfunction. Do not attempt to
maintain. For any failures, please turn off your TV set immediately
and contact us or your dealer. This device integrates a great deal
of fine electronic components. Disassembly or alternation may
result in damages or breaks.
2. This Unit is controlled by microcomputer. If it runs abnormally,
please restart it.
-1-
II Accessories
1. Car adapter
2. AC adapter
3. 75 ohm antenna conversion cable(screw connector)
4. Remote control
5. AAA type batteries
6. AV conversion cable
7. Telescopic antenna
8. User manual
* Open the package and make sure all the items are included.
-2-
III Appearance
1. Telescopic antenna
2. MUTE: Mute button
3. EXIT: Exit button
. OK: Confirm button
4
5. MODE: Mode shift button
6. : Standby button
7. TFT-LCD screen
8. CH+/ : Channel Select/
Upward button
9. CH-/ : Channel Select/
Downward button
10.
MENU: Menu button
VOL+/ : Volume up/
11.
Rightward button
12. VOL-/ : Volume down/
Leftward button
13
. Power indicator
Red: Standby
Flashing green: Charging
Persistent: Charged
Remote-control receive
14.
window
15. Antenna input Jack
16. Power on/off
17. AV Output
18. AV Input
19. Headphone jack
20. DC Input
21. SD/MMC/MS type CARD
input port
22. USB connect Jack
23. Speaker
-3-
IV Description of Panel Buttons
1. MUTE: Mute button.
2. EXIT: Exit button.
3. OK: Confirm button.
4. MODE:
switch.
5. : Standby button.
6
. CH+/ : Upward selection/Channel
increasing.
7. CH-/ : Downward selection/Channel decreasing.
8. MENU: Menu button, press to show the main menu. When system
enters a multilevel submenu, press to return the previous menu step
by step.
9. VOL+/ : Rightward selection/For volume increasing.
10. VOL-/ : Leftward selection/For volume decreasing.
TV/AV/External storage
