SRT702A
Operation Instruction
LCD Color digital TV receiver
NOTE: THIS UNIT IS NOT MEANT TO BE USED IN A MOVING VEHICLE.
ATSC DIGITAL TUNERS DOES NOT RECEIVE SIGNAL WHEN IN MOTION.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Contents
I Precautions
II Accessories
III Appearance
IV Remote Controller Directions
V Basic Operation
VI TV Menu Operation
6.1. TV/AV Image Quality Adjustment
6.2. Sound Adjustment
6.3. Time Adjustment
6.4. Settings
6.5. Program Searching
VII To Receive Clear Images
VIII Before Repair
1
3
3
4
6
7
7
8
8
9
11
14
15
IX Technical Parameter
X Stand Assemble Instruction Manual
16
17
I Precautions
Storage
1. Keep this product away from extremely hot or cold places. The
storage temperature ranges from -40 to 60 and the working
temperature from -5 to 40 .
2. Do not use this product at damp environment like bathtubs, wash
basins, kitchens, washtubs, as well as basements, swimming pools
or similar places.
3. Do not expose your TV set to high humidity, dust or oil smoke.
4. Do not throw or drop this product.
5. Do not subject this device to the inside of a case or strong vibrations,
avoiding strong collision.
6. Do not push on or scrub this product with sharp objects.
Maintenance
1. Disconnect all cables of this device at first before cleaning.
2. Wipe the enclosure, screen and keys using soft cloth with a little
soft detergent on.
3. Do not use polishing cloth, abstergent, and all types of propellants or
chemical detergents like alcohol and benzene to clean your device.
Warning!
1. Do not watch television programs or turn your TV set on for your
own and others' safety.
2. It is very dangerous to watch television programs or operate the
TV set while driving.
Special Notice
Bright spots or dark spots may appear on the screen. This is a
normal phenomenon associated with the active matrix display
technology and is not a sign of malfunction. Do not attempt to
maintain. For any failures, please turn off your TV set immediately
and contact us or your dealer. This device integrates a great deal
of fine electronic components. Disassembly or alternation may
result in damages or breaks.
-1-
II Accessories
1. Car adapter
2. AC adapter
AV conversion cable
3.
4. Remote control
5. AAA type batteries
6. Telescopic antenna
7. User manual
* Open the package and make sure all the items are included.
-2-
III Appearance
10 10
23
1. Telescopic antenna
2. MUTE: Mute button
3. PICT: Picture mode button
4. PRLIST: Program Menu button
5. MODE: Mode shift button
6. : Standby button
7. CHG: charging indicator,
twinkling when battery is
charging, keep light after full
of charging(Only available for
the machine of internal battery)
8. Power indicator
Red: Standby
Green: Power-on
9. Remote-control receive
window
10. Speaker
11. TFT-LCD screen
12. CH+/ : Channel Select/
Upward button
13. CH-/ : Channel Select/
Downward button
14. MENU: Menu button
15. VOL+/ : Volume up/
18
Rightward button
19
16. VOL-/ : Volume down/
20
Leftward button
17. Headphone jack
21
18. Antenna input Jack
22
19. AV1 In jack
20. AV2 In jack
21. Power on/off
22. DC Input
23. Battery Door
-3-
IV Remote Controller Operation Instruction
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
AAA
AAA
1. CH+/CH- (Program choosing key, up and down direction key):
Press CH+ key to increase the channel by degree. Press this key
and choose menu upward if it is in the system menu.
Press CH- key to decrease the channel by degree. Press this key
and choose menu downward if it is in the system menu.
2. VOL+/VOL- (Volume control key, left and right direction key)
Press VOL+ to turn up the volume. Press this key to choose menu
rightward if it is in the system menu.
Press VOL- to turn down the volume. Press this key to choose
menu leftward if it is in the system menu.
3. TV/AV Switch Key: When pressing this key, you switch state among
TV, AV1 and AV2.
4. MUTE (Mute Key): When you press this key, the sound will
disappear, and press again or press VOL+ the sound will return
to normal.
5. 0, 1, 2, 3, ... 9: Program Direct Choosing Key. Press this key to
choose program number.
6. : Press this key to execute channel direct choosing transform
function.
7. CC: Close/Open Caption
8. MTS: When pressing this key, you can adjust among different
languages.
-4-
9. MENU: Menu key. When you press this key, the main menu will
display. When the system enters a multilevel submenu, press this
key and return to previous menu step by step.
10. PRLIST: TV program menu key. When pressing this key, you will
see the entire program list in a program list box.
11. POWER (Power Switching Key): When you press this key, the
TV set will be turned off, and press again it will be turned on.
12. EXIT: Exit Key. Press this key, exit operation and return to the
program.
13. PICT: Image Mode Key. Press this key to choose among the four
image modes of Standard, Dynamic, Soft and Personal.
14. AUDIO: Audio Mode Key. Press this key to choose among the four
audio modes of Standard, Music, Movie, Personal.
15. INFO: When you press this key, the system will show the message
of present program.
16. EPG: When you press this key, the system will show the program
guide menu(ATSC mode).
17. : Return Key. Press this key to return to last program you were
watching and press again to return to current program.
18. FORMAT: When pressing this key, you can choose among Auto,
4:3 and Wide image display formats.(AUTO is available only when
it is ATSC mode).
-5-
V Basic Operation
1. Connection of Power Supply:
Align the power supply plug on
AC adapter with the jack on the
machine rear cover marked with
DC.
2. Connection of AV convert Cable:
AV conversion cable
Insert the external video cord into
the yellow port of the AV convert
cable, the left sound track into the
white port and the right sound track
into the red port. Then plug the AV
convert cord in AV1 IN or AV2 IN
jack.
-6-
VI TV Menu Operation
Precautions
It's unavailable if the menu is grey.
6.1. TV/AV Image Quality Adjustment
ADJUST
Personal
50
50
50
50
0
"MENU": EXIT
Picture Mode
Contrast
Brightness
Color
Sharpness
Tint
UP/DOWN

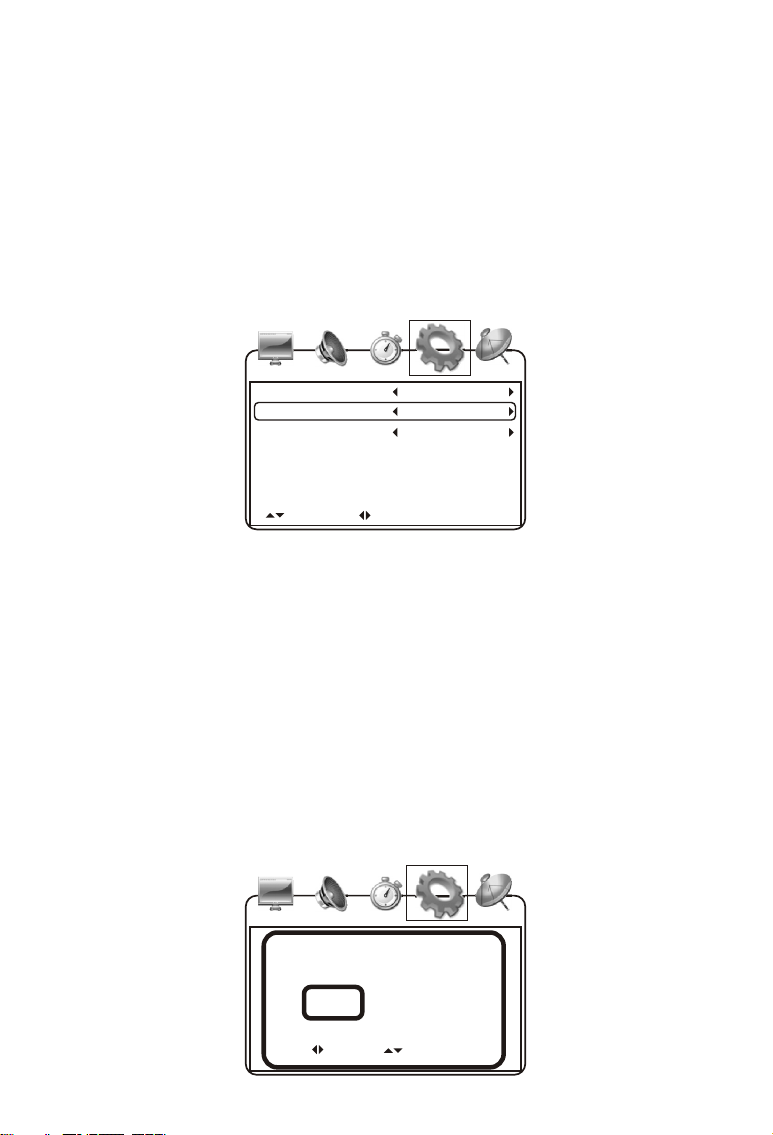

Press MENU key to enter the menu list and then press left or right key
to enter the above list. Press up and down key to choose to enter the
sub-list, press left and right key to adjust the numerical value or setup
the contents, then press Menu to confirm and return to previous list.
Press Menu again or press EXIT key on the remote controller to quit
the sub menu list directly after the adjustment of image quality.
Precautions
There are four options of picture mode, which are Personal,
Standard, Dynamic and Soft.
Contrast: Adjust the black and white contrast of the image
Brightness: Adjust the brightness of the image
Color: Adjust the color of the image
Sharpness: Adjust the sharpness of the image
Tint: Adjust the red and green balance of the image
-7-
6.2. Sound Adjustment
ADJUST
Standard
50
50
50
English
"MENU": EXIT
Sound Mode
Bass
Treble
Balance
Audio Language
UP/DOWN
Press MENU key to enter the menu list and then press left or right key
to enter the above list. Press up and down key to choose to enter the
sub-list, press left and right key to adjust the numerical value or setup
the contents, then press Menu to confirm and return to previous list.
Press Menu again or press EXIT key on the remote controller to quit
the sub menu list directly after the adjustment of sound effect.
Precautions
There are four options of sound mode, which are Personal,
Standard, Movie and Music.
Bass: Adjust bourdon.
Treble: Adjust alt.
Balance adjust the balance between left and right sound track.
Audio Language can be setup as English, French and Spanish.
6.3. Time Adjustment
OSD Duration
Sleep Timer
Time Zone
Day Saving Time
Clock
UP/DOWN
2006/05/02 14:40-
ADJUST
-8-
30 Sec
Off
Eastern
Off
"MENU": EXIT
Press MENU key to enter the menu list and then press left or right key
to enter the above list. Press up and down key to choose to enter the
sub-list, press left and right key to adjust the numerical value or setup
the contents, then press Menu to confirm and return to previous list.
Press Menu again or press EXIT key on the remote controller to quit
the sub menu list directly after the adjustment of time.
Precautions
1. OSD Duration can be setup as 15Sec, 30Sec, 45Sec and 60Sec.
2. Sleep Time can be setup as Off, 5min, 10min, 15min, 30min, 60min,
90min and 120min.
3. Time Zone has six areas to be chosen.
4. Day Saving Time can be setup as Off or On (Summer time off or on).
Clock 2006/05/02 14:00 shows the current program time.
6.4. Settings
Language
Transparency
Color Mode
Zoom Mode
Closed Caption
Restore Setting
UP/DOWN
ADJUST
English
Off
Normal
Auto
"MENU": EXIT
Press MENU key to enter the menu list and then press left or right key
to enter the above list. Press up and down key to choose to enter the
sub-list, press left and right key to setup the contents.
6.4.1. OSD Language Settings
Press Up and Down Key to choose Language, and press Left and
Right Key to choose among English, French and Spanish.
6.4.2. Menu State Settings
Press UP and Down Key to choose Transparency, and press Left and
Right Key to choose Off (menu transparency off) or On (menu
transparency on).
6.4.3. Color Auto-adjustment
Press Up and Down Key to choose Color Mode. Press Left and Right
Key to choose among Normal, Warm and Cool.
-9-
6.4.4. Zoom Mode Settings
Press UP and Down Key to choose Zoom Mode, and press Left and
Right Key to choose among Auto, 4:3, wide.
6.4.5. Closed Caption Settings
Many TV programs contain closed caption information, and the
audience can see the caption in words on the screen. Not all the
channels at any time have closed caption code information.
Press Up and Down Key to choose Closed Caption and press Left and
Right Key or ENTER Key to enter the following picture.
CC Mode
Basic Selection
Advance Selection
UP/DOWN
ADJUST
Off
CC1
Service1
"MENU": EXIT
There are three CC Modes, which are Off (closed caption off), On
(closed caption always on when information is available) and CC on
Mute (closed caption on when TV is in mute and closed caption off
when TV is not in mute).
Basic Selection can choose among CC1, CC2, CC3, CC4, Text1,
Text2, Text3 and Text4
Advance Selection can choose among Service1, Service2, Service3,
Service4, Service5 and Service6.
6.4.6. Restore Settings
Press VOL+ Key, the hint of Are you sure will show. As in the following
picture, press YES or NO to choose whether restore or not and press
CH+ or CH- to confirm.
Are you sure?
NO
SELECT
-10-
YES
CONFIRM
6.5. Program Searching
Press MENU Key to enter the menu list, press Left and Right Key to
enter the following list, press Up and Down Key to enter the sub-list
and then press Left and Right Key to setup the contents.
6.5.1.1. Antenna can be setup as CATV and Air.
Antenna
Auto Scan
Auto Scan Add CH
Channel Skip
Channel No.
Channel Lable
UP/DOWN
Antenna
Auto Scan
Auto Scan Add CH
Channel Skip
Channel No.
Channel Lable
UP/DOWN
ADJUST
ADJUST
CATV
"MENU": EXIT
Air
4-1
FD 3803
"MENU": EXIT
6.5.1.2. In the CATV state, choose Auto scan and press OK to enter
Cable system settings. Four options, AUTO, STD, IRC, HRC can be
chosen.
Cable System
Start to Scan
AUTO
UP/DOWN
ADJUST
-11-
"MENU": EXIT
6.5.2. In the Start to scan item, press VOL+ to start searching.
Auto searching will clear the primary program.
Cable System
Start to Scan
UP/DOWN
ADJUST
AUTO
"MENU": EXIT
6.5.3. Press Auto Scan Add Ch will start auto search based on primary
program.
Antenna
Auto Scan
Auto Scan Add CH
Channel Skip
Channel No.
Channel Lable
UP/DOWN
ADJUST
CATV
"MENU": EXIT
6.5.4. Channel Skip Settings
Choose Channel Skip and press VOL+ to enter Skip item as following:
No. Program Name
4-1
9-2
FD 3803
KQED-SD
SELECT "MENU": EXIT
Show
Press VOL+ or VOL- to close or open the current channel skip settings.
-12-
6.5.5. Change Channel Number
Choose Channel No. as in the following picture:
Antenna
Auto Scan
Auto Scan Add CH
Channel Skip
Channel No.
Channel Lable
UP/DOWN
ADJUST
Air
4-1
FD 3803
"MENU": EXIT
Press VOL+ or VOL- to change current channel number.
6.5.6. Change or Edit Program Name
Choose Channel Label and press VOL+ to enter the following picture.
Alter the characters and numbers in the box to change the program
name according to your preference as in the following picture.
F D
EDIT
3
SELECT
8 0
"MENU": EXIT
3
-13-
VII To Receive Clear Image
Adjust the length, angle and direction of the telescopic antenna to
receive the optimal image. Draw back the antenna beginning from the
wide part after using.
Warning
If the signals are too weak, no matter how to adjust the antenna, the
image will not be clear and there are phenomenons like high noise,
shaking, and sound not well and so on. It's not the fault of the TV
set. If the image quality is not good when using the telescopic
antenna, try to use open antenna or cable TV.
-14-
VIII Before Repair
The following phenomenons do not mean that the TV set has fault.
Please check it according to the following methods before repair.
Phenomenon Reason
AC adapter or automobile adapter
No image and sound
No signal
No sound
Mosaic in the image
connecting improperly; using
unauthorized power; the power switch is
on the state of off.
Whether chosen the right channel; auto
setup receiving channel again; channels
need to be reset in a new place.
Whether the volume has been turned
down at the bottom; whether the
earphone is inserted; signals too weak;
the mute function is working.
Whether the antenna has been adjusted
properly, and maybe the signals are too
weak.
Could not receive signals
Image too dark
When the car is moving,
if there are mosaics in
the image or the image
and sound are not fluent.
Maybe the local signals are too weak;
open antenna or cable TV preferred.
Whether the brightness and contrast are
proper, and please adjust again.
It is possibly because that the local
signals are too weak. Please move to
place with strong signals to receive.
-15-
IX Technical Parameter
Input
ATSC frequency: 54MHz 803MHz
NTSC receiving frequency: 55.25MHz 801.25MHz
General Characteristic
Display device: Color TFT-LCD
LCD screen
Loudspeaker:
Power supply: DC 12V 10W
Connection Port: External antenna input , stereo earphone jack,
Power Supply: three options
1. AC power supply-AC adapter
2. Automobile storage battery (12V)-automobile adapter
3. Build-in battery: 7.4V/1700mAh
Volume:
Weight:
Working Environment Temperature: -5~40 .
Storage Temperature: -40~60
: 7 inch
two 40mm 20mm square loudspeaker.
jack
Audio / Video (AV) input jack, External power supply jack.
215 150 32mm
565g
-16-
X Stand Assemble Instruction Manual
Pict.-1 Pict.-3Pict.-2
Step One: Pick up the stand from the package as Pict.-1.
Step two: Loose the screw and open the stand head as Pict.-2/3.
Pict.-4 Pict.-5
Pict.-7
Pict.-10 Pict.-11
Step three: lock the 2 piece stand hand while they combine together with stand in middle as
Pict.-4/5.
Step four: Firm the screws while adapting the angle as Pict.-6/7.
Step five: Lock the stand into the unit as Pict.-8/9/10.
Step six : completed as Pict.-11.
Pict.-8
Pict.-6
Pict.-9
-17-
Warning
This operation instruction is only intended for reference. No further
notice is available to any modification of all information contained
therein. Due to continuing improvements, the features and design
are subject to change without notice.
Warning
There is no component that can be repaired in the TV set. Do not try
to disassemble and improve the TV set. There is high voltage inside
and it is very dangerous. The maintenance and adjustment work
should be carried through by professional people.
Warning
To prevent injury, this apparatus must be securely attached to the
floor/wall in accordance with the installation instructions.
The mains plug is used as the disconnect device, the disconnect
device shall remain readily operable, and it shall be disconnected
from the mains completely.
The plug is used as disconnect device form the mains supply, the
plug shall remain readily operable.
The apparatus should not be exposed to dripping or splashing and
that no objects filled with liquids, such as vases, shall be placed on
the apparatus.
No naked flame sources, such as lighted candles, should be
placed on the apparatus.
Batteries (battery pack or batteries installed) shall not be exposed
to excessive heat such as sunshine, fire or the like.
Danger of explosion if battery is incorrectly replaced. Replaced
only with the same or equivalent type.
-18-
Loading...
