Sylvania SRDD495 User Manual [en, es]

Download

Page 1

Owner's Manual

AC outlets

Plug in

From TV

From DVD/VCR

Please refer to “Connections” on page 6.

Cable TV

signal

(Back of TV)

Disconnect

Antenna

ANT-OUT

ANT-IN

RF cable (supplied)

(Back of DVD/VCR)

(Back of TV)

Antenna

Connect

Cable TV

signal

Owner’s Manual

Please read before using this unit.

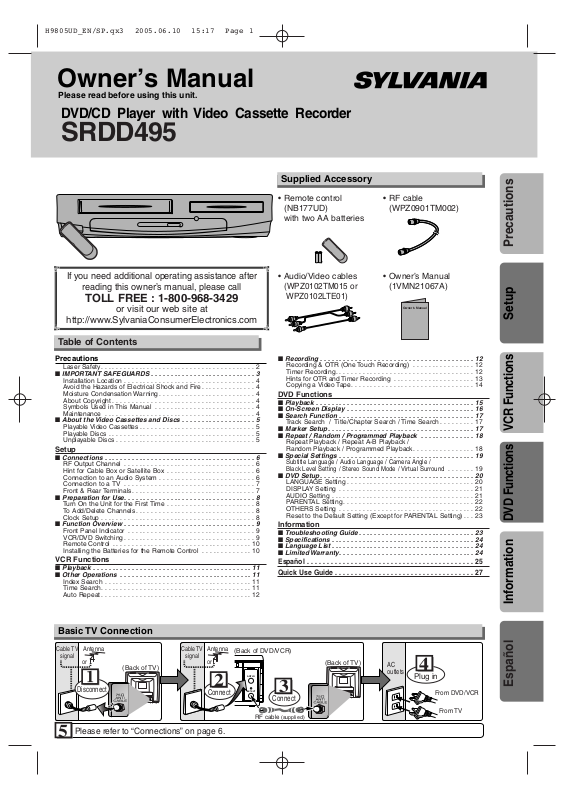

DVD/CD Player with Video Cassette Recorder

SRDD495

Supplied Accessory

If you need additional operating assistance after

reading this owner’s manual, please call

TOLL FREE : 1-800-968-3429

or visit our web site at

http://www.SylvaniaConsumerElectronics.com

Table of Contents

Precautions

Laser Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■ IMPORTANT SAFEGUARDS . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Installation Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Avoid the Hazards of Electrical Shock and Fire. . . . . . . . . . . . . . 4

Moisture Condensation Warning. . . . . . . . . . . . . . . . . . . . . . . . . 4

About Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Symbols Used in This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

■ About the Video Cassettes and Discs . . . . . . . . . . . . . . . . . . . 5

Playable Video Cassettes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Playable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Unplayable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Setup

■ Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

RF Output Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Hint for Cable Box or Satellite Box . . . . . . . . . . . . . . . . . . . . . . . 6

Connection to an Audio System . . . . . . . . . . . . . . . . . . . . . . . . . 6

Connection to a TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Front & Rear Terminals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

■ Preparation for Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Tu rn On the Unit for the First Time . . . . . . . . . . . . . . . . . . . . . . . 8

To Add/Delete Channels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Clock Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

■ Function Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Front Panel Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

VCR/DVD Switching. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Installing the Batteries for the Remote Control . . . . . . . . . . . . . 10

VCR Functions

■ Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

■ Other Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Index Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Time Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Auto Repeat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

• Remote control (NB177UD)

• RF cable (WPZ0901TM002)

with two AA batteries

• Audio/Video cables (WPZ0102TM015 or

• Owner’s Manual (1VMN21067A)

WPZ0102LTE01)

■ Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Recording & OTR (One Touch Recording) . . . . . . . . . . . . . . . . 12

Timer Recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Hints for OTR and Timer Recording . . . . . . . . . . . . . . . . . . . . . 13

Copying a Video Tape. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

DVD Functions

■ Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

■ On-Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

■ Search Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Tr ack Search / Title/Chapter Search / Time Search . . . . . . . . . 17

■ Marker Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

■ Repeat / Random / Programmed Playback . . . . . . . . . . . . . . 18

Repeat Playback / Repeat A-B Playback /

Random Playback / Programmed Playback. . . . . . . . . . . . . . . . 18

■ Special Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Subtitle Language / Audio Language / Camera Angle / Black Level Setting / Stereo Sound Mode / Virtual Surround

■ DVD Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

LANGUAGE Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

DISPLAY Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

AUDIO Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

PARENTAL Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

OTHERS Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Reset to the Default Setting (Except for PARENTAL Setting). . . 23

Information

■ Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

■ Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

■ Language List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

■ Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Quick Use Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

. . . . . . . 19

Precautions

Setup

VCR Functions

DVD Functions

Information

Basic TV Connection

Español

Page 2

Precautions

WARNING

Precautions

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Laser Safety

This unit employs a laser.Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO

LOCATION: INSIDE, NEAR THE DECK MECHANISM.

FCC WARNING-This equipment may generate or use radio frequency energy. Changes or modifications to

this equipment may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

The lightning flash with arrowhead

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

BEAM.

symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION:TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA

FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

A NOTE ABOUT RECYCLING

This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

Make your contribution to the environment!!!

• Used up batteries do not belong in the dust bin.

• You can dispose of them at a collection point for used up batteries or special waste. Contact your council for details.

For Customer Use: Read carefully the information located at the back of this unit and enter below the Serial No. Retain this information for future reference.

Model No. Serial No. _____________________

_____________________

–2–

Page 3

IMPORTANT SAFEGUARDS

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.

2. Retain Instructions- The safety and operating instructions should be retained for future reference.

3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.

4. Follow Instructions - All operating and use instructions should be followed.

5. Cleaning - Unplug this video product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6. Attachments - Do not use attachments not recommended by the video product manufacturer as they may cause hazards.

7. Water and Moisture- Do not use this video product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8. Accessories - Do not place this video product on an unstable cart, stand, tripod, bracket, or table.The video product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the video product. Any mounting of the appliance should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

9. Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the video product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the video product on a bed, sofa, rug, or other similar surface.This video product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

10. Power Sources - This video product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

11. Grounding or Polarization - This video product is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12. Power Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13. Outdoor Antenna Grounding - If an outside antenna or cable system is connected to the video product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with regard to

proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

FIGURE A

EXAMPLE OF ANTENNA GROUNDING

AS PER NATIONAL ELECTRICAL CODE

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

NEC – NATIONAL ELECTRICAL CODE

S2898A

ANTENNA LEAD WIRE

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMP

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

14. Lightning - For added protection for this video product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the video product due to lightning and power-line surges.

15. Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits.When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16. Overloading - Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17. Object and Liquid Entry - Never push objects of any kind into this video product through any openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the video product.

18. Servicing - Do not attempt to service this video product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19. Damage Requiring Service - Unplug this video product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into the

video product.

c. If the video product has been exposed to rain or water. d. If the video product does not operate normally by following

the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.

e. If the video product has been dropped or damaged in any

way.

f. When the video product exhibits a distinct change in per-

formance this indicates a need for service.

20. Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

21. Safety Check - Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine that the video product is in proper operating condition.

22. Heat - This video product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

–3–

Precautions

Page 4

DVD-V

VCR

Installation Location

For safety and optimum performance of this unit:

• Do not stand the unit up vertically. Install the unit in a horizontal and stable position. Do not place anything directly on top of the unit. Do not place the unit directly on top of the TV.

• Shield it from direct sunlight and keep it away from sources of intense heat. Avoid dusty or humid places. Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation

Precautions

holes on the sides of the unit. Avoid locations subject to strong vibration or strong magnetic fields.

• Be sure to remove a disc and unplug the AC power cord from the outlet before carrying the unit.

Avoid the Hazards of Electrical Shock and Fire

• Do not handle the power cord with wet hands.

• Do not pull on the power cord when disconnecting it from AC wall outlet. Grasp it by the plug.

• If, by accident, water is spilled on this unit, unplug the power cord immediately and take the unit to our Authorized Service Center for servicing.

• Do not put your fingers or objects into the unit cassette holder.

Moisture Condensation Warning

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. Do not use this unit at least for 2 hours until its inside gets dry.

About Copyright

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Symbols Used in This Manual

The following symbols appear in some headings in this manual.

: Description refers to playback or recording

of video cassette tapes.

: Description refers to playback of DVD-Video

discs.

: Description refers to playback of Audio

CDs.

Maintenance

SERVICING

Please refer to relevant topics on the “Troubleshooting Guide” on page 23 before returning the product.

¡If this unit becomes inoperative, do not try to correct

the problem by yourself. There are no user-serviceable parts inside. Turn off, unplug the power plug, and please call our help line mentioned on the front page to locate an Authorized Service Center.

CLEANING THE CABINET

¡Use a soft cloth slightly moistened with a mild deter-

gent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasive.

CLEANING DISCS

¡When a disc becomes dirty, clean it with a cleaning

cloth. Wipe the disc from the center out. Do not wipe in a circular motion.

Do not use solvents such as benzine, thinner, commercially available cleaners, detergent, abrasive cleaning agents or antistatic spray intended for analog records.

CLEANING THE DISC LENS

¡If this unit still does not perform properly although you

refer to the relevant sections and to “Troubleshooting Guide” in this Owner’s Manual, the laser optical pickup unit may be dirty. Consult your dealer or an Authorized Service Center for inspection and cleaning of the laser optical pickup unit.

DISC HANDLING

¡When you handle a disc, hold it by its edge and try

not to touch the surface of the disc.

¡Always store the disc in its protective case when it is

not used.

AUTO HEAD CLEANING

¡Automatically cleans video heads as you insert or

remove a cassette, so you can see a clear picture.

¡Playback picture may become blurred or interrupted

while the TV program reception is clear. Dirt accumulated on the video heads after a long period of use, or the usage of rental or worn tapes can cause this problem. If a streaky or snowy picture appears during playback, the video heads in your unit may need to be cleaned.

1. Please visit your local Audio/Video store and purchase a good quality VHS Video Head Cleaner.

2. If a Video Head Cleaner does not solve the problem, please call our help line mentioned on the front page to locate an Authorized Service Center.

Hint

• Remember to read the instructions along with the video head cleaner before use.

• Clean video heads only when problems occur.

Note to CATV system installer

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground should be connected to the grounding system of the building, as close to the point of cable entry as practical.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

–4–

Page 5

About the Video Cassettes and Discs

DVD-Video

* 1, 2, 4, 6,10

* 1, 3, 4, 5,

6, 8, 9, 10

* 1, 3, 4, 5, 6, 7, 9, 10

* 4, 6, 10

* 4, 5, 6,

9, 10

DVD-RW

DVD-R

DVD+RW

DVD+R

Audio CD

CD-RW

CD-R

Digital video

(MPEG2)

Region code

Mark (logo)

Playable

discs

Recorded

signals

Disc size

Disc types

12 cm

8 cm

Example

Title 1 Title 2

Chapter 1 Chapter 2 Chapter 1

Chapter 2

Chapter 3 Chapter 4

12 cm

8 cm

Example

Tra c k 1

Tra c k 2

Tra c k 5

Tra c k 6

Tra c k 3

Tra c k 4

Digital audio

Playable Video Cassettes

Use only cassettes marked with this unit.

Playable Discs

Precautions

is a trademark of DVD Format/Logo Licensing Corporation.

If you cannot play back a disc which bears one of the marks above, check the following notes.

*1: This unit conforms to the NTSC color system. Discs recorded in other color systems such as PAL cannot be played back. *2: Certain DVD-Video discs do not operate as described in this manual due to the intentions of the disc’s producers. *3: Discs recorded in the VR (Video Recording) format cannot be played back. *4: Scratched or stained discs may not be played back. *5: Some discs cannot be played back because of incompatible recording conditions, characteristics of the recorder or spe-

cial properties of discs.

*6: You can play back discs which bear the marks above. If you use nonstandardized discs, this unit may not play them back.

Even if they are played back, the sound or video quality will be compromised.

*7: You may play back the unfinalized DVD-R/RW disc recorded in the video format on our brand’s DVD recorder. However,

depending on the recording status of a disc, the disc may not be played back at all or normally (the picture or sound may not be smooth, etc.). In this case, you need to finalize the disc with the DVD recorder. Refer to the manual accompanying the DVD recorder.

*8: Only the discs recorded in the video format and finalized can be played back.

Unfinalized discs cannot be played back. Depending on the recording status of a disc, the disc may not be played back at all or normally (the picture or sound may not be smooth, etc.).

*9:

If there is too much recording space left on a disc (the used portion is less than 55 mm across), it may not play back properly.

*10: Do not glue paper or put stickers on to the disc. These may damage the disc, and the unit may not read it correctly.

Unplayable Discs

NEVER play back the following discs. Otherwise, malfunction may result!

DVD-RAM / CD-I / Photo CD / Video CD / DVD with region codes other than 1 or ALL / DTS-CD /

On the following disc, the sound MAY NOT be heard.

Super Audio CD

DVD-ROM for personal computers / CD-ROM for personal computers

NOTE: Only the sound recorded on the normal CD layer can be delivered.

The sound recorded on the high density Super Audio CD layer cannot be delivered.

Any other discs without compatibility indications

–5–

Page 6

VCRDVD/VCR

AUDIO OUT

DIGITAL

AUDIO OUT

AUDIO

OUT

DVD

S-VIDEO

OUT

COMPONENT

VIDEO OUT

DIGITAL

AUDIO OUT

COAXIAL

AUDIO

OUT

DVD

S-VIDEO

OUT

COMPONENT

VIDEO OUT

COAXIAL

Setup

ANT-OUT

ANT-IN

RF cable

(supplied)

(Back of DVD/VCR)

OUT

(Back of TV)

Satellite or

Cable TV

signal

(Cable box or

Satellite box)

Connections

Please refer to “Basic TV Connection” on the front page before you use this unit.

RF Output Channel

If channel 3 is already occupied for broadcasting,

1) Set your TV to channel 4.

2) Insert a pre-recorded tape into this unit.

3) Press

•

[OUTPUT] on the unit so that the VCR

OUTPUT light is lit.

If noise appears on the TV screen, press [VCR/TV] on the remote control.

4) Press [PLAY B] once.

Hint for Cable Box or Satellite Box

Setup

Select this connection when you want to view or record a scrambled channel. With this connection, channels cannot be changed on the unit. You can view or record ONLY the channels you have selected on the cable box or the satellite box.

• While you are recording, only the recorded channel can be viewed.

Connection to an Audio System

Method 1

After a few seconds, hold [PLAY B]on the unit for 3 seconds.

•

The RF output channel will change to channel 4 from channel 3 and you will see a playback picture.

• When a picture does not appear on the TV screen, repeat step 4).

6) Press [STOP C] to stop playback.

To select channels of the cable box or satellite box

1) Turn on the unit by pressing [POWER], then press [VCR/TV]. The “POWER” light on the front panel will appear, then press [

SKIP/CH.GG/

nel 3 or 4 (the same channel as the output channel of the cable box or satellite box).

• If you use the channel 4, you need to change the unit’s

RF output to channel 4. Refer to “RF Output Channel”.

2) At the TV, select channel 3 or 4 (the same channel as you have selected at step 1).

3) On the cable box or satellite box, select the channel you want to view or record.

Method 2

Hint

•

The RF output channel may not change when you adjust tracking during playback. In this case, stop the playback, and start the playback again. After that, hold [PLAY BB] on the unit for 3 seconds again.

KK HH/LL

] to select chan-

Stereo system

Analog audio

AUDIO

Audio cable

(supplied)

input jacks

(Analog) AUDIO OUT

DVD/VCR

(DVD mode only)

Connection

Connecting to Stereo System.

* To complete these settings, refer to pages 20-21.

Hint

• Playing a DVD using incorrect settings may generate noise distortion and may also damage the speakers.

Setting

SETUP > QUICK >

DOLBY DIGITAL

PCM

Dolby Digital decoder,

MD deck or DAT deck

Digital audio input jack

Audio Coaxial

Digital cable

(commercially

available)

DIGITAL AUDIO OUT

Connection

Setting

Connecting to a Dolby Digital decoder for Dolby Digital audio output.

Connecting to the other equipment (an MD deck or DAT deck etc.) without Dolby Digital decoder.

* To complete these settings, refer to pages 20-21.

Hint

•

The audio source on a disc in a Dolby Digital 5.1 channel surround format cannot be recorded as digital sound by an MD or DAT deck.

• By hooking this unit up to a Multi-channel Dolby Digital decoder, you can enjoy high-quality Dolby Digital 5.1 channel surround sound as heard in the movie theaters.

• Playing a DVD using incorrect settings may generate noise distortion and may also damage the speakers.

SETUP > QUICK >

DOLBY DIGITAL

BITSTREAM

–6–

PCM

Page 7

DIGITAL

AUDIO OUT

COAXIAL

ANT-OUT

ANT-IN

AUDIO

OUT

DVD VCR

DVD/VCR

S-VIDEO

OUT

COMPONENT VIDEO OUT

AUDIO IN

VIDEO IN

AUDIO OUT

VIDEO OUT

CB/ P

CR/ P

AUDIO IN

VCRDVD/VCR

AUDIO OUT

DIGITAL

AUDIO OUT

AUDIO

OUT

DVD

S-VIDEO

OUT

COMPONENT

VIDEO OUT

CB/

CR/

VIDEO IN

VCRDVD/VCR

VIDEO OUT

S-VIDEO IN

DIGITAL

AUDIO OUT

COAXIAL

AUDIO

OUT

DVD

S-VIDEO

OUT

COMPONENT

VIDEO OUT

DIGITAL

AUDIO OUT

COMPONENT

VIDEO IN

COAXIAL

AUDIO

OUT

DVD

S-VIDEO

OUT

COMPONENT

VIDEO OUT

Connection to a TV

Method 1

Good pictureBasic Audio

Method 2 Method 3

Better picture Best picture

Audio cable

(supplied)

DVD/VCR

(Analog)

AUDIO OUT

Hint

•

Connect this unit directly to the TV. If the Audio/Video cables are connected to a VCR, pictures may be distorted due to the copy protection system.

• The COAXIAL, DVD AUDIO OUT, S-VIDEO OUT and COMPONENT VIDEO OUT jacks are only useful in DVD mode.

Video

cable

(supplied)

VIDEO OUT

S-Video

cable

(commercially

available)

S-VIDEO OUT

Component Video cables (commercially available)

COMPONENT VIDEO OUT

After you have completed connections

• Press the input selector button (usually TV/VIDEO, INPUT or AUX) on your TV to switch an appropriate external input channel (usually near channel 0) for viewing the picture from this unit. If the picture does not appear, also refer to the manual accompanying your TV.

Input modes for common TV brands (Example)

• Listed below are inputs for common brand name TV’s. Admiral: AUX

Curtis Mathis: LINE1, LINE2, 00, 90, 91, 92, 93 GE: INPUT, TV/VCR, 00, 90, 91, 92, 93 Hitachi: INPUT, AUX JVC: Kenwood: AUX

A/V CHANNEL, INPUT1, SVIDEO, INPUT2

LXI-Series: 00 Magnavox: AUX CHANNEL

Panasonic: TV/VIDEO RCA: INPUT, TV/VCR, 00, 90, 91, 92, 93 Samsung: TV/VIDEO Sanyo: VIDEO Sharp: 00 Sony: VIDEO1, VIDEO2, VIDEO3 Toshiba: TV/GAME Zenith: 00

Setup

Front & Rear Terminals

DVD AUDIO OUT (analog) jacks

Connect the supplied audio cables here through the Audio In jacks of a television or other audio equipment. (DVD only)

DIGITAL AUDIO OUT COAXIAL jack

Connect an optional coaxial digital audio cable here through the coaxial digital audio in jack of a decoder or audio receiver. (DVD only)

S-VIDEO OUT jack

Connect an optional S-Video cable here through the S-video in jack of a television. (DVD only)

DVD/VCR AUDIO OUT jacks

Connect the supplied audio cable here through the audio In jacks of a television or other audio equipment.

DVD

DIGITAL

AUDIO

OUT

AUDIO OUT

COAXIAL

COMPONENT VIDEO OUT jacks

Connect optional component video cables here through the component video in jacks of a television. (DVD only)

AUDIO IN jack

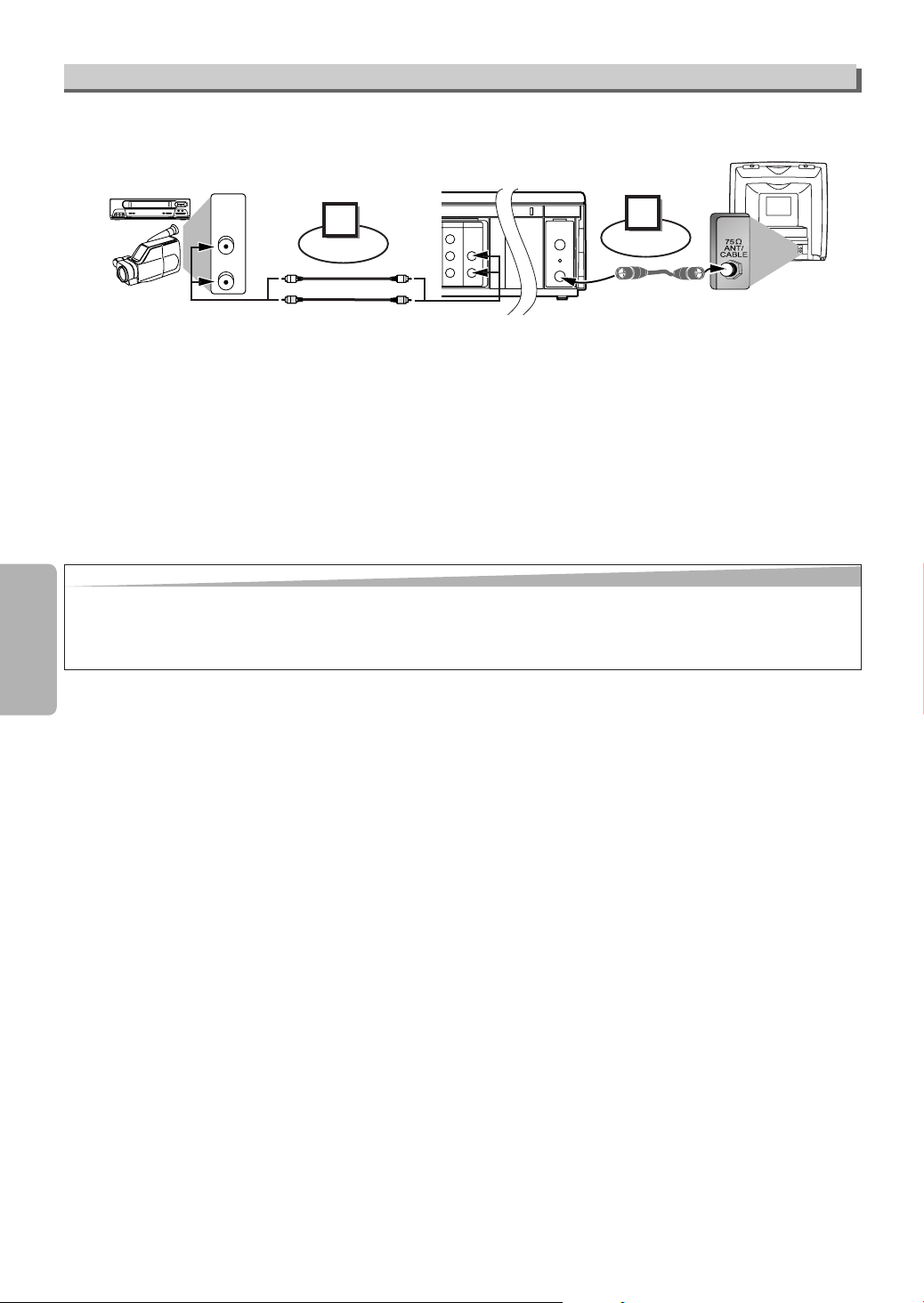

Connect an audio cable coming from the audio out jack of a camcorder, another VCR or an audio source here.

DVD/VCR

AUDIO OUT

DIGITAL

AUDIO OUT

VIDEO OUT

VCR

DVD VCR AUDIO

S-VIDEO

OUT

AUDIO IN

COAXIAL

VIDEO IN

DVD/VCR

COMPONENT

AUDIO OUT

VIDEO OUT

AUDIO IN

VIDEO OUT

VIDEO IN

[Rear Panel]

COMPONENT

S-VIDEO

VIDEO OUT

OUT

DVD/VCR VIDEO OUT jack

Connect the supplied video cable here through the TV’s video in jack.

–7–

ANT-IN jack

Connect your antenna or cable box here.

ANT-IN

ANT-OUT

VIDEO IN jack

Connect a cable coming from the video out jack of a camcorder, another VCR or an audio-visual source (laser disc player, video disc player, etc.) here.

VIDEO

AUDIO

[Front Panel]

ANT-OUT jack

Connect the supplied RF cable to the antenna input jack on your TV.

Page 8

VCR

CLEAR/

C. RESET

Preparation for Use

YES

TV ScreenRemote Control

VCR

Turn On the Unit for the First Time

VCR

Tu rn on the TV and set it to channel 3.

• If channel 3 is already occupied for broadcasting, see“RF Output Channel” section.

POWER

LANGUAGE SELECT

B ENGLISH [ON]

Setup

FRANCAIS ESPAÑOL

AUTO SET UP

CH 01

To Add/Delete Channels

- M E N U -

TIMER PROGRAMMING AUTO REPEAT [OFF]

B CHANNEL SET UP

CLOCK SET LANGUAGE SELECT

• If the clock is not set, the “CLOCK SET” screen appears when you press [MENU]. In this case, press [MENU] again.

CHANNEL SET UP

AUTO SET UP

B MANUAL SET UP

MANUAL SET UP

CHANNEL 30 (CATV)

ADD

Hint

• I

f you accidentally select Spanish or French and need English: Press choose SELEC. IDIOMA or SELECTION LANGUE. Press [B] and select ENGLISH. Finally, press [CLEAR/C.RESET].

[MENU] and

Clock Setup

VCR

- M E N U -

TIMER PROGRAMMING AUTO REPEAT [OFF] CHANNEL SET UP

B CLOCK SET

LANGUAGE SELECT

• If the clock is not set, the CLOCK SET screen appears when you press

[MENU]. In this case, go to step 2).

CLOCK SET

MONTH DAY YEAR

1 0 / – – – – – –

HOUR MINUTE AM/PM

– – : – – – –

Select the current month.

Do you connect the cable from the cable box or the satellite box to the unit’s ANT-IN jack?

es Press [MENU]

YYes

to exit.

•

Refer to “Hint for Cable Box or Satellite Box” section on page 6.

Please wait for a few minutes.

After scanning...

•

The tuner stops on the lowest memorized channel.

•

You can select only the channels memorized in this unit by using [SKIP/CH.GG/

(or [CHANNEL KK/LL]

• If "AUTO SET UP" appears on the TV screen again, check the cable connections. Then, press [B] once again.

Hint

• Repeat these steps only if either there was a power failure or this unit has been unplugged for more than 30 seconds.

KK HH/LL

To Select a Channel

You can select a channel by using

the Number buttons or

[SKIP/CH.GG/

Notes for using the Number buttons:

• When selecting cable channels which are higher than 99, enter channel numbers as a three-digit number. (For example: 117, press [1], [1], [7])

• You must precede single-digit channel numbers with a zero (for example: 02, 03, 04 and so on).

KK HH/LL

Select the channel to be added or deleted.

]

5 To exit the

MANUAL SET UP

CHANNEL 30 (CATV)

DELETE

Select “ADD” or “DELETE”.

To Preset the Channel Again

Press [MENU] until the main menu appears.

2) Select “CHANNEL SET UP” by pressing

[KK/LL], then press [B].

“AUTO SET UP” by pressing

3) Select

[KK/LL], then press [B]. After scanning, the tuner stops on the lowest memorized channel.

To Change the On-Screen Language

Press [MENU] until the main menu appears.

2) Select “LANGUAGE SELECT” by pressing [KK/LL], then press [B].

3) Select “ENGLISH” , “FRANCAIS” or “ESPAÑOL” by pressing [KK/LL] , then press [CLEAR/C.RESET].

CLOCK SET

MONTH DAY YEAR

1 0 / 0 3 – – – –

HOUR MINUTE AM/PM

– – : – – – –

Select the current day.

CLOCK SET

MONTH DAY YEAR

1 0 / 0 3 2 0 0 5

HOUR MINUTE AM/PM

– – : – – – –

Select the current year.

CLOCK SET

MONTH DAY YEAR

1 0 / 0 3 MON 2 0 0 5

HOUR MINUTE AM/PM

0 5 : – – – –

Select the current hour.

–8–

Page 9

CHANNEL

STOP

REV FWD

SKIP HG SKIP

OUTPUT

DVD DISC I N

OPEN/CLOSE

PLAY

STOP/EJECT PLAY REC/OTR

VCR

POWER

F.FWDREW

V ID

A U

D IO

REV

SKIP H

OUTPUT

DVDVCR

POWER

DISPLAY VCR DVD PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

SETUP TOP MENU

MODE ZOOM

SUBTITLE

T-SET

ANGLE

ENTER

RETURN

MODE

REPEAT A-B

OPEN/CLOSE

/EJECT

SPEED AUDIO

CLEAR/

C. RESET

123

456

789

+1 0

OUTPUT button

DVD OUTPUT light

VCR OUTPUT light

DVD button

VCR button

CLOCK SET

MONTH DAY YEAR

1 0 / 0 3 MON 2 0 0 5

HOUR MINUTE AM/PM

0 5 : 4 0 – –

CLOCK SET

MONTH DAY YEAR

1 0 / 0 3 MON 2 0 0 5

HOUR MINUTE AM/PM

0 5 : 4 0 P M AM

B PM

8 To exit the CLOCK SET

screen

Select the current minute.

Function Overview

Front Panel Indicator

Lights up when power is on.

Lights up during a recording. Flashes when a recording is paused.

POWER

VIDEO

AUDIO

STOP/EJECT PLAY REC/OTR

F.FWDREW

Select “AM” or “PM”.

OPEN/CLOSE

CHANNEL

VCR

Hint

• To go back one step, press [s] (during

steps 2) to 7) ).

• Your clock setting will be lost if either there is a power failure or this unit has been unplugged for more than 30 seconds.

Lights up when the inserted disc is being played back. Flashes when an unacceptable disc is installed.

OUTPUT

DVD DISC IN

STOP

SKIP HG SKIP

PLAY

REV FWD

Setup

Lights up when the Timer Recording or an OTR recording has been set.

VCR/DVD Switching

Because this product is a combination of a VCR and a DVD player, you must select first which component you wish to operate with

[OUTPUT].

VCR MODE

Press [VCR] on the remote control.

(Verify that the VCR OUTPUT light is lit.)

DVD MODE

Press [DVD] on the remote control.

(Verify that the DVD OUTPUT light is lit.)

Hint

• Pressing only [OUTPUT] on the front panel DOES NOT

switch the mode of the remote control.You MUST select the correct mode on the remote control.

–9–

Page 10

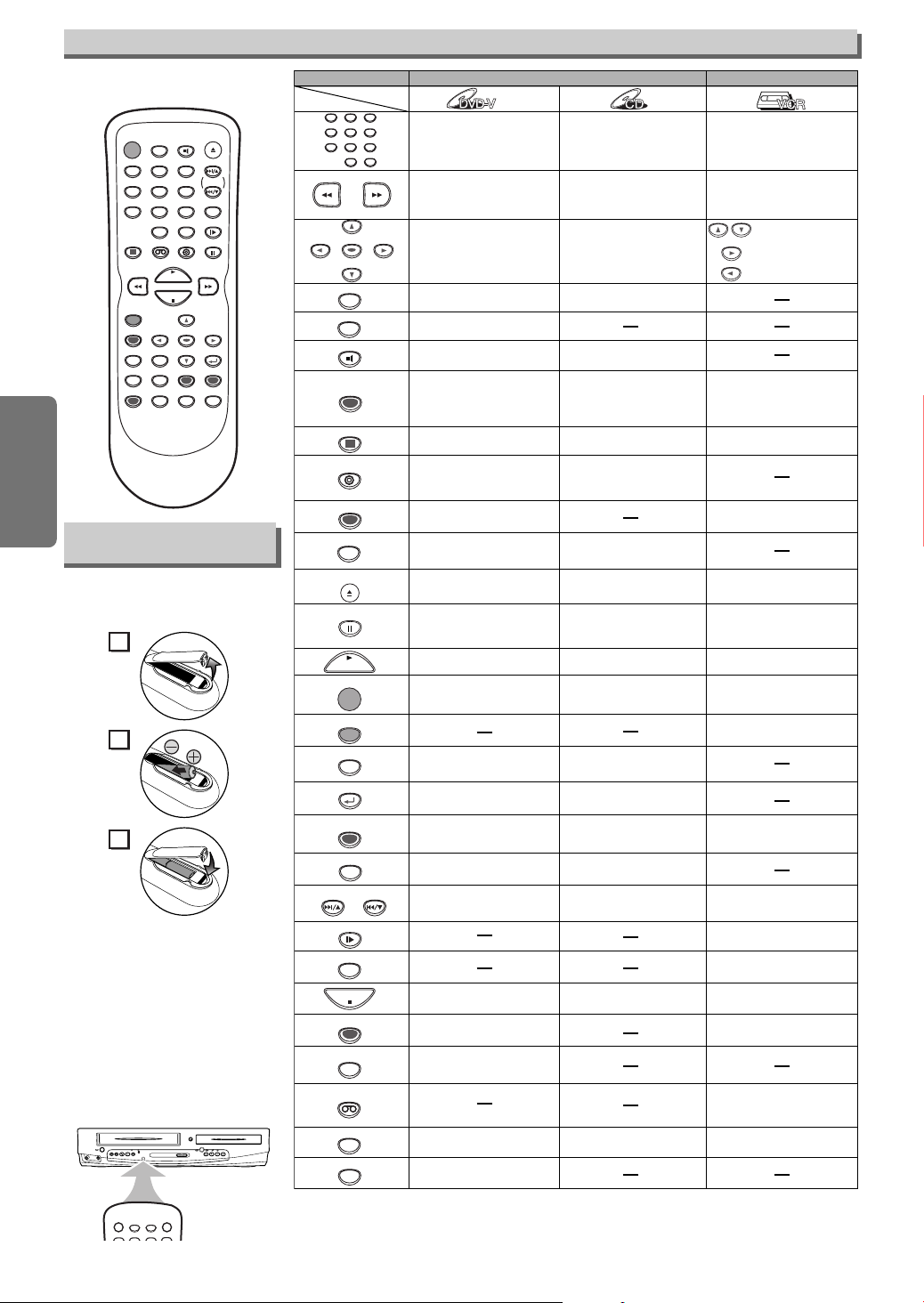

• To display the current disc mode.

• To display the current time, tape counter, and channel.

• To open or close the disc tray.

• To eject the video cassette from the VCR.

•

To select chapter or title directly.

• To select track directly.

• To select camera angles on

a disc.

• To select subtitles on a disc.

• To put the VCR into standby

mode for a Timer Recording.

• To select audio languages on a disc.

• To select STEREO, L-ch or R-ch.

• To repeat between your chosen point A and B.

• To play a chapter or title repeatedly.

• To play a track or disc repeatedly.

• To set black level on/off.

• To set virtual surround on/off.

• To arrange the playing

order or play randomly.

• To set virtual surround on/off.

• To magnify part of a picture.

(x2/ x4)

• To call up the Menu on a disc.

• To call up the VCR Menu.

• To call up the Top Menu

on a disc.

• To return to the previous operation in menu.

•

To search chapter, title or time.

• To set or search the markers.

• To search track.

• To search time.

• To set or search the markers.

• To select the recording speed.

• To select channel.

• The +10 button has no effect

in VCR mode.

• To clear the markers.

•

To remove status number in program input.

• To clear the numbers. entered incorrectly.

•

To cancel the point for A-B repeat.

•

To clear the numbers entered incorrectly.

•

To cancel the point for A-B repeat.

• To exit the VCR Menu.

• To reset the tape counter.

• To search forward/backward

through a disc.

•

To begin slow forward/reverse playback during the pause mode.

• To search forward/backward through a disc.

• To forward/backward a tape.

• To advance playback

one frame at a time.

• To advance playback one frame at a time.

• To pause disc playback.

• To pause tape playback or

recording.

• To stop playback. • To stop playback.

• To stop playback or recording.

• To skip chapters. • To skip tracks.

• To change channels.

•

To adjust the tracking manually

during playback.

• To begin disc playback. • To begin disc playback.

• To begin tape playback.

• To call up the DVD setup

menu.

• To call up the index or time

search menu.

• To call up the DVD setup menu.

• To activate the remote control in DVD mode.

• To select the DVD output mode.

•

To activate the remote control

in DVD mode.

• To select the DVD output mode.

• To select VCR position or

TV position.

• To select CD position or TV position.

• To select DVD position or TV position.

• To view the tape in slow motion.

• To select the VCR output mode.

• To activate the remote control in VCR mode.

• To start a recording or

One Touch Recording.

• To move the cursor and determine its position.

• To select an item on the VCR Menu.

• To advance to the next VCR Menu.

•

To go back one step during

clock and timer setting.

VCR mode

DVD mode

• To turn the unit on or off. •To turn the unit on or off. •To turn the unit on or off.

TOP MENU

MODE

SUBTITLE

T-SET

ANGLE

REPEAT

A-B

123

456

789

+1 0

ZOOM

SPEED

VCR

PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

SETUP

ENTER

Button

(Alphabetical order)

Disc/Tape

OPEN/CLOSE

/EJECT

CLEAR/

C. RESET

MODE

DVD

RETURN

AUDIO

DISPLAY

POWER

DISPLAY VCR DVD PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

SETUP TOP MENU

MODE ZOOM

SUBTITLE

T-SET

ANGLE

ENTER

RETURN

MODE

REPEAT A-B

OPEN/CLOSE

/EJECT

SPEED AUDIO

CLEAR/

C. RESET

123

456

789

+1 0

CHANNEL

STOP

REV FWD

SKIP HG SKIP

OUTPUT

DVD DISC IN

OPEN/CLOSE

PLAY

STOP/EJECTPLAY REC/OTR

VCR

POWER

F.FWDREW

V I D

E O

U D

I O

Remote Control

Setup

Install two AA batteries (supplied) matching the polarity indicated inside battery compartment of the remote control.

Keep in mind the following when using the remote control:

•

• The maximum operable ranges

Installing the Batteries for the Remote Control

Make sure that there is no obstacle between the remote control and the remote sensor on the unit.

from the unit are as follows.

- Beeline: approx. 23 feet (7m)

- Either side of center:

approx. 16 feet (5m) within 30°

- Above: approx. 16 feet (5m)

within 15°

- Below: approx. 10 feet (3m)

within 30°

–10–

Page 11

STOP/EJECT PLAY REC/OTR

POWER

F.FWDREW

VIDEO

AUDIO

Playback

POWER

DISPLAY VCR DVD PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

OPEN/CLOSE

/EJECT

SPEED AUDIO

123

456

789

+1 0

PLAY

STOP

OPEN/CLOSE

/EJECT

VCR

MODE

Pro.1 Pro.2 Pro.3 Pro.4 Pro.5

02 01 01 02 03

Beginning of the tape

End of the tape

CURRENT PROGRAM

INDEX MARK

VCR

MODE

Before: Tu rn on the TV and set it to channel 3.

• If channel 3 is already occupied for broadcasting, see “RF Output Channel” section.

VCR

VCR Functions

22334

To stop

playback

Other Operations

To cue or review picture during playback (Picture Search)

Press [gg/ hh]([F.FWD gg] or [REW hh] ).

• Press it again and the unit will search in super high

speed. (in the SLP mode only)

To freeze the picture on TV screen during playback (Still mode)

Press [PAUSE kk]. Each time you press the button, the picture will be forwarded by one frame.

•

If the picture begins to vibrate vertically during the still mode, stabilize the picture by pressing

[SKIP/CH.GG/

• If the picture is distorted or rolling vertically, adjust

the vertical hold control on your TV if equipped.

Index Search

You can skip the program backward and forward by the Index Mark.

• Insert a tape into this unit.

Press once.

Hints f

• These functions are not available during recording.

• Press [STOP CC] to stop the search.

• If a tape ends during a search, your search will be cancelled and the tape will rewind to the beginning.

KK HH/LL

INDEX SEARCH

or Inde

To start

playback

To eject

]

(or [CHANNEL KK/LL]

– –

0 3

01 ~ 20

x Searcc

x Sear

Hint

• When a tape without record tab is inserted, the unit will start playback automatically.

• Tracking will be automatically adjusted upon playback. To adjust the tracking manually, press

[SKIP/CH.GG/

KK HH/LL

Counter Reset

Press [CLEAR/C.RESET].

To play back in slow motion

Press [SLOW] during playback or the still mode.

• If the noise bars appear on the TV screen, you can

reduce it by pressing [SKIP/CH.GG/

[CHANNEL KK/LL]).

Auto Rewind

When a tape reaches its end during playback, fast-forward or recording (except Timer Recording and One

Touch Recording), the tape will automatically rewind to the beginning. After rewinding finishes, the unit will eject the tape.

To rewind

To fast forward

After searching,

Hint

• The Index Mark will be made automatically at the beginning of each recording.

• The time gap between Index Marks should be greater then 1 minute for SP mode, 2 minutes for LP mode and 3 minutes for SLP mode.

PLAYB

Time Search

You can search backward and forward a specific length of time on a tape.

• Insert a tape into this unit.

h &

Time Searcchh

h &

Time Sear

–11–

] (or [CHANNEL KK/LL]).

Hint

•

Still/Slow mode will be automatically cancelled after 5 minutes to prevent damage

KK HH/LL

](or

to the tape and the video head.

• To return to playback from the Picture Search/Still/ Slow mode, press [PLAY BB].

TIME SEARCH

– : – –

Press twice.

2 Select the desired length of

time for fast forwarding or rewinding.

TIME SEARCH

To rewind

To fast forward

PLAYB

2 : 5 0

0:01~ 9:59 (1 minute~9 hours and 59 minutes)

After searching,

VCR Functions

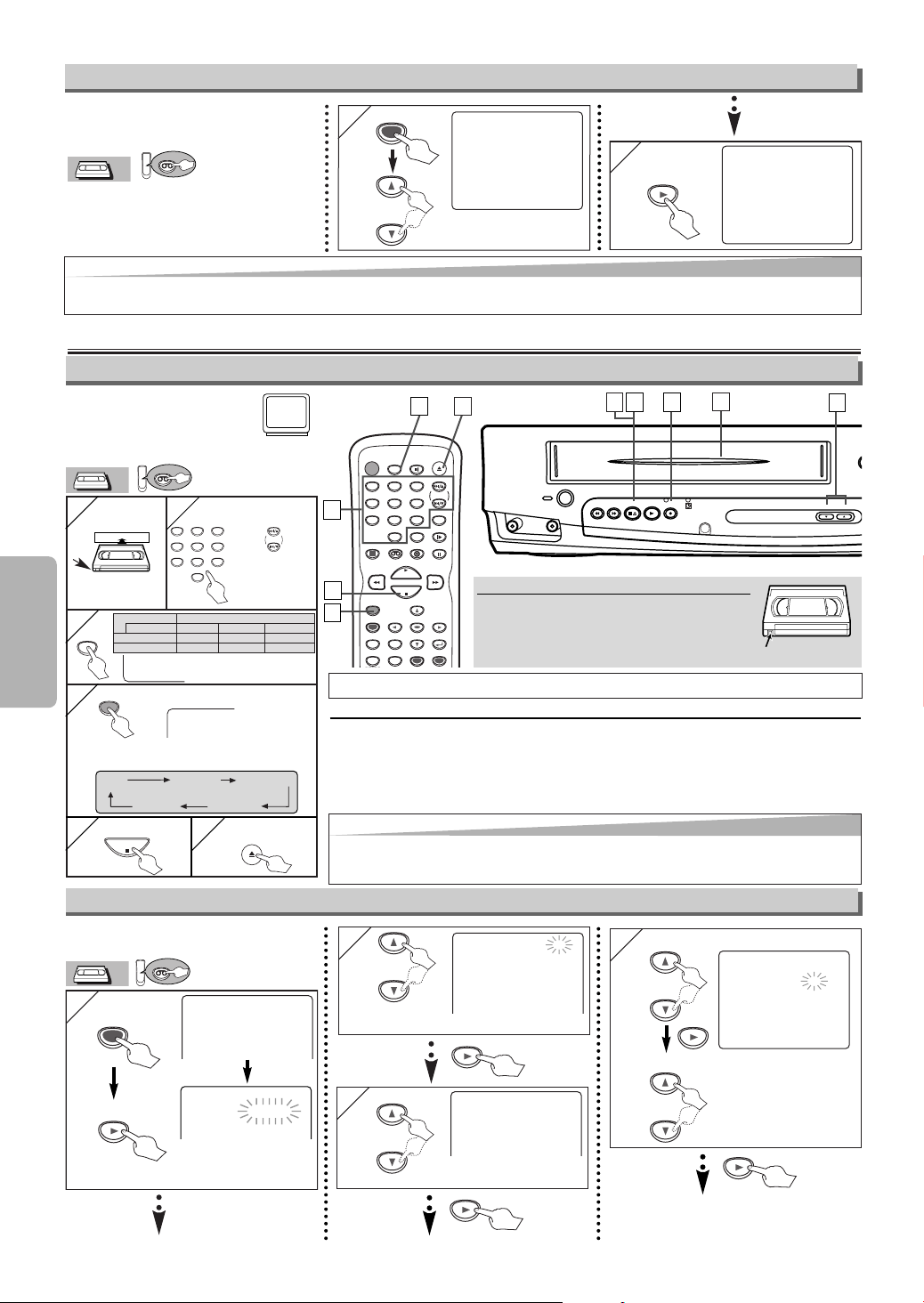

Page 12

Record tab

(

STOP

OPEN/CLOSE

/EJECT

SKIP/CH.

VCR

Auto Repeat

VCR

This function will playback a tape repeatedly from the beginning

when the tape reaches to the end.

Hint

•

To cancel Auto Repeat, follow steps 1)-2) above. Then, press [B], so that [OFF] appears beside AUTO REPEAT. Press [CLEAR/C.RESET] to exit.

•

If menu remains on the TV screen at step 3), press [CLEAR/C.RESET] to exit.

- M E N U -

TIMER PROGRAMMING

B AU TO REPEAT [OFF]

CHANNEL SET UP CLOCK SET LANGUAGE SELECT

TIMER PROGRAMMING

B AU TO REPEAT [ON]

CHANNEL SET UP CLOCK SET LANGUAGE SELECT

Recording

Recording & OTR (One Touch Recording)

Before: Tu rn on the TV and set it to channel 3.

• If channel 3 is already occupied for broadcasting, see “RF Output Channel” section.

VCR Functions

with tab

SPEED

REC/OTR

Press [REC/OTR] repeatedly to select the desired recording length.

REC OTR(0:30) OTR(1:00).....

(Normal recording)

VCR

123

456

789

Type of tape

SP mode 1hour 2hours 2-2/3hours SLP mode 3hour 6hour 8hour

OTR

Recording/Playback TimeTape Speed

T60 T120 T160

• Select the desired tape speed.

REC

8:00) OTR(7:30)

• Select the channel to record.

STOP/EJECT PLAY REC/OTR

F.FWDREW

SPEED AUDIO

PLAY

STOP

ENTER

OPEN/CLOSE

/EJECT

SKIP/CH.

VCR/TV

+1 0

RETURN

SEARCH MODE

C. RESET

POWER

123

456

789

DISPLAY VCR DVD PAUSE

REC/OTR

SETUP TOP MENU

MODE ZOOM

POWER

VIDEO

SLOW

AUDIO

Accidental erasure prevention

To prevent accidental recording on a recorded cassette, remove its record tab. To record on it later, cover the hole with

CLEAR/

adhesive tape.

You CAN NOT copy a DVD to a videotape.

To stop recording temporarily (Pause mode)

Press [PAUSE kk].

• During the rec-pause mode, five Cmarks appear on the TV screen. Each Cmark represents one minute.

• Press it again to resume recording.

• Pause mode will be automatically cancelled after 5 minutes to prevent damage to the tape and the video head.

Hint

• If you want to watch one channel while recording another...

1) Press [VCR/TV] to put the unit in TV position.

2) Select a channel you want to watch with the cable box or the satellite box.

- M E N U -

CHANNEL

OPE

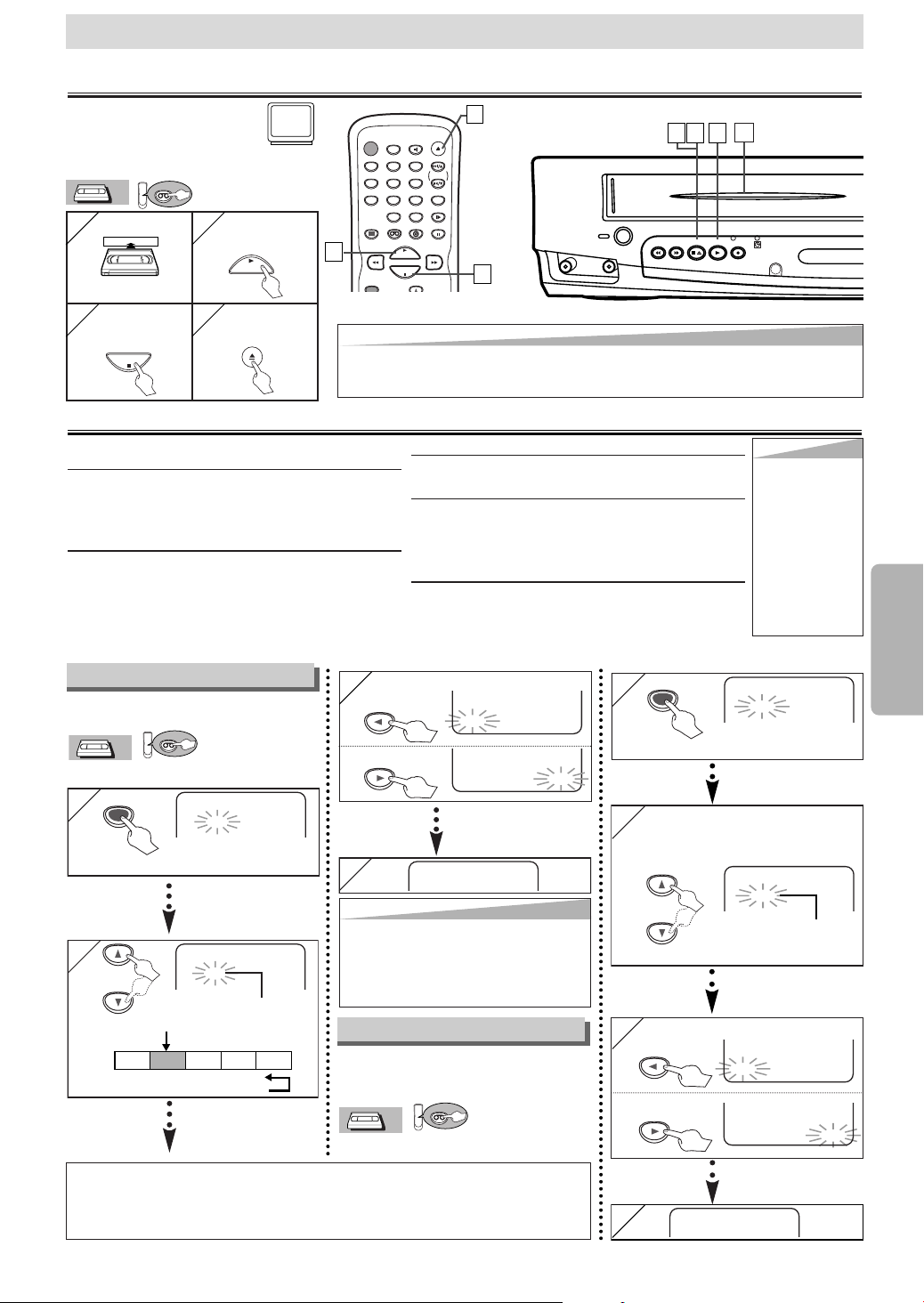

Timer Recording

•Insert a tape with its record tab into the unit.

VCR

- M E N U -

B TIMER PROGRAMMING

AUTO REPEAT [OFF] CHANNEL SET UP CLOCK SET LANGUAGE SELECT

TIMER PROGRAMMING

PROG 12345678 DATE START TIME END TIME CHANNEL

Available program num-

REC SPEED

ber flashes.

Select an empty program number.

–12–

PROGRAM NUMBER 4 DATE – – / – – START TIME – – : – – – – END TIME – – : – – – – CHANNEL – – REC SPEED – –

PROGRAM NUMBER 1

B ONCE

DAILY WEEKLY

Select “ONCE”, “DAILY” (Mon-Fri), or “WEEKLY”.

4 Select the desired month

ONE TIME PROGRAM PROGRAM NUMBER 1

DATE 1 0 / 0 3 MON START TIME – – : – – – – END TIME – – : – – – – CHANNEL – – REC SPEED – –

Select the desired day.

• You can program one year in advance.

Page 13

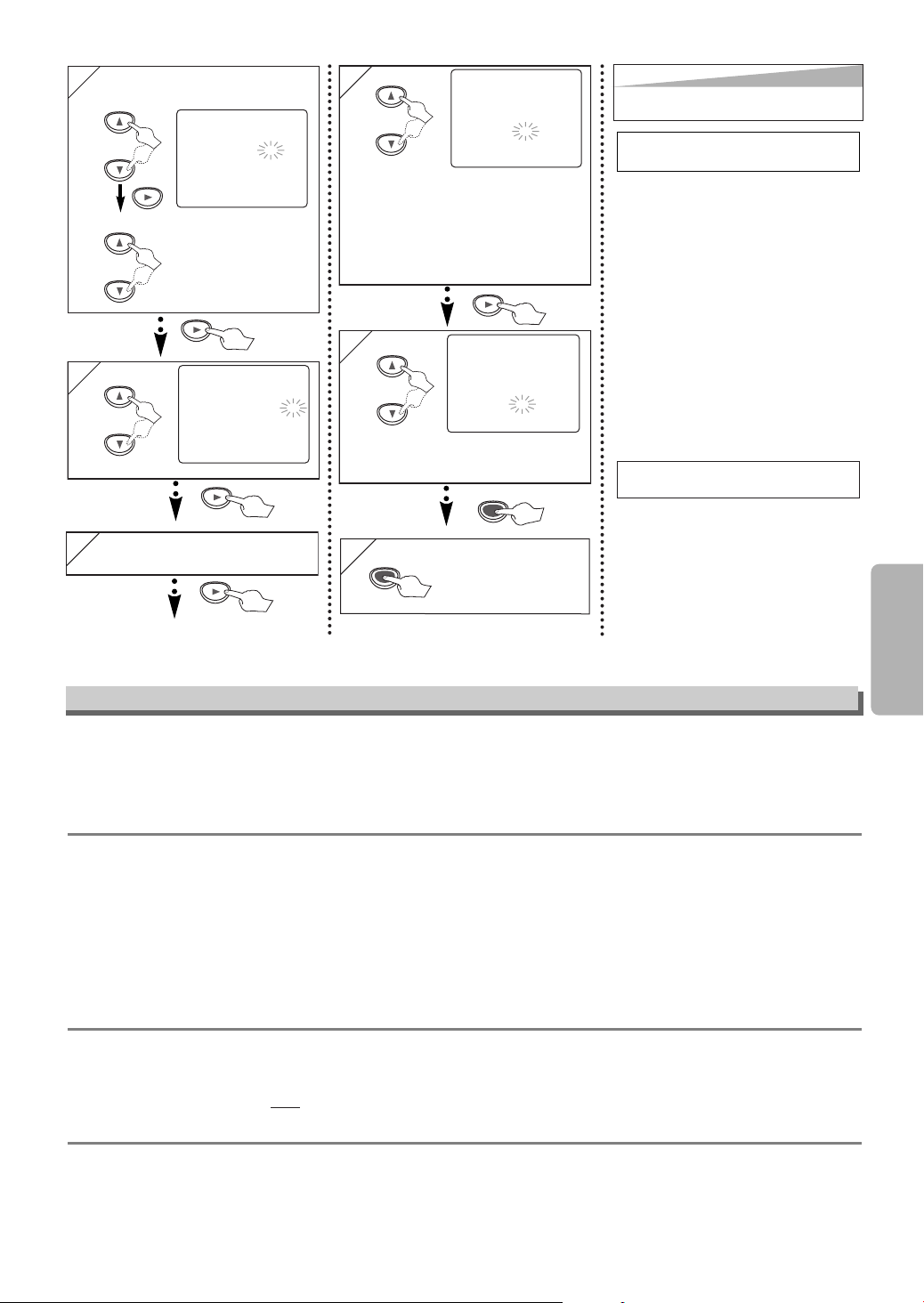

5 Select the desired start time

CLEAR/

C. RESET

SUBTITLE

T-SET

(hour).

ONE TIME PROGRAM PROGRAM NUMBER 1

DATE 1 0 / 2 4 MON START TIME 0 7 : 3 0 – – END TIME – – : – – – – CHANNEL – – REC SPEED – –

Select the minute.

Repeat the procedure in steps

ONE TIME PROGRAM

PROGRAM NUMBER 1 DATE 1 0 / 2 4 MON START TIME 0 7 : 3 0 PM END TIME – – : – – – – CHANNEL – – REC SPEED – –

Select “AM” or “PM”.

B PM

5) and 6) to set the end time.

• If you have connected the unit to a

cable box or satellite box as the Connection on page 6, select the VCR to channel 3 or 4 (the RF output channel of the VCR). Then, select the

desired channel at the cable box or satellite box. Leave the cable box or satellite box on for timer recording.

ONE TIME PROGRAM PROGRAM NUMBER 1

DATE 1 0 / 2 4 MON START TIME 0 7 : 3 0 PM END TIME 0 8 : 3 0 PM CHANNEL 1 6 REC SPEED – –

Select the desired channel.

Hint

• To go back one step, press [s] (during

steps 3) to 9) ).

To Check, Correct or Cancel a Timer Program

1) Press [SUBTITLE/T-SET] then,

[VCR] on the remote control.

2) Select main menu by pressing [MENU].

3) Select “TIMER PROGRAMMING” by pressing [K/L]. Then, press [B].

4) Select the program number which you want to check by pressing [K/L]. The details of the program you selected will appear on the TV screen.

• To set another program after step 9), press

[B]. Then, continue with step 2).

ONE TIME PROGRAM

PROGRAM NUMBER 1 DATE 1 0 / 2 4 MON START TIME 0 7 : 3 0 PM END TIME 0 8 : 3 0 PM CHANNEL 1 6 REC SPEED SP

B SP

SLP

Select the desired recording speed.

• Go to the digit you want to change

by pressing [s/B]. Then, enter correct numbers by pressing [K/L].

• You may cancel the entire program

by pressing [s] while the program number flashes.

5) Press [CLEAR/C.RESET] to exit.

6) Press [SUBTITLE/T-SET] to return to timer stand-by mode.

To cancel a Timer Recording in progress

Press [STOP/EJECT CC/AA]

on the

unit.

• The TIMER light on the front panel appears. The unit will change to the DVD mode.

Hints for OTR and Timer Recording

•

Press [VCR] on the remote control before you set Timer Recording. Make sure the remote control is in the VCR mode, then press [SUBTITLE/T-SET].

•

If a tape is not in the unit or does not have the record tab, the TIMER light flashes and Timer Recording cannot be performed. Please insert a recordable tape.

• When Timer Recordings are set, the

[SUBTITLE/T-SET] so that the DVD mode, then continue with the other features as described in this manual.

After an OTR or a Timer Recording has been set, this unit operates as follows:

•

If a tape runs out before an OTR or a Timer Recording is finished, the unit ejects the tape and switches to the DVD mode automatically. If the DVD power is off, the unit does not switch to the DVD mode but goes into the timer standby mode. Press

[SUBTITLE/

T-SET] on the remote control or

again.

• Once the unit turns to the timer standby mode, no VCR functions are available until [SUBTITLE/ ([OUTPUT] on the front panel and [VCR] on the remote control will not function.)

• To cancel the timer standby mode, press [SUBTITLE/ press [VCR] to activate the VCR function again.

• The mode of the unit and the remote control may differ (VCR mode or DVD mode) when you set Timer Recording or after you cancelled Timer Recording. Press [VCR] or [DVD] on the remote control to select your desired mode before you operate.

When an OTR or a Timer Recording is completed...

• If Auto Power Off for DVD has been activated and there are Timer Recordings on standby, the unit turns off automatically, and the

TIMER

• The

TIMER

light appears to indicate the unit is in the timer standby mode.

light flashes if there are no more Timer Recordings on standby.

• If Auto Power Off for DVD has NOT been activated, the unit switches to the DVD mode and all the VCR function will be unavailable.The

TIMER

light will not appear as long as the DVD is in use. All the DVD functions are available during OTR,

timer standby mode and Timer Recording.

If you want to use the DVD player during a Timer Recording or while the

• Press [POWER] to turn on the DVD. Press [DVD] on the remote control to choose DVD mode, then continue with the other DVD features as described in this manual. You don’t need to set the TIMER off to use the DVD player.

NOTE (for Timer Recording) :

•

If there is a power failure or the unit is unplugged for more than 30 seconds, clock and all timer settings will be lost.

TIMER

light will appear. To use the VCR as usual until the time for the recording, Press

light disappears. Press [VCR/TV] to choose the VCR position. Select either VCR or

[STOP/EJECT

C/A]on the unit, then press [VCR]to activate the VCR function

T-SET]

is pressed.

T-SET]

on the remote control or [STOP/EJECT C/A]on the unit, then

TIMER

light appears or flashes.

VCR Functions

–13–

Page 14

DIGITAL

AUDIO OUT

COAXIAL

ANT-OUT

ANT-IN

AUDIO

OUT

DVDDVD/VCR VCR

S-VIDEO

OUT

COMPONENT

VIDEO OUT

AUDIO OUT

VIDEO OUT

AUDIO IN

VIDEO IN

ANT-OUT

ANT-IN

VCRDVD/VCR

COMPONENT

VIDEO OUT

AUDIO IN

VIDEO IN

AUDIO OUT

VIDEO OUT

AUDIO OUT

VIDEO OUT

Connect

Audio/Video cables

(not supplied)

RF cable

(supplied)

(Back of TV)

(Back of Recording DVD/VCR*)

(Back of another source)

Connect

*Front input jacks are also available

Copying a Video Tape

Warning: Unauthorized recordings of copyrighted video tapes may be an infringement of copyright laws.

1) Insert a pre-recorded tape into the playing VCR.

2) Insert a tape with its record tab into the recording unit.

3) Press

4) Select the “L1”or “L2” position on the recording unit.

5) Press

6) Begin playback of the tape in another source.

7) To stop recording, press

VCR Functions

Hint

• For best results during dubbing, use the front panel controls whenever possible. The remote control might affect another source’s operation.

• Always use video-quality shielded cables with RCA-type connectors. Standard audio cables are not recommended.

• You can use a video disc player, satellite receiver or other audio/video component with A/V outputs.

• “L1” or “L2” is found before the lowest memorized channel. (Example: CH02)

• “L2” input jacks are on the front of this unit.

[SPEED] on the remote control of the recording unit to select the desired recording speed (SP/SLP).

• To use the input jacks on the back of this unit, select “L1” position by pressing

[CHANNEL KK/LL].

• To use the input jacks on the front of this unit, select “L2” position by pressing

[CHANNEL KK/LL].

[0], [0], [1] on the remote control or

[0], [0], [2] on the remote control or

[REC/OTR] on the recording unit.

[STOP/EJECTCC/AA] on the recording unit, then stop playback of the tape in another source.

–14–

Page 15

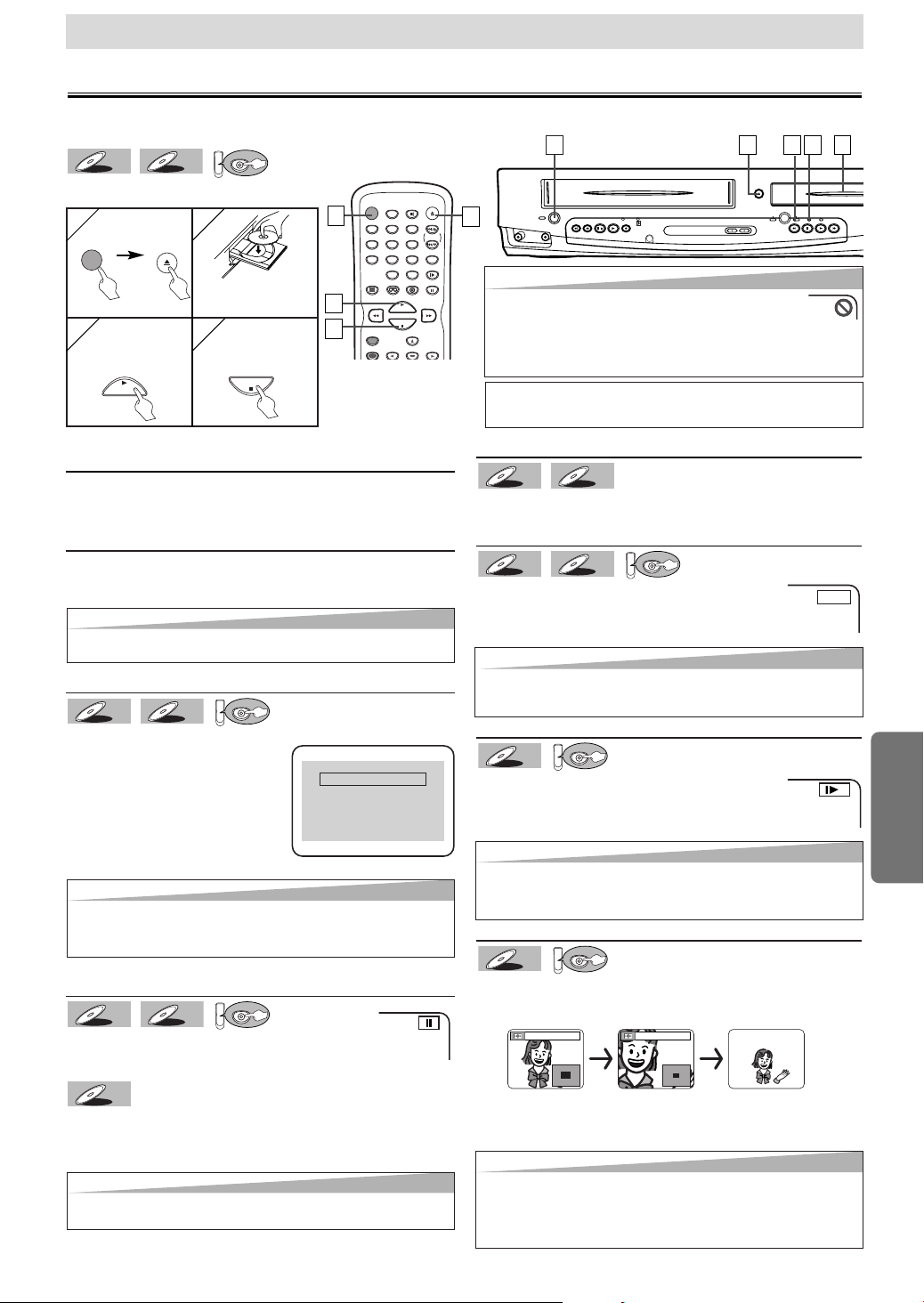

DVD-V

DVD

CDCDDVD-V

DVD-V

DVD

CDCDDVD-V

DVD-V

POWER

DISPLAY VCR DVD PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

MENU ENTER

OPEN/CLOSE

/EJECT

SPEED AUDIO

123

456

789

+1 0

PLAY

DVD Functions

STOP

POWER

OPEN/CLOSE

/EJECT

DVD

CDCDDVD-V

DVD-V

DVD

DVD-V

DVD

DVD-V

CHANNEL

STOP

REV FWD

SKIP HG SKIP

OUTPUT

DVD DISC IN

OPEN/CLOSE

PLAY

STOP/EJECT PLAY REC/OTR

VCR

POWER

F.FWDREW

VIDEO

AUDIO

CDCDDVD-V

DVD-V

Playback

Before:

Tu rn on the TV, amplifier and any other components which are connected to this unit. Make sure the TV and audio

receiver (commercially available) are set to the correct channel.

DVD-V

To start playback

Insert a disc with

label facing up.

DVD

To stop playback

Hint

•A “prohibited icon” may appear at the top-right on the TV screen when the operation is prohibited by the disc or this unit.

• Some DVDs may be played from title 2 or 3 due to specific programs.

During the playback of a two-layered disc, pictures may stop for a

•

moment. This happens while the 1st layer is being switched to the 2nd layer.This is not a malfunction.

TIP:

You can change the on-screen language for DVD function in “PLAYER MENU” setting. (Refer to page 20.)

334

DVD menu

Some discs contain menus which allow you to customize DVD playback. Press [KK/ LL/ ss/ BB] to select an item, then press [ENTER] (or [PLAY B]), to select.

Calling up a Menu Screen during Playback

• Press [MENU] to call up the DVD menu.

• Press [TOP MENU] to call up the title menu.

Hint

• Menu operations may vary depending on the disc. Refer to the manual accompanying the disc for details.

Resume

Press [STOP CC] during playback. Resume message will appear on the TV screen.

[PLAY B], playback will

Press resume from the point at which playback was stopped.

Hint

•To cancel resume, press [STOP C] one more time during the Stop mode.

• The resume information stays on even when the power is turned off.

Resume ON

Press 'PLAY' to play from here. To play the beginning, press 'STOP' first and then 'PLAY'.

To use [SKIP jj], [SKIP ii] on the Main Unit

Press once to skip chapters or tracks to a desired point. Press and hold to change forward or reverse playback speed.

Fast Forward/Reverse Search

Press [REVhh] or [FWDgg] repeatedly during playback to select the required forward or reverse speed. To continue playback, press [PLAY BB].

Hint

•

For DVDs, fast forward or reverse search speed is different depending on the disc. Approximate speed is 1(x2), 2(x8), 3(x20), 4(x50), 5(x100)

•For Audio CDs, approximate speed is 1(x2), 2(x8), 3(x30).

Slow Forward/Slow Reverse

Press

[REVhh] or [FWDgg]

the pause mode to select the required forward or

repeatedly during

reverse speed. To continue playback, press [PLAY BB].

Hint

• Slow forward or reverse speed is different depending on the disc. Approximate speed is 1(1/16), 2(1/8), 3(1/2).

• Set “STILL MODE” to “FIELD” in the Display menu if pictures in the slow playback mode are blurred. (Refer to pages 20-21.)

Zoom

DVD Functions

Paused and Step-by-Step Playback

Press [PAUSE kk] during playback. To continue playback, press [PLAY BB].

The disc goes forward by one frame each time [PAUSE kk] is pressed during the pause mode. To continue playback, press [PLAY BB].

Hint

• On DVDs, set “STILL MODE” to “FIELD” in the Display menu if pictures in the pause mode are blurred. (Refer to pages 20-21.)

1) Press [ZOOM] during playback.

2) Press [ZOOM] repeatedly to select the required zoom

factor: x2, x4 or OFF.

x2 x4

3) Press [K / L / s / B] to slide the zoomed picture across

the screen.

4) To exit zoom mode, press

Hint

• Zooming function does not work while the disc menu is showing up.

• x4 zoom is not available on some discs.

• The picture may be distorted when you press

[REVh] repeatedly in the zoom mode.

• It may take several seconds to slide the zoomed picture.

[ZOOM] to select OFF.

[PAUSE kk] or

–15–

Page 16

DVD

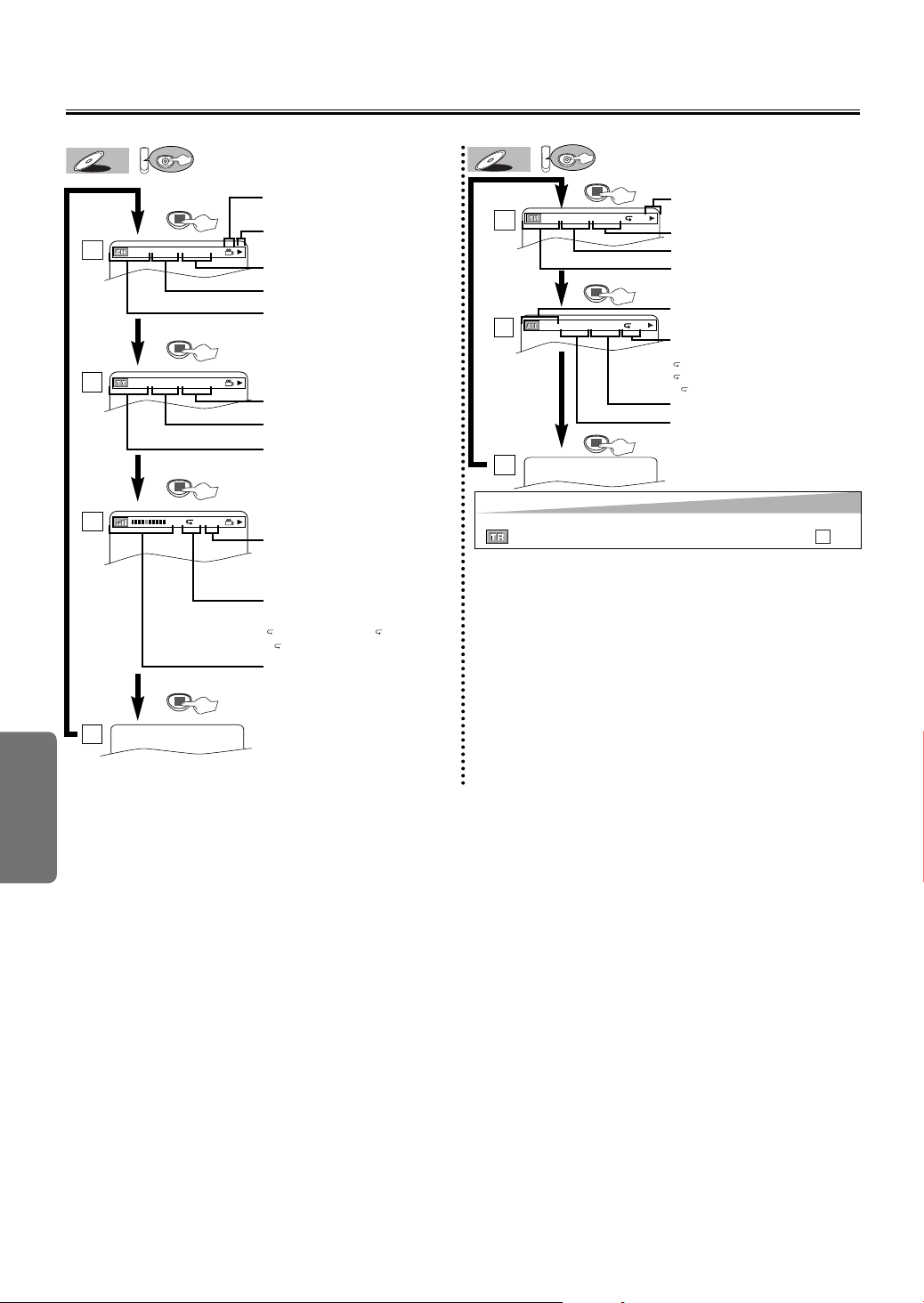

On-Screen Display

DVD

DVD-V

DISPLAY

4/12 0:03:21 - 0:02:15

4/12 0:13:45 - 0:45:40

11/16 0:00:00 - 0:03:30

1/3 0:00:00 - 1:23:45

TL1

You can check the information about the current disc by pressing [DISPLAY] on the remote control.

Angle icon, appears only when available on the DVD

Current playback status

Remaining time of the current chapter Elapsed time of the current chapter

CH(Chapter): Current chapter number / Total chapters

Remaining time of the current title Elapsed time of the current title

TT(Title): Current title number / Total titles

Layer numbers, appears only when playing a two-layered Disc L0: Layer 0 is playing L1: Layer 1 is playing

Current repeat setting appears only when the repeat setting is active

C: Chapter repeat / T: Title repeat /

AB:A-B repeat

BIT RATE: The amount of audio and video data currently being read

Hint

• When you are playing a disc in PROGRAM or RANDOM mode, PROGRAM (or RANDOM) will be displayed instead of .

Current playback status

Remaining time of the current track Elapsed time of the current track TR(Track):

Current track number / Total tracks

ALL: Current track number / Total tracks

Current repeat setting appears only when the repeat setting is active

T: Track repeat A: All Tracks repeat

AB:A-B repeat Remaining time of the entire disc Elapsed time of the entire disc

DVD Functions

–16–

Page 17

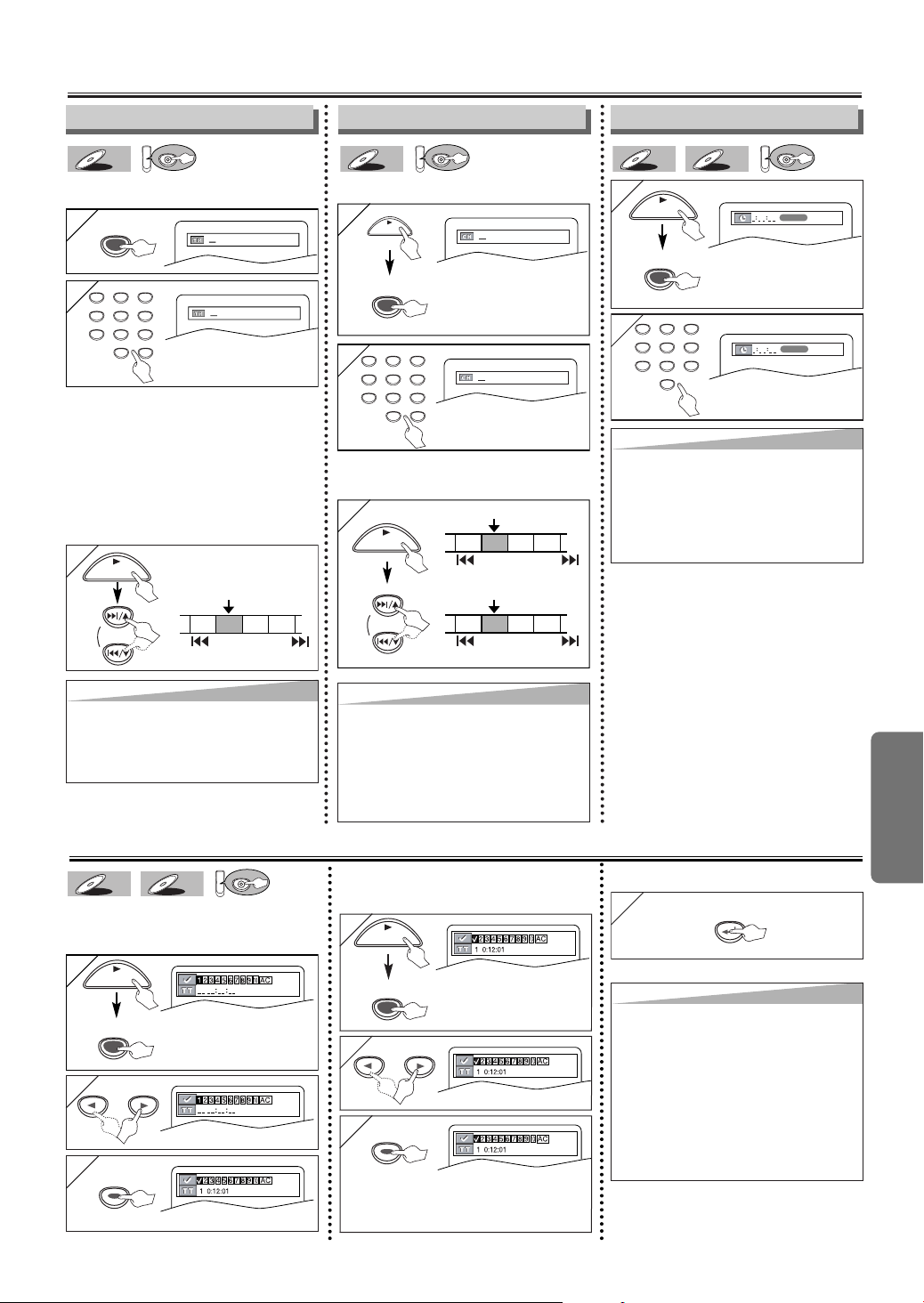

Search Function

DVD

CDCDDVD-V

DVD-V

1:29:00

TOTAL

123

456

789

DVD

CDCDDVD-V

DVD-V

DVD

/29

DVD

DVD-V

/12

123

456

789

+1 0

123

456

789

+1 0

PLAY

TR 1 TR 2 TR 3 TR 4

Current Track

(TR)

SKIP SKIP

SKIP/CH.

CH 1 CH 2 CH 3 CH 4

Current Chapter

(CH)

SKIP

TT 1 TT2 TT3 TT4

Current Title (TT)

SKIP

1:29:00

TOTAL

MODE

PLAY

SKIP/CH.

PLAY

ENTERENTER

RETURN

PLAY

Track Search

Using [SEARCH

Within 30 seconds

•For the disc with less than 10 tracks, press the track number directly.

For discs with more than 10 but less than 99

• tracks, to play a single-digit track, press [0]

first, then the track number (e.g. for track 3, press [0], [3]). To play a double-digit track, press the track number.

Using [SKIP

MODE]

]

Title / Chapter Search

Using [SEARCH

Using [SKIP

MODE]

Press once for the Chapter Search. Press twice for the Title Search.

Within 30 seconds

]

Time Search

Press repeatedly until the Time Search display appears.

Within 30 seconds

Hint

• When there is no need to enter a number,

]

“0” appears automatically. For example, “0: 0_: __” appears in the Time Search display if the total time of the title or track is less than 10 minutes.

[CLEAR/C.RESET] to erase the

• Press incorrect input at step 2).

Hint

• [+10] button can also bring the Track

Search display, except for the disc with less than 10 tracks. For such a disc, track search can be done by just pressing the track number.

Marker Setup

This feature allows you to assign a specific point on a disc to be called back later.

o set a marker

TTo set a marker

Press repeatedly until this marker display appears.

(If the disc has no chapters)

Hint

• Depending on the disc being played, this function can also be performed by directly entering the desired chapter number with the Number buttons. Refer to the manual accompanying the disc.

•For CDs, Track Search is not available for Programmed or Random Playback.

o return to the marker

TTo return to the marker

later

Press repeatedly until this marker display appears.

at the desired marker

• Playback will restart from the specific point which you set.

–17–

o e

xit the marker screen

TTo e

xit the marker screen

Hint

• The Marker display will disappear in about 30 seconds when there is no output.

•To clear a marker, select the marker to be cleared at step 2) in the section “To set a marker” or “To return to the marker later” and then press

• Opening the disc tray or turning off the power will erase all markers.

• Selecting “AC” at step 2) in the section “To set a marker” or “To return to the marker later” will also erase all markers.

[CLEAR/C.RESET].

DVD Functions

Page 18

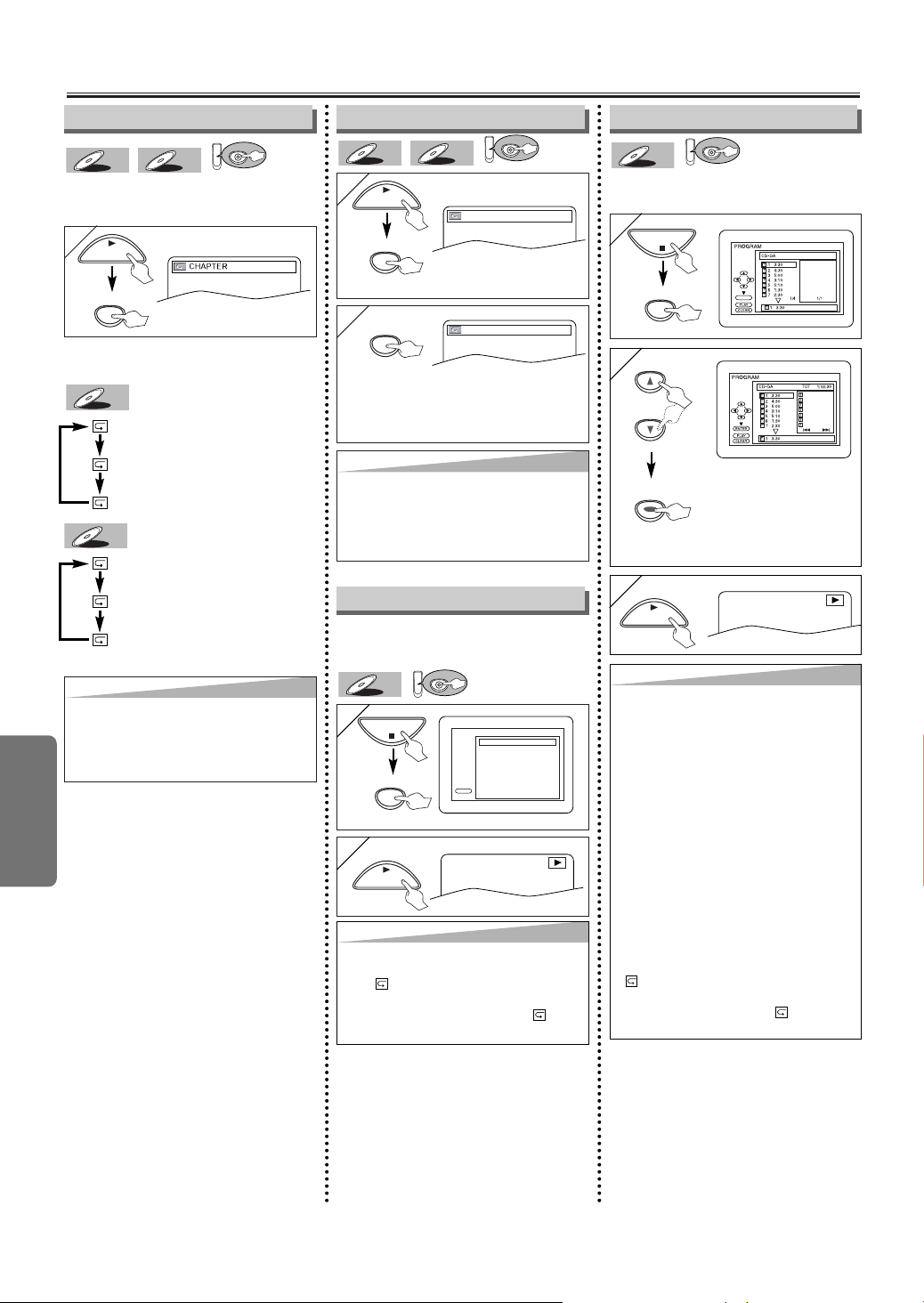

Repeat / Random / Programmed Playback

DVD-V

DVD

CDCDDVD-V

DVD-V

DVD

CDCDDVD-V

DVD-V

DVD

REPEAT

A-

A-B

MODE

STOP

DVD

TOTAL 0:00:00

ENTER

1/4

PLAY

A-B

PLAY

A-B

ENTERENTER

PLAY

MODE

STOP

PLAY

Repeat Playback Programmed PlaybackRepeat A-B Playback

Repeat function is available only during playback.

Each time you press [REPEAT], repeat function changes as example below.

CHAPTER

TITLE

OFF

TRACK

ALL

OFF

Hint

• In the track repeat, repeat setting will be cleared when moving to another title,

DVD Functions

chapter or track.

• Repeat playback are not available with all discs or during repeat A-B playback.

(current chapter repeat)

(current title repeat)

(repeat

off)

(current track repeat)

(

entire disc repeat)

(repeat

off)

at your desired starting point (A)

at your desired end point (B)

• Point B should be in the same title

or track as point A.

Hint

•To exit the sequence, press [A-B] so that

OFF appears. To cancel Point A, press [CLEAR/C.RESET].

•

• This function does not work in the other repeat modes.

Random Playback

This function shuffles the playing order of tracks instead of playback in the sequence.

Press twice.

Hint

•To repeat the current track in the random selections, press until TRACK appears during playback.

•To repeat the entire random selections,

[REPEAT] repeatedly until ALL

press appears during playback.

RANDOM

CD-DA TOTAL 0:45:55

RANDOM PROGRAM

--no indication--

PLAY

[REPEAT] repeatedly

You may determine the order in which tracks will play.

Press once.

TOTAL

1 3:30 5 5:10

• Up to 99 tracks can be ordered.

• If eight or more tracks were in a program, use

[SKIP/CH.HH/

to see all the tracks.

Hint

• Press [CLEAR/C.RESET] at step 2) to

erase the most recently entered track.

•To erase all programmed tracks at once, select “ALL CLEAR’’ and press step 2).

• While a program is being played back, [STOP CC] works as follows;

⇒

Press [STOP CC] and [PLAY BB] next, so that the programmed playback restarts.

⇒

Press [STOP CC] twice and [PLAY BB] next, so that playback restarts from the first track in the original order. However, your programmed playback can be restarted when you follow above steps. (Your programs are still stored until either the disc tray is open or power is turned off.)

•To repeat the current track in the program,

[REPEAT] repeatedly until

press “ TRACK’’ appears during playback.

•To repeat the entire program, press [REPEAT] repeatedly until “ ALL’’ appears during playback.

10 4:20 11 3:00 12 3:20 17 4:10 22 2:50

1/4 2/3

KK GG/LL

[ENTER] at

]

–18–

Page 19

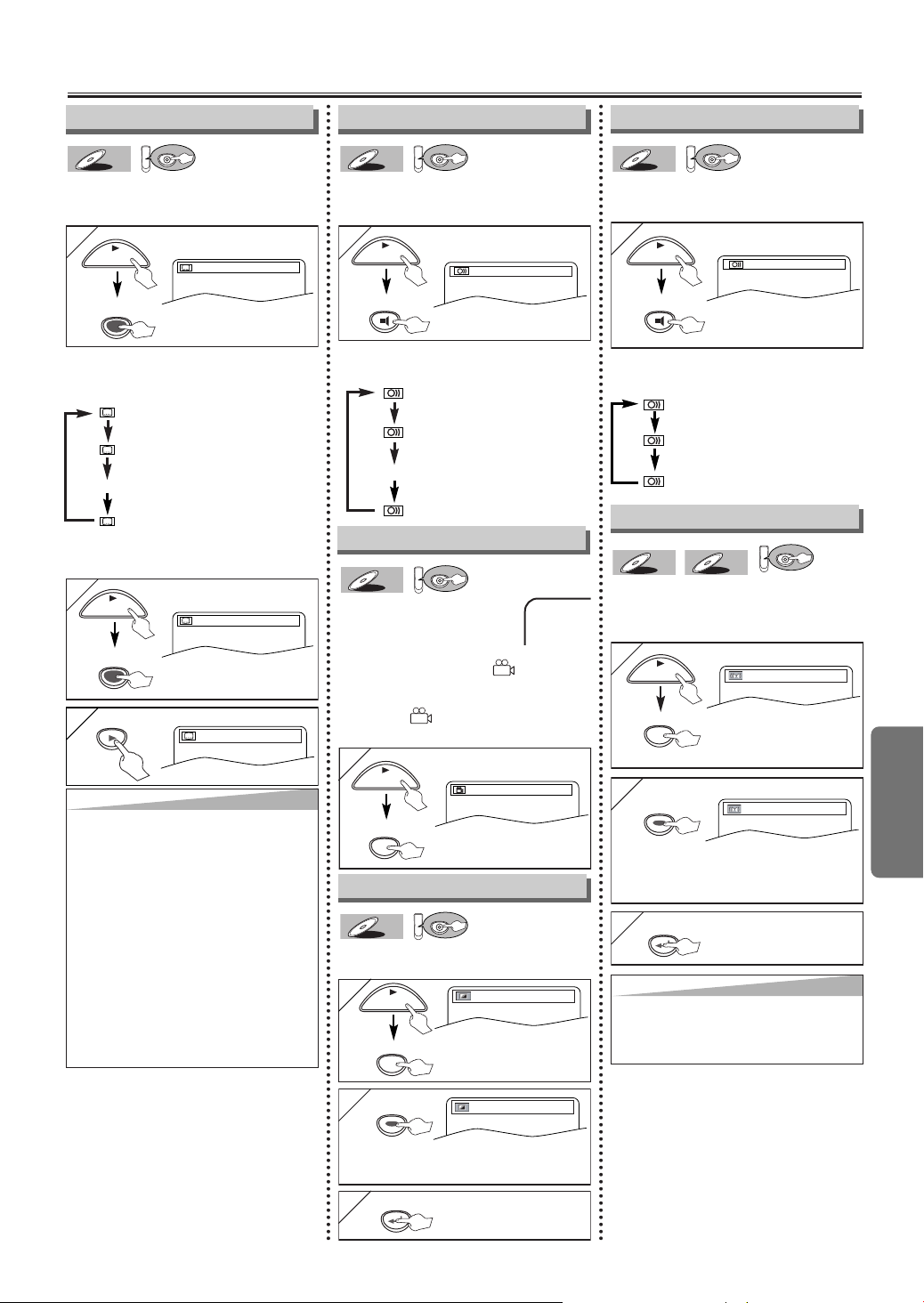

Special Settings

DVD

DVD-V

1.ENG Dolby D 3/2.1ch 48k/ 3

AUDIO

DVD

STEREO

DVD

DVD-V

1.ENG/6

SUBTITLE

T-SET

DVD

DVD-V

1 / 8

ANGLE

OFF

DVD

DVD-V

DVD

CDCDDVD-V

DVD-V

OFF

1.ENG/6

OFF

PLAY

SUBTITLE

T-SET

PLAY

AUDIO

PLAY

MODE

PLAY

MODE

ENTERENTER

RETURN

ENTERENTER

RETURN

Subtitle Language

This unit allows you to select a subtitle language (if available) during DVD playback.

Each time you press [SUBTITLE/T-SET], subtitle language changes as example below.

ENG

FRE

(English subtitles)

(French subtitles)

...

OFF

(no subtitles)

To set subtitle ON/OFF

Hint

• If your language is not shown after press-

[AUDIO] or [SUBTITLE/T-SET] several

ing times, the disc may not have that language. However, some discs allow audio language or subtitle language setting on the disc menu. (Operation varies depending on the discs, so refer to the manual along with the disc.)

•When “NOT AVAILABLE” appears on the TV screen, it means no subtitle is recorded on the scene.

• If you choose a language that has threeletter-language code, the code will be displayed every time you change the subtitle language setting. If you choose any other languages, ‘---’ will be displayed instead. (Refer to page 24.)

Audio Language

This unit allows you to select an audio language (if multiple languages are available) during DVD playback.

Each time you press [

AUDIO]

, audio

language changes as example below.

ENG

SPA

(English audio)

(Spanish audio)

...

FRE

(French audio)

Camera Angle

Some DVD discs may contain scenes which have been shot simultaneously from various angles.You can change the camera angle if the icon appears on the screen. If the “ANGLE ICON” setting is “OFF” in the OTHERS menu, the icon will not appear. (Refer to pages 20-22.)

Black Level Setting

Adjust the Black Level Setting to make the dark areas of the TV picture brighter.

Stereo Sound Mode

This unit allows you to select a sound mode during CD playback.

Each time you press [

AUDIO]

, sound

mode changes as example below.

STEREO

(right and left channels are active)

L-ch

R-ch

(left channel is active)

(right channel is active)

Virtual Surround

You can enjoy stereophonic virtual world on your existing 2 channel stereo system.

Press twice (once for CD )

1: Natural effect 2: Emphasized effect OFF: No effects (original sound)

Hint

For CD play back only

• Virtual Surround will not be effective if the sound mode is set to something other than STEREO. Refer to “Stereo Sound mode”.

DVD Functions

ON: Makes the dark areas brighter. OFF: Shows the original picture as recorded.

–19–

Page 20

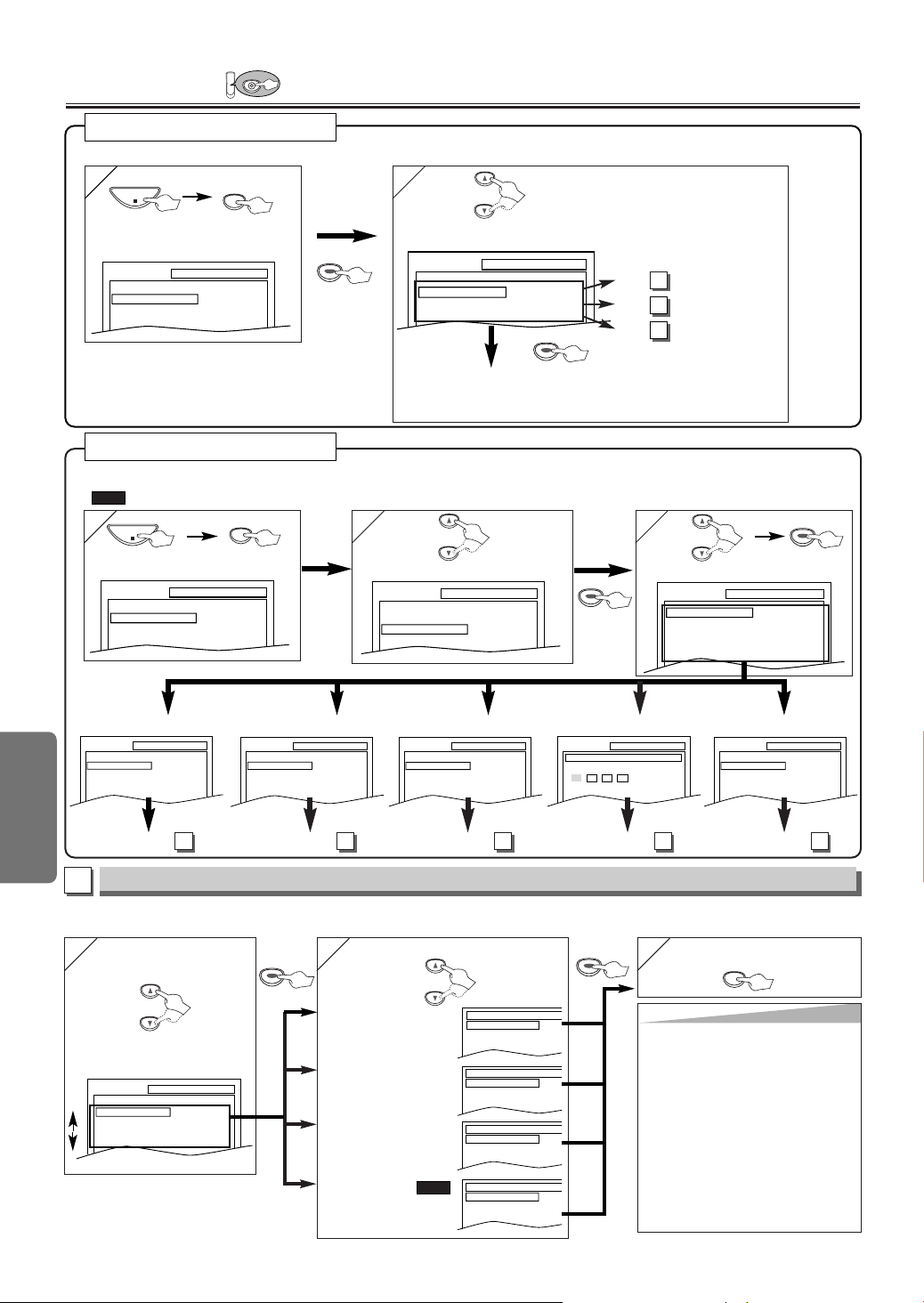

DVD Setup

DVD

ENTERENTER

SETUP

QUICK CUSTOM INITIALIZE

SETUP

STOP

SETUP QUICK

PLAYER MENU TV ASPECT DOLBY DIGITAL

ENGLISH 4:3 LETTER BOX BITSTREAM

ENTERENTER

SETUP LANGUAGE

AUDIO SUBTITLE DISC MENU PLAYER MENU

ORIGINAL OFF ENGLISH ENGLISH

ENTERENTER

SETUP CUSTOM

LANGUAGE DISPLAY AUDIO PARENTAL OTHERS

SETUP

QUICK CUSTOM INITIALIZE

ENTERENTER

SETUP

STOP

SETUP OTHERS

ANGLE ICON AUTO POWER OFFONON

SETUP AUDIO

DRC DOWN SAMPLING DOLBY DIGITAL

ON ON BITSTREAM

SETUP DISPLAY

TV ASPECT STILL MODE

4:3 LETTER BOX AUTO

SETUP LANGUAGE

AUDIO SUBTITLE DISC MENU PLAYER MENU

ORIGINAL OFF ENGLISH ENGLISH

SETUP PARENTAL

PASSWORD Please enter a 4-digit password.

SETUP

QUICK CUSTOM INITIALIZE

UICK SETUP Menuu

QQUICK SETUP Men

You can select the “PLAYER MENU”, “TV ASPECT” or “DOLBY DIGITAL” from the QUICK SETUP menu quickly.

Select the desired item.

Confirm that “QUICK” is selected.

P20 Step 5) P21 Step 5)

P21 Step 5)

•

Refer to “PLAYER MENU”, “TV ASPECT” or “DOLBY DIGITAL” on page 20 or 21.

CUST

OM Menuu

OM Men

You can change the settings of the unit.

QUICK

on pages 20-22 indicates DVD Setup menus also accessible from the QUICK SETUP menu.

•

LANGUAGE menu AUDIO menuDISPLAY menu OTHERS menu

DVD Functions

Select “CUSTOM”.

PARENTAL menu

Select the desired item.

Follow steps 1) to 3) in the “CUSTOM Menu” section on above.

page 20

LANGUAGE Setting

Select the desired item.

LANGUAGE menu

page 21

AUDIO ∗∗1 ∗∗2 (Default: ORIGINAL)

Sets the audio language.

SUBTITLE:∗∗1 ∗∗2 (Default: OFF)

Sets the subtitle language.

DISC MENU:∗∗1 (Default: ENGLISH)

Sets the language for DVD menu.

PLAYER MENU: (Default: ENGLISH)

Sets the language for the On-screen display.

page 21

Select the desired language.

AUDIO

ORIGINAL ENGLISH FRENCH

SUBTITLE

OFF ENGLISH FRENCH

DISC MENU

ENGLISH FRENCH SPANISH

PLAYER MENU

QUICK

ENGLISH FRANÇAIS ESPAÑOL

–20–

page 22

6 To exit the menu

Hint

∗1

• Language options are not available with some discs.

• If OTHER is selected on the AUDIO, SUBTITLE or DISC MENU screen, press four-digit number to enter the code for the desired language. (Refer to the language code list on page 24.)

• Only the languages supported by the disc can be selected.

∗2

Language Setting for Audio and Subtitle

• are not available with some discs.Then

[AUDIO] and [SUBTITLE/T-SET].

use Details are on page 19.

page 22

Page 21

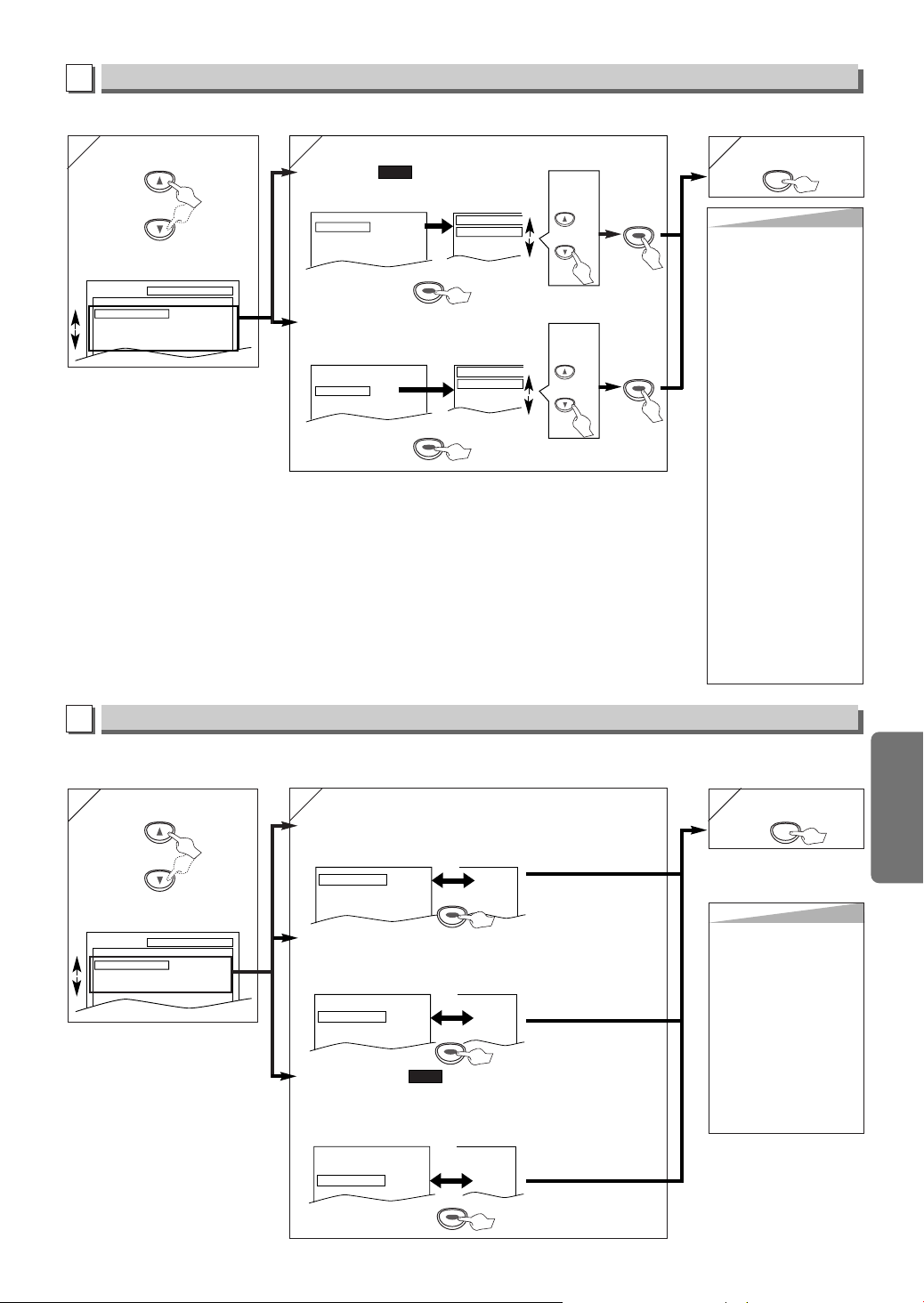

DISPLAY Setting

SETUP AUDIO

DRC DOWN SAMPLING DOLBY DIGITAL

ON ON BITSTREAM

TV ASPECT

4:3

LETTER BOX

4:3

PAN & SCAN

16:9

WIDE

TV ASPECT

4:3 LETTERBOX

STILL MODE

AUTO

TV ASPECT

4:3 LETTERBOX

STILL MODE

AUTO

STILL MODE

AUTO FIELD FRAME

SETUP

DRC ON DOWN SAMPLING

DOLBY DIGITAL BITSTREAM

OFF ON BITSTREAM

ENTERENTER

DRC ON DOWN SAMPLING

DOLBY DIGITAL BITSTREAM

ON ON

PCM

DRC ON DOWN SAMPLING

DOLBY DIGITAL BITSTREAM

ON OFF BITSTREAM

SETUP DISPLAY

TV ASPECT STILL MODE

4:3 LETTER BOX AUTO

ENTERENTER

You can change the display functions. Follow steps 1) to 3) in the “CUSTOM Menu” section on page 20.

Select the desired item.

DISPLAY menu

TV ASPECT:

QUICK

(Default: 4:3 LETTER BOX)

See Hint to the right.

STILL MODE: (Default: AUTO)

See Hint to the right.

Select the desired setting.

6 To e xit the menu

Hint

TV ASPECT:

• Select “4:3 LETTER BOX”, so that black bars may appear on the top and bottom of the screen.

• Select “4:3 PAN & SCAN” for a full height picture with both sides adjusted.

• Select “16:9 WIDE” if a wide-screen TV is connected to this unit.

STILL MODE:

• Select “AUTO” usually. If you select AUTO, auto-

• matically select the best resolution setting (FRAME or FIELD) based on the datacharacteristics of the pictures (default).

• If you select “FIELD”, the picture in the still mode will be stabilized.

If you select “FRAME”, the

• picture in the still mode will be highly defined.

• An individual picture on TV screen is called as “frame”, which consists of two separate images called as “field”. Some pictures may be blurred at the AUTO setting in the still mode due to their data characteristics.

Choose the appropriate audio settings for your equipment. It only affects during the playback of DVD discs. Follow steps

1) to 3) in the “CUSTOM Menu” section on page 20.

AUDIO menu

AUDIO Setting

Select the desired item.

DRC (Dynamic Range Control): (Default: ON)

Set to “ON” to compress the range between soft and loud sounds.

DOWN SAMPLING: (Default: ON)

Set to “ON” when outputting in 48kHz. Set to “OFF” when outputting the original sound.

DOLBY DIGITAL:

QUICK

(Default: BITSTREAM)

Set to “BITSTREAM” when the unit is connected to a Dolby Digital receiver.

• BITSTREAM: Outputs a Dolby Digital Signals.

• PCM: Convert the Dolby Digital into PCM (2 channel).

–21–

6 To exit the menu

Hint

DRC:

• This function is available only on the discs which are recorded in the Dolby Digital format.

DOWN SAMPLING:

• When playing disc with copyright Protection, the sound will be down sampled at 48kHz, even if you set to “OFF”.

This function is avail-

•

able only on digital outputting of a disc recorded in 96kHz.

DVD Functions

Page 22

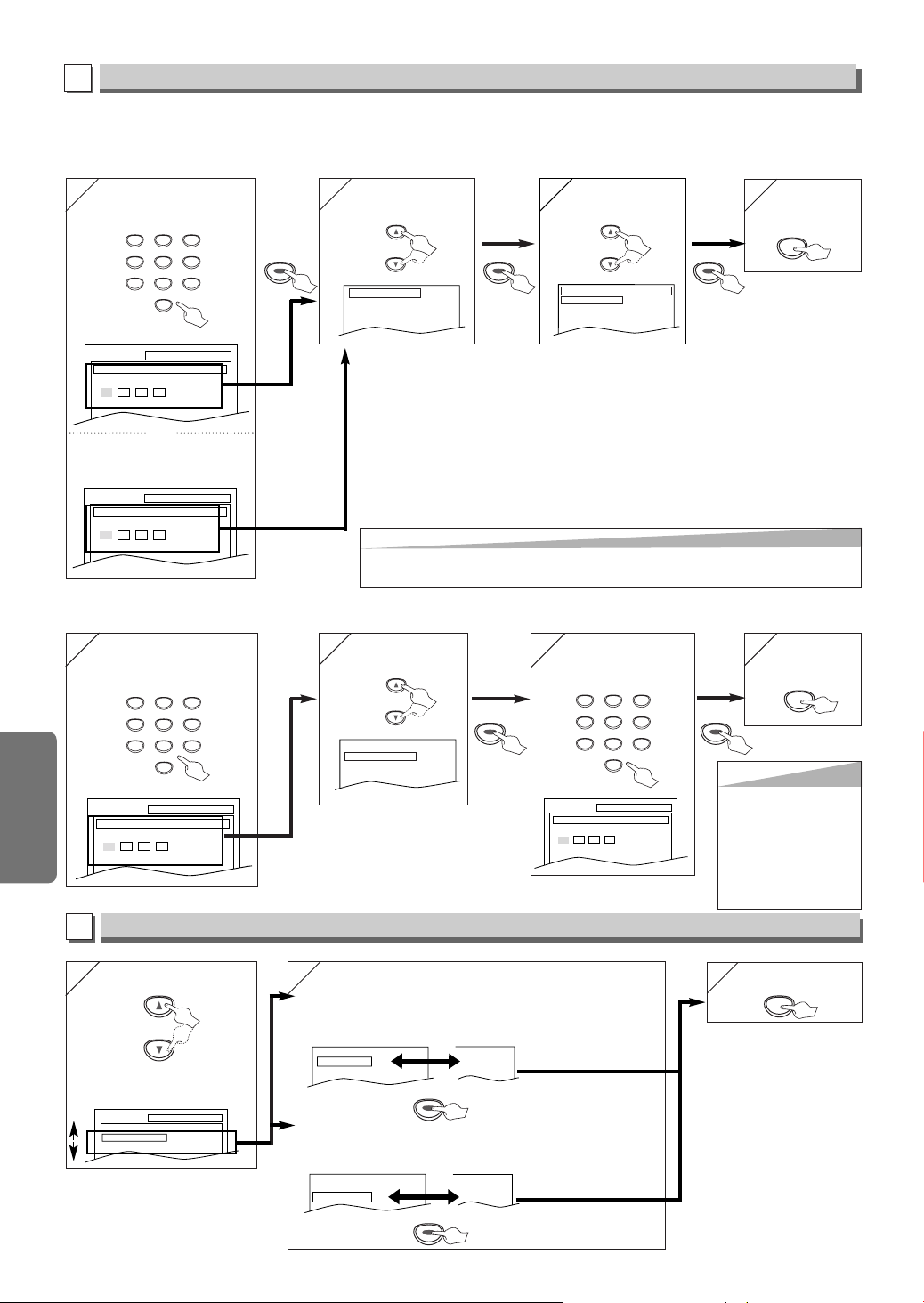

SETUP PARENTAL

PASSWORD

Enter current password.

SETUP PARENTAL

PASSWORD

Please enter a 4-digit password.

PARENTAL Setting

ENTERENTER

PASSWORD CHANGE

PARENTAL LEVEL ALL

SETUP

PARENTAL LEVEL ALL

8 7 [NC-17] 6 [R]

PASSWORD CHANGE

PARENTAL LEVEL ALL

SETUP PARENTAL

PASSWORD

Enter current password.

SETUP PARENTAL

PASSWORD

Please enter a 4-digit password.

ANGLE ICON ON AUTO POWER OFF

ON OFF

ANGLE ICON ON AUTO POWER OFF

OFF ON

SETUP OTHERS

ANGLE ICON AUTO POWER OFF

ON ON

ENTERENTER

123

456

789

ENTERENTER

SETUP

ENTERENTER

123

456

789

123

456

789

Parental Control limits the disc viewing that exceed your settings. (An incorrect password will not play.) This feature prevents your children from viewing inappropriate materials.

arentalLeLe

PParental

Parental Level allows you to set the rating levels of your DVD discs. Playback will stop if the ratings exceed the levels you set.

vels

Follow steps 1) to 3) in the “CUSTOM Menu” section on page 20.

Enter your desired four-

digit password (except for 4737).

Select “PARENTAL

LEVEL”.

Select the

desired level.

To exit the menu

PARENTAL menu

CONTROL LEVELS

• ALL: All parental locks are cancelled.

• Level 8: DVD softwares of any grades (adult/general/children) can be played back.

• Levels 7 to 2: Only DVD softwares intended for general use and children can be played

If you have set a password

already, enter the current fourdigit password.

o Chang

TTo Chang

e the P

asswworor

ass

• Level 1: Only DVD softwares intended for children can be played back, with those

TIPS FOR LEVELS

• 7 [NC-17]: No one under 17 admitted

• 6 [R]: Restricted; under 17 requires accompanying parent or adult guardian

• 4 [PG13]: Unsuitable for children under 13

• 3 [PG]: Parental Guidance suggested

• 1 [G]: General Audience

Hint

• DVD-Video discs may not respond to the parental lock settings. Make sure this function works with your DVD-Video discs.

d f

or P

d f

arental Contr

or P

arental Contr

You can change your password for parental controls. Follow steps 1) to 3) in the “CUSTOM Menu” section on page 20.

Enter your desired fourdigit password (except for

Select “PASSWORD

CHANGE”.

4737).

back.

intended for adult and general use prohibited.

ols

Enter your new

four-digit password (except for 4737).

To exit the menu

DVD Functions

PARENTAL menu

OTHERS Setting

You can change the other functions. Follow steps 1) to 3) in the “CUSTOM Menu” section on page 20.

Select the desired item.

OTHERS menu

ANGLE ICON: (Default: ON)

Set to “ON” to show the angle icon when multiple camera angles are available during DVD playback.

AUTO POWER OFF: (Default: ON)

Set to “ON” to turn this unit off automatically after 30 minutes of no use.

–22–

Hint

• Record the password in case you forget it.

If you forget the pass-

• word, press [4], [7], [3], [7] at step 4), then enter your new password.

•

Password will be cleared and parental levels will be set to “ALL”.

6 To exit the menu

Page 23

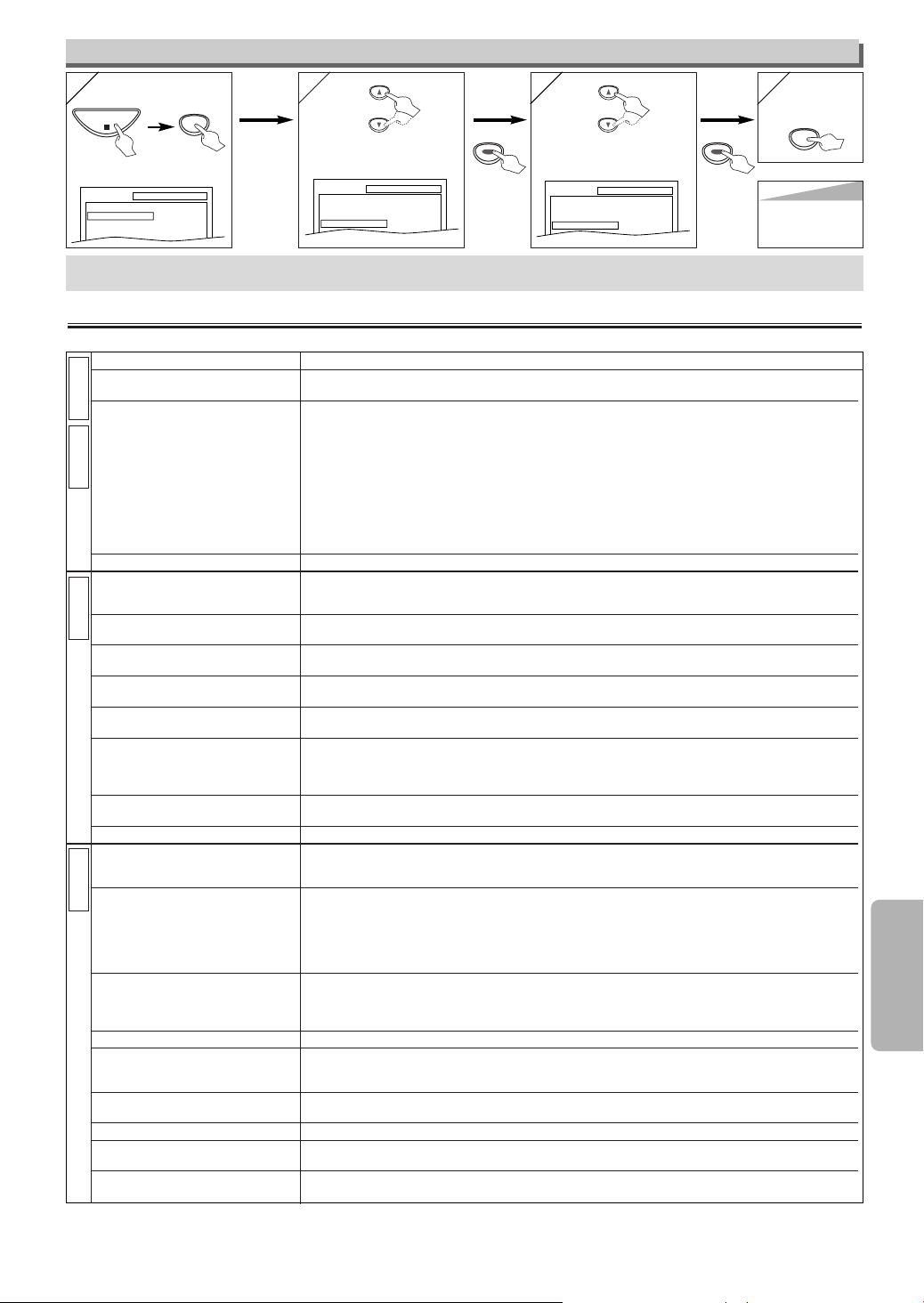

Reset to the Default Setting (Except for PARENTAL Setting)

SETUP

QUICK CUSTOM INITIALIZE

SETUP INITIALIZE

Initialize? NO YES

SETUP

QUICK CUSTOM INITIALIZE

STOP

ENTERENTER

or or

To exit the menu

Select “INITIALIZE”.

Select “YES”.

Press twice.

Hint

• When you cancel to initialize at step 3), select “NO”.

Information

Troubleshooting Guide

If this unit does not perform properly when operated as instructed in this Owner's Manual, check this unit consulting the following checklist.

No power.

This unit does not respond to the

remote control.

V C R

Poor picture or noise Timer recording is impossible.

V C

Cannot go into record mode.

Playback picture is partially noisy.

Cannot view a tape but the audio is OK.

No, or poor, playback picture

TV programs cannot be seen normally.

Video or color fades in and out when making a copy of a video tape.

Cannot remove the tape. No picture.

Disc cannot be played.

No sound.

No DTS audio is output. Distorted picture.

Audio or subtitle language does not match the setup.

The camera angle cannot be changed Audio or subtitle language cannot

be changed. “Prohibited icon” appears on the

screen, prohibiting an operation.

•

Some functions are not available in specific modes, but this is not a malfunction. Read the description in this Owner’s Manual for details on correct operations.

• Playback from a desired track and random playback are not available during program playback.

• Some functions are prohibited on some discs.

PROBLEM CORRECTIVE ACTION

• Make sure the power plug is connected to an AC outlet.

• Make sure the power is turned on.

• Check if the power plug is connected to an AC outlet.

• Check the batteries in the remote control.

• Aim the remote control directly at the remote sensor. If necessary, remove all the obstacles between the sensor and the remote control.

•You have to be within 23 feet of this unit.

• Check if the right mode is selected. If it’s not in the right mode, press whichever you need, on the remote control.

• Check if a cassette tape is in this unit.

•Tune your radio to an empty AM station so that you hear a lot of noises. Turn the volume up, then. If you hear some signal sound from the radio in response to your pressing buttons on the remote control, the remote control is working.

• Interference signal may be received. Change the position and orientation of the unit.

• Make sure the Timer Recording is set correctly.

•

Make sure the

• Make sure the VCR clock is set correctly.

• Make sure the tape has a safety tab. If needed, cover the hole with adhesive tape.

•

Activate this unit in VCR mode. Press [VCR] on the remote control so that the VCR OUTPUT light is lit.

• Adjust tracking control for a better picture by pressing [CHANNEL LL/KK] on the unit or

[SKIP/CH.GG/

• Head cleaning may be necessary. Refer to “AUTO HEAD CLEANING”.

• Make sure the VCR is not in the Menu mode.

• Change the RF output channel to CH4. Then select the same channel on the TV.

• Fine tune your TV.

• Re-check the ANT-IN and ANT-OUT connections. See pages 1 and 6.

• Press

• Press [VCR] on the remote control to activate it in the VCR mode. Check if the VCR OUTPUT light is lit, then set it to the TV position by pressing [VCR].

•You cannot copy a copyrighted video tape.You are experiencing copy guard protection.

•

Check if this unit is in the VCR mode. If not, press [VCR] on the remote control to switch the mode.

• Connect the video cables firmly.

• Insert a correct video disc that plays on this unit.

•

Press [DVD] on the remote control. Check if the DVD OUTPUT light is lit. Then try other DVD features.

• Insert the disc.

• Clean the disc.

• Place the disc correctly with the label side up.

• Cancel the parental lock or change the control levels.

• Handle a disc with special care so that it does not have fingerprints, scratches, or dusts on its surface.

• Connect the audio cables firmly.

•Turn the power of the audio component on.

• Correct the audio output settings.

• Correct the input settings on the audio component.

• This unit does not support DTS audio.This is not a malfunction.

• Connect this unit directly to the TV. There are some cases where pictures may be slightly distorted, and those are not a sign of a malfunction.

•

• Although pictures may stop for a moment, this is not a malfunction.

• The selected language is not available for audio or subtitles on the DVD. This is not a malfunction.

•

The DVD does not contain sequences recorded from different camera angles. This is not a malfunction.

• The DVD does not contain audio source or subtitles in the selected language. This is not a malfunction.

• That operation is prohibited by this unit or the disc. This is not a malfunction.

[VCR].

TIMER

light appears on the unit. If not, press [SUBTITLE/T-SET]

KK HH/LL

] on the remote control.

–23–

[DVD] or [VCR],

Information

Page 24

Specifications

Video Heads :

Four Heads

Output signal format :

NTSC color

Power source :

120 V AC +/- 10%, 60 Hz +/- 0.5%

Power consumption :

21W (standby: 3.8W)

Operating temperature :

41°F (5°C) to 104°F (40°C)

Dimensions :

W:17 3/16" (435 mm) H:3 3/4" (94 mm) D:9 3/16" (233 mm)

Weight :

Approx 6.0 lbs (2.7 kg)

• Designs and specifications are subject to change without notice.

• If there is a discrepancy between languages, the default language will be English.

Language List

Language Code Language Code Language Code Language Code

Abkhazian 4748 Afar 4747 Afrikaans 4752 Albanian 6563 Amharic 4759 Arabic 4764 Armenian 5471 Assamese 4765 Aymara 4771 Azerbaijani 4772 Bashkir 4847 Basque 5167 Bengali;Bangla 4860 Bhutani 5072 Bihari 4854 Bislama 4855 Breton 4864 Bulgarian 4853 Burmese 5971 Byelorussian 4851

Cambodian 5759 Catalan 4947 Chinese [CHI] 7254 Corsican 4961 Croatian 5464 Czech 4965 Danish [DAN] 5047 Dutch [DUT] 6058 English [ENG] 5160 Esperanto 5161 Estonian 5166

Faroese 5261 Fiji 5256 Finnish [FIN] 5255

If you choose a Language that has a 3 letter language code, the code will be displayed every time you change the Audio or Subtitle language setting on page 19. If you choose any other languages, ‘---’ will be displayed instead. (3 letter language code is written in bracket.)

A-B

C-E

F-H

French [FRE] 5264 Frisian 5271 Galician 5358 Georgian 5747 German [GER] 5051 Greek [GRE] 5158 Greenlandic 5758 Guarani 5360 Gujarati 5367 Hausa 5447 Hebrew 5569 Hindi 5455 Hungarian [HUN] 5467

Icelandic [ICE] 5565 Indonesian 5560 Interlingua 5547 Interlingue 5551 Inupiak 5557 Irish [IRI] 5347 Italian [ITA] 5566 Japanese [JPN] 5647 Javanese 5669 Kannada 5760 Kashmiri 5765 Kazakh 5757 Kinyarwanda 6469 Kirghiz 5771 Kirundi 6460 Korean [KOR] 5761 Kurdish 5767

Laothian 5861 Latin 5847 Latvian;Lettish 5868 Lingala 5860 Lithuanian 5866

I-K

L-N

Macedonian 5957 Malagasy 5953 Malay 5965 Malayalam 5958 Maltese 5966 Maori 5955 Marathi 5964 Moldavian 5961 Mongolian 5960 Nauru 6047 Nepali 6051 Norwegian [NOR] 6061

Occitan 6149 Oriya 6164 Oromo(Afan) 6159 Panjabi 6247 Pashto;Pushto 6265 Persian 5247 Polish 6258 Por tuguese [POR] 6266 Quechua 6367 Rhaeto-Romance 6459 Romanian [RUM] 6461 Russian [RUS] 6467

Samoan 6559 Sangho 6553 Sanskrit 6547 Scots Gaelic 5350 Serbian 6564 Serbo-Croatian 6554 Sesotho 6566 Setswana 6660 Shona 6560 Sindhi 6550 Singhalese 6555

O-R

Siswat 6565 Slovak 6557 Slovenian 6558 Somali 6561 Spanish [SPA] 5165 Sundanese 6567 Swahili 6569 Swedish [SWE] 6568

Tagalog 6658 Tajik 6653 Tamil 6647 Tatar 6666 Telugu 6651 Thai 6654 Tibetan 4861 Tigrinya 6655 Tonga 6661 Tsonga 6665 Tu rkish [TUR] 6664 Tu rkmen 6657 Tw i 6669

Ukrainian 6757 Urdu 6764 Uzbek 6772 Vietnamese 6855 Volapuk 6861 Welsh 4971 Wolof 6961 Xhosa 7054 Yiddish 5655 Yo r uba 7161 Zulu 7267

U-Z

LIMITED WARRANTY

FUNAI CORP. will repair this SYLVANIA product, free of charge in the USA in the event of defect in materials or workmanship as follows:

DURATION: PA RTS:

LABOR: FUNAI CORP. will provide the labor without charge for a peri-

Information

LIMITS AND EXCLUSIONS:

This warranty is extended only to the original retail purchaser. A purchase receipt or other proof of original retail purchase will be required together with the product to obtain service under this warranty.

This warranty shall not be extended to any other person or transferee. This warranty is void and of no effect if any serial numbers on the product are

altered, replaced, defaced, missing or if service was attempted by an unauthorized service center. This SYLVANIA Limited warranty does not apply to any product not purchased and used in the United States.

This product is produced for home use and this warranty only covers failures due to defects in material or workmanship which occurs during normal use. It does not cover damage which occurs in shipment, or failures which are caused by repairs, alterations or product not supplied by FUNAI CORP., or damage which results from accident, misuse, abuse, mishandling, misapplication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or office use of this product or damage which results from fire, flood, lightning or other acts of God.

THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE CONTROL), ANY COSMETIC PA RTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS.

FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from the date of original retail purchase. Certain parts are excluded from this warranty.

od of ninety (90) days from the date of original retail purchase.

FUNAI CORP. AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY GENERAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND OF ALL OTHER LIABILITIES ON THE PART OF FUNAI, ALL OTHER WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED BY FUNAI AND ITS REPRESENTATIVES IN THE UNITED STATES. ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY A FUNAI AUTHORIZED SERVICE CENTER. THIS WARRANTY IS VALID WHEN THE UNIT IS CARRIED-IN TO FUNAI AUTHORIZED SERVICE FAC ILITY.

IMPORTANT:

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS.YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. IF, AT ANY TIME DURING THE WARRANTY PERIOD, YOU ARE UNABLE TO OBTAIN SATISFACTION WITH THE REPAIR OF THIS PRODUCT, PLEASE CONTACT FUNAI CORP.

ATTENTION:

FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT WITHOUT PRIOR NOTICE.

To locate your nearest Authorized Service Center or for general service inquiries, please call or write to the following:

FUNAI CORPORATION, INC.

SERVICE CENTER

19900 Van Ness Avenue, Torrance, CA 90501

Tel :1-800-968-3429

http://www.SylvaniaConsumerElectronics.com

PLEASE DO NOT SHIP YOUR UNIT TO THE TETERBORO ADDRESS.

Head Office: 100 North Street, Teterboro, NJ 07608

–24–

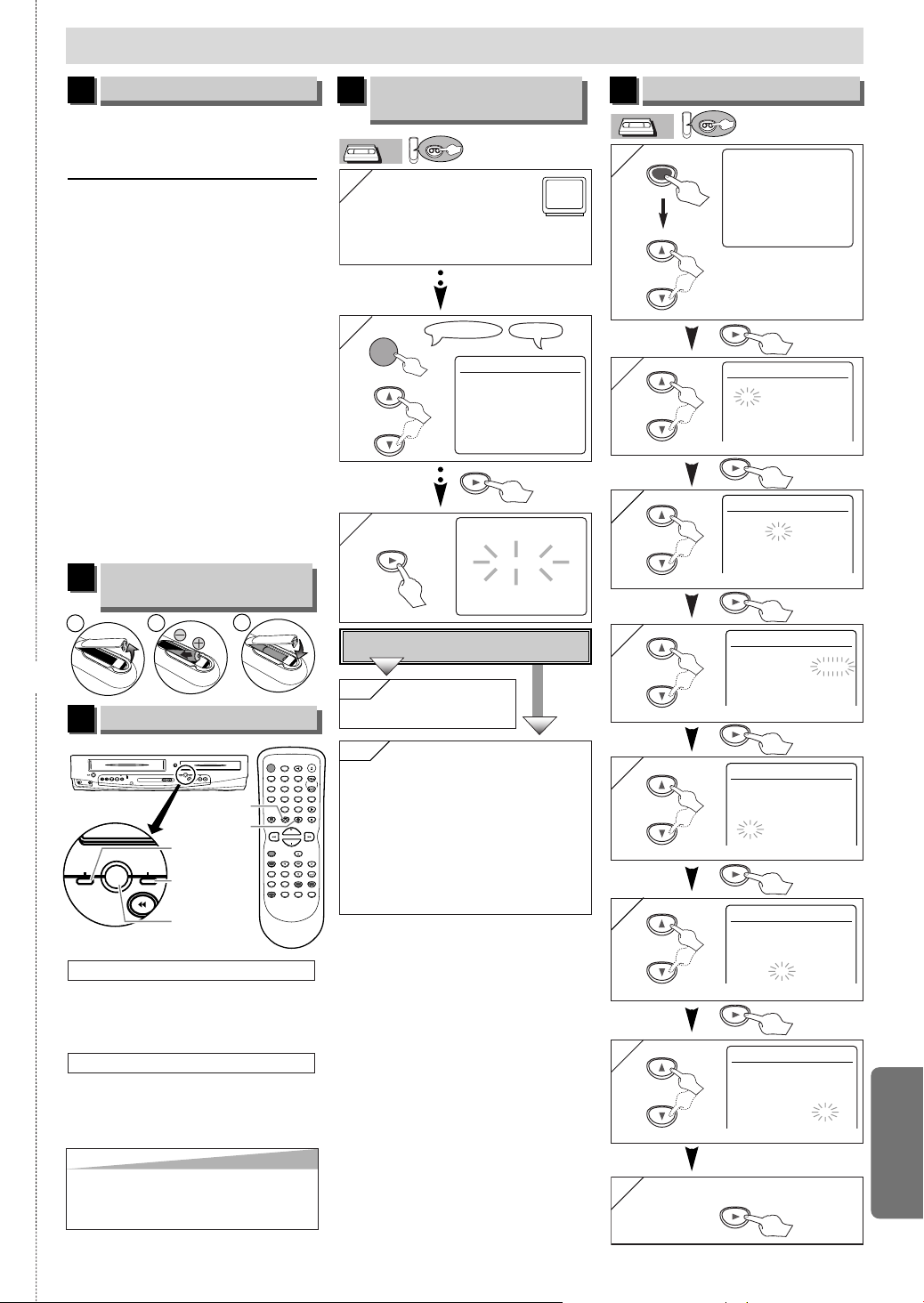

Page 25

Español

CHANNEL

STOP

REV FWD

SKIP HG SKIP

OUTPUT

DVD DISC IN

OPEN/CLOSE

PLAY

STOP/EJECTPLAY REC/OTR

VCR

POWER

F.FWDREW

V IDE

A U

D IO

POWER

DISPLAY VCR DVD PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

SETUP TOP MENU

MODE ZOOM

SUBTITLE

T-SET

ANGLE

ENTER

RETURN

MODE

REPEAT A-B

OPEN/CLOSE

/EJECT

SPEED AUDIO

CLEAR/ C. RESET

123

456

789

+10

REV

SKIP H

OUTPUT

DVDVCR

Botón OUTPUT

Luz DVD OUTPUT

Luz VCR OUTPUT

Botón DVD

Botón VCR

Pantalla del televisor

Control Remoto

VCR

POWER

Conexiones

Consulte la “Basic TV Connection” en la página delantera antes de utilizar esta unidad.

Canal de salida RF

Si el canal 3 se está utilizando para una transmisión.

1)Programe su televisor al canal 4.

2)Inserte una cinta pregrabada en esta unidad.

3)Pulse [OUTPUT] en la unidad para que se encienda la luz VCR OUTPUT.

• Si aparece ruido en la pantalla de

TV, presione [VCR/TV] en el mando a distancia.

4)Pulse una vez [PLAY BB].

5)Después de unos segundos, pulse [PLAY B] en la unidad durante 3 segundos.

• El canal de salida RF cambiará del canal 3 al canal 4 y podrá ver una imagen reproducida.

• Cuando no aparezca una imagen en la pantalla del televisor, repita el paso 4).

6)Pulse [STOP C] para parar la repro-

ducción.

Instalación de las pilas

del control remoto

✄

Conmutación VCR/DVD

MODO VCR

Pulse[VCR] en el control remoto. (Compruebe que está encendida la luz VCR OUTPUT.)

MODO DVD

Pulse [DVD] en el control remoto. (Compruebe que está encendida la luz DVD OUTPUT.)

Consejo

• Si pulsa sólo [OUTPUT] en el panel

frontal NO cambía el modo del control remoto. DEBE seleccionar también el modo correcto en el control remoto.

Activación de la unidad

por primera vez

VCR

Encienda el televisor y sintonice al canal 3.

•

Si el canal 3 se está utilizando para una transmisión, vea la sección “RF Output Channel”.

SELEC. IDIOMA

ENGLISH FRANCAIS

Conecta el cable de la caja de canales de cable o la caja de satélite en la toma ANT-IN de la unidad?

Si Pulse MENU

B ESPAÑOL [ON]

CA 01

AJUSTE AUTO

para salir.

No Espere unos minutos.

Después del escaneo

• El sintonizador se detiene en el canal memorizado más bajo.

• Puede seleccionar sólo los canales memorizados en esta unidad con

[SKIP/CH.GG/

(o [CHANNEL KK/LL]).

• Si aparece nuevamente "AJUSTE AUTO" en la pantalla de TV, verifique las conexiones de cable. Presione nuevamente

KK HH/LL

]

[BB].

–25–

Ajuste del reloj

VCR

- M E N U -

PROGRAMAR AUTOREPETIR [OFF] AJUSTE CANAL

B AJUSTE DE RELOJ

SELEC. IDIOMA

•

Si no se ha ajustado el reloj, aparece la pantalla AJUSTE DE RELOJ cuando pulse

[MENU]. En este caso, vaya al paso 2).

AJUSTE DE RELOJ

MES DIA AÑO

1 0 / – – – – – –

HORA MINUTO AM/PM

– – : – – – –

Seleccione el mes actual.

AJUSTE DE RELOJ

MES DIA AÑO

1 0 / 0 3 – – – –

HORA MINUTO AM/PM

– – : – – – –

Seleccione el día actual.

AJUSTE DE RELOJ

MES DIA AÑO

1 0 / 0 3 2 0 0 5

HORA MINUTO AM/PM

– – : – – – –

Seleccione el año actual.

AJUSTE DE RELOJ

MES DIA AÑO

1 0 / 0 3 LUN 2 0 0 5

HORA MINUTO AM/PM

0 5 : – – – –

Seleccione la hora actual.

AJUSTE DE RELOJ

MES DIA AÑO

1 0 / 0 3 LUN 2 0 0 5

HORA MINUTO AM/PM

0 5 : 4 0 – –

Seleccione los minutos actuales.

AJUSTE DE RELOJ

MES DIA AÑO

1 0 / 0 3 LUN 2 0 0 5

HORA MINUTO AM/PM

0 5 : 4 0 P M AM

Seleccione "AM" o "PM".

Para salir de la pantalla AJUSTE DE

RELOJ

B PM

Español

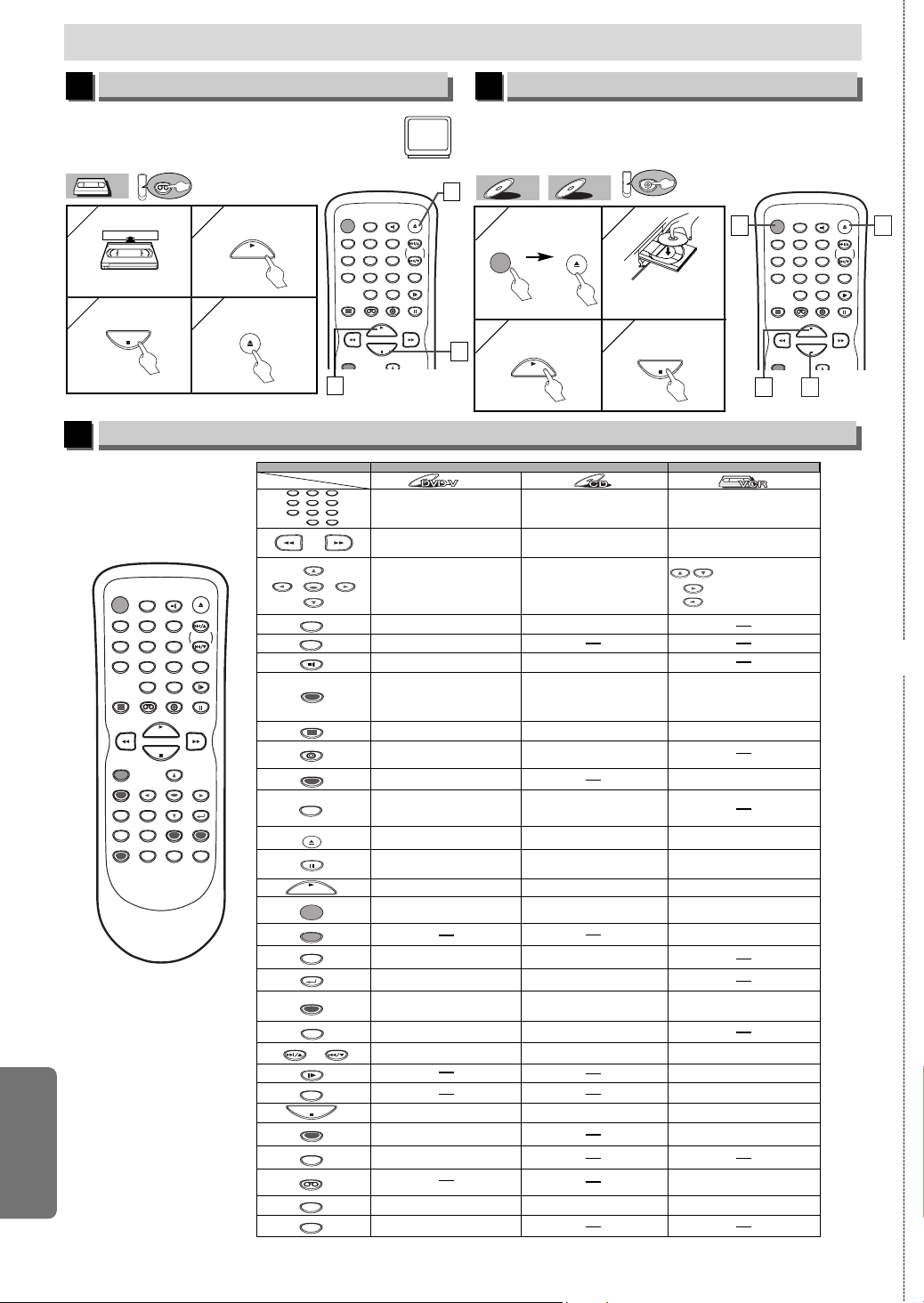

Page 26

POWER

DISPLAY VCR DVD PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

OPEN/CLOSE

/EJECT

SPEED AUDIO

123

456

789

+1 0

PLAY

STOP

OPEN/CLOSE

/EJECT

VCR

DVD

CDCDDVD-V

DVD-V

POWER

DISPLAY VCR DVD PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

OPEN/CLOSE

/EJECT

SPEED AUDIO

123

456

789

+1 0

• Para encender o apagar la unidad.

• Para indicar el modo de disco actual.

•Pa ra indicar la hora actual, contador de cinta y canal.

• Para abrir o cerrar la bandeja del disco.

• Para expulsar el videocasete de la grabadora de vídeo.

•

Para seleccionar directamente

el capítulo o el título.

•

Para seleccionar directamente

la canción.

• Para seleccionar los ángulos de la cámara en un disco.

• Para seleccionar subtítulos en un disco.

•

Para poner la grabadora de vídeo en el modo de espera para una grabación con temporizador.

• Para seleccionar el idioma de audio en un disco.

•

Para seleccionar ESTÉREO,

L-ch o R-ch.

• Para repetir entre los puntos A y B elegidos

• Para repetir entre los puntos A y B elegidos.

•

Para reproducir repetidamente

un capítulo o título.

•

Para reproducir repetidamente

una canción o disco.

• Para activar/desactivar el nivel del negro.

• Para activar/desactivar el envolvente virtual.

• Para disponer el orden de reproducción o la reproducción aleatoria.

• Para activar/desactivar el envolvente virtual.

• Para ampliar parte de la imagen. (x2/x4)

• Para llamar el menú de la

grabadora de vídeo.

• Para llamar el menú superior en un disco.

• Para volver a la operación previa en el menú.

•

Para buscar un capítulo, título u hora.

•

Para colocar o buscar los

marcadores.

• Para buscar una canción.

• Para buscar la hora.

• Para colocar o buscar los

marcadores.

• Para seleccionar la velocidad

de grabación.

•

El botón +10 no tiene efecto en el modo de grabadora de vídeo.

• Para borrar los marcadores.

• Para retirar el Nº de estado

en la entrada de programa.

• Para borrar los números entrados incorrectamente.

• Para borrar el punt para la repetición A-B.

• Para borrar los números entrados incorrectamente.

• Para borrar el punt para la repetición A-B.

• Para salir del menú de la

grabadora de vídeo.

• Para reponer el contador de

cinta.

•

Para buscar en avance/retroceso en un disco.

•

Para empezar la reproducción en avance/ retroceso lento durante el modo de pausa.

• Para buscar en avance/ retroceso en un disco.

• Para el avance/retroceso de una cinta.

• Para avanzar la reproducción un cuadro a la vez.

•

Para avanzar la reproducción

un cuadro a la vez.

• Para hacer una pausa de reproducción del disco.

• Para hacer una pausa en la reproducción del disco.

•

Para hacer una pausa de la

reproducción o grabación de la cinta.

• Para parar la reproducción. • Para parar la reproducción.

• Para parar la reproducción o

grabación.

• Para saltar capítulos • Para saltar canciones.

•

Para cambiar de canal.

•

Para ajustar manualmente el

seguimiento durante la reproducción.

•

Para empezar la reproducción

del disco.

•

Para empezar la reproducción del disco.

•

Para empezar la reproducción de la cinta.

• Para llamar el menú de programación de DVD.

• Para llamar el menú de búsqueda de índice u hora.

• Para llamar el menú de programación de DVD.

• Para activar el mando a distancia en el modo DVD.

• Para seleccionar el modo de salida de DVD.

•

Para activar el mando a distancia en el modo DVD

• Para seleccionar el modo de salida de DVD

•

Para seleccionar la posición de la grabadora de vídeo o posición del televisor.

•

Para seleccionar la posición de CD o la posición del televisor.

•

Para seleccionar la posición

de DVD o posición del televisor.

• Para ver la cinta en cámara lenta.

•

Para seleccionar el modo de salida de la grabadora de vídeo.

•

Para activar el mando a distancia en el modo de la grabadora de vídeo.

• Para empezar una grabaciòn o una grabaciòn de un toque.

• Para mover el cursor y determinar su posición.

•

Para seleccionar un ítem en el menú de la grabadora de vídeo.

•

Para avanzar al siguiente menú de la grabadora de vídeo.

•

Para volver un paso durante el ajuste del reloj y temporizador.

Modo de grabadora de vídeo

Modo DVD

• Para seleccionar el canal.

• Para llamar el menu en un

disco.

POWER

TOP MENU

MODE

SUBTITLE

T-SET

ANGLE

REPEAT

A-B

123

456

789

+10

ZOOM

SPEED

VCR

PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

SETUP

ENTER

Botón

(Orden alfabético)

Disco/cinta

OPEN/CLOSE

/EJECT

CLEAR/

C. RESET

MODE

DVD

RETURN

AUDIO

DISPLAY

Español

POWER

DISPLAY VCR DVD PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

SETUP TOP MENU

MODE ZOOM

SUBTITLE

T-SET

ANGLE

ENTER

RETURN

MODE

REPEAT A-B

OPEN/CLOSE

/EJECT

SPEED AUDIO

CLEAR/

C. RESET

123

456

789

+1 0

PLAY

STOP

POWER

OPEN/CLOSE

/EJECT

Español

Reproducción de la grabadora de vídeo

Antes: Encienda el televisor y cambie al canal 3.

• Si el canal 3 se está utilizando para una transmisión, vea la sección "RF Output Channel".

VCR

Para parar la

reproducción

Control remoto

Para empezar

la reproducción

Para expulsar

Reproducción de DVD/CD

Antes: Encienda el televisor, amplificador y otros equipos que puedan estar conectados a esta unidad. Asegúrese que el televisor y el sintoamplificador de audio (de venta en los comercios) están en el canal correcto.

Para empezar

–26–

la reproducción

Ponga un disco con la

etiqueta hacia arriba.

Para parar la

reproducción

✄

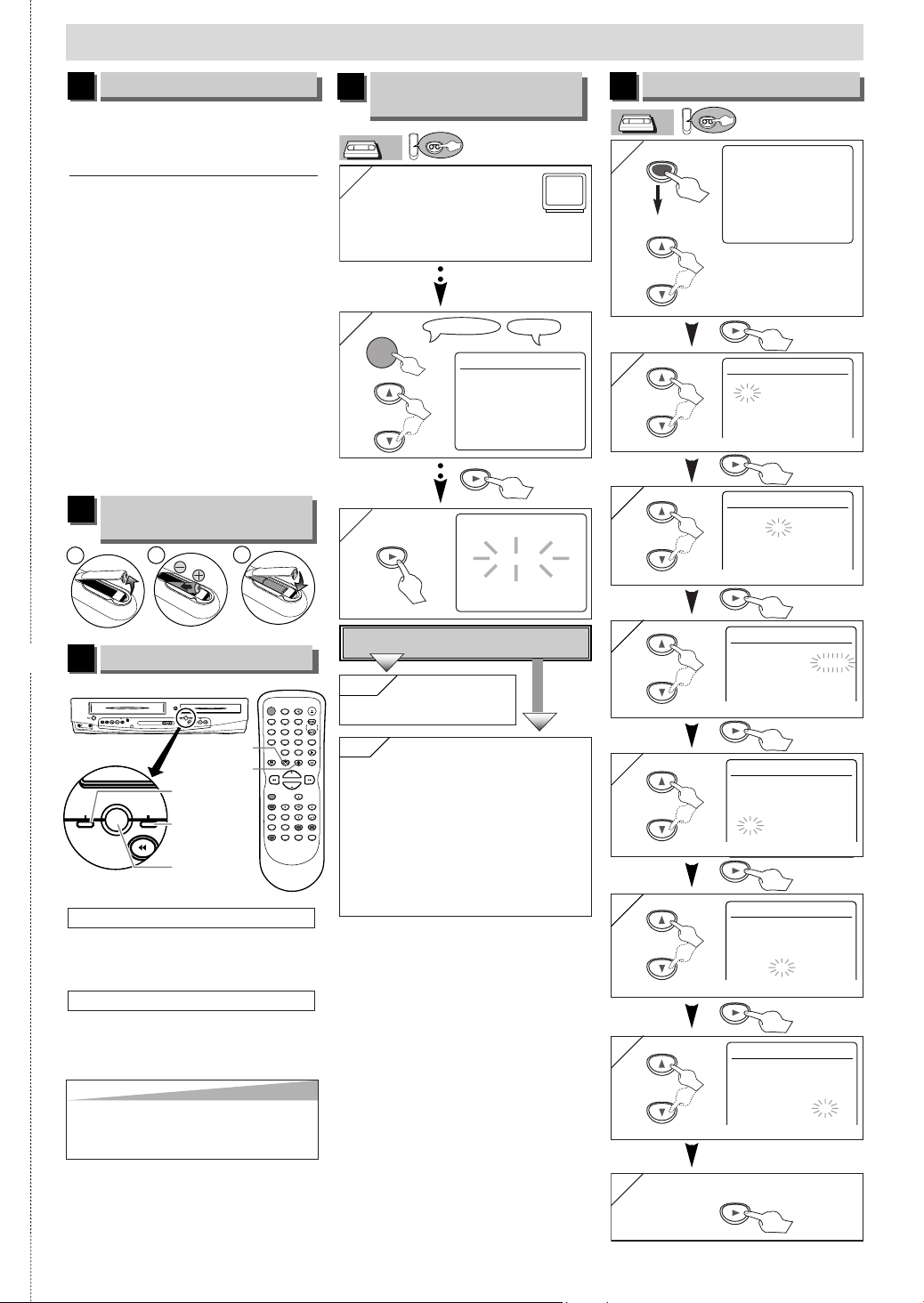

Page 27

Quick Use Guide

CHANNEL

STOP

REV FWD

SKIP HG SKIP

OUTPUT

DVD DISC IN

OPEN/CLOSE

PLAY

STOP/EJECTPLAY REC/OTR

VCR

POWER

F.FWDREW

ID E O

REV

SKIP H

OUTPUT

DVDVCR

POWER

DISPLAY VCR DVD PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

SETUP TOP MENU

MODE ZOOM

SUBTITLE

T-SET

ANGLE

ENTER

RETURN

MODE

REPEAT A-B

OPEN/CLOSE

/EJECT

SPEED AUDIO

CLEAR/

C. RESET

123

456

789

+10

OUTPUT button

DVD OUTPUT light

VCR OUTPUT light

DVD button

VCR button

YES

TV ScreenRemote Control

VCR

POWER

Connections

Please refer to “Basic TV Connection” on the front page befor you use this unit.

RF Output Channel

If channel 3 is already occupied for broadcasting,

Set your TV to channel 4.

2)Insert a pre-recorded tape into this unit.

3)Press [OUTPUT] on the unit so that the VCR OUTPUT light is lit.

• If noise appears on the TV screen,

press [VCR/TV] on the remote control.

4)Press [PLAY B] once.

5)After a few seconds, hold [PLAY B] on the unit for 3 seconds.

• The RF output channel will change to channel 4 from channel 3 and you will see a playback picture.

• When a picture does not appear on the TV screen, repeat step 4).

6)Press [STOP C] to stop playback.

Installing the Batteries

for the Remote Control

Turn on the unit for the

first time

VCR

Tu rn on the TV and set it to channel 3.

• If channel 3 is already occupied for broadcasting, see“RF Output Channel” section.

LANGUAGE SELECT

B ENGLISH [ON]

FRANCAIS

ESPAÑOL

CH 01

AUTO SET UP

Clock Setup

VCR

- M E N U -

TIMER PROGRAMMING AUTO REPEAT [OFF] CHANNEL SET UP

B CLOCK SET

LANGUAGE SELECT

• If the clock is not set, the CLOCK SET screen appears when you press

[MENU]. In this case, go to step 2).

CLOCK SET

MONTH DAY YEAR

1 0 / – – – – – –

HOUR MINUTE AM/PM

– – : – – – –

Select the current month.

CLOCK SET

MONTH DAY YEAR

1 0 / 0 3 – – – –

HOUR MINUTE AM/PM

– – : – – – –

Select the current day.

✄

VCR/DVD Switching

✄

VCR MODE

Press [VCR] on the remote control. (Verify that the VCR OUTPUT light is lit.)

DVD MODE

Press [DVD] on the remote control. (Verify that the DVD OUTPUT light is lit.)

Hint

• Pressing only [OUTPUT] on the front

panel DOES NOT switch the mode of the remote control. You MUST select the correct mode on the remote control.

Do you connect the cable from the cable box or the satellite box to the unit’s ANT-IN jack?

es Press [MENU]

YYes

to exit.

Please wait for a few minutes.

After scanning...

• The tuner stops on the lowest memorized channel.

•You can select only the channels memorized in this unit by using

[SKIP/CH.GG/

(or [CHANNEL KK/LL]).

• If “AUTO SET UP” appears on the TV screen again, check the cable connections. Then, press

KK HH/LL

]

[B] once again.

CLOCK SET

MONTH DAY YEAR

1 0 / 0 3 2 0 0 5

HOUR MINUTE AM/PM

– – : – – – –

Select the current year.

CLOCK SET

MONTH DAY YEAR

1 0 / 0 3 MON 2 0 0 5

HOUR MINUTE AM/PM

0 5 : – – – –

Select the current hour.

CLOCK SET

MONTH DAY YEAR

1 0 / 0 3 MON 2 0 0 5

HOUR MINUTE AM/PM

0 5 : 4 0 – –

Select the current minute.

8 To exit the CLOCK SET

CLOCK SET

MONTH DAY YEAR

1 0 / 0 3 MON 2 0 0 5

HOUR MINUTE AM/PM

0 5 : 4 0 P M AM

B PM

Select “AM” or “PM”.

screen

–27–

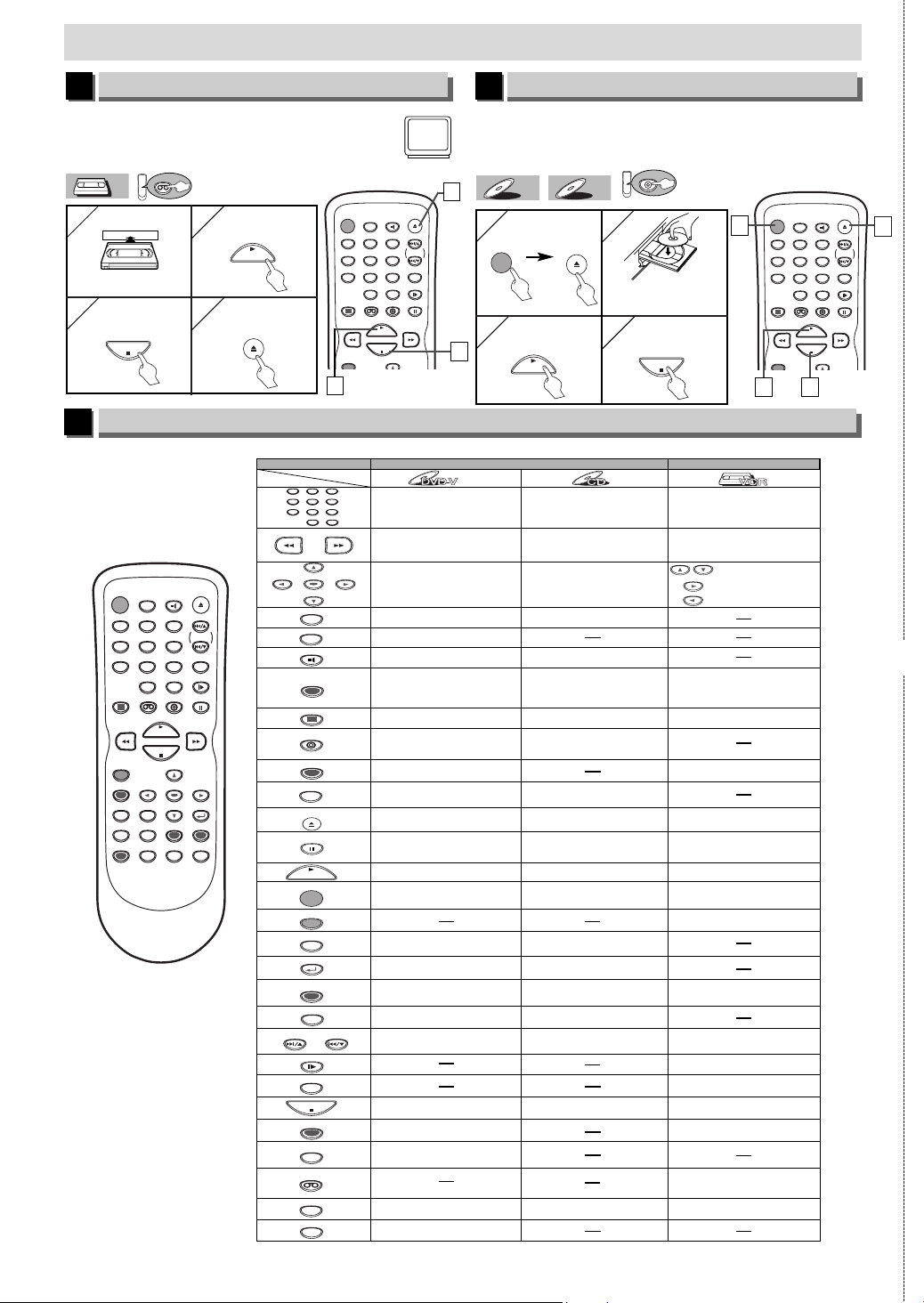

Page 28

POWER

DISPLAY VCR DVD PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

OPEN/CLOSE

/EJECT

SPEED AUDIO

123

456

789

+1 0

PLAY

STOP

OPEN/CLOSE

/EJECT

VCR

DVD

CDCDDVD-V

DVD-V

•To display the current disc mode.

•To display the current time, tape counter, and channel.

•To open or close the disc tray.

•To eject the video cassette from the VCR.

•

To select chapter or title directly.

•To select track directly.

•To select camera angles on

a disc.

•To select subtitles on a disc.

•To put the VCR into standby

mode for a Timer Recording.

•To select audio languages on a disc.

•To select STEREO, L-ch or R-ch.

•To repeat between your chosen point A and B.

•To play a chapter or title repeatedly.

•To play a track or disc repeatedly.

•To set black level on/off.

•To set virtual surround on/off.

•To arrange the playing

order or play randomly.

•To set virtual surround on/off.

•To magnify part of a picture.

(x2/ x4)

•To call up the Menu on a disc.

•To call up the VCR Menu.

•To call up the Top Menu

on a disc.

•To return to the previous operation in menu.

•

To search chapter, title or time.

•To set or search the markers.

•To search track.

•To search time.

•To set or search the markers.

•To select the recording speed.

•To select channel.

•The +10 button has no effect

in VCR mode.

•To clear the markers.

•

To remove status number in program input.

•To clear the numbers. entered incorrectly.

•

To cancel the point for A-B repeat.

•

To clear the numbers entered incorrectly.

•

To cancel the point for A-B repeat.

•To exit the VCR Menu.

•To reset the tape counter.

•To search forward/backward

through a disc.

•

To begin slow forward/reverse playback during the pause mode.

•To search forward/backward through a disc.

•To forward/backward a tape.

•To advance playback

one frame at a time.

•To advance playback one frame at a time.

•To pause disc playback.

• To pause disc playback.

• To pause tape playback or

recording.

• To stop playback. • To stop playback.

• To stop playback or recording.

• To skip chapters. • To skip tracks.

• To change channels.

•

To adjust the tracking manually

during playback.

• To begin disc playback. • To begin disc playback.

• To begin tape playback.

•To call up the DVD setup

menu.

•To call up the index or time

search menu.

•To call up the DVD setup menu.

• To activate the remote control in DVD mode.

• To select the DVD output mode.

•

To activate the remote control

in DVD mode.

• To select the DVD output mode.

• To select VCR position or

TV position.

• To select CD position or TV position.

• To select DVD position or TV position.

• To view the tape in slow motion.

• To select the VCR output mode.

• To activate the remote control in VCR mode.

• To star t a recording or

One Touch Recording.

•To move the cursor and determine its position.

• To select an item on the VCR Menu.

• To advance to the next VCR Menu.

•

To go back one step during

clock and timer setting.

VCR mode

DVD mode

•To turn the unit on or off. •To turn the unit on or off. • To turn the unit on or off.

TOP MENU

MODE

SUBTITLE

T-SET

ANGLE

REPEAT

A-B

123

456

789

+10

ZOOM

SPEED

VCR

PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

SETUP

ENTER

Button

(Alphabetical order)

Disc/Tape

OPEN/CLOSE

/EJECT

CLEAR/

C. RESET

MODE

DVD

RETURN

AUDIO

DISPLAY

POWER

Quick Use Guide

POWER

DISPLAY VCR DVD PAUSE

SLOW

VCR/TV

SKIP/CH.

PLAY

STOP

REC/OTR

SETUP TOP MENU

MODE ZOOM

SUBTITLE

T-SET

ANGLE

ENTER

RETURN

MODE

REPEAT A-B

OPEN/CLOSE

/EJECT

SPEED AUDIO

CLEAR/

C. RESET

123

456

789

+1 0

PLAY

STOP

POWER

OPEN/CLOSE

/EJECT

Printed in China

VCR Playback

Before: Turn on the TV and set it to channel 3.

• If channel 3 is already occupied for broadcasting, see “RF Output Channel” section.

VCR

To stop

playback

Remote Control

To start playback

To eject

DVD/CD Playback

Before: Turn on the TV, amplifier and any other components which are connected to this unit. Make sure the TV and audio receiver (commercially available) are set to the correct channel.

To start

playback

Insert a disc with

label facing up.

To stop

playback

POWER

123

456

789

DISPLAY VCR DVD PAUSE

REC/OTR

1VMN21067A / H9805UD ★★★★

SPEED AUDIO

PLAY

STOP

+1 0

OPEN/CLOSE

/EJECT

SKIP/CH.

VCR/TV

SLOW

✄
