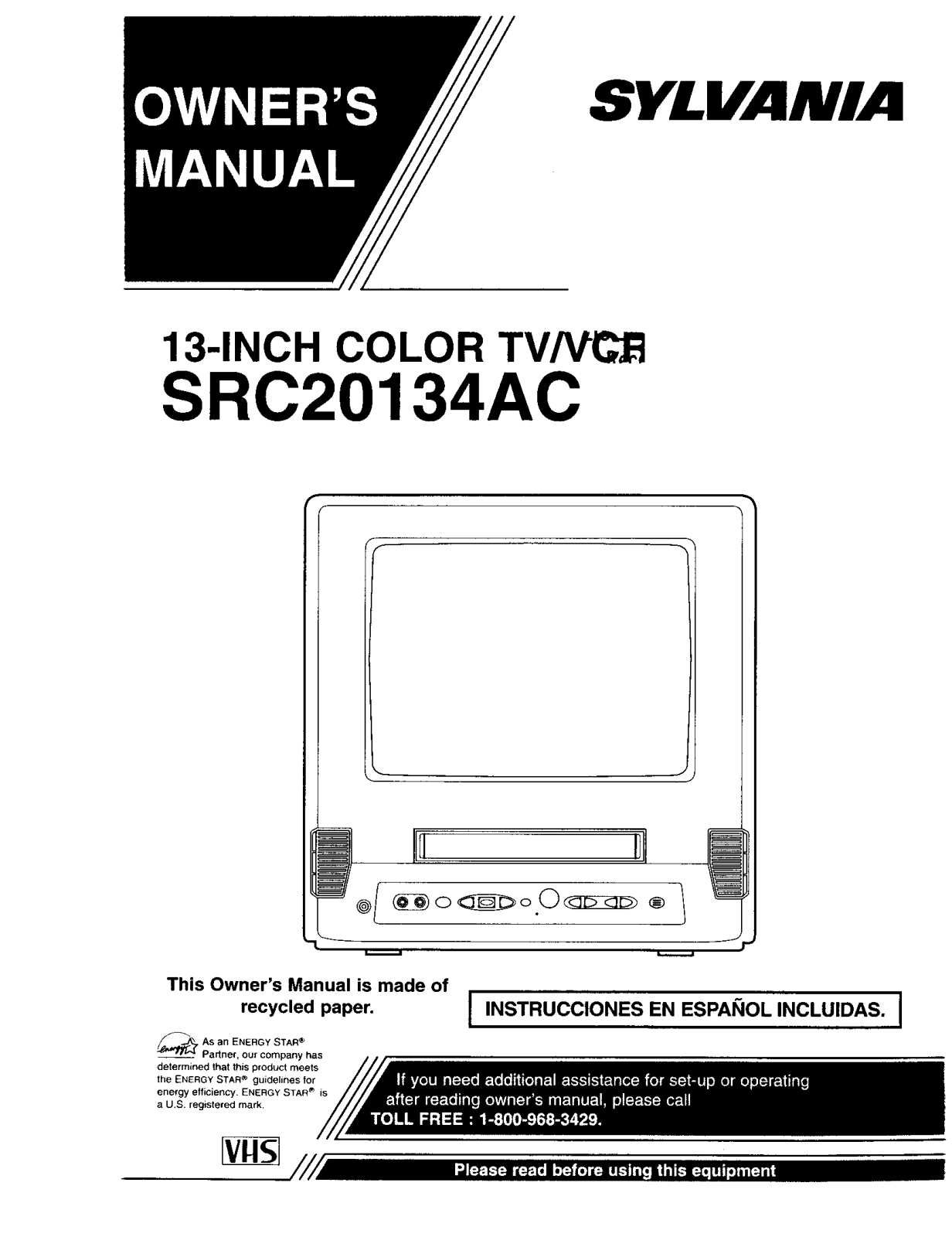

Sylvania SRC20134AC Owner’s Manual

SYLVANIA

13-INCH COLOR TV/V_'_]

SRC20134AC

This Owner's Manual is made of

recycled paper. I INSTRUCCIONES EN ESPAI_IOL INCLUIDAS. I

As an ENERGY STAR _ Partne¢, our company has

determined that this product meets the ENERGY STAR ® guidelines for

energy efficiency ENERGY STAR _ is a U.S. registered mark

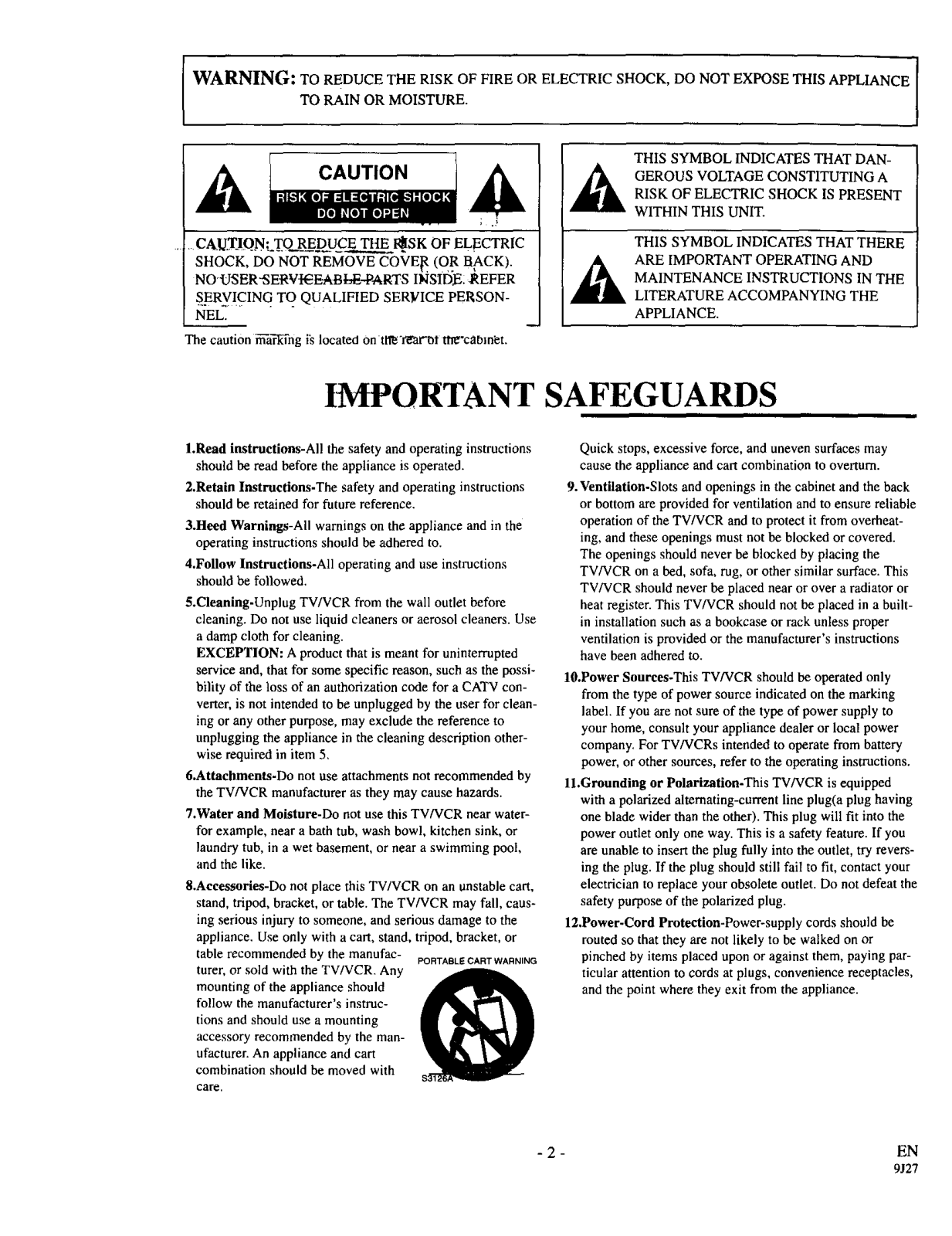

I WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE [

CAU.TJQN _TO._R_EDUCE THE I_ISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVE_ (O R BACK). NO'_SER-SERV_t_AB/_E-PARTS INSIDe: I_EFER

SERVICING TO QUALIFIED SERe/ICE PERSON-

NEL.

The caution _-ar-_fng is located on tff'e'l_ar'_I thg"Cabln_t.

TO RAIN OR MOISTURE.

THIS SYMBOL INDICATES THAT DAN- GEROUS VOLTAGE CONSTITUTING A

RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND

MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

IMPORTANT SAFEGUARDS

l.Read instructions-All the safety and operating instructions

should be read before the appliance is operated.

2.Retain Instructions-Tbe safety and operating instructions

should be retained for future reference.

3.Heed Warnings-All warnings on the appliance and in the

operating instructions should be adhered to.

4.Follow Instructions-All operating and use instructions

should be followed.

5.Cleaning-Unplug TV/VCR from the wall outlet before

cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possi- bility of the loss of an authorization code for a CATV con- verter, is not intended to be unplugged by the user for clean- ing or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description other-

wise required in item 5.

6.Attachments-Do not use attachments not recommended by theTV/VCR manufacturer as they may cause hazards.

7.Water and Moisture-Do not use this TVNCR near water- for example, neara bath tub, wash bowl, kitchen sink, or

laundry tub, in a wet basement, or near a swimming pool, and the like.

8.Accessories-Do not place this TV/VCR on an unstable cart, stand, tripod, bracket, or table. The TV/VCR may fall, caus- ing serious injury to someone, and serious damage to the

appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufac- turer, or sold with the TV/VCR. Any mounting of the appliance should

follow the manufacturer's instruc- tions and should use a mounting

accessory recommended by the man- ufacturer. An appliance and cart combination should be moved with

care.

PORTABLE CART WARNING

Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

9. Ventilation-Slots and openings in the cabinet and the back

or bottom are provided for ventilation and to ensure reliable operation of the TV/VCR and to protect it from overheat-

ing, and these openings must not be blocked or covered. The openings should never be blocked by placing the TV/VCR on a bed, sofa, rug, or other similar surface. This TV/VCR should never be placed near or over a radiator or

heat register. This TV/VCR should not be placed in a built- in installation such as a bookcase or rack unless proper

ventilation is provided or the manufacturer's instructions have been adhered to.

10.Power Sources.This TVNCR should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power

company, For TV/VCRs intended to operate from battery power, or other soumes, refer to the operating instructions.

ll.Grounding or Polarization-This TV/VCR is equipped

with a polarized alternating-current line plug(a plug having one blade wider than the other). This plug will fit into the

power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try revers-

ing the plug. If the plug should still fail to fit, contact your

electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12.Power-Cord Protection-Power-supply cords should be routed so that they are not likely to be walked on or

pinched by items placed upon or against them, paying par-

ticular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

-2- EN 9J27

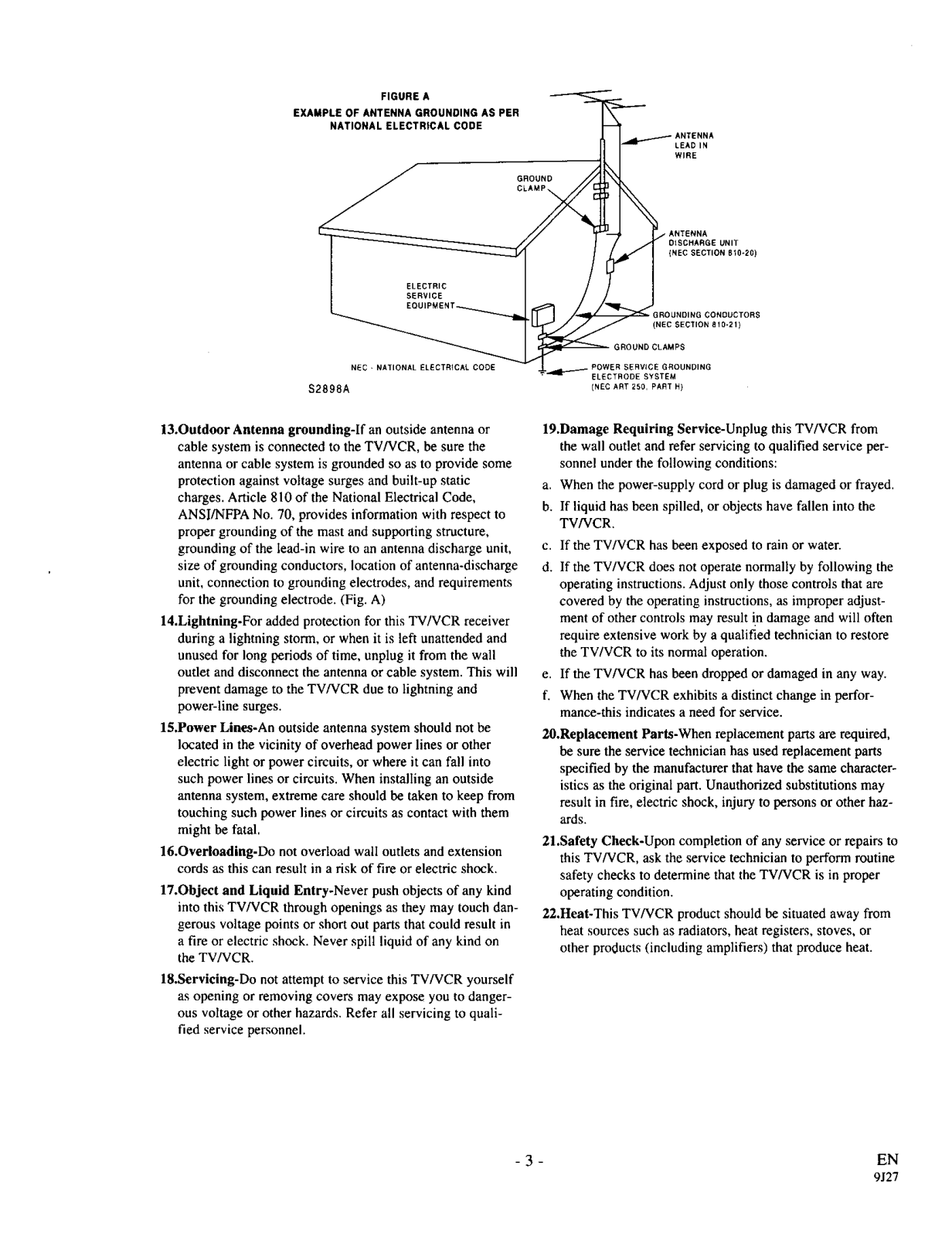

FIGURE A

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE

LEAD IN WIRE

.ANTENNA

O_SCHARGE UNIT

{NEC SECTION 810_20)

• GROUNDING CONDUCTORS

(NEC SECTION810-21}

NECNATIONALELECTRICALCOOE

$2898A

13.Outdoor Antenna grounding-If an outside antenna or cable system is connected to the TV/VCR, be sure the antenna orcable system is grounded so as to provide some

protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit,

size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

14.Lightning-For added protection for this TV/VCR receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall

outlet and disconnect the antenna or cable system. This will prevent damage to the TV/VCR due to lightning and power-line surges.

15.Power Lines-An outside antenna system should not be located in the vicinity of overhead power lines orother

electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal,

16.Overloading-Do not overload wail outlets and extension cords as this can result in a risk of fire or electric shock.

17.Object and Liquid Entry-Never push objects of any kind into this TV/VCR through openings as they may touch dan- gerous voltage points or short out parts thatcould result in

a fire or electric shock. Never spill liquid of any kind on the TV/VCR.

18.Servicing-Do not attempt to service this TV/VCR yourself as opening or removing covers may expose you to danger-

ous voltage or otherhazards. Refer all servicing to quali- fied service personnel.

.-_-_ll----- ELECTROD E SYSTEM

POWER SERVICE GROUNDING

INEC ART 250 PART H}

19.Damage Requiring Service-Unplug this TV/VCR from the wall outlet and refer servicing to qualifed service per-

sonnel under the following conditions:

a. When the power-supply cord or plug is damaged or frayed.

b. If liquid has been spilled, orobjects have fallen into the

TV/VCR.

c. If the TV/VCR has been exposed to rain or water. d. If the TV/VCR does not operate normally by following the

operating instructions. Adjust only those controls that are covered by the operating instructions, as improper adjust- ment of other controls may result !n damage and will often require extensive work by a qualified technician to restore

the TV/VCR to its normal operation.

e. If the TV/VCR has been dropped or damaged in any way.

f. When the TV/VCR exhibits a distinct change in perfor-

mance-this indicates a need for service.

20.Replacement Parts-When replacement partsare required, be sure the service technician has used replacement parts

specified by the manufacturer that have the same character- istics as the original part. Unauthorized substitutions may

result in fire, electric shock, injury to persons orother haz- ards.

21.Safety Check-Upon completion of any service or repairs to this TV/VCR, ask the service technician to perform routine safety checks to determine that the TV/VCR is in proper operating condition.

22.Heat-This TV/VCR product should be situated away from heat sources such as radiators, heat registers, stoves, or

other products (including amplifiers) that produce heat.

- 3 - EN 9J27

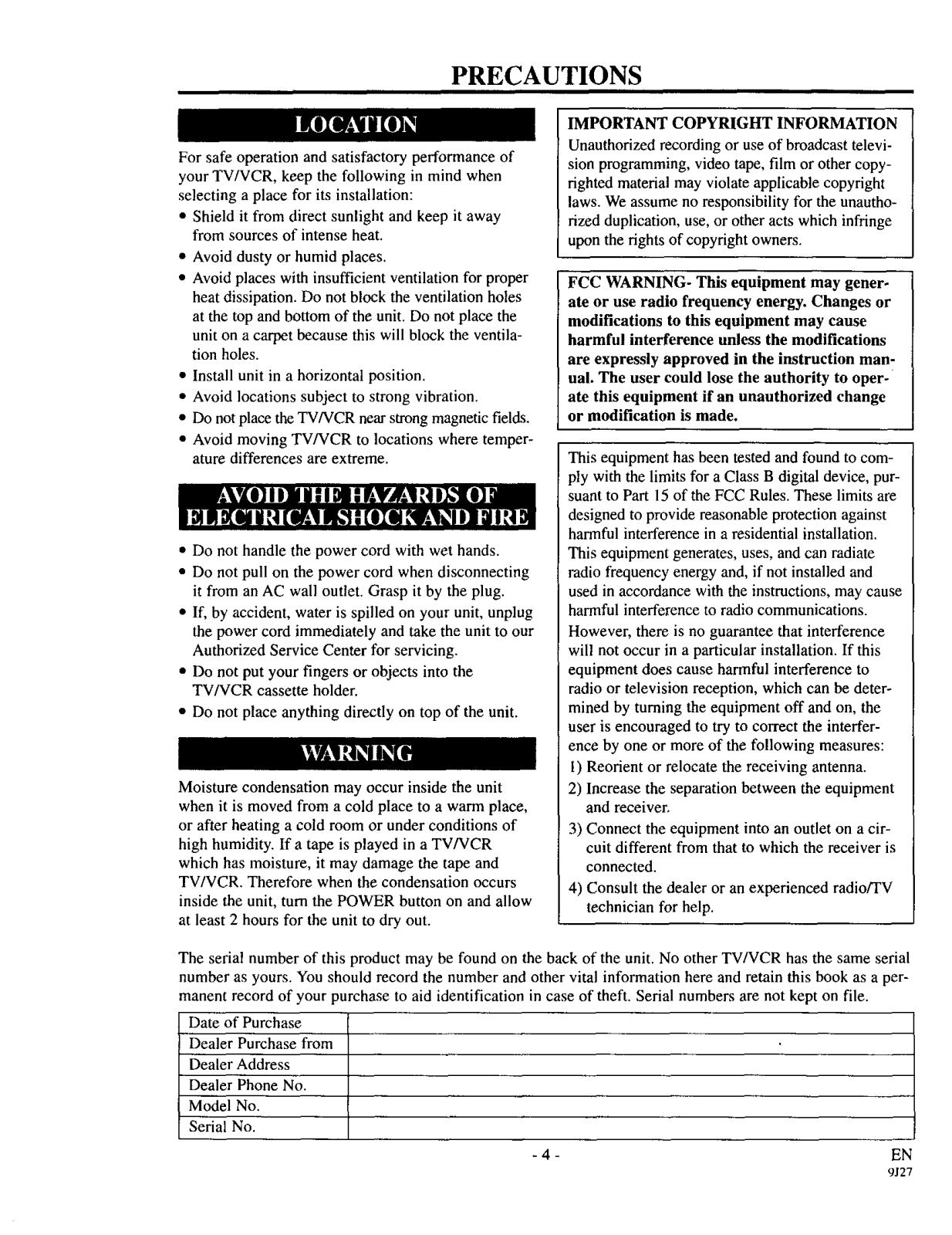

PRECAUTIONS

For safe operation and satisfactory performance of your TV/VCR, keep the following in mind when selecting a place for its installation:

• Shield it from direct sunlight and keep it away

from sources of intense heat.

• Avoid dusty or humid places.

• Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes at the top and bottom of the unit. Do not place the unit on a carpet because this will block the ventila-

tion holes.

• Install unit in a horizontal position.

• Avoid locations subject to strong vibration.

• Do not place the TV/VCR near strong magnetic fields.

• Avoid moving TV/VCR to locations where temper- ature differences are extreme.

• Do not handle the power cord with wet hands.

• Do not pull on the power cord when disconnecting it from an AC wall outlet. Grasp it by the plug.

• If, by accident, water is spilled on your unit, unplug the power cord immediately and take the unit to our Authorized Service Center for servicing.

• Do not put your fingers or objects into the TV/VCR cassette holder.

• Do not place anything directly on top of the unit.

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of

high humidity. If a tape is played in a TV/VCR which has moisture, it may damage the tape and

TV/VCR. Therefore when the condensation occurs

inside the unit, turn the POWER button on and allow

at least 2 hours for the unit to dry out.

IMPORTANT COPYRIGHT INFORMATION

Unauthorized recording or use of broadcast televi-

sion programming, video tape, film or other copy- righted material may violate applicable copyright laws. We assume no responsibility for the unautho-

rized duplication, use, or other acts which infringe upon the rights of copyright owners.

FCC WARNING- This equipment may gener- ate or use radio frequency energy. Changes or modifications to this equipment may cause

harmful interference unless the modifications are expressly approved in the instruction man-

ual. The user could lose the authority to oper-

ate this equipment if an unauthorized change or modification is made.

This equipment has been tested and found to com- ply with the limits for a Class B digital device, pur-

suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation.

This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be deter-

mined by turning the equipment off and on, the user is encouraged to try to correct the interfer- ence by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a cir- cuit different from that to which the receiver is

connected.

4) Consult the dealer or an experienced radio/TV technician for help.

The serial number of this product may be found on the back of the unit. No other TV/VCR has the same serial

number as yours. You should record the number and other vital information here and retain this book as a per-

manent record of your purchase to aid identification in case of theft. Serial numbers are not kept on file.

Date of Purchase Dealer Purchase from

Dealer Address Dealer Phone No. Model No.

Serial No.

-4- EN

9J27

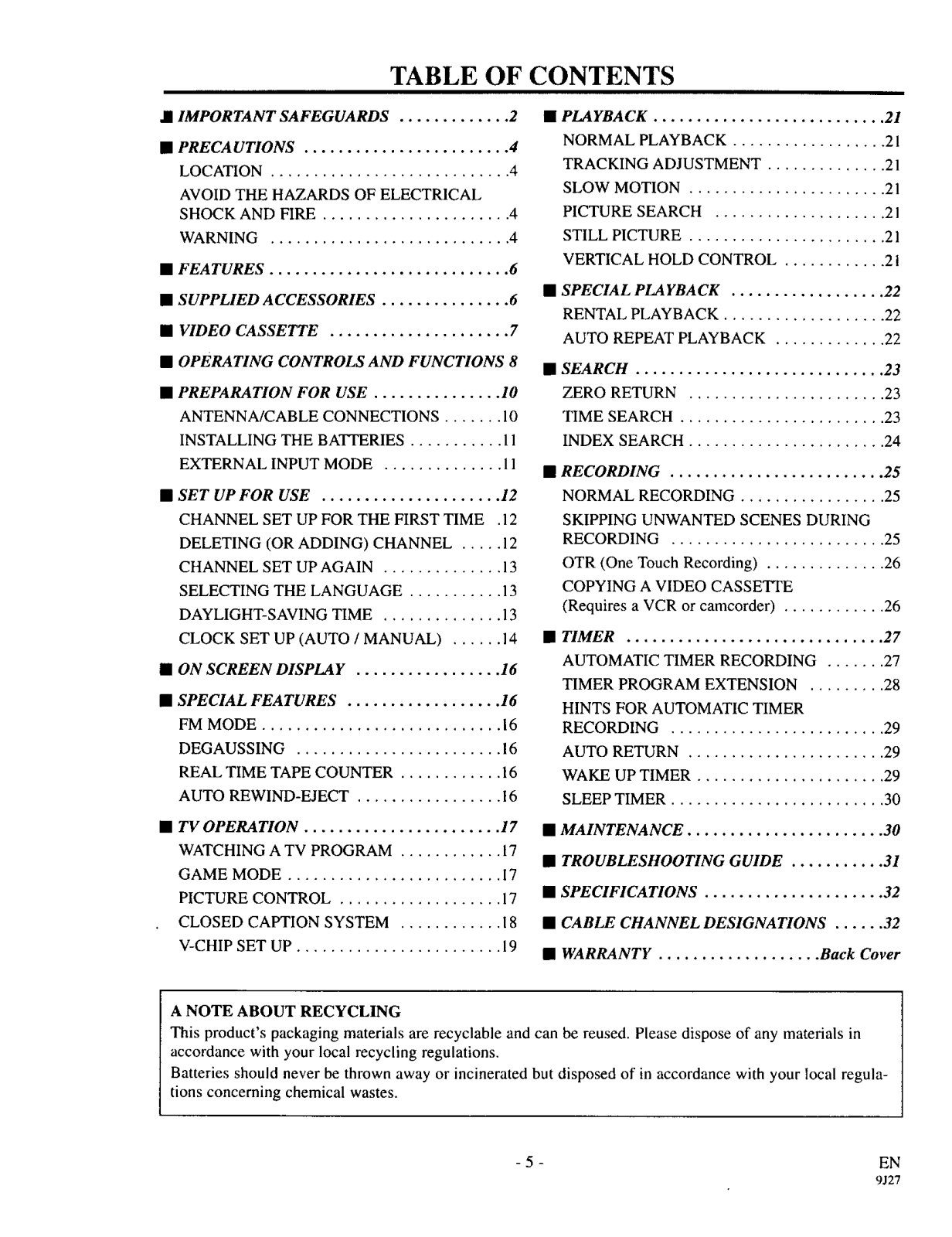

TABLE OF CONTENTS

• IMPORTANT SAFEGUARDS ............. 2 •

• PRECAUTIONS ........................ 4

LOCATION ............................ 4

AVOID THE HAZARDS OF ELECTRICAL

SHOCK AND FIRE ...................... 4

WARNING ............................ 4

• FEATURES ............................ 6

• SUPPLIED ACCESSORIES ............... 6

• VIDEO CASSETTE ..................... 7

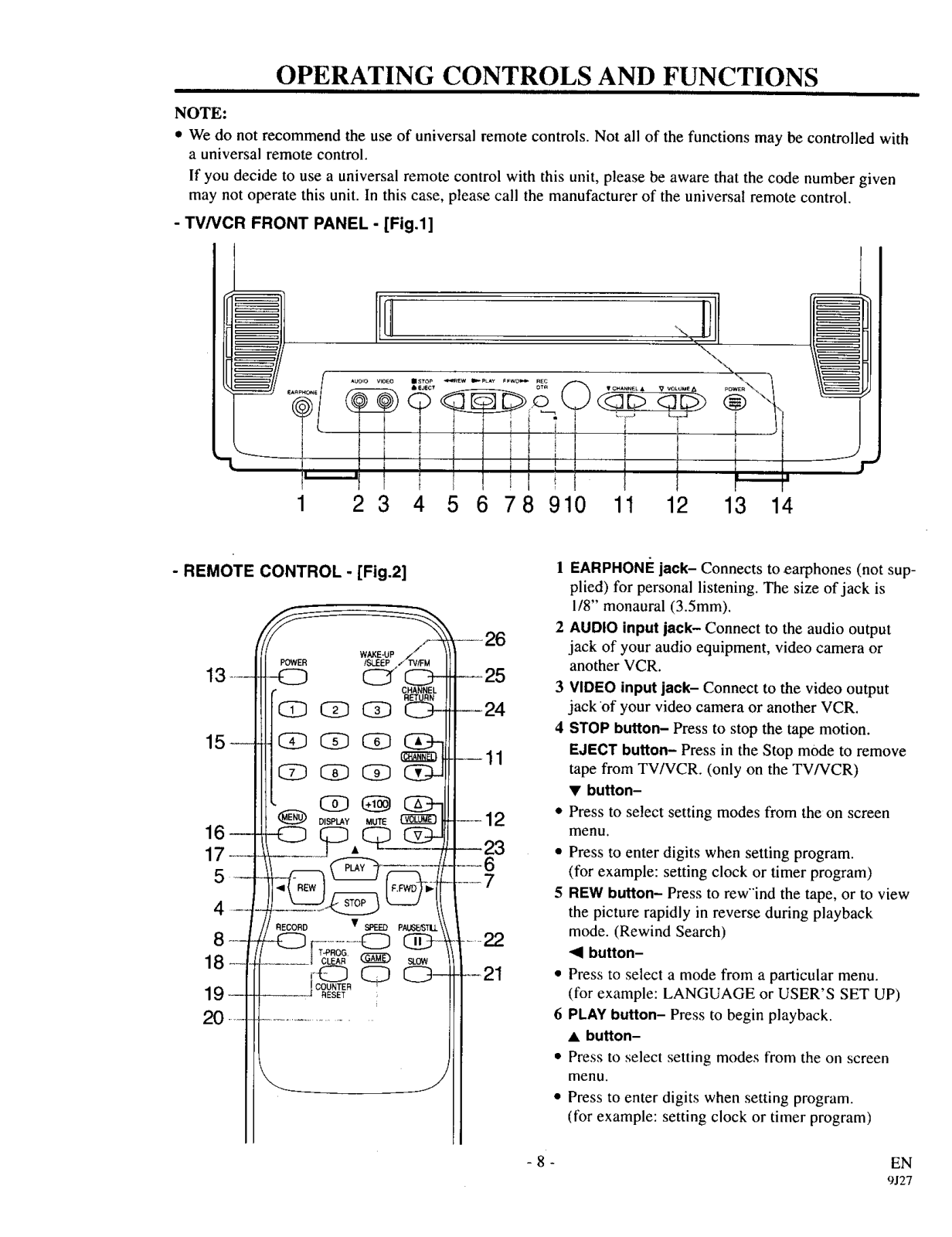

• OPERATING CONTROLS AND FUNCTIONS 8

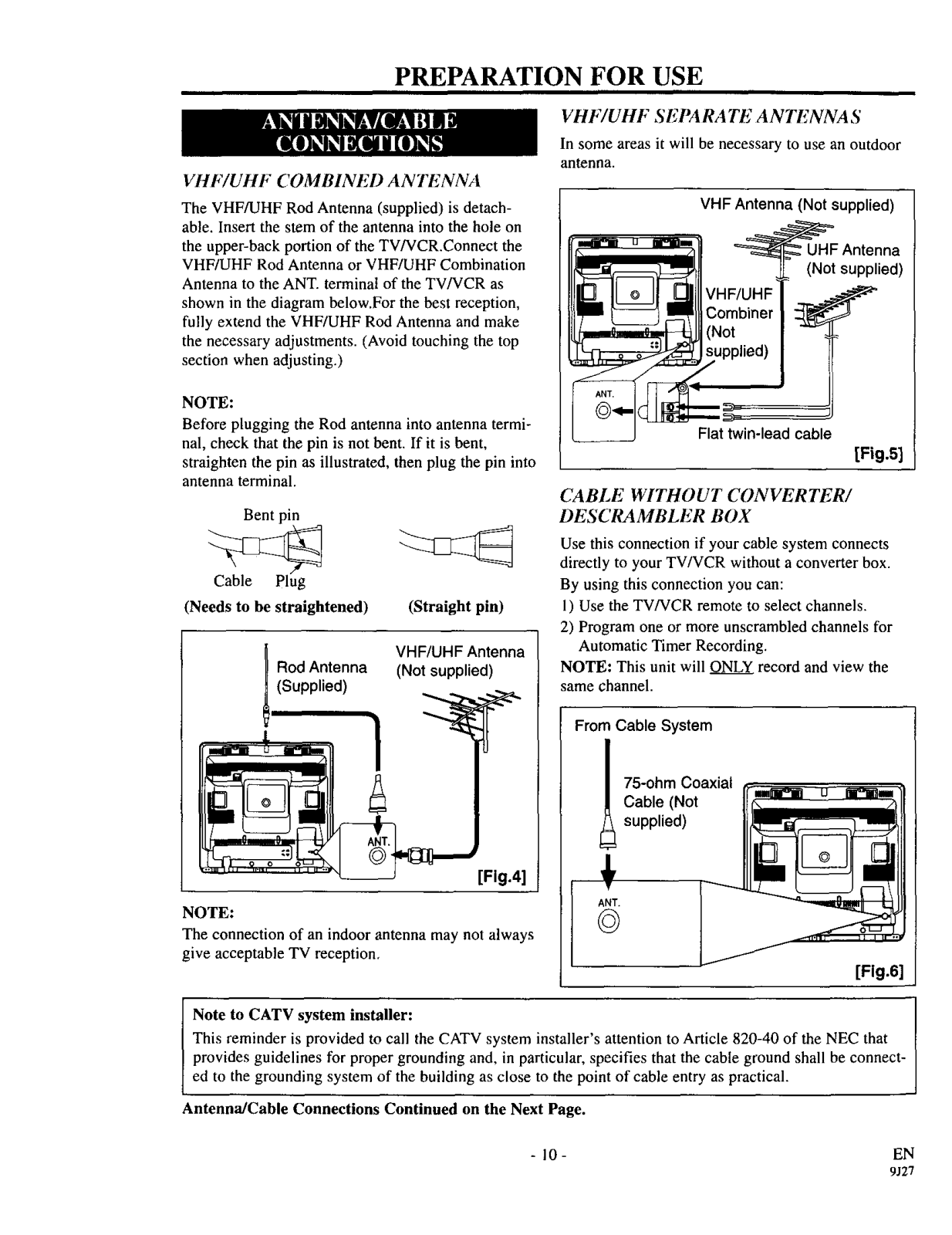

• PREPARATION FOR USE ............... 10

ANTENNA/CABLE CONNECTIONS ....... 10

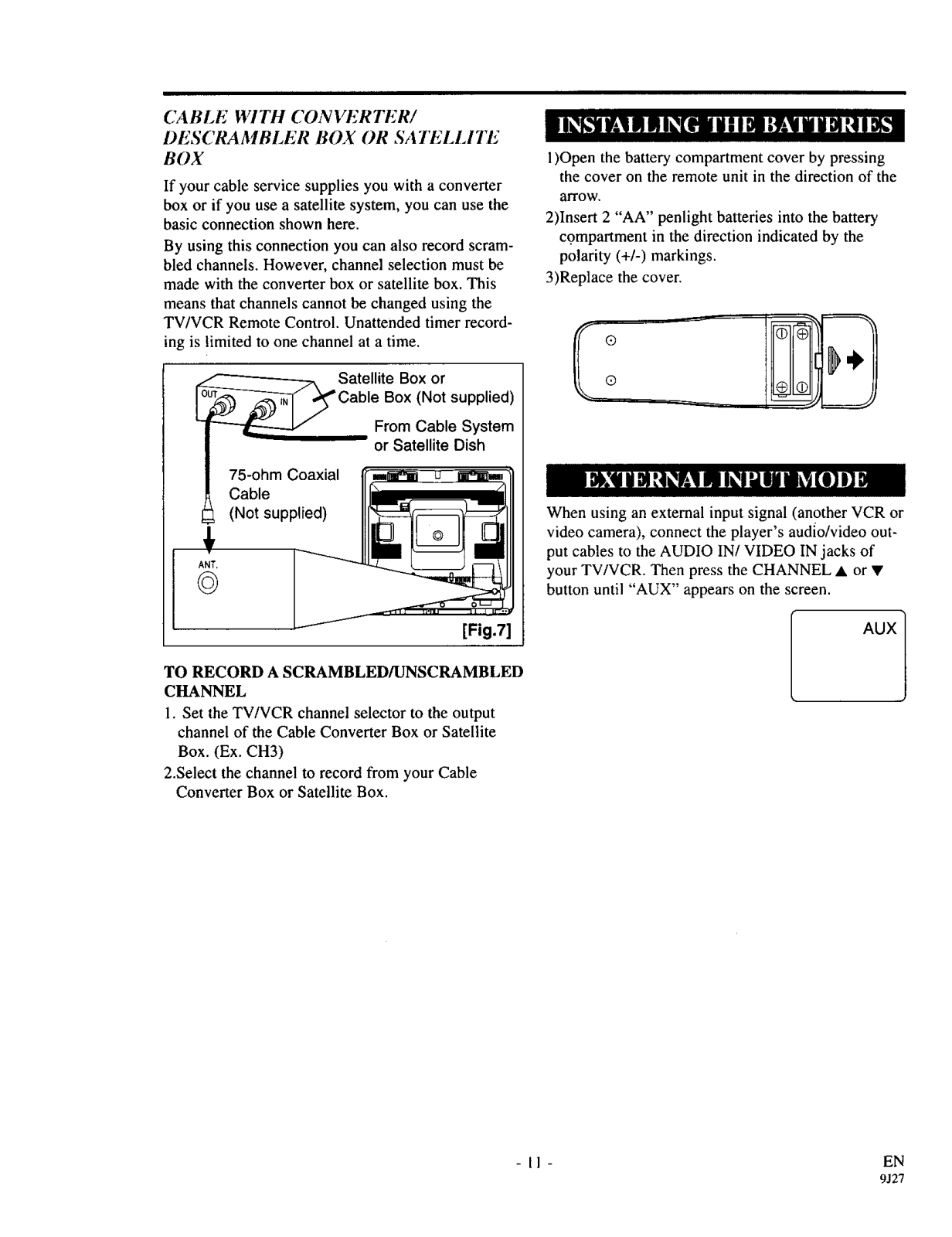

INSTALLING THE BATTERIES ........... 11

EXTERNAL INPUT MODE .............. 11

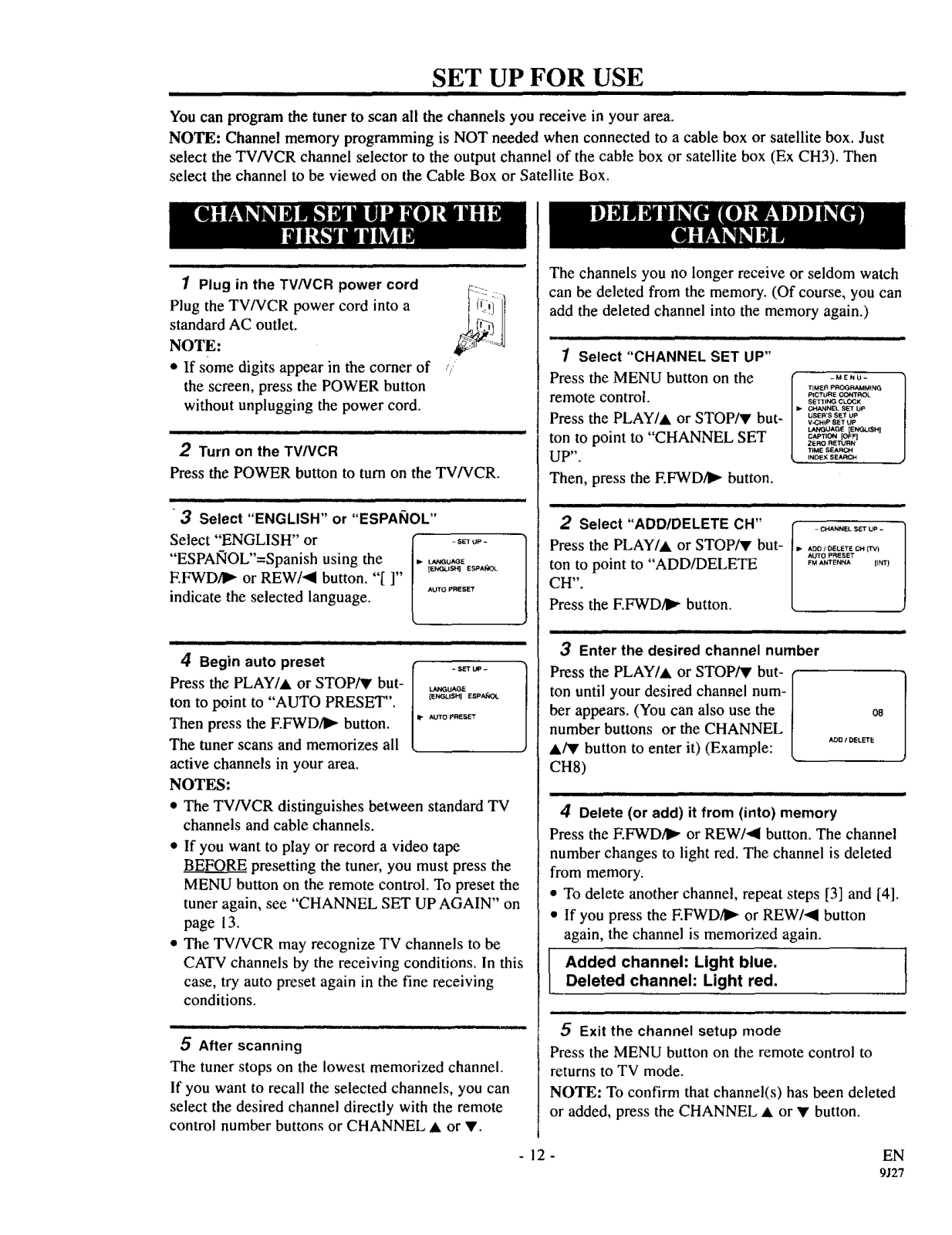

• SET UP FOR USE ..................... 12

CHANNEL SET UP FOR THE FIRST TIME .12

DELETING (OR ADDING) CHANNEL ..... 12

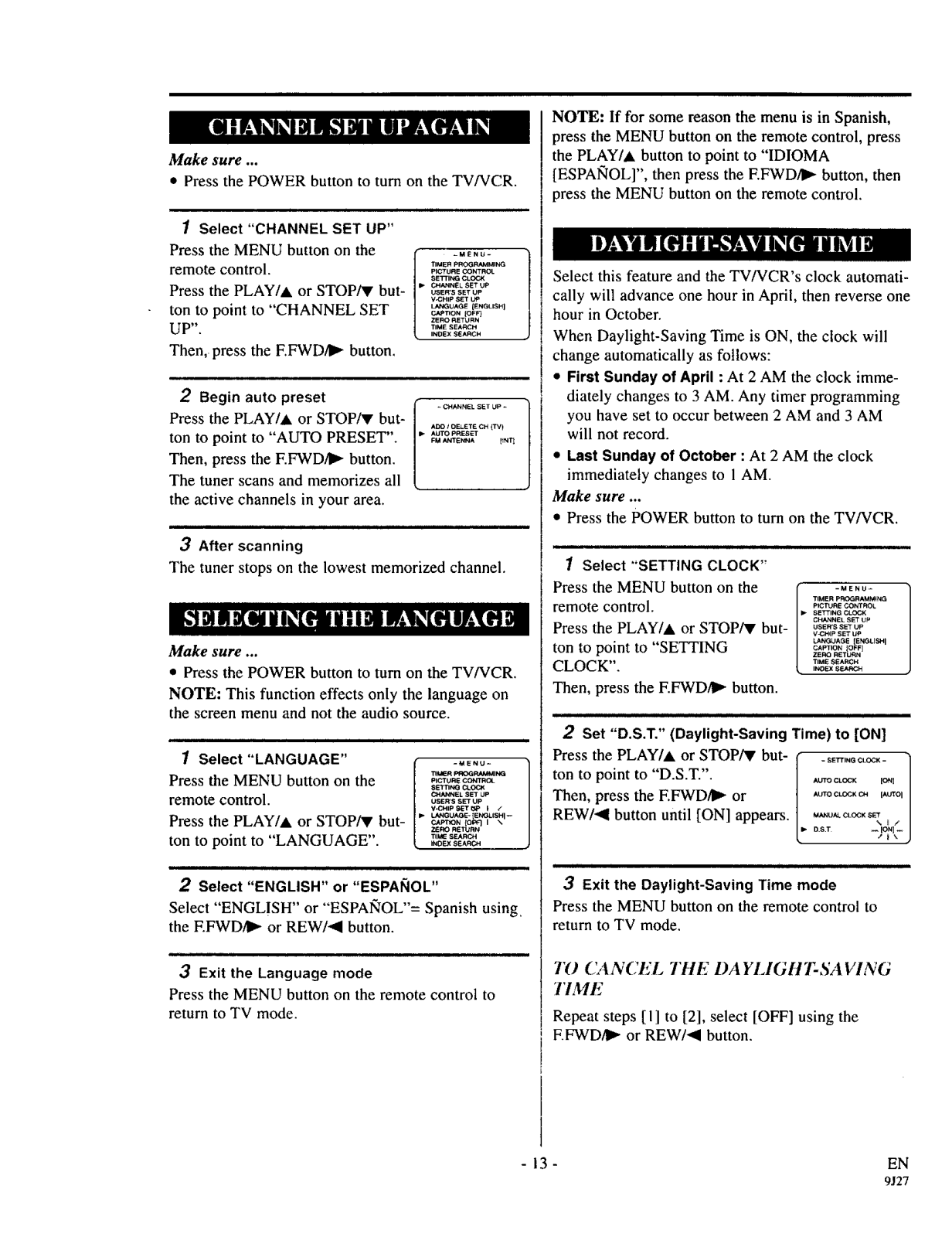

CHANNEL SET UP AGAIN .............. 13

SELECTING THE LANGUAGE ........... 13

DAYLIGHT-SAVING TIME .............. 13

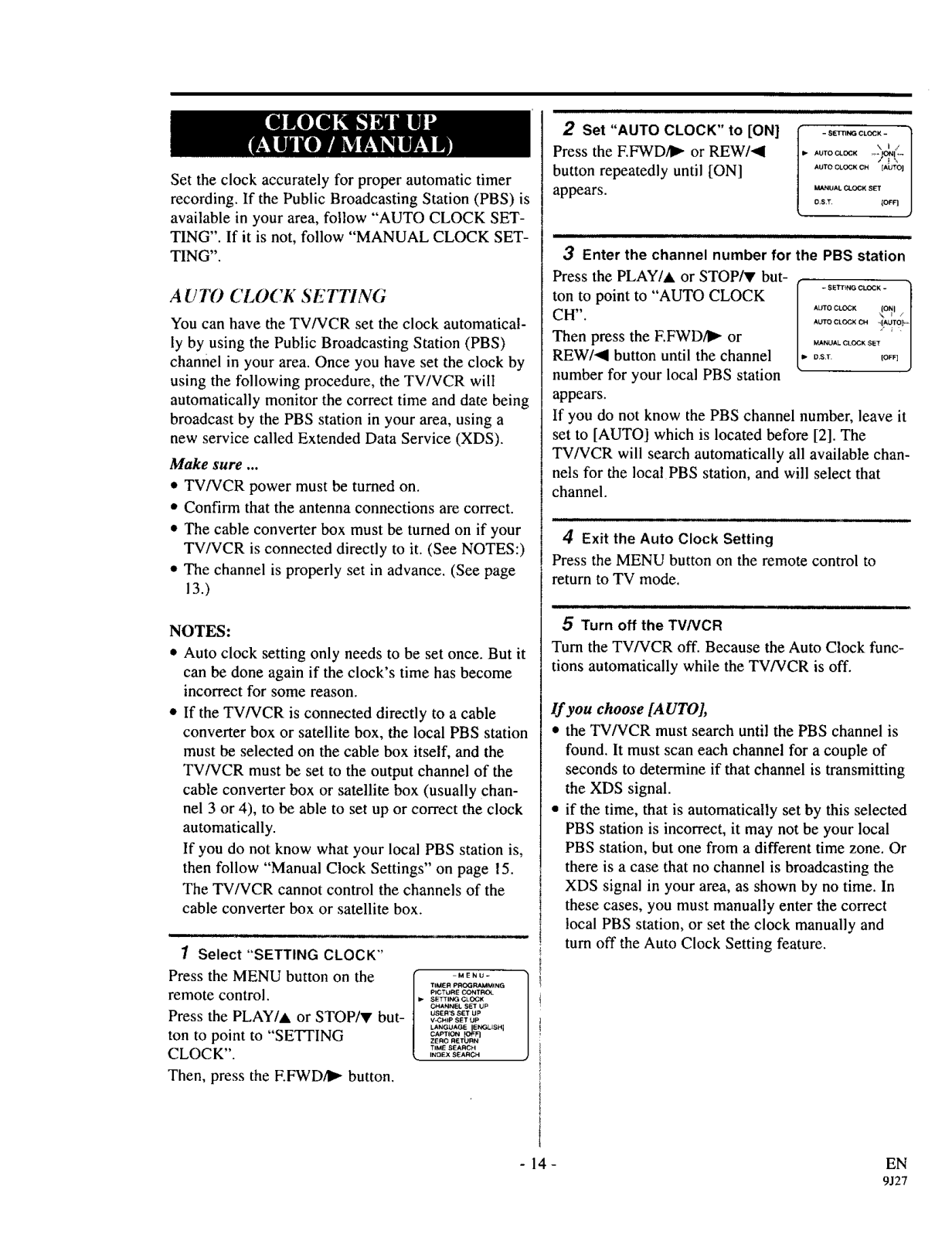

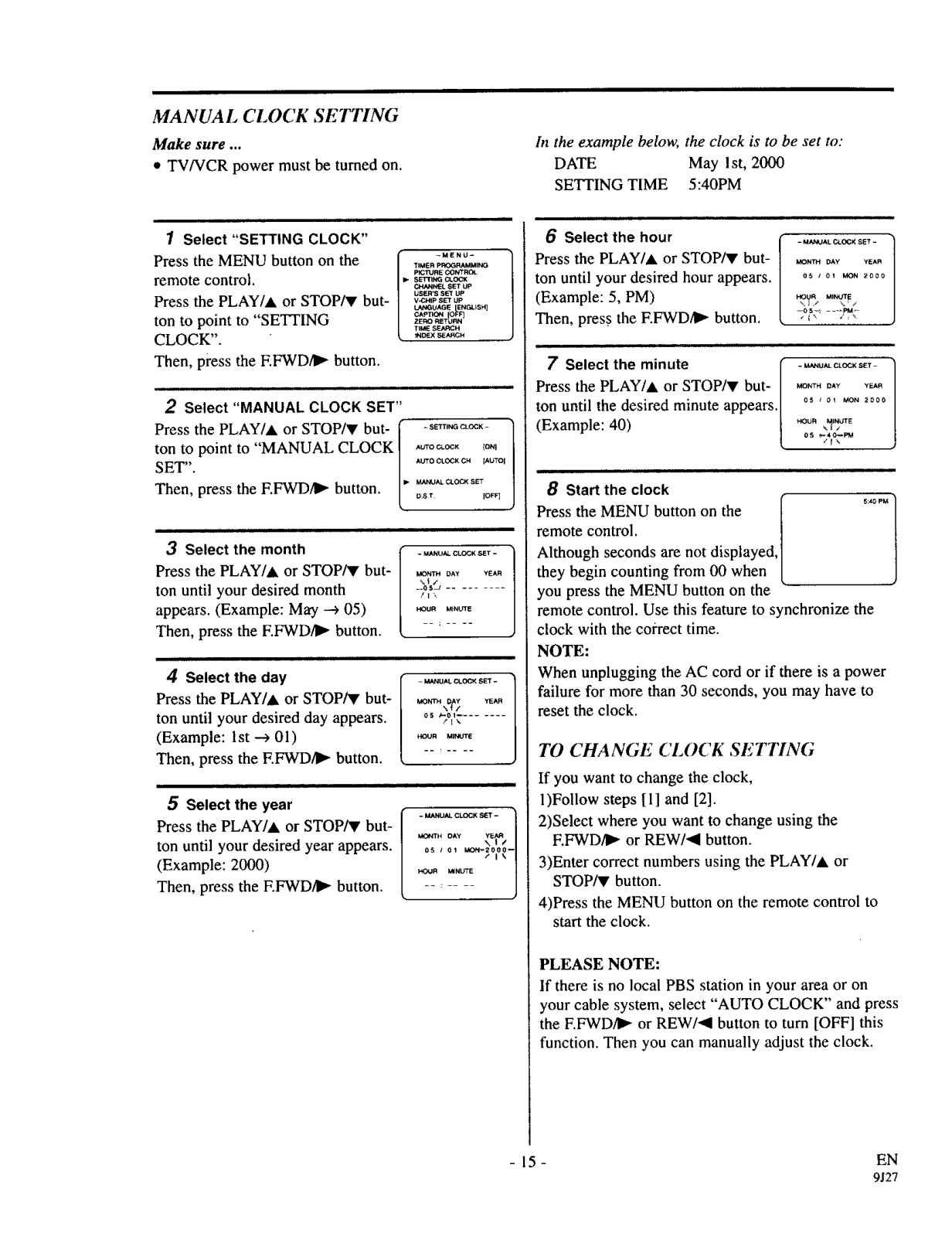

CLOCK SET UP (AUTO / MANUAL) ...... 14

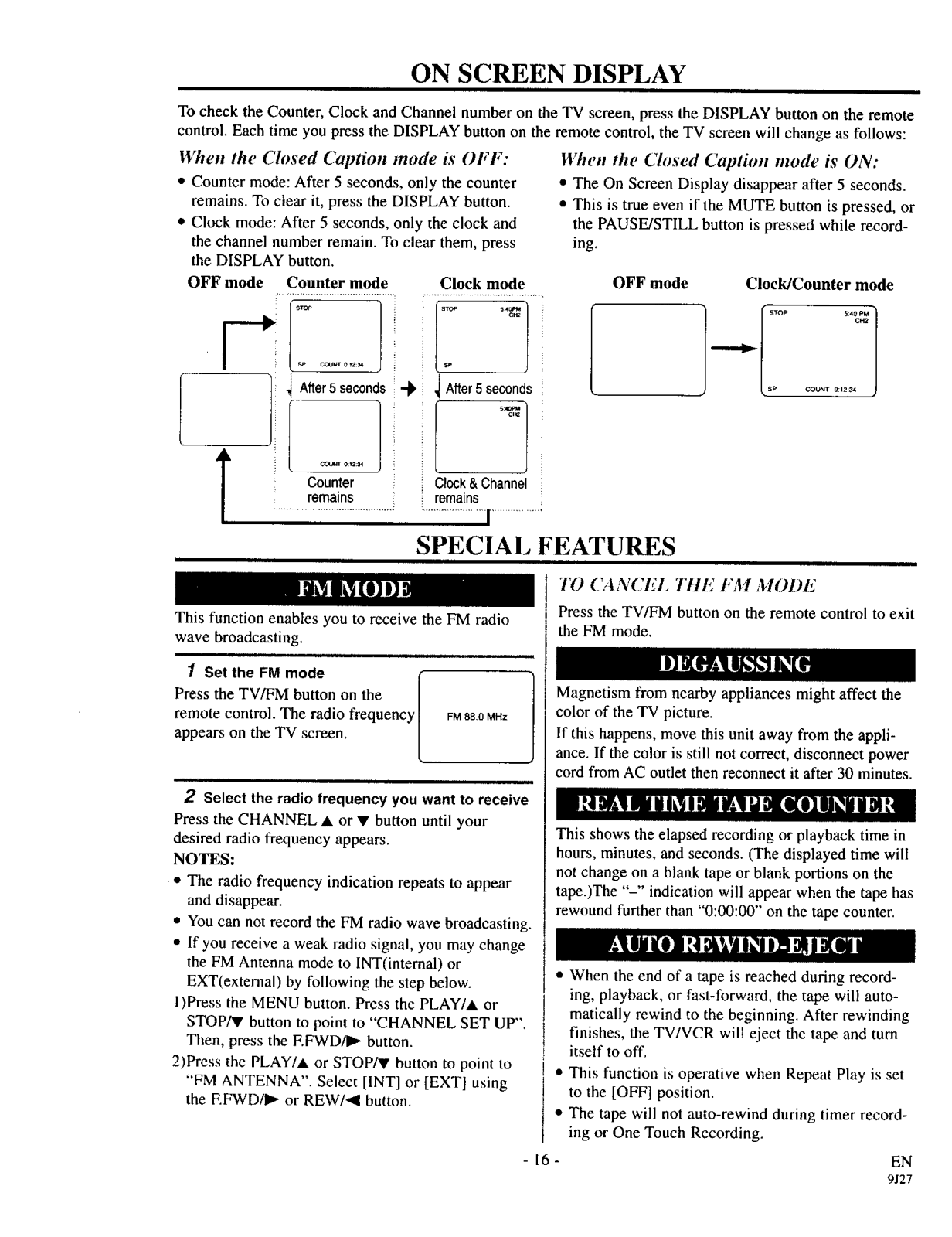

• ON SCREEN DISPLAY ................. 16

• SPECIAL FEATURES .................. 16

FM MODE ............................ | 6

DEGAUSSING ........................ 16

REAL TIME TAPE COUNTER ............ 16

AUTO REWIND-EJECT ................. 16

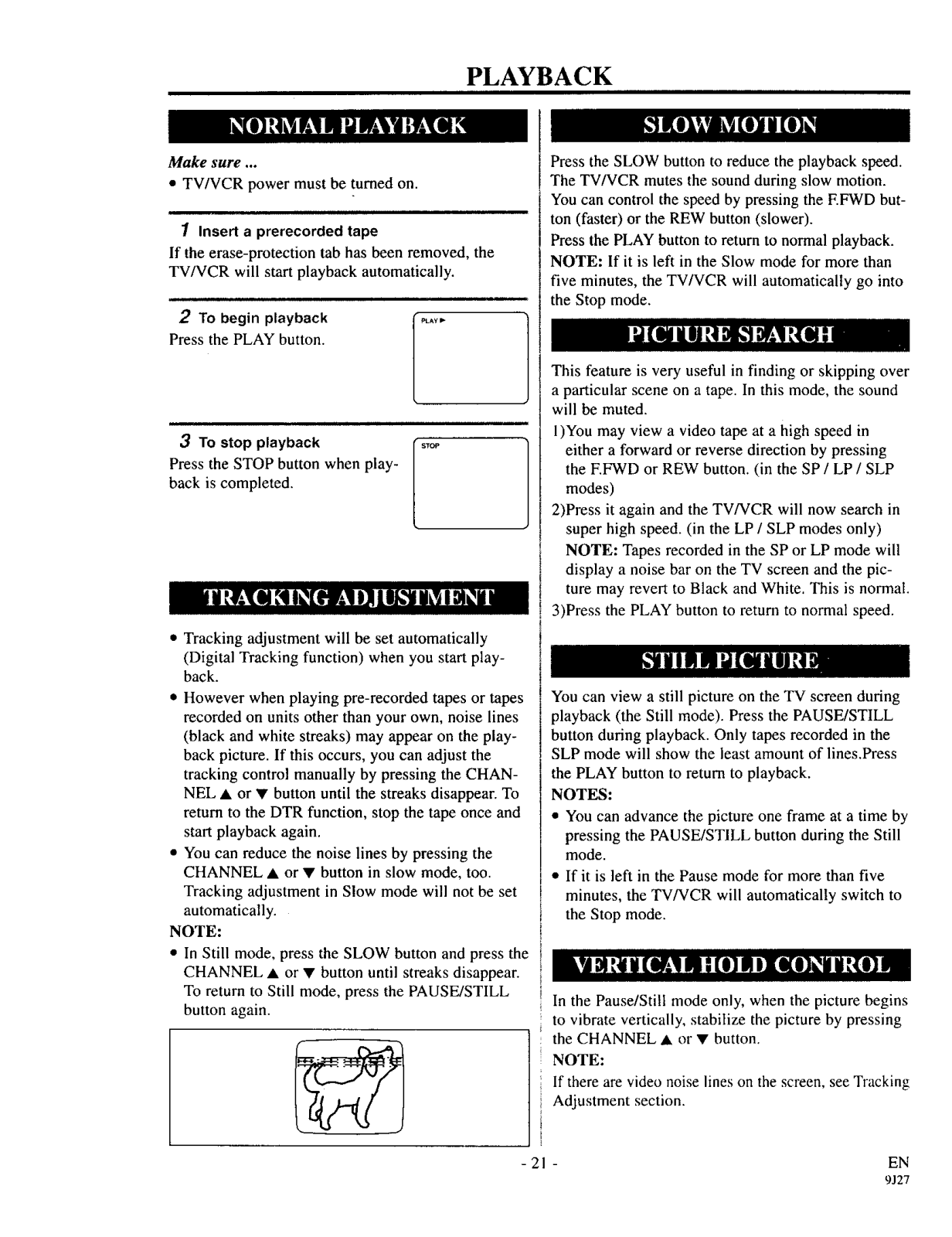

PLAYBACK ........................... 21

NORMAL PLAYBACK .................. 21

TRACKING ADJUSTMENT .............. 21

SLOW MOTION ....................... 21

PICTURE SEARCH .................... 2I

STILL PICTURE ....................... 21

VERTICAL HOLD CONTROL ............ 21

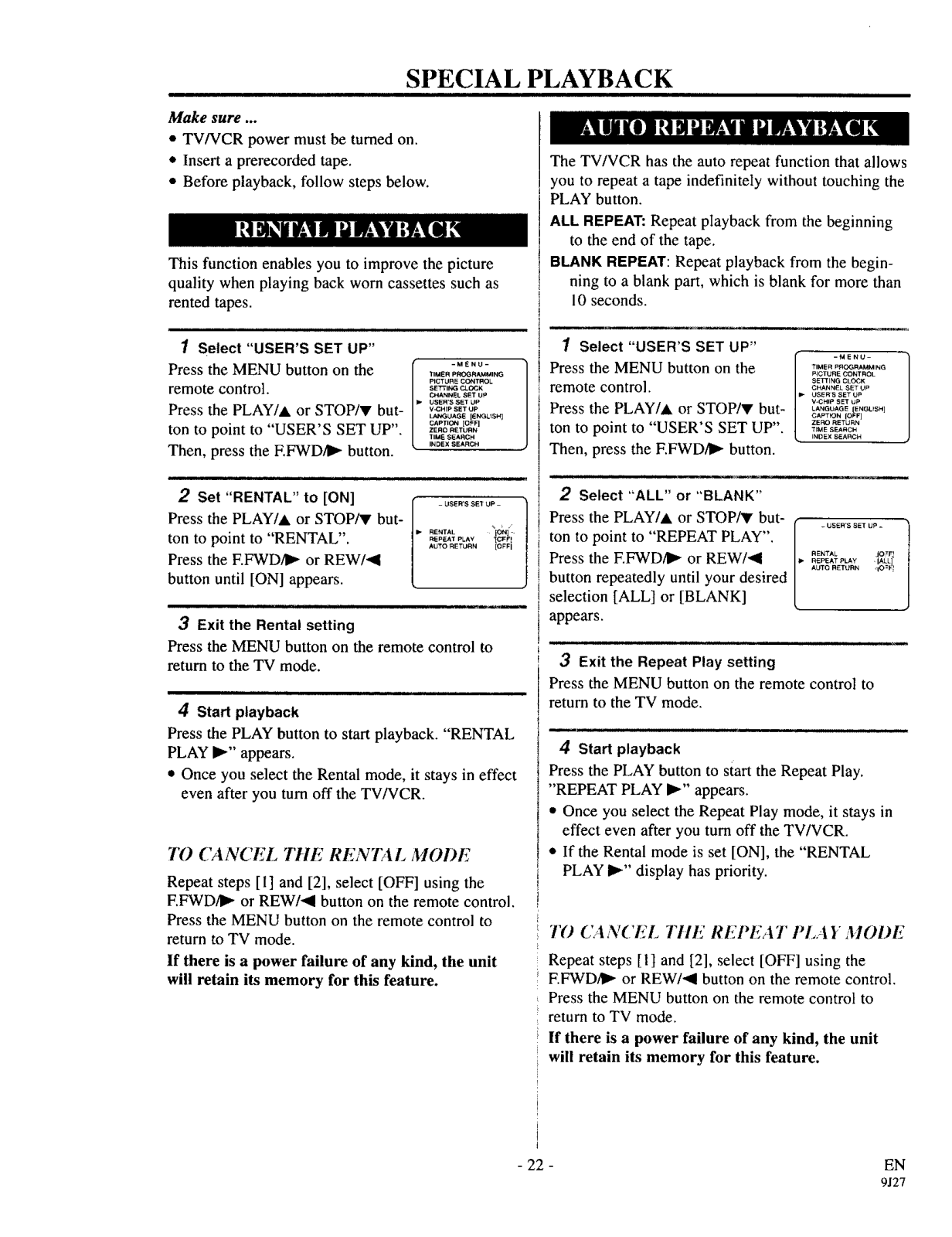

• SPECIAL PLAYBACK .................. 22

RENTAL PLAYBACK ................... 22

AUTO REPEAT PLAYBACK ............. 22

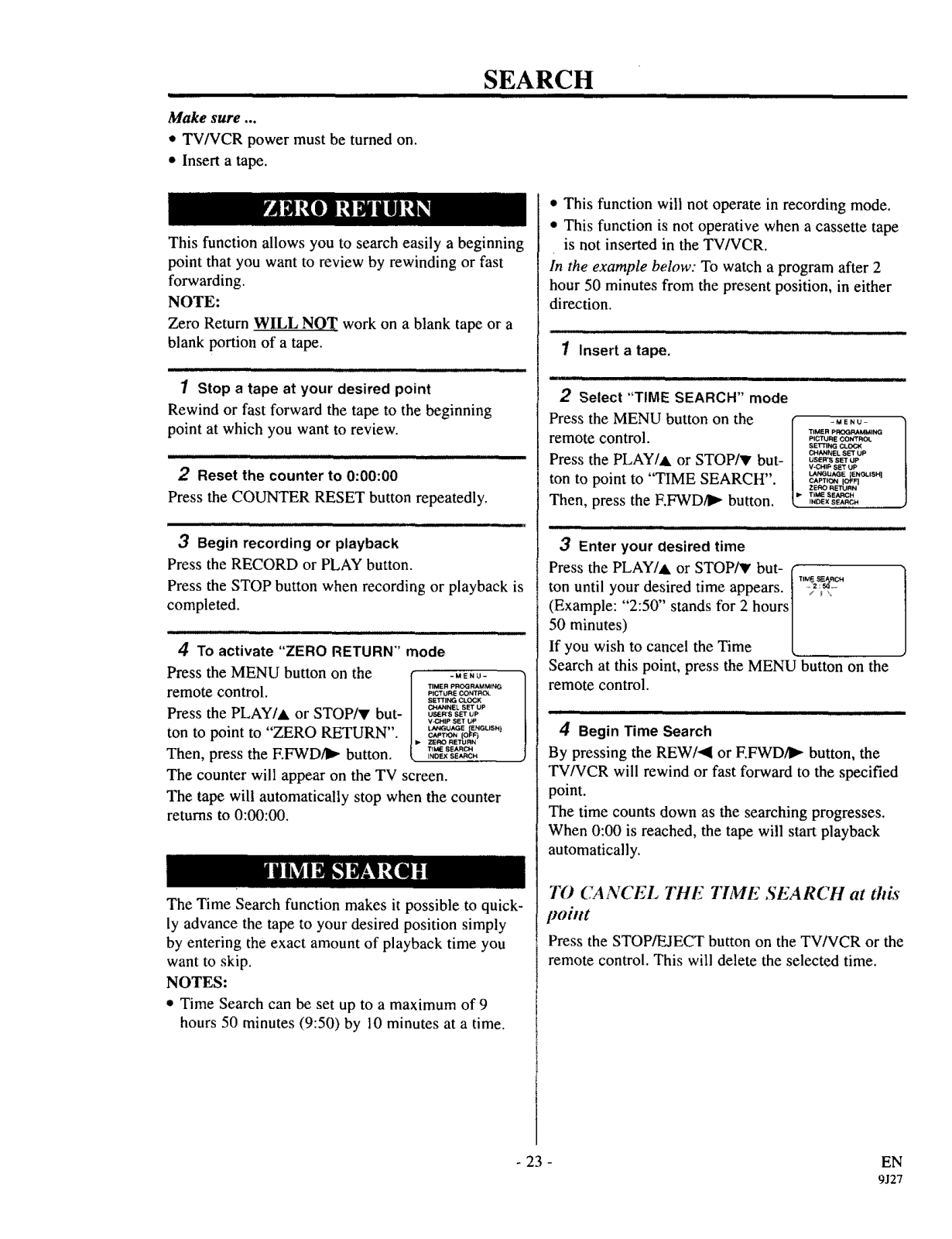

SEARCH ............................. 23

ZERO RETURN ....................... 23

TIME SEARCH ........................ 23

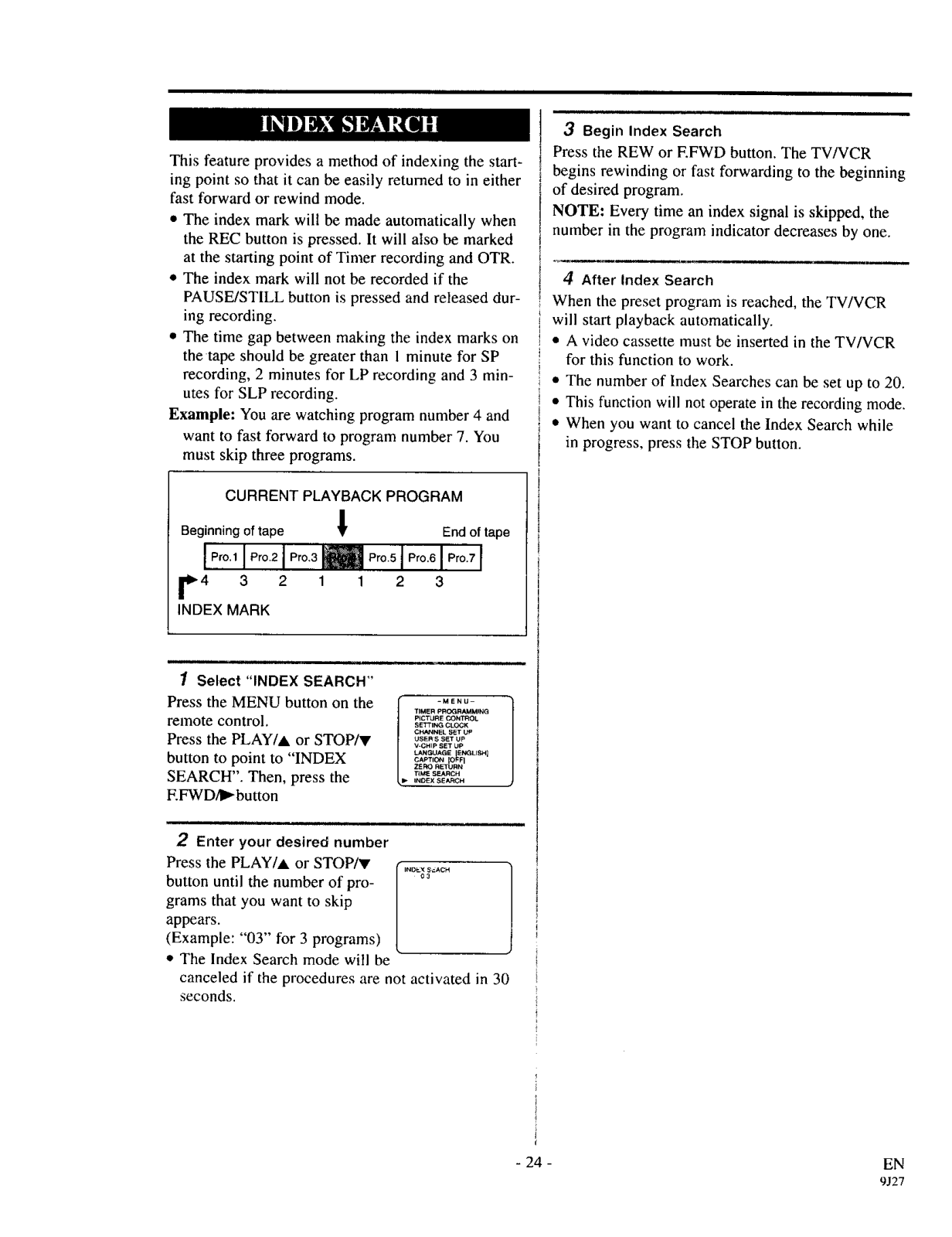

INDEX SEARCH ....................... 24

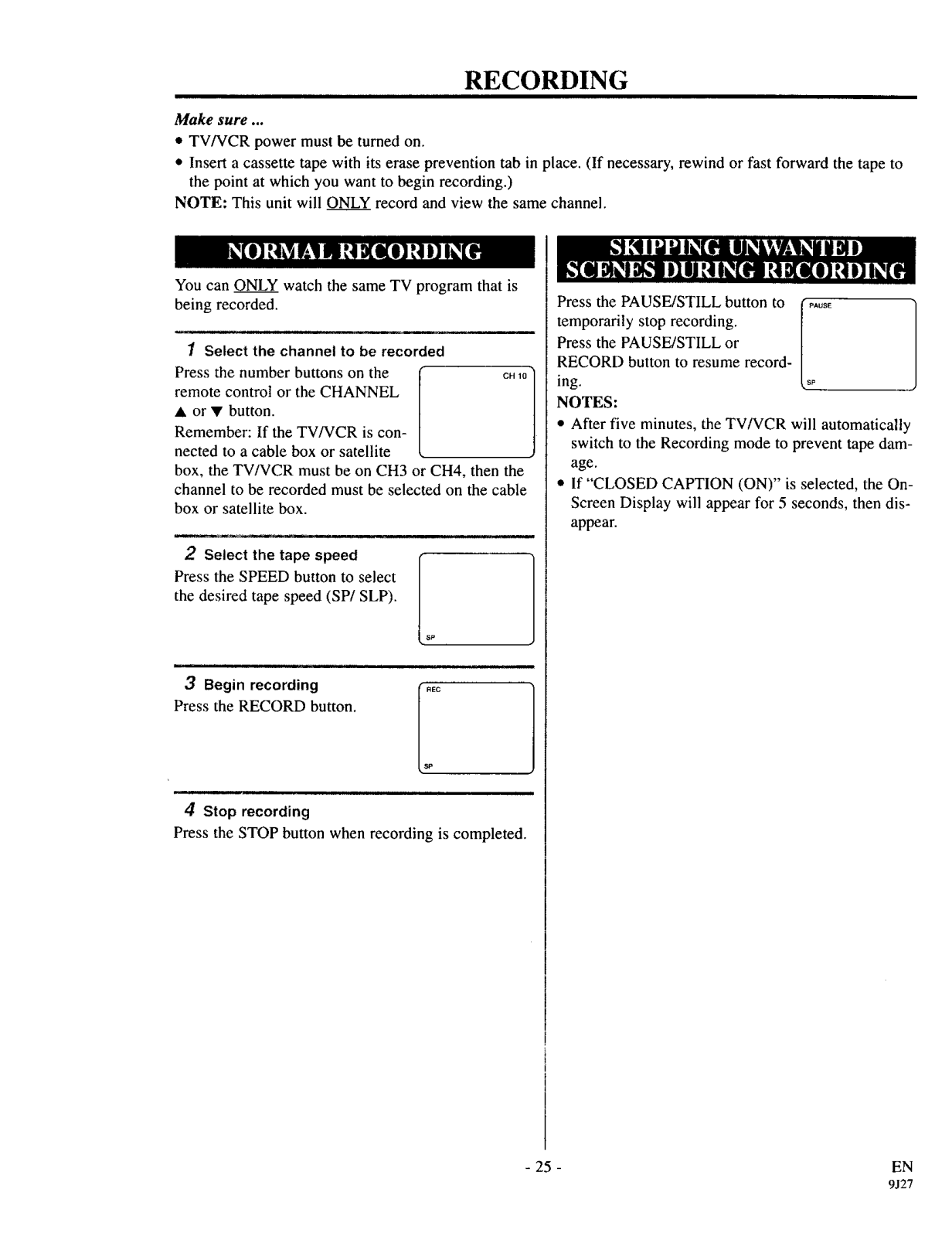

• RECORDING ......................... 25

NORMAL RECORDING ................. 25

SKIPPING UNWANTED SCENES DURING

RECORDING ......................... 25

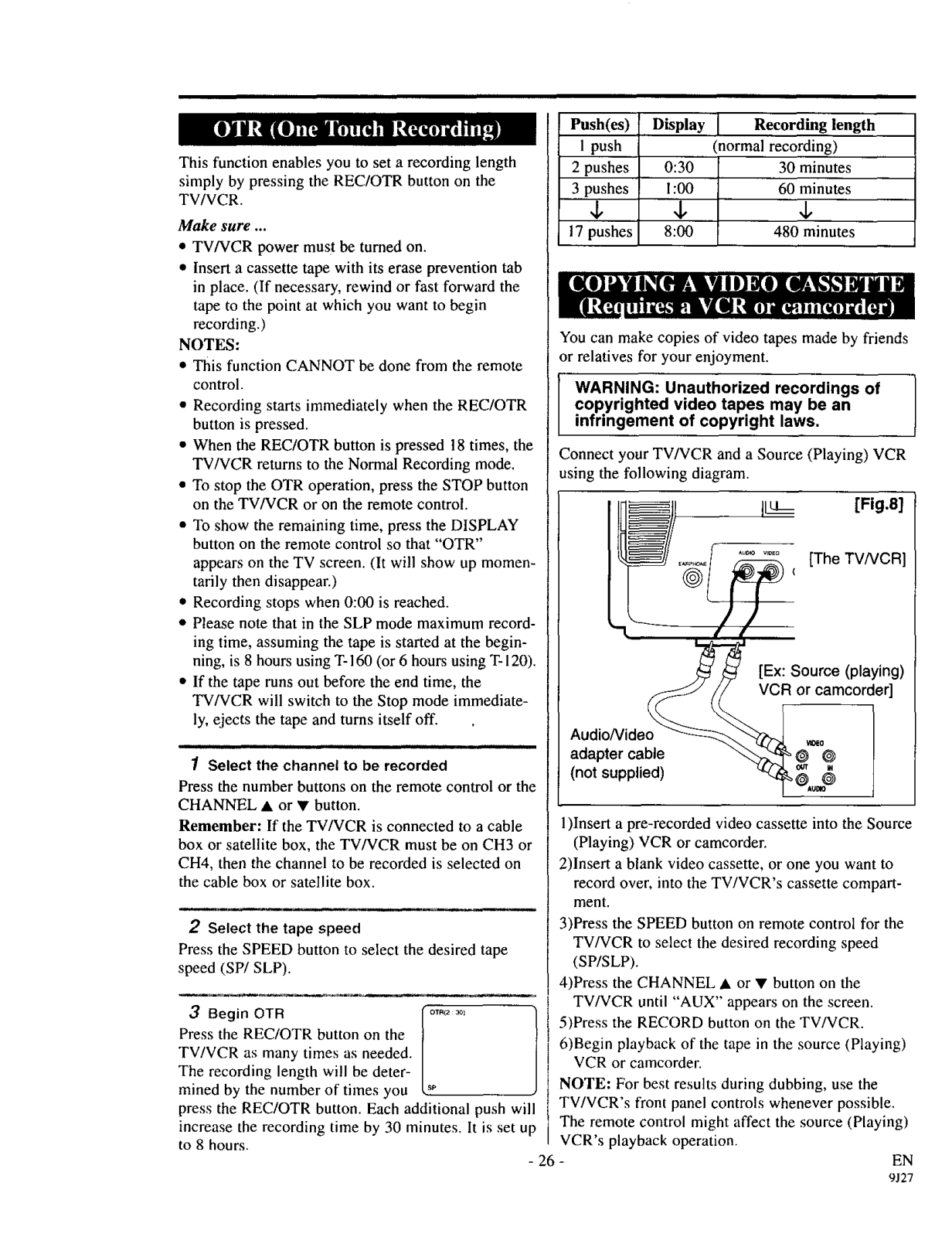

OTR (One Touch Recording) .............. 26

COPYING A VIDEO CASSETFE

(Requires a VCR or camcorder) ............ 26

• TIMER .............................. 27

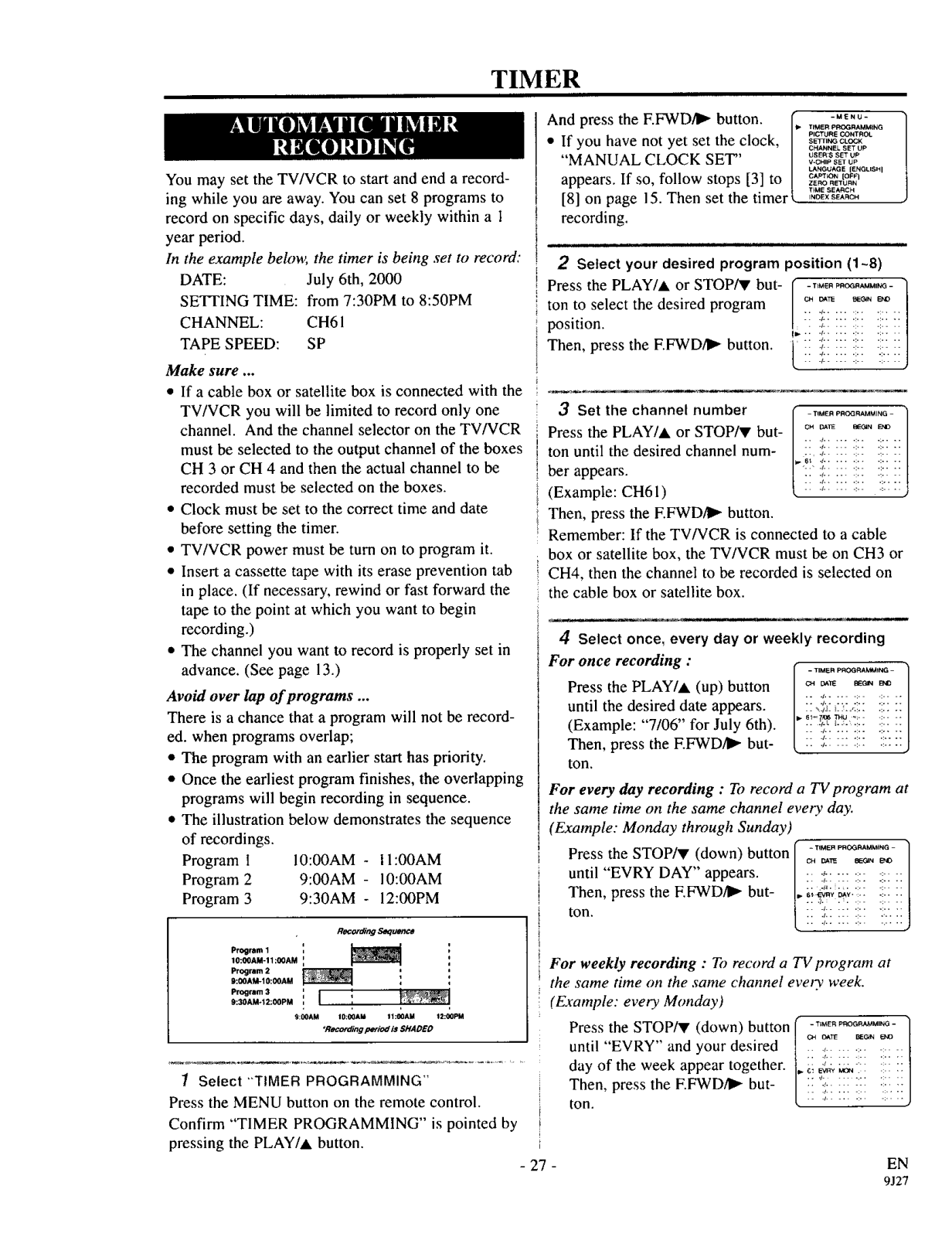

AUTOMATIC TIMER RECORDING ....... 27

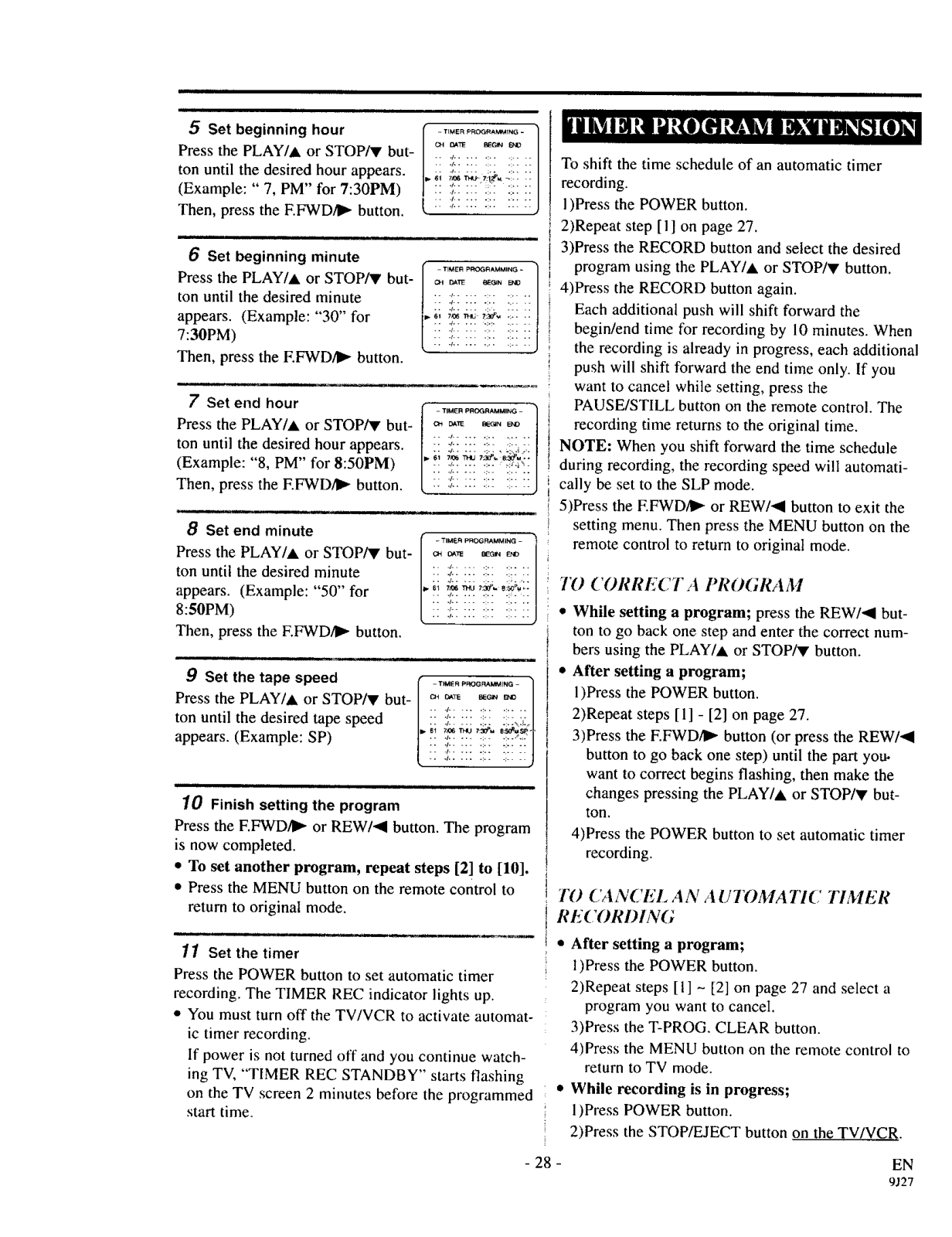

TIMER PROGRAM EXTENSION ......... 28

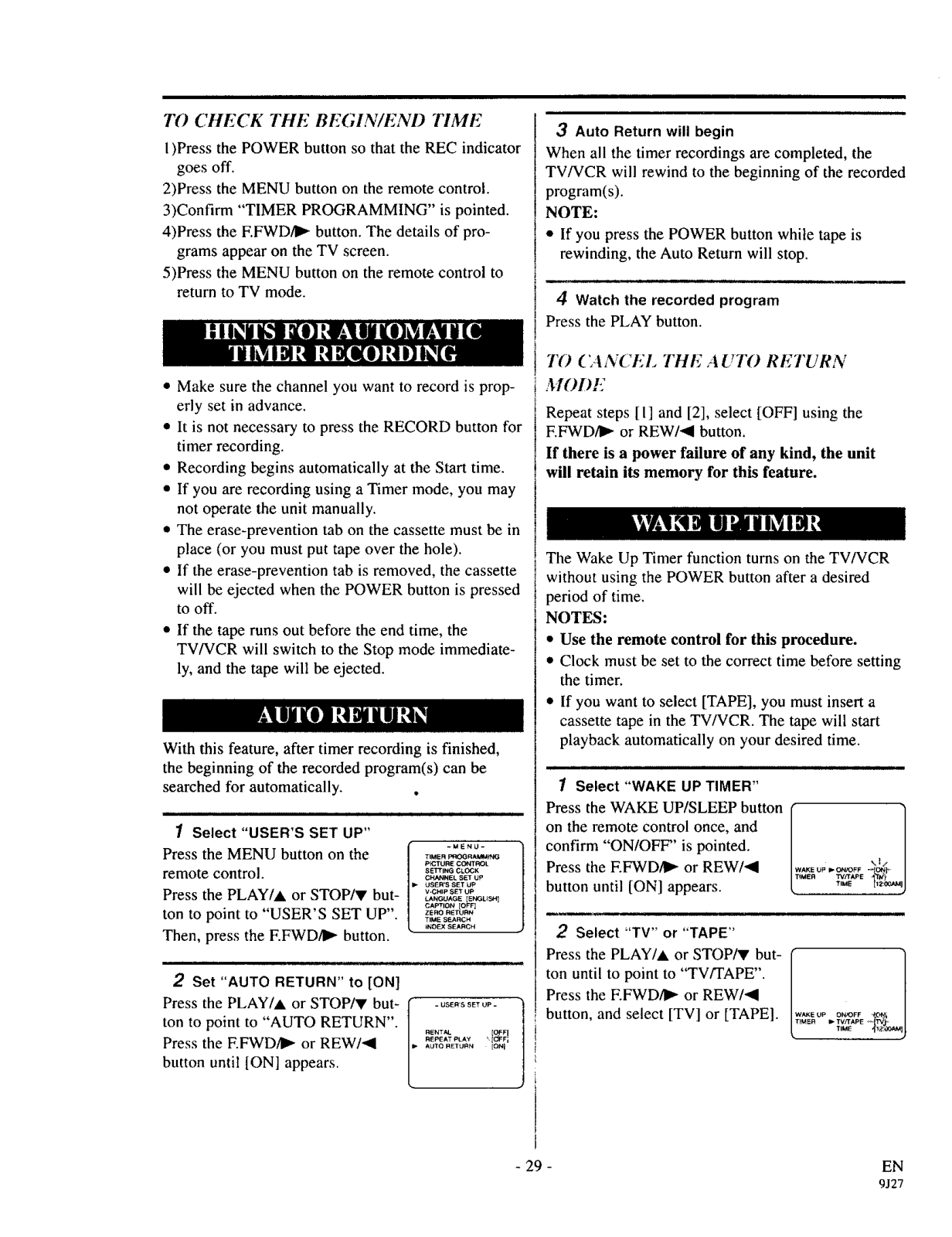

HINTS FOR AUTOMATIC TIMER

RECORDING ......................... 29

AUTO RETURN ....................... 29

WAKE UP TIMER ...................... 29

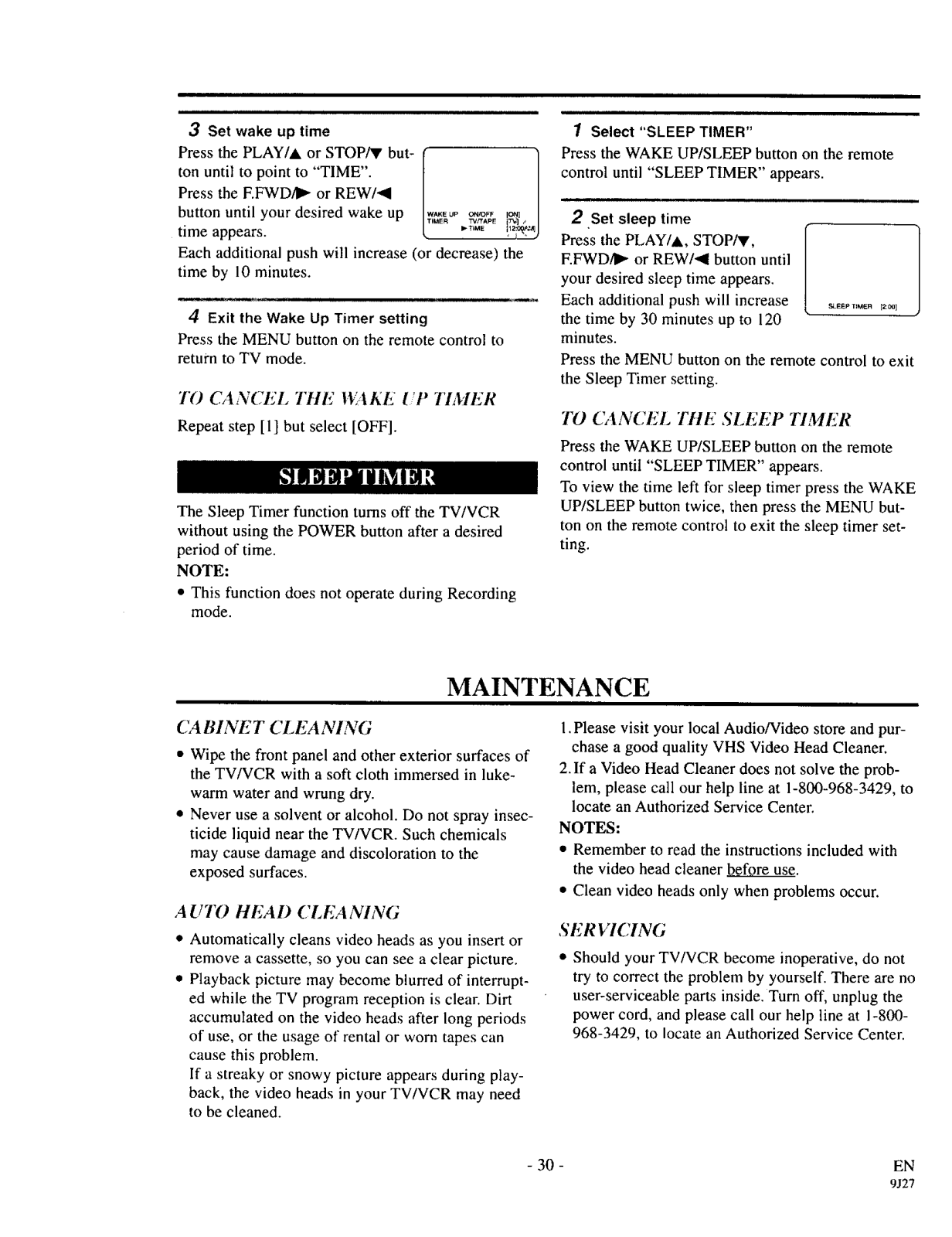

SLEEP TIMER ......................... 30

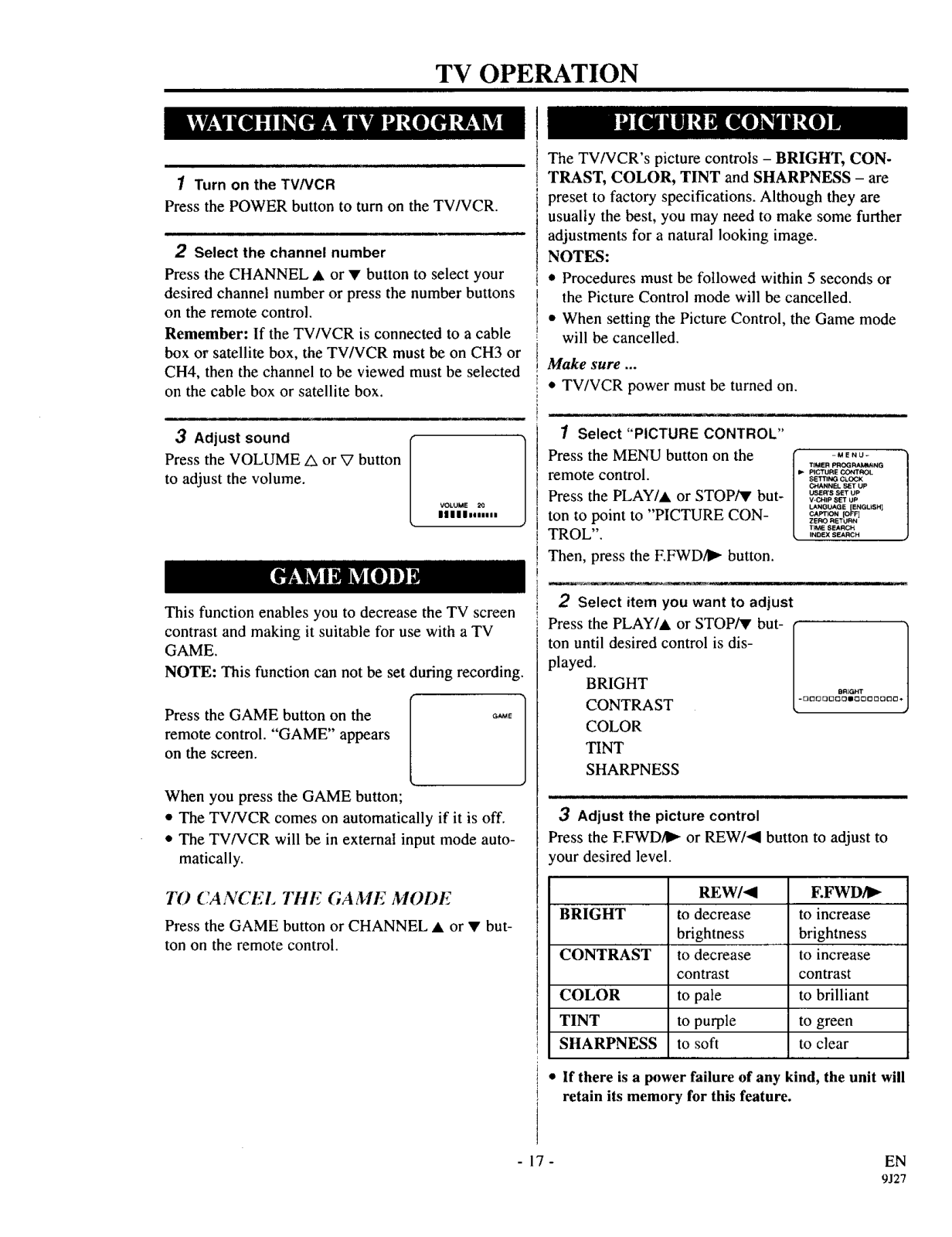

• TV OPERATION ....................... 17

WATCHING A TV PROGRAM ............ 17

GAME MODE ......................... 17

PICTURE CONTROL ................... 17

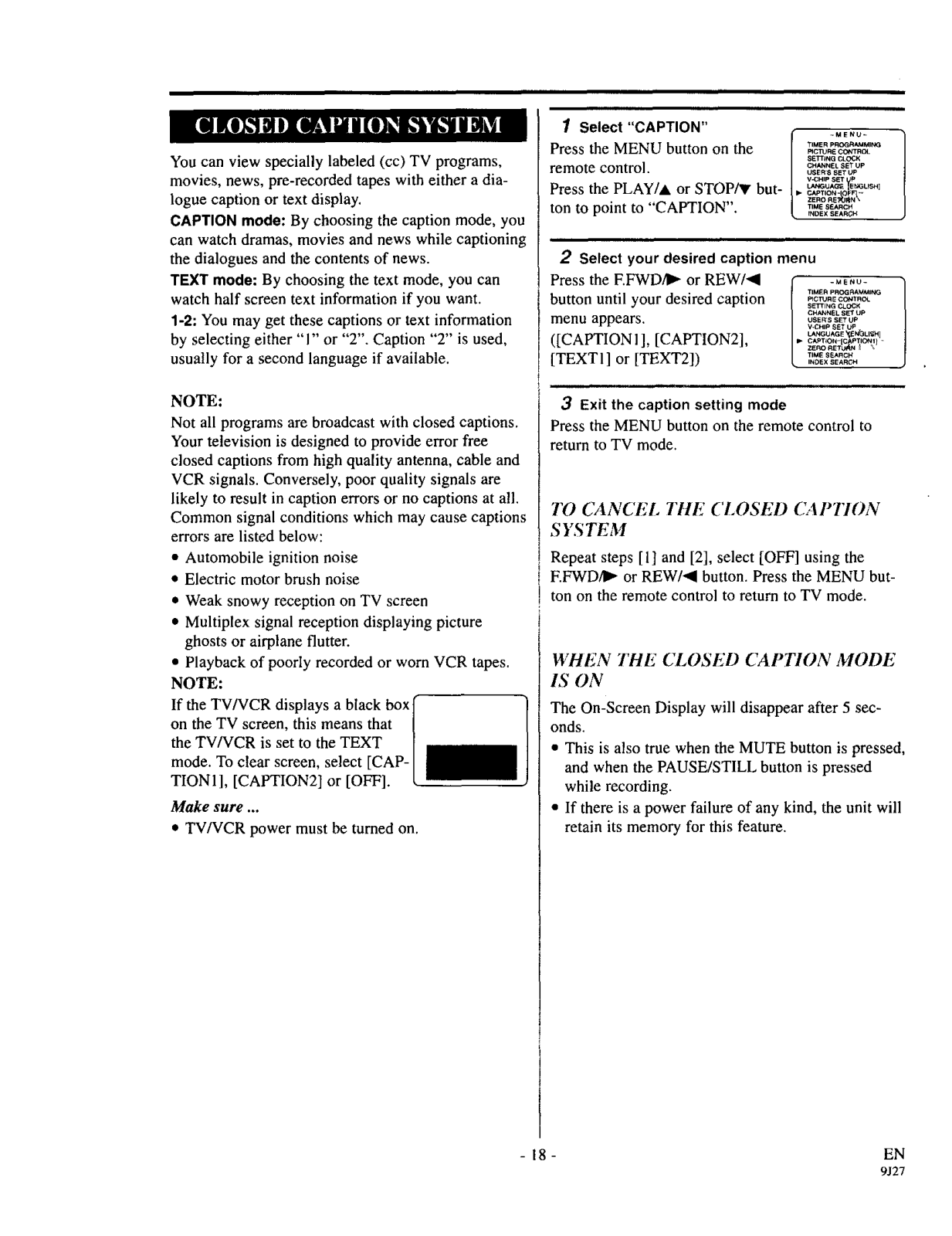

CLOSED CAPTION SYSTEM ............ 18

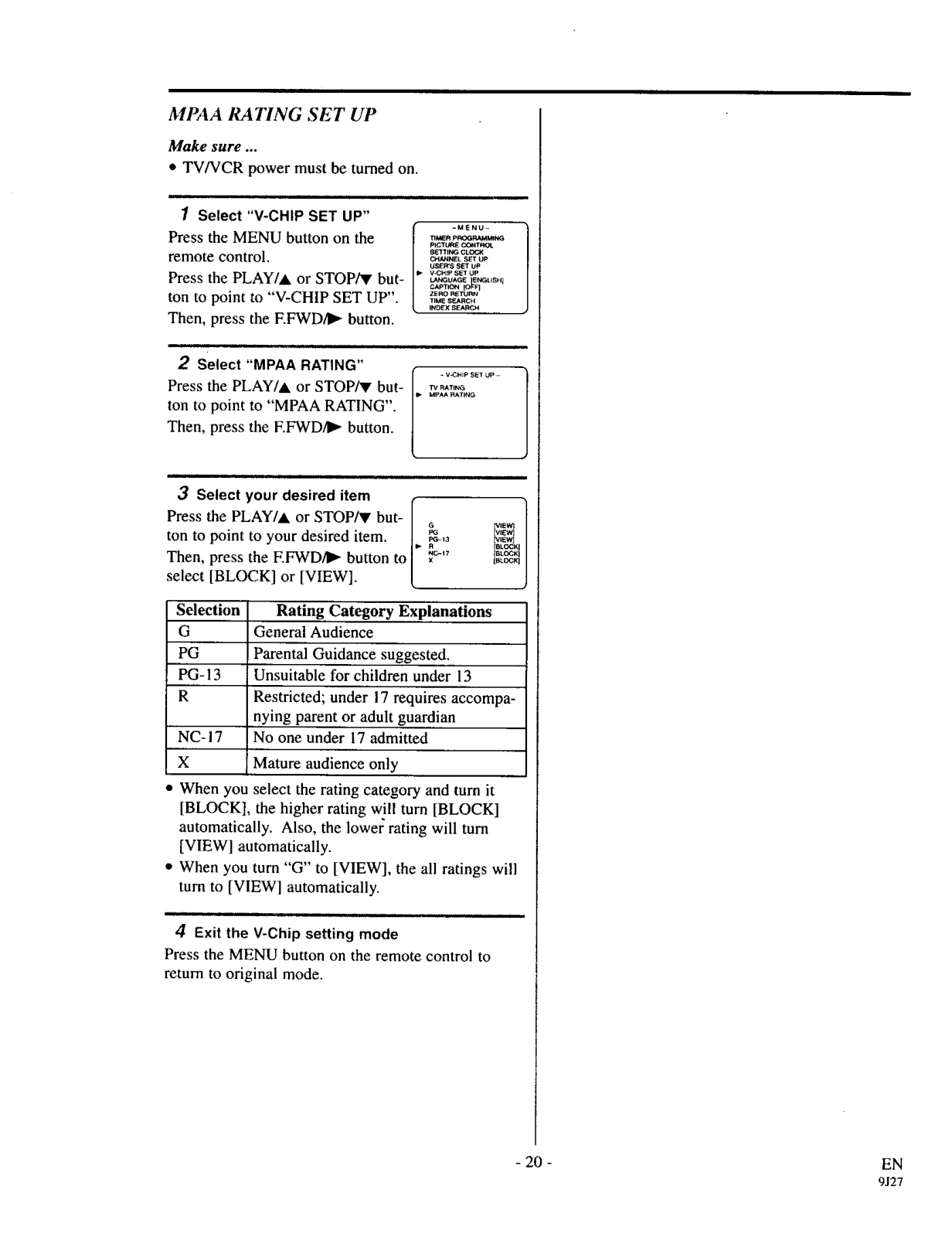

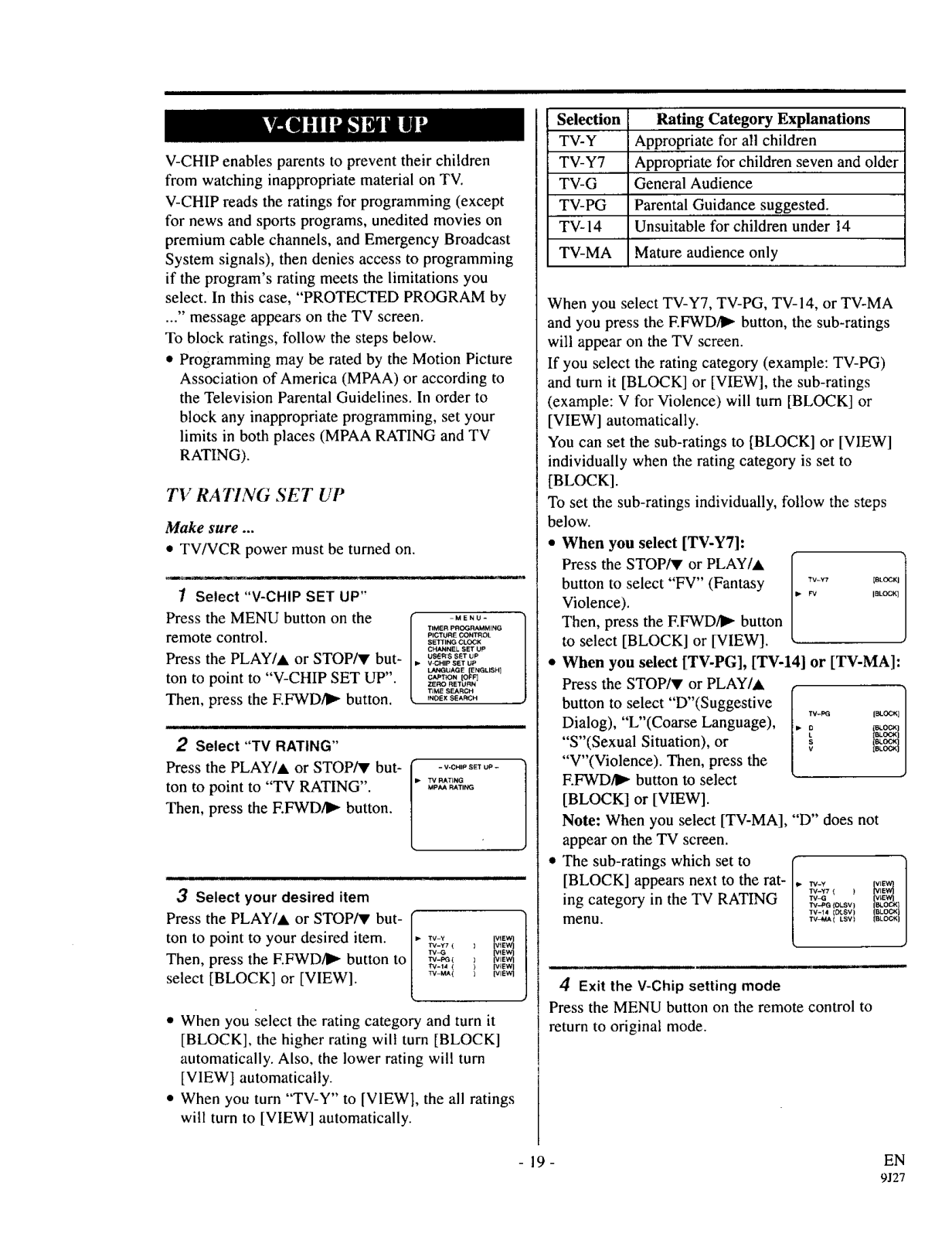

V-CHIP SET UP ........................ 19

ANOTEABOUTRECYCLING This product's packaging materials are recyclable and can be reused. Please dispose of any materials in

accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated bat disposed of in accordance with your local regula-

tions concerning chemical wastes.

• MAINTENANCE ....................... 30

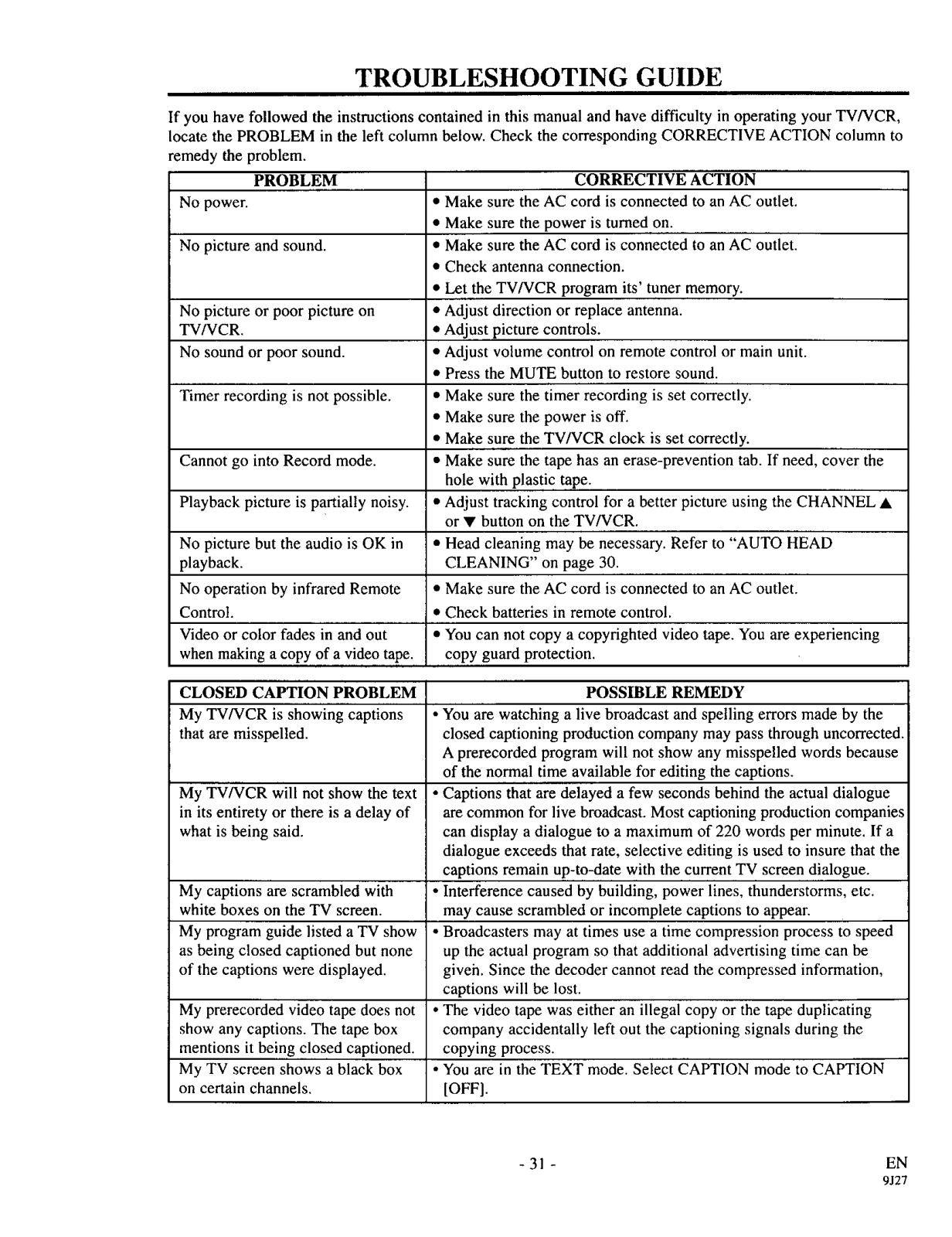

• TROUBLESHOOTING GUIDE ........... 31

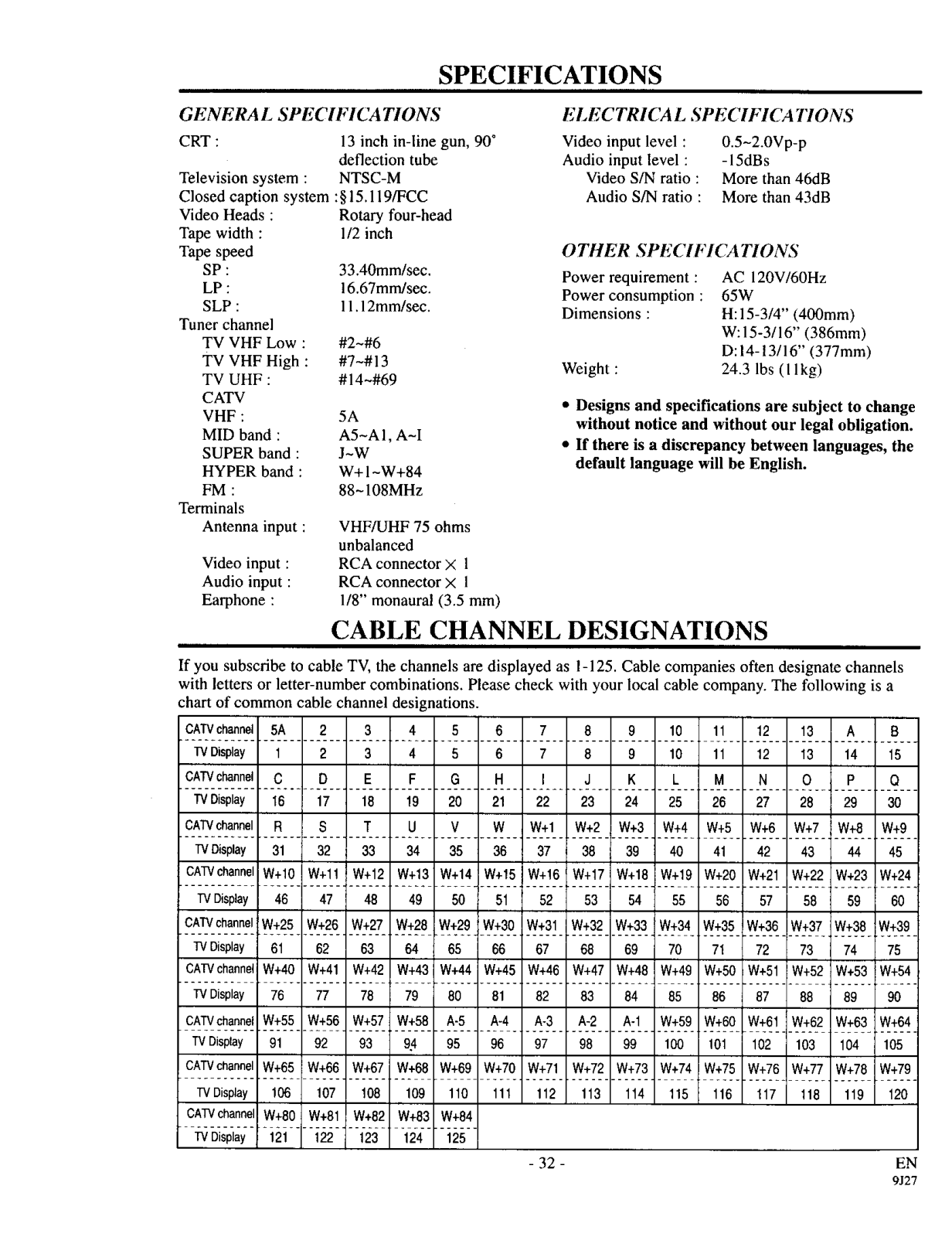

• SPECIFICATIONS ..................... 32

• CABLE CHANNEL DESIGNATIONS ...... 32

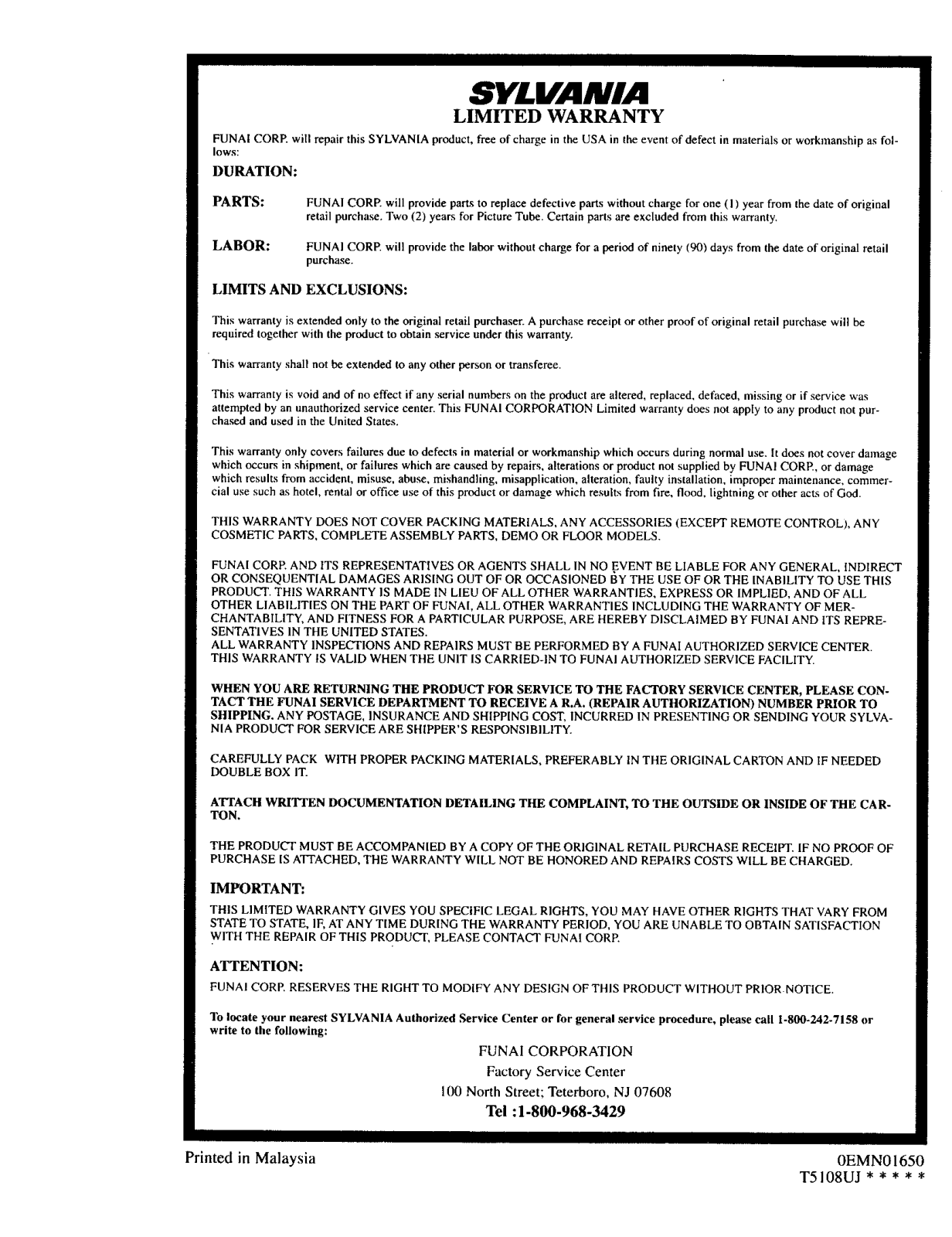

• WARRANTY ................... Back Cover

-5- EN

9J27

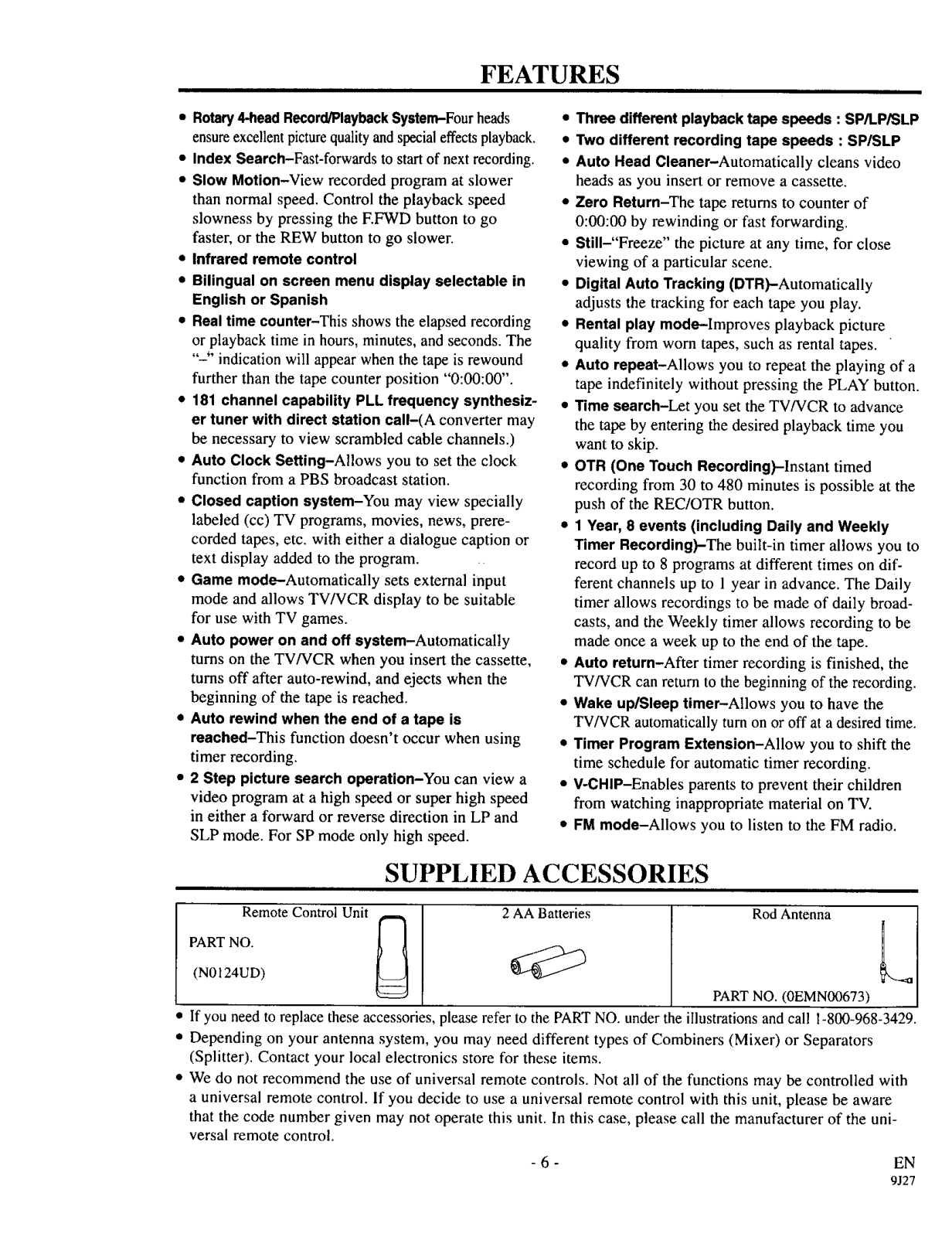

FEATURES

• Rotary4-headRecord/PlaybackSystem-Fourheads

ensure excellent picture quality and special effects playback.

• Index Search-Fast-forwards to start of next recording.

• Slow Motion-View recorded program at slower

than normal speed. Control the playback speed slowness by pressing the EFWD button to go faster, or the REW button to go slower.

• Infrared remote control

• Bilingual on screen menu display eelectable in

English or Spanish

• Real time counter-This shows the elapsed recording

or playback time in hours, minutes, and seconds. The "J' indication will appear when the tape is rewound

further than the tape counter position "0:00:00".

• 181 channel capability PLL frequency synthesiz-

er tuner with direct station call-(A converter may

be necessary to view scrambled cable channels.)

• Auto Clock Setting-Allows you to set the clock

function from a PBS broadcast station.

• Closed caption system-You may view specially

labeled (cc) TV programs, movies, news, prere- corded tapes, etc. with either a dialogue caption or text display added to the program.

• Game mode-Automatically sets external input

mode and allows TV/VCR display to be suitable

for use with TV games.

• Auto power on and off system-Automatically

toms on the TV/VCR when you insert the cassette, toms off after auto-rewind, and ejects when the

beginning of the tape is reached.

• Auto rewind when the end of a tape is

reached-This function doesn't occur when using timer recording.

• 2 Step picture search operation-You can view a

video program at a high speed or super high speed in either a forward or reverse direction in LP and

SLP mode. For SP mode only high speed.

• Three different playback tape speeds : SP/LP/SLP

• Two different recording tape speeds : SP/SLP

• Auto Head Cleaner-Automatically cleans video

heads as you insert or remove a cassette.

• Zero Return-The tape returns to counter of

0:00:00 by rewinding or fast forwarding.

• Still-"Freeze" the picture at any time, for close

viewing of a particular scene.

• Digital Auto Tracking (DTR)-Automatically

adjusts the tracking for each tape you play.

• Rental play mode-lmproves playback picture

quality from worn tapes, such as rental tapes.

• Auto repeat-Allows you to repeat the playing of a

tape indefinitely without pressing the PLAY button.

• Time search-Let you set the TV/VCR to advance

the tape by entering the desired playback time you

want to skip.

• OTR (One Touch Recording)-Instant timed

recording from 30 to 480 minutes is possible at the push of the REC/OTR button.

• 1 Year, 8 events (including Daily and Weekly

Timer Recording)-The built-in timer allows you to

record up to 8 programs at different times on dif- ferent channels up to 1 year in advance. The Daily

timer allows recordings to be made of daily broad- casts, and the Weekly timer allows recording to be made once a week up to the end of the tape.

• Auto return-After timer recording is finished, the

TV/VCR can return to the beginning of the recording.

• Wake up/Sleep timer-Allows you to have the

TV/VCR automatically tum on or off at a desired time.

• Timer Program Extension-Allow you to shift the

time schedule for automatic timer recording.

• V-CHIP-Enables parents to prevent their children

from watching inappropriate material on TV.

• FM mode-Allows you to listen to the FM radio.

SUPPLIED ACCESSORIES

Remote Control Unit 2 AA Batteries Rod Antenna

(NO 124UD)

PARTNo

PART NO. (0EMN00673)

• If you need to replace these accessories, please refer to the PART NO. under the illustrations and call 1-800-968-3429.

• Depending on your antenna system, you may need different types of Combiners (Mixer) or Separators (Splitter). Contact your local electronics store for these items.

• We do not recommend the use of universal remote controls. Not all of the functions may be controlled with a universal remote control. If you decide to use a universal remote control with this unit, please be aware that the code number given may not operate this unit. In this case, please call the manufacturer of the uni-

versal remote control.

- 6 - EN

9J27

VIDEO CASSETTE

This TV/VCR will operate with any cassette that has the I_ mark. For best results, we recommend the use of high-quality tapes. Do not use poor quality or damaged tapes.

PRECA UTIONS

* Avoid moisture. Moisture condensation may occur

on the tape if it is moved from a cold place to a warm place or visa versa. Before using a tape with

these conditions, to avoid damage of the tape and your TV/VCR, wait until the tape has warmed to room temperature and the moisture has evaporated.

• Avoid extreme heat, high humidity and magnetic fields.

• Do not tamper with the cassette mechanism.

• Do not touch the tape with your fingers.

TWO DIFFERENT TAPE SPEEDS

Before recording, select the tape speed from : SP mode (Standard Play) or SLP mode (Super Long

Play). The table below shows the maximum recording/play-

back time using T60, T120 or T160 tapes in each mode.

Tape Speed Recording/Playback Time

INSERTING A CASSETTE

Insert the cassette in the direction as shown. Push in gently, but continuously, on the center-back of the

cassette until it is drawn into the TV/VCR. The

TV/VCR will automatically turn on.

Wind_

CORRECT WRONG

REMOVING A CASSETTE

l)ln the Stop mode, press the STOP/EJECT button

on the TV/VCR. The cassette will eject.

2)Pull the cassette out of the cassette compartment.

3)Store the cassette in its case as shown.

Typeof tape T60 T120 TI60

SP mode 1 hour 2 hours 2-2/3 hours SLP mode 3 hours 6 hours 8 hours

Note: You can play back a tape recorded in LP mode

(Long Play).

ERA SE PRE VFNTION

You can prevent accidental

erasing of recording by

breaking off the tab on the back edge of the cassette.

If you decide to record on the tape again, cover the

hole with plastic tape.

Transparent Tape

-7- EN 9J27

OPERATING CONTROLS AND FUNCTIONS

NOTE:

• We do not recommend the use of universal remote controls. Not all of the functions may be controlled with

a universal remote control. If you decide to use a universal remote control with this unit, please be aware that the code number given

may not operate this unit. In this case, please call the manufacturer of the universal remote control.

- TV/VCR FRONT PANEL - [Fig.l]

1 2 3 4 5 6 78 910 11 12 13 14

- REMOTE CONTROL - [Fig.2]

--26

---25

---24

--11

---12

--23

----6

___7

_- 22

-21

1 EARPHONE jack- Connects to earphones (not sup-

plied) for personal listening. The size of jack is

1/8" monaural (3.5mm).

2 AUDIO input jack- Connect to the audio output

jack of your audio equipment, video camera or

another VCR.

3 VIDEO input jack- Connect to the video output

jack of your video camera or another VCR.

4 STOP button- Press to stop the tape motion.

EJECT button- Press in the Stop mode to remove

tape from TV/VCR. (only on the TV/VCR)

• button-

• Press to select setting modes from the on screen menu.

• Press to enter digits when setting program.

(for example: setting clock or timer program)

5 REW button- Press to rew"ind the tape, or to view

the picture rapidly in reverse during playback

mode. (Rewind Search)

• button-

• Press to select a mode from a particular menu. (for example: LANGUAGE or USER'S SET UP)

6 PLAY button- Press to begin playback.

• button-

• Press to select setting modes from the on screen menu.

• Press to enter digits when setting program. (for example: setting clock or timer program)

- 8 - EN

9J27

- REAR VIEW - [Fig.3]

\ .J

HHOH HOHUOOHUOU HO

0 0

7 EFWD button- Press to rapidly advance the tape,

or to view the picture rapidly in forward during playback mode. (Forward Search)

I_ button-

• When setting program (for example: setting clock or timer program), press to determine your selec- tion and proceed to the next step you want to input.

• Press to determine setting modes from on screen menu.

• Press to select a mode from a particular menu. (for example: LANGUAGE or USER'S SET UP)

g REC button- Press for manual recording.

OTR button- Activates One Touch Recording. (only on the TV/VCR)

9 RECORD indicator- Flashes during recording.

Lights up in the Stand-by mode for Timer Recording.

10 Remote Sensor Window- Receives the infrared

signals from the remote control.

11 CHANNEL • / • buttons- Press to select the

desired channels for viewing or recording, listening of FM radio.

You may display the main menu on the TV screen by pressing repeatedly this button on the TV/VCR.

TRACKING function- Press to minimize video

'noise' (lines or dots on screen) during playback

or Slow mode. (See page 21.)

12 VOLUME A / _7 buttons- Adjust the volume level. 13 POWER button- Press to turn TV/VCR on and

off. Press to activate timer recording.

14 Cassette compartment 15 Number buttons- Press to select desired channels

for viewing or recording. To select channels from

l to 9, first press the 0 button and then I to 9.

+100 button- When selecting cable channels which are higher than 99, press this button first, then press the last two digits. (To select channel 125, first press the "+100" button then press "2" and "5").

0 ' J

II I °°

16 MENU button- Press to display the main menu on

the TV screen.

17 DISPLAY button- Display the counter or the cur-

rent channel number and current time on the TV screen. (See page 16.)

18 SPEED button- Press to choose the desired

recording speed:SP/SLP.

19 T-PROG. CLEAR button- Press to cancel a set-

ting of timer program. (See page 28.) COUNTER RESET button- Press to reset counter to 0:00:00.

20 GAME button- Sets the game mode and external

input mode at the same time. (See page 17.)

21 SLOW button- Press to start slow motion playback.

The slow speed can be controlled by pressing the EFWD button (faster) or the REW button (slower).

(only on the remote control).

22 PAUSE/STILL button- Press to temporarily stop

the tape during the recording or to view a still pic- ture during playback.

Frame Advance function- Press to advance the

picture one frame at a time during Still mode.

23 MUTE button- Mutes the sound. Press it again to

resume sound.

24 CHANNEL RETURN button- Press to go back to

the previously viewed channel. For example, pressing this button once will change channel dis-

play from 3 (present channel) to 10 (previously viewed channel), and pressing it a second time

will return from 10 to 3.

25 TWFM button- Sets the FM mode. (see page 16.) 26 WAKE UP/SLEEP button- Sets the Wake up or

Sleep Timer. (See page 29.)

27 Power cord- Connect to a standard AC outlet

(120V/60Hz).

28 ANT. terminal- Connect to an antenna or cable

system.

-9- EN

9J27

PREPARATION FOR USE

VltbTUH! COMBINLD ANIENNA

The VHF/UHF Rod Antenna (supplied) is detach-

able. Insert the stem of the antenna into the hole on the upper-back portion of the TV/VCR.Connect the

VHF/UHF Rod Antenna or VHF/UHF Combination Antenna to the ANT. terminal of the TV/VCR as

shown in the diagram below.For the best reception, fully extend the VHF/UHF Rod Antenna and make

the necessary adjustments. (Avoid touching the top section when adjusting.)

NOTE: Before plugging the Rod antenna into antenna termi-

nal, check that the pin is not bent. If it is bent, straighten the pin as illustrated, then plug the pin into

antenna terminal.

Bent pin

VHF/UHF SEPARATE ANTENNAS

In some areas it will be necessary to use an outdoor

antenna.

VHF Antenna (Not supplied)

UHF Antenna (Not supplied)

Flat twin-lead cable

[Fig.5]

CABLE WITHOUT CONVERTER/

DESCRAMBLER BOX

Cable Plug

(Needs to be straightened) (Straight pin)

VHF/UHF Antenna

Rod Antenna

(Supplied)

(Not supplied)

[Fig.4]

NOTE:

The connection of an indoor antenna may not always give acceptable TV reception,

Use this connection if your cable system connects

directly to your TV/VCR without a converter box. By using this connection you can:

1) Use the TVNCR remote to select channels.

2) Program one or more unscrambled channels for Automatic Timer Recording.

NOTE: This unit will ONLY record and view the same channel.

From Cable System

Cable (Not

75-ohm Coaxial

supplied)

ANT.

[Fig.6]

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that

provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connect-

ed to the grounding system of the building as close to the point of cable entry as practical.

Antenna/Cable Connections Continued on the Next Page.

- 10- EN 9J27

+ 23 hidden pages
