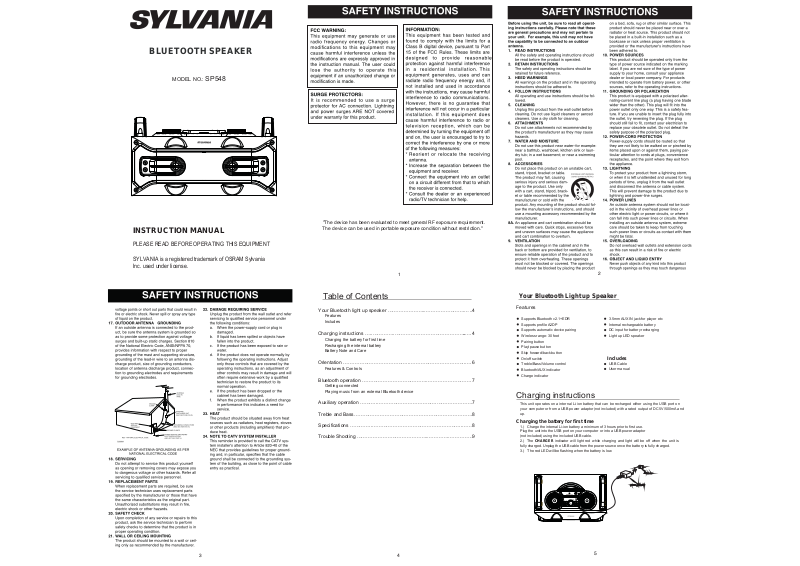

SYLVANIA SP548 User Manual

BLUETOOTH SPEAKER
MODEL NO.: SP548
INSTRUCTION MANUAL
PLEASE READ BEFORE OPERATING THIS EQUIPMENT
SYLVANIA is a registered trademark of OSRAM Sylvania Inc. used under license.
"The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction."
1
2
Table of Contents
Features Includes
Charging the battery for first time
Recharging the internal battery
Battery Note and Care
Orientation …………………………………..……………………………..….6
Features & Controls
Bluetooth operation ………………………………….……………………….7
Getting connected Playing music from an external Bluetooth device
Auxiliary operation ………..……………………………….………………….7
Treble and Bass……………………………………………………………….8
Specifications …………..………………………………………………..……8
Trouble Shooting ……………………………………..………….……………9
3
4
4.…....……..……..…snoitcurtsni gnigrahC
Your Bluetooth Light up Speaker
Features
Supports Bluetooth v2.1+EDR
Supports profile A2DP
Supports automatic device pairing
Wireless range: 30 feet
Pairing button
Play/pause button
Skip forward/back button
On/off switch
Treble/Bass/Volume control
Bluetooth/AUX indicator
Charge indicator
Charging instructions
This unit operates on a internal Li-ion battery that can be recharged either using the USB port on your computer or from a USB power adaptor (not included) with a rated output of DC 5V/500mAand up.
Charging the battery for first time
1.) Charge the internal Li-ion battery a minimum of 3 hours prior to first use. Plug the unit into the USB port on your computer or into a USB power adaptor (not included) using the included USB cable.
2.) The CHARGER indicator will light red while charging and light will be off when the unit is
fully charged. Unplug the USB cable from the power source once the battery is fully charged.
3.) The red LED will be flashing when the battery is low.
LED ON/OFF
3.5mm AUX IN jack for player etc
Internal rechargeable battery
DC input for battery recharging
Light up LED speaker
Includes
USB Cable User manual
5
Orientation
Features & Controls
4
1. Previous button.
2. AUX IN MODE button.
3. CHARGER indicator.
4. BASS knob.
5. VOLUME DOWN button.
6. VOLUME UP button.
7. Forward button.
Bluetooth operation
External devices that have a built-in Bluetooth feature can connect wirelessly to the Blue Speaker.
14
3
5
9111213
LED ON/OFF
6
15
1 102
7
8
8. button.
9. WORKING MODE indicator.
10. TREBLE knob.
11. BLUETOOTH PAIR button.
12. POWER ON/OFF and LED ON/OFF button
13. DC IN socket.
14. AUX IN jack.
15. BLUETOOTH MODE button.
GETTING CONNECTED
1. Power on the unit by pressing and holding the Power button for 3 seconds then pressing
the Bluetooth Mode button. It will go to Bluetooth mode and will light blue with flashing.
2. Set the Bluetooth function of your external device to ON and begin searching for devices.
NOTE: The effective distance between your external device and this apparatus is 10 meters(30 feet).
3. Once “SP548” appears on the paired device list of your external device, select it.
4. If you are asked for a password, enter “0000”.
5. A beep will be heard and WORKING MODE indicator light blue steadily that indicates a
connection has been established.
6. A few seconds later your Bluetooth connection should be ready to used.
7. If you want to pair a new device, press the Pair button from the unit, it can be disconnected immediately and will go to pairing mode then repeat from step 3~5.
PLAYING MUSIC FROM AN EXTERNAL BLUETOOTH DEVICE
1. Follow the “GETTING CONNECTED” steps above to pair your external device.
2. Turn on the music player program on your external device and set it to play. Normally, you
can control music playback with the button, and buttons on the Bluetooth
Speaker.
3. Audio played through the connected Bluetooth Device will now be heard through the
speakers.
4. Press the VOLUME UP/DOWN button to obtain the desired volume level.
5. Press and hold the POWER button for 3 seconds to turn off the unit.
TREBLE AND BASS
Twist the TREBLE knob and BASS knob to adjust the treble and bass levels.
Auxiliary operation
External (auxiliary) audio sources such as tablets smartphones or MP3 players can connect to the
Bluetooth Light up Speaker via aux-in.
1. Press and hold the POWER button for 3 seconds then pressing the AUX IN Mode button to enter
AUX IN mode. The working mode indicator light green(AUX mode)
2. Press the VOLUME UP/DOWN button to obtain the desired volume level.
3. Plug in an AUX IN cable (Not Include) into the AUX IN jack on the top of the unit.
4. Plug the other end of the cable into the headphone or Line-Out jack of the external source.
5. Turn on the external audio device and set it to play. Turn the external audio device’s volume up to
2/3.
LED ON/OFF
TREBLE AND BASS
Twist the TREBLE knob and BASS knob to adjust the treble and bass levels.
NOTE: Press the Power button once that it can turn off the blue LED lights.
Specification
Power Requirement:
DC input :
Battery: Bluetooth:
Audio Power output: 3W x2 Speaker: 5 W 2 Ohms 4 inch x 2
DC 5V 500mA (Micro USB)
built-in rechargeable lithium battery 1200mAh Bluetooth V 2.1 + EDR Support profile A2DP
6
Trouble Shooting
PROBLEM POSSIBLE CAUSE REMEDY
GENERAL
No Charging The USB power adaptor (not
No Sound The unit battery is exhausted.
BLUETOOTH
No sound when playing audio via Bluetooth
AUXILIARY
No sound in AUX mode Volume at minimum.
included) is not plugged into a wall outlet or the USB cable (included) is not plugged into the mini USB jack on the unit.
Wall outlet is not functioning.
Computer USB port is not functioning.
Volume set too low.
Your Bluetooth device has been paired properly.
The unit placement out of range.
The volume control of your Bluetooth device is set at too low.
The volume control of the main unit is set at too low.
External device not connected properly.
Plug the USB power adaptor (not included) into a wall outlet and plug the USB cable (included) into the mini USB jack on the unit..
Plug another device into the same outlet to confirm the outlet is working.
Make sure your computer power is turned on and try another USB port. Recharge the unit battery.
Press the Volume Up button to increase the sound level.
Pairing your Bluetooth device according to the “Pairing a
Bluetooth Device for the First Time” section.
Relocate the unit within Bluetooth operating range (30 feet).
Increase the volume of your Bluetooth device.
Increase the volume of the main unit to turn to your wish..
Press the Volume Up button
Clear contact pins and connect again.
7
