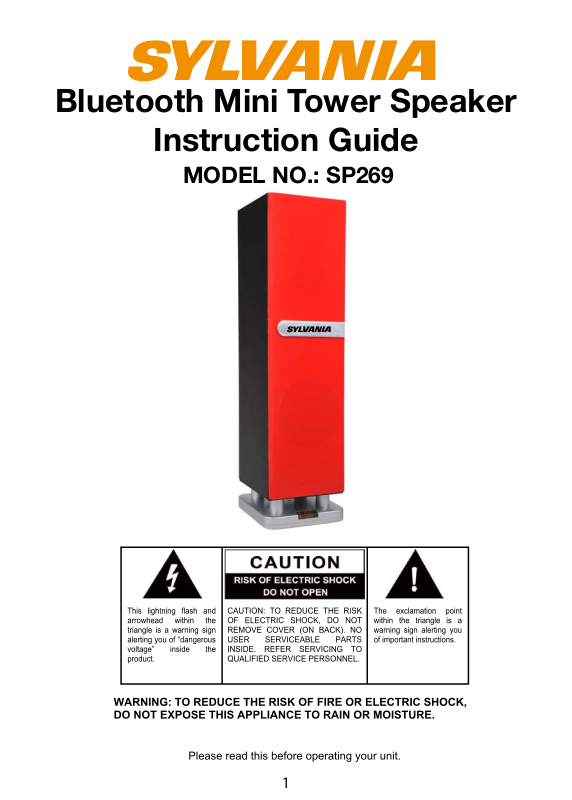

Sylvania SP269 User Manual

Bluetooth Mini Tower Speaker

Instruction Guide

MODEL NO.: SP269

1

2

Know your speaker

AUX

OFF/ON

A:OFF/ON button

DC 5V

C

D

A

B

B:AUX
C:DC 5V
D:Bluetooth indicator light

Remote Control (only works under bluetooth
status )

1

6

4

2

5

3

3

7

1: Enter “Pairing” when the Bluetooth is
disconnected or when there is no connection.
2: Volume +
3: Volume ­4: Previous
5: Next
6: Pause/play
7: Remote control sensor light

Product Specications

- Dimension &weight :112 x 120 x 435mm

- weight : 1660g.

- standard battery :build in rechargeable 800mAh
lithium battery .

- Power supply of remote control : CR2025 DC
3V(included )

- Music play time :Max 3-4 hours (based on 50%­60% volume )

- AC Adapter :110-240V (50-60Hz)

- Charging time : about 3-4 hours

Speaker Specications :

Diamter: ø

90mm + ø 52mm

impedance :4 ohm
power output :3W x 2

Package& Accessories

- Speaker Unit

4

- Quick Start Guide

- AC Adapter(100-240V) 50-60Hz

- Audio cable

- Warranty card

Wireless function

- Frequency: 2.402-2.480 GHz

- Max transmission power rate: 2 grade, 4dBm

- Receiving sensitivity: -82dBm

- Transmission distance: within 10 meters

- Data transmission rate: 3Mbps

- Remote control sensor distance :>=3M

How To Use
1:Turn the switch to "ON" position , and speaker
will have a response ring,the blue and red
indication light blink alternaterly.bluetooth function
is available.the bluetooth speaker user name is
:Sylvania , the password is "0000" if needed.
AUX IN: Turn the switch to "ON" position ,connect

3.5mm AUX in cable (included ) to your music
device,then you can enjoy the music.

2:when connect to AC adapter (included )in, the
speaker can be charged when it's ON or OFF
status(we suggest to turn off speaker when charge
it.)
