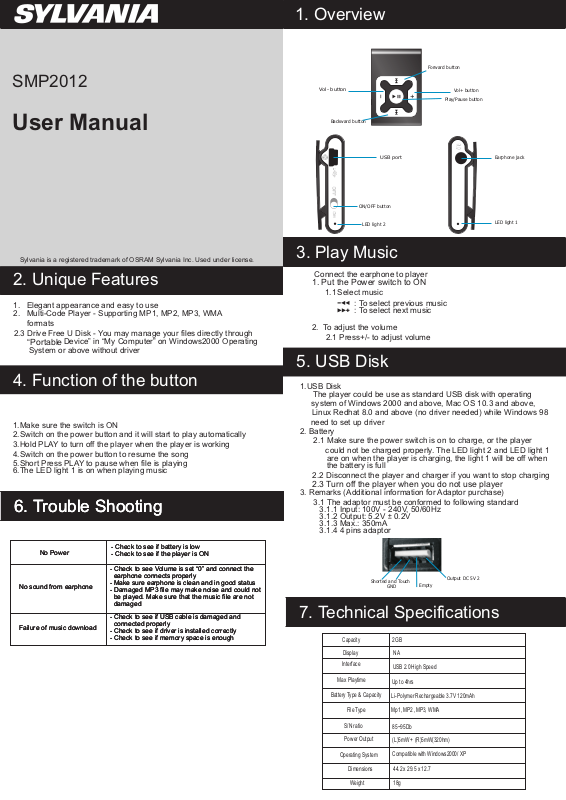

Sylvania SMP2012 User Manual

1. Overview

Forward button

SMP2012

User Manual

Sylvania is a registered trademark of OSRAM Sylvania Inc. Used under license.

2. Unique Features

1. Elegant appearance and easy to use

2. Multi-Code Player - Supporting MP1, MP2, MP3, WMA formats

2.3 Drive Free U Disk - You may manage your files directly through

“Portable

System or above without driver

Device” in “My Computer” on Windows2000 Operating

Vol- button

Backward button

USB port

ON/OFF button

LED light 2

3. Play Music

Connect the earphone to player

1. Put the Power switch to ON

1.1

Select music

: To select previous music : To select next music

2. To adjust the volume

2.1 Press+/- to adjust volume

5. USB Disk

Vol+ button

Play/Pause button

Earphone jack

LED light 1

4. Function of the button

1.Make sure the switch is ON

2.Switch on the power button and it will start to play automatically

3.Hold PLAY to turn off the player when the player is working

4.Switch on the power button to resume the song

5.Short Press PLAY to pause when file is playing

6.The LED light 1 is on when playing music

6. Trouble Shooting

- Check to see if battery is low

No Power

No sound from earphone

Failure of music download

- Check to see if battery is low

- Check to see if the player is ON

- Check to see Volume is set “0” and connect the

- Check to see Volume is set “0” and connect the earphone connects properly

earphone connects properly

- Make sure earphone is clean and in good status

- Damaged MP3 file may make noise and could not

- Damaged MP3 file may make noise and could not be played. Make sure that the music file are not

be played. Make sure that the music file are not

be played. Make sure that the music file are not damaged

damaged

- Check to see if USB cable is damaged and

- Check to see if USB cable is damaged and connected properly

connected properly

- Check to see if driver is installed correctly

- Check to see if memory space is enough

1.USB Disk The player could be use as standard USB disk with operating

system of Windows 2000 and above, Mac OS 10.3 and above,

4. Voice Play

Linux Redhat 8.0 and above (no driver needed) while Windows 98

need to set up driver

2. Battery

2.1 Make sure the power switch is on to charge, or the player

could not be charged properly. The LED light 2 and LED light 1

are on when the player is charging, the light 1 will be off when the battery is full

2.2 Disconnect the player and charger if you want to stop charging

2.3 Turn off the player when you do not use player

3. Remarks (Additional information for Adaptor purchase)

3.1 The adaptor must be conformed to following standard

3.1.1 Input: 100V - 240V, 50/60Hz

3.1.2 Output: 5.2V 0.2V

3.1.3 Max.: 350mA

3.1.4 4 pins adaptor

Shorted and Touch

GND

Empty

Output DC 5V 2

7. Technical Specifications

Capacity

Display

Interface

Max Playtime

Battery Type & Capacity

File Type

S/N ratio

Power Output

Operating System

Dimensions

Weight

2GB

USB 2.0 High Speed

Up to 4hrs

Li-Polymer Rechargeable 3.7V 120mAh

Mp1, MP2 ,MP3, WMA

85~95Db

(L)5mW + (R)5mW(320hm)

Compatible with Windows2000/ XP

44.2 x 29.5 x 12.7

18g
