Page 1

SDVD8741

Page 2

Table Of Contents

Safety Precaution

Package

Main Features

Main Unit Controls

System Connection

Basic operation

System Setup

Specification

Troubleshooting

1 3 3 4 6

11 15 18 19

Page 3

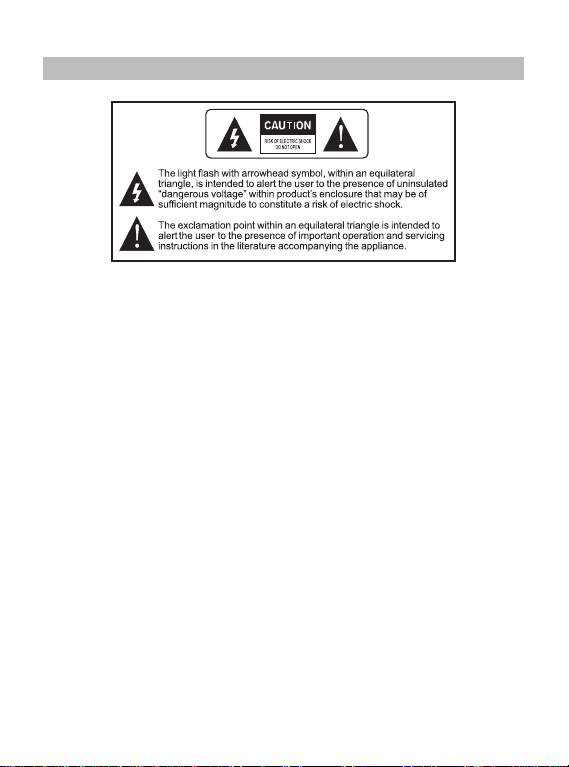

Safety Precaution

Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

1) Please read the instruction manual carefully and follow all the requirements

of safe operation to operate the device.

2) Do not use this unit near water. Do not place over the unit any container

with liquid inside.

3) Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat.

4) Unplug this unit during lightning storms or when unused for long time.

5) About Cleaning: Unplug the system, use only wet cloth to clean. Do not use

liquid detergent or aerosol.

6) Only use accessories specified by the manufacturer.

7) Refer all servicing to qualified service personnel, servicing is required when

the unit has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the unit, exposed to moisture, does not operate normally. Don't try to repair the machine by yourself because of the danger of high voltage and electric shock.

8) Do not use irregular shaped discs such as heart or star-shaped discs as

they may cause the unit to malfunction.

Page 4

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Page 5

Package

DVD player

DC+Audio/Video cable

AC/DC Power Adapter

Cigarette Lighter Adapter

User Manual

Mounting Straps

Main Features

High brightness color 7" LCD screen

Compatible with disc of DVD, MP3, CD, JPEG etc.

Built-in stereo speaker

Support PAL/NTSC system

Support Multi-language OSD, speed forward/backward,repeat function

Page 6

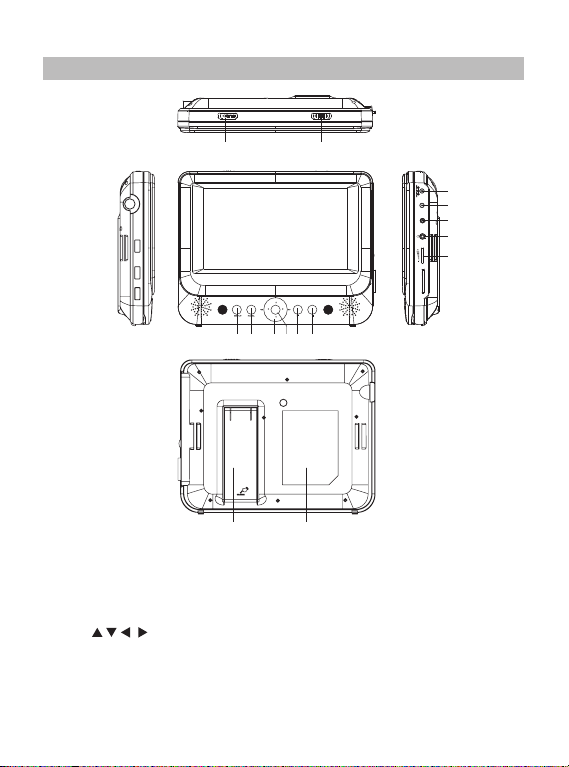

Main Unit Controls

1 2

1. Open knob

2. Power ON/OFF switch

3. SETUP button

4. Functron button

6.OK button (Function same as "ENTER" on Remote control)

7. Play/Pause

8. STOP button

4 5 6 7 8

ON OFF

9 10

DC OUT

AV OUT

1514

9. DC IN 9-12V

10. DC OUT

11. AV OUT

12. Earphone jack

13. Volume knob

14. Bracket

15. Rating Label Position

Page 7

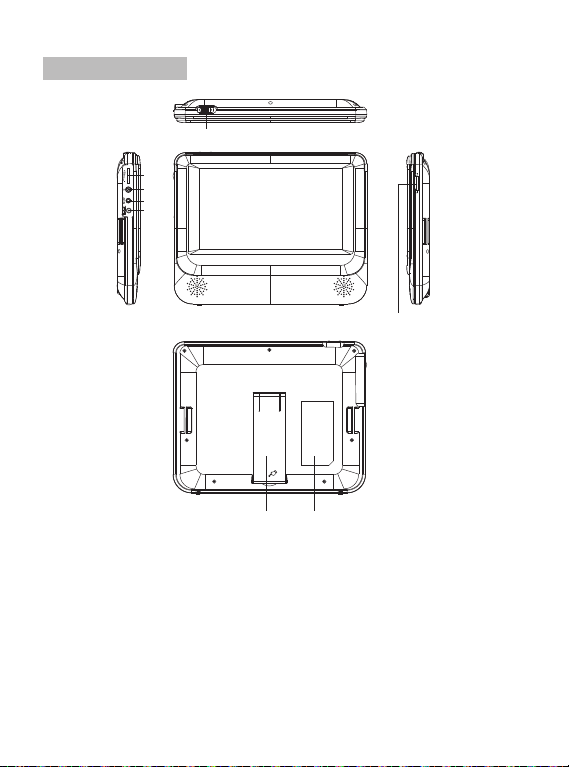

Monitor View

ON OFF

2 3

4 5

1. Power ON/OFF

2. Volume knob

3. Earphone jack

4. AV IN

BRIGHTNESS

5. DC IN 9-12V

6. Brightness Knob

7. Bracket

8. Rating Label Position

Page 8

System Connection

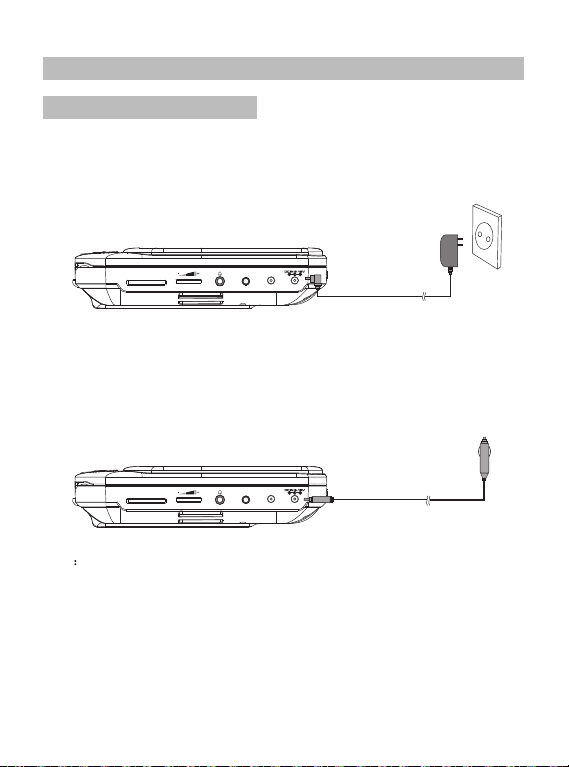

Powering And Installation

Plug one end of the AC/DC power adaptor into the DC IN9-12V jack on the right of the machine, then plug the other end into the AC power receptacle. Please refer to the following illustration.

DC OUT

AV OUT

If using car cigarette lighter adaptor to connect to the power: Plug one end of the cigarette lighter adaptor into the DC IN 9-12V jack on the unit, plug the other end into the car cigarette lighter socket. See illustration below.

DC OUT

AV OUT

Note

1. Car cigarette lighter adaptor is available to use only when the car cigarette lighter with DC 12V negative grounding.

2. The mains plug is used as the disconnect device, the disconnect device should remain readily operable.

Page 9

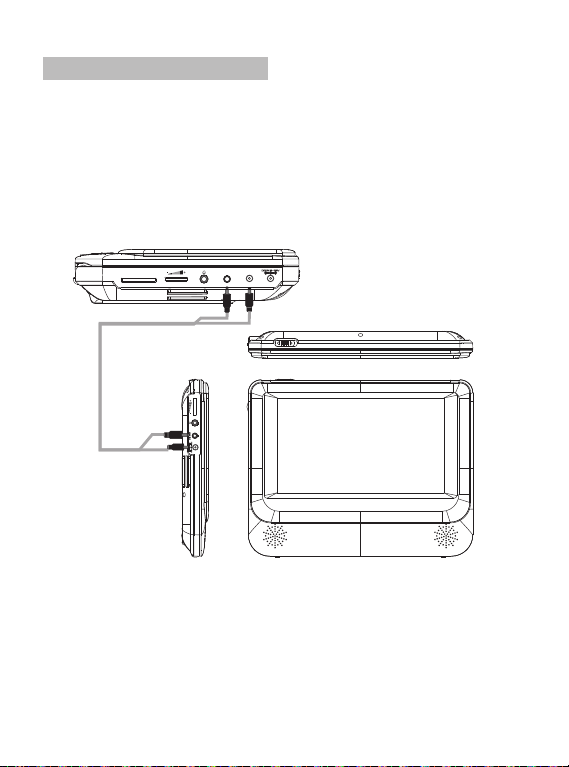

Connecting To The Monitor

The unit can also be connected to the external LCD monitor. Connect the unit to power by AC/DC adapter or cigarette lighter adapter.

Then connect the unit DC OUT jack to DC IN 9-12V Jack of the LCD Monitor by a DC/AV cable. Also use this DC/AV cable to connect the AV OUT jack of the unit to AV IN jack of the Monitor.

Please refer to the illustration below.

DC OUT

AV OUT

ON OFF

Note: You're advised to supply both units the power by the cigarette lighter adapter only. The AC/DC adapter is used to supply power of one unit only and as the charger to charge the main unit if it's with built-in battery.

Page 10

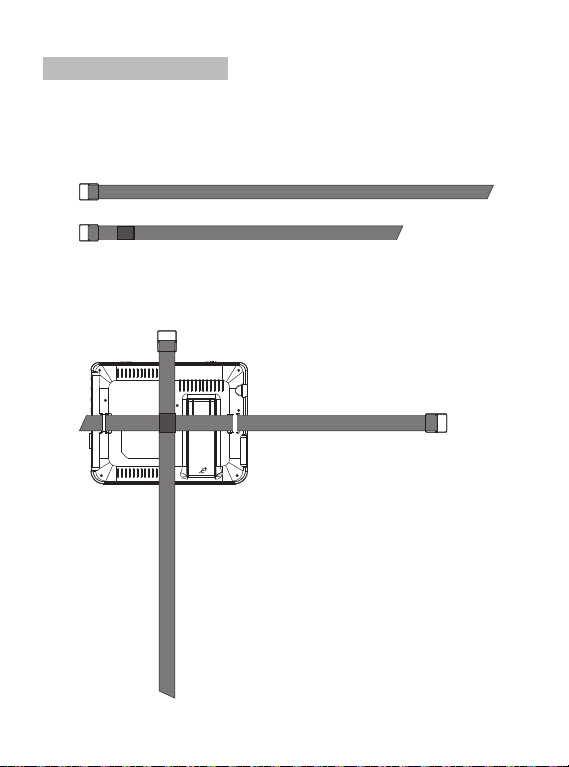

In Car Installation

1. Fit the straps to the DVD Player / Monitor as required.

Please install the units with strap A (long) and strap B (short) together.

Turn the player around so the backs are facing you.

Strap A through the unit from right clip first, then across the loop in Strap B, last Strap A through the unit left clip.

Page 11

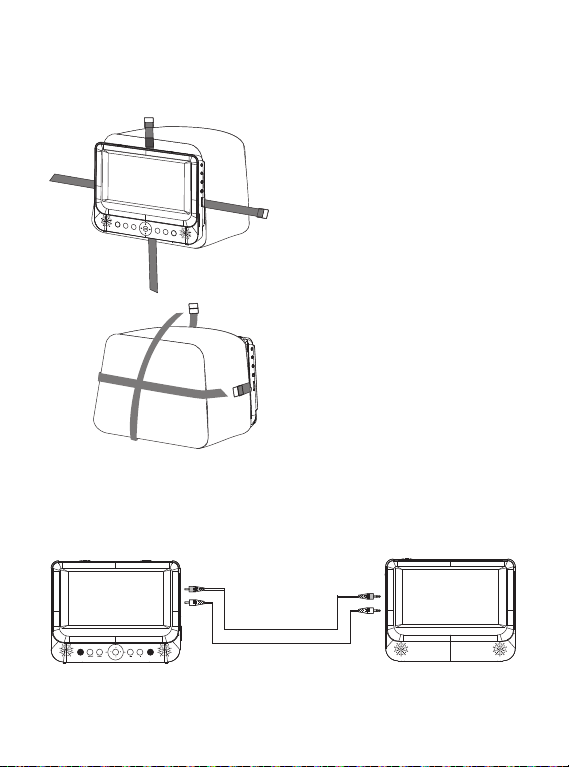

2. Fitting the straps to the headrest.

a. Fitting the straps to the headrest.

Fit the straps around the headrest and engage the 2 trident clips. Ensure clips are securely fastened.

Pull the straps tight using the adjustment. Tuck the loose ends into the strap tidy.

NOTE: Be sure to complete the installation then use SDVD8741 in the car. For SDVD8741 installation is recommended that the DVD Player is on the LEFT headrest, to ensure a neat cable run to the monitor, as shown below:

Page 12

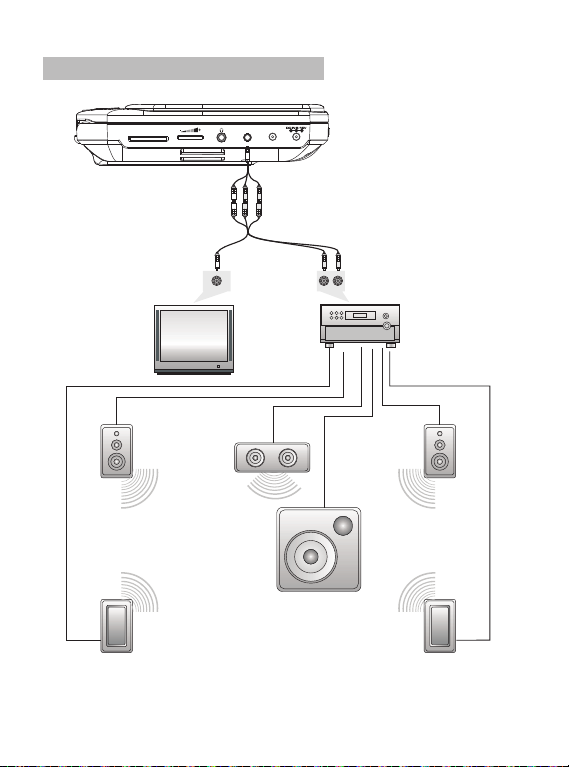

Connecting With External Speaker

DC OUT

AV OUT

AV CABLE

Not supplied

AUDIO INVIDEO IN

AMPLIFIERTV

Left front speaker

Center speaker

Right front speaker

SUBWOOFER

Left rear speaker

Note: There is no 5.1 channel in the unit, however, after connecting to APM it is available to output audio in 5.1 channel.

Right rear speaker

Page 13

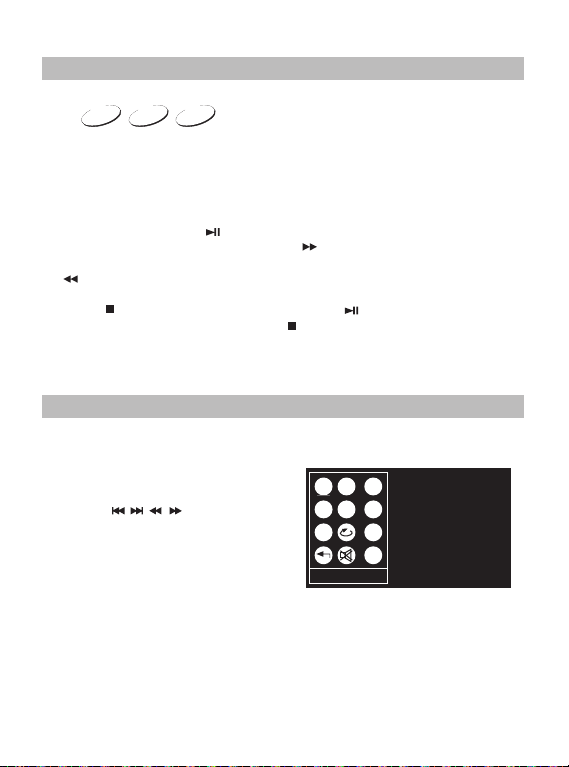

Basic Operation

Playing disc of DVD, CD, MP3

1. Connect the unit to the power;

2. Open the unit and adjust the monitor to the best position for viewing.

3. Turn on the unit by sliding the ON/OFF switch to ON.

4. Open the disc door and insert a disc into the door with the label side facing up.

5. Close the disc door. The unit will load the disc and start playing.

6. During playback,press " " to pause; press it again to resume playback.

7. When playing disc of DVD, CD, Press " ", the unit will search forward. Press it repeatedly, the unit will play at 2, 4, 8, 16, 32 times of speed. press " " , the unit will search backward. Press it repeatedly, the unit will play at 2, 4, 8, 16, 32 times of speed.

8. Press " " once to stop playback; then press " " to resume playback from the point where you stopped; press " " twice to stop playback completely.

9. When the playing is finished, please turn off the power by sliding ON/OFF switch to OFF.

MP3CDDVD

Virtual Remote Operation

1. Press "FUNCTION " button when disc is playing, you will see a virtual remote control as below, and the playback will be paused.

2. The virtual key is shown on the left of the menu, and the current playback status is displayed on the right.

3. Use the / / / button to choose the icon, when the icon is selected, you can see the description at the bottom.

4. Press OK button, the selected virtual key will be activated, "OK=Selected function" icon will be shown at top left for 10 seconds, in these 10 seconds you just need to press OK button to change the style of the function. If the icon disappear, the OK key will not work. ( For Search, Return, Mute, the icon won't be shown).

SRH

OSD

ADO

ZOOM

SUB

SLOW

ANGLE

Subtitle Off

Repeat Off Mute Off

Angle Mark Null

Page 14

5. You can also press "FUNCTION" button to close virtual remote menu without any operation. The player will resume playing after the menu exit.

Note:

1. When the disc is in the submenu, press the function key can go back the title menu.

2. Stop or no disc state, the "FUNCTION" is invalid.

Virtual Remote Operation

1. SRH (Search): Press the"SRH" key ,you can see the number bar below, Use left/right key to move the cursor, press ok to confirm, when playing DVD, you can change the chapter and the title, press the "T/C " icon change the item you want to change. When playing CD, you can select the track. Note: To select the title, you need to enter two numbers.

0 1 2 3 4 5 6 7 8 9

2. M (Menu): to enter or exit menu root.

3. ZOOM: When playing DVD discs, you can zoom in, press the "ZOOM" button and ok button to change the image size according the following sequence: x2 x3 x4, when playing JPEG file, you can zoom in and zoom out, press the "ZOOM" button and ok button to change the image size according the following sequence: 100% 125% 150% 200% 75% 50%.

4. TT (Title): to display title information.

5. ADO ( Audio): to select audio language.

6. SUB (Subtitle): to select subtitle language when playing DVD disc.

7. OSD: D elapsed time and remaining time.

8. ( Repeat): When playing disc of DVD/CD/MP3, you can change the repeat style by press repeat button. For different type of disc, it change according different sequence.

isplay the disc information during playing DVD/CD. Such as

DVD: MP3:

CD:

Chapter

One

Track

Title

Folder

All

T/C

Repeat off

All

Page 15

9. Slow: You can press slow key to change the playing speed slowly during playing DVD. Then press OK repeatedly to change the playback speed according the following sequence: 1/2 1/4 1/8 1/16.

10. (Return): to return to the main menu.

11. (MUTE): to turn mute.

12. Angle: When playing a DVD disc with multi-angles, press "Angle" button and OK button to change the display angle.

Note: The function is available only for disc with multi-angle.

Playing JPEG File

1. Place a JPEG disc into the tray,the unit will start reading and playing.

2. Press " " and OK button to select a JPEG file from the menu.

3. Press " " to rotate the picture clockwise.

4. Press " " to reverse the picture horizontally and press " " to reverse the picture vertically.

Function operation:

Press "FUNCTION" key you will see the toolbar as below:

Press the / to move the cursor to select functions. Press "OK" to select the function. : Return, to return to the main menu. : To repeat one, repeat all. :To zoom in/out the image during playback. Press "FUNCTION" to exit the toolbar.

Page 16

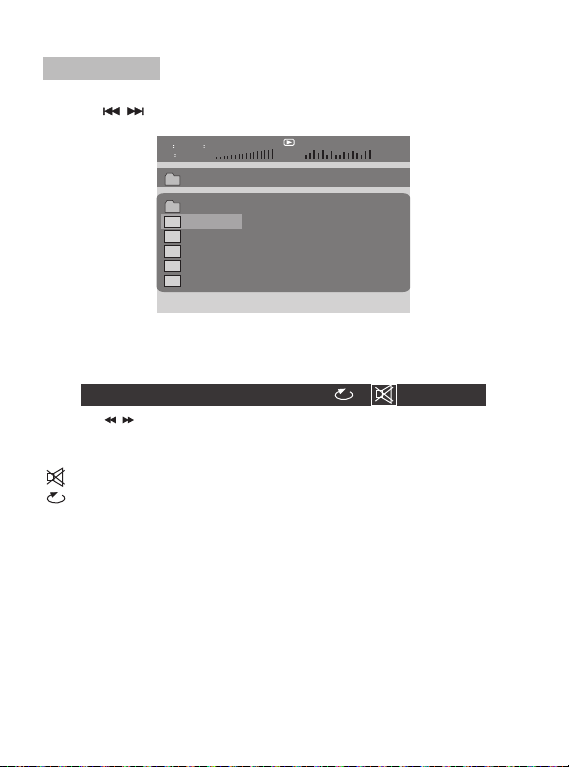

Play MP3 File

1. Place a MP3 disc into the disc door.

2. Press " " to select the file; Press OK button to play the file selected.

00 36 03 43 Dir 001

\Ctyy\

......

Mp3

TRACK01

Mp3

TRACK02

Mp3

TRACK03

Mp3

TRACK04

Mp3

TRACK05

Function operation:

Press "FUNCTION" then you will see the toolbar as below:

0 1 2 3 4 5 6 7 8 9 OK

Press the / to move the cursor to select functions, Press the number key to select the track. Press "OK" to select the function. : MUTE, to turn mute. : To select repeat one, repeat folder, repeat off. Press "FUNCTION" to exit the toolbar

Page 17

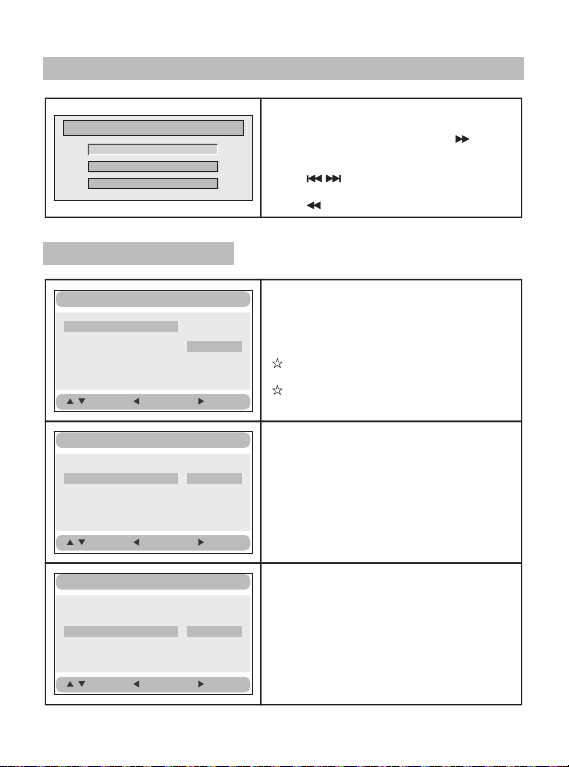

System Setup

Setup Menu -- Main Page

General Setup

Video Setup

Preference Setup

General Setup Page

Press Setup button,the main menu will be displayed on the screen In the General Setup Page, Press button to highlight this item. Press OK button to access. Press button to select the setting. Press OK button to confirm your selection. Press button to exit.

General Setup

TV Display Wide Angle Mark ON OSD Lang ENG Screen Saver ON

:Move

:Return :Entry

General Setup

TV Display Wide Angle Mark ON OSD Lang ENG Screen Saver ON

:Move

:Return :Entry

General Setup

TV Display Wide Angle Mark ON OSD Lang ENG Screen Saver ON

:Move

:Return

Normal/PS Normal/LB Wide

On Off

English French German Italian

:Entry

TV display:

Enter this option, user can set screen display format (Nomal/PS, Nomal/LB, Wide) The default is "Wide". Note:

The function depends on the display ratio

with which the DVD disc is recorded.

Please choose "Wide (16:9)" when using

a 16:9 wide screen TV set.

Angle Mark:

Enter this option to set the angle during playback. Optional setting: ON, OFF.

The default is: ON.

OSD Language:

In the option user can set OSD menu language (English, French, German, Italian).

The default: English.

Page 18

General Setup

TV Display Wide Angle Mark ON OSD Lang ENG Screen Saver ON

:Move

:Return

Video Setup Page

Video Setup

TV Type NTSC Panel Quality

:Move

:Return

Video Setup

TV Type NTSC

Panel Quality

PAL NTSC

Screen Saver:

Enter this option to set whether to activate

On Off

:Entry

the screen saver function.

The default is ON.

TV Type:

Enter this option to select TV type (PAL, NTSC). The default is NTSC.

Set the Video Quality of PANEL

:Move

:Return

Preference Page

Preference Setup

Audio ENG Subtitle Off Disc Menu ENG Parental Default

:Move

:Return :Entry

English French German Italian

:Entry

Audio:

Enter this option,user can select preferred audio language for DVDs. The default is English. Note

The audio language depend on the

material on each disc.

User can also change the audio language

durin g play back by pressing the Audio button.

Page 19

Preference Setup

Audio ENG Subtitle Off Disc Menu ENG Parental Default

:Move

:Return

English French German Italian

Off

:Entry

Subtitle:

Select your preferred language to show the subtitles on the screen. The default is OFF. The subtitle languages depend on the information available on each disc,You can also change the subtitle language during playback by press the SUBTITLE button.

Preference Setup

Audio ENG Subtitle Off Disc Menu ENG Parental Default

:Move

:Return

Preference Setup

Audio ENG Subtitle Off Disc Menu ENG Parental Default

:Move

:Return

Preference Setup

Audio ENG Subtitle Off Disc Menu ENG Parental Default

:Move

:Return

English French German Italian

:Entry

1 KID SAFE 2 G 3 PG 4 PG 13 5 PGR 6 R 7 NC 17 8 ADULT

:Entry

Reset

:Entry

Disc Menu:

This function allows you to choose the menu language stored on the disc. The default is English. Note:the disc menu languages depend on the information available on the disc.

Parental:

Enter this option to set the parental control level to some unsuitable disc scenes being watched by the children. Optional parental control levels: KID SAFE, G, PG, PG 13, PGR, R, NC17, ADULT.

The default of this option is ADULT. Make continuously pressing "FUNCTION" button on the unit 4 times to be the password.

Default:

Select this item and press OK button to reset. all settings to the original factory settings.

Page 20

Specification

Compatible disc: DVD+R/RW, DVD-R/RW, CD-DA, CD-R/RW, MP3, JPEG Signal system: PAL/NTSC Panel size: 7 inch Picture resolution: 480x234 (RGB) Frequency response: 20 Hz to 20 kHz Video output: 1 Vp-p/75 Ohm, unbalanced Audio output: 1.4 Vrms/10kOhm Audio S/N: Better than 80 dB Dynamic range: Better than 85 dB Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm Power source: DC 9-12V Power consumption: 10 W Operating temperature: 0~40°C Weight(Monitor/DVD Player): 0.36 / 0.7 kgs Dimensions (Monitor/DVD Player)(W x D x H): 212x166.5x25mm / 212x 167x 40 mm

Note:

1.The quality and speed for reading JPEG photos depend on the resolution and compression ratio of the photos. Some JPEG photo may not be played due to the disc quality and the formats.

2.Some DVD+R/RW,DVD-R/RW,CD-R/RW disc may not be played due to the quality on burning conditions.

Page 21

Troubleshooting

PROBLEM SOLUTION

No sound or distorted sound

Can't advance through a movie

The icon appears on screen

Picture is distorted

No forward or reverse scan

lf at any time in the future you should need to dispose of this product please note that waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic equipment Directive)

Owing to continuous improvement, no prior notice will be given regarding changes on above feature and spec.

Make sure the machine is connected properly. Make sure all cables are securely inserted into the appropriate jacks.

You can't advance through the opening credits and warning information that appears at the beginning of movies because the disc is programmed to prohibit that action.

The feature or action cannot be completed at this time because:

1. The disc's software restricts it.

2. The disc's software doesn't support the feature (e.g., angles)

3. The feature is not available at the moment.

4. You've requested a title or chapter number that is out of range.

The disc might be damaged. Try another disc; It is normal for some distortion to appear during forward or reverse scan.

Some discs have sections that prohibit rapid scanning or chapter skip; If you try to skip through the warning information and credits at the beginning of a movie, you won't be able to. This part of the movie is often programmed to prohibit skipping through it.
