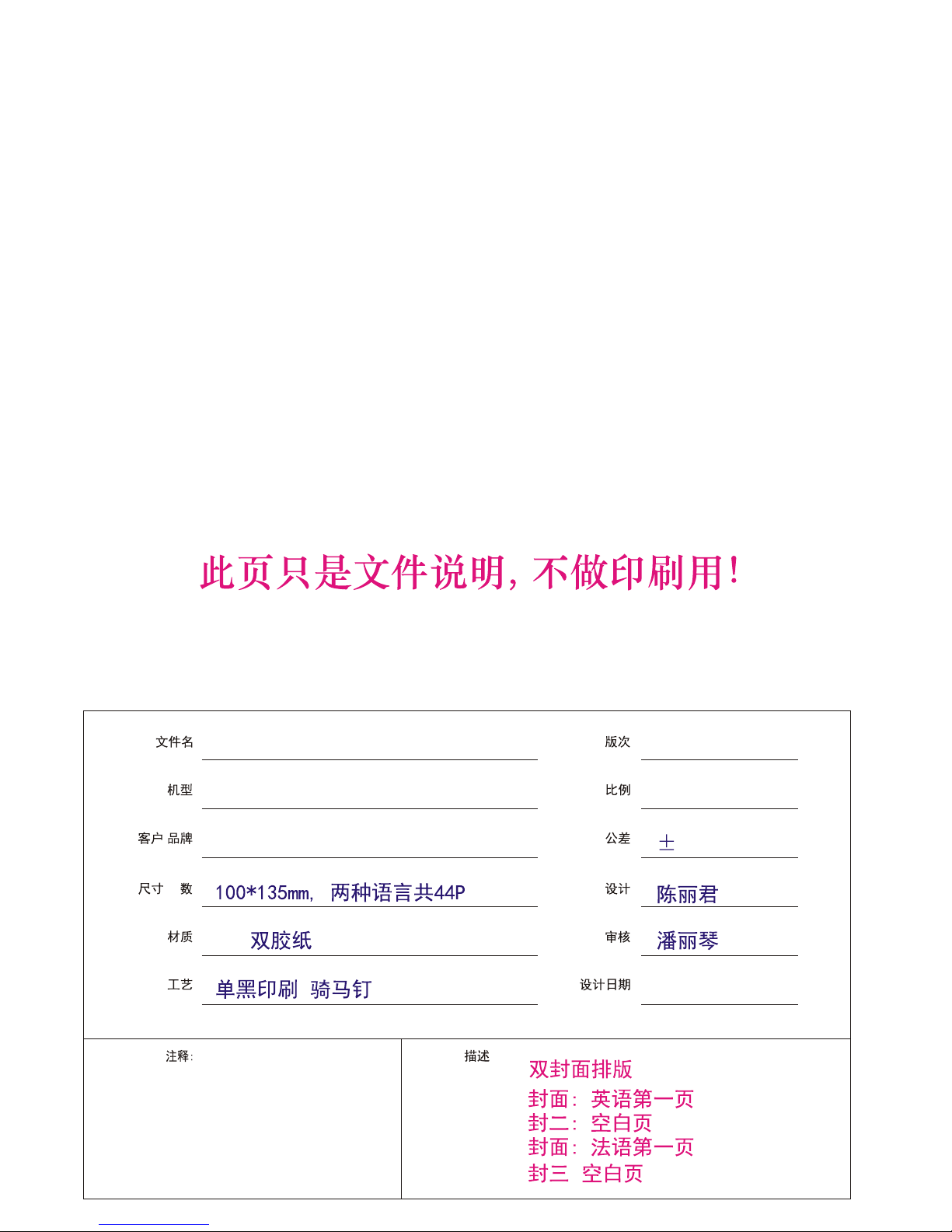

Page 1
File Name
Designer
Checked
/
Customer
Material
technique
+P
Size
Scale
Tolerance
Project#
Rivision
Design Date
17PHZ161-IM-V1.1
P1401-QD
CTIS
80g
,
1:1
V1.1
3mm
2017.09.13
Description
Remarks:
:
Page 2
SDVD1332
Page 3
Table Of Contents
Safety Precaution
Package
Main Features
Main Unit Controls
System Connection
The Remote Control
Basic operation
System Setup
Specification
Troubleshooting
1
3
3
4
5
7
9
14
17
19
Page 4

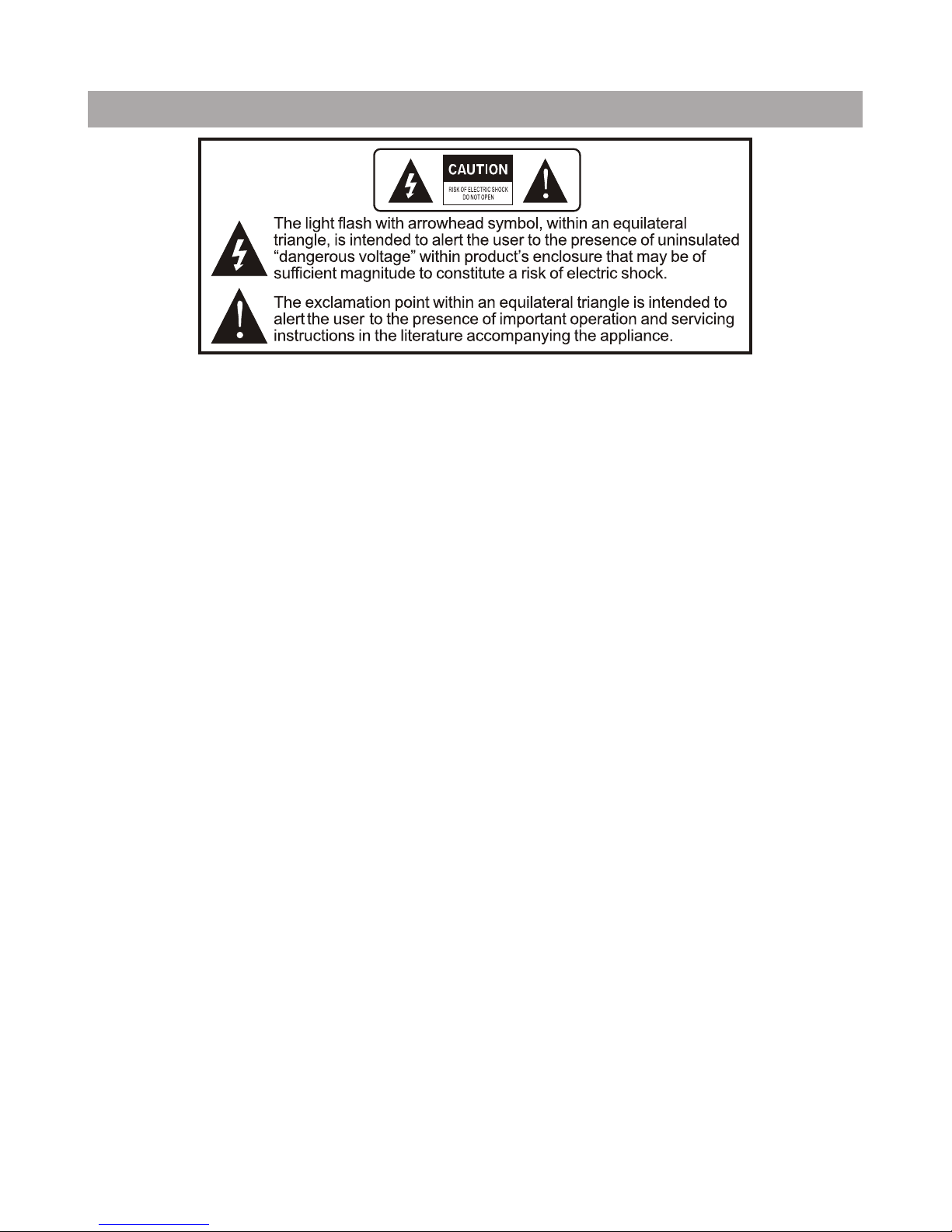

Safety Precaution
Warning: To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture.
1) Please read the instruction manual carefully and follow all the requirements
of safe operation to operate the device.
2) Do not use or leave the device in direct sunlight or a hot environment such as
a vehicle etc. that is in hot environment. Overheating can damage the device
3) Do not overcharge the device do not leave the device on the charger for very
long after the battery has been fully charged
4) Device should be protected from any physical impact or damage and care
should be taken not to drop the device
5) Only use the factory supplied charger. The use of unapproved charger or cable
may cause the battery to fail, explode and/or damage the device.
6) Do not disassemble, puncture, crush or expose your device to temperatures
above 40 °C / 104 °F
7) Keep your device away from fire or water.
8) Keep your device from moisture and extreme temperatures.
9) Should your battery swell or expand, please immediately discontinue use of
your device. A probable cause is it having been overheated at some point or
overcharged. Please contact us for support .
10) Do not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifiers) that produce heat.
11) Unplug this unit during lightning storms or when unused for long time.
12) About Cleaning: Unplug the system, use only wet cloth to clean. Do not use
liquid detergent or aerosol.
13) Refer all servicing to qualified service personnel, servicing is required when
the unit has been damaged in any way, such as power supply cord or plug
is damaged, liquid has been spilled or objects have fallen into the unit,
exposed to moisture, does not operate normally. Don't try to repair the
machine by yourself because of the danger of high voltage and electric shock.
14) Do not use irregular shaped discs such as heart or star-shaped discs as
they may cause the unit to malfunction.
1
Page 5
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
2
Page 6
3
Package
Main Features
1
1
1
1
1
1
1
DVD Player
Remote Control with battery
Audio/Video Cable
User Manual
Earphone

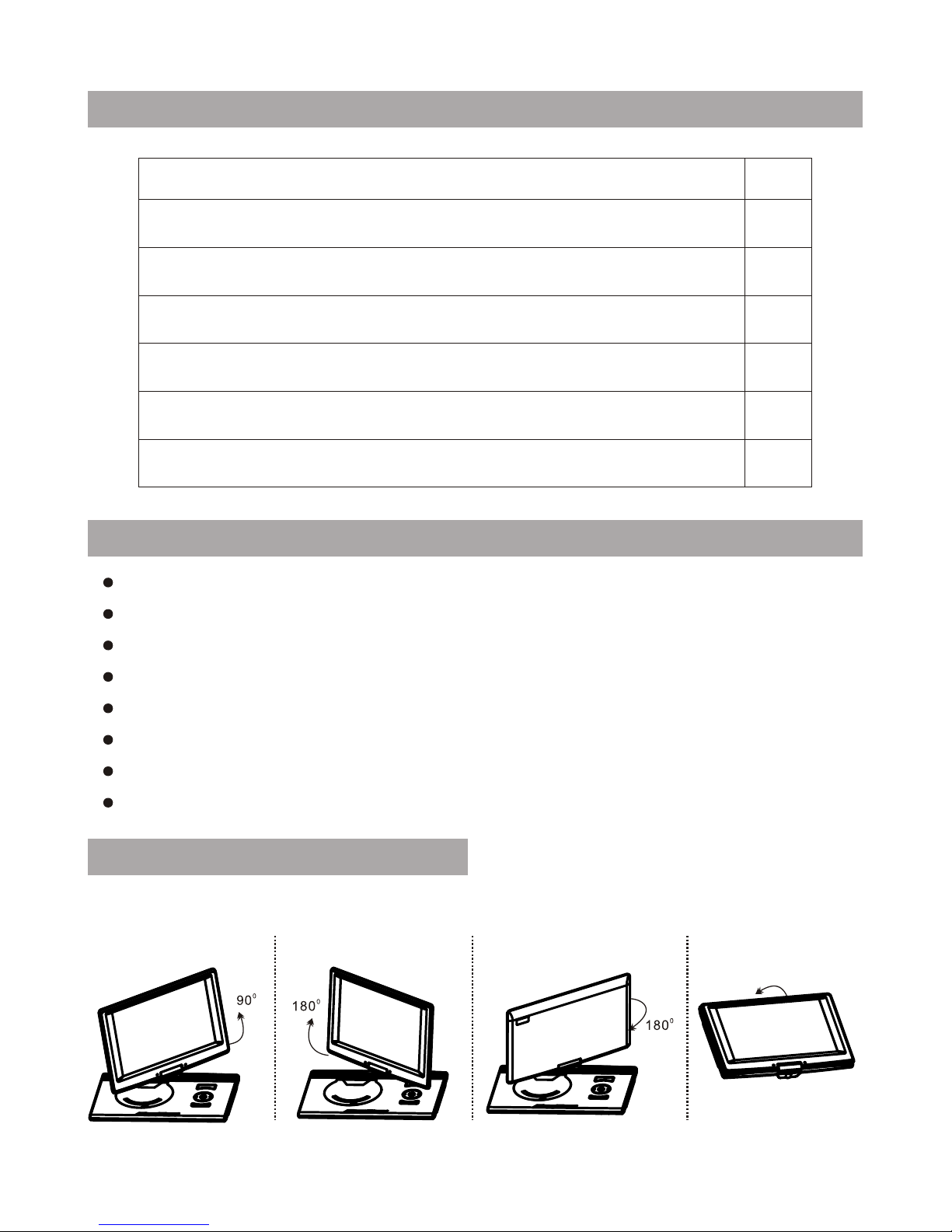

Swiveling LCD Screen
You can swivel the LCD screen of this player clockwise a maximum of 180
for use.
°
High brightness color 13.3” LCD screen
Compatible with disc of DVD, VCD, MP3, CD, JPEG, etc.
Built-in stereo speaker
Built-in rechargeable Lithium ion battery
Support PAL or NTSC system
Support Multi-language OSD, speed forward/backward, repeat function
Zoom in/out function
Text to speech
AC power Wall adapter
DC power car adapter
Page 7
4
Main Unit Controls
SETUP
MUTE MODE
MENU
1
12
13
14
15
16
17
2
7
3
18
9
8
4
510 611
19
( )
/
( )
( )
/
( )
1. SETUP
2. MENU
3. MODE (Press MODE to
show DVD, SD, USB option)
4. MUTE
5. PLAY/PAUSE
6. STOP
7.
8.
9. OK BUTTON
10. Volume-
11. Volume+
12. DC IN 9-12V
13. POWER ON/OFF SWITCH
14. AV OUT
15. EARPHONE
16. SD Card slot
17. USB port
18. OPEN
19. Rating label
Page 8
5
System Connection
Powering And Installation
Using SD card
Upon using an SD card, insert it into the corresponding slot flatly with label
side upward until you hear a click.
Using USB
Upon using an USB, insert it into the USB slot directly.
Plug one end of the AC power Wall adapter into the DC IN9-12V jack on the
right of the machine, then plug the other end into the AC power receptacle.
Please refer to the following illustration.
If using DC power car adapter to connect to the power: Plug one end of
the DC power car adapter into the DC IN 9-12V jack on the unit, plug the
other end into the car cigarette lighter socket. See illustration below.
Note
1. DC power car adapter is available to use only when the car cigarette
lighter with DC 12V negative grounding.
2. The mains plug is used as the disconnect device, the disconnect device
should remain readily operable.
Page 9
6
Connecting With External Speaker
Note:
There is no 5.1 channel in the unit, however, after connecting to APM it is
available to output audio in 5.1 channel.
AMPLIFIERTV
SUBWOOFER
Left front
speaker
Right front
speaker
Center speaker
Left rear speaker
Right rear speaker
AUDIO INVIDEO IN
AV CABLE
Not supplied
The unit can be connected with external speaker. Please see the following
illustration.
Page 10

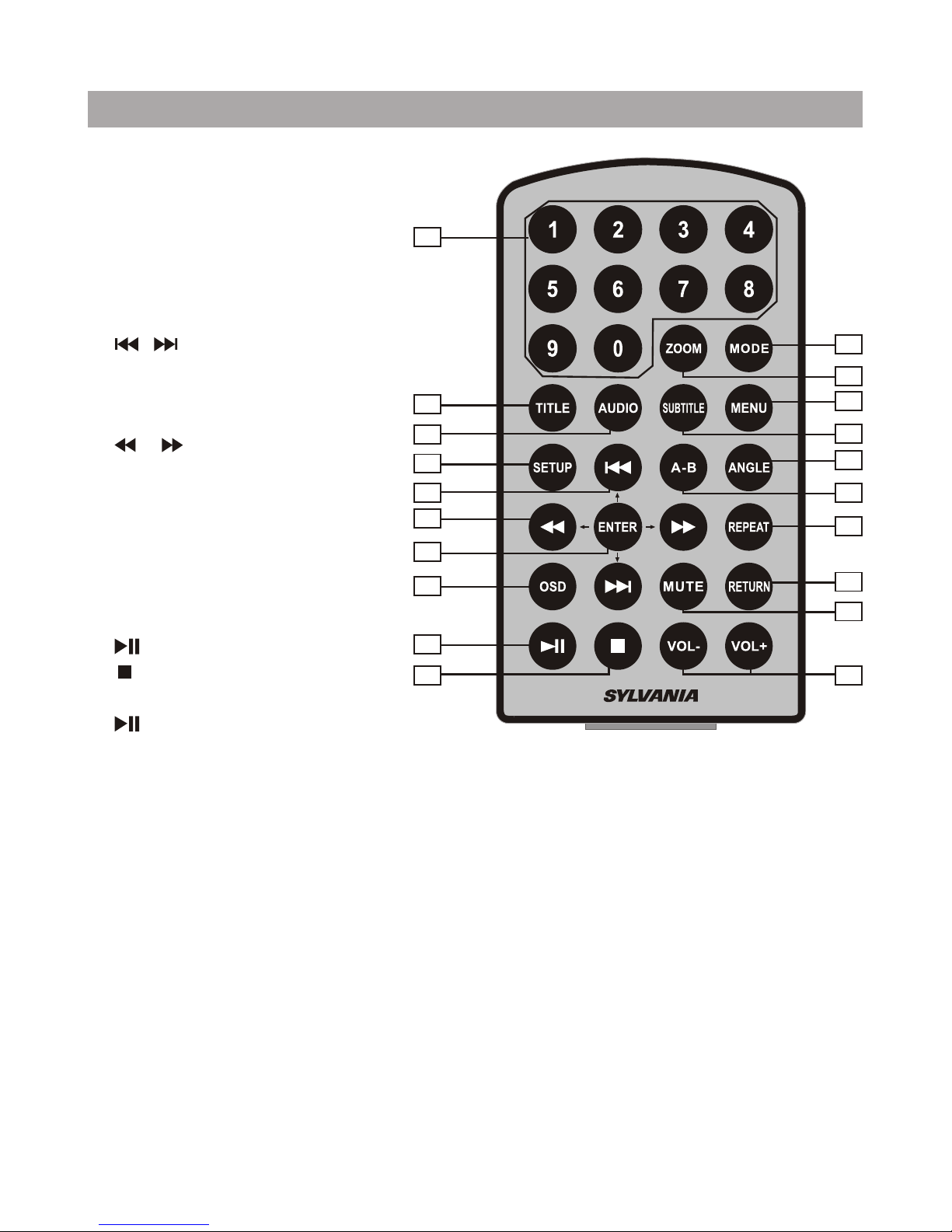

The Remote Control
7
1. Number button
2. TITLE (To display title
information)
3. AUDIO (To select audio
language)
4. SETUP (To go to or exit
setup menu)
5. / Previous/Next
button (To go to previous/
next chapter or scene
during playing)
6. / Fast forward/
backward button (To scan
forward/backward at 2, 4,
8, 16, or 32 times )
7. OSD (To display disc
information during playing
such as elapsed and
remaining time)
8. Play / pause
9. STOP ( Press once to
stop playback, then press
to resume playback
from the point where you
stopped; press stop button
twice to stop playback completely.)
10. ENTER (To confirm)
11. MODE (Press MODE to show DVD, SD, USB option)
12. ZOOM(To zoom in the image during the playback)
13. MENU (To enter menu root)
14. SUBTITLE (To select subtitle language when playing DVD disc)
15. ANGLE (To change viewing angle when playing disc with multi-angle)
16. A-B (Repeat a specific portion from point A to B, press it again to cancel
repeat playing)
17. REPEAT (To repeat playing title, chapter or track)
18. RETURN (To return to the main menu)
19. MUTE (To turn to mute)
20. VOL +/- (To adjust the volume)
1
2
3
4
5
6
7
8
9
10
11
13
14
12
15
16
17
18
19
20
Page 11

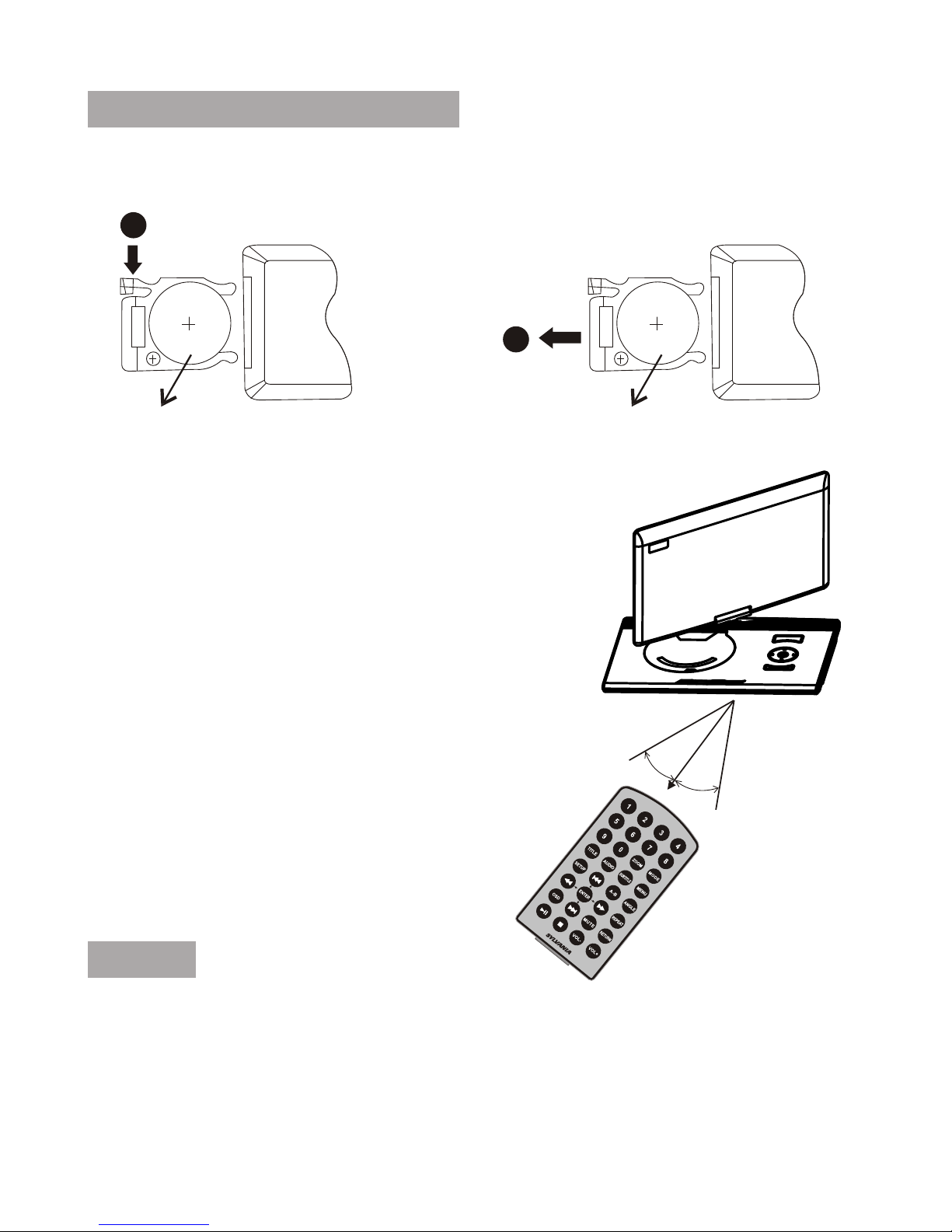

When using remote control, make sure the
infrared window is pointed to infrared receiving
window of the machine. The distance between
machine and remote control must be within 3
metres. Please refer to the following illustration.
1. To avoid falling off or place near damp environment.
2. To avoid infrared receiving window of the unit being under direct sunlight.
3. Please use a new battery to replace old one if the remote control doesn't
work.
The Use Of Remote Control
Notice
1
2
CR2025 CR2025
Please put the battery into the remote control as per illustration below.
8
0
3
0
0
3
0
Page 12
DVD
SVCD
VCD CD MP3

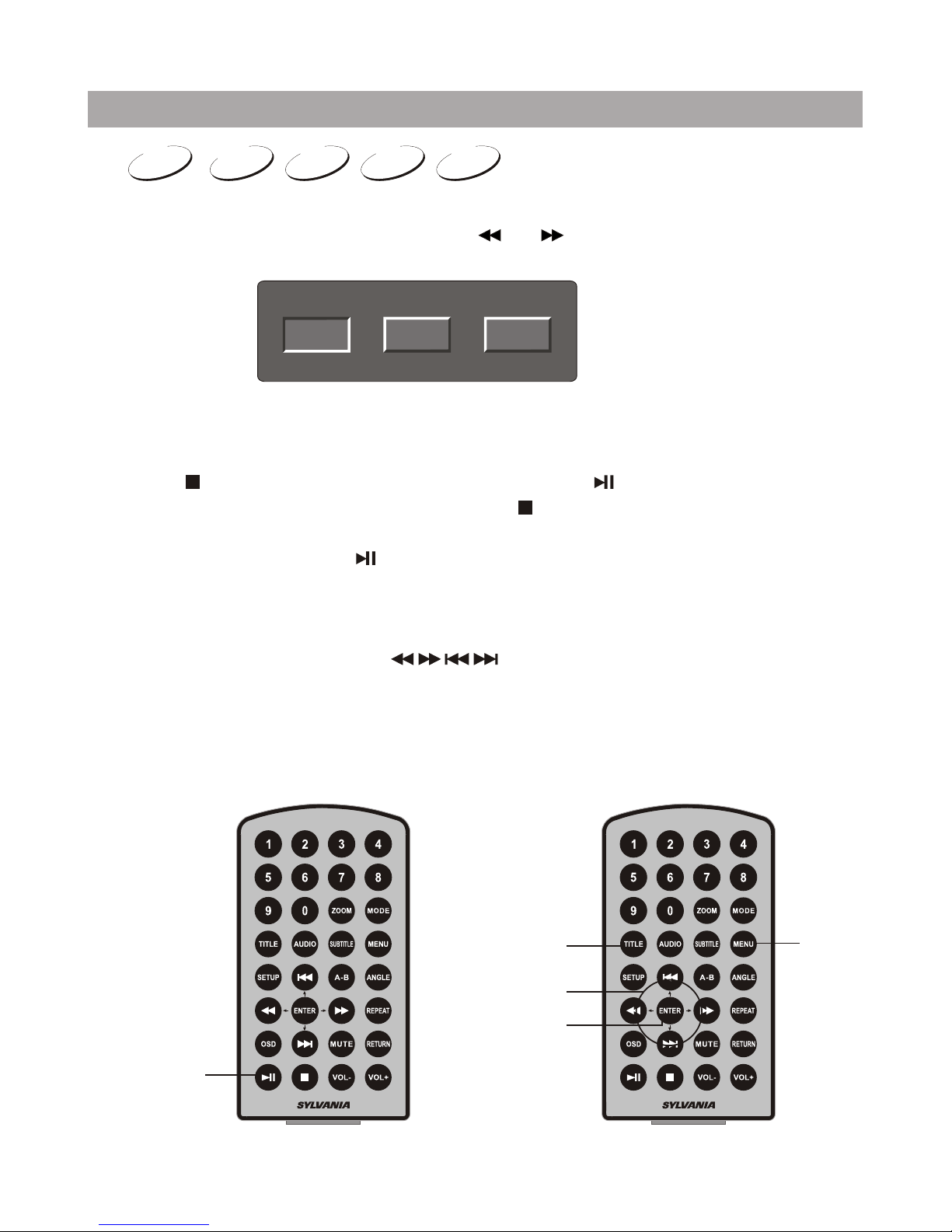

Basic Operation
Playing disc of DVD, SVCD, VCD, CD, MP3.
1. In the Source Mode, you can press " ", " ", to select and "ENTER" key
to enter the source you want.
DVD
SD USB
2. Open the disc door and insert a disc into the door with the label side facing
up.
3. Close the disc door. The unit will load the disc and start playing.
4. Press " " to once to stop playback; then press " " to resume playback
from the point where you stoped; press " " twice to stop playback
completely).
5. During playback, press " " to pause; press it again to resume playback.
6. When the playing is finished, please turn off the power by sliding ON/OFF
switch to OFF.
7. For some DVD disc with Title or Chapter menu, press "MENU" button to
enter menu page, and use " " to select. Press ENTER to confirm.
Note:
Please do not disconnect USB devices or plug out SD cards while they are
working with the unit. Functional failure may occur in case of wrong operations.
Play/pause
Cursor button
ENTER
Title
Menu
9
Page 13
DVD
SVCD
VCD CD
DVD
SVCD
VCD CD

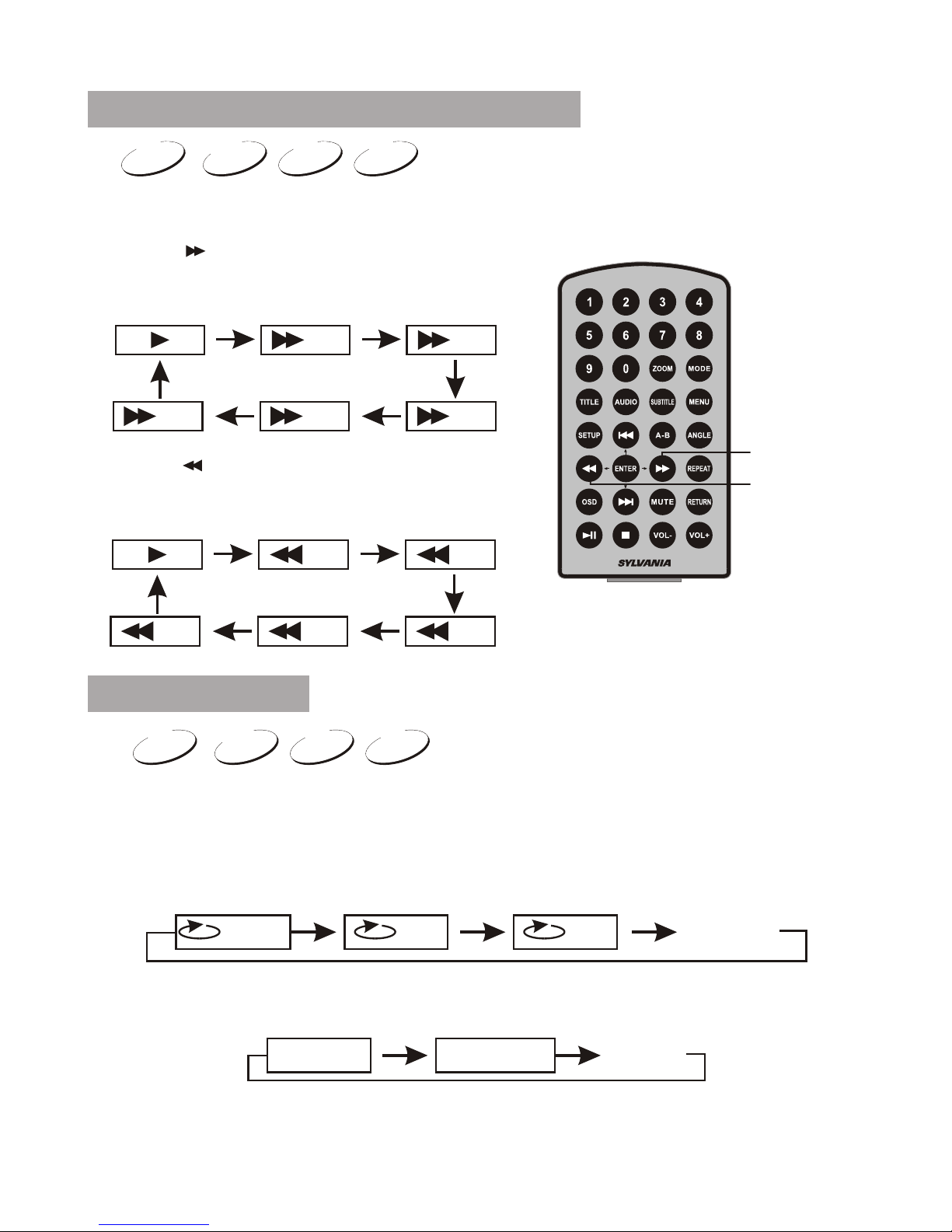

Fast Forward And Fast Backward
When playing disc of DVD, SVCD, VCD, CD, the unit can search forward or
backward.
1. Press " ", the unit will search forward.
Press it repeatedly, the unit will play at
2, 4, 8, 16, 32 times of speed.
2. Press " ", the unit will search backward.
Press it repeatedly, the unit will play at
2, 4, 8, 16, 32 times of speed.
When playing disc of DVD, SVCD, VCD, CD, user can repeat playing one
chapter, title or all the whole disc.
For DVD disc, press "repeat" button, user can repeat playing one Chapter;
press it again to repeat playing Title; press it the third time to repeat playing
the whole disc.
For MP3 disc, press "repeat" to repeat playing present file; press it again to
repeat playing the folder; press it the third time to cancel repeat playing.
2X 4X
8X16X32X
2X 4X
8X16X32X
Search forward
Search backward
Repeat Playing
Chapter
Title All
Repeat off
Repeat one
Repeat folder
Repeat off
10
Page 14
MP3CDVCD
SVCD
DVD
Repeat Playing Of Favorite Scene
A
AB
A-B
Angle
Number
Select Angle
DVD
During playing DVD disc with multi-angle, press
"Angle", button, the followings will be displayed
on screen.
Note
The function is available only for discs with multi-angle.
1 /4
2 /4
3 /4
4 /4
When playing disc of DVD, SVCD, VCD, CD, MP3,
user can repeatedly play a specific section.
During playback, press "A-B" button at a point A,
then press this button again in point B, the unit will
automatically repeat playing the part between A-B.
Press it the third time, the unit will return to normal playback.
11
Page 15
100%
125%
150%
200%
75%
50%
2X
3X
4X
When playing disc of JPEG user can zoom in or
zoom out the image.
During playback, press Zoom button, the image
will be enlarged; press it again the image will be
enlarged again; press it fifth time, the image
will zoom out, press it repeatedly and the image
will return to normal status.
When the image is enlarged, user can press
" " to move the image.
Zoom in/out
12
Zoom in
When playing disc of DVD, VCD user can zoom
in/out the image.
During playback, press Zoom button,the image
will be enlarged; press it again the image will be
enlarged again; press it fourth time the image
will zoom out, press it repeatedly and the image
will return to normal status.
½
/
¼
1
3
Page 16
00 36 03 43
Dir 001
\Ctyy\
......
Mp3
TRACK01
Mp3
TRACK02
Mp3
TRACK03
Mp3
TRACK04
Mp3
TRACK05
Playing JPEG File In Data Disc
1. Place a JPEG disc into the tray, the unit will start reading and play.
2. Press "MENU" to browse JPEG files.
3. Press " " to select a JPEG file and press "ENTER" button to confirm.
Note: you can press MENU to return to the folder list. Press " " or
"ENTER" to preview the file selected
4. Press " " to rotate the picture counter-clockwise, Press " " to rotate the
picture clockwise.
5. Press OSD button when viewing pictures, you can select different refresh
mode as follows:
from top to bottom
from bottom to top
from left side to right side
from right side to left side
from left top to right bottom
from right top to left bottom
from left bottom to right top
from right bottom to left top
from horizontal center to both sides
from vertical center to both sides
From top and bottom to center.
from right and left to center.
from four window's top side to bottom side.
from four window's left side to right side.
From 4 edges to center.
6. During viewing files, " " may appear when pressing "Angle" or "Subtitle"
or "Audio" or "A-B" or "Title" etc; in this situation these options are
unavailable to operate.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
/
1. Place MP3 disc into the disc door .
Press " " or "ENTER" button to
choose a MP3 file; Press " " or
"ENTER" button to play the file
selected.
Playing MP3 Files In Data Disc
13
Page 17
General Setup Page
TV display:
Enter this option, user can set screen display
format (Nomal/PS, Nomal/LB, Wide)
The default is "Wide".
Note
The function depends on the display ratio
with which the DVD disc is recorded.
Please choose "Wide(16:9)" when using
a 16:9 wide screen TV set.
Angle Mark:
Enter this option to set the angle during
playback.
Optional setting: ON,OFF.
The default is: ON.
OSD Language:
In the option user can set OSD menu
language (English, French , Spanish).
The default: English.
Screen Saver
Enter this option to set whether to activate
the screen saver function.
The default is: ON.
14
General Setup
TV Display Wide
Angle Mark On
OSD Lang ENG
Screen Saver On
Normal/PS
Normal/LB
Wide
:Move
:Return :Entry
General Setup
TV Display Wide
Angle Mark On
OSD Lang ENG
Screen Saver On
On
Off
:Move
:Return
:Entry
General Setup
TV Display Wide
Angle Mark On
OSD Lang ENG
Screen Saver On
:Move
:Return :Entry
TV Display Wide
Angle Mark On
OSD Lang ENG
Screen Saver On
On
Off
:Move
:Return
:Entry
General Setup
English
French
Spanish
Text to Speech
Off
Text to Speech
Off
Text to Speech
Off
Text to Speech
Off
System Setup
Press "Setup" button, the main menu will be
displayed on the screen
In the General Setup Page, Press button
to highlight this item.
Press ENTER button to access.
Press button to select the setting.
Press ENTER button to confirm your selection.
Press button to exit.
General Setup
Video Setup
Preference Setup
Setup Menu -- Main Page
Page 18
Video Setup
:Move
:Return
:Entry
Panel Quality
TV Type NTSC
PAL
Video Setup Page
Video Setup
:Move
:Return
:Entry
TV Type NTSC
Panel Quality
TV Type:
Enter this option to select TV type
(PAL, NTSC)
The default is NTSC.
Set the Video Quality of PANEL
15
Text to speech
Enter this option to set Text to speech.
Optional setting: ON,OFF
The default is : OFF.
TV Display Wide
Angle Mark On
OSD Lang ENG
Screen Saver On
On
Off
:Move
:Return
:Entry
General Setup
Text to Speech
Off
Page 19
Preference Setup
:Move
:Return :Entry
Audio ENG
Subtitle Off
Disc Menu ENG
Parental
Default
Off
:Entry
:Move
:Return
Audio ENG
Subtitle Off
Disc Menu ENG
Parental
Default
Preference Setup
1 KID SAFE
2 G
3 PG
4 PG 13
5 PGR
6 R
7 NC 17
8 ADULT
:Entry
:Move
:Return
Audio ENG
Subtitle Off
Disc Menu ENG
Parental
Default
Preference Setup
:Entry
Reset
Preference Setup
:Move
:Return
Audio ENG
Subtitle Off
Disc Menu ENG
Parental
Default
Subtitle
Select your preferred language to show the
subtitles on the screen.
The default is OFF.
The subtitle languages depend on the
information available on each disc, You can
also change the subtitle language during
playback by press the SUBTITLE button.
Disc Menu
This function allows you to choose the menu
language stored on the disc.
The default is English.
Note:the disc menu languages depend on the
information available on the disc.
Default:
Select this item and press " button to
reset.
ENTER"
Parental:
Enter this option to set the parental control
level to some unsuitable disc scenes being
watched by the children.
Optional parental control levels: KID SAFE,
G, PG, PG 13, PGR, R, NC17, ADULT.
The default is ADULT.
The default password: 0000.
16
English
French
Spanish
English
French
Spanish
Preference Page
Preference Setup
:Move
:Return :Entry
Audio ENG
Subtitle Off
Disc Menu ENG
Parental
Default
Audio:
Enter this option,user can select preferred
audio language for DVDs.
The default is English.
Note
The audio language depend on the material
on each disc.
User can also change the audio language
durin g play back by pressing the Audio button.
English
French
Spanish
Page 20
17
Compatible disc: DVD/VCD/CD/MP3
Signal system: PAL/NTSC
Panel size: 13.3 inch
Picture resolution: 1280x800 (RGB)
Frequency response: 20 Hz to 20 kHz
Video output: 1 Vp-p/75 Ohm, unbalanced
Audio output: 1.4Vrms/10kOhm
Audio S/N: Better than 80 dB
Dynamic range: Better than 85 dB
USB: support USB 1.1
Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm
INPUT: AC 100-240V(Wall adaptor power source)
Power source: DC 9-12V
Power consumption: 15 W
Operating temperature:0~40°C
Weight: 1.3 kg
Dimensions (W x D x H): 363 x 248 x 45 mm
Battery Type: Li-ion
Specification
Owing to continuous improvement, no prior notice will be given regarding changes on
above feature and spec.
lf at any time in the future you should need to dispose of this product please
note that waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist. Check with your Local Authority
or retailer for recycling advice. (Waste Electrical and Electronic equipment
Directive)
Page 21
Rechargeable Battery Use
Precautions Related To Battery Recharge
NOTE: The unit only can be charged when switch off, it can not be
chargred during using .The light is red when charging, and the light turn
yellow when it is fully charged.
1. The normal working temperature is: 0 ~40 ;
2. Always unplug AC/DC power supply for the unit when not in use;
3. Heat will create during playing, it's normal, while avoid long time playing
and unattended;
4. Avoid having the unit collide with any objects, and place away from all
possible heat sources or damp areas.
°C °C
Using And Maintaining Rechargeable Battery
Caution:
Danger of explosion if battery is incorrectly replaced.Replace only with the
same or equivalent type.
18
Batter
y
Battery
Main PCB
Before to discard EOL unit, please remove the waste battery by below steps:
a. Pull out the screws on the bottom cover by the screwdriver to unpack the
unit.
b. Pull out the screws on the Main PCB board by the screwdriver to unpack
the PCB board and then the battery can be seen.
c. Remove the battery socket from the board.
Removal Of Waste Battery
The unit utilizes long-life Li-ion battery for portable power supply. The battery
has no Memory Effect and thus can be recharged safely regardless of
whether the battery is fully or partially discharged. It is enough to recharge
no longer than 5H each time. Fully recharged battery can last about 2 hours
with earphones on.
Page 22
Troubleshooting
19
PROBLEM SOLUTION
No sound or
distorted sound
Make sure the machine is connected properly.
Make sure all cables are securely inserted into
the appropriate jacks.
The icon
appears on
screen
Can't advance
through a movie
Picture is
distorted
No forward or
reverse scan
You can't advance through the opening credits
and warning information that appears at the
beginning of movies because the disc is
programmed to prohibit that action.
The feature or action cannot be completed at
this time because:
1. The disc's software restricts it.
2. The disc's software doesn't support the
feature (e.g., angles)
3. The feature is not available at the moment.
4. You've requested a title or chapter number
that is out of range.
Some discs have sections that prohibit rapid
scanning or chapter skip;
If you try to skip through the warning information
and credits at the beginning of a movie, you
won't be able to. This part of the movie is often
programmed to prohibit skipping through it.
The disc might be damaged. Try another disc;
It is normal for some distortion to appear during
forward or reverse scan.
1. Check to see if you may have inserted a
blank disc.
2. Remove disk and check to ensure that disc
is clean and not scratched.
3. Check to see if you may have inserted a disc
that has not yet been finalized.
4. Check to see if you may have inserted the
disc correctly;please remove and try to insert
disc correctly.
5. Try to play the original DVD disk. please note
that some DVD players cannot recognize
improperly burned disks.
6. Use a lens cleaning disk or gently wipe the
laser pickup lens with dry microfiber cloth.
Display shows"No disk" after
inserting DVD
Loading...
