SDVD1048
Page 2
1
Table Of Contents
Safety Precaution 1
Package 3
Main Features 3
Main Unit Controls 4
System Connection 5
The Remote Control 7
Basic operation 9
System Setup 18
Specification 22
Troubleshooting 23
.
Safety Precaution
Warning: To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture.
1) Please read the instruction manual carefully and follow all the
requirements of safe operation to operate the device.
2) Do not use this unit near water. Do not place over the unit any container
with liquid inside.
3) Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
4) Unplug this unit during lightning storms or when unused for long time.
5) About Cleaning: Unplug the system, use only wet cloth to clean. Do not
use liquid detergent or aerosol.
6) Only use accessories specified by the manufacturer.
7) Refer all servicing to qualified service personnel, servicing is required
when the unit has been damaged in any way, such as power supply cord
or plug is damaged, liquid has been spilled or objects have fallen into the
unit, exposed to moisture, does not operate normally. Don't try to repair
the machine by yourself because of the danger of high voltage and
electric shock.
8) Do not use irregular shaped discs such as heart or star-shaped discs as
they may cause the unit to malfunction.
Page 3
32
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
High brightness color 10.1” LCD screen
Compatible with disc of DVD,VCD,MP3,MPEG4,CD,JPEG,etc
Built-in stereo speaker
Built-in rechargeable Lithium polymer battery
Support PAL or NTSC system
Support Multi-language OSD,speed forward/backward,repeat function
Zoom in/out function
Package
1
1
1
1
1
1
2
Remote Control with battery
Audio/Video Cable
AC/DC Power Adapter
Cigarette Lighter Adapter
User Manual
Earphone
Main Features
DVD Player

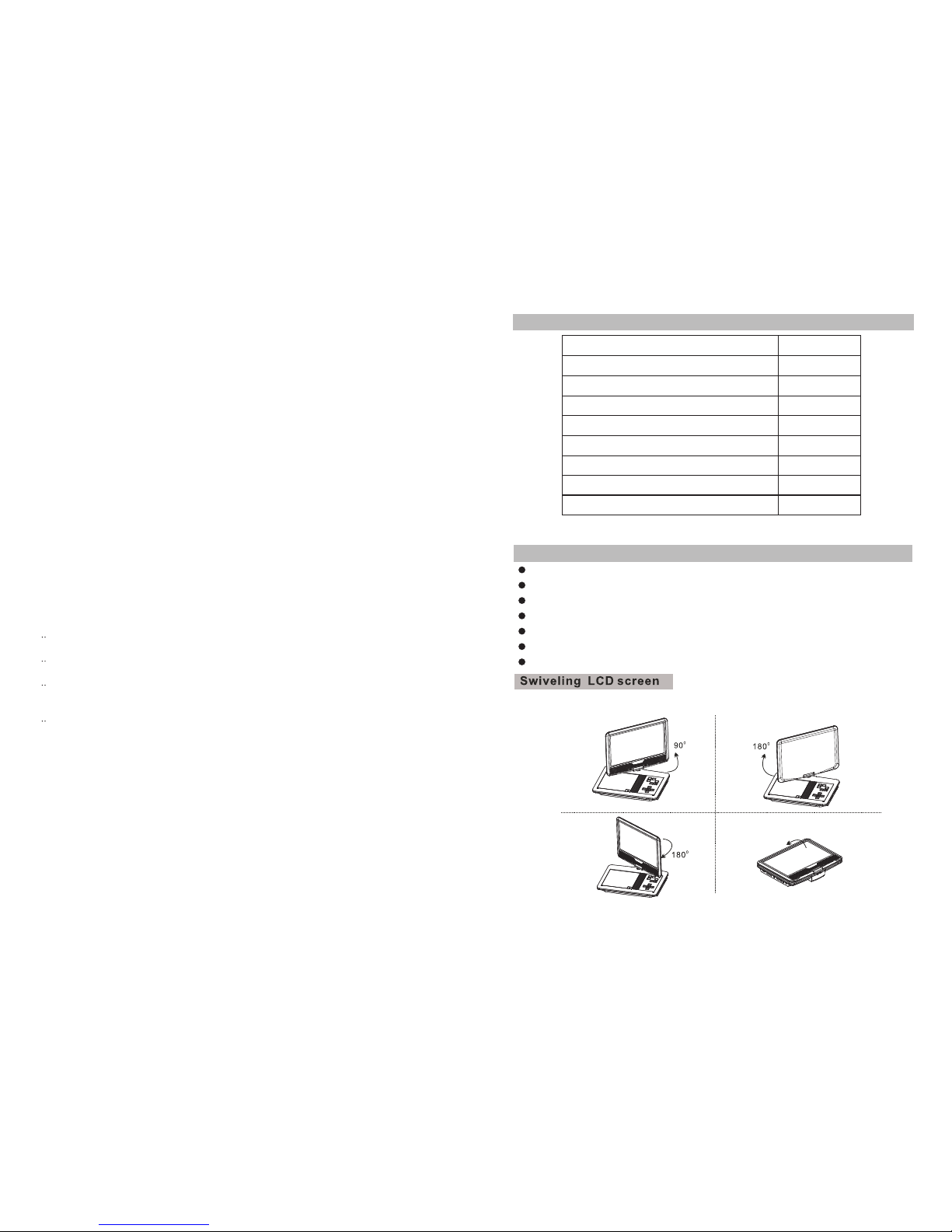

You can swivel the LCD screen of this player clockwise a maximum of 180 for use.°
Travel Bag
Earphone splitter
1
1

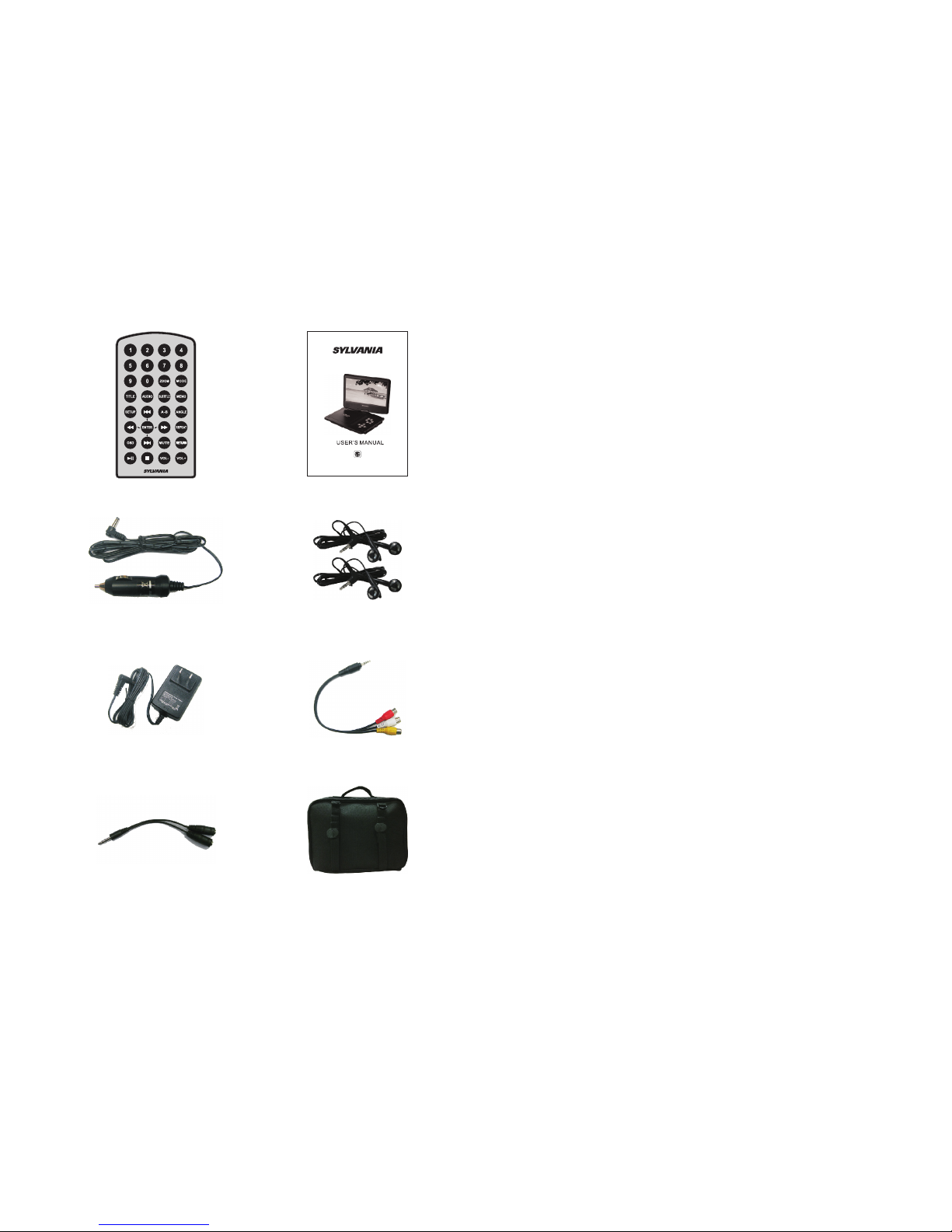

Please find the accessories picture in last page.
Page 4
5
4

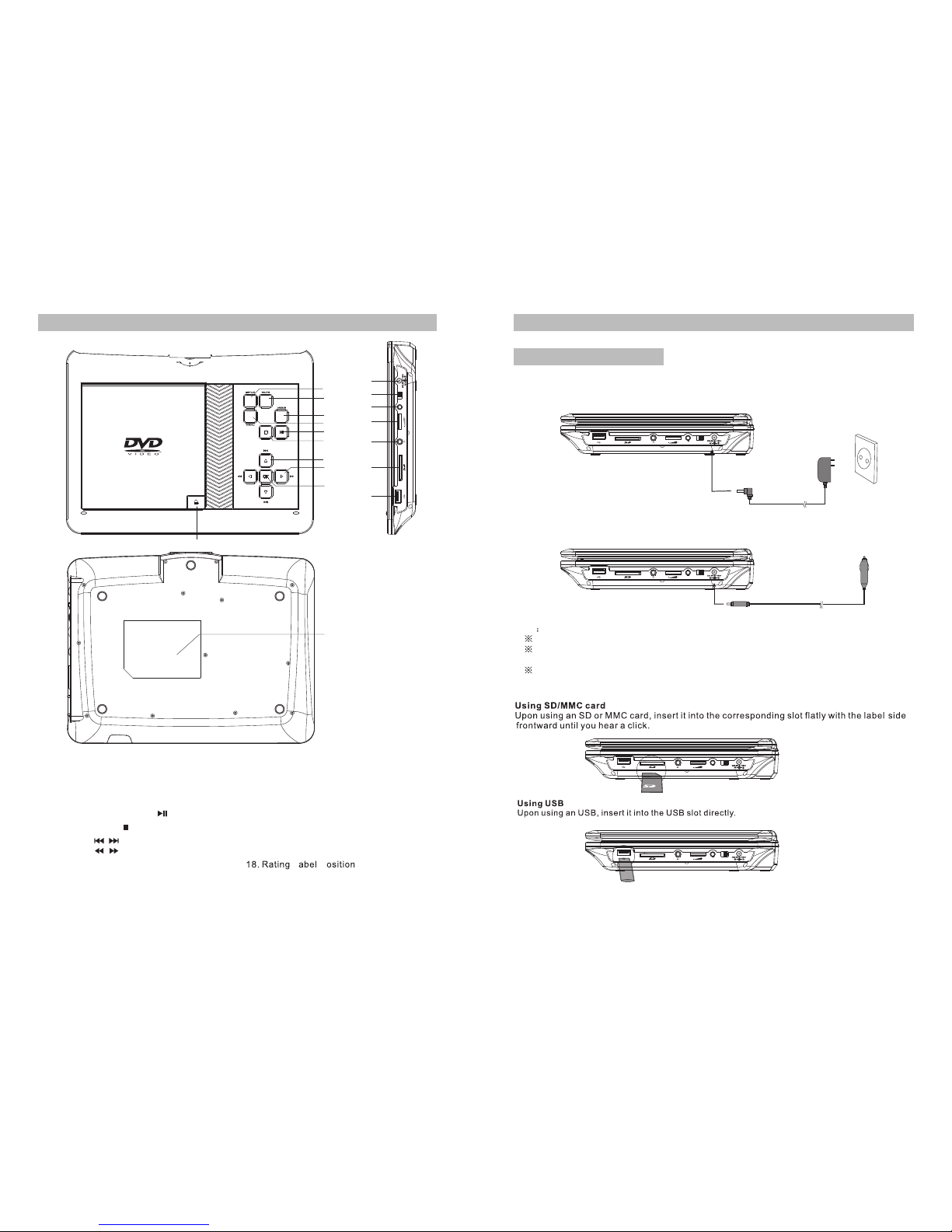

Main Unit Controls
1.SETUP
2.MUTE
3.MODE
4.MENU
5.PLAY/PAUSE
6.STOP
7. BUTTON
8. BUTTON
9. OK BUTTON(Function same
as “ENTER”on remote control)
10. DC IN 9-12V
11. POWER ON/OFF SWITCH
12. AV OUT
13. VOLUME
14. EARPHONE
15. SD Card slot
16. USB port
17. OPEN knob
AV OUT OFF/ON
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Note
Car cigarette lighter adaptor can't be used to recharge the battery.
Car cigarette lighter adaptor is available to use only when the car cigarette lighter with DC
12V negative grounding.
The mains plug is used as the disconnect device, the disconnect device should remain
readily operable.
Powering and installation
Plug one end of the AC/DC power adaptor into the DC IN 9-12V jack on the right of the
machine,then plug the other end into the AC power receptacle.Please refer to the
following illustration.
If using car cigarette lighter adaptor to connect to the power:
Plug one end of the cigarette lighter adaptor into the DC IN 9-12V jack on the unit, plug
the other end into the car cigarette lighter socket.See illustration below.
System Connection
AV OUT OFF/ON
AV OUT OFF/ON
18
L P
AV OUT OFF/ON
AV OUT OFF/ON
Page 5
76
1. Number button
2. TITLE(To display title information)
3. AUDIO(To select audio language)
4. SETUP(To go to or exit setup menu)
5. Previous/Next button(To go
to previous/next chapter or scene
during playing)
6. Fast forward/backward
button(To scan forward/backward
at 2,4,8,16,or 32 times)
7. OSD(To display disc information
during playing such as elapsed and
remaining time)
8. PLAY/PAUSE
9. STOP(press once to stop playback, then
press to resume playback from the
point where you stopped; press stop
button twice to stop playback completely)
10. MODE(To select the source)
The Remote Control
11. ZOOM(To zoom in/out the image
during the playback)
12. MENU(To enter or exit menu root)
13. SUBTITLE(To select subtitle language
when playing DVD disc)
14. ANGLE(To change viewing angle
when playing disc with multi-angle)
15. A-B(Repeat a specific portion from
point A to B, press it again to cancel
repeat playing)
16. REPEAT(To repeat playing title,
chapter or track)
17. RETURN(To return to the main menu)
18. MUTE(To turn to mute)
19. VOL +/- (To adjust the volume)
20: ENTER(To confirm)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
AV OUT OFF/ON
Connecting with external Speaker

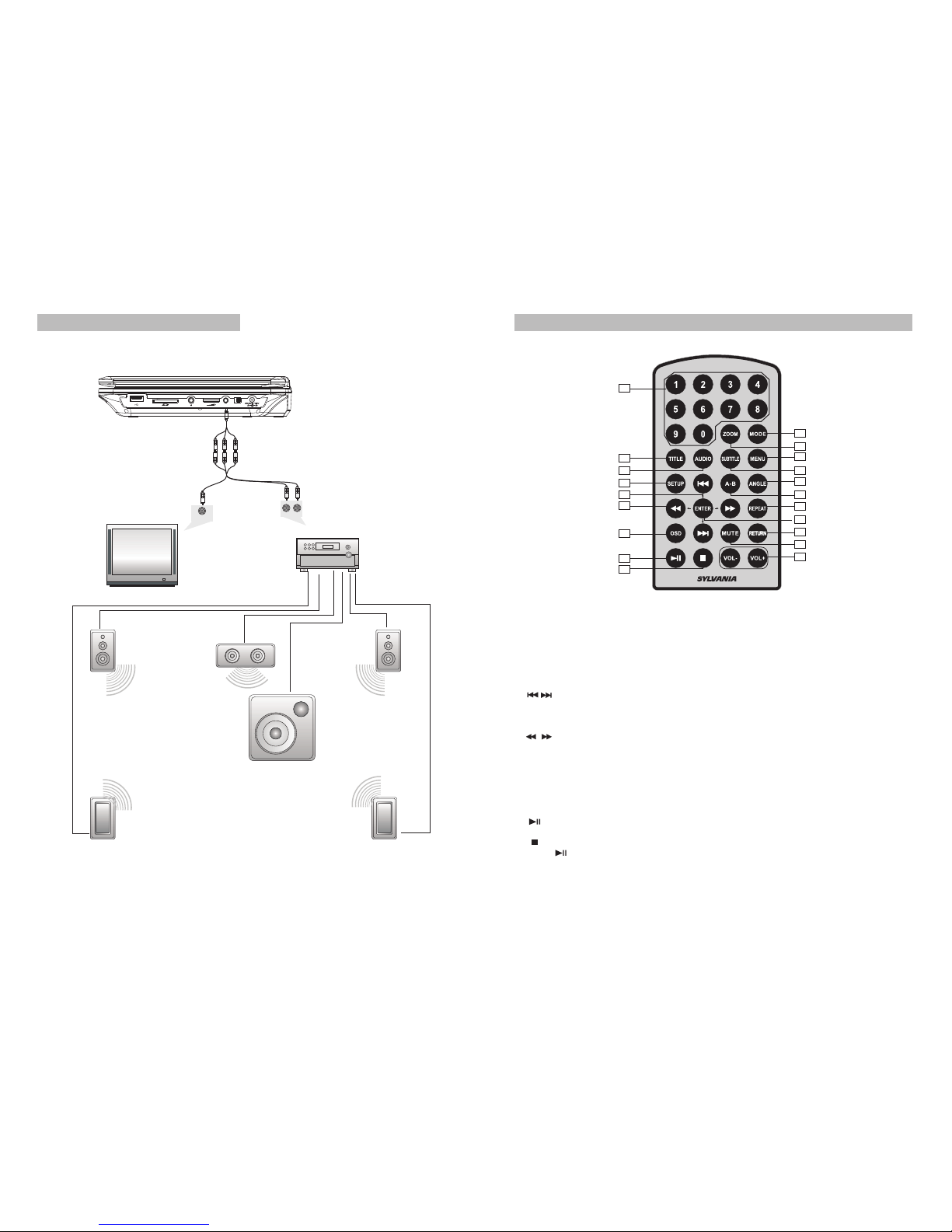

The unit can be connected with external speaker.Please see the following illustration.
AMPLIFIER
TV
SUBWOOFER
Left front speaker
Right front speaker
Center speaker
Left rear speaker
Right rear speaker
Note:
There is no 5.1 channel in the machine,however,after connecting to APM it is available to
output audio in 5.1 channel.
AUDIO INVIDEO IN
AV CABLE
Not supplied
Page 6
8
9
Basic Operation
Playing disc of DVD, MPEG4, SVCD, VCD, CD, Mp3.
1.
2. Open the disc door and insert a disc into the door with the label side facing up.
3. Close the disc door.The unit will load the disc and start playing.
4. Press“ ”once to stop playback;then press“ ”to resume playback from the point
where you stoped;press“ ” twice to stop playback completely).
5. During playback,press“ ”to pause; press it again to resume playback.
6. When the playing is finished, please turn off the power by sliding ON/OFF switch to OFF.
7. For some DVD disc with Title or Chapter menu, press“MENU”button to enter menu
page, and use“ ”to select. Press ENTER to confirm.
DVD
MPEG4
SVCD
VCD CD
MP3
Note:
Please do not disconnect USB devices or plug out SD/MMC cards while they are working
with the unit.Functional failure may occur in case of wrong operations.
In the Source Mode,you can press , ,to select and key to enter the
source you want.
“ ” “ ” “ENTER”
DVD
SD USB
Play/pause
Cursor button
ENTER
Title Menu
1
2
CR2025 CR2025
Please put the battery into the remote control as per below illustration.
When using remote control,make sure the infrared window is pointed to infrared receiving
window of the machine.The distance between machine and remote control must be within
3 metres.Please refer to the following illustration.
The Use of Remote Control
0
30
0
30
Note:
1. To avoid falling off or place near damp environment.
2. To avoid infrared receiving window of the unit being under direct sunlight.
3. Please use a new battery to replace old one if the remote control doesn't work.
MODE
Page 7
10 11
When playing disc of DVD,MPEG4,SVCD,VCD,CD,Mp3,user can repeatedly
play a specific section.
During playback,press“A-B”button at a point A,then press
this button again in point B,the unit will automatically repeat
playing the part between“A-B”
Press it the third time,the unit will return to normal playback.
AB
A
Number
During playing DVD disc with multi-angle, press“Angle”button to change the display angle.
Note:
The function is available only for discs with multi-angle.
Angle
A-B
Repeat playing of favorite scene
MP3
CDVCD
SVCD
MPEG4
DVD
Angle
DVD
MPEG4 SVCD
VCD CD
2X 4X
8X16X32X
2X 4X
8X
16X32X
Search forward
When playing disc of DVD,MPEG4,SVCD,VCD,CD, the machine can search forward or
backward.
1. Press“ ”,the machine will search forward. Press it repeatedly ,the machine will play
at 2, 4,8, 16, 32 times of speed.
2. Press“ ”, the machine will search backward.
Press it repeatedly,the machine will play at
2,4,8,16,32 times of speed.
Search backward
Fast forward and fast backward
DVD
MPEG4
SVCD VCD CD
When playing disc of DVD,MPEG4,SVCD,VCD,CD,user can repeat playing one
chapter, title or all the whole disc.
For DVD disc,press“repeat”button,user can repeat playing one Chapter;press it
again to repeat playing Title;press it the third time to repeat playing the whole disc.
For MP3 disc,press“repeat”button to repeat playing present file;press it again to repeat
playing the folder;press it the third time to cancel repeat function.
Chapter Title All
Repeat off
one folder
Repeat off
Repeat playing
Track
All
Repeat off
For CD/VCD disc, press repeatedly to repeat the track and the whole disc. “repeat”button
Page 8
12 13
1. Place a JPEG disc into the tray, the unit will start reading and play.
2. Press“MENU”to browse JPEG files.
3. Press“ ”to select a JPEG file and press“ENTER”button to confirm.
Note:you can press MENU to return to the folder list.Press“ ”or “ENTER”to preview
the file selected.
4. To rotate the picture counter-clockwise,press“ ”;Press “ ”to rotate the picture
clockwise.
5. Press OSD button when viewing pictures,you can select different refresh mode as
follows:
1. from top to bottom
2. from bottom to top
3. from left side to right side
4. from right side to left side
5. from left top to right bottom
6. from right top to left bottom
7. from left bottom to right top
8. from right bottom to left top
9. from horizontal center to both sides
10.from vertical center to both sides
11.from top and bottom to center.
12.from right and left to center.
13.from four window's top side to bottom side.
14.from four window's left side to right side.
15.from 4 edges to center.
6. During viewing files,“ ”may appear when pressing“Angle”or“Subtitle”or “Audio”
or“A-B”or“Title”etc; in this situation these options are unavailable to operate.
7. When viewing JPEG files,press“ ”,pictures will be displayed in thumbnail mode,
press“ ”or“ENTER”button to select one picture to view.
00 36 03 43
Dir 001
\Ctyy\
......
Mp3
TRACK01
Mp3
TRACK02
Mp3
TRACK03
Mp3
TRACK04
Mp3
TRACK05
1.Place MP3 disc into the disc door.
Press “ ” or “ENTER”button to choose a MP3 file;Press “ ” or“ENTER”button to
play the file selected.
Playing MP3 files in date disc
Playing JPEG file in date disc
Zoom in/out
When playing disc of JPEG user can zoom in or
zoom out the image.
During playback,press Zoom button,the image
will be enlarged;press it again the image will be
enlarged again;press it fifth time,the image
will zoom out,press it repeatedly and the image
will return to normal status.
When playing disc of DVD,VCD user can zoom in/out
the image.
During playback,press Zoom button,the image
will be enlarged;press it again the image will be
enlarged again;press it fourth time the image
will zoom out,press it repeatedly and the image
will return to normal status.
When the image is enlarged,user can press[ ]
to move the image.
100%
125%
150%
200%
75%
50%
2X
3X
4X
Zoom in
½
/
¼
1
3
Page 9
14 15
00 00 03 43
001/008
\Ctyy\
......
Mp3
TRACK01
Mp3
TRACK02
Mp3
TRACK03
Mp3
TRACK04
Mp3
TRACK05
In the Browser Mode,the system will show the list of file and folder.
, , key:select and play
:Enter the folder
:Quit the folder
Note:
if you want to return to the Main Menu,first,the system must be in List of file and folder
status, and you can press RETURN KEY to return to the Main Menu.
“ ” “ ” “ENTER”
“ ”
“ ”
“”
Browser mode
Photo mode
Slide Show Menu Prev Next
In the Photo Mode,the System will show the thumbnail Mode first.
, , , , :select and play.
Slide Show:play the JPEG.
Menu:Enter the Help Menu.
Prev:Page Up.
Next:Page Down.
“ ” “ ” “ ” “ ” “ENTER”
SD/MMC/USB main menu
After Enter the SD/MMC or USB,the system will show Main Menu which includes 4
Function ICONS.You can select them by and press key to confirm.“ ” “ENTER”
Photo Mode
Detail explanation please refer to P15 -16
Browser Mode
Detail explanation please refer to P15
Music Mode
Detail explanation please refer to P16
Movie Mode
Detail explanation please refer to P17
Note:Media cards formatted in exFAT file system not supported.
Page 10
16 17
In the Movie Mode,the system will show the list of Movie file,like AVI and so on.
, , Key:Select and Play.
When playing movie you can press MENU and Return Key to back to the list of movie
file status.And if you want to Return to the Main Menu,Please Press Return key in list
of Movie file status.
“ ” “ ” “ENTER”
“”“ ”
“”
Movie mode
001/006
AVI
TRACK01
TRACK02
TRACK03
TRACK04
TRACK05
TRACK06
AVI
AVI
AVI
AVI
AVI
During playing the CD/HDCD disc,you can enter CD Ripping function.By pressing
subtitle button,DVD player will be able to change the CD format into MP3 format,
and then store it in the USB or SD card.
CD RIPPING
CD RIP
Options
Track
Track 01 03:36
SUMMARY
Selected Track 0
Selected Time 00:00
Track 02 03:36
Track 03 03:36
Track 04 03:36
Track 05 03:36
Track 06 03:36
Track 07 03:36
Speed Normal
Bitrate 128kbps
Create Id3 Yes
Device USB 1
Start Exit Selected all Selected nono
1. from top to bottom
2. from bottom to top
3. from left side to right side
4. from right side to left side
5. from left top to right bottom
6. from right top to left bottom
7. from left bottom to right top
8. from right bottom to left top
9. from horizontal center to both sides
10.from vertical center to both sides
11.from top and bottom to center.
12.from right and left to center.
13.from four window's top side to bottom side.
14.from four window's left side to right side.
15.from 4 edges to center.
When playing JPEG :
1.To rotate the picture counter-clockwise,press “ ”; Press“ ” to rotate the picture
clockwise
2. Press OSD button when viewing pictures,you can select different refresh mode as
follows:
In the Music Mode,the system will show the list of music file,like Mp3 and so on.
Press , , ,select and play.
Press to fast forward /backward MP3 during playing.
Press to select the function button when in stop status.
Page-:Page Up.
:play
Page+:Page Down
Note:Press Return Key to Return to the Main Menu.
“ ” “ ” “ENTER”
“ ”
“ ” “ ”
“”
Music mode
00 00 03 43
001/008
Repeat Off
Mp3
TRACK01
Mp3
TRACK02
Mp3
TRACK03
Mp3
TRACK04
Mp3
TRACK05
128Kbps
P P
3. During viewing files,“ ”may appear when pressing“Angle”or“Subtitle”or“Audio”
or“A-B”or“Title”etc;in this situation these options are unavailable to operate.
4. When viewing JPEG files,press“ ”and“RETURN”key,pictures will be displayed in
thumbnail mode,press“ ”or“ENTER”button to select one picture to view.
Note : If want to return the Main Menu,you can Press“Return”key in the thumbnail mode.
Page 11
18 19
General Setup
TV Display Wide
Angle Mark ON
OSD Lang ENG
Screen Saver ON
Normal/PS
Normal/LB
Wide
:Move
:Return
:Entry
General Setup Page
TV display:
Enter this option,user can set screen display
format(Nomal/PS,Nomal/LB,Wide)
The default is Wide
Note
The function depends on the display ratio
with which the DVD disc is recorded.
Please choose Wide(16:9) when using
a 16:9 wide screen TV set.
“”
“”
General Setup
TV Display Wide
Angle Mark ON
OSD Lang ENG
Screen Saver ON
On
Off
:Move
:Return
:Entry
Angle Mark:
Enter this option to set the angle during
playback.
Optional setting:ON,OFF
The default is:ON
General Setup
TV Display Wide
Angle Mark ON
OSD Lang ENG
Screen Saver ON
English
French
German
Italian
:Move
:Return :Entry
OSD Language:
In the option user can set OSD menu
language(English,French,German,Italian).
The default:English
TV Display Wide
Angle Mark ON
OSD Lang ENG
Screen Saver ON
On
Off
:Move
:Return
:Entry
General Setup
Screen Saver
Enter this option to set whether to activate
the screen saver function.
The default is ON.
CD RIP
Ripping
Selected track
Track Progress
Total Progress
Track 01 9%
Cancel
SUMMARY
Now ripping
Track 01/01
During the changing,you can select CANCEL to stop the changing.
Speed: In this item, you can set the rip speed: Normal or Fast.
Bitrate: In this item, you can set the bitrate. It has 6 choices,96 Kbps,112Kbps,128Kbps,
196Kbps,256Kbps and 320 Kbps.
Create ID3:In this item, you can create ID3 when playing CD text.
Device: This item indicates whether USB or SD CARD is connected with DVD player.
Exit: Exit to the previous menu.
Select all: Select all the files in the disc for convertion and storage.
Select none: Remove all the files in the disc.
Start: Move the cursor to the item and press Enter button, the convertion begins.
System Setup
Press Setup button,the main menu will be
displayed on the screen
In the General Setup Page,Press
button to highlight this item.
Press ENTER button to access.
Press button to select the setting.
Press ENTER button to confirm your selection.
Press Setup button to exit.
“”
“ ”
“ ”
General Setup
Video Setup
Preference Setup
Setup Menu -- Main Page
Page 12
20
21
Default:
Select this item and press ENTER button to
reset.
All settings to the original factory settings.
Preference Setup
:Move
:Return
:Entry
Audio ENG
Subtitle Off
Disc Menu ENG
Parental
Default
Reset
Preference Setup
:Move
:Return :Entry
Audio ENG
Subtitle Off
Disc Menu ENG
Parental
Default
English
French
German
Italian
Off
Disc Menu
This function allows you to choose the menu
language stored on the disc.
The default is English.
Note:the disc menu languages depend on the
information available on the disc.
Parental:
Enter this option to set the parental control
level to some unsuitable disc scenes being
watched by the children.
Optional parental control levels: KID SAFE,
G, PG,PG 13,PGR, R, Nc17, ADULT.
The default of this option is ADULT.
The default password:8888.
:Move
:Return
:Entry
Audio ENG
Subtitle Off
Disc Menu ENG
Parental
Default
English
French
German
Italian
Preference Setup
1 KID SAFE
2 G
3 PG
4 PG 13
5 PGR
6 R
7 NC 17
8 ADULT
:Move
:Return
:Entry
Audio ENG
Subtitle Off
Disc Menu ENG
Parental
Default
Preference Setup
Subtitle
Select your preferred language to show the
subtitles on the screen.
The default is OFF
The subtitle languages depend on the
information available on each disc,You can
also change the subtitle language during
playback by press the SUBTITLE button.
Video Setup Page
Video Setup
:Move
:Return
:Entry
Panel Quality
TV Type NTSC
Set the Video Quality of PANEL
TV Type:
Enter this option to select TV type(PAL,NTSC)
The default is NTSC.
Video Setup
:Move
:Return
:Entry
Panel Quality
TV Type NTSC
PAL
NTSC
Preference Page
Audio:
Enter this op tion,user can select your preferred
audio language for DVDs.
The default is English.
Note
The audio language depend on the material
on each disc.
User can also change the audio language
durin g playback by pressing the Audio button.
Preference Setup
:Move
:Return :Entry
Audio ENG
Subtitle Off
Disc Menu ENG
Parental
Default
English
French
German
Italian
Page 13
22 23
Troubleshooting
PROBLEM SOLUTION
Picture is distorted
If at any time in the future you should need to dispose of this product please
note that waste electrical products should not be disposed of with household
waste.Please recycle where facilities exist.Check with your Local Authority
or retailer for recycling advice.(Waste Electrical and Electronic equipment
Directive)
Owing to continuous improvement,no prior notice will be given regarding changes on
above feature and spec.
Some discs have sections that prohibit rapid
scanning or chapter skip;If you try to skip
through the warning information and credits
at the beginning of a movie,you won't be able
to.This part of the movie is often programmed
to prohibit skipping through it.
No forward or
reverse scan
The disc might be damaged.Try another disc;
it is normal for some distortion to appear during
forward or reverse scan.
The feature or action cannot be completed at
this time because:
1.The disc's software restricts it.
2.The disc's software doesn't support the
feature (e.g.,angles)
3.The feature is not available at the moment.
4.You've requested a title or chapter number
that is out of range.
The icon
appears on
screen
You can't advance through the opening credits
and warning information that appears at the
beginning of movies because the disc is
programmed to prohibit that action.
Can't advance
through a movie
Make sure the machine is connected properly.
Make sure all cables are securely inserted into
the appropriate jacks.
No sound or
distorted sound
The machine utilize s long-life Li polymer battery for portable power supply.The battery has
no Memory Effect”and thus can be recharged safely regardless of whether the battery
is fully or partially discharged.It's enough to recharge no longer than 6H each time ,fully
recharged battery which is always valid with earphones on can last about 5 hours.
“
The battery can be only recharged when turning power to OFF state,and keep continuous
power supply, the red light will be on,and the light will turn yellow when it's fully charged.
1. The normal working temperature is:0 ~40 ;
2. Always unplug AC/DC power supply for the unit when not in use;
3. Heat will create during playing,it's normal,while avoid long time playing and
unattendance;
4. Avoid having the unit collide with any objects,and place away from all possible heat
sources or damp areas.
°C °C
Using and Maintaining Rechargeable Battery
Specification
Precautions related to Battery Recharge
Rechargeable battery use
Compatible disc: DVD/VCD/CD/MP3/MPEG4
Signal system: PAL/NTSC
Panel size: 10.1 inch
Picture resolution: 1024x600
Frequency response: 20 Hz to 20 kHz
Video output: 1 Vp-p/75 Ohm, unbalanced
Audio output: 1.4Vrms/10kOhm
Audio S/N: Better than 80 dB
Dynamic range: Better than 85 dB
USB: support USB 2.0
Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm
Power source: DC 9-12V
Power consumption: 10 W
Operating temperature:0~40°C
Weight: 1.02kg
Dimensions (W x D x H): 256 x 198 x 41.6 mm
Battery Type: Li Polymer
Page 14
SDVD1048
Remote Control with battery
Audio/Video Cable
AC/DC Power Adapter
Cigarette Lighter Adapter
User Manual
Earphone
Travel Bag
Earphone splitter
Loading...
