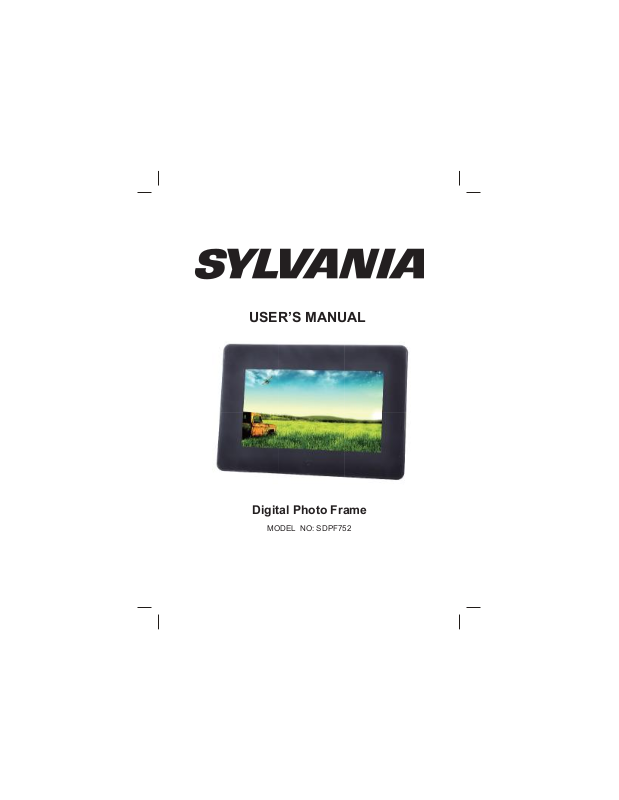

Page 1
USER’S MANUAL
Digital Photo Frame
MODEL NO: SDPF752
Page 2
CONTENTS
Chapter 1 Product introduction ..............................................
1.1 Specification............................................................
1.2 Package ..................................................................
Chapter 2 Operation introduction ..........................................
2.1 Operation of inserting the cards..............................
2.2 Button operation introduction for main unit..............
2.3 Button of remote control manual............................
2.4 Operation guide.......................................................
2.5 Selecting mode........................................................
2.5.1 auto-play mode...........................................
2.5.2 photo...........................................................
2.5.3 clock and calendar display..........................
2.5.4 time and calendar setting ...........................
2.5.5 menu...........................................................
Chapter 3 Daily protection and maintenance.........................
3.1 Digital photo frame protection.................................
3.2 Penal cleanness......................................................
Chapter 4 Trouble shooting.....................................................
2
2
2
2
3
3
4
4
4
5
5
6
6
7
7
7
7
1
Page 3
CHAPTER 1 product introduction
1.1 Specification
support picture format: JPEG
support SD/MMC/MS cards, this machine doesn't support music
panel: 7 inch LED screen
Power: DC5V 1.5A
Operation control: button operation control and remote control
1.2 Packaging list
digital photo frame 1pc
user manual 1pc
adapter 1pc
warranty card 1pc
remote control with button cell battery 1pc
CHAPTER 2 Operation introduction
2.1 Operation of inserting the cards
Insert the card in correct direction like below indication:
SD/MMC/MS
Machine will recognize the card automatically, it can insert USB
and one of SD/MMC/MS card simultaneously
2
Page 4
2.2 Button operation introduction for main unit
This product can be operated by pressing button as below:
8
9
10
1
2
3 4
6
7
5
1. “POWER” button
2. Up button/ playing picture mode is rotating
3. “LEFT” button
4. “RIGH” button
5. “ENTER” button/ playing picture mode is normal playing /pause
6. Down button/ playing picture mode is rotating
7. “MENU ”/“SETUP” button
8. Memory card slot
9. USB input jack
10. Power input jack
2.3 Button of remote control manual
1
2
3
4
5
6
1. “Power” button
7
8
2.“Left” button
9
10
3. “Playing” / “Pause” button
11
12
4. “Rotate” button
5. “UP” button
6. “Setup” button
7. “Enter” button
8. “Righ” button
9. “Down” button
10. “Exit” button
11. “Zoom” button
12. “Slide S” button
3
Page 5

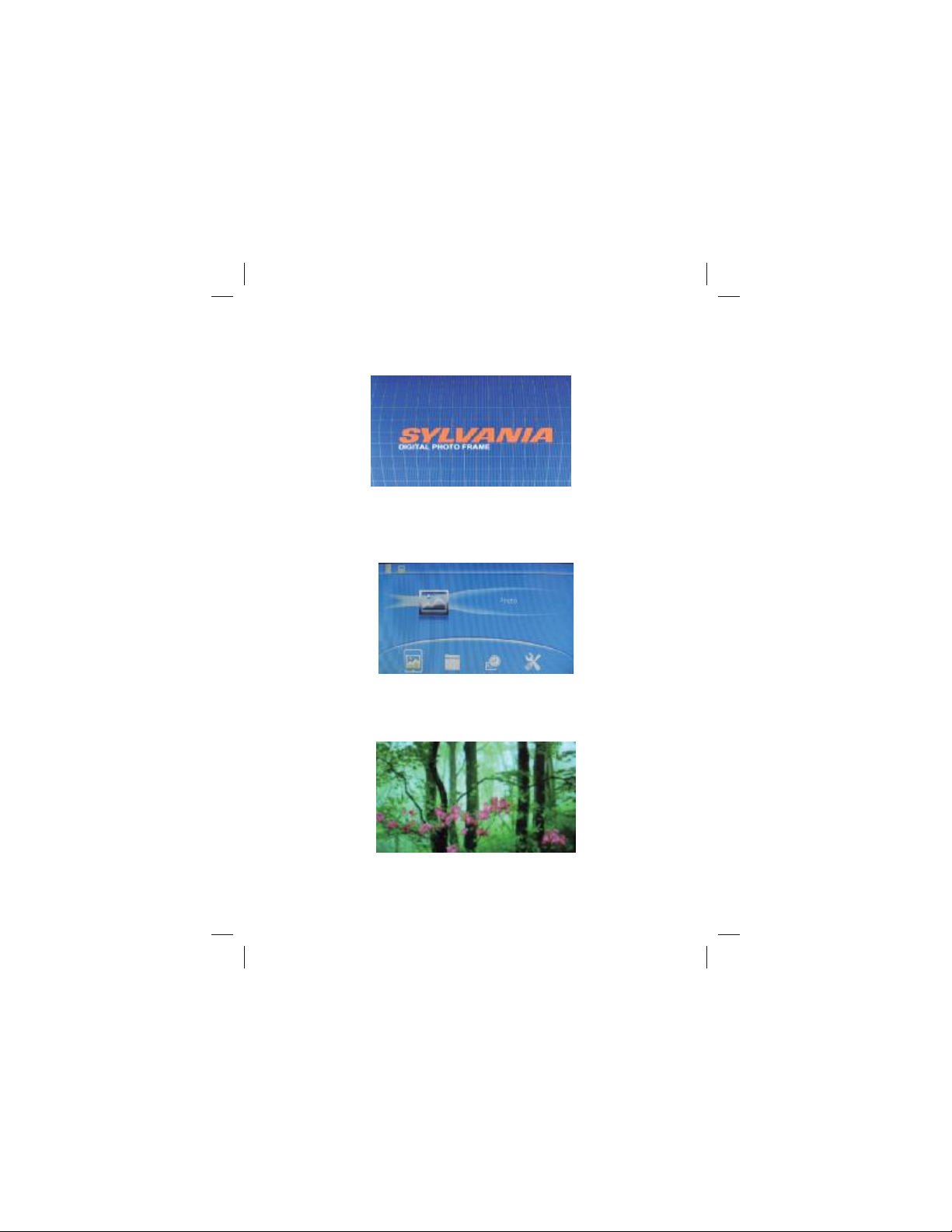

2.4 Operation introduction
start up screen: power on the unit , will show the start up picture
2.5 Selecting mode
under this mode:, have four function menu for selection: PHOTO,
FILE, CALENDAR, SETUP
select one function press ENTER to operate the function , press
MENU key to return to select card mode
2.5.1 auto-play mode
4
Page 6
This product will play automatically once insert card, when playing,
press ENTER key can pause the playing , press / key can
rotate the photo, press ENTER again return back to play mode;
press MENU key can return to photo browsing mode , press MENU
key again can return to the main menu
desired photo, press ENTER key to pause the browsing ,
press again ENTER key to play
2.5.2 photo
6 screen image preview, select a picture after press ENTER key to
full-screen preview image, long press SETUP can pop-up setup
menu, you can set image display mode, the picture zoom / rotate /
copy / delete (the current equipment for the Memory When not be
able to choose copy) operation, the file copied to the memory
inside or removed from memory. Press MENU back to the
Select Mode.
2.5.3 clock and calendar display
enter to selection mode , select calendar to display the clock and
calendar
5
Page 7
2.5.4 time and calendar setting
enter to selection mode , select calendar to display the clock and
calendar
select SETUP menu under selection mode, it will display the setup
2.5.5 MENU
enter to selection mode , select calendar to display the clock and
calendar
Language
Slide mode
Slide speed
Photo effect
Slide effect
English
French
Italian
German
Spanish
Portuguuese
Swedish
Dutch
Single window
Four windos
Triple windows
3 Seconds
5 Seconds
15 Seconds
30 Seconds
1 Hour
Color
Sepia
Random
Split Horizontal in
Split Horizontal out
Jalousie
Split Vertical in
Split Vertical out
Radiation
Surround
Photo mode
Display
Set time format
Format built-in memory
Reset Setting
Auto Fit
Optimal
Full
Contrast
Brightness
Saturation
Tint
Year:
Date:
Hour:
Second:
12
24
Are you sure?
No
Yes
Are you sure?
No
Yes
20
20
20
20
2010
01
01
00
44
09
Select “SETUP” key to show setting menu,press “ key to
6
Page 8
Chapter 3 Daily protection and maintenance
3.1 Digital photo frame protection
To reduce the risk of fire or electric shock, do not expose or use this
product at rainy or moisture place
Do not block the intake of the back panel
Do not place this unit under sunshine
3.2 Penal cleanness
The panel is broken , please take and put it gently
If the panel ‘s surface is dirty, please clean it with the soft cloth ,
if necessary , can wet the cloth with little water then clean it
Chapter 4 Trooble Shooting
1. Question: What kind of photos does this device support?
Answer: The frame will display digital photos that are stored in
the JPEG format, which is the standard format for nearly all digital
cameras. Some cameras allow images to be stored as TIFF or
RAW files as well as JPEG. Only the JPEG format is compatible
with the frame. Photos of up to million pixels can be displayed.
2. Question: What should I do if the system does not respond when
the power is turned on?
Answer: Please make sure the unit is properly connected to a
power source. Then turn it off, re-connect the power and turn it
on again.
3. Question: Why is the memory card not recognized?
Answer: The memory card might be inserted backwards or is not
pushed far enough. After inserting the memory card in the right
direction, if the still cannot be read, please turn off the unit and
then power it on again.
7
