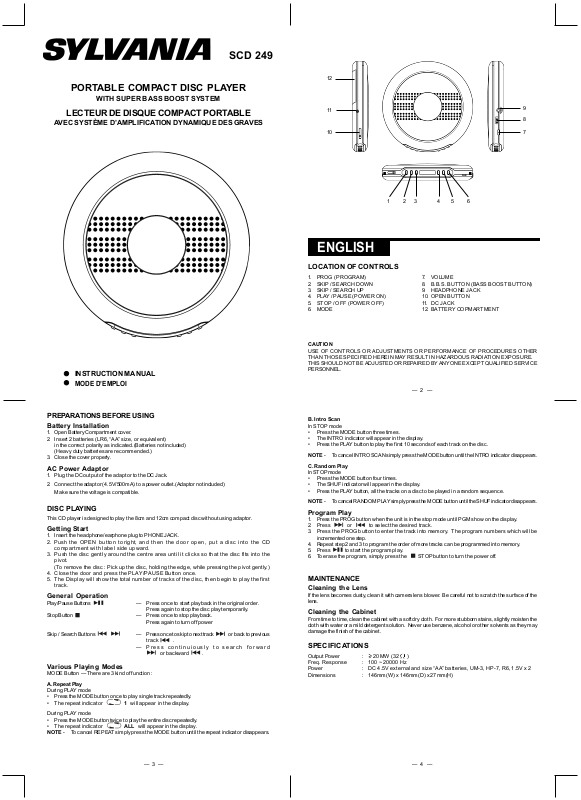

Sylvania SCD249 User Manual
SCD 249
PORTABLE COMPACT DISC PLAYER
WITH SUPER BASS BOOST SYSTEM
LECTEUR DE DISQUE COMPACT PORTABLE
AVEC SYSTÈME D’AMPLIFICATION DYNAMIQUE DES GRAVES
12
11
10
1
ENGLISH
LOCATION OF CONTROLS
1. PROG (PROGRAM)
2. SKIP / SEARCH DOWN
3. SKIP / SEARCH UP
4. PLAY / PAUSE (POWER ON)
5. STOP / OFF (POWER OFF)
6. MODE
23 4 5 6
7. VOLUME
8. B.B.S. BUTTON (BASS BOOST BUTTON)
9. HEADPHONE JACK
10. OPEN BUTTON
11. DC JACK
12. BATTERY COPMARTMENT
9
8
7
INSTRUCTION MANUAL
MODE D’EMPLOI
PREPARATIONS BEFORE USING
Battery Installation
1. Open Battery Compartment cover.
2. Insert 2 batteries (LR6, “AA” size, or equivalent)
in the correct polarity as indicated.(Batteries not included)
(Heavy duty batteries are recommended.)
3. Close the cover properly.
AC Power Adaptor
1. Plug the DC output of the adaptor to the DC Jack.
2. Connect the adaptor (4.5V/500mA) to a power outlet.(Adaptor not included)
Make sure the voltage is compatible.
DISC PLAYING
This CD player is designed to play the 8cm and 12cm compact disc without using adaptor.
Getting Start
1. Insert the headphone/earphone plug to PHONE JACK.
2. Push the OP EN button to right, and then the door open, put a disc into the CD
compartment with label side upward.
3. Push the disc gently around the centre area until it clicks so that the disc fits into the
pivot.
(To remove the disc : Pick up the disc, holding the edge, while pressing the pivot gently.)
4. Close the door and press the PLAY/PAUSE Button once.
5. The Display will show the total number of tracks of the disc, then begin to play the first
track.
General Operation
Play/Pause Buttons — Press once to start playback in the original order.
Stop Button — Press once to stop playback.
Skip / Search Buttons — Press once to skip to next track or back to previous
Various Playing Modes
MODE Button — There are 3 kind of function :
A. Repeat Play
During PLAY mode
• Press the MODE button once to play single track repeatedly.
• The repeat indicator 1 will appear in the display.
During PLAY mode
• Press the MODE button twice to play the entire disc repeatedly.
• The repeat indicator ALL will appear in the display.
NOTE - To cancel REPEAT simply press the MODE button until the repeat indicator disappears.
Press again to stop the disc play temporarily.
Press again to turn off power
track .
— Press continuiously to search forward
or backward .
CAUTION
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
THIS SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT QUALIFIED SERVICE
PERSONNEL.
— 2 —
B. Intro Scan
In STOP mode
• Press the MODE button three times.
• The INTRO indicator will appear in the display.
• Press the PLAY button to play the first 10 seconds of each track on the disc.
NOTE - To cancel INTRO SCAN simply press the MODE button until the INTRO indicator disappears.
C. Random Play
In STOP mode
• Press the MODE button four times.
• The SHUF indicator will appear in the display.
• Press the PLAY button, all the tracks on a disc to be played in a random sequence.
NOTE - To cancel RANDOM PLAY simply press the MODE button until the SHUF indicator disappears.
Program Play
1. Press the PROG button when the unit is in the stop mode until PGM show on the display.
2. Press or to select the desired track.
3. Press the PROG button to enter the track into memory. The program numbers which will be
incremented one step.
4. Repeat step 2 and 3 to program the order of more tracks can be programmed into memory.
5. Press to start the program play.
6. To erase the program, simply press the STOP button to turn the power off.
MAINTENANCE
Cleaning the Lens
If the lens becomes dusty, clean it with camera lens blower. Be careful not to scratch the surface of the
lens.
Cleaning the Cabinet
From time to time, clean the cabinet with a soft dry cloth. For more stubborn stains, slightly moisten the
cloth with water or a mild detergent solution. Never use benzene, alcohol or other solvents as they may
damage the finish of the cabinet.
SPECIFICATIONS
Output Power : 20MW (32 )
Freq. Response : 100 ~ 20000 Hz
Power : DC 4.5V external and size “AA” batteries, UM-3, HP-7, R6, 1.5V x 2
Dimensions : 146mm(W) x 146mm(D) x 27mm(H)
— 3 — — 4 —
** For improvement purposes, specification and design are subject to change without notice. **
TROUBLE SHOOTING GUIDE
Cleaning the Disc
When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the center out.
Note - Do not use solvents such as benzine, thinner, commercially available cleaners or anti-static spray
intended for analogue discs.
** Should you experience difficulties in the use of this player please refer to the following chart
before contacting your dealer or the place of purchase.
Problem
Play er fails to funct ion • The di sc may be inser ted ups ide dow n.
No sound from Earphones
No sou nd when played throug h
an ext ernal am plifier
Intermittent Sound
Troubleshooting Guide
• The disc not mounted correctly on the chuck.
• Dirty or a defective disc.
• Dirty pick up lens.
• Player lid not closed.
• Moisture condensation, allow the player to warm up to room
temperature for 60 minutes.
• AC Power to an adaptor switched off.
• Auto power off has occurred, press PLAY button to restore power.
• Weak ba tterie s.
• Hold swi tches at ON position, switch to O FF positi on.
• Earphones' plug is not firmly inserted into the Phones socket.
• Earphones have been inserted into the line out socket.
• Conn ection i s incor rect.
• Powe r to an ex ternal amplifi er not s witche d on.
• Dirty or defec tive disc.
• Dirty pick up lens.
• The pl ayer is subjec t to exce ssive v ibration or shock.
• Low ba ttery power.
• Poor Earphone connection.
Points to check
