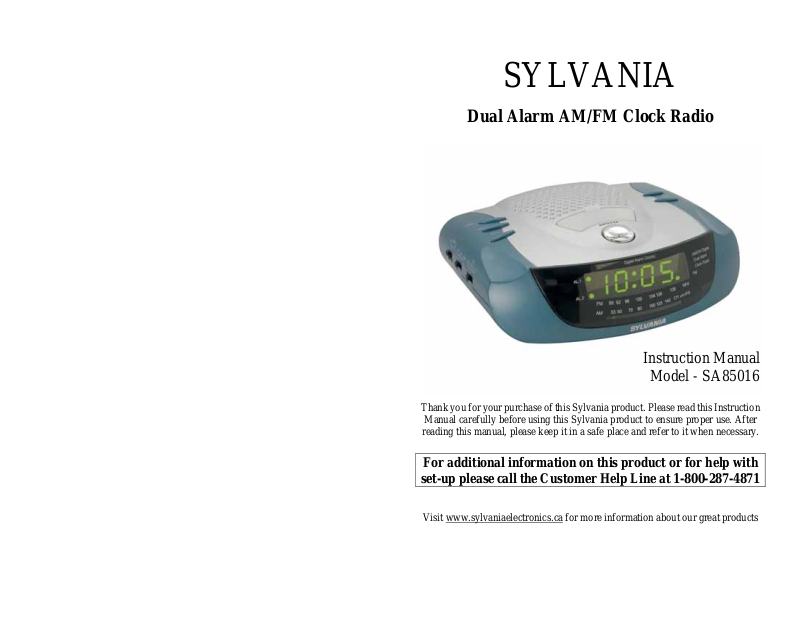

Sylvania SA85016 User Manual
SYLVANIA
Dual Alarm AM/FM Clock Radio
Instruction Manual
Model - SA85016
Thank you for your purchase of this Sylvania product. Please re ad this Instructio n
Manual carefully before using this Sylvania product to ensure proper use. After
reading this manual, please keep it in a safe place and refer to it when necessary.
For additional information on this product or for help with
set-up please call the Customer Help Line at 1-800-287-4871
Visit www.sylvaniaelectronics.ca
for more information about our great products
DESCRIPTION
1. ON-OFF-AUTO SWITCH
FAST / AL. OFF
2.
3. SLOW BUTTON
4. ALARM SET BUTTON
5. TIME SET BUTTON
6. SLEEP BUTTON
7. CLOCK DISPLAY
8. SNOOZE BUTTON
9. BAND SWITCH
10. TUNING DIAL
11. VOLUME/BUZZER ON DIAL
12. LIGHT ON/OFF SWITCH
13. NIGHTLIGHT
14. ALARM SELECTOR
15. ALARM INDICATOR
CONNECTING THE RADIO
PLUG THE AC CORD INTO THE POWER OUTLET.
NOTE: WHEN THE ELECTRICAL POWER HAS BEEN INTERRUPTED FOR A
PROLONGED TIME AND RESTORED THE CLOCK DISPLAY WILL BLINK.
MAKE SURE TO RESET BOTH THE TIME AND ALARM TIME FOR
PROPER OPERATION.
TIME SETTING
1. PRESS AND HOLD THE TIME BUTTON.
2. WHILE HOLDING THE TIME BUTTON PRESS THE MINUTE OR HOUR BUTTON
TO ADVANCE THE CLOCK DISPLAY TO THE CORRECT TIME.
3. RELEASE THE TIME BUTTON.
RADIO OPERATION
1. SLIDE THE ON-OFF-AUTO SWITCH TO THE “ON” POSITION.
2. SELECT THE DESIRED BAND WITH THE BAND SWITCH.
3. ADJUST THE TUNING AND VOLUME DIAL FOR THE DESIRED STATION AND
LISTENING VOLUME LEVEL.
SETTING THE ALARM TIME
1. SELECT EITHER AL1 OR AL2 ON THE ALARM SELECTOR TO DETERMINE
WHICH ALARM YOU ARE SETTING.
2. PRESS AND HOLD THE ALARM BUTTON.
3. WHILE HOLDING THE ALARM BUTTON PRESS THE
SLOW BUTTON TO ADVANCE TO THE DESIRED ALARM TIME.
4. RELEASE THE ALARM BUTTON.
5. SELECT EITHER AL1 OR AL2. SELECT AL1+AL2 IF YOU WANT BOTH THE AL1
AND AL2 ALARM SETTINGS TO BE ACTIVE.
6. TURN THE ON-OFF-AUTO SWITCH TO AUTO.
BUTTON
FAST / AL. OFF
OR
TO WAKE TO ALARM
TURN THE ALARM/VOLUME DIAL TO THE LEFT UNTIL A CLICK IS HEARD, NOW THE
VOLUME IS SET TO OFF AND THE ALARM BUZZER IS ACTI VATED. TO TURN OFF
THE ALARM, PRESS THE ALARM SET BUTTON (4) ONCE. THE ALARM WILL BE
DEACTIVATED UNTIL THE FOLLOWING DAY. TO COMPLETELY TURN OFF THE
ALARM, TURN THE ON-OFF-AUTO SWITCH TO OFF.
TO WAKE TO RADIO
1. TURN THE ALARM/VOLUME CONT ROL COUNTER-CLOCKWISE TO THE MAX
VOLUME POSITION.
2. SLIDE THE BAND SWITCH TO AM OR FM.
3. USE THE TUNING DIAL TO SELECT THE DESIRED RADIO STATION.
4. ADJUST THE VOLUME LEVEL TO YOUR PREFERENCE.
5. SET THE ON/OFF/AUTO SWITCH TO THE AUTO POSITION.
NOTE: BOTH ALARM 1 AND ALARM 2 MUST WAKE TO THE SAME SOURCE,
SLEEP TIMER
1. MAKE SURE THE ON/OFF/AUTO SWITCH IS NOT IN THE ON POSITION,
OTHERWISE THE CLOCK RADIO WILL NOT TURN OFF AFTER THE SLEEP
PERIOD EXPIRES.
2. PRESS THE SLEEP BUTTON ONCE TO HAVE THE RADIO PLAY FOR 59
MINUTES BEFORE AUTOMATICALLY SHUTTING OFF.
3. SETTING THE LENGTH OF SLEEP TIMER
(i) TO SET THE SLEEP TIMER FOR LESS THAN 59 MINUTES, PRESS AND
HOLD THE SLEEP BUTTON UNTIL THE DESIRED TIME IS SHOWN AND
THEN RELEASE THE BUTTON.
(ii) TO CANCEL THE SLEEP TIMER BEFORE THE SLEEP TIME EXPIRES,
PRESS THE SENSOR TOUCH SNOOZE BAR ONCE.
SENSOR TOUCH SNOOZE OPERATION
WHEN THE ALARM IS ON. PRESS SNOOZE SENSOR PLATE (8) ONCE AND AFTER 9
MINUTES THE ALARM WILL SOUND AGAIN.
NIGHTLIGHT OPERATION
PRESS THE NIGHTLIGHT ON/OFF SWITCH TO THE “ON” POSIT ION. THE NIGHT
LIGHT WILL TURN ON. IF THE LIGHT STOPS WORKING, YOU CAN REPLACE IT BY
SCREWING OUT THE CURRENT BULB AND REPLACING IT WITH A NEW E10 T YPE
LIGHT BULB. TO ACCESS THE LIGHT BULB, REMOVE THE NIGHT LIGHT COVER.
BATTERY BACK UP
THIS CLOCK HAS A BACKUP POWER SYSTEM TO ENSURE CONTINUOUS
OPERATION DURING A POWER FAILURE. INSERT A 9 VOLT ALKALINE BATTERY
(NOT INCLUDED) AND THE CLOCK MECHANISM WILL CONTINUE TO MAINTAIN
CURRENT TIME AND ALARM PROGRAM.
NOTE: DURING THE BACKUP POWER PHASE THE DISPLAY WILL BE OFF
EITHER RADIO OR ALARM.
TO CONSERVE ELECTRICITY.
