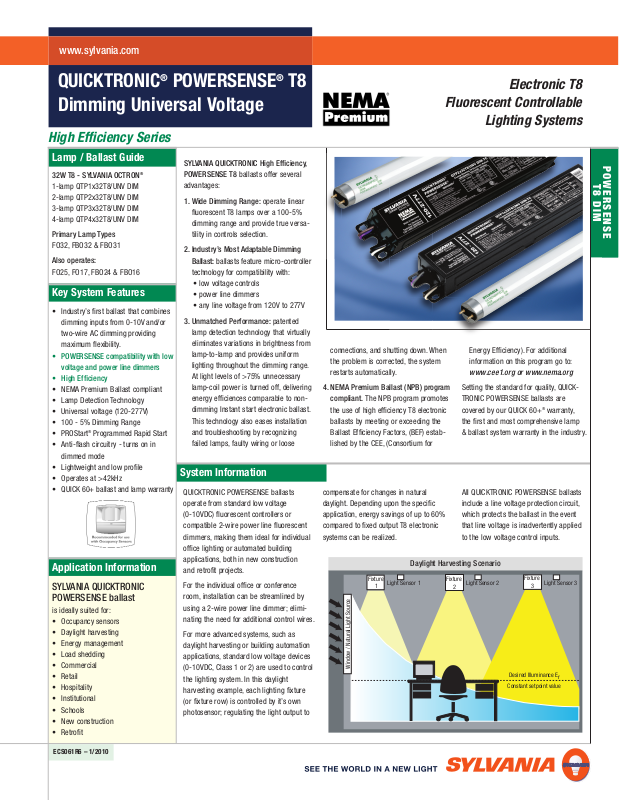

Page 1
Daylight Harvesting Scenario
Lamp / Ballast Guide
Key System Features
System Information
• Industry’s first ballast that combines
dimming inputs from 0-10V and/or
two-wire AC dimming providing
maximum flexibility.
• POWERSENSE compatibility with low
voltage and power line dimmers
• High Efficiency
• NEMA Premium Ballast compliant
• Lamp Detection Technology
• Universal voltage (120-277V)
• 100 - 5% Dimming Range
• PROStart®Programmed Rapid Start
• Anti-flash circuitry - turns on in
dimmed mode
• Lightweight and low profile
• Operates at >42kHz
• QUICK 60+ ballast and lamp warranty
SYLVANIA QUICKTRONIC
POWERSENSE ballast
is ideally suited for:
• Occupancy sensors
• Daylight harvesting
• Energy management
• Load shedding
• Commercial
• Retail
• Hospitality
• Institutional
• Schools
• New construction
• Retrofit
Application Information
32W T8 - SYLVANIA OCTRON
®
1-lamp QTP1x32T8/UNV DIM
2-lamp QTP2x32T8/UNV DIM
3-lamp QTP3x32T8/UNV DIM
4-lamp QTP4x32T8/UNV DIM
Primary Lamp Types
FO32, FBO32 & FBO31
Also operates:
FO25, FO17, FBO24 & FBO16
SYLVANIA QUICKTRONIC High Efficiency,
POWERSENSE T8 ballasts offer several
advantages:
1. Wide Dimming Range: operate linear
fluorescent T8 lamps over a 100-5%
dimming range and provide true versatility in controls selection.
2. Industry’s Most Adaptable Dimming
Ballast: ballasts feature micro-controller
technology for compatibility with:
• low voltage controls
• power line dimmers
• any line voltage from 120V to 277V
3. Unmatched Performance: patented
lamp detection technology that virtually
eliminates variations in brightness from
lamp-to-lamp and provides uniform
lighting throughout the dimming range.
At light levels of >75% unnecessary
lamp-coil power is turned off, delivering
energy efficiences comparable to nondimming Instant start electronic ballast.
This technology also eases installation
and troubleshooting by recognizing
failed lamps, faulty wiring or loose
connections, and shutting down. When
the problem is corrected, the system
restarts automatically.
4. NEMA Premium Ballast (NPB) program
compliant. The NPB program promotes
the use of high efficiency T8 electronic
ballasts by meeting or exceeding the
Ballast Efficiency Factors, (BEF) established by the CEE, (Consortium for
Energy Efficiency). For additional
information on this program go to:
www.cee1.org or www.nema.org
Setting the standard for quality, QUICKTRONIC POWERSENSE ballasts are
covered by our QUICK 60+®warranty,
the first and most comprehensive lamp
& ballast system warranty in the industry.
QUICKTRONIC POWERSENSE ballasts
operate from standard low voltage
(0-10VDC) fluorescent controllers or
compatible 2-wire power line fluorescent
dimmers, making them ideal for individual
office lighting or automated building
applications, both in new construction
and retrofit projects.
For the individual office or conference
room, installation can be streamlined by
using a 2-wire power line dimmer; eliminating the need for additional control wires.
For more advanced systems, such as
daylight harvesting or building automation
applications, standard low voltage devices
(0-10VDC, Class 1 or 2) are used to control
the lighting system. In this daylight
harvesting example, each lighting fixture
(or fixture row) is controlled by it’s own
photosensor; regulating the light output to
compensate for changes in natural
daylight. Depending upon the specific
application, energy savings of up to 60%
compared to fixed output T8 electronic
systems can be realized.
All QUICKTRONIC POWERSENSE ballasts
include a line voltage protection circuit,
which protects the ballast in the event
that line voltage is inadvertently applied
to the low voltage control inputs.
ECS061R6 – 1/2010
QUICKTRONIC®POWERSENSE®T8
Dimming Universal Voltage
www.sylvania.com
Electronic T8
Fluorescent Controllable
Lighting Systems
High Efficiency Series
POWERSENSE
T8 DIM
Fixture
Light Sensor 1 Light Sensor 2 Light Sensor 3
1
Window / Natural Light Source
Fixture
2
Fixture
3
Desired Illuminance E
Constant setpoint value
r
Page 2
POWERSENSE
CONTROLS
Fluorescent Building
Controls Powerline 0-10 VDC Photo Occupancy Management
Manufacturer Controllers Controllers Cells Sensors Systems
SYLVANIA ELOGIC™Controls
1-800-LIGHTBULB
www.sylvania.com xxxx
Hunt Dimming
970-484-9048
www.huntdimming.com x x x x x
Lehigh Electronic Products
610-395-3386
www.lehighdim.com x x x x x
Leviton Lighting Controls
800-824-3005
www.leviton.com x x x x
Lightolier Controls
800-526-2731
www.lolcontrols.com x x x x x
Lithonia Controls
800-533-2719
www.lithonia.com x x x x x
Lumisys
800-241-9173
www.lumisys1.com x x x
PCI
800-767-3674
www.pcilightingcontrols.com x x
Sensorswitch
1-800-PASSIVE
www.sensorswitch.com x x
Siemens Energy & Automation
800-427-2256
www.sea.siemens.com x
Starfield Controls
303-427-1661
www.starfieldcontrols.com x x x x
The Watt Stopper, Inc
800-879-8585
www.wattstopper.com x x
Please contact controls manufacturers to order/specify controls. For the latest controls list go to www.sylvania.com
Also for more information, check out the LCA (Lighting Controls Association) site: www.aboutlightingcontrols.org
Control Specifications/model numbers may change.
Please consult manufacturers listed for their latest control models and to order their controls.
WARNING:
Install and wire these ballast and controls in accordance with the National Electrical Code (NEC), all applicable Federal, State
and local electrical codes, as well as the specific instructions provided with the compatible control that you purchased.
Installation should be performed by qualified personnel only.
These instructions are guidelines only. Installation may vary for different controls/fixtures/applications. Be sure to follow the
control instructions and all applicable codes and standards when installing dimming systems.
Please contact controls manufacturer listed in the OSRAM SYLVANIA Inc. controls cross reference for compatible controls
and instruction wiring
NOTES: 1. Dimming ballasts source < 0.5mA (0-10VDC control input).
2. Powerline controls must be rated for the type (e.g. Fluorescent Phase-control) and size
(e.g. 600W, 1000W, 1500W & 2000W etc.) of the connected load. Do NOT use incandescent powerline controls;
incandescent dimmers are not rated for fluorescent loads and are NOT compatible with POWERSENSE ballasts.
Catalog # Date Type
Project Prepared by
Comments
SPECIFICATION DATA
Controls Guide
QUICKTRONIC®POWERSENSE®Controls Information
Contact the companies listed for their
2-wire Fluorescent/Powerline controls
and/or 0-10V controls information.
T8 POWERSENSE Dimming Ballast
50705 QTP 1x32T8/UNV DIM-TC
50707 QTP 2x32T8/UNV DIM-TC
50714 QTP 3x32T8/UNV DIM-TCL
50716 QTP 4x32T8/UNV DIM-TCL
T8 POWERSENSE
High Efficiency
OSRAM SYLVANIA
National Customer
Service and Sales Center
1-800-LIGHTBULB
(1-800-544-4828)
www.sylvania.com
Specifications subject to change without notice.
Page 3
Maximum Input Current (A)
Item OSRAM SYLVANIA (# of gangs) Input Integral
Number Description Single Double Triple Voltage (V) Color Switch
45045 ELMC-SL-FLPCWALL/120-WH
45046 ELMC-SL-FLPCWALL/277-WH
Single Pole
White
White
120
277
5.0A 4.5A 4.0A
2.2A 2.0A 1.7A

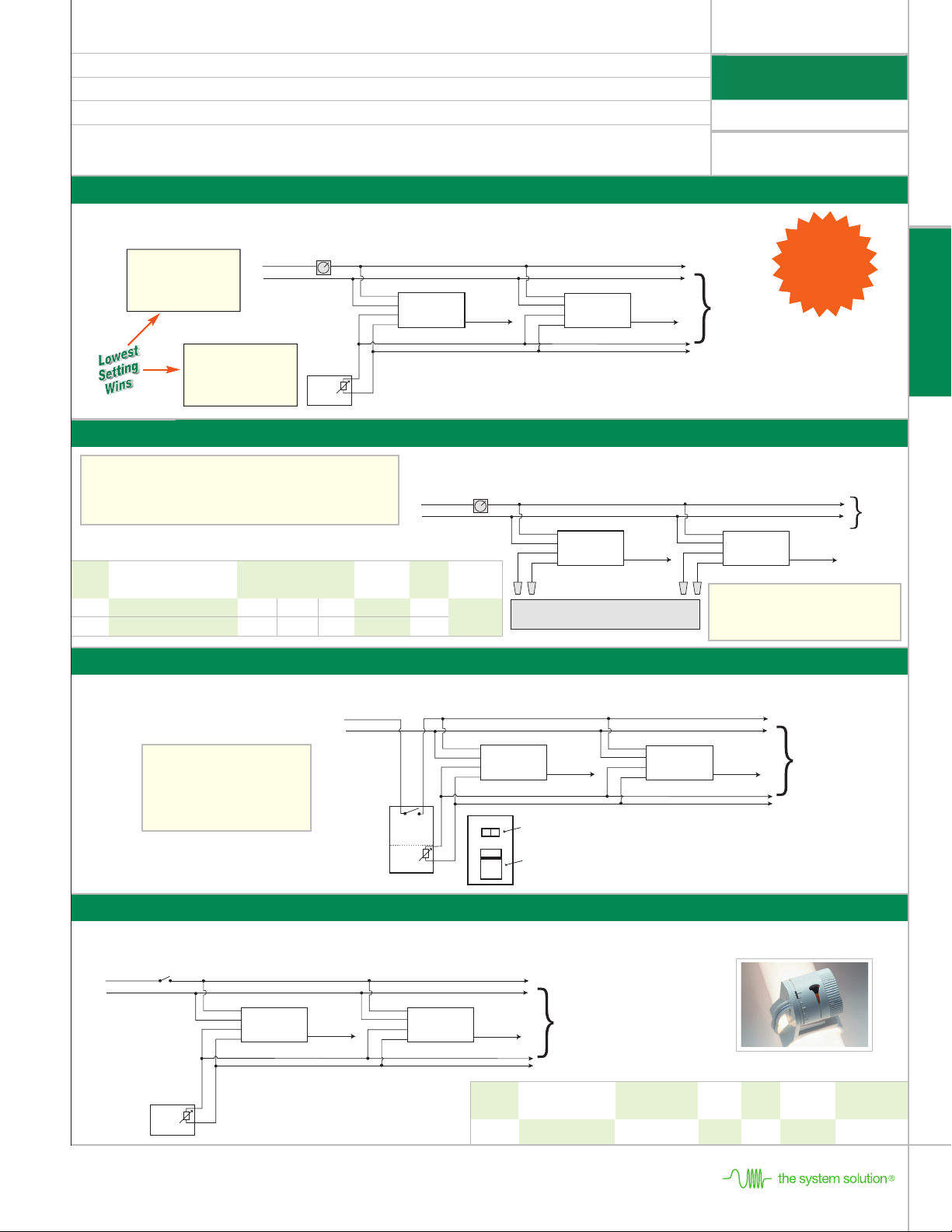

POWERSENSE
WIRING & CONTROLS
Photo Sensor 0-10V Wiring Example
Wallbox Style 0-10V Control with Power Switch Wiring Example
Industry’s 1st Ballast that allows POWERLINE Fluorescent Control
AND
0-10Vdc Control Input simultaneously
To
Fluorescent
Lamps
Violet (+)
DIMMING
BALLAST
Black
White
Photo Sensor 0-10V Wiring Example
0-10V
Control
Gray (-)
Neutral (White)
120 or 277V
Black (Hot)
LINE
Gray
Violet
Class 1 or Class 2 circuit
To
Fluorescent
Lamps
Violet (+)
DIMMING
BALLAST
Black
White
Gray (-)
To
Additional
Ballasts
Sensor
0-10V
Standard
Line Voltage
Switch
Black
Photo Sensor 0-10V Wiring Example
0-10V DC Control with POWERSENSE Ballasts
ard
Powerline Control Specs:
Specification-grade controls are available for 120V or 277V operation of
controllable analog electronic fluorescent ballasts. Controls must be suitably
rated for both the type (e.g. Fluorescent Phase-control) and size (e.g. 600W)
of the connected load.
Examples: Leviton IPX series operate as
single pole or 3-way models. Available in
120V and 277V models. Leviton 6668-1W
(white) 120V single pole fluorescent dimmer.
Examples: Lithonia model ISD BC or
Leviton IP 710 Series (These 0-10V
dc, 120/277V models can be wired for
single pole application (shown); these
models can also be wired for 3-way
applications.)
Wallbox Style 2-wire Powerline Control Wiring Example
EXCLUSIVELY
from
OSRAM
SYLVANIA!
EXCLUSIVELY
from
OSRAM
SYLVANIA!
Catalog # Date Type
Project Prepared by
Comments
SPECIFICATION DATA
QUICKTRONIC®POWERSENSE®T8 Dimming UNV - Dimming Control Wiring Examples
T8 POWERSENSE
High Efficiency
Specifications subject to change without notice.
Ballast Output Max.
Item OSRAM SYLVANIA Control Voltage Input Lamp
Number Description Type Method (VDC) Current (mA) Type
45030 ELSC-DLH-TVLAMP/BUS
Sensor & Control for
Analog 0-10V 6 T8 or T5 or T5HO
Daylight Harvesting
OSRAM SYLVANIA National Customer Service and Sales Center 1-800-LIGHTBULB (1-800-544-4828) www.sylvania.com
ELOGIC DAYLIGHT SENSOR ORDERING INFORMATION
ELOGIC
™
MANUAL CONTROL SLIDE FLUORESCENT PHASE CUT DIMMER
2-wire Powerline AND 0-10Vdc Control with POWERSENSE Ballasts
2-wire
Fluorescent
Fluorescent AC Dimming
No Control Wires
• Occupant Wallbox Dimming
• Lighting Panel Dimming
• Excellent for Retrofit
0-10Vdc Low Voltage
Industry Standard Interface
• Daylight Harvesting
• Building Management
• Demand Response Override
120 or 277V
Black (Hot)
LINE
Neutral (White)
Powerline Dimmer
Black
0-10V
Control
Violet
Black
White
Violet (+)
Gray (-)
Gray
DIMMING
BALLAST
0-10V
Class 1 or Class 2 circuit
To
Fluorescent
Lamps
Black (Hot)
LINE
Neutral (White)
2-wire Powerline Control with POWERSENSE Ballasts
2-wire
Fluorescent
Powerline Dimmer
Black
DIMMING
White
Violet (+)
BALLAST
Gray (-)
Black
Black
White
DIMMING
Violet (+)
BALLAST
Gray (-)
For 2-wire Powerline wiring, individually insulate (cap-off)
all unused Violet & Gray leads as shown.
0-10V
CAUTION:
To
Fluorescent
Lamps
To
Fluorescent
Lamps
To
Additional
Ballasts
Black
White
Violet (+)
Gray (-)
DIMMING
BALLAST
To
Fluorescent
Lamps
To
Additional
Ballasts
120 or 277V
Black (Hot)
LINE
Neutral (White)
0-10Vdc
Wallbox
Control with
Line Voltage
Switch
0-10V DC Control with POWERSENSE Ballasts
Black
White
DIMMING
Violet (+)
BALLAST
Gray (-)
Class 1 or Class 2 circuit
Black
Black
Line
Voltage
Switch
0-10V
Control
Violet
Gray
On/Off
Switch (120/277V)
Slide Dimmer
0-10V
To
Fluorescent
Lamps
Black
White
Violet (+)
Gray (-)
DIMMING
BALLAST
To
Fluorescent
Lamps
To
Additional
Ballasts
Page 4

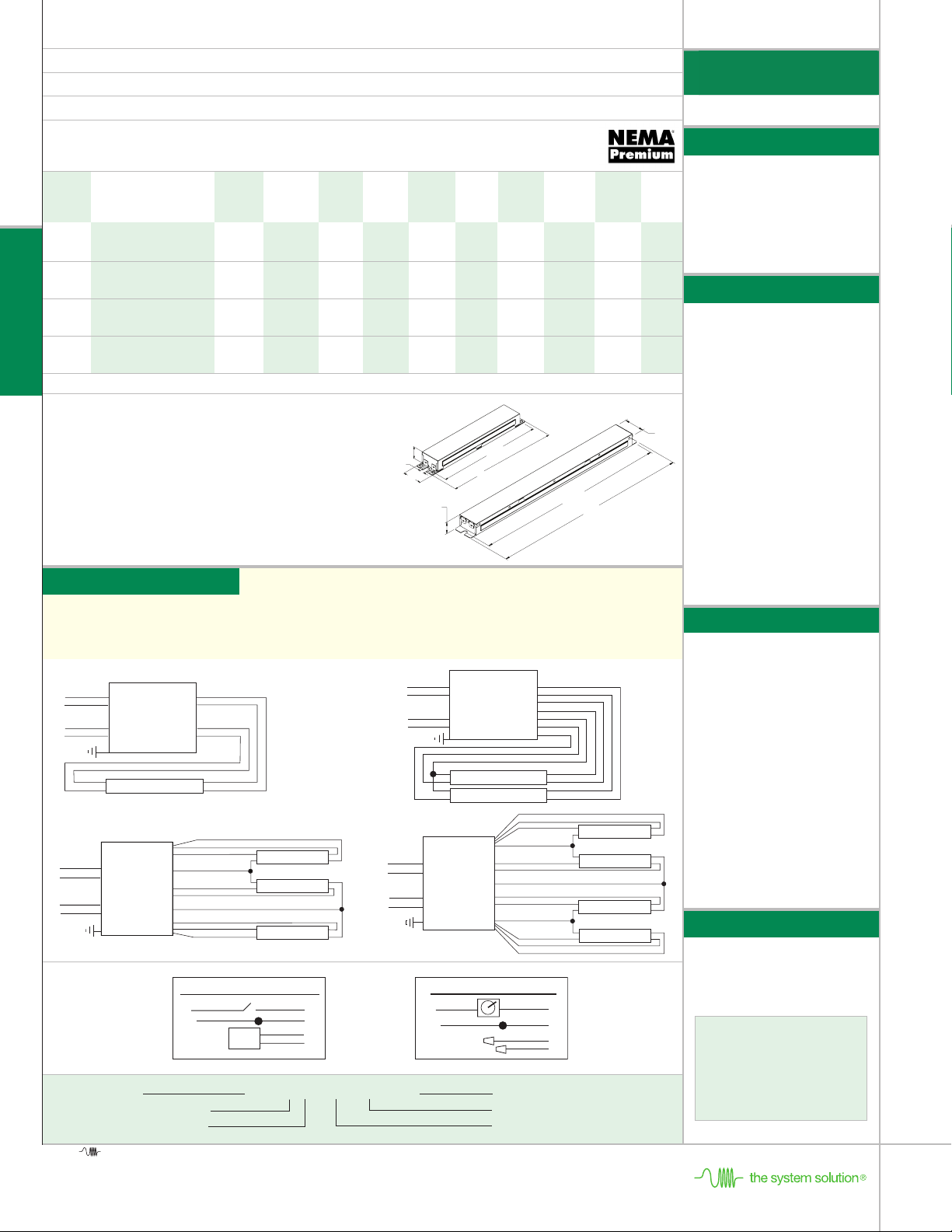

Output Wiring: Lamp wiring for dimming ballasts can differ significantly from non-dimming
ballasts and from other manufacturers dimming ballasts. Take care to connect lamp lead wires as
shown on the applicable ballast diagram. Lamp Seasoning: For optimal performance, fluorescent lamps may require seasoning for up to 12
hours prior to low temperature starting & low level dimming. Refer to NEMA LSD 23-2002 Lighting Systems Division: Recommended Practice —
Lamp Seasoning for Fluorescent Dimming Systems
Installation Notes
POWERSENSE
T8 DIM
Control Information
Catalog # Date Type
Project Prepared by
Comments
SPECIFICATION DATA
Starting Method: Programmed Rapid Start
Circuit Type: Series
Lamp Frequency: >40 kHz
Lamp CCF: Less than 1.7
Starting Temp: 50°F/10°C minimum
for OCTRON T8 lamps
Input Voltage: 120-277V, ±10%
Input Frequency: 50/60 Hz
THD: <10% @ Full Output
Power Factor: >98% @ Full Output
UL Listed Class P, Type 1 Outdoor
CSA or C/UL Certified
70°C Max Case Temperature
FCC 47CFR Part 18 Non-Consumer
Class A Sound Rating
ANSI C62.41 Cat. A Transient Protection
Remote mounting (Max. wire length from
ballast case to lampholder) up to 8 feet
Performance Guide
Specifications
Data based on F32T8
High Efficiency Electronic T8 Fluorescent Controllable Lighting Systems
Input Input Rated Ballast Initial Input System
Item Voltage Current Lamp Lumens No. of Factor System Power Efficacy
Number Description (VAC) (AMPS) Type (lm) Lamps (BF) Lumens (Watts) (lm/W) BEF
1
50705 QTP 1x32T8/UNV DIM-TC 120-277 0.27/0.12 FO32XP 3000 1 0.88 2640 30 88 2.93
0.05 150 8
50707 QTP 2x32T8/UNV DIM-TC 120-277 0.54/0.24 FO32XP 3000 2 0.88 5280 59/57 89/93 1.54
0.05 300 14
50714 QTP 3x32T8/UNV DIM-TCL 120-277 0.73/0.30 FO32XP 3000 3 0.88 7920 87/84 91/94 1.05
0.05 450 20
50716 QTP 4x32T8/UNV DIM-TCL 120-277 0.96/0.40 FO32XP 3000 4 0.88 10560 114/110 92/96 0.80
0.05 600 27
Products are all 10-pack. 1: Ballast Efficiency Factor (BEF) shown = (Ballast Factor x 100) divided by Input Power (note: calculation based on lowest wattage value)
Item Number 50707 QTP 2 x 32T8 / UNV DIM-TC
QUICKTRONIC PROFESSIONAL
Number of Lamps (1, 2, 3, 4)
System Type - DIMMING/Case Size
Line Voltage (120-277V)
Primary Lamp Wattage
System Life / Warranty
QUICKTRONIC products are covered by QUICK
60+
®
, a comprehensive lamp and ballast
system warranty. For additional details, refer
to the QUICK 60+ warranty bulletin.
Data based on SYLVANIA OCTRON®lamps
shown. QUICKTRONIC®POWERSENSE
ballasts are also compatible with other
manufacturers equivalent lamp types that
meet ANSI specifications, including F17,
F25, F32 and the U-Bend equivalent lamps.
T8 POWERSENSE
®
High Efficiency
OSRAM SYLVANIA
National Customer
Service and Sales Center
1-800-LIGHTBULB
(1-800-544-4828)
www.sylvania.com
Black
White
Violet (+)
Grey (-)
Red
Red
Blue
Blue
LAMP 1
ELECTRONIC
BALLAST
Black
White
Violet (+)
Grey (-)
Red
Red
Blue
Blue
LAMP 1
Yel/Blk
Yellow
Yellow
LAMP 1
ELECTRONIC
BALLAST
LAMP 2
Dimensions:
1 & 2 lamp enclosure
Overall: 9.5" L x 1.68" W x 1.0" H (241 x 43 x 25 mm)
Mounting: 8.90" (226 mm)
Weight: 1.1 lbs each (500 g)
3 & 4 lamp enclosure
Overall: 16.7" L x 1.68" W x 1.0" H (425 x 43 x 25 mm)
Mounting:16.2" (411 mm)
Weight: 2.1 lbs each (950 g)
Wiring:
Leads Only
Yel/Blk
Yellow
Yellow
Red/Black
Red/White
Red
Red/White
Blue
LAMP 1
LAMP 3
ELECTRONIC
BALLAST
Black
White
Violet (+)
Grey (-)
LAMP 2
Input & Control
Wiring Options:
POWERLINE CONTROL
LINE
BLACK
NEUTRAL
WHITE
INSULATE
UNUSED LEADS
VIOLET
(+)
GREY (-)
1 lamp
2 lamp
3 lamp
4 lamp
LOW-VOLTAGE CONTROL
VIOLET (+)
GREY (-)
LINE
BLACK
NEUTRAL
WHITE
0-10V
DC
< 0.5mA
Class 1 or
Class 2
QUICKTRONIC POWERSENSE ballasts are
compatible with a wide range of low voltage (010VDC) and power line fluorescent controllers
available from various manufacturers.
Low Voltage Control Specs: Ballast will source
up to 0.5mA for 0-10VDC control purposes.
May be wired as a Class 1 or Class 2 circuitconsult Local and National Electrical Codes.
Power Line Control Specs: Specificationgrade fluorescent controls are available for
120V or 277V operation of controllable
analog electronic fluorescent ballasts.
Controls must be suitably rated for both the
type (e.g. Fluorescent Phasecontrol) and size
(e.g. 600W) of the connected load.
SYLVANIA, the system solution, QUICK60+, POWERSENSE, See the World in a New Light and PROStart are registered trademarks of OSRAM SYLVANIA Inc.
ELOGIC is a trademark of OSRAM SYLVANIA Inc. QUICKTRONIC is a registered trademark of OSRAM GmbH. NEMA Premium is a registered trademark of National Electrical Manufacturers Association.
©2010 OSRAM SYLVANIA
Specifications subject to change without notice.
Height
25.4mm
(1.0")
Mounting
411.3mm
(16.2")
Length
425mm
(16.7")
Width
43mm
(1.68")
8.70 mm
Slot
Height
Width
Length
Mounting
Length
Red
Red/White
Red/Black
Red/White
Yellow
Yellow/Black
Yellow
Blue/White
Blue/Black
Blue/White
Blue
Black
White
Violet (+)
Grey (-)
ELECTRONIC
BALLAST
LAMP 1
LAMP 2
LAMP 3
LAMP 4
Loading...
