Sylvania DVR90VG, E9A10UD Schematic

SERVICE MANUAL

Main Section

I Specifications I Preparation for Servicing I Adjustment Procedures I Schematic Diagrams I CBA’s I Exploded Views I Parts List

When servicing the deck mechanism, refer to MK14 Deck Mechanism Section.

Deck Mechanism Part No.: N2460FL

DVD RECORDER &

VIDEO CASSETTE RECORDER

DVR90VG

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all Funai Equipment. The service procedures recommended by Funai and described in this service manual are effective methods of performing service operations. Some of these service special tools should be used when and as recommended.

It is important to note that this service manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It also is important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Funai could not possibly know, evaluate and advice the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, Funai has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by Funai must first use all precautions thoroughly so that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

MAIN SECTION

DVD RECORDER &

VIDEO CASSETTE RECORDER

DVR90VG

Main Section

I Specifications I Preparation for Servicing I Adjustment Procedures I Schematic Diagrams I CBA’s I Exploded Views I Parts List

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1

Laser Beam Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4-1

Preparation for Servicing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5-1

Cabinet Disassembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1

How to Initialize the DVD Recorder & VCR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8-1

Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9-1

Function Indicator Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10-1

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-11-1

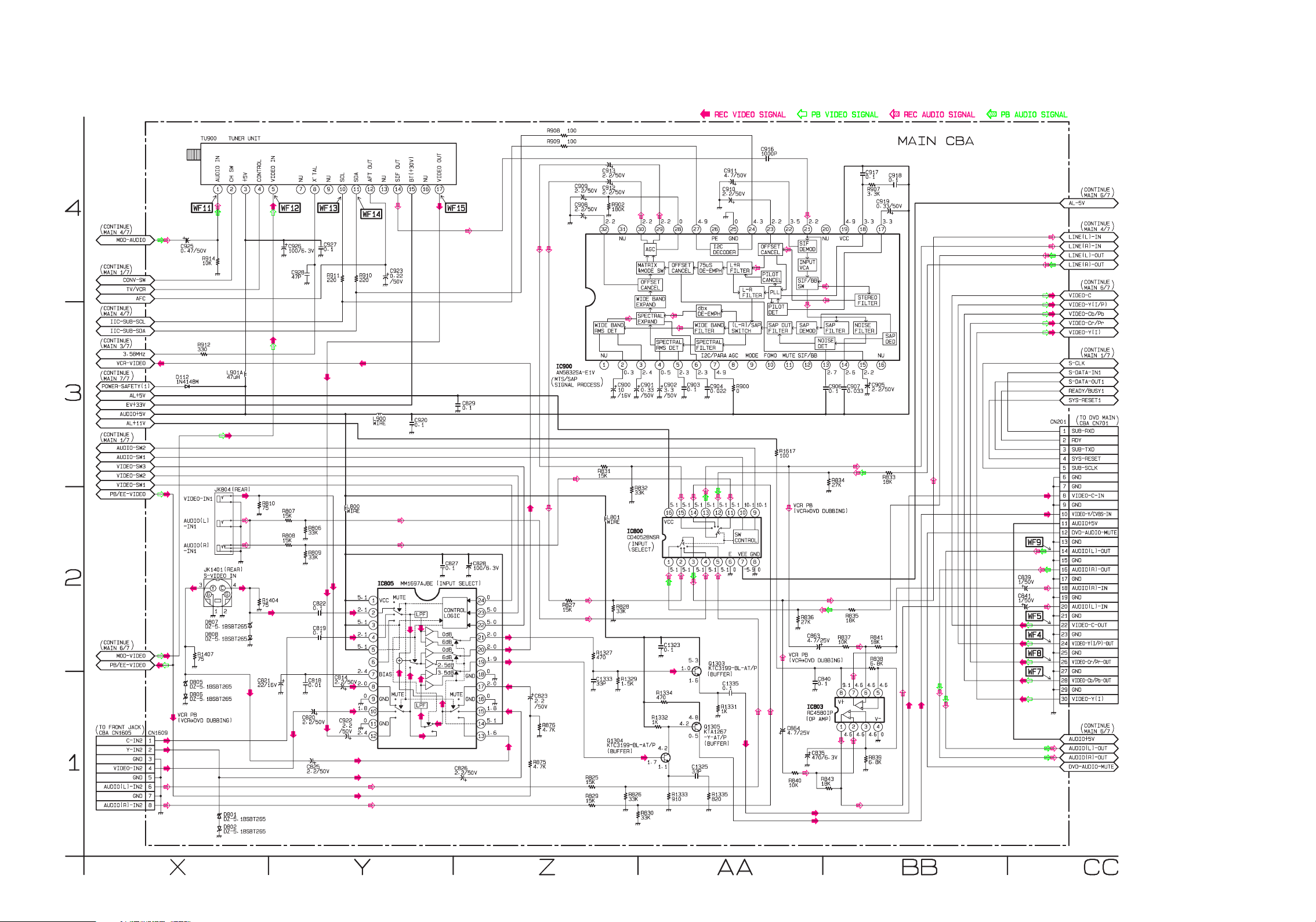

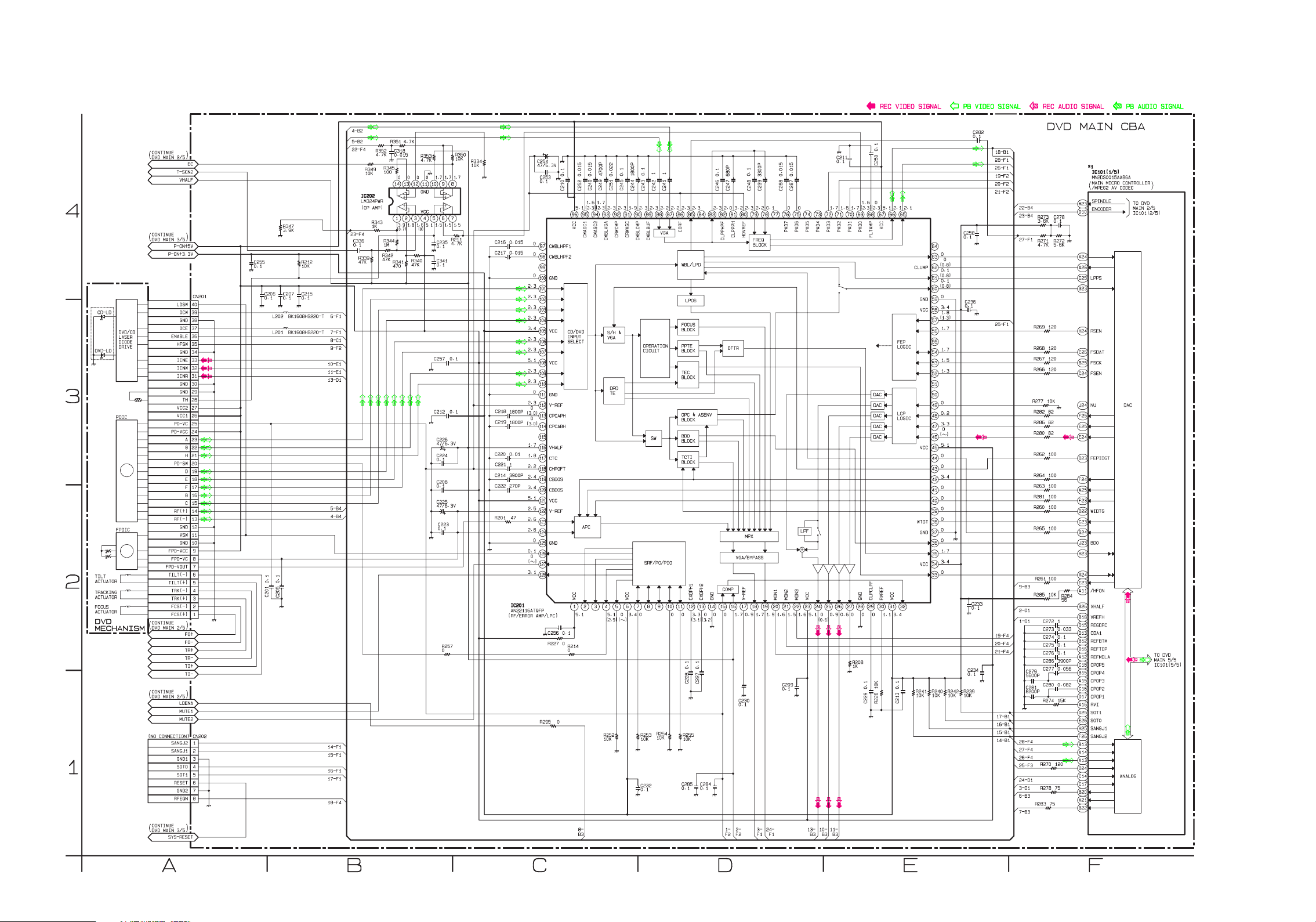

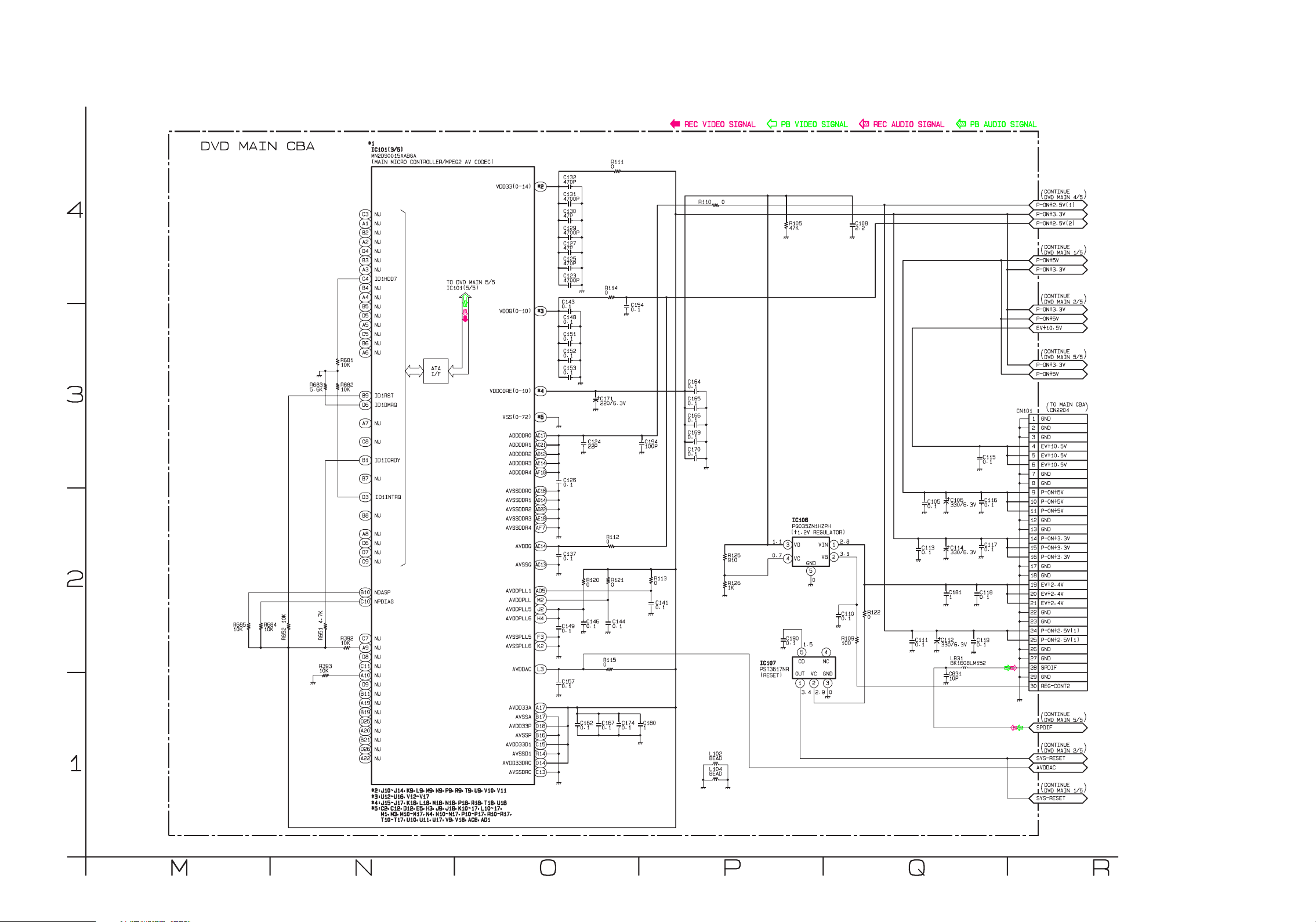

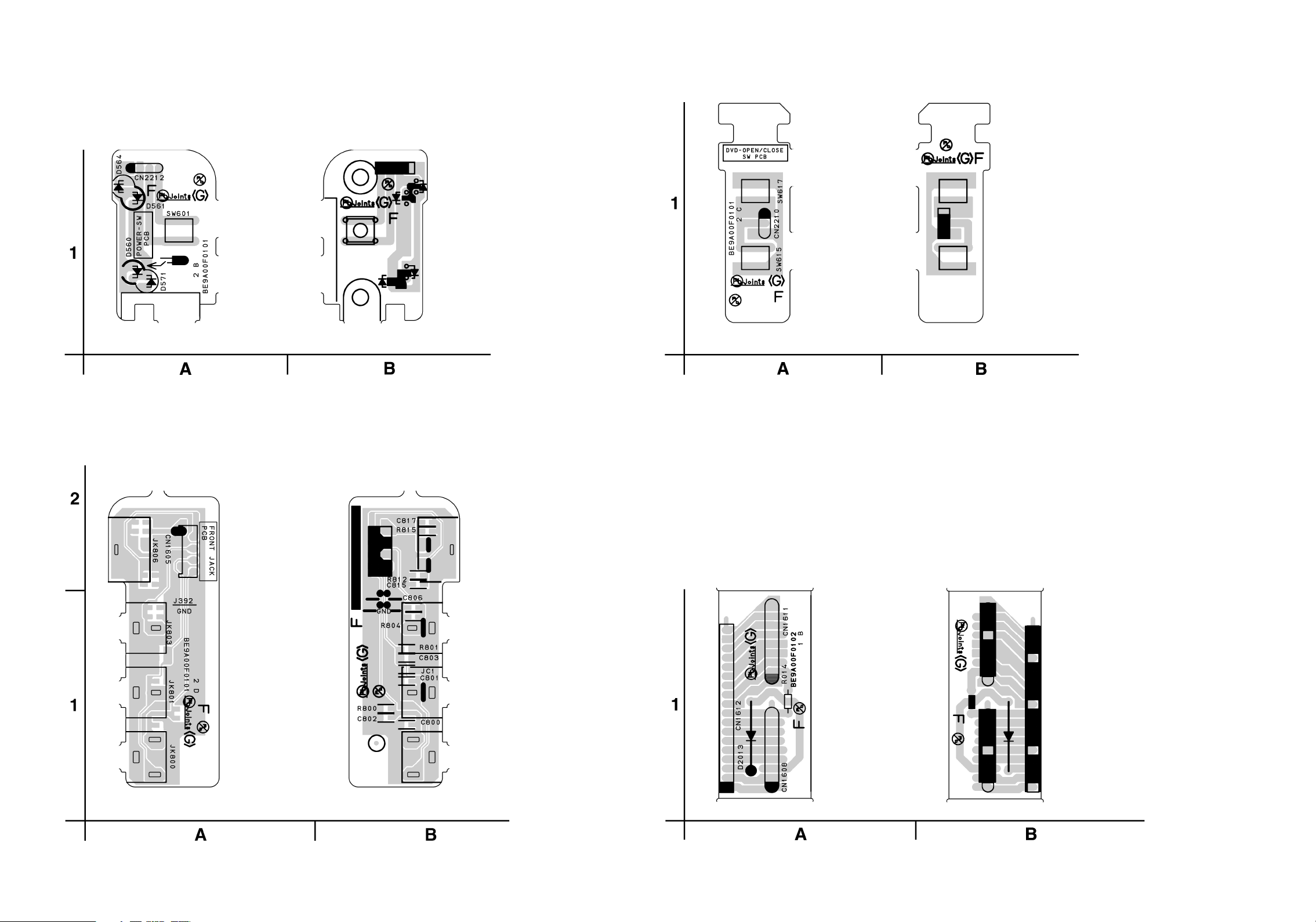

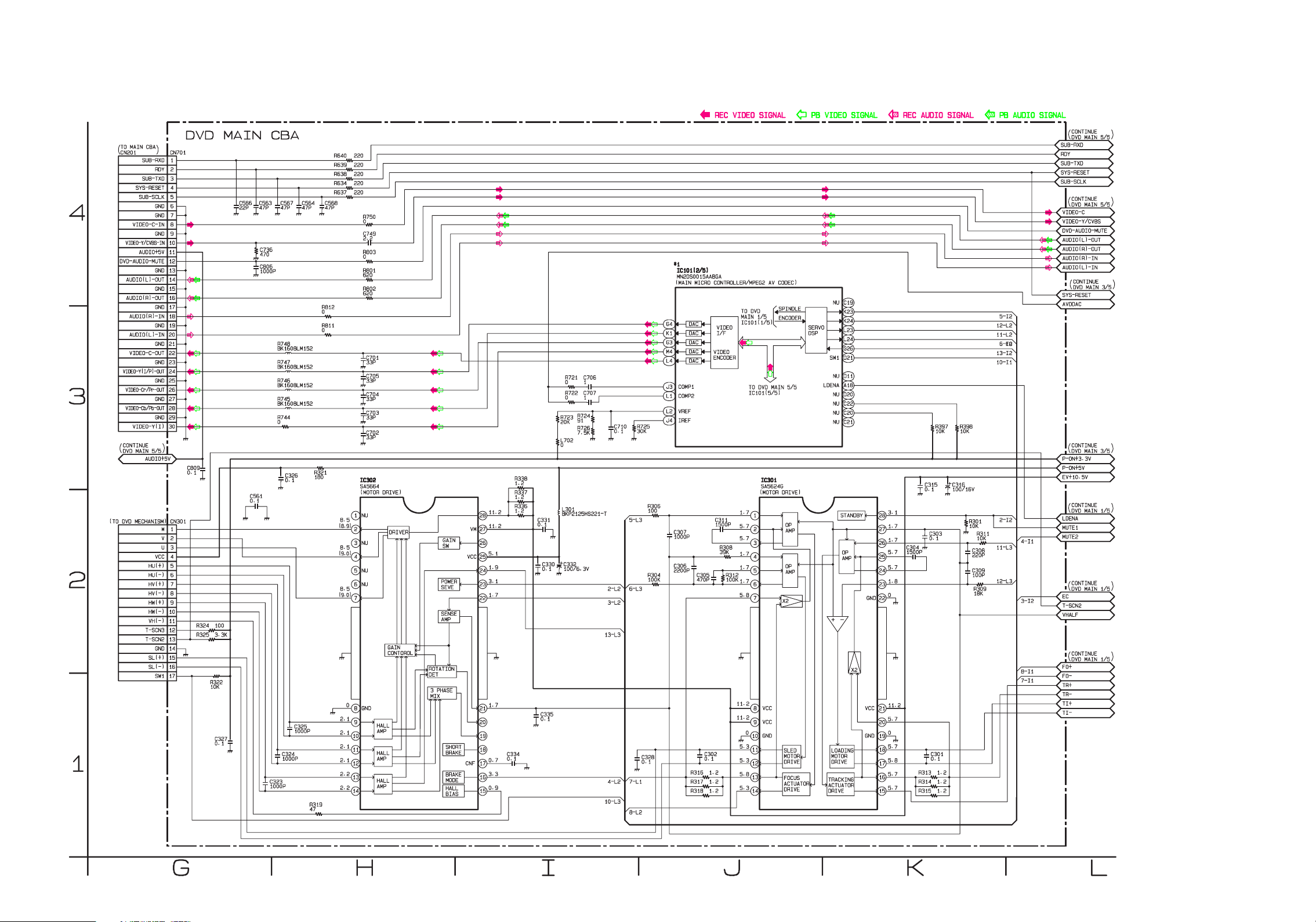

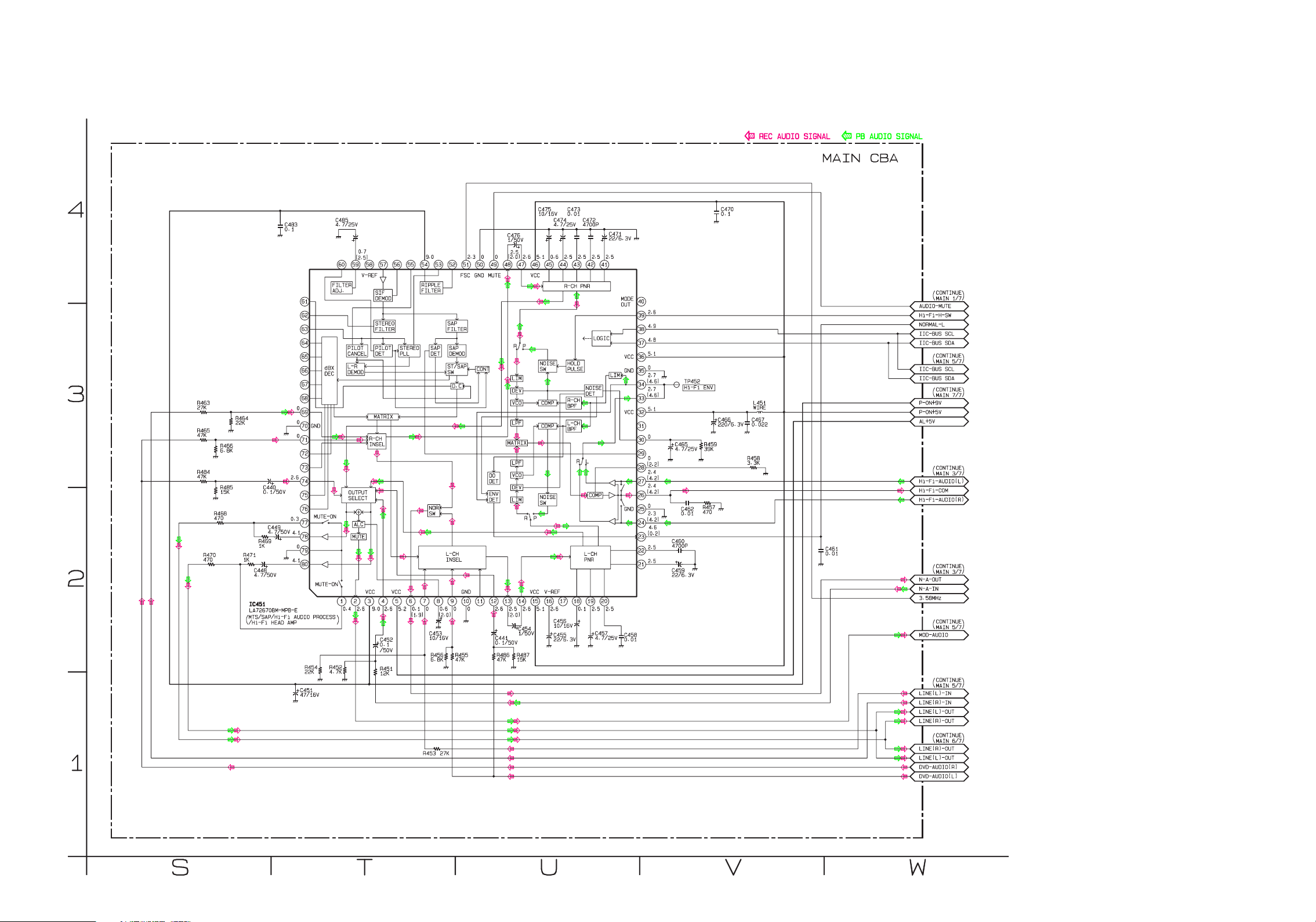

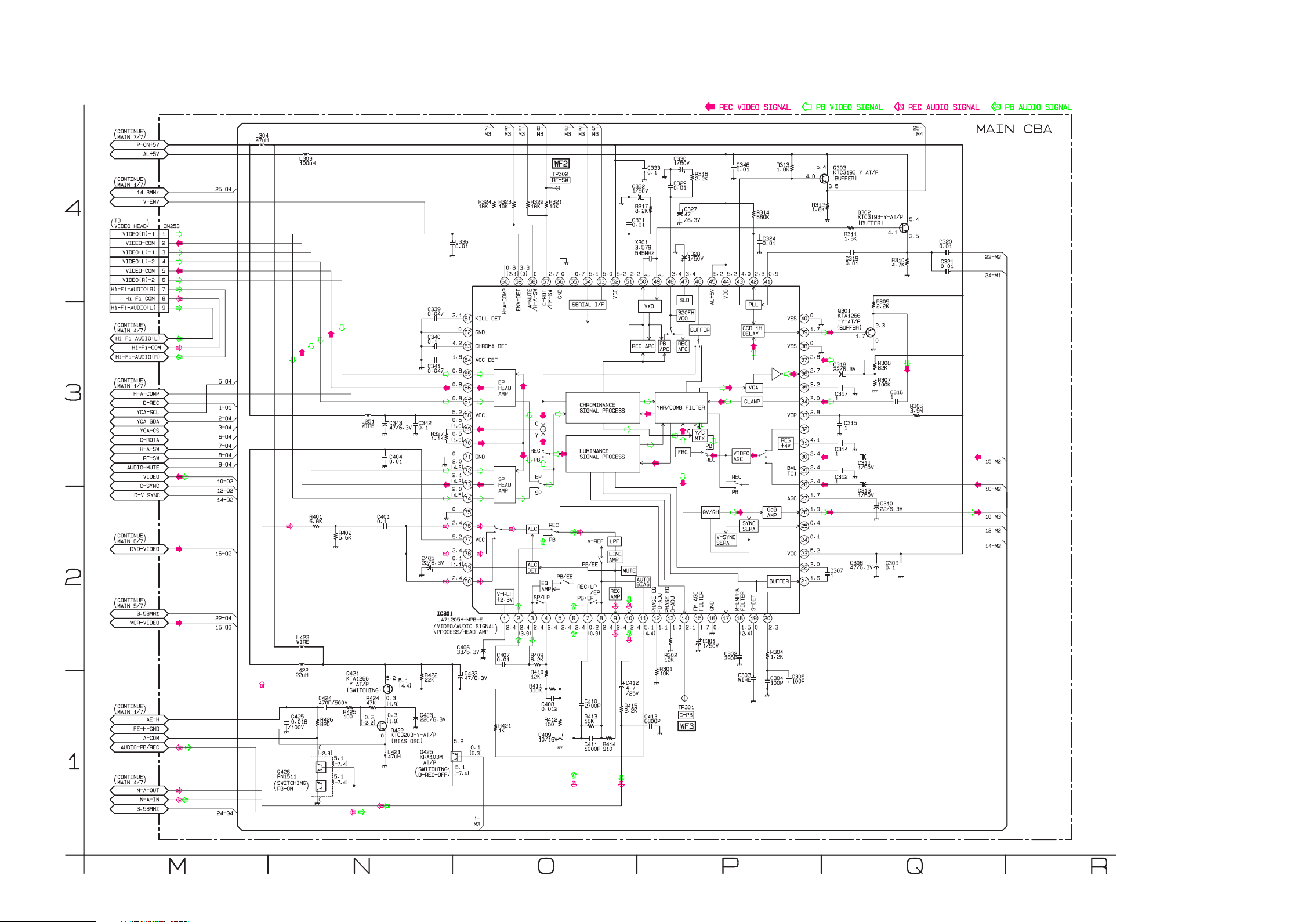

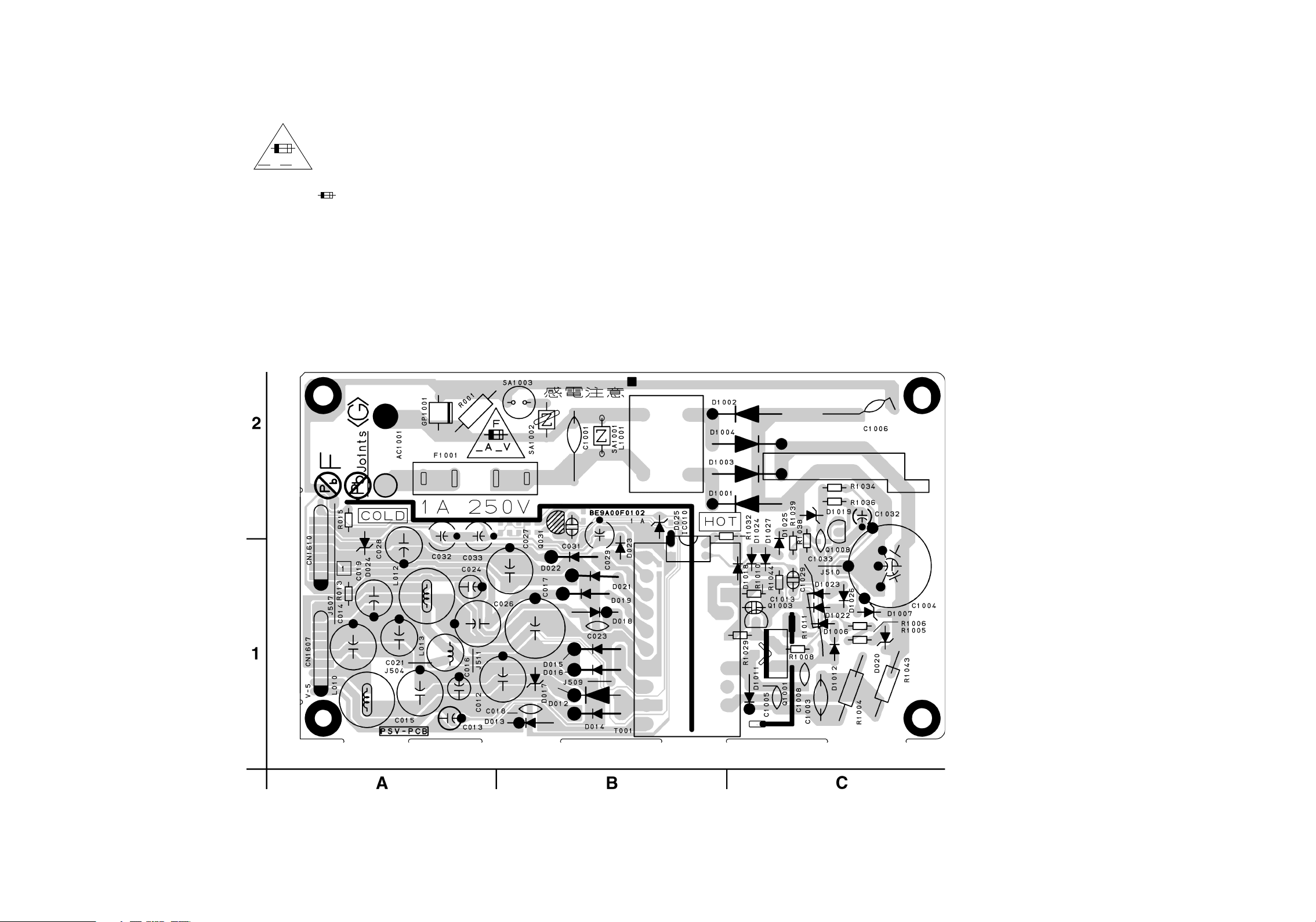

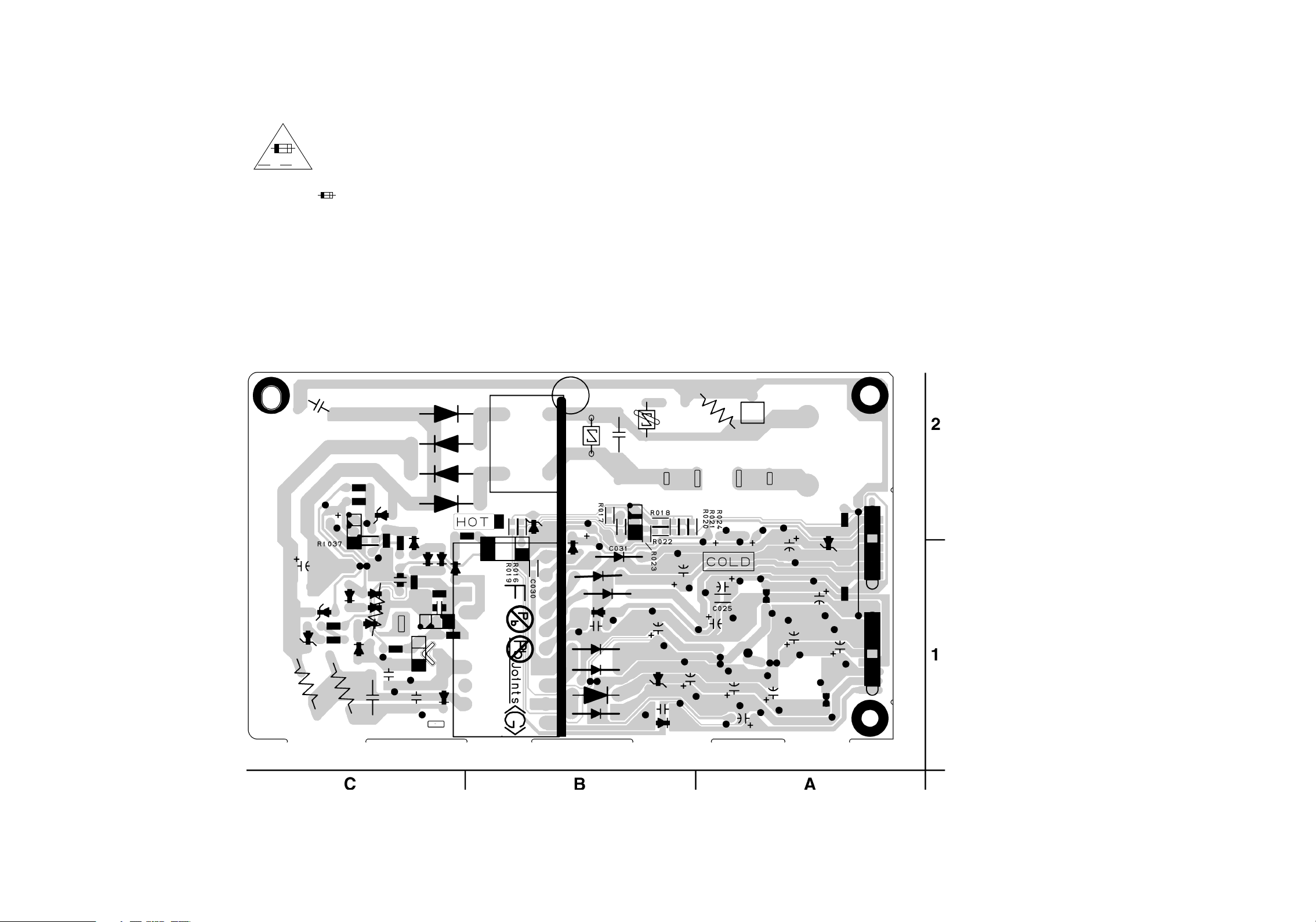

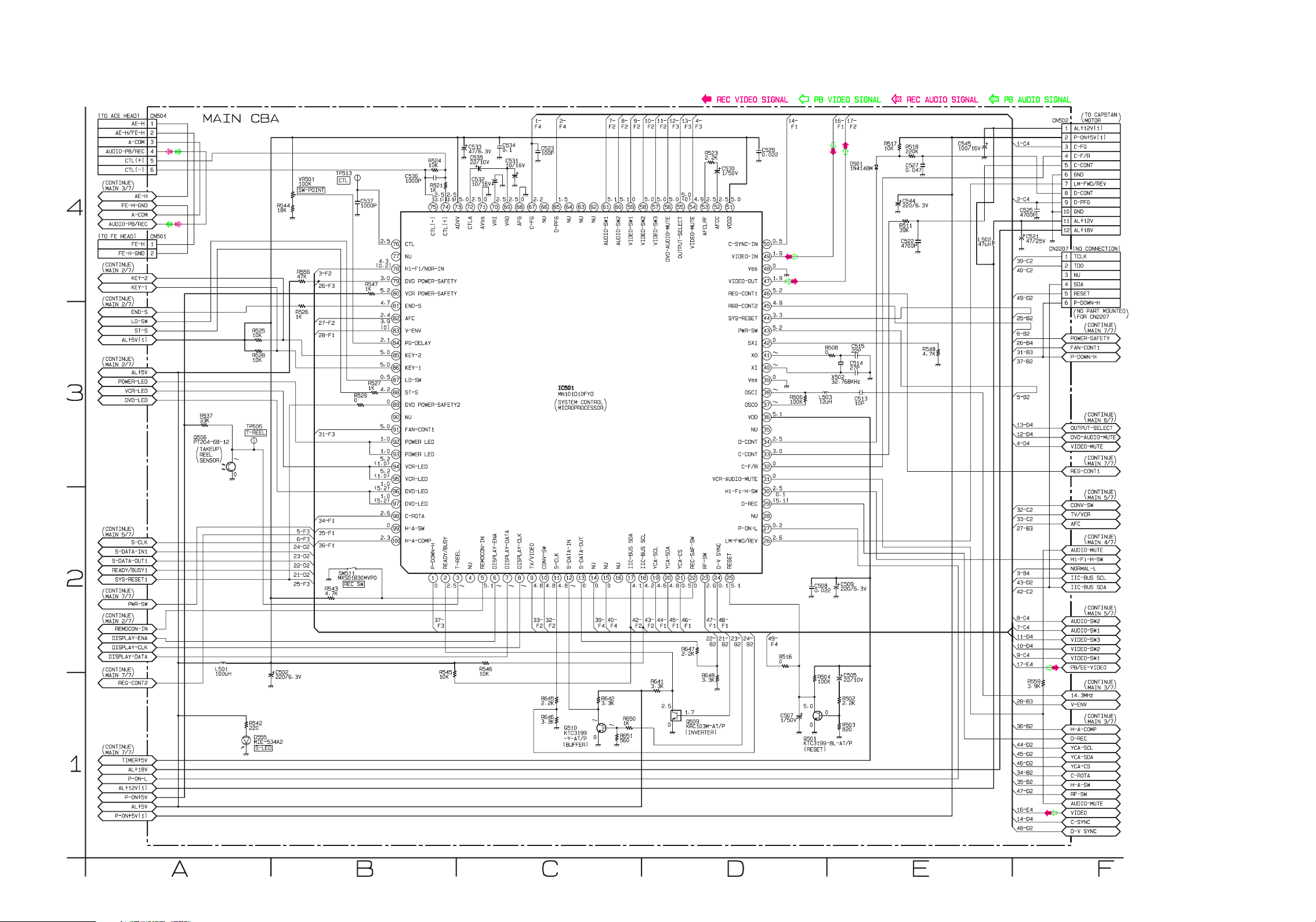

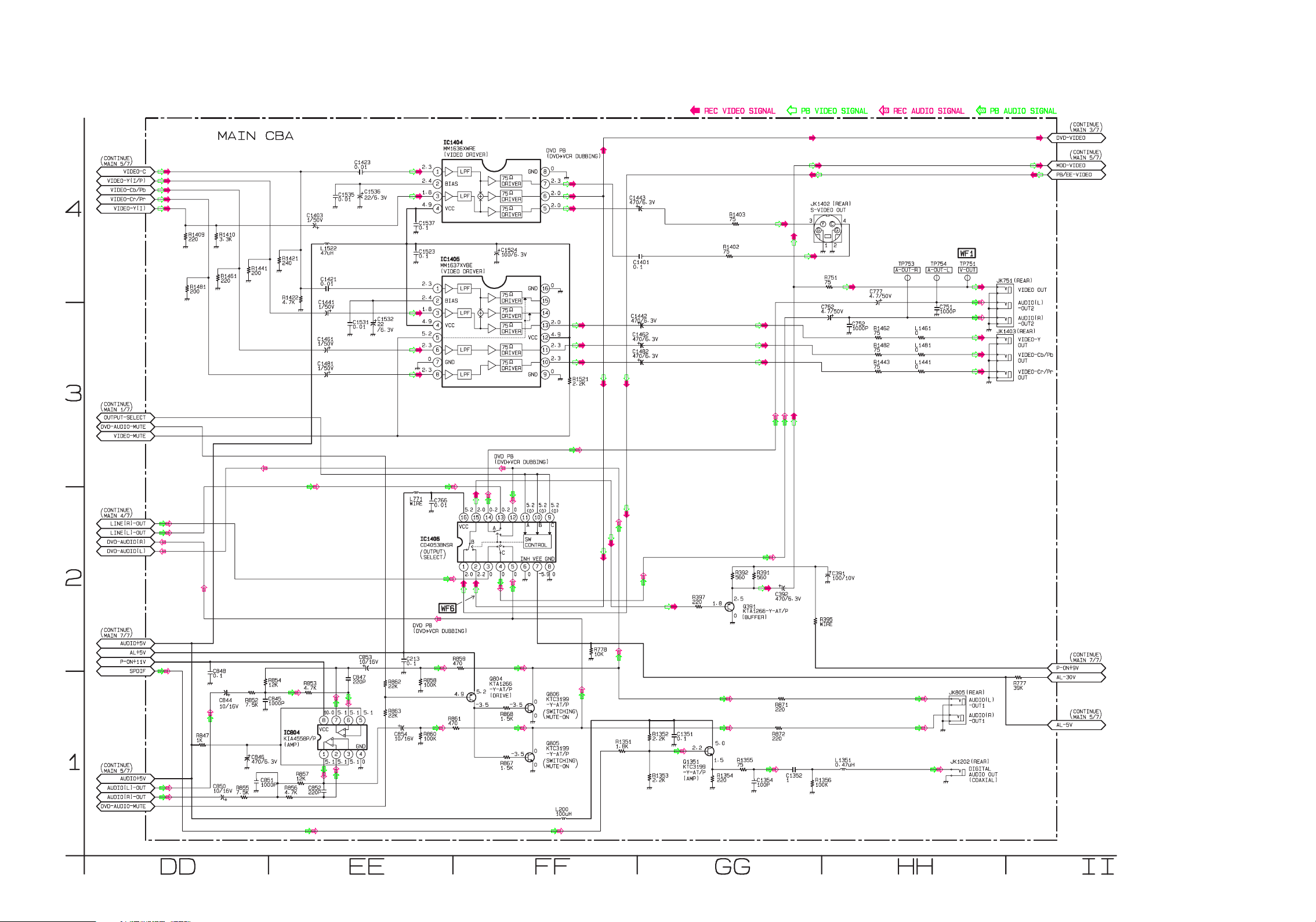

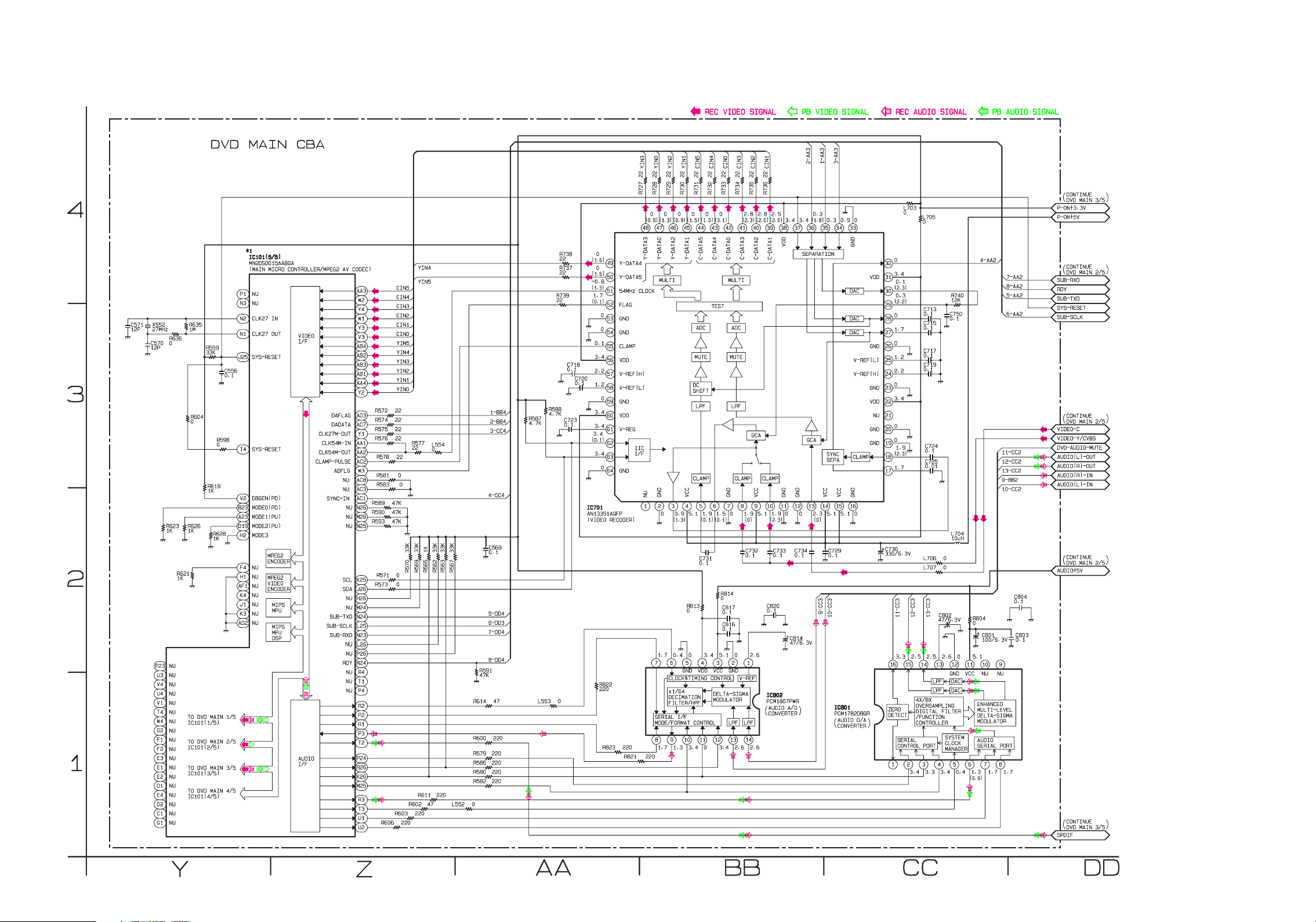

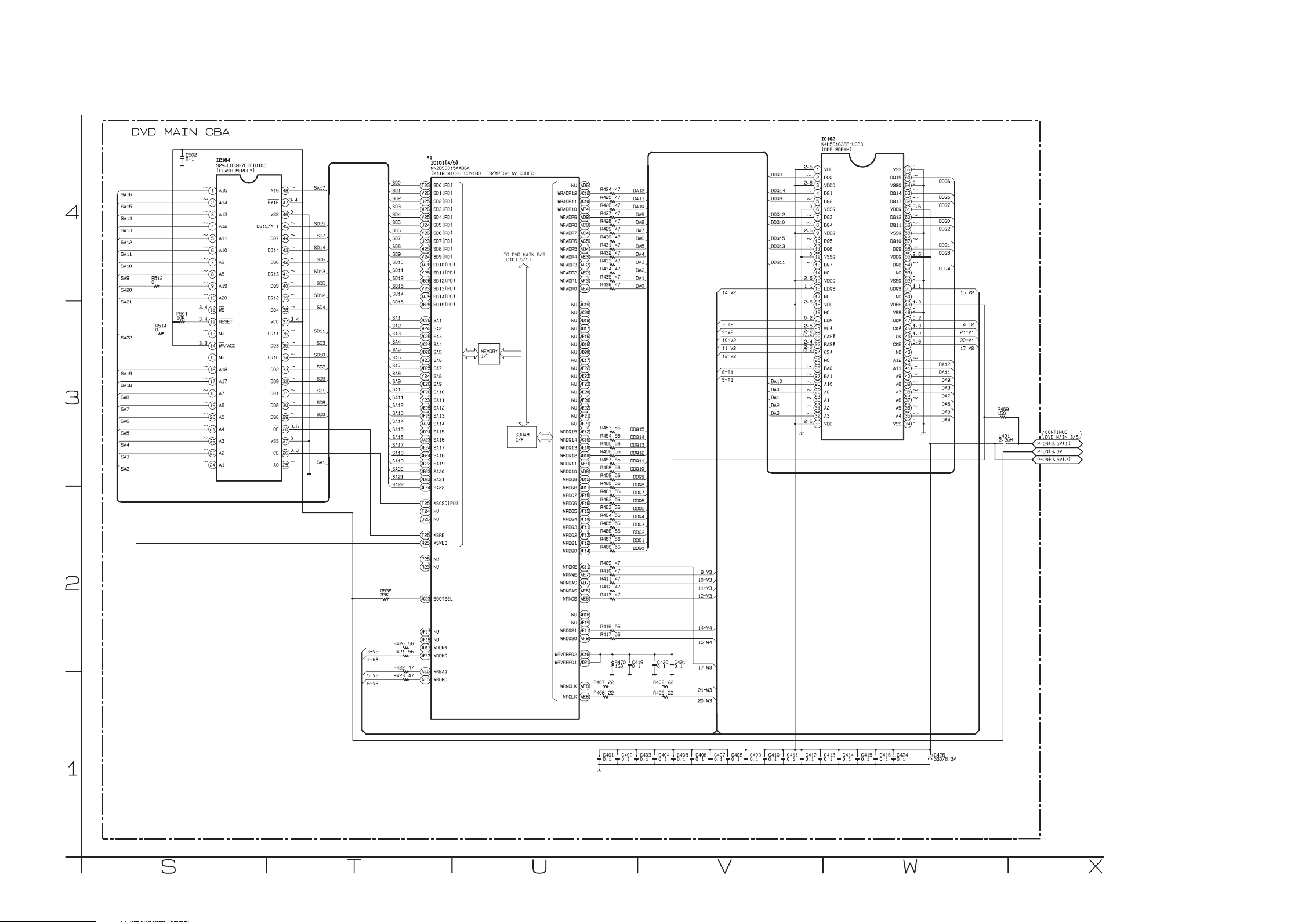

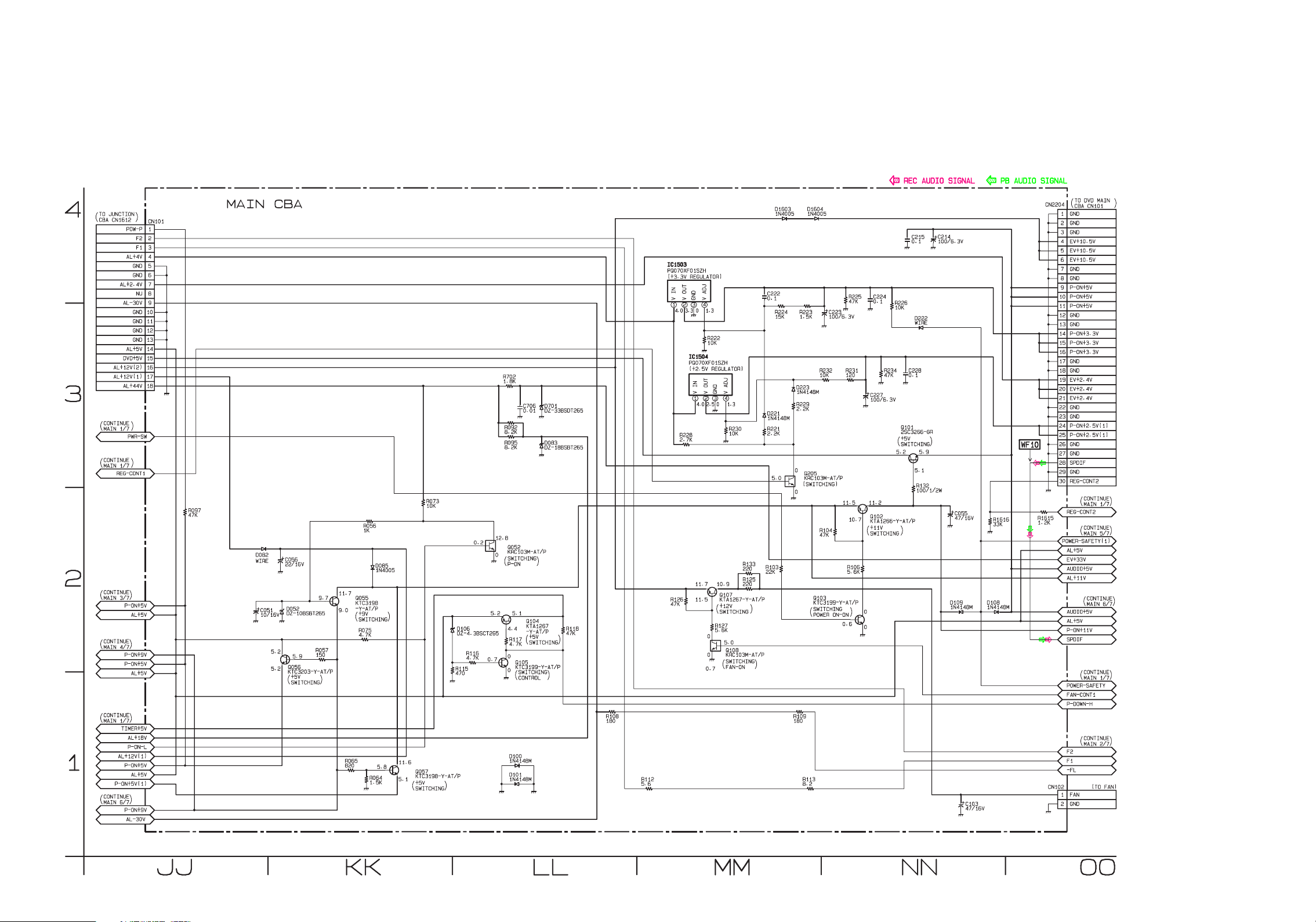

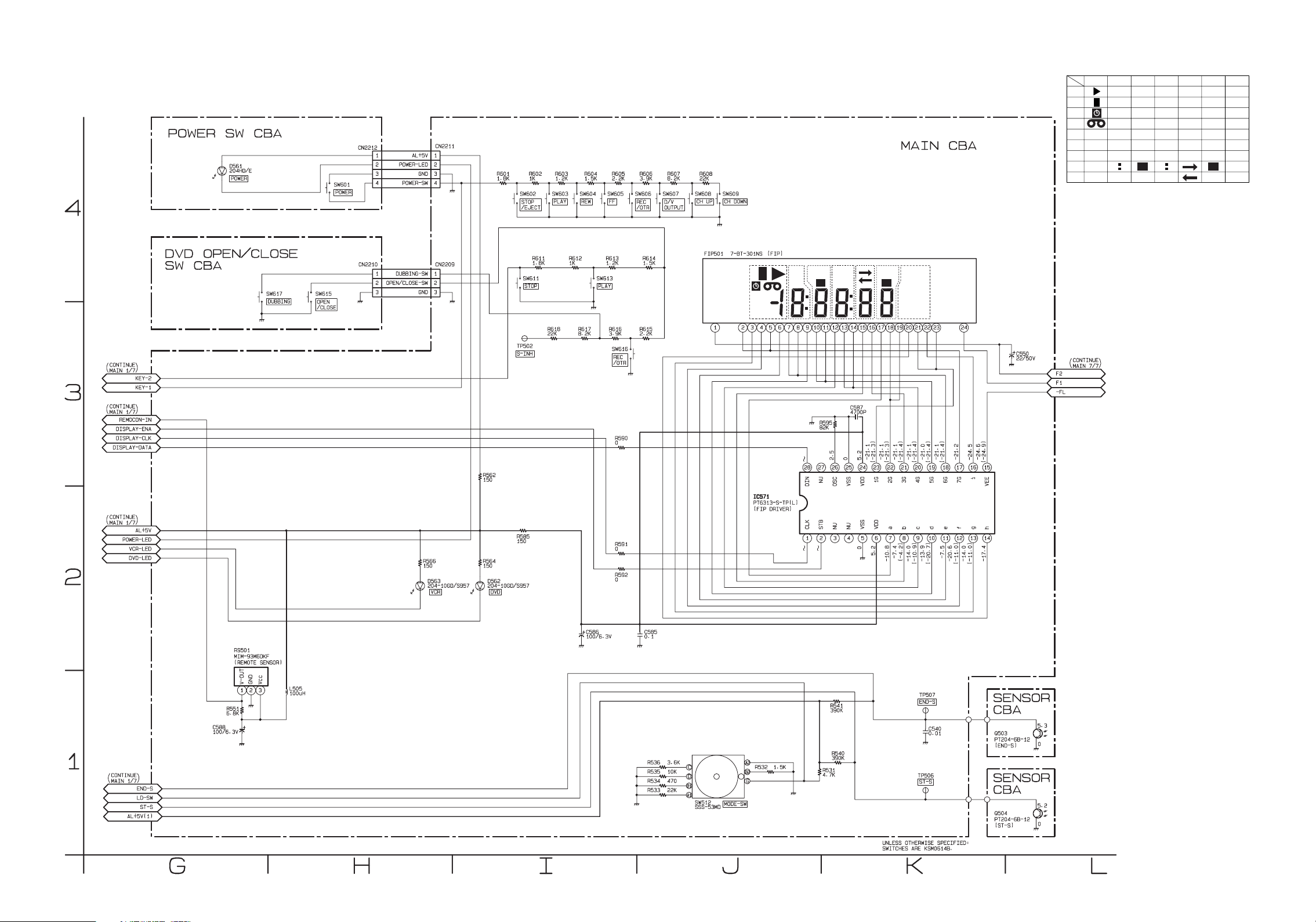

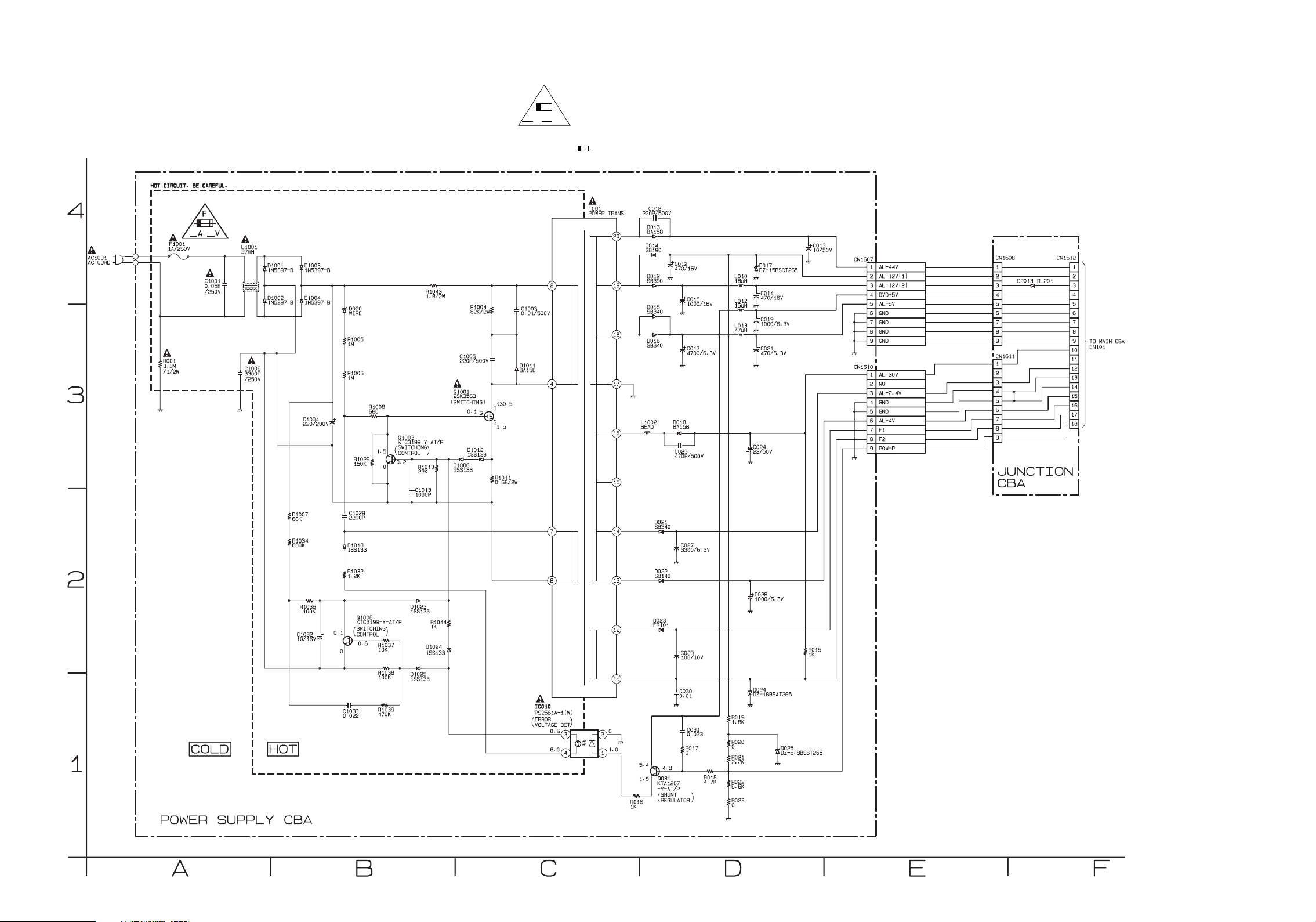

Schematic Diagrams / CBA’s and Test Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12-1

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13-1

Wiring Diagram < VCR Section > . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-1

Wiring Diagram < DVD Section > . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-14-2

System Control Timing Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-15-1

IC Pin Function Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16-1

Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17-1

Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-18-1

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19-1

Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-20-1

SPECIFICATIONS

< VCR Section >

Description Unit Minimum Nominal Maximum Remark

1. Video

1-1. Video Output (PB) Vp-p 0.8 1.0 1.2 SP Mode

1-2. Video Output (R/P) Vp-p 0.8 1.0 1.2

1-3. Video S/N Y (R/P) dB 40 45

1-4. Video Color S/N AM (R/P) dB 37 41 SP Mode

1-5. Video Color S/N PM (R/P) dB 30 36 SP Mode

1-6. Resolution (PB) Line 230 245 SP Mode

2. Servo

2-1. Jitter Low µsec 0.07 0.12 SP Mode

2-2. Wow & Flutter % 0.3 0.5 SP Mode

3. Normal Audio

3-1. Output (PB) dBV -9 -6 -3 SP Mode

3-2. Output (R/P) dBV -9 -6 -1.5 SP Mode

3-3. S/N (R/P) dB 36 41 SP Mode

3-4. Distortion (R/P) % 1.0 4.0 SP Mode

3-5. Freq. resp (R/P) at 200Hz dB -11 -4 SP Mode

(-20dB ref. 1kHz) at 8kHz dB -14 -4 SP Mode

SP Mode,

W/O Burst

4. Tuner

4-1. Video output Vp-p 0.8 1.0 1.2 E-E Mode

4-2. Video S/N dB 39 42 E-E Mode

4-3. Audio output dB -10 -6 -2 E-E Mode

4-4. Audio S/N dB 40 46 E-E Mode

5. Hi-Fi Audio

5-1. Output dBV -12 -8 -4 SP Mode

5-2. Dynamic Range dB 70 85 SP Mode

5-3. Freq. resp (6dB B.W) Hz 20 ~ 20K SP Mode

Note: Nominal specs represent the design specs. All units should be able to approximate these – some will exceed and some may drop slightly below these specs. Limit specs represent the absolute worst condition that still might be considered acceptable; In no case should a unit fail to meet limit specs.

1-1-1 E9400SP

< DVD Section >

ITEM CONDITIONS UNIT NOMINAL LIMIT

1. VIDEO

1-1. Video Output 75 ohm load Vp-p 1.0

1-2. S-Video Output

Y (Luminance) 75 ohm load Vp-p 1.0

C (Chrominance) 75 ohm load Vp-p 0.286

1-3. Component Output

Y (Luminance) 75 ohm load Vp-p 1.0

Cb (Chrominance) 75 ohm load Vp-p 0.7

Cr (Chrominance) 75 ohm load Vp-p 0.7

2. AUDIO

2-1. Output Level Vrms 2.0

2-2. Frequency Response

DVD-VIDEO LPCM fs = 48kHz 20~22kHz dB ± 0.5

Audio CD fs = 44.1kHz 20~20 kHz dB ± 0.5

2-3. Signal/Noise Ratio

DVD-VIDEO LPCM dB 90

CD dB 90

REC & Playback Input: 2 Vrms, Rec Speed: XP dB 80

2-4. Dynamic Range

DVD-VIDEO LPCM dB 80

CD dB 80

REC & Playback Input: 2 Vrms, Rec Speed: XP dB 80

2-5. THD+N 1 kHz, 0 dB

DVD-VIDEO LPCM % 0.01

CD % 0.01

REC & Playback Input: 2 Vrms, Rec Speed: XP % 0.01

NOTES:

1. All Items are measured without pre-emphasis unless otherwise specified.

2. Power supply : AC120 V 60 Hz

4. Ambient temperature : 5

°C ~ 40 °C

1-1-2 E9400SP

LASER BEAM SAFETY PRECAUTIONS

This DVD player uses a pickup that emits a laser beam.

Do not look directly at the laser beam coming from the pickup or allow it to strike against your skin.

The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep your eyes at least 30 cm away from the pickup lens when the diode is turned on. Do not look directly at the laser beam.

CAUTION: Use of controls and adjustments, or doing procedures other than those specified herein, may result in hazardous radiation exposure.

Drive Mechanism Assembly

Laser Beam Radiation

Laser Pickup

Turntable

Location: Inside Top of DVD mechanism.

1-2-1 R3NLSP

IMPORTANT SAFETY PRECAUTIONS

Product Safety Notice

Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by a # on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The Product’s Safety is under review continuously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are carefully inspected to confirm with the recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

Precautions during Servicing

A. Parts identified by the # symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements. Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation tape

2) PVC tubing

3) Spacers

4) Insulators for transistors

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of wires securely about the terminals before soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film resistors, fusible resistors, etc.).

G. Check that replaced wires do not contact sharp

edges or pointed parts.

H. When a power cord has been replaced, check that

5 - 6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations. J. Be careful that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. Crimp type wire connector

The power transformer uses crimp type connectors which connect the power cord and the primary side of the transformer. When replacing the transformer, follow these steps carefully and precisely to prevent shock hazards. Replacement procedure

1) Remove the old connector by cutting the wires at a point close to the connector. Important: Do not re-use a connector. (Discard it.)

2) Strip about 15 mm of the insulation from the ends of the wires. If the wires are stranded, twist the strands to avoid frayed conductors.

3) Align the lengths of the wires to be connected. Insert the wires fully into the connector.

4) Use a crimping tool to crimp the metal sleeve at its center. Be sure to crimp fully to the complete closure of the tool.

L. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the AC outlet.

1-3-1 DVDN_ISP

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts, and wires have been returned to their original positions. Afterwards, do the following tests and confirm the specified values to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm specified clearance distance (d) and (d’) between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)

Table 1: Ratings for selected area

Chassis or Secondary Conductor

Primary Circuit

AC Line Voltage Clearance Distance (d), (d’)

120 V ≥ 3.2 mm (0.126 inches)

Note: This table is unofficial and for reference only. Be

sure to confirm the precise values.

2. Leakage Current Test

Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.) is lower than or equal to the specified value in the table below.

Measuring Method (Power ON):

Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across the terminals of load Z. See Fig. 2 and the following table.

d' d

Fig. 1

Exposed Accessible Part

AC Voltmeter (High Impedance)

Earth Ground

Power Cord Plug Prongs

Table 2: Leakage current ratings for selected areas

AC Line Voltage Load Z Leakage Current (i) Earth Ground (B) to:

120 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

0.15 µF CAP. & 1.5 kΩ RES. Connected in parallel

i ≤ 0.5 mA Peak Exposed accessible parts

1-3-2 DVDN_ISP

Fig. 2

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is indicated as shown.

Top View

Out

2. For other ICs, pin 1 and every fifth pin are indicated as shown.

Pin 1

3. The 1st pin of every male connector is indicated as shown.

Pin 1

Input

Bottom View

Pb (Lead) Free Solder

When soldering, be sure to use the Pb free solder.

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering machine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

Instructions for Connectors

1. When you connect or disconnect the FFC (Flexible Foil Connector) cable, be sure to first disconnect the AC cord.

2. FFC (Flexible Foil Connector) cable should be inserted parallel into the connector, not at an angle.

FFC Cable

Connector

CBA

* Be careful to avoid a short circuit.

2. Remove the flat pack-IC with tweezers while applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use an appropriate hot-air flat pack-IC desoldering machine, whose shape matches that of the Flat Pack-IC.

2. Do not supply hot air to the chip parts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protect other parts from damage. (Fig. S-1-2)

1-4-1 DVDN_SN

3. The flat pack-IC on the CBA is affixed with glue, so be careful not to break or damage the foil of each pin or the solder lands under the IC when removing it.

With Soldering Iron:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

CBA

Masking Tape

Tweezers

Hot-air Flat Pack-IC Desoldering Machine

Flat Pack-IC

Fig. S-1-2

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

2. Lift each lead of the flat pack-IC upward one by one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air desoldering machine. (Fig. S-1-4)

Sharp Pin

Fine Tip Soldering Iron

4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Fig. S-1-4

1-4-2 DVDN_SN

With Iron Wire:

1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering iron or hot air blower, pull up the wire as the solder melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not being held by glue. When the flat pack-IC is removed from the CBA, handle it gently because it may be damaged if force is applied.

Hot Air Blower

2. Installation

1. Using desoldering braid, remove the solder from the foil of each pin of the flat pack-IC on the CBA so you can install a replacement flat pack-IC more easily.

2. The “● ” mark on the flat pack-IC indicates pin 1. (See Fig. S-1-7.) Be sure this mark matches the 1 on the PCB when positioning for installation. Then presolder the four corners of the flat pack-IC. (See Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC is indicated by a " " mark.

Fig. S-1-7

To Solid Mounting Point

CBA

Tweezers

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip Soldering Iron

Flat Pack-IC

Presolder

Flat Pack-IC

CBA

Fig. S-1-8

Fig. S-1-6

1-4-3 DVDN_SN

Instructions for Handling Semiconductors

Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate with proper grounding (1 MΩ) on the workbench or other surface, where the semi-conductors are to be placed. Because the static electricity charge on clothing will not escape through the body grounding band, be careful to avoid contacting semi-conductors with your clothing.

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or Copper Plate

1-4-4 DVDN_SN

PREPARATION FOR SERVICING

How to Enter the Service Mode

About Optical Sensors

Caution:

An optical sensor system is used for the Tape Start and End Sensors on this equipment. Carefully read and follow the instructions below. Otherwise the unit may operate erratically.

What to do for preparation

Insert a tape into the Deck Mechanism Assembly and press the PLAY button. The tape will be loaded into the Deck Mechanism Assembly. Make sure the power is on, connect TP502 (S-INH) to GND. This will stop the function of Tape Start Sensor, Tape End Sensor and Reel Sensors. (If these TPs are connected before plugging in the unit, the function of the sensors will stay valid.) See Fig. 1.

Q503

Q504

TP502

S-INH

Fig. 1

Note: Because the Tape End Sensors are inactive, do

not run a tape all the way to the start or the end of the tape to avoid tape damage.

1-5-1 E9A80PFS

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route, and dress the cables as they were originally.

[16] Power SW CBA

[14] VCR Chassis Unit

[18] Main CBA

[10] DC Fan Motor

[8] Rear Panel Unit

[9] Power Supply CBA

[11] PCB Holder

[12] Rear Panel

[19] Deck Pedestal

[15] Deck Assembly

[17] Function CBA

[2] Front Assembly

[1] Top Cover

[4] Radiation Sheet

[6] Jack CBA

[5] Jack Bracket

[3] Front Bracket

[20] Front Bracket R

[7] DVD Mechanism & DVD Main CBA Assembly

[13] Bracket R

2. Disassembly Method

ID/

LOC.

No.

PART

Fig.

No.

[1] Top Cover D1 6(S-1) ---

Front

[2]

[3]

[4]

[5]

Assembly

Front Bracket

Radiation Sheet

Jack Bracket

D2 2(S-2), (S-3) ---

D2 ---------- ---

D3 2(S-4) ---

[6] Jack CBA D3 Jack Earth Plate ---

DVD Mechanism

[7]

& DVD

D4 Main CBA Assembly

REMOVAL

REMOVE/*UNHOOK/ UNLOCK/RELEASE/ UNPLUG/DESOLDER

*5(L-1), *3(L-2), *CN1609

2(S-5A), 2(S-5B), *CN101, *CN701

Note

1 1-1 1-2 1-3

---

ID/

LOC.

No.

[8]

PA RT

Rear Panel Unit

REMOVE/*UNHOOK/

Fig.

UNLOCK/RELEASE/

No.

UNPLUG/DESOLDER

6(S-6), 3(S-7), (S-8),

*CN101, *CN102

Note

---

Power

REMOVAL

[9]

Supply

D6 4(S-9), AC Cord ---

CBA DC Fan

[10]

[11]

Motor PCB

Holder

D6 2(S-10), Earth Plate ---

D6 3(S-11) ---

[12] Rear Panel D6 ---------- --[13] Bracket R D7 2(S-12) ---

[14]

[15]

[16]

[17]

VCR Chassis Unit

Deck Assembly

Power SW CBA

Function CBA

5(S-13), 6(S-14),

(S-15), (S-16)

(S-17), (S-18),

Desolder

---

D8 Desolder ---

2 3

[18] Main CBA D8 ---------- ---

Deck

[19]

[20]

↓

(1)

Pedestal Front

Bracket R

↓

(2)

D9 8(S-19) ---

D9 (S-20) ---

↓

(3)

↓

(4)

↓

(5)

Note:

(1): Identification (location) No. of parts in the figures (2): Name of the part (3): Figure Number for reference (4): Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or desoldered. P=Spring, L=Locking Tab, S=Screw, CN=Connector *=Unhook, Unlock, Release, Unplug, or Desolder e.g. 6(S-1) = six Screws (S-1), 5(L-1) = five Locking Tabs (L-1)

(5): Refer to “Reference Notes.”

1-6-1 E9A80DC

Reference Notes

CAUTION 1: Locking Tabs (L-1) and (L-2) are fragile. Be careful not to break them.

1-1. Release five Locking Tabs (L-1). 1-2. Release three Locking Tabs (L-2) 1-3. Disconnect Connector (CN1609), and remove

the Front Assembly.

2. When reassembling, solder wire jumpers as shown in Fig. D8.

3. Before installing the Deck Assembly, be sure to place the pin of LD-SW on Main CBA as shown in Fig. D8. Then, install the Deck Assembly while aligning the hole of Cam Gear with the pin of LDSW, the shaft of Cam Gear with the hole of LD-SW as shown in Fig. D8.

(S-1)

[1] Top Cover

(S-1)

(S-5A)

[7] DVD Mechanism & DVD Main CBA Assembly

[5] Jack Bracket

Jack Earth Plate

CN101

CN701

(S-4)

[6] Jack CBA

Fig. D3

(S-5B)

(S-2)

[3] Front Bracket

(L-2)

(L-1)

Fig. D1

[4] Radiation Sheet

(S-2)

(L-1)

CN1609

[2] Front Assembly

(S-3)

Fig. D4

(L-1)

Fig. D2

1-6-2 E9A80DC

(S-7)

(S-8)

(S-6)

(S-7)

[8] Rear Panel Unit

(S-13)

(S-15)

(S-14)

(S-13)

(S-14)

CN102

CN101

[12] Rear Panel

(S-11)

(S-10)

(S-7)

Fig. D5

(S-11)

(S-16)

[14] VCR Chassis Unit

(S-14)

(S-12)

[13] Bracket R

Fig. D7

[10] DC Fan Motor

AC Cord

Hook

[9] Power Supply CBA

(S-9)

Earth Plate

[11] PCB Holder

Fig. D6

1-6-3 E9A80DC

FE Head

[16] Power SW CBA

Cylinder Assembly

ACE Head Assembly

[15] Deck Assembly

[17] Function CBA

SW512 LD-SW

[18] Main CBA

Lead with blue stripe

(S-17)

Desolder

From Capstan Motor Assembly

(S-18)

Desolder

Lead with blue stripe

Printing side

[18] Main CBA

From ACE Head Assembly

Desolder

LD-SW

Lead with blue stripe

Desolder

[15] Deck Assembly

Shaft

Hole

From Cylinder Assembly

Lead with gray stripe

Hole

From FE Head

Cam Gear

[18] Main CBA

Desolder

BOTTOM VIEW

Lead connections of Deck Assembly and Main CBA

1-6-4 E9A80DC

Fig. D8

(S-19)

[19] Deck Pedestal

[20] Front Bracket R

(S-20)

Fig. D9

3. How to Eject Manually

Note: When rotating the gear, be careful not to damage the gear.

1. Remove the Top Cover.

2. Rotate the gear in the direction of the arrow manually as shown below until the tray descends.

3. Pull the tray out manually and remove a disc.

View for A

Rotate this gear in

the direction of the arrow

1-6-5 E9A80DC

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: “CBA” is abbreviation for “Circuit Board Assembly.”

NOTE:

1. Electrical adjustments are required after replacing circuit components and certain mechanical parts. It is important to do these adjustments only after all repairs and replacements have been completed. Also, do not attempt these adjustments unless the proper equipment is available.

2. To perform these alignment / confirmation procedures, make sure that the tracking control is set in the center position: Press either [CHANNEL L] or [CHANNEL K] button on the front panel first, then the [PLAY] button on the front panel.

Test Equipment Required

1. Oscilloscope: Dual-trace with 10:1 probe, V-Range: 0.001~50 V/Div., F-Range: DC~AC-20 MHz

2. Alignment Tape (FL8A)

Head Switching Position Adjustment

Purpose: To determine the Head Switching position

during playback. Symptom of Misadjustment: May cause Head

Switching noise or vertical jitter in the picture.

Test point Adj. Point Mode Input

TP751(V-OUT)

TP302(RF-SW)

GND

Tape

FL8A Oscilloscope

Connections of Measurement Equipment

Main CBA

VR501

(Switching Point)

Measurement

Equipment

TP751

GND

TP302

PLAY

(SP)

6.5H ± 1H

(412.7µs±63.5µs)

Oscilloscope

-----

Spec.

CH1 CH2

Trig. (+)

Figure 1

EXT. Syncronize Trigger Point

CH1

CH2

Note: TP751(V-OUT), TP302(RF-SW),

Reference Notes:

Playback the Alignment tape and adjust VR501 so that the V-sync front edge of the CH1 video output waveform is at the 6.5H ± 1H (412.7 µs ± 63.5 µs) delayed position from the rising edge of the CH2 head switching pulse waveform.

1.0H

6.5H±1H (412.7µs±63.5µs)

Switching Pulse

VR501(Switching Point) --- Main CBA

0.5H V-Sync

1-7-1 H9801EA

HOW TO INITIALIZE THE DVD RECORDER & VCR

To put the program back at the factory-default, initialize the DVD recorder & VCR as the following procedure.

< DVD Section >

1. Turn the DVD recorder on.

2. Confirm that no disc is loaded or that the disc tray is open. To put the DVD recorder into the Version display mode, press [DVD], [CM SKIP], [1], [2], and [3] buttons on the remote control in that order. Fig. a appears on the screen.

*1: " *2: Firmware Version differs depending on the models, and this indication is one example.

Fig. a Version Display Mode Screen

" differs depending on the models.

*******

F/W VERSION DISP

MODEL NAME :

FE VERSION : BE VERSION : TT VERSION :

LD ADJUSTMENT : DISC ADJUSTMENT :

DEFAULT SETTING : ENTER EXIT : RETURN

R30_005_082 R3F10210S1E T30015FSU

OK OK

*******

3. Press [ENTER] button, then the DVD recorder starts initializing. When the initializing is completed, the DVD recorder exits the Version display mode and turns off the power automatically.

* To move into the Normal mode from the

Version display mode, press [RETURN] button on the remote control instead of [ENTER] button.

* When [POWER] button is pressed before

[ENTER] button is pressed, the DVD recorder exits the Version display mode, then the power turns off.

1-8-1 E9A10INT

FIRMWARE RENEWAL MODE

1. Turn the power on and remove the disc on the tray.

2. To put the DVD recorder into version up mode, press [DVD], [CM SKIP], [6], [5], and [4] buttons on the remote control unit in the order. Then the tray will open automatically. Fig. a appears on the screen and Fig. b appears on the VFD.

* Firmware Version differs depending on the models, and this indication is one example.

Firm Update Mode

Please insert a disc.

Fig. a Version Up Mode Screen

Fig. b VFD in Version Up Mode

ver. R3F10210S1E

Current F/W version is displayed.

4. Select the firmware version pressing arrow buttons, then press [ENTER]. Fig. d appears on the screen and Fig. e appears on the VFD. The DVD recorder starts updating.

About VFD indication of Fig. e:

1) When Fig. d is displayed on the screen, “F-UP”

is displayed on the VFD.

2) When “Firmware Updating... XX% Complete.”

is displayed on the screen, “10210” is displayed on the VFD.

* Firmware Version differs depending on the models, and this indication is one example.

Selected F/W version is displayed.

(*1)

Firm Update Mode

R3F10210S1E

File Loading...

Fig. d Programming Mode Screen

ver.

R3F10210S1E

3. Load the disc for version up. Fig. c appears on the screen. The file on the top is highlighted as the default. When there is only one file to exist, Step 4 will start automatically.

* Firmware Version differs depending on the models, and this indication is one example.

Firm Update Mode ver. R3F10210S1E

Disc name is displayed.

VOL_200512250934

1 R3F10210S1E 2 R3F10211S1E 3 R3F10212S1E 4 R3F10213S1E

Fig. c Update Disc Screen

1 / 1

Files included in the disc are displayed.

Fig. e VFD in Programming Mode (Example)

The appearance shown in (*1) of Fig. d is described as follows.

No. Appearance State

1 File Loading... Sending files into the memory

Firmware

Updating...

Writing new version data

XX% Complete. Firmware

--Update Failure

Failed in updating

5. After updating is finished, the tray opens automatically. At this time, no button is available.

6. Pull out the AC code once, then insert it again.

1-9-1 E9A10FW

FUNCTION INDICATOR SYMBOLS

< VCR Section >

Note:

If a mechanical malfunction occurs, the power is turned off. When the power comes on again after that by pressing [POWER] button, an error message is displayed on the TV screen for 5 seconds.

Led Mode Indicator Active

When reel or capstan mechanism is not functioning correctly

When tape loading mechanism is not functioning correctly

When cassette loading mechanism is not functioning correctly

When the drum is not working properly P-ON+5V Power safety detection

TV screen

“A R” is displayed on a TV screen. (Refer to Fig. 1.)

“A T” is displayed on a TV screen. (Refer to Fig. 2.)

“A C” is displayed on a TV screen. (Refer to Fig. 3.)

“A D” is displayed on a TV screen. (Refer to Fig. 4.)

“A P” is displayed on a TV screen. (Refer to Fig. 5.)

When reel or capstan mechanism is not functioning correctly

SP 0:00:00

Fig. 1

When tape loading mechanism is not functioning correctly

SP 0:00:00

Fig. 2

When cassette loading mechanism is not functioning correctly

When the drum is not working properly

SP 0:00:00

P-ON+5V Power safety detection

SP 0:00:00

Fig. 4

Fig. 5

SP 0:00:00

Fig. 3

1-10-1 E9A10FIS

< DVD Section >

Note: If an error occurs, a message with the error number appears on the screen.

Recording Error

Message Solution

Can not record on this disc.

This program is not allowed to be recorded.

This program is not recordable in Video mode.

You cannot record on this disc as Power Calibration Area is full.

Insert the recordable disc, and ensure the disc status satisfies the recording requirements.

You cannot record copy prohibited programs.

Set “DVD-RW Recording Format” to “VR mode”.

Error message

E35

Error

No.

1 An error occurs during data reading. -

4 An error occurs with OPC. 5 During recovery in a record. -

7 An error occurs in a format. 8 It cannot start an encode. -

13 It is a reply that “ATAPI is not readable.” -

16 An error occurs in Finalize Close. 17 An error occurs in Rec Stop Close. 18 An error occurs in PCA Full (DVD_R). 19 Safety Stop occurs during editing. 20 High Speed Disc. 2 21 The disc is not formatted. 5 22 Disc Error has occurred. 3 23 The -R Disc of VR Mode. 6

25 During the Macrovision picture input. 11 26 During the CGMS picture input. 12

Error No.

Error Description Priority

There is no reply for 15 seconds in Test Unit Ready.

Cannot write the data after trying three times.

An error occurs even if recovery has been tried three times.

NV_PCK/RDI_PCK is not in encoded data.

Encode Pause condition continued for 10 minutes.

Encode Pause condition continued in normal REC condition for 10 minutes.

Difference in the address and can not get StreamID of RDI/VIDEO.

Cannot write the data after recovering SMALL VMGI.

Cannot write the data after DVD-R Reverse Track.

The disc except DVD-R/RW or finalized DVD-R.

During the CGMS picture (possible to record once) input. (Video Format Disc)

1-10-2 E9A10FIS

Message Solution

This program is not allowed to be recorded on this disc.

This disc is protected and not recordable.

Disc is full. (No area for new recording)

You cannot record more than 99 titles on one disc. (The maximum is 99.)

You cannot record more than 999 chapters on one disc. (The maximum is 999.)

You cannot record on this disc as Control Information is full.

You cannot record on the disc as Power Calibration Area is full.

This disc is already finalized.

Can not record on this disc. Repeat the same operation.

Insert a ver.1.1 CPRM compatible DVD-RW disc.

Release the disc protect setting in the Disc Setting menu.

Insert the recordable disc with enough recording space.

Delete unnecessary titles.

Delete unnecessary chapter markers.

Delete unnecessary titles. 34

Insert a new disc. 35 PCA is Full. (in REC start) 4

Release the finalizing for this disc.

Error

No.

Error Description Priority

During the CGMS picture (possible to record once) input. (Disc which is not for

the correspondence to VR Format CPRM)

29 Disc Protected Disc. 7

30 No avilable recording space. 5

Its recording capacity has been reached.

(Video Format Disc) Its recording capacity has been reached.

(VR Format Disc)

The 999 chapter has been reached. (VR

Format Disc)

There is not space to record field of control information.

36 It is finalized. (Video Format Disc) 6

37 Access to Memory Area range outside. 38 Sector Address is wrong. 39 BUP writing error of chapter editing. -

If an error occurs during the timer recording, one of the following error numbers (40 to 42) or the above error messages (error number: 1 to 39) is displayed on the recording menu after timer recording. (Once the timer programming list with error indication is displayed, the program line(s) with error will be cleared only after the programs are cancelled and reset to the timer standby mode.) (In the case of the error occurs during setting the timer programming, no error messages is displayed.)

A program with the error number is grayed out and asterisked on the timer programming list.

Message Solution

Error message is not displayed.

Timer Programming

JAN/01 12:57AM 1:57AM 8 DVD E40

2. ---

3. ---

4. ---

5. ---

6. ---

7. ---

8. ---

- Set the timer programming correctly.

- Set the timer programming before the start time.

- Insert a recordable videotape with a record tab.

Turn the power on and set the clock correctly then set timer programming again.

Insert the recordable disc. 42 No disc when recording -

VCR DVD

The speed mode changes to the error number.

Error

No.

Error Description Priority

- Some portion has not been recorded because of program overlapping.

- Recording did not start at the start time.

- No Videotape is inserted. Videotape ran out during recording.

41 Power failed -

1-10-3 E9A10FIS

BLOCK DIAGRAMS

System Control Block Diagram

DUBBING

SW617

SW615

OPEN/CLOSE

CN2210

OPEN/CLOSE-SW

DUBBING-SW

CN2209

S-INH

TP502

KEY SWITCH

(DVD)

KEY- 2

POWER

SW601

DVD OPEN/CLOSE

SW CBA

CN2212

POWER-SW

AL+5V

CN2211

AL+5V

KEY SWITCH

(VCR)

KEY- 1

POWER

D561

AL+5V

POWER SW CBA

POWER-LED 22

D563 VCR

POWER-LED

D562 DVD

VCR-LED95VCR-LED96DVD-LED

DVD-LED

IC101

MAIN MICRO

CONTROLLER

SYS-RESET

SUB-TXD

SUB-RXD

J25

N24

N23

CN701

SYS-RESET2RDY

SUB-TXD1SUB-RXD5SUB-SCLK

42315

CN201

Q510

BUFFER

134412

S-DATA-IN

SYS-RESET

S-DATA-OUT

RDY

SUB-SCLK

L25

R24

X552

Q509

S-CLK

READY/BUSY

CLK27 OUT

CLK27 IN

27MHZX'TAL

IC106

CN101

REG-CONT2

CN2204

REG-CONT2

P-ON+1.2VEV+2.4V

+1.2V

REGULATOR

DVD MAIN CBA

DISPLAY-DATA

DISPLAY-CLK

REMOTE-VIDEO

IC501

(SYSTEM CONTROL)

REMOTE

SENSOR

RS501

1G2G4G5G6G7Gabcde

IC571

(FIP DRIVER)

DISPLAY-ENA

CLK

STB

DIN

GRID

TO Hi-Fi AUDIO

BLOCK

DIAGRAM

Hi-Fi-H-SW

NORMAL-L

IIC-BUS SDA

Hi-Fi-H-SW

IIC-BUS SCL

IIC-BUS SDA

AUDIO-MUTE

Hi-Fi/NOR-IN

hig

TO AUDIO

BLOCK DIAGRAM

D-REC

YCA-CS

YCA-SCL

YCA-SDA

AUDIO-MUTE

D-REC

VCR-AUDIO-MUTE

RESET

Q501

TIMER+5V

YCA-SCL

YCA-SDA

YCA-SCL

YCA-SDA

YCA-CS

C-SYNC

D-V SYNC

YCA-CS

C-SYNC-IN

REG-CONT1

P-DOWN-H

REG-CONT1

TO VIDEO

BLOCK DIAGRAM

V-ENV

RF-SW

H-A-SW

C-ROTA

H-A-COMP

V-ENV

RF-SW

H-A-SW

C-ROTA

D-V SYNC

P-ON-L

PWR-SW

FAN-CONT1

P-DOWN-H

274391

P-ON-L

PWR-SW

FAN-CONT1

TO VIDEO INPUT SELECT

BLOCK DIAGRAM

VIDEO-SW1

VIDEO-SW2

VIDEO-SW3

100

H-A-COMP

VIDEO-SW1

VIDEO-SW2

VIDEO-SW3

TO AUDIO INPUT/OUTPUT

TO VIDEO OUTPUT SELECT

BLOCK DIAGRAM

OUTPUT-SELECT

SELECT BLOCK DIAGRAM

AUDIO-SW1

AUDIO-SW2

IIC-BUS SCL

IIC-BUS SDA

OUTPUT-SELECT

DVD-AUDIO-MUTE

AUDIO-SW1

AUDIO-SW2

DVD-AUDIO-MUTE

MAIN CBA

FIP501

FIP

SEGMENT

1-11-1

TO POWER SUPPLY

BLOCK DIAGRAM

E9A10BLS

+ 58 hidden pages
