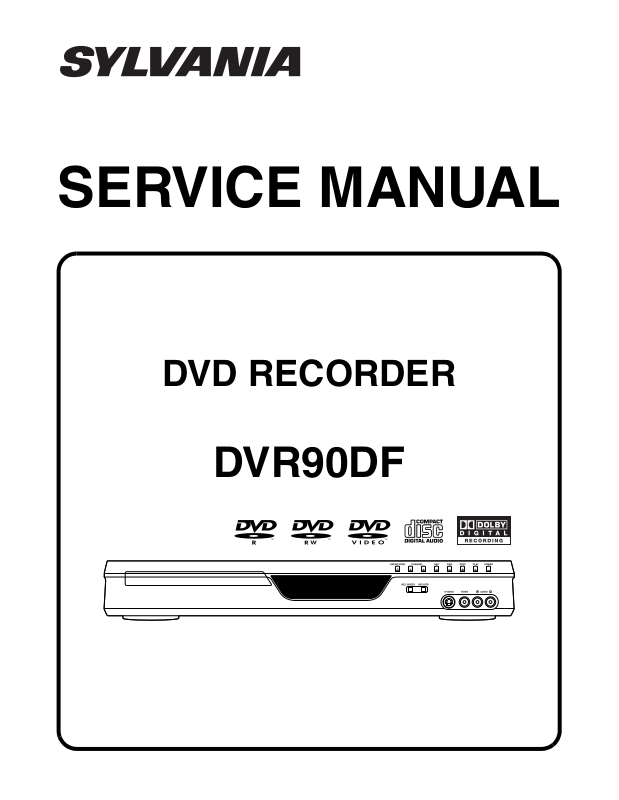

Page 1
SERVICE MANUAL
DVD RECORDER
DVR90DF
Page 2
IMPORTANT SAFETY NOTICE
Proper service and repair is important to the safe, reliable operation of all
Funai Equipment. The service procedures recommended by Funai and
described in this service manual are effective methods of performing
service operations. Some of these service special tools should be used
when and as recommended.
It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk
of personal injury to service personnel. The possibility exists that improper
service methods may damage the equipment. It also is important to
understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE.
Funai could not possibly know, evaluate and advice the service trade of all
conceivable ways in which service might be done or of the possible
hazardous consequences of each way. Consequently, Funai has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a
service procedure or tool which is not recommended by Funai must first
use all precautions thoroughly so that neither his safety nor the safe
operation of the equipment will be jeopardized by the service method
selected.
TABLE OF CONTENTS
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1
Laser Beam Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1
Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1
Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-1
Cabinet Disassembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5-1
How to Initialize the DVD Recorder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6-1
Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1
Function Indicator Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8-1
Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9-1
Schematic Diagrams / CBA’s and Test Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10-1
Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-11-1
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12-1
System Control Timing Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-13-1
IC Pin Function Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-1
Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15-1
Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16-1
Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-17-1
Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18-1
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
Page 3
SPECIFICATIONS
Item Conditions Unit Nominal Limit
1. VIDEO
1-1. Video Output 75 Ω load Vp-p 1.0
1-2. S-Video Output
Y (Luminance) 75 Ω load Vp-p 1.0
C (Chrominance) 75 Ω load Vp-p 0.286
1-3. Component Output
Y (Luminance) 75 Ω load Vp-p 1.0
Cb (U) 75 Ω load Vp-p 0.7
Cr (V) 75 Ω load Vp-p 0.7
2. AUDIO
2-1. Output Level Vrms 2.0
2-2. Frequency Response
DVD-VIDEO LPCM fs = 96 kHz Hz 4 - 44 k
fs = 48 kHz Hz 4 - 22 k
Audio CD fs = 44.1 kHz Hz 4 - 20 k
2-3. Signal/Noise Ratio
DVD-VIDEO LPCM dB 120
CD dB 120
REC & Playback Input: 2 Vrms, Rec Speed: XP dB 96
2-4. Dynamic Range
DVD-VIDEO LPCM dB 102
CD dB 98
REC & Playback Input: 2 Vrms, Rec Speed: XP dB 96
2-5. THD+N 1 kHz, 0 dB
DVD-VIDEO LPCM % 0.002
CD % 0.002
REC & Playback Input: 2 Vrms, Rec Speed: XP % 0.004
Notes:
1. All Items are measured without pre-emphasis unless otherwise specified.
2. Power supply: AC 120 V, 60 Hz
3. Load imp.: 100 kΩ
4. Room ambient : 5 °C ~ 40 °C
1-1-1 E6700SP
Page 4
LASER BEAM SAFETY PRECAUTIONS
This DVD player uses a pickup that emits a laser beam.
Do not look directly at the laser beam coming
from the pickup or allow it to strike against your
skin.
The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep
your eyes at least 30 cm away from the pickup lens when the diode is turned on. Do not look directly at the laser
beam.
CAUTION: Use of controls and adjustments, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.
Drive Mecha Assembly
Laser Beam Radiation
Laser Pickup
Turntable
Location: Inside Top of DVD mechanism.
1-2-1 R2NLSP
Page 5
IMPORTANT SAFETY PRECAUTIONS
Product Safety Notice
Some electrical and mechanical parts have special
safety-related characteristics which are often not
evident from visual inspection, nor can the protection
they give necessarily be obtained by replacing them
with components rated for higher voltage, wattage,
etc. Parts that have special safety characteristics are
identified by a # on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/or other
hazards. The Product’s Safety is under review
continuously and new instructions are issued
whenever appropriate. Prior to shipment from the
factory, our products are carefully inspected to confirm
with the recognized product safety and electrical
codes of the countries in which they are to be sold.
However, in order to maintain such compliance, it is
equally important to implement the following
precautions when a set is being serviced.
Precautions during Servicing
A. Parts identified by the # symbol are critical for
safety. Replace only with part number specified.
B. In addition to safety, other parts and assemblies
are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise
blocking capacitors, and noise blocking filters, etc.
C. Use specified internal wiring. Note especially:
1) Wires covered with PVC tubing
2) Double insulated wires
3) High voltage leads
D. Use specified insulating materials for hazardous
live parts. Note especially:
1) Insulation tape
2) PVC tubing
3) Spacers
4) Insulators for transistors
E. When replacing AC primary side components
(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before
soldering.
F. Observe that the wires do not contact heat
producing parts (heat sinks, oxide metal film
resistors, fusible resistors, etc.).
G. Check that replaced wires do not contact sharp
edges or pointed parts.
H. When a power cord has been replaced, check that
5 - 6 kg of force in any direction will not loosen it.
I. Also check areas surrounding repaired locations.
J. Be careful that foreign objects (screws, solder
droplets, etc.) do not remain inside the set.
K. Crimp type wire connector
The power transformer uses crimp type
connectors which connect the power cord and the
primary side of the transformer. When replacing
the transformer, follow these steps carefully and
precisely to prevent shock hazards.
Replacement procedure
1) Remove the old connector by cutting the wires
at a point close to the connector.
Important: Do not re-use a connector.
(Discard it.)
2) Strip about 15 mm of the insulation from the
ends of the wires. If the wires are stranded,
twist the strands to avoid frayed conductors.
3) Align the lengths of the wires to be connected.
Insert the wires fully into the connector.
4) Use a crimping tool to crimp the metal sleeve at
its center. Be sure to crimp fully to the complete
closure of the tool.
L. When connecting or disconnecting the internal
connectors, first, disconnect the AC plug from the
AC outlet.
1-3-1 DVDN_ISP
Page 6
Safety Check after Servicing
Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts, and
wires have been returned to their original positions. Afterwards, do the following tests and confirm the specified
values to verify compliance with safety standards.
1. Clearance Distance
When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between
soldered terminals, and between terminals and
surrounding metallic parts. (See Fig. 1)
Table 1: Ratings for selected area
Chassis or Secondary Conductor
Primary Circuit Terminals
AC Line Voltage Clearance Distance (d), (d’)
120 V ≥ 3.2 mm (0.126 inches)
Note: This table is unofficial and for reference only. Be
sure to confirm the precise values.
2. Leakage Current Test
Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals,
antenna terminals, video and audio input and output
terminals, microphone jacks, earphone jacks, etc.) is
lower than or equal to the specified value in the table
below.
Measuring Method (Power ON):
Insert load Z between B (earth ground, power cord plug
prongs) and exposed accessible parts. Use an AC
voltmeter to measure across the terminals of load Z.
See Fig. 2 and the following table.
dd'
Fig. 1
Exposed Accessible Part
Z
AC Voltmeter
(High Impedance)
Earth Ground
B
Power Cord Plug Prongs
Table 2: Leakage current ratings for selected areas
AC Line Voltage Load Z Leakage Current (i) Earth Ground (B) to:
120 V
Note: This table is unofficial and for reference only. Be sure to confirm the precise values.
0.15 µF CAP. & 1.5 kΩ RES.
Connected in parallel
i ≤ 0.5 mA Peak Exposed accessible parts
1-3-2 DVDN_ISP
Fig. 2
Page 7
STANDARD NOTES FOR SERVICING
Circuit Board Indications
1. The output pin of the 3 pin Regulator ICs is
indicated as shown.
Top View
Out
2. For other ICs, pin 1 and every fifth pin are
indicated as shown.
Pin 1
3. The 1st pin of every male connector is indicated as
shown.
Pin 1
Input
In
Bottom View
5
10
Pb (Lead) Free Solder
When soldering, be sure to use the Pb free solder.
How to Remove / Install Flat Pack-IC
1. Removal
With Hot-Air Flat Pack-IC Desoldering Machine:
1. Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)
Fig. S-1-1
Instructions for Connectors
1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.
2. FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an
angle.
FFC Cable
Connector
CBA
* Be careful to avoid a short circuit.
2. Remove the flat pack-IC with tweezers while
applying the hot air.
3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
CAUTION:
1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.
2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)
1-4-1 DVDN_SN
Page 8
3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when
removing it.
With Soldering Iron:
1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
CBA
Masking
Tape
Tweezers
Hot-air
Flat Pack-IC
Desoldering
Machine
Flat Pack-IC
Fig. S-1-2
Flat Pack-IC
Desoldering Braid
Soldering Iron
Fig. S-1-3
2. Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)
Sharp
Pin
Fine Tip
Soldering Iron
3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
Fig. S-1-4
1-4-2 DVDN_SN
Page 9
With Iron Wire:
1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
2. Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.
3. While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA
contact pads as shown in Fig. S-1-5.
4. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
5. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
Note: When using a soldering iron, care must be
taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.
Hot Air Blower
2. Installation
1. Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.
2. The “●” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)
3. Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.
Example :
Pin 1 of the Flat Pack-IC
is indicated by a " " mark.
Fig. S-1-7
To Solid
Mounting Point
CBA
Tweezers
Iron Wire
Soldering Iron
Fig. S-1-5
Fine Tip
Soldering Iron
Flat Pack-IC
or
Presolder
Flat Pack-IC
CBA
Fig. S-1-8
Fig. S-1-6
1-4-3 DVDN_SN
Page 10
Instructions for Handling Semiconductors
Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1 MΩ) that is
properly grounded to remove any static electricity that
may be charged on the body.
2. Ground for Workbench
Be sure to place a conductive sheet or copper plate
with proper grounding (1 MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.
<Incorrect>
<Correct>
1MΩ
CBA
Grounding Band
1MΩ
CBA
Conductive Sheet or
Copper Plate
1-4-4 DVDN_SN
Page 11
CABINET DISASSEMBLY INSTRUCTIONS
1. Disassembly Flowchart
This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.
[1] Top Cover
[2] Front Assembly
[3] DVD Mecha & DVD Main CBA Assembly
[4] SW CBA
[5] PCB Holder
[6] Rear Panel
[7] AV CBA
2. Disassembly Method
ID/
Loc.
No.
Part
Fig.
No.
Removal
Remove/*Unhook/
Unlock/Release/
Unplug/Desolder
Note
Note:
(1) Identification (location) No. of parts in the figures
(2) Name of the part
(3) Figure Number for reference
(4) Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or
desoldered.
P = Spring, L = Locking Tab, S = Screw,
CN = Connector
* = Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)
(5) Refer to “Reference Notes.”
Reference Notes
1. CAUTION 1: Locking Tabs (L-1) and (L-2) are
fragile. Be careful not to break them.
[1] Top Cover
(S-1)
(S-1)
[1] Top Cover D1 7(S-1) ---
Front
[2]
Assembly
DVD Mecha
& DVD Main
[3]
CBA
Assembly
[4] SW CBA D4 (S-3) --[5] PCB Holder D4 2(S-4) --[6] Rear Panel D5 2(S-5), 6(S-6) --[7] AV CBA D5 3(S-7) ---
↓
(1)
↓
(2)
D2 *4(L-1), *3(L-2) 1
4(S-2), *CN501,
D3
*CN601
↓
(3)
↓
(4)
(5)
---
(S-1)
Fig. D1
↓
1-5-1 E6700DC
Page 12
(L-1)
(S-4)
[4] SW CBA
(L-2)
[2] Front Assembly
(S-2)
(L-1)
(L-1)
(S-2)
[3] DVD Mecha
& DVD Main
CBA Assembly
Fig. D2
(S-3)
(S-7)
[5] PCB Holder
(S-7)
[7] AV CBA
[6] Rear Panel
(S-5)
Fig. D4
(S-6)
Fig. D3
(S-5)
Fig. D5
1-5-2 E6700DC
Page 13
3. How to Eject Manually
< Method 1 >
Note: When servicing, do not touch white resin part as shown below.
When rotating the gear, be not damaged with the gear.
1. Remove the Top Cover.
2. Rotate the gear in the direction of the arrow with a hand as shown below.
View for A
Do not touch!
Rotate this gear in
the direction of the arrow
A
1-5-3 E6700DC
Page 14
< Method 2 >
Note: When servicing, do not touch white resin part
as shown below.
1. Remove the Top Cover, the Front Assembly and
the DVD Mecha & DVD Main Assembly. Then,
remove the DVD Mecha Unit.
2. Remove two screws, and remove the Insulating
Plate.
Screw
Insulating Plate
4. Release two Locking Tabs, and remove the
Clamper Assembly.
Clamper Assembly
Locking Tabs
5. Remove the disc.
Disc
Do not touch!
3. Release two Locking Tabs, and lift up one side of
the Clamper Assembly.
Clamper Assembly
Locking Tabs
1-5-4 E6700DC
Page 15
HOW TO INITIALIZE THE DVD RECORDER
To put the program back at the factory-default,
initialize the DVD recorder as the following procedure.
1. Turn the DVD recorder on.
2. Confirm that no disc is loaded or that the disc tray
is open. To put the DVD recorder into the Version
display mode, press [CM SKIP], [1], [2], and [3]
buttons on the remote control in the order.
Fig. a appears on the screen.
*1: "
*2: Firmware Version differ depending on the
models, and indication is one example.
Fig. a Version Display Mode Screen
" differ depending on the models.
*******
F/W VERSION
Model Name :
Firmware Version
BE :
FE :
API :
TT :
DEFAULT SETTING : ENTER
EXIT : RETURN
*******
R2F3000S1E
R20_040_000
2005/8/31
T20163FSU@2
3. Press [ENTER] button, then the DVD recorder
starts initializing. When the initializing is
completed, the DVD recorder exits the Version
display mode and turns off the power
automatically.
* To move into the Normal mode from the
Version display mode, press [RETURN] button
on the remote control instead of [ENTER]
button.
* When [POWER] button is pressed before
[ENTER] button is pressed, the DVD recorder
exits the Version display mode, then the power
turns off.
1-6-1 E6700INT
Page 16
FIRMWARE RENEWAL MODE
1. Turn the power on and remove the disc on the tray.
2. To put the DVD recorder into version up mode,
press [CM SKIP], [6], [5], and [4] buttons on the
remote control unit in the order. The tray will open
automatically.
Fig. a appears on the screen and Fig. b appears
on the VFD.
* Firmware Version differ depending on the
models, and indication is one example.
Firm Update Mode
Please insert a disc.
Fig. a Version Up Mode Screen
Fig. b VFD in Version Up Mode
ver. R2F3000S1E
Current
F/W version
is displayed.
4. Select the firmware version using arrow buttons,
then press [ENTER].
Fig. d appears on the screen and Fig. e appears
on the VFD. The DVD recorder starts updating.
About VFD indication of Fig. e:
1) When Fig. d is displayed on the screen, “F-UP”
is displayed on the VFD.
2) When “Firmware Updating... XX% Complete.”
is displayed on the screen, “XX%” is displayed
on the VFD.
* Firmware Version differ depending on the
models, and indication is one example.
Selected
F/W version
is displayed.
Firm Update Mode
R2F3001S1E
File Loading...
(*1)
Fig. d Programming Mode Screen
ver. R2F3000S1E
3. Load the disc for version up.
Fig. c appears on the screen. The file on the top is
highlighted as the default.
When there is only one file to exist, Step 4 will
start automatically.
* Firmware Version differ depending on the
models, and indication is one example.
Firm Update Mode ver. R2F3000S1E
Disc name
is displayed.
VOL_200408250934
1 R2F3001S1E
2 R2F3002S1E
3 R2F3003S1E
4 R2F3004S1E
Fig. c Update Disc Screen
Included file
in disc is
displayed.
1 / 1
Fig. e VFD in Programming Mode (Example)
The appearance shown in (*1) of Fig. d is
described as follows.
No. Appearance State
1 File Loading... Sending files into the memory
Firmware
2
Updating...
Writing new version data
XX% Complete.
Firmware
--Update Failure
Failed in updating
1-7-1 E6700FW
Page 17
5. After updating is finished, the tray opens
automatically.
Fig. f appears on the screen and Fig. g appears on
the VFD.
* Firmware Version differ depending on the
models, and indication is one example.
Firm Update Mode ver. R2F3000S1E
R2F3001S1E
B/E Firmware
Update End
Fig. f Completed Program Mode Screen
Fig. g VFD in Completed Program Mode
At this time, no buttons are available.
6. Press [POWER] button to turn the power off. Then
press it again.
1-7-2 E6700FW
Page 18
FUNCTION INDICATOR SYMBOLS
Note: If an error occurs, a message with the error number appears on the screen.
Recording Error
Message Solution
Can not record on this disc.
This program is not allowed to
be recorded.
You cannot record on this disc as
Power Calibration Area is full.
Insert the recordable disc, and
ensure the disc status satisfies
the recording requirements.
You cannot record copy
prohibited programs.
Error message
E35
Error
No.
1 An error occurs during data reading. -
2
3
4 An error occurs with OPC. 5 During recovery in a record. -
6
7 An error occurs in a format. 8 It cannot start an encode. -
9
10
11
12
13 It is a reply that “ATAPI is not readable.” -
14
15
16 An error occurs in Finalize Close. 17 An error occurs in Rec Stop Close. 18 An error occurs in PCA Full (DVD_R). 19 Safety Stop occurs during editing. 20 High Speed Disc. 2
21 The disc which is not formatted. 5
22 The disc that Disc Error occurred. 3
23 The -R Disc of VR Mode. 6
24
25 During the Macrovision picture input. 11
26 During the CGMS picture input. 12
Error No.
Error Description Priority
There is no reply for 15 seconds in Test
Unit Ready.
Cannot write the data after trying to write
three times.
An error occurs even if it do recovery of a
record three times.
There is not NV_PCK/RDI_PCK in data
doing an encode.
Encode Pause condition continued for 10
minutes.
Encode Pause condition continued by
normal REC condition for 10 minutes.
Differ in an address and do not get
StreamID of RDI/VIDEO.
Cannot write the data after recovering
SMALL VMGI.
Cannot write the data after DVD-R
Reverse Track.
The disc except DVD-R/RW or DVD-R
finalized disc
-
-
-
-
-
-
-
-
-
1
1-8-1 E6700FIS
Page 19
Message Solution
This program is not recordable
in Video mode.
This program is not allowed to
be recorded on this disc.
This disc is protected and not
recordable.
Disc is full.
(No area for new recording)
You cannot record more than
99 titles on one disc.
(The maximum is 99.)
You cannot record more than
999 chapters on one disc.
(The maximum is 999.)
You cannot record on this disc
as Control Information is full.
You cannot record on the disc
as Power Calibration Area is
full.
This disc is already finalized.
Can not record on this disc. Repeat the same operation.
Set “DVD-RW Recording
Format” to “VR mode”.
Insert a ver.1.1 CPRM
compatible DVD-RW disc.
Release the disc protect
setting in the Disc Setting
menu.
Insert the recordable disc with
enough recording space.
Delete unnecessary titles.
Delete unnecessary chapter
markers.
Delete unnecessary titles. 34
Insert a new disc. 35 PCA Full. (in REC start) 4
Release the finalizing for this
disc.
Error
No.
During the CGMS picture (possible a
27
record once) input. (Video Format Disc)
During the CGMS picture (possible a
record once) input. (Disc which there is
28
not for the correspondence to VR Format
CPRM)
29 Disc Protected Disc. 7
30 There is no it in a space field. 5
It is recorded a 99 title. (Video Format
31
Disc)
32 It is recorded a 99 title. (VR Format Disc) 8
There is 999 number of total chapter. (VR
33
Format Disc)
There is not a space to a record field of
control information.
36 It is done Finalize. (Video Format Disc) 6
37 Access to Memory Area range outside. 38 Sector Address is wrong. 39 BUP writing error of chapter editing. -
Error Description Priority
12
12
7
9
10
1-8-2 E6700FIS
Page 20
BLOCK DIAGRAMS
System Control Block Diagram
VFD
FL2001
EV+5V
Q1502
C1501
(BACKUP CAPACITOR)
GRID
~
23
17
~
7G
1G
(VFD DRIVER)
CLK
DIN
IC2001
1
28
STB
2
Q1501
IC1502
EV+3.3V
RESET
1 2
SEGMENT
~
7
~
a
RE2001
14
h
16
i
SENSOR
REMOTE
TO AUDI O
BLOCK DIAGRAM
AUDIO-SW1
AUDIO-SW2
AUDIO-MUTE
SUB-SDA
SUB-SCL
SCL
SDA
TU1701(TUNER UNIT)
10
11
IC1501
(SUB MICRO CONTROLLER)
14
RESET
POW-SW
REG-CONT
3
52
POW-SW
REG-CONT
TO POWER SUPPLY
PWSW
POW-P
BLOCK DIAGRAM
POW-P32
30
P-DOWN
7
VCC
VIDEO-SW1
41
42 VIDEO-SW2
43 VIDEO-SW3
VIDEO-SW1
VIDEO-SW2
VIDEO-SW3
TO VIDEO
BLOCK DIAGRAM
44 VIDEO-MUTE
VIDEO-MUTE
X OUT
8
X1501
8MHz
X IN
9
RESONATOR
485049
FL-SCL
FL-SDA
XC OUT
12
32.768KHz
X1502
27
FL-STB
REMOTE
XC IN
11
X'TAL
IC601
(MAIN MICRO CONTROLLER)
SUB-RXD
SYS-RESET
2219182029
CN1101
30 28SYS-RESET
29 27SUB-RXD
CN601
V7A2Y2
SUB-TXD
SYS-RESET
SUB-TXD
SUB-SCLK
RDY
27 25SUB-TXD
25 23SUB-SCLK
28 26RDY
H2
U8
RDY
SUB-RXD
SUB-SCLK
X802
27MHz
X'TAL
M1
CLK 27 IN
3840393334
AUDIO-SW1
AUDIO-SW2
AUDIO-MUTE
N1
IC1501
CLK 27 OUT
SUB-SCL
SUB-SDA
EV+2.4VP-ON+1.5V
+1.5V
REGULATOR
REG-CONT2
26
26 24REG-CONT2
CN601 CN1101
KEY-1
KEY-2
1
2
AV CBA
CN1502
11KEY-1
22KEY-2
CN3002
KEY SWITCH
SW CBA
KEY SWITCH
DVD MAIN CBA
1-9-1
E6700BLS
Page 21
Digital Signal Process Block Diagram
TO VIDEO
BLOCK
DIAGRAM
BCK
VIDEO-C
VIDEO-Y(I/P)
K18
H18
D/A
D/A
VIDEO
VIDEO-Cr/Pr
VIDEO-Cb/Pb
H19
G19
D/A
D/A
ENCODER
VIDEO-C
VIDEO-Y/CVBS
V15
W17
VIDEO
DECODER
SPDIF
E20
T20
DATA
N19
LRCK
M19
MD
MC
V4W4V3
TO AUDIO
MS
AUDIO
BLOCK
I/F
DIAGRAM
SCK
U20
P19
LRCK
H20
BCK
G20
DATA
F20
SYSCLK
FLASH MEMORY
DDR SDRAM
REC VIDEO SIGNAL PB VIDEO SIGNAL REC AUDIO SIGNAL PB AUDIO SIGNAL
IC601 (MPEG2 AV CODEC)IC201
IC101
RF/
ERROR AMP
IC102
VIDEO
I/F
LPC
IC402
MOTOR
DRIVER
BACK-END
DIGITAL
SIGNAL
FRONT-END
PROCESS
DIGITAL
SIGNAL
PROCESS
IC410
OP AMP
IC202
+3.3V
FLASH
MEMORY
IC401
MOTOR
DRIVER
IC604 (FLASH MEMORY)
IC602,IC603 (DDR SDRAM)
SDRAM
IC204
DVD MAIN CBA
DVD MECHA
CN101
TILT
PICK
TRACKING
-UP
FOCUS
CN1003
1-9-2
FE
ENCODER
CN401
CN1001
CN1002
M
SLED
ENCODER CBA
TRAY OPEN
MOTOR
LOADER CBA
SPINDLE
MOTOR
RELAY CBA
M
E6700BLD
Page 22
Video Block Diagram
JK2202
S-VIDEO
C
REC VIDEO SIGNAL PB VIDEO SIGNAL
3 4
Y
13
2dB
AMP
LPF DRIVER
4dB
AMP
IC1401 (VIDEO DRIVER)
3
OUT
2
1
WF3
14
DRIVER
8dB
AMP
-6dB
C1418
2dB
4dB
15
AMP
LPF DRIVER
AMP
1
JK2201
11
2dB
AMP
LPF DRIVER
4dB
AMP
6
VIDEO OUT
10
DRIVER
2dB
AMP
LPF
4dB
AMP
8
VIDEO-Y
JK2203
MUTE
OUT
5
VIDEO-Cb/Pb
OUT
VIDEO-Cr/Pr
OUT
BLOCK DIAGRAM
VIDEO-MUTE TO SYSTEM CONTROL
MUTEY2Y1
JK2105
C
3 4
Y
131915
S-VIDEO
IN1
2
1
REAR
JK2106
MUTE
VIDEO IN1
8
10
VIDEO2
VIDEO1
12
TUNER
TU-VIDEO
TU1701 (TUNER UNIT)
17
2214
MUTEC2C1
CONTROL
JK2101
C
3 4
Y
LOGIC
S-VIDEO
IN2
2
1
24
22 23
FRONT
VIDEO IN2
JK2102
TO SYSTEM CONTROL
BLOCK DIAGRAM
VIDEO-SW1
VIDEO-SW2
VIDEO-SW3
WF1
WF2
CN1101
VIDEO-Y(I/P)
75
CN601
VIDEO-Y(I/P)
WF4
WF5
VIDEO-Cb/Pb
VIDEO-Cr/Pr
VIDEO-Y/CVBS
97VIDEO-C
53
31
21 19
23 21VIDEO-C
VIDEO-C
VIDEO-Cb/Pb
VIDEO-Cr/Pr
VIDEO-Y/CVBS
VIDEO-C
(VIDEO INPUT SELECT)
IC1301
BUFFER
Q1304
LPF
Q1303
LPF
AV CBADVD MAIN CBA
BUFFER
TO DIGITAL
SIGNAL
PROCESS
BLOCK
DIAGRAM
1-9-3
E6700BLV
Page 23
Audio Block Diagram
DIGITAL
AUDIO OUT
(COAXIAL)
AUDIO(L)
OUT1
JK2201
JK2206
AUDIO(R)
OUT1
JK2106
AUDIO(L)
IN1
AUDIO(R)
IN1
(TUNER UNIT)
SIF OUT
TU1701
14
TO SYSTEM CONTROL
BLOCK DIAGRAM
AUDIO(L)
IN2
AUDIO(R)
IN2
REC AUDIO SIGNAL PB AUDIO SIGNAL
Q1120
WF7
BUFFER
)
OP AMP
(
IC1101
WF6
Q1103 Q1101
TO
1
OP AMP
2
MUTE-ONDRIVE
AUDIO-MUTE
SYSTEM CONTROL
BLOCK DIAGRAM
Q1102
7
OP AMP
6
MUTE-ON
)
L-CH
MTS/SAP AUDIO
(
SIGNAL PROCESS
IC1701
111514
IN1TUIN2
(L-CH)
(AUDIO INPUT SELECT)
IC1104
)
OP AMP
(
IC1102
)
OP AMP
(
IC1103
OP
OP
21
MTS/SAP
AUDIO
SIGNAL
PROCESS
R-CH
30
29
13
2
AMP
1
2
AMP
1
(R-CH)
24 27
425
IN1TUIN2
3
6
OP
AMP
7
6
OP
AMP
7
SUB-SCL
SUB-SDA
JK2103
SW CTL
9 10
Q1112
AUDIO-SW2
AUDIO-SW1
JK2104
AV CBADVD MAIN CBA
Q1111
11SPDIF
CN501 CN1051
SPDIF
AUDIO(L)-OUT
AUDIO(R)-OUT
17 15
15 13
CN601 CN1101
DVD-AUDIO-MUTE
AUDIO(L)-IN
AUDIO(R)-IN
19 17
13 11
11 9
IC901 (AUDIO D/A CONVERTER)
1-9-4
151416
L-CH
R-CH
768
BCK
DATA
LRCKMDMC
TO DIGITAL
SIGNAL
PROCESS
MUTE
AUDIO D/A
CONVERTER
4
BLOCK
DIAGRAM
TO SYSTEM CONTROL
BLOCK DIAGRAM
1
2
R-CH
L-CH
AUDIO A/D
CONVERTER
3
5
SCK2MS
IC902 (AUDIO A/D CONVERTER)
101112
BCK
LRCK
DATA
15
SYSCLK
E6700BLA
Page 24
Power Supply Block Diagram
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
"Ce symbole reprèsente un fusible à fusion rapide."
CAUTION !
For continued protection against fire hazard,
replace only with the same type fuse.
ATTENTION : Pour une protection continue les risqes
d'Incele n'utiliser que des fusible de même type.
Risk of fire-replace fuse as marked.
"This symbol means fast operating fuse."
A V
F
TO DVD MAIN
CBA CN501
EV+2.4V
P-ON+2.5V
P-ON+3.3V
P-ON+5V
EV+10.5V
4-6
14-17
20-22
25-27
11-13
CN1051
4
REG.
+3.3V
IC1503
1 2
Q1054
4
REG.
+2.5V
IC1504
1 2
EV+32V
Q1150
SW+12V
P-ON+10V
P-ON +5V
EV+5V
+10V REG.
EV+3.3V
FAN+12V
+3.3V REG.
Q1063
PWSW
POW-SW
Q1053
TO
SYSTEM CONTROL
REG-CONT
Q1505
SW+5V
BLOCK DIAGRAM
POW-P
REG.
IC1051
Q1056
TUNER+5V
Q1057
VIDEO+5V
SW+5V
-FLF1F2
RECTIFIER
D1068
D1063
11
T1001
3
BRIDGE
RECTIFIER
D1001-D1004
LINE
FILTER
L1001
F1001
HOT CIRCUIT. BE CAREFUL.
1A 250V
RECTIFIER
D1058
12
F
A V
RECTIFIER
D1056
13
5
RECTIFIER
D1055
141615
SW
Q1002
RECTIFIER
SW
CTL
Q1001
RECTIFIER
D1054
17
18
RECTIFIER
D1051
19
20
8
7
IC1001
ERROR
VOLTAGE DET
SW
Q1055
4 1
2
3
AV CBA
SW
CTL
Q1003
HOT
CAUTION !
Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse ( F1001 ) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
AC1001
AC CORD
1-9-5
E6700BLP
Page 25
SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS
Standard Notes
WARNING
Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using
replacement components rated for higher voltage,
wattage, etc. Replacement parts that have these
special safety characteristics are identified in this
manual and its supplements; electrical components
having such features are identified by the mark “#” in
the schematic diagram and the parts list. Before
replacing any of these components, read the parts list
in this manual carefully. The use of substitute
replacement parts that do not have the same safety
characteristics as specified in the parts list may create
shock, fire, or other hazards.
Notes:
1. Do not use the part number shown on these
drawings for ordering. The correct part number is
shown in the parts list, and may be slightly
different or amended since these drawings were
prepared.
2. All resistance values are indicated in ohms
(K = 10
3. Resistor wattages are 1/4W or 1/6W unless
otherwise specified.
4. All capacitance values are indicated in µF
(P = 10
5. All voltages are DC voltages unless otherwise
specified.
3
, M = 106).
-6
µF).
1-10-1 R2N_SC
Page 26
LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON
THE FOLLOWING PAGES:
1. CAUTION:
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE
F
A V
SAME TYPE FUSE.
ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQES D'INCELE N'UTILISER
QUE DES FUSIBLE DE MÊME TYPE.
RISK OF FIRE-REPLACE FUSE AS MARKED.
This symbol means fast operating fuse.
Ce symbole represente un fusible a fusion rapide.
2. CAUTION:
Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, first check to see that all components in the power supply circuit are not
defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components
in the power supply circuit to fail.
3. Note:
1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the
parts list, and may be slightly different or amended since the drawings were prepared.
2. To maintain original function and reliability of repaired units, use only original replacement parts which are
listed with their part numbers in the parts list section of the service manual.
4. Voltage indications for PLAY and REC mode on the schematics are as shown below:
2
1
(Unit: Volt)
The same voltage for
both PLAY & REC modes
5.0
3
5.0
(2.5)
Indicates that the voltage
is not consistent here.
PLAY mode
REC mode
5. How to read converged lines
1-D3
Distinction Area
Line Number
(1 to 3 digits)
3
1-B1
AREA D3
2
AREA B1
Examples:
1. "1-D3" means that line number "1" goes to area "D3".
2. "1-B1" means that line number "1" goes to area "B1".
1
1-D3
ABCD
6. Test Point Information
: Indicates a test point with a jumper wire across a hole in the PCB.
: Used to indicate a test point with a component lead on foil side.
: Used to indicate a test point with no test pin.
: Used to indicate a test point with a test pin.
1-10-2 R2N_SC
Page 27
DVD Main 1/6 Schematic Diagram
DVD MAIN 1/6
Ref No. Position
IC101 C-3
IC102 B-4
Q402 B-1
Q403 B-1
CN101 A-3
ICS
TRANSISTORS
CONNECTOR
1-10-3
E6700SCD1
Page 28
DVD Main 2/6 Schematic Diagram
DVD MAIN 2/6
Ref No. Position
IC201 H-4
CN204 G-4
IC
CONNECTOR
1-10-4
E6700SCD2
Page 29
DVD Main 3/6 Schematic Diagram
DVD MAIN 3/6
Ref No. Position
IC202 Q-2
IC204 P-4
IC401 N-2
IC402 P-2
IC410 Q-3
CN202 R-4
CN401 M-2
ICS
CONNECTORS
1-10-5
E6700SCD3
Page 30
DVD Main 4/6 Schematic Diagram
DVD MAIN 4/6
Ref No. Position
IC601(1/6) T-4
IC601(2/6) S-2
IC901 V-2
IC902 V-3
Q801 S-3
Q802 S-3
CN501 X-4
CN601 X-2
ICS
TRANSISTORS
CONNECTORS
NOTE:
1. The order of pins shown are different from that of IC601 itself.
2. IC601 is shown as IC601(1/6) through IC601(6/6) in DVD Main Schematic Diagram Section.
1-10-6
E6700SCD4
Page 31
DVD Main 5/6 Schematic Diagram
DVD MAIN 5/6
Ref No. Position
IC601(3/6) BB-4
IC601(4/6) BB-1
IC604 Z-4
CN602 DD-1
ICS
CONNECTOR
NOTE:
1. The order of pins shown are different from that of IC601 itself.
2. IC601 is shown as IC601(1/6) through IC601(6/6) in DVD Main Schematic Diagram Section.
1-10-7
E6700SCD5
Page 32
DVD Main 6/6 Schematic Diagram
DVD MAIN 6/6
Ref No. Position
IC501 II-1
IC601(5/6) GG-4
IC601(6/6) II-4
IC602 FF-2
IC603 FF-4
ICS
NOTE:
1. The order of pins shown are different from that of IC601 itself.
2. IC601 is shown as IC601(1/6) through IC601(6/6) in DVD Main Schematic Diagram Section.
1-10-8
E6700SCD6
Page 33
AV 1/5 Schematic Diagram
AV 1/5
Ref No. Position
IC1501 C-2
IC1502 D-1
Q1501 E-3
Q1502 E-3
CN1502 A-1
CONNECTOR
ICS
TRANSISTORS
*1 NOTE
IC1502
BU4219G-TR
PST3619NR
Group A Group B
C1509 0.015 0.1
These components (IC1502, C1509)
can be used in any models.
However, you cannot mix components under
Group A with the ones under Group B.
You can choose either Group. The difference
between Group A and Group B is shown below.
1-10-9
E6700SCAV1
Page 34
AV 2/5 Schematic Diagram
AV 2/5
Ref No. Position
IC1102 J-1
IC1103 K-1
IC1104 J-2
IC1301 H-2
IC1701 J-4
Q1111 J-3
Q1112 J-3
Q1303 J-1
Q1304 J-1
CN1101 L-3
CONNECTOR
TRANSISTORS
ICS
1-10-10
E6700SCAV2
Page 35
AV 3/5 Schematic Diagram
AV 3/5
Ref No. Position
IC1101 N-2
IC1401 O-4
Q1101 P-2
Q1102 P-1
Q1103 O-2
Q1104 M-3
Q1120 P-1
ICS
TRANSISTORS
1-10-11
E6700SCAV3
Page 36
AV 4/5 Schematic Diagram
AV 4/5
Ref No. Position
IC1001 T-1
IC1051 W-1
IC1503 V-4
IC1504 V-3
Q1001 T-2
Q1002 T-3
Q1003 S-1
Q1053 V-2
Q1054 V-2
Q1055 U-1
Q1056 W-1
Q1057 W-2
Q1063 W-1
Q1150 W-2
Q1505 W-3
CN1051 X-4
ICS
TRANSISTORS
CONNECTOR
CAUTION !
Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse ( F1001 ) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
F
A V
CAUTION !
For continued protection against fire hazard,
replace only with the same type fuse.
ATTENTION : Pour une protection continue les risqes
d'Incele n'utiliser que des fusible de même type.
Risk of fire-replace fuse as marked.
"This symbol means fast operating fuse."
"Ce symbole reprèsente un fusible à fusion rapide."
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
1-10-12
E6700SCAV4
Page 37
AV 5/5 Schematic Diagram
7G 6G 5G 4G 3G 2G 1G
a
b
c
d
e
f
g
c
d
e
f
gg
c
d
e
f
g
c
d
e
f
g
c
d
e
f
g
c
d
e
f
g
hh
i
a
b
a
b
a
b
a
b
a
b
FL2001 MATRIX CHART
REPEAT
PM
REC
VCD VCR DVD
R
XP
SP
LP
EP
SLP
P.SCAN
SEP
W
CD
T
C
7G
REC
g
PM
REPEAT
6G
5G 4G 3G 2G 1G
VCD VCR
CD
T C
h
h
DVD
c
a
d
g
b
SLP
ef
R
W
XP SP
LP EP
SEP
P.SCAN
1-10-13
E6700SCAV5
Page 38
SW Schematic Diagram
1-10-14
E6700SCSW
Page 39
AV CBA Top View
CAUTION !
Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse ( F1001 ) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
"Ce symbole reprèsente un fusible à fusion rapide."
CAUTION !
For continued protection against fire hazard,
replace only with the same type fuse.
ATTENTION : Pour une protection continue les risqes
d'Incele n'utiliser que des fusible de même type.
Risk of fire-replace fuse as marked.
"This symbol means fast operating fuse."
A V
F
1-10-15
BE6700F01023
Page 40
"Ce symbole reprèsente un fusible à fusion rapide."
CAUTION !
For continued protection against fire hazard,
replace only with the same type fuse.
ATTENTION : Pour une protection continue les risqes
d'Incele n'utiliser que des fusible de même type.
Risk of fire-replace fuse as marked.
"This symbol means fast operating fuse."
A V
F
AV CBA
Ref No. Position
IC1001 C-1
IC1051 D-3
IC1101 D-4
IC1102 A-5
IC1103 A-4
IC1104 B-5
IC1301 D-5
IC1401 D-4
IC1501 B-2
IC1502 B-1
IC1503 D-3
IC1504 D-3
IC1701 B-5
IC2001 A-2
Q1001 C-1
Q1002 D-1
Q1003 D-1
Q1053 D-3
Q1054 C-2
Q1055 C-1
Q1056 C-2
Q1057 C-1
Q1063 D-3
Q1101 D-3
Q1102 D-3
Q1103 D-4
Q1104 D-4
Q1111 A-4
Q1112 A-4
Q1120 E-2
Q1150 B-5
Q1303 C-4
Q1304 C-5
Q1501 C-3
Q1502 C-2
Q1505 D-3
CN1051 B-3
CN1101 B-4
CN1502 A-3
ICS
CONNECTORS
TRANSISTORS
AV CBA Bottom View
WF3
C1418
PLUS LEAD
CAUTION !
Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse ( F1001 ) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
1-10-16
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
WF7
PIN 1 OF
CN1051
WF6
PIN 15 OF
CN1101
WF2
PIN 7 OF
CN1101
WF1
PIN 5 OF
CN1101
WF4
PIN 3 OF
CN1101
WF5
PIN 1 OF
CN1101
BE6700F01023
Page 41
SW CBA Bottom ViewSW CBA Top View
1-10-17
BE6700F01023
Page 42
WF1
Pin 5 of CN1101
WAVEFORMS
WF5
Pin 1 of CN1101
VIDEO-Y 0.2V 20µsec
WF2
Pin 7 of CN1101
VIDEO-C 0.2V 20
WF3
C1418 PLUS LEAD
VIDEO-Cr
WF6
Pin 15 of CN1101
µ
sec
AUDIO(L)-OUT
WF7
Pin 1 of CN1051
0.2V 20µsec
1V 0.1µsec
VIDEO-CVBS 0.5V 20
WF4
Pin 3 of CN1101
VIDEO-Cb
0.2V 20µsec
µ
sec
SPDIF 1V 0.1
µ
sec
NOTE:
Input: COLOR BAR SIGNAL
(WITH 1KHz AUDIO SIGNAL)
1-11-1
R2NWF
Page 43
WIRING DIAGRAM
AC CORD
FRONT
DIGITAL
REAR
VIDEO
IN2
AUDIO(R)
IN2
AUDIO(L)
IN2
S-VIDEO
IN2
AUDIO OUT
(COAXIAL)
AUDIO(R)
OUT1
AUDIO(L)
OUT1
AUDIO(R)
IN1
AUDIO(L)
IN1
VIDEO-Cr/Pr
OUT
VIDEO-Cb/Pb
OUT
VIDEO-Y
OUT
VIDEO
OUT
VIDEO
IN1
S-VIDEO
OUT
S-VIDEO
IN1
AV CBA
KEY-1 11
KEY-2 22
GND 33
CN1502
W3
VIDEO-Cr/Pr 31
GND 42
VIDEO-Cb/Pb 53
GND 64
VIDEO-Y(I/P) 75
GND 86
VIDEO-C 97
GND 108
AUDIO(R)-IN 119
GND 1210
AUDIO(L)-IN 1311
GND 1412
AUDIO(R)-OUT
GND 1614
AUDIO(L)-OUT
CN1101
GND 1816
DVD-AUDIO-MUTE
AUDIO+5V 2018
VIDEO-Y/CVBS
GND 2220
VIDEO-C 2321
GND 2422
SUB-SCLK 2523
REG-CONT2 2624
SUB-TXD
RDY 2826
SUB-RXD
SYS-RESET 3028
SPDIF 11
GND 22
GND 33
EV+10.5V 44
EV+10.5V 55
EV+10.5V 66
GND 77
GND 88
GND 99
GND 1010
P-ON+5V 1111
P-ON+5V 1212
P-ON+5V 1313
EV+2.4V 1414
EV+2.4V 1515
EV+2.4V 1616
CN1051
EV+2.4V 1717
GND 1818
GND 1919
P-ON+2.5V 2020
P-ON+2.5V 2121
P-ON+2.5V 2222
GND 2323
GND 2424
P-ON+3.3V 2525
P-ON+3.3V 2626
P-ON+3.3V 2727
GND 2828
GND 2929
GND 3030
FCS(+)
1
2FCS(-)
TRK(+)
3
TRK(-)
GND
THERMO
GND
FPD
FPD-SW
VC-FPD
VCC1
VC-PD
RF(+)
RF(-)
GND
VCC2
IIN3
IIN2
IIN1
GND
XOUTEN3
GND
XOUTEN2
GND
OSCEN
LDEN2
LDEN1
10
11
12
13
14
H
15
D
16
C
17
F
18
NU
19
NU
20
SW
21
22
23
E
24
B
25
A
26
G
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
2
3
4
5
6
7
CN1002
8
9
10
11
1
2
3
CN1003
4
5TILT(+)
6TILT(-)
7
8
9
W5
CN3002
SW CBA
CN101
1513
CN601
1715
1917
2119
2725
2927
W2
CN501
DVD MAIN CBA
NU
18 1
SW1
17 2
SL-
16 3
SL+
15 4
GND
14 5
T-SCN2
13 6
T-SCN3
12 7
W
11 8
10 9
V
910
U
CN401
VCC
811
HU+
712
HU-
613
HV+
514
HV-
415
HW+
316
HW-
217
118
VH-
CN1001
RELAY CBA
FOCUS
ACTUATOR
TRACKING
ACTUATOR
TILT
ACTUATOR
FPDICCD-LDDVD-LD
PICKUP
PDIC
DVD/CD LASER DIODE DRIVE
M
SLED
MOTOR
DVD MECHA
M
SPINDLE
MOTOR
TRAY OPEN
SLED
SENSOR
DVD MECHA & DVD MAIN CBA ASSEMBLY
ENCODER CBA LOADER CBA
1-12-1
E6700WI
Page 44
SYSTEM CONTROL TIMING CHARTS
Ye s
No
Is Timer
ET1 passed?
Case 1
No
Power on
INNER-SW
open?
No
Rezero 1
INNER-SW
open?
Ye s
To disc
distintion
Case 2
Ye s
Rezero 2
[ Tray Open ]
button is pressed.
[ Tray Open ]
button is pressed.
Tray insertion
Is slit S5
passed?
Is Timer
ET4 passed?
INNER-SW
No
open?
Case 3
[ open ] button is pressed.
No
Ye s
Case 4
[ open ] button is pressed.
Ye s
No
Ye s
Push Close
No
Is Timer
ET3 passed?
Ye s
No
Tray ejection
Is slit S1
passed?
Ye s
Is Timer
ET2 passed?
No
Is not
slit passed?
Ye s
Tray ejection
completion
No
Ye s
No
Is Timer
ET1 passed?
Ye s
Case 5
Retry.
Retry OK?
Ye s
In case of "No" by the 6th time retry.
No
Tray insertion
1-13-1 R2NTI
Page 45
Parameter
Tray open
V*: Voltage (HEX)
S*: Encoder pulse
(HEX)
T*: Event timer
ET*: Error
detection timer
V0: 2.0 V (00d) S1: 300 (12c) T1: 0.1 s ET1: 5.0 s
V1: 4.5 V (022) S2: 3300 (ce4) T2: 3.0 s ET2: 5.0 s
V2: 2.2 V (010) S3: 3935 (f5f) T3: 3.0 s ET3: 3.0 s
V3: 2.4 V (013) S4: 0 (000) T4: 0.1 s ET4: 3.0 s
V4: 6.0 V (030) S5: 3000 (bb8) T5: 0.1 s
Encoder pulse
S3
S2
S1
Tray ejection direction
SLED
Tray insersion direction
open
INNER-SW
close
Timer ET1
ET2
T1
V0
V2
V1
1-13-2 R2NTI
Page 46
Tray close
Push close
Tray ejection direction
SLED
Tray insersion direction
open
INNER-SW
close
Timer
S5
S4
ET3 ET4
S5
Push Close
V3
V4
Encoder pulse
SLED
Tray insersion direction
open
INNER-SW
close
Timer
T3
V3
V4
ET4
1-13-3 R2NTI
Page 47
Case 1
Case 2
SLED
Tray insersion direction
open
INNER-SW
close
Timer
T2
Rezero 1
V3
V4
ET4
Tray ejection direction
SLED
Tray insersion direction
open
INNER-SW
close
Rezero 2
Case 3 (When [OPEN] button is pressed before the S5 passage.)
Encoder pulse
Tray ejection direction
SLED
V0V0
V2
Timer
T1
Case 4 (When [OPEN] button is pressed after the S5 passage.)
It starts opening after making closing complete once.
1-13-4 R2NTI
Page 48
Case 5 (Retry.)
S1
Tray ejection direction
SLED
Tray insersion direction
open
INNER-SW
close
Retry frequency V1+
1st time retry 6 v
2nd time retry 7 v
3rd time retry 8 v
4th time retry 9 v
5th time retry 9 v
6th time retry 9 v
V1+
V26v
Start retry.
1-13-5 R2NTI
Page 49
IC PIN FUNCTION DESCRIPTIONS
IC1501 (SUB MICRO CONTROLLER)
Pin
IN/
No.
OUT
1 IN KEY-1 Key Data Input 1
2 IN KEY-2 Key Data Input 2
3 IN POW-SW Abnormal Voltage Detection
4 IN AFT Tuner Voltage Input Signal
5 - N.U. Not Used
6 IN EV+3.3V +3.3V Power Supply
7 IN VCC +3.3V Power Supply
8 OUT XOUT Main Clock Output
9 IN XIN Main Clock Input
10 - GND Ground
11 IN XCIN Sub Clock Input
12 OUT XCOUT Sub Clock Output
13 - GND Ground
14 IN RESET
15 - N.U. Not Used
16 - N.U. Not Used
17 - N.U. Not Used
18 OUT SUB-TXD
19 IN SUB-RXD
20 OUT SUB-SCLK
21 - N.U. Not Used
22 OUT
23 - N.U. Not Used
24 - N.U. Not Used
25 - N.U. Not Used
26 OUT
27 IN REMOTE Remote Signal Input
28 - N.U. Not Used
29 IN RDY
30 IN P-DOWN
31 - N.U. Not Used
32 - N.U. Not Used
Signal
Name
SYSRESET
REGCONT2
Function
Micro Controller Reset
Signal
Transmission Data to Main
Micro Controller
Reception Data from Main
Micro Controller
Communication Clock with
Main Micro Controller
System Reset Signal
Power Regurator Control
Signal
Ready/Busy communication
Control with Main Micro
Controller
Power Voltage Down
Detector Signal
Pin
IN/
No.
OUT
IN/
33
OUT
34 OUT SUB-SCL Serial Clock
35 - N.U. Not Used
36 - N.U. Not Used
37 - N.U. Not Used
38 OUT
39 OUT
40 OUT
41 OUT
42 OUT
43 OUT
44 OUT
45 - N.U. Not Used
46 - N.U. Not Used
47 - N.U. Not Used
48 OUT FL-SDA Serial Data
49 OUT FL-STB Serial Interface Strobe
50 OUT FL-SCL Serial Clock
51 - N.U. Not Used
52 OUT
53 - N.U. Not Used
54 - N.U. Not Used
55 - N.U. Not Used
56 - N.U. Not Used
57 - N.U. Not Used
58 - N.U. Not Used
59 - N.U. Not Used
60 - N.U. Not Used
61 - GND Ground
62 - N.U. Not Used
63 - N.U. Not Used
64 - N.U. Not Used
Signal
Name
SUB-SDA Serial Data
AUDIOMUTE
AUDIOSW2
AUDIOSW1
VIDEOSW1
VIDEOSW2
VIDEOSW3
VIDEOMUTE
REGCONT
Audio Mute Control Signal
Audio Input Select Signal
Audio Input Select Signal
Video Input Select Signal
Video Input Select Signal
Video Input Select Signal
Video Mute Control Signal
Power Regurator Control
Signal
Function
1-14-1 E6700PIN
Page 50
IC2001 (FIP DRIVER)
Pin
IN/
No.
OUT
1 IN CLK Serial Clock
2 IN STB Serial Interface Strobe
3 - N.U. Not Used
4 - N.U. Not Used
5 - VSS GND
6 - VDD Power Supply
7
8 b
9 c
10 d
OUT
11 e
12 f
13 g
14 h
15 - VEE Pull Down Level
16 OUT i Segment Output
17
18 6G
19 5G
OUT
20 4G
21 3G
22 2G
23 1G
24 - VDD Power Supply
25 - VSS GND
26 IN OSC Oscillator Input
27 - N.U. Not Used
28 IN DIN Serial Data Input
Signal
a
7G
Name
Function
Segment Output
Grid Output
1-14-2 E6700PIN
Page 51
LEAD IDENTIFICATIONS
KTC3205-Y-AT/P
2SA966(Y)
E C B E C B
MM1697AJBE
24
1
13
12
8
1
5
4
KTC3199-GR-AT/P
KTA1267Y-AT/P
KRC103M
PT6313-S-TPKIA4558P/P
28
1
15
14
PQ070XF01SZH
1234
2SK3757(Q)
GDS
QSZAB0RMS028
48
49
64
1
LTV-817B-F
A
K
33
16
32
17
CD4052BPWR
16
1
BU4219G-TR
9
PST3619NR
54
8
123
S2Y52
E C B
Note:
MM1637XVBE
AN5832SA-E1
16
C
9
32
17
RC4580IP
8
A: Anode
5
K: Cathode
E: Emitter
C: Collector
B: Base
E
R: Reference
G: Gate
D: Drain
1
8
1
16
1
4
S: Source
1-15-1 E6700LE
Page 52
Cabinet
EXPLODED VIEWS
2L031
A2
2L021
DVD Mecha &
DVD Main CBA Assembly
2B8
2L031
2B1
SW CBA
2L081
2L021
2L081
See Electrical Parts List
for parts with this mark.
Some Ref. Numbers are
not in sequence.
2L021
A12
2L021
2L012
2L021
2B7
A1X
A14
A11
2B2
A5
2L081
A13
2B6
2B3
2B4
A3
AV CBA
2L081
A4
A5
1-16-1 E6700CEX
Page 53
Packing
Some Ref. Numbers
are not in sequence.
X1
X6 X10 X4 X3 X2
S2
S2
X5
S3
Unit
S2
S2
A13
S1
1-16-2 E6700PEX
Page 54
MECHANICAL PARTS LIST
PRODUCT SAFETY NOTE: Products marked with a
# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.
NOTE: Parts that are not assigned part numbers
(---------) are not available.
Ref. No. Description Part No.
A1X FRONT ASSEMBLY E6700UD 1VM220289
A2 TOP COVER E6700UD 1VM120049
A3 REAR PANEL E6700UD 1VM220242
A4 CHASSIS E6700ED 1VM120045
A5 FOOT K7010UA 0VM403657A
A11 LABEL,TELEPHONE NO.(SYMPHONIC)
A12 MANUFACTURE LABEL ---------A13 LABEL, BAR CODE HB400UD ---------A14 LABEL(C) E6700UD ---------2B1 PCB HOLDER E6700UD 1VM220245
2B2 CABLE COVER E6700UD 1VM420969
2B4 LOCKING CARD SPACER KGLS-12S XP0U024WD004
2B6 POWER SHEET E6700UD 1VM421074
2B7 EARTH PLATE T E5420UD 0VM410380A
2B8# CAUTION LABEL ---------2L012 SCREW, B-TIGHT M3X8 BIND HEAD + GBKB3080
2L021 SCREW, S-TIGHT M3X6 BIND CROM GBCS3060
2L031 SCREW, S-TIGHT M3X10 BIND HEAD+ GBMS3100
2L081 SCREW, S-TIGHT M3X6 BIND HEAD+ GBMS3060
E9411UD
PACKING
S1 GIFT BOX CARTON E6700UD 1VM320573
S2 STYROFORM E6700UD 1VM220257
S3 UNIT, BAG E5500UD 0VM411683
ACCESSORIES
X1 REMOTE CONTROL UNIT DVD 0842
X2 DRY BATTERY R6P/2S XB0M451T0001
X3 AV CORD TSCKA-Y/RW100 WPZ0102TM015
X4 RF CABLE DC95M95M001 WPZ0901CAB01
X5 ACCESSORY BAG E5700UD 0VM415576
X6 QUICK GUIDE E6700UD 1VMN20364
X10# OWNERS MANUAL E6700UD 1VMN20363
VCZF01RR
----------
NB010UD
20050124 1-17-1 E6700CA
Page 55
ELECTRICAL PARTS LIST
PRODUCT SAFETY NOTE: Products marked with a
# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.
NOTES:
1. Parts that are not assigned part numbers (---------)
are not available.
2. Tolerance of Capacitors and Resistors are noted
with the following symbols.
C.....±0.25% D.....±0.5% F.....±1%
G.....±2% J......±5% K.....±10%
M.....±20% N.....±30% Z.....+80/-20%
DVD MECHA & DVD MAIN CBA
ASSEMBLY
Ref. No. Description Part No.
DVD MECHA & DVD MAIN CBA ASSEMBLY N78F0BUN
AV CBA ASSEMBLY
Ref. No. Description Part No.
AV CBA ASSEMBLY
Consists of the following:
AV CBA (SUB-A)
SW CBA (SUB-B)
AV CBA
Ref. No. Description Part No.
AV CBA (SUB-A)
Consists of the following:
CAPACITORS
C1001# METALLIZED FILM CAP. 0.068µF/250V K CT2E683DC011
C1002# SAFETY CAP. 2200pF/250V CCD2EMA0E222
C1003 ELECTROLYTIC CAPACITOR
C1004 CERAMIC CAP. B K 0.01µF/500V CCD2JKP0B103
C1005 CERAMIC CAP. B K 120pF/500V CCD2JKP0B121
C1006 CERAMIC CAP.(AX) X K 5600pF/16V CCA1CKT0X562
C1008 CERAMIC CAP.(AX) B K 3300pF/50V CA1J332TU011
C1009 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1010 FILM CAP.(P) 0.022µF/50V J CMA1JJS00223
C1051 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101
C1052 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1053 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1054 CERAMIC CAP. B K 470pF/500V CCD2JKP0B471
C1055 ELECTROLYTIC CAP. 22µF/50V M CE1JMASDL220
C1056 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1057 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102
C1058 ELECTROLYTIC CAP. 3300µF/6.3V SL CE0KMZADL332
C1059 CERAMIC CAP. CH J 47pF/50V CCD1JJSCH470
C1060 ELECTROLYTIC CAP. 4700µF/6.3V SL CE0KMZADL472
C1061 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102
C1063 ELECTROLYTIC CAP. 1000µF/16V M(105°C) CE1CMASTH102
ZR200TA151K16DB
1VSA10853
----------
----------
---------
CA2D151DYG03
Ref. No. Description Part No.
C1064 ELECTROLYTIC CAP. 470µF/16V M CE1CMASDL471
C1065 CHIP CERAMIC CAP.(1608) B K 0.033µF/50V CHD1JK30B333
C1066 CERAMIC CAP. B K 220pF/500V CCD2JKP0B221
C1067 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C1068 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1069 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1070 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101
C1074 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101
C1075 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1076 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101
C1081 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1082 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101
C1084 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104
C1101 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1102 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1105 CHIP CERAMIC CAP.(1608) CH J 270pF/50V CHD1JJ3CH271
C1106 CHIP CERAMIC CAP.(1608) CH J 270pF/50V CHD1JJ3CH271
C1107 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470
C1108 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470
C1121 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1122 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1130 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471
C1132 ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470
C1133 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1149 ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470
C1150 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101
C1151 CHIP CERAMIC CAP.(1608) CH J 33pF/50V CHD1JJ3CH330
C1152 CHIP CERAMIC CAP.(1608) CH J 33pF/50V CHD1JJ3CH330
C1153 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1154 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1157 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1158 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1159 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1160 ELECTROLYTIC CAP. 220µF/16V M CE1CMASDL221
C1161 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471
C1162 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1163 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1175 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1176 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1181 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1182 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1191 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471
C1212 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1214 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMASSL470
C1301 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1302 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1303 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1304 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1305 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1306 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1313 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1314 ELECTROLYTIC CAP. 22µF/16V M CE1CMASDL220
C1315 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101
C1316 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1331 CHIP CERAMIC CAP. CH J 56pF/50V CHD1JJ3CH560
C1332 CHIP CERAMIC CAP. CH J 56pF/50V CHD1JJ3CH560
C1333 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1334 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1335 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1336 PCB JUMPER D0.6-P5.0 JW5.0T
20050124 1-18-1 E6700EL
Page 56
Ref. No. Description Part No.
C1337 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1405 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1406 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0
C1407 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0
C1408 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0
C1409 ELECTROLYTIC CAP. 22µF/16V M CE1CMASDL220
C1410 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1411 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1413 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1414 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1415 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101
C1417 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1418 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471
C1419 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102
C1420 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471
C1421 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471
C1501 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102
C1502 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1503 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1506 CHIP CERAMIC CAP.(1608) CH J 22pF/50V CHD1JJ3CH220
C1507 CHIP CERAMIC CAP. CH J 18pF/50V CHD1JJ3CH180
C1508 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
If C1509 is 0.015µF, then IC1502 is BU4219G-TR.
C1509 CHIP CERAMIC CAP.(1608) B K 0.015µF/50V CHD1JK30B153
IC1502 RESET IC BU4219G-TR QSZBA0TRM090
If C1509 is 0.1µF, then IC1502 is IC-PST3619NR.
C1509 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104
IC1502 SYSTEM RESET IC IC-PST3619NR QSZBA0TMM151
C1510 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C1512 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C1513 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C1516 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C1527 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1528 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101
C1529 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1533 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101
C1534 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1701 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102
C1702 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1703 ELECTROLYTIC CAP. 100µ
C1704 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470
C1706 CHIP CERAMIC CAP.(1608) B K 0.033µF/50V CHD1JK30B333
C1708 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0
C1709 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1712 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C1713 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104
C1714 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104
C1715 ELECTROLYTIC CAP. 0.33µF/50V M CE1JMASDLR33
C1716 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1718 ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7
C1719 ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2
C1720 ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2
C1721 ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2
C1722 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0
C1723 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0
C1724 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1725 ELECTROLYTIC CAP. 3.3µF/50V M CE1JMASDL3R3
C1726 ELECTROLYTIC CAP. 3.3µF/50V M CE1JMASDL3R3
C1727 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1728 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V CHD1JK30B223
C1729 ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2
C1730 CHIP CERAMIC CAP.(1608) B K 0.033µF/50V CHD1JK30B333
C1731 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104
F/6.3V M CE0KMASDL101
Ref. No. Description Part No.
C1732 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1788 ELECTROLYTIC CAP. 100µF/6.3V M NP CP0KMASNC101
C2001 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C2002 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C2003 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C2004 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101
C2005 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101
C2006 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C2007 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C2008 ELECTROLYTIC CAP. 3.3µF/50V M CE1JMASDL3R3
C2009 ELECTROLYTIC CAP. 3.3µF/50V M CE1JMASDL3R3
C2010 ELECTROLYTIC CAP. 3.3µF/50V M CE1JMASDL3R3
CONNECTOR
CN1502 PH CONNECTOR (WHITE) TOP 3P B3B-PH-K-
S(LF)
J3PHC03JG017
DIODES
D1001 DIODE 1N5397-B NDLZ001N5397
D1002 DIODE 1N5397-B NDLZ001N5397
D1003 DIODE 1N5397-B NDLZ001N5397
D1004 DIODE 1N5397-B NDLZ001N5397
D1005 PCB JUMPER D0.6-P5.0 JW5.0T
D1006 RECTIFIER DIODE BA157 NDQZ000BA157
D1007 SWITCHING DIODE 1N4148M NDTZ01N4148M
D1008 SWITCHING DIODE 1N4148M NDTZ01N4148M
D1009 SWITCHING DIODE 1N4148M NDTZ01N4148M
D1010 SWITCHING DIODE 1N4148M NDTZ01N4148M
D1011 SWITCHING DIODE 1N4148M NDTZ01N4148M
D1051 RECTIFIER DIODE BA157 NDQZ000BA157
D1053 ZENER DIODE DZ-20BSBT265 NDTB00DZ20BS
D1054 RECTIFIER DIODE BA157 NDQZ000BA157
D1055 SCHOTTKY BARRIER DIODE SB140 NDQZ000SB140
D1056 SCHOTTKY BARRIER DIODE SB240-B/P NDWZ000SB240
D1058 SCHOTTKY BARRIER DIODE SB340 NDQZ000SB340
D1060 SWITCHING DIODE 1N4148M NDTZ01N4148M
D1061 SWITCHING DIODE 1N4148M NDTZ01N4148M
D1063 SCHOTTKY BARRIER DIODE SB390 NDQZ000SB390
D1064 ZENER DIODE DZ-15BSAT265 NDTA00DZ15BS
D1065 PCB JUMPER D0.6-P10.0 JW10.0T
D1067 ZENER DIODE DZ-6.8BSBT265 NDTB0DZ6R8BS
D1068 RECTIFIER DIODE BA157 NDQZ000BA157
D1070 SWITCHING DIODE 1N4148M NDTZ01N4148M
D1071 SWITCHING DIODE 1N4148M NDTZ01N4148M
D1102 ZENER DIODE DZ-5.6BSBT265 NDTB0DZ5R6BS
D1150 ZENER DIODE DZ-11BSBT265 NDTB00DZ11BS
D1503 SWITCHING DIODE 1N4148M NDTZ01N4148M
D1504 ZENER DIODE DZ-3.0BSBT265 NDTB0DZ3R0BS
D1507 SWITCHING DIODE 1N4148M NDTZ01N4148M
D1508 SWITCHING DIODE 1N4148M NDTZ01N4148M
D1701 ZENER DIODE DZ-33BSBT265 NDTB00DZ33BS
ICS
IC1001# PHOTOCOUPLER LTV-817B-F NPEB0LTV817F
IC1051 IC:SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036
IC1101 IC:OP AMP KIA4558P/P NSZBA0SJY035
IC1102 IC:OP AMP KIA4558P/P NSZBA0SJY035
IC1103 IC:OP AMP RC4580IP NSZBA0STY173
IC1104 IC(ANALOG SW) CD4052BPWR NSZBA0TTY142
IC1301 VIDEO SWITCH MM1697AJBE QSZBA0TMM150
IC1401 DRIVER FOR DVD MM1637XVBE QSZBA0TMM102
IC1501 MICROCONTROLLER 8BIT MN101C77A FA1 QSZAB0RMS028
If IC1502 is BU4219G-TR, then C1509 is 0.015µF.
IC1502 RESET IC BU4219G-TR QSZBA0TRM090
C1509 CHIP CERAMIC CAP.(1608) B K 0.015µF/50V CHD1JK30B153
20050124 1-18-2 E6700EL
Page 57
Ref. No. Description Part No.
If IC1502 is IC-PST3619NR, then C1509 is 0.1µF.
IC1502 SYSTEM RESET IC IC-PST3619NR QSZBA0TMM151
C1509 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104
IC1503 VOLTAGE REGULATOR PQ070XF01SZH QSZBA0SSH054
IC1504 VOLTAGE REGULATOR PQ070XF01SZH QSZBA0SSH054
IC1701 IC:MTS DECORDER AN5832SA-E1 QSZBA0TMS003
IC2001 FL DRIVER IC PT6313-S-TP NSZBA0TG2006
COILS
L1001# LINE FILTER 27MH TLF14CB2730R4 LLBG00ZTU034
L1006 BEAD CORE B16 RH 3.5X10X1.3 XL03010XM001
L1007 BEAD CORE B16 RH 3.5X10X1.3 XL03010XM001
L1051 INDUCTOR(15µH) CWKB-150K LLC150KKV005
L1052 INDUCTOR(18µH) CWKB-180K LLC180KKV005
L1053 CHOKE COIL 22µH-K LLBD00PKV006
L1054 CHOKE COIL 22µH-K LLBD00PKV006
L1101 INDUCTOR(0.47µH K) LAP02TAR47K LLAXKATTUR47
L1102 INDUCTOR(100µH K) LAP02TA101K LLAXKATTU101
L1301 PCB JUMPER D0.6-P5.0 JW5.0T
L1401 PCB JUMPER D0.6-P5.0 JW5.0T
L1701 CHOKE COIL 22µH-K LLBD00PKV006
L1704 PCB JUMPER D0.6-P5.0 JW5.0T
L2001 INDUCTOR(100µH K) LAP02TA101K LLAXKATTU101
TRANSISTORS
Q1001 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1002# FET 2SK3757(Q) QFWZ02SK3757
Q1003 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1053 TRANSISTOR S2Y52(FUNAI) QQWZ000S2Y52
Q1054 TRANSISTOR 2SA966(Y) QQSY002SA966
Q1055 TRANSISTOR KTA1267Y-AT/P NQSYKTA1267P
Q1056 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1057 TRANSISTOR KTC3205-Y-AT/P NQSYKTC3205P
Q1063 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1101 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1102 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1103 TRANSISTOR KTA1267Y-AT/P NQSYKTA1267P
Q1104 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1111 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1112 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1120 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1150 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1303 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1304 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1501 TRANSISTOR KTA1267Y-AT/P NQSYKTA1267P
Q1502 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1505 RES. BUILT-IN TRANSISTOR KRC103M NQSZ0KRC103M
RESISTORS
R1001# CARBON RES. 1/2W J 3.3M Ω RCX2335DP001
R1002 CARBON RES. 1/4W J 680k Ω RCX4JATZ0684
R1003 CARBON RES. 1/4W J 2.7M Ω RCX4JATZ0275
R1004 CARBON RES. 1/4W J 2.7M Ω RCX4JATZ0275
R1005 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821
R1006 CARBON RES. 1/4W J 470k Ω RCX4JATZ0474
R1007 METAL OXIDE FILM RES. 2W J 1.5 Ω RN02JZLZ01R5
R1008 METAL FILM RES.(STRAIGHT) 1W J 15k Ω RN01JZPZ0153
R1009 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153
R1010 METAL RESISTER. 2W J 0.56 Ω RN02R56ZU001
R1011 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R1012 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R1013 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R1014 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R1015 CARBON RES. 1/4W J 470k Ω RCX4JATZ0474
R1016 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
Ref. No. Description Part No.
R1051 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1054 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1055 CARBON RES. 1/4W J 12 Ω RCX4JATZ0120
R1057 PCB JUMPER D0.6-P5.0 JW5.0T
R1058 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R1059 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R1060 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391
R1061 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R1062 CHIP RES.(1608) 1/10W J 620 Ω RRXAJR5Z0621
R1063 PCB JUMPER D0.6-P11.5 JW11.5T
R1064 CARBON RES. 1/2W J 680 Ω RCX2JZPZ0681
R1065 CHIP RES.(1608) 1/10W J 620 Ω RRXAJR5Z0621
R1066 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R1067 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181
R1068 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181
R1070 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R1072 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681
R1073 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R1074 CHIP RES.(1608) 1/10W J 620 Ω RRXAJR5Z0621
R1075 CARBON RES. 1/2W J 680 Ω RCX2JZPZ0681
R1076 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R1077 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331
R1079 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182
R1080 CHIP RES.(1608) 1/10W F 75 Ω RRXAFR5H0750
R1081 CHIP RES.(1608) 1/10W F 2.7k Ω RRXAFR5H0272
R1082 CHIP RES. 1/10W F 5.6k Ω RRXAFR5H0562
R1083 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R1084 CHIP RES.(1608) 1/10W J 15k Ω RRXAJR5Z0153
R1085 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182
R1087 CARBON RES. 1/4W G 1.5k Ω RCX4GATZ0152
R1088 CARBON RES. 1/2W J 680 Ω RCX2JZPZ0681
R1089 CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822
R1090 CHIP RES.(1608) 1/10W J 330 Ω RRXAJR5Z0331
R1091 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1093 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1095 CHIP RES.(1608) 1/10W F 100 Ω RRXAFR5H0101
R1096 CHIP RES.(1608) 1/10W F 1.5k Ω RRXAFR5H0152
R1099 CHIP RES.(1608) 1/10W F 4.7k Ω RRXAFR5H0472
R1105 CHIP RES.(1608) 1/10W F 8.2k Ω RRXAFR5H0822
R1106 CHIP RES.(1608) 1/10W F 8.2k Ω RRXAFR5H0822
R1107 CHIP RES.(1608) 1/10W J 13k Ω RRXAJR5Z0133
R1108 CHIP RES.(1608) 1/10W F 13k Ω RRXAFR5H0133
R1109 CHIP RES.(1608) 1/10W F 13k Ω RRXAFR5H0133
R1110 CHIP RES.(1608) 1/10W J 13k Ω RRXAJR5Z0133
R1121 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R1122 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R1123 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R1124 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R1125 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1126 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1127 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R1128 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R1131 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1134 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R1135 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R1136 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R1138 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R1140 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R1148 CHIP RES.(1608) 1/10W J 150 Ω RRXAJR5Z0151
R1149 CHIP RES.(1608) 1/10W J 150 Ω RRXAJR5Z0151
R1151 CHIP RES.(1608) 1/10W F 33k Ω RRXAFR5H0333
R1152 CHIP RES.(1608) 1/10W F 33k Ω RRXAFR5H0333
R1155 CHIP RES.(1608) 1/10W F 10k Ω RRXAFR5H0103
20050124 1-18-3 E6700EL
Page 58
Ref. No. Description Part No.
R1156 CHIP RES.(1608) 1/10W F 10k Ω RRXAFR5H0103
R1157 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682
R1158 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682
R1159 CHIP RES.(1608) 1/10W F 10k Ω RRXAFR5H0103
R1160 CHIP RES.(1608) 1/10W F 10k Ω RRXAFR5H0103
R1161 CHIP RES.(1608) 1/10W F 560k Ω RRXAFR5H0564
R1162 CHIP RES.(1608) 1/10W F 560k Ω RRXAFR5H0564
R1163 CHIP RES.(1608) 1/10W J 330 Ω RRXAJR5Z0331
R1164 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1165 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1173 CHIP RES.(1608) 1/10W J 180k Ω RRXAJR5Z0184
R1174 CHIP RES.(1608) 1/10W J 180k Ω RRXAJR5Z0184
R1179 CHIP RES.(1608) 1/10W J 180k Ω RRXAJR5Z0184
R1180 CHIP RES.(1608) 1/10W J 180k Ω RRXAJR5Z0184
R1191 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R1192 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R1193 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R1194 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R1195 CHIP RES.(1608) 1/10W F 68k Ω RRXAFR5H0683
R1196 CHIP RES.(1608) 1/10W F 68k Ω RRXAFR5H0683
R1197 CHIP RES.(1608) 1/10W F 68k Ω RRXAFR5H0683
R1198 CHIP RES.(1608) 1/10W F 68k Ω RRXAFR5H0683
R1199 CHIP RES.(1608) 1/10W F 62k Ω RRXAFR5H0623
R1200 CHIP RES.(1608) 1/10W F 62k Ω RRXAFR5H0623
R1201 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183
R1202 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183
R1203 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183
R1204 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183
R1205 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183
R1206 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183
R1207 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1210 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1211 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R1212 CHIP RES.(1608) 1/10W J 1.8k Ω
R1213 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R1214 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1215 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R1217 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R1301 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1302 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1304 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1311 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1312 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1313 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1331 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1334 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R1337 CHIP RES.(1608) 1/10W J 3k Ω RRXAJR5Z0302
R1405 CHIP RES.(1608) 1/10W J 5.1k Ω RRXAJR5Z0512
R1406 CHIP RES.(1608) 1/10W F 220 Ω RRXAFR5H0221
R1407 CHIP RES.(1608) 1/10W F 200 Ω RRXAFR5H0201
R1408 CHIP RES.(1608) 1/10W F 200 Ω RRXAFR5H0201
R1409 CHIP RES.(1608) 1/10W F 200 Ω RRXAFR5H0201
R1420 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1421 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1422 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1423 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1424 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1430 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1501 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJR5Z0332
R1502 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJR5Z0332
R1503 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R1505 CHIP RES.(1608) 1/10W J 820k Ω RRXAJR5Z0824
R1506 CHIP RES.(1608) 1/10W J 470k Ω RRXAJR5Z0474
RRXAJR5Z0182
Ref. No. Description Part No.
R1507 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R1508 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1511 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R1513 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R1514 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R1515 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R1516 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R1517 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R1518 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R1519 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R1520 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R1524 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R1527 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R1528 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R1531 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R1532 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R1533 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R1534 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R1535 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R1536 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R1538 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R1539 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R1541 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682
R1542 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R1545 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562
R1546 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R1547 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472
R1555 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R1556 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R1557 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R1558 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R1565 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJR5Z0272
R1566 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R1567 CHIP RES.(1608) 1/10W J 2.2k Ω
R1568 CHIP RES.(1608) 1/10W F 10k Ω RRXAFR5H0103
R1569 CHIP RES. 1/10W F 15k Ω RRXAFR5H0153
R1570 CHIP RES.(1608) 1/10W F 1.5k Ω RRXAFR5H0152
R1571 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R1574 CHIP RES.(1608) 1/10W F 10k Ω RRXAFR5H0103
R1575 CHIP RES.(1608) 1/10W F 10k Ω RRXAFR5H0103
R1576 CHIP RES.(1608) 1/16W F 120 Ω RRXAFR5H0121
R1577 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473
R1701 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1705 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R1706 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1710 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R1711 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R1712 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJR5Z0332
R1713 CHIP RES.(1608) 1/10W J 180k Ω RRXAJR5Z0184
R1718 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1791 CHIP RES.(1608) 1/10W J 12k Ω RRXAJR5Z0123
R1792 CHIP RES.(1608) 1/10W J 12k Ω RRXAJR5Z0123
R1793 CHIP RES.(1608) 1/10W J 3k Ω RRXAJR5Z0302
R1794 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R2001 CHIP RES.(1608) 1/10W J 33 Ω RRXAJR5Z0330
R2003 CHIP RES.(1608) 1/10W J 68k Ω RRXAJR5Z0683
R2004 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682
R2005 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R2006 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R2007 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
RRXAJR5Z0222
MISCELLANEOUS
2B3 FL HOLDER E6700UD 1VM320515
20050124 1-18-4 E6700EL
Page 59
Ref. No. Description Part No.
AC1001# AC CORD PB8B2F9110A-055 WAC0162LW004
F1001# FUSE SIC 1A 250V U/C T PAGG20CW3102
FL2001 VACUUM FLUORESCENT DISPLAY 7-BT-301N TVFD1C0FT048
FH1001 FUSE HOLDER MSF-015 XH01Z00LY001
FH1002 FUSE HOLDER MSF-015 XH01Z00LY001
JK2101 S TYPE JACK DMD1-3411PP003 JXEL040RP002
JK2102 RCA JACK(YELLOW) MTJ-032-05B-20 JXRL010LY038
JK2103 RCA JACK(WHITE) MTJ-032-05B-22 JXRL010LY039
JK2104 RCA JACK(RED) MTJ-032-05A-21 JYRL010LY010
JK2105 S TYPE JACK MDC-050V-2.4 JXEL040LY001
JK2106 RCA JACK 3PIN MSD-243V-07 NI FE LF JXRL030LY124
JK2201 RCA JACK 3PIN MSD-243V-07 NI FE LF JXRL030LY124
JK2202 S TYPE JACK MDC-050V-2.4 JXEL040LY001
JK2203 RCA JACK 3PIN MSD-243V-18 NI JXRL030LY073
JK2206 RCA JACK(BLACK) MSP-251V-01 NI JXRL010LY070
JP1001 PCB JUMPER D0.6-P10.0 JW10.0T
JP1053 PCB JUMPER D0.6-P8.0 JW8.0T
JP1054 PCB JUMPER D0.6-P5.0 JW5.0T
JP1082 PCB JUMPER D0.6-P17.5 JW17.5T
JP1083 PCB JUMPER D0.6-P7.5 JW7.5T
JP1084 PCB JUMPER D0.6-P17.5 JW17.5T
JP1085 PCB JUMPER D0.6-P17.5 JW17.5T
JP1086 PCB JUMPER D0.6-P17.5 JW17.5T
JP1090 PCB JUMPER D0.6-P5.0 JW5.0T
JP1091 PCB JUMPER D0.6-P15.5 JW15.5T
JP1092 PCB JUMPER D0.6-P7.5 JW7.5T
JP1093 PCB JUMPER D0.6-P7.5 JW7.5T
JP1094 PCB JUMPER D0.6-P7.5 JW7.5T
JP1095 PCB JUMPER D0.6-P17.5 JW17.5T
JP1097 PCB JUMPER D0.6-P5.0 JW5.0T
JP1098 PCB JUMPER D0.6-P5.0 JW5.0T
JP1099 PCB JUMPER D0.6-P5.0 JW5.0T
JP1103 PCB JUMPER D0.6-P5.0 JW5.0T
JP1104 PCB JUMPER D0.6-P12.5 JW12.5T
JP1105 PCB JUMPER D0.6-P10.0 JW10.0T
JP1106 PCB JUMPER D0.6-P12.0 JW12.0T
JP1107 PCB JUMPER D0.6-P18.0 JW18.0T
JP1108 PCB JUMPER D0.6-P5.0 JW5.0T
JP1109 PCB JUMPER D0.6-P5.0 JW5.0T
JP1110 PCB JUMPER D0.6-P9.5 JW9.5T
JP1201 PCB JUMPER D0.6-P5.0 JW5.0T
JP1303 PCB JUMPER D0.6-P7.5 JW7.5T
JP1311 PCB JUMPER D0.6-P12.5 JW12.5T
JP1312 PCB JUMPER D0.6-P5.0 JW5.0T
JP1313 PCB JUMPER D0.6-P12.5 JW12.5T
JP1402 PCB JUMPER D0.6-P5.0 JW5.0T
JP1404 PCB JUMPER D0.6-P7.5 JW7.5T
JP1405 PCB JUMPER D0.6-P5.0 JW5.0T
JP1407 PCB JUMPER D0.6-P5.0 JW5.0T
JP1409 PCB JUMPER D0.6-P7.5 JW7.5T
JP1410 PCB JUMPER D0.6-P27.0 JW27.0T
JP1414 PCB JUMPER D0.6-P5.0 JW5.0T
JP1415 PCB JUMPER D0.6-P5.0 JW5.0T
JP1420 PCB JUMPER D0.6-P15.0 JW15.0T
JP1508 PCB JUMPER D0.6-P6.5 JW6.5T
JP1514 PCB JUMPER D0.6-P17.5 JW17.5T
JP1519 PCB JUMPER D0.6-P12.5 JW12.5T
JP1702 PCB JUMPER D0.6-P5.0 JW5.0T
JP1703 PCB JUMPER D0.6-P5.0 JW5.0T
JP1704 PCB JUMPER D0.6-P5.0 JW5.0T
JP2101 PCB JUMPER D0.6-P5.0 JW5.0T
JP2103 PCB JUMPER D0.6-P5.0 JW5.0T
RE2001 REMOTE RECEIVER MIM-93M6DKF USESJRSUNT01
Ref. No. Description Part No.
T1001# SWITCHING TRANS 5710 LTT00CPKT173
TU1701 TUNER UNIT VJ025AF UTUNNTUSP029
W2 FFC(30PIN) AV-MAIN WX1E6700-002
W3 FFC(28PIN) AV-MAIN WX1E6700-003
X1501 CERAMIC RESONETOR CSTLS8M00G56-B0 FY0805PMR002
X1502 X'TAL 32.768kHz(20PPM) FXC323LDS002
SW CBA
Ref. No. Description Part No.
SW CBA (SUB-B)
Consists of the following:
RESISTORS
R3001 CHIP RES.(1608) 1/10W J 300 Ω RRXAJR5Z0301
R3002 CHIP RES.(1608) 1/10W J 620 Ω RRXAJR5Z0621
R3003 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R3004 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R3005 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682
R3006 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682
R3007 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R3008 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R3009 CHIP RES.(1608) 1/10W J 620 Ω RRXAJR5Z0621
R3010 CHIP RES.(1608) 1/10W J 300 Ω RRXAJR5Z0301
SWITCHES
SW3001 TACT SWITCH KSM0612B SST0101HH003
SW3002 TACT SWITCH KSM0612B SST0101HH003
SW3003 TACT SWITCH KSM0612B SST0101HH003
SW3004 TACT SWITCH KSM0612B SST0101HH003
SW3005 TACT SWITCH KSM0612B SST0101HH003
SW3006 TACT SWITCH KSM0612B SST0101HH003
SW3007 TACT SWITCH KSM0612B SST0101HH003
SW3008 TACT SWITCH KSM0612B SST0101HH003
SW3009 TACT SWITCH KSM0612B SST0101HH003
SW3010 TACT SWITCH KSM0612B SST0101HH003
MISCELLANEOUS
W5 WIRE ASSEMBLY(3PIN) AV-SW WX1E6700-005
----------
20050124 1-18-5 E6700EL
Page 60
DVR90DF
E6700UD
2005-02-03
Loading...
