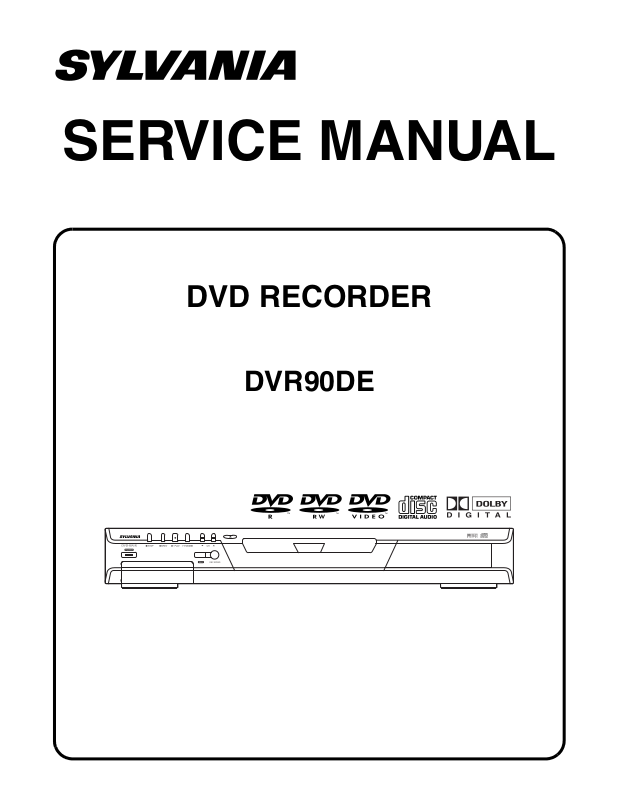

SERVICE MANUAL
DVD RECORDER
DVR90DE
IMPORTANT SAFETY NOTICE
Proper service and repair is important to the safe, reliable operation of all Funai Equipment. The service procedures recommended by Funai and described in this service manual are effective methods of performing service operations. Some of these service special tools should be used when and as recommended.
It is important to note that this service manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It also is important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Funai could not possibly know, evaluate and advice the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, Funai has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by Funai must first use all precautions thoroughly so that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected.
TABLE OF CONTENTS
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1
LASER BEAM SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1
IMPORTANT SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3-1
STANDARD NOTES FOR SERVICING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-1
OPERATING CONTROLS AND FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5-1
CABINET DISASSEMBLY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6-1
HOW TO INITIALIZE THE DVD RECORDER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6-4

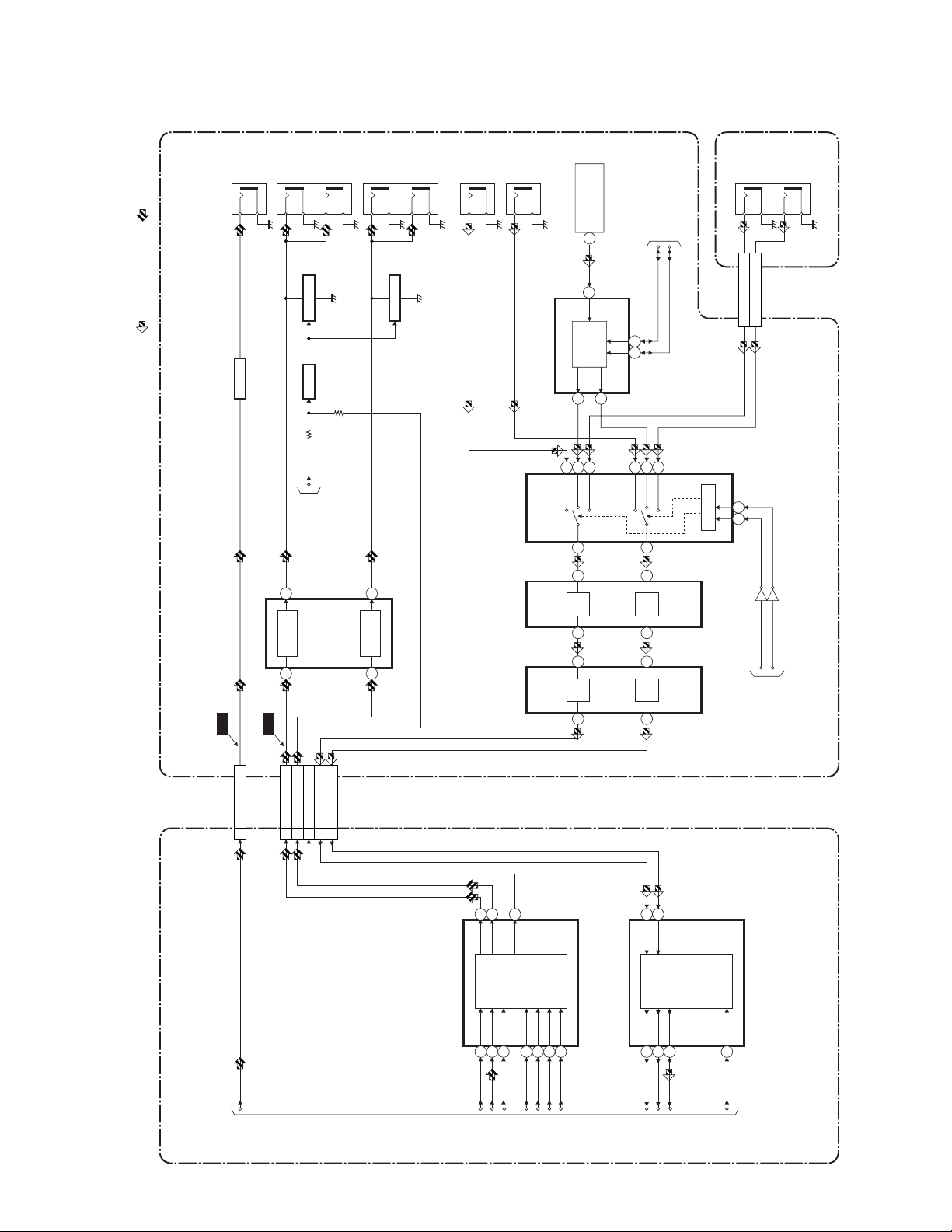

BLOCK DIAGRAMS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1
FUNCTION INDICATOR SYMBOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7-6

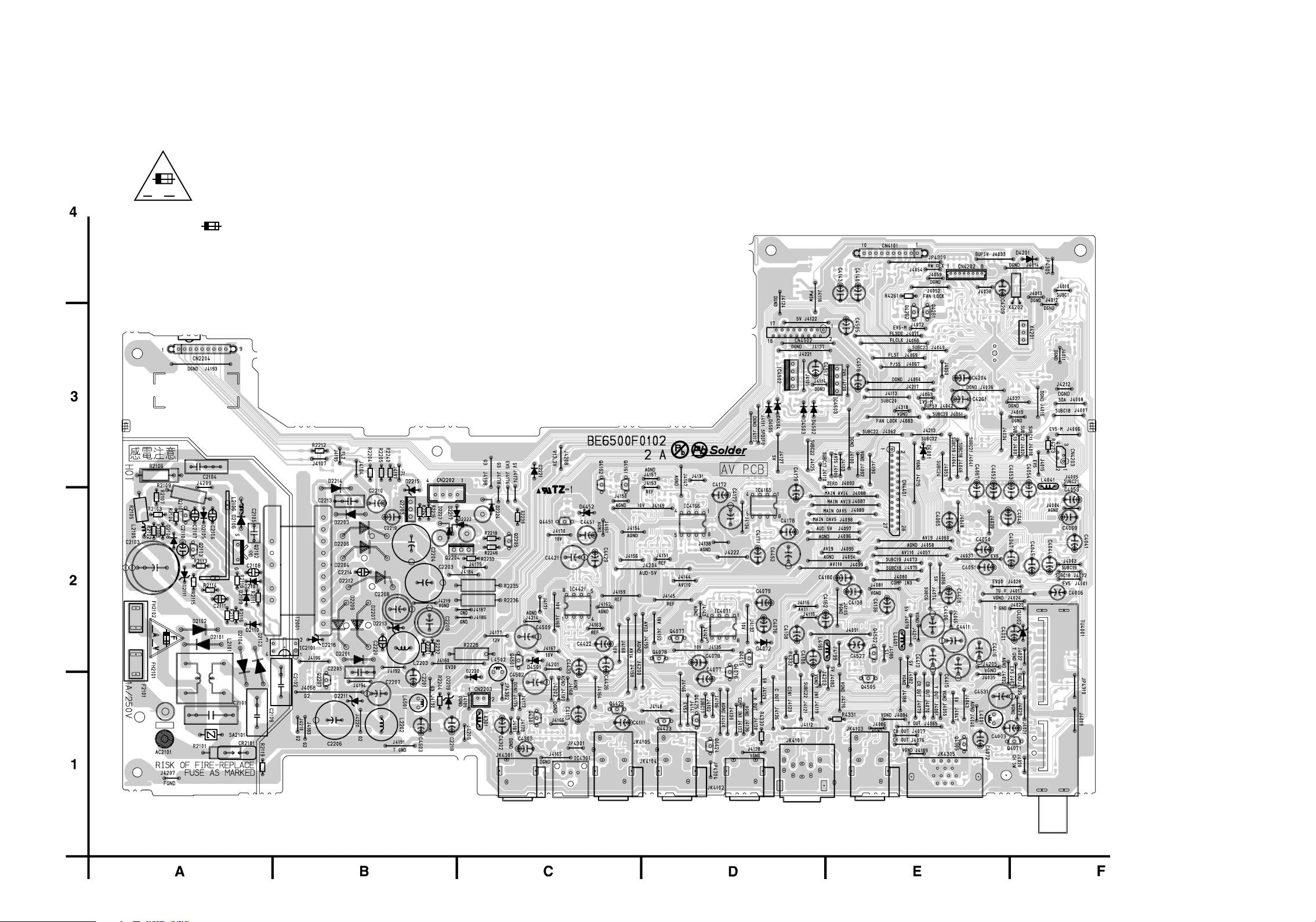

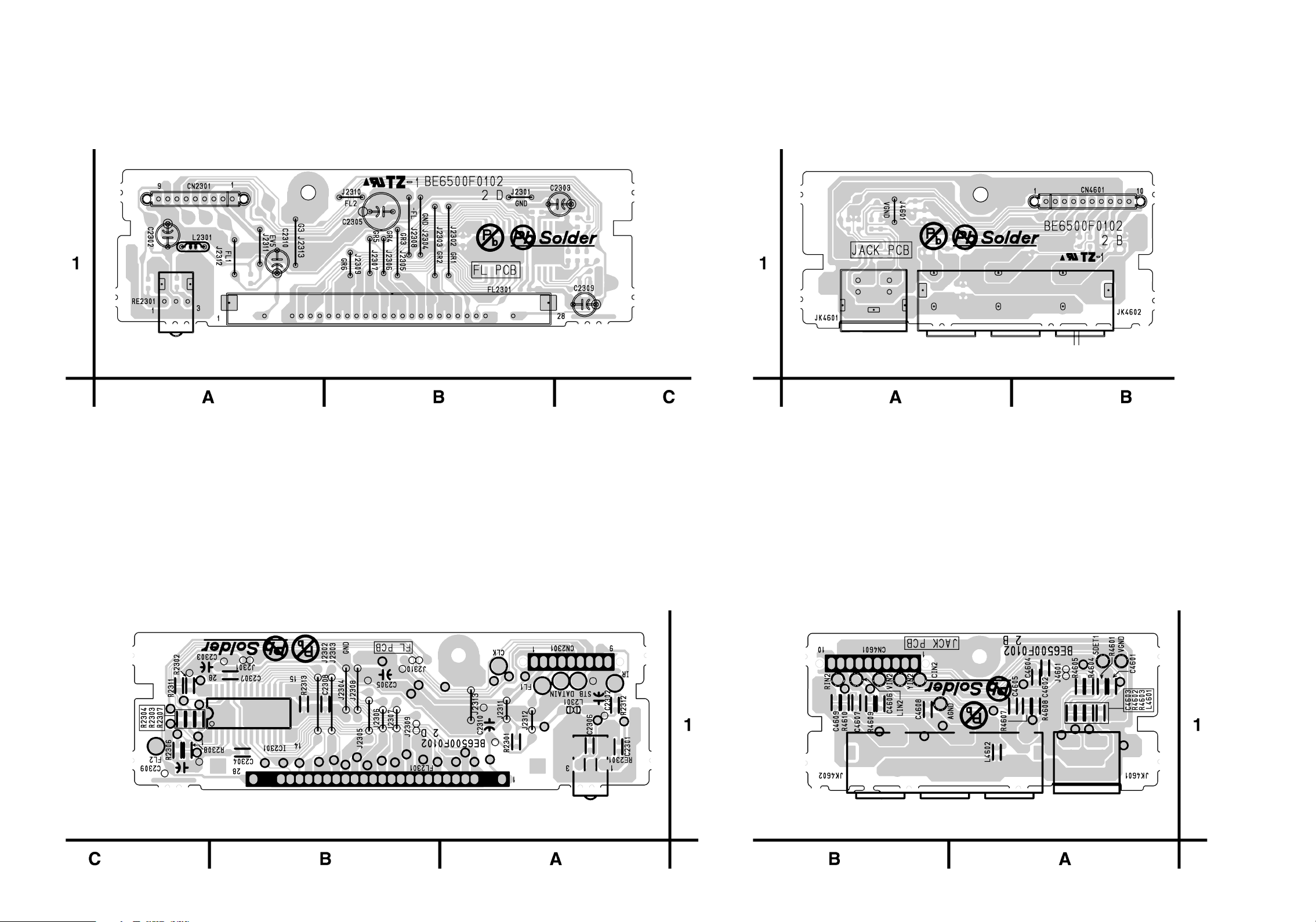

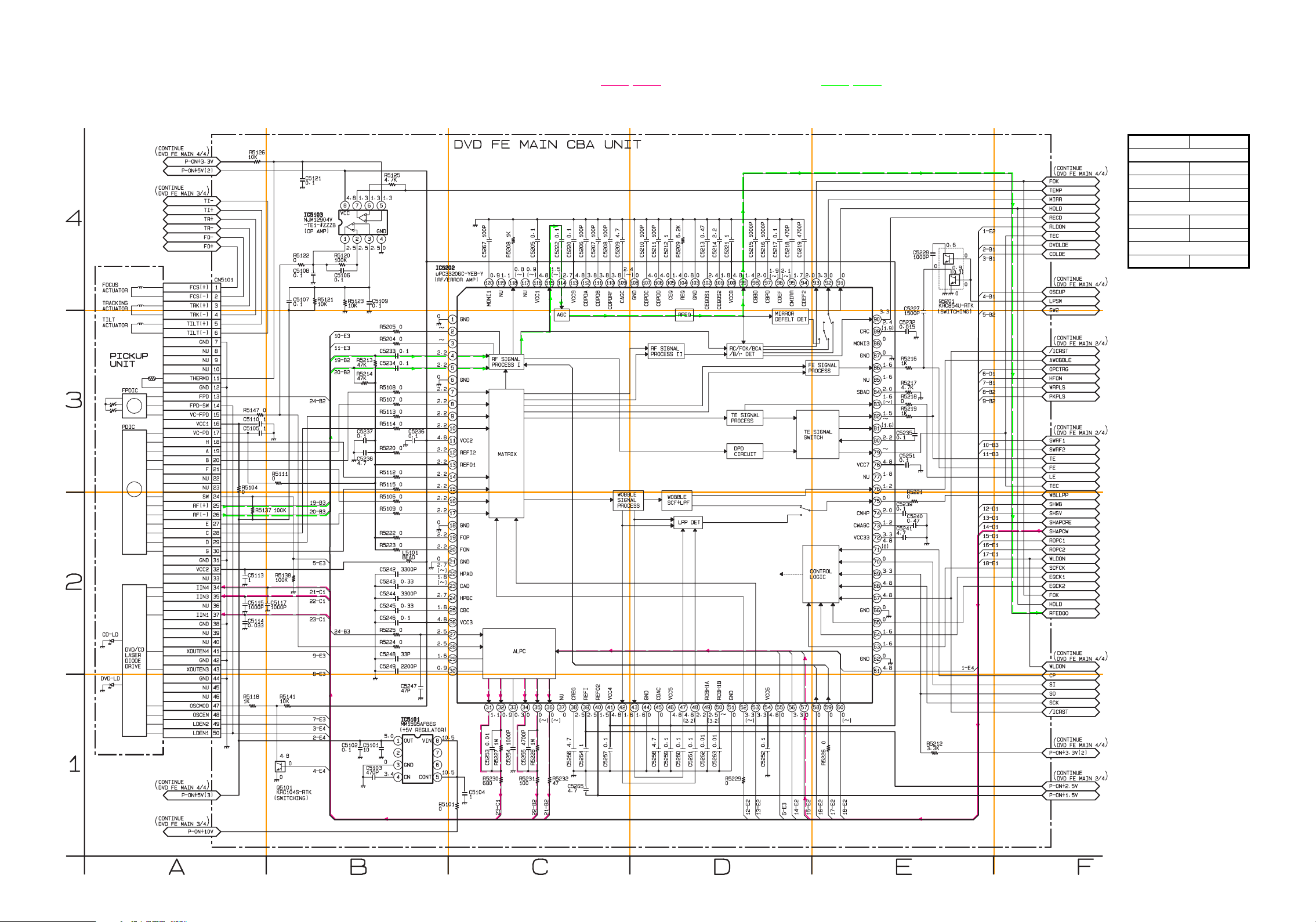

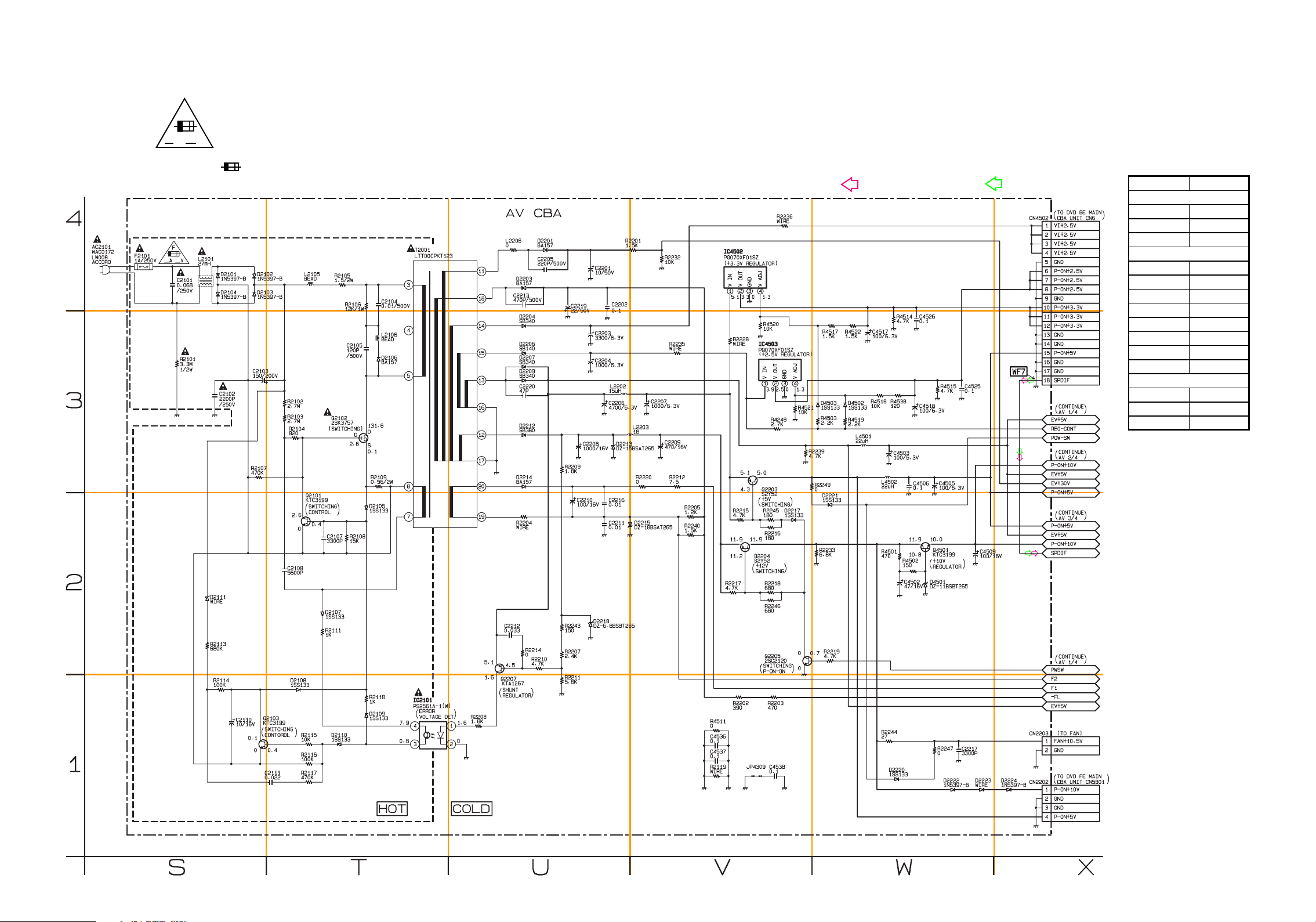

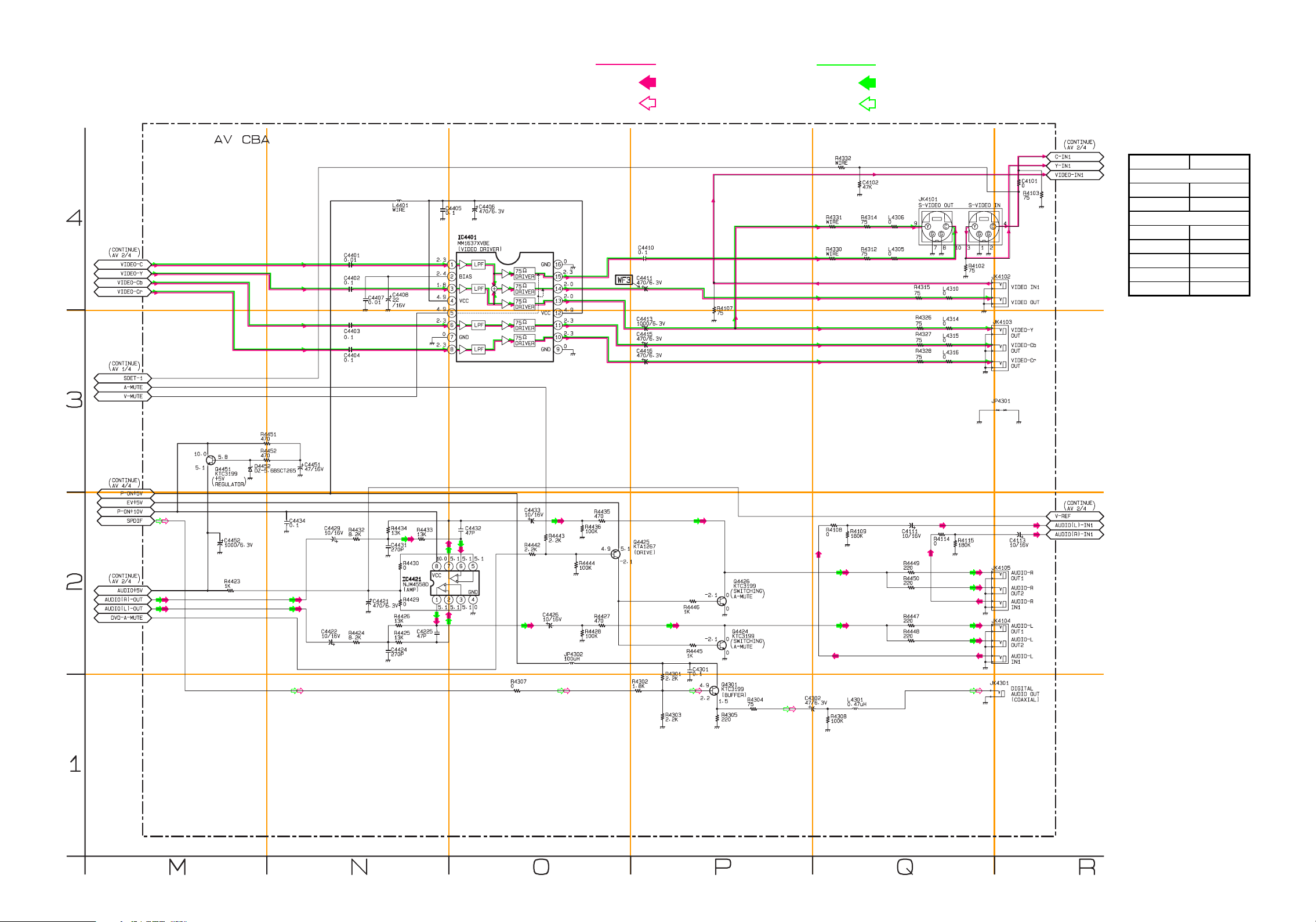

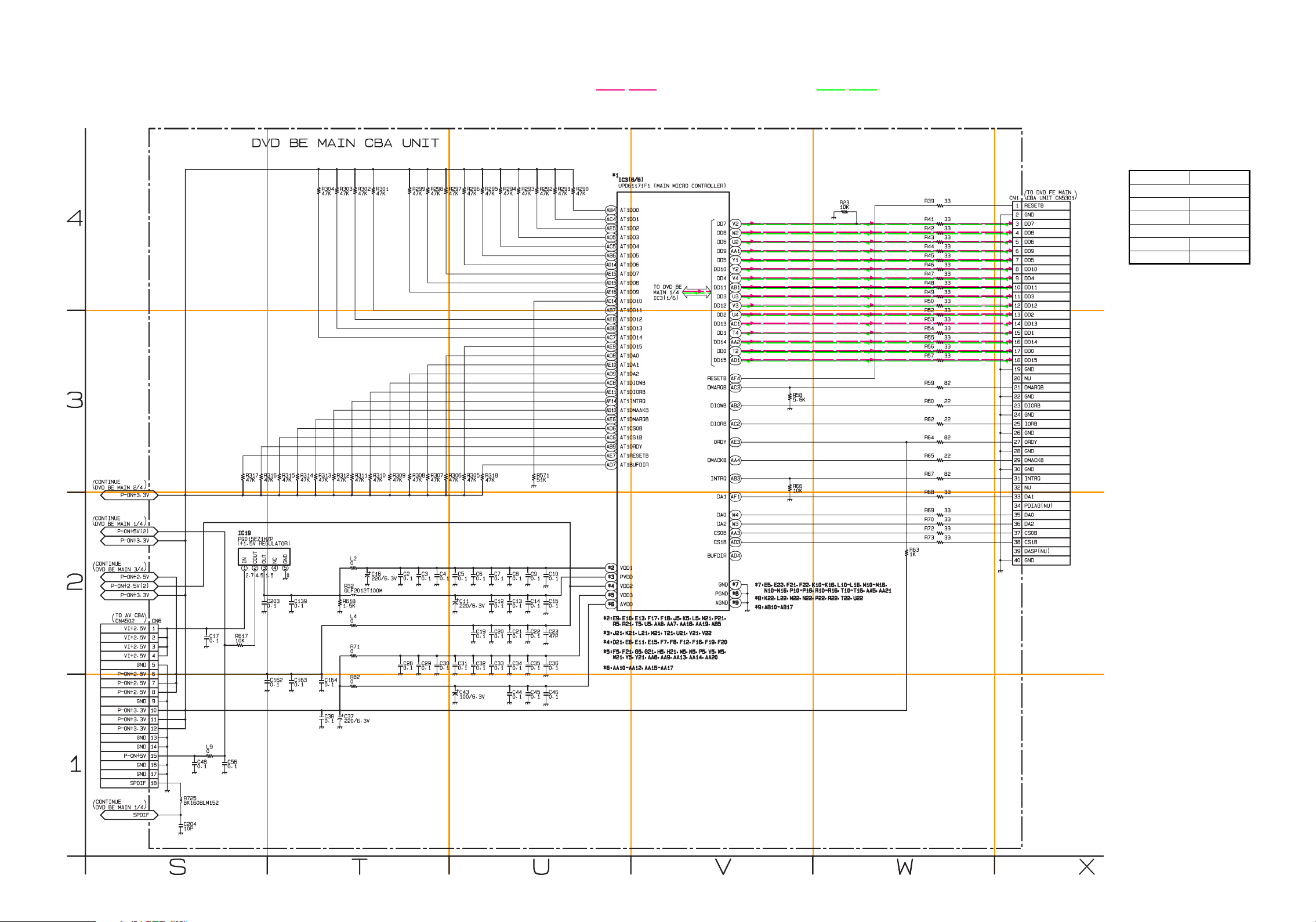

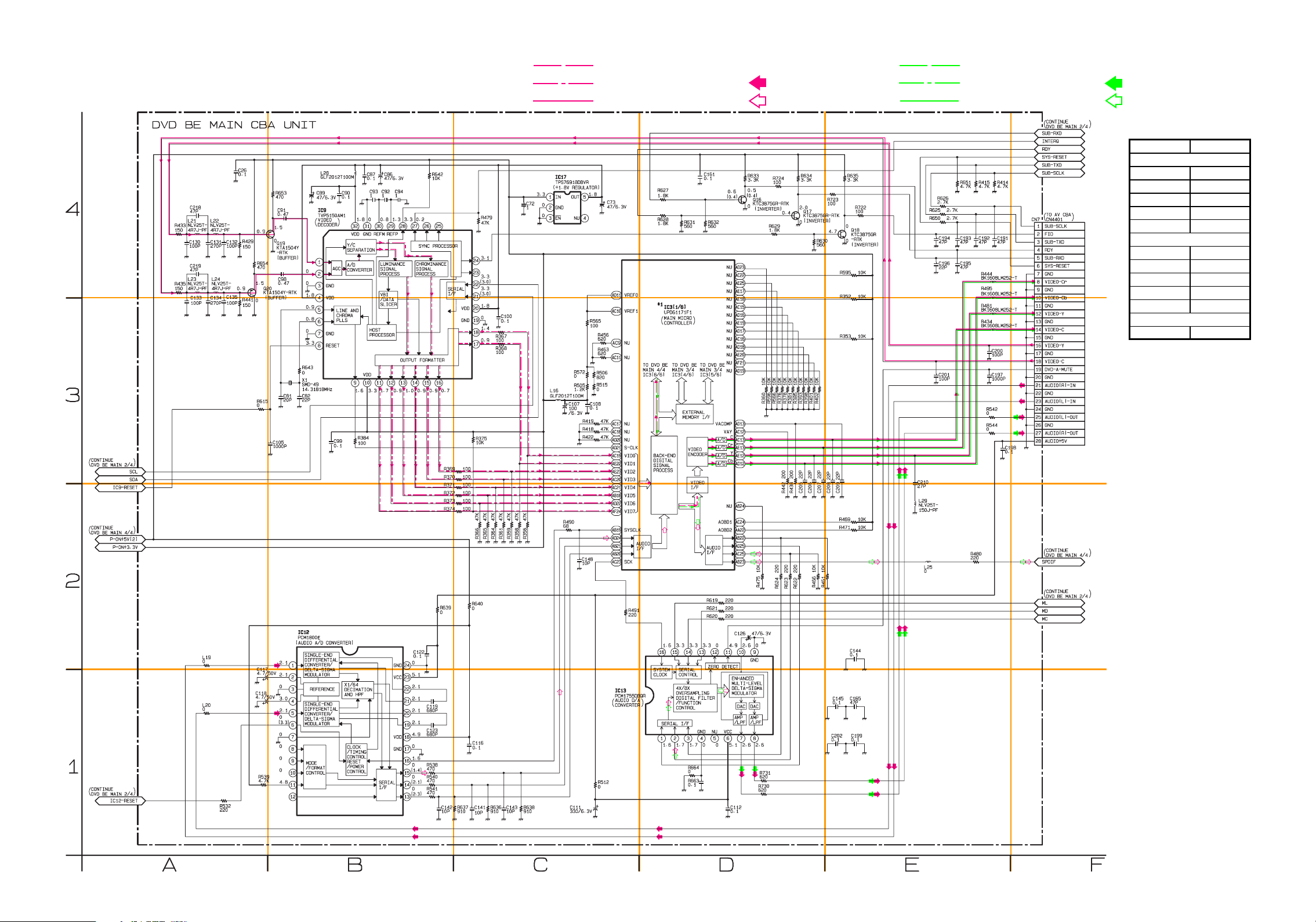

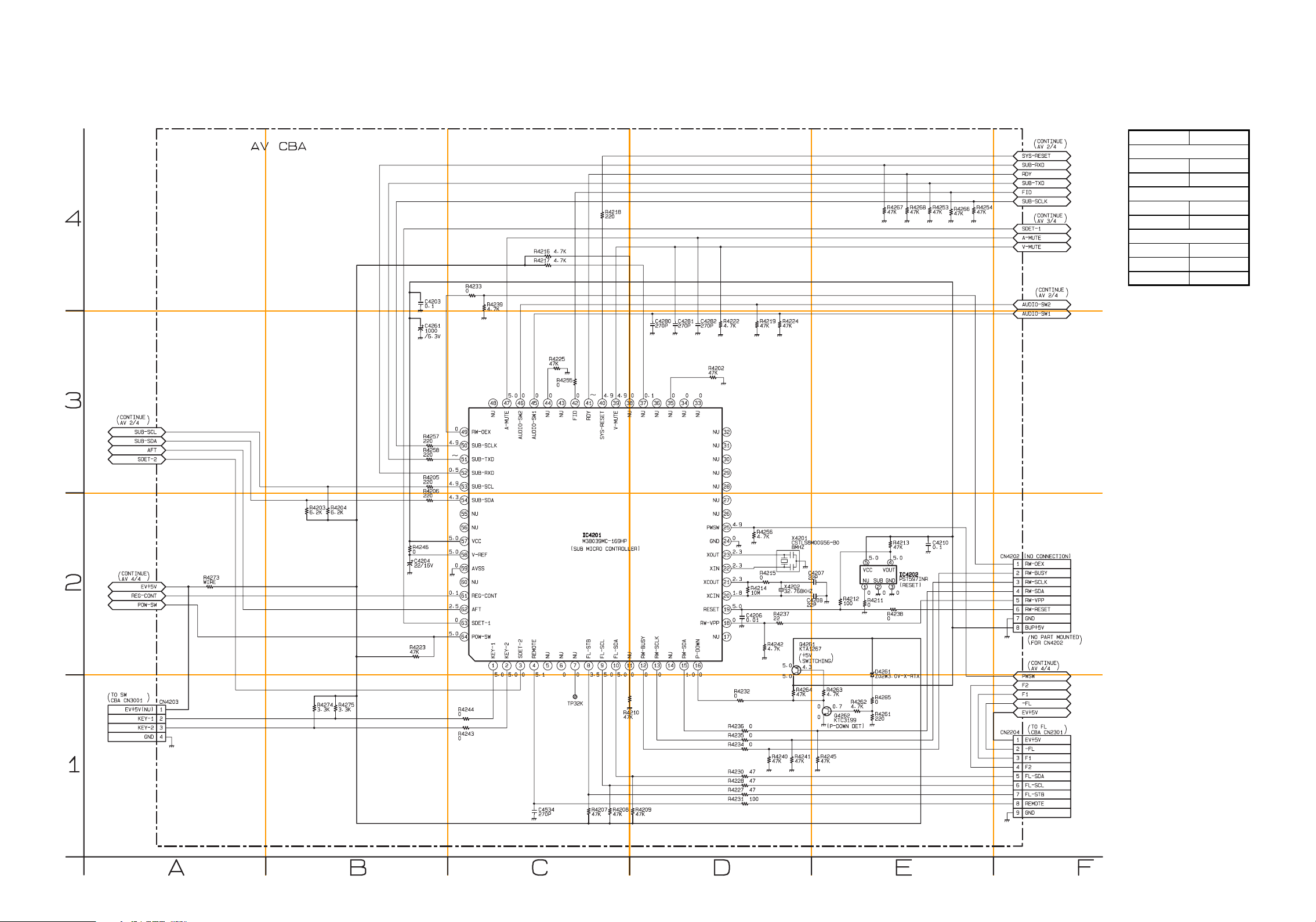

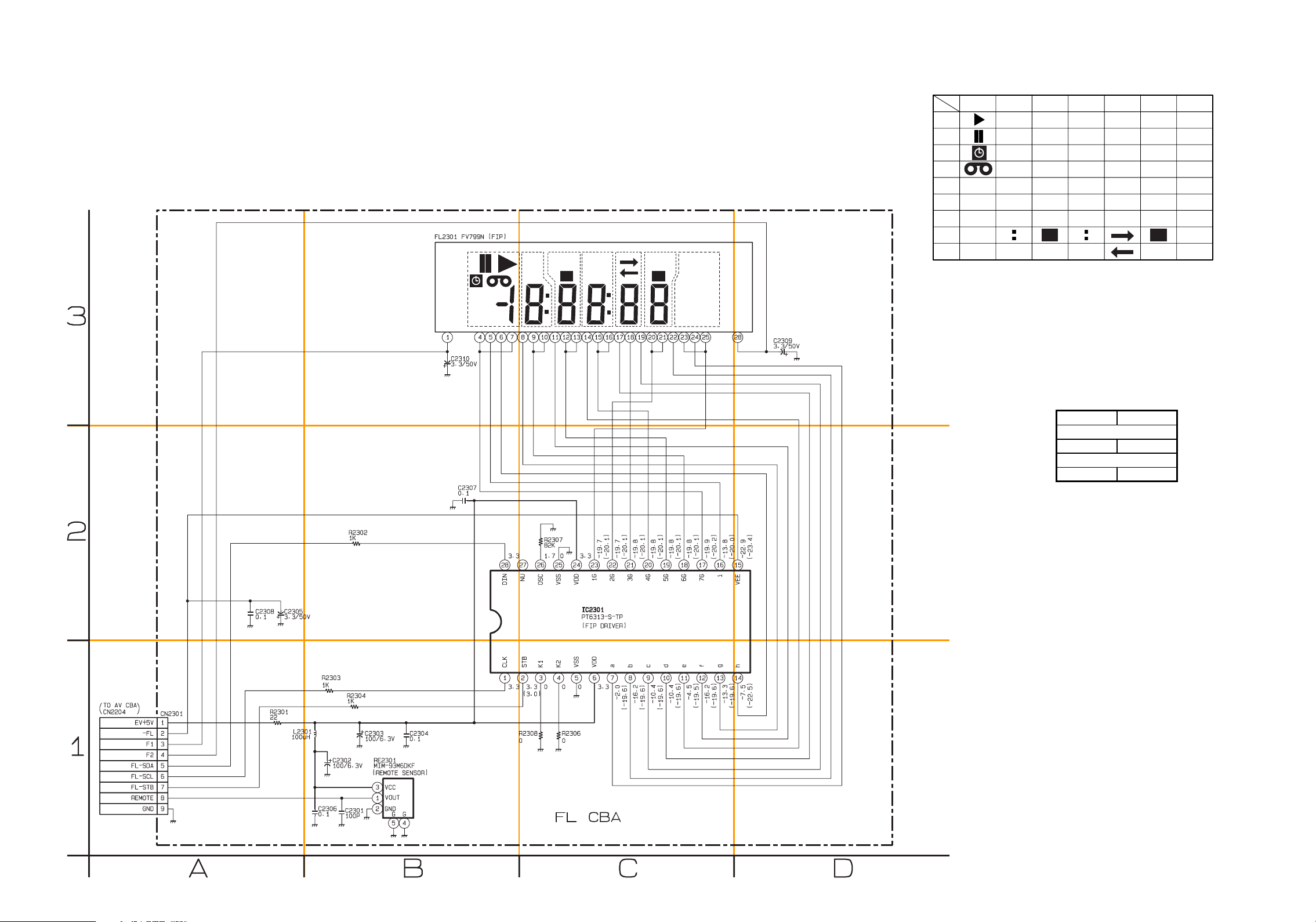

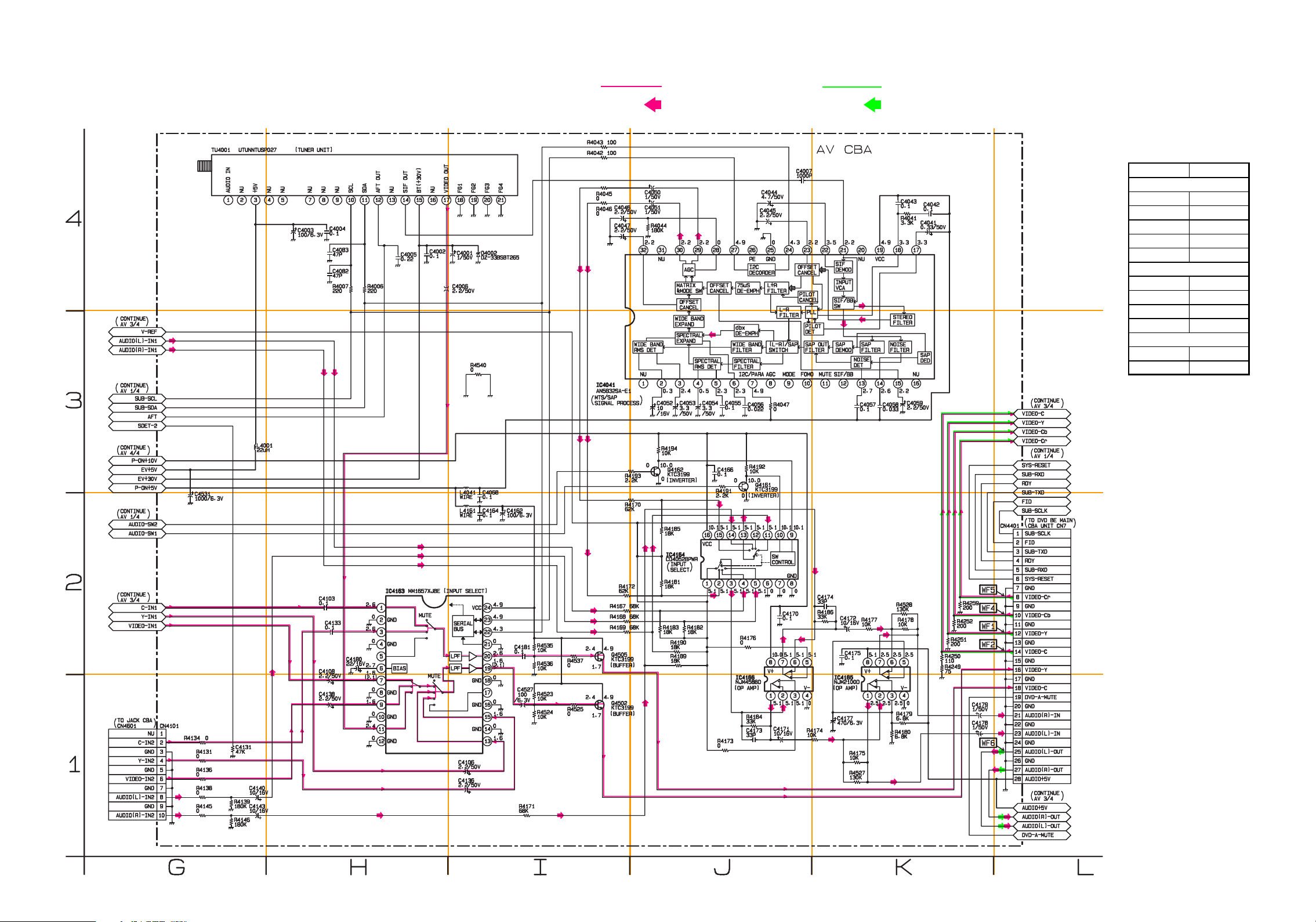

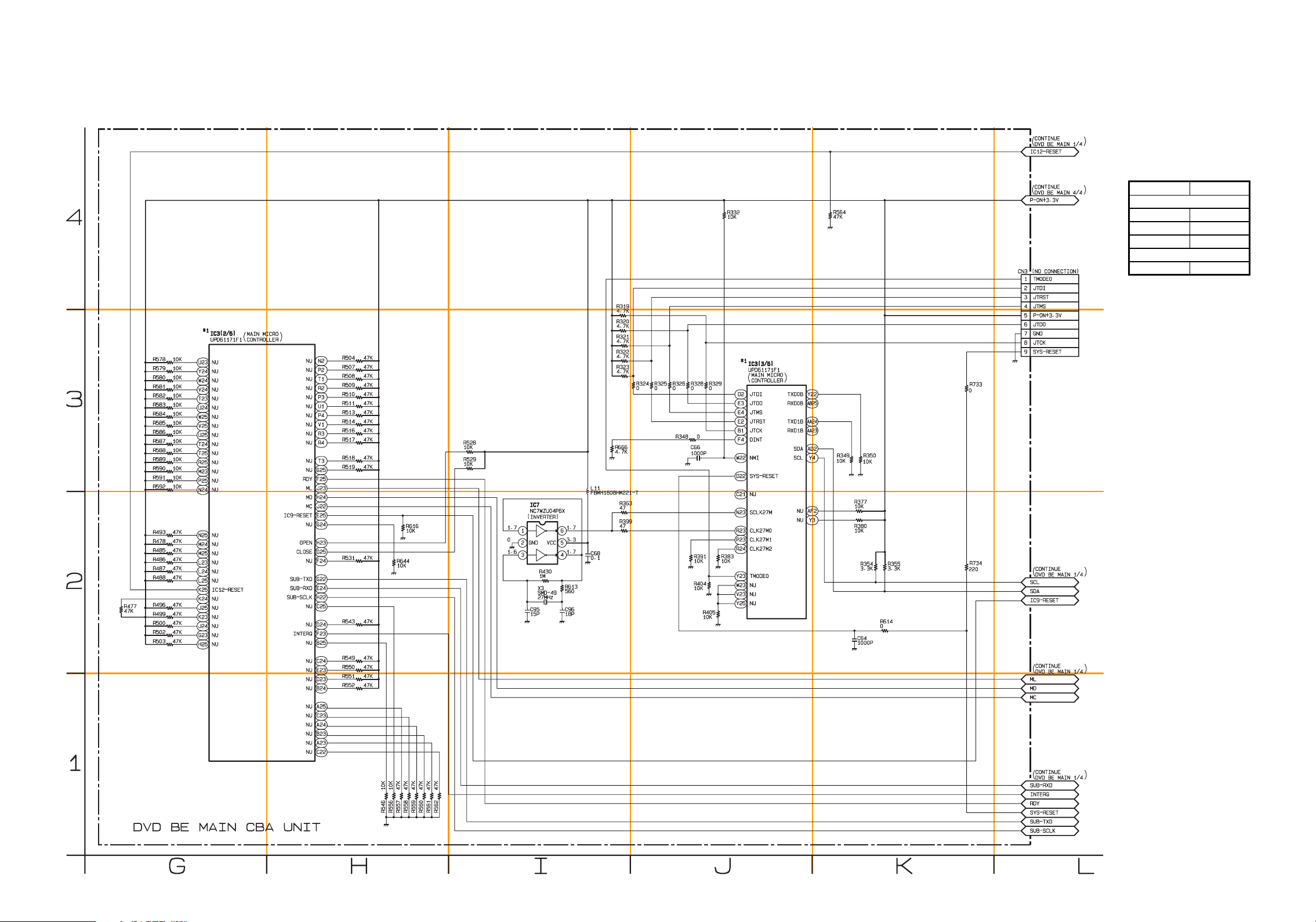

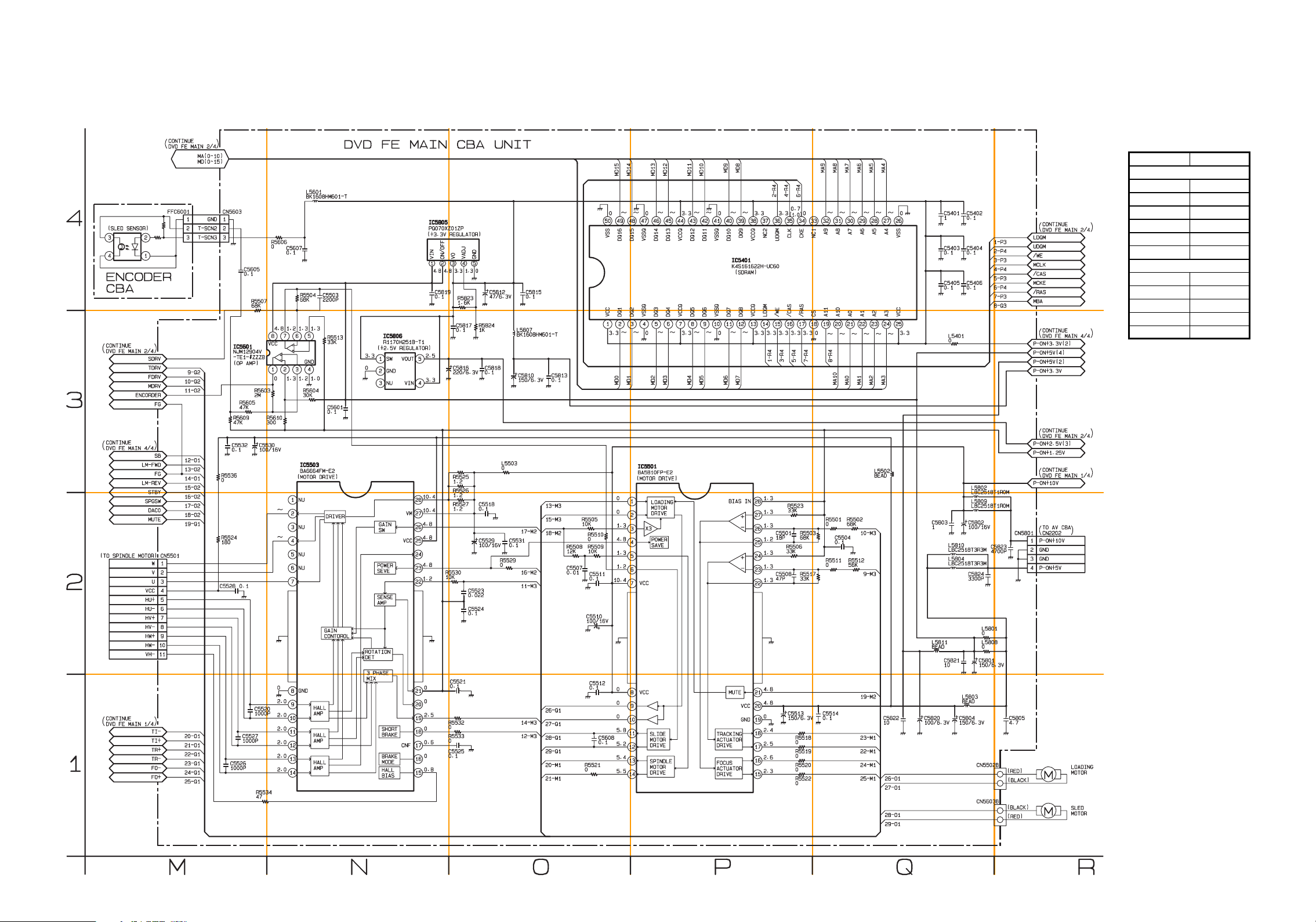

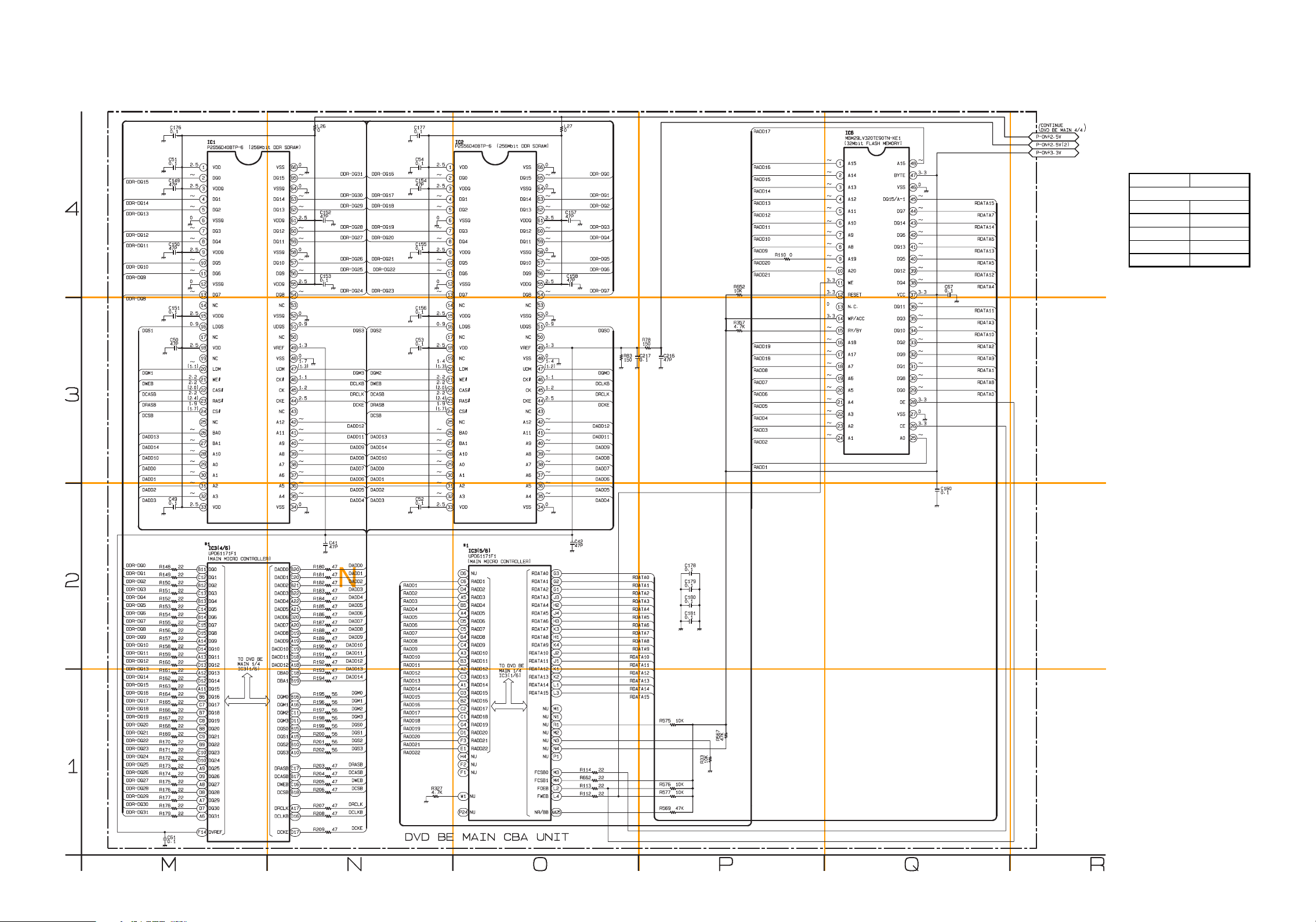

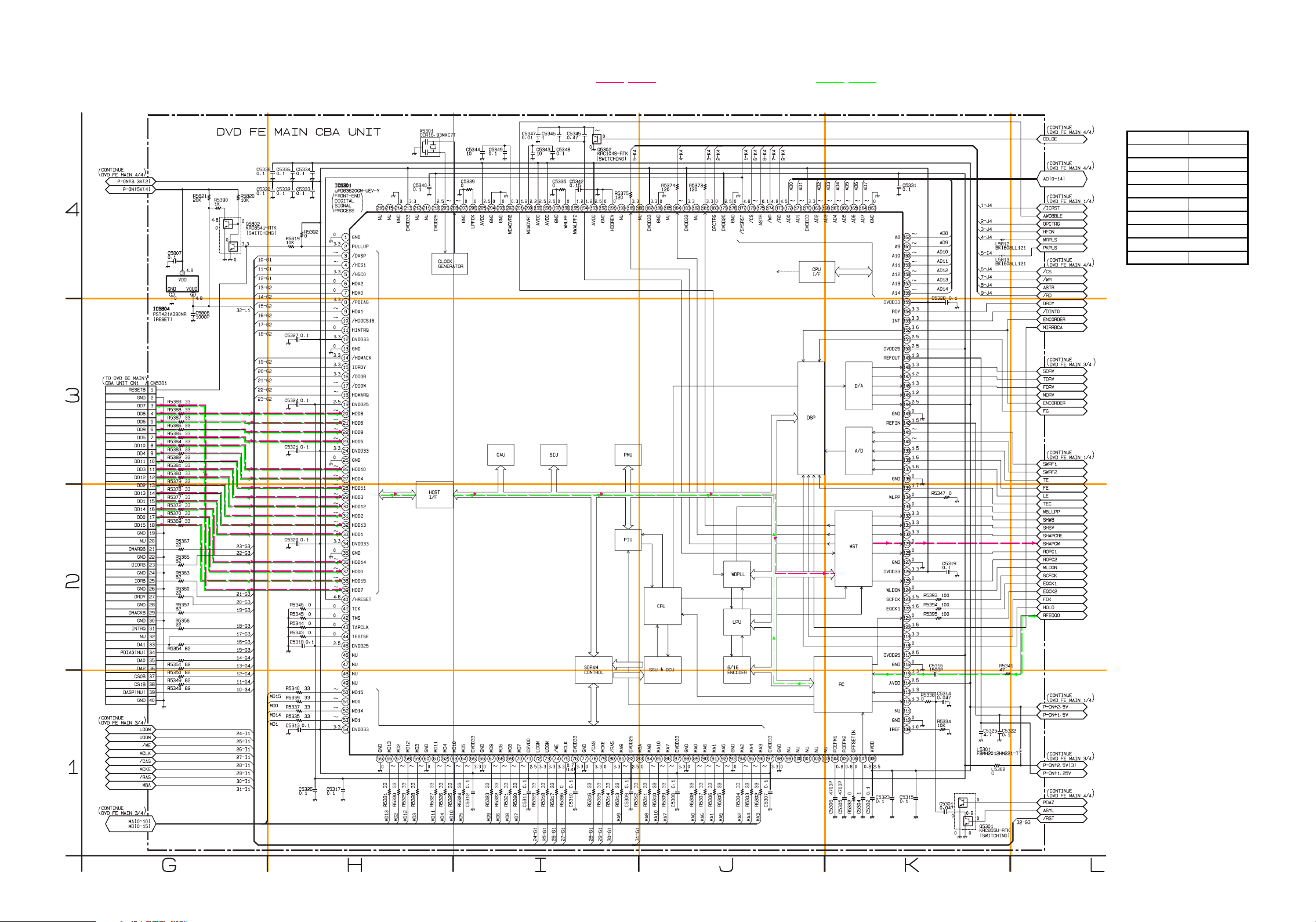

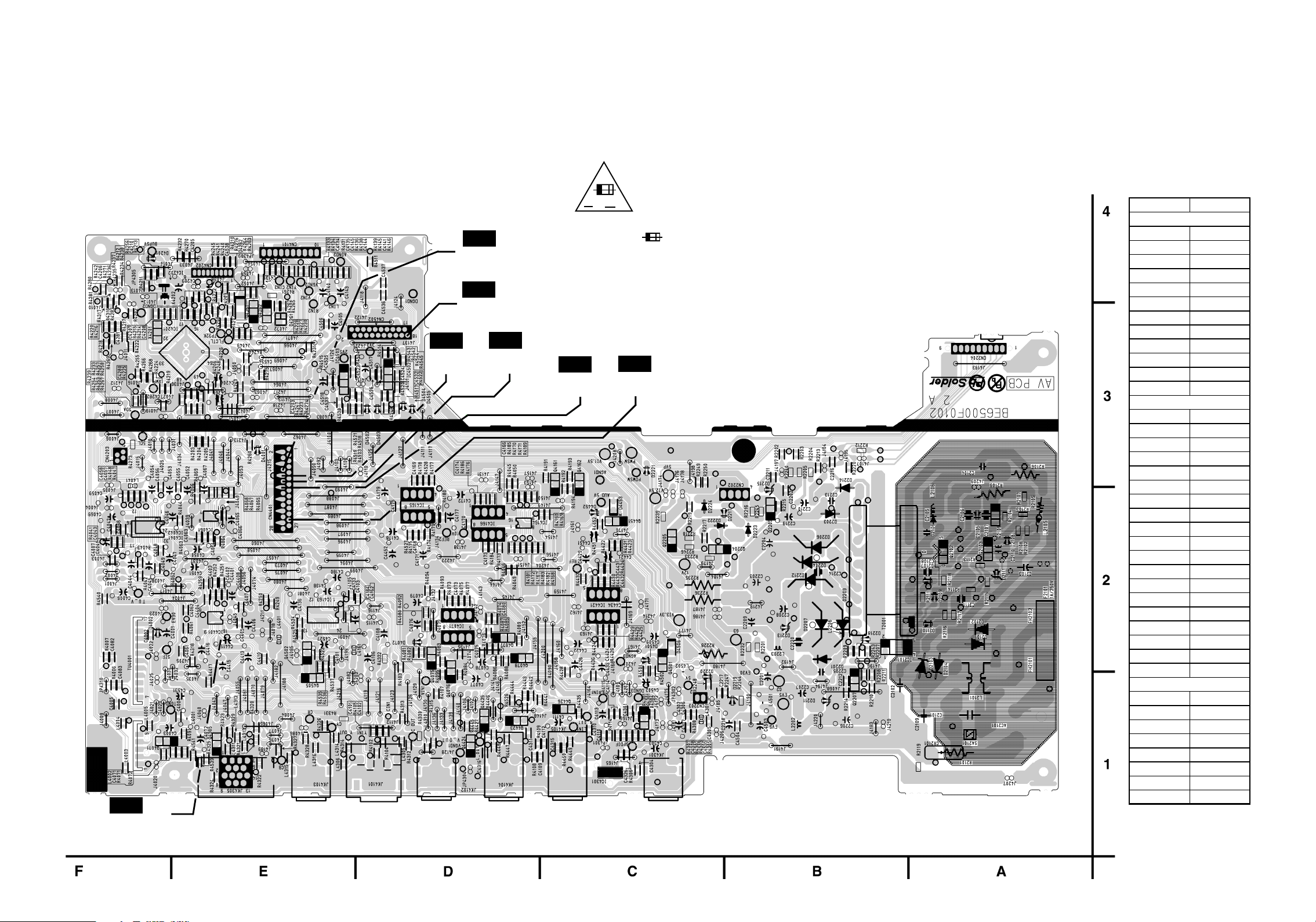

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8-1

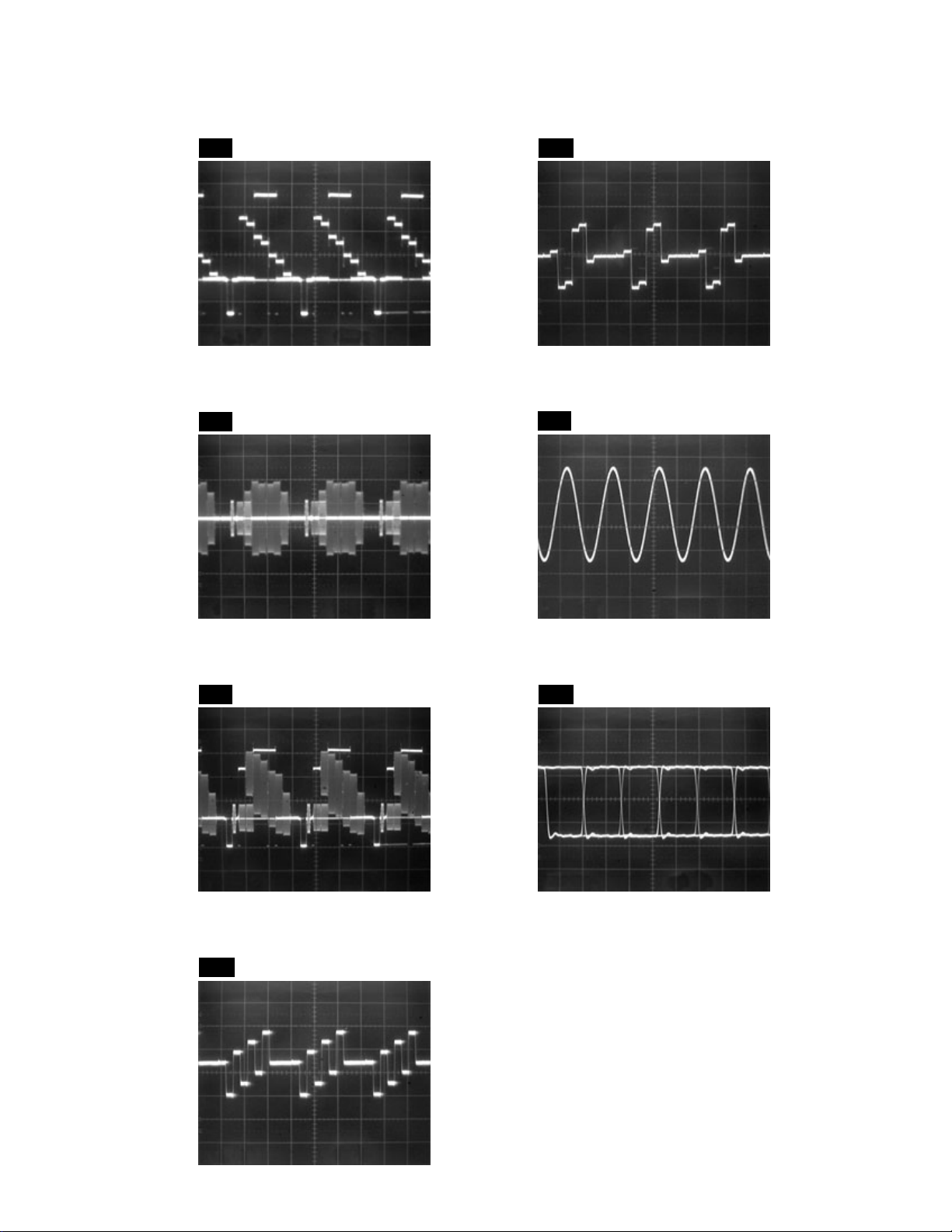

WAVEFORMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9-1

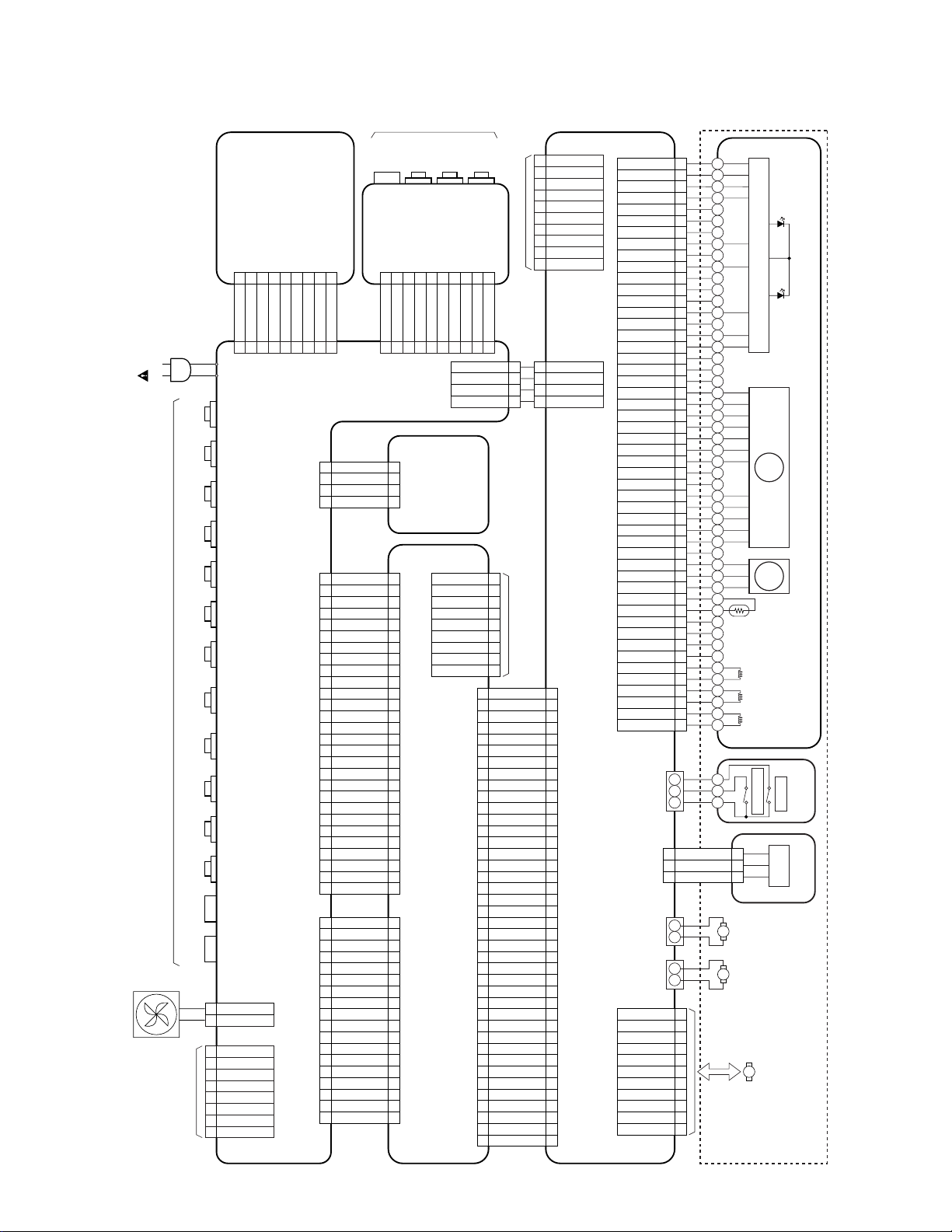

WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10-1

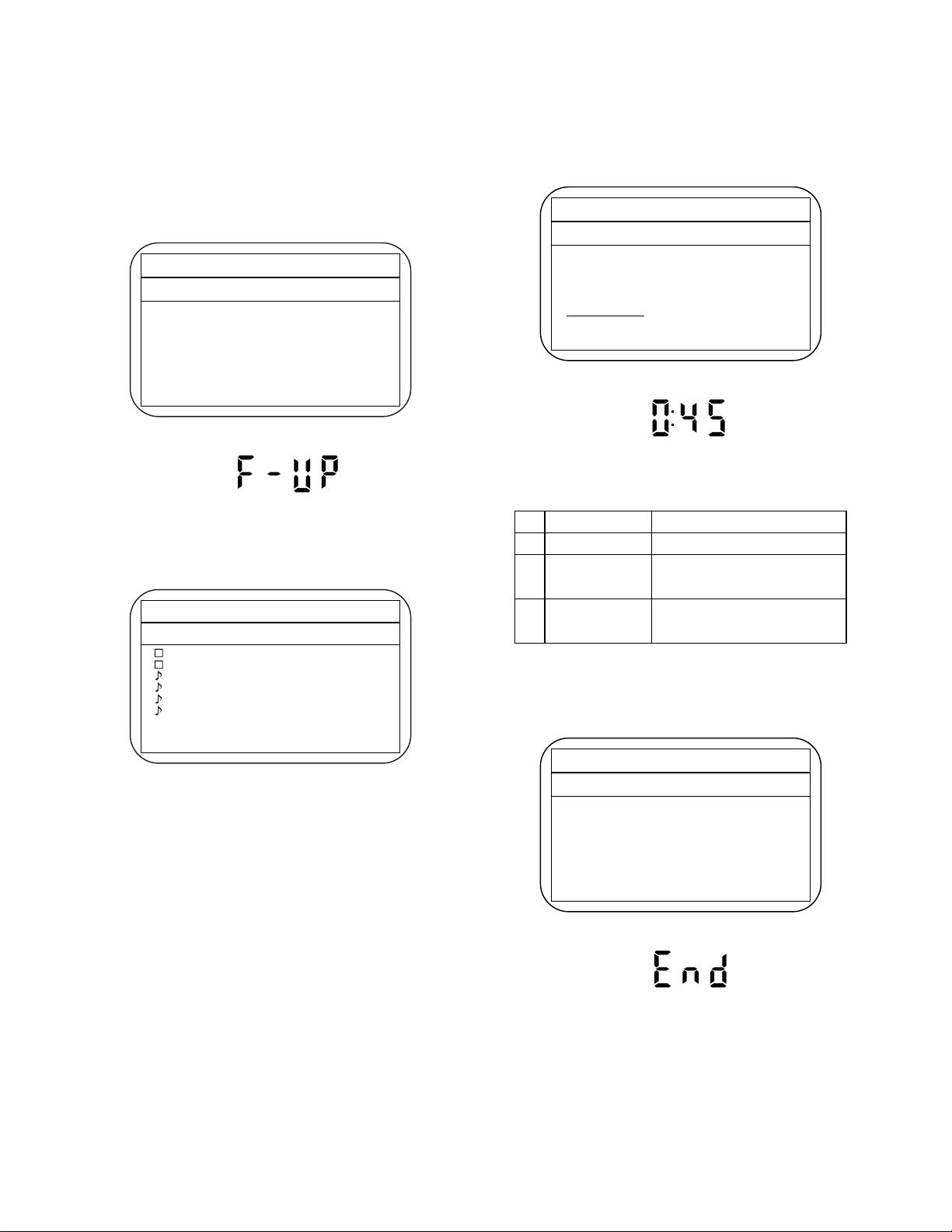

FIRMWARE RENEW AL MODE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11-1

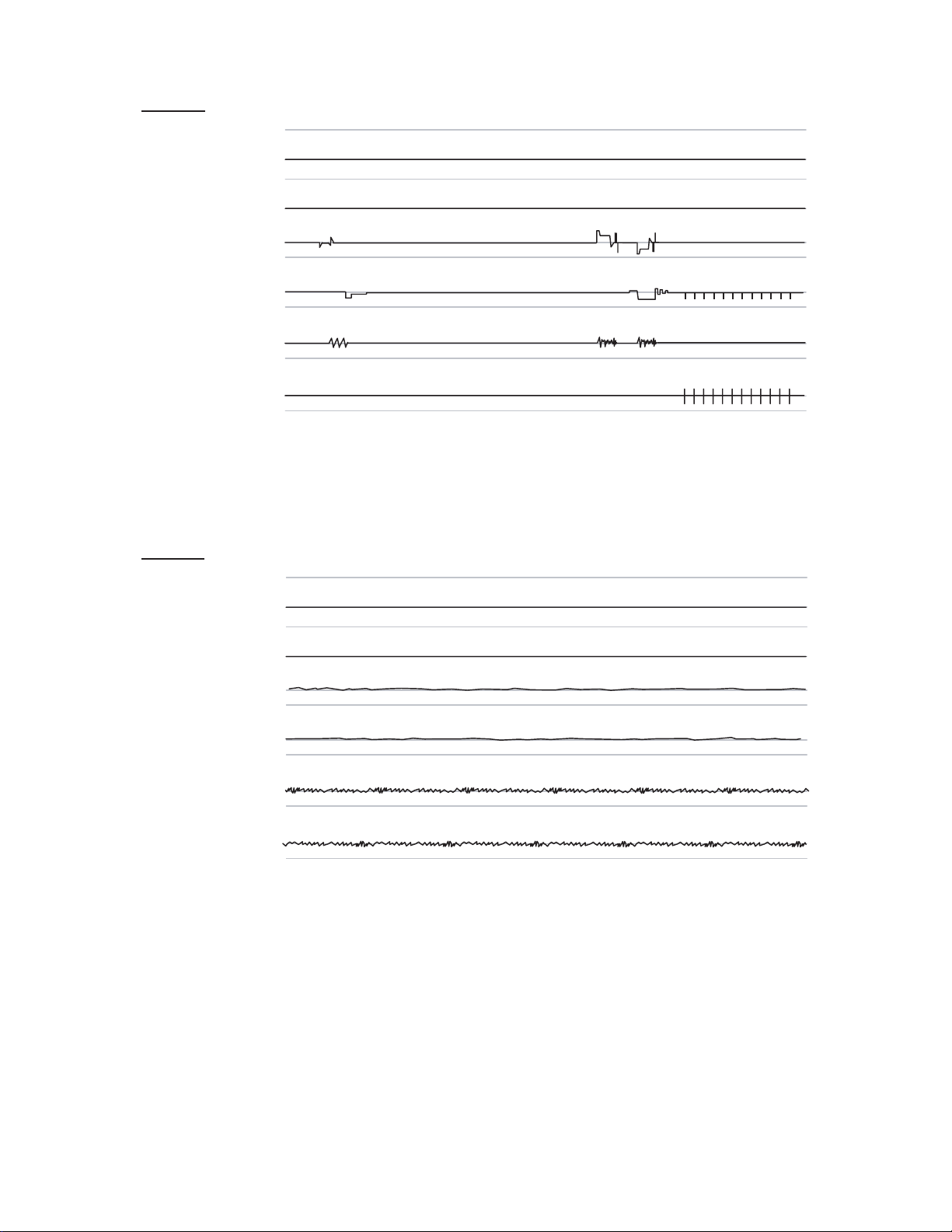

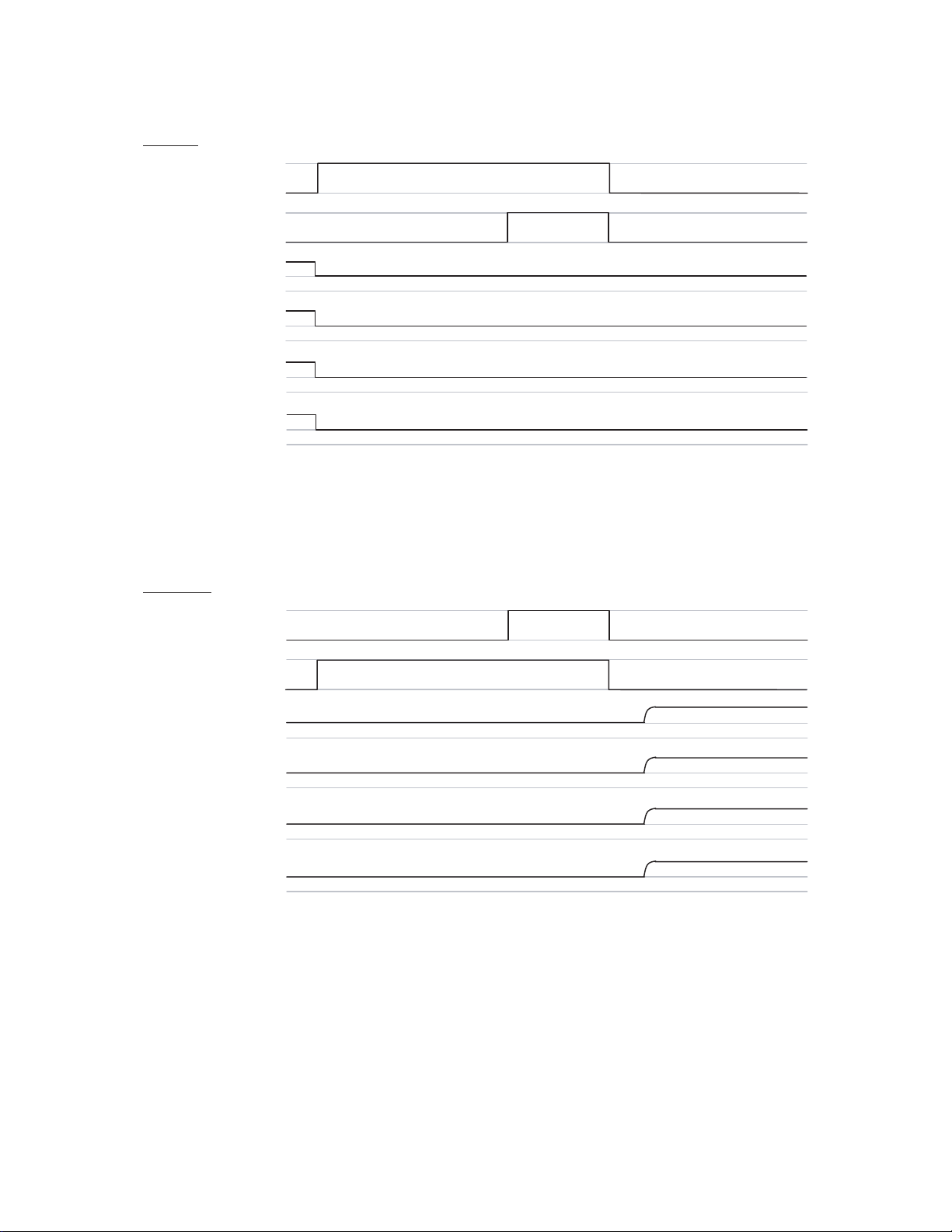

SYSTEM CONTROL TIMING CHARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-12-1
IC PIN FUNCTION DESCRIPTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-13-1

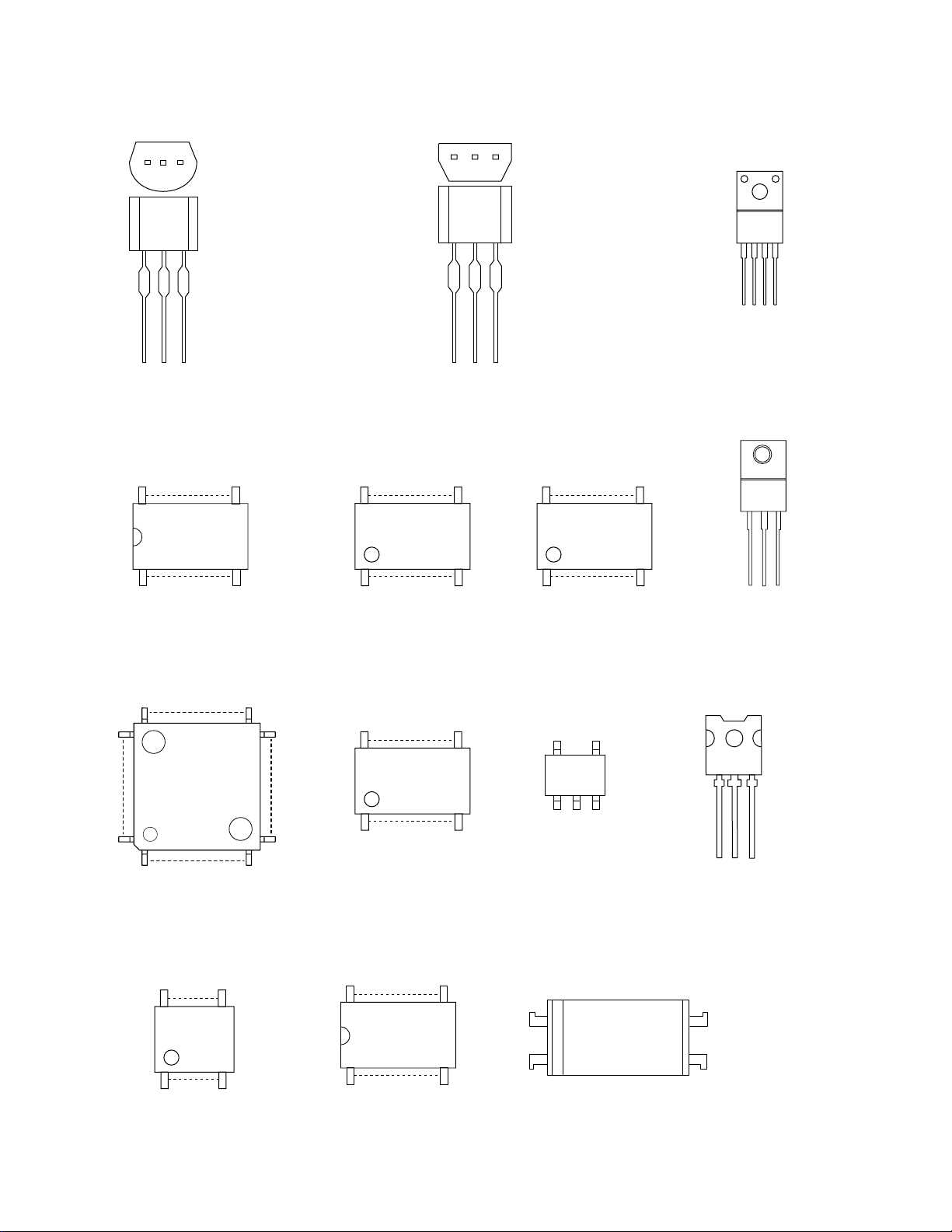

LEAD IDENTIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-1

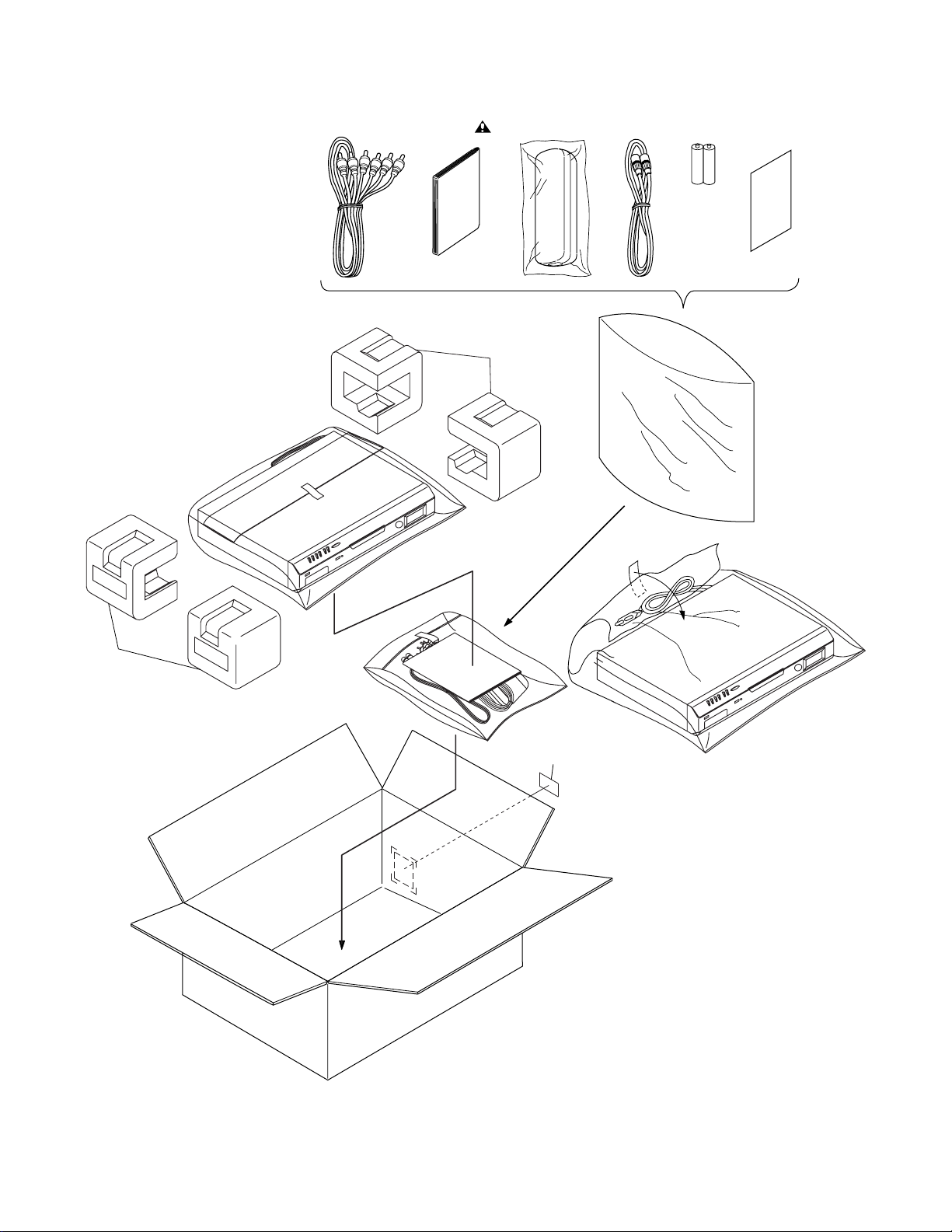

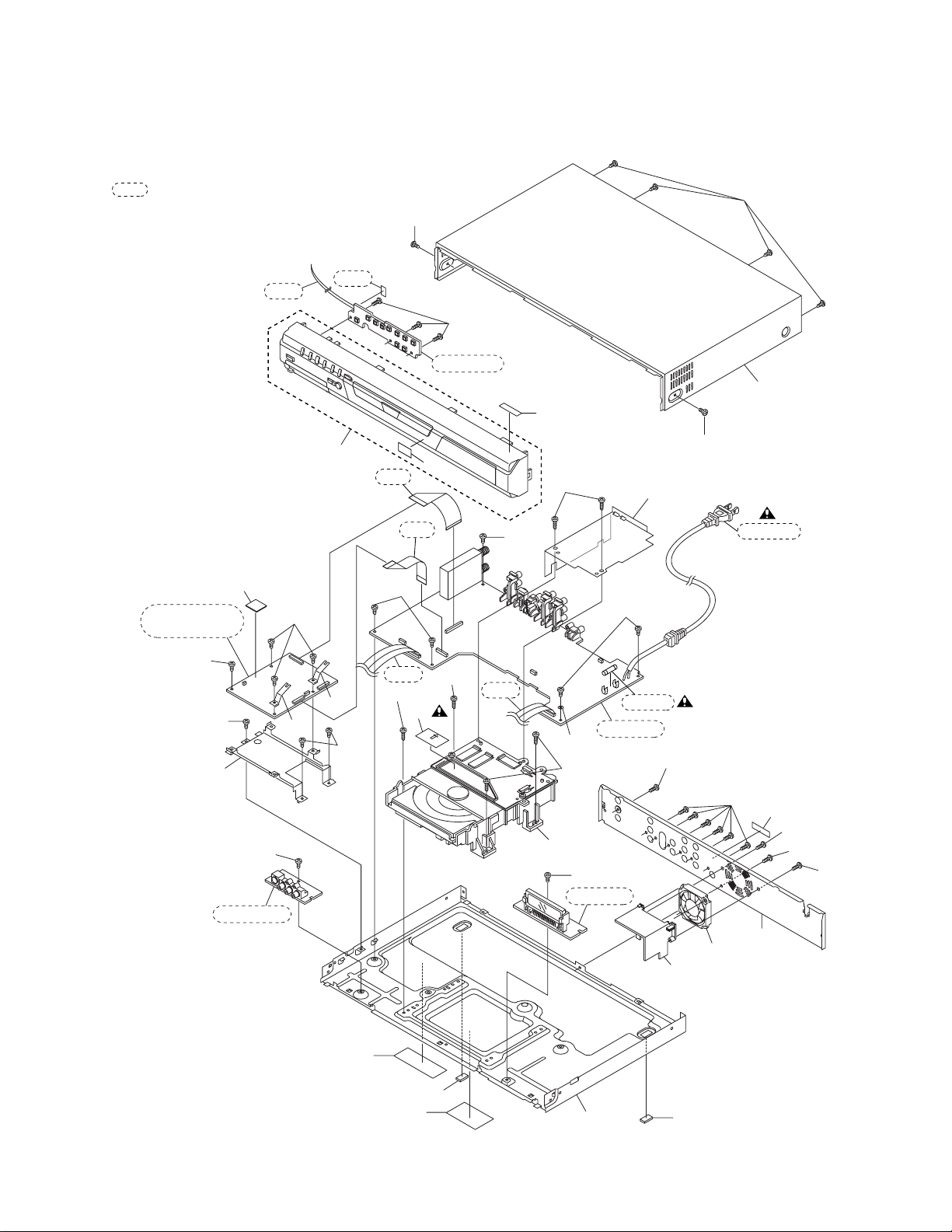

EXPLODED VIEWS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-15-1
MECHANICAL PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16-1
ELECTRICAL PARTS LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-17-1
Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

SPECIFICATIONS

ITEM CONDITIONS UNIT NOMINAL LIMIT
1. VIDEO
1-1. Video Output 75 ohm load Vp-p 1.0
1-2. S-Video Output
Y (Luminance) 75 ohm load Vp-p 1.0
C (Chrominance) 75 ohm load Vp-p 0.286
1-3. Component Output
Y (Luminance) 75 ohm load Vp-p 1.0
Cb (Chrominance) 75 ohm load Vp-p 0.7
Cr (Chrominance) 75 ohm load Vp-p 0.7
2. AUDIO
2-1. Output Level Vrms 2.0
2-2. Frequency Response
DVD-VIDEO LPCM fs = 96 kHz kHz 0.004 - 44
fs = 48 kHz kHz 0.004 - 22
Audio CD fs = 44.1 kHz kHz 0.004 - 20
2-3. Signal/Noise Ratio
DVD-VIDEO LPCM dB 120
CD dB 120
REC & Playback Input: 2 Vrms, Rec Speed: XP dB 93
2-4. Dynamic Range
DVD-VIDEO LPCM dB 100
CD dB 98
REC & Playback Input: 2 Vrms, Rec Speed: XP dB 92
2-5. THD+N 1 kHz, 0 dB
DVD-VIDEO LPCM % 0.004
CD % 0.004
REC & Playback Input: 2 Vrms, Rec Speed: XP % 0.006
NOTES:
1. All Items are measured without pre-emphasis unless otherwise specified.
2. Power supply : AC120 V 60 Hz
3. Load imp. : 100 k ohm
4. Room ambient : 5
°C ~ 40 °C
1-1-1 E6500SP

LASER BEAM SAFETY PRECAUTIONS

This DVD player uses a pickup that emits a laser beam.
Do not look directly at the laser beam coming from the pickup or allow it to strike against your skin.
The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep your eyes at least 30cm away from the pickup lens when the diode is turned on. Do not look directly at the laser beam.
Caution: Use of controls and adjustments, or doing procedures other than those specified herein, may result in hazardous radiation exposure.
Drive Mecha Assembly
Laser Beam Radiation
Laser Pickup
Turntable
Location: Inside Top of DVD mechanism.
1-2-1 E6_LASER

IMPORTANT SAFETY PRECAUTIONS

Product Safety Notice
Some electrical and mechanical parts have special safety-related characteristics which are often not evi­dent from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by a # on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The Product’s Safety is under review contin­uously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are carefully inspected to confirm with the recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally impor­tant to implement the following precautions when a set is being serviced.
Precautions during Servicing
A. Parts identified by the # symbol are critical for
safety. Replace only with part number specified.
B. In addition to safety, other parts and assemblies
are specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements. Examples: RF converters, RF cables, noise block­ing capacitors, and noise blocking filters, etc.
C. Use specified internal wiring. Note especially:
1)Wires covered with PVC tubing
2)Double insulated wires
3)High voltage leads
D. Use specified insulating materials for hazardous
live parts. Note especially:
1)Insulation tape
2)PVC tubing
3)Spacers
4)Insulators for transistors
E. When replacing AC primary side components
(transformers, power cord, etc.), wrap ends of wires securely about the terminals before solder­ing.
F. Observe that the wires do not contact heat produc-
ing parts (heatsinks, oxide metal film resistors, fus­ible resistors, etc.).
G. Check that replaced wires do not contact sharp
edges or pointed parts.
H. When a power cord has been replaced, check that
5 - 6 kg of force in any direction will not loosen it.
I. Also check areas surrounding repaired locations. J. Be careful that foreign objects (screws, solder
droplets, etc.) do not remain inside the set.
K. Crimp type wire connector
The power transformer uses crimp type connectors which connect the power cord and the primary side of the transformer. When replacing the transformer, follow these steps carefully and precisely to pre­vent shock hazards. Replacement procedure
1)Remove the old connector by cutting the wires at a point close to the connector.
Important: Do not re-use a connector. (Discard it.)
2)Strip about 15 mm of the insulation from the ends of the wires. If the wires are stranded, twist the strands to avoid frayed conductors.
3)Align the lengths of the wires to be connected. Insert the wires fully into the connector.
4)Use a crimping tool to crimp the metal sleeve at its center. Be sure to crimp fully to the complete clo­sure of the tool.
L. When connecting or disconnecting the internal con-
nectors, first, disconnect the AC plug from the AC outlet.
1-3-1 DVD_SFN1
Safety Check after Servicing
Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts, and wires have been returned to their original posi­tions. Afterwards, do the following tests and confirm the specified values to verify compliance with safety standards.
1. Clearance Distance
When replacing primary circuit components, confirm specified clearance distance (d) and (d’) between sol­dered terminals, and between terminals and surround­ing metallic parts. (See Fig. 1)
Table 1: Ratings for selected area
AC Line Voltage Clearance Distance (d) (d’)
Chassis or Secondary Conductor
Primary Circuit Terminals
dd'
120 V
Note: This table is unofficial and for reference only.
Be sure to confirm the precise values.
2. Leakage Current Test
Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF termi­nals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.) is lower than or equal to the specified value in the table below.
Measuring Method (Power ON) :
Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across the terminals of load Z. See Fig. 2 and the following table.
Table 2: Leakage current ratings for selected areas
AC Line Voltage Load Z Leakage Current (i) Earth Ground (B) to:
120 V
3.2mm (0.126 inches)
0.15µF CAP. & 1.5kΩ RES. Connected in parallel
Exposed Accessible Part
Z
1.5k
i0.5mA Peak Exposed accessible parts
0.15 F
Earth Ground
B
Power Cord Plug Prongs
AC Voltmeter (High Impedance)
Fig. 1
Fig. 2
Note: This table is unofficial and for reference only. Be sure to confirm the precise values.
1-3-2 DVD_SFN1

STANDARD NOTES FOR SERVICING

Circuit Board Indications
1. The output pin of the 3 pin Regulator ICs is indi­cated as shown.
Top View
Out
2. For other ICs, pin 1 and every fifth pin are indicated as shown.
Pin 1
3. The 1st pin of every male connector is indicated as shown.
Input
In
Bottom View
5
10
Pb (Lead) Free Solder
When soldering, be sure to use the Pb free solder.
How to Remove / Install Flat Pack-IC
1. Removal
With Hot-Air Flat Pack-IC Desoldering Machine:.
(1) Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1)
Pin 1
Instructions for Connectors
1. When you connect or disconnect the FFC (Flexible Foil Connector) cable, be sure to first disconnect the AC cord.
2. FFC (Flexible Foil Connector) cable should be inserted parallel into the connector, not at an angle.
FFC Cable
Connector
CBA
* Be careful to avoid a short circuit.
Fig. S-1-1
(2) Remove the flat pack-IC with tweezers while apply-
ing the hot air.
(3) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)
(4) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Caution:
1. The Flat Pack-IC shape may differ by models. Use an appropriate hot-air flat pack-IC desoldering machine, whose shape matches that of the Flat Pack-IC.
2. Do not supply hot air to the chip parts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protect other parts from damage. (Fig. S-1-2)
1-4-1 E6STA
3. The flat pack-IC on the CBA is affixed with glue, so be careful not to break or damage the foil of each pin or the solder lands under the IC when removing it.
With Soldering Iron:
(1) Using desoldering braid, remove the solder from all
pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)
CBA
Masking Tape
Tweezers
Hot-air Flat Pack-IC Desoldering Machine
Flat Pack-IC
Fig. S-1-2
Flat Pack-IC
Desoldering Braid
Soldering Iron
Fig. S-1-3
(2) Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air desoldering machine. (Fig. S-1-4)
Sharp Pin
Fine Tip Soldering Iron
(3) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)
(4) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Fig. S-1-4
1-4-2 E6STA
With Iron Wire:
(1) Using desoldering braid, remove the solder from all
pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)
(2) Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.
(3) While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5.
(4) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)
(5) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Note:
When using a soldering iron, care must be taken to ensure that the flat pack-IC is not being held by glue. When the flat pack-IC is removed from the CBA, handle it gently because it may be damaged if force is applied.
Hot Air Blower
2. Installation
(1) Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA so you can install a replacement flat pack-IC more easily.
(2) The “I” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1 on the PCB when positioning for installation. Then presolder the four corners of the flat pack-IC. (See Fig. S-1-8.)
(3) Solder all pins of the flat pack-IC. Be sure that none
of the pins have solder bridges.
Example :
Pin 1 of the Flat Pack-IC is indicated by a " " mark.
Fig. S-1-7
To Solid Mounting Point
CBA
Tweezers
Iron Wire
Soldering Iron
Fig. S-1-5
Fine Tip Soldering Iron
Flat Pack-IC
or
Presolder
Flat Pack-IC
CBA
Fig. S-1-8
Fig. S-1-6
1-4-3 E6STA
Instructions for Handling Semi-conductors
Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electro­static charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1M) that is prop­erly grounded to remove any static electricity that may be charged on the body.
2. Ground for Workbench
(1) Be sure to place a conductive sheet or copper plate
with proper grounding (1M) on the workbench or other surface, where the semi-conductors are to be placed. Because the static electricity charge on clothing will not escape through the body ground­ing band, be careful to avoid contacting semi-con­ductors with your clothing.
<Incorrect>
<Correct>
1M
CBA
Grounding Band
1M
CBA
Conductive Sheet or Copper Plate
1-4-4 E6STA

OPERATING CONTROLS AND FUNCTIONS

1-5-1 E6500IB
1-5-2 E6500IB

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart
This flowchart indicates the disassembly steps to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route, and dress the cables as they were originally.
[1] Top Cover
[2] Front Assembly
[4] DVD Mecha & FE Assembly
[5] DVD BE Main CBA Unit
[6] Holder D
[8] AV CBA
[9] FL CBA
[10] Jack CBA
[3] SW CBA
[7] DC Fan Motor
2. Disassembly Method
(1): Identification (location) No. of parts in the figures (2): Name of the part (3): Figure Number for reference (4): Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or desoldered. P=Spring, L=Locking Tab, S=Screw, CN=Connector, W=Washer *=Unhook, Unlock, Release, Unplug, or Desolder e.g. 2(S-2) = two Screws (S-2), 2(L-2) = two Locking Tabs (L-2)
(5): Refer to “Reference Notes.”
Reference Notes
CAUTION 1: Be sure to remove the Top Cover with lift­ing up by the right and left portion in the front as shown in Fig. D1.
CAUTION 2: Locking Tabs (L-1) and (L-2) are fragile. Be careful not to break them.
2-1. Release four Locking Tabs (L-1). Then, release
three Locking Tabs (L-2).
2-2. Disconnect Connector (CN4203), and remove
the Front Assembly.
ID/
LOC.
No.
[1] Top Cover D1 6(S-1) 1
[2]
[3] SW CBA D2 3(S-2) -
[4]
[5]
[6] Holder D D4 3(S-6) -
[7]
[8] AV CBA D5 5(S-7), 7(S-8), (W-1) -
PART
Front Assembly
DVD Mecha & FE Assembly
DVD BE Main CBA Unit
DC Fan Motor
Fig.
No.
D2
D3
D4
D4
REMOVAL
REMOVE/*UNHOOK/ UNLOCK/RELEASE/ UNPLUG/DESOLDER
*4(L-1), *3(L-2), *CN4203
2(S-3), 4(S-4), *CN1, *CN2202, Fan Sheet
4(S-5), *CN6, *CN7, BE Earth Spring
2(S-7), *CN2203, Fan Holder
Note
2 2-1 2-2
-
-
-
[1] Top Cover
(S-1)
(S-1)
(S-1)
Fig. D1
[9] FL CBA D5 (S-9), desolder -
[10] Jack CBA D5 (S-10), desolder -
(1)
(2)
(3)
(4)
(5)
1-6-1 E6500DC
[3] SW CBA
(S-2)
(L-1)
CN4203
[5] DVD BE Main CBA Unit
(S-5)
(S-6)
CN7
CN6
(S-5)
BE Earth Spring
(S-6)
Fan Holder
[7] DC Fan Motor
(L-2)
(S-2)
(L-1)
(L-1)
[2] Front Assembly
(S-3)
(S-4)
[6] Holder D
(S-7)
CN2203
Fig. D2
Fig. D4
Fan Sheet
(S-4)
[4] DVD Mecha & FE Assembly
CN1
CN2202
Fig. D3
1-6-2 E6500DC
[10] Jack CBA
(S-7)
(S-10)
(S-9)
(S-7)
(W-1)
(S-7)
[8] AV CBA
Lead with red stripe
[9] FL CBA
Desolder
HO W TO EJECT MANUALLY
1. Remove the Top Cover.
2. Remove the Front Assembly.
3. Push the lever to the direction of the arrow as shown below.
Lead with red stripe
(S-8)
Desolder
Fig. D5
View for A
Push the lever to the direction of the arrow
A
Lever
1-6-3 E6500DC

HOW TO INITIALIZE THE DVD RECORDER

To put the program back at the factory-default, initialize the DVD recorder as the following procedure.
1. Turn the DVD re co rder on.
2. To put the DVD recorder into the test mode, pr ess [CM SKIP], [5], [2], and [1] on the remote c ontrol in the order. Fig. A appears on the screen.
TEST MODE
1:MECHA TEST 2:FE TEST 3:BE TEST 4:F/E TEST 5:ETC TEST 6:REC TEST
Model Name : FE VER. : NAGAOKA3_024 MST0310 BE VER. : R1F1092 TT VER. : 03100410
*******
*
2E
Fig. A: Test Mode Screen
3. Select [5:ETC TEST] using arrow buttons on the remote control, then press [ENTER]. Fig. B appears on the screen.
5. P ress [ENTER], then the DVD recorder starts ini­tializing. Fig. D appears on the screen.
5-1:DEFAULT SETTING
RECALL DEFAULT : WRITING
Fig. D: Screen during initializing
6. When the initializing is completed, the indication of [WRITING] changes to [OK].
5-1:DEFAULT SETTING
RECALL DEFAULT : OK
5:ETC TEST
5-1 : DEFAULT SETTING 5-2 : REPEAT DISP 5-3 : VFD DISP 5-4 : LASER POWER
Model Name : FE VER. : NAGAOKA3_024 MST0310 BE VER. : R1F1092 TT VER. : 03100410
*******
*
2E
Fig. B: ETC Test Mode Screen
4. Select [5-1:DEFAULT SETTING] using arrow but­tons on the remote control, then press [ENTER]. Fig. C appears on the screen.
5-1:DEFAULT SETTING
RECALL DEFAULT : ENTER
Fig. E: Completed Initializing Screen.
7. To exit from the test m ode, press [POWER] button to turn the power off. Then the power turns on auto­matically.
Fig. C: Default Setting Mode Screen
1-6-4 E6500DC

BLOCK DIAGRAMS

System Control Block Diagram
TO POWER SUPPLY
POW-SW
REG-CONT
646125
POW-SW
REG-COUT
BLOCK DIAGRAM
PWSW
PWSW
FID
42
FID
TO VIDEO
V-MUTE
SUB-SDA
39
V-MUTE
BLOCK DIAGRAM
SUB-SCL
TO AUDIO
BLOCK DIAGRAM
A-MUTE
AUDIO-SW1
AUDIO-SW2
4745465453
A-MUTE
AUDIO-SW1
AUDIO-SW2
SUB-SCL
SUB-SDA
SUB-SDA
SUB-SCL
X4201
23
X OUT
8MHz
RESONATOR
22
X IN
X4202
32.768KHz
X'TAL
21
20
XC IN
XC OUT
Q4261
IC4202
EV+5V
RESET
4 5
19
RESET
16
P-DOWN
Q4262
C4261
57
VCC
(BACKUP CAPACITOR)
FIP
FL2301
GRID
~
23
~
1G
(FIP DRIVER)
DIN
CLK
IC2301
1
28
CN2301CN2204
FL-SDA 55FL-SCL 6
6
9
10
FL-SCL
FL-SDA
17 7G
STB 2
FL-STB 7
7
8
FL-STB
RE2301
8
REMOTE
8
4
REMOTE
SEGMENT
~
7
~
a
SENSOR
REMOTE
FL CBA
16
14
i
h
KEY SWITCH
KEY SWITCH
SW CBA
KEY-1 2
KEY-2 3
2
3
CN4203 CN3001
1
2
KEY-1
KEY-2
AV CBA
IC4201
(SUB MICRO CONTROLLER)
IC3
(MAIN MICRO CONTROLLER)
SUB-RXD
SYS-RESET
4052515041
CN4401
SYS-RESET 6
SUB-RXD 5
6
5
CN7
Q16
F24
D22
SUB-RXD
SYS-RESET
SUB-TXD
SUB-SCLK
RDY
SUB-TXD 3
RDY 4
SUB-SCLK 1
3
4
1
Q17
F25
H22
G22
RDY
SUB-TXD
SUB-SCLK
IC7
(INVERTER)
27MHz CLK
27MHz CLK
N23
R23
1 6
3
27MHz
X'TAL
4
X3
DVD BE MAIN CBA
1-7-1
E6500BLS
Digital Signal Process Block Diagram
TO VIDEO
BLOCK DIAGRAM
SCL
SDA
VIDEO-Y
AE12
Y
D/A
VIDEO-C
AC13
C
D/A
VIDEO
ENCODER
VIDEO-Cr
VIDEO-Cb
AD12
Cr
Cb
D/A
AE13
D/A
VID(0-7)
AD22,AF24
AC19,AE22,
AE23,AC20,
AC21,AB18,
S-CLK
IC9-RESET
E25
AD21
S-CLK
IC9-RESET
Y4
SCL
AD2
SDA
SPDIF
AB23
BCK
AUDIO
DATA
AD25
I/F
AC25
LRCK
AB22
MD
H24
MD
MC
J22
MC
TO AUDIO
BLOCK DIAGRAM
ML
SCK
LRCK
BCK
DATA
SYSCLK
DVD BE MAIN CBA UNITDVD FE MAIN CBA UNIT
J23
ML
AC23
SCK
AB19
SYSCLK
AB20
AUDIO
AB21
I/F
AD24
FLASH MEMORY
DDR SDRAM
REC VIDEO SIGNAL PB VIDEO SIGNAL REC AUDIO SIGNAL PB AUDIO SIGNAL
IC3 (MAIN MICRO CONTRLLER)IC5301
VIDEO
I/F
CN1CN5301
BACK-END
DIGITAL
SIGNAL
FRONT-END
PROCESS
DIGITAL
SIGNAL
PROCESS
IC6 (FLASH MEMORY)
IC5401
IC1,IC2 (DDR SDRAM)
SDRAM
DVD MECHA
IC5202
RF/
ERROR AMP
CN5101
TILT
PICK
IC5501
TRACKING
-UP
FOCUS
MOTOR
DRIVER
CN5603B
SLED
MOTOR
M
CN5502B
LOADING
MOTOR
FLASH
MEMORY
FRONT-END
MICRO
CN5602B
TRAY
CLOSE
TRAY
OPEN
CONTROLLER
LOADER CBA
IC5704
IC5503
MOTOR
CN5501
SPINDLE
MOTOR
DRIVER
M
E6500BLD
IC5703
CN5603
M
FE
ENCODER
ENCODER CBA
1-7-2
Video Block Diagram
JK4101
C
3 4
Y
S-VIDEO
OUT
2
1
COMPOSITE
JK4102
VIDEO OUT
JK4103
VIDEO-Y
OUT
VIDEO-Cb
OUT
VIDEO-Cr
OUT
JK4101
C
3 4
Y
S-VIDEO
IN1
2
1
JK4102
VIDEO IN1
TU4001
TU-VIDEO
17
JK4601
C
3 4
Y
S-VIDEO
IN2
2
1
JK4602
VIDEO IN2
JACK CBA
REC VIDEO SIGNAL PB VIDEO SIGNAL
13
2dB
AMP
LPF DRIVER
4dB
AMP
IC4401 (VIDEO DRIVER)
3
WF3
8dB
WF1
C4411
14
DRIVER
AMP
-6dB
WF2
15
2dB
AMP
LPF DRIVER
4dB
AMP
1
CN4401
712VIDEO-Y
CN601
2dB
4dB
WF4
12 14VIDEO-C
11
AMP
LPF DRIVER
AMP
6
88VIDEO-Cr
10 10VIDEO-Cb
16 16VIDEO-Y
10
DRIVER
2dB
AMP
LPF
4dB
AMP
8
18 18VIDEO-C
22FID
MUTE
WF5
Y-IN2
C-IN2
VIDEO-IN2
44
22
66
CN4101 CN4601
7
BUFFER
9
VIDEO1
VIDEO2
11
TU-VIDEO
131915
TO SYSTEM CONTROL
BLOCK DIAGRAM
FID
V-MUTE
5
Q4502
BUFFER
Y1
COMPOSITE
Y2
(VIDEO INPUT SELECT)
IC4163
BUFFER LPF
Q4505
1203
TO SYSTEM CONTROL
C1
C2
SERIAL
BUFFER LPF
BLOCK DIAGRAM
SUB-SCL
SUB-SDA
AV CBADVD BE MAIN CBA
22 23
I/F
VIDEO-Y
VIDEO-C
VIDEO-Cb
VIDEO-Cr
TO DIGITAL
1-7-3
SIGNAL
PROCESS
BLOCK
DIAGRAM
BUFFER LPF
Q19
Q20
1
MUX
AGCA/D
Y D ATA
PROCESS
FORMATTER
(VIDEO DECODER)
IC9
11-18
VID(0-7)
BUFFER LPF
2
C D ATA
PROCESS
Q18
249
V-SYNC
S-CLK
X1
RESET
8
IC9-RESET
14.31818MHz
X'TAL
5
6
PLL
SERIAL
I/F
21
22
SCL
SDA
E6500BLV
Loading...
+ 43 hidden pages
