Sylvania DVP-2003 Schematic
SERVICE MANUAL
DVD PLAYER
DVP-2003
TABLE OF CONTENTS
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1
LASER BEAM SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1
IMPORTANT SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1
STANDARD NOTES FOR SERVICING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-1
CABINET DISASSEMBLY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5-1
BLOCK DIAGRAMS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6-1

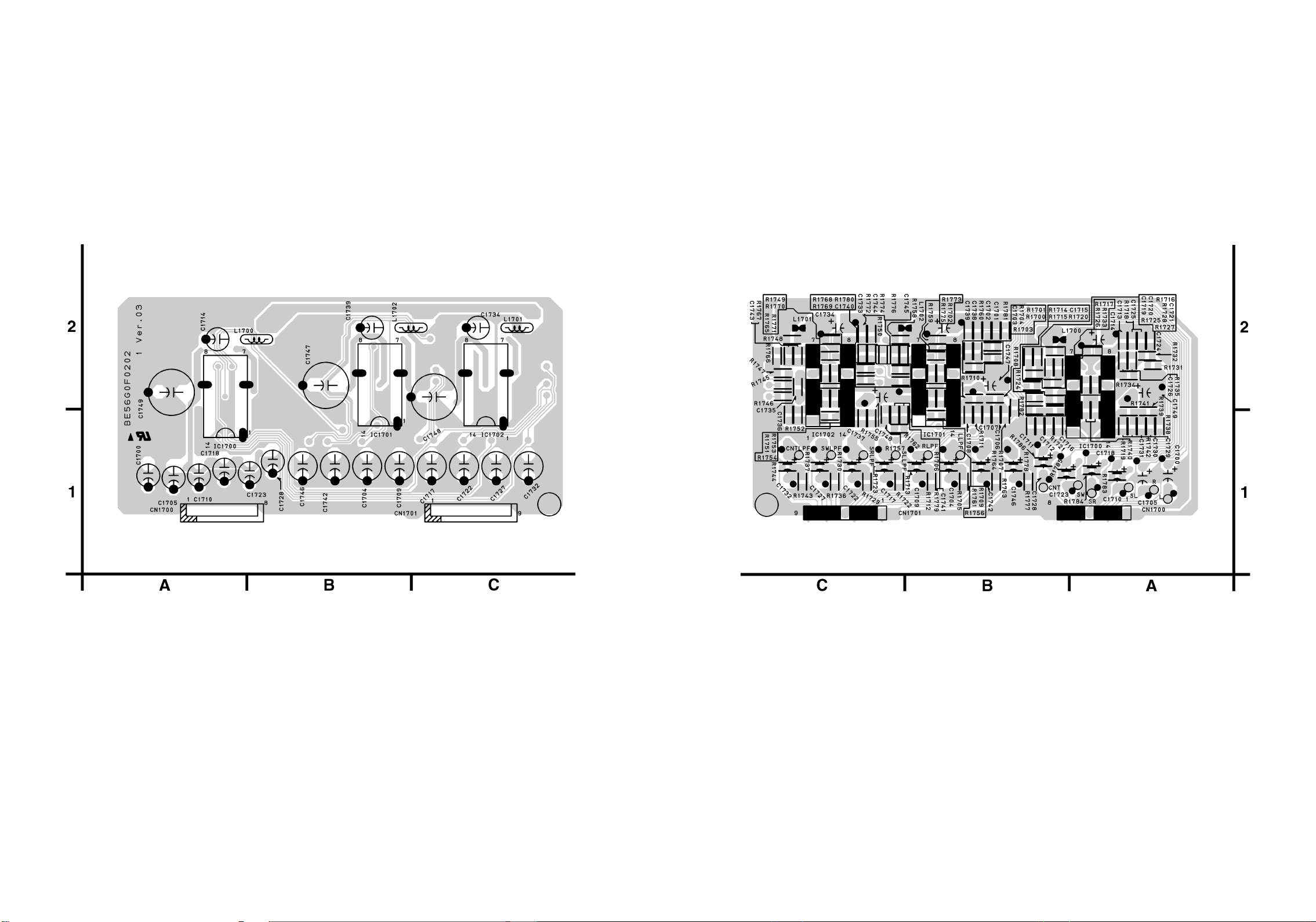

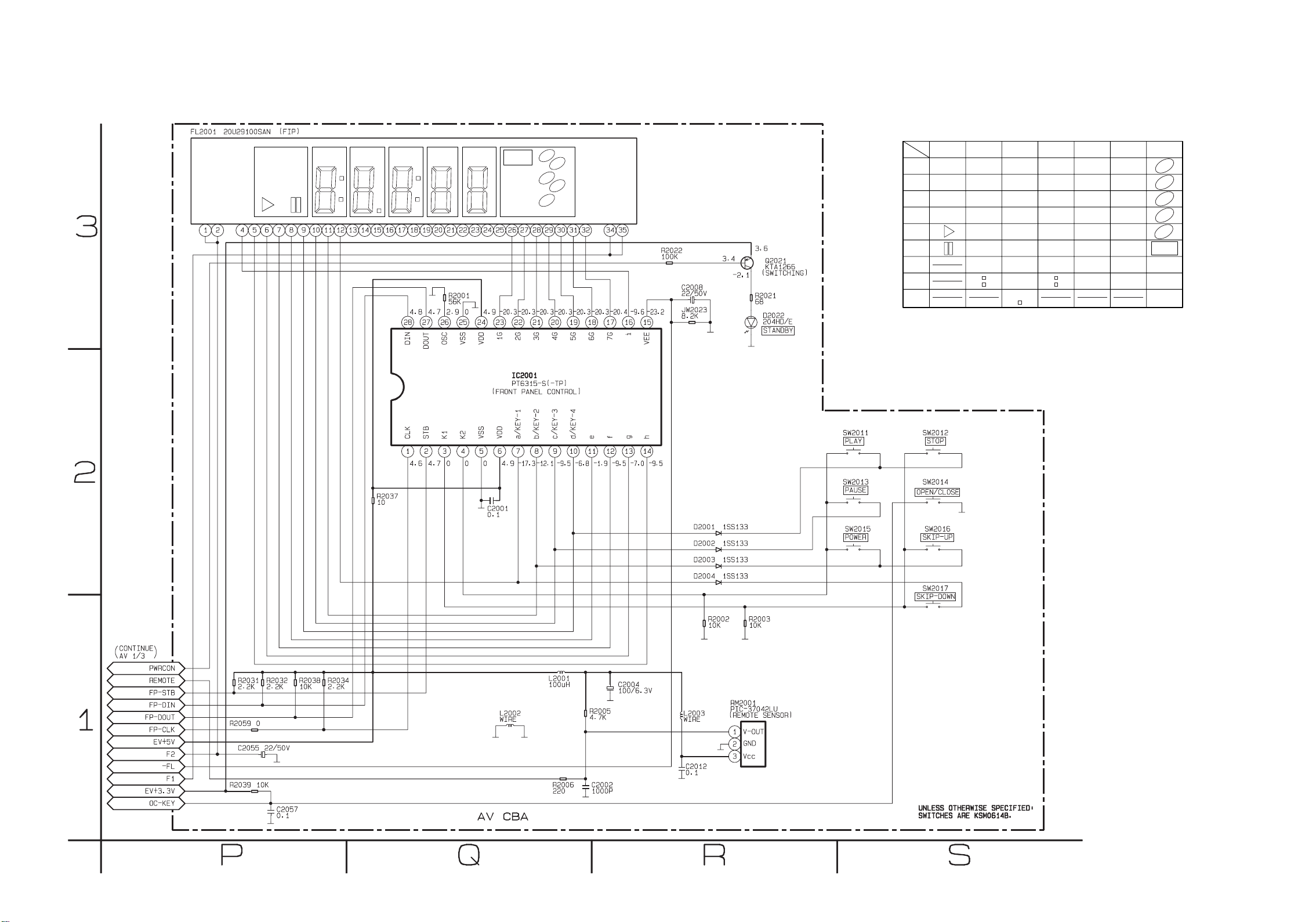

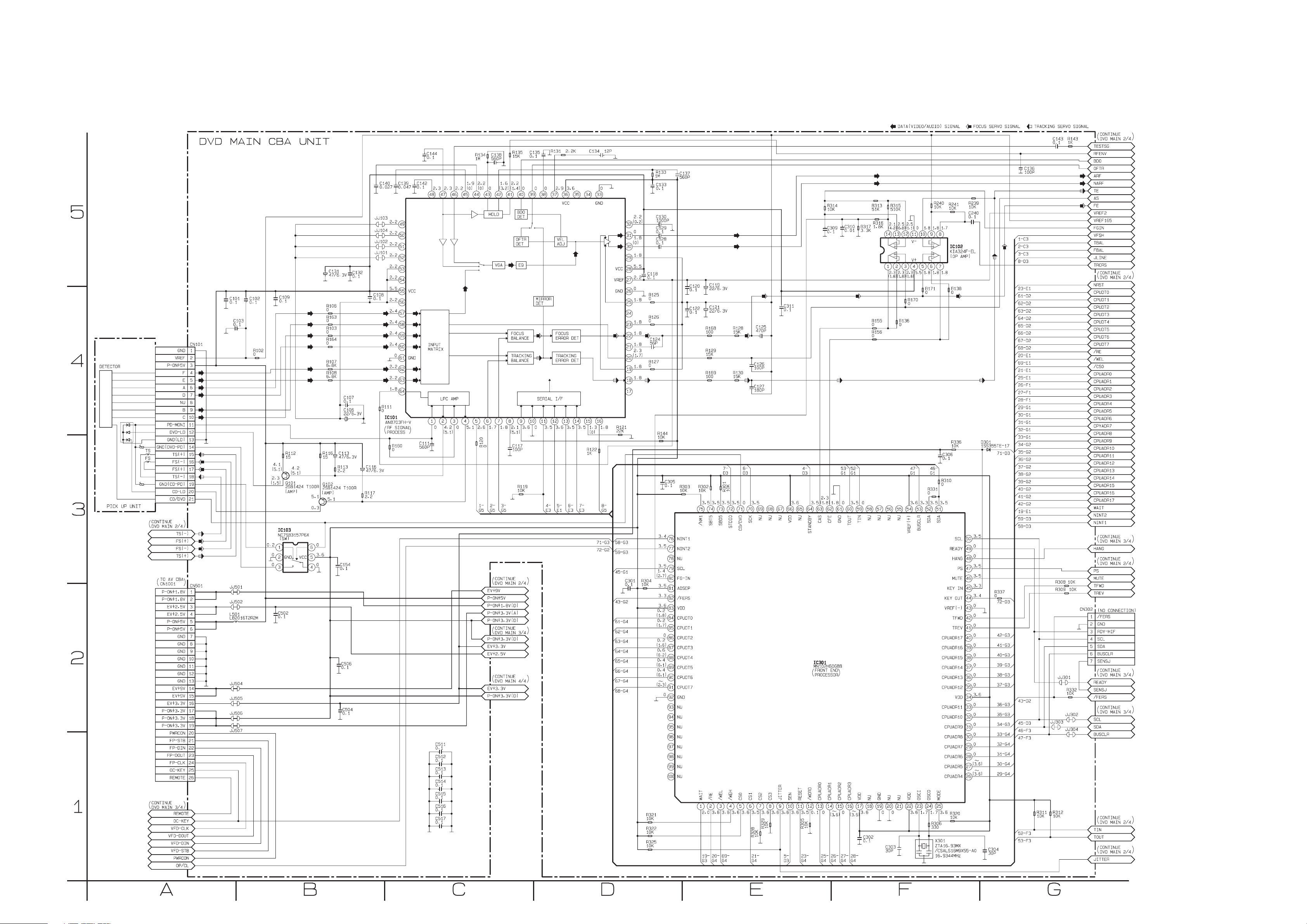

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1

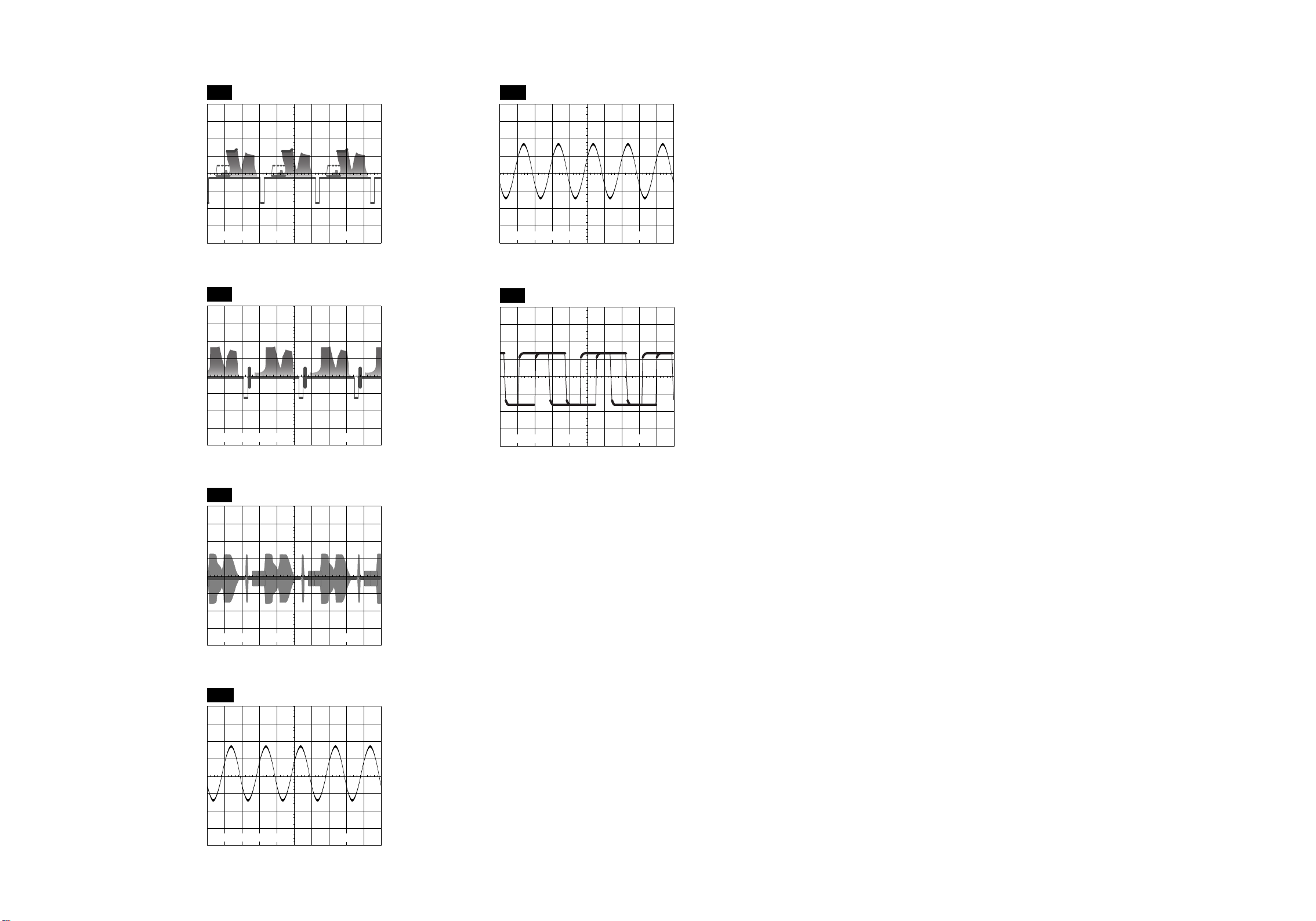

WAVEFORMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8-1
WIRING DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9-1

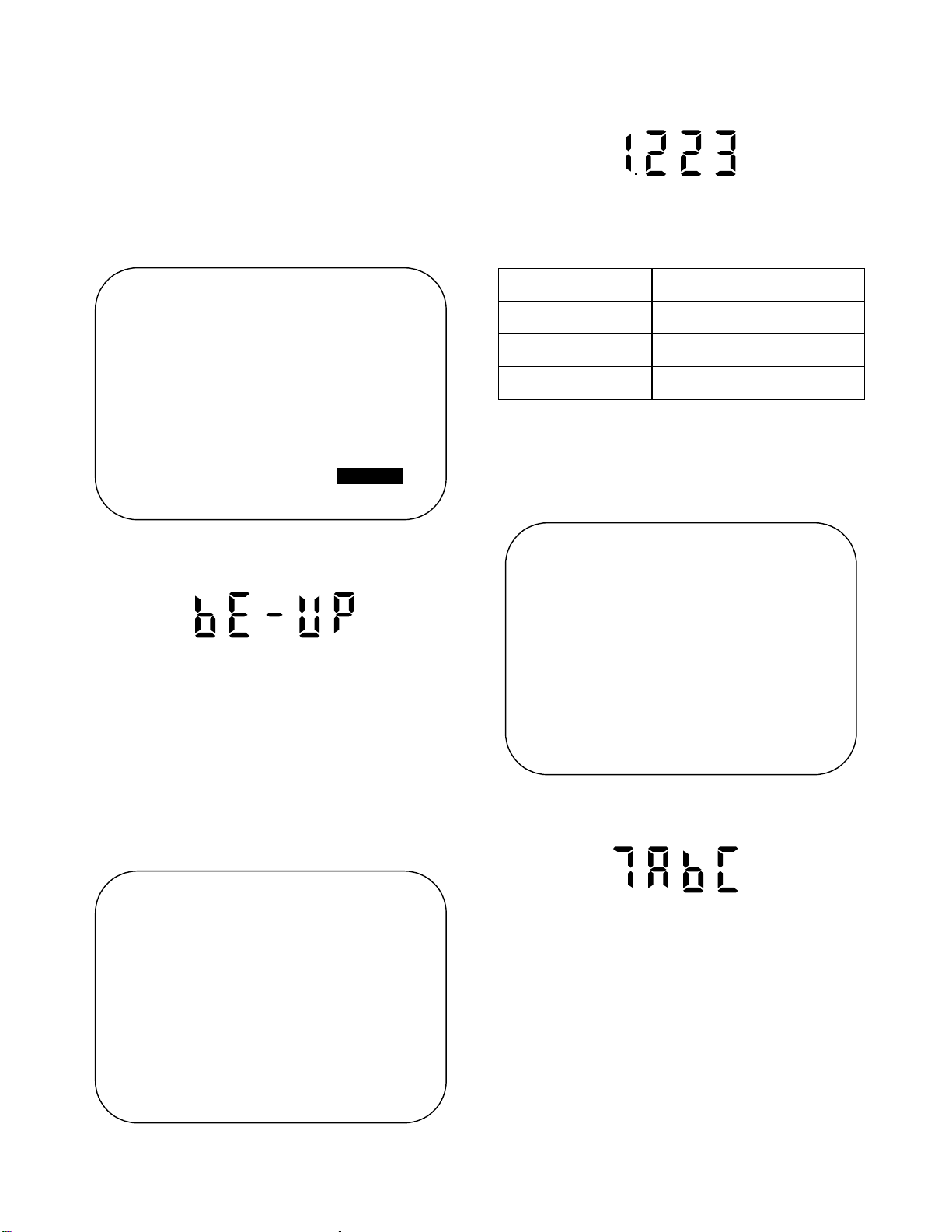

FIRMWARE RENEWAL MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10-1
SYSTEM CONTROL TIMING CHARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11-1
IC PIN FUNCTION DESCRIPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12-1

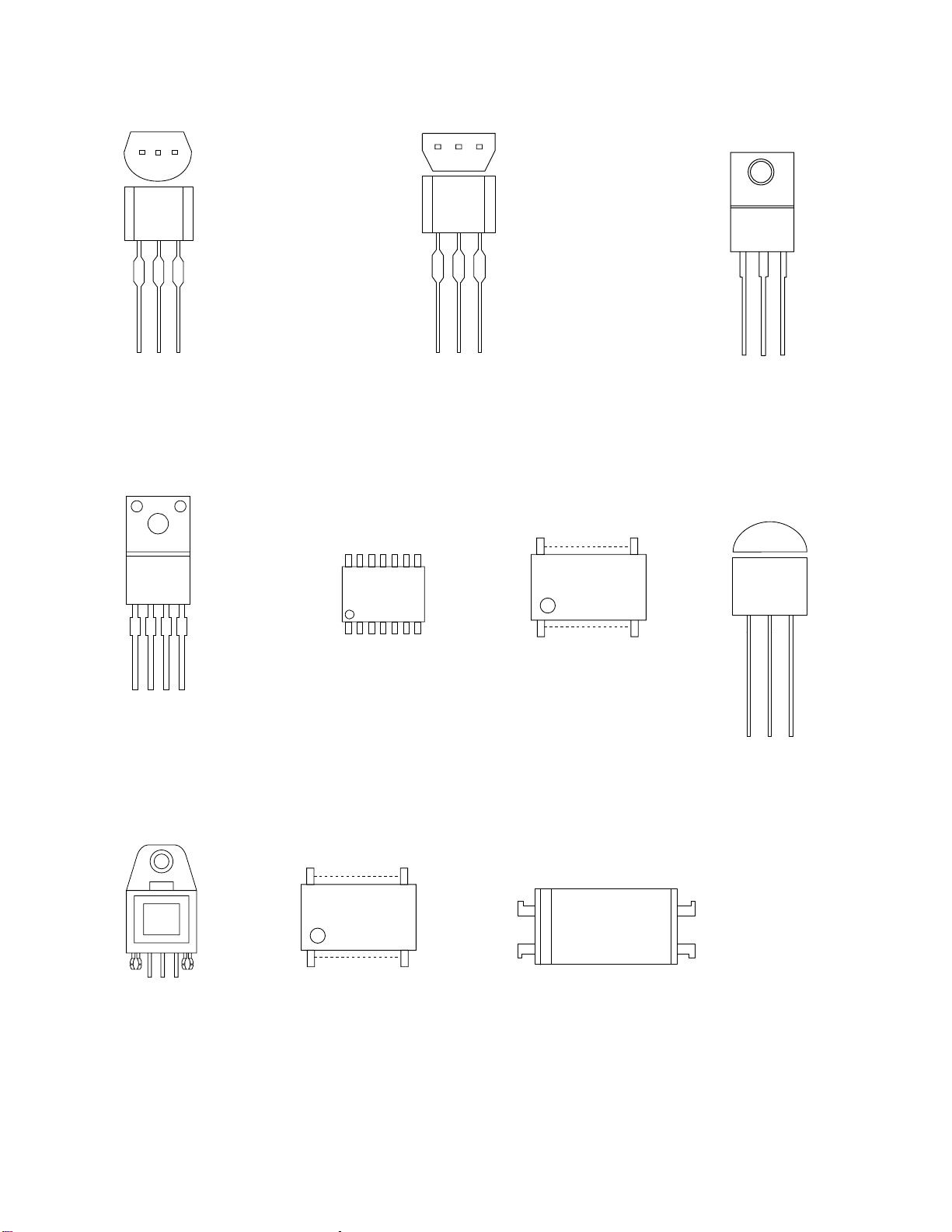

LEAD IDENTIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13-1
EXPLODED VIEWS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-1
MECHANICAL PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15-1
ELECTRICAL PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16-1
Manufactured under license from Dolby Laboratories. "Dolby"
and the double-D symbol are trademarks of Dolby Laboratories.
"DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems Inc.
SPECIFICATIONS
ITEM CONDITIONS UNIT NOMINAL LIMIT
1. Video Output 75 ohm load Vpp 1.0
2. Optical Digital Out dBm -18
3. Audio (PCM)
3-1. Output Level 1kHz 0dB Vrms 2.0
3-2. S/N dB 110
3-3. Freq. Response
DVD fs=48kHz 20~22kHz dB ± 2
CD fs=44.1kHz 20~20 kHz dB ± 2
3-4. THD+N 1 kHz 0dB % 0.005
NOTES:
1. All Items are measured without pre-emphasis unless otherwise specified.
2. Power supply : AC230 V 60 Hz
3. Load imp. : 100 K ohm
C
4. Room ambient : +25
°
1-1-1 E5638SP
LASER BEAM SAFETY PRECAUTIONS
This DVD player uses a pickup that emits a laser beam.
Do not look directly at the laser beam coming
from the pickup or allow it to strike against
your skin.
The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep
your eyes at least 30cm away from the pickup lens when the diode is turned on. Do not look directly at the laser
beam.
Caution:
hazardous radiation exposure.
Use of controls and adjustments, or doing procedures other than those specified herein, may result in
Drive Mecha Assembly
Laser Beam Radiation
Laser Pickup
Turntable
CAUTION - VISIBLE LASER
RADIATION WHEN OPEN AND
INTERLOCK DEFEATED.
AVOID EXPOSURE TO BEAM.
Location: Inside Top of DVD mechanism.
1-2-1 DVD_LASER
IMPORTANT SAFETY PRECAUTIONS
Product Safety Notice
Some electrical and mechanical parts have special
safety-related characteristics which are often not evident from visual inspection, nor can the protection
they give necessarily be obtained by replacing them
with components rated for higher voltage, wattage,
etc. Parts that have special safety characteristics are
identified by a ! on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/or other
hazards. The Product’s Safety is under review continuously and new instructions are issued whenever
appropriate. Prior to shipment from the factory, our
products are carefully inspected to confirm with the
recognized product safety and electrical codes of the
countries in which they are to be sold. However, in
order to maintain such compliance, it is equally important to implement the following precautions when a set
is being serviced
Precautions during Servicing
Parts identified by the ! symbol are critical for
A.
safety. Replace only with part number specified.
In addition to safety, other parts and assemblies
B.
are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.
Use specified internal wiring. Note especially:
C.
1)Wires covered with PVC tubing
2)Double insulated wires
3)High voltage leads
Use specified insulating materials for hazardous
D.
live parts. Note especially:
1)Insulation tape
2)PVC tubing
3)Spacers
4)Insulators for transistors
When replacing AC primary side components
E.
(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before soldering.
Observe that the wires do not contact heat produc-
F.
ing parts (heatsinks, oxide metal film resistors, fusible resistors, etc.).
Check that replaced wires do not contact sharp
G.
edges or pointed parts.
When a power cord has been replaced, check that
H.
5 - 6 kg of force in any direction will not loosen it.
.
Also check areas surrounding repaired locations.
I.
Be careful that foreign objects (screws, solder
J.
droplets, etc.) do not remain inside the set.
Crimp type wire connector
K.
The power transformer uses crimp type connectors
which connect the power cord and the primary side
of the transformer. When replacing the transformer,
follow these steps carefully and precisely to prevent shock hazards.
Replacement procedure
1)Remove the old connector by cutting the wires at a
point close to the connector.
Important:
2)Strip about 15 mm of the insulation from the ends
of the wires. If the wires are stranded, twist the
strands to avoid frayed conductors.
3)Align the lengths of the wires to be connected.
Insert the wires fully into the connector.
4)Use a crimping tool to crimp the metal sleeve at its
center. Be sure to crimp fully to the complete closure of the tool.
When connecting or disconnecting the internal con-
L.
nectors, first, disconnect the AC plug from the AC
outlet.
Do not re-use a connector. (Discard it.)
1-3-1 DVD_SFNP
Safety Check after Servicing
Examine the area surrounding the repaired location for
damage or deterioration. Observe that screws, parts,
and wires have been returned to their original positions. Afterwards, do the following tests and confirm
the specified values to verify compliance with safety
standards.
1. Clearance Distance
When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)
Table 1 : Ratings for selected area
AC Line Voltage Clearance Distance (d) (d’)
Chassis or Secondary Conductor
Primary Circuit Terminals
dd'
230 V
This table is unofficial and for reference only.
Note:
Be sure to confirm the precise values.
≥ 3mm(d)
≥ 6 mm(d’)
2. Leakage Current Test
Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs)
and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and
output terminals, microphone jacks, earphone jacks,
etc.) is lower than or equal to the specified value in the
table below.
Measuring Method (Power ON) :
Insert load Z between B (earth ground, power cord
plug prongs) and exposed accessible parts. Use an
AC voltmeter to measure across the terminals of load
Z. See Fig. 2 and the following table.
Table 2: Leakage current ratings for selected areas
AC Line Voltage Load Z Leakage Current (i)
2kΩ RES.
Connected in
parallel
230 V
50kΩ RES.
Connected in
parallel
i≤0.7mA AC Peak
i≤2mA DC
i≤0.7mA AC Peak
i≤2mA DC
Exposed Accessible Part
Z
One side of
B
Power Cord Plug Prongs
One side of power cord plug
prongs (B) to:
Antenna terminals
A/V Input, Output
AC Voltmeter
(High Impedance)
RF or
Fig. 1
Fig. 2
This table is unofficial and for reference only. Be sure to confirm the precise values.
Note:
1-3-2 DVD_SFNP
STANDARD NOTES FOR SERVICING
Circuit Board Indications
a. The output pin of the 3 pin Regulator ICs is indi-
cated as shown.
Top View
Out
b. For other ICs, pin 1 and every fifth pin are indicated
as shown.
Input
In
Pin 1
c. The 1st pin of every male connector is indicated as
shown.
Pin 1
Bottom View
5
10
How to Remove / Install Flat Pack-IC
1. Removal
With Hot-Air Flat Pack-IC Desoldering Machine:
(1) Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)
Fig. S-1-1
(2) Remove the flat pack-IC with tweezers while apply-
ing the hot air.
(3) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(1) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
.
Instructions for Connectors
1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.
2. FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an angle.
FFC Cable
Connector
CBA
* Be careful to avoid a short circuit.
Caution:
1. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage to
the chip parts may occur. Put masking tape around
the flat pack-IC to protect other parts from damage.
(Fig. S-1-2)
2. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when removing
it.
Hot-air
Flat Pack-IC
Desoldering
CBA
Masking
Tape
Tweezers
Machine
Flat Pack-IC
Fig. S-1-2
1-4-1 DVD_NOTE
With Soldering Iron:
(1) Using desoldering braid, remove the solder from all
pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you
can remove it easily. (Fig. S-1-3)
Flat Pack-IC
Desoldering Braid
(4) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(5) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Note:
When using a soldering iron, care must be taken
to ensure that the flat pack-IC is not being held by
glue. When the flat pack-IC is removed from the
CBA, handle it gently because it may be damaged
if force is applied.
Soldering Iron
Fig. S-1-3
(2) Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)
Sharp
Pin
Fine Tip
Soldering Iron
Fig. S-1-4
(3) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(4) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
With Iron Wire:
(1) Using desoldering braid, remove the solder from all
pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you
can remove it easily. (Fig. S-1-3)
(2) Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.
(3) While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA contact
pads as shown in Fig. S-1-5
To Solid
Mounting Point
CBA
Tweezers
Hot Air Blower
or
Iron Wire
Soldering Iron
Fig. S-1-5
Fine Tip
Soldering Iron
Flat Pack-IC
Fig. S-1-6
1-4-2 DVD_NOTE
2. Installation
(1) Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.
(2) The “I” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)
(3) Solder all pins of the flat pack-IC. Be sure that none
of the pins have solder bridges.
Example :
Pin 1 of the Flat Pack-IC
is indicated by a " " mark.
Fig. S-1-7
Instructions for Handling
Semi-conductors
Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by electrostatic charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1MΩ) that is properly grounded to remove any static electricity that may
be charged on the body.
2. Ground for Workbench
(4) Be sure to place a conductive sheet or copper plate
with proper grounding (1MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding band, be careful to avoid contacting semi-conductors with your clothing.
< Incorrect >
CBA
Presolder
Flat Pack-IC
Fig. S-1-8
CBA
< Correct >
Grounding Band
1MΩ
CBA
1MΩ
Conductive Sheet or
Copper Plate
1-4-3 DVD_NOTE
CABINET DISASSEMBLY INSTRUCTIONS
1. Disassembly Flowchart
This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.
[1] Top Cover
[2] Front Assembly
[3] 5.1CH CBA
[4] DVD Mecha
[6] DVD Main CBA Unit[5] AV CBA
[7] Rear Panel
2. Disassembly Method
REMOVAL
ID/
LOC.
No.
[1] Top Cover 1 5(S-1) -
[2]
[3]
[4]
[5] AV CBA 5
[6]
PART
Front
Assembly
5.1CH
CBA
DVD
Mecha
DVD Main
CBA Unit
REMOVE/*UNHOOK/
Fig.
UNLOCK/RELEASE/
No.
UNPLUG/DESOLDER
*2(L-1), Tray Panel,
2
*2(L-2), *5(L-3)
2 *CN1201,*CN1202 -
3(S-2), *CN101,
3,4
*CN401
6(S-3), 6(S-4),
*CN1001, *CN1601
53(S-5) -
Note
1-1
1-2
1-3
1-4
1-5
1-6
2-1
2-2
2-3
2
3
-
(1): Identification (location) No. of parts in the figures
(2): Name of the part
(3): Figure Number for reference
(4): Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or
desoldered.
P=Spring, L=Locking Tab, S=Screw,
CN=Connector
*=Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)
(5): Refer to “Reference Notes.”
Reference Notes
CAUTION 1: Locking Tabs (L-1), (L-2) and (L-3) are
fragile. Be careful not to break them.
1-1. Connect the wall plug to an AC outlet and press
the OPEN/CLOSE button to open the Tray.
1-2. Remove the Tray Panel by releasing two Locking
Tabs (L-1).
1-3. Press the OPEN/CLOSE button again to close
the Tray.
1-4. Press the POWER button to turn the power off.
1-5. Unplug an AC cord.
1-6. Release two Locking Tabs (L-2). Then, release
five Locking Tabs (L-3) (to do this, first release
two Locking Tabs (A) at the side, and then three
Locking Tabs (B) at the bottom.)
CAUTION 2: Electrostatic breakdown of the laser
diode in the optical system block may occur as a
potential difference caused by electrostatic charge
accumulated on cloth, human body etc, during
unpacking or repair work.
To avoid damage of pickup follow next procedures.
2-1. Slide out the pickup unit as shown in Fig. 4.
2-2. Short the three short lands of FPC cable with sol-
der before removing the FFC cable (CN101) from
it. If you disconnect the FFC cable (CN101), the
laser diode of pickup will be destroyed. (Fig. 4)
2-3. Disconnect Connector (CN401). Remove three
Screws (S-2) and lift the DVD Mecha. (Fig. 3)
CAUTION 3: When reassembling, confirm the FFC
cable (CN101) is connected completely. Then remove
the solder from the three short lands of FPC cable.
(Fig. 4)
[7]
↓
(1)
Rear
Panel
↓
(2)
63(S-6) -
↓
(3)
↓
(4)
↓
(5)
1-5-1 E56G0DC
(S-1)
[1] Top Cover
(S-1)
DVD Mecha
A
B
(L-1)
(A)
(B)
Tray Panel
(L-1)
(L-3)
(S-2)
(L-2)
CN1201
[2] Front Assembly
(A)
(S-2)
(S-1)
Fig. D1
[3] 5.1CH
CBA
CN1202
Fig. D2
Slide
Pickup Unit
View for B
Short the three short lands by soldering
View for A
OR
Short the three short
lands by soldering
C
View for C
Fig. D4
CN401
[4] DVD Mecha
CN101
Fig. D3
1-5-2 E56G0DC
CN1601
[4] AV CBA
(S-5)
[5] DVD Main CBA Unit
CN1001
(S-4)
HOW TO MANUAL EJECT
(S-3)
(S-4)
Fig. D5
(S-6)
[6] Rear Panel
(S-3)
Fig. D6
1. Remove the Top Case.
2. Insert the eject-bar (length = approximately 80
mm, diameter = approximately 3 mm) into the
manual eject hole on the DVD Mecha. Then,
press it until the tray is ejected.
Top Case
1
Tray
Manual
Eject Hole
DVD Mecha
2
3
Eject-Bar (Length = approximately 80 mm, Diameter = approximately 3 mm)
1-5-3 E56G0DC
System Control Block Diagram
IC301
(FRONT END PROCESSOR)
FROM/TO
RF SIGNAL
PROCESS
/SERVO
BLOCK
DIAGRAM
FROM/TO
DVD SIGNAL
PROCESS
BLOCK
DIAGRAM
TFWD
TREV
TIN
TOUT
SCK
STDIO
SEN
MUTE
PS
CD/DVD
CFE
CAS
STANDBY
ADDRESS BUS
DATA BUS
NINT1
NINT2
WAIT
/RE
/WEL
CS1
RESET
TFWD
42
41
TREV
TIN
59
60
TOUT
SCK
70
STDIO
72
SEN
10
46 MUTE
47 PS
CD/DVD
71
CFE
62
CAS
63
STANDBY
64
13
~
16
26
CPUADR0
~
33
CPUADR17
35
40
CPUDT0
84
~ ~~
~
91
CPUDT7
76
NINT1
77
NINT2
WAIT
1
/RE
2
/WEL
3
CS1
6
RESET
11
HANG
READY
/FERS
OSCI
OSCO2324
SDA
SDA
SCL
KEY OUT
KEY IN
BLOCK DIAGRAMS
IC601
(DVD HOST PROCESSOR)
TFWD
200
TREV
201
187
TIN
TOUT
188
+3.3V
IC605
RESET
+3.3V
124
208
186
120
20
21
127
READY
/FERS
CLOCK
SDA
SCL
IRQ2
RESET
5 4
48
49
82
X301
(16.9344MHz)
53 22BUSCLR BUSCLR
52
51
50
79SCL
44
45
IC102 (OP AMP)
Q701
IC606
(INVERTER)
2 4
X601 27MHz
TO VIDEO
BLOCK DIAGRAM
VFD-DOUT
VFD-CLK
PWECON
REMOTE
OC-KEY
ASPECT
ASPECT
CN501 CN1001
3VFD-STB
1VFD-DIN
2
204
207
125
CN501 CN1001
105
193
FP-STB 2121
FP-DIN 2222
FP-DOUT 2323
FP-CLK 2424
PWRCON 2020
REMOTE 2626
OC-KEY 2525
RM2001
REMOTE
SENSOR
IC2001
(FRONT PANEL CONTROL)
1G
~
7G
a/KEY-1
b/KEY-2
c/KEY-3
d/KEY-4
e
f
2
FP-STB
28
FP-DIN
27
FP-DOUT
1
FP-CLK
+3.3V
Q2021
g
h
i
K2
K1
D2022
STANDBY
23
17
10
11
12
13
14
16
FL2001
~
7
8
9
4
3
GRID FIP
SEGMENT
KEY
MATRIX
SW2014
OPEN/CLOSE
FG
SENSOR
FG CBA
RELAY
CBA
CN401
FG-IN10
FG-IN
1480
12
AV CBA
DVD MAIN CBA UNIT
1-6-1 1-6-2 E56G0BLS
RF Signal Process/Servo Block Diagram
PICK-UP UNIT
DETECTOR
A 6
B 9
C 10
D 7
F 4
E 5
CD/DVD 21
CD-LD 20
DVD-LD 12
PD-MONI 11
GND(DVD-PD)
GND(LD) 13
GND(CD-PD)
CN101
CN101
14
19
IC103
(SW)
AMP
Q101
1 3
Q102
AMP
DATA(VIDEO/AUDIO) SIGNAL FOCUS SERVO SIGNAL TRACKING SERVO SIGNAL
IC101 (RF SIGNAL PROCESS)
HOLD
47
57
58
59
60
62
63
4
2
3
1
6
INPUT
MATRIX
TRACKING
BALANCE
FOCUS
BALANCE
LPC
AMP
VGA
EQ
TRACKING
ERROR DET
FOCUS
ERROR DET
VEL
ADJ
BDO DET
OFTR DET
MIRROR DET
SERIAL
I/F
41
46
31
30
40
39
18
6
22
7
20
11
13
14
12
SLIDE SERVO SIGNAL DISK SERVO SIGNAL
DVD MAIN CBA UNIT
TESTSG
ARF
NARF
STANDBY
SCK
STDIO
SEN
CD/DVD
FROM/TO DVD
SIGNAL PROCESS
BLOCK DIAGRAM
LOADING
MOTOR
SPINDLE
MOTOR
SLIDE
MOTOR
FSTS
CN101
FS(+) 17
FS(-) 16
TS(+) 15
TS(-) 18
RELAY CBA
M
M
M
TRAY
-IN
TRAY-OUT
TRAY-IN 3
TRAY-OUT 4
CN401
LM(+) 1
LM(-) 2
SP(-) 6
SP(+) 7
SL(+) 9
SL(-) 8
GND 5
4
+3.3V
IC401
(SERVO DRIVE)
12 6
11
14
13
10
9
18
17
15
16
FOCUS
MOTOR DRIVE
TRACKING
MOTOR DRIVE
MUTE
LOADING
MOTOR DRIVE
SPINDLE
MOTOR DRIVE
SLIDE
MOTOR DRIVE
+
-
+
-
POWER
SAVE
21
24
23
22
27
26
25
5
1
2
V-REF
Q401
4
OVER VOLTAGE
PROTECTOR
SW CBA
IC201 (SERVO DSP)
DAC1
115
DAC0
114
68
SPDRV
67
TRSDRV
FBAL
TBAL
OFTR
BDO
AD1
AD0
TRCRS
AD2
AD3
66
65
51
52
118
117
90
119
120
IC102
(OP AMP)
5
3
FROM/TO
SYSTEM CONTROL
BLOCK DIAGRAM
CFE
7
108
CAS
1
MUTE
TFWD
TREV
TIN
PS
TOUT
E56G0BLRF1-6-3 1-6-4
DVD Signal Process Block Diagram
IC201 (DVD SIGNAL PROCESS)
FROM/TO RF SIGNAL
PROCESS/SERVO
BLOCK DIAGRAM
ARF
NARF
TESTSG
111
110
82
PLL
VCO
DATA
SLICER
BCA
DVD
DEMODULATOR
DATA(VIDEO/AUDIO) SIGNAL
VIDEO/AUDIO
INTERFACE
PARA0
PARA1
PARA2
PARA3
PARA4
PARA5
PARA6
PARA7
172
168
166
164
160
158
151
149
DVD MAIN CBA UNIT
PARA0-PARA7
TO VIDEO
BLOCK DIAGRAM
FROM/TO
SYSTEM
CONTROL
BLOCK
DIAGRAM
ADDRESS BUS
DATA BUS
NINT1
NINT2
WAIT
/RE
/WEL
CS1
RESET
(16.9344MHz)
X201
30
~
CPUADR0
22
17
CPUADR17
9
CPUDT0
44
~ ~
37
CPUDT7
2
NINT1
5
NINT2
WAIT
6
/RE
36
/WEL
35
CS1
34
RESET
47
OSCI1
79
OSCO1
80
MEMORY
MANAGER
~
~
CPU
INTERFACE
E56G0BLD1-6-5 1-6-6
Loading...
