Sylvania DVL515 User Manual [en, es]

Download

Page 1

Catch

Front

Stand

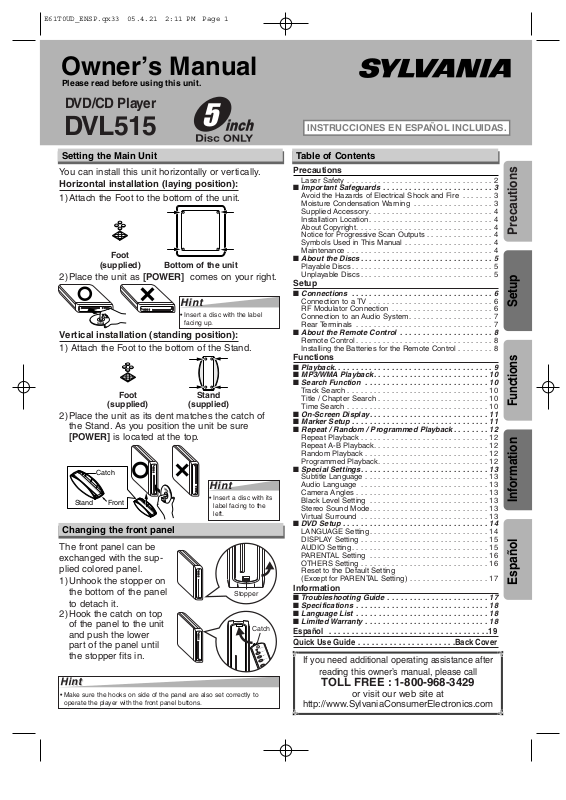

Owner’s Manual

Please read before using this unit.

DVD/CD Player

Stopper

Catch

DVL515

Setting the Main Unit

You can install this unit horizontally or vertically.

Horizontal installation (laying position):

1)Attach the Foot to the bottom of the unit.

Foot

(supplied)

2)Place the unit as [POWER] comes on your right.

label

Vertical installation (standing position):

1) Attach the Foot to the bottom of the Stand.

Foot

(supplied)

2)Place the unit as its dent matches the catch of the Stand. As you position the unit be sure

[POWER] is located at the top.

Changing the front panel

The front panel can be exchanged with the supplied colored panel.

1)Unhook the stopper on the bottom of the panel to detach it.

2)Hook the catch on top of the panel to the unit and push the lower part of the panel until the stopper fits in.

Hint

• Make sure the hooks on side of the panel are also set correctly to

operate the player with the front panel buttons.

Bottom of the unit

Hint

•Insert a disc with the label facing up.

(supplied)

Stand

Hint

•Insert a disc with its label facing to the left.

INSTRUCCIONES EN ESPAÑOL INCLUIDAS.

Table of Contents

Precautions

Laser Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■ Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . 3

Avoid the Hazards of Electrical Shock and Fire . . . . . . . 3

Moisture Condensation Warning . . . . . . . . . . . . . . . . . . 3

Supplied Accessory . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Installation Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

About Copyright. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Notice for Progressive Scan Outputs . . . . . . . . . . . . . . . 4

Symbols Used in This Manual . . . . . . . . . . . . . . . . . . . . 4

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

■ About the Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Playable Discs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Unplayable Discs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Setup

■ Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Connection to a TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

RF Modulator Connection . . . . . . . . . . . . . . . . . . . . . . . 6

Connection to an Audio System. . . . . . . . . . . . . . . . . . . 7

Rear Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

■ About the Remote Control . . . . . . . . . . . . . . . . . . . . . 8

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Installing the Batteries for the Remote Control . . . . . . . . 8

Functions

■ Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

■ MP3/WMA Playback . . . . . . . . . . . . . . . . . . . . . . . . . . 10

■ Search Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Tr ack Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Title / Chapter Search . . . . . . . . . . . . . . . . . . . . . . . . . 10

Time Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

■ On-Screen Display. . . . . . . . . . . . . . . . . . . . . . . . . . . 11

■ Marker Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

■ Repeat / Random / Programmed Playback . . . . . . . . 12

Repeat Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Repeat A-B Playback. . . . . . . . . . . . . . . . . . . . . . . . . . 12

Random Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Programmed Playback. . . . . . . . . . . . . . . . . . . . . . . . . 12

■ Special Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Subtitle Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Audio Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Camera Angles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Black Level Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Stereo Sound Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Virtual Surround . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

■ DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

LANGUAGE Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . 14

DISPLAY Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

AUDIO Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

PARENTAL Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

OTHERS Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Reset to the Default Setting

(Except for PARENTAL Setting) . . . . . . . . . . . . . . . . . . 17

Information

■ Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . 17

■ Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

■ Language List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

■ Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Quick Use Guide . . . . . . . . . . . . . . . . . . . . . .Back Cover

If you need additional operating assistance after

reading this owner’s manual, please call

TOLL FREE : 1-800-968-3429

or visit our web site at

http://www.SylvaniaConsumerElectronics.com

Precautions

SetupInformationEspañol

Functions

Page 2

Precautions

WARNING

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

Precautions

COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Laser Safety

This unit employs a laser.Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECI-

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO

LOCATION: INSIDE, NEAR THE DECK MECHANISM.

FIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

BEAM.

FCC WARNING-This equipment may generate or use radio frequency energy. Changes or modifications to

this equipment may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

CAUTION:TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA

FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

A NOTE ABOUT RECYCLING

This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

Make your contribution to the environment!!!

• Used up batteries do not belong in the dust bin.

• You can dispose of them at a collection point for used up batteries or special waste. Contact your council for details.

For Customer Use: Read carefully the information located at the bottom of this unit and enter below the Serial No. Retain this information for future reference.

Model No. Serial No. _____________________

_____________________

–2–

Page 3

IMPORTANT SAFEGUARDS

1) Read Instructions - All the safety and operating instructions should be read before the product is operated.

2) Retain Instructions - The safety and operating instructions should be retained for future reference.

3) Heed Warnings - All warnings on the product and in the operating instructions should be adhered to.

4) Follow Instructions - All operating and use instructions should be followed.

5) Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6) Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7) Water and Moisture - Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8) Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

9) A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10) Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

11) Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12) Grounding or Polarization - This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

13)

Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

14) Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the product due to lightning and power-line surges.

15) Power lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits.When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16) Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

17) Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

18) Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19) Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the power-supply cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into

the product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by follow-

ing the operating instructions. Adjust only those con-

trols that are covered by the operating instructions

as an improper adjustment of other controls may

result in damage and will often require extensive

work by a qualified technician to restore the product

to its normal operation, e)

If the product has been dropped or damaged in any way.

f) When the product exhibits a distinct change in per-

formance - this indicates a need for service.

20) Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

21) Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

22) Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Precautions

Avoid the Hazards of Electrical Shock and Fire

• Do not handle the power cord with wet hands.

• Do not pull on the power cord when disconnecting it from AC wall outlet. Grasp it by the plug.

• If, by accident, water is spilled on this unit, unplug the power cord immediately and take the unit to our Authorized Service Center for servicing.

Moisture Condensation Warning

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. Do not use this unit at least for 2 hours until its inside gets dry.

–3–

Page 4

WMAWMA

WMA

MP3MP3

MP3

CDCD

DVD-V

Supplied Accessory

Owner's Manual

Symbols Used in This Manual

• Remote control (NB071UD) with two AA batteries

•

Audio/Video cables (WPZ0102TM015/ WPZ0102LTE01/ WPZ0102CAB01)

•

Owner’s Manual (1VMN20873)

Precautions

•

Detachable Replacement Panel (

blue:1VM321211

(pink:1VM320996)

Installation Location

For safety and optimum performance of this unit:

• Do not place anything directly on top of the unit. Do not place the unit directly on top of the TV.

• Shield it from direct sunlight and keep it away from sources of intense heat. Avoid dusty or humid places. Avoid places with insufficient ventilation for proper heat dissipation. Avoid locations subject to strong vibration or strong magnetic fields.

• Be sure to remove the disc and unplug the AC power cord from the outlet before carrying the unit.

About Copyright

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Notice for Progressive Scan Outputs

Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of picture problems with 525 progressive scan output, it is recommended that the user switch the connection to the ‘standard definition’ output. If there are questions regarding your TV set compatibility with this 525p DVD player, please contact our customer service center.

• Foot (1VM421328)

)

•

Stand (1VM220555)

The following symbols appear in some headings in this manual.

: Description refers to playback of DVD-Video discs.

: Description refers to playback of Audio CDs.

: Description refers to playback of MP3 files.

: Description refers to playback of discs formated

with WMA.

Maintenance

SERVICING

¡Please refer to relevant topics on the “Troubleshooting

Guide” on page 17 before returning the product.

¡If this unit becomes inoperative, do not try to correct

the problem by yourself. There are no user-serviceable parts inside. Turn off, unplug the power plug, and please call our help line mentioned on the front page to locate an Authorized Service Center.

CLEANING THE CABINET

¡Use a soft cloth slightly moistened with a mild deter-

gent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasive.

CLEANING DISCS

¡When a disc becomes dirty, clean it with a cleaning

cloth. Wipe the disc from the center out. Do not wipe in a circular motion.

¡Do not use solvents such as benzine, thinner, com-

mercially available cleaners, detergent, abrasive cleaning agents or antistatic spray intended for analog records.

CLEANING THE DISC LENS

If this unit still does not perform properly although you refer to the relevant sections and to “Troubleshooting Guide” in this Owner’s Manual, the laser optical pickup unit may be dirty. Consult your dealer or an Authorized Service Center for inspection and cleaning of the laser optical pickup unit.

DISC HANDLING

¡When you handle a disc hold it by its edge and try not

to touch the surface of the disc.

¡Always store a disc in its protective case when it is

not used.

If the disc’s peripheral edge is rough, rub it with pen or pencil stem in order to fine the rough completely. If not, the disc may not be inserted correctly, or the plastic fragments may stick on the disc and cause skips of playback.

“WMA” (Windows Media Audio) is a new audio codec developed by Microsoft®in the United States of America.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

–4–

Page 5

DVD-Video

* 1, 2, 4, 6, 10

* 1, 3, 4, 5,

6, 8, 9, 10

* 1, 3, 4, 5,

6, 7, 9, 10

* 4, 6, 10

* 4, 5, 6,

9, 10

DVD-RW

DVD-R

DVD+RW

DVD+R

Audio CD

CD-RW

CD-R

Digital video

(MPEG2)

Region code

Mark (logo)

Playable

discs

Recorded

signals

Disc size

Disc types

5 inches

(12 cm)

Example

Title 1 Title 2

Chapter 1 Chapter 2 Chapter 1

Chapter 2

Chapter 3 Chapter 4

Digital audio

MP3/WMA

5 inches

(12 cm)

Example

Group 1 Group 2

Tra c k 1

Tra c k 2 Track 5

Tra c k 6

Tra c k 3

Tra c k 4

Example

Tra c k 1

Tra c k 2

Tra c k 5

Tra c k 6

Tra c k 3

Tra c k 4

Audio CD

MP3/WMA

Digital audio

About the Discs

Playable Discs

is a trademark of DVD Format/Logo Licensing Corporation.

If you cannot play back a disc which bears one of the marks above, check the following notes.

*1: This unit conforms to the NTSC color system. Discs recorded in other color systems such as PAL cannot

be played back.

*2:

Certain DVD-Video discs do not operate as described in this manual due to the intentions of the disc’s producers. *3: Discs recorded in the VR (Video Recording) format cannot be played back. *4: Scratched or stained discs may not be played back. *5: Some discs cannot be played back because of incompatible recording conditions, characteristics of the

recorder or special properties of discs. *6: You can play back discs which bear the marks above. If you use nonstandardized discs, this unit may not

play them back. Even if they are played back, the sound or video quality will be compromised. *7: You may play back the unfinalized DVD-R/RW disc recorded in the video format on our brand’s DVD

recorder. However, depending on the recording status of a disc, the disc may not be played back at all or

normally (the picture or sound may not be smooth, etc.). In this case, you need to finalize the disc with the

DVD recorder. Refer to the manual accompanying the DVD recorder. *8: Only the discs recorded in the video format and finalized can be played back.

Unfinalized discs cannot be played back. Depending on the recording status of a disc, the disc may not be

played back at all or normally (the picture or sound may not be smooth, etc.).

If there is too much recording space left on a disc (the used portion is less than 55 mm across), it may not play

*9:

*10: Do not glue paper or put stickers on to the disc. These may damage the disc and the unit may not read it

back properly.

correctly.

Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Unplayable Discs

NEVER play back the following discs. Otherwise, malfunction may result!

DVD-RAM/CD-I/Photo CD/Video CD / DVD with region codes other than 1 or ALL DTS-CD / DVD-ROM for personal computers / CD-ROM for personal computers

This unit is not compatible with Multiple Bit Rate (MBP: a file that contains the same content encoded at several different bit rates).

• Never insert a disc which is broken or whose form is abnormal (other than 12 cm round disc).

On the following disc, the sound MAY NOT be heard.

Super Audio CD NOTE: Only the sound recorded on the normal CD layer can be delivered.

Any other discs without compatibility indications

The sound recorded on the high density Super Audio CD layer cannot be delivered.

–5–

Precautions

Page 6

Setup

AUDIO

OUT

AUDIO IN

VIDEO IN

VIDEO

OUT

S-VIDEO IN

S-VIDEO

OUT

YCR/PR

CB/PB

COMPONENT

VIDEO OUT

COMPONENT

VIDEO IN

Connections

If your TV has AUDIO/VIDEO input jacks, see the following instructions.

Connection to a TV

Method 1

Good pictureBasic Audio

Method 2

Better picture

Method 3

Best picture

(INPUT)

S-Video

cable

(commercially

available)

Component Video cables (commercially available)

Audio cable

(supplied)

Video

cable

(supplied)

This unit

(OUTPUT)

COAXIAL

AUDIO OUT

Setup

Hint

DIGITAL

AUDIO

OUT

VIDEO

OUT

COMPONENT

VIDEO OUT

CB/PB

R/PR

S-VIDEO

OUT

(Analog)

AUDIO OUT

VIDEO OUT

S-VIDEO OUT

COMPONENT VIDEO OUT

• Connect this unit directly to the TV. If the Audio/Video cables are connected to a VCR, pictures may be distorted due to the copy protection system.

• When progressive scanning mode is selected, no video signal will be output from the VIDEO OUT or S-VIDEO OUT jack.

If your TV is compatible with 525p (480p) progressive scanning and you want to enjoy that high quality picture;

You must select the connection Method 3 above and progressive scanning mode.To set the mode, press and hold [PLAY BB] on the front panel for more than 5 seconds, so that PROGRESSIVE indicator will light up.

If your TV is not compatible with progressive scanning;

Use this unit in interlace mode. Make sure that PROGRESSIVE indicator is off. If not, press and hold [PLAY B] on this unit for more than 5 seconds, so that PROGRESSIVE indicator of this unit will light off.

more than 5 seconds

[Interlace mode]

[Progressive scanning mode]

[This unit]

STOP

PLAY

EJECT

After you have completed connections

•

Hit the input selector button (usually TV/VIDEO, INPUT or AUX) on your TV to switch an appropriate external input channel (usually near channel 0) for viewing the picture from this unit. If the picture does not appear, also refer to the manual accompanying your TV.

INPUT MODES FOR COMMON TV BRANDS (Example)

• Listed below are inputs for common brand name TV’s.

Admiral: AUX Curtis Mathis: LINE1, LINE2, 00, 90, 91, 92, 93 GE: INPUT, TV/VCR, 00, 90, 91, 92, 93 Hitachi: INPUT, AUX JVC: Kenwood: AUX LXI-Series: 00 Magnavox: AUX CHANNEL

A/V CHANNEL, INPUT1, SVIDEO, INPUT2

Panasonic: TV/VIDEO RCA: INPUT, TV/VCR, 00, 90, 91, 92, 93 Samsung: TV/VIDEO Sanyo: VIDEO Sharp: 00 Sony: VIDEO1, VIDEO2, VIDEO3 Toshiba: TV/GAME Zenith: 00

RF Modulator Connection

If your TV has Antenna in jack only, it is still possible to connect this unit to your TV by using a STEREO AUDIO/VIDEO RF Modulator (commercially available).

In this case, follow the instructions below.

1) Connect the AUDIO/VIDEO output jacks of this unit to the AUDIO/VIDEO input jacks of your RF Modulator by audio and video cables.

2) The antenna input jack of your TV may have been already occupied. If so, disconnect the RF cable from your TV, and then connect the RF cable to your RF Modulator (usually marked “ANT IN”).

Connect your RF modulator to your TV by another RF cable.

4) Set your RF modulator’s channel 3/4 switch to either 3 or 4, whichever the TV channel is least used in your area. If your RF modulator has a Modulator/Antenna switch, set it according to your RF modulator’s manual.

5) Turn on your TV and choose the same channel as you set the RF modulator’s channel 3/4 switch to.For more details, follow the instructions supplied with the RF Modulator.

–6–

Antenna

Cable

Signal

Stereo Audio/Video RF Modulator

(commercially available)

ANT IN

AC 120V

TO TVCHANNEL VIDEO AUDIO

RL34

Audio/Video

Cables

(Supplied)

RF Cable (Not supplied)

Hint

• The quality of picture may become poor if the unit is con-

nected to an RF Modulator.

(Back of this unit)

COAXIAL

AUDIO OUT

DIGITAL

AUDIO

OUT

VIDEO

OUT

COMPONENT

VIDEO OUT

CB/PB

R/PR

S-VIDEO

OUT

Antenna in jack

(Back of TV)

Page 7

AUDIO

OUT

DIGITAL

AUDIO OUT

COAXIAL

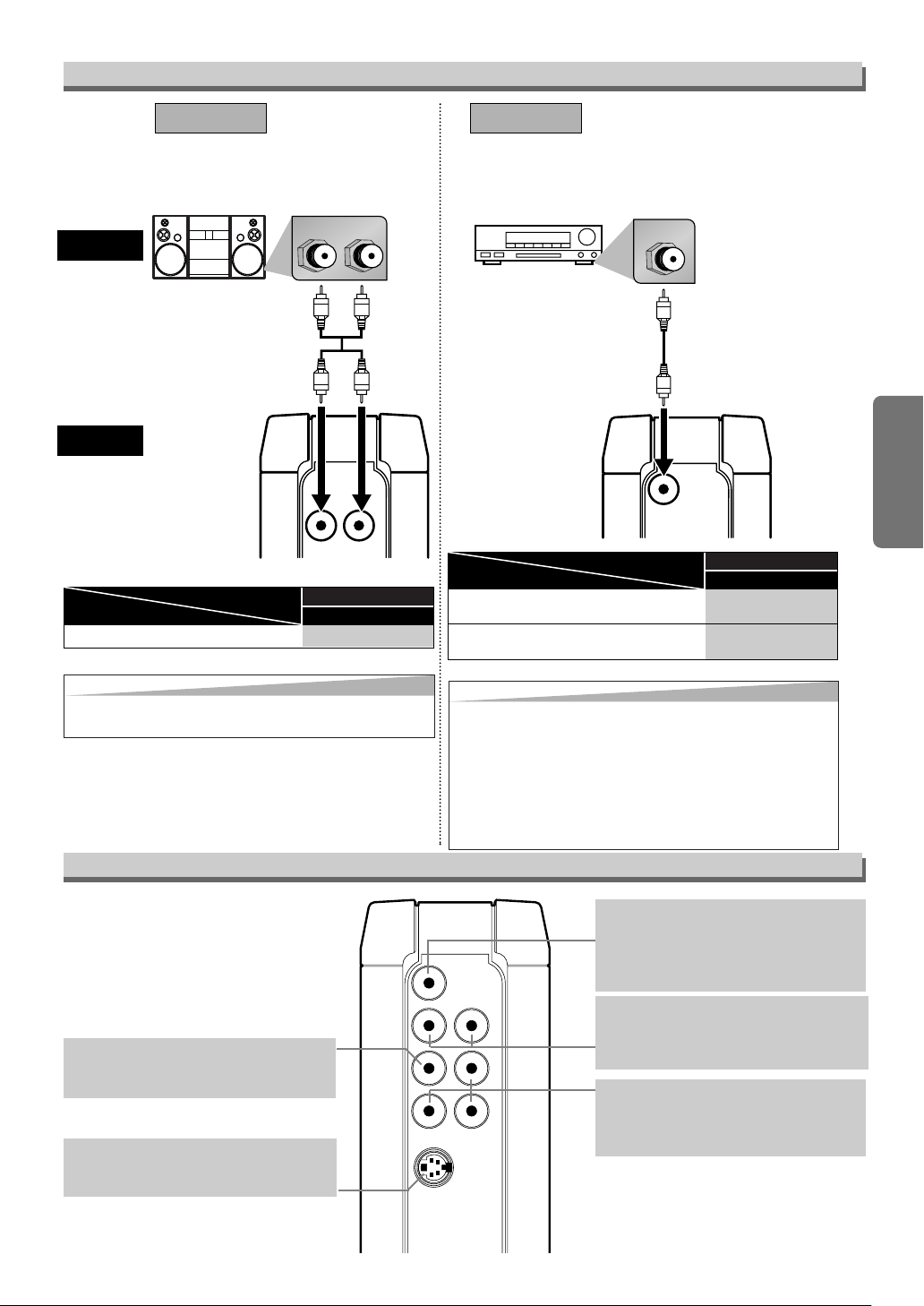

Connection to an Audio System

Method 1

Stereo system

Analog audio input jacks

AUDIO

Audio cable

(supplied)

This unit

(Analog) AUDIO OUT

Connection

Setting

Connecting to Stereo System.

* To complete these settings, refer to pages 14-15.

Hint

•

Playing a DVD using incorrect settings may generate noise distortion and may also damage the speakers.

SETUP > QUICK > DOLBY DIGITAL

PCM

Method 2

Dolby Digital decoder,

MD deck or DAT deck

Digital audio input jack

Audio Coaxial

Digital cable

(commercially

available)

DIGITAL AUDIO OUT

Connection

Setting

Connecting to a Dolby Digital decoder for Dolby Digital audio output.

Connecting to the other equipment (an MD deck or DAT deck etc.) without Dolby Digital decoder.

* To complete these settings, refer to pages 14-15.

Hint

•

The audio source on a disc in a Dolby Digital 5.1 channel surround format cannot be recorded as digital sound by an MD or DAT deck.

•

By hooking this unit up to a Multi-channel Dolby Digital decoder, you can enjoy high-quality Dolby Digital 5.1 channel surround sound as heard in the movie theaters.

•

Playing a DVD using incorrect settings may generate noise distortion and may also damage the speakers.

SETUP > QUICK > DOLBY DIGITAL

BITSTREAM

PCM

Setup

Rear Terminals

VIDEO OUT jack

Connect the supplied video cable (yellow) here through the TV’s video in jack.

S-VIDEO OUT jack

Connect an optional S-Video cable here through the S-video in jack of a TV.

AUDIO

OUT

VIDEO

OUT

COMPONENT

VIDEO OUT

S-VIDEO

OUT

COAXIAL

AUDIO OUT

CB/PB

–7–

DIGITAL

R/PR

DIGITAL AUDIO OUT COAXIAL jack

Connect an optional coaxial digital audio cable here through the coaxial digital audio in jack of a decoder or audio receiver.

AUDIO OUT jacks

Connect the supplied audio cable (red/white) here through the audio in jacks of a TV or other audio equipment.

COMPONENT VIDEO OUT jacks

Connect optional component video cables here through the component video in jacks of a television.

Page 8

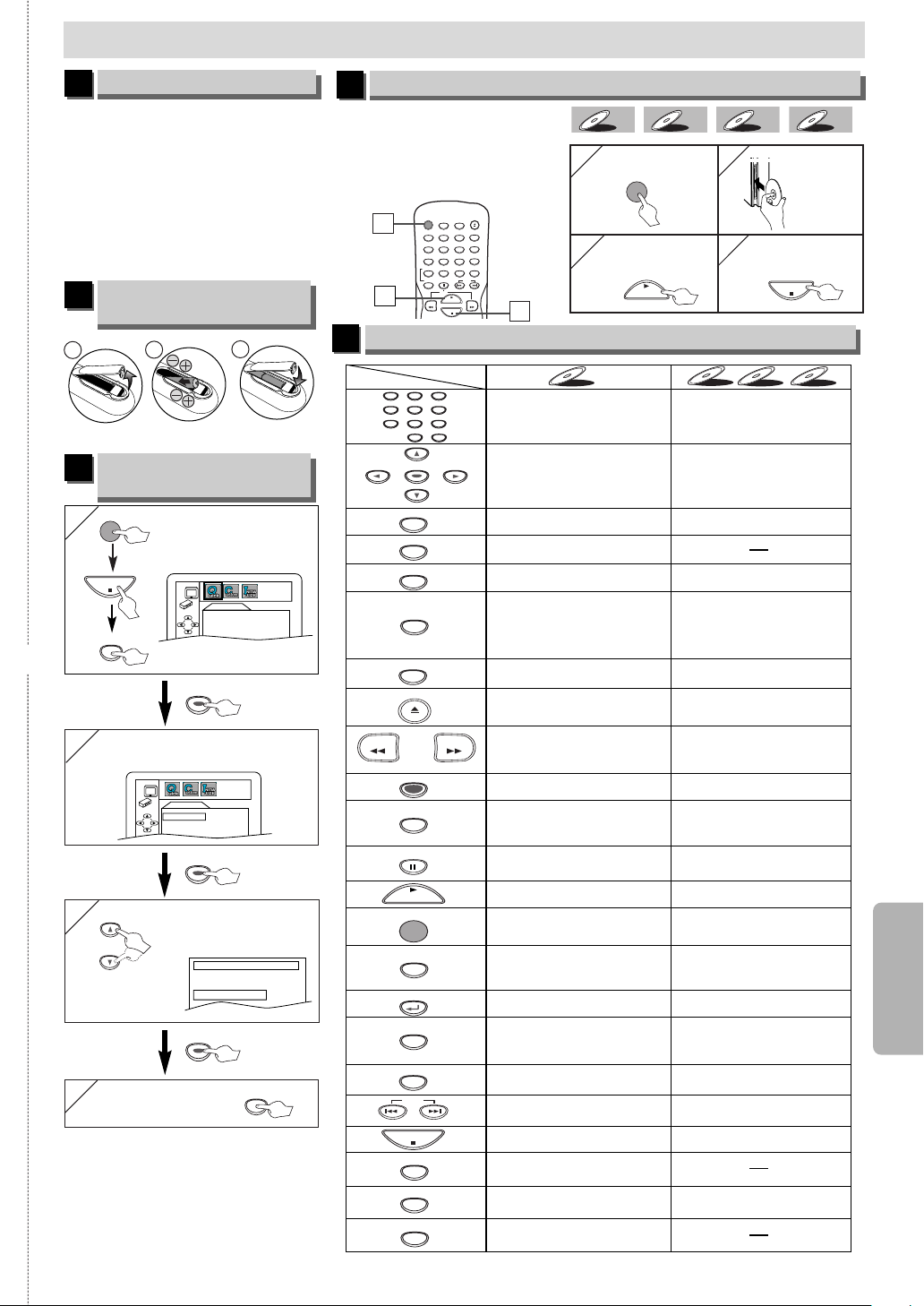

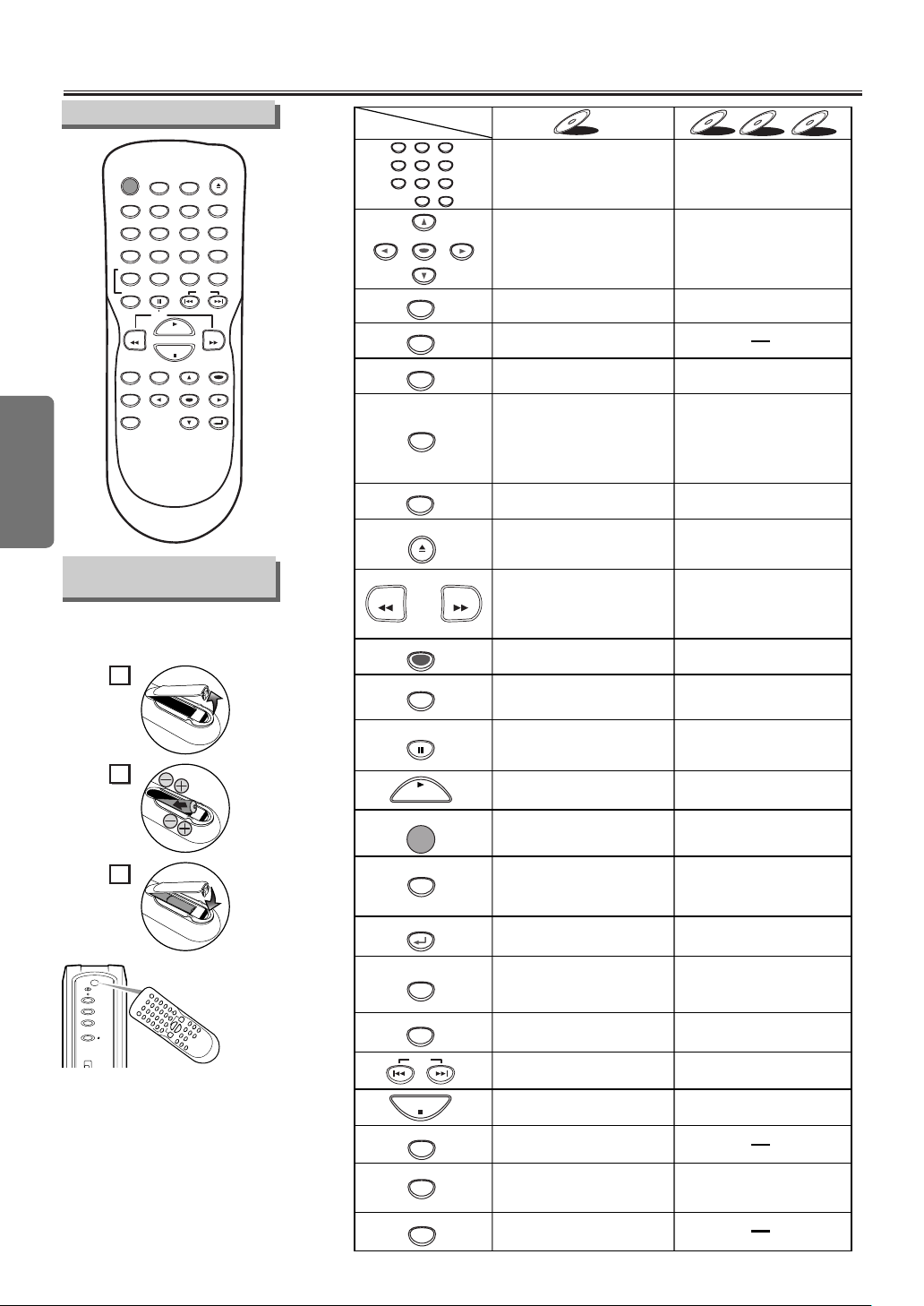

About the Remote Control

• To turn the unit on or off. • To turn the unit on or off.

• To display the current disc

mode.

• To display the current disc mode.

• To select chapter or title directly.

• To select track directly.

• To select camera angles on

a disc.

• To select subtitles on a disc.

• To select audio languages on

a disc.

• To select STEREO, L-ch or R-ch. (CD)

• To repeat between your chosen point A and B.

• To repeat between your chosen point A and B. (CD)

• To play a chapter or title repeatedly.

• To play a track or disc repeatedly. (CD)

• To play a track, group or disc repeatedly. (MP3/WMA)

• To return to the previous operation in menu.

• To set black level on/off.

• To set virtual surround on/off.

• To arrange the playing

order or play randomly.

• To set virtual surround on/off.

• To call up the Menu

on a disc.

• To call up the Top Menu on a disc.

• To magnify part of a picture. (x2/x4)

• To return to the previous operation in menu.

• To search chapter, title or time.

• To set or search the

markers.

• To search track.

• To search time. (CD)

• To set or search the

markers. (CD)

• To clear the markers.

• To cancel the point for A-B

repeat.

• To cancel the point for A-B repeat. (CD)

• To clear the markers. (CD)

• To remove status number

in program input.

• To clear the numbers entered incorrectly.

• To search forward/backward through a disc.

• To begin slow forward /reverse playback during the pause mode.

• To search forward/backward through a disc.

• To call up the file list. (MP3/WMA)

• To advance playback one frame at a time.

• To pause disc playback.

• To stop playback. • To stop playback.

•

To return to the top file of the

highest hierarchy in the program

and file list. (MP3/WMA)

• To skip chapters. • To skip tracks.

• To begin disc playback. • To begin disc playback.

• To call up the DVD setup

menu.

• To call up the DVD setup menu.

• To move the cursor and determine its position.

POWER

DISPLAY

TOP MENU

ZOOM

SUBTITLE

MODE

ANGLE

MODE

REPEAT

A-B

AUDIO

CLEAR

123

456

789

+1 0

PAUSE

PLAY

STOP

SETUP

DVD-V

Button

(Alphabetical order)

Disc

ENTER

RETURN

REV FWD

SKIP

MP3MP3

MP3

WMAWMA

WMA

• Hit to remove the disc. • Hit to remove the disc.

EJECT

POWER

AUDIO

SUBTITLE

ANGLE

REPEAT

CLEAR

A-B

PAUSE

SETUP

TOP MENU

ENTER

MODE

ZOOM RETURN

SLOW

SKIP

EJECT

DISPLAY

MODE

123

456

789

0 +10

PLAY

REV FWD

STOP

PROGRESSIVE

POWER

STOP

EJECT

PLAY

Remote Control

Setup

Installing the Batteries for the Remote Control

Install two AA batteries (supplied) matching the polarity indicated inside battery compartment of the remote control.

Keep in mind the following when using the remote control:

•

Make sure that there is no obstacle between the remote control and the remote sensor on the unit.

• The maximum operable ranges from the unit are as follows.

- Beeline: approx. 23 feet (7m)

Either side of the center:

- Above: approx. 16 feet (5m) within 15°

- Below: approx. 10 feet (3m) within 30°

approx. 16 feet (5m) within 30°

–8–

Page 9

DVD-V

WMAWMA

WMA

MP3MP3

MP3

CDCDCDDVD-V

DVD-V

WMAWMA

WMA

MP3MP3

MP3

CDCDCDDVD-V

DVD-V

POWER

AUDIO

SUBTITLE

ANGLE

REPEAT

CLEAR

A-B

PAUSE

SETUP

TOP MENU

ENTER

MODE

ZOOM RETURN

SLOW

SKIP

EJECT

DISPLAY

MODE

123

456

789

0 +10

PLAY

REV FWD

STOP

PLAY

Functions

STOP

POWER

WMAWMA

WMA

MP3MP3

MP3

CDCDCDDVD-V

DVD-V

PROGRESSIVE

POWER

STOP

EJECT

PLAY

WMAWMA

WMA

MP3MP3

MP3

CDCDCDDVD-V

DVD-V

Operations described after this section are mainly based on the remote control use. Some operations can be carried out on main unit.

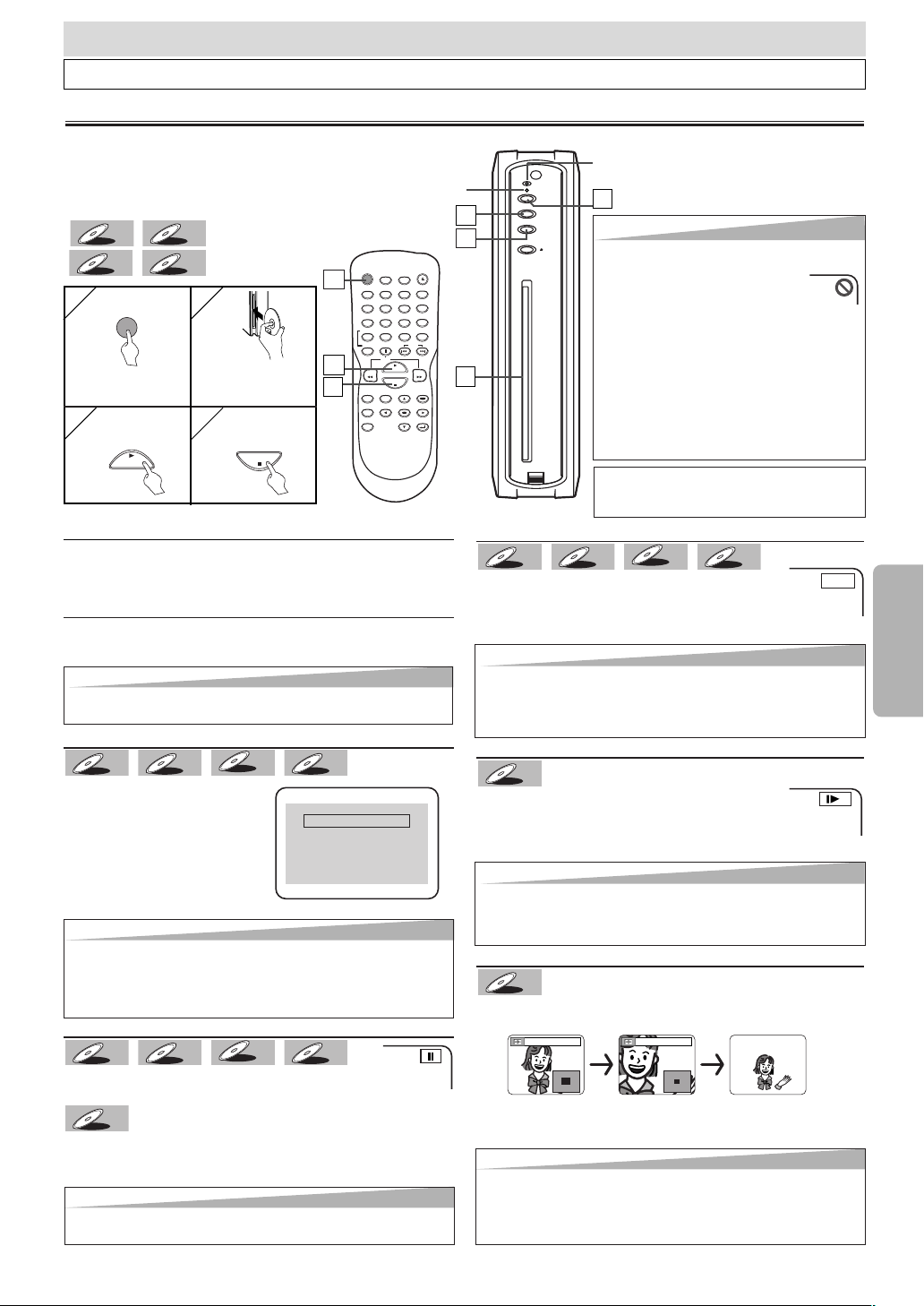

Playback

Before: Turn on the TV, amplifier and any other equipments which are connected to this unit. Make sure the TV and audio receiver (commercially available) are set to the correct channel.

(

⇒Page 10

)

Insert a disc with label facing to the left.

To st art playback

To stop playback

Lights up when power is on.

DVD menu

Some discs contain menus which allow you to customize DVD playback. Press [KK/ LL/ ss/ BB] to select an item, then press [ENTER] (or [PLAY BB]), to select.

Calling Up a Menu Screen during Playback

• Hit [MENU] to call up the DVD menu.

• Hit [TOP MENU] to call up the title menu.

Hint

• Menu operations may vary depending on the disc. Refer to the manual accompanying the disc for more details.

Resume

Fast Forward/Reverse Search

Press [FWD gg] or [REV hh] repeatedly during playback to select the required forward or reverse speed. To continue playback, hit [PLAY B].

Hint

•

For DVDs, fast forward or reverse search speed is different depending on the disc. Approximate speed is 1(x2), 2(x8), 3(x20), 4(x50) and 5(x100).

•For Audio CDs, approximate speed is 1(x2), 2(x8) and 3(x30).

•For MP3/WMA, approximate speed is 1(x2), 2(x8) and 3(x30).

Slow Forward/Slow Reverse

PROGRESSIVE light

Lights up when the “PROGRESSIVE” mode is selected. Details are on page 6.

Hint

• When you play an MP3/WMA file, details on page 10.

•A “prohibited icon” may appear at the top-right on the TV screen when the operation is prohibited by the disc or this unit.

• Some DVDs may start playback from title 2 or 3 due to specific programs.

• During the playback of a two-layered disc, pictures may stop for a moment.This happens while the 1st layer is being switched to the 2nd layer. This is not a malfunction.

• Don't leave the disc exiting halfway from the slot.

TIP:

You can change the On-Screen language in “PLAYER MENU” setting. (Refer to page 14.)

Functions

Hit [STOP CC]. Resume message will appear on the TV screen.

[PLAY BB], playback will

Hit resume from the point at which

Resume ON

Press 'PLAY' to play from here. To play the beginning, press 'STOP' first and then 'PLAY'.

playback was stopped.

Hint

•To cancel resume, hit [STOP CC] one more time during the stop

mode.

•For MP3/WMA, playback will resume from the beginning of the track at which playback was stopped.

The resume information will be kept even when the power is turned off.

•

Paused and Step-by-Step Playback

Hit [PAUSE FF] during playback. To continue playback, hit [PLAY B].

The disc goes forward by one frame each time [PAUSE FF] is hit during the pause mode. To continue playback, hit [PLAY B].

Hint

• On DVDs, set “STILL MODE” to “FIELD” in the Display menu if pictures in the pause mode are blurred. (Refer to pages 14-15.)

Press [FWD gg] or [REV hh] repeatedly during the pause mode to select the required forward or reverse speed. To continue playback, hit [PLAY B].

Hint

• Slow forward or reverse speed is different depending on the disc. Approximate speed is 1(1/16), 2(1/8) and 3(1/2).

• Set “STILL MODE” to “FIELD” in the Display menu if pictures in the slow playback mode are blurred. (Refer to pages 14-15.)

Zoom

Hit [ZOOM] repeatedly during playback to select the required zoom factor: x2, x4 or OFF.

x2 x4

Press [KK/ LL/ ss/ BB] to slide the zoomed picture across the screen. To exit zoom function, hit [ZOOM] repeatedly to select OFF.

Hint

• Zooming function does not work while the disc menu is showing up.

• x4 zoom is not available on some discs.

• The picture may be distorted when you press [PAUSEkk] or [REV hh] repeatedly in the zoom mode.

• It may take several seconds to slide the zoomed picture.

–9–

Page 10

CDCDCDDVD-V

DVD-V

1:29:00

TOTAL

1:29:00

TOTAL

MODE

PLAY

WMAWMA

WMA

MP3MP3

MP3

CDCD

/29

DVD-V

/12

123

456

789

+1 0

MODE

PLAY

TR 1 TR 2 TR 3 TR 4

Current Track (TR)

SKIP

PLAY

123

456

789

123

456

789

+1 0

STOP

MP3/WMA Playback

WMAWMA

WMA

MP3MP3

MP3

folder name 4

folder name 1

folder name 3

folder name 2

folder name 1

DISC NAME

FILE LIST

FOLDER

WMA

MP3

ENTER

PLAY

file name 3

file name 2

file name 1

1/ 2

ENTERENTERENTER

PLAY

CH 1 CH 2 CH 3 CH 4

Current Chapter

(CH)

SKIP

TT 1 TT2 TT3 TT4

Current Title (TT)

SKIP

MP3/WMA is a method of compressing files.You can copy MP3/WMA files on CD-R/RWs from the computer and play the files on this unit.

Insert an MP3/WMA-format disc, then hit

[MENU] to call up the file list on the TV screen.

When selecting the folder:

[BB]

when you want to

• Hit go to the next hierarchy.

[ss] when you want

• Hit

to go back to the previous hierarchy (except for the top hierarchy).

Hint

• Some selections may take a while to be recognized.

[TOP MENU] to return to the first item.

• Hit

• Folders are known as Groups; files are known as Tracks.

• MP3 files are accompanied by icon. • WMA files are accompanied by icon.

• Folders are accompanied by icon.

• A maximum of 255 folders can be recognized.

• A maximum of 999 files can be recognized.

• Up to 8 hierarchies can be created. This player recommends the files recorded under the following circumstances:

• Sampling frequency: 44.1kHz or 48kHz (MP3/WMA)

• Constant bit rate: 32kbps ~ 320kbps (MP3). 48kbps ~ 192kbps (WMA). For MP3/WMA file recorded in Variable Bit Rate(VBR), the unit may not display the actual elapsed time.

•

• Copyright protected WMA files will not play on this unit.

Refer to “Resume” on page 9.

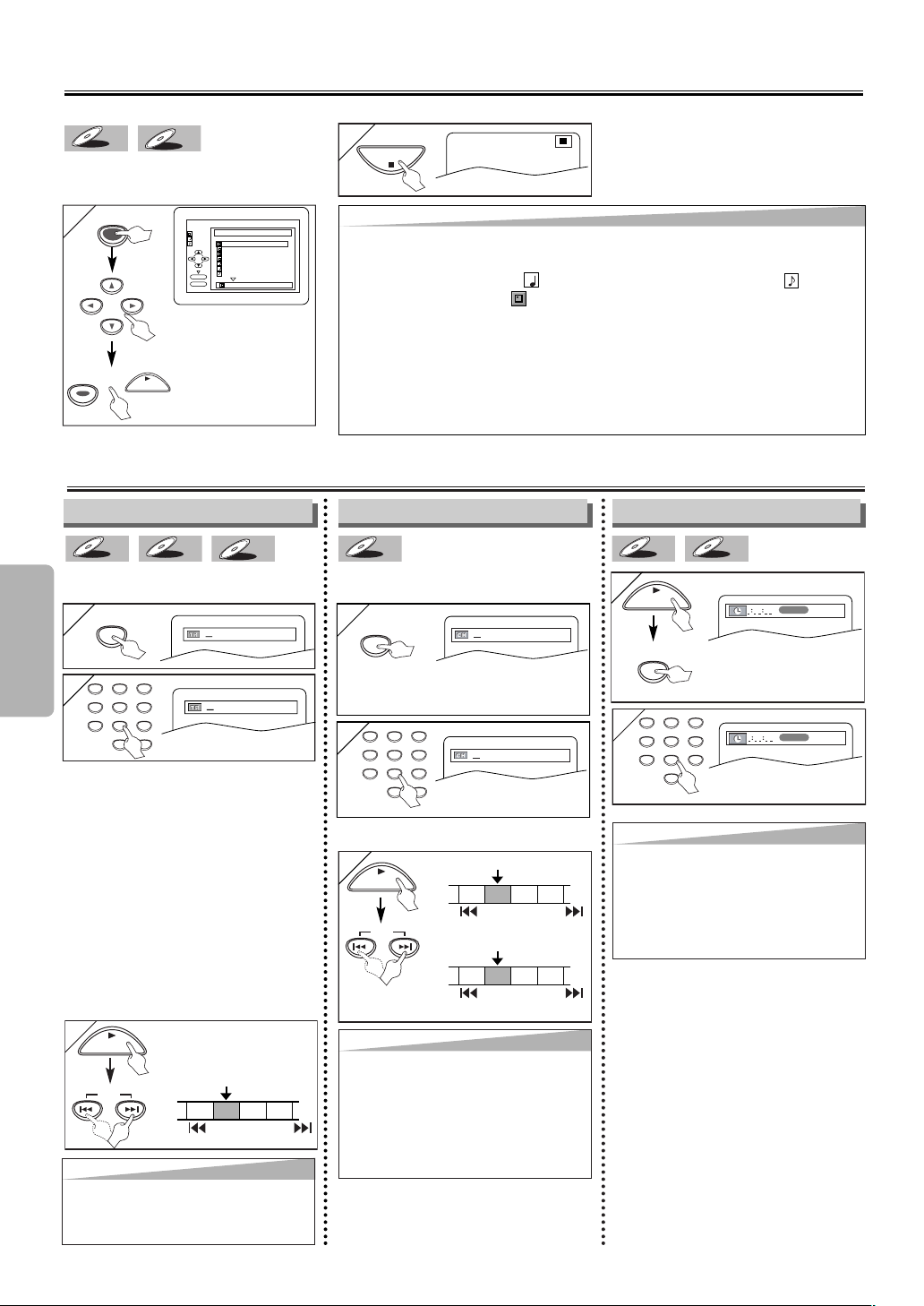

Search Function

Track Search

Using [SEARCH

Functions

• For the disc with less than 10 tracks,

hit the track number directly.

• For discs with more than 10 but less

than 99 tracks, to play single-digit track, hit [0] first, then the track num-

ber (e.g. for track 3, hit [0], [3]). To play a double-digit track, hit the track number.

• For discs with more than 100 tracks,

to play a single or a double-digit track, hit [0] first, then the track number (e.g. for track 3, hit [0], [0], [3], and for track 26, hit [0], [2], [6]). To play a triple-digit track, hit the track number.

Using [SKIP

Hint

•

[+10] button can also bring the Track Search display, except for the disc with less than 10 tracks. For such a disc, track search can be done by just hitting the track number.

Time Search

MODE]

Title / Chapter Search

Using [SEARCH

MODE]

Hit repeatedly until the Time Search display

Hit once for the chapter search.

appears.

Hit twice for the title search.

Within 30 seconds.

Hint

Using [SKIP

]

Hint

• Depending on the disc being played, this function can also be performed by directly entering the desired chapter number with the Number buttons. Refer to the manual accompanying the disc.

•For CDs and MP3/WMA, Track Search is not available for Programmed or Random Playback.

(If the disc has no chapters)

–10–

]

Hint

• When there is no need to enter a number, “0” appears automatically. For example, “0 : 0-:--” appears in the Time Search display if the total time of the title or track is less than 10 minutes.

[CLEAR] to erase the incorrect input at

• Hit step 2).

Page 11

CDCDCDDVD-V

DVD-V

MODE

ENTERENTERENTER

MODE

PLAY

ENTERENTERENTER

RETURN

PLAY

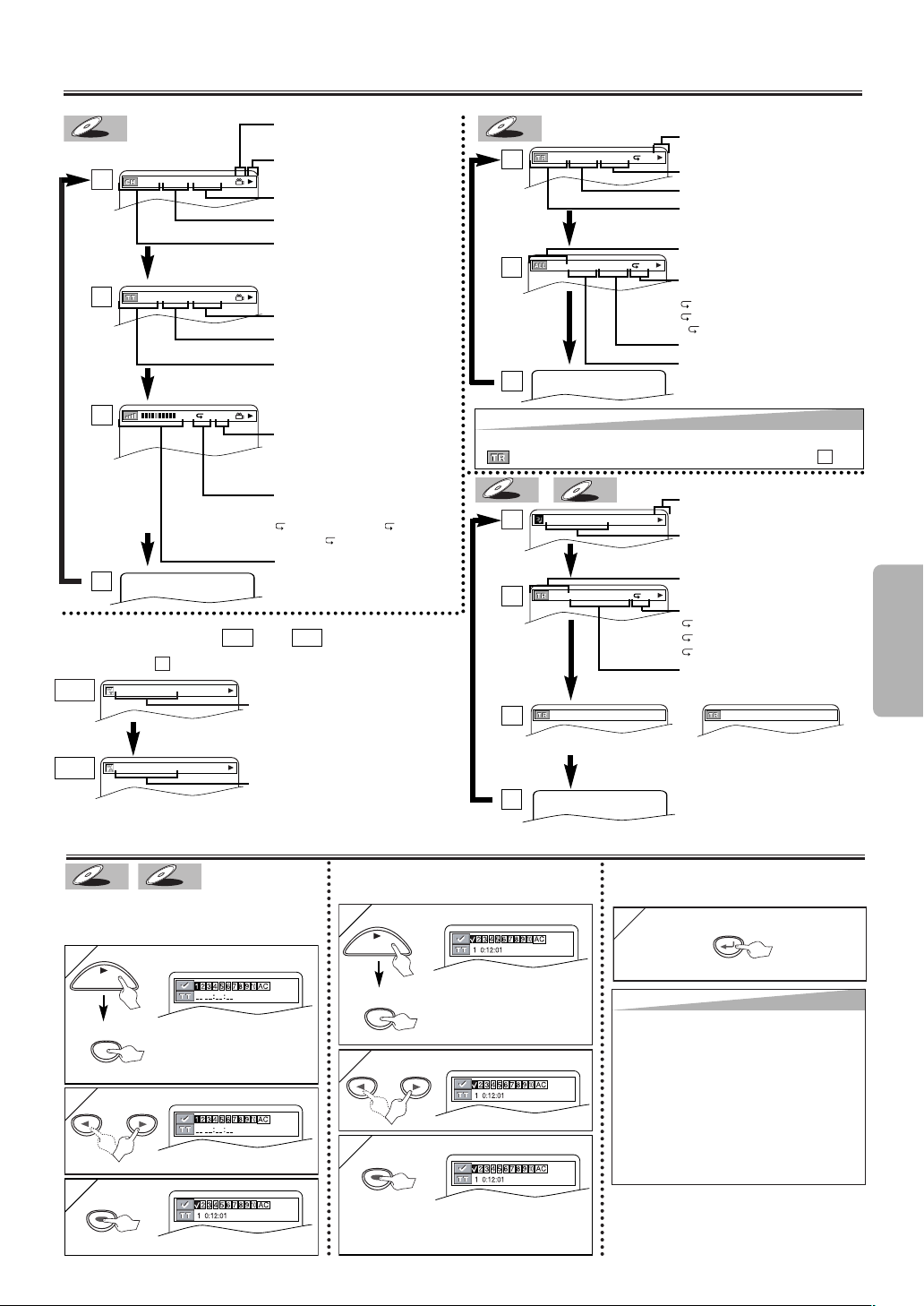

On-Screen Display

DVD-V

CDCD

4/12 0:03:21 - 0:02:15

4/12 0:13:45 - 0:45:40

11/16 0:00:00 - 0:03:30

1/3 0:00:00 - 1:23:45

TL1

WMA

MP3

PROGRAM

RANDOM

ARTIST NAME

TITLE NAME

You can check the information about the current disc by hitting [DISPLAY] on the remote control.

Angle icon, appears only when available on the DVD

Current playback status

NOTE: For WMA files, and will be displayed

after .

1-A

1-B

Remaining time of the current chapter Elapsed time of the current chapter CH(Chapter):

Current chapter number / Total chapters

Remaining time of the current title Elapsed time of the current title TT(Title):

Current title number / Total titles

Layer numbers, appears only when playing a two-layered Disc L0: Layer 0 is playing L1: Layer 1 is playing

Current repeat setting appears only when the repeat setting is active

C: Chapter repeat / T: Title

repeat / A B: A-B repeat BIT RATE: The amount of audio

and video data currently being read

1-A

1-B

Title name based on tag information currently in play will be displayed.

Artist name based on tag information currently in play will be displayed.

Hint

• When you are playing a disc in PROGRAM or RANDOM mode, PROGRAM (or RANDOM) will be displayed instead of .

MP3

WMA

TRACK 01

1/36 0:01:15

(Only when you are playing a disc in PROGRAM or RANDOM mode.)

Marker Setup

This feature allows you to assign a specific point on a disc to be called back later.

o set a marker

TTo set a marker

o return to the marker

TTo return to the marker

later

o e

TTo e

Current playback status

Remaining time of the current track Elapsed time of the current track TR(Track):

Current track number / Total tracks ALL:

Current track number / Total tracks

Current repeat setting appears only when the repeat setting is active

T: Track repeat A: All Tracks repeat

AB:A-B repeat Remaining time of the entire disc Elapsed time of the entire disc

Current playback status

The name of the file currently in play will be displayed.

TR(Track): Current track number / Total tracks

Current repeat setting, if active

T:Tr ack repeat G:Group (folder) repeat A:Disc repeat

Elapsed playing time of the current track

xit the marker displayy

xit the marker displa

Functions

Hit repeatedly until the marker display

Hit repeatedly until the marker display appears.

at the desired marker

•Playback will restart from the specific point which you set.

appears.

–11–

Hint

• The Marker display will disappear in about 30 seconds when there is no output.

•To clear a marker, select the marker to be cleared at step 2) in the section “To set a marker” or “To return to the marker later” and then hit

• Removing the disc or turning off the power will erase all markers.

• Selecting “AC” at step 2) in the section “To set a marker” or “To return to the marker later” will also erase all markers.

[CLEAR].

Page 12

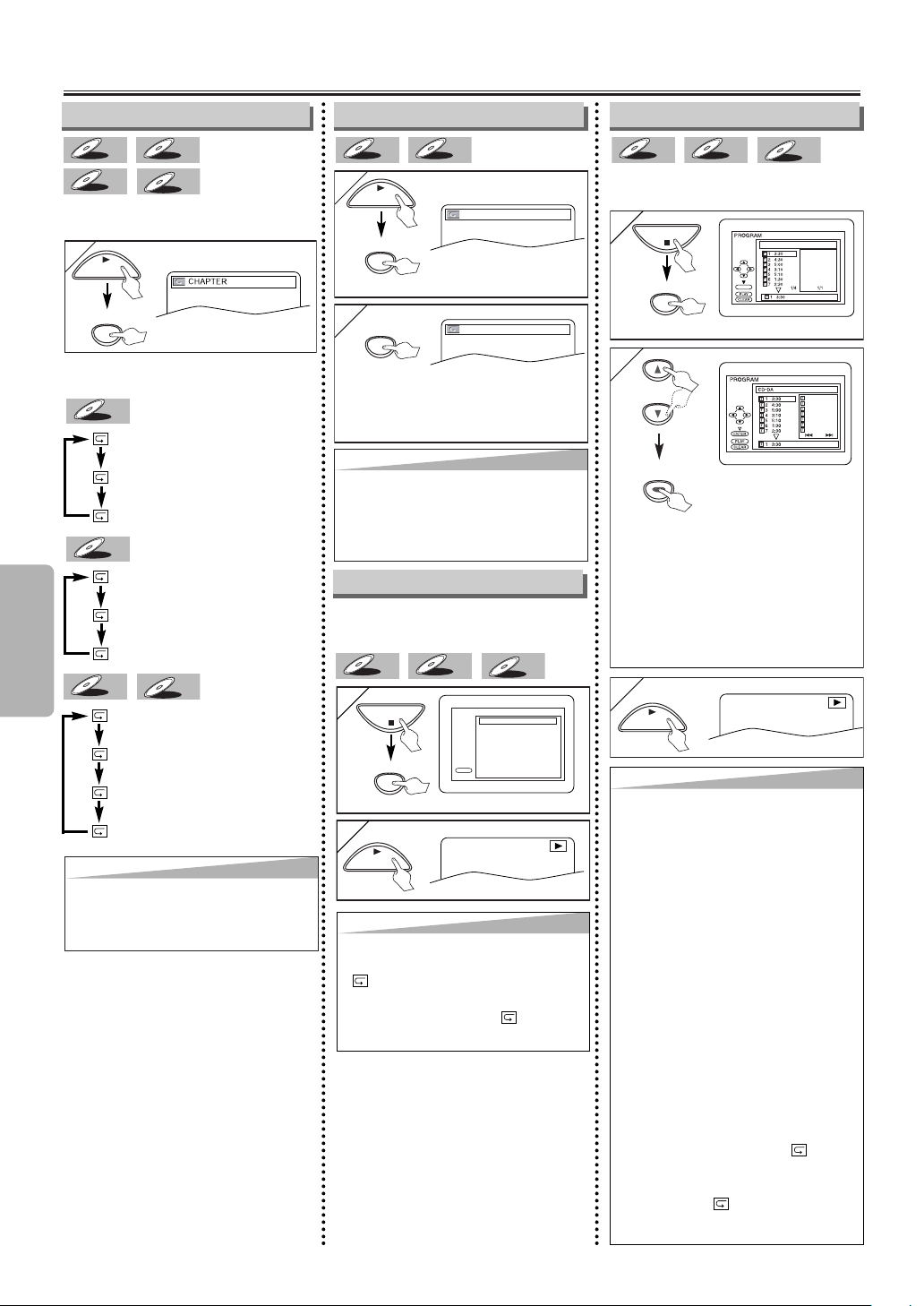

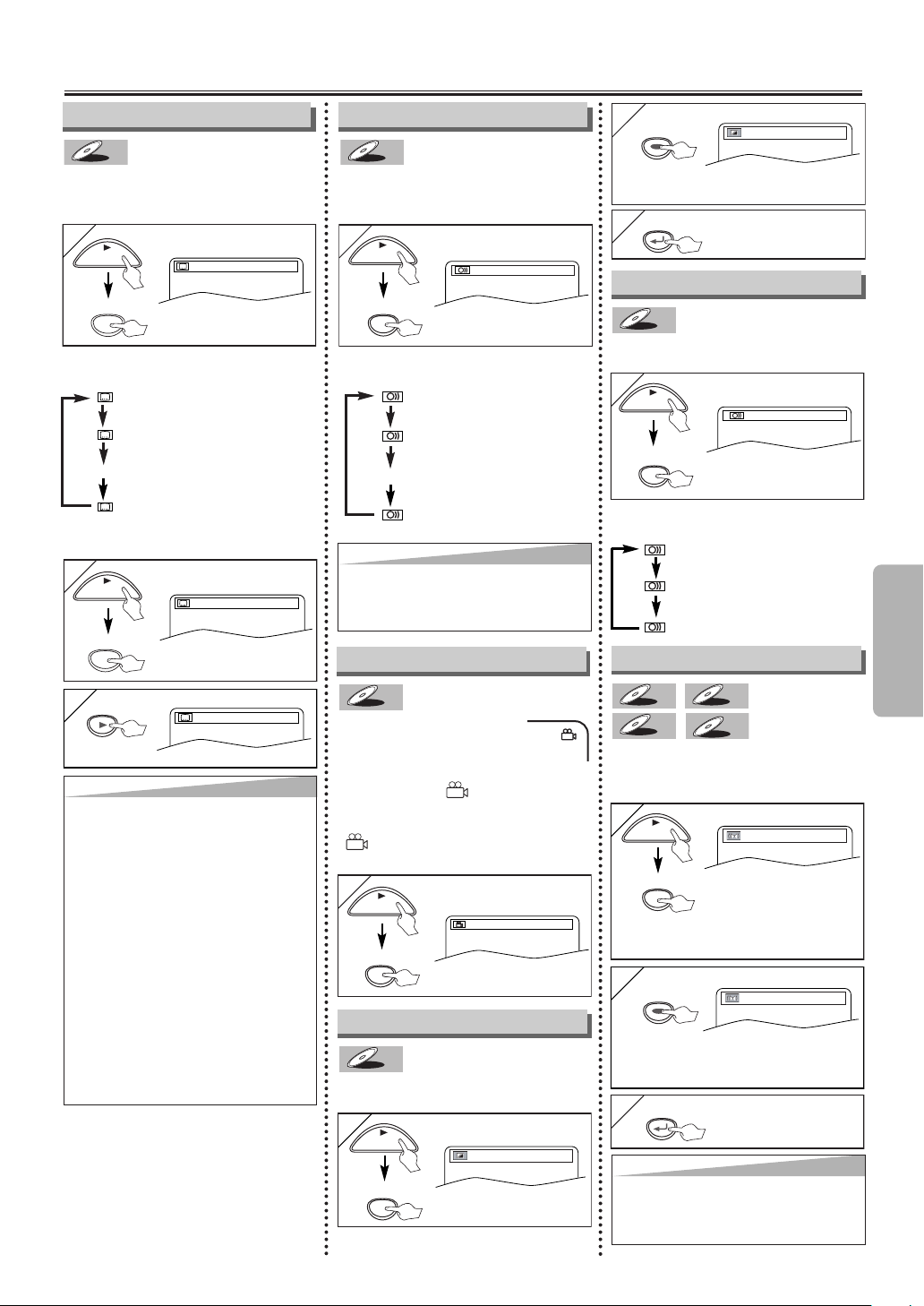

Repeat / Random / Programmed Playback

DVD-V

WMAWMA

WMA

MP3MP3

MP3

CDCDCDDVD-V

DVD-V

CDCDCDDVD-V

DVD-V

WMAWMA

WMA

MP3MP3

MP3

CDCD

REPEAT

CDCD

A-B

A-

A-B

WMAWMA

WMA

MP3MP3

MP3

CDCD

MODE

CD-DA TOTAL 0:00:00

ENTER

PLAY

STOP

MODE

STOP

ENTER

WMAWMA

WMA

MP3MP3

MP3

Repeat Playback Programmed PlaybackRepeat A-B Playback

Repeat function is available only during playback.

Each time you hit [REPEAT], repeat function changes as example below.

CHAPTER

TITLE

OFF

Functions

TRACK

ALL

OFF

TRACK

GROUP

ALL

OFF

Hint

• Repeat setting will be cleared when moving to another title, chapter, track or group.

• Repeat playback may not function with some discs or during repeat A-B playback.

(current chapter repeat)

(current title repeat)

(repeat

(current track repeat)

(

entire disc repeat)

(repeat

(current track repeat)

(

current group repeat)

(

entire disc repeat)

(repeat

off)

at your desired starting point (A)

at your desired end point (B)

• Point B should be in the same title or

track as point A.

Hint

•To exit the sequence, hit [A-B] so that

OFF appears.

•To cancel Point A, hit

• This function does not work in the other repeat modes.

[CLEAR].

Random Playback

This function shuffles the playing order of tracks instead of playback in the sequence.

Hit twice

Hint

•To repeat the current track in the random selections, hit “ TRACK” appears during playback.

•To repeat the entire random selections, hit [REPEAT] repeatedly until “ ALL” appears during playback.

RANDOM

CD-DA TOTAL 0:45:55

RANDOM PROGRAM

--no indication--

PLAY

[REPEAT] repeatedly until

You may determine the order in which tracks will play.

Hit once.

ENTER

PLAY

Hint

• Hit [CLEAR] at step 2) to erase the most

recently entered track.

•To erase all programmed tracks at once, select “ALL CLEAR’’ and hit step 2).

• While a program is being played back, [STOP CC] works as follows;

⇒

Hit [STOPCC] and [PLAY BB] next, so that the programmed playback restarts. (CD playback restarts from the current point. MP3/WMA playback restarts from the beginning of the current track.)

⇒

Hit [STOP CC] twice and [PLAY BB] next, so that playback restarts from the first track in the original order. However, your programmed playback can be restarted when you follow the above steps. (Your programs are still stored until either the disc is removed or power is turned off.)

•To repeat the current track in the program, hit

[REPEAT] repeatedly until “ TRACK’’

appears during playback.

•To repeat the entire program, hit repeatedly until “ ALL’’ appears during playback.

1:03:30

TOTAL

1 3:30 5 5:10 10 4:20 11 3:00 12 3:20 17 4:10 22 2:50

1/4 2/3

• Up to 99 tracks can be ordered.

•

If eight or more tracks were in a program, use

to see all the tracks.

• While an MP3/WMA folder is open:

Hit [BB] when you want to

–

go to the next hierarchy. Hit [

–

go back to the previous hierarchy (except for the top hierarchy).

[SKIP HH,GG]

]

when you want to

[ENTER] at

[REPEAT]

–12–

Page 13

Special Settings

DVD-V

1.ENG Dolby D 3/2.1ch 48k/ 3

AUDIO

CDCD

STEREO

DVD-V

1.ENG/6

DVD-V

1 / 8

ANGLE

OFF

DVD-V

WMAWMA

WMA

MP3MP3

MP3

CDCDCDDVD-V

DVD-V

OFF

RETURN

SUB TITLE

1.ENG/6

OFF

PLAY

SUB TITLE

PLAY

MODE

ENTERENTERENTER

PLAY

RETURN

ENTERENTERENTER

PLAY

AUDIO

Subtitle Language

Audio Language

This unit allows you to select a subtitle language (if available) during DVD playback.

Each time you hit [SUBTITLE], subtitle language changes as example below.

ENG

FRE

(English subtitles)

(French subtitles)

...

OFF

(no subtitles)

To set subtitle ON/OFF

Hint

• If your language is not shown after press-

[AUDIO] or [SUBTITLE] several times,

ing the disc may not have that language. However, some discs allow audio language or subtitle language setting on the disc menu. (Operation varies depending on the disc, so refer to the manual along with the disc.)

•When “NOT AVAILABLE” appears on the TV screen, it means no subtitle is recorded on the scene.

•If you choose a language that has three-letter-language code, the code will be displayed every time you change the subtitle language setting. If you choose any other languages, ‘---’ will be displayed instead. (Refer to page 18.)

• Some discs will only allow you to change the subtitle from the disc menu. Refer to the manual accompanying the discs for details.

This unit allows you to select an audio language (if multiple languages are available on disc) during DVD playback.

Each time you hit [

AUDIO]

, audio

language changes as example below.

ENG

SPA

(English audio)

(Spanish audio)

...

FRE

Hint

• Some discs will only allow you to change the audio setting from the disc menu. Refer to the manual accompanying the discs for details.

(French audio)

Camera Angles

Some DVD discs may contain scenes which have been shot simultaneously from various angles.You can change the camera angle if the ( ) icon appears on the screen. If the “ANGLE ICON” setting is “OFF” in the OTHERS menu, the () icon will not appear. (Refer to pages 14-16.)

Black Level Setting

Adjust the Black Level Setting to make the dark areas of the TV picture brighter.

ON: Makes the dark areas brighter. OFF: Shows the original picture as recorded.

Stereo Sound Mode

This unit allows you to select a sound mode during CD playback.

Each time you hit [

AUDIO]

, sound

mode changes as example below.

STEREO

(right and left channels are active)

L-ch

R-ch

(left channel is active)

(right channel is active)

Virtual Surround

You can enjoy stereophonic virtual world on your existing 2 channel stereo system.

MODE

Hit twice

(once for CD and MP3/WMA)

1: Natural effect. 2: Emphasized effect. OFF: No effects (original sound).

Functions

–13–

Hint

For CD playback only

• Virtual Surround will not be effective if the sound mode is set to something other than STEREO. Refer to “Stereo Sound Mode”.

Page 14

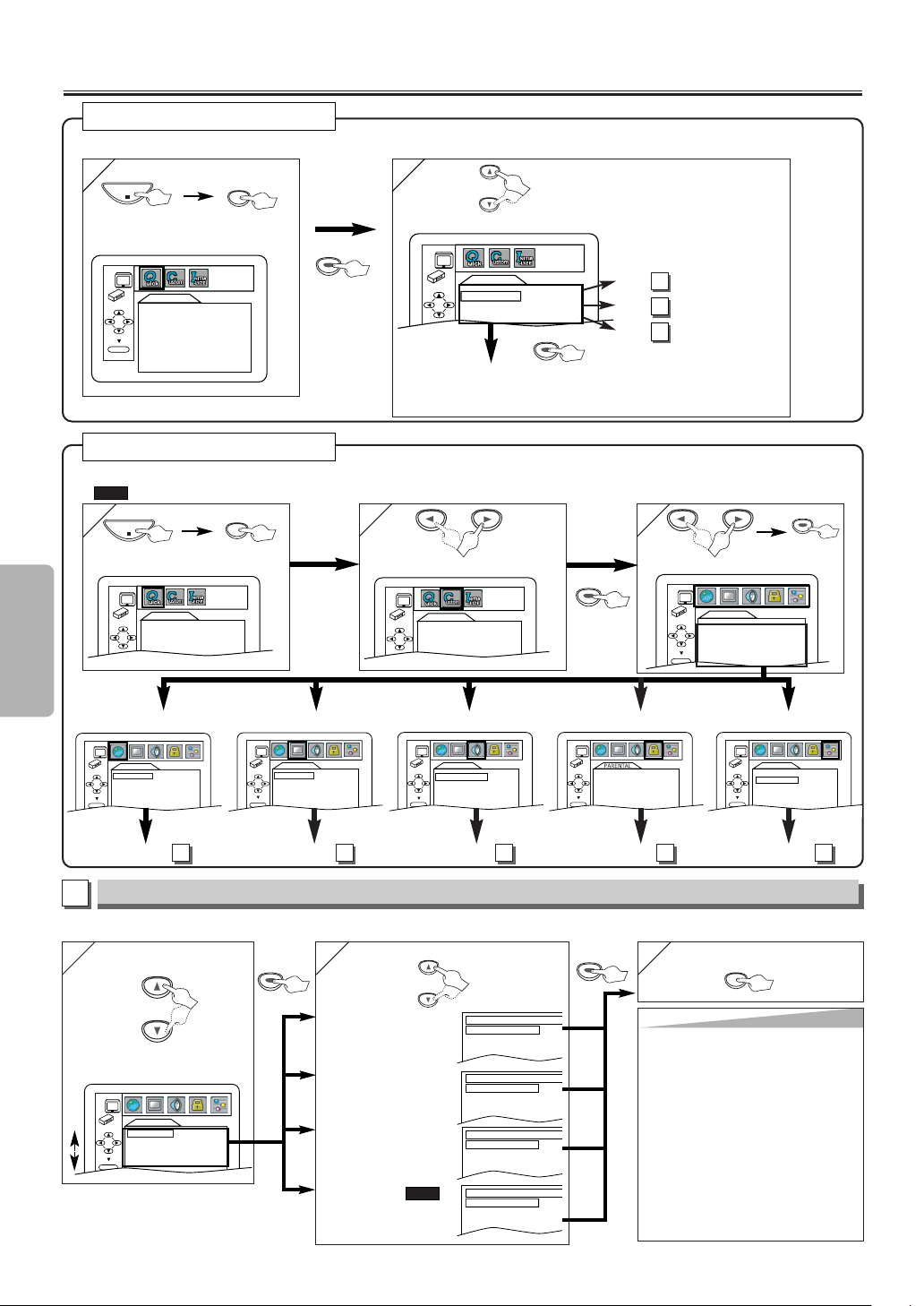

ENTER

AUDIO ORIGINAL SUBTITLE OFF DISC MENU ENGLISH PLAYER MENU ENGLISH

LANGUAGE

QUICK SETUP

PLAYER MENU ENGLISH TV ASPECT

4:3 LETTER BOX

DOLBY DIGITAL BITSTREAM

ENTERENTERENTER

SETUP

STOP

ENTERENTERENTER

SETUP

OTHERS

ENTER

ANGLE ICON ON AUTO POWER OFF

AUDIO

DRC

DOWN SAMPLING

DOLBY DIGITAL

BITSTREAM

ENTER

DISPLAY

TV ASPECT 4:3 LETTER BOX STILL MODE AUTO

ENTER

AUDIO ORIGINAL SUBTITLE OFF DISC MENU ENGLISH PLAYER MENU ENGLISH

LANGUAGE

QUICK SETUP

PLAYER MENU ENGLISH TV ASPECT

4:3 LETTER BOX

DOLBY DIGITAL BITSTREAM

ENTER

SETUP

STOP

QUICK SETUP

PLAYER MENU ENGLISH TV ASPECT

4:3 LETTER BOX

DOLBY DIGITAL BITSTREAM

ENTERENTERENTER

DVD Setup

ENTER

PARENTAL LEVEL ALL

QUICK SETUP

PLAYER MENU ENGLISH TV ASPECT

4:3 LETTER BOX

DOLBY DIGITAL BITSTREAM

ENTER

AUDIO ORIGINAL SUBTITLE OFF DISC MENU ENGLISH PLAYER MENU ENGLISH

LANGUAGE

ENTERENTERENTER

UICK SETUP Menuu

QQUICK SETUP Men

You can select the “PLAYER MENU”, “TV ASPECT” or “DOLBY DIGITAL” from the QUICK SETUP menu quickly.

Confirm that “QUICK” is selected.

CUST

OM Menuu

OM Men

You can change the settings of the unit.

QUICK

•

on pages 14-16 indicates DVD Setup menus also accessible from the QUICK SETUP menu.

Functions

LANGUAGE menu

DISPLAY menu

Select the desired item.

•

Refer to the sections “PLAYER MENU”, “TV ASPECT” or “DOLBY DIGITAL” on page 14 or 15.

or or

Select “CUSTOM”.

AUDIO menu

P14 Step 5) P15 Step 5)

P15 Step 5)

Select the desired item.

PARENTAL menu

OTHERS menu

page 14

LANGUAGE Setting

page 15

Follow steps 1) to 3) in the “CUSTOM Menu” section above.

Select the desired item.

LANGUAGE menu

Select the desired language.

AUDIO ∗∗1 ∗∗2 (Default: ORIGINAL)

Sets the audio language.

SUBTITLE:∗∗1 ∗∗2 (Default: OFF)

Sets the subtitle language.

DISC MENU:∗∗1 (Default: ENGLISH)

Sets the language in DVD menu.

PLAYER MENU: (Default: ENGLISH)

Sets the language for the On-Screen Display.

QUICK

page 15

–14–

AUDIO

ORIGINAL ENGLISH FRENCH

SUBTITLE

OFF ENGLISH FRENCH

DISC MENU

ENGLISH FRENCH SPANISH

PLAYER MENU

ENGLISH FRANÇAIS ESPAÑOL

page 16

6 To exit the menu.

Hint

∗1

• Language options are not available with some discs.

• If OTHER is selected in the AUDIO, SUBTITLE or DISC MENU screen, press four-digit number to enter the code for the desired language. (Refer to the language code list on page 18.)

• Only the languages supported by the disc can be selected.

∗2

• Language setting for Audio and Subtitle are not available with some discs. Then hit

[SUBTITLE]. Details are on page 13.

[AUDIO] and

page 16

Page 15

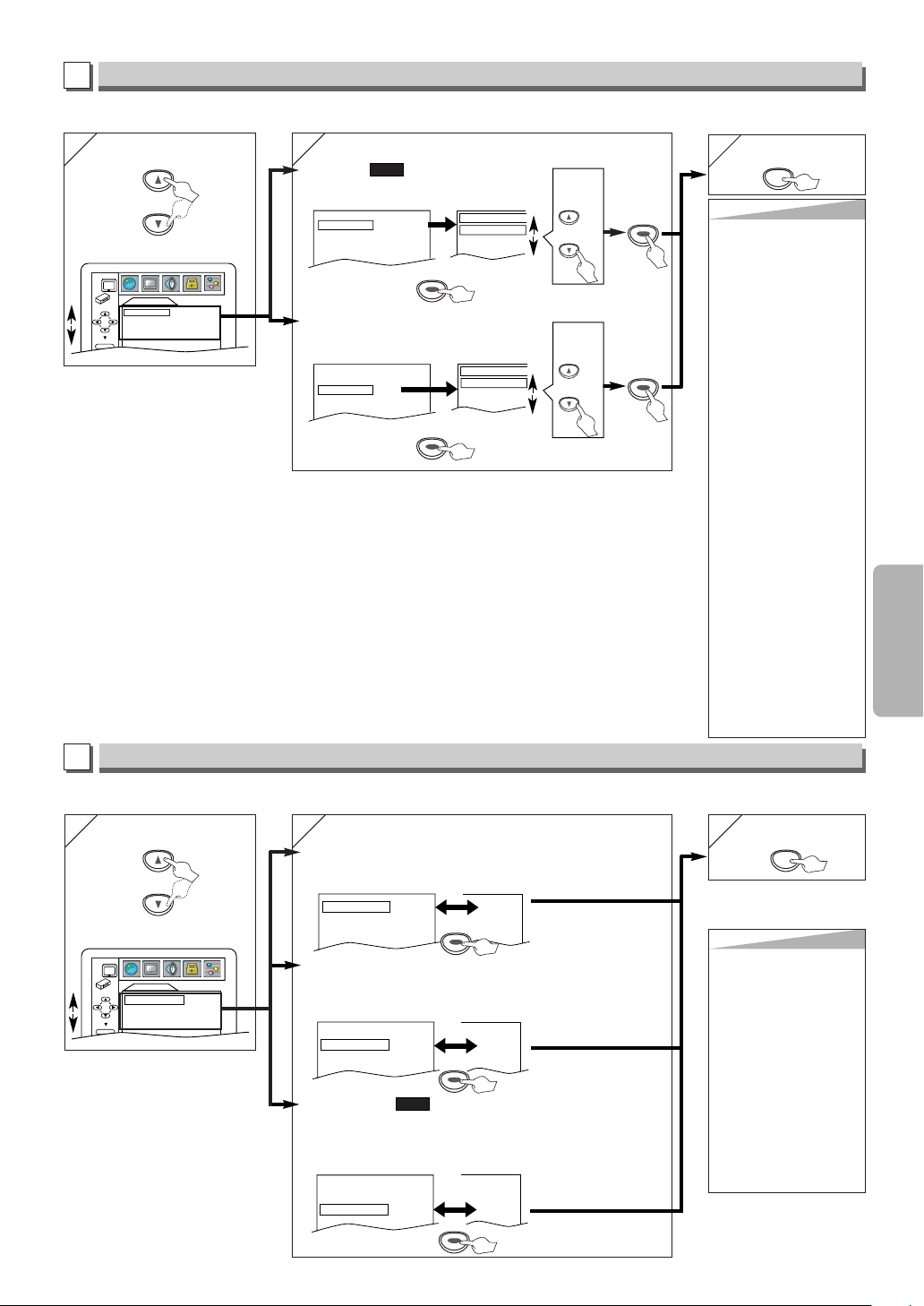

AUDIO

DRC

DOWN SAMPLING

DOLBY DIGITAL

BITSTREAM

ENTER

DISPLAY Setting

TV ASPECT

4:3

LETTER BOX

4:3

PAN & SCAN

16:9

WIDE

TV ASPECT

4:3 LETTERBOX

STILL MODE

AUTO

TV ASPECT

4:3 LETTERBOX

STILL MODE

AUTO

STILL MODE

AUTO FIELD FRAME

SETUP

DRC ON DOWN SAMPLING

DOLBY DIGITAL BITSTREAM

OFF ON BITSTREAM

ENTERENTERENTER

DRC ON DOWN SAMPLING

DOLBY DIGITAL BITSTREAM

ON ON

PCM

DRC ON DOWN SAMPLING

DOLBY DIGITAL BITSTREAM

ON OFF BITSTREAM

DISPLAY

TV ASPECT 4:3 LETTER BOX STILL MODE AUTO

ENTER

ENTERENTERENTER

You can change the display functions. Follow steps 1) to 3) in the “CUSTOM Menu” section on page 14.

Select the desired item.

DISPLAY menu

TV ASPECT:

QUICK

(Default: 4:3 LETTER BOX)

See Hint to the right.

STILL MODE: (Default: AUTO)

See Hint to the right.

Select the desired setting.

6 To exit the menu

Hint

TV ASPECT:

• Select “4:3 LETTER BOX”, so that black bars may appear on the top and bottom of the screen.

• Select “4:3 PAN & SCAN” for a full height picture with both sides adjusted.

• Select “16:9 WIDE” if a wide-screen TV is connected to this unit.

STILL MODE:

• Select “AUTO” usually.

• If you select AUTO, automatically select the best resolution setting (FRAME or FIELD) based on the data characteristics of the pictures. (default).

• If you select “FIELD”, the picture in the still mode will be stabilized.

• If you select “FRAME”, the picture in the still mode will be highly defined.

• An individual picture on TV screen is called a “frame”, which consists of two separate images called a “field”. Some pictures may be blurred at the AUTO setting instill mode due to their data characteristics.

Functions

Choose the appropriate audio settings for your equipments. It only affects during the playback of DVD discs. Follow steps 1) to 3) in the “CUSTOM Menu” section on page 14.

Select the desired item.

AUDIO menu

AUDIO Setting

DRC (Dynamic Range Control): (Default: ON)

Set to “ON” to compress the range between soft and loud sounds.

DOWN SAMPLING: (Default: ON)

Set to “ON” when outputting in 48 kHz. Set to “OFF” when outputting the original sound.

DOLBY DIGITAL:

QUICK

(Default: BITSTREAM)

Set to “BITSTREAM” when the unit is connected to a Dolby Digital receiver.

• BITSTREAM: Outputs a Dolby Digital Signals.

• PCM: Convert the Dolby Digital into PCM (2 channel).

–15–

6 To exit the menu

Hint

DRC:

• This function is available

only on the discs which are recorded in the Dolby Digital format.

DOWN SAMPLING:

• When playing disc with

• This function is available

only on digital outputting of a disc recorded in 96kHz.

Page 16

ENTER

PASSWORD

ENTER

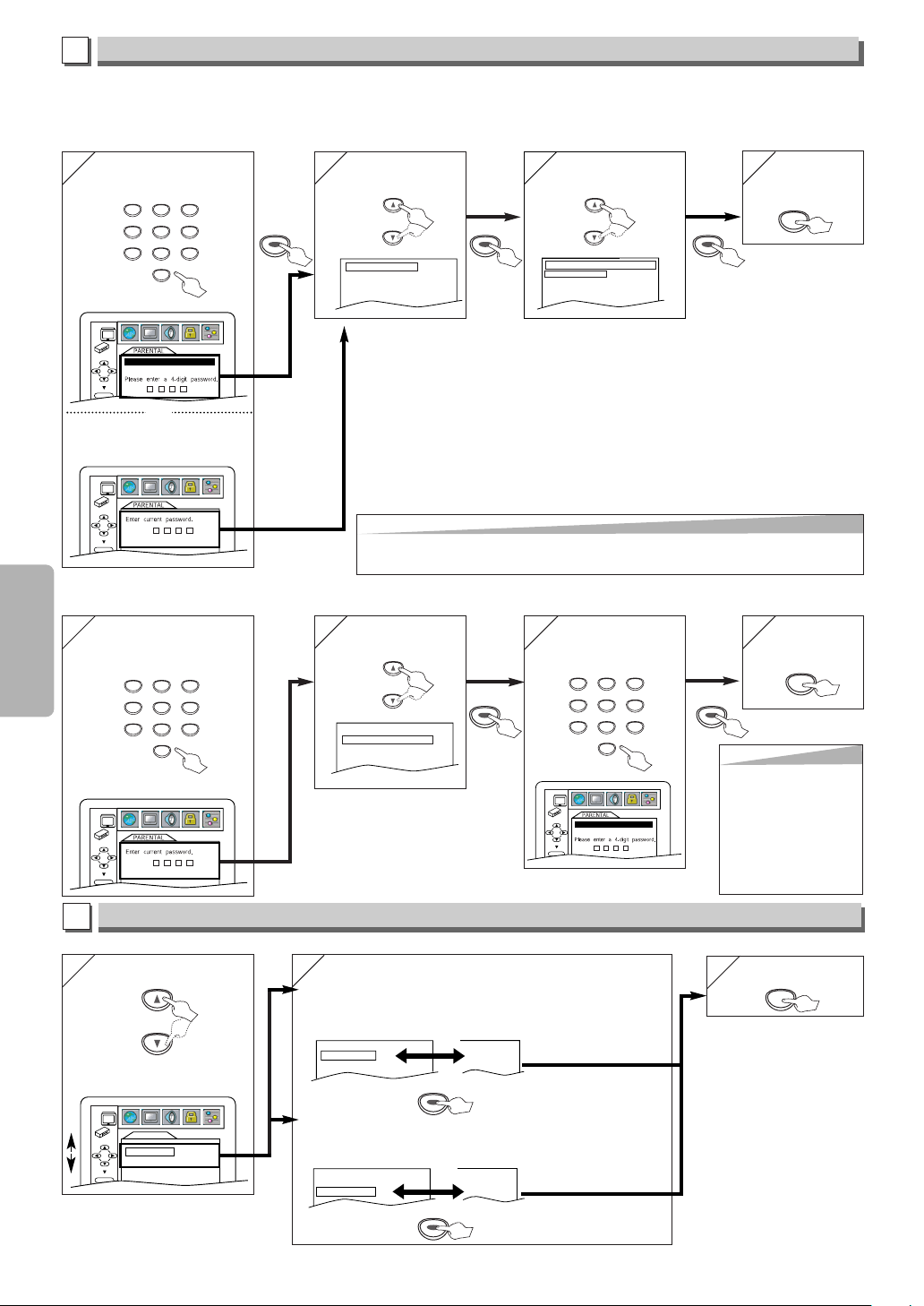

PARENTAL Setting

ENTERENTERENTER

PASSWORD CHANGE

PARENTAL LEVEL ALL

SETUP

PARENTAL LEVEL ALL

8 7 [NC-17] 6 [R]

PASSWORD CHANGE

PARENTAL LEVEL ALL

ENTER

PASSWORD

ENTER

ANGLE ICON ON AUTO POWER OFF

ON OFF

ANGLE ICON ON AUTO POWER OFF

OFF ON

OTHERS

ENTER

ANGLE ICON ON AUTO POWER OFF

ENTERENTERENTER

123

456

789

ENTERENTERENTER

SETUP

ENTERENTERENTER

123

456

789

123

456

789

Parental Control limits the disc viewing that exceed your settings. (An incorrect password will not play.) This feature prevents your children from viewing inappropriate materials.

arentalLeLe

PParental

Parental Level allows you to set the rating levels of your DVD discs. Playback will stop if the ratings exceed the levels you set.

vels

Follow steps 1) to 3) in the “CUSTOM Menu” section on page 14.

To exit

Enter your desired four-

digit password (except for 4737).

Select “PARENTAL

LEVEL”.

Select the

desired level.

the menu

PARENTAL menu

CONTROL LEVELS

• ALL: All parental locks are cancelled.

• Level 8: DVD softwares of any grades (adult/general/children) can be played back.

• Levels 7 to 2: Only DVD softwares intended for general use and children can be played

If you have set a password already,

enter the current four-digit password.

o Chang

Functions

TTo Chang

e the P

asswworor

ass

• Level 1: Only DVD softwares intended for children can be played back, with those

TIPS FOR LEVELS

• 7 [NC-17]: No one under 17 admitted

• 6 [R]: Restricted; under 17 requires accompanying parent or adult guardian

• 4 [PG13]: Unsuitable for children under 13

• 3 [PG]: Parental Guidance suggested

• 1 [G]: General Audience

Hint

• DVD-Video discs may not respond to the parental lock settings. Make sure this function works with your DVD-Video discs.

d f

or P

d f

arental Contr

or P

arental Contr

You can change your password for parental controls. Follow steps 1) to 3) in the “CUSTOM Menu” section on page 14.

Enter your desired fourdigit password (except

Select “PASSWORD

CHANGE”.

for 4737).

back.

intended for adult and general use prohibited.

ols

Enter your new

four-digit password (except for 4737).

To exit the menu

PARENTAL menu

You can change the other functions. Follow steps 1) to 3) in the “CUSTOM Menu” section on page 14.

OTHERS menu

OTHERS Setting

Select the desired item

ANGLE ICON: (Default: ON)

Set to “ON” to show the angle icon when multiple camera angles are available during DVD playback.

AUTO POWER OFF: (Default: ON)

Set to “ON” to turn this unit off automatically after 30 minutes of no use.

–16–

Hint

•

Record the password in case you forget it.

• I

f you forget the pass-

word, hit [4], [7], [3], [7] at step 4), then enter your new password.

•

Password will be cleared and parental levels will be set to “ALL”.

6 To exit the menu

Page 17

Reset to the Default Setting (Except for PARENTAL Setting)

QUICK SETUP

PLAYER MENU ENGLISH TV ASPECT

4:3 LETTER BOX

DOLBY DIGITAL BITSTREAM

INITIALIZE Initialize?

NO YES

ENTER

SETUP

QUICK SETUP

PLAYER MENU ENGLISH TV ASPECT

4:3 LETTER BOX

DOLBY DIGITAL BITSTREAM

STOP

ENTERENTERENTER

To exit

the menu

Select “INITIALIZE”.

Select “YES”.

Hit twice.

Hint

•

When you cancel to initialize at step

3), select “NO”.

Information

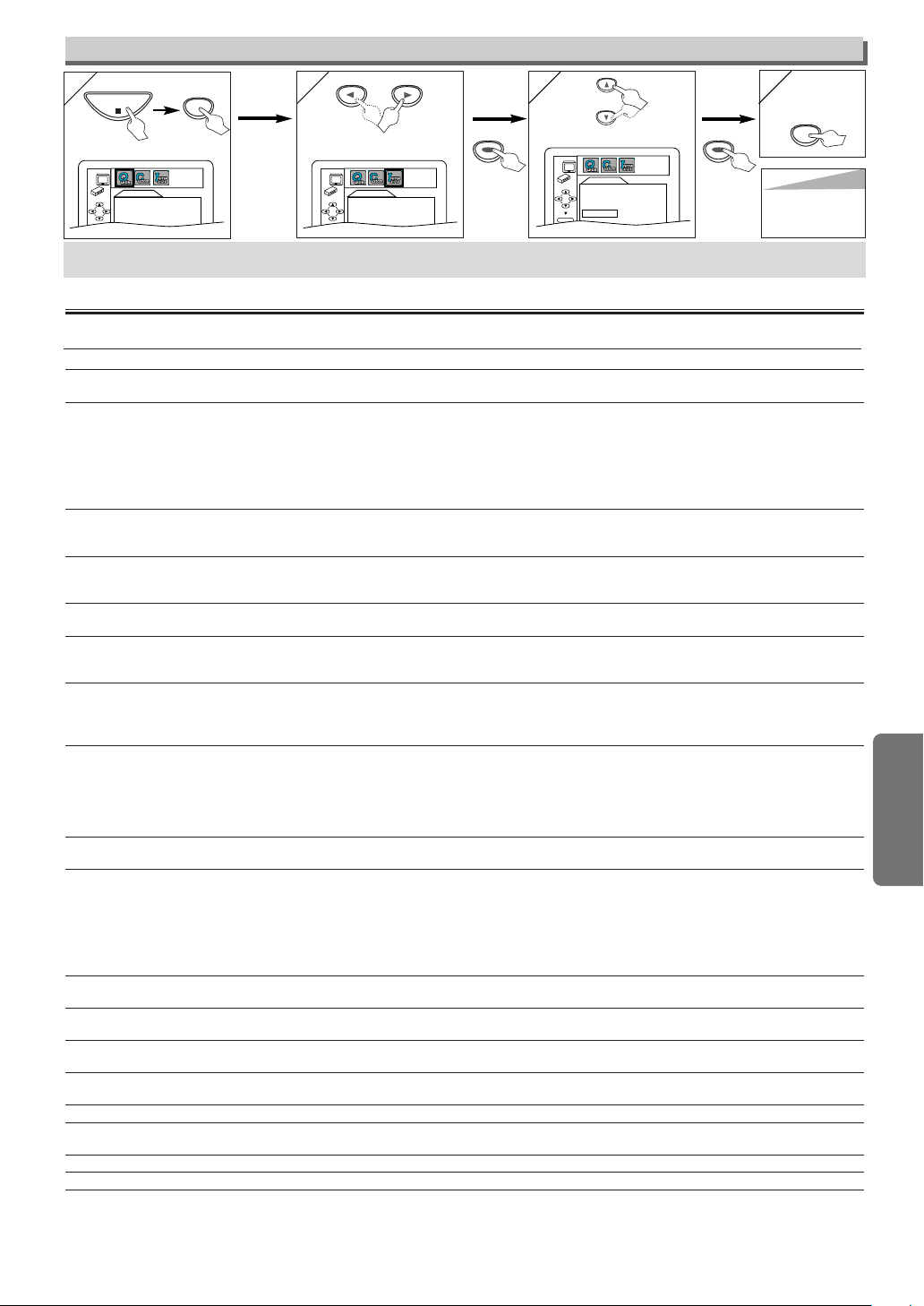

Troubleshooting Guide

If the unit does not perform properly when operated as instructed in this Owner’s Manual, check the unit consulting the following checklist.

Problem Solution

No power –Check if the AC power cord is properly connected.

No sound or picture –Check if the TV is switched on.

Distorted picture –Sometimes a small amount of picture distortion may appear.

Completely distorted picture or –Connect the unit directly to the TV. black/white picture with DVD –Make sure the disc is compatible with the unit.

No sound or distorted sound –Adjust the volume.

No audio at digital output –Check the digital connections.

No DTS audio is output –This unit does not support DTS audio. This is not a malfunction. Picture freezes momentarily –Check the disc for fingerprints/scratches and during playback clean with a soft cloth wiping from center to edge.

Disc can’t be played –Clean the disc. –Ensure the disc label is facing up.

No return to start-up screen when –Reset the unit by switching the unit off, then on again. disc is removed

The unit does not respond to the remote control –Reduce the distance to the unit.

Buttons do not work or the unit stops –To completely reset the unit, unplug the AC responding cord from the AC outlet for 5-10 seconds.

The unit does not respond to some –Operations may not be permitted by the disc. operating commands during playback Refer to the instructions of the disc.

The unit cannot read –Use a commonly available cleaning CD/DVD to CDs/DVDs clean the lens before sending the unit for repair.

Angle does not switch –

Playback does not start when the title is selected –Check the “PARENTAL” setting. The password for rating level has been forgotten –Enter the default password “4737”, then your forgotten password

Disc cannot be inserted –Check if any disc is already in. Disc cannot be taken out –Press and hold [EJECT A] on the unit for more than 5 seconds.

NOTES:

• Some functions are not available in specific modes, but this is not a malfunction. Read the description in this Owner’s Manual for more details on correct operations.

• Playback from a desired track and random playback are not available during program playback.

• Some functions are prohibited on some discs.

–

Unplug the outlet once, and wait for 5-10 seconds and then plug it in again.

–Check the video connection. –Check the VIDEO/AUDIO cable connections to the TV.

(See Connection to a TV)

–

Set PROGRESSIVE correctly. Turn it on only if your TV has Progressive Scan and you are using the Component Video connections between the unit and the TV. Disable Progressive Scan for all other connections. (See page 6)

This is not a malfunction.

–Connect the unit directly to the TV.

–

Check if the INTERLACE/PROGRESSIVE mode is set correctly. See page 6.

–Check that the speakers are connected correctly.

–Check if the audio format of the selected audio language matches

your receiver capabilities.

–Clean the disc.

–Check if the disc is defective by trying another disc. –Cancel the parental lock or change the control level. –Insert a correct disc that plays on this unit. –Handle a disc with special care so that it does not have fingerprints,

scratches, or dusts on its surface.

–

Aim the remote control directly at the sensor on the front of the unit.

–Replace the batteries in the remote control. –Re-insert the batteries with their polarities (+/– signs) as indicated. –

Tune your radio to an empty AM station so that you hear a lot of noises. Then, turn the volume up. If you hear some signal sound from the radio by pressing buttons on the remote control, the remote control is working.

The angle cannot be switched for DVDs which do not contain multiple angles. In some cases multiple angles are only recorded for specific scenes.

will be cleared.

–17–

Information

Page 18

Specifications

Output signal format:

NTSC color

Power source:

120 V AC +/- 10%, 60 Hz +/- 0.5%

Power consumption:

10 W (standby: 0.8 W)

Operating temperature:

41°F (5°C) to 104°F (40°C)

Dimensions:

W : 9 13/16" (249 mm)

H : 2 1/2" (62 mm) D : 9 7/16" (239 mm)

Weight :

Approx 2.9 lbs (1.3 kg)

• Designs and specifications are subject to change without notice.

• If there is a discrepancy between languages, the default language will be English.

Language List

Language Code Language Code Language Code Language Code

Abkhazian 4748 Afar 4747 Afrikaans 4752 Albanian 6563 Amharic 4759 Arabic 4764 Armenian 5471 Assamese 4765 Aymara 4771 Azerbaijani 4772 Bashkir 4847 Basque 5167 Bengali;Bangla 4860 Bhutani 5072 Bihari 4854 Bislama 4855 Breton 4864 Bulgarian 4853 Burmese 5971 Byelorussian 4851

Cambodian 5759 Catalan 4947 Chinese [CHI] 7254 Corsican 4961 Croatian 5464 Czech 4965 Danish [DAN] 5047 Dutch [DUT] 6058 English [ENG] 5160 Esperanto 5161 Estonian 5166

Faroese 5261 Fiji 5256 Finnish [FIN] 5255

If you choose a Language that has a 3 letter language code, the code will be displayed every time you change the Audio or Subtitle language setting on page 13. If you choose any other languages, ‘---’ will be displayed instead. (3 letter language code is written in bracket.)

Information

A-B

C-E

F-H

French [FRE] 5264 Frisian 5271 Galician 5358 Georgian 5747 German [GER] 5051 Greek [GRE] 5158 Greenlandic 5758 Guarani 5360 Gujarati 5367 Hausa 5447 Hebrew 5569 Hindi 5455 Hungarian [HUN] 5467

Icelandic [ICE] 5565 Indonesian 5560 Interlingua 5547 Interlingue 5551 Inupiak 5557 Irish [IRI] 5347 Italian [ITA] 5566 Japanese [JPN] 5647 Javanese 5669 Kannada 5760 Kashmiri 5765 Kazakh 5757 Kinyarwanda 6469 Kirghiz 5771 Kirundi 6460 Korean [KOR] 5761 Kurdish 5767

Laothian 5861 Latin 5847 Latvian;Lettish 5868 Lingala 5860 Lithuanian 5866

I-K

L-N

Macedonian 5957 Malagasy 5953 Malay 5965 Malayalam 5958 Maltese 5966 Maori 5955 Marathi 5964 Moldavian 5961 Mongolian 5960 Nauru 6047 Nepali 6051 Norwegian [NOR] 6061

Occitan 6149 Oriya 6164 Oromo(Afan) 6159 Panjabi 6247 Pashto;Pushto 6265 Persian 5247 Polish 6258 Por tuguese [POR] 6266 Quechua 6367 Rhaeto-Romance 6459 Romanian [RUM] 6461 Russian [RUS] 6467

Samoan 6559 Sangho 6553 Sanskrit 6547 Scots Gaelic 5350 Serbian 6564 Serbo-Croatian 6554 Sesotho 6566 Setswana 6660 Shona 6560 Sindhi 6550 Singhalese 6555

O-R

Siswat 6565 Slovak 6557 Slovenian 6558 Somali 6561 Spanish [SPA] 5165 Sundanese 6567 Swahili 6569 Swedish [SWE] 6568

Tagalog 6658 Tajik 6653 Tamil 6647 Tatar 6666 Telugu 6651 Thai 6654 Tibetan 4861 Tigrinya 6655 Tonga 6661 Tsonga 6665 Tu rkish [TUR] 6664 Tu rkmen 6657 Tw i 6669

Ukrainian 6757 Urdu 6764 Uzbek 6772 Vietnamese 6855 Volapuk 6861 Welsh 4971 Wolof 6961 Xhosa 7054 Yiddish 5655 Yo r uba 7161 Zulu 7267

U-Z

LIMITED WARRANTY

FUNAI CORP. will repair this SYLVANIA product, free of charge in the USA in the event of defect in materials or workmanship as follows:

DURATION: PA RTS:

LABOR: FUNAI CORP. will provide the labor without charge for a peri-

LIMITS AND EXCLUSIONS:

This warranty is extended only to the original retail purchaser. A purchase receipt or other proof of original retail purchase will be required together with the product to obtain service under this warranty.

This warranty shall not be extended to any other person or transferee. This warranty is void and of no effect if any serial numbers on the product are

altered, replaced, defaced, missing or if service was attempted by an unauthorized service center. This SYLVANIA Limited warranty does not apply to any product not purchased and used in the United States.

This product is produced for home use and this warranty only covers failures due to defects in material or workmanship which occurs during normal use. It does not cover damage which occurs in shipment, or failures which are caused by repairs, alterations or product not supplied by FUNAI CORP., or damage which results from accident, misuse, abuse, mishandling, misapplication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or office use of this product or damage which results from fire, flood, lightning or other acts of God.

THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE CONTROL), ANY COSMETIC PA RTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS.

FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from the date of original retail purchase. Certain parts are excluded from this warranty.

od of ninety (90) days from the date of original retail purchase.

–18–

FUNAI CORP. AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY GENERAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND OF ALL OTHER LIABILITIES ON THE PART OF FUNAI, ALL OTHER WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED BY FUNAI AND ITS REPRESENTATIVES IN THE UNITED STATES. ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY A FUNAI AUTHORIZED SERVICE CENTER. THIS WARRANTY IS VALID WHEN THE UNIT IS CARRIED-IN TO FUNAI AUTHORIZED SERVICE FACILITY.

IMPORTANT:

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS.YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. IF, AT ANY TIME DURING THE WARRANTY PERIOD, YOU ARE UNABLE TO OBTAIN SATISFACTION WITH THE REPAIR OF THIS PRODUCT, PLEASE CONTACT FUNAI CORP.

ATTENTION:

FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT WITHOUT PRIOR NOTICE.

To locate your nearest Authorized Service Center or for general service inquiries, please call or write to the following:

FUNAI CORPORATION, INC.

SERVICE CENTER

19900 Van Ness Avenue, Torrance, CA 90501

Tel :1-800-968-3429

http://www.SylvaniaConsumerElectronics.com

PLEASE DO NOT SHIP YOUR UNIT TO THE TETERBORO ADDRESS.

Head Office: 100 North Street, Teterboro, NJ 07608

Page 19

POWER

AUDIO

SUBTITLE

ANGLE

REPEAT

CLEAR

A-B

PAUSE

SLOW

SKIP

EJECT

DISPLAY

SEARCH MODE

123

456

789

0 +10

PLAY

REV FWD

STOP

Español

WMAWMA

WMA

MP3MP3

MP3

CDCDCDDVD-V

DVD-V

SETUP

QUICK SETUP

PLAYER MENU ENGLISH TV ASPECT

4:3 LETTER BOX

DOLBY DIGITAL BITSTREAM

ENTERENTERENTER

• Para encender o apagar la unidad.

• Para mostrar el modo de disco actual.

• Para remover el disco de la unidad.

• Para hacer una pausa en la reproducción del disco.

• Para empezar la reproducción del disco.

• Para seleccionar directamente el capítulo o título.

• Para seleccionar directamente la canción.

• Para seleccionar los ángulos de cámara en un disco.

• Para seleccionar subtítulos en un disco.

• Para seleccionar idiomas de audio en un disco.

•

Para seleccionar ESTÉREO L-ch o R-ch. (CD)

• Para repetir entre su punto A y B seleccionado.

•

Para repetir entre su punto A y B seleccionado. (CD)

• Para reproducir repetidamente un capítulo o título.

•

Para reproducir repetidamente

una canción o disco. (CD)

•

Para reproducir repetidamente una canción, grupo o disco. (MP3/WMA)

• Para activar/desactivar el nivel del negro.

•

Para disponer el orden de reproducción o la reproducción aleatoria.

• Para llamar el Menú en un disco.

• Para llamar el menú inicial en un disco.

•

Para volver al archivo superior de la jerarquia más alta en el programa y en la lista de archivo. (MP3/WMA)

• Para ampliar la imagen de vídeo en DVD. (x2/x4)

• Para activar/desactivar el ambiental virtual.

• Para volver a la operación anterior en el menú.

• Para buscar un capítulo, título o tiempo.

• Para colocar o buscar los marcadores.

• Para buscar una canción.

• Para buscar el tiempo. (CD)

•

Para colocar o buscar los marcadores. (CD)

• Para borrar los marcadores.

•

Para borrar los marcadores. (CD)

• Para eliminar el Nº de estado en la entrada de programa.

• Para borrar los números mal entrados.

• Para borrar el punto para la repetición A-B. (CD)

• Para borrar los números mal entrados.

• Para borrar el punto para la repetición A-B.

•

Para buscar en avance/ retroceso por un disco.

•

Para empezar la reproducción en avance lento/retroceso durante el modo de pausa.

• Para buscar en avance/ retroceso por un disco.

•

Para llamar la lista de archivo. (MP3/WMA)

•

Para avanzar la reproducción un cuadro cada vez.

•

Para hacer una pausa en la reproducción.

• Para parar la reproducción. • Para parar la reproducción.

• Para saltar capítulos. • Para saltar canciones.

• Para llamar el menú de

ajustes de DVD.

• Para llamar el menú de ajustes de DVD.

• Para mover el cursor y determinar la posición.

POWER

DISPLAY

TOP MENU

ZOOM

SUBTITLE

MODE

ANGLE

MODE

REPEAT

A-B

AUDIO

CLEAR

123

456

789

+1 0

PAUSE

PLAY

STOP

SETUP

DVD-V

Botón

(Orden alfabético)

Disco

ENTER

RETURN

REV FWD

EJECT

SKIP

MP3

WMA

QUICK SETUP

PLAYER MENU ENGLISH TV ASPECT

4:3 LETTER BOX

DOLBY DIGITAL BITSTREAM

SETUP

STOP

POWER

STOP

POWER

PLAY

✄

Conexiones

Si su televisor tiene entradas de AUDIO/VIDEO vea la sección “Connection to a TV” en la página 6 en el Manual de Manejo. En caso contrario, vea la sección “RF Modulator Connection” en la página 6 en el Manual de Manejo.

Instalación de las pilas

en el control remoto

4 Para salir del menú.

Para cambiar el idioma en la pantalla

Confirme que ha seleccionado “PLAYER MENU”.

Confirme que ha seleccionado “QUICK”.

Seleccione el idioma deseado para las indicaciones en la pantalla.

PLAYER MENU

ENGLISH FRANÇAIS ESPAÑOL

Reproducción

Antes:

Encienda el televisor, amplificador y otros equipos conectados a esta unidad. Asegúrese que el televisor y el sintonizador de audio (de venta en los comercios) están en el canal correcto.

Control remoto

–19–

Para empezar

la reproducción

Ponga un disco con la etiqueta hacia izquierda.

Para parar la reproducción

Español

Page 20

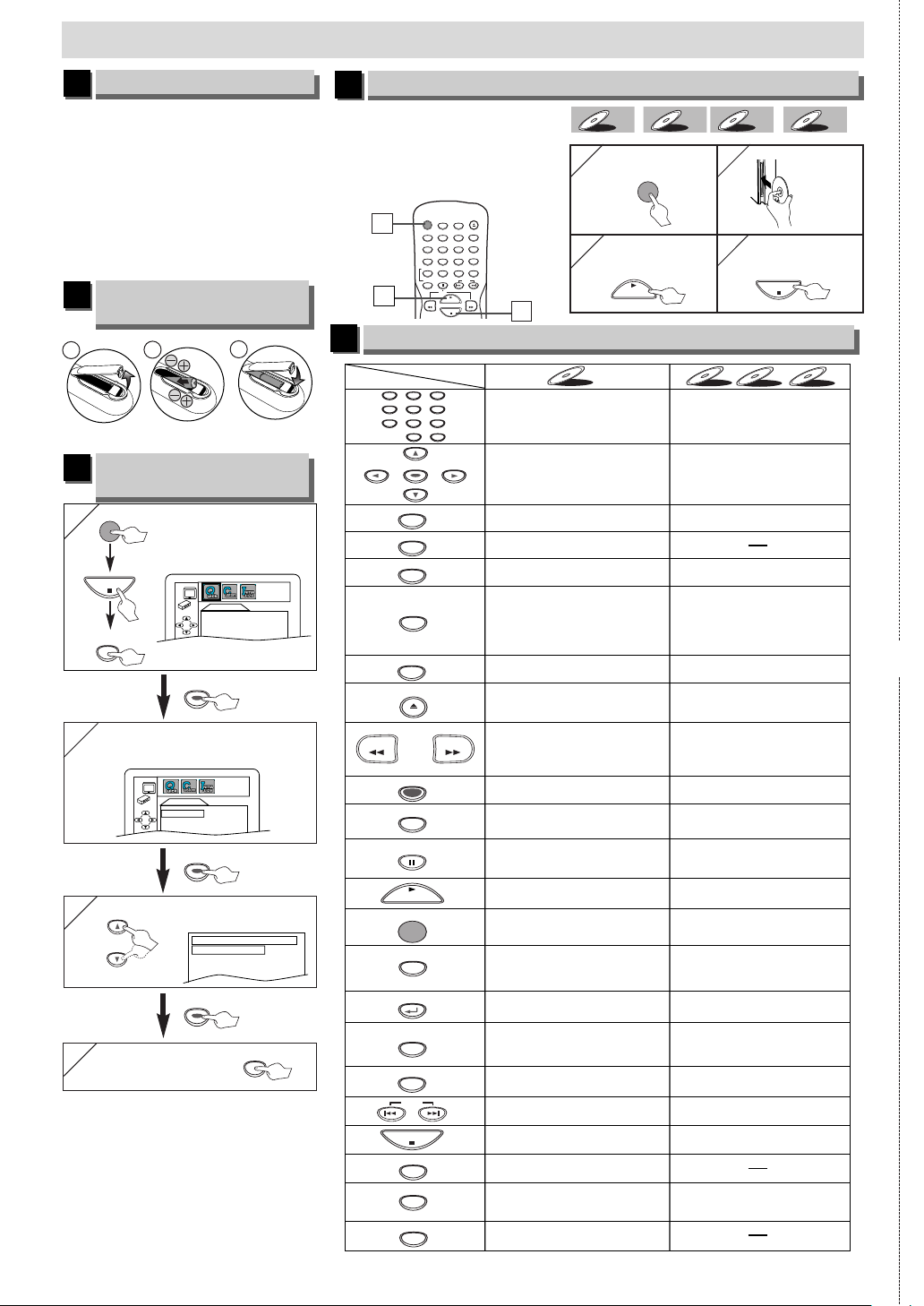

POWER

AUDIO

SUBTITLE

ANGLE

REPEAT

CLEAR

A-B

PAUSE

SLOW

SKIP

EJECT

DISPLAY

SEARCH MODE

123

456

789

0 +10

PLAY

REV FWD

STOP

Quick Use Guide

• To turn the unit on or off. • To turn the unit on or off.

• To display the current disc

mode.

• To display the current disc mode.

• To select chapter or title directly.

• To select track directly.

• To select camera angles on

a disc.

• To select subtitles on a disc.

• To select audio languages on

a disc.

• To select STEREO, L-ch or R-ch. (CD)

• To repeat between your chosen point A and B.

• To repeat between your chosen point A and B. (CD)

• To play a chapter or title repeatedly.

• To play a track or disc repeatedly. (CD)

• To play a track, group or disc repeatedly. (MP3/WMA)

• To return to the previous operation in menu.

• To set black level on/off.

• To set virtual surround on/off.

• To arrange the playing

order or play randomly.

• To set virtual surround on/off.

• To call up the Menu

on a disc.

• To call up the Top Menu on a disc.

• To magnify part of a picture. (x2/x4)

• To return to the previous operation in menu.

• To search chapter, title or time.

• To set or search the

markers.

• To search track.

• To search time. (CD)

• To set or search the

markers. (CD)

• To clear the markers.

• To cancel the point for A-B

repeat.

• To cancel the point for A-B repeat. (CD)

• To clear the markers. (CD)

• To remove status number

in program input.

• To clear the numbers entered incorrectly.

• To search forward/backward through a disc.

• To begin slow forward /reverse playback during the pause mode.

• To search forward/backward through a disc.

• To call up the file list. (MP3/WMA)

• To advance playback one frame at a time.

• To pause disc playback.

• To stop playback. • To stop playback.

•

To return to the top file of the

highest hierarchy in the program

and file list. (MP3/WMA)

• To skip chapters. • To skip tracks.

• To begin disc playback. • To begin disc playback.

• To call up the DVD setup

menu.

• To call up the DVD setup menu.

• To move the cursor and determine its position.

POWER

DISPLAY

TOP MENU

ZOOM

SUBTITLE

MODE

ANGLE

MODE

REPEAT

A-B

AUDIO

CLEAR

123

456

789

+1 0

PAUSE

PLAY

STOP

SETUP

DVD-V

Button

(Alphabetical order)

Disc

ENTER

RETURN

REV FWD

SKIP

MP3

WMA

• Hit to remove the disc. • Hit to remove the disc.

EJECT

SETUP

ENTERENTERENTER

SETUP

STOP

POWER

WMAWMA

WMA

MP3MP3

MP3

CDCDCDDVD-V

DVD-V

POWER

STOP PLAY

QUICK SETUP

PLAYER MENU ENGLISH TV ASPECT

4:3 LETTER BOX

DOLBY DIGITAL BITSTREAM

QUICK SETUP

PLAYER MENU ENGLISH TV ASPECT

4:3 LETTER BOX

DOLBY DIGITAL BITSTREAM

Connections

If your TV has AUDIO/VIDEO input jacks, see the section “Connection to a TV” on page 6 of the Owner’s Manual. If not, see the section “RF Modulator Connection” on page 6 of the Owner’s Manual.

Installing the Batteries

for the Remote Control

Confirm that “PLAYER MENU” is selected.

4 To exit the menu.

Printed in China

To Change the OnScreen Language

Confirm that “QUICK” is selected.

Select the desired language

for the On-Screen Display.

PLAYER MENU

ENGLISH FRANÇAIS ESPAÑOL

Playback

Before:

¡Tu rn on the TV, amplifier and any other

equipments which are connected to this unit. Make sure the TV and audio receiver (commercially available) are set to the correct channel.

Remote Control

To st art playback

To stop playback

1VMN20873 / E61T0UD ★★★★★

Insert a disc with label facing to the left.

✄
