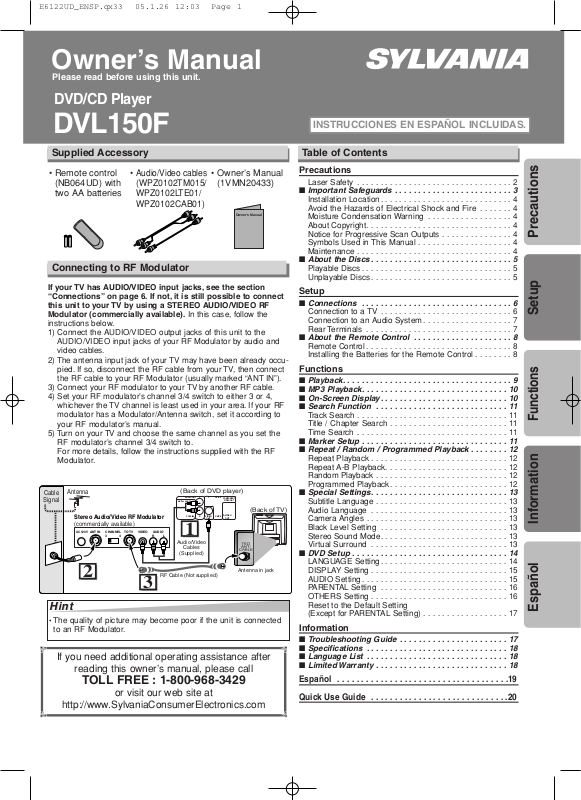

Sylvania DVL150F User Manual

Owner's Manual
Owner’s Manual
Please read before using this unit.
DVD/CD Player
DVL150F
Supplied Accessory
• Remote control (NB064UD) with two AA batteries
Connecting to RF Modulator
If your TV has AUDIO/VIDEO input jacks, see the section Connectionson page 6. If not, it is still possible to connect this unit to your TV by using a STEREO AUDIO/VIDEO RF Modulator (commercially available). In this case, follow the
instructions below.
1) Connect the AUDIO/VIDEO output jacks of this unit to the AUDIO/VIDEO input jacks of your RF Modulator by audio and video cables.
2) The antenna input jack of your TV may have been already occu­pied. If so, disconnect the RF cable from your TV, then connect the RF cable to your RF Modulator (usually marked “ANT IN”).
3) Connect your RF modulator to your TV by another RF cable.
4) Set your RF modulators channel 3/4 switch to either 3 or 4, whichever the TV channel is least used in your area. If your RF modulator has a Modulator/Antenna switch, set it according to your RF modulators manual.
5) Turn on your TV and choose the same channel as you set the RF modulators channel 3/4 switch to. For more details, follow the instructions supplied with the RF Modulator.
Antenna
Cable Signal
Stereo Audio/Video RF Modulator
(commercially available)
ANT IN
AC 120V
2
Hint
Hint
The quality of picture may become poor if the unit is connected
to an RF Modulator.
If you need additional operating assistance after
reading this owners manual, please call
TOLL FREE : 1-800-968-3429
http://www.SylvaniaConsumerElectronics.com
Audio/Video cables (WPZ0102TM015/ WPZ0102LTE01/ WPZ0102CAB01)
(Back of DVD player)
L
AUDIO OUT
DIGITAL AUDIO OUT
COAXIAL
R
TO TVCHANNEL VIDEO AUDIO
RL34
1
Audio/Video
Cables
(Supplied)
RF Cable (Not supplied)
3
or visit our web site at
Y
CR/P
R
COMPONENT
VIDEO OUT
(Back of TV)
S-VIDEO
VIDEO
C
B/PB
OUT
OUT
Antenna in jack
INSTRUCCIONES EN ESPAÑOL INCLUIDAS.
Table of Contents
Precautions
Laser Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Avoid the Hazards of Electrical Shock and Fire . . . . . . . 4
Moisture Condensation Warning . . . . . . . . . . . . . . . . . . 4
About Copyright. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Notice for Progressive Scan Outputs . . . . . . . . . . . . . . . 4
Symbols Used in This Manual . . . . . . . . . . . . . . . . . . . . 4
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
About the Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Playable Discs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Unplayable Discs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Setup
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Connection to a TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

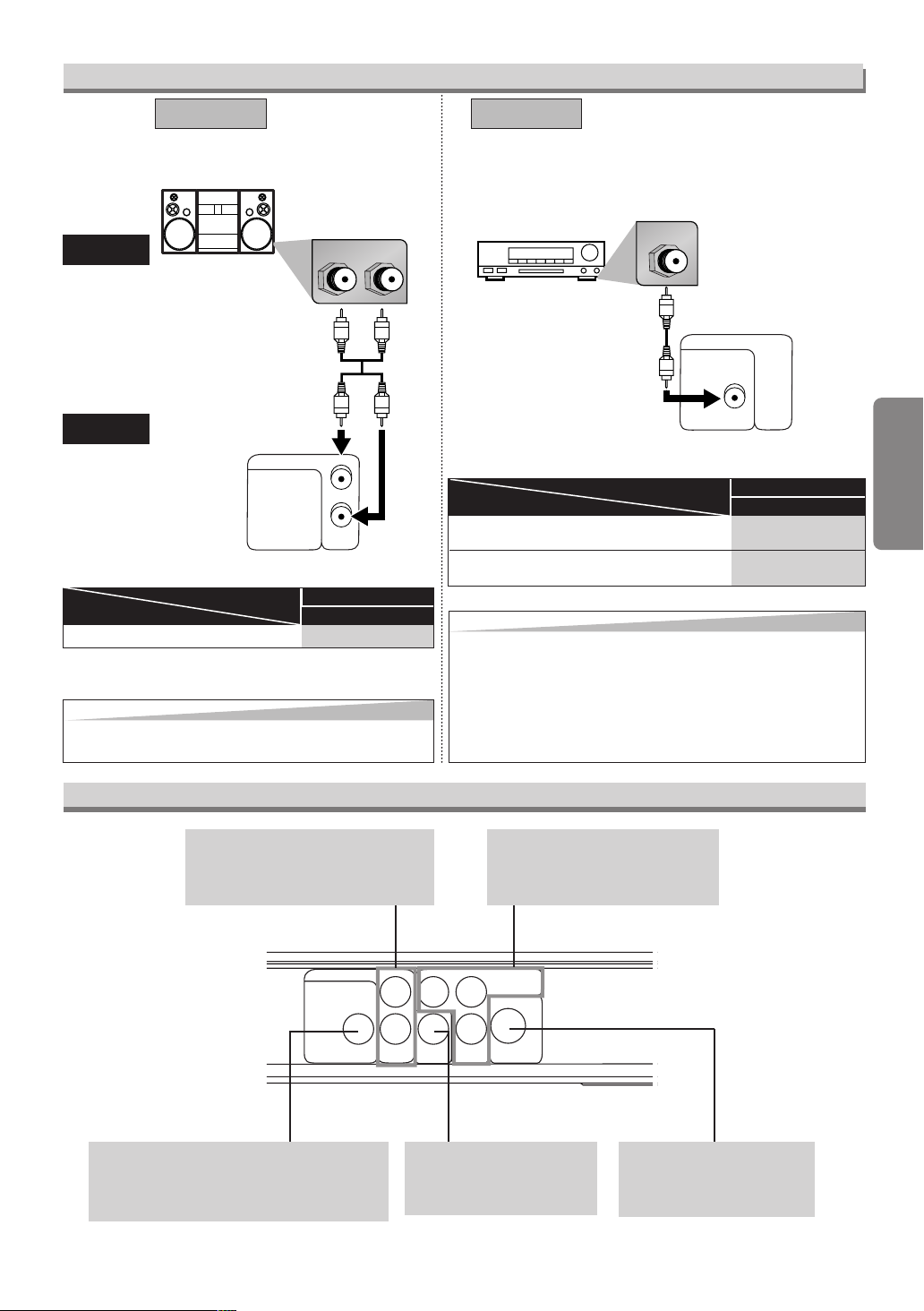

Connection to an Audio System. . . . . . . . . . . . . . . . . . . 7
Rear Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

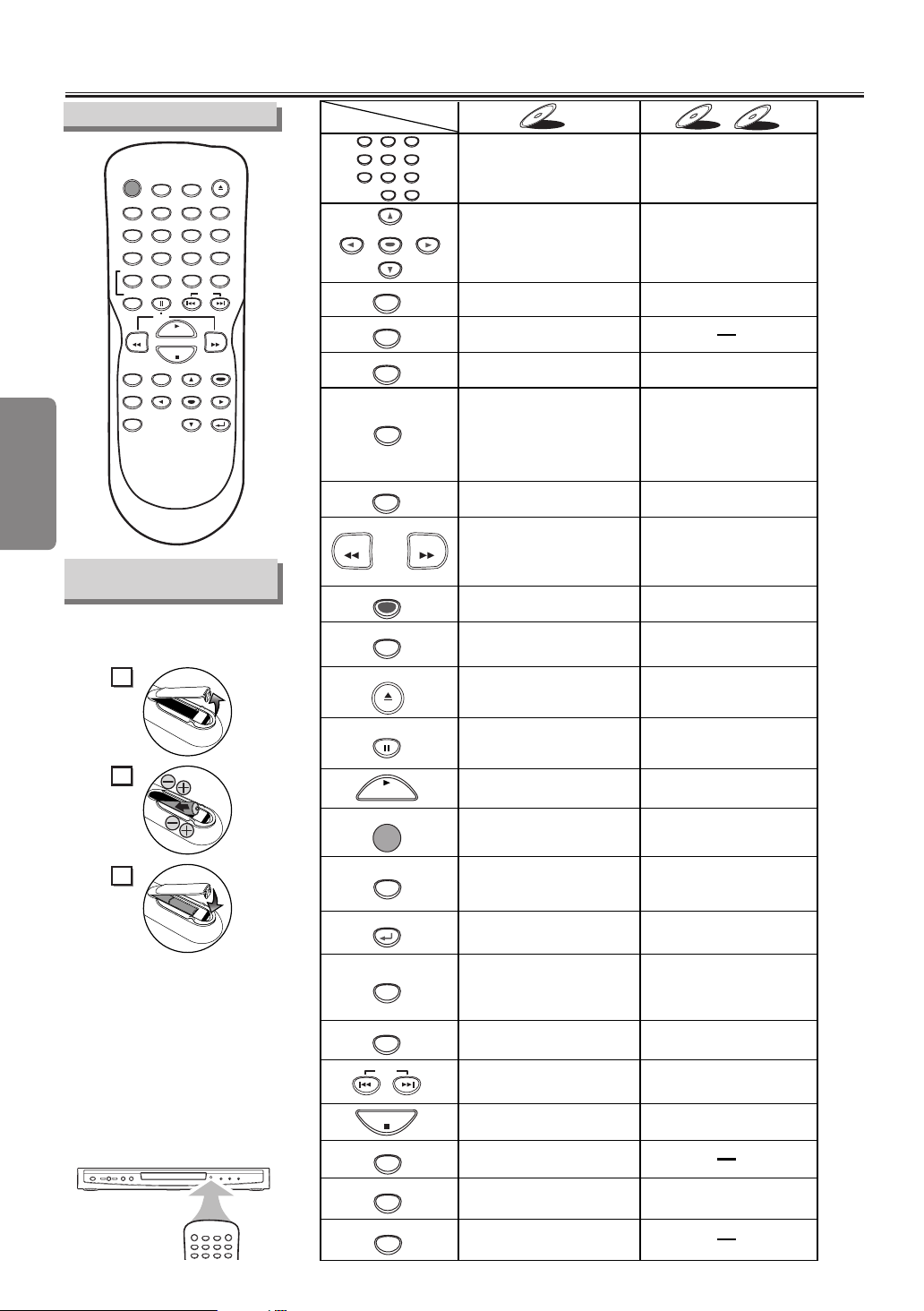

About the Remote Control . . . . . . . . . . . . . . . . . . . . . 8
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installing the Batteries for the Remote Control . . . . . . . . 8
Functions

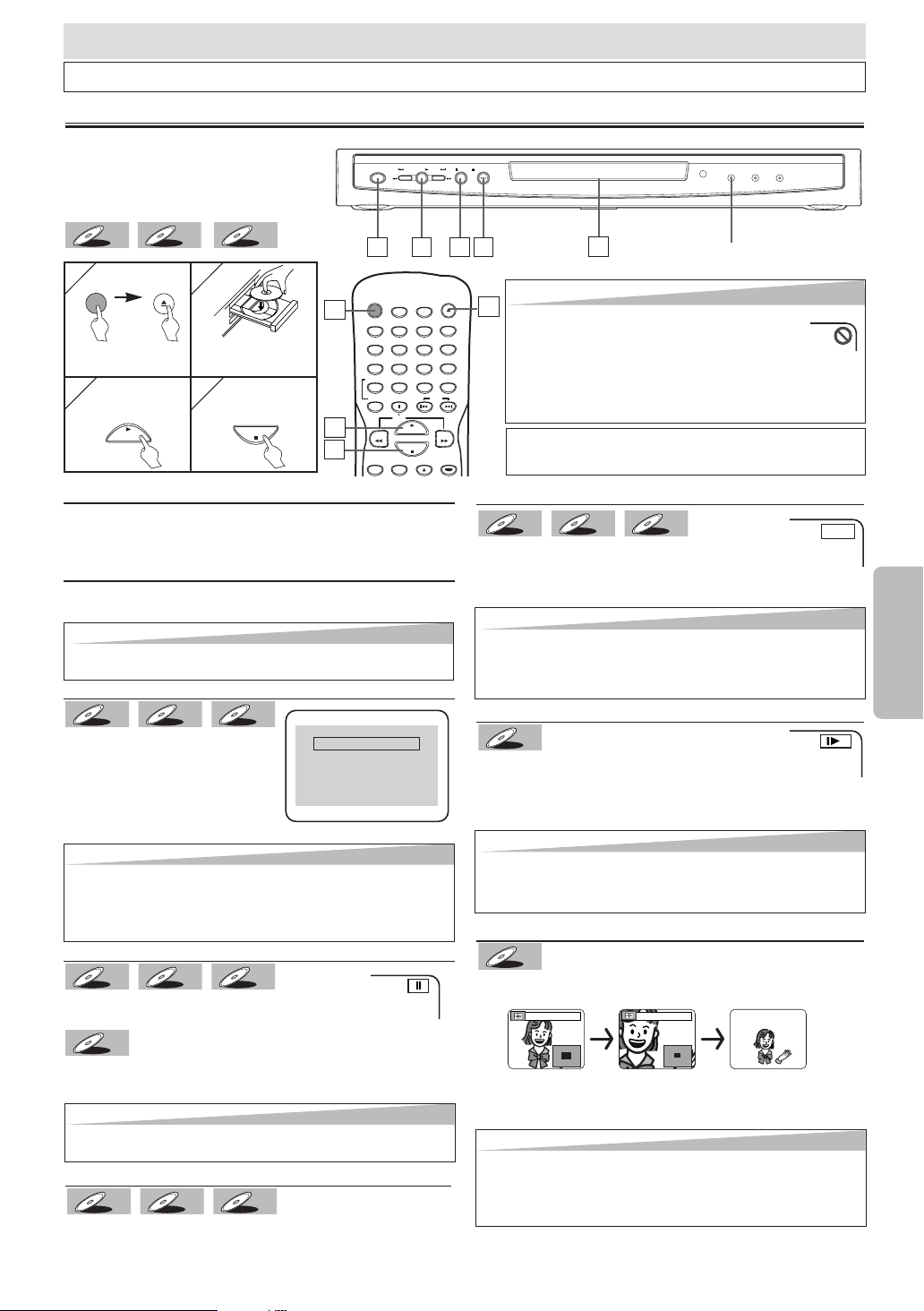

Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
MP3 Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

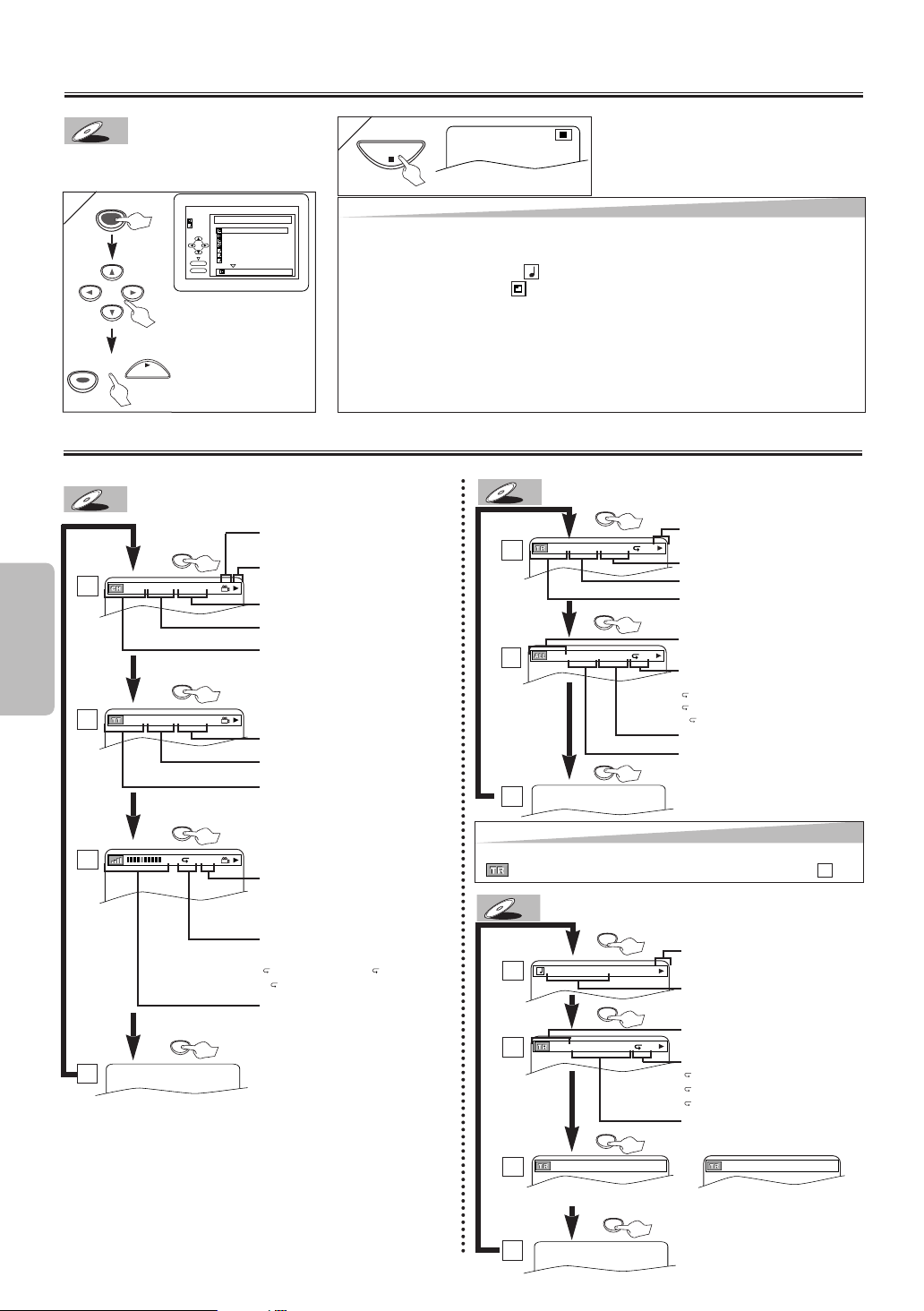

On-Screen Display. . . . . . . . . . . . . . . . . . . . . . . . . . . 10

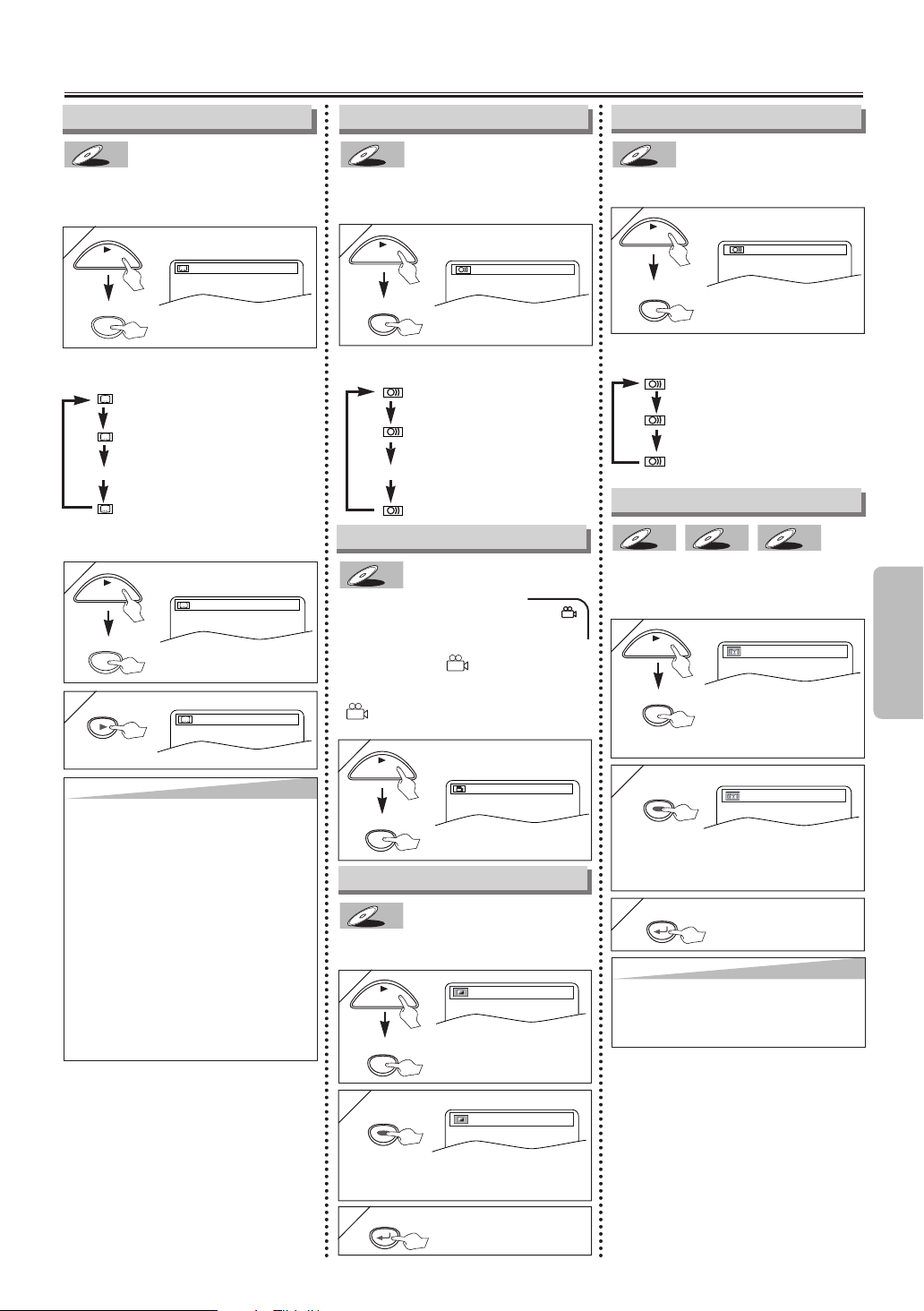

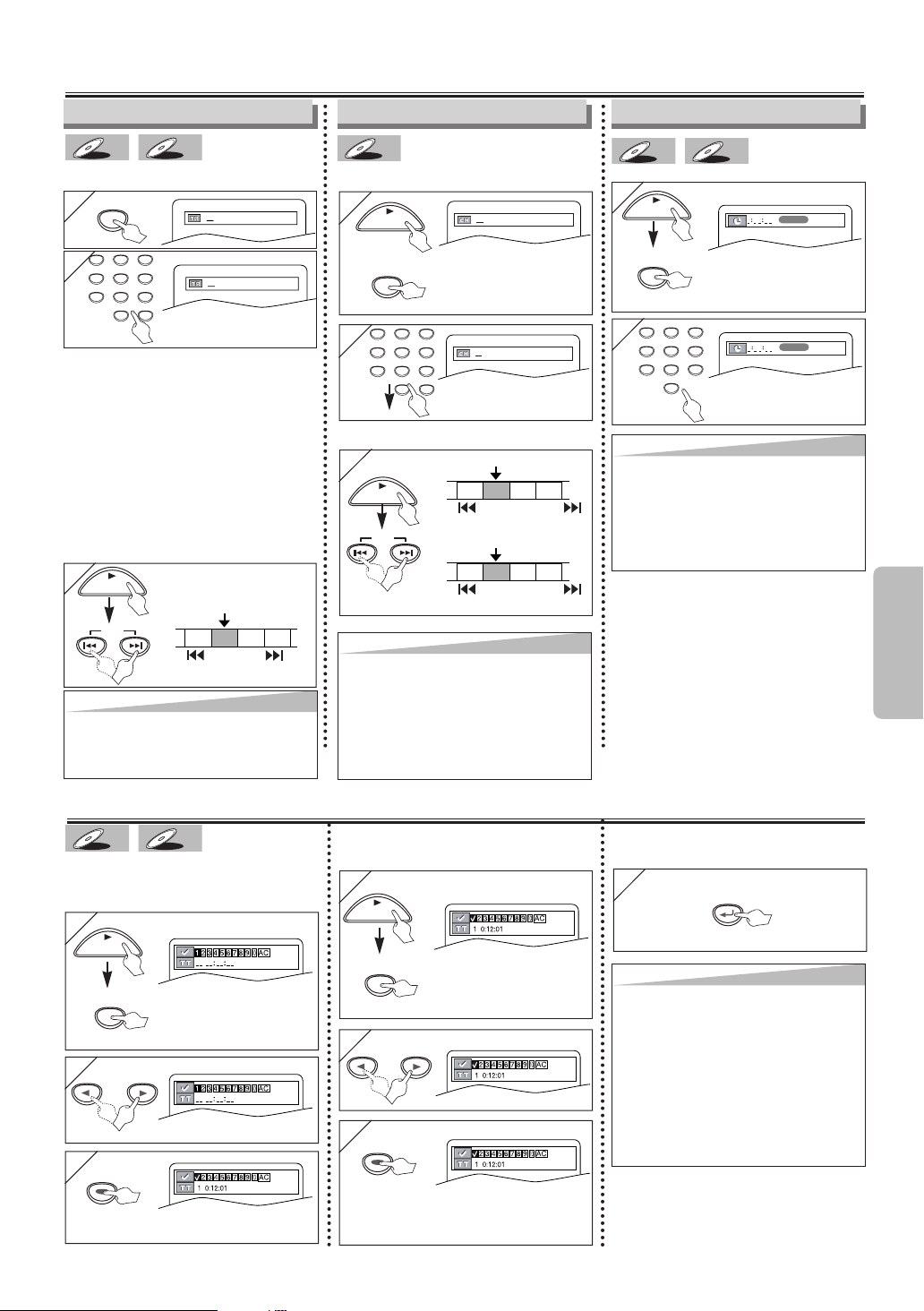

Search Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Track Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Title / Chapter Search . . . . . . . . . . . . . . . . . . . . . . . . . 11
Time Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Marker Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

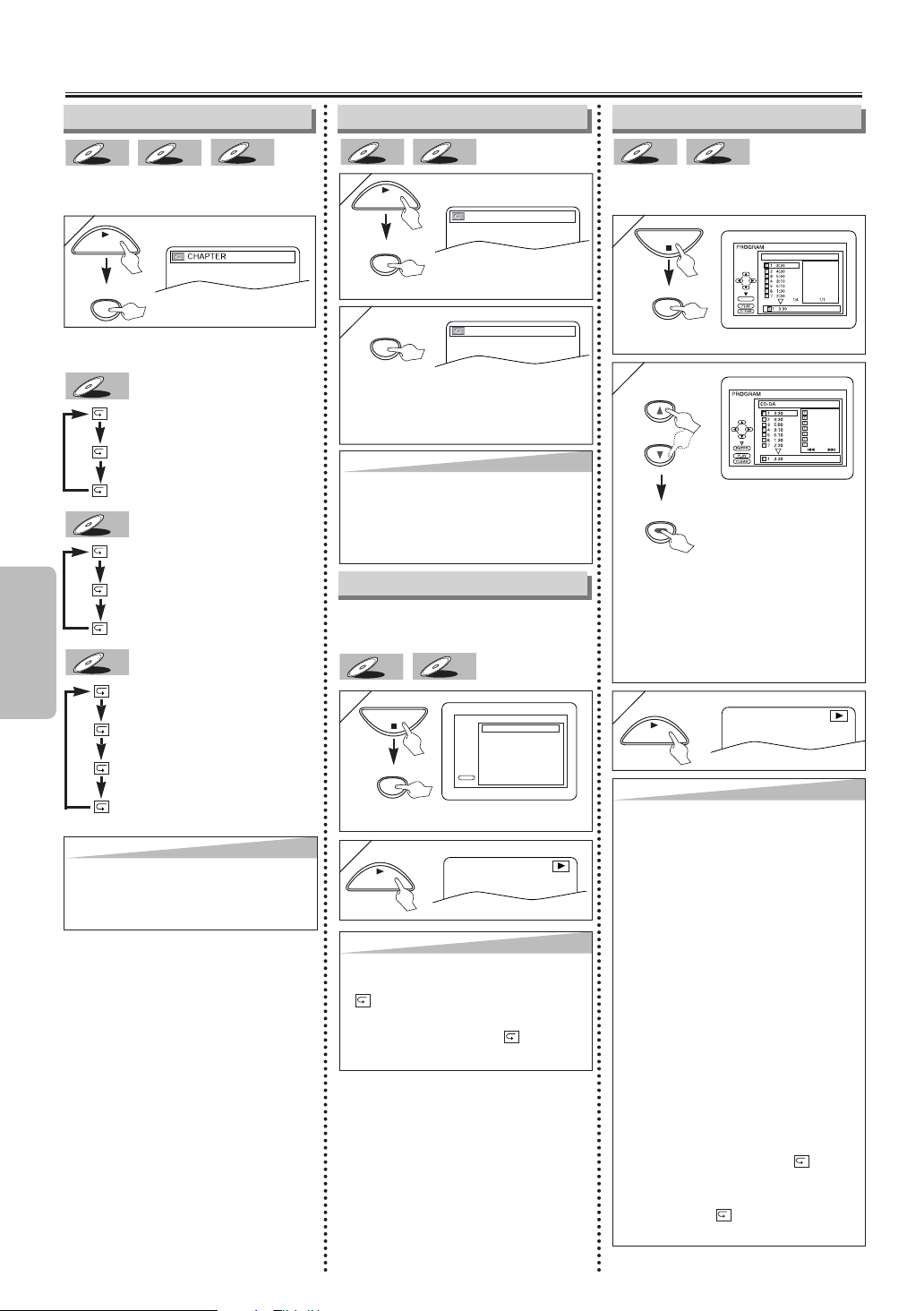

Repeat / Random / Programmed Playback . . . . . . . . 12
Repeat Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Repeat A-B Playback. . . . . . . . . . . . . . . . . . . . . . . . . . 12
Random Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Programmed Playback. . . . . . . . . . . . . . . . . . . . . . . . . 12
Special Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Subtitle Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Audio Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Camera Angles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Black Level Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Stereo Sound Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Virtual Surround . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

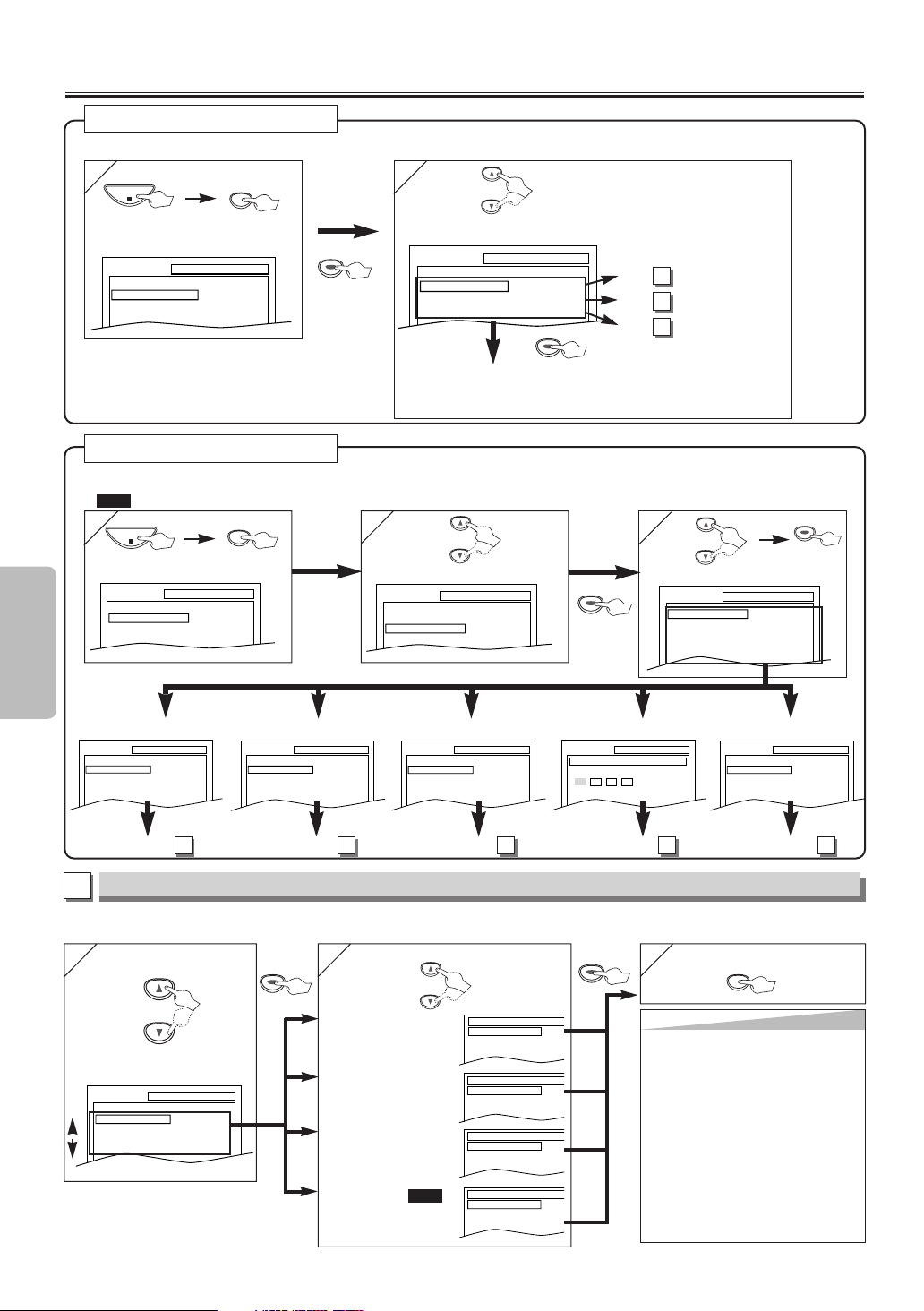

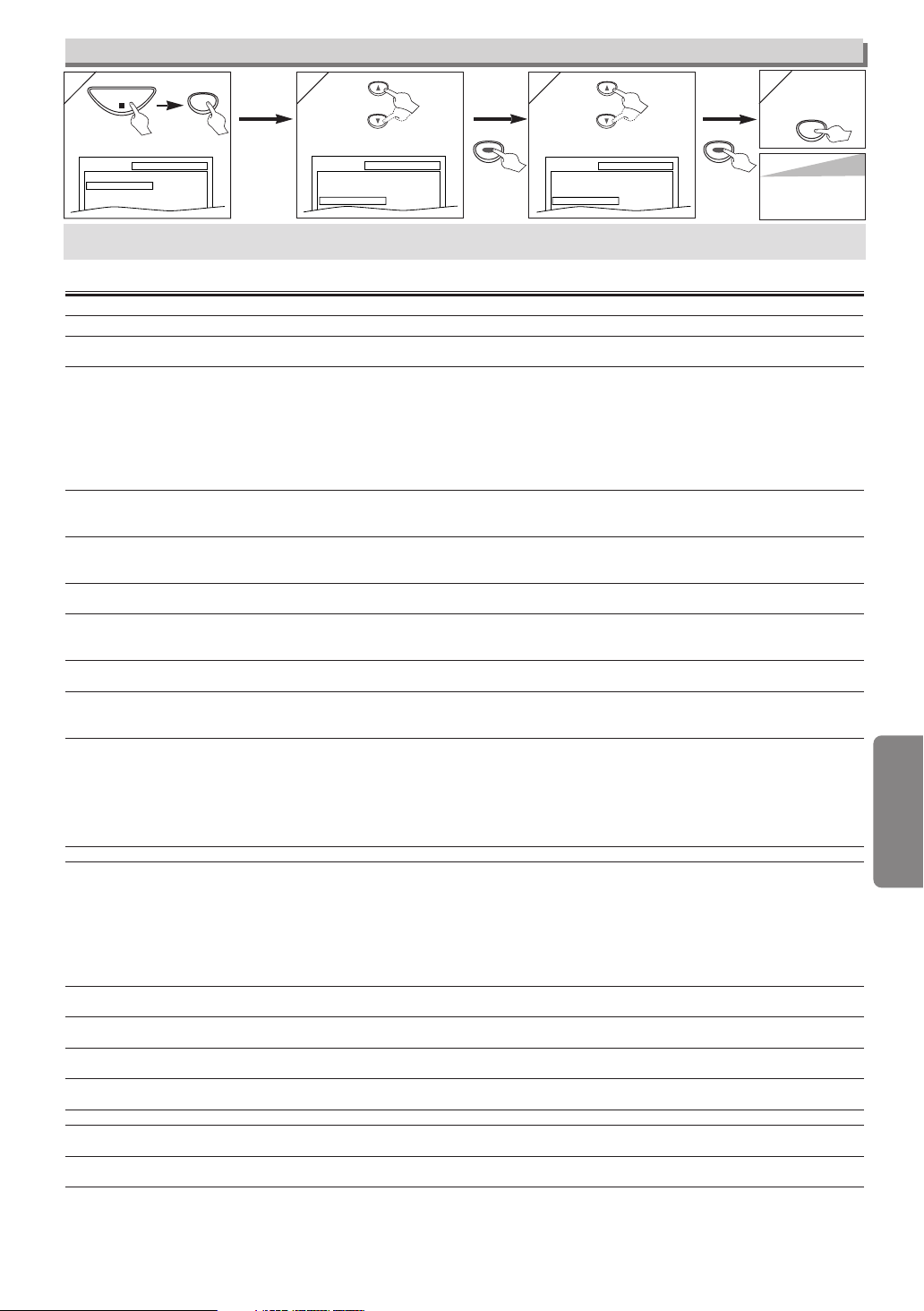

DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
LANGUAGE Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . 14
DISPLAY Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
AUDIO Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
PARENTAL Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
OTHERS Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Reset to the Default Setting
(Except for PARENTAL Setting) . . . . . . . . . . . . . . . . . . 17
Information
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . 17
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Language List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

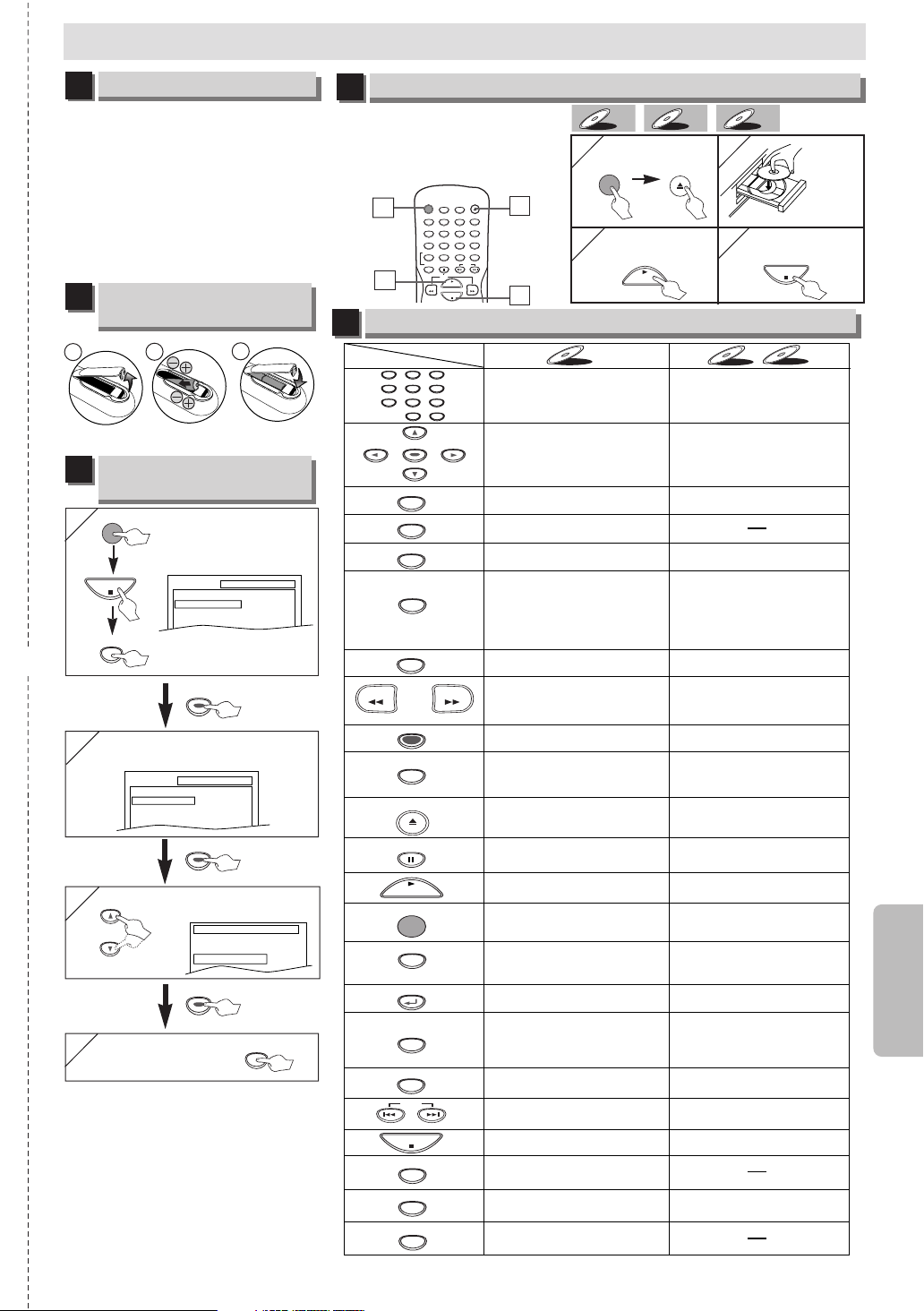

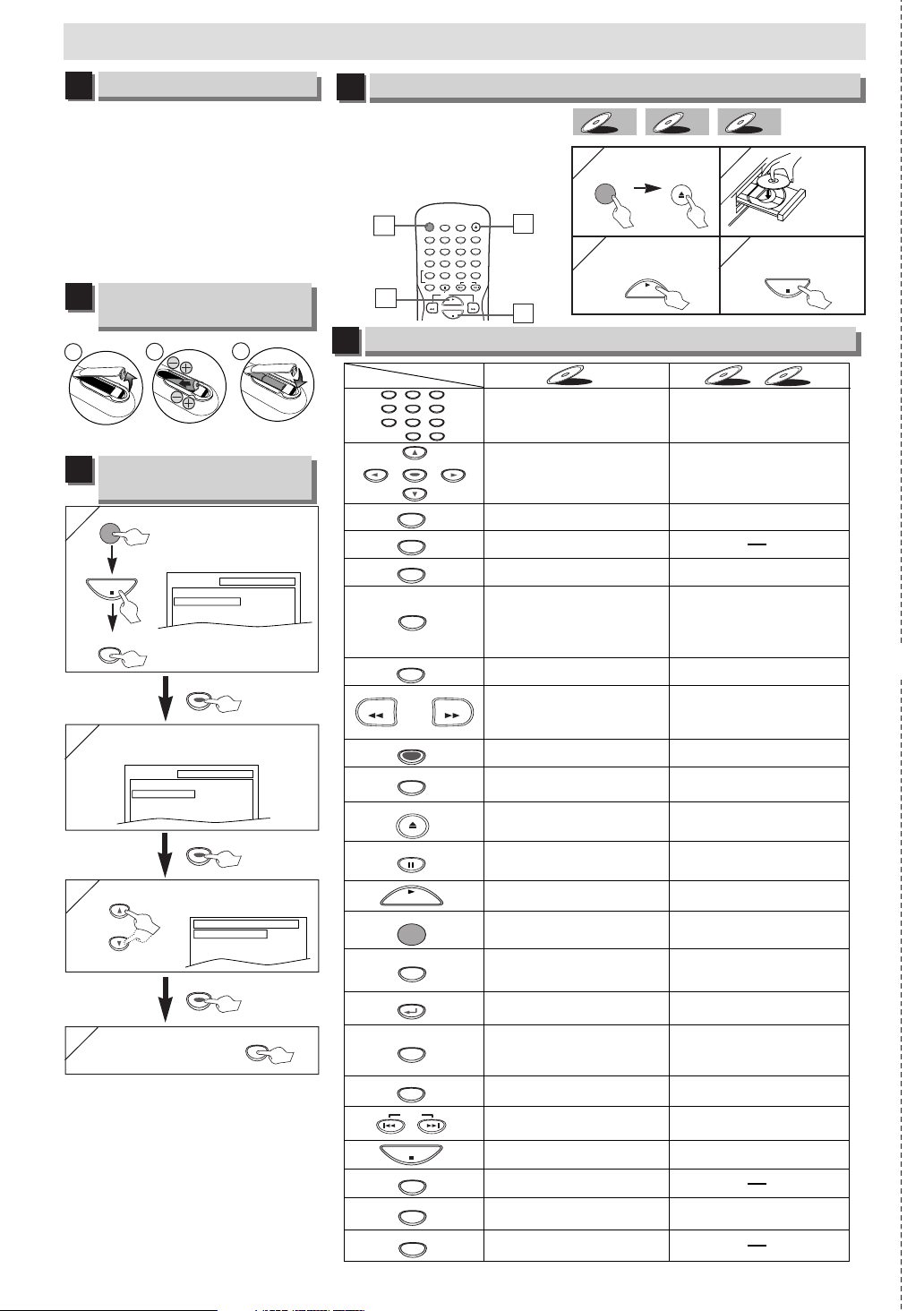

Quick Use Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Precautions
Setup
Functions
Information
Español
Precautions
WARNING
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
Precautions
COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
:
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltagewithin the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Laser Safety
This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.
CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECI-
CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO
LOCATION: INSIDE, NEAR THE DECK MECHANISM.
FIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
BEAM.
FCC WARNING-This equipment may generate or use radio frequency energy. Changes or modifications to
this equipment may cause harmful interference unless the modifications are expressly approved in the man­ual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.
RADIO-TV INTERFERENCE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and receiver.
3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
CAUTION:TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA
FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND.
A NOTE ABOUT RECYCLING
This products packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.
Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.
Make your contribution to the environment!!!
Used up batteries do not belong in the dust bin.
You can dispose of them at a collection point for used up batteries or special waste.
Contact your council for details.
For Customer Use: Read carefully the information located at the bottom of this unit and enter below the Serial No. Retain this information for future reference.
Model No. Serial No. _____________________
_____________________
–2–
EN
IMPORTANT SAFEGUARDS
1) Read Instructions - All the safety and operating instruc­tions should be read before the product is operated.
2) Retain Instructions - The safety and operating instruc­tions should be retained for future reference.
3) Heed Warnings - All warnings on the product and in the operating instructions should be adhered to.
4) Follow Instructions - All operating and use instructions should be followed.
5) Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
6) Attachments - Do not use attachments not recom­mended by the product manufacturer as they may cause hazards.
7) Water and Moisture - Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.
8) Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and seri­ous damage to the product. Use only with a cart, stand, tripod, bracket, or table recom­mended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufac­turers instructions, and should use a mounting accessory recommended by the manufacturer.
9) A product and cart combination should be moved with care. Quick stops, excessive force, and uneven sur­faces may cause the product and cart combination to overturn.
10) Ventilation - Slots and openings in the cabinet are pro­vided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the prod­uct on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
11) Power Sources - This product should be operated only from the type of power source indicated on the mark­ing label. If you are not sure of the type of power sup­ply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
12) Grounding or Polarization - This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way.This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
13) Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
14) Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the product due to lightning and power-line surges.
15) Power lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
16) Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
17) Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
18) Servicing - Do not attempt to service this product your­self as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
19) Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the power-supply cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into
the product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by follow-
ing the operating instructions. Adjust only those con-
trols that are covered by the operating instructions
as an improper adjustment of other controls may
result in damage and will often require extensive
work by a qualified technician to restore the product
to its normal operation, e) If the product has been dropped or damaged in any
way.
f ) When the product exhibits a distinct change in per-
formance - this indicates a need for service.
20) Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
21) Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
22) Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
Precautions
–3–
EN
MP3
MP3
CD
CD
DVD-V
DVD-V
Installation Location
Symbols Used in This Manual
For safety and optimum performance of this unit:
Do not stand the unit up vertically. Install the unit in a horizontal and stable position. Do not place any­thing directly on top of the unit. Do not place the unit directly on top of the TV.
Shield it from direct sunlight and keep it away from sources of intense heat. Avoid dusty or humid
Precautions
places. Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes on the sides of the unit. Avoid locations sub­ject to strong vibration or strong magnetic fields.
Be sure to remove the disc and unplug the AC power cord from the output before carrying the unit.
Avoid the Hazards of Electrical Shock and Fire
Do not handle the power cord with wet hands.
Do not pull on the power cord when disconnecting it
from AC wall outlet. Grasp it by the plug.
If, by accident, water is spilled on this unit, unplug the power cord immediately and take the unit to our Authorized Service Center for servicing.
Moisture Condensation Warning
Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. Do not use this unit at least for 2 hours until its inside gets dry.
About Copyright
Unauthorized copying, broadcasting, public performance and lending of discs are prohibited. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
Notice for Progressive Scan Outputs
Consumers should note that not all high definition televi­sion sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of picture problems with 525 progressive scan output, it is recommended that the user switch the connection to the standard definitionoutput. If there are questions regard­ing your TV set compatibility with this 525p DVD player, please contact our customer service center.
The following symbols appear in some head­ings in this manual.
: Description refers to playback of DVD-Video discs.
: Description refers to playback of Audio CDs.
: Description refers to playback of MP3 files.
Maintenance
SERVICING
¡Please refer to relevant topics on the “Troubleshooting
Guideon page 17 before returning the product.
¡If this unit becomes inoperative, do not try to correct
the problem by yourself. There are no user-service­able parts inside. Turn off, unplug the power plug, and please call our help line mentioned on the front page to locate an Authorized Service Center.
CLEANING THE CABINET
¡Use a soft cloth slightly moistened with a mild deter-
gent solution. Do not use a solution containing alco­hol, spirits, ammonia or abrasive.
CLEANING DISCS
¡When a disc becomes dirty, clean it with a cleaning
cloth. Wipe the disc from the center out. Do not wipe in a circular motion.
¡Do not use solvents such as benzine, thinner, com-
mercially available cleaners, detergent, abrasive cleaning agents or antistatic spray intended for ana­log records.
CLEANING THE DISC LENS
¡If this unit still does not perform properly although you
refer to the relevant sections and to “Troubleshooting Guidein this Owner’s Manual, the laser optical pickup unit may be dirty. Consult your dealer or an Authorized Service Center for inspection and cleaning of the laser optical pickup unit.
DISC HANDLING
¡When you handle a disc hold it by its edge and try not
to touch the surface of the disc.
¡Always store a disc in its protective case when it is
not used.
Manufactured under license from Dolby Laboratories. Dolbyand the double-D symbol are trade­marks of Dolby Laboratories.
–4–
EN
About the Discs
DVD-Video
* 1, 2, 4, 6
* 1, 3, 4,
5, 6, 8
* 1, 3, 4, 5,
6, 7, 9, 10
* 4, 6
* 4, 5, 6,
9, 10
or
DVD-RW
DVD-R
DVD+RW
DVD+R
Audio CD
CD-RW
CD-R
Digital video
(MPEG2)
-
-
-
-
Region code
Mark (logo)
Playable
discs
Recorded
signals
Disc size
Disc types
12 cm
or
8cm
Example
Title 1 Title 2
Chapter 1 Chapter 2 Chapter 1
Chapter 2
Chapter 3 Chapter 4
Digital audio
or
MP3
12 cm
or
8cm
Example
Group 1 Group 2
Track 1
Track 2 Track 5
Track 6
Track 3
Track 4
Example
Track 1
Track 2
Track 5
Track 6
Track 3
Track 4
Audio CD
MP3
Digital audio
is a trademark of DVD Format/Logo Licensing Corporation.
Playable Discs
Precautions
If you cannot play back a disc which bears one of the marks above, check the following notes.
*1: This unit conforms to the NTSC color system. Discs recorded in other color systems such as PAL cannot be played back. *2: Certain DVD-Video discs do not operate as described in this manual due to the intentions of the discs producers. *3: Discs recorded in the VR (Video Recording) format cannot be played back. *4: Scratched or stained discs may not be played back. *5: Some discs cannot be played back because of incompatible recording conditions, characteristics of the recorder or spe-
cial properties of discs.
*6: You can play back discs which bear the marks above. If you use nonstandardized discs, this unit may not play them back.
Even if they are played back, the sound or video quality will be compromised.
*7: You may play back the unfinalized DVD-R/RW disc recorded in the video format on our brand’s DVD recorder. However,
depending on the recording status of a disc, the disc may not be played back at all or normally (the picture or sound may not be smooth, etc.). In this case, you need to finalize the disc with the DVD recorder. Refer to the manual accompanying the DVD recorder.
*8: Only the discs recorded in the video format and finalized can be played back.
Unfinalized discs cannot be played back. Depending on the recording status of a disc, the disc may not be played back at all or normally (the picture or sound may not be smooth, etc.).
*9:
If there is too much recording space left on a disc (the used portion is less than 55 mm across), it may not play back properly.
*10: Do not glue paper or put stickers on to the disc. These may damage the disc, and the unit may not read it correctly.
Unplayable Discs
¡
NEVER play back the following discs. Otherwise, malfunction may result!
DVD-RAM / CD-I / Photo CD / Video CD / DVD with region codes other than 1 or ALL DTS-CD / DVD-ROM for personal computers / CD-ROM for personal computers
¡
On the following disc, the sound MAY NOT be heard.
Super Audio CD NOTE: Only the sound recorded on the normal CD layer can be delivered.
The sound recorded on the high density Super Audio CD layer cannot be delivered.
¡
Any other discs without compatibility indications.
–5–
EN
Setup
AUDIO OUT
COAXIAL
R
L
Y
S-VIDEO
OUT
COMPONENT VIDEO OUT
CR/P
R
DIGITAL AUDIO OUT
VIDEO OUT
C
B/PB
AUDIO OUT
COAXIAL
R
L
DIGITAL AUDIO OUT
LR
AUDIO IN
VIDEO IN
VIDEO
OUT
S-VIDEO IN
S-VIDEO
OUT
C
B
Y
C
R
COMPONENT
VIDEO IN
or
P
B
Y
P
R
Y
COMPONENT
VIDEO OUT
CR/P
R
VIDEO
OUT
C
B/PB
O
Connections
If your TV has AUDIO/VIDEO input jacks, see the following instructions. If not, see the section Connecting to RF Modulatoron the front page.
Connection to a TV
Method 1
Good pictureBasic Audio
Method 2
Better picture
Method 3
Best picture
TV
S-Video
cable
(commercially
available)
Component Video cables (commercially available)
Setup
Audio cable
(supplied)
Video
cable
(supplied)
This unit
COMPONENT VIDEO OUT
Hint
Hint
(Analog) AUDIO OUT VIDEO OUT
S-VIDEO OUT
Connect this unit directly to the TV. If the Audio/Video cables are connected to a VCR, pictures may be distorted due to the copy protection system.
When progressive scanning mode is selected, no video signal will be output from the VIDEO OUT or S-VIDEO OUT jack.
If your TV is compatible with 525p (480p) progressive scanning and you want to enjoy that high quality picture;
You must select the connection Method 3 above and progressive scanning mode. To set the mode, press and hold [PLAY BB] on the front panel for more than 5 seconds, so that PROGRESSIVE SCAN indicator will light up.
If your
Use this unit in interlace mode. Make sure that PROGRESSIVE SCAN indicator is off. If not, press and hold [PLAY B] on this unit for more than 5 seconds, so that PROGRESSIVE SCAN indicator of this unit will light off.
TV is not compatib
le with progressive scanning;
POWER SKIP SKIPPLAY STOP
more than 5 seconds
[Interlace mode]
[Progressive scanning mode]
After you have completed connections
Hit the input selector button (usually TV/VIDEO, INPUT or AUX) on your TV to switch an appropriate external input chan­nel (usually near channel 0) for viewing the picture from this unit. If the picture does not appear, also refer to the manual accompanying your TV.
INPUT MODES FOR COMMON TV BRANDS (Example)
Listed below are inputs for common brand name TVs. Admiral: AUX
Curtis Mathis: LINE1, LINE2, 00, 90, 91, 92, 93 GE: INPUT, TV/VCR, 00, 90, 91, 92, 93 Hitachi: INPUT, AUX JVC: A/V CHANNEL, INPUT1, SVIDEO,
Kenwood: AUX LXI-Series: 00 Magnavox: AUX CHANNEL Panasonic: TV/VIDEO RCA: INPUT, TV/VCR, 00, 90, 91, 92, 93
INPUT2
Samsung: TV/VIDEO Sanyo: VIDEO Sharp: 00 Sony: VIDEO1, VIDEO2, VIDEO3 Toshiba: TV/GAME Zenith: 00
–6–
[DVD]
EN
Loading...
+ 14 hidden pages
