SERVICE MANUAL
DVD PLAYER
CDVL700E
IMPORTANT SAFETY NOTICE
Proper service and repair is important to the safe, reliable operation of all
Funai Equipment. The service procedures recommended by Funai and
described in this service manual are effective methods of performing
service operations. Some of these service special tools should be used
when and as recommended.
It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk of
personal injury to service personnel. The possibility exists that improper
service methods may damage the equipment. It also is important to
understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE.
Funai could not possibly know, evaluate and advice the service trade of all
conceivable ways in which service might be done or of the possible
hazardous consequences of each way. Consequently, Funai has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a
service procedure or tool which is not recommended by Funai must first
use all precautions thoroughly so that neither his safety nor the safe
operation of the equipment will be jeopardized by the service method
selected.
TABLE OF CONTENTS
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1
Laser Beam Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1
Important Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1
Standard Notes for Servicing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4-1
Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5-1
Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6-1

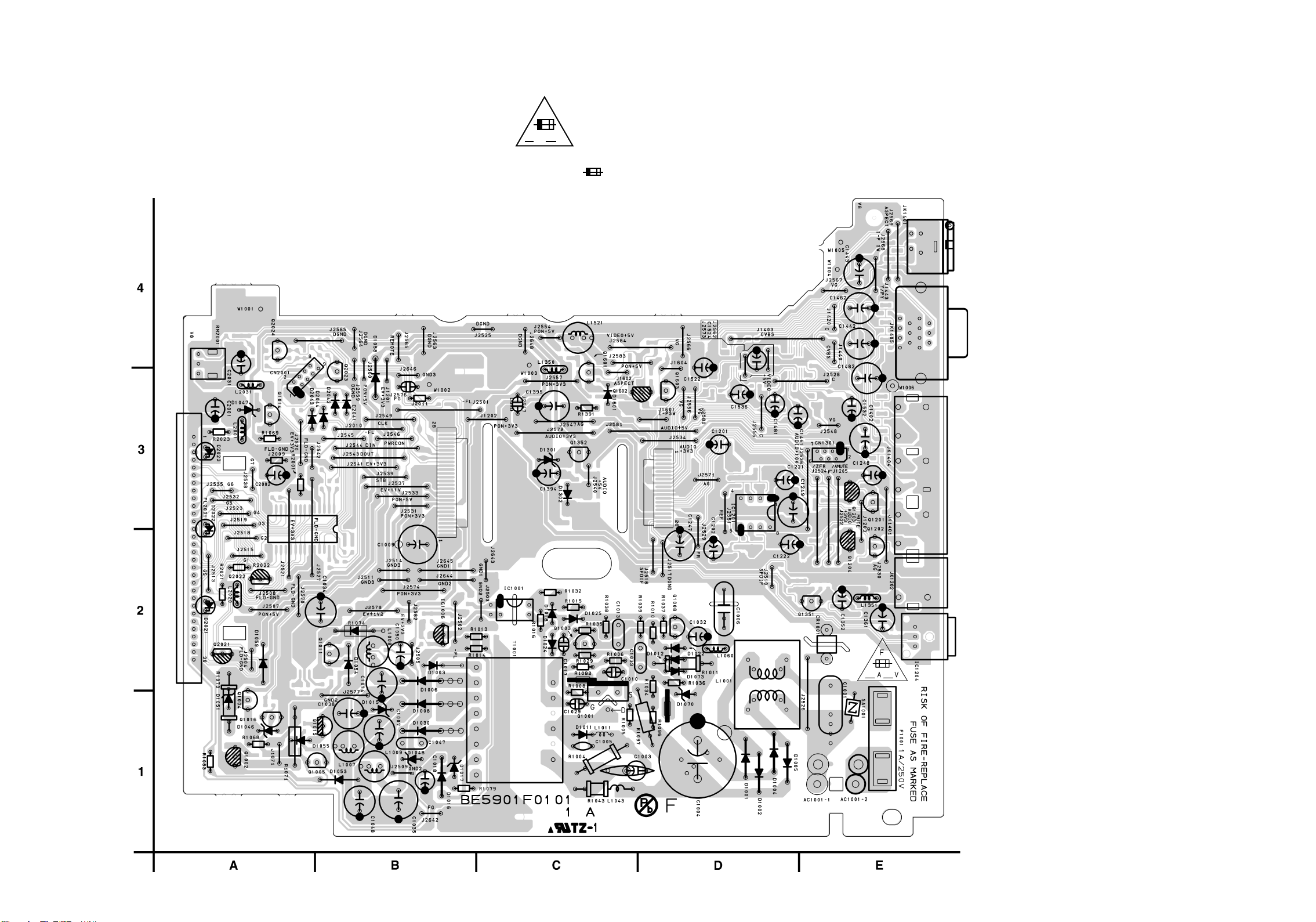

Schematic Diagrams / CBA’s and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1
Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8-1
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9-1
Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10-1
System Control Timing Charts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-11-1
IC Pin Function Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-12-1
Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13-1
Exploded Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-1
Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15-1
Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16-1
Manufactured under license from Dolby Laboratories. "Dolby"
and the double-D symbol are trademarks of Dolby Laboratories.
SPECIFICATIONS
ITEM CONDITIONS UNIT NOMINAL LIMIT
1. Video Output 75 ohm load Vpp 1.0 ± 0.1
2. Coaxial Digital Out 75 ohm load mVpp 500 ± 50
3. Audio (PCM)
3-1. Output Level 1 kHz 0 dB Vrms 2.0
3-2. S/N dB 120
3-3. Freq. Response
DVD fs=48kHz ± 0.5dB Hz 20~22 k
CD fs=44.1kHz ± 0.5dB Hz 20~20 k
3-4. THD+N
DVD 1 kHz 0dB % 0.004
CD 1 kHz 0dB % 0.0045
NOTES:
1. All Items are measured without pre-emphasis unless otherwise specified.
2. Power supply : AC120 V 60 Hz
3. Load imp. : 100 k ohm
4. Ambient Temperature : +25
°C
1-1-1 E5900SP
LASER BEAM SAFETY PRECAUTIONS
This DVD player uses a pickup that emits a laser beam.
Do not look directly at the laser beam coming
from the pickup or allow it to strike against your
skin.
The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep
your eyes at least 30cm away from the pickup lens when the diode is turned on. Do not look directly at the laser
beam.
Caution: Use of controls and adjustments, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.
Drive Mecha Assembly
Laser Beam Radiation
Laser Pickup
Turntable
WHEN OPEN. DO NOT
CAUTION
LASER RADIATION
STARE INTO BEAM.
Location: Top of DVD mechanism.
1-2-1 E5_LASER
IMPORTANT SAFETY PRECAUTIONS
Product Safety Notice
Some electrical and mechanical parts have special
safety-related characteristics which are often not evident from visual inspection, nor can the protection
they give necessarily be obtained by replacing them
with components rated for higher voltage, wattage,
etc. Parts that have special safety characteristics are
identified by a # on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/or other
hazards. The Product’s Safety is under review continuously and new instructions are issued whenever
appropriate. Prior to shipment from the factory, our
products are carefully inspected to confirm with the
recognized product safety and electrical codes of the
countries in which they are to be sold. However, in
order to maintain such compliance, it is equally important to implement the following precautions when a set
is being serviced.
Precautions during Servicing
A. Parts identified by the # symbol are critical for
safety. Replace only with part number specified.
B. In addition to safety, other parts and assemblies
are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.
C. Use specified internal wiring. Note especially:
1)Wires covered with PVC tubing
2)Double insulated wires
3)High voltage leads
D. Use specified insulating materials for hazardous
live parts. Note especially:
1)Insulation tape
2)PVC tubing
3)Spacers
4)Insulators for transistors
E. When replacing AC primary side components
(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before soldering.
F. Observe that the wires do not contact heat produc-
ing parts (heatsinks, oxide metal film resistors, fusible resistors, etc.).
G. Check that replaced wires do not contact sharp
edges or pointed parts.
H. When a power cord has been replaced, check that
5 - 6 kg of force in any direction will not loosen it.
I. Also check areas surrounding repaired locations.
J. Be careful that foreign objects (screws, solder
droplets, etc.) do not remain inside the set.
K. Crimp type wire connector
The power transformer uses crimp type connectors
which connect the power cord and the primary side
of the transformer. When replacing the transformer,
follow these steps carefully and precisely to prevent shock hazards.
Replacement procedure
1)Remove the old connector by cutting the wires at a
point close to the connector.
Important: Do not re-use a connector. (Discard it.)
2)Strip about 15 mm of the insulation from the ends
of the wires. If the wires are stranded, twist the
strands to avoid frayed conductors.
3)Align the lengths of the wires to be connected.
Insert the wires fully into the connector.
4)Use a crimping tool to crimp the metal sleeve at its
center. Be sure to crimp fully to the complete closure of the tool.
L. When connecting or disconnecting the internal con-
nectors, first, disconnect the AC plug from the AC
outlet.
1-3-1 DVD_SFN1
Safety Check after Servicing
Examine the area surrounding the repaired location for
damage or deterioration. Observe that screws, parts,
and wires have been returned to their original positions. Afterwards, do the following tests and confirm
the specified values to verify compliance with safety
standards.
1. Clearance Distance
When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)
Table 1: Ratings for selected area
AC Line Voltage Clearance Distance (d), (d’)
Chassis or Secondary Conductor
Primary Circuit Terminals
dd'
120 V
Note: This table is unofficial and for reference only.
Be sure to confirm the precise values.
2. Leakage Current Test
Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs)
and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and
output terminals, microphone jacks, earphone jacks,
etc.) is lower than or equal to the specified value in the
table below.
Measuring Method (Power ON) :
Insert load Z between B (earth ground, power cord
plug prongs) and exposed accessible parts. Use an
AC voltmeter to measure across the terminals of load
Z. See Fig. 2 and the following table.
Table 2: Leakage current ratings for selected areas
AC Line Voltage Load Z Leakage Current (i) Earth Ground (B) to:
120 V
≥ 3.2mm (0.126 inches)
0.15µF CAP. & 1.5kΩ RES.
Connected in parallel
Exposed Accessible Part
Z
1.5k
i≤0.5mA Peak Exposed accessible parts
0.15 F
Earth Ground
B
Power Cord Plug Prongs
AC Voltmeter
(High Impedance)
Fig. 1
Fig. 2
Note: This table is unofficial and for reference only. Be sure to confirm the precise values.
1-3-2 DVD_SFN1
STANDARD NOTES FOR SERVICING
Circuit Board Indications
1. The output pin of the 3 pin Regulator ICs is indicated as shown.
Top View
Out
2. For other ICs, pin 1 and every fifth pin are indicated
as shown.
Pin 1
3. The 1st pin of every male connector is indicated as
shown.
Input
In
Bottom View
5
10
Pb (Lead) Free Solder
When soldering, be sure to use the Pb free solder.
How to Remove / Install Flat Pack-IC
1. Removal
With Hot-Air Flat Pack-IC Desoldering Machine:.
(1) Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)
Pin 1
Instructions for Connectors
1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.
2. FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an angle.
FFC Cable
Connector
CBA
* Be careful to avoid a short circuit.
Fig. S-1-1
(2) Remove the flat pack-IC with tweezers while apply-
ing the hot air.
(3) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(4) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Caution:
1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.
2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage to
the chip parts may occur. Put masking tape around
the flat pack-IC to protect other parts from damage.
(Fig. S-1-2)
1-4-1 E5STA
3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when removing
it.
With Soldering Iron:
(1) Using desoldering braid, remove the solder from all
pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you
can remove it easily. (Fig. S-1-3)
CBA
Masking
Tape
Tweezers
Hot-air
Flat Pack-IC
Desoldering
Machine
Flat Pack-IC
Fig. S-1-2
Flat Pack-IC
Desoldering Braid
Soldering Iron
Fig. S-1-3
(2) Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)
Sharp
Pin
Fine Tip
Soldering Iron
(3) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(4) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Fig. S-1-4
1-4-2 E5STA
With Iron Wire:
(1) Using desoldering braid, remove the solder from all
pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you
can remove it easily. (Fig. S-1-3)
(2) Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.
(3) While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA contact
pads as shown in Fig. S-1-5.
(4) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(5) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Note:
When using a soldering iron, care must be taken
to ensure that the flat pack-IC is not being held by
glue. When the flat pack-IC is removed from the
CBA, handle it gently because it may be damaged
if force is applied.
Hot Air Blower
2. Installation
(1) Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA so
you can install a replacement flat pack-IC more
easily.
(2) The “I” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)
(3) Solder all pins of the flat pack-IC. Be sure that none
of the pins have solder bridges.
Example :
Pin 1 of the Flat Pack-IC
is indicated by a " " mark.
Fig. S-1-7
To Solid
Mounting Point
CBA
Tweezers
Iron Wire
Soldering Iron
Fig. S-1-5
Fine Tip
Soldering Iron
Flat Pack-IC
or
Presolder
Flat Pack-IC
CBA
Fig. S-1-8
Fig. S-1-6
1-4-3 E5STA
Instructions for Handling
Semi-conductors
Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by electrostatic charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1MΩ) that is properly grounded to remove any static electricity that may
be charged on the body.
2. Ground for Workbench
(1) Be sure to place a conductive sheet or copper plate
with proper grounding (1MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding band, be careful to avoid contacting semi-conductors with your clothing.
<Incorrect>
<Correct>
1MΩ
CBA
Grounding Band
1MΩ
CBA
Conductive Sheet or
Copper Plate
1-4-4 E5STA
CABINET DISASSEMBLY INSTRUCTIONS
1. Disassembly Flowchart
This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.
[1] Top Case
[2] Front Assembly
[4] Reinforce Plate
[5] DVD Main CBA Unit
[6] DVD Mecha [7] AV CBA
[8] Function CBA
[3] Tray Panel
2. Disassembly Method
ID/
LOC.
No.
[1] Top Case D1 3(S-1) -
[2]
[3] Tray Panel D2 *2(L-4) 1
[4]
[5]
[6]
[7] AV CBA D6 (S-5), 4(S-6), *2(L-5) -
[8]
↓
(1)
PART
Front
Assembly
Reinforce
Plate
DVD Main
CBA Unit
DVD
Mecha
Function
CBA
↓
(2)
Fig.
No.
D2
D3 3(S-2) -
D4
D4,
D5
D6 *CN2001 -
↓
(3)
REMOVAL
REMOVE/*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/DESOLDER
*4(L-1), *3(L-2),
*3(L-3)
(S-3A), (S-3B)
*CN201, *CN301,
*CN401, *CN601
4(S-4)
↓
(4)
Note
1
1-1
1-2
2
2-1
2-2
2
3
↓
(5)
(1): Identification (location) No. of parts in the figures
(2): Name of the part
(3): Figure Number for reference
(4): Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or
desoldered.
P=Spring, L=Locking Tab, S=Screw,
CN=Connector
*=Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)
(5): Refer to “Reference Notes.”
About tightening screws
When tightening screws, tighten them with the following torque.
Screws Torque
(S-1), (S-2), (S-3A),
(S-4), (S-5), (S-6)
(S-3B) 0.38 ± 0.04 N·m
0.45 ± 0.05 N·m
Reference Notes
CAUTION 1: Locking Tabs (L-1), (L-2), (L-3) and (L-4)
are fragile. Be careful not to break them.
1-1. Release four Locking Tabs (L-1). Then, release
three Locking Tabs (L-2).
1-2. Release three Locking Tabs (L-3). Then remove
the Front Assembly.
CAUTION 2: Electrostatic breakdown of the laser
diode in the optical system block may occur as a
potential difference caused by electrostatic charge
accumulated on cloth, human body etc, during
unpacking or repair work.
To avoid damage of pickup follow next procedures.
2-1. Short the three short lands of FPC cable with sol-
der before removing the FFC cable (CN201) from
it. If you disconnect the FFC cable (CN201), the
laser diode of pickup will be destroyed. (Fig. D4)
2-2. Disconnect Connectors (CN301), (CN401) and
(CN601). Remove two Screws (S-3A) and (S-3B)
and lift the DVD Main CBA Unit. (Fig. D4)
CAUTION 3: When reassembling, confirm the FFC
cable (CN201) is connected completely. Then remove
the solder from the three short lands of FPC cable.
(Fig. D4)
1-5-1 E5900DC
[1] Top Case
(L-1)
(L-3)
(L-4)
(L-4)
(L-1)
(S-1)
Fig. D1
[3] Tray Panel
CN201
CN301
CN401
(S-2)
[4] Reinforce Plate
Fig. D3
(S-3B)
(S-3A)
CN601
[5] DVD Main
CBA Unit
A
(L-2)
[2] Front Assembly
Fig. D2
Short the three short lands by soldering.
(Either of two places.)
Connector
View for A
Fig. D4
1-5-2 E5900DC
(S-4)
[6] DVD Mecha
(S-4)
(S-4)
[8] Function CBA
(S-5)
CN2001
[7] AV CBA
(S-6)
(L-5)
Fig. D5
HOW TO EJECT MANUALLY (Method 1)
1. Remove the Top Case.
2. Remove the Reinforce Plate.
3. Rotate the roulette in the direction of the arrow as shown
below.
Rotate this roulette in
the direction of the arrow
Fig. D6
View for A
A
1-5-3 E5900DC
HOW TO EJECT MANUALLY (Method 2)
1. Turn the unit over.
2. Insert the shaft less than a diameter of 3 mm (e.g. screwdriver) straightly into the opening as shown.
3. Turn the shaft along with the opening clockwise.
4. Repeat steps 2 and 3 until the tray will open.
5. Pull the tray slowly with a hand.
View for B
Rear
Turn the shaft along with
the opening clockwise.
Shaft
(e.g. screwdriver)
Opening
B
Front
1-5-4 E5900DC
BLOCK DIAGRAMS
System Control / Servo Block Diagram
FL2001
GRID FIP
~
23
~
1G
IC2001
(FRONT PANEL CONTROL)
KEY
MATRIX
FUNCTION CBA
KEY-1 5
KEY-3 4
K2 1
KEY-2 3
KEY-4 6
5
SEGMENT
789
17
7G
a/KEY-1
12
10
11
131416
i
f
g
h
e
c/KEY-3
b/KEY-2
d/KEY-4
FP-STB
FP-DIN
FP-DOUT
FP-CLK
2
1
28
27
CN1001
CN2001 CN2101
K1 2
4
1
3
6
2
3
4
K1
K2
AV CBA
SENSOR
REMOTE
RM2001
IC101
(MICRO CONTROLLER)
PCM-SCLK
I/P-SW
163
183
ADAC-MD
A-MUTE
57
88
56 ADAC-MC
86 ADAC-ML
IC462
+3.3V
IC461
+3.3V
RESET73
RESET
1 3
RESET
2 1
VREF
(SERVO DRIVE)
IC301
FOCUS DRIVE
FD-OFST
148
146
26
25
27
-
+
-
+
FOCUS
ACTUATOR
DRIVE
15
16
24
TD-OFST
TRACKING
DRIVE
147
139
-
+
-
+
TRACKING
ACTUATOR
DRIVE
14
13
312
SPDL
76
-
+
-
+
SPINDLE
MOTOR
DRIVE
12
11
FP-STB 20
FP-DIN 19
FP-DOUT 21
FP-CLK 18
REMOTE 22
2019211822
CN401
82FP-STB
60FP-DIN
61
67
59
FP-CLK
REMOTE
FP-DOUT
SLD75
645
23
-
+
SLED
MOTOR
DRIVE
17
18
IC202
(OP AMP)
SP-ROT
7
5
3SP(+)
6
4SP(-)
+3.3V
5TRAY-IN
6GND
81 SL-AMP
14
13
12
7SL(-)
8SL(+)
143
1
2
3
CN301
TRAY-IN
66
DVD MAIN CBA UNIT
I/P-SW
PCM-SCLK
A-MUTE
TO
VIDEO/ AUDIO
ADAC-MD
BLOCK DIAGRAM
ADAC-MC
ADAC-ML
FS(+)
FS(-)
TO DIGITAL SIGNAL
TS(+)
TS(-)
PROCESS BLOCK
DIAGRAM
1-6-1
DRIVE CBA
TRAY-IN
SPINDLE
MOTOR
M
SLED
MOTOR
M
E5928BLS
Digital Signal Process Block Diagram
TO
VIDEO
/AUDIO
BLOCK
DIAGRAM
TO
VIDEO
/AUDIO
BLOCK
DIAGRAM
FLASH
ROM
DATA(AUDIO) SIGNAL
DATA(VIDEO/AUDIO) SIGNAL VIDEO SIGNAL
DATA
RAM
DSP
INST.
ROM
DECODER
STREAM
I/F
DATA
RAM
I/O
INST.
ROM
PROCESSOR
SPDIF
PCM-BCK
177
170
PCM-DATA
171
AUDI O
I/F
UMAC
PCM-LRCLK
169
SERIAL
GENERAL
I/O
CPU
I/F
READ
MEMORY
INTERRUPT
VIDEO-Y
Y
CONTROLLER
149
D/A
TIMER
VIDEO-C
158
C
D/A
NTSC/PAL
VIDEO
WATCH DOG
TIMER
VIDEO-Cr/Pr
VIDEO-Cb/Pb
152
Cr/Pr
Cb/Pb
D/A
ENCODER
I/F
REMOTE
CONTROL
151
D/A
32BIT CPU
BCU
DATA
INST
DEBUG
RAM
RAM
IC103 (FLASH ROM)
~
~
1
9
162548
FADR (0-19)
23~51
~
293638
FDQ (0-15)
~
45
SDRAM ADDRESS(0-11)
~
217
238
SDRAM ADDRESS(0-11)
~~
222629
IC503 (SDRAM) IC101 (MICRO CONTROLLER)
EXTERNAL
MEMORY
I/F
1
2
35
SDRAM
DECODER
I/F
ECC
SDRAM DATA(0-15)
~~
18
252
SDRAM DATA(0-15)
~~
134253
256
114
115
116
DMA
RF
117
CN201
C16
DVD/CD
FORMATTER
SIGNAL
PROCESS
132
131
D18
CIRCUIT
134
133
A17
B15
DETECTOR
BCU
129
E14
130
F12
CD/DVD 19
32BIT
CPU
INST.
ROM
126
124
AMP
Q253,Q254
AMP
CN201
CD-LD 10
DVD-LD 8
DATA
RAM
125
123
Q251,Q252
6
5
PD-MONI 7
GND(CD-PD)
GND(DVD-PD)
9
GND(LD)
CPU
I/F
WATCH DOG
TIMER
TIMER
INTERRUPT
CONTROLLER
192~212
CD/DVD
83
TO SYSTEM
CONTROL/SERVO
BLOCK DIAGRAM
6
IC201
(SW)
4
1 3
CD DVD
FS(-)
TS(-)
FS(+)
TS(+)
CN201
FS(-) 3
TS(-) 4
FS(+) 2
TS(+) 1
FS
TS
DVD MAIN CBA UNIT
PICK-UP
UNIT
1-6-2
E5928BLD
Video / Audio Block Diagram
VIDEO-Cb/Pb
VIDEO-Y
OUT
COMPOSITE
VIDEO OUT
JK1401
AUDIO SIGNALDATA(AUDIO) SIGNAL
S-VIDEO OUT
JK1404
2
1
3 4
YC
OUT
VIDEO-Cr/Pr
OUT
DIGITAL
JK1202
AMP
Q1351
AUDIO
OUT
COAXIAL
JK1404
(AMP)
IC1201
3
AUDIO-L
OUT
1
2
675
AUDIO-R
OUT
+5V
Q1202
Q1204
Q1201
+3.3V
VIDEO SIGNAL
WF3
13
2dB
AMP
2dB
LPF DRIVER
4dB
AMP
IC1402 (VIDEO DRIVER)
3
WF1
14
DRIVER
AMP
WF2
15
2dB
AMP
LPF DRIVER
4dB
AMP
1
11
2dB
AMP
LPF DRIVER
4dB
AMP
6
CN1601
10
2dB
AMP
LPF DRIVER
4dB
AMP
8
MUTE
WF4
WF6
2
19
SPDIF
I/P-SW
2
19
CN601 CN1601
5
7
L-CH
LPF+AMP
DAC
ENHANCED
MULTI-LEVEL
8
R-CH
LPF+AMP
DAC
MODULATOR
DELTA-SIGMA
16
AUDIO-R
14 14AUDIO-L
16
WF5
15 15A-R-MUTE
13 13A-MUTE
11
ZERO DETECT
16
SYSTEM CLOCK
DVD MAIN CBA UNIT AV CBA
88VIDEO-Y
CN601
VIDEO-Y
66VIDEO-Cb/Pb
10 10VIDEO-C
VIDEO-C
VIDEO-Cb/Pb
VIDEO-Cr/Pr
TO DIGITAL
SIGNAL PROCESS
BLOCK DIAGRAM
44VIDEO-Cr/Pr
1-6-3
IC601 (AUDIO DAC)
4X/8X
DIGITAL FILTER
OVERSAMPLING
SERIAL
123
PCM-BCK
SPDIF
PCM-DATA
TO
DIGITAL
SIGNAL
PROCESS
/FUNCTION
CONTROLLER
PORT
PCM-LRCLK
BLOCK
DIAGRAM
ADAC-MD
I/P-SW
SERIAL
131415
ADAC-MC
ADAC-ML
CONTROL
PCM-SCLK
A-MUTE
TO
SYSTEM
CONTROL
/SERVO
BLOCK
DIAGRAM
E5928BLV
Power Supply Block Diagram
TO CN401
1,2 EV+1.2V
8,9 EV+11V
3,4,5 EV+3.3V
7 P-ON+5V
6 P-ON+3.3V
17 PWRCON
-FL
F1
P-ON+10V
F2
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
NOTE :
+1.2V
IC1002
-REPLACE FUSE AS MARKED.
SCHOTTKY
D1006
D1003
T1001
RECTIFIER
11
2
12
"Ce symbole reprèsente un fusible à fusion rapide."
"This symbol means fast operating fuse."
CAUTION
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE FUSE.
ATTENTION : POUR UNE PROTECTION CONTINUE LES RISQES
D'INCELE N'UTILISER QUE DES FUSIBLE DE MÊME TYPE.
RISK OF FIRE
F
A V
EV+5V
EV+3.3V
REG.
BARRIER
D1008
P-ON+5V
P-ON+3.3V
SCHOTTKY
BARRIER
131514
4
Q1002 CN1001
D1030
RECTIFIER
Q1011
Q1004
Q1016
Q1015
Q1005
REG
2
3
IC1006
(SHUNT REGULATOR)
D1016
RECTIFIER
16
17
18
1
4
IC1001
ERROR
7
6
VOLTAGE DET
SWITCHING
CONTROL
SWITCHING
Q1003 Q1031
BRIDGE
RECTIFIER
D1001, D1002
D1004, D1005
LINE
FILTER
L1001
F
F1001
CAUTION !
Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
HOT CIRCUIT. BE CAREFUL.
1A 250V
AC1001
AC CORD
A V
1-6-4
AV CBA
HOT
E5928BLP
SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS
Standard Notes
WARNING
Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage,
etc. Replacement parts that have these special safety
characteristics are identified in this manual and its
supplements; electrical components having such features are identified by the mark " # " in the schematic
diagram and the parts list. Before replacing any of
these components, read the parts list in this manual
carefully. The use of substitute replacement parts that
do not have the same safety characteristics as specified in the parts list may create shock, fire, or other
hazards.
Notes:
1. Do not use the part number shown on these drawings for ordering. The correct part number is
shown in the parts list, and may be slightly different
or amended since these drawings were prepared.
2. All resistance values are indicated in ohms
3
(K=10
3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.
4. All capacitance values are indicated in µF
(P=10
5. All voltages are DC voltages unless otherwise
specified.
, M=106).
-6
µF).
1-7-1 SC_FN1
LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING
PAG ES:
1. CAUTION:
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE
SAME TYPE FUSE.
F
A V
ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQES D'INCELE N'UTILISER QUE
DES FUSIBLE DE MÊME TYPE.
RISK OF FIRE-REPLACE FUSE AS MARKED.
This symbol means fast operating fuse.
Ce symbole represente un fusible a fusion rapide.
2. CAUTION:
Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, first check to see that all components in the power supply circuit are not defective
before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the
power supply circuit to fail.
3. Note:
(1) Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts
list, and may be slightly different or amended since the drawings were prepared.
(2) To maintain original function and reliability of repaired units, use only original replacement parts which are
listed with their part numbers in the parts list section of the service manual.
4. Voltage indications for PLAY and STOP mode on the schematics are as shown below:
The same voltage for
both PLAY & STOP modes
5. How to read converged lines
1-D3
Distinction Area
Line Number
(1 to 3 digits)
Examples:
1. "1-D3" means that line number "1" goes to area "D3".
2. "1-B1" means that line number "1" goes to area "B1".
6. Test Point Information
: Indicates a test point with a jumper wire across a hole in the PCB.
: Used to indicate a test point with a component lead on foil side.
: Used to indicate a test point with no test pin.
(Unit: Volt)
5.0
2
3
5.0
(2.5)
Indicates that the voltage
is not consistent here.
PLAY mode
STOP mode
3
1-B1
1
AREA D3
2
1
AREA B1
1-D3
ABCD
: Used to indicate a test point with a test pin.
1-7-2 SC_FN2
DVD Main 1/3 Schematic Diagram
DVD MAIN 1/3
Ref No. Position
IC201 C-1
IC202 D-4
IC301 D-3
IC461 F-1
IC462 E-1
Q251 C-2
Q252 B-2
Q253 C-2
Q254 B-2
CN201 A-3
CN301 A-1
CN401 F-3
CONNECTORS
ICS
TRANSISTORS
DATA(VIDEO+AUDIO)
A4
A3
B4
B3
C4
C3
D3
E4
E3
F4
F3
A2
A1
B2
B1
1-7-3 1-7-4
C2
C1
D2
D1
E2
E1
F2
F1
E5928SCD1
DVD Main 2/3 Schematic Diagram
DVD MAIN 2/3
Ref No. Position
IC101 G-4
IC
DATA(VIDEO+AUDIO)
VIDEO SIGNAL
DATA (AUDIO)
G4
G3
H4
H3
I4
I3
J4
J3
K4
K3
L4
L3
G2
G1
1-7-5
H2
H1
I2
I1
J2
J1
K2
K1
1-7-6
L2
L1
E5928SCD2
IC101 VOLTAGE CHART
PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP
129 2.3 2.3 161 3.4 3.4 193 ~ ~ 225 3.4 3.4
130 2.3 2.3 162 0 0 194 ~ ~ 226 ~ ~
131 2.3 2.3 163 1.8 1.8 195 ~ ~ 227 ~ ~
132 2.4 2.3 164 0 0 196 3.4 3.4 228 ~ ~
133 2.4 2.4 165 1.7 1.8 197 ~ ~ 229 0 0
134 2.4 2.4 166 1.7 1.7 198 ~ ~ 230 ~ ~
135 2.3 2.3 167 3.4 3.4 199 ~ ~ 231 3.4 3.4
136 2.3 2.3 168 0 0 200 ~ ~ 232 1.3 1.6
137 2.3 2.3 169 1.8 1.8 201 0 0 233 ~ ~
138 2.3 2.3 170 1.7 1.7 202 3.4 3.4 234 1.9 2.3
139 1.7 1.7 171 1.3 0.1 203 ~ ~ 235 0 0
140 ----- ----- 172 1.3 1.3 204 ~ ~ 236 1.3 1.3
141 3.4 3.4 173 0 0 205 0 0 237 ~ ~
142 1.3 1.3 174 ----- ----- 206 ~ ~ 238 ~ ~
143 2.1 1.7 175 ----- ----- 207 ~ ~ 239 3.4 3.4
144 2.2 2.2 176 ----- ----- 208 ~ ~ 240 3.4 3.3
145 0 0 177 1.8 1.7 209 3.4 3.4 241 1.9 1.9
146 1.7 1.7 178 3.4 3.5 210 ~ ~ 242 0 0
147 1.8 1.7 179 0 0 211 ~ ~ 243 1.9 1.9
148 1.7 1.7 180 ----- ----- 212 ~ ~ 244 3.4 3.3
149 0.6 0.5 181 ----- ----- 213 0 0 245 3.4 3.4
150 3.4 3.4 182 ----- ----- 214 ----- ----- 246 3.4 3.4
151 0.5 0.6 183 3.5 3.5 215 ----- ----- 247 0 0
152 0.5 0.4 184 ----- ----- 216 3.4 3.4 248 3.3 3.4
153 1.4 1.3 185 ----- ----- 217 ~ ~ 249 3.2 3
154 1.4 1.3 186 ----- ----- 218 0 0 250 0 0
155 2.4 2.4 187 ----- ----- 219 1.3 1.3 251 3.2 3.0
156 ----- ----- 188 ----- ----- 220 ~ ~ 252 ~ ~
157 0 0 189 ----- ----- 221 ~ ~ 253 0 0
158 0.9 0.9 190 3.4 3.5 222 0 0 254 ~ ~
159 3.4 3.4 191 0 0 223 ~ ~ 255 3.4 3.4
160 0 0 192 ~ ~ 224 ~ ~ 256 ~ ~
PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP
1 ~ ~ 33 ~ ~ 65 0 0 97 ----- ----2 ~ ~ 343.43.4663.43.5983.43.4
3 0 0 35 0 0 673.23.2990.90.8
4~~36~~680010000
5 ~ ~ 37 ~ ~ 69 ----- ----- 101 2.4 2.4
6 3.4 3.4 38 0.4 0.3 70 3.4 3.4 102 2.2 2.2
7 ~ ~ 39 ~ ~ 71 ----- ----- 103 1.9 1.9
8 ~ ~ 40 ~ ~ 72 1.4 2.7 104 0.4 0.3
9 0 041~ ~733.43.41050 0
10 ~ ~ 42 ~ ~ 74 0 0 106 1.7 1.7
11 ~ ~ 43 ~ ~ 75 1.7 1.8 107 3.4 3.4
12 3.4 3.4 44 1.3 1.3 76 2.3 1.8 108 ----- ----13 ~ ~ 45 ~ ~ 77 ----- ----- 109 ----- ----14 ~ ~ 46 ~ ~ 78 ----- ----- 110 1.9 1.9
15 ~ ~ 47 ~ ~ 79 ----- ----- 111 1.9 1.9
16 0 0 48 3.4 3.4 80 3.4 0.1 112 1.7 1.7
17 ~ ~ 49 0 0 81 0.1 0.1 113 1.7 1.7
18 ~ ~ 50 ~ ~ 82 2.8 2.8 114 1.7 1.7
19 3.4 3.4 51 ~ ~ 83 0.1 0.1 115 1.7 1.7
20 0 0 52 0.8 0.8 84 3.4 3.4 116 1.7 1.7
21 0.9 0.1 53 0 0 85 0.1 0.1 117 1.7 1.7
22 3.5 3.5 54 ----- ----- 86 3.6 3.4 118 3.4 3.4
23 ~ ~ 55 ----- ----- 87 0 0 119 2.0 2.0
24 ~ ~ 56 3.4 3.4 88 3.5 0.1 120 1.7 1.7
25 ~ ~ 57 3.5 3.5 89 1.3 1.3 121 1.5 1.5
26 1.3 1.3 58 ----- ----- 90 ----- ----- 122 0 0
27 ~ ~ 59 3.4 3.4 91 ----- ----- 123 0.3 0.1
28 3.4 3.4 60 3.4 3.4 92 ----- ----- 124 1.2 0.1
29 0 0 61 3.5 3.5 93 0 0 125 0.3 0.1
30 ~ ~ 62 3.4 3.4 94 ----- ----- 126 0.1 0.1
31 ~ ~ 63 0 0 95 ----- ----- 127 2.3 2.3
32 ~ ~ 64 0 0 96 ----- ----- 128 1.7 1.7
1-7-7 1-7-8
DVD Main 3/3 Schematic Diagram
DVD MAIN 3/3
Ref No. Position
IC103 N-3
IC503 O-4
IC601 O-1
CN601 R-2
ICS
CONNECTOR
DATA (AUDIO)VIDEO SIGNAL
AUDIO SIGNAL
M4
M3
N4
N3
O4
O3
P4
P3
Q4
Q3
R4
R3
M2
M1
1-7-9
N2
N1
O2
O1
P2
P1
Q2
Q1
1-7-10
R2
R1
E5928SCD3
AV 1/3 Schematic Diagram
AV 1/3
Ref No. Position
IC1001 B-1
IC1002 D-4
IC1006 C-1
Q1002 D-3
Q1003 B-2
Q1004 D-3
Q1005 D-2
Q1011 D-1
Q1015 D-2
Q1016 E-2
Q1031 B-3
CN1001 F-4
ICS
TRANSISTORS
CONNECTOR
CAUTION !
Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
F
A V
CAUTION
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE FUSE.
ATTENTION : POUR UNE PROTECTION CONTINUE LES RISQES
D'INCELE N'UTILISER QUE DES FUSIBLE DE MÊME TYPE.
RISK OF FIRE-REPLACE FUSE AS MARKED.
"This symbol means fast operating fuse."
"Ce symbole reprèsente un fusible à fusion rapide."
NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.
A4
A3
B4
B3
C4
C3
D4
D3
E4
E3
F4
F3
A2
A1
B2
B1
1-7-11 1-7-12
C2
C1
D2
D1
E2
E1
F2
F1
E5928SCAV1
AV 2/3 Schematic Diagram
AV 2/3
Ref No. Position
IC1201 H-1
IC1402 I-3
Q1201 J-1
Q1202 J-1
Q1204 I-1
Q1351 K-4
Q1352 H-2
CN1601 G-3
ICS
TRANSISTORS
CONNECTOR
G4
G3
H4
H3
I4
I3
DATA (AUDIO)VIDEO SIGNAL
J4
J3
AUDIO SIGNAL
K4
K3
L4
L3
G2
G1
1-7-13
H2
H1
I2
I1
J2
J1
K2
K1
1-7-14
L2
L1
E5928SCAV2
AV 3/3 & Function Schematic Diagram
7G 6G 5G 4G 3G 2G 1G
a
b
c
d
e
f
g
c
d
e
ff
g
c
d
e
f
g
c
d
e
f
g
c
d
e
f
g
c
d
e
f
g
h
ii
a
b
a
b
a
b
a
b
a
b
FL2001 MATRIX CHART
REPEAT
TITLE
GROUP
VCR
CHP
REC
SACD
TRK
ALL
B
PSCAN
DVD
P
M
HD
V
CD
A
A
M4
M3
7G
REPEAT
B
A
ALL
f
i
6G
TITLE
i
N4
5G 4G 3G 2G 1G
CHP
REC
TRK
c
VCR
GROUP
N3
a
b
d
ef
g
SACD
PSCAN
DVD
A
PM
HDVCD
O4
O3
P4
P3
Q4
Q3
M2
M1
1-7-15
N2
N1
O2
O1
P2
P1
Q2
Q1
1-7-16
AV 3/3
Ref No. Posit ion
IC
IC2001 O-2
CONNECTOR
CN2001 P-2
E5928SCAV3
AV CBA Top View
CAUTION !
Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
F
A V
CAUTION
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE FUSE.
ATTENTION : POUR UNE PROTECTION CONTINUE LES RISQES
D'INCELE N'UTILISER QUE DES FUSIBLE DE MÊME TYPE.
RISK OF FIRE-REPLACE FUSE AS MARKED.
"This symbol means fast operating fuse."
"Ce symbole reprèsente un fusible à fusion rapide."
NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.
1-7-17
1-7-18
BE5901F01011A
AV CBA Bottom View
AV CBA
Ref No. Position
IC1001 C-2
IC1002 A-2
IC1006 B-2
IC1201 D-3
IC1402 D-4
IC2001 A-2
Q1002 A-1
Q1003 C-2
Q1004 A-1
Q1005 A-1
Q1011 B-2
Q1015 A-1
Q1016 A-1
Q1031 C-1
Q1201 E-3
Q1202 E-2
Q1204 E-2
Q1351 E-2
Q1352 C-3
CN1001 B-3
CN1601 D-3
CN2001 A-3
ICS
TRANSISTORS
CONNECTORS
CAUTION !
Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
F
A V
CAUTION
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE FUSE.
ATTENTION : POUR UNE PROTECTION CONTINUE LES RISQES
D'INCELE N'UTILISER QUE DES FUSIBLE DE MÊME TYPE.
RISK OF FIRE-REPLACE FUSE AS MARKED.
"This symbol means fast operating fuse."
"Ce symbole reprèsente un fusible à fusion rapide."
NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.
WF3
C1402
PLUS LEAD
WF2
PIN 10 OF
CN1601
1-7-19
WF1
PIN 8 OF
CN1601
WF4
PIN 14 OF
CN1601
WF5
PIN 16 OF
CN1601
WF6
PIN 19 OF
CN1601
1-7-20
BE5901F01011A

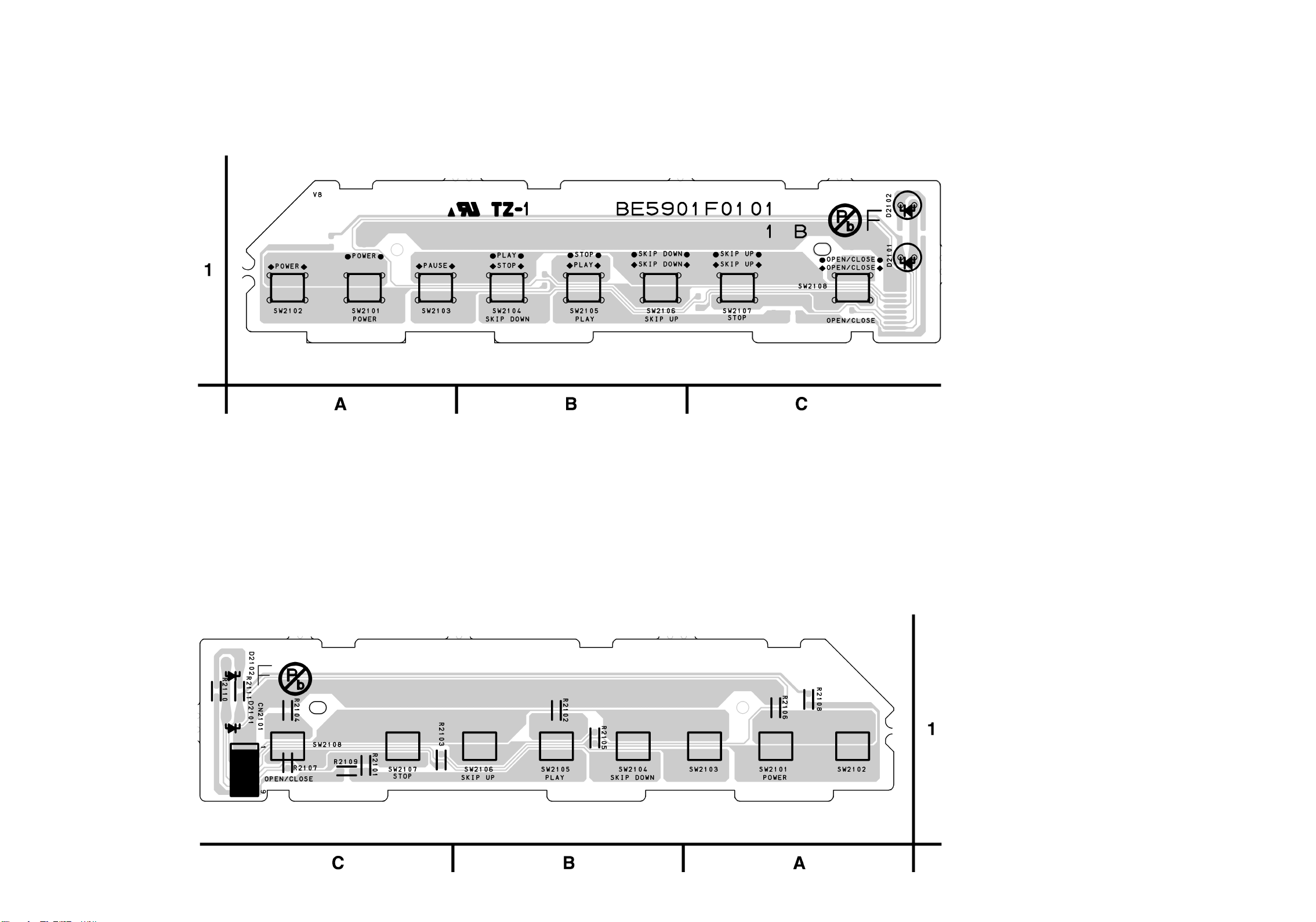

FUNCTION CBA Top View
FUNCTION CBA Bottom View
1-7-21
1-7-22
BE5901F01011B
SPDIF
1V
0.1
WF1
AUDIO-L
1V
0.5ms
AUDIO-R
1V
0.5ms
VIDEO-Y
0.2V
20
VIDEO-C
0.2V
20
VIDEO-CVBS
0.5V
20
Pin 8 of CN1601
WAVEFORMS
WF5
Pin 16 of CN1601
VIDEO-Y
WF2
Pin 10 of CN1601
VIDEO-C
WF3
C1402 PLUS LEAD
0.2V
0.2V
20
20
µ
µ
s
s
WF6
AUDIO-R
Pin 19 of CN1601
SPDIF
1V
1V
0.5ms
0.1
µ
s
WF4
VIDEO-CVBS
0.5V
Pin 14 of CN1601
AUDIO-L
1V
20
µ
0.5ms
NOTE:
Input
CD: 1kHz PLAY
(WF4~WF6)
s
1-8-1
DVD: POWER ON (STOP) MODE
(WF1~WF3)
E5WF
WIRING DIAGRAM
CN2101 is soldered
directly to the PCB.
AC CORD
S-VIDEO
DIGITAL
AUDIO OUT
AUDIO-R
AUDIO-L
VIDEO
VIDEO-Cr/Pr
VIDEO-Cb/Pb
OUT
COAXIAL
OUT
OUT
OUT
OUT
OUT
K2 11K1 22KEY-2 33KEY-3 44KEY-1 55KEY-4 6
CN2001 CN2101
(BE5901F01011A) (BE5901F01011B)
AV CBA FUNCTION CBA
6
CN1601
(CN1601 is soldered directly to the PCB.)
2222
CN1001
(CN1001 is soldered directly to the PCB.)
SPDIF 1919
AUDIO+5V 1818
AUDIO+5V 1717
AUDIO-R 1616
A-R-MUTE 1515
AUDIO-L 1414
A-MUTE 1313
AUDIO-GND 1212
AUDIO-GND 1111
VIDEO-C 1010
GND 99
VIDEO-Y 88
GND 77
VIDEO-Cb/Pb 66
GND 55
VIDEO-Cr/Pr 44
ASPECT(NU) 33
I/P-SW 22
REMOTE
FP-DOUT 2121
FP-STB 2020
FP-DIN 1919
FP-CLK 1818
PWRCON 1717
GND 1616
GND 1515
GND 1414
GND 1313
GND 1212
GND 1111
GND 1010
EV+11V 99
EV+11V 88
P-ON+5V 77
P-ON+3.3V 66
EV+3.3V 55
EV+3.3V 44
EV+3.3V 33
EV+1.2V 22
EV+1.2V 11
CN601
CN401
CN201CN301
DVD MAIN CBA UNIT
20
P-ON+5V
19
CD/DVD
18
D
17
A
16
C
15
B
14
E
13
VREF
12
F
11
GND
CD-LD
10
9
GND(LD)
8
DVD-LD
7
PD-MONI
6
GND(DVD-PD)
5
GND(CD-PD)
4
TS(-)
3
FS(-)
FS(+)
2
1
TS(+)
8 SL(+)
SL(-)
7
GND
6
TRAY-IN
5
SP(-)
4
SP(+)
3
FS
TS
M
SLED
MOTORMSPINDLE
4
DETECTOR
7 9 11 2 3 6 5
PICK UP UNIT
DVD MECHA
MOTOR
DRIVE CBA
TRAY-IN
VIDEO-Y
OUT
1-9-1
E5928WI
FIRMWARE RENEWAL MODE
1. Turn the power on and remove the disc on the tray.
2. To put the DVD player into version up mode, press
[9], [8], [7], [6], and [SEARCH MODE] buttons on
the remote control unit in that order. The tray will
open automatically.
Fig. a appears on the screen and Fig. b appears on
the VFD.
"
" differ depending on the models.
*******
F/W Version Up Mode Model No : *******
Please insert a DISC
for F/W Version Up.
VERSION : *.**
EXIT: POWER
Fig. a Version Up Mode Screen
Fig. b VFD in Version Up Mode
The DVD player can also enter the version up
mode with the tray open. In this case, Fig. a will be
shown on the screen while the tray is open.
3. Load the disc for version up.
4. The DVD player enters the F/W version up mode
automatically. Fig. c appears on the screen and
Fig. d appears on the VFD. If you enter the F/W for
different models, “Disc Error” will appear on the
screen, then the tray will open automatically.
"
" differ depending on the models.
*******
checksum in (*3) of Fig. e appears on the VFD.
(Fig. f)
"
" differ depending on the models.
*******
F/W Version Up Mode
VERSION : E5****_****.ab5
Completed
SUM : 7ABC (*3)
Model No : *******
VERSION : *.**
Fig. e Completed Program Mode Screen
Fig. f VFD upon Finishing the Programming Mode (Example)
At this time, no buttons are available.
6. Remove the disc on the tray.
7. Unplug the AC cord from the AC outlet. Then plug it
again.
8. Turn the power on by pressing the power button
and the tray will close.
9. Press [1], [2], [3], [4], and [DISPLAY] buttons on the
remote control unit in that order.
Fig. g appears on the screen.
"
" differ depending on the models.
*******
MODEL : *******
Version
Region
: *.**
: *
F/W Version Up Mode Model No : *******
VERSION : E5****_****.ab5
Reading...(*2)
VERSION : *.**
Fig. c Programming Mode Screen
Fig. d VFD in Programming Mode (Example)
The appearance shown in (*2) of Fig. c is
described as follows:
AppearanceNo. State
Reading... Sending files into the memory
1
Erasing... Erasing previous version data
2
Programming...
3 Writing new version data
5. After programming is finished, the tray opens automatically. Fig. e appears on the screen and the
EXIT: POWEREEPROM CLEAR : CLEAR
Fig. g
10.Press [CLEAR] button on the remote control unit.
Fig. h appears on the screen.
"
" differ depending on the models.
*******
MODEL : *******
Version
Region
: *.**
: *
EXIT: POWEREEPROM CLEAR : CLEAR
EEPROM CLEAR : OK
Fig. h
When “OK” appears on the screen, the factory
default will be set. Then the firmware renewal mode
is complete.
11.To exit this mode, press [POWER] button.
1-10-1 E5928TEST
SYSTEM CONTROL TIMING CHARTS
Tray Close ~ Play / Play ~ Tray Open
Tray IN
(TL221)
Sled Drive
(TP303)
Disc Drive
(TP301)
Focus Drive
(TP304)
3.3V
0V
1.65V
0V
1.65V
0V
1.65V
0V
Tr ay
Close
Disc
Rotation
Play
Disc
Stop
Tr ay
Open
Tracking Drive
(TP302)
1.65V
0V
1-11-1 E5TI
IC PIN FUNCTION DESCRIPTIONS
IC2001 [ PT6313-S-TP ]
Pin
In/
No.
Signal Name Name Function
Out
1 In FP-CLK
2 In FP-STB
3 In K1
4 In K2
5 - VSS
6 - VDD
7 Out a / KEY-1
8 Out b / Key-2
9 Out c / Key-3
10 Out d / Key-4
11 Out e
12 In f
13 In g
Clock Input
Serial Interface Strobe
Key Data 1 Input
Key Data 2 Input
GND
Power Supply
Segment Output / Key
Source-1
Segment Output / Key
Source-2
Segment Output / Key
Source-3
Segment Output/ Key
Source-4
Segment Output
14 Out h
15 - VEE
16 Out i
17
18 6G
19 5G
Out
20 4G
21 3G
22 2G
23 1G
24 - VDD
25 - VSS
26 In OSC
27 Out FP-DOUT
28 In FP-DIN
7G
Pull Down Level
Segment Output
Grid Output
Power Supply
GND
Oscillator Input
Serial Data Output
Serial Data Input
1-12-1 E5928PIN
LEAD IDENTIFICATIONS
2SA1015-Y(TPE2)
2SC1815-Y(TPE2)
2SC2120-Y(TPE2)
KTA1266(Y)
KTC3203(Y)
E C B E C B
KIA4558P PT6313-S-TP
8
5
NJM4558D
8
5
2SC2785(H)
BN1L3Z(P)
KRA110M
KTA1267(Y)
KTC3199(GR,Y)
SC16313
28
2SK3498
GDS
FAN431AZXA
KIA431-AT
15
1
MM1637XVBE
16
1
9
8
4
PQ070XZ5MZP
1
123345
1: Vin
2: Vc
3: Vo
4: Vadj
5: GND
4
A
K
1
LTV-817B-F
LTV-817C-F
PS2561A-1(Q,W)
14
K A R
C
E
Note:
A: Anode
K: Cathode
E: Emitter
C: Collector
B: Base
R: Reference
G: Gate
D: Drain
S: Source
1-13-1 E5928LE
Cabinet
2L081
EXPLODED VIEWS
2L011
2B5
2L081
2L011
2L011
A2
2L021
2L021
FUNCTION CBA
2L021
2L021
1B1
2L105
DVD MAIN CBA UNIT
2L105
2L031
JK1401
2B1
A21
A16
See Electrical Parts List
for parts with this mark.
Some Ref. Numbers are
not in sequence.
JK1404
JK1202
F1001
AC1001
AV CBA
A22
2L041
2L041
A13
A1X
A15
A13
1-14-1 E5928EX
Packing
X2
X4
S4
X5
X10
X1
S2
A22
S2
Unit
S1
1-14-2 E5928EX
MECHANICAL PARTS LIST
PRODUCT SAFETY NOTE: Products marked with a #
have special characteristics important to safety. Before
replacing any of these components, read carefully the
product safety notice in this service manual. Don't
degrade the safety of the product through improper servicing.
NOTE:
Parts that are not assigned part numbers (---------) are
not available.
Ref. No. Description Part No.
A1X FRONT ASSEMBLY E5925UD 0VM204515
A2 PANEL,TRAY E5920UD 0VM204430
A13 FOOT(REAR) E5710UD 0VM415007
A15 CHASSIS 0VM000190L
A16 CASE, TOP E5 PLASTIC 0VM101317
A21 MODEL NO. LABEL E5928CD ---------A22 LABEL, BAR CODE E5900UD or ----------
BAR CODE LABEL E5928CD ---------1B1 DVD MECHA(FG LESS) 0838 VCZL0500 N79F0HVM
2B5 REINFORCE PLATE E5960UD 1VM320140
2L011 SCREW, P-TIGHT 3X10 BIND HEAD+ GBEP3100
2L021 SCREW, P-TIGHT 3X11 BIND HEAD+ GBMP3110
2L031 P-TIGHT SCREW 3X8 BIND + GBMP3080
2L041 SCREW, B-TIGHT M3X8 BIND HEAD + GBKB3080
2L081 SCREW, P-TIGHT M3X8 WASHER+ GCMP3080
2L105 P-TIGHT SCREW 3X8 BIND + GBMP3080
PACKING
S1 GIFT BOX, CARTON E5928CD 1VM320179
S2 SIDE PAD E5900UD 0VM101344
S4 UNIT, BAG E5500UD 0VM411683
ACCESSORIES
X1 REMOTE CONTROL UNIT DVD 0842
X2 DRY BATTERY R6P/2S or XB0M451T0001
X4 ACCESSORY BAG E5700UD 0VM415576
X5 AV CORD TSCKA-Y/RW100 or WPZ0102TM015
X10# OWNER'S MANUAL E5928CD 1VMN20118
VCZF05EE or
REMOTE CONTROL UNIT DVD 0842
VCZF05EE
DRY BATTERY ES-GR6M-C XB0M571GLP01
AV CORD RCA(M*2)TO RCA(M*2) WPZ0102LTE01
NB007UD
NB057UD
20040511 1-15-1 E5928CA
ELECTRICAL PARTS LIST
PRODUCT SAFETY NOTE: Products marked with a #
have special characteristics important to safety. Before
replacing any of these components, read carefully the
product safety notice in this service manual. Don't
degrade the safety of the product through improper servicing.
NOTES:
1. Parts that are not assigned part numbers (---------)
are not available.
2. Tolerance of Capacitors and Resistors are noted
with the following symbols.
C.....±0.25% D.....±0.5% F.....±1%
G.....±2% J......±5% K.....±10%
M.....±20% N.....±30% Z.....+80/-20%
DVD MAIN CBA UNIT
Ref. No. Description Part No.
DVD MAIN CBA UNIT N79F6HCP
AV CBA ASSEMBLY
Ref. No. Description Part No.
AV CBA ASSEMBLY
Consists of the following:
AV C BA
FUNCTION CBA
AV CBA
Ref. No. Description Part No.
AV C BA
Consists of the followings
CAPACITORS
C1001# METALLIZED FILM CAP. 0.022µF/250V M or CT2E223MS037
# METALLIZED FILM CAP. 0.022µF/250V K or CT2E223DC011
# METALLIZED FILM CAP. 0.022µF/275V K CT2E223HJE13
C1003 ELECTROLYTIC CAP. 2.2µF/250V M or CA2E2R2S6009
ELECTROLYTIC CAP. 2.2µF/250V M(105C) CE2EMASTH2R2
C1004 ELECTROLYTIC CAP. 82µF/200V M or CA2D820S6014
ELECTROLYTIC CAP. 82µF/200V M CA2D820NC002
C1005 CERAMIC CAP. CH J 56pF/500V CCD2JJPCH560
C1006# SAFETY CAP. 2200pF/250V or CCD2EMA0E222
# SAFETY CAP. 2200pF/250V or CCG2EMA0F222
# SAFETY CAP. 2200pF/125V CCG2BMA0E222
C1007 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102
C1009 ELECTROLYTIC CAP. 2200µF/6.3V or CE0KMASDL222
ELECTROLYTIC CAP. 2200µF/6.3V M CE0KMASTL222
C1010 CERAMIC CAP.(AX) CH J 680pF/50V CA1J681TU008
C1013 FILM CAP.(P) 0.0033µF/50V J or CMA1JJS00332
FILM CAP.(P) 0.0033µF/50V J CA1J332MS029
C1014 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102
C1017 CERAMIC CAP.(AX) Y M 0.01µF/16V CCA1CMT0Y103
C1018 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101
0VSA15072
----------
----------
----------
Ref. No. Description Part No.
C1021 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1022 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1029 CERAMIC CAP.(AX) X K 2200pF/16V CCA1CKT0X222
C1034 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101
C1035 ELECTROLYTIC CAP. 1000µF/16V M or CE1CMASDL102
ELECTROLYTIC CAP. 1000µF/16V M CE1CMASTL102
C1036 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1037 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1038 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471
C1039 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1047 FILM CAP.(P) 0.01µF/100V J or CMA2AJS00103
FILM CAP.(P) 0.01µF/100V J CA2A103MS029
C1048 ELECTROLYTIC CAP. 220µF/16V M CE1CMASDL221
C1049 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1050 ELECTROLYTIC CAP. 220µF/6.3V M CE0KMASDL221
C1201 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1202 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1205 CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJ3CH221
C1206 CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJ3CH221
C1207 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470
C1208 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470
C1221 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1222 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1223 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C1224 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C1245 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1246 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1247 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471
C1249 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMASSL470
C1351 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104
C1352 ELECTROLYTIC CAP. 47µF/6.3V M H7 or CE0KMASSL470
ELECTROLYTIC CAP. 47µF/6.3V M CE0KMASDL470
C1354 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C1394 ELECTROLYTIC CAP. 47µF/10V M CE1AMASDL470
C1395 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102
C1396 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
C1402 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471
C1421 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1422 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104
C1441 CHIP CERAMIC CAP.(1608) B K 0.33µF/10V CHD1AK30B334
C1442 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102
C1461 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C1462 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471
C1481 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C1482 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471
C1522 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1524 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101
C1531 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1532 ELECTROLYTIC CAP. 22µF/6.3V M H7 or CE0KMASSL220
ELECTROLYTIC CAP. 22µF/6.3V M CE0KMASDL220
C1533 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1534 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
20040511 1-16-1 E5928EL
Ref. No. Description Part No.
C2001 ELECTROLYTIC CAP. 22µF/50V M CE1JMASDL220
C2002 ELECTROLYTIC CAP. 22µF/50V M CE1JMASDL220
C2003 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C2004 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C2031 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101
C2032 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C2034 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
CONNECTORS
CN1001 22P FFC AV PCB TO MAIN WX1E5900-001
CN1601 18P FFC AV PCB TO MAIN WX1E5925-002
CN2001 FMN CONNECTOR, TOP 6P 06FMN-BTRK JCFNG06JG002
DIODES
D1001 RECTIFIER DIODE 1N4005 NDQZ001N4005
D1002 RECTIFIER DIODE 1N4005 NDQZ001N4005
D1003 RECTIFIER DIODE BA157 or NDQZ000BA157
FAST RECOVERY DIODE ERA18-04 QDPZ0ERA1804
D1004 RECTIFIER DIODE 1N4005 NDQZ001N4005
D1005 RECTIFIER DIODE 1N4005 NDQZ001N4005
D1006 SCHOTTKY BARRIER DIODE SB140 or NDQZ000SB140
SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004
D1008 SCHOTTKY BARRIER DIODE SB140 or NDQZ000SB140
SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004
D1011 RECTIFIER DIODE BA157 or NDQZ000BA157
FAST RECOVERY DIODE ERA18-04 QDPZ0ERA1804
D1012 SWITCHING DIODE 1N4148M or NDTZ01N4148M
SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1016 RECTIFIER DIODE BA157 or NDQZ000BA157
FAST RECOVERY DIODE ERA18-04 QDPZ0ERA1804
D1017 ZENER DIODE DZ-18BSBT265 or NDTB00DZ18BS
ZENER DIODE MTZJT-7718B QDTB00MTZJ18
D1018 SWITCHING DIODE 1N4148M or NDTZ01N4148M
SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1024 SWITCHING DIODE 1N4148M or NDTZ01N4148M
SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1030 RECTIFIER DIODE FR202-B/P or NDQZ000FR202
FAST RECOVERY DIODE ERB32-01L3 QDQZ0ERB3201
D1046 ZENER DIODE DZ-5.6BSCT265 or NDTC0DZ5R6BS
ZENER DIODE MTZJT-775.6C QDTC0MTZJ5R6
D1047 ZENER DIODE DZ-5.6BSBT265 or NDTB0DZ5R6BS
ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6
D1048 ZENER DIODE DZ-15BSAT265 or NDTA00DZ15BS
ZENER DIODE MTZJT-7715A QDTA00MTZJ15
D1051 ZENER DIODE DZ-6.2BSBT265 or NDTB0DZ6R2BS
ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2
D1053 PCB JUMPER D0.6-P10.0 JW10.0T
D1054 PCB JUMPER D0.6-P10.0 JW10.0T
D1055 SWITCHING DIODE 1N4148M or NDTZ01N4148M
SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1058 SCHOTTKY BARRIER DIODE SB140 or NDQZ000SB140
SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004
D1059 PCB JUMPER D0.6-P10.0 JW10.0T
D1073 PCB JUMPER D0.6-P5.0 JW5.0T
D1301 ZENER DIODE DZ-5.6BSBT265 or NDTB0DZ5R6BS
ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6
D2041 SWITCHING DIODE 1N4148M or NDTZ01N4148M
Ref. No. Description Part No.
SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D2042 SWITCHING DIODE 1N4148M or NDTZ01N4148M
SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D2043 SWITCHING DIODE 1N4148M or NDTZ01N4148M
SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D2044 SWITCHING DIODE 1N4148M or NDTZ01N4148M
SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
ICS
IC1001# PHOTOCOUPLER LTV-817B-F or NPEB0LTV817F
# PHOTOCOUPLER LTV-817C-F or NPEC0LTV817F
# PHOTOCOUPLER PS2561A-1(W) or QPEWPS2561A1
# PHOTOCOUPLER PS2561A-1(Q) QPEQPS2561A1
IC1002 VOLTAGE REGULATOR PQ070XZ5MZP QSZBA0TSH034
IC1006 IC:SHUNT REGULATOR KIA431-AT or NSZLA0TJY001
VOLTAGE REGULATOR FAN431AZXA NSZBA0TF3102
IC1201 IC:OP AMP KIA4558P or NSZBA0SJY004
IC:OP AMP NJM4558D QSZBA0SJR006
IC1402 DRIVER FOR DVD MM1637XVBE QSZBA0TMM102
IC2001 FL DRIVER IC PT6313-S-TP or NSZBA0TG2006
VFD DRIVER IC SC16313 NSZBA0T0S003
COILS
L1001# LINE FILTER 20MH SA-00911 or LLBG00ZSA003
# LINE FILTER 20MH 03905 or LLBG00ZKT008
# LINE FILTER 20MH MUV105-1126/M0021A LLBG00ZMMT01
L1007 CHOKE COIL 22µH-K LLBD00PKV006
L1008 CHOKE COIL 22µH-K LLBD00PKV006
L1009 CHOKE COIL 22µH-K LLBD00PKV006
L1011 BEAD CORE B16 RH 3.5X3X1.3 XL03003XM002
L1060 PCB JUMPER D0.6-P5.0 JW5.0T
L1350 INDUCTOR(100µH K) LAP02TA101K LLAXKATTU101
L1351 INDUCTOR(0.47µH K) LAP02TAR47K LLAXKATTUR47
L1401 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
L1421 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
L1441 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
L1442 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
L1461 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
L1481 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
L1521 CHOKE COIL 22µH-K LLBD00PKV006
L1522 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
L2001 PCB JUMPER D0.6-P5.0 JW5.0T
L2031 INDUCTOR(100µH K) LAP02TA101K LLAXKATTU101
TRANSISTORS
Q1002 TRANSISTOR KTA1267(Y) or NQSY0KTA1267
TRANSISTOR 2SA1015-Y(TPE2) QQSY02SA1015
Q1003 TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR 2SC2785(H) QQSH02SC2785
Q1004 TRANSISTOR KTC3199(Y) or NQSY0KTC3199
TRANSISTOR 2SC1815-Y(TPE2) QQSY02SC1815
Q1005 TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR 2SC2785(H) QQSH02SC2785
Q1011 TRANSISTOR KTC3203(Y) or NQSY0KTC3203
TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120
Q1015 RES. BUILT-IN TRANSISTOR KRA110M or NQSZ0KRA110M
RES. BUILT-IN TRANSISTOR BN1L3Z(P) QQSP00BN1L3Z
Q1016 TRANSISTOR KTC3199(GR) or NQS10KTC3199
20040511 1-16-2 E5928EL
Ref. No. Description Part No.
TRANSISTOR 2SC2785(H) QQSH02SC2785
Q1031# FET 2SK3498(T6L1FUNANQ QF1Z02SK3498
Q1201 TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR 2SC2785(H) QQSH02SC2785
Q1202 TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR 2SC2785(H) QQSH02SC2785
Q1204 TRANSISTOR KTA1266(Y) or NQSY0KTA1266
TRANSISTOR 2SA1015-Y(TPE2) QQSY02SA1015
Q1351 TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR 2SC2785(H) QQSH02SC2785
Q1352 TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR 2SC2785(H) QQSH02SC2785
RESISTORS
R1002 CHIP RES.(1608) 1/10W J 39 Ω RRXAJR5Z0390
R1004 METAL OXIDE FILM RES. 1W J 82k Ω or RN01823ZU001
METAL OXIDE FILM RES. 1W J 82k Ω or RN01823DP003
METAL OXIDE FILM RES. 1W J 82k Ω RN01823KE009
R1005 CARBON RES. 1/4W J 2.7M Ω RCX4JATZ0275
R1006 CARBON RES. 1/4W J 2.7M Ω RCX4JATZ0275
R1008 CARBON RES. 1/4W J 620 Ω RCX4JATZ0621
R1010 CARBON RES. 1/6W J 15k Ω or RCX6JATZ0153
CARBON RES. 1/4W J 15k Ω RCX4JATZ0153
R1011 METAL OXIDE FILM RES. 1W J 1.2 Ω or RN011R2ZU001
METAL OXIDE FILM RES. 1W J 1.2 Ω or RN011R2DP003
METAL OXIDE FILM RES. 1W J 1.2 Ω RN011R2KE009
R1013 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122
R1014 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122
R1015 CARBON RES. 1/6W J 560 Ω or RCX6JATZ0561
CARBON RES. 1/4W J 560 Ω RCX4JATZ0561
R1016 CARBON RES. 1/6W J 22k Ω or RCX6JATZ0223
CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R1019 CHIP RES.(1608) 1/16W F 680 0HM RRXGFR5Z0681
R1020 CHIP RES.(1608) 1/10W J 820 Ω RRXAJR5Z0821
R1021 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJR5Z0272
R1022 CHIP RES.(1608) 1/10W J 820 Ω RRXAJR5Z0821
R1023 CHIP RES.(1608) 1/16W F 2.2k Ω RRXGFR5Z0222
R1025 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R1029 CARBON RES. 1/6W J 470k Ω or RCX6JATZ0474
CARBON RES. 1/4W J 470k Ω RCX4JATZ0474
R1032 CARBON RES. 1/6W J 3.3k Ω or RCX6JATZ0332
CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332
R1035 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R1043 METAL OXIDE FILM RES. 1W J 2.7 Ω or RN012R7ZU001
METAL OXIDE FILM RES. 1W J 2.7 Ω or RN012R7DP003
METAL OXIDE FILM RES. 1W J 2.7 Ω RN012R7KE009
R1044 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R1059 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R1067 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1068 CARBON RES. 1/6W J 820 Ω or RCX6JATZ0821
CARBON RES. 1/4W J 820 Ω RCX4JATZ0821
R1069 CARBON RES. 1/6W J 560 Ω or RCX6JATZ0561
CARBON RES. 1/4W J 560 Ω RCX4JATZ0561
R1072 CHIP RES.(1608) 1/10W J 330 Ω RRXAJR5Z0331
R1073 METAL RESISTOR 2W J 39 Ω or RN02390ZU001
METAL OXIDE FILM RES. 2W J 39 Ω or RN02390DP004
Ref. No. Description Part No.
METAL OXIDE FILM RES. 2W J 39 Ω RN02390KE010
R1074 RECTIFIER DIODE 1N4005 NDQZ001N4005
R1075 CHIP RES. 1/16W F 10 Ω RRXGFR5Z0100
R1076 CHIP RES. 1/16W F 1k Ω RRXGFR5Z0102
R1077 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1078 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101
R1079 CARBON RES. 1/4W J 0.47 Ω RCX4JATZ0R47
R1080 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R1081 CHIP RES. 1/16W F 82 Ω RRXGFR5Z0820
R1082 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1083 CARBON RES. 1/4W J 3.9 Ω RCX4JATZ03R9
R1084 CHIP RES.(1608) 1/10W J 220k Ω RRXAJR5Z0224
R1085 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682
R1091 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1092 PCB JUMPER D0.6-P5.0 JW5.0T
R1095 CHIP RES.(2125) 1/8W J 0.1 Ω or RRX8R10HH005
CHIP RES.(2125) 1/4W J 0.1 Ω RTCR100KE003
R1205 CHIP RES.(1608) 1/16W F 20k Ω RRXGFR5Z0203
R1206 CHIP RES.(1608) 1/16W F 20k Ω RRXGFR5Z0203
R1207 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJR5Z0822
R1208 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJR5Z0822
R1209 CHIP RES. 1/16W F 30k Ω RRXGFR5Z0303
R1210 CHIP RES. 1/16W F 30k Ω RRXGFR5Z0303
R1211 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1212 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1221 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R1222 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R1223 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R1224 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R1225 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1226 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1227 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R1228 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R1236 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R1238 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R1240 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R1245 CHIP RES.(1608) 1/10W J 10 Ω RRXAJR5Z0100
R1351 CHIP RES.(1608) 1/10W J 2k Ω RRXAJR5Z0202
R1352 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R1353 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222
R1354 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221
R1355 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1356 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104
R1392 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R1396 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R1397 CHIP RES.(1608) 1/10W J 470 Ω RRXAJR5Z0471
R1402 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1421 CHIP RES. 1/10W F 160 Ω RRXGFR5Z0161
R1422 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1441 CHIP RES. 1/10W F 160 Ω RRXGFR5Z0161
R1442 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1443 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1461 CHIP RES. 1/16W F 75 Ω RRXGFR5Z0750
R1462 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1481 CHIP RES. 1/16W F 75 Ω RRXGFR5Z0750
20040511 1-16-3 E5928EL
Ref. No. Description Part No.
R1482 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750
R1613 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R2001 CARBON RES. 1/6W J 10 Ω or RCX6JATZ0100
CARBON RES. 1/4W J 10 Ω RCX4JATZ0100
R2002 CHIP RES.(1608) 1/10W J 68k Ω RRXAJR5Z0683
R2012 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R2013 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R2014 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R2015 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102
R2016 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2031 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682
R2032 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2033 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223
R2041 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2042 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2043 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2044 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103
R2045 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
MISCELLANEOUS
2B1 HOLDER, F.I.P. E5900UD 0VM416070
AC1001# AC CORD PB8B2F9110A-055 WAC0162LW004
F1001# FUSE 1A/250V or PAGA20CW3102
# FUSE SIC 1A 250V U/C T or PAGG20CW3102
# FUSE 1A/250V PAGG20CAG102
FH1001 FUSE HOLDER MSF-015 XH01Z00LY001
FH1002 FUSE HOLDER MSF-015 XH01Z00LY001
FL2001 V.F.D. 7-BT-298N TVFD150FT012
J2647 CERAMIC CAP.(AX) CH J 680pF/50V CA1J681TU008
JK1202 RCA JACK(BLACK) MSP-251V-01 NI or JXRL010LY070
RCA JACK(BLACK) AV1-28A-1 JXRL010RP024
JK1401 S TYPE JACK MDC-050V-2.4 JXEL040LY001
JK1404 RCA JACK MSP-246V34-65NI-FELF or JXRL060LY082
RCA JACK MSD-246V-65NI/PBSN JXRL060LY069
RM2001 REMOTE RECEIVER MIM-93M6DKF or USESJRSUNT01
REMOTE RECEIVER PIC-37042LU USESJRSKK033
SA1001# SURGE ABSORBER 470V+-10PER or NVQZ10D471KB
# SURGE ABSORBER CNR-10D471K NVQZR10D471K
T1001# PULSE TRANS CGS-SW0005A or LTT00CPSA155
# PULSE TRANS 04715 LTT00CPKT128
W1006 WIRE WX1E5940-002
Ref. No. Description Part No.
SW2101 TACT SWITCH KSM0614B or SST0101HH013
TACT SWITCH SKQSAF001A or SST0101AL041
TACT SWITCH TC-1104(H=9.5) SST0101DNG01
SW2104 TACT SWITCH KSM0614B or SST0101HH013
TACT SWITCH SKQSAF001A or SST0101AL041
TACT SWITCH TC-1104(H=9.5) SST0101DNG01
SW2105 TACT SWITCH KSM0614B or SST0101HH013
TACT SWITCH SKQSAF001A or SST0101AL041
TACT SWITCH TC-1104(H=9.5) SST0101DNG01
SW2106 TACT SWITCH KSM0614B or SST0101HH013
TACT SWITCH SKQSAF001A or SST0101AL041
TACT SWITCH TC-1104(H=9.5) SST0101DNG01
SW2107 TACT SWITCH KSM0614B or SST0101HH013
TACT SWITCH SKQSAF001A or SST0101AL041
TACT SWITCH TC-1104(H=9.5) SST0101DNG01
SW2108 TACT SWITCH KSM0614B or SST0101HH013
TACT SWITCH SKQSAF001A or SST0101AL041
TACT SWITCH TC-1104(H=9.5) SST0101DNG01
FUNCTION CBA
Ref. No. Description Part No.
FUNCTION CBA
Consists of the followings
CONNECTOR
CN2101 6P FFC AV PCB TO SW PCB WX1E5900-003
RESISTORS
R2101 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R2102 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R2103 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R2104 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R2105 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R2106 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
SWITCHES
20040511 1-16-4 E5928EL
----------
CDVL700E
E5928CD
2004-05-27
Loading...
