Page 1
PLASMA DISPLAY
Owner’s Manual
6842PE M
Before you can view a picture on the plasma display, you
must first connect the unit to an external video source.
See page 18 of the owner’s manual.
IF YOU NEED ADDITIONAL ASSISTANCE WITH SET-UP
OR OPERATING AFTER READING OWNER’S MANUAL,
PLEASE CALL TOLL FREE 1-800-605-8453, OR VISIT
OUR WEB SITE AT
http://www.SylvaniaConsumerElectronics.com.
Page 2
2
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK) NO USER SERVICEABLE
PA RTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A
RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE
ARE IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE
APPLIANCE.
The important note is located on the rear of the cabinet.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with
the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider than
the other. A grounding-type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided
for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they
exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. Apparatus shall not be exposed to dripping or splashing and no
objects filled with liquids, such as vases, shall be placed on the
apparatus.
To reduce the risk of fire or electric shock, do not expose this
appliance to rain or moisture.
IMPORTANT SAFETY INSTRUCTIONS
RADIO-TV INTERFERENCE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and receiver.
3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
FCC WARNING-
This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause
harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate
this equipment if an unauthorized change or modification is made.
The serial number of this product may be found on the back of this unit. No others have the same serial number as yours. You
should record the number and other vital information here and retain this book as a permanent record of your purchase to aid
identification in case of theft.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Date of Purchase
Dealer
Dealer Address
PORTABLE CART WARNING
S3126A
Dealer Phone No.
Model No.
Serial No.
Page 3
3
IMPORTANT SAFETY INSTRUCTIONS
When moving the plasma display
Due to the weight of this plasma display, two people should be used when moving it. Both people
should make sure to grasp the top of the display
with one hand and the base of the display with
the other hand, as in the following illustration.
Thank you for purchasing this plasma display.
Please make sure to read this manual before using the plasma display and pay particular
attention to the Safety Instructions enclosed within.
When you have finished reading this manual, store it in a safe place for easy access in the
future.
Regarding This Manual
• Product and company names appearing within
this manual are trademarks or registered trademarks of their respective owners.
• Although special care has been taken to ensure
that all information contained within this manual
is correct at time of writing, the information is
subject to change without notice.
• Make sure to read the manual carefully and follow all instructions contained within. We will not
be held responsible for any damages caused by
improper use or handling of this product.
• Reproducing this manual by any means, in
whole or in part, is prohibited.
Figure 1
#
CAUTION
• This PDP “6842PE M” is for use only with the
Sanus Systems Model VMPL. Wall Mount.
Using with other wall mounts may result in
instability, causing possible injury.
• When mounting the plasma display with the
Sanus Systems wall mount, make sure to
mount it on the wood studs inside the wall, as
failure to do so may result in instability, causing possible injury.
• Refer to the instruction manual included with
the wall mount for details when securing the
plasma display to the wall.
Optional Accessories
To mount the plasma display on a wall, the following accessory is available:
VISIONMOUNT™ Flat Panel TV Wall Mount from
SANUS SYSTEMS, for large flat panel televisions
(32" to 60"). Refer to page 21 for mounting the
plasma display.
NOTE:
The wall mounts are not supplied with the plasma display.
Page 4
4
C
ONTENTS
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
SUPPLIED ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
INSERTING THE REMOTE CONTROL BATTERIES . . . . . . . . . . . . . . . . . . . . . .5
REMOTE CONTROL RANGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
COMPONENT NAMES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
MAIN UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
REMOTE CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
OPERATING THE PLASMA DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
BASIC OPERATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
SELECTING THE INPUT SIGNAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
CHANGING THE ASPECT RATIO (SCREEN MODE) . . . . . . . . . . . . . . . . . . . . . . . . .10
STILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
SLEEP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

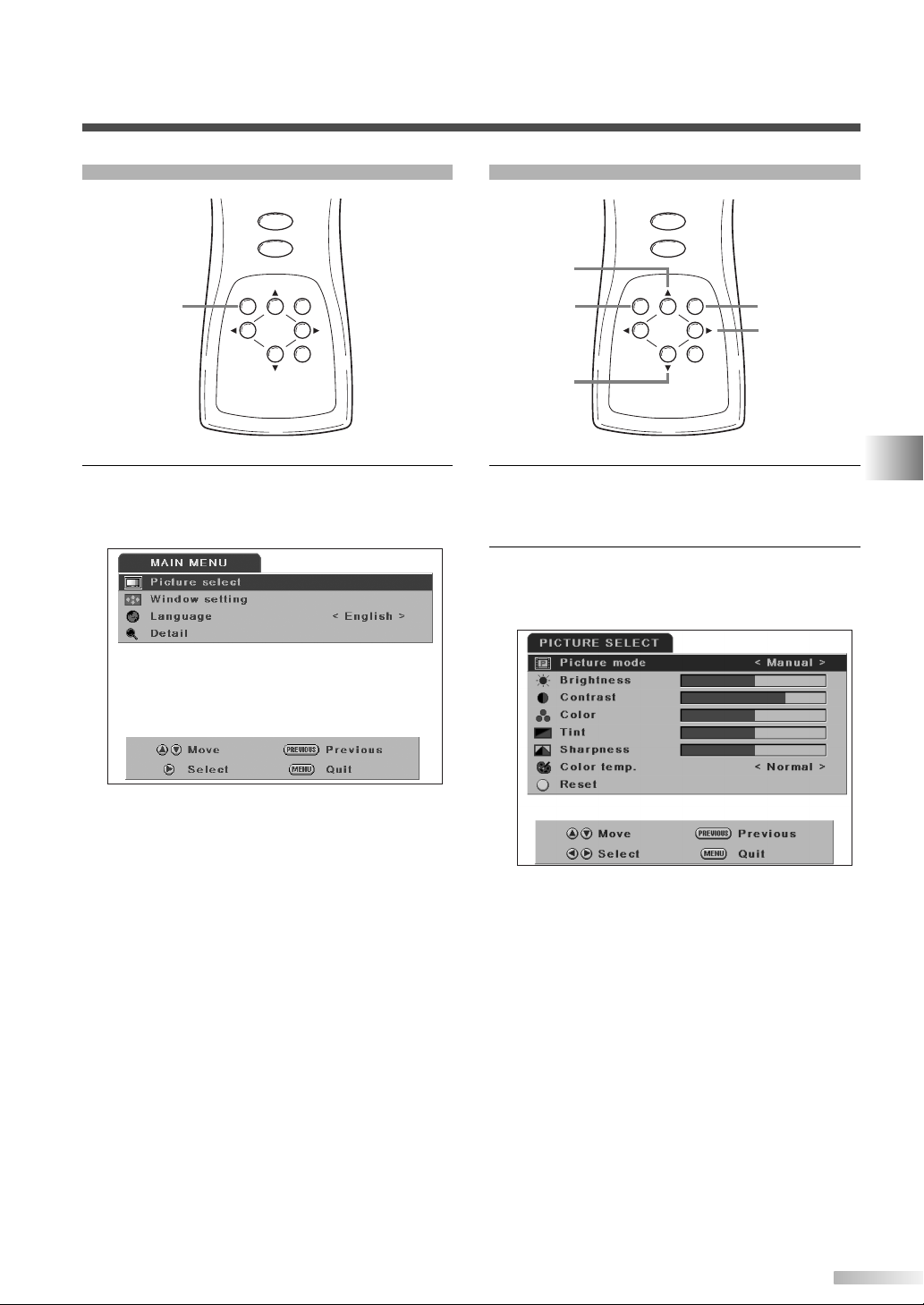

NAVIGATING THE SET UP MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

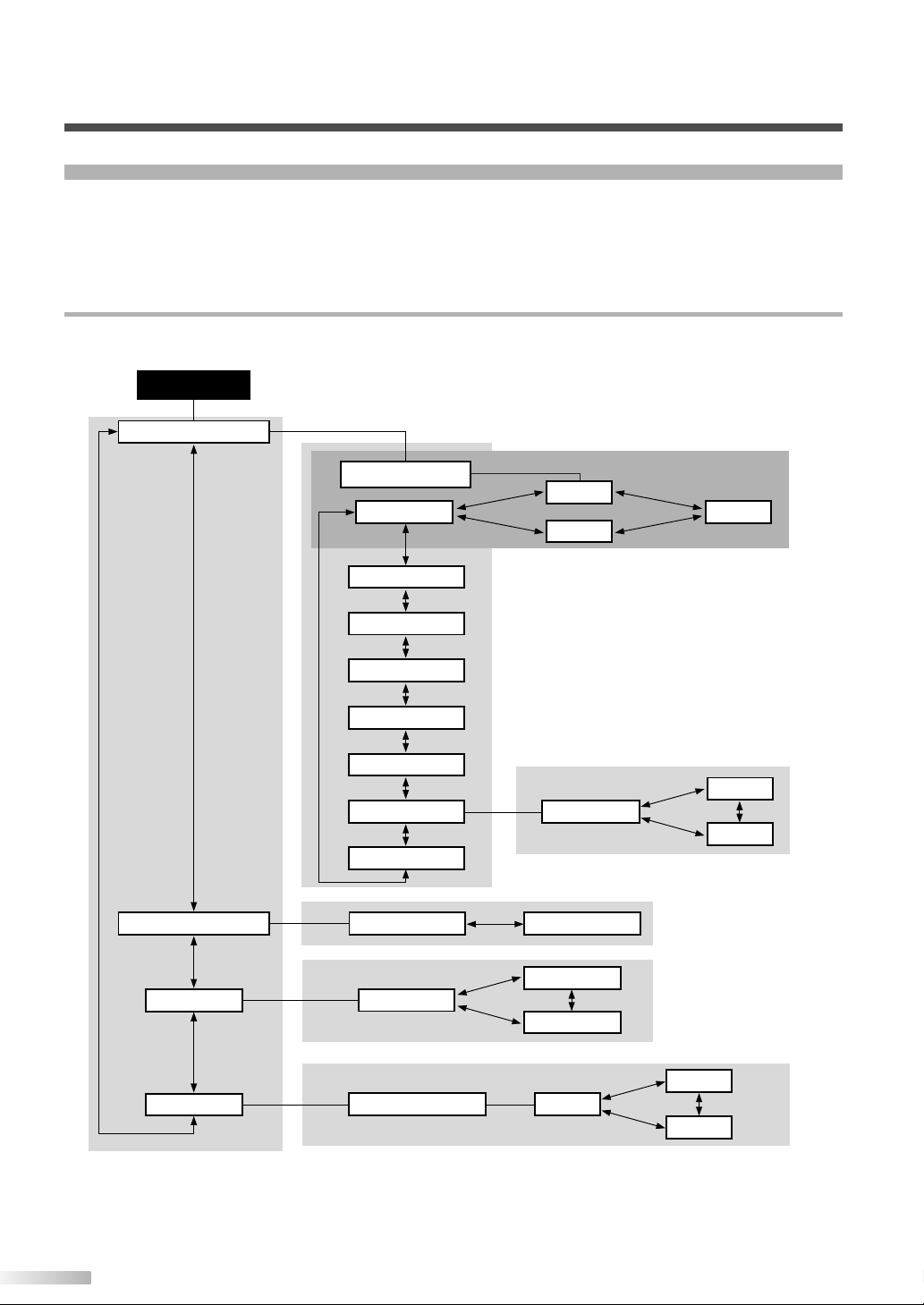

Layout of the Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
ENTERING THE MAIN MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

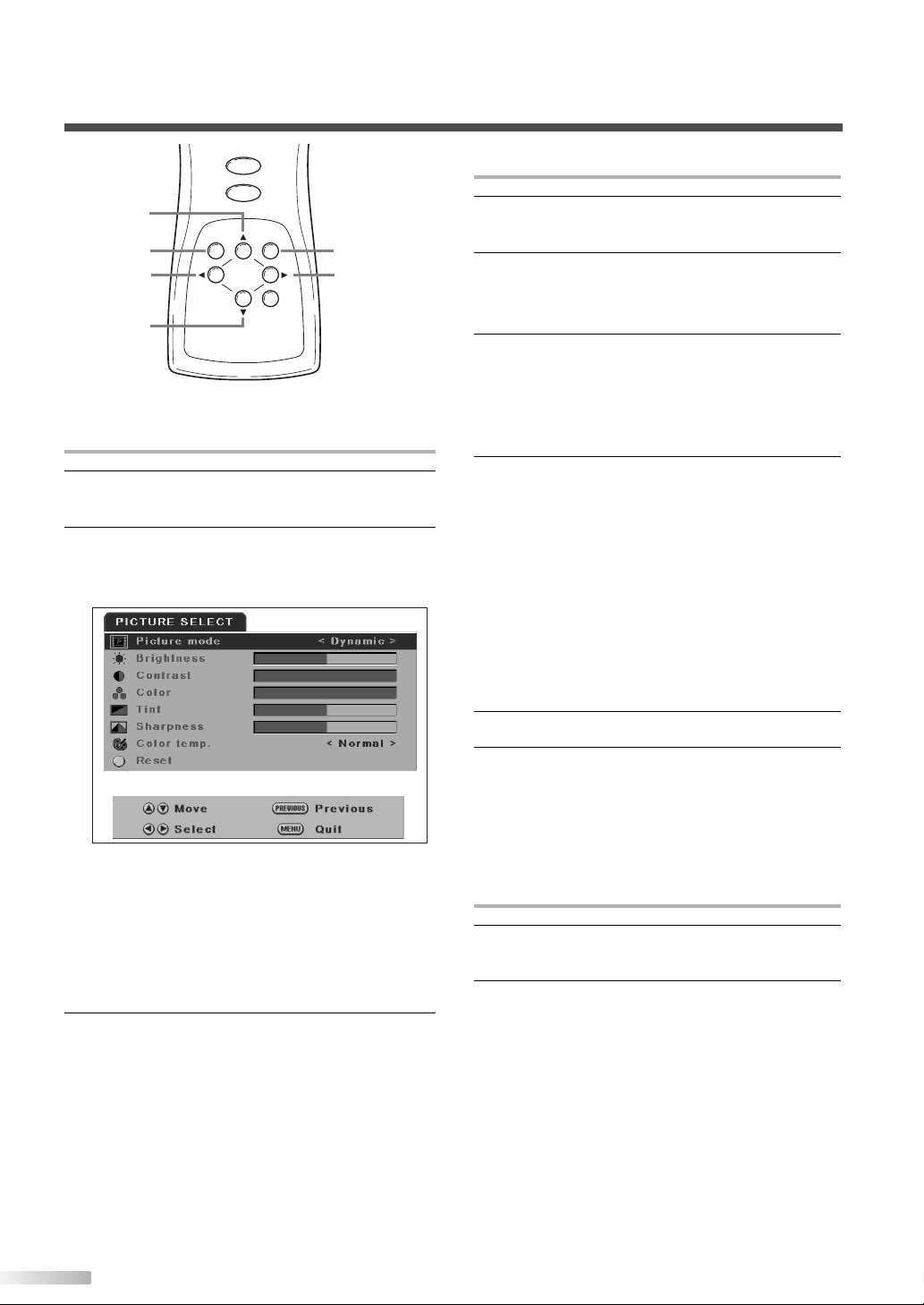

PICTURE SELECT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Automatically Adjusting the Picture Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Manually Adjusting the Picture Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Initializing the Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
WINDOW SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
SWITCHING THE DISPLAY LANGUAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
SETTING THE SCREEN SAVER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

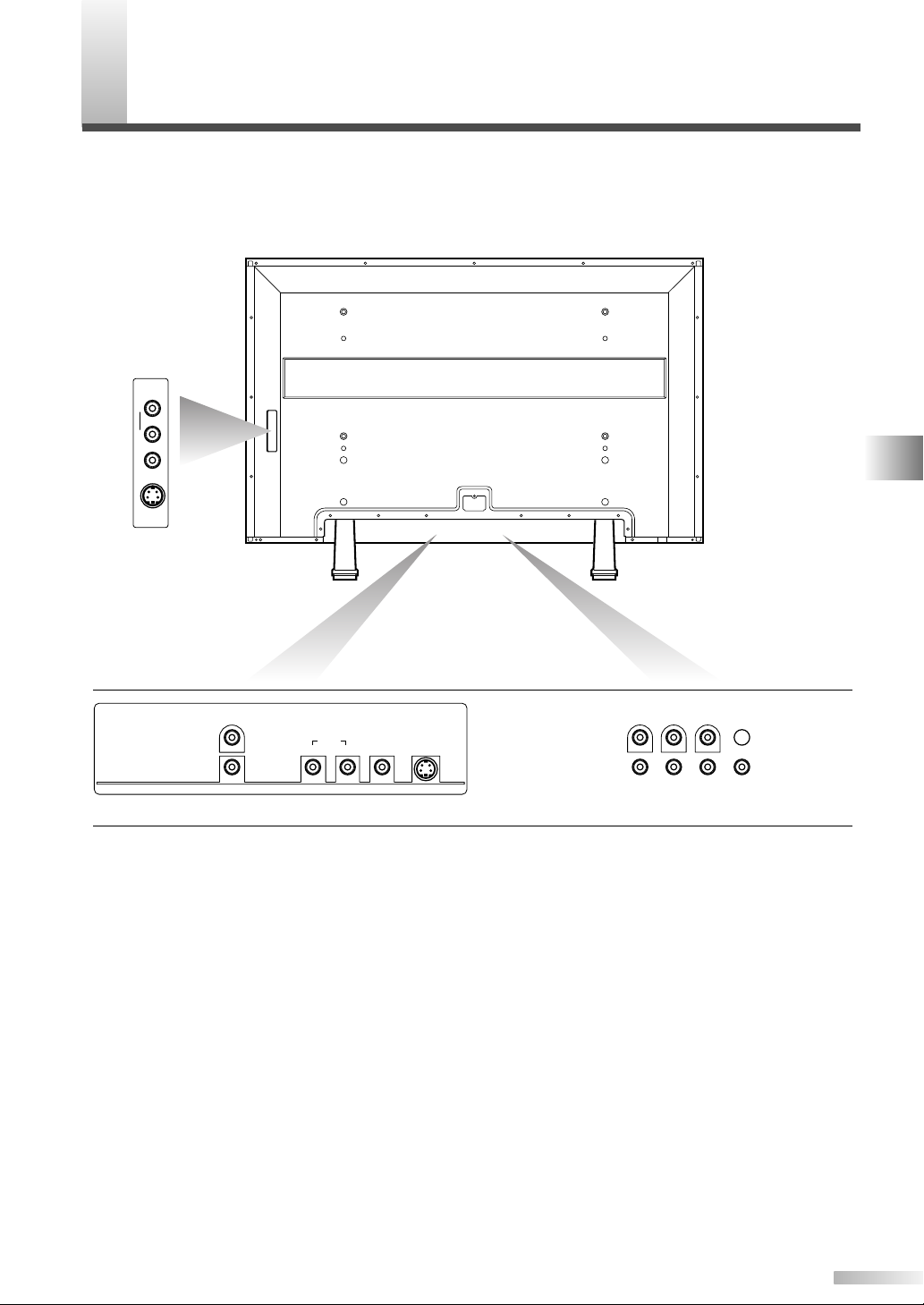

EXTERNAL INPUT TERMINALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

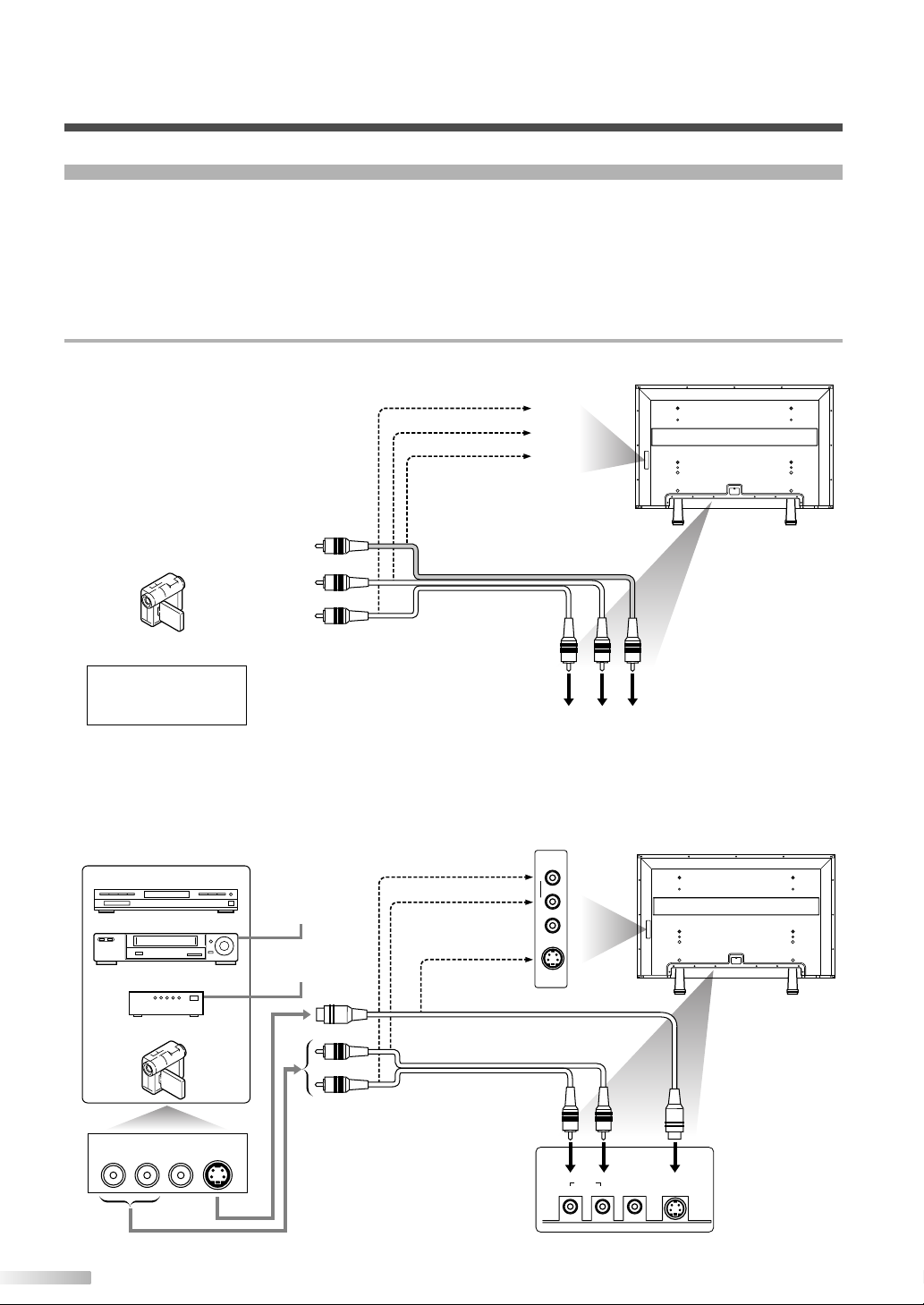

CONNECTING DEVICES TO THE AV INPUT TERMINALS . . . . . . . . . . . . . . . . . . . .18
VIDEO Signal Connection (Basic Signal Transfer) . . . . . . . . . . . . . . . . . . . . . . . . .18
S-VIDEO Signal Connection (Better Signal Transfer) . . . . . . . . . . . . . . . . . . . . . . .18
CONNECTING DEVICES TO THE COMPONENT INPUT TERMINALS . . . . . . . . . . .19
Component Signal (Y, Cb/Pb, Cr/Pr) Connection (Best Signal Transfer) . . . . . . . . .19
CONNECTING PLASMA DISPLAY TO AUDIO SYSTEM . . . . . . . . . . . . . . . . . . . . . .20
AUDIO Signal Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
CONNECTING THE POWER CABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
ATTACHING A WALL MOUNT BRACKET (SOLD SEPARATELY) . . . . . . . . . .21
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
CLEANING THE PLASMA DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
TROUBLESHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
REFERENCIA RÁPIDA EN ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
INSTALACIÓN DE LAS PILAS EN EL CONTROL REMOTO . . . . . . . . . . . . . .26
NOMBRES DE LOS COMPONENTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
UNIDAD PRINCIPAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
CONTROL REMOTO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Page 5
S
UPPLIED ACCESSORIES
5
CONTENTS / SUPPLIED ACCESSORIES / INSERTING THE REMOTE CONTROL BATTERIES / REMOTE CONTROL RANGE
I

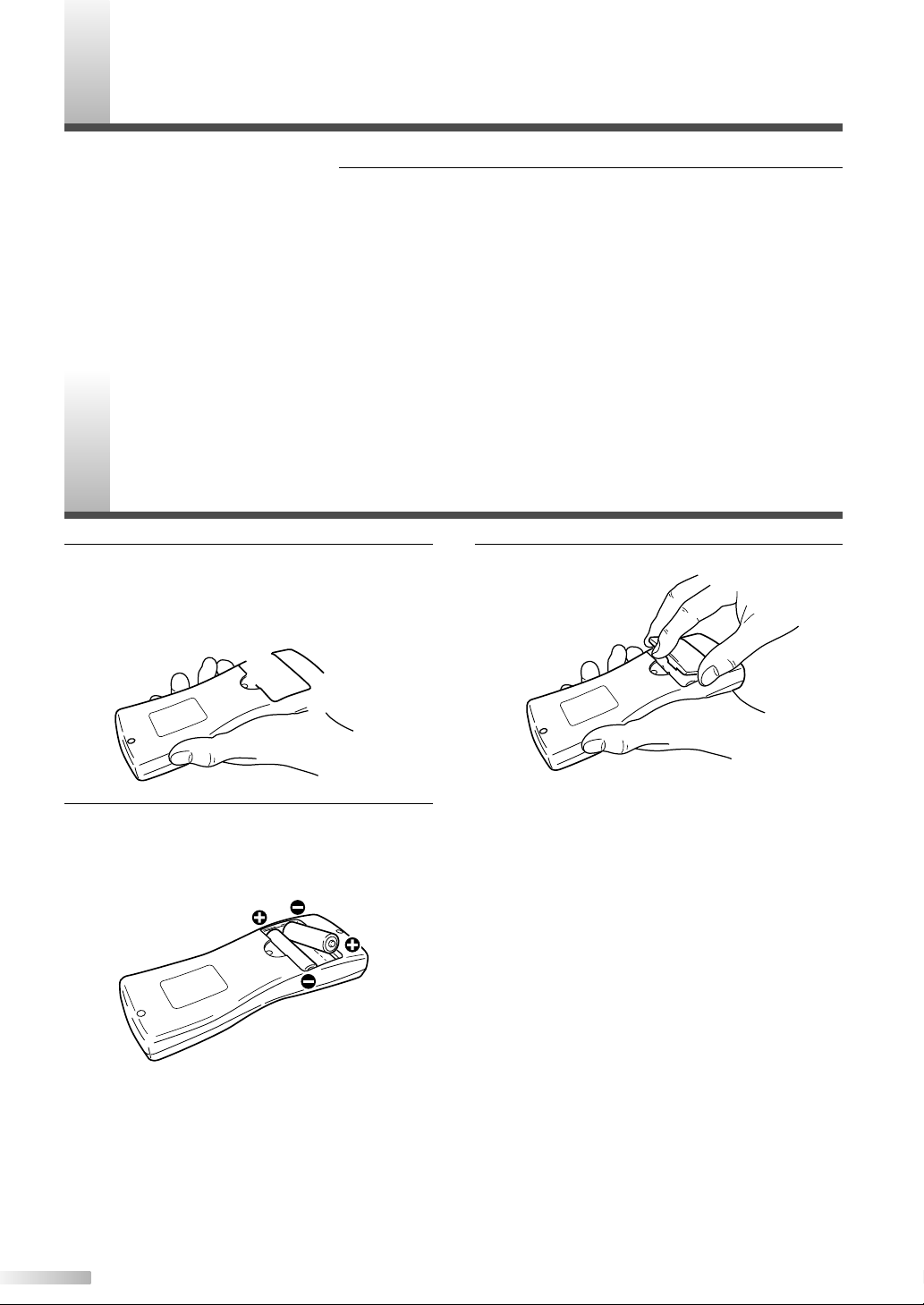

NSERTING THE REMOTE CONTROL BATTERIES
1 Remove the back cover of the remote control
while pressing the tab on the back cover down
with your finger.
2 Insert two AA size batteries, making sure that
the polarities of the batteries match the symbols inside the remote control.
3 Replace the back cover of the remote control.
NOTE:
• Do not inser t a mix of old and new batteries.
• Do not inser t a mix of different brands of batteries
or different types of batteries.
• Always use new, fresh batteries as replacement.
•Never attempt to charge, heat, burn or take apart
batteries.
R
EMOTE CONTROL RANGE
Operate the remote control within a 30 degree angle on both sides of the infrared sensor on the main
unit. You can operate the remote control from a distance of several yards away from the main unit.
NOTE:
Page 6
6
C
OMPONENT NAMES
1 POWER button: Tur ns the power ON or in
STANDBY.
2 ON indicator: Lights up when the power is
ON.
3 STANDBY indicator: Lights up when the
power is in the standby mode. Disappears
when the power is ON.
4 INPUT SELECT button: Selects input termi-
nals.
5 VOLUME
K
(up) / L(down) button:
Increases or decreases the volume.
6 AUDIO OUT: Output terminals for audio.
7
AUDIO/VIDEO/S-VIDEO: Input terminals for
an audio and video signal. You can select
either VIDEO or S-VIDEO.
8 COMPONENT: Input terminals for a compo-
nent signal. You can make Y-Pb-Pr progressive or interlaced connection.
9 AC IN terminal: Connect the supplied power
cable for a standard AC outlet.
MAIN UNIT
VOLUME
INPUT SELECT
STANDBY
ON POWER
VOLUME
INPUT SELECT
STANDBY
ON POWER
1
2
3
4
Infrared Sensor
5
Output / Input Terminals
Input Terminals
AC IN
AUDIO
VIDEO2
S-VIDEO2
R
L
67
7
8 9
VIDEO1
AUDIO
S-VIDEO1LR
R
L
AUDIO OUT
R L Y Pb Pr
RLYPbPr
AUDIO
COMPONENT 1
COMPONENT 2
INNER JACKS
Front Rear
Figure 2
Figure 3
Page 7
7
COMPONENT NAMES
REMOTE CONTROL
1 POWER button: Tu r ns the main power ON
or in STANDBY.
2 VOL
K
(up) / L(down) button: Increases or
decreases the volume.
3 MUTE button: Tur ns the audio off or on.
4 SCREEN MODE button: Selects aspect
ratios available for the screen.
5 STILL button: Pauses the image shown on
the screen.
6 INPUT SELECT button: Selects input termi-
nals.
7
DISPLAY button: Displays the name of the
selected input terminal on the screen.
8 SLEEP button: Sets the sleep timer.
9 MENU button: Accesses the setup menu,
allowing you to access various settings.
10
PREVIOUS button: Moves up one level in
the setup menu.
11
K
(up) / L(down) button: Selects the various
modes in the setup menu.
{(left) / B(right) button: Selects and
adjusts levels for the various settings.
B(enter) button: Also used as the enter
button.
POWER
INPUT SELECT
DISPLAY
MENU
PREVIOUS
SLEEP
VOL
MUTE
SCREEN MODE
STILL
1
2
3
4
5
6
7
8
9
10
11
Figure 4
Page 8
8
O
PERATING THE PLASMA DISPLAY
BASIC OPERATIONS
The following is a simple explanation of the procedure for turning the power of the display ON or
in STANDBY, and the procedure for selecting the
input signal.
The procedure described here is for the remote
control, however the POWER, INPUT SELECT
and VOLUME buttons on the plasma display can
also be used in the same way.
1 Press the POWER button.
Confirm that the STANDBY indicator is lit
before pressing the POWER button.
The power turns ON and the ON indicator on
the main unit lights up. The STANDBY indicator on the main unit disappears.
2 Select the input signal by pressing the INPUT
SELECT button.
Each time you switch the input, the name of
the selected input terminal is displayed on the
screen for a few seconds.
NOTE:
• "No signal" is displayed on the screen if there is
no input from the selected terminal and there is
no message currently displayed on the screen for
volume adjustment or the setup menu, etc.
• If there is no video signal and there has been no
operation from the remote control or the buttons
on the main unit for more than 15 minutes, the
auto shut-off function activates and the display
switches to standby mode.
POWER
INPUT SELECT
DISPLAY
VOL
MUTE
SCREEN MODE
STILL
POWER
INPUT SELECT
3 Adjust the volume and screen size according
to your requirements.
Perform adjustments to the volume (VOL K/
L
button), screen aspect ratio (SCREEN MODE
button), and picture settings (MENU button).
NOTE:
• When you adjust the volume with the VOL K/
L
button, a message such as the following is displayed on the screen. This message disappears a
few seconds after performing adjustments.
• If you turn the audio mute on, a message slowly
flashes on the screen. At this time, if you press
another button, this flashing stops.
•To turn the audio mute off, either press the MUTE
button again or press the VOLK/Lbutton.
• If you press either the PREVIOUS, K, L, B or {
button in a mode apart from the image adjustment
mode. A message such as the following is displayed.
4 Press the POWER button to turn the power
STANDBY.
The ON indicator on the main unit disappears
and the STANDBY indicator lights up.
NOTE:
•Even if the power is turned STANDBY, the main
unit is in the standby mode. In order to shut the
main power of the display OFF, it is necessary to
remove the Power cable from the power outlet.
Page 9
9
OPERATING THE PLASMA DISPLAY
POWER
INPUT SELECT
DISPLAY
VOL
MUTE
SCREEN MODE
STILL
INPUT SELECT
DISPLAY
SELECTING THE INPUT SIGNAL
The procedure for selecting the input signal
described here is for use with the remote control.
However, the INPUT SELECT button on the plasma display can also be used in the same way.
Displaying the Current Input Signal
1
Press the DISPLAY button.
The name of the current input terminal is displayed on the screen.
2 To clear the name of the current input terminal,
press the DISPLAY button again or wait for a
few seconds.
NOTE:
•To redisplay the name of the input terminal, press
the DISPLAY button again.
Selecting the Input Signal
1 Press the INPUT SELECT button to select the
input signal.
Each time you switch the input signal, the
name of the selected input terminal is displayed on the display for a few seconds.
The INPUT SELECT button cycles through the
input terminals in the following pattern:
Video 1
(S-Video 1)
Video 2
(S-Video 2)
Component 1
Component 2
NOTE:
• When switching the input signal, audio mute turns
ON temporarily.
• S-VIDEO1 takes preference over the VIDEO 1 jack,
as does S-VIDEO 2 over the VIDEO 2 jack. Therefore,
if there is input to the VIDEO and S-VIDEO terminals
at the same time, the S-VIDEO signal is displayed on
the screen. If the S-VIDEO cable is not connected to
the plasma display, the VIDEO signal will be displayed on the screen.
•Any of the following display formats: 480i, 480p (progressive), 1080i and 720p (progressive) signals can
be connected to the COMPONENT1 and 2 terminals.
If one of these video signals is detected, the format
of the input signal is displayed after the name of the
current input terminal as the following.
•A "No signal" message appears if there is no video
signal and there is no message currently displayed
on the screen for volume adjustment or the setup
menu, etc. If there continues to be no video signal
for some seconds, "No signal" slowly moves around
the screen.
• If there is no video signal and there has been no
operation from the remote control or the buttons on
the main unit for more than 15 minutes, the auto
shut-off function activates and the display switches
to standby mode.
Page 10
10
OPERATING THE PLASMA DISPLAY
Page 11
11
OPERATING THE PLASMA DISPLAY
POWER
INPUT SELECT
DISPLAY
VOL
MUTE
SCREEN MODE
STILL
STILL
STILL
You can freeze the image displayed on the
screen.
1
Press the STILL button.
The still mode turns on, and the image displayed on the screen is frozen.
NOTE:
• When the still mode is on, the message "Still"
slowly flashes on the screen.
• When the still mode is on, the audio is muted.
•You cannot turn the still mode on when there is no
video signal or when switching between video signals.
2
Press the STILL button again to turn the still
mode off.
NOTE:
•You can also press the INPUT SELECT,
DISPLAY, SLEEP, VOLK(up) / L(down), MUTE,
SCREEN MODE or MENU buttons to turn the still
mode off.
INPUT SELECT
DISPLAY
MENU
PREVIOUS
SLEEP
SLEEP
SLEEP
You can select the sleep timer.
1
Press the SLEEP button.
The sleep timer is displayed on the screen.
NOTE:
• If the sleep timer is activated, the remaining time
is displayed on the screen.
If not activated, “0 minutes” is displayed.
2
Press the SLEEP button to set the time.
The SLEEP button switches between the
times.
The timer starts counting down after the message displaying the set time disappears (after
a few seconds).
NOTE:
• The remaining time displayed for the sleep timer
changes in steps of 1 minute.
•To change the set time, repeat the above procedure.
0 minutes 10 minutes 90 minutes
Page 12
12
OPERATING THE PLASMA DISPLAY
NAVIGATING THE SET UP MENU
In the setup menu, you can specify settings for picture adjustment, picture position, language and screen
saver.
NOTE:
• If you do not press any buttons for approximately 20 seconds, the display automatically exits the menu mode.
Layout of the Setup Menu
The various functions in the setup menu are outlined below:
MAIN MENU
Picture select
Picture mode
Window setting H-Position
English
Français
Español
V-Position
Language
Manual
Brightness
Contrast
Color
Tint
Sharpness
Color temp.
Normal
Reset
Dynamic
News
Cool
Warm
Movie
Detail Screen saver
Fast
Off
Slow
Page 13
13
OPERATING THE PLASMA DISPLAY
INPUT SELECT
DISPLAY
MENU
PREVIOUS
SLEEP
MENU
ENTERING THE MAIN MENU
1
Press the MENU button.
The display enters the main menu and the
MAIN MENU is displayed on the screen.
NOTE:
• If you press the PREVIOUS button or the MENU
button on the MAIN MENU, the menu is cancelled.
•For procedures which use the ENTER button, use
the B button as the ENTER button.
INPUT SELECT
DISPLAY
MENU
PREVIOUS
SLEEP
MENU
B
PREVIOUS
K
L
PICTURE SELECT
1 Enter the main menu with the MENU button.
“Picture select” is selected on the MAIN
MENU.
2
Press the B (ENTER) button.
The PICTURE SELECT menu is displayed on
the screen.
NOTE:
• Press the PREVIOUS button to return to the MAIN
MENU. Pressing the MENU button cancels the
menu.
• Picture select display will disappear from the TV
screen automatically after about 20 seconds if you
do not press any buttons.
Page 14
14
OPERATING THE PLASMA DISPLAY
INPUT SELECT
DISPLAY
MENU
PREVIOUS
SLEEP
MENU
B{
PREVIOUS
K
L
Automatically Adjusting the Picture
Settings
1 Select "Picture mode" on the PICTURE
SELECT screen with the K/Lbuttons.
2 Select the automatic adjustment mode accord-
ing to the type of picture displayed on the
screen with the { / B buttons.
NOTE:
• There are 3 modes for automatically adjusting the
picture settings; "News”, "Movie” and "Dynamic”.
In these modes, you cannot adjust the individual
picture settings below "Brightness” even if they are
selectable.
• MANUAL refers to manual picture settings adjustment.
3
Press the PREVIOUS button to return to the
MAIN MENU.
NOTE:
• Pressing the MENU button cancels the menu.
Manually Adjusting the Picture Settings
1 Select "Picture mode" on the PICTURE
SELECT screen with the K/Lbuttons.
2 Select "Manual" with the { / B buttons.
The display enters the manual mode, and you
can specify individual adjustments.
3
Select the mode to adjust with the K/Lbuttons.
The modes rotate in the following order:
"Picture mode" - "Brightness" - "Contrast" - ..
...- "Reset" - "Picture mode"
4 Adjust the selected mode using the { / B but-
tons.
NOTE:
• If you have selected Brightness, Contrast, Color,
Tint, or Sharpness, the menu display disappears,
and a bar for adjusting the selected mode
appears in the center of the bottom of the screen.
•You can select "Color temp." among three modes:
"Normal", "Warm" and "Cool".
• If you select "Reset" and press the B (ENTER)
button, the adjusted values return to their initial
settings.
5
To adjust a different mode, repeat steps 3 and 4.
6 Press the PREVIOUS button to return to the
Picture mode.
NOTE:
• Pressing the MENU button cancels the menu.
Initializing the Adjustments
1
Select "Reset" on the PICTURE SELECT
screen with the K/Lbuttons.
2 Press the B (ENTER) button.
The settings you specified individually are initialized (return to their default factory settings).
NOTE:
• The default factory settings are as follows:
PICTURE MODE: Manual
BRIGHTNESS: 31/63
CONTRAST: 45/63
COLOR: 31/63
TINT: 31/62
SHARPNESS: 1/2
COLOR TEMP.: Normal
Page 15
15
OPERATING THE PLASMA DISPLAY
INPUT SELECT
DISPLAY
MENU
PREVIOUS
SLEEP
B{
K
L
MENU
WINDOW SETTING
You can move the picture displayed on the screen
up, down, left or right.
1
Enter the main menu with the MENU button.
2 Select "Window setting" on the MAIN MENU
screen with the K/Lbuttons.
If there is no input from a video signal, "Window
setting" is grayed out and you cannot select it.
3 Press the B (ENTER) button.
The "WINDOW SETTING" menu is displayed
on the screen.
INPUT SELECT
DISPLAY
MENU
PREVIOUS
SLEEP
B{
PREVIOUSMENU
K
L
SWITCHING THE DISPLAY LANGUAGE
You can select the language displayed on the
screen from English, French and Spanish.
1 Enter the main menu with the MENU button.
2 Select "Language" on the MAIN MENU screen
with the K/Lbuttons.
3 Select the language with the { / B buttons.
4
Press the PREVIOUS button to return to the
MAIN MENU.
NOTE:
• Pressing the MENU button cancels the menu.
4 Select the mode to adjust with the
K/L
but-
ton.
Select "H-Position" to move the picture horizontally (left or right) and select "V-Position" to
move the screen vertically (up or down).
5
Adjust with the { / B buttons.
The { / B buttons are also used for moving
the picture vertically.
6
Press the PREVIOUS button to return to the
MAIN MENU.
NOTE:
• Pressing the MENU button cancels the menu.
Page 16
16
SETTING THE SCREEN SAVER
Screen saver prevents the display from being
etched by an unchanging image. You can specify
a setting for it.
1
Enter the main menu with the MENU button.
2 Select "Detail" on the MAIN MENU screen
with the K/Lbuttons.
3 Press the B (ENTER) button.
The "DETAIL" menu is displayed on the
screen.
NOTE:
• Press the PREVIOUS button to return to the
MAIN MENU. Pressing the MENU button cancels
the menu.
4 Select the mode with the { / B buttons.
NOTE:
• There are 3 modes for the screen saver; "Off",
"Slow", and "Fast".
"Slow" moves 1 pixel every 5 minutes and "Fast"
moves 1 pixel every minute. This prevents images
burning into the screen.
5 Press the PREVIOUS button to return to the
MAIN MENU screen.
NOTE:
• Pressing the MENU button cancels the menu.
OPERATING THE PLASMA DISPLAY
INPUT SELECT
DISPLAY
K
MENU
PREVIOUS
PREVIOUSMENU
SLEEP
B{
L
Page 17
E
XTERNAL INPUT TERMINALS
17
OPERATING THE PLASMA DISPLAY / EXTERNAL INPUT TERMINALS
The following input terminals are available.
In order to view television, it is necessary to connect a tuner device (example: cable box, satellite box,
DTV, etc.) to the plasma display.
VIDEO1
AUDIO
S-VIDEO1LR
R
L
AUDIO OUT
AUDIO
VIDEO2
S-VIDEO2
R
L
Page 18
18
CONNECTING DEVICES TO THE AV INPUT TERMINALS
Connect the output of the device to the input terminals of plasma display as shown in the following illustrations.
NOTE:
•You can select TV channels with the VCR or Cable/Satellite set top box of the program you see.
• Cables shown here are not included with the plasma display.
VIDEO Signal Connection (Basic Signal Transfer)
AUDIO
S-VIDEO
2×RCA
audio cables
Audio
OUT
Video
OUT
S Video
OUT
RL
(DVD Player)
Example of input signal source
(VCR)
(Cable/Satellite STB)
(Camcorder)
AUDIO
VIDEO2
S-VIDEO2
R
L
Antenna or
cable signal
Antenna, cable,
satellite signal
VIDEO1
AUDIO
S-VIDEO1LR
Video input to
S-VIDEO jack
Audio input to
L/R jacks
Video input to
S-VIDEO jack
Audio input to
L/R jacks
AUDIO-VIDEO
3×RCA audio
video cables
Video input to
VIDEO jack
Video input to
VIDEO jack
Audio input to
L/R jacks
Audio input to
L/R jacks
Audio
OUT
Video
OUT
S Video
OUT
RL
Page 19
19
EXTERNAL INPUT TERMINALS
CONNECTING DEVICES TO THE COMPONENT INPUT TERMINALS
Connect the output of the device to the input terminals of the plasma display as shown in the following
illustrations.
NOTE:
• Cables shown here are not included with the plasma display.
Component Signal (Y, Cb/Pb, Cr/Pr) Connection (Best Signal Transfer)
480i, 480p (progressive), 1080i and 720p (progressive) signals can be connected.
AUDIO
2×RCA
audio cables
RLYPbPr
RLYPbPr
AUDIO
COMPONENT 1
COMPONENT 2
INNER JACKS
R L Y C
B/PBCR/PR
R LY PBP
R
3×RCA
video cables
3×RCA video cables
(Example: DVD Player)
Y, Cb/Pb, Cr/Pr
Antenna, cable,
satellite signal
PrPbY
2×RCA audio cables
(Example:
Set Top Box for DTV)
AUDIO
NOTE:
• TV Channels can be selected only with the set top box of the broadcast you see.
Page 20
20
CONNECTING PLASMA DISPLAY TO AUDIO SYSTEM
NOTE:
Cables shown here are not included with the plasma display.
AUDIO Signal Connection
AUDIO
2×RCA
audio cables
R
L
TV
AUDIO IN
VIDEO AUX
(Example: Amplifier/Receiver)
Audio output
to L/R jacks
R
L
AUDIO OUT
EXTERNAL INPUT TERMINALS
Connect the AUDIO OUT from the plasma display to the AUDIO IN on the amplifier/receiver.
Connect the power cable to the plasma display after connecting the input terminals.
1
Connect the power cable to the plasma display
first.
2
Connect the power cable to an AC outlet.
#
CAUTION
• Do not connect the power cable to a power
supply outside the indicated voltage of the
plasma display (AC 120V). Connecting the
power cable to a power supply outside of this
range may result in fire or electrical shocks.
• Always use the power cable included with the
plasma display. Do not use any other cable.
For safety, make sure to always connect the
power cable to a three pronged AC outlet.
C
ONNECTING THE POWER CABLE
AC IN
1
2
Page 21
21
EXTERNAL INPUT TERMINALS / CONNECTING THE POWER CABLE / ATTACHING A WALL MOUNT BRACKET (SOLD SEPARATELY)
1 Tu rn the plasma display over and place it
screen-first onto a table which has a soft cloth
draped over it.
Place the plasma display in a way so that the
stands hang over the edge of the table.
NOTE:
• Make sure to use a table which can support the
weight of the plasma display and is larger than the
plasma display.
• Make sure the table is in a stable location.
2 Remove the stands from the plasma display.
Unscrew the M5 screws indicated by , and
remove the left and right stands.
3 Attach the left and right TV rails to the plasma
display using the M8 screws included with the
wall mount kit.
indicates the position of the screw holes on
the plasma display
4
Attach the plasma display to the wall.
NOTE:
• Refer to the instruction manual included with the
wall mount when securing the plasma display to
the wall.
2
1
A
TTACHING A WALL MOUNT BRACKET
(SOLD SEPARATELY)
The following is a description of the method for attaching a wall mount to the plasma display.
When performing this operation, refer to the instruction manual included with the wall mount
kit.
2
Stand
Plasma Display rear
1
1
#
CAUTION
•Any damage caused by incorrectly attempting to mount the plasma display is not covered under the
terms of the manufacturers warranty.
NOTE:
• The screws and stands you have removed are necessary for reattachment at a later date. Make sure
to keep them in a safe place.
NOTE:
• Only use the screw holes indicated by for
mounting the plasma display.
•For instructions on how to attach the TV rails, refer
to the instruction manual included with the mount
wall kit.
2
Page 22
22
M
AINTENANCE
W
ARNING
CLEANING THE PLASMA DISPLAY
Always unplug the plasma display from the AC
outlet before cleaning.
Clean the case of the plasma display with a soft
cloth which has been wet and wrung dry.
If the screen of the plasma display is dirty or
dusty, wipe it clean with a soft cloth.
NOTE:
Never use a solvent, alcohol or any other abrasive liquid to clean the plasma display.
Always make sure the area around vents on the plasma display is clear and clean. Failure to do this may
result in fire or cause the plasma display to fail prematurely.
Preventing Image Burn on the plasma display
Fixed images displayed on the plasma display for an extended period of several hours may cause
uneven pixel aging causing damage to the plasma display. The screensaver mode helps reduce this
phenomenon, but in general you should try to avoid displaying fixed images for extended periods on
the plasma display.
Images of high luminance displayed on the plasma display for more than 60 seconds may cause lingering images to remain on the screen. These images will automatically disappear, but may take
time depending on the luminance of the images and how long they were displayed on the screen.
Page 23
23
T
ROUBLESHOOTING GUIDE
MAINTENANCE / WARNING / TROUBLESHOOTING GUIDE
•IGNITION NOISE:
Black spots or horizontal streaks may appear, picture may flutter or drift.
Usually caused by interference from automobile ignition systems, neon
lamps, electrical drills and other electrical appliances.
•GHOSTS:
Ghosts are caused by the television signal following two paths. One is the
direct path and the other is reflected from tall buildings, hills or some
other objects. Changing the direction or position of the antenna may
improve reception. Ghosting may also be caused by defects in the
antenna system such as unshielded leads or connecting several sets to
the same antenna without using multiple antenna couplers.
Ghosting occurring when the plasma display is connected to a cable TV
system may indicate a bad cable wire or loose connection. Confirm that
the cable wire is properly connected.
•SNOW:
If your receiver is located in the fringe area of a television station where
the signal is weak, your picture may be marred by the appearance of
small dots. When the signal is extremely weak, it may be necessary to
install a special antenna to improve the picture.
Snowing occurring when the plasma display is connected to a cable TV
system may indicate a bad cable wire or loose connection. Confirm that
the cable wire is properly connected.
Vertical stripes appear,
depending on the screen
contents.
•RADIO FREQUENCY INTERFERENCE:
The interference produces moving ripples or diagonal streaks, and in
some cases, causes loss of contrast in the picture.
•PREVENTION OF AN OBSTACLE TO RADIO RECEIVERS:
This monitor has been designed pursuant to the FCC class B Rules. This
is to prevent a problem to Radio receivers. lf this monitor causes a
problem to Radio receivers, then take the following steps:
-Keep the monitor away from Radio.
-Adjust Radio antennas in order for the monitor not to receive
interference.
-The antenna cable of Radio should be kept away from the monitor.
-Use a coaxial cable for antenna.
You can check if this monitor influences Radio receivers by turning off all
other equipment other than the monitor.
If you find a problem receiving Radio when using the monitor, check the
instructions mentioned above.
•The plasma display panel is lighting the phosphors by the discharge of
internal radiation. Depending on the screen contents, in rare cases this
may cause vertical stripes to appear because of failure to light. Please
note that this is not a malfunction.
Page 24
24
TROUBLESHOOTING GUIDE
About Interference to Infrared Devices
Please note in advance that using other infrared devices (such as infrared cordless headphones)
near the plasma display may cause infrared interference to occur.
About Pixel Defects
A plasma display is created by using a collection of miniature pixels. It is possible to display more
than 99.99% of valid pixels, however a small fraction of pixels over the life of the product may not
illuminate or may constantly be illuminated.
This is not to be considered a defect in the plasma panel.
CHECK THESE ITEMS AND
TRY THESE CORRECTIONS
Be sure external connections are correct.
Be sure power cable is plugged in.
Be sure PANEL is power switched "ON".
Check for local interference
Adjust Contrast control
SYMPTOM
Remote control does not work
No picture, no sound
Sound OK, picture poor
Picture OK, sound poor
Picture blurred
Weak Picture
Lines or streaks in picture
Picture rolls vertically
No color
Poor picture
Irregular dots on the screen
Adjust Bright control
Adjust Color control
Adjust Tint control
Adjust Volume control
Check batteries in Remote control
It is a characteristic of a Plasma Display.
Page 25
25
S
PECIFICATIONS
TROUBLESHOOTING GUIDE / SPECIFICATIONS
Display Features
Type Plasma panel
Screen Size 42 in. Wide VGA panel
Pixel Resolution 852 (H) x 480 (V)
Output Colors 16.7 million
Screen Aspect Ratio 16:9
Viewing Angle 160 degrees
Contrast Ratio 1000:1
Brightness 400 cd/m2(PEAK)
Video Features
Comb Filter Type 3-Dimensional Y/C Separation
Component Input Format 720p/1080i/480p/480i
Audio Features
Sound Output 5W + 5W, 10% THD
Speaker 2.8 in x 1.6 in Oval Type x 2
Additional Features
Screen Saver Off/Slow/Fast
Tr ilingual OSD English/Spanish/French
Color Temperature Select Cool/Normal/Warm
AV Memory Manual/News/Movie/Dynamic
Widescreen Modes 4:3 Standard, Full, Wide, Zoom
Sleep Timer 90 minutes
Wall Mount Kit Ready For VMPLs, SANUS SYSTEMS
Connectors
Component AV Input (1) HD component video/Y, Pb(Cb), Pr(Cr) (RCA x 3) - rear
audio L/R (RCA x 2) - rear
Component AV Input (2) HD component video/Y, Pb(Cb), Pr(Cr) (RCA x 3) - rear
audio L/R (RCA x 2) - rear
Composite AV Input (1) Composite video (RCA x 1) - rear
S-Video (1) S-Video (4 pin DIN) - rear
audio L/R (RCA x 2) - rear
Composite AV Input (2) Composite video (RCA x 1) - side
S-Video (2) S-Video (4 pin DIN) - side
audio L/R (RCA x 2) - side
Analog Audio output audio L/R (RCA x 2) - rear
General
Power In 120V ±10%, 60Hz/AC
Power Consumption 350 W (Standby: 0.8W)
Exterior Color Silver & Black
Dimension
(Incl. stand) (Width x Height x Depth)
41 1/2 x 28 3/4 x 13 in. (1054 x 730 x 330 mm)
Weight 94.8 lbs (43 kg)
NOTE:
The specifications and design of this product are subject to change without notice.
Page 26
26
Traslado de la unidad principal
Debido al considerable peso de la pantalla de plasma, se necesitan dos personas para trasladarla.
Ambas personas deben sujetar or sostener la parte superior de la pantalla con una mano y la base de la
pantalla con la otra mano.
I
NSTALACIÓN DE LAS PILAS EN EL CONTROL REMOTO
1
Para retirar la tapa trasera del control remoto,
presione la lengüeta hacia abajo con un dedo.
2 Instale dos pilas tamaño AA, asegurándose de
que la polaridad de las pilas coincida con los
símbolos impresos en el interior del control
remoto.
3
Instale la tapa trasera en el control remoto.
Page 27
27
N
OMBRES DE LOS COMPONENTES
Vea las Figura 2 y Figura 3 en la página 6.
1 Botón POWER: Para encender (ON) o dejar
en modo de espera (STANDBY).
2 Indicador ON: Se ilumina cuando la ali-
mentación está encendida.
3 Indicador STANDBY: Se ilumina cuando la
pantalla se encuentra en modo de espera.
Se apaga cuando se enciende la alimentación.
4 Botón INPUT SELECT: Para seleccionar
los terminales de entrada.
5
Botón VOLUME
K
(aumento) / L(disminu-
ción): Para aumentar o disminuir el nivel de
volumen.
6 AUDIO OUT: Te r minal de salida para audio.
7 AUDIO/VIDEO/S-VIDEO: Te rminal de entra-
da para señales de audio y video. Se puede
seleccionar VIDEO o S-VIDEO.
8 COMPONENT: Terminal de entrada para
señales de componente. Es posible realizar
una conexión Y-Pb-Pr progresivo o entrelazada.
9 Terminal AC IN: Conecte el cable de ali-
mentación suministrado entre este terminal
y una toma de corriente de CA estándar.
UNIDAD PRINCIPAL
CONTROL REMOTO
Vea la Figura 4 en la página 7.
1 Botón POWER: Para encender (ON) o dejar
en modo de espera (STANDBY).
2 Botón VOL
K
(aumento) / L(disminución):
Para aumentar o disminuir el nivel de volumen.
3 Botón MUTE: Para activar o desactivar la
función de silenciamiento de audio.
4 Botón SCREEN MODE: Se utiliza para
seleccionar uno de los formatos disponibles
para la pantalla.
5 Botón STILL: Para congelar la imagen
mostrada en la pantalla.
6 Botón INPUT SELECT: Para seleccionar
los terminales de entrada.
7 Botón DISPLAY: Muestra el nombre del ter-
minal de entrada seleccionado en la pantalla.
8 Botón SLEEP: Para programar el tempo-
rizador de apagado automático.
9 Botón MENU: Para acceder al menú de
configuración, donde se pueden hacer diversos ajustes.
10
Botón PREVIOUS: Para subir un nivel en el
menú de configuración.
11
BotónK(arriba) / L(abajo): Para selec-
cionar diversos modos en el menú de configuración.
Botón
{(izquierda) / B(derecha): Para
seleccionar y ajustar niveles para las diversas opciones de ajuste.
Botón
B(introducción): También se utiliza
como botón de introducción.
REFERENCIA RÁPIDA EN ESPAÑOL / IINSTALACIÓN DE LAS PILAS EN EL CONTROL REMOTO / NOMBRES DE LOS COMPONENTES
Page 28
Printed in Malaysia 1EMN20892A
L0653UD★★★★
SYLVANIA
LIMITED WARRANTY
FUNAI CORP. will repair this SYLVANIA product, free of charge in the USA in the event of defect in materials or workmanship as follows:
DURATION:
PARTS: FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year
from the date of original retail purchase. Three (3) years for Plasma Panel. Certain parts
and Plasma image burn-in are not covered under this warranty.
LABOR: FUNAI CORP. will provide the labor without charge for a period of ninety (90) days from the
date of original retail purchase.
LIMITS AND EXCLUSIONS:
THIS WARRANTY IS EXTENDED ONLY TO THE ORIGINAL RETAIL PURCHASER. A PURCHASE RECEIPT
OR OTHER PROOF OF ORIGINAL RETAIL PURCHASE WILL BE REQUIRED TOGETHER WITH THE
PRODUCT TO OBTAIN SERVICE UNDER THIS WARRANTY.
This warranty shall not be extended to any other person or transferee.
This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced,
missing or if service was attempted by an unauthorized service center. This SYLVANIA Limited warranty does
not apply to any product not purchased and used in the United States.
This warranty only covers failures due to defects in material or workmanship which occurs during normal use. It
does not cover damage which occurs in shipment, or failures which are caused by repairs, alterations or product not supplied by FUNAI CORP., or damage which results from accident, misuse, abuse, mishandling, misapplication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or office use
of this product or damage which results from fire, flood, lightning or other acts of God.
THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE
CONTROL), ANY COSMETIC PARTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS.
FUNAI CORP. AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY
GENERAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE
USE OF OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, AND OF ALL OTHER LIABILITIES ON THE PART OF FUNAI, ALL
OTHER WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED BY FUNAI AND ITS REPRESENTATIVES IN THE UNITED STATES.
ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY AN AUTHORIZED SERVICE
CENTER. THIS WARRANTY IS ONLY VALID WHEN THE UNIT IS CARRIED-IN TO AN AUTHORIZED SERVICE CENTER.
THE PRODUCT MUST BE ACCOMPANIED BY A COPY OF THE ORIGINAL RETAIL PURCHASE RECEIPT.
IF NO PROOF OF PURCHASE IS ATTACHED, THE WARRANTY WILL NOT BE HONORED AND REPAIRS
COSTS WILL BE CHARGED.
IMPORTANT:
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS THAT
VARY FROM STATE TO STATE. IF, AT ANY TIME DURING THE WARRANTY PERIOD, YOU ARE UNABLE TO
OBTAIN SATISFACTION WITH THE REPAIR OF THIS PRODUCT, PLEASE CONTACT FUNAI CORP.
ATTENTION:
FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT
WITHOUT PRIOR NOTICE.
To locate your nearest AUTHORIZED SERVICE CENTER or for general service inquiries,
please contact us at :
FUNAI CORPORATION
Customer Service
Tel :1-800-605-8453
http://www.SylvaniaConsumerElectronics.com
19900 Van Ness Avenue,Torrance, CA 90501
Loading...
