Sylvania 6262CVC User Manual

IMPORTANT

SAFEGUARDS

PRECAUTIONS

DESCRIPTION

OF CONTROLS

PREPARATION

FOR USE

SETUP

PLAYBACK

FUNCTION

RECORDING

FUNCTION

SPECIAL FEATURESWARRANTY SPECIFICATIONS

MAINTENANCE

TROUBLE-SHOOTING

GUIDE

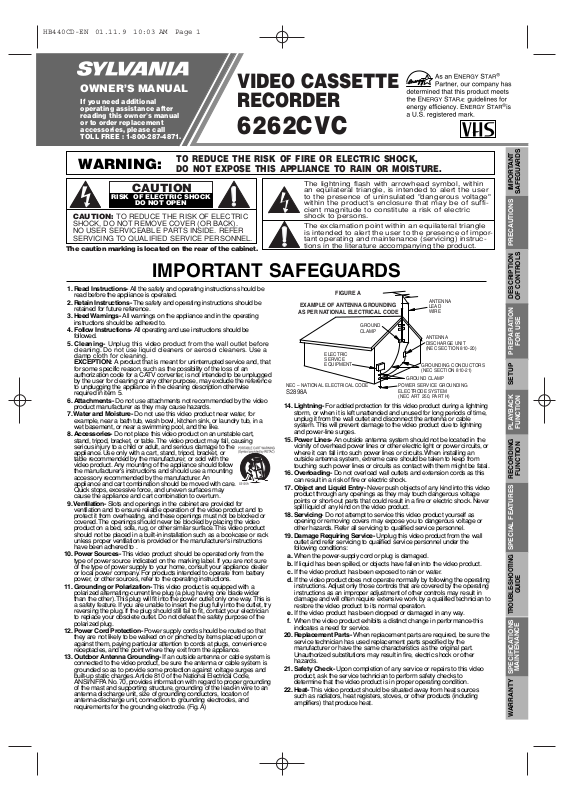

OWNER’S MANUAL

VIDEO CASSETTE
RECORDER

If you need additional
operating assistance after
reading this owner's manual
or to order replacement
accessories, please call
TOLL FREE : 1-800-287-4871.

6262CVC

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.

The caution marking is located on the rear of the cabinet.

The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of suffi­cient magnitude to constitute a risk of electric
shock to persons.

The exclamation point within an equilateral triangle
is intended to alert the user to the presence of impor­tant operating and maintenance (servicing) instruc­tions in the literature accompanying the product.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

IMPORTANT SAFEGUARDS

1. Read Instructions- All the safety and operating instructions should be

read before the appliance is operated.

2. Retain Instructions- The safety and operating instructions should be
retained for future reference.

3. Heed Warnings- All warnings on the appliance and in the operating
instructions should be adhered to.

4. Follow Instructions- All operating and use instructions should be
followed.

5. Cleaning- Unplug this video product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
EXCEPTION: A product that is meant for uninterrupted service and, that
for some specific reason, such as the possibility of the loss of an
authorization code for a CATV converter, is not intended to be unplugged
by the user for cleaning or any other purpose, may exclude the reference
to unplugging the appliance in the cleaning description otherwise
required in item 5.

6. Attachments- Do not use attachments not recommended by the video
product manufacturer as they may cause hazards.

7.Water and Moisture- Do not use this video product near water, for
example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, and the like.

8. Accessories- Do not place this video product on an unstable cart,
stand, tripod, bracket, or table.The video product may fall, causing
serious injury to a child or adult, and serious damage to the
appliance. Use only with a cart, stand, tripod, bracket, or
table recommended by the manufacturer, or sold with the
video product. Any mounting of the appliance should follow
the manufacturer's instructions and should use a mounting
accessory recommended by the manufacturer.An
appliance and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may
cause the appliance and cart combination to overturn.

9.Ventilation- Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the video product and to
protect it from overheating, and these openings must not be blocked or
covered.The openings should never be blocked by placing the video
product on a bed, sofa, rug, or other similar surface.This video product
should not be placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufacturer's instructions
have been adhered to .

10. Power Sources- This video product should be operated only from the
type of power source indicated on the marking label. If you are not sure
of the type of power supply to your home, consult your appliance dealer
or local power company. For products intended to operate from battery
power, or other sources, refer to the operating instructions.

11. Grounding or Polarization- This video product is equipped with a
polarized alternating-current line plug (a plug having one blade wider
than the other). This plug will fit into the power outlet only one way.This is
a safety feature.If you are unable to insert the plug fully into the outlet, try
reversing the plug. If the plug should still fail to fit, contact your electrician
to replace your obsolete outlet. Do not defeat the safety purpose of the
polarized plug.

12. Power Cord Protection- Power supply cords should be routed so that
they are not likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the appliance.

13. Outdoor Antenna Grounding- If an outside antenna or cable system is
connected to the video product, be sure the antenna or cable system is
grounded so as to provide some protection against voltage surges and
built-up static charges.Article 810 of the National Electrical Code,
ANSI/NFPA No. 70, provides information with regard to proper grounding
of the mast and supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding conductors, location of
antenna-discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode. (Fig. A)

14. Lightning- For added protection for this video product during a lightning
storm, or when it is left unattended and unused for long periods of time,
unplug it from the wall outlet and disconnect the antenna or cable
system. This will prevent damage to the video product due to lightning
and power-line surges.

15. Power Lines- An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or power circuits, or
where it can fall into such power lines or circuits.When installing an
outside antenna system, extreme care should be taken to keep from
touching such power lines or circuits as contact with them might be fatal.

16. Overloading- Do not overload wall outlets and extension cords as this
can result in a risk of fire or electric shock.

17. Object and Liquid Entry- Never push objects of any kind into this video
product through any openings as they may touch dangerous voltage
points or short-out parts that could result in a fire or electric shock. Never
spill liquid of any kind on the video product.

18. Servicing- Do not attempt to service this video product yourself as
opening or removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service personnel.

19. Damage Requiring Service- Unplug this video product from the wall
outlet and refer servicing to qualified service personnel under the
following conditions:

a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the video product.
c. If the video product has been exposed to rain or water.
d. If the video product does not operate normally by following the operating

instructions. Adjust only those controls that are covered by the operating
instructions as an improper adjustment of other controls may result in
damage and will often require extensive work by a qualified technician to
restore the video product to its normal operation.

e. If the video product has been dropped or damaged in any way.
f. When the video product exhibits a distinct change in performance-this

indicates a need for service.

20. Replacement Parts- When replacement parts are required, be sure the
service technician has used replacement parts specified by the
manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock or other
hazards.

21. Safety Check- Upon completion of any service or repairs to this video
product, ask the service technician to perform safety checks to
determine that the video product is in proper operating condition.

22. Heat- This video product should be situated away from heat sources
such as radiators, heat registers, stoves, or other products (including
amplifiers) that produce heat.

FIGURE A

EXAMPLE OF ANTENNA GROUNDING

AS PER NATIONAL ELECTRICAL CODE

GROUND
CLAMP

ELECTRIC
SERVICE
EQUIPMENT

NEC – NATIONAL ELECTRICAL CODE

S2898A

ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)

GROUNDING CONDUCTORS
(NEC SECTION 810-21)

GROUND CLAMP

POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)

ANTENNA
LEAD
WIRE

– 2 –

EN

PRECAUTIONS

DESCRIPTION

OF CONTROLS

CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

1. POWER button

2. NUMBER buttons

3. MENU button

4. DISPLAY button

5. SLOW button

6. REW button

7. STOP button

8. RECORD button

9. PAUSE/STILL button

10. F.FWD button

11. PLAY button

12.

COUNT ER/ MEMORY

button

13. EXIT/RESET button

14. SEARCH MODE button

15. CHANNEL buttons

16. VCR/TV button

17. EJECT button

22. AC Power Cord

23. AUDIO OUT jacks

24. AUDIO IN jacks

25. ANT. IN jack

26. VIDEO OUT jack

27. VIDEO IN jack

28. CH3/CH4 selector switch

29. ANT. OUT jack

Front Panel

Display Window

VIDEO L AUDIO R

POWER

VCR/TV

CHANNEL

REC/OTR

REW

PAUSE/STILL

F.FW D

PLAY

STOP/EJECT

MENU

TAPE
SPEED

RECVCR/TVPOWER TAPE IN TIMER

123456

7

8910111213141516

17 18 19 20 21

RECVCR/TVPOWER TAPE IN TIMER

Remote Control

POWER

VCR/TV

123

456

CHANNEL

789

MENU

0 +100

SEARCH MODE

DISPLAY SLOW

PLAY

REW F.FWD

STOP

RECORD

PAUSE/STILL

EXIT

COUNTER

MEMORYRESET

EJECT

17

14
13

11

16
15

12

10

9

3

2

1

5

8

7

6

4

Rear Panel

ANT

AUDIO

VIDEO

IN

OUT

OUT IN

CH3 CH4

OUT

L

R

IN

22 23 24 25

262729

28

INSTALL LOCATION

For safety and optimum performance of your VCR:

• Install the VCR in a horizontal and stable position.
Do not place anything directly on top of the VCR.
Do not place the VCR directly on top of the TV.

• Shield it from direct sunlight and keep it away from
sources of intense heat. Avoid dusty or humid places.
Avoid places with insufficient ventilation for proper
heat dissipation. Do not block the ventilation holes
on the sides of the VCR. Avoid locations subject to
strong vibration or strong magnetic fields.

AVOID THE HAZARDS OF
ELECTRICAL SHOCK AND FIRE

• Do not handle the power cord with wet hands.

• Do not pull on the power cord when disconnecting it
from AC wall outlet. Grasp it by the plug.

• If, by accident, water is spilled on your VCR, unplug
the power cord immediately and take the unit to our
Authorized Service Center for servicing.

• Do not put your fingers or objects into the VCR
cassette holder.

MOISTURE CONDENSATION WARNING

Moisture condensation may occur inside the unit when it is
moved from a cold place to a warm place, or after heating
a cold room or under conditions of high humidity. Do not
use the VCR at least for 2 hours until its inside is dry.

FCC WARNING

This equipment may generate or use radio frequency
energy. Changes or modifications to this equipment may
cause harmful interference unless the modifications are
expressly approved in the instruction manual. The user
could lose the authority to operate this equipment if an
unauthorized change or modification is made.

IMPORTANT COPYRIGHT INFORMATION

Unauthorized recording or use of broadcast television
programming, video tape, film or other copyrighted material
may violate applicable copyright laws. We assume no
responsibility for the unauthorized duplication, use, or other
acts which infringe upon the rights of copyright owners.

A NOTE ABOUT RECYCLING

This product's packaging materials are recyclable
and can be reused. Please dispose of any materials
in accordance with your local recycling regulations.
Batteries should never be thrown away or incinerated
but disposed of in accordance with your local
regulations concerning chemical wastes.

Note to the Cable TV System Installer:

This reminder is provided to call the Cable TV system
installer’s attention to Article 820-40 of the National
Electrical Code, which provides guidelines for proper
grounding – in particular, specifying that the cable ground
shall be connected to the grounding system of the
building, as close to the point of cable entry as possible.

Install two AA
batteries matching
the polarity indicated
inside the battery
compartment.

1. Cassette Compartment

2. STOP/EJECT button

3. REW button

4. PLAY button

5. PAUSE/STILL button

6. F.FWD button

7. MENU button

8. REC/OTR button

9. CHANNEL buttons

10. TAPE SPEED button

11. Display Window

12. Remote Sensor

13. VCR/TV button

14. POWER button

15. AUDIO Input jacks

16. VIDEO Input jack

17. POWER indicator

18. VCR/TV indicator

19. TAPE IN indicator

20. TIMER indicator

21. REC indicator

PRECAUTIONS

DESCRIPTION OF CONTROLS

To insert the batteries

PREPARATION

FOR USE

SETUP

– 3 –

EN

4 Select the On Screen Language

("ENGLISH" or "FRANÇAIS")

by pressing [PLAY] or [STOP].Then, press
[F.FWD].

5 Begin channel preset

by pressing [F.FWD] once. The tuner scans
and memorizes all active channels in your
area.

• The VCR distinguishes between standard
TV channels and cable channels.

6 After scanning,

the tuner stops on the lowest memorized channel. The TV
screen returns to TV mode.

• If "AUTO SET UP" appears on the TV screen again, check
the cable connections. Press [F.FWD] once again and the
VCR will begin preset again.

Yo u can select the desired channel by using [CHANNEL

] or directly pressing [Number] on the remote

control.

Note for using the Number buttons:

• When selecting cable channels which are higher than
99, press [+100] first, then press the last two digits.

• You must precede single-digit channel numbers with a
zero (For example: 02, 03, 04 and so on).

ACCESSORIES PART NO.

Coaxial Cable WPZ0901TM002

Remote Control Unit NA301UD/NA351UD

Batteries AA x 2

1 Check contents

Make sure the package contains all of the accessories
listed in "as below".

2 Situate VCR

Place the VCR in a stable, horizontal surface.

3 Connect VCR to TV

SUPPLIED ACCESSORIES

VCR to AV TV connection using AUDIO/VIDEO Cables

VCR to TV Connection

1. Disconnect the AC power cord of the TV from the AC
outlet.

2. Disconnect the antenna or cable from the TV.

3. Connect the antenna or cable to the ANT. IN jack of
the VCR.

4. Connect the VCR to the TV using the coaxial cable.

5. Plug the AC power cords of the VCR and TV into the
AC outlets.

OUT

IN

ANT

[VHF/UHF
combination antenna]

[Back of the VCR]

IN

OUT

[Cable box or satellite box]

OR

[Indoor antenna]

[Back of the

UHF/VHF combination TV]

UHF/VHF

Coaxial cable

(supplied)

From Cable or
Satellite Company

OR

If your TV does not have A/V terminals:

When the VCR is in the Playback mode or when the
VCR is in the VCR mode, your TV will receive signals
from the VCR on either channel 3 or 4. To use the VCR
with your TV, set the selector switch to CH3 or CH4
(which is located in the back of
your VCR), whichever is not
used for normal broadcasts in
your area. Then set your TV to
the same channel.

You can automatically program the tuner to scan only
the channels you receive in your area.

•

Channel memory programming is NOT needed when you
connected the VCR to a cable box or satellite box as in
"Connect VCR to TV". In this case, select the VCR and TV
to channel 3 or 4 the same channel as the CH3 or CH4
switch on the back of the VCR. Then, the channel you
want to record or view may be selected at the cable box or
satellite box.

•

Follow the steps below once. Repeat it only if there is a
power failure or if the VCR is unplugged for more than 30
seconds. (In these cases, the programmed channels are
erased.)

• You must follow the steps below before attempting to

play or record a video tape. If you want to play or
record a video tape BEFORE

programming the tuner,

you can cancel it by pressing [EXIT/RESET].

1 You need to connect the antenna or cable to the VCR

first. Then, connect the VCR power plug into a
standard AC outlet.

2 Turn on the TV and set the TV to channel 3 or 4.

Now set the CH3/CH4 switch on the back of the VCR to
match the channel selected on the TV.

3 Turn on the VCR by pressing [POWER]. It comes on that

both the POWER and the VCR/TV indicator.

AUTOMATIC CHANNEL SET UP

Using Optional AUDIO/ VIDEO Output Jacks

With this connection, you can get better pictures and
sounds when playing back a tape if your TV has A/V
Input jacks. Please refer to your TV’s owner’s manual.

Using AUDIO/VIDEO Input Jacks

You can use the A/V input jacks on the front or the back
of the VCR.

• To use the input jacks on the back of the VCR, select
"L1" position by pressing [0], [0], [1] on the remote
control or [CHANNEL ].

• To use the input jacks on the front of the VCR, select
"L2" position by pressing [0], [0], [2] on the remote
control or [CHANNEL ].

“L1” or “L2” is found
before the lowest
memorized channel.

(Example: CH2)

[Playing VCR]

[TV A/V]

Audio/Videocables

(not supplied)

IN

AUDIO

LR

VIDEO

VIDEO

L

R

OUT IN

OUT IN

AUDIO

PREPARATION FOR USE

SETTING THE CH3/CH4 SWITCH

SETUP

T

O SELECT A DESIRED CHANNEL

(

)

(

)

(

)

CH3 CH4

CH4

CH3

[Back of the VCR]

CH 01

AUTO SET UP

OUT
