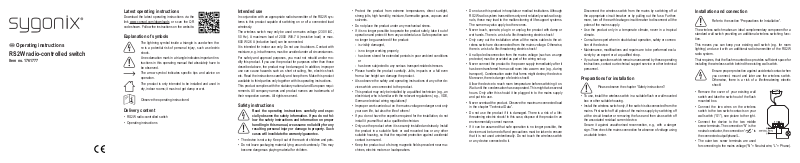

Operating instructions
RS2W radio-controlled switch
Item no. 1761777
Latest operating instructions
Download the latest operating instructions via the
link www.conrad.com/downloads or scan the QR
code shown. Follow the instructions on the website.
Explanation of symbols
The lightning symbol inside a triangle is used when the-
re is a potential risk of personal injury, such as electric
shock.
An exclamation mark in a triangle indicates important ins-
tructions in this operating manual that absolutely have to
be observed.
The arrow symbol indicates specic tips and advice on
operation.
The product is only intended to be installed and used in
dry, indoor rooms; it must not get damp or wet.
Observe the operating instructions!
Delivery content
• RS2W radio-controlled switch
• Operating instructions
Intended use
In conjunction with an appropriate radio transmitter of the RS2W systems is this product capable of switching on or off a connected load
wirelessly.
The wireless switch may only be used on mains voltage (230 V/AC,
50 Hz). A maximum load of 2000 W/8.7 A (resistive load) or max.
600 W/2.6 A (inductive load) can be connected.
It is intended for indoor use only. Do not use it outdoors. Contact with
moisture, e.g. in bathrooms, must be avoided under all circumstances.
For safety and approval purposes, you must not rebuild and/or modify this product. If you use the product for purposes other than those
described above, the product may be damaged. In addition, improper
use can cause hazards such as short circuiting, re, electric shock
etc. Read the instructions carefully and keep them. Make this product
available to third parties only together with its operating instructions.
This product complies with the statutory national and European requi-
rements. All company names and product names are trademarks of
their respective owners. All rights reserved.
Safety instructions
Read the operating instructions carefully and especially observe the safety information. If you do not follow the safety instructions and information on proper
handling in this manual, we assume no liability for any
resulting personal injury or damage to property. Such
cases will invalidate the warranty/guarantee.
• The device is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. This may
become dangerous playing material for children.
• Protect the product from extreme temperatures, direct sunlight,
strong jolts, high humidity, moisture, ammable gases, vapours and
solvents.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, take it out of
operation and protect it from any accidental use. Safe operation can
no longer be guaranteed if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor ambient conditions
or
- has been subjected to any serious transport-related stresses.
• Please handle the product carefully. Jolts, impacts or a fall even
from a low height can damage the product.
• Also observe the safety and operating instructions of any other devices which are connected to the product.
• This product may only be installed by a qualied technician (e.g., an
electrician) who is familiar with the relevant regulations (e.g., VDE,
German electrical wiring regulations)!
• Improper work carried out on the mains voltage endangers not only
your own life, but also the life of others!
• If you do not have the expertise required for the installation, do not
install it yourself but ask a qualied technician.
• Only use the product when it is securely installed and steady. Install
the product in a suitable ush or wall mounted box or any other
suitable housing, so that the required protection against accidental
contact is ensured.
• Keep the product out of strong magnetic elds prevalent near ma-
chines, electric motors or loudspeakers.
• Do not use this product in hospitals or medical institutions. Although
RS2W radio system transmitters only emit relatively weak radio signals, these may lead to the malfunctioning of life-support systems.
The same may also apply to other zones.
• Never touch, operate, plug in or unplug the product with damp or
wet hands. There is a risk of a life-threatening electric shock!
• Only carry out the installation when all the mains cables to the wireless switch are disconnected from the mains voltage. Otherwise,
there is a risk of a life-threatening electric shock!
• An all-pole disconnection from the mains voltage (such as a surge
protector) must be provided as part of the wiring set-up.
• Never connect the product to the power supply immediately after it
has been transferred from a cold room into a warm one (e.g., during
transport). Condensation water that forms might destroy the device.
Moreover, there is danger of electric shock!
Allow the device to reach room temperature before switching it on.
Wait until the condensation has evaporated. This might take several
hours. Only after this should it be plugged in to the mains supply
and put into use.
• Never overload the product. Observe the maximum connected load
in the chapter “Technical Data”.
• Do not use the product if it is damaged. There is a risk of a life-
threatening electric shock! In this case, dispose of the product in an
environmentally correct manner.
• If it can be assumed that safe operation is no longer possible, the
device must be turned off and precautions must be taken to ensure
that it is not used unintentionally. Do not touch the wireless switch
or any device connected to it.
Disconnect the wireless switch from the mains by switching off at
the appropriate circuit breaker or by pulling out the fuse. Furthermore, turn off the earth leakage circuit breaker to disconnect all the
poles of the mains supply.
• Use the product only in a temperate climate, never in a tropical
climate.
• Consult an expert when in doubt about operation, safety or connection of the device.
• Maintenance, modications and repairs are to be performed exclu-
sively by an expert or at a qualied shop.
• If you have questions which remain unanswered by these operating
instructions, contact our technical support service or other technical
personnel.
Preparations for installation
Please observe the chapter “Safety instructions”!
• To use, install the wireless switch in a suitable ush or wall mounted
box or other suitable housing.
• Install the wireless switch only, if the switch is disconnected from the
mains. First switch off all poles of the mains supply by switching off
at the circuit breaker or removing the fuse and then also switch off
the associated residual current device.
Secure it against unauthorised reconnection, e.g., with a danger
sign. Then check the mains connection for absence of voltage using
a suitable tester.
Installation and connection
Refer to the section “Preparations for Installation”.
The wireless switch makes an ideal complementary component for a
standard wall switch providing an additional wireless switching function.
This means you can keep your existing wall switch (e.g. for room
lighting) and use it with an additional radio transmitter of the RS2W
radio system.
That requires, that the ush mounted box provides sufcient space for
installing the wireless switch behind the existing wall switch.
Ensure proper protection against accidental contact when
you connect, mount and later use the wireless switch.
Otherwise, there is a risk of a life-threatening electric
shock!
• Remove the cover of your existing wall
switch and take the switch out of the ush
mounted box.
• Connect the two wires on the wireless
switch to the two switch contacts on your
wall switch (“S1”), see picture to the right.
• Connect the device to the two middle
screw terminals. The connection “N” is the
neutral conductor, the connection “ ” is
the connected output/phase/L.
• The outer two screw terminals are used
for connecting to the mains voltage (“N” = Neutral wire, “L” = Phase).
• Place the wireless switch in the ush-mounted box in such a way
that the control key and the LED point outward toward you.
The control button is required for assigning to a radio
transmitter of the RS2W radio system.
Ensure that there is enough free space around the control
button, so it will not be switched on by accident.
Before mounting wall switch and cover, perform rst the teach-in
procedure.
Now, switch on the mains voltage.
Function test: Switching the connected device on/
off
using the control button
Briey press the control button on the wireless switch to switch the
connected device on or off.
The LED next to the control button shows the actual status:
• LED is on: Device is switched on
• LED off: Device is switched off
Teach-In of the wireless switch to a radio transmitter
The wireless switch can be taught-in to any radio transmitter of the RS2W radio system.
Follow the operating instructions of the radio transmitter
During the teach-in process maintain a 20 - 30 cm mini-
that will be used prior to the teaching procedure.
mum distance between the wireless switch and the radio
transmitter. Failing to do this may result in a registration
failure.
• If the wireless switch is on (LED next to the control button is on,
device is activated), switch off the wireless switch rst.
Briey press the control button, the LED next to the control button
must go dark.
The wireless switch must be switched off (LED next to
the control button is off), or else the registration process
cannot be conducted.
• Start with the registration process on the radio transmitter.
Example: On a 12-channel hand-held radio transmitter of the RS2W
radio system press the keys “ON” and “OFF” of the desired switch
channel, such as Channel 1, simultaneously until the red LED of
the hand-held radio transmitter starts ashing. Release both keys,
the red LED keeps ashing and the registration mode is enabled.
• Hold the control button on the wireless switch down for as long as it
takes the registration process to nish.
Example: On a 12-channel hand-held radio transmitter of the RS2W
radio system the LED lights up blue and then goes dark. Release
the control button on the wireless switch.
• The wireless switch switches on, and indicates that the registration
process is complete.
Up to 5 receivers can be taught-in on a switch channel of
a radio transmitter of the RS2W radio system. This means
that with one push on a button you can switch on or off up
to 5 wireless switches simultaneously for example.
It is also possible to register the wireless switch on sever-
al radio transmitter.
However, do not register a wireless switch on one single
switch channel together with a dimmer, which is available
for the RS2W wireless system! Always assign the dimmer
to a separate channel on the radio transmitter.
Deleting a taught-in wireless switch from a radio
transmitter
The procedure corresponds exactly to the teach-in procedure for the
wireless switch to the radio transmitter. For more information consult
the operating instructions for the radio transmitter of the RS2W radio
system that will be used.
Switching the device on/off
The wireless switch and the connected device can be turned off wirelessly only when it has been registered on a radio transmitter of the
RS2W radio system. Follow the description above and the operating
instructions of the radio transmitter that will be used.
The device can be switched on or off via the wireless switch which is
connected to the wall switch.
Range
The range of the radio signals between the RS2W radio system radio
transmitter and the wireless switch is up to 150 m under optimum
conditions.
This value, however, is the so-called “open space range”
(the range when transmitter and receiver are visible to
each other, without interfering inuences).
In practice, however, there may be walls, room ceilings,
etc. between the transmitter and the receiver which reduce the range accordingly.
Due to the different inuences on the radio transmission,
no specic range can be guaranteed. However, trou-
ble-free operation is usually possible in a single family
house.
Sometimes the range can be considerably reduced due to:
• Walls, reinforced concrete ceilings, light-weight walls with metal
post and beam construction
• Coated/metallised insulated glass
• Proximity to metallic & conductive objects (e.g., heating elements)
• Proximity to human bodies
• Other devices on the same frequency (e.g., wireless headphones,
wireless loudspeakers)
• Proximity to electric motors/appliances, transformers, power-supply
units, computers
Care and cleaning
The product does not require any maintenance. You should not open/
dissemble it. Repair or maintenance work must be carried out by a
specialist.
Declaration of Conformity (DOC)
Conrad Electronic SE, Klaus-Conrad-Straße 1, D-92240 Hirschau hereby declares that this product conforms to the 2014/53/EU directive.
Click on the following link to read the full text of the EU
declaration of conformity: www.conrad.com/downloads
Select a language by clicking on a ag symbol and enter
the product order number in the search box. You can then
download the EU declaration of conformity in PDF format.
Disposal
Electronic devices are recyclable waste and must not be
disposed of in the household waste. At the end of its service life, dispose of the product according to the relevant
statutory regulations.
You thus full your statutory obligations and contribute to
the protection of the environment.
Technical data
Operating voltage ...............230 V/AC, 50 Hz
Power consumption ............approx. 0.4 W (off) or 1 W (on)
Connecting power ...............resistive load: max. 2000 W (max. 8.7 A)
inductive load: max. 600 W (max. 2.6 A)
Devices with mainly resistive load are e.g., light bulbs,
heaters, etc.
Devices with inductive load are, e.g., engines, control
Transmission/
receiving frequency ............868.000 - 868.600 MHz
Transmission/
receiving range ...................max. 150 m (in open area)
Transmission power............<14 dBm
Ambient conditions ............. 0 to +45 °C,
Dimensions (W x H x D) .....49 x 49 x 25 mm
Weight ................................41 g
gears, conventional transformers, energy saving bulbs,
etc.
0 - 90 % RH (non-condensing)
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240
Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method, e.g.
photocopy, microlming, or the capture in electronic data processing systems
require the prior written approval by the editor. Reprinting, also in part, is prohibited. This publication represent the technical status at the time of printing.
Copyright 2019 by Conrad Electronic SE. *1761777_V2_0419_02_mxs_m_en
Loading...
