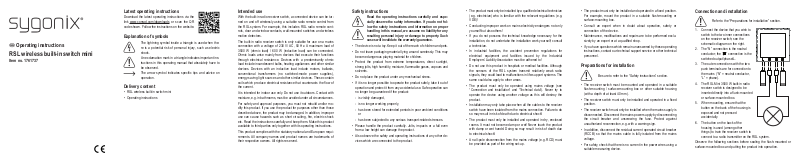

Sygonix SY-3523474 User guide
Operating instructions
RSL wireless built-in switch mini
Item no. 1761737
Latest operating instructions
Download the latest operating instructions via the
link www.conrad.com/downloads or scan the QR
code shown. Follow the instructions on the website.
Explanation of symbols
The lightning symbol inside a triangle is used when the-
re is a potential risk of personal injury, such as electric
shock.
An exclamation mark in a triangle indicates important ins-
tructions in this operating manual that absolutely have to
be observed.
The arrow symbol indicates specic tips and advice on
operation.
Delivery content
• RSL wireless built-in switch mini
• Operating instructions
Intended use
With the built-in radio receiver switch, a connected device can be turned on and off wirelessly using a suitable radio remote control from
the RSL system. For example, this includes RSL radio remote controls, door and window contacts, wall-mounted switches and wireless
motion detectors.
The built-in radio receiver switch is only suitable for use on a mains
connection with a voltage of 230 V/ AC, 50 Hz. A maximum load of
3500 W (ohmic load) / 600 W (inductive load) can be connected.
Ohmic loads arise mainly from devices that execute their functions
through electrical resistance. Devices with a predominantly ohmic
load include incandescent bulbs, heating appliances and other similar
devices. Devices with an inductive load include motors, ballasts,
conventional transformers (no switched-mode power supplies),
energy-saving light sources and other similar devices. These contain
coils which produce electrical resistance that counteracts the ow of
the current.
It is intended for indoor use only. Do not use it outdoors. Contact with
moisture, e.g. in bathrooms, must be avoided under all circumstances.
For safety and approval purposes, you must not rebuild and/or modify this product. If you use the product for purposes other than those
described above, the product may be damaged. In addition, improper
use can cause hazards such as short circuiting, re, electric shock
etc. Read the instructions carefully and keep them. Make this product
available to third parties only together with its operating instructions.
This product complies with the statutory national and European requi-
rements. All company names and product names are trademarks of
their respective owners. All rights reserved.
Safety instructions
Read the operating instructions carefully and especially observe the safety information. If you do not follow the safety instructions and information on proper
handling in this manual, we assume no liability for any
resulting personal injury or damage to property. Such
cases will invalidate the warranty/guarantee.
• The device is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. This may
become dangerous playing material for children.
• Protect the product from extreme temperatures, direct sunlight,
strong jolts, high humidity, moisture, ammable gases, vapours and
solvents.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, take it out of
operation and protect it from any accidental use. Safe operation can
no longer be guaranteed if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor ambient conditions
or
- has been subjected to any serious transport-related stresses.
• Please handle the product carefully. Jolts, impacts or a fall even
from a low height can damage the product.
• Also observe the safety and operating instructions of any other devices which are connected to the product.
• The product must only be installed by a qualied electrical technician
(e.g. electrician) who is familiar with the relevant regulations (e.g.
VDE)!
• Conducting improper work on mains electricity endangers not only
yourself but also others!
• If you do not possess the technical knowledge necessary for the
installation, do not undertake the installation work yourself; consult
a technician.
• In industrial facilities, the accident prevention regulations for
electrical equipment and facilities issued by the Industrial
Employers’ Liability Association must be adhered to!
• Do not use this product in hospitals or medical facilities. Although
the sensors of the RSL system transmit relatively weak radio
signals, they could lead to malfunctions in life-support systems. The
same could also apply to other areas.
• The product must only be operated using mains voltage (see
“Connection and installation” and “Technical data”). Never try to
operate the device using another voltage as this will destroy the
product.
• Installation may only take place when all the cables to the receiver
switch have been isolated from the mains connection. Failure to do
so may result in risk of death due to electrical shock!
• The product must only be installed and operated in dry, enclosed
rooms. It must not become damp or wet! Never touch the product
with damp or wet hands! Doing so may result in risk of death due
to electrical shock!
• An all-pole disconnection from the mains voltage (e.g. RCD) must
be provided as part of the wiring set-up.
• The product must only be installed and operated in a xed position.
For example, mount the product in a suitable ush-mounting or
surface-mounting box.
• Consult an expert when in doubt about operation, safety or
connection of the device.
• Maintenance, modications and repairs are to be performed exclu-
sively by an expert or at a qualied shop.
• If you have questions which remain unanswered by these operating
instructions, contact our technical support service or other technical
personnel.
Preparations for installation
Be sure to refer to the “Safety instructions” section.
• The receiver switch must be mounted and operated in a suitable
ush-mounting / surface-mounting box or other suitable housing
(with a depth of at least 40 mm).
• The receiver switch must only be installed and operated in a xed
position.
• The receiver switch must only be installed when the mains supply is
disconnected. Disconnect the mains power supply by disconnecting
the circuit breaker and unscrewing the fuse. Protect against
unauthorized reconnection, e.g. with a warning sign.
• In addition, disconnect the residual current operated circuit breaker
(RCCB) so that the mains cable is fully isolated from the mains
voltage.
• For safety, check that there is no current in the power wires using a
suitable measuring device.
Connection and installation
Refer to the “Preparations for installation” section.
1. Connect the device that you wish to
switch to the two inner connections
on the receiver switch; see the
schematic diagram on the right.
2. The “N” connection is the neutral
conductor; the “ ” connection is the
switched output/phase/L.
3. The outer connections with the two
push terminals are for connection to
the mains (“N” = neutral conductor,
“L” = phase).
4. The RSL Mini 3500 W built-in radio
receiver switch is designed to be
inserted directly into a ush-mounted
or surface-mounted box.
5. When mounting, ensure that the
button on the back of the housing is
exposed and not pressed
accidentally.
6. The button on the back of the
housing is used (among other
things) to train the receiver switch to
connect to a radio transmitter on the RSL system.
Observe the following sections before sealing the ush-mounted or
surface-mounted box and putting the product into operation.-
Operation
a) Training the receiver switch to connect to a remote control
The receiver switch can be taught to connect to a radio transmitter on
an RSL system such as a wall-mounted radio transmitter or a radio
remote control. Pay attention to the details in the instruction manual
for the transmitter you are using.
Up to 8 different radio transmitters on the RSL system can
be learnt. The receiver switch can then be turned on or off
from different places.
2
1
1 Button
2 LED indicator
Follow the steps below to train the switch:
Usage scenario: No radio codes saved
1. Connect the receiver switch to the mains. The LED indicator (2)
begins to ash red; the receiver switch is in learning mode.
2. Press the control button on the RSL radio transmitter. The on/off
control buttons are often marked with “ON” or “OFF”. Keep the
button on the RSL radio transmitter pressed down until the LED
indicator next to the button on the receiver switch stops ashing.
The radio code for this transmitter is now recognised and saved.
3. The learning procedure has been successfully completed; the
device exits automatically from the learning mode.
Usage scenario: Radio code/s already saved
1. Connect the receiver switch to the mains. The LED indicator
does not ash. Keep the button (1) on the receiver switch
pressed down until the LED indicator (2) starts to ash. The
receiver switch is now in learning mode for a new additional
code.
2. Press the control button on the RSL radio transmitter. The on/off
control buttons are often marked with “ON” or “OFF”. Pay
attention to the details in the instruction manual for the
transmitter you are using. Keep the button on the RSL radio
transmitter pressed down until the LED indicator next to the
button on the receiver switch stops ashing. The radio code for
this transmitter is now recognised and saved.
3. The learning procedure has been successfully completed; the
device exits automatically from the learning mode.
4. Repeat these conguration steps to save more RSL radio
transmitters until the maximum number of transmitters that can
be saved is reached.
b) Deleting saved radio transmitters from the receiver switch
You can clear all radio codes simultaneously, or if, for example, you
want to use the switching channel of a radio transmitter (wall-mounted
switch or radio remote control) for another receiver switch, the switching channel can be cleared individually. Pay attention to the details
in the instruction manual for the transmitter you are using.
Usage scenario: clear all radio codes
1. When the receiver switch has turned off the device, press the
button until the LED indicator (2) starts to blink. The receiver
switch is now in learning mode.
2. Release the switch, then press again and hold until the LED
indicator (2) goes off. All saved radio codes are now deleted.
Usage scenario: delete an individual radio code
1. Hold down the receiver button (1) until the indicator LED (2)
starts ashing.
2. Hold down the channel button (the button the channel was
assigned to) on your remote control until the indicator LED goes
off.
c) Turning on/off using the button on the receiver switch
• For a functional test, the device connected to the receiver switch
can also be switched on/off with the button.
• Briey press the button on the receiver switch to turn the device
on (the LED on the receiver switch illuminates) or off (the red LED
goes off).
Functional test
• If you have not already done so, you must rst train the receiver
switch to connect to an RSL system radio transmitter (e.g. a wallmounted switch or a radio remote control).
• Ensure that the receiver switch is connected to the mains (230 V/
AC 50 Hz) .
• Press the ON button on the RSL transmitter that the receiver switch
was trained to connect to. The red LED indicator on the receiver
switch illuminates and the switching output is activated. The
connected device is turned on.
• To deactivate the switching output and turn off the connected
device, briey press the OFF button on the RSL transmitter that
the receiver switch was trained to connect to. The red LED on the
receiver switch turns off.
• If the functional test fails, delete the code, retrain the RSL switch
and test again as described above.
Range
The transmission range is up to 70 m, depending on the RSL system
radio transmitter used.
However, this transmission range value refers to the so-
called “open area transmission range”. This transmission
range denotes the idealized distance between the
transmitter and receiver within unhindered and direct eye
contact and without disruptive inuences.
In practice, however, there are walls, ceilings and other
structures between the transmitter and receiver, which
correspondingly reduce the transmission range.
Due to the different effects these have on radio
transmission, it is unfortunately not possible to guarantee
a specic transmission range. Nevertheless, the device
can normally be operated without problems in a detached
house.
The transmission range can be signicantly reduced by:
• Walls, reinforced concrete ceilings
• Laminated/metallized insulating glass
• Proximity to metal and conductive objects (e.g. radiators)
• Proximity to the human body
• Broadband interference, e.g. in residential areas (DECT cordless
phones, mobile phones, wireless headphones, wireless speakers,
wireless weather stations, baby monitoring systems etc.)
• Proximity to electrical motors, transformers, power adaptors and
computers
• Proximity to poorly covered or open computers or other electrical
devices
Care and cleaning
This product is maintenance-free, never open/dismantle it. Consult a
technician for maintenance or repair.
Declaration of Conformity (DOC)
Conrad Electronic SE, Klaus-Conrad-Straße 1, D-92240 Hirschau hereby declares that this product conforms to the 2014/53/EU directive.
Click on the following link to read the full text of the EU
declaration of conformity: www.conrad.com/downloads
Select a language by clicking on a ag symbol and enter
the product order number in the search box. You can then
download the EU declaration of conformity in PDF format.
Disposal
Electronic devices are recyclable waste and must not be
disposed of in the household waste. At the end of its service life, dispose of the product according to the relevant
statutory regulations.
You thus full your statutory obligations and contribute to
the protection of the environment.
Technical data
Compatible radio
remote controls ....................... Item no. 646614, 1761732, 1761735,
Operating voltage ...................230 V/AC, 50 Hz
Switching power ..................... 3500 W (ohmic load),
Transmission frequency..........433.05 - 434.79 MHz
Transmission range ................max. 70 m (in open area)
Receiving frequency ...............433.05 - 434.79 MHz
Receiving range ......................max. 70 m (in open area)
Operating conditions ............... 0 to +45 °C,
Storage conditions .................. 0 to +45 °C,
Dimensions (W x H x D) .........41 x 41 x 18 mm
Weight ....................................32 g
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240
Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method, e.g.
photocopy, microlming, or the capture in electronic data processing systems
require the prior written approval by the editor. Reprinting, also in part, is prohibited. This publication represent the technical status at the time of printing.
Copyright 2019 by Conrad Electronic SE. *1761737_V2_0419_02_mxs_m_en
1761740, 1761742, 1761744,
1761745, 1761747, 1761748,
1761749, 1761750, 1761752, 1761753
600 W (inductive load)
0 - 90 % RH (non-condensing)
0 - 90 % RH (non-condensing)
Loading...
