Sygonix HVR Operating instructions

Hybrid Network Digital Video Recorder (HVR) User Manual

Foreword

Notice:

Welcome to use our video recorder (HVR). For your safety, please read the manual carefully. Here

are the right method to use our HVR, preventing danger and the loss of your property. Please

follow when use it.

1. 1. Installation environment:

 Please place and use the HVR from 0℃-50℃.

 While install and use the HVR , it should be placed horizontally. Avoid tilt, and not invert.

 Avoid placing or installing in a high temperature, damp, dusty or smoking situation.

 HVR should not be suffered from the water-drop or water splash. Do not put something filled

with liquid like vase on it. Also, do not put other devices on it.

 To make sure the HVR cool properly, please install it in a well ventilated environment.

(cooling fan is installed inside)

 Please maintain a gap of 6CM or more between the back and the wall to cool fast during

installation.

 Please install the lightning arrester when use at high-lightning areas to avoid being damaged

by thunderstroke.

2. Notice ：

 Please do not touch the power switch with your wet hands or wet items to avoid the electric

shock.

 Make sure the product lying on the ground after finish installation. To avoid the video and

voice signal being disrupted, and damaging the product.

 Please make sure the stable power supply for HVR. Try to use stable voltage, less ripple

interference power to input. Do not disconnect the main switch to turn off HVR.

 Do not spill liquid or metal on HVR to avoid internal short circuit or fire.

 HVR does not include the hard disk, please install the hard disk correctly before use it. Or it

can not playback.

 HVR PCB board will cause short circuit after the dusts settle on damp. To make it work well

for long hours,

 Please use the brush to clear the dust regularly for the PCB board, accessory, inside

housing and the cooling fan.

 When shut down HVR, do not turn off the power switch directly. Please press the panel’s

- 1 -

Hybrid Network Digital Video Recorder (HVR) User Manual

shutdown button to make HVR power off automatically to avoid damaging the hard disk.

 HVR system supports formatting function. If the hard disk is already used, please note the

formatting. Please format the hard disk when first use our HVR, or it causes error.

 Do not open the housing while HVR is working.

 To ensure the video integrity, please change the hard disk timely when it breaks down.(there

is wrong record about the hard disk). Or use HardDiskSentinel to check the hard disk by

computer.

2. 3. Description:

 Please comply with the actual instrument. The instruction is for reference only.

 HVR version updates in time. Please understand there is no any notice if update.

 Please contact our technology department for the newest program and supplementary

documentation.

 Our company has the final power of interpretation if there is doubt or controversy in the

product description,

This instruction is provided for a number series products for reference. So, the specific

management won’t be listed one by one. If any questions, please contact our technology

department.

Chapter 1 Product Introduction ....................................................................... 7

1.1 Product Overview ....................................................................................... 7

1.2 Main Functions ........................................................................................... 7

Chapter 2 Installation Guide ............................................................................ 8

2.1 Unboxing...................................................................................................... 8

2.2 Hard Disk Installation ................................................................................. 8

Chapter 3 Local Operation Guide ................................................................. 10

3.1 Hard disk installation steps: .................................................................... 10

1. 3.1 Start Up and Shutdown .............................................................. 10

3.1.1 Start Up .......................................................................................... 10

3.1.2 Shutdown ....................................................................................... 10

3.1.3 Power Off Recovery ..................................................................... 10

3.2 Login System ............................................................................................ 10

3.3 Menu Operation ........................................................................................ 10

3.3.1 Sign out .......................................................................................... 10

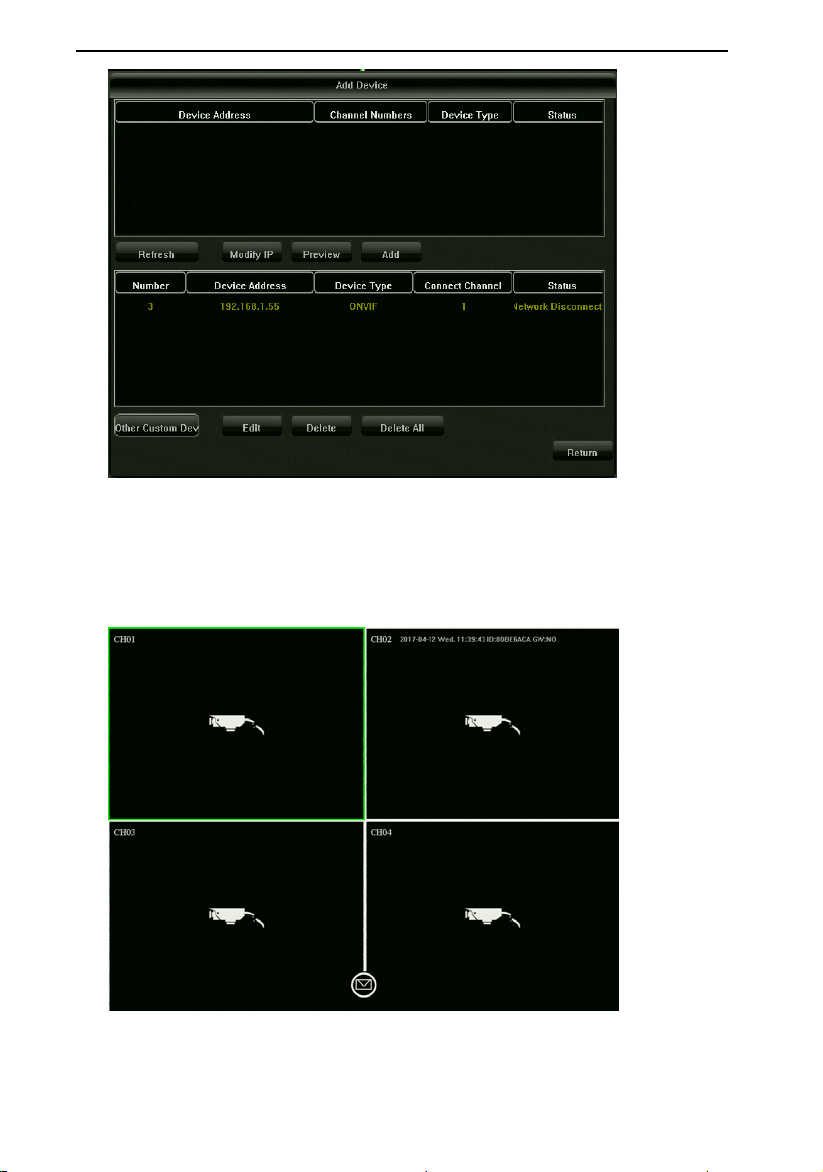

3.3.2 Camera Adding ............................................................................. 11

3.3.3 Real-time Preview ........................................................................ 13

3.3.3.1 Overview of Related Functions ....................................... 13

3.3.3.2 PTZ control ........................................................................ 15

3.3.5 Backup ........................................................................................... 20

3.3.6 Video Configuration ...................................................................... 22

3.3.6.1 Video Program ................................................................... 23

3.3.6.2 Extended Function Application ....................................... 23

3.3.6.3 Output Configuration ........................................................ 25

3.3.7 Hard Disk Management ............................................................... 26

3.3.8 System Configure ......................................................................... 27

3.3.8.1 Time Setting ....................................................................... 28

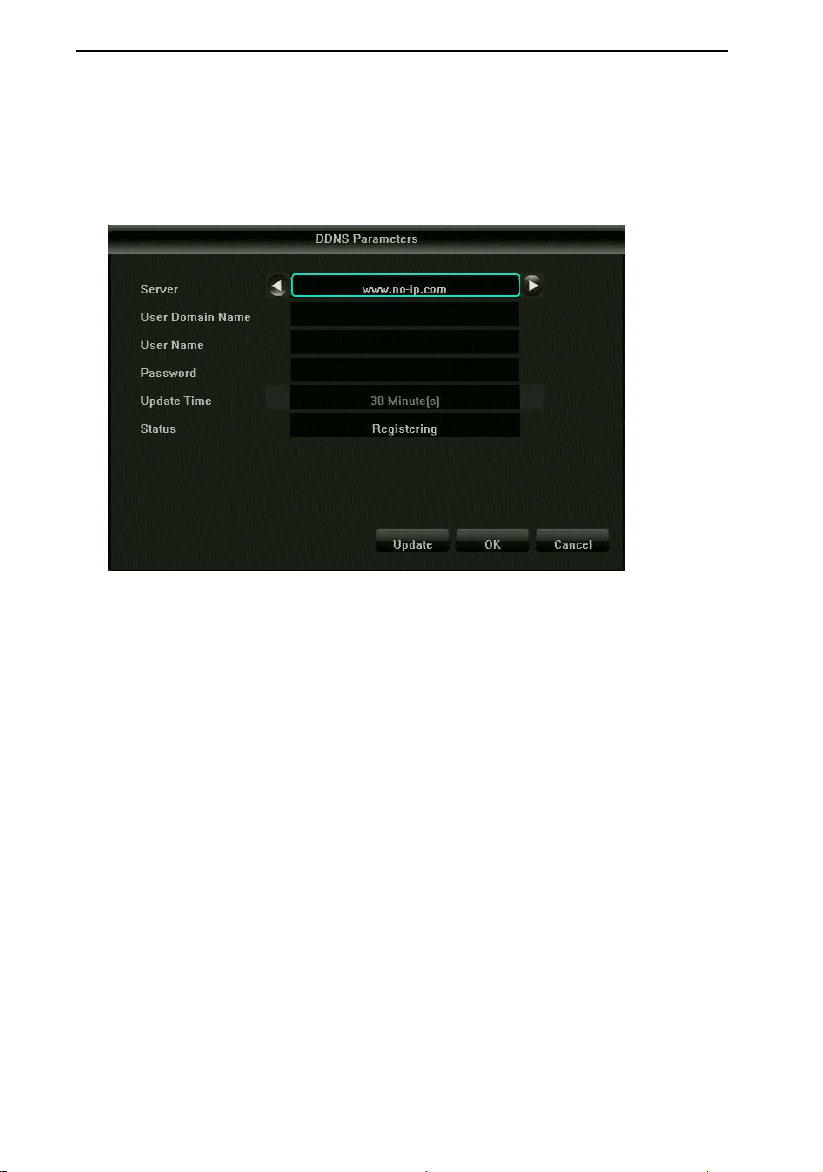

3.3.8.2 Network Parameters ......................................................... 29

3.3.8.3 Alarm Management .......................................................... 31

3.3.8.4 User Management ............................................................ 31

3.3.9 System Maintenance .................................................................... 32

3.3.9.1 System Info-Stream Statistics ......................................... 33

3.3.9.2 System Info-Log Info ........................................................ 33

3.3.9.3 System Info-Export Configuration ................................... 33

3.3.9.4 System Info-Import Configuration ................................... 33

3.3.9.5 System Update .................................................................. 34

Chapter 4 Network Operation Guide ............................................................ 35

4.1 WEB browser operation guide ................................................................ 35

4.1.1 Internet connection ....................................................................... 35

4.1.2 Control installation and user logout............................................ 35

Chapter 5 Mobile Operator Guide ................................................................ 36

Chapter 6 FAQ ................................................................................................ 38

- 4 -

Hybrid Network Digital Video Recorder (HVR) User Manual

PARAMETERS

Model

Operating system Embedded Linux Operating System

nalog input 4CH/8CH/16CH 4CH/8CH 4CH

nalog input

Video

udio

Coding

CVBS output 1CH HMDI, 1CH VGA, 1CH CVBS

Output

resolution

Input resolution 960H/720P/1080P/3MP/4MP

nalog input 4CH/8CH/16CH 4CH/8CH 4CH

Digital input

Compression

Video coding

HVR5004HF_5008HF_5016

Support 60Mbps access bandwidth ONVIF protocol, H.264 coding

type

1024×768/1280×1024/1440×900/1920×1080

4CH_8CH_16CH G.711 network digital audio input (ONVIF), RJ45

interface

H.264, Support VBR and variable frame rate, support set video

quality and compressed stream

960H 25FPS

720P 25FPS

H1080P 25FPS

HVR6004H_HVR008H HVR8004

960H 25FPS

720P 25FPS

1080P 25FPS

960H 25FPS

720P 25FPS

1080P 25FPS

3MP 25FPS

4MP 25FPS

Video bitrate 128Kbps-5Mbps, can be customized (Max 5Mbps)

AC ADPCM

Stream type Video stream and composite stream(video and audio stream)

Video loss detect Linkage mode, email, PTZ, alarm output

Image dynamic detection each channel supports 192 areas setting, can set level 3 sensitivity

Image playback quality

Area occlusion setting each channel supports 4 area occlusion setting

record mode support manual, auto, motion detection, alarm

the analog channel is related with code rate, the network channel is

synchronized with the previewed main stream

- 5 -

Hybrid Network Digital Video Recorder (HVR) User Manual

backup mode Support hard disk, USB, network storage and backup

operation mode Mouse, remoter, front panel keypad

local login user name and password, user name: admin password: 123456

video save local hard drive, network

 4CH Analog input

 2CH Analog + 2CH IP

 4CH IP

 8CH Analog

External

interface

Hard disk

video input

udio input

Video output 1CH HDMI,1CH VGA, 1CH CVBS

udio output HDMI audio output，RCA audio output HDMI, RCA

network

interface

RS485 1 RS485

USB 2USB ports for mouse and USB drive

alarm input no

alarm output no

WLAN Via USB mount 7601 NIC chip support

SATA 1/2SATA

Max capacity each supports up to 8TB

 4CH Analog + 4CH IP

 8CH IP

 16CH Analog

 8CH Analog + 8CH IP

 16CH IP

4CH/8CH/16CH analogue input / audio input， RJ45 port

4CH/8CH/16CH Analog/ network audio, RJ45 interface

10/100M adaptive

mobile monitor

Power DC12V

Consumption 3W

Support iPhone, Android smart phone, APP: XVR PRO

- 6 -

Hybrid Network Digital Video Recorder (HVR) User Manual

temperature

humidity 10％-90％

size

weight(without hard disk) net weight: gross weight:

Container

Installation mode On desk

hardware configure

CPU：HI3520DV2_HI3520DV3_HI3521AV1

Board Models：HVR5004HF_5008HF_5016HF_6004H_6008H_8004U

PCB board model:NVP6134C

Coding chip: HI3520DV2_HI3520DV3_HI3521AV1

Encoding chip:

Power: DC12V

Hard disk: WD/ST_SV35 the best

Dongle: support

1.1 Product Overview

This product is only designed for video surveillance, which is used for encoding and recording.

It’s combined with H.264 video compression, max capacity hard disk, TCP/IP, embedded Linux

operating system and other advanced electronic information technology. This achieves high

quality image, low bitrate recording and good system stability.

-10℃～＋55℃

HVR:

packing:

Chapter 1 Product Introduction

This product has a variety of functions: record, playback and monitor simultaneously. Also, it

can achieve the synchronization of video and audio. It has advanced control technology and

powerful network data transmission capability.

1.2 Main Functions

The following functions are different because of the different products and hardware versions.

 real time monitor

 compression function

- 7 -

Hybrid Network Digital Video Recorder (HVR) User Manual

 record

 video playback and backup

 PTZ control

 alarm management and control

 communication interface

 network

Chapter 2 Installation Guide

2.1 Unboxing

When you receive this product, please check according to the "Network Digital Video Recorder

List" in the box.

2.2 Hard Disk Installation

Installation preparation:

Please prepare a cross screwdriver. 1 to 9 hard disks can be installed in this series of network

digital video recorders, hard disk capacity unlimited.

Hard disk installation steps:

3.1 Hard disk installation steps:

1.Unscrew screws at the side of the housing, open the upper shell.

2.onnect the hard disk data cable and wire.

3.Fix the hard disk to the lower shell of the housing with screws.

- 8 -

Hybrid Network Digital Video Recorder (HVR) User Manual

4.Cover up and upper shell with screws.

- 9 -

Hybrid Network Digital Video Recorder (HVR) User Manual

Chapter 3 Local Operation Guide

1. 3.1 Start Up and Shutdown

3.1.1 Start Up

Plug in the power cable, press the start up button, power indicator light on, video recorder

powering up. After starting up, default video outputting mode as multi-screen output, if powering

time is in the preset video recording time, the system will automatically start the timing recording

function.

Notice: Please use the power/adapter supplied with the network digital video recorder. Do not

use other types or brands of power supply instead of the original power adapter.

3.1.2 Shutdown

*To shutdown the device, long press the start up button at the front panel

*Go to 【Right-click menu】 → 【Shut down system】, select 【shutdown】. (Hint: It is

recommended to use this method when shutting down to avoid damage to equipment and hard

disk when accidental power off).

Note: Before replacing the hard disk, make sure the device has been shut done.

3.1.3 Power Off Recovery

When the video recorder is recording, if the system power is cut off or forced to shut down,

you can turn on the DVR, then it will automatically save the video before powering off, and

automatically resume to the status before the powering off.

3.2 Login System

After normal start up, click the right mouse button to select the main menu will pop up the user

user name: admin password: 123456).

3.3 Menu Operation

After the user successfully login, follow the menu bar on the interface for the relevant settings:

3.3.1 Sign out

Click on the [Close System] icon on the menu, the interface will be shown on the right:

 Logout: Click the "Cancellation" button to log out of the current user;

- 10 -

Hybrid Network Digital Video Recorder (HVR) User Manual

 Restart: Click "Reboot" button to restart the device automatically;

 Shutdown: Click the "Close" button to shutdown the device.

3.3.2 Camera Adding

Analogue camera:

Connect the analog camera / coaxial camera directly to the VIDEO IN port of the DVR.

Support inputting devices are AHD (720P 1080P 3MP 4MP)

TVI (720P 1080P)

CVI (720P 1080P)

Analogue (960H)

IP Camera:

Please switch to the mixed mode or IPC mode by this order: 【Right-click Menu】 → 【Main

Menu】 → 【System Setting】 → 【Mode Switch】

This product supports multi-version of ONVIF protocol, compatible with most popular brand

IPC on the market.

Before connecting to HVR, please ensure that the IPC’s IP address and HVR are in the same

network segment, and the main stream and sub-stream need to be adjusted to the recommended

value, otherwise it may have the following issues: unable to search IPC, no image showing, image

hanging,low picture quality, black image, beyond the decoding capacity and so on.

Connect the HVR with Internet and connect to LAN switch. After powering on, click the icon

on the main menu and set the NVR IP address, subnet mask and gateway on the basic

configuration page. You can use the ping command on the PC host in the LAN to ping the HVR to

detect whether the NVR is connected to the LAN.

Automatically adding IPC:

In the [right-click menu] → [Add auto] icon, click OK, the device will automatically search and

add the IPC.

- 11 -

Hybrid Network Digital Video Recorder (HVR) User Manual

To add a IPC manually:

In the [right-click menu] → [network channel] icon, enter the IP channel management

interface, as shown below:

Click on the channel "+" button, HVR will automatically search all IPC in the LAN , search

completed, double-click the IP address which is needed to add to the HVR. You can also click on

the manual adding, manually enter the IP address and port to add the IP camera.

- 12 -

+ 27 hidden pages
