SYCLOPE TERE’O Operating Instructions Manual

SYCLOPE TERE’O® controller for swimming pools (Part 1)

Installation, commissioning and

operating instructions

Reference : TER0000 - TER0010 – TER0020 – TER xxxx Rev : 5.1

General informations Page 2/40

Parts of the general documentation

Part 1 : Manual of installation, commissioning and operating instructions
Part 2 : Manual of communication instructions

General informations :

SYCLOPE Electronique 2013® Notice of 11/08/2015 Rev 5.1

Analysers/controller for private and public swimming pools.

Gamme TERE’O®

Installation, commissioning and operating instructions

Editor :

SYCLOPE Electronique S.A.S.

Z.I. Aéropole pyrénées
Rue du Bruscos
64 230 SAUVAGNON - France –
Tel : [phone]
Fax : [phone]
Email : [e-mail]
Internet : http://www.syclope.fr

© 2012-2015 by SYCLOPE Electronique S.A.S.
Subject to modifications

►

Content Page 3/40

Installation, commissioning and operating instructions SYCLOPE TERE’O

®

Content

I. Généralités ................................................................................................................................ 4

1) Field application .................................................................................................................... 4

2) FCC conformity ..................................................................................................................... 5

3) Utilisation du document ......................................................................................................... 6

4) Signs and safety symbols ....................................................................................................... 6

5) Storage and transport ............................................................................................................ 7

6) Packaging ............................................................................................................................. 7

7) Warranty .............................................................................................................................. 7

II. Environment and safety procedures ........................................................................................ 8

1) Use of the equipment ............................................................................................................ 8

2) User obligations .................................................................................................................... 8

3) Risk prevention ..................................................................................................................... 8

4) Identification and localization of the identification plate ........................................................... 9

5) Disposal and conformity ....................................................................................................... 10

III. Technical characteristics and functions ................................................................................. 11

1) Technical characteristics ...................................................................................................... 11

2) Main functions ..................................................................................................................... 12

3) Parameter and scale of measurements ................................................................................. 12

IV. Installation and wiring ......................................................................................................... 13

1) Installation conditions .......................................................................................................... 13

2) Installation of the wall-mounted controllers........................................................................... 13

3) Opening/Closing the transparent door ................................................................................. 14

4) Opening/Closing connection cover ........................................................................................ 14

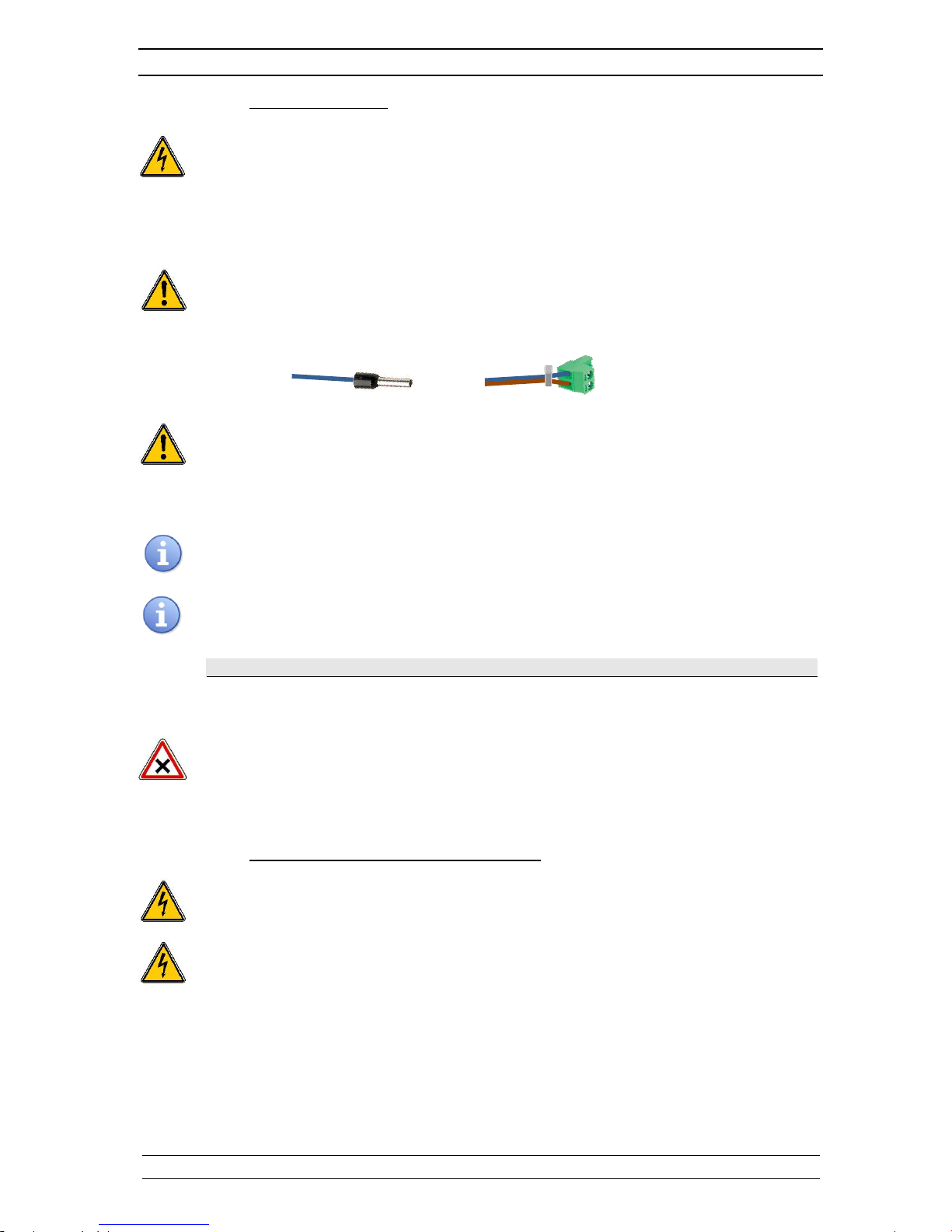

5) Electrical connections .......................................................................................................... 15

6) Changing internal fuses of P1 and P2 outputs ....................................................................... 15

7) Connecting primary power supply ......................................................................................... 16

8) Connecting the self-powered relay P1 ................................................................................... 17

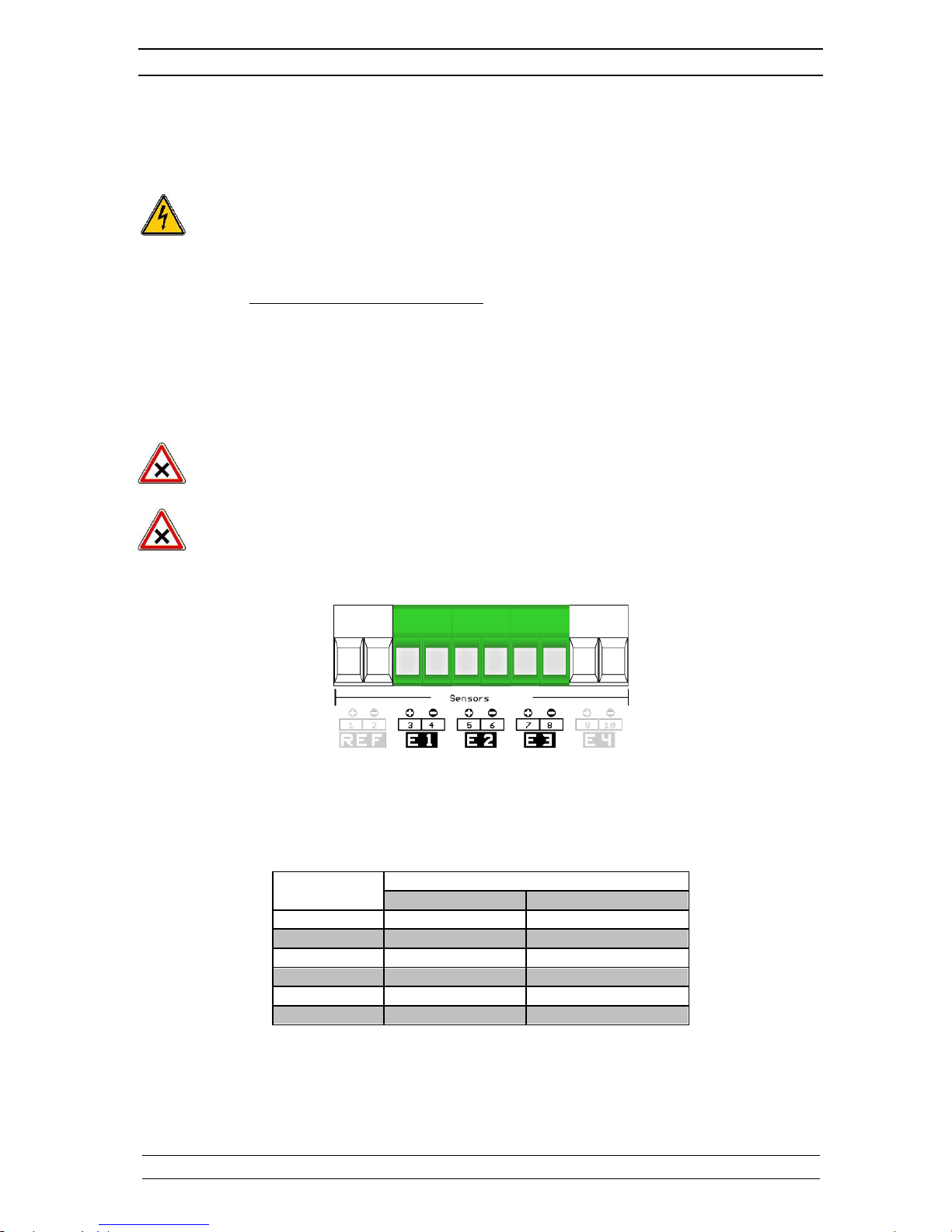

9) Connecting the measurement inputs ..................................................................................... 18

10) Connecting the voltage reference REF .............................................................................. 20

11) Wiring the external control entry (E4) ............................................................................... 20

12) Connecting the RS485 communication port ....................................................................... 21

V. General use ........................................................................................................................ 23

1) Measurements come from gravity return line ........................................................................ 23

2) Measurements come from recirculating line .......................................................................... 23

VI. Commissioning .................................................................................................................... 25

VII. Programming the controller .................................................................................................. 25

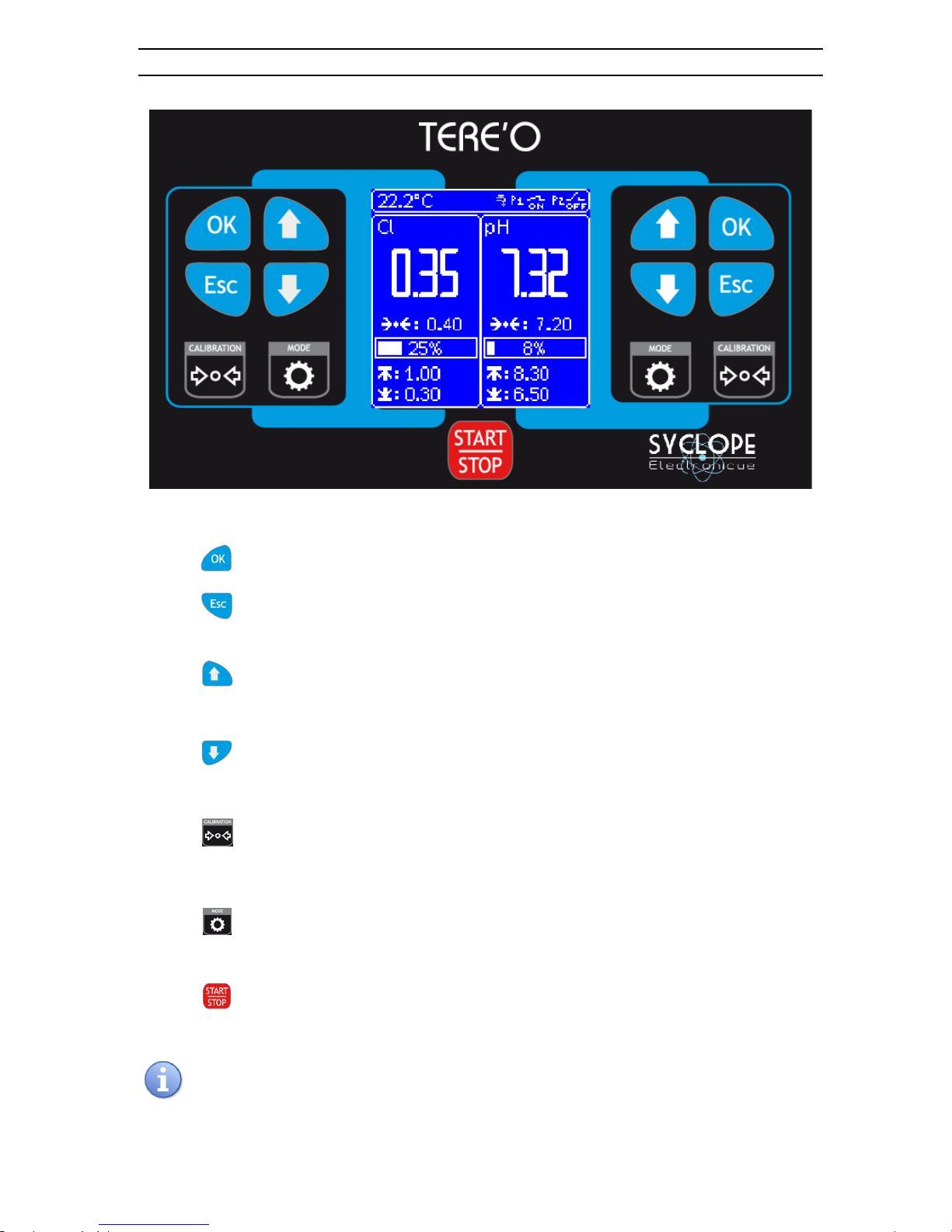

1) Keypad and LCD display ...................................................................................................... 25

2) « Factory » setting values .................................................................................................... 27

3) Principle of programing ........................................................................................................ 27

4) Polarisation of sensor .......................................................................................................... 34

5) Calibration of the sensors .................................................................................................... 34

VIII. Entretien / Maintenance ....................................................................................................... 36

General Page 4/40

Installation, commissioning and operating instructions SYCLOPE TERE’O

®

I. General

1) Field application

The analyser/controller of the SYCLOPE TERE’O® range you have just purchased is an electronic
swimming-pool water management device. It has been carefully developed and manufactured to ensure
your greatest pleasure and peace of mind.

Its remarkable capacity for adapting to different conditions and sizes of private or public swimming
pools means it can be installed in the most difficult of environments where control of water treatment
and swimming-pool water regulation processes are decisive.

The SYCLOPE TERE’O® range are equipped with one temperature entry and two specific electronic
card adaptors for pH, ORP or chlorine/bromine for measurements using specific sensors for treating
swimming-pool water and also include regulations processes with cyclic commands transmitted by
means of two relays to control pH and chlorine levels.

The simplicity of operation of the SYCLOPE TERE’O®, the user friendliness and the remarkable
technical aspects of these devices, will ensure you benefit from their many options, guaranteeing you
full control and supervision of the quality of the water in your swimming pool.

The following instructions contain all the information required for the installation, use and maintenance
of your new equipment.

 Packaging
 Installation
 Technical specifications
 Commissioning instructions
 Safety tips

If you would like to receive further information or if you encounter any difficulties not described in this
manual, please contact your usual retailer or else directly contact the sales department of SYCLOPE
Electronique in France, either at the agency or at the office for your region or country, or the
technical/quality departments of our establishments. We will do everything in our power to help you
and ensure you benefit from our advice and know-how in the field of measurement and treatment of
swimming-pool water.

Contact : [e-mail]

General Page 5/40

Installation, commissioning and operating instructions SYCLOPE TERE’O

®

2) FCC conformity

The SYCLOPE TERE’O® controller complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference (2) this device must accept
any interference received, including interference that may cause undesired
operation FCC Regulations state that unauthorized changes or modifications to
this equipment may void the user’s authority to operate it.

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However there is no guarantee that interference
will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try and correct the
interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect this equipment into an outlet on a circuit different from that to which the receiver is

connected.

 Consult the dealer or an experienced radio/TV technician for help.

Changes and modifications not expressly approved by the manufacturer could void the user’s authority
to operate this equipment.

Remark :

To ensure compliance with the FCC regulations on electromagnetic interference for a class B
device, use cables properly shielded and connected to the ground as recommended in this
manual. The use of a cable that is not properly shielded or earthed for risk of violating the
FCC rules.

General Page 6/40

Installation, commissioning and operating instructions SYCLOPE TERE’O

®

3) Utilisation du document

Please read this entire document before starting to install, adjust or commission your device, in order to
ensure the safety of swimmers, users and equipment.

The information provided in this document must be strictly observed. SYCLOPE Electronique S.A.S.
declines all responsibility in cases where failure to comply with the instructions of this documents is
observed.

The following symbols and pictograms will be used to facilitate reading and understanding of these
instructions.

● Information

► Action to be taken
 Item of a list or catalogue

4) Signs and safety symbols

Identify a continuous voltage or a continuous current

Identify an alternative voltage or an alternative current

Protective ground

Functional ground

Risk of injury or accident. Identify a warning concerning a potentially dangerous risk.
Documentation must be consulted by the user with each time the symbol is notified. If the
instructions are not respected, that presents a risk of death, physical injuries or property
damages.

Electric hazard. Identify a warning statement relative to a mortal electric danger. If the
instructions are not strictly respected, that implies an inevitable risk of physical injuries or
death.

Risk of incorrect operation or damage for the device.

Comment or particular information.

Recyclable element

General Page 7/40

Installation, commissioning and operating instructions SYCLOPE TERE’O

®

5) Storage and transport

It is important to store and transport your SYCLOPE TERE’O® in its original packaging in
order to minimize risk of damage.
Furthermore, the package must be stored in an environment that is protected against humidity

and exposure to chemical products.

Environmental conditions for transport and storage:

Temperature : -10 °C to 70 °C
Air humidity: Maximum of 90% with no condensation

6) Packaging

The controller is delivered without electrical power cable.

The pre-holes of the box are drilled and equipped with according electrical glands in compliance
with IP65 level protection. Cables must be adapted to the electrical glands to respect the level of
protection.
Grounded cables for connecting pH and ORP (Redox) sensors are not provided.

Content of the packaging :

 One analyzer/controller SYCLOPE TERE’O

®

 Installation and starting instruction notice
 Programming notice
 Communication notice (Option)

7) Warranty

The warranty is provided according to the terms of our general conditions of sale and delivery as
long as the following conditions are met:

 Use of the equipment according to the instructions of this notice
 No modifications of the equipment which may modify its behavior and no incorrect

manipulation

 Respect for the electrical safety conditions

Consumable material is no longer covered by the warranty when in use.

Environment and safety instructions Page 8/40

Installation, commissioning and operating instructions SYCLOPE TERE’O

®

II. Environment and safety instructions

Please :

 Read this manual carefully before unpacking, installing or commissioning this equipment
 Take into account all the hazards and recommended precautionary measures

Failure to respect these procedures can result in serious injury to users or damage the device.

1) Use of the equipment

The SYCLOPE TERE’O® system has been designed to measure and regulate pH, Redox (ORP), chlorine
(or bromine) by means of sensors and controls of suitable actuators in the context of the possible uses
described in this manual.

All other uses are considered to be non-conforming and must therefore be forbidden. SYCLOPE
Electronique S.A.S. will not be responsible in any case for any damages that result from such
uses.

Any use of sensors or interfaces not-in conformity to the features defined in this handbook
must also be proscribed.

2) User obligations

The user undertakes not to allow its employees to work with the SYCLOPE TERE’O® equipment
described in this manual unless they:

 Are aware of the fundamental instructions relating to work safety and prevention of accidents
 Are trained in the use of the device and its environment
 Have read and understood these instructions, warnings and manipulation rules

3) Risk prevention

The installation and connection of the SYCLOPE TERE’O® equipment should only be
performed by personnel specialized and qualified for this task.
The installation must comply with current safety standards and instructions!

Before switching the controller on or manipulating the relay outputs, remember always to cut
off the primary power supply!
Never open the controller when it is powered on!
Maintenance operations and repairs should only be performed by trained, specialized
personnel!

Take care when choosing the location for installing the equipment according to the
environment!
The SYCLOPE TERE’O® electronic box should not be installed in a hazardous environment
and should be protected against splashing with water or chemical products. It should be
installed in a dry, well-ventilated location, isolated from corrosive vapours.

Environment and safety instructions Page 9/40

Installation, commissioning and operating instructions SYCLOPE TERE’O

®

Make sure that the chemical sensors used with this device correspond well to the chemicals
used. Refer to the individual technical note of each sensor. Chemistry of water is very
complex, in case of doubt, contact immediately our engineering service or your approved
installer/reseller.

Chemical sensors are sensitive elements using consumable parts. They must be supervised,
maintained and calibrated regularly using specific calibrator systems not-provided with this
equipment. In the event of defect, a surplus possible hazard of chemical injections can be
noted. In the doubt, a service contract must be taken near your reseller/installer or failing this

near our engineering services. Contact your approved installer/reseller or our business service

for more information.

4) Identification and localization of the identification plate

Label of the manufacturer

Particular risks. Read the notice

Model of the product

Product which can be recycled

Reference of the product

Limitation of dangerous substances

Range of power supply

EC compliance

Values of the maximum current

Country of the manufacturer

Class of protection

Manufacturer square code

Identification of the manufacturer

Conformity with the FCC part 15 Class B

Serial number

Identification plate

1

2

3

4

5

6

7

8 1 2

3 4 5

6

8

11

12

7

14

13

TERE’O

Ref: TER 0000

90 - 240VAC 50/60Hz

www.syclope.fr Made in France

10,2 - 0,16A

IP65

S/N: 151909989

This device compiles with the Part.15 of the FCC rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation

9

10

15 9 10

11

12

13

14

15

Environment and safety instructions Page 10/40

Installation, commissioning and operating instructions SYCLOPE TERE’O

®

5) Disposal and conformity

The recyclable packaging of the SYCLOPE TERE’O® equipment must be disposed of according to
current regulations.

Elements such as paper, cardboard, plastic or any other recyclable elements must be taken to
a suitable sorting center.

According to European directive 2002/96/EC, this symbol means that as of 12 August 2005
electrical appliances cannot be thrown out together with household or industrial waste.
According to current regulations, consumers within the European Union are required, as of
this date, to return their used devices to the manufacturer, who will take care of disposing
them at no extra expense.

According to European directive 2002/95/EC, this symbol means that the SYCLOPE TERE’O®
controller is designed in compliance with the restrictions on hazardous substances

According to low-voltage directive (2006/95/EC) and the electromagnetic compatibility
directive (2004/108/EC), this symbol means that the device has been designed in compliance
with the previously cited directives.

In accordance with part 15 of the FCC regulation (Federal communications commission), this
symbol indicates that the device was tested and approved under the respect and the
conditions of the limits for a Class B digital device.

Technical characteristics Page 11/40

III. Technical characteristics and functions

1) Technical characteristics

General characteristics

Type

Specification(s)

Marker(s)

Consumption

0,3 to 0,16A maximum (without external loads)

-

Power supply required

Between 90V and 240V 50/60Hz

-

Electric protection

Electronic fuse 160mA. Auto-rearmed when power off

F4

Operating temperature (ºC)

-5 °C to 45 °C (23 °F to 113 °F)

-

Storage temperature (ºC)

-10 °C to 70 °C (10 °F to 158 °F)

-

Humidity

Max. 90% without condensation

-

Case material

ABS or Polycarbonate (US and Canada)

-

Case dimensions

Length : 213 mm (8.4 inches)
Width : 185 mm (7.3 inches)
Height : 118 mm (4.6 inches)

-

Weight of the case

1,1 kg

-

Protection rating

IP 65

-

Display

Screen LCD 128x128 with back light (White/blue)

-

Entries

Measurement inputs

4x 0/4…20mA auto-powered entries (12V) without
isolation…

within :
2x programmable modules internally soldered.

 4…20mA isolated module powered by 24VDC max
 pH isolated module Range : -400mV to +400mV
 Redox isolated module. Range : 0 to 1000mV

E1 to E4

Powered outputs

Powered relays

2x Powered relay outputs

- Max. 5A / 250VAC

- Inrush current Max. 15A <1ms

P1 and P2

REF

12VDC power output for supplying converters or external
flow switch sensors.

REF

Communication port

RS485

1 RS485 communication port with compatible ModBus© RTU
protocol.

Protection of powered outputs

Internal fuses

Glass fuse 5x20mm 5A 250V fast

FUSE1

Glass fuse 5x20mm 5A 250V fast

FUSE2

Main functions Page 12/40

Installation, commissioning and operating instructions SYCLOPE TERE’O

®

2) Main functions

Main functions

Function

Specification(s)

Marker(s)

Mode of control

Proportional

Control from 0 to 100%
Cycle time : 240s

Actuator type

Powered relays 90…240VAC 5A

PWM command

Direction

Up or Down

Alarms

Low and high alarms

Expressed in real measurement values.
Threshold controls up and down.

Closed-loop control

Flow switch control.

Closed-loop control of injections with an
external contact (filtering, for example)
or with control of water circulation.

Configuration

Std configuration

Automatic selection of parameters

Maintenance

Maintenance program

Internal test program procedures

3) Parameter and scale of measurements

Measures and controls

Parameters

Scale of measurement

Precision

T°C

-5 to 45°C

± 0,5 %

pH

0 to 14 pH

± 0,5 %

Redox (ORP)

0 to 1000 mV

± 0,5 %

Free chlorine

0 to 2 ppm

± 0,5 %

0 to 10 ppm

± 0,5 %

Bromine

0 to 2 ppm

± 0,5 %

0 to 10 ppm

± 0,5 %
