SXblue Premier User Manual

Download

User Manual

SXblue Premier GNSS Network RTK Receiver

Directory

Table des matières

Chapter I Brief Introduction ....................................................................................... 4

1.1.Introduction ........................................................................................................................................................................ 4

1.2 Main Features ....................................................................................................................................................................4

1.2.1. Smart platform ..................................................................................................................................................... 4

1.2.2. WiFi performance ............................................................................................................................................... 4

1.2.3. Intelligent storage ability .................................................................................................................................. 5

1.2.4. Full satellite constellation support ................................................................................................................ 5

1.2.5. Outstanding protection capability .................................................................................................................5

Chapter II Hardware Component ............................................................................. 6

2.1. Main Structure ..................................................................................................................................................................6

2.2. Front Control Panel ........................................................................................................................................................7

2.3. Bottom Component ....................................................................................................................................................... 8

2.4. User Interface ................................................................................................................................................................... 8

Chapter III Hardware Operation ............................................................................... 9

3.1. Switch ON/OFF................................................................................................................................................................9

3.1.1. Switch ON ............................................................................................................................................................. 9

3.1.2. Switch OFF ............................................................................................................................................................9

3.2. Reset ................................................................................................................................................................................... 10

3.3. Self-check .......................................................................................................................................................................... 10

3.4. Factory Reset ................................................................................................................................................................... 11

3.5. Charging.............................................................................................................................................................................12

Chapter IV Internal Web UI Operation ................................................................... 13

4.1. Overview ............................................................................................................................................................................ 13

4.1.1. WIFI hotspot connection mode ..................................................................................................................... 13

4.1.2. USB connection mode ...................................................................................................................................... 14

4.2. Web UI Main Interface .................................................................................................................................................. 18

4.2.1. Status ...................................................................................................................................................................... 20

4.2.2. Conﬁ guration ........................................................................................................................................................ 23

4.2.3. Satellite Information ........................................................................................................................................... 30

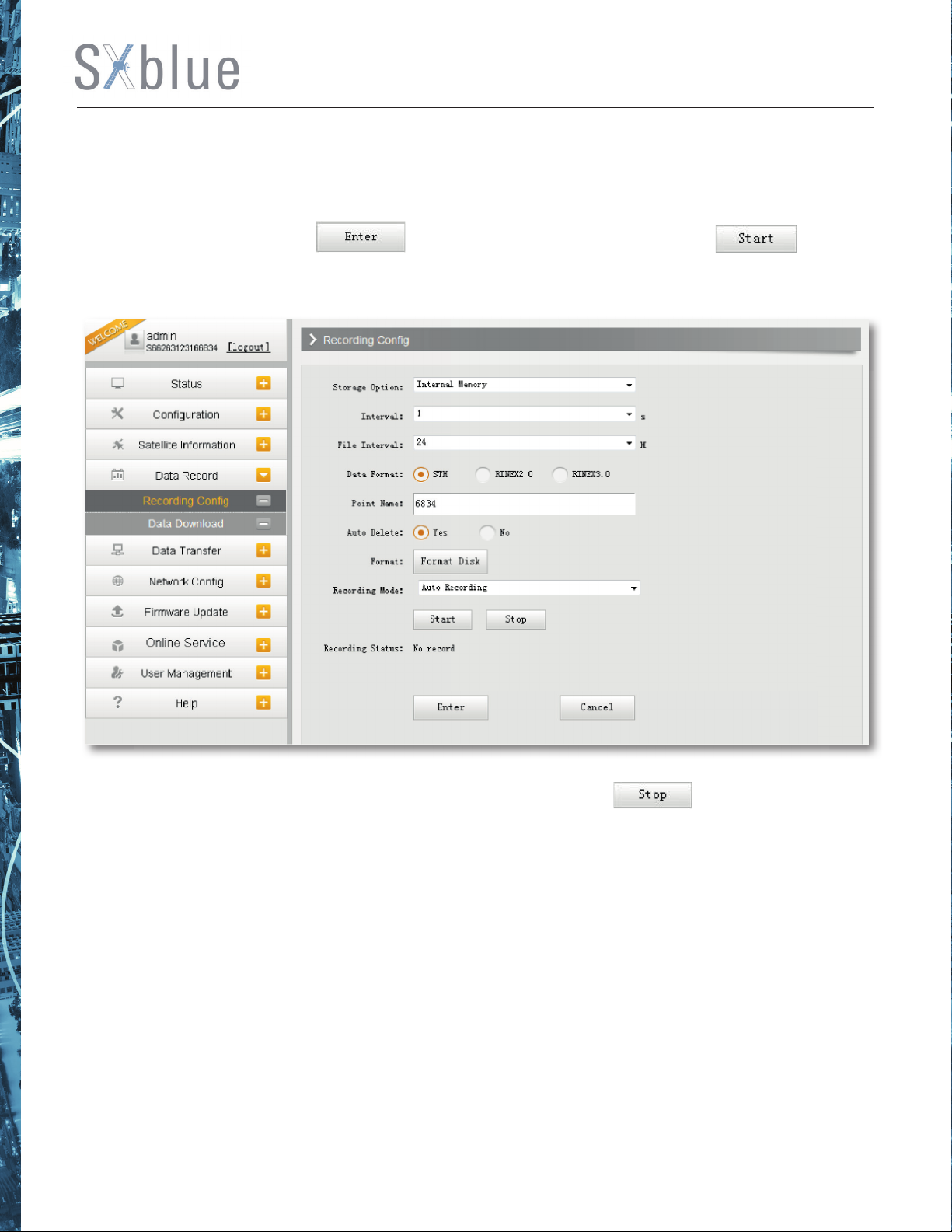

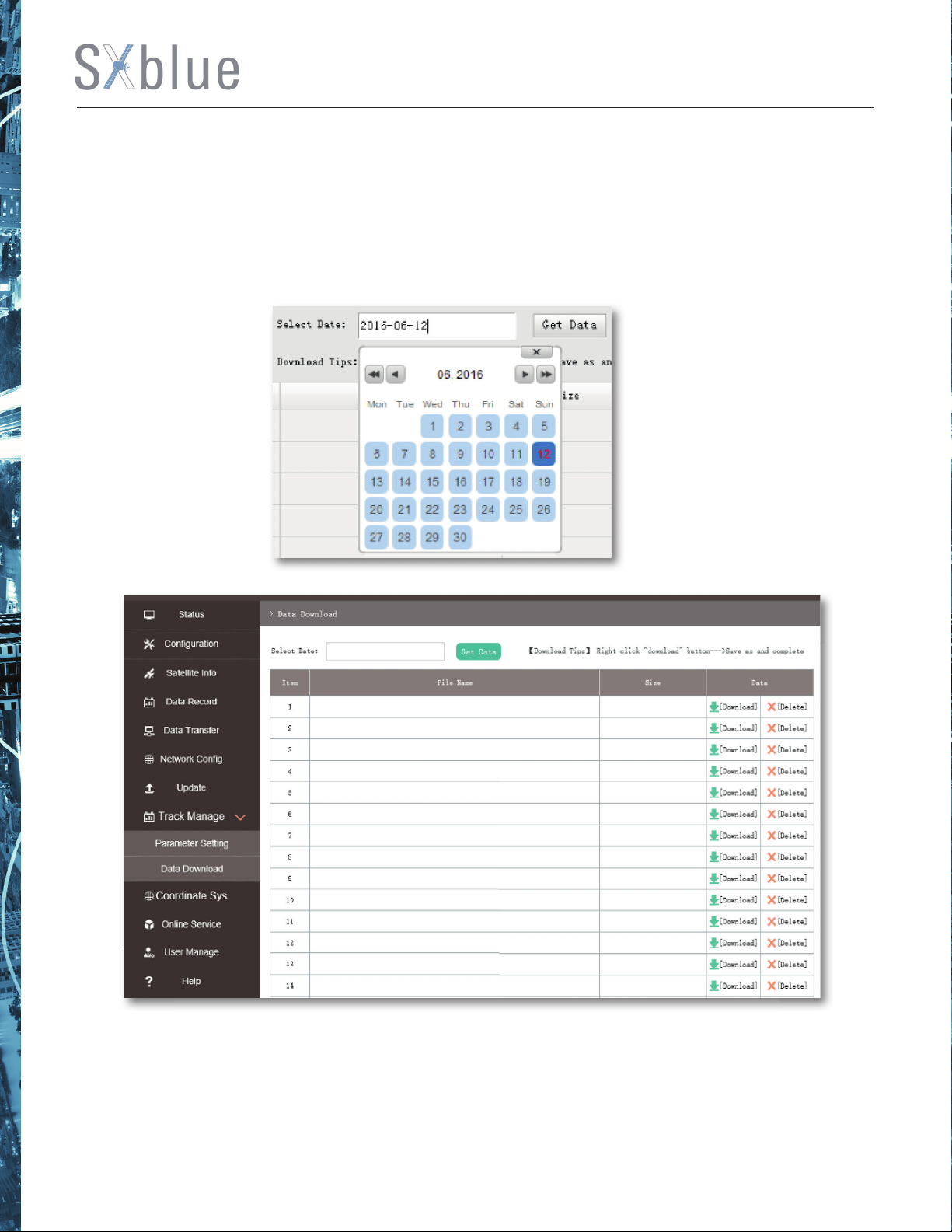

4.2.4. Data Record .......................................................................................................................................................... 32

SXblue Premier GNSS Network RTK Receiver

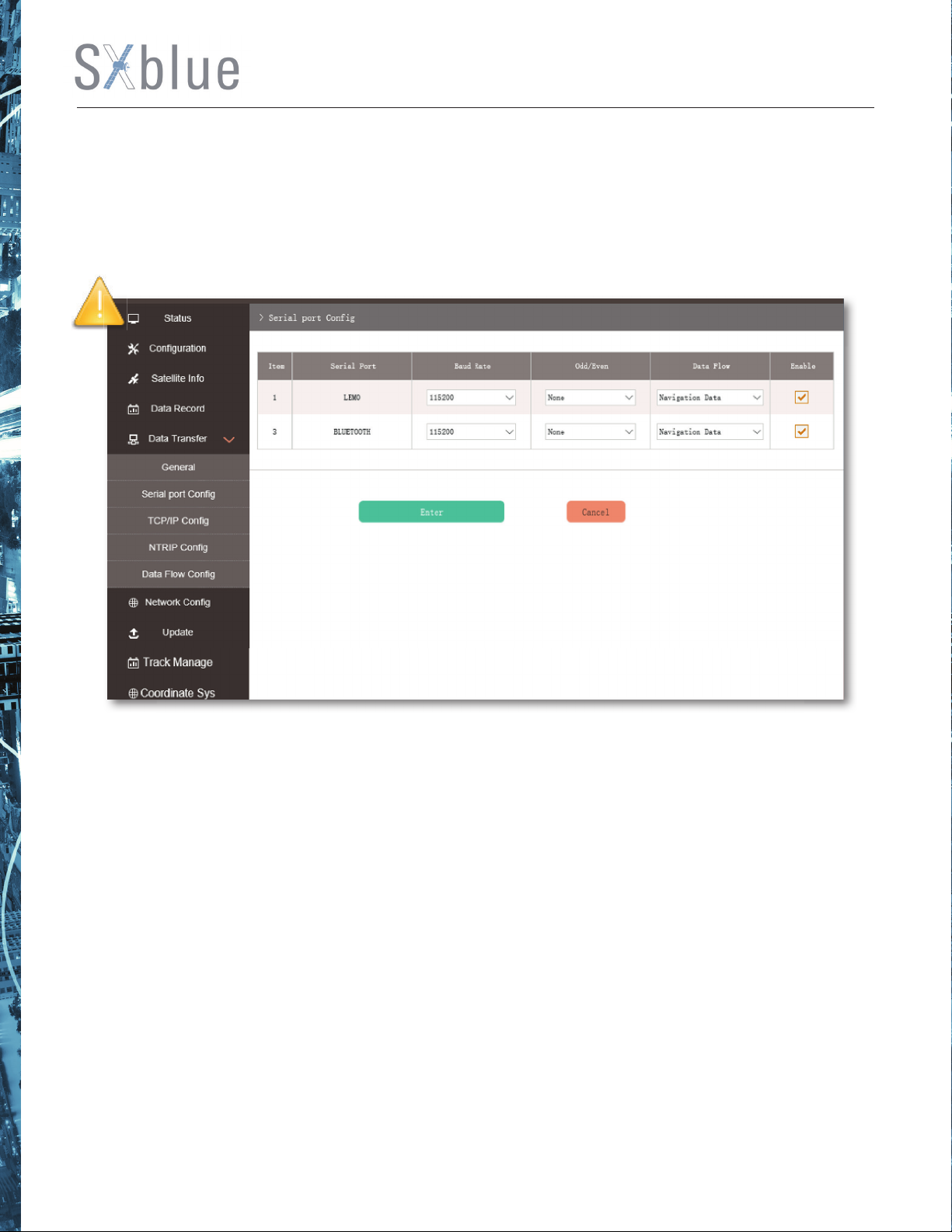

4.2.5. Data Transfer ........................................................................................................................................................ 35

4.2.6. Network Conﬁ g ................................................................................................................................................... 43

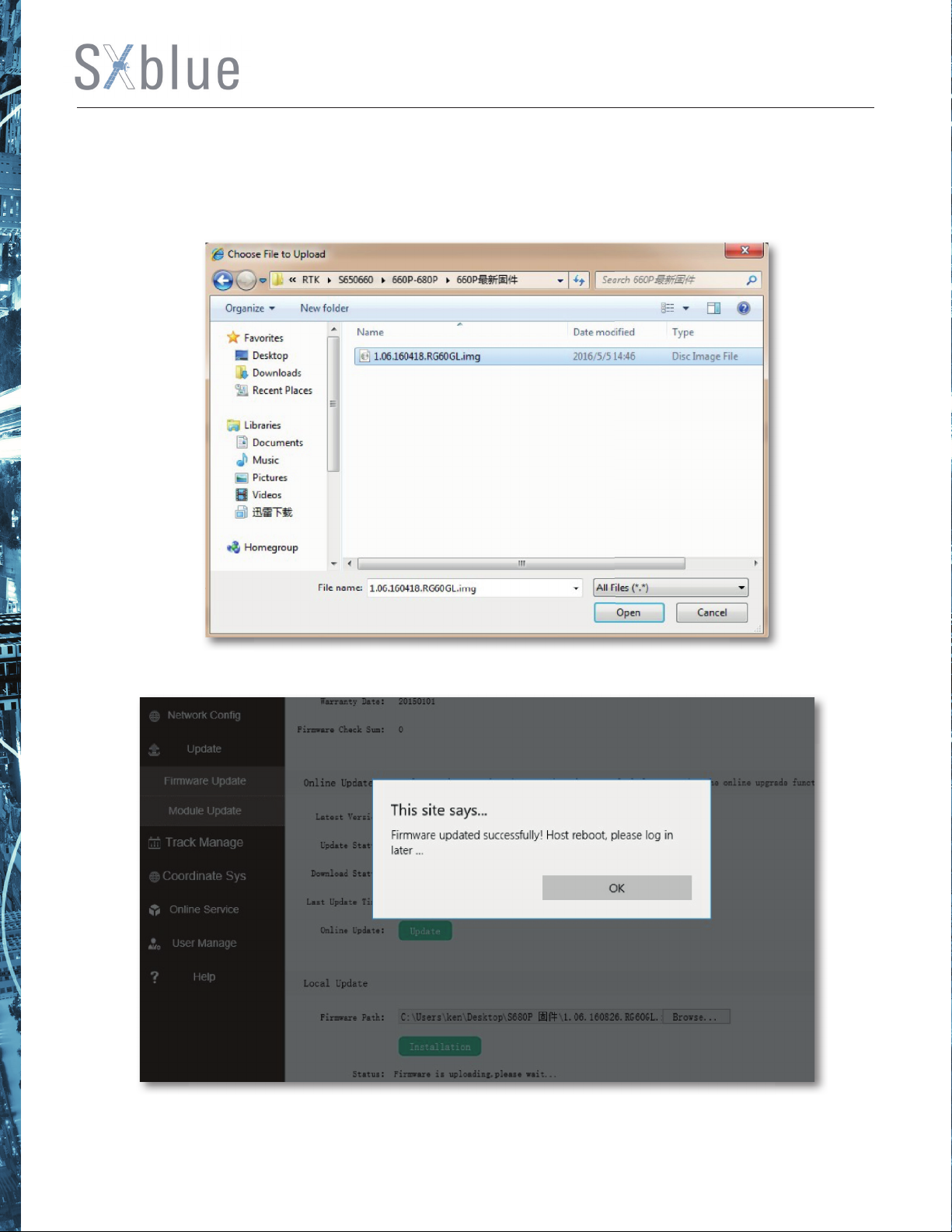

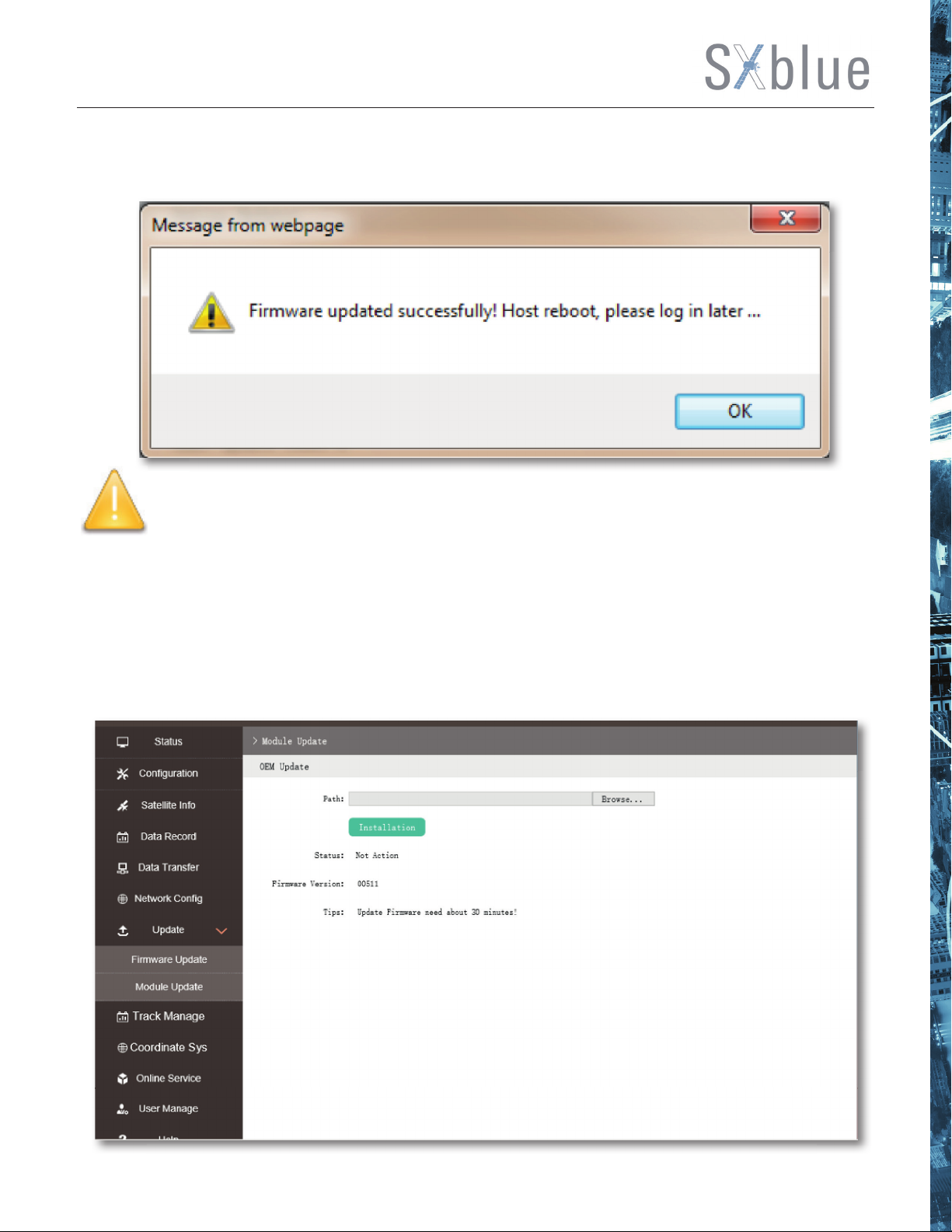

4.2.7. Firmware Update ................................................................................................................................................ 49

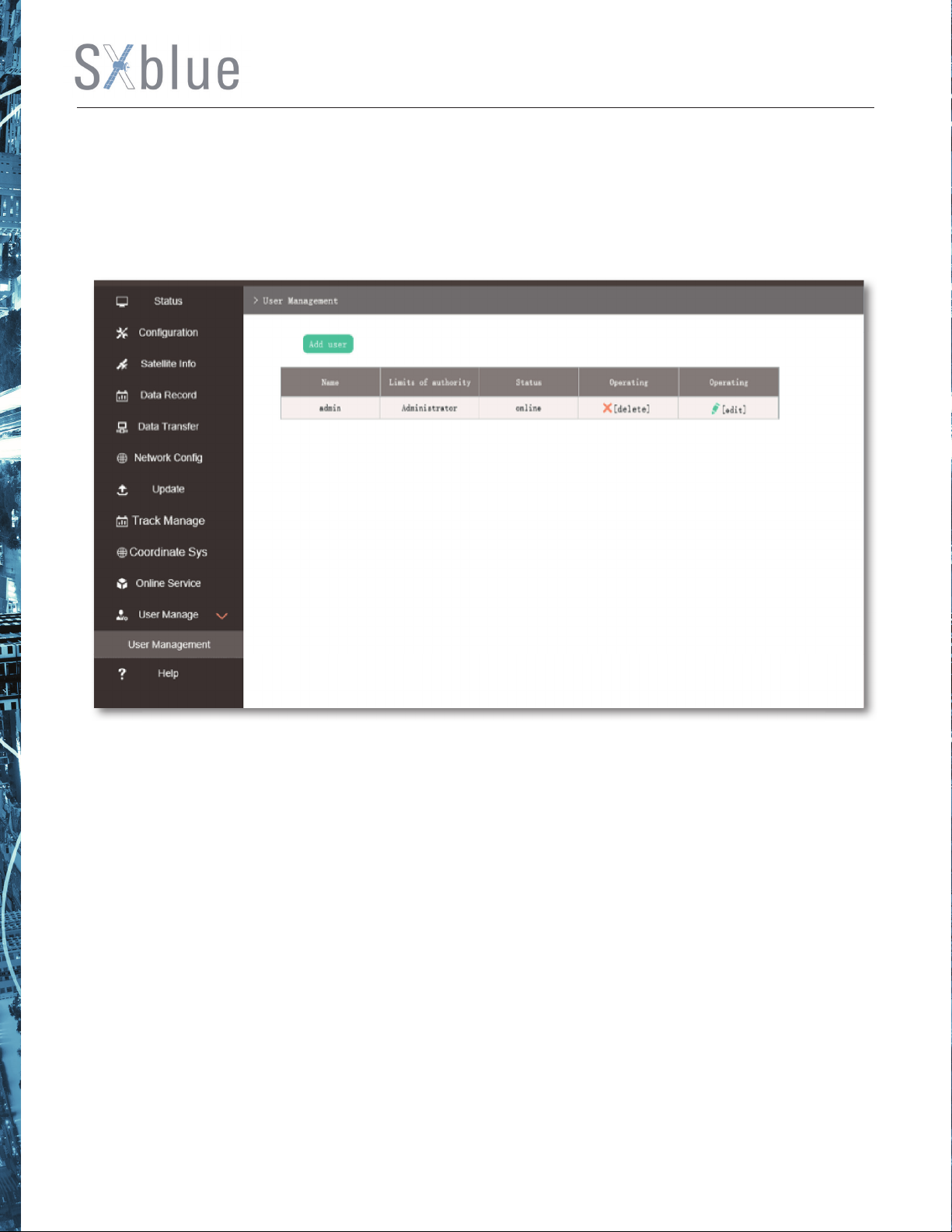

2.8. User Management .................................................................................................................................................. 52

4.2.9. Help..........................................................................................................................................................................53

Chapter V How to achieve the WIFI functions ..................................................... 54

5.1. WIFI Hotspot (AP) .......................................................................................................................................................... 54

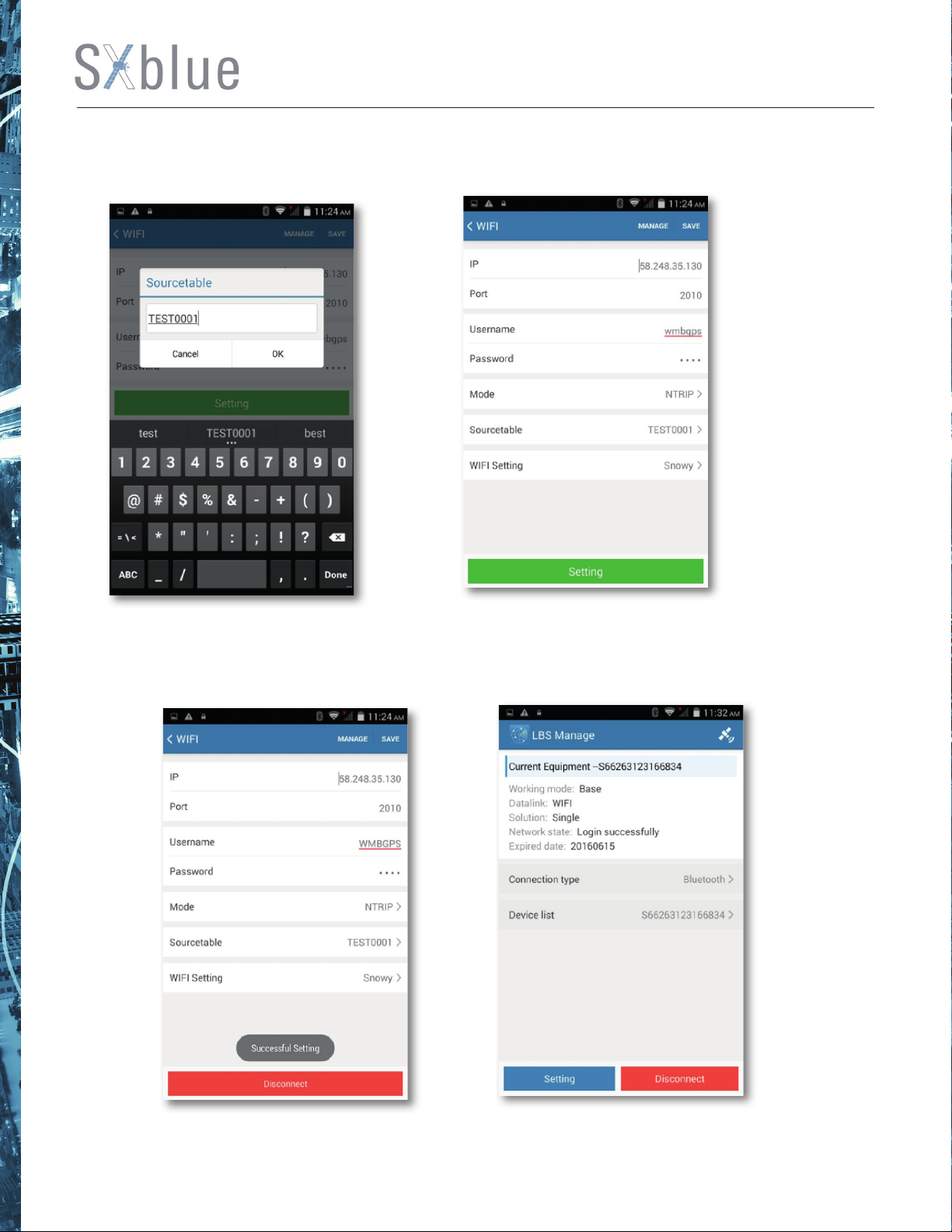

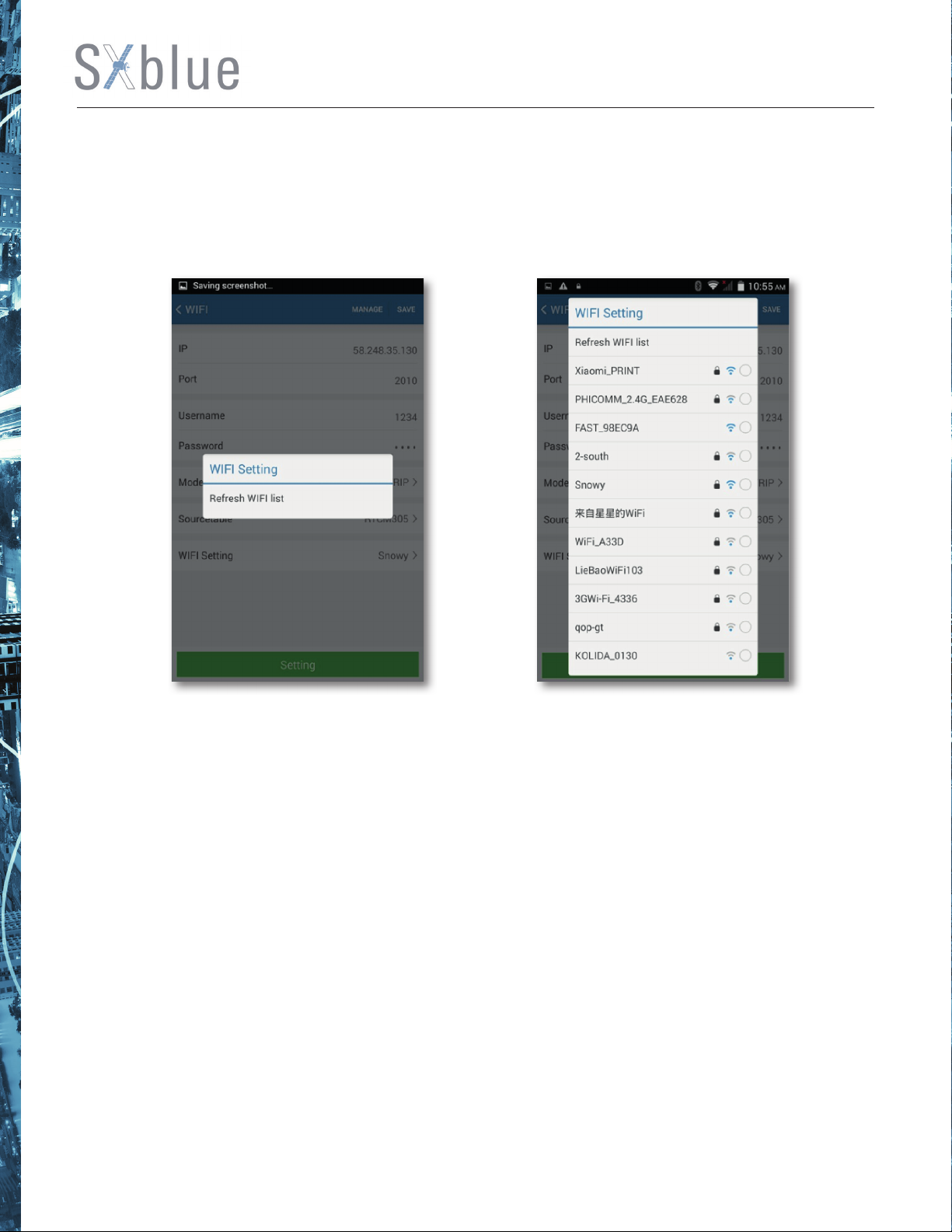

5.2. WIFI Client (Datalink) .................................................................................................................................................... 57

5.2.1. Conﬁ gure on Web UI ......................................................................................................................................... 57

5.2.2. Conﬁ gure on Controller Software .................................................................................................................67

Chapter VI RTK Measurement .................................................................................. 73

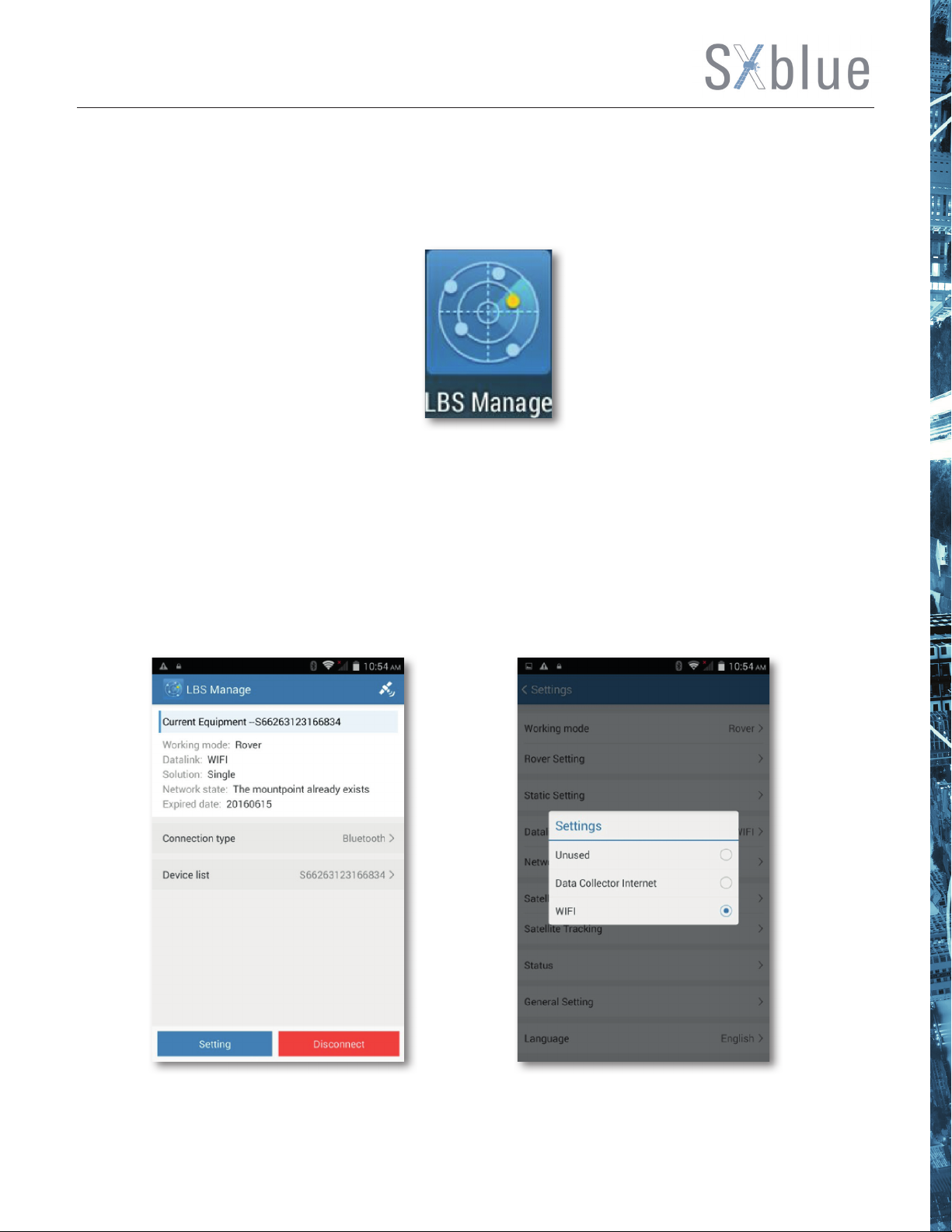

6.1. How to connect with GIStar for Android ................................................................................................................ 73

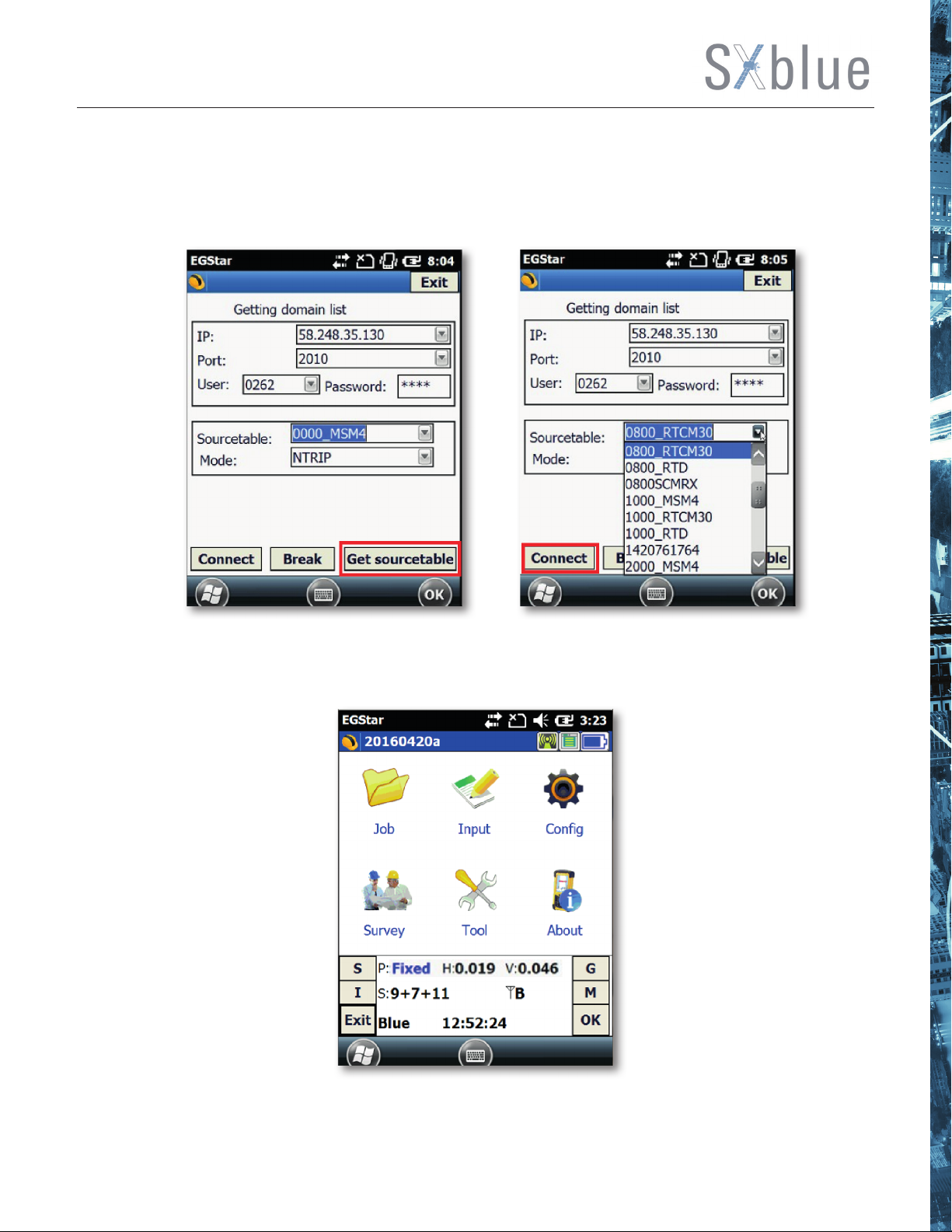

6.2. How to connect with EGSTAR ................................................................................................................................... 79

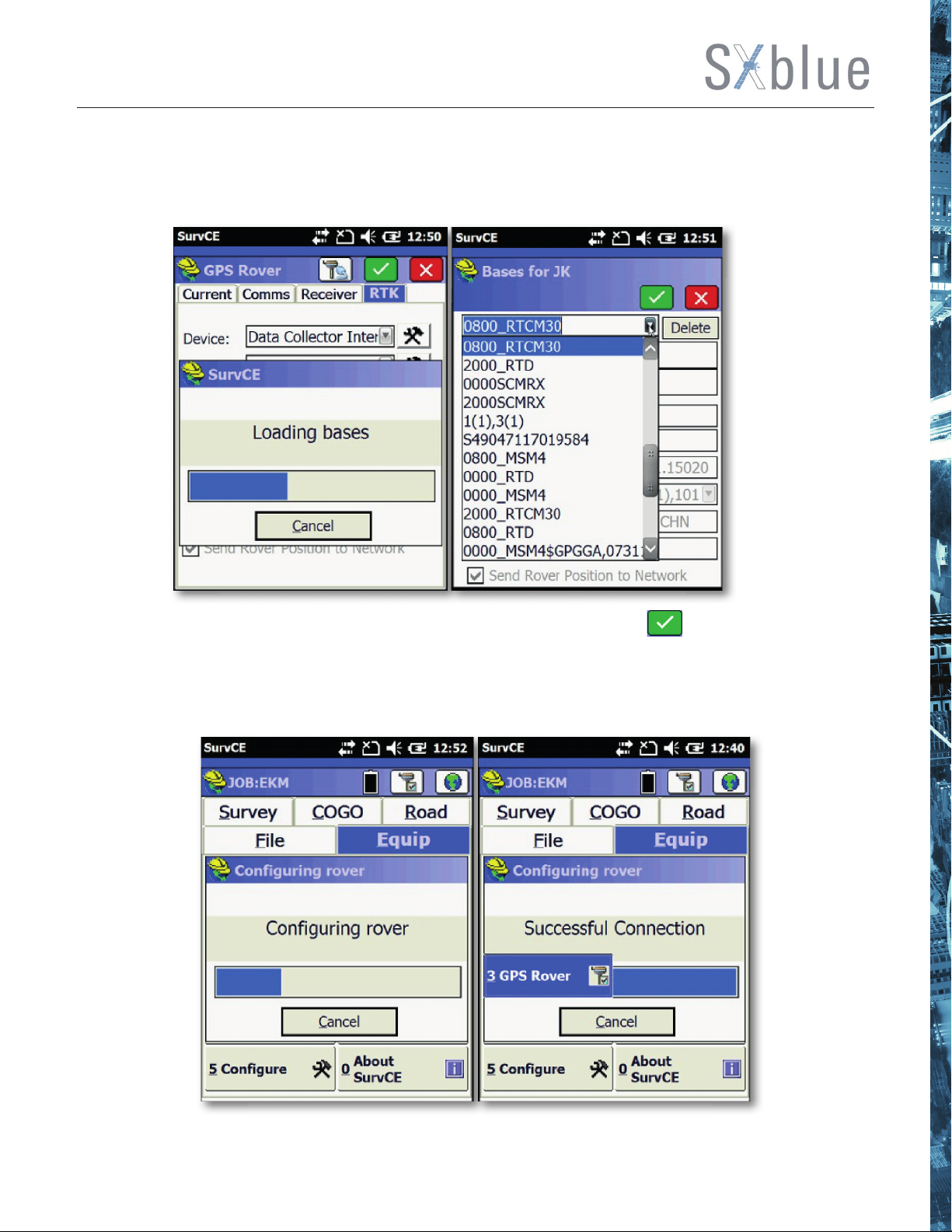

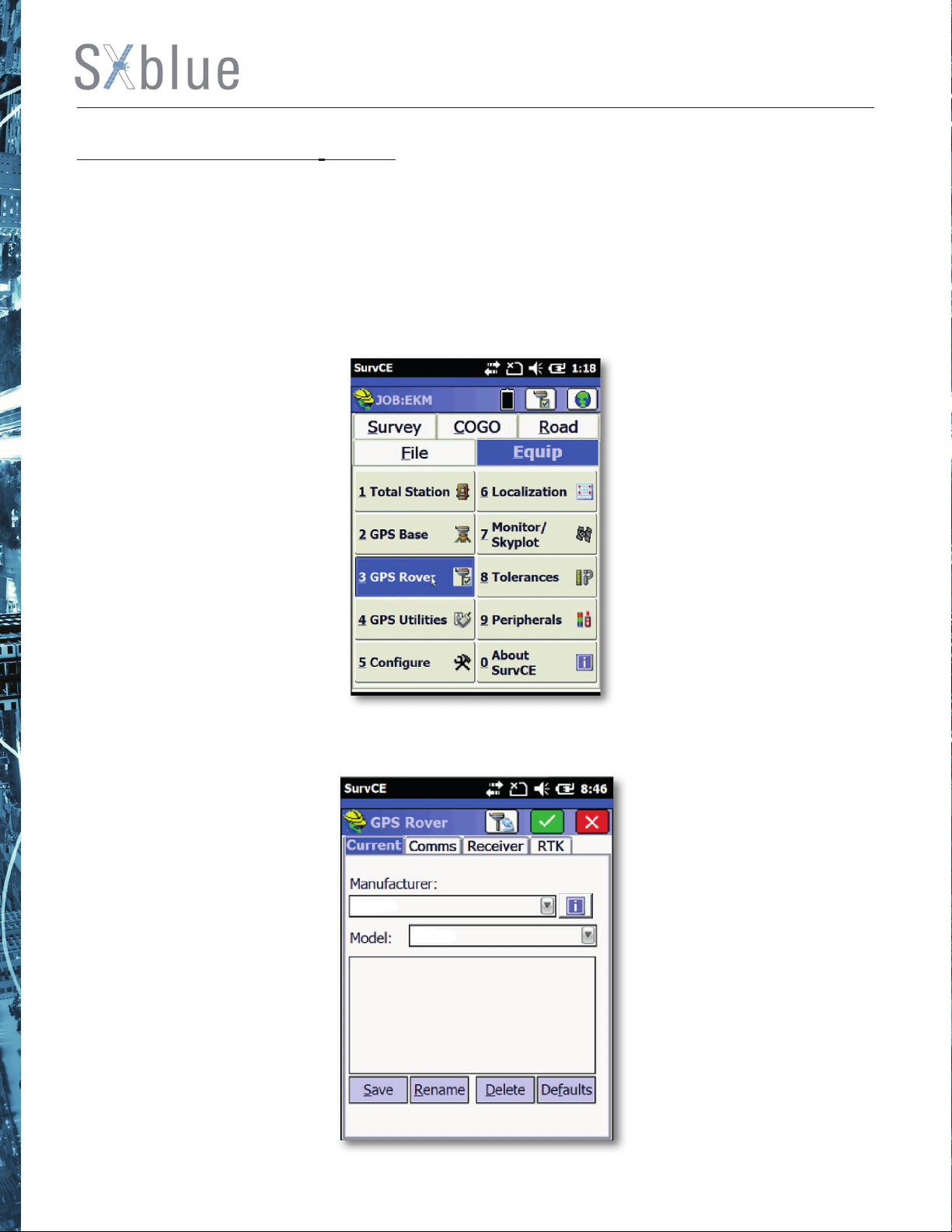

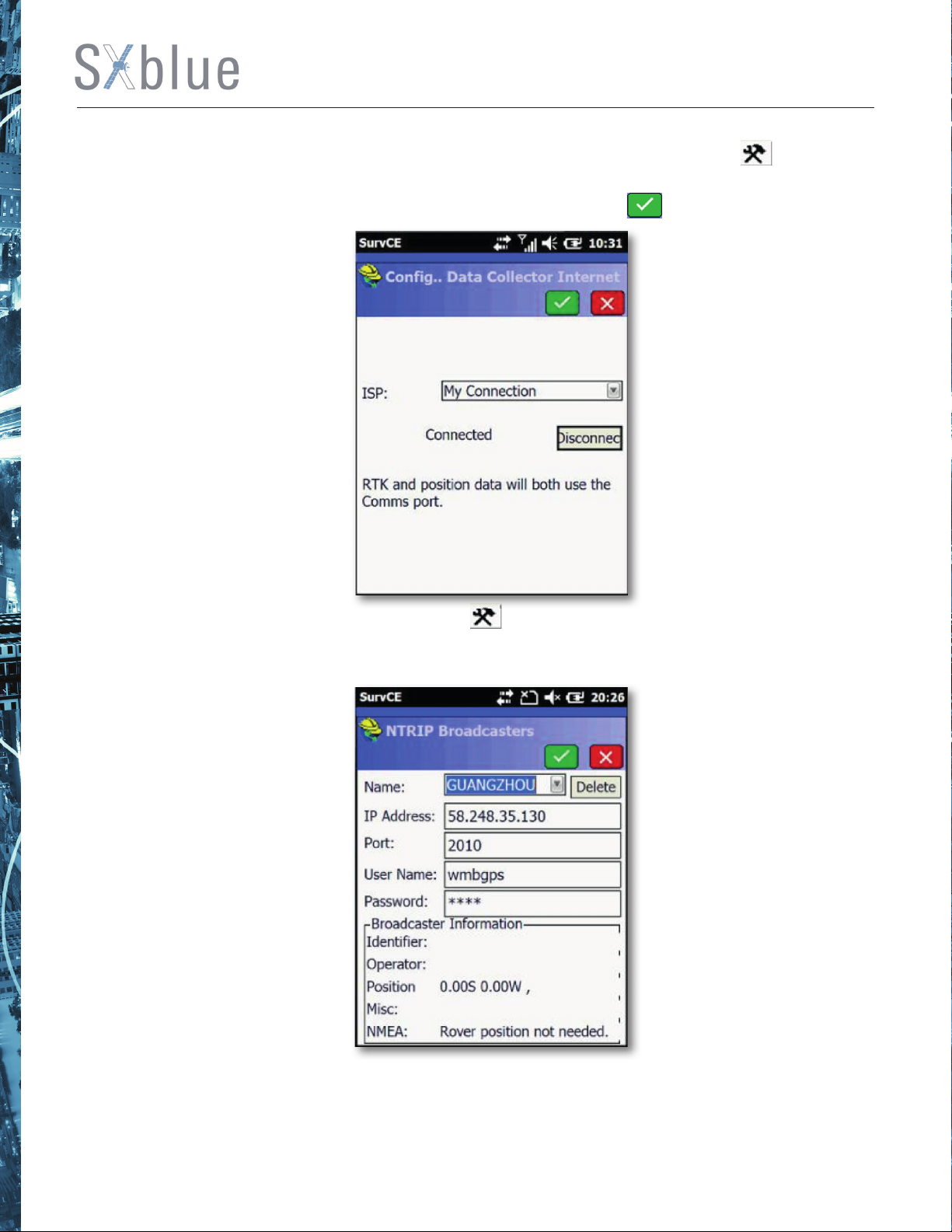

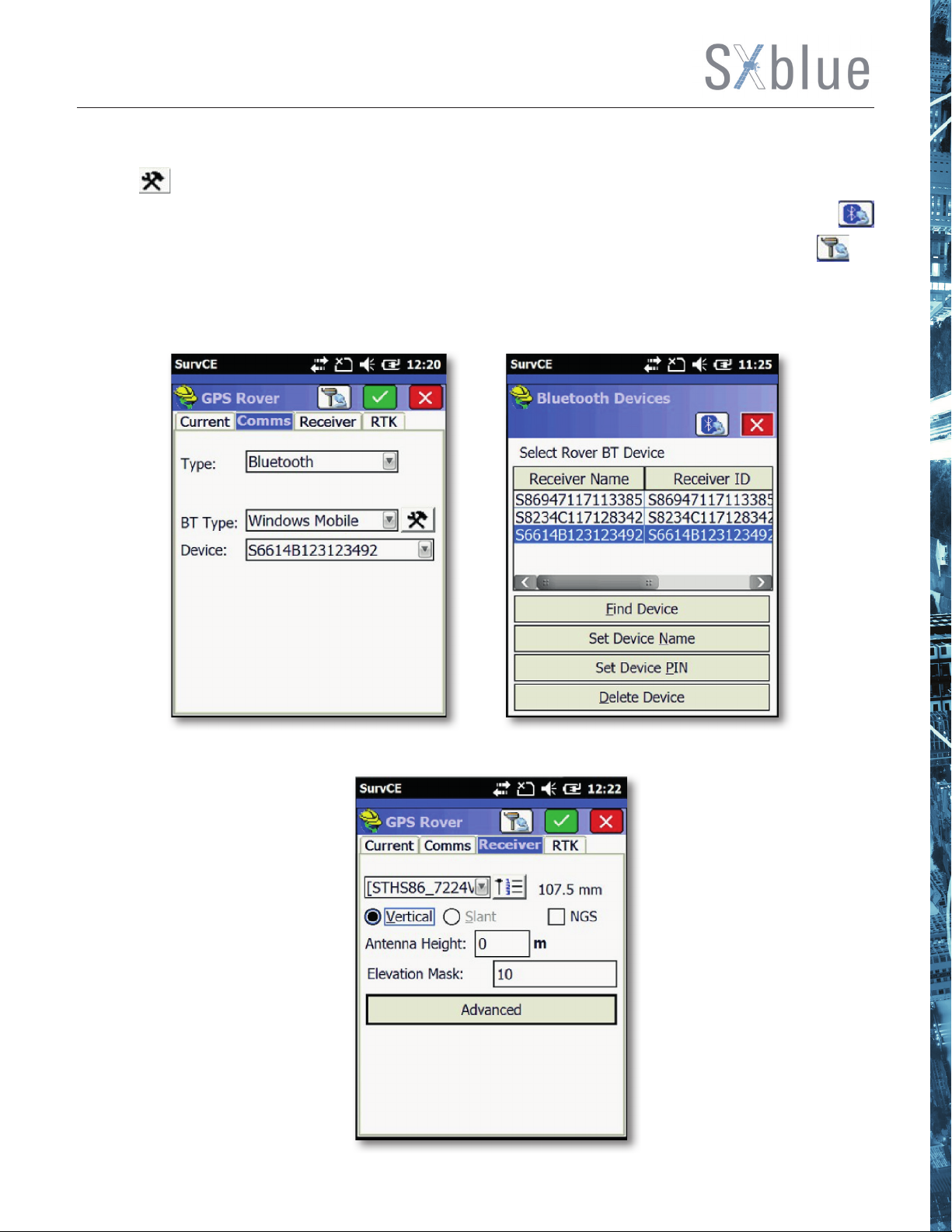

6.3. How to connect with SurvCE ..................................................................................................................................... 82

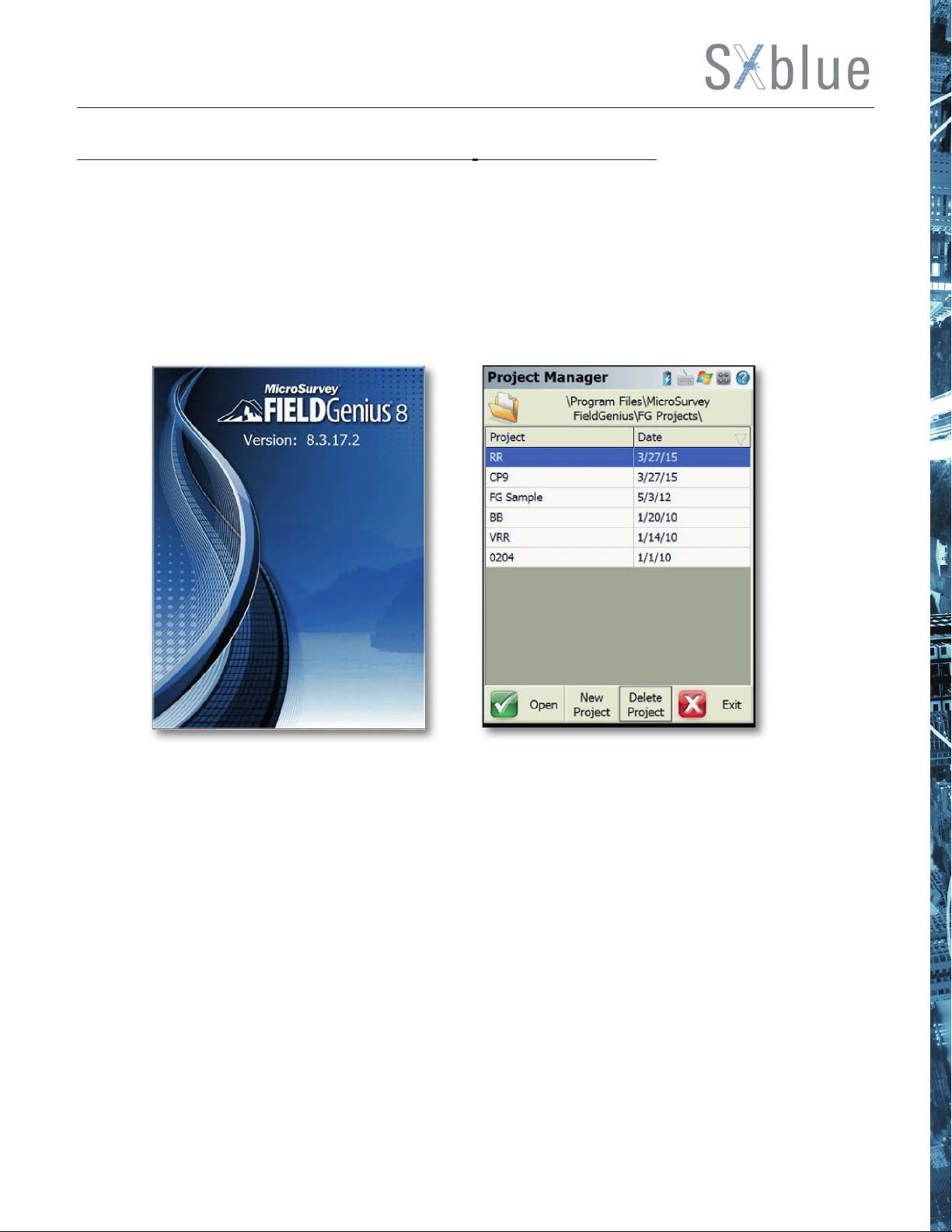

6.4. How to use FieldGenius to conﬁ gure SXBLUE PREMIER ................................................................................ 87

Chapter VII Static Measurement .............................................................................. 92

7.1. Antenna Height Measuring ......................................................................................................................................... 92

7.2. Field operation procedure ............................................................................................................................................ 94

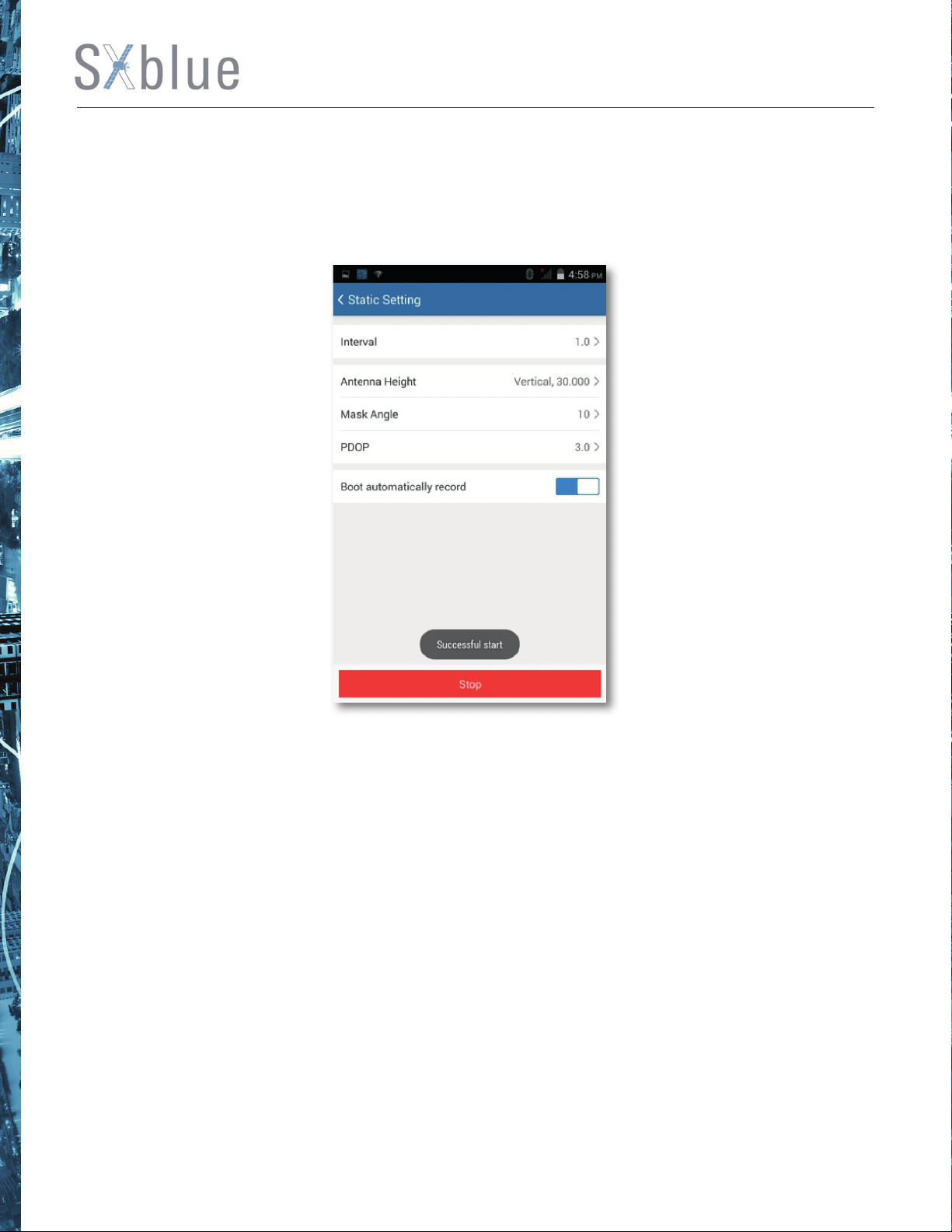

7.3. Mode Conﬁ guration ....................................................................................................................................................... 94

7.4. Data Download................................................................................................................................................................99

7.5. Data Processing .............................................................................................................................................................. 101

Chapter VIII Standard Conﬁ guration....................................................................... 104

Chapter IX Technical Speciﬁ cation .......................................................................... 105

SXblue Premier GNSS Network RTK Receiver

Chapter I Brief Introduction

1.1. Introduction

This manual takes SXBLUE new compact GNSS network RTK receiver –SXBLUE PREMIER for example, to explain what new features achieved on this compact and miniaturizing unit, and how to install, set up and uses the RTK system as well as the use of the accessories. We recommend that you read these instructions carefully before using the instrument.

This kind of receiver is the product we made a comprehensive upgraded for hardware and system on the basis of original model SXblue PREMIER, which according to long period time market research and user demand research, greatly improves the stability of product performance, as well as to the user experience.

1.2 Main Features

1.2.1 Smart platform

Embedded Linux operating system and SXBLUE intelligent cloud platform, SXBLUE PREMIER receiver is no more a simple and compact RTK receiver, now it is a complete inttelligent operation system with web UI management platform.

The smart internal web UI management platform allows users to monitor working status of receiver

and conﬁ gure the equipment with the help of WIFI connection or USB connection to PC.

1.2.2 WiFi performance

According to current trend of RTK surveying, WiFi is the brand-new and useful technology to RTK

measurement that makes effective use of GNSS receiver, which greatly improves the working

efﬁ ciency and the ﬂ exibility.

The WiFi of SXBLUE PREMIER is not only able to be a wiﬁ hotspot that allows users to connect it and

access to the web UI management of SXBLUE PREMIER, but also can work as datalink that makes

SXBLUE PREMIER have a quick connection to internet for corrections from CORS network.

SXblue Premier GNSS Network RTK Receiver

1.2.3. Intelligent storage ability

SXBLUE SXBLUE PREMIER is equipped with 8GB Solid State Disk that make sure enough storage

space for data collection, as well as to the stability of data recording speed.

With the smart storage technology, SXBLUE PREMIER is able to connect an external storage for data collection or downloading data to this external storage directly.

Base on the intelligent platform, SXBLUE PREMIER supports STH, Rinex2.x and Rinex3.x format data storage, and the sampling rate can be up to 20Hz.

The automatic circular storage performance can remove the primary data automatically once the memory is full, which makes sure instrument has enough space for next job.

1.2.4 Full satellite constellation support

Equipped with most advanced GNSS board, 220 channels and unmatched GNSS multi-constellation

tracking performance, SXBLUE PREMIER is able to track most signals from all kinds of running satellite constellations. And this compact device owns the ability of enable or disable constellation tracking .

1.2.5 Outstanding protection capability

This compact unit is built with magnesium alloy material to make sure it can work in extremely tough conditions like heavy rain, and the rubber ring can protect the instrument from dropping onto concrete.

SXblue Premier GNSS Network RTK Receiver

Chapter IIHardware Component

In this chapter, the appearance of SXBLUE PREMIER will be presented in detail, you can grasp detail information about each component as your expectation.

2.1 Main Structure

SXBLUE PREMIER receiver is similar to a ﬂ at structure box with concave-convex texture upper cover. Concentrate on the protective property, the main body of SXBLUE PREMIER is made by magnesium

alloy material which is applied to aviation industry, it makes overall the SXBLUE PREMIER be more rugged and durable.

Upper cover

Micro USB port

Rubber ring

The upper cover is designed with concave-convex texture structure, perfect combination of

fashionable design and industrial aesthetics.

Concave-convex

texture

Control panel

SXblue Premier GNSS Network RTK Receiver

2.2 Front Control Panel

The control panel of SXBLUE PREMIER adopts the LED design to indicate working status and

charging state, which are intuitive to understand well. There is detail description for each indicator in following table.

Power indicator

Bluetooth indicator

Items Description

Data communication indicator

Satellites indicator

1 Glows in green to indicate there is enough power supply for instrument after switching it on

2 Flashes in green to indicate that the battery is low in power.

3 Glows in red to indicate that the instrument is under charging after plugging on charger.

1 If this indicator glows in green, that means the Bluetooth connection has established between

receiver and controller.

2 If it is glows in green in charging mode, that means the battery has been full charged.

1 If the indicator ﬂ ashes in green, that means the receiver begins searching satellites, the number of

times ﬂ ashing indicates the quantity of satellites the receiver searches.

1 In Rover mode, if this indicator ﬂ ashes in green, the meaning is that correction is coming from

reference station.

2 In Static mode, the indicator ﬂ ashes in green to indicate that the static observation data is being

recorded.

3 In Base mode, this indicator ﬂ ashes in green to indicate that correction is being transmitting by the

WIFI connection to internet.

2.3 Bottom Component

At the bottom component, a lot of information is contained on the label attached to the receiver, including instrument model, L1/L2 information, serial number of the device and a QR code for GIStar software downloading. The other components include power button, reset button and screw caves

for ﬁ xing with holder.

Holder screw cave

Control panel

Power button

Reset button

Serial number label

Micro USB port

2.4 User Interface

This part is mainly to introduce the communication port which is mainly used for data downloading and battery charging. However, except the function we mentioned, there is an additional function which allows users access its internal web UI server with the help of the micro USB cable.

Micro USB port

Chapter ⅢHardware Operation

3.1 Switch ON/OFF

3.1.1 Switch ON

To switch on the receiver, you only need to press the power button for short time until you can hear beeping from receiver once and all indicators light up, at this moment, release the power button and the receiver will switch on.

Then the receiver will complete initialization automatically around 8 seconds, and the power indicator would ﬂ ash 5-7 times. After that, the unit starts to work in normal situation.

Light up together for

a while

3.1.2 Switch OFF

Flashes in 5-7 times

and stays in normal

state

To switch off the receiver, hold on power button for several seconds until you can hear 3 beeping

sounds, then release the power button, the receiver will switch off after all of indicators ﬂ ash together

twice.

Flashes together

twice

The receiver is off

3.2 Reset

At the bottom of SXBLUE PREMIER receiver, there is a small key besides to Power button, that is the Reset key mainly used to force turning off receiver if there is something block with power button to switch off the receiver.

For example, if the receiver can’t be switched off by power button, use this key to force switching off

receiver, then restart the unit in normal way.

3.3 Self-check

Self-check is an important operation for SXblue receiver during its use on the ﬁ eld. If there is something abnormal on receiver or the receiver doesn’t work properly, performing self-check operation for

receiver will be helpful on judging roughly what happen to the receiver.

Self-check operation is easy to perform on SXBLUE PREMIER receiver, keep pressing power button for a while (about 8 seconds) until all of indicators light up together, at this moment, release power button and the receiver is performing self-check procedure, then the indicator will light up one by one from right to left, after that the self-check is completed and the receiver will get into normal state,

starts to track satellites.

Light up together

Lights up, OEM

board is checked and

completed

Lights up, WiFi module

wwis checked and

completed

Lights up, Bluetooth

module is checked and

completed, the self-check

procedure is completed

Normal state, starts

tracking satellites

The meaning of all indicators during self-check

Items Description

Glows in green to indicate the enough power supply for receiver

If this indicator glows in green during self-check procedure, it represents the Bluetooth module

is checked and completed.

If this indicator glows in green during self-check procedure, it represents the WIFI module is

checked and completed.

If this indicator glows in green during self-check procedure, it represents the OEM board is

checked and completed.

3.4 Factory Reset

Factory reset is a new interactional operation on SXBLUE PREMIER receiver, it is mainly used to bring internal conﬁ guration of receiver back to factory default setting. Such as reset the function of micro USB port from normal USB to Ethernet function, and reset the WIFI function from client mode to AP mode (WiFi hotspot).

Factory reset is similar to the operation of self-check, keep pressing power button for a while (after self-check entrance) until the indicators ﬂ ash one by one from left to right, at this moment, release

power button and the receiver gets into factory reset procedure. This procedure would take about 10 seconds, after that the receiver will switch off automatically.

Factory reset is performing, indicators light

up one by one from left to right

Factory reset is

completed

3.5 Charging

SXBLUE PREMIER GNSS Network RTK receiver adopts built-in 6800mAh huge capacity battery, typically can last 8 hours continuous work or more. Equipped with a speciﬁ ed charging socket and charger, ensure the safety of equipment during charging. This unit is also able to be charged with

phone charger and micro USB cable, or recharge with a portable power source.

While the power indicator ﬂ ashes in green, this status indicates that the battery is low in power, and

the receiver really needs to charge within 10 minutes.

Before the use, please recharge the equipment ﬁ rst, and please take in mind that make sure the charging time reach 6-8 hours at the ﬁ rst several times, and fully discharged, so that to maximize the

battery capacity and extend the battery life at the same time.

When plug charger to SXBLUE PREMIER, the power indicator lights up all the time during charging, after the Bluetooth indicator lights up, that means the battery is full charged.

Charging

Full charged

Chapter ⅣInternal Web UI Operation

4.1 Overview

Because of using the smart embedded Linux operating system and SXBLUE intelligent cloud

technology, SXBLUE PREMIER is allowed conﬁ guring and monitoring the status of itself in real-time on internal web UI. And the accessing way not only supports the WIFI connection, but also supports

the USB connection to computer with the help of micro USB.

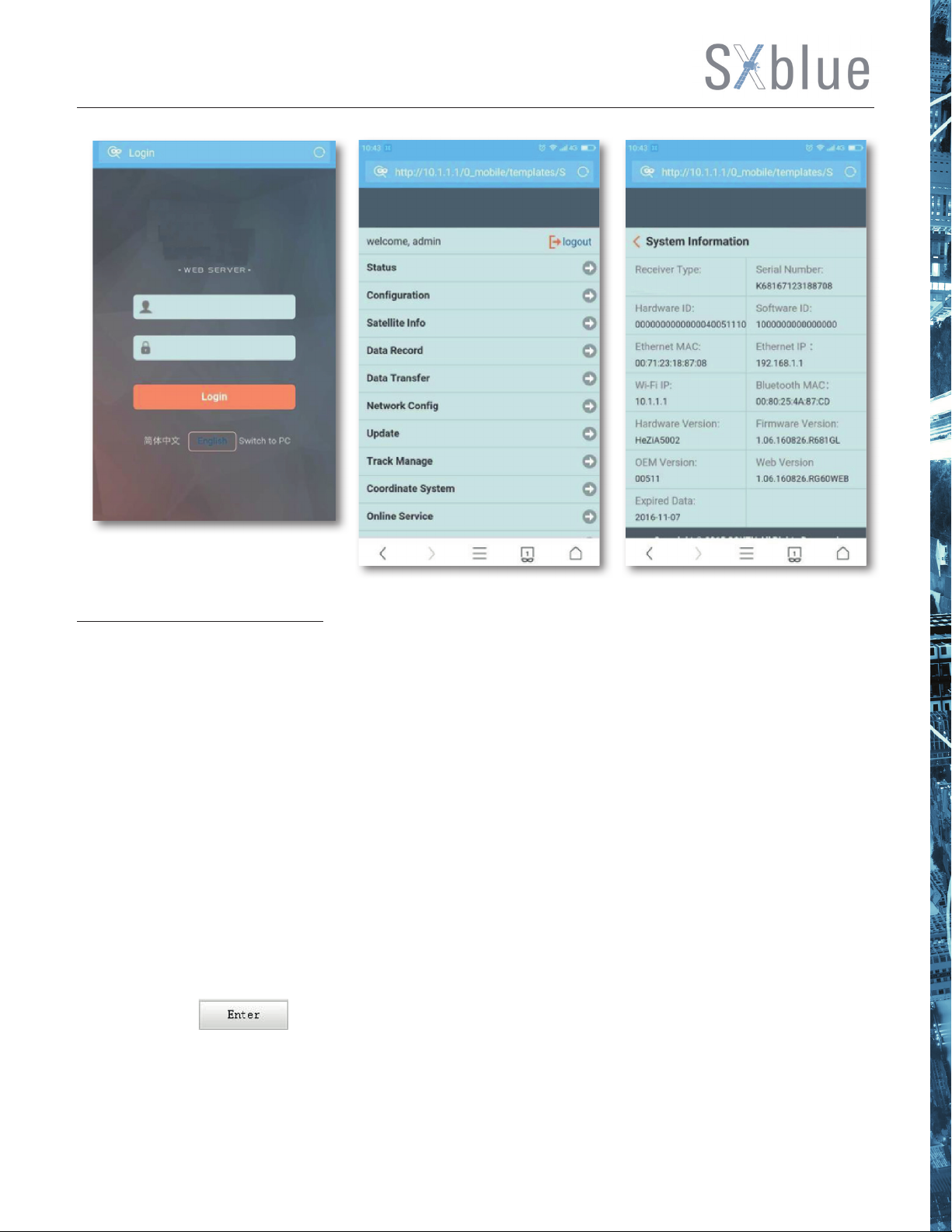

4.1.1 WIFI hotspot connection mode

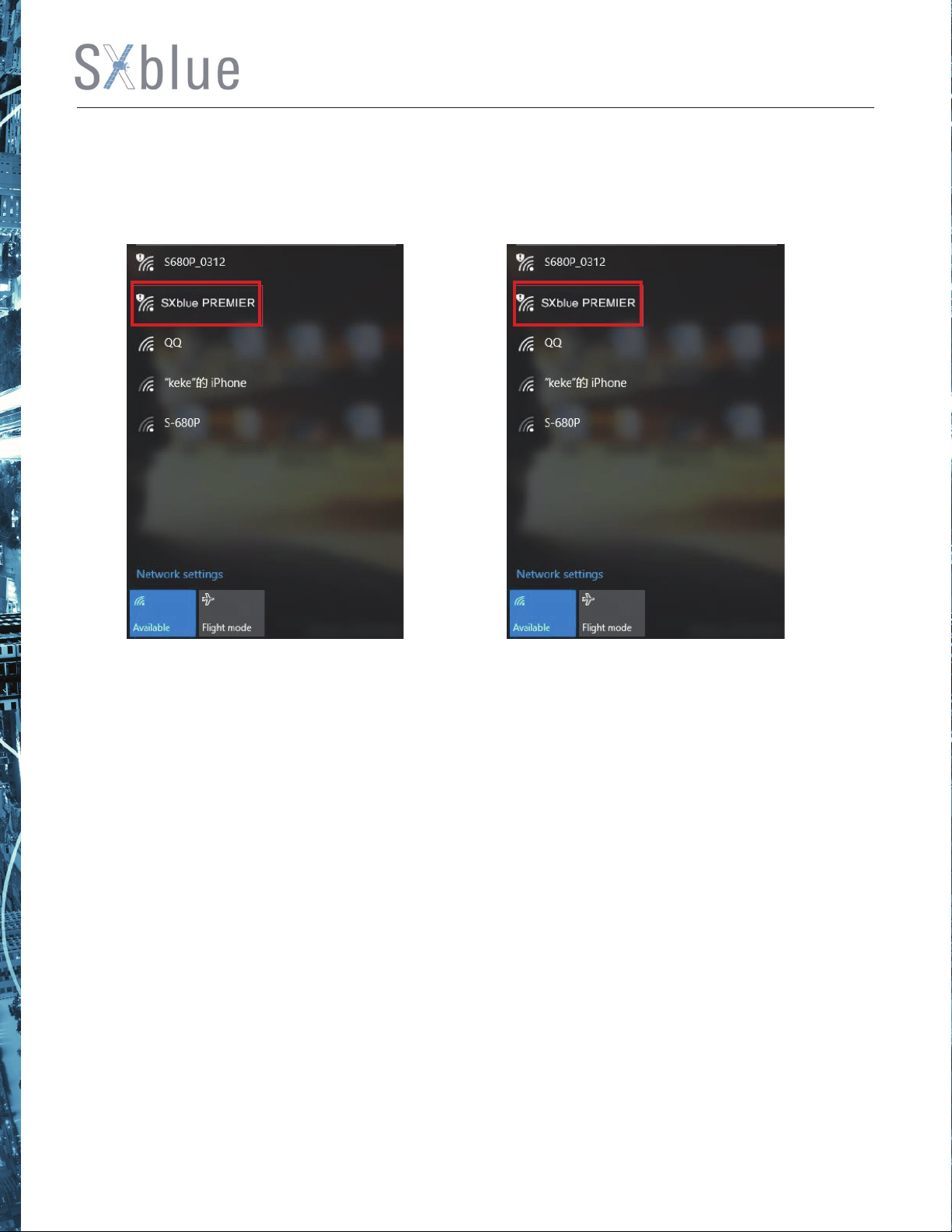

First of all, the WIFI hotspot is default broadcasted by SXBLUE PREMIER, search the WIFI hotspot with the name of SXBLUE_xxxx using smartphone, tablet or laptop, then establish the WIFI connection and input the default IP (10.1.1.1) into explorer, apply the default username and password for login.

For example, search the WIFI hotspot broadcasted by a SXBLUE PREMIER receiver using laptop PC, choose the WIFI hotspot and click on connect button to establish the connection without password.

After that, run IE explorer on computer and input the default IP into address bar, after a while, the system login interface is refreshed, then apply the default username and password for login.

4.1.2 USB connection mode

On this mode, the micro USB port of SXBLUE PREMIER must work as an Ethernet port, then internal

web UI shall be accessed via micro USB cable connects to computer.

The micro USB port of SXBLUE PREMIER is default set as Ethernet function, then connect SXBLUE PREMIER receiver to computer via a micro USB cable. Run the IE explorer on computer and type IP

192.168.155.155 into IP address bar, then input the default username (admin) and password (admin)

for login.

At the ﬁ rst time to connect to a computer, a corresponding driver is required to install to the computer,

then this function could be activated.

NOTE : The driver can be downloaded from ofﬁ cial website automatically or please contact with us for more

supports.

If the driver has been successfully installed, the micro USB port of SXBLUE PREMIER will be recognized as Linux USB Ethernet/RNDIS Gadget, and a local area connection will generate in

Network Connections on the computer. For example, Local Area Connection 138 generates after

connecting SXBLUE PREMIER receiver to computer via micro USB Ethernet port.

However, sometimes the computer cannot detect the receiver by micro USB Ethernet port because

there is something wrong with acquiring IP automatically, therefore, we need to do something to avoid such problem, we can set a ﬁ xed LAN IP for the connection : right click on the local area

connection which is new generated, choose properties to call out the local area connection properties window.

Then double click on Internet Protocol Version 4 (TCP/IPv4) option or click on properties button to call out Internet Protocol Version 4 (TCP/IPv4) properties window, set the ﬁ xed LAN IP address as shown in following, then click OK button and conﬁ rm the settings, return to the IE browser and use the IP address 192.168.155.155 to access the internal web UI.

4.2 Web UI Main Interface

As shown in the following screenshot, this is the main interface of web UI of SXblue PREMIER while login, it contains the common used operation menu and the information window including detail information and settings.

For example, the operation menu is listed at the left column that includes Status, Conﬁ guration, Satellite Information, Data Record, Data Transfer, Network Conﬁ g, Firmware Update, User Management and

Help. At the right information window, there is Position Information includes Location coordinates, RTK Status, Tracked Satellite, Used Satellites and so on.

Click on the menu, the corresponding information or settings will be displayed at the right information

window, it is very intuitive and easy to understand, as well as to the operation.

The table below is the instruction for the menu listed at the left side of main interface, take a reference to this table, you will grasp the main points of each item.

Some associated sub-items are contained under each main menu, click on the icon menu to unfold the sub-items.

or the main

Ref Component Description

Positioning information, satellite tracking and the others will be

Status

displayed in this page

Conﬁ guration

Satellite Information Display and control the satellites used or not

Data Record Conﬁ gure the parameters for static mode and raw data download

Data Transfer

Network Conﬁ g

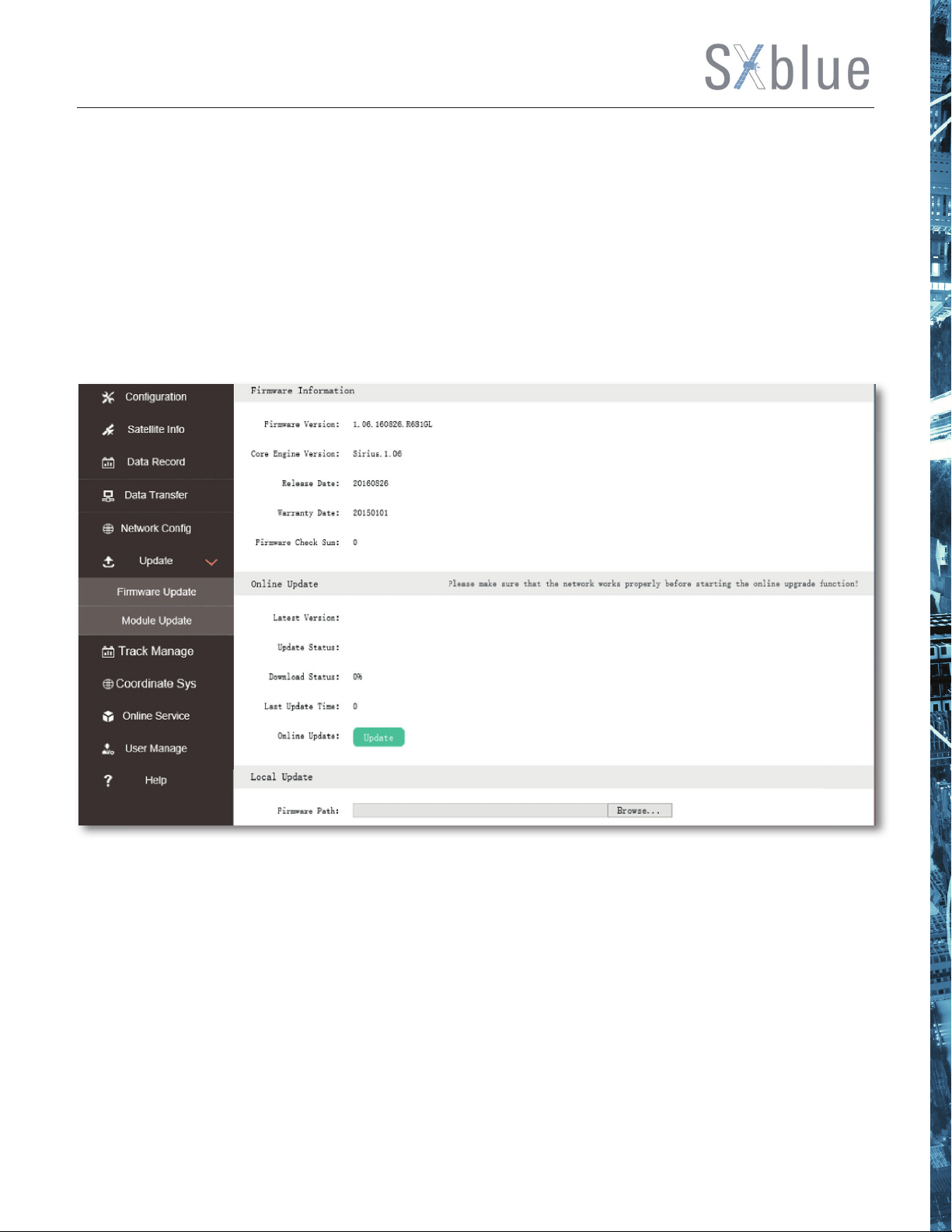

Firmware Update It is used to upgrade the ﬁ rmware for receiver

It contains general operation on receiver, base conﬁ guration, antenna

setting, satellite conﬁ guration, receiver control and system setting.

Contains NTRIP conﬁ guration, TCP/IP conﬁ guration and data

transferring with PC

Contains network parameters conﬁ guration, WIFI conﬁ guration and the

other functions

User Management Add and manage the Web UI users

Help Offer solutions

4.2.1 Status

System Information, Work Status and Position Information are listed under Status menu.

System Information

In this page, all the information of SXBLUE PREMIER is diplayed such as serial number, hardware ID, MAC address, ﬁ rmware version, registation information and so on.

Work Status

The physical state of SXBLUE PREMIER is displayed at the right ﬁ eld including working mode, battery

type, storage type, remaining power and the free memory.

The datalink, host temperature, OEM temperature are not supported displaying because of the hardware design and the OEM board performance.

Position Information

As mentioned at the beginning of this chapter, the positioning information is displayed on this page, including locating coordinates, RTK status, tracked satellites, as well as to used satellites, users can be clear at a glance on this page to grasp the main information.

4.2.2 Configuration

General Conﬁ g, Base Setup, Antenna Setup, Satellite Tracking, Receiver Operate and System Setup are contained under Conﬁ guration menu. Users are able to conﬁ gure all kinds of parameters for SXBLUE PREMIER under Conﬁ guration menu, and all the settings are immediate effect after saving.

General Conﬁ g

The registration for receiver and working mode setting can be completed in this general conﬁ guration

page.

If the code of SXBLUE PREMIER has expired or is going to be run out, please provide the serial number of your SXBLUE PREMIER receiver for us, then we will supply another available code, then apply the code to receiver by inputting the code into the blank or register the receiver online.

SXBLUE PREMIER is allowed setup the working mode and datalink from Web UI that only need the

mobile phone or tablet PC which is able to connect the wiﬁ hotspot of SXBLUE PREMIER.

Work Mode : There are Rover, Base and Static options contained in this dropdown list, SXBLUE

PREMIER now owns the ability to work as Base because of the WIFI module integrated on receiver.

Datalink : Pull down the list, there are only two options for datalink, Bluetooth and WIFI, because

unlike traditional RTK receiver, SXBLUE PREMIER is without any other datalink module inside except

Bluetooth and WIFI module.

Tips : Under Base mode, there is only WIFI available in datalink, because it is the only way for data transmission

from base.

RTK Record : This is used to enable raw data recording in base mode or rover mode for post-

processing

1 PPS : This option is for the 1 pulse per second output

EVENT : This option is for the EVENT marker input

EVENT Polarity : EVENT input method.

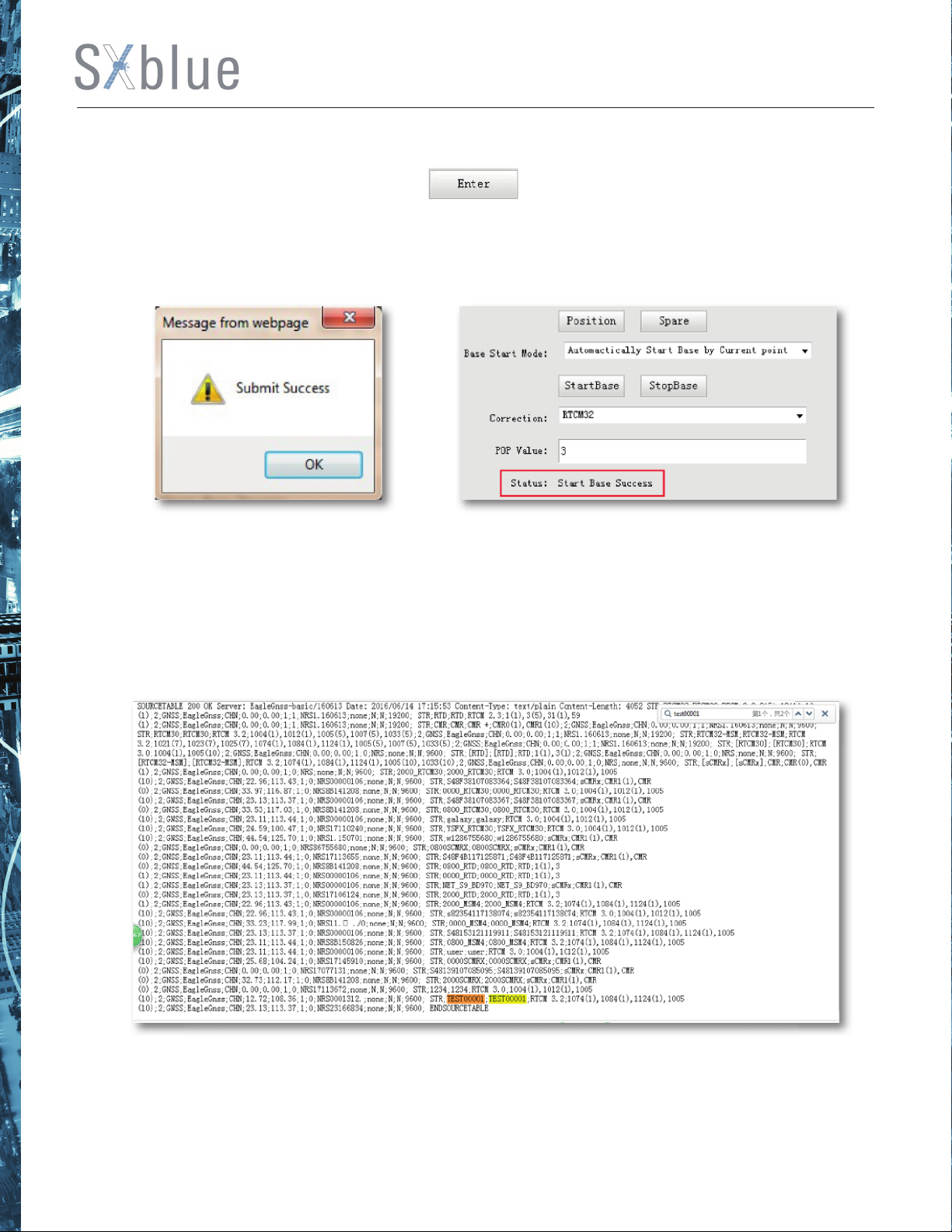

Base Setup

Due to the WIFI module is equipped on SXBLUE PREMIER receiver, this unit is able to work as Base, then transmits corrections via WIFI connection. Therefore, the basic conﬁ guration for base can be

setup in this page. Users can input the correct coordinates or capture a current position for the base.

Also users can deﬁ ne what kind of correction format is transmitted.

CMR ID/RTCM2.X ID/RTCM3.X ID : Users can specify the ID for transmitting correction.

Position : Click this button to capture the coordinates for current position

Spare : This is used to the repeat station

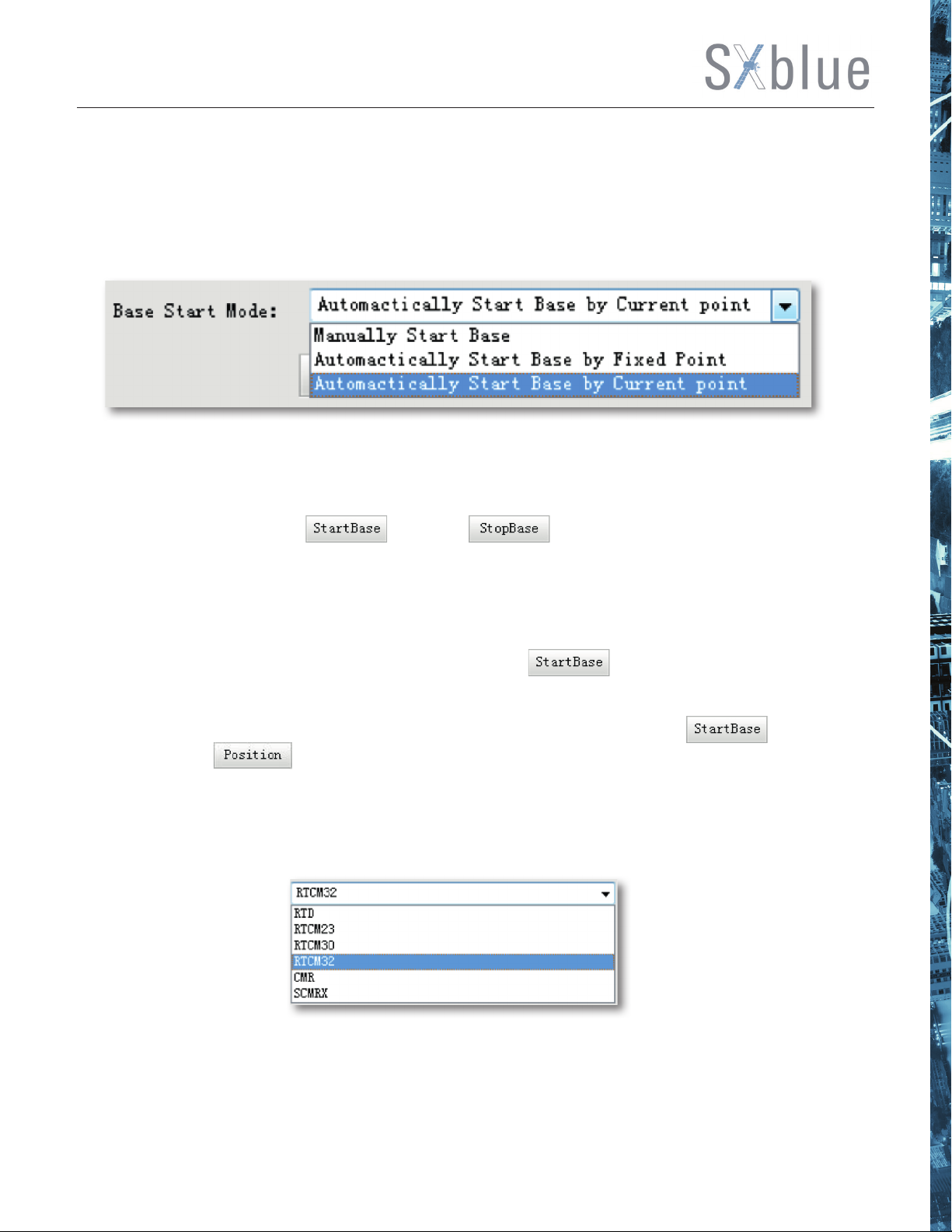

Base Start Mode : Here contains 3 methods to start the Base, manually start base, automatically start

base by ﬁ xed point, automatically start base by current point, they are easy to understand from the

literal meaning.

Correction : Here contains the global general used correction formats including RTD,RTCM23, RTCM30, RTCM32, CMR and SCMRx

POP Value : This value is setup for the PDOP limitation.

Status : Here will display the status for base in real-time.

Antenna Setup

The antenna parameters are conﬁ gured in this page including the antenna height, measuring method.

Antenna Height : This is the value for height of antenna while surveying.

Measuring Method : Here provides several methods for measuring the antenna height such as

carrier phase center, slant height, antenna edge, height plate and to the bottom.

Satellite Tracking

In this page, users can deﬁ ne the mask angle for satellite tracking, and check on the box of

corresponding band from the constellation that to use this band or not

Receiver Operate

The page provides all kinds of operations to control the receiver such as self-check operation, clean

epochs, factory reset and power off.

Self-check : Users can also do the self-check from this conﬁ guration page, click on the Check all

button to check all the modems or click on the check button corresponding to the modem to check one by one.

Clean EPH : Click this button to clear the remaining epochs to let recever track the satellites better.

Factory Default : Click this button to bring the receiver back to factory default setting.

Power Off : Click this button to power off the receiver.

Reboot : This is not supported on SXBLUE PREMIER receiver, that is why this button is not activated (grey).

System Setup

This page is used to control power saving, USB mode, default language for internal web UI and timezone.

Power : Conﬁ gure the receiver to use the power saving mode or not.

USB : This is used to conﬁ gure SXBLUE PREMIER receiver what kind of mode output from Micro USB

port when connect the receiver with computer via USB cable. USB and network port for optional.

Default Language : Conﬁ gure the default language for SXBLUE PREMIER internal web UI.

TimeZone : This is mainly to setup the timezone for receiver.

Tips : because SXBLUE PREMIER receiver doesn’t support the voice prompt, the option Voice Prompt and Voice

Volume are displayed in grey.

4.2.3 Satellite Information

The ―Satellite Information provides all kinds of tables, graph and the skyplot to view the information

of tracking satellites. And it is allowed to conﬁ gure to use which satellite in constellation on/off page

by checking on the corresponding box.

Tacking Table

Here is the table to list all current used satellites and the other information for these satellites.

Tracking Chart

In this page, the histogram will indicate the signals from those used satellites, and allow to check each constellation separately.

Skyplot

In this page, all the tracking satellires are shown on the skyplot, this let users intuitively view and know where the current position of satellite is.

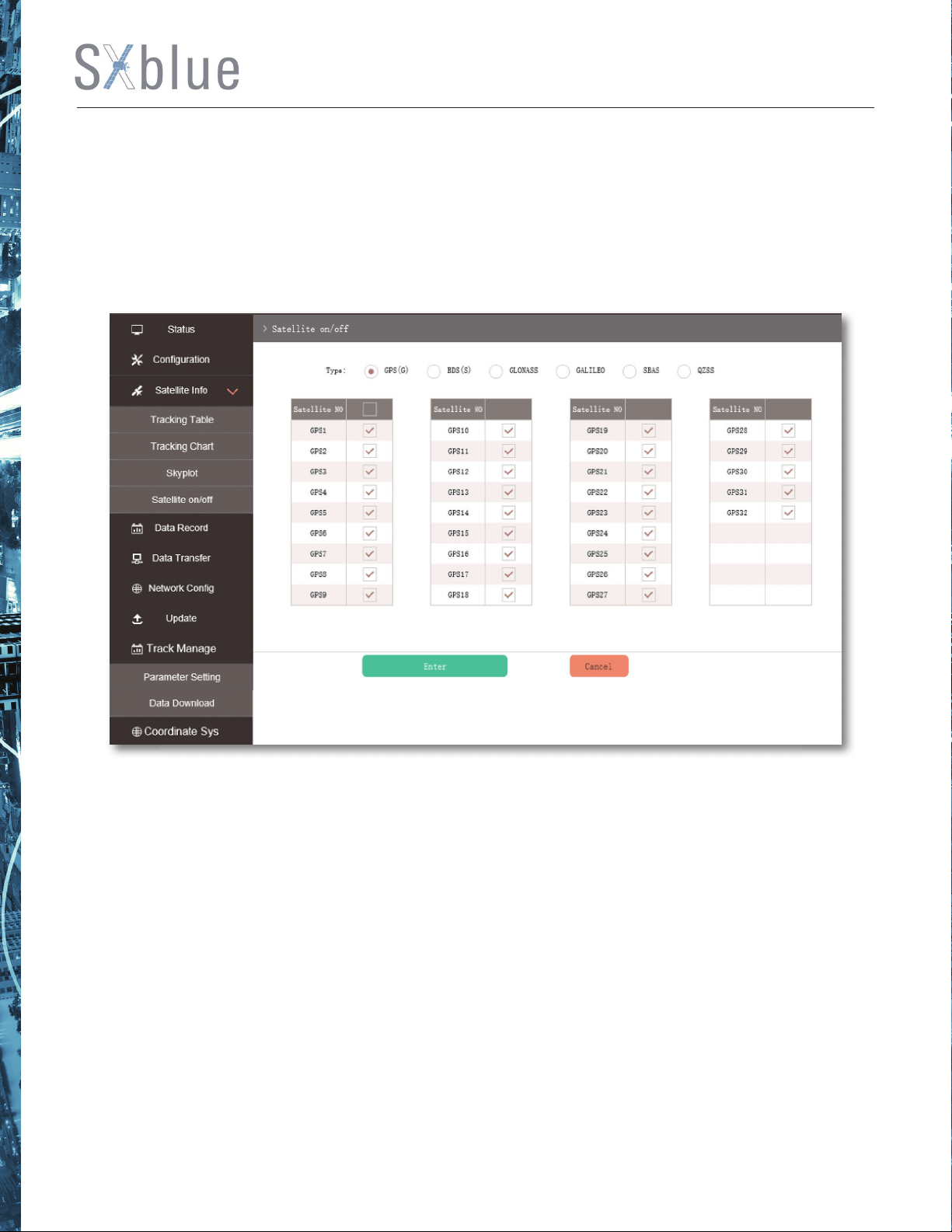

Satellite on/off

For all the running GNSS constellations or the augmentation system, SXBLUE PREMIER allows to conﬁ gure to use which satellite or not.

In gnss on/off page, all the running satellites are listed, and unselect the box corresponding to the satellite to not use it.

4.2.4 Data Record

The ―Data Record performance is mainly used to conﬁ gure all the parameters for receiver in static mode. Much more operations can be done on SXBLUE PREMIER receiver such as storage path,

interval, data format and data ﬁ les download.

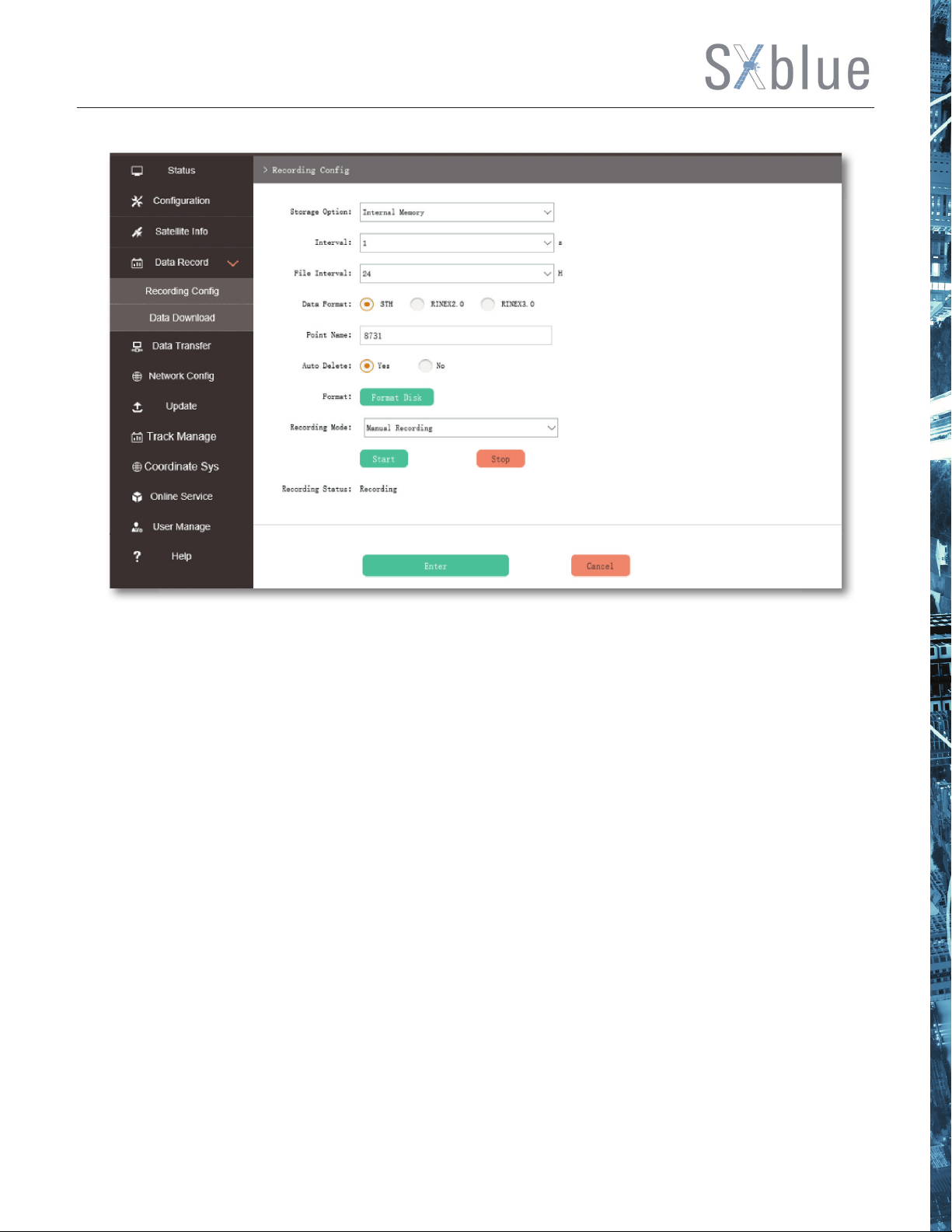

Recording Conﬁ g

The page provides more practical operations for raw data storage.

Storage Option : Here are the options to be selected for where the raw data will be stored, internal

memory or external memory (OTG function).

Interval : This is the sampling interval for data storage, 20Hz(0.05s) sampling interval now is

supported on SXBLUE PREMIER.

File Interval : This is used to deﬁ ne the data storage time for the static ﬁ le.

Data Format : Here are 3 options to select for SXBLUE PREMIER to store what kind of format data,

STH, Rinex2.0 and Rinex3.0.

Point Name : A point name is required, the last 4 digits of SN is default setting for the point name.

Auto Delete : This is used to conﬁ gure SXBLUE PREMIER to delete the previous data ﬁ les

automatically if the memory is full.

Format : Click this button to format the internal memory for SXBLUE PREMIER receiver.

Recording Mode : Here are 2 options to conﬁ gure SXBLUE PREMIER to record raw data automatically

or not if it achieves the sampling conditions.

Start/Stop : Click these buttons to start recording or stop recording the raw data.

Recording Status : Here shows the status of static data storage.

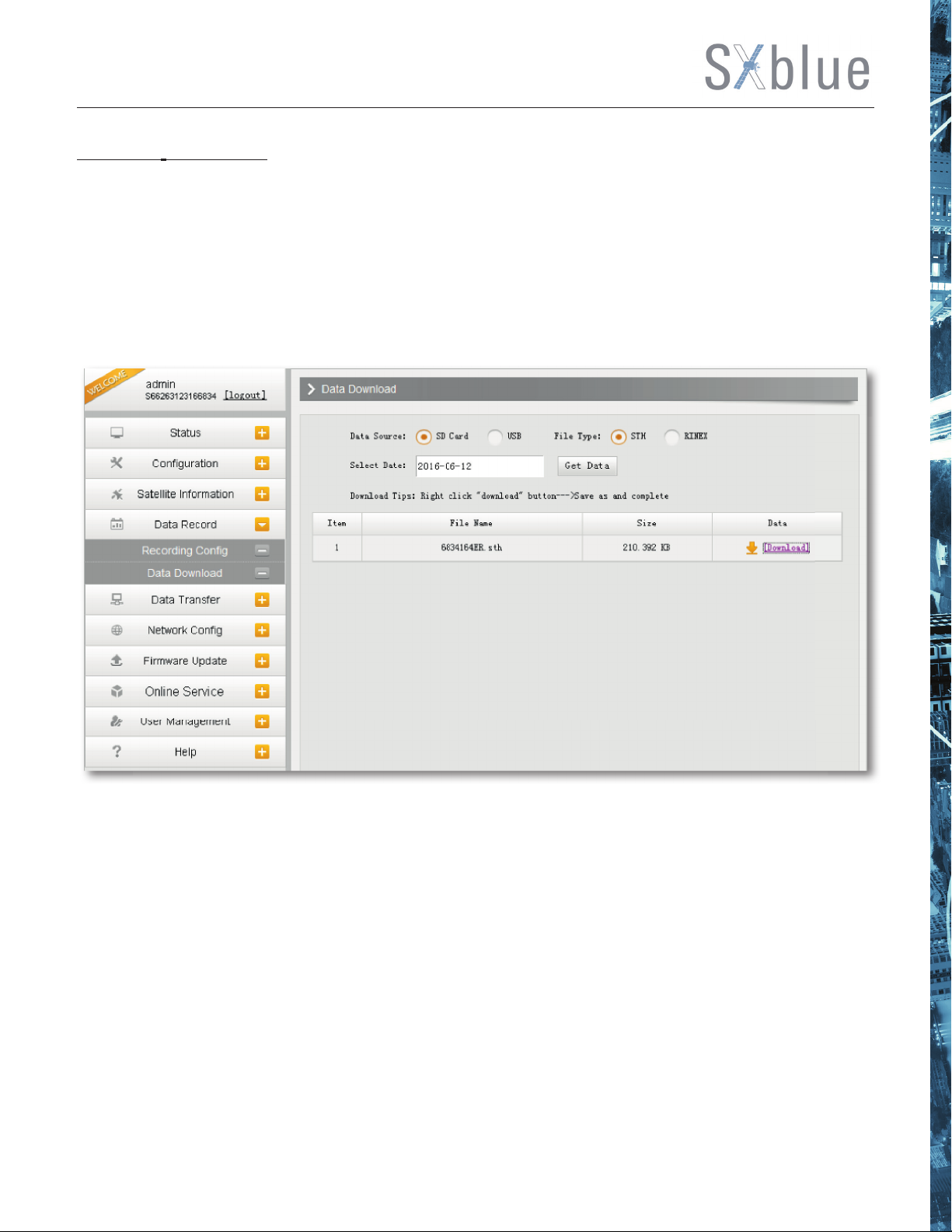

Data Download

This page provides the data ﬁ les to download

Choose the storage where the static data recorded, and ﬁ le type, then click on the blank of ―Select Date to choose what date the data was recorded and click ―Get Data button, all the ﬁ les recorded in that date you choose will show in the table, tap download button to download the data ﬁ les.

4.2.5 Data Transfer

This performance contains General, Serial Port Conﬁ g, TCP/IP Conﬁ g, NTRIP Conﬁ g and Data Flow Conﬁ g. The ―Data Transfer allows to conﬁ gure the output mode for raw observation data and differential data, as well as to the NTRIP performance conﬁ guration.

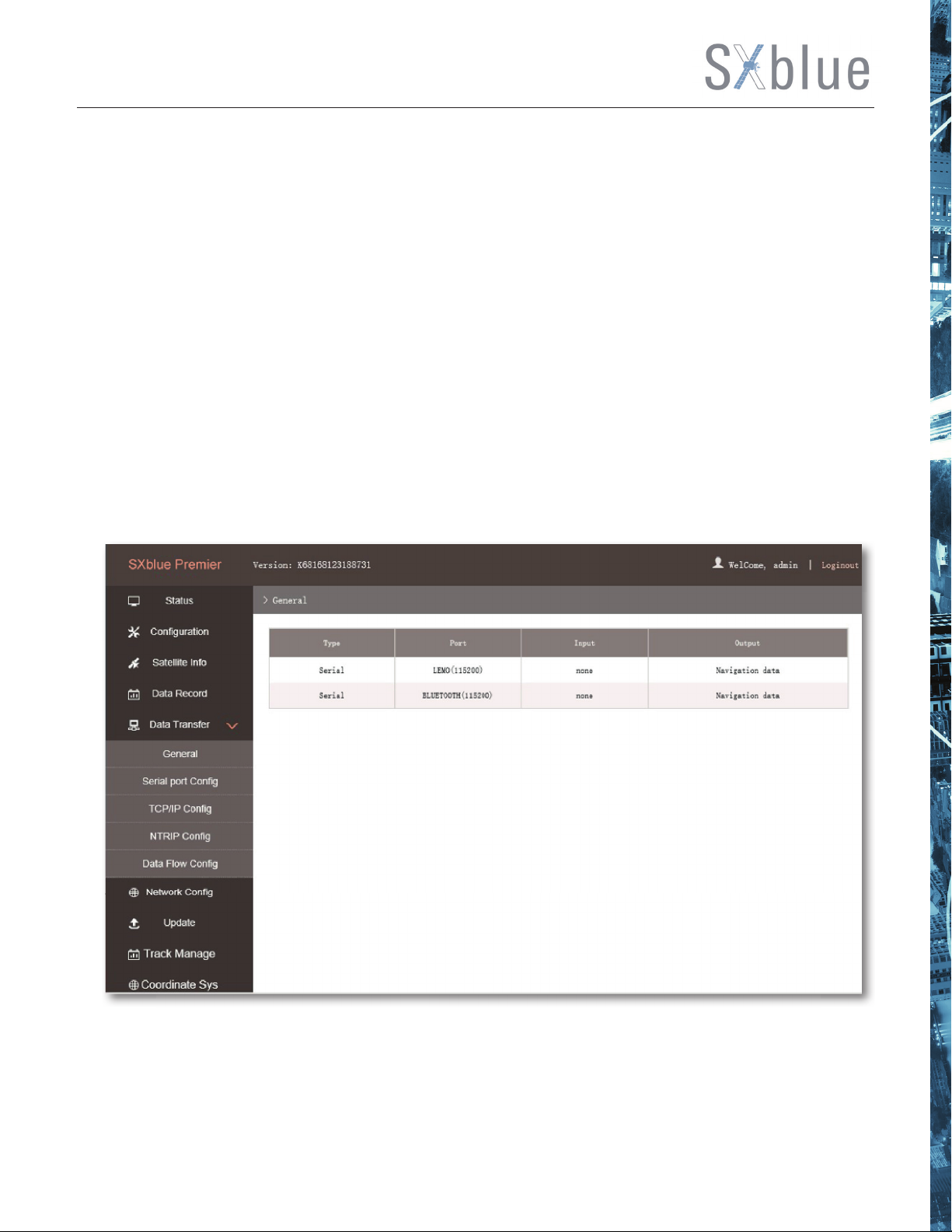

General

This page shows the service condition and the output contents of the ports, if the port items display in green, that means the port is available for use, and on the contrary, if the port is not used while the items display in red.

Serial port Conﬁ g

This page is allowed to conﬁ gure the baud rate, odd-even check and the data ﬂ ow for micro USB

port and Bluetooth.

CAUTION : do not change the default value in this page for each item, if you want to change the settings, please

contact with SXBLUE technician for further support.

In the dropdown list of data ﬂ ow, there shows 4 items for selection.

Raw observation data : This is the raw observation data straight from OEM board.

Correction Data : This is the correction data straight from OEM board.

Navigation Data : This is the navigation data output from receiver such as NMEA-0183, GSV, AVR,

RMC and so on. It is conﬁ gured in Data Flow Conﬁ g page.

SIC Observation Data : This is the user-deﬁ ned format observation data from SXBLUE.

OpenSIC Observation Data : This is the open version of SXBLUE user-deﬁ ned format observation

data for secondary development.

TCP/IP Conﬁ g

This is used to conﬁ gured the raw data or navigation data to be uploaded or transferred to a server. And there are Caster and Server working mode for this performance.

Caster : If this working mode is selected, SXBLUE PREMIER will be a client to upload the data to a

specify server if it connects to the internet by WIFI connection. Input the speciﬁ ed IP and port for

server, and the data format what is uploaded. Then users are able to see the uploaded data on server.

Server : SXBLUE PREMIER receiver will upload the data onto internet by the static WIFI if server is

selected, then users are able to obtain its dynamic data by accessing to SXBLUE PREMIER through the IP from receiver.

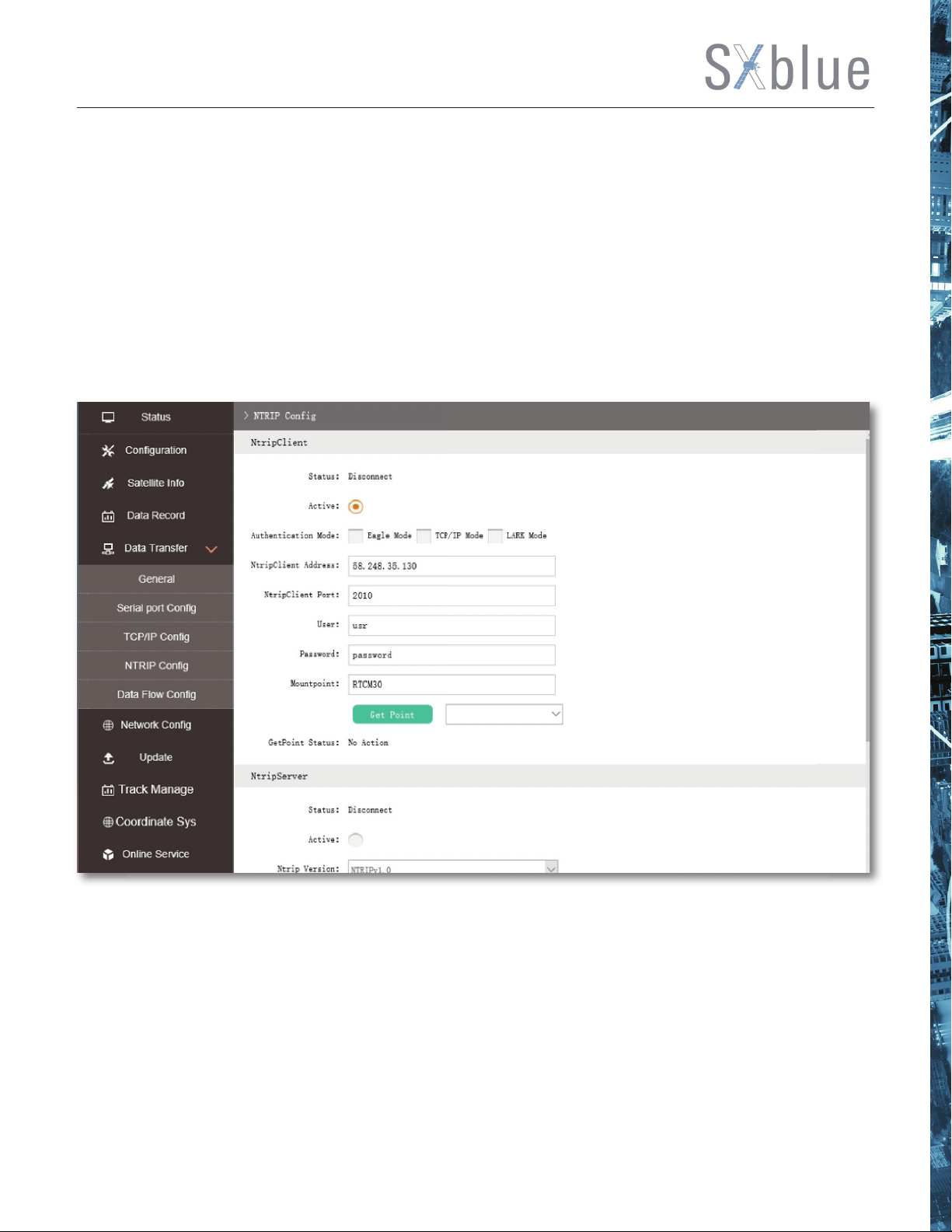

NTRIP Conﬁ g

This is used to conﬁ gure the NTRIP performance while receiver is going to connect to internet. SXBLUE PREMIER supports complete NTRIP performance including NTRIP Client, NTRIP Server and NTRIP Caster.

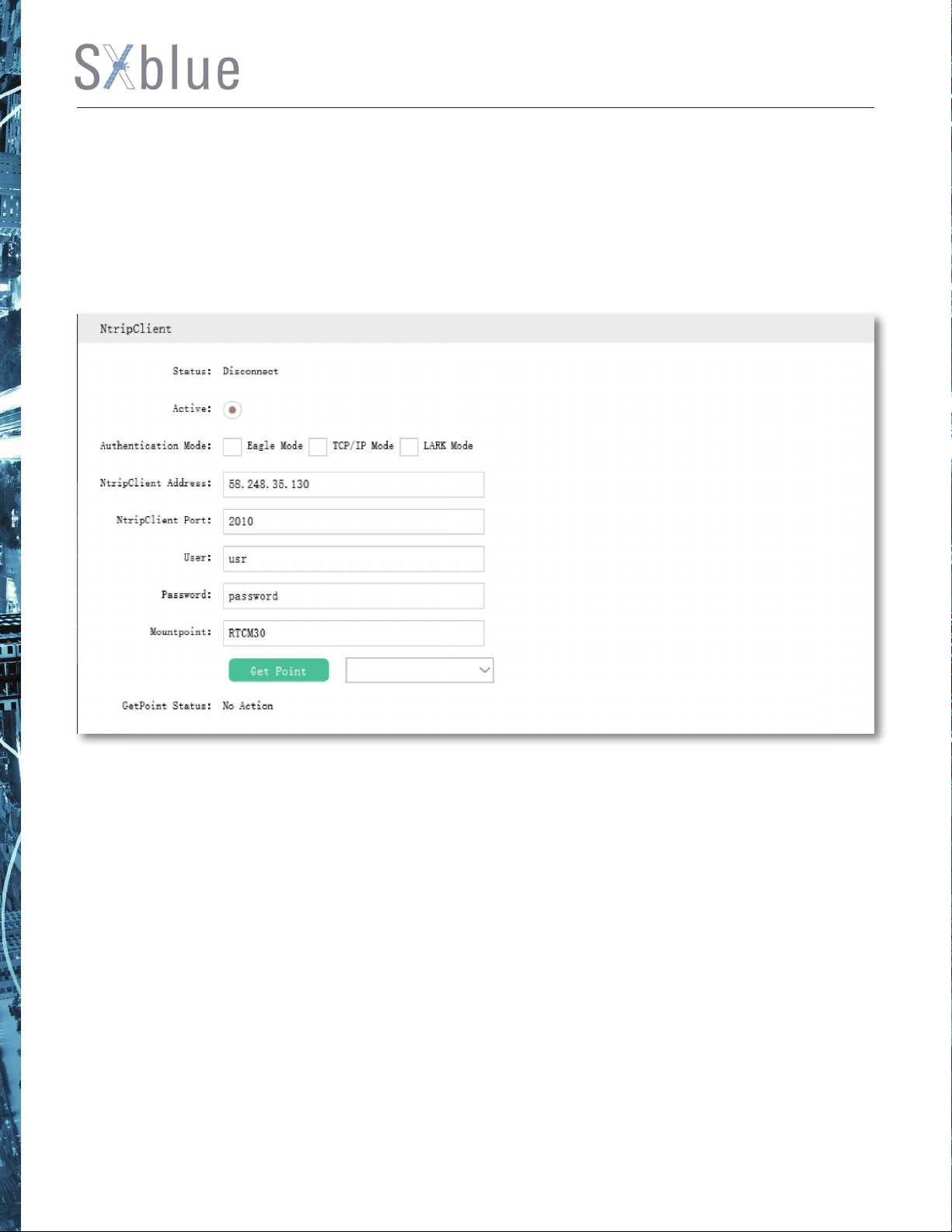

NtripClient

This is the general used function for rover set in WIFI mode. At the ﬁ eld of NtripClient, the specify IP

address, access port of reference station, as well as the assigned username and password shall be input for the NTRIP connection.

Status : This ﬁ eld will display the status of NTRIP connection, connect or disconnect.

Active : Check on this circle to activate this function.

Authentication Mode : These three modes use different protocol standard for the connection, Eagle

Mode is SXBLUE standard mode, and TCP/IP Mode is for private network use, usually, choose the Eagle mode for the default setting. LARK Mode is a totally new communication mode for network

connection, it is similar to the CSD function that establishes connection between Base and Rover via

GPRS network type, rather than GSM. However, SXBLUE PREMIER is without the GPRS module

inside, this function is not supported on SXBLUE PREMIER receiver.

The next ﬁ elds are the standard conﬁ guration for NTRIP connection, IP, port, username and password, after these information is input into the corresponding ﬁ eld, click on Get Point button to download the

source table from server, then choose a proper mountpoint to access.

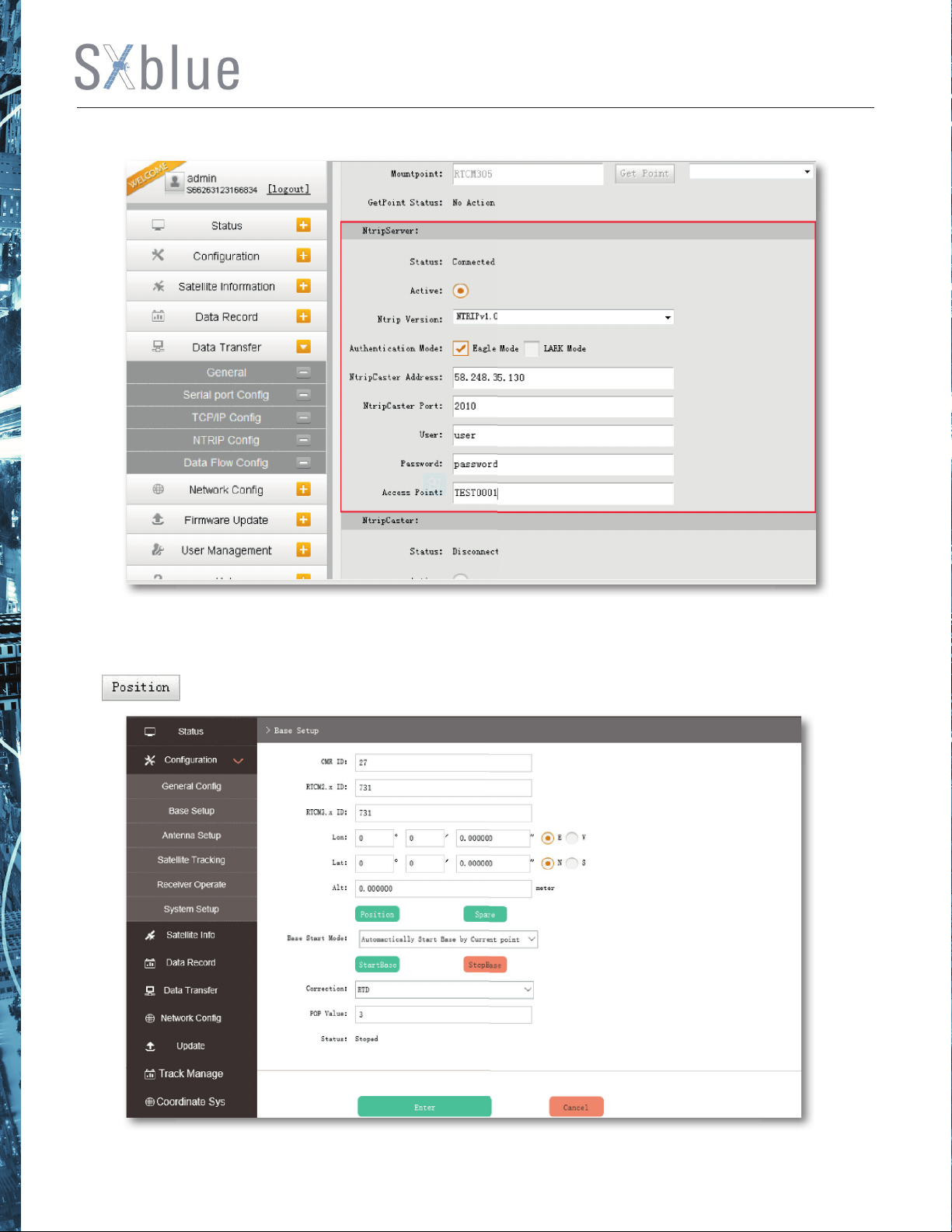

NtripServer

This conﬁ guration is used in Base+WIFI mode that Base station will transfer its correction onto the server as long as it connects to internet, then Rover can download the base’s correction from server

for use.

Ntrip Version : This ﬁ eld provides NTRIPv1.0 and NTRIPv2.0 for optional.

Access Point : This ﬁ eld is allowed to user-deﬁ ned the correction format which base will transfer to

the server, such as HHHH_RTCM30

NtripCaster

This feature is realized on SXBLUE PREMIER as well, the receiver is equivalent to a CORS system that it generates and broadcasts the user-deﬁ ned correction for rover if SXBLUE PREMIER connects

a static IP address.

Port : This is the specify port for the access.

Access Point : This is mountpoint which can be user-deﬁ ned.

Data Flow Conﬁ g

In this page, users can freely to conﬁ gure the content and the update rate of data ﬂ ow that to output

or not to output what kind of data format.

Click on the dropdown list for each data format to deﬁ ne the update rate.

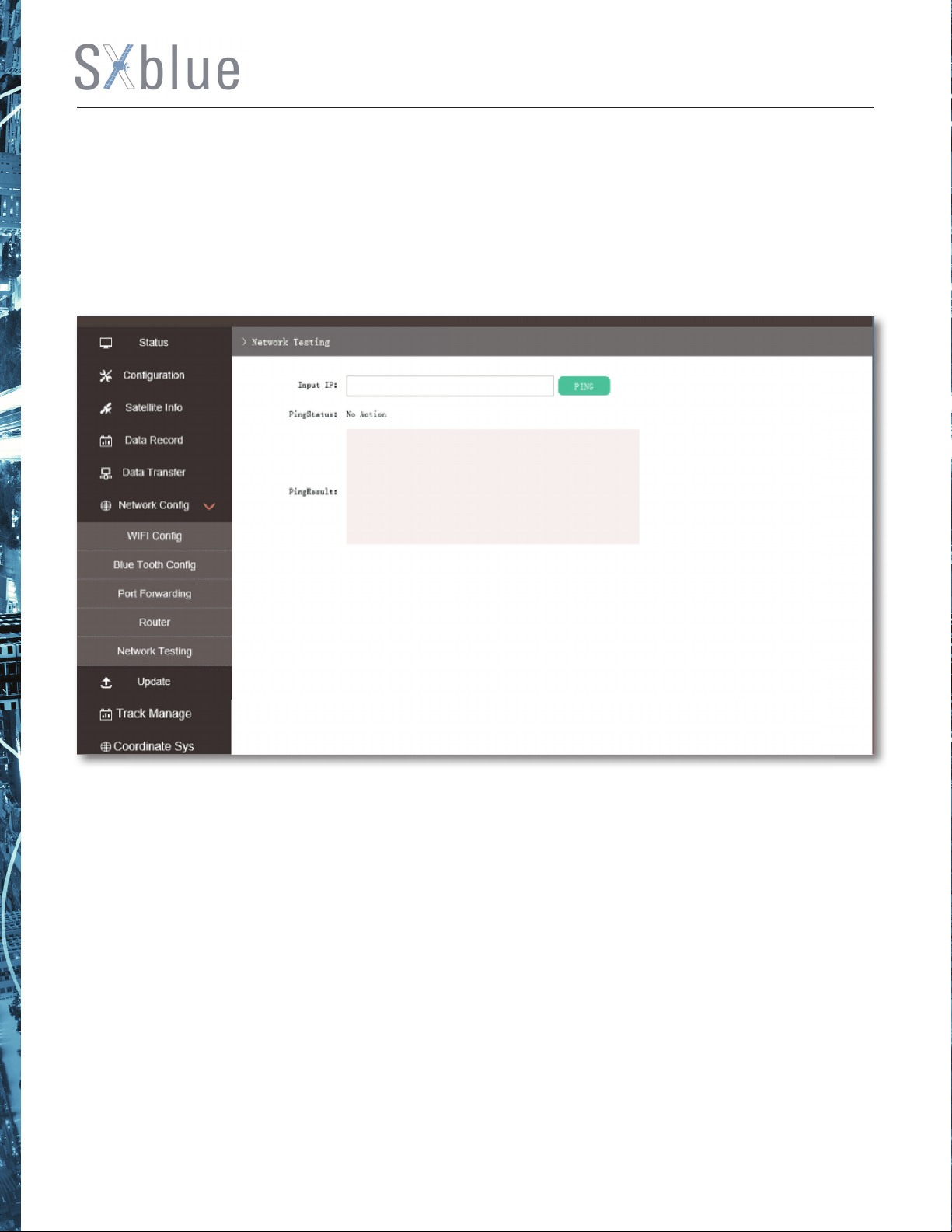

4.2.6 Network Config

The ―Network Conﬁ g is able to conﬁ gure the ways and the contents for internet access of SXBLUE PREMIER. WIFI Conﬁ g, Bluetooth Conﬁ g, Port Forwarding, Router and Network Testing are included under the list of Network Conﬁ g.

WIFI Conﬁ g

This is mainly used on the WIFI conﬁ guration for SXBLUE PREMIER, there are AP mode and Client

mode for optional.

AP :

This is used to enable the WIFI hotspot for SXBLUE PREMIER receiver to broadcast for mobile

terminals such as smartphone or tablet to connect and access the Web UI.

Check the box of AP in Work Mode to enable the WIFI hotspot for SXBLUE PREMIER, and deﬁ ne the SSID, password, encryption method and broadcasting channel for WIFI connection.

DHCP IP Range : This is allowed to user-deﬁ ned the IP for Web UI login.

Client : This option enables SXBLUE PREMIER to search and connect the other WIFI hotspot which

connects to the internet, the receiver is able to download and use the mountpoint from reference station.

Client_SSID : This is the WIFI hotspot which SXBLUE PREMIER is going to connect Scan : Click this button to search the surrounding available WIFI hotspot. Password : This is the password which the WIFI hotspot requires.

IP ﬁ elds : If SXBLUE PREMIER successfully connects to the WIFI, there will be an LAN IP address

generated by SXBLUE PREMIER itself.

ClearSSID : Click this button to clear the SSID list.

Bluetooth Conﬁ g

In this page, users can view the information and connection status of Bluetooth, such as MAC of

Bluetooth, discoverable or not, the PIN code, and the connection devices in following table.

Port Forwarding

This page is mainly used to view and conﬁ gure the internet transmission port for SXBLUE PREMIER,

customize and debug receiver.

NOTE : Usually we will keep the default setting in this page, if you would like to modify it, please contact

with SXBLUE technician for more supports.

Router

This is mainly used to view and conﬁ gure the parameters for router, only under the condition of

customize and debug receiver.

NOTE : Usually we will keep the default setting in this page, if you would like to modify it, please

contact with SXBLUE technician for more supports.

Network Testing

This function is mainly used to test network status for SXBLUE PREMIER after logging on the

internet via WIFI connection. How to do : Input an IP address into, then click PING button, the testing

information will be displayed in the PingResult window.

4.2.7 Firmware Update

Update the latest ﬁ rmware for receiver or for corresponding modems can be done in ―Firmware

Update.

Firmware Update

This page displays all the information of the ﬁ rmware which current installed on SXBLUE PREMIER, and allows to update the latest version ﬁ rmware for receiver. To get latest version ﬁ rmware please

contact with SXBLUE technician.

Online Update : SXBLUE PREMIER supports to update the ﬁ rmware online anytime if there is

something update or optimized.

Local Update : Update the latest ﬁ rmware by using a ﬁ rmware ﬁ le.

How to upgrade the ﬁ rmware with Local Update

―Br

a) Click on with .img as the extension name).

owse button to load ﬁ rmware ﬁ le (Please take in mind that the ﬁ rmware is ended

b) And then click ―Installation button to start upgrading.

c) After the ﬁ rmware is upgraded, a dialog will appear with saying ―Firmware updated successfully!

Host reboot, please log in later…, then the receiver will restart automatically.

SPECIAL REMIND : Galaxy G6 doesn’t support to update the ﬁ rmware with the help of INstar program

any more, in the future, update the ﬁ rmware for Galaxy G6 shall be done through the Web UI.

Module Update

This page is used to update the ﬁ rmware for corresponding modem such as OEM board, for SXBLUE PREMIER, there is only the OEM board ﬁ rmware can be updated on Module Update page, the others

module are not available for SXBLUE PREMIER.

4.2.8 User Management

This page is used to manage the authority of login Web UI for users, including the username, password and add users.

4.2.9 Help

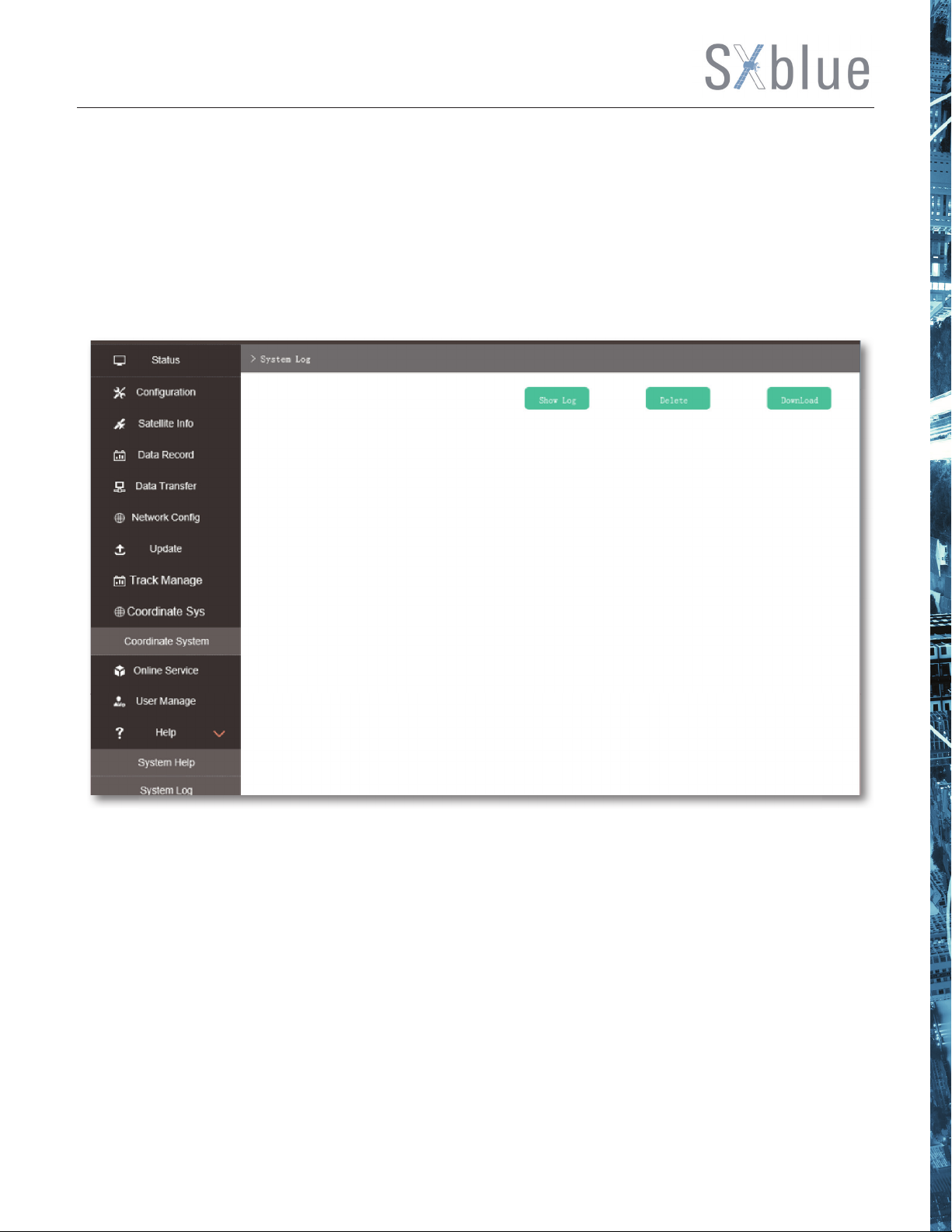

In this page, users can get help and check the log book of receiver (the log book can help to backtrack

the working status of receiver).

NOTE : Only the administrator can modify any parameters for receiver and manage users, and the ordinary

users only have the right to view the relative parameters.

Chapter ⅤHow to achieve the WIFI functions

Equiped with the most advanced WIFI module, this technology help SXBLUE PREMIER receiver not only can work as a WIFI broadcaster that allows users to connect it and access to the web UI

management of SXBLUE PREMIER, but also can work as a datalink that makes SXBLUE PREMIER

have a quick and stable connection to internet for corrections from CORS network.

In this chapter, you will learn more about how to achieve these both WIFI function on SXBLUE

PREMIER.

5.1 WIFI Hotspot (AP)

The WIFI hotspot means SXBLUE PREMIER receiver is able to broadcast its own WIFI hotspot with the integrated WIFI module, therefore, most of the mobile terminal can connect with this hotspot and

access to the internal web UI page of SXBLUE PREMIER, then users are able to do a lot of operation

on this web UI page, such as conﬁ gure working mode, register, upgrade ﬁ rmware, download raw

data and the other additional functions.

Switch on SXBLUE PREMIER receiver in normal way, the WIFI hotspot is default to be broadcasted, and the SSID of the WIFI hotspot displays as SXBLUE_xxxx (xxxx is the last 4 characters number of SN), then use tablet PC, smartphone or laptop to search this WIFI SSID.

1 Using laptop

Search the WIFI SSID with a laptop, then click on ―Connect button to establish connection between laptop and SXBLUE PREMIER receiver, the password is not necessary on establishing the WIFI connection. But if there is necessary, deﬁ ne a password for this connection after login to the web UI page, then it will ask you to input the password you deﬁ ned before every time you connect the WIFI

hotspot.

After the connection is established, then run IE browser on laptop and type the IP address 10.1.1.1

into address bar, the login dialog will appear and requires the login info.

2. Using tablet PC

Search the WIFI SSID with a tablet PC, then click on the correct WIFI SSID, after the connection is established, run a browser on tablet PC and input the accessing IP address into the address bar.

Input the username and password into corresponding ﬁ eld after the login interface appears, the

menu is listed on the tablet screen, tap on the menu and start to operate on this web UI.

5.2 WIFI Client (Datalink)

WIFI client means the WIFI function will work as a datalink for receiver that it is able to connect to the other hotspot and access to the internet, captures corrections from CORS station. Here we will introduce how to setup the WIFI client on SXBLUE PREMIER in two methods.

5.2.1 Configure on Web UI

Due to the WIFI hotspot (AP) is the default WIFI mode on SXBLUE PREMIER receiver, and the WIFI AP mode and WIFI client mode can’t exist at the same time, therefore, WIFI client mode must be switched into from WIFI AP mode, and switch the datalink into WIFI for SXBLUE PREMIER receiver.

bar of IE browser, then input username and password for login to the server.

Go to Conﬁ guration—General Conﬁ g, switch the working mode into Rover or Base, and datalink as

WIFI, click on

Base + WIFI mode are respectively introduced.

button to conﬁ rm the settings. In this section, Rover + WIFI mode and

Rover + WIFI mode

Unfold the sub-menus under Network Conﬁ g, and go to WIFI Conﬁ g, switch the WIFI working mode

from AP into Client, then click on

successfully switched.

button to make sure the WIFI working mode is

At this moment, click on button to search the surrounding WIFI hotspot, once ﬁ nish

searching the hotspots, choose one of the proper access point and enter the access password if

required, then click on

button to conﬁ rm the settings on this page.

After a while, the WIFI signal bar appears and a LAN IP address is obtained, that indicates that SXBLUE PREMIER has connected to the WIFI and had an access to internet already.

After that, move steps to Data Transfer—NTRIP Conﬁ g, on this page, make sure if NtripClient is

activated, then

input the CORS accessing information into corresponding ﬁ elds, click on download the mount points from CORS server.

button to

List out the mount points and choose a proper one, then click on button to conﬁ rm all

settings, and the receiver begins to connect and logon server, receive correction from CORS station.

Return to Status—Position Information page, on this page, all the information will be displayed, including coordinates, solution, correction format, as well as to the correction delay. if the receiver

has connected to internet and obtained correction from CORS server, there will be Fixed displays for

the solution.

At this time, connect receiver to controller software, you don’t need to do anything for conﬁ guration,

then use the combination to work directly.

Base + WIFI mode

The operation on this mode is similar to Rover, go to Go to Conﬁ guration—General Conﬁ g, switch the

working mode into Rover or Base, and datalink as WIFI, click on

settings.

Unfold the sub-menus under Network Conﬁ g, and go to WIFI Conﬁ g, switch the WIFI working mode

from APinto Client, then click on

button to make sure the WIFI working mode is successfully

button to conﬁ rm the

switched.

At this moment, click on

button to search the surrounding WIFI hotspot, once ﬁ nish

searching the hotspots, choose one of the proper access point and enter the access password if

required, then click on

After a while, the WIFI signal bar appears and a LAN IP address is obtained, that indicates that SXBLUE PREMIER has connected to the WIFI and had an access to internet already.

button to conﬁ rm the settings on this page.

After that, move steps to Data Transfer—NTRIP Conﬁ g, on this page, make sure if NtripServer is activated, then check the option of Eagle Mode and input the CORS accessing information into corresponding ﬁ elds, and

predeﬁ ne a mount point for Access Point, such as TEST0001, click on

all the settings.

button to conﬁ rm

And the next step is to conﬁ gure parameters for Base, move to Conﬁ guration—Base Setup page,

input the coordinates for base with known point or capture the current position for base by clicking on

button, as shown at the red frame circle in below screenshot.

And move to Base Start Mode, choose the starting mode for base station. In dropdown list, there are 3 options for

starting mode, Manually Start Base, Automatically Start Base by Fixed Point, and Automatically Start Base

by Current Point.

anually Start Base : If this mode is chosen, the base will not start even though the transmitting condition

achieves, it needs to click on

button or button to start the base or stop the base

whenever you want if the base is ready.

Automatically Start Base by Fixed Point : Choose this mode to make the base start automatically with a ﬁ xed

point once the transmitting condition achieves, pressing

button is not needed.

Automatically Start Base by Current Point : Choose this mode to make the base start automatically

with the current position once the transmitting condition achieves, pressing

needed. Click on

button to capture the coordinates for current position.

button is not

After the starting mode is chosen, then choose the correction type for transmitting such as RTD, RTCM30, RTCM32, CMR and SCMRX. Open the dropdown list belongs to the correction ﬁ eld, then

choose one of the proper one correction type for the Base.

If all the parameters are completed, click on button to conﬁ rm the settings, after a dialog pop-up to prompt ―Submit Success message, click on OK button, the Base is ready to start. If the

automatically start mode is selected, then the Base starts transmitting correction if appears the message ―Start Base Success at Status ﬁ eld.

At this moment, observe the fourth indicator on receiver, check if it is ﬂ ashing at this time, and input server’s IP address onto the browser to check if there is the predeﬁ ned mount point locates among

the mount points.

5.2.2 Configure on Controller Software

The other way is to use our own software (LBS Manage) works on Android system, all the conﬁ gurations

can be done on the software after establishing Bluetooth connection between receiver and Android devices.

The ﬁ rst step is to establish the Bluetooth connection between receiver and Android device, then

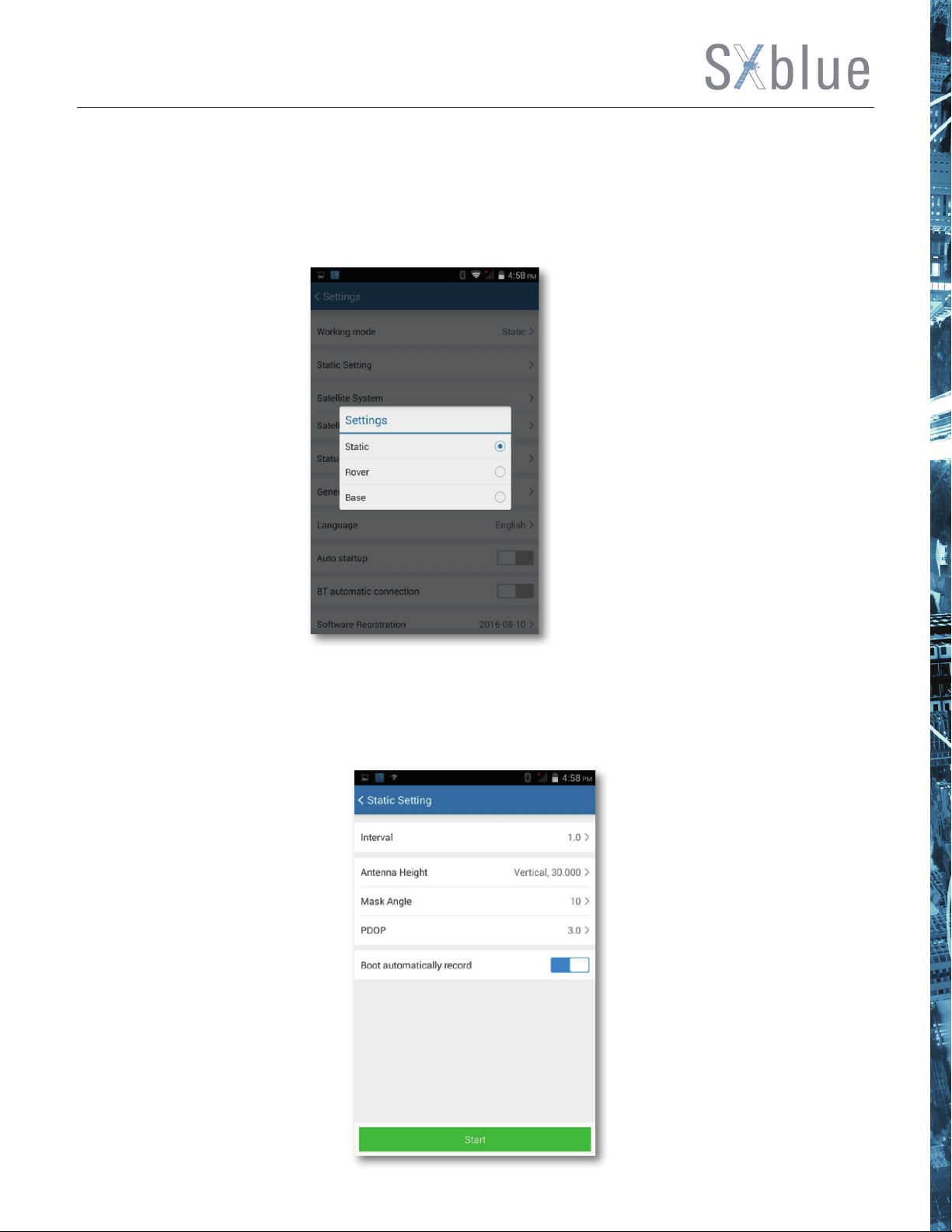

click on Setting button to get into setting interface, set the working mode for receiver as Base or

Rover. Next we are going to introduce Rover+WIFI mode and Base+WIFI mode respectively.

Rover+WIFI mode

After establishing the Bluetooth connection, switch the working mode into Rover on setting interface,

then go to Datalink option and set the datalink as WIFI.

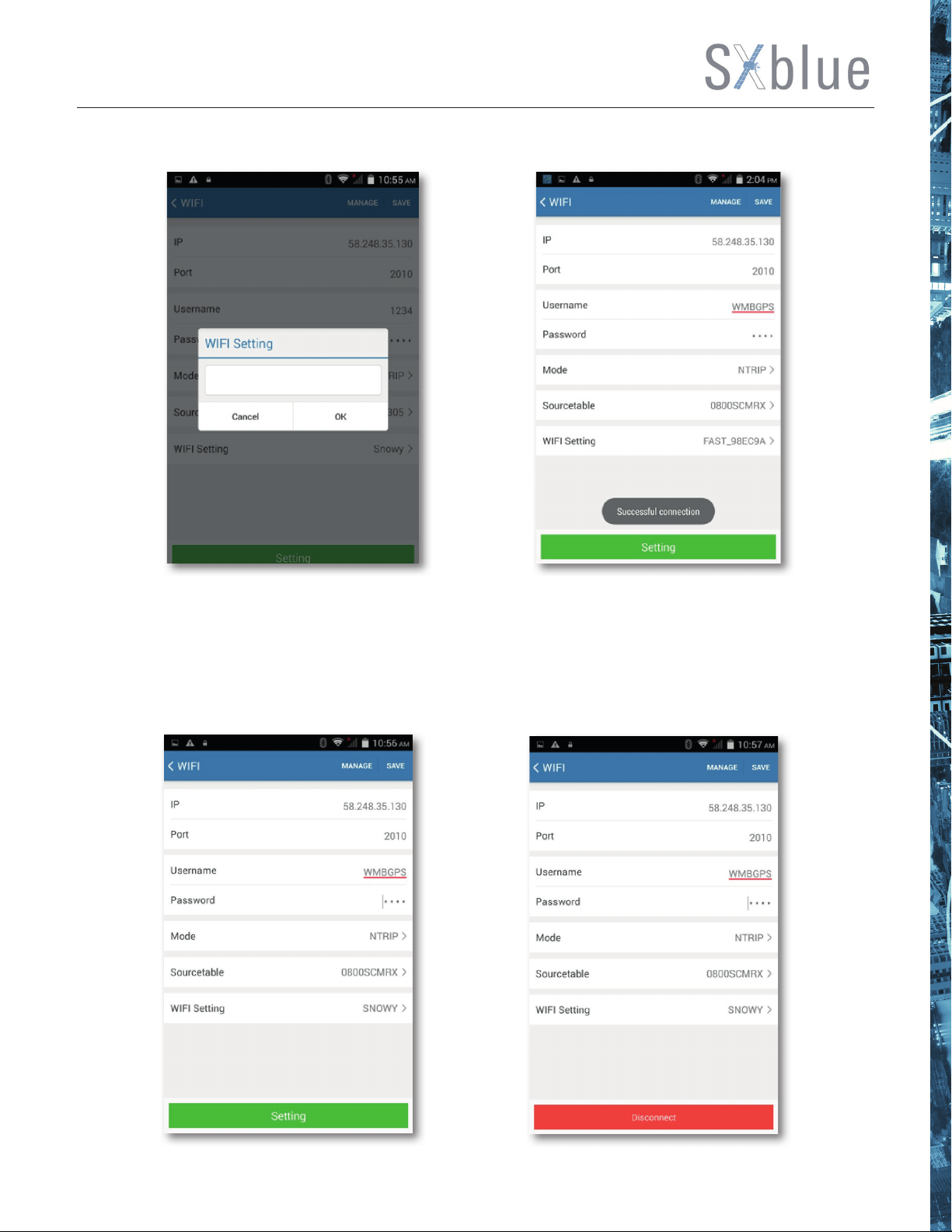

Tap on Network Setting option to conﬁ gure receiver to internet and access to CORS server. The ﬁ rst step is to make receiver successfully connect to WIFI. The WIFI Setting option locates at last option, tap on this option and a dialog pop-up, tap on Refresh WIFI list to search the surrounding WIFI

hotspot, after the message of Refresh WIFI list successfully appears, tap on WIFI Setting again to pick up one of the proper hotspot from the list to connect.

Input the access password for WIFI connecting if it is required, then click on ok, after the ―Successful connection message appears, that means SXBLUE PREMIER has successfully connected to WIFI

and access to internet.

After that, input the information of accessing local CORS station, and tap on Sourcetable option to obtain the mount point list from CORS server, choose one of them and return to network setting

interface, then tap on the setting button at the bottom of this interface, once appears the message ―Successful Setting, and the button turns to red and shows disconnect, it means SXBLUE PREMIER

successfully logins CORS server and begins to obtain correction.

At this time, return to the main interface of LBS Manage program, there will be ﬁ xed display for

solution type.

Base+WIFI mode

As same to Rover setting, after establishing the Bluetooth connection, switch the working mode into

Base on setting interface, then go to Datalink option and set the datalink as WIFI.

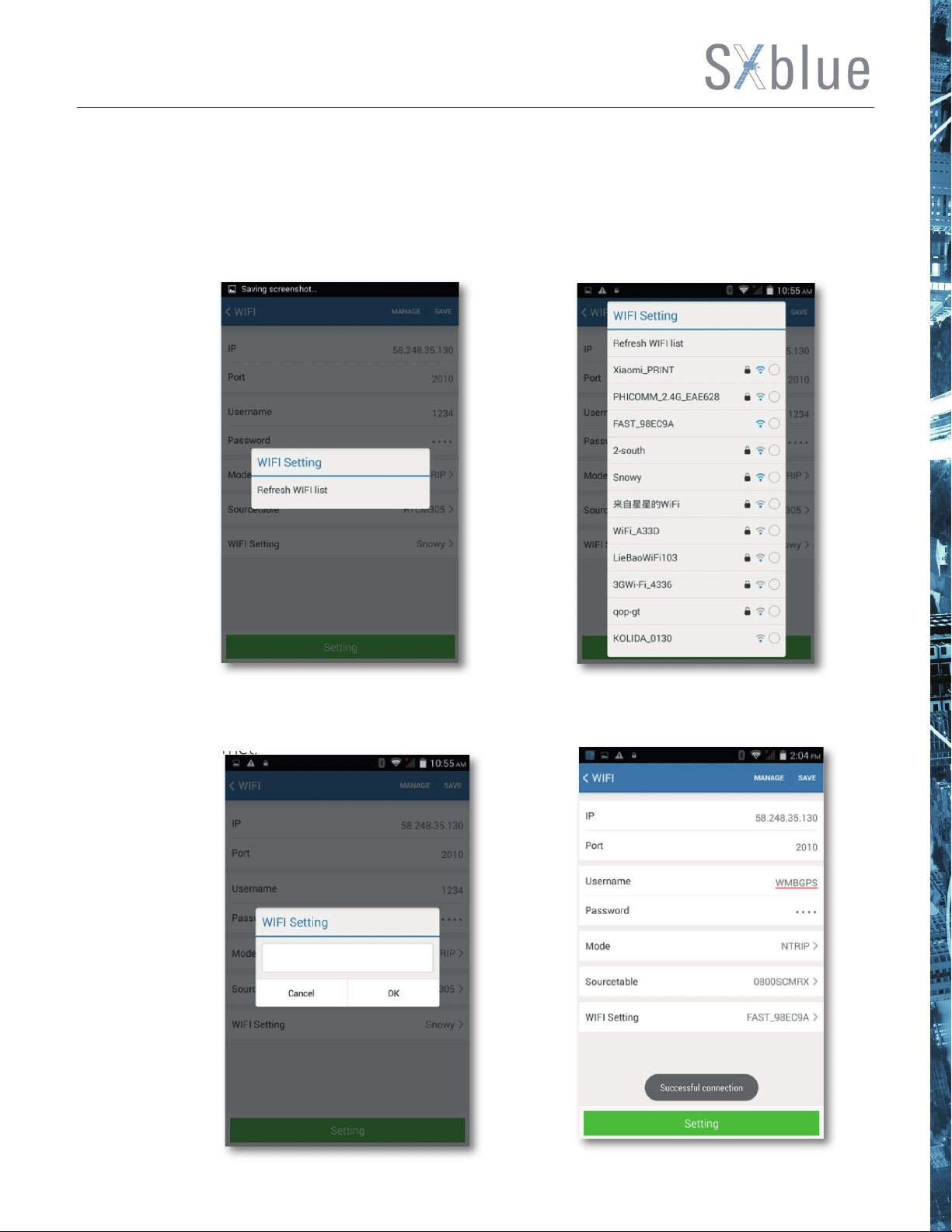

Tap on Network Setting option to conﬁ gure receiver to internet and access to CORS server. The ﬁ rst step is to make receiver successfully connect to WIFI. The WIFI Setting option locates at last option, tap on this option and a dialog pop-up, then tap on Refresh WIFI list to search the surrounding WIFI

hotspot, after the message of Refresh WIFI list successfully appears, tap the WIFI Setting again to pick up one of the proper hotspot from the list to connect.

Input the access password for WIFI connecting if it is required, then click on ok, after the ―Successful connection message appears, that means SXBLUE PREMIER has successfully connected to WIFI

and access to internet.

After that, input the information of accessing local CORS station, and go to Sourcetable option to predeﬁ ne a mount point, then tap on the Setting button locates at the bottom of this interface.

When appears the message ―Successful Setting, and the button turns into red and shows

disconnect, it means SXBLUE PREMIER successfully logins CORS server and begins to transmit

correction through the internet. At this time, return to the main interface of LBS Manage program, and observe the status of last indicator.

Chapter ⅥRTK Measurement

RTK is the abbreviation of Real-Time Kinematic measurements.

RTK technology is the real-time dynamic differential carrier phase positioning technology, combining

global satellite navigation and positioning technology with data communication technology which includes base station and rover station. Base station transmits the data by radio or network to the

rover station, which will perform differential analysis, thus providing real-time coordinates of the measurement point in the speciﬁ ed coordinate system.

Depending on the design of SXBLUE PREMIER, the receiver only can obtain correction through

the internet. According to such performance, SXBLUE PREMIER is able to work in Bluetooth mode

and WIFI mode. In this chapter, we will emphatically introduce how to do RTK measurement with

SXBLUE PREMIER receiver in Bluetooth mode.

Tips : To get more information about how to do RTK measurement in WIFI mode, please refer to chapter .

Rover + Bluetooth (Data Collector Internet)

6.1 How to connect with GIStar for Android

This chapter will introduce you how to connect SXBLUE PREMIER receiver with SXblue GIStar program works on Android devices. Before connecting the receiver, please make sure that the GIStar program has been installed on your Android device.

Run GIStar program on your Android device, and power on SXBLUE PREMIER receiver.

Tap the instrument symbol locates at the upper right corner of main interface and get into

SXblueGnssServer (LBS Manage) main interface.

3) Tap on connection type and select the connection mode as Bluetooth, then next go to Device list, enter Bluetooth Device interface, tap on search button, the Android device will search the surrounding

Bluetooth devices.

4) Choose the correct Bluetooth device SN and return to SXblueGnssServer (LBS Manage) main interface, tap on Connect button to establish Bluetooth connection between SXBLUE PREMIER

receiver and controller, at this point, the Bluetooth indicator lights up on receiver.

5) Enter setting interface to switch working mode of receiver into Rover and choose the datalink as Data Collector Internet.

6) Get into NTRIP Broadcaster interface by tapping on Network option, then input the CORS network

IP address and port, assigned username and password, then tap Sourcetable and Refresh to

request the source table.

7) After ―Refresh sourcetable successfully message appears, tap again on Sourcetable option

to select a proper mount point and tap on connect button.

8) At this time, if there appears successful connection and successful login messages, that means the receiver has successfully connected to server and begins to get correction from CORS server.

Return to LBS Manage main interface and observe the fourth indicator on SXBLUE PREMIER receiver

if it is ﬂ ashing.

9) Return to GIStar main interface and there you will have high accuracy coordinates with ﬁ xed solution, now start a new job. If all the conﬁ gurations of new job are completed, that is to say, the Rover system is ready to do the RTK measurement. Click on Task menu and get into Pt Survey

interface.

10) make sure that the instrument is leveling on a point, and the coordinates are stable at this position,

tap on button to collect the coordinates for this position.

6.2 How to connect with EGSTAR

In this section we will teach you how to connect SXBLUE PREMIER with the latest version of EGStar.

First of all, establish an ISP connection on controller and make sure that the controller is able to

access to internet successfully.

1) Run EGStar program on controller. The following screenshot is the main interface of latest version

of EGstar.

2) Create a new job and setup local coordinate system for current project.

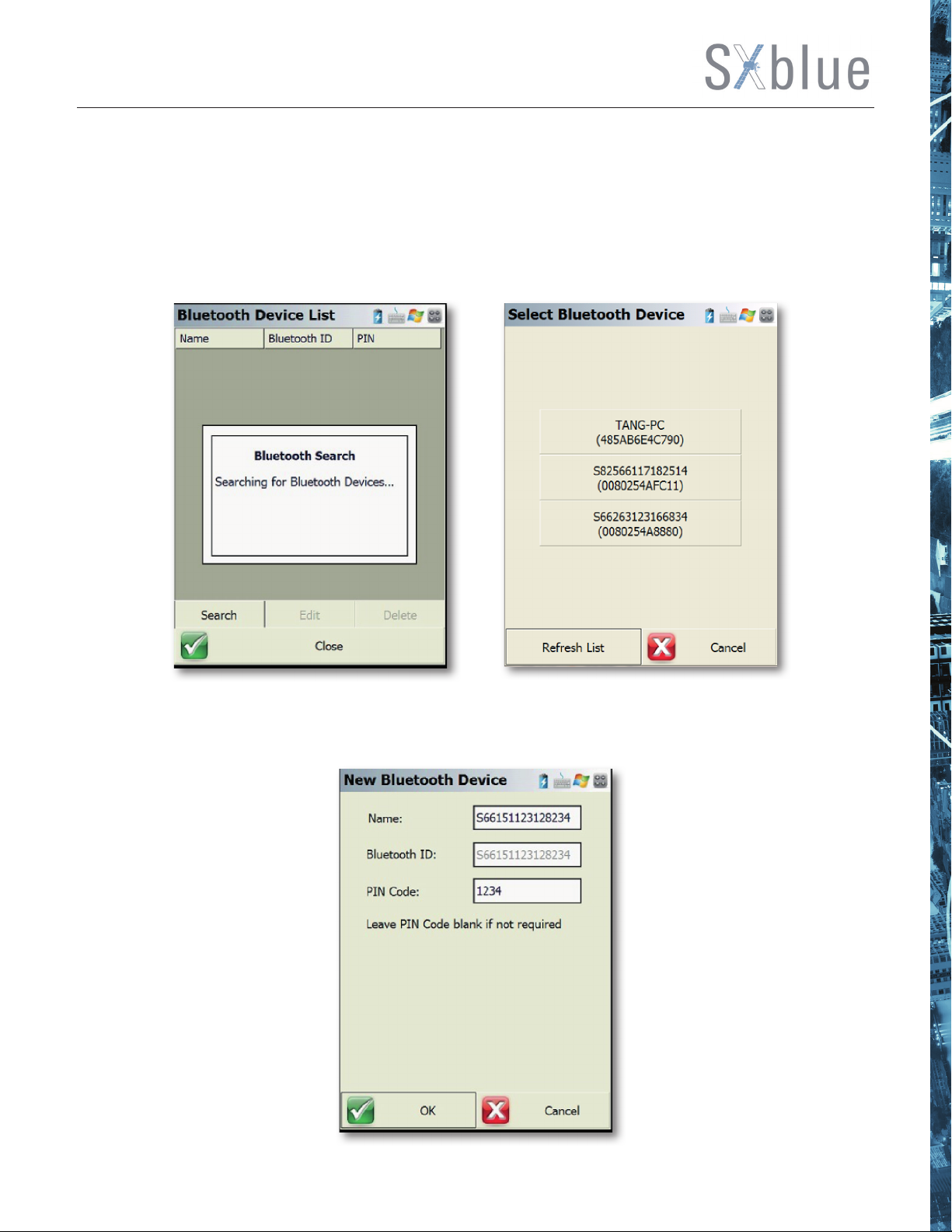

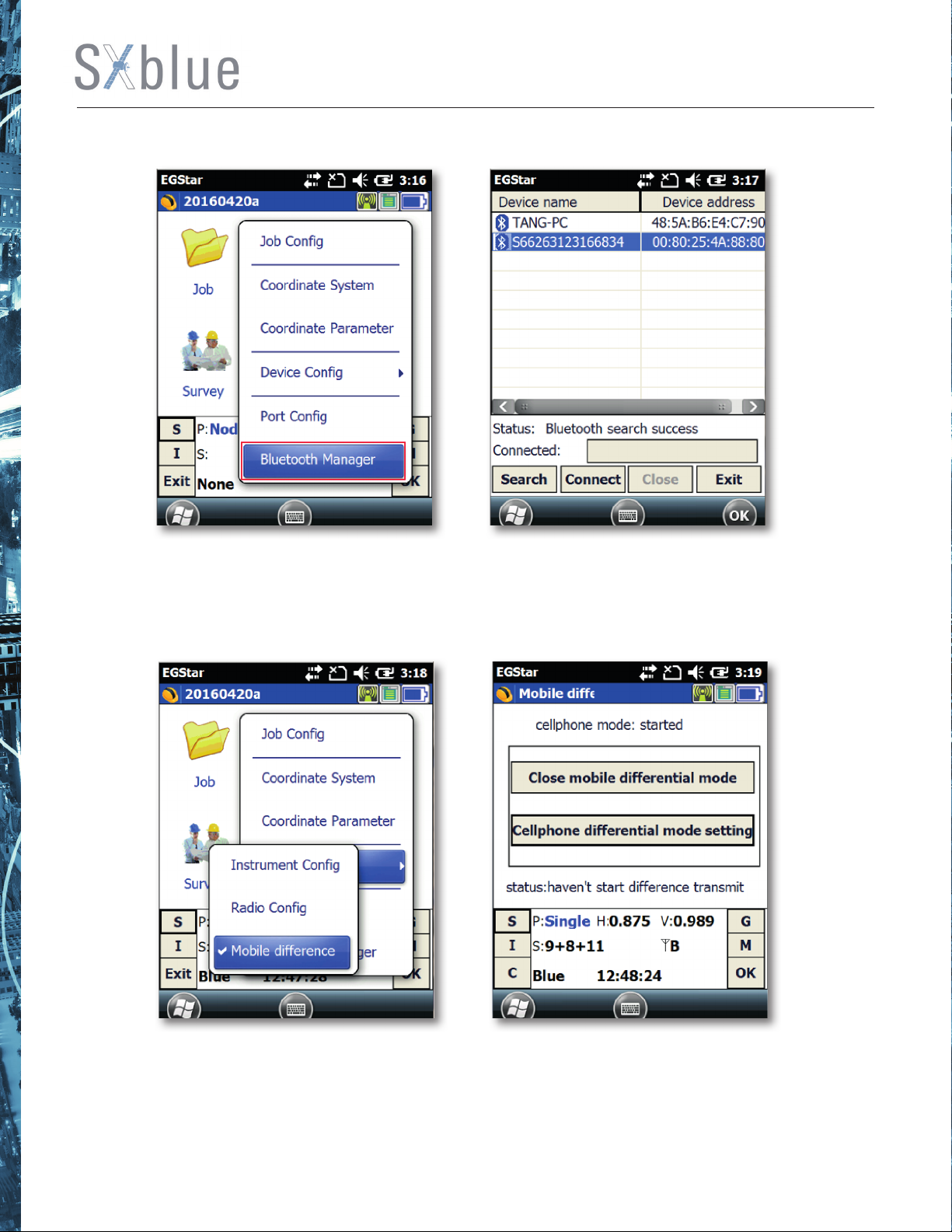

3) Enter Conﬁ g/ Bluetooth Manager interface. Click on ―Search button to search the surrounding

―Co

Bluetooth devices and pick a correct serial number of SXBLUE PREMIER, then click on

establish the Bluetooth connection with SXBLUE PREMIER. As shown on following ﬁ gures.

nnect to

4) Go to Conﬁ g/Mobile difference interface, then click on ―Open mobile differential m to activate this function, move to ―Cellphone differential mode setting and go into parameter conﬁ guration interface.

ode

Enter the IP address of network, the port, the assigned name and password, after that click on ―

Get sourcetable

―C

onnect button to access.

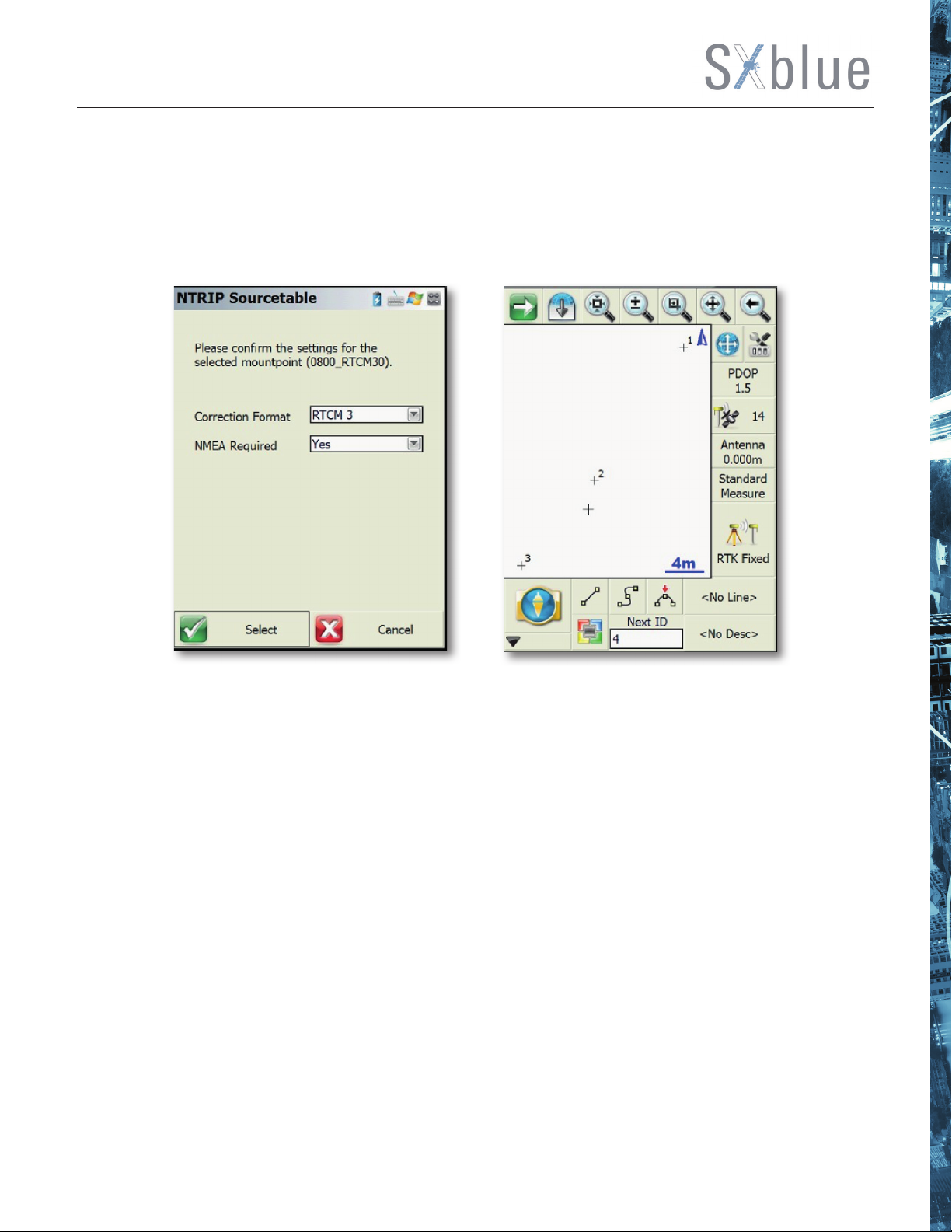

button to obtain mount point list from server, and select a proper one then click on

6) After getting the available Fixed solution, you can start your job.

6.3 How to connect with SurvCE

In this section, you will get the method of how to use SurvCE to connect with SXBLUE PREMIER and conﬁ gure parameters for it. First, install SurvCE software onto controller (Ver.4.04 or higher version is recommended). Then run Carlson SurvCE program on controller.

1) Create a new job and setup your local coordinate system for current project.

2) Tap on ―GPS Rover in Equip sub-menu.

3) In Current tab, select SXblue in Manufacturer dropdown list and choose PREMIER driver to use on

SXBLUE PREMIER receiver. The driver of PREMIER is suitable to SXBLUE PREMIER receiver as well.

4) Move to Comms tab and pick Bluetooth in Type box. Use Windows Mobile in BT Type then tap

on icon

Find Receiver to search all nearby Bluetooth devices, pick up a correct one then tap on the icon

at the top of interface to bond with. When you are back in GPS Rover interface, tap on icon to

conﬁ rm the connection, after ―Successful Connection message appears and the second indicator is on, that indicates Bluetooth connection between receiver and controller has successfully established.

to enter Bluetooth device dialog, select the correct serial number of your device or tap on

5) Conﬁ gure more settings in Receiver tab, which involve Antenna Height, Elevation Mask, etc.

6) Move to RTK tab, select Data Collector Internet in Device box, then click on , in ISP box, select the connection previously deﬁ ned in Windows menu (eg. My connection), check that if it shows connected. On the contrary push Connect, then conﬁ rm with

7) Select NTRIP in Network box. Click on icon at the right. Create a name for the network, enter the IP address of network, the port, the assigned name and password, after that conﬁ rm the conﬁ guration in the usual way.

8) Then the internet connection will start, and the available services/mount points for corrections will be downloaded to your controller, select the suited service and conﬁ rm.

9) Choose a proper mount point you intend to access, click on icon

appears a series of prompt messages which indicates connecting procedure, that means the receiver

will start the connection with CORS network, and obtain correction from CORS server, at this time, keep an eye on the fourth indicator on receiver if it is ﬂ ashing at the same time.

to conﬁ rm. Then there

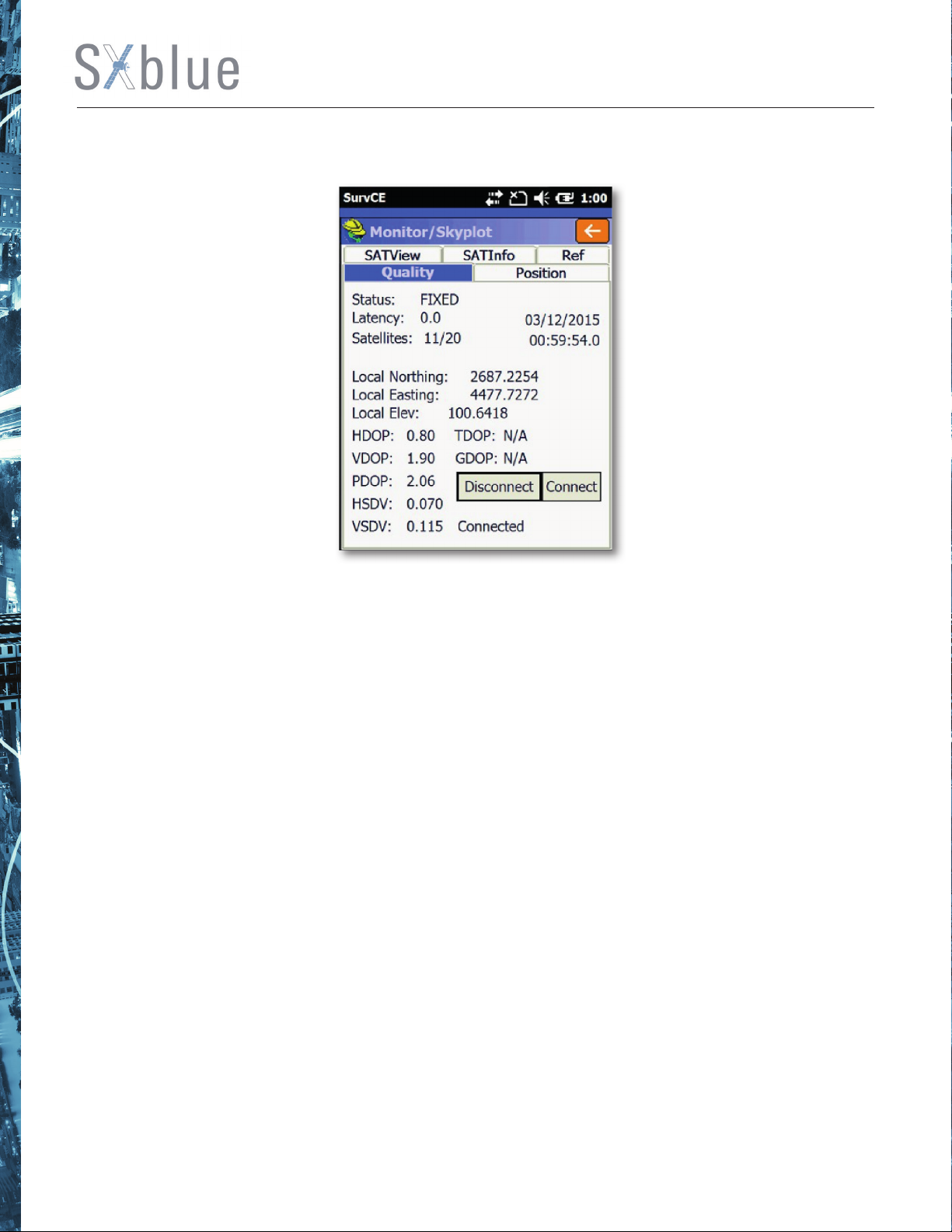

10) Tap on Monitor/Skyplot option to check data quality.

11) When you get the available FIXED solution, you can start your job.

6.4 How to use FieldGenius to configure SXBLUE PREMIER

As FieldGenius version 7.2.12.14 released, the PREMIER driver was built and we are able to conﬁ gure SXBLUE PREMIER with this driver as well in latest version of FieldGenius. In this section, we will take version 8.3.17.2 for example. Next you will get the method how to use FieldGenius on SXBLUE

PREMIER receiver.

1) Run FieldGenius program on your controller, then open an existing project or create a new one for

your job.

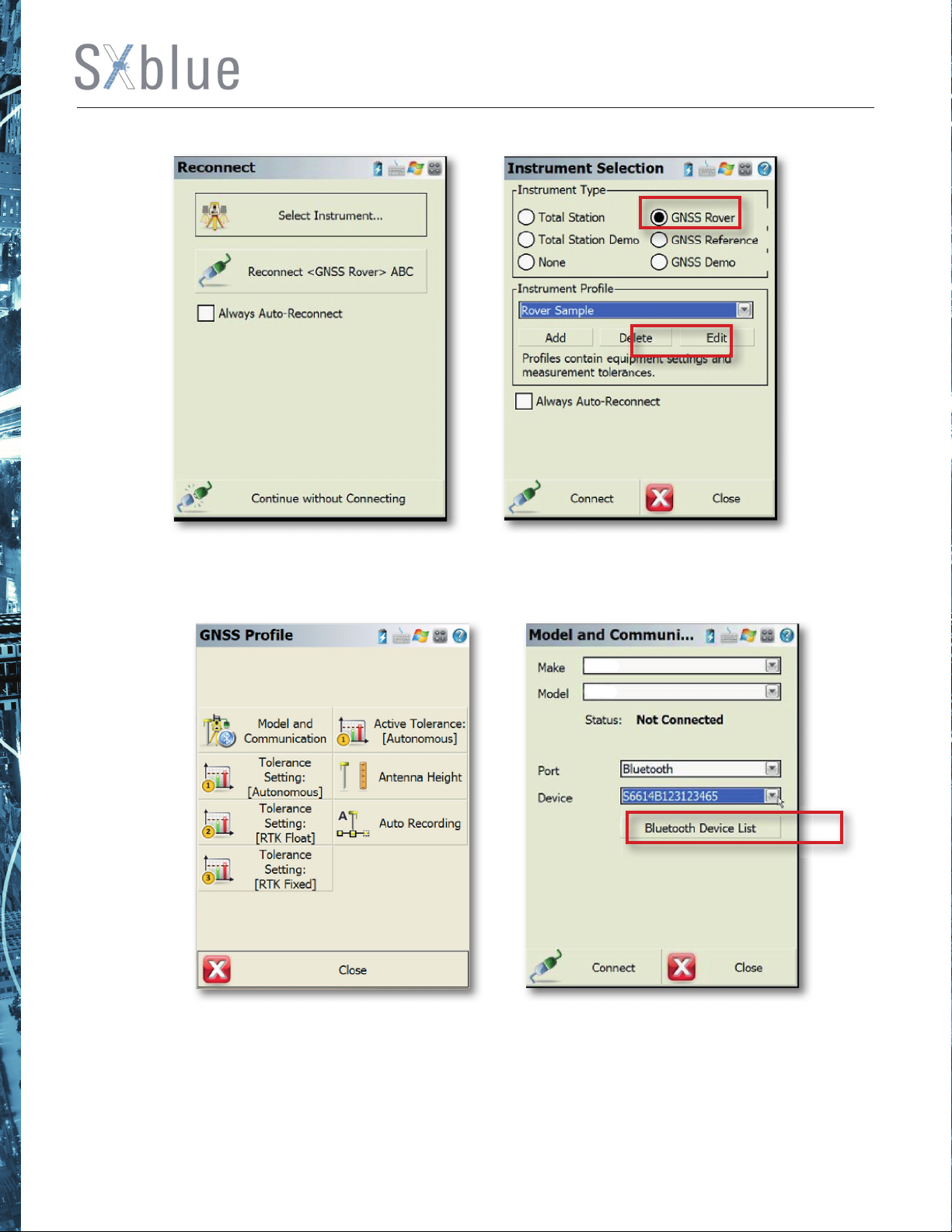

2) After completing your project conﬁ guration, then establish the Bluetooth connection between

controller and PREMIER. Tap on ―Select Instrument… button to go into Instrument Selection interface, mark on the checkbox of GNSS Rover option, then click on ―Edit button to go on. If you ever connected the device before, please tap on ―Recoonect <GNSS Rover> directly to reconnect your device.

3) Select ―Model and Communication option and get into this interface, selec t SXblue in Make

dropdown list

and choose PREMIER driver to use on SXBLUE PREMIER receiver.

4) And select ―Bluetooth in Port dropdown list, and choose the correct serial number of SXBLUE PREMIER has been stored in Device box, and then click on ―Connect button to bond with the Bluetooth. If it is the ﬁ rst connection, click on “Bluetooth Device List and search all the nearby

Bluetooth devices, select the correct serial number of SXBLUE PREMIER receiver, verify that and then start the connection.

5) If the PIN code is required, please input 1234 or 0000, then back on Model and Communication

page, click on ―Connect button to complete the connection. Meanwhile, please check the second indicator on receiver if it is lit up.

6) Choose ―Date Collector Internet as your link device and click on ―Setup to go on. Verify that the Data Port of Port Options is Shared, then enter the IP address, port, assigned name and password for NTRIP connection, after that, when you back on Link Conﬁ gure page then click ―Connect again

to start the NTRIP connection.

7) If the receiver connected to a mount point before, reconnect directly this mount point which has been stored on handheld. Or request the whole sourcetable if you ﬁ rst time to connect the NTRIP

broadcaster. Tap on ―Request Sourcetable and the available mount points for corrections will be downloaded to your handheld.

8) Choose a proper correction format and click on ―Select button to conﬁ rm, then return to Link Conﬁ gure page and click on ―Connect button to process the ﬁ nal step, and the receiver will start accessing to internet and obtain correction from CORS server, at this moment, pay your attention to the fourth indicator on receiver, check if it is ﬂ ashing at the same time, then check the data quality on

the right side of main interface.

Chapter ⅦStatic Measurement

GPS positioning measurement by installed three (or more) GNSS receivers to perform simultaneous

observation and determine the relative position between the stations.

In this chapter, we are going to introduce how to do Static measurement with SXBLUE PREMIER receiver.

7.1 Antenna Height Measuring

After ﬁ xed the instrument, user should measure antenna height at the beginning and the end of

every period of time to ensure the accuracy ―mm level. We usually measure from the center point on the ground to the center waterproof loop of antenna. That is an inclined height. Please

refer to the following ﬁ gure.

Measuring plate

We use a formula to calculate antenna height.

―h is the inclined height that measure from point on the ground to the measuring plate edge.

is the distance from middle of antenna to the edge of measuring plate.

h0 is the distance from antenna phase center to the bottom of receiver (measuring plate). H is the

calculation result. We usually measure antenna height twice and adopt the average.

Attention : We input the inclined height as the antenna height, which is the inclined distance from point on the

ground to the waterproof loop of antenna.

7.2 Field operation procedure

1) Set up a tripod on the control point, leveling and centering strictly on the measuring point.

2) Measure the instrument height three times, the difference of the results shall not be more than

3mm, and average the results. The instrument height should be measured from the center of the

control point to the mark line on the instrument.(Refer to 7.1.)

3) Record instrument number, point name, instrument height, and start time.

4) Power on receiver, conﬁ rm the static mode, the mainframe begins to search satellites and satellite lights begin to ﬂ ash. Recording condition reached, the status light ﬂ ashes in accordance with the set sampling interval, ﬂ ashing once indicates the acquisition of an epoch.

7.3 Mode Configuration

Static mode of SXBLUE PREMIER receiver is able to be set on internal web UI or on controller software

(eg.GIStar for Android). In this section, we will respectively introduce how to conﬁ gure static mode on web UI and controller software (GIStar).

Conﬁ gure on Web UI

Switch on SXBLUE PREMIER receiver in normal way, then connect receiver to computer via micro

USB Ethernet port, or connect receiver to tablet or smartphone via WIFI connection. Input admin for

both username and password to login the web UI server.

Go to Conﬁ guration —General Conﬁ g, switch the working mode into Static, click on button to conﬁ rm the settings.

Input the measured antenna height on Antenna Setup interface.

ove to Data Record and get into Recording Conﬁ g interface, choose the storage type, setup the sampling interval, ﬁ le interval, static ﬁ le format, then choose the recording mode automatic record or

manual record. After all the

parameters are set, click on start recording. At this time, observe the status of the indicators on receiver.

button to conﬁ rm and then click on button to

To stop static recording, switch off the receiver directly or click on

static data ﬁ le will be recorded and saved in internal memory of SXBLUE PREMIER.

button on web UI, the

Conﬁ gure on GIStar

Switch on SXBLUE PREMIER receiver and establish Bluetooth connection between SXBLUE PREMIER and controller which has GIStar program installed, then get into Setting interface and switch working mode of receiver into Static.

After the working mode is set, move to Static Setting and set up all the parameters for SXBLUE

PREMIER receiver, such as sampling interval, antenna height, mask angle, PDOP, as well as to set

automatic record mode for receiver by tapping on the switch.

After all the parameters are completed, click on Start button at the bottom of interface to start recording raw data onto memory of receiver, at this moment, pay attention to the fourth indicator on

receiver, check if it is ﬂ ashing at the same time.

Tips : If the switch of “Boot automatically record” is on, the receiver will record raw data ﬁ le automatically after

starting up and achieving the recording condition.

7.4 Data Download

While the static job is done, go back to ofﬁ ce and download the static data from web UI. Set the

micro USB port of SXBLUE PREMIER receiver into Ethernet mode, then connect to computer via

micro USB cable and login web UI on IE browser. Go to Data Record—Data Download, choose the correct ﬁ le format and the date when the static data was recorded, tap on button to refresh the static data ﬁ les, after few seconds, click on download button related to the static ﬁ le, and download the ﬁ les to computer.

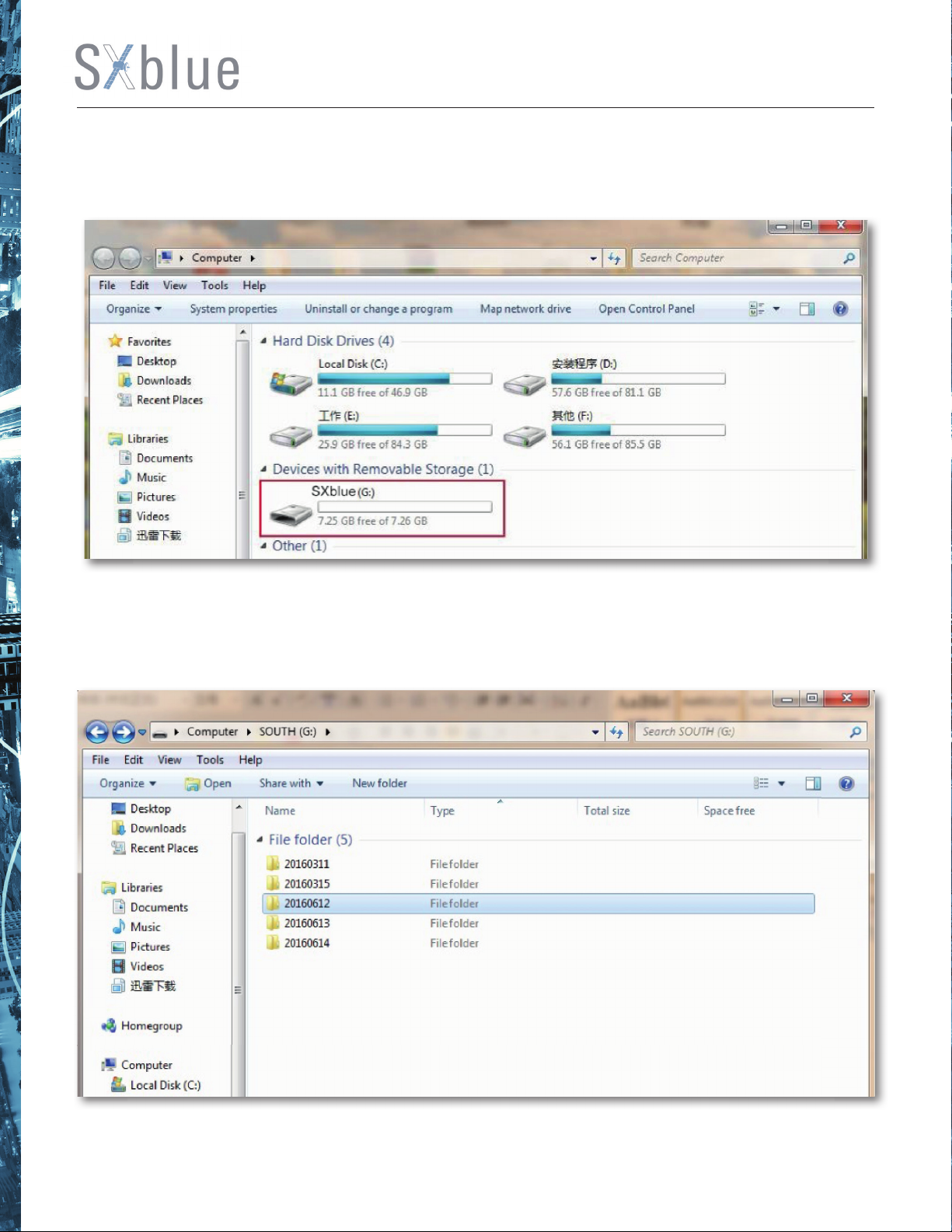

The other way is to switch the micro USB port of SXBLUE PREMIER receiver into normal USB port, connect the receiver to computer, it will be recognized as a removable disk.

Open the disk and look for the folder of recording date, then copy the data ﬁ le from folder to computer.

100

SXblue Premier User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
