SWL MS-100 series User Manual

SHINEWORLD INNOVATIONS LIMITED

#709-711, UNIT A, YI CHENG COMMERCIAL BUILDING, HONGLI ROAD,

DONGCHENG DISTRICT, DONGGUAN CITY, GUANGDONG PROVINCE,

523000, CHINA | www.swi-cn.com |[e-mail] |skype: swi-cn

Contact: http: //www.swi-cn.com | E-mail: [e-mail] | Tel.: [phone]

1

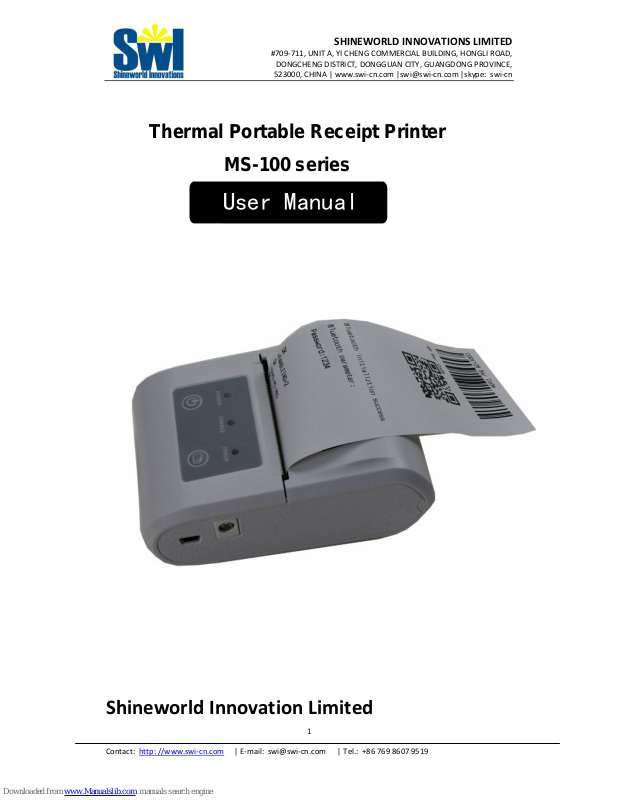

Thermal Portable Receipt Printer

MS-100 series

User Manual

Shineworld Innovation Limited

SHINEWORLD INNOVATIONS LIMITED

#709-711, UNIT A, YI CHENG COMMERCIAL BUILDING, HONGLI ROAD,

DONGCHENG DISTRICT, DONGGUAN CITY, GUANGDONG PROVINCE,

523000, CHINA | www.swi-cn.com |[e-mail] |skype: swi-cn

Contact: http: //www.swi-cn.com | E-mail: [e-mail] | Tel.: [phone]

2

Content

Matters and attentions

............................................................................................................................3

Chapter I brief introduction

………….…............................ ......................................................... .... 4

1.1 printer appearance

.................................................................................................................. 4

1.2 model name

…......................................................................................................................... 4

1.3 accessories

.............................................................................................................................. 5

Chapter II printer perfomance

..........................................................................................................6

2.1 Printer specification

............................................................................................................... 6

2.2 Physical property

........................................ ............................................................................ 7

2.3 Ambient requirement

............................................................................................................. 7

2.4 Other instructions

................................................................................................................... 7

Chapter III Application method

...................................................................................................... 8

3.1 Preparation

............................................................................................................................. 8

3.1.1 Battery installation

........................................................................................................ 8

3.1.2 Roll installation

.............................................................................................................. 8

3.2 Basic application

.................................................................................................................... 8

3.2.1 Powr on

.......................................................................................................................... 9

3.2.2 Power off

...................................................................................................................... 10

3.2.3 Self test

......................................................................................................................... 10

3.2.4 Paper feed

.................................................................................................................... 10

3.2.5 Battery charging

.......................................................................................................... 10

3.3 Communication connection

............................................................................................... 10

3.3.1 Wire communication connection

.............................................................................. 10

3.3.2 Infrared communication connection

......................................................................... 11

3.3.3 Bluetooth communicatoiin connection

..................................................................... 12

3.4 Indicator singnal

................................................................................................................. 12

Chapter IV other aspects

............................................................................................................. 13

4.1 software development kit

.................................................................................................

13

4.2 blackmark position criterion............................................................................................. 13

SHINEWORLD INNOVATIONS LIMITED

#709-711, UNIT A, YI CHENG COMMERCIAL BUILDING, HONGLI ROAD,

DONGCHENG DISTRICT, DONGGUAN CITY, GUANGDONG PROVINCE,

523000, CHINA | www.swi-cn.com |[e-mail] |skype: swi-cn

Contact: http: //www.swi-cn.com | E-mail: [e-mail] | Tel.: [phone]

3

Matters and attentions
Safety precautions

Our company provides lithium battery and adaptor are only suitable for our printer,and never
change others apply to ours or will damage printer. Do not throw out battery to dangerous
environment (burning/dismantle/washing) or will cause injury and pollution.
Do not open front roll container and touch printer mechanism or will scald finger or other body
parts.

Operation precautions

Never expose printer in moist or dusty environment or will damage printer mechanism.
Never open roll container during printing or will influence printer work.
Pull out cable will lead to printing content incomplete.
Using infrared communication user should keep main device infrared window direct at printers
and in 0.5 m distance range or will influence printer work.
Though printer work temperature is from -10 to 50 ℃, but in the high temp 45℃ or low temp

5℃ printing quality will be instability.
Tough printer work humidity is from 5% to 90% RH, but in high moist ambient printing quality
will be instability.
Please using standard thermal paper or will damage printer thermal head and influence
printing quality.
Please using standard balckmark paper or will influence printer balckmark detection.
Please charge printer after battery powr working out.

Storage precautions

Printer should be stored in stanadard environment(temperature -20℃ to 70℃;humidity 5％to
95％), if user need keep storing printer please take out battery.

If user need keep receipt in long time please choose standard paper and store in dry and
clean ambient.
Please store thermal paper in cool and lucifugal place.
.

SHINEWORLD INNOVATIONS LIMITED

#709-711, UNIT A, YI CHENG COMMERCIAL BUILDING, HONGLI ROAD,

DONGCHENG DISTRICT, DONGGUAN CITY, GUANGDONG PROVINCE,

523000, CHINA | www.swi-cn.com |[e-mail] |skype: swi-cn

Contact: http: //www.swi-cn.com | E-mail: [e-mail] | Tel.: [phone]

4

Chapter I Brief introduction

1.1 Printer appearance

1. Paper feed

2. Printer status indicator

3. Communication interface

4. Infrared window

5. Front panel

6. Power switch

7. Charge indicator

8. Power interface

9. Battery panel

1.2

Model name

MS-100 series is 58mm thermal portable receipt printer, according to wireless
communication method, it can divid into several types:

1. MS-100B Bluetooth type

2. MS-100I infrared type

1

4

3

2

5

6

7

8

9
