SWIT Electronics Co.,LTD. CW-S150 User Manual

Model: CW-S150

Professional SDI-150m Wireless HD Transmission System

、

User Manual

Ver：A

Please read this user manual
throughout before using.

SWIT ELECTRONICS CO., LTD.

Preface

1． All internal technologies of this product are protected, including device, software and trademark.

Reproduction in whole or in part without written permission is prohibited.

2． All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative trademarks in this

user manual are the property of their respective owners.

3． Due to constant effort of product development, SWIT reserves the right to make changes and

improvements to the product described in this manual without prior notice.

4． The warranty period of this product is 2 years, and does not cover the following:

(1) Physical damage to the products;

(2) Any damage or breakdown caused by use, maintenance, or storage not according to the user manual’s

instructions;

(3) The attenuation of signal quality resulting from being used in any special environments;

(4) Any damage caused by not powering the product by package supplied power adaptor.

(5) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality,

etc.

5． For any suggestions and requirements on this product, please contact us through phone, fax, Email, etc.

SWIT Electronics Co., Ltd.

Address: 10 Hengtong Road, Nanjing Economic and Technological Development Zone,

Nanjing 210038, P.R.China

Phone: [phone]

Fax: [phone]

Email: [e-mail]

Website: http://www.swit.cc

For Your Safety

Before start, please follow the safety precautions below:

Do not try the followings:

1. Unauthorized repairs or parts replacement or other operations.

2. Inappropriate placement including but not limited to lighting, fire, exposure to rain, water or gas.

3. Switch to the power not in the voltage allowable range.

Warning

 Do not get any liquid inside the product.

 Do not block the ventilation openings or get substances inside, in order to avoid short circuit, fire or

electric shock.

 Do not place the product in the rain or moisture to avoid electric shock or fire.

Danger

 Switch the power off before connecting other devices.

 Power socket: Make sure the power socket under the voltage range of the product to avoid short circuit,

electric shock and fire.

 Power cable: Make sure the power cable is not pressed or tightened by any items or weights.

 Power Load: Do not exceed the load on the wall outlet, extension cable or other porous receptacle to

avoid fire or electric shock.

 Lighting: Disconnect the power cable if it is lighting or not using in a long period of time.

Working environment

 Please don't lay the product on any unstable place to avoid fallen damage.

 Please don’t use the product in a place overheating, undercooling or with lots of moisture, or near by

strong magnetic devices.

 Please don’t lay the product on metal shelf, in order to ensure the effective wireless transmission.

Packing list

This wireless system includes below accessories:

1.Transmitter 2.Receiver 3. Antenna*5 4. Articulating arm trestle

5. D-tap to 4-pin LEMO DC cable (0.6m) 6. D-tap to 4-pin LEMO DC cable (1m)

7.Power adaptor(optional accessories PD-A12L4) 8.User manual 9.Warranty card

1. Product Introduction

CW-S150 includes transmitter and receiver, adopts WHDI (OFDM) technology, supports uncompressed SDI

wirelessly transmitted in 150 meters scale, auto pairing and with less than 1ms latency, equipped with 4-pin

LEMO DC power connector, and the receiving signal is very stable.

2. Features

◆ SDI uncompressed transmission

Support up to 1080p 50/60Hz uncompressed SDI wireless transmission

◆ 150 meters transmission distance

In open outdoor area, the effective transmission distance is approx 150 meters.

◆ Less than 1ms latency

There’s no discernible video delay and you can use it as real time on-location monitoring.

◆ License free operation frequency

The wireless frequency is 5.1-5.9GHz, license free operated and work without interference with devices
such as wireless walkie-talkies

◆ Pairing mode

Support auto pairing connection and one transmitter to four receivers multicast mode

◆ Encryption

Support AES 128-bit encryption to protect the transmission.

◆ Battery plate optional

User can choose various standard DV battery plates for CW-S150 transmitter and V-mount or Gold mount
battery plate for receiver.

◆ All-Metal Shell

Both the transmitter and receiver adopt metal shell which is durable and solid.

◆ Simple connection

The wireless system is plug-and-play designed, without any software connection and configuration

Remark:

1. The transmission distance may be different, and depend on surroundings, radio wave conditions, buildings,
etc., the 150 meters transmission distance may be not guaranteed.

2. The wireless transmission might be interrupt if there’re many other devices of 5GHz wireless bandwidth
operated in the in the same location.

3. Signal reception may be affected by the position, height and angle of devices. If reception video is not stable,
please physically adjust placement for the optimized signal.

4. Set the antennas straight up and set receiver higher will enhance the transmission efficiency.

5. The product offers the AES 128-bit encryption to protect the wireless transmission. Anyway, please be ware
of the intentional capture from third person.

3. Appearance Instruction

Transmitter CW-S150

⑴ Antenna
⑵ Network: RSSI LED indicator
⑶ Video: Video signal indicator
⑷ Power: Power status indicator
⑸ Pair: Pairing button
⑹ SDI LOOP: SDI loop output (BNC connector)
⑺ SDI in: SDI input (BNC connector)
⑻ Installation thread: 1/4”-20 thread. Use the package supplied articulating arm trestle to install the device to

the camera

⑼ Product label
⑽ Battery plate: Various DV battery plates optional.

See details in “7. Optional Battery Plate”

⑾ DC in: Support DC 7-36V voltage input, 4-pin lockable LEMO interface.

The description of LED status indicator

Device LED indicator Status Description

CW-S150

transmitter

Power

Constant On Power connected and switched on

Off Power disconnected and switched off

Video

Constant On

Network is connected, and there is recognizable

video signal input

Flash

Network connection failed and there is no

recognizable video signal input

Network

Constant On The wireless network connection is normal

Flash The wireless network connection is abnormal

Front view

Rear View

Receiver CW-S150

Front view Rear view

⑴ Antenna
⑵ Network: RSSI LED indicator

⑶ Video: Video signal indicator
⑷ Pair: Pairing button
⑸ Installation thread: 1/4”-20 thread.

⑹ Product label
⑺ Battery plate：V-mount or Gold mount battery plate optional. See details in “7. Optional Battery Plate”
, ⑻⑼SDI out: SDI output, BNC connector
⑽ DC in: Support DC 7-36V voltage input, 4-pin lockable LEMO interface.

The description of LED status indicator

Device LED indicator Status Description

CW-S150

Receive

Network

Constant On The wireless network connection is normal

Flash The wireless network connection is abnormal

Video

Constant On There is recognizable video signal input

Flash There is no recognizable video signal input

4. Setup connection

⑴ Connect the SDI video source with the “SDI IN” port CW-S150 transmitter.

⑵ Connect the “SDI OUT” port of CW-S150 receiver with monitor or other receiving devices.
⑶ Power the CW-S150 transmitter and receiver, the transmitter “Power” LED on, “Video” and “Network” LED

flash; the receiver “Video” and “Network” LED flash; they will automatically search the network, and detect
video signal, when the “Video” and “Network” LED is constant on, the output display is normal.

5. Pairing

⑴ Connect the SDI video source with the “SDI IN” port CW-S150 transmitter.

⑵ Connect the “SDI OUT” port of CW-S150 receiver with monitor or other receiving devices.

⑶ Power the CW-S150 transmitter and receiver, the transmitter “Power” LED on, “Video” and “Network” LED
flash; the receiver “Video” and “Network” LED flash; the monitor or switcher will display as Fig. 1

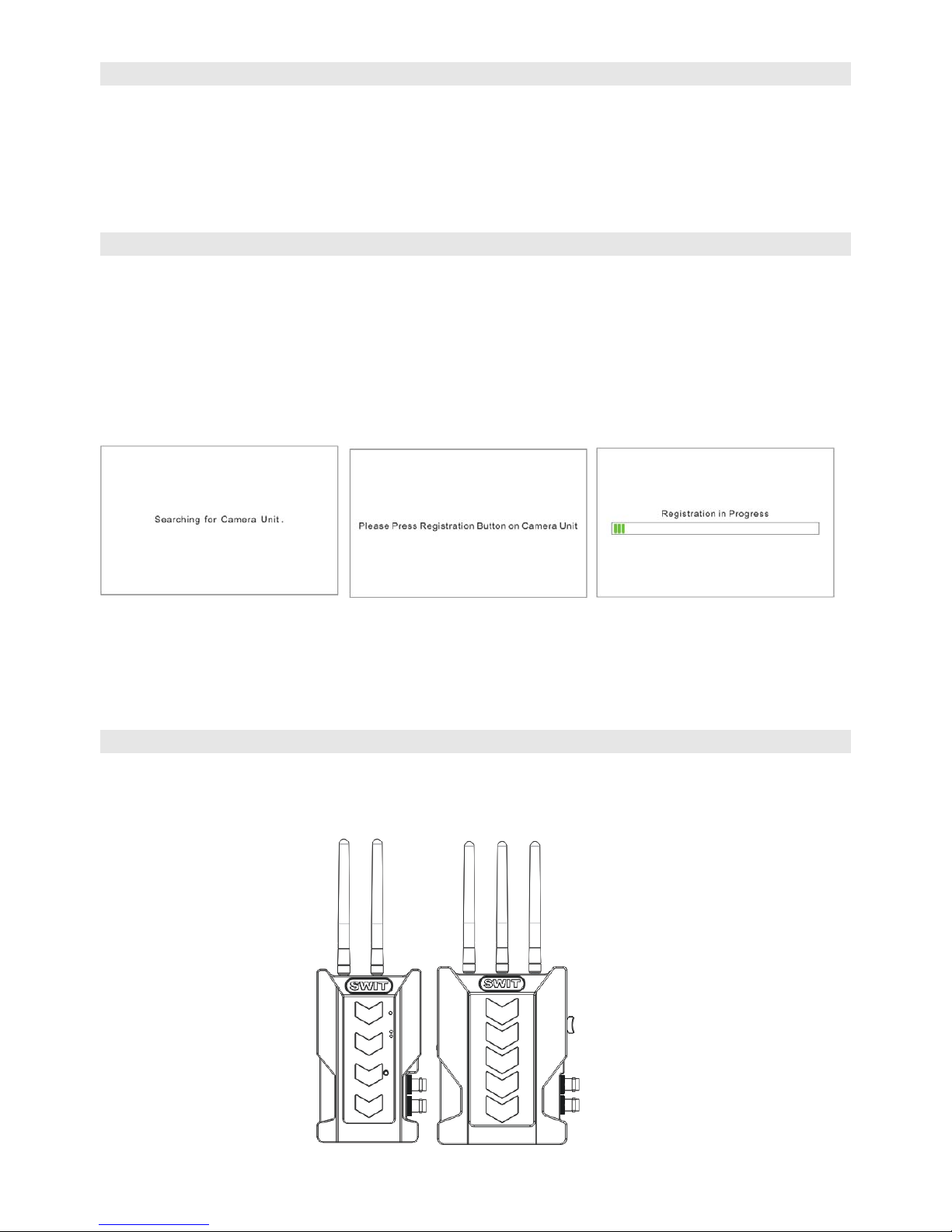

⑷ Press the Receiver Pair button and hold for 5-10 seconds, the monitor or switcher will display Fig.2, then
release the Pair button; Press the Transmitter Pair button and hold till the monitor or switcher display progress
bar as in Fig. 3, then release the Pair button.
⑸ When the progress bar completed, they are successfully paired.

Note: 1. Please keep the transmitter and receiver in distance of 1-2m to avoid pairing failure.

2. Please do not use more than 3 sets of devices under the same environment to avoid interference.

3. User can use at most 4 receivers to pair with one transmitter under the same environment.

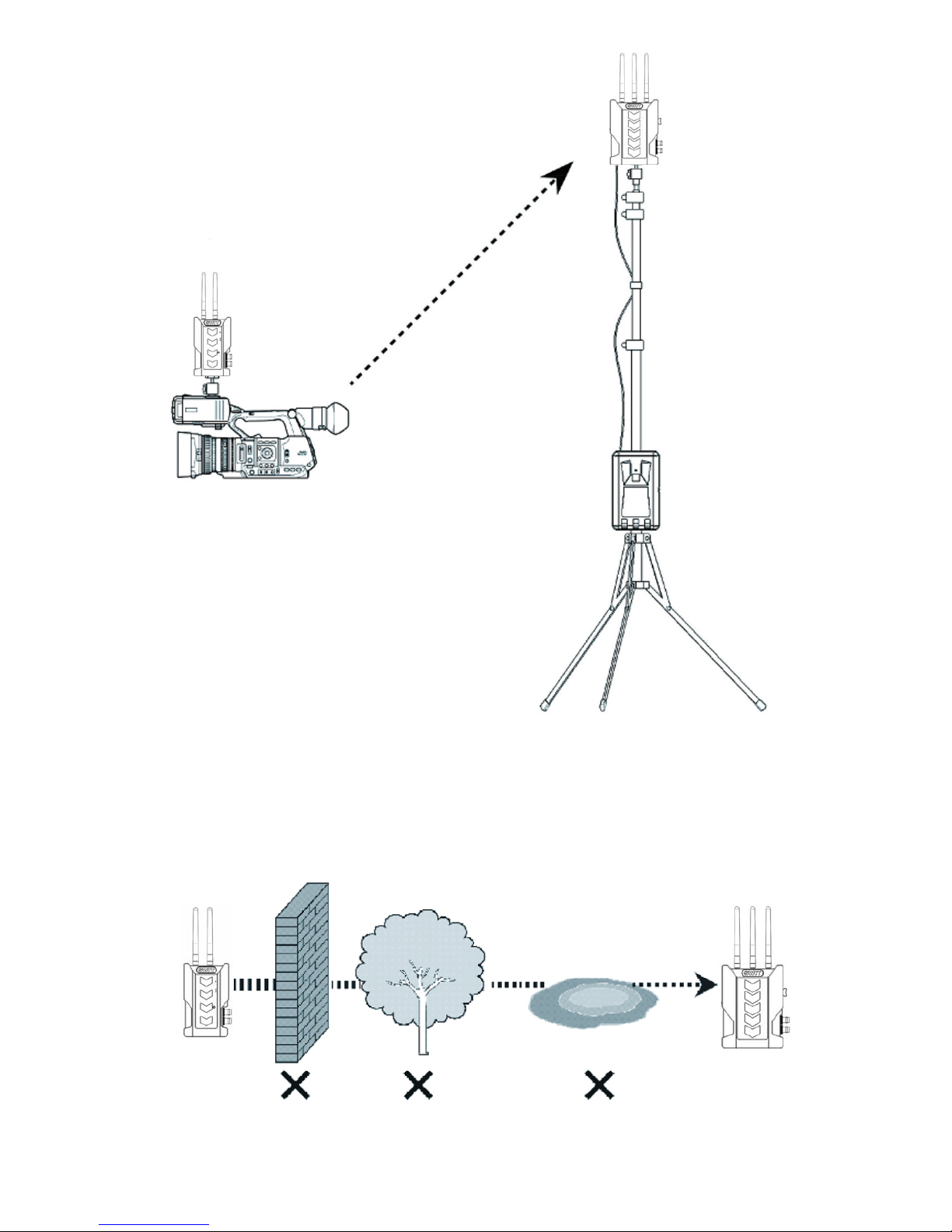

6. How to get the best effective of Wireless Transmission

Set the antenna on both transmitter and receiver vertically straight up, no request to spread. If lay down ⑴

installation, still keep the antenna vertically straight up to extend transmission distance and stabilize
transmission quality. (See Fig. 4)

Fig. 1

Fi

g

. 2

Fig. 3

Fi

g

. 4

Set the receiver as high as possible to avoid interference.⑵

Avoid walls, trees, water and any blockage as best as you can⑶

7. Battery plate

CW-S150 offers various battery plates to be powered for Transmitter and Receiver.

CW-S150 transmitter is equipped with various DV battery plates to be powered by standard DV camera
batteries, there are following different kinds of battery plates for option:

Plate Type Compatible battery Recommended SWIT battery

F Sony L series NP-F770/970 S-8972, S-8970, S-8770

U Sony BP-U60/30 S-8U93, S-8U63

D

Panasonic CGA CGA-D54S/D28S

Panasonic VBD VW-VBD58

S-8D62, S-8D58

B Panasonic VW-VBG6 S-8BG6

J JVC BN-V428 S-8428

V JVC BN-VF823 S-8823

I JVC SSL-JVC50 S-8I50

C Canon BP-930/945/970G S-8945, S-8845

E Canon DSLR battery LP-E6 S-8PE6

CW-S150 receiver is equipped with V-mount or Gold mount battery plates to be powered with batteries:

Note: The battery plates are fixed at factory, please specify the suitable plate type before purchase.

V-mount

Gold mount

8. Trouble shooting

If the receiver failed to output video correctly, the possible causes are as below, please find the solution from
following chart:

The receiving

video

Possible causes Solution

No display

No power

Check power connection and switch on
the transmitter and receiver

The antennas are not installed properly
and screwed tightly

Install the antennas properly and screw
tightly of both transmitter and receiver

Bad connection of video cable

Check video cable connection of both
transmitter and receiver

Video format is not supported

Check the format of video source.
(See the supported video formats at

Specifications.)

Video quality is

poor

Bad connection of video cable

Check video cable connection and if
possible, change to better quality cables

The wireless transmission is disturbed
by environment, such as other
electronic devices in the same
location.

Wait for one minute or reboot both the
transmitter and receiver

The transmission distance is out of
effective range or being interfered by
obstacles.

Try the wireless transmission at a closer
distance or clean out the obstacles

9. Specification

Model CW-S150 Transmitter CW-S150 Receiver

Input SDI×1 /

Output SDI×1 SDI×2

Video format

1080i（60⁄59.94⁄50）⁄720p（60⁄59.94⁄50)⁄1080p（60⁄59.94⁄50⁄30⁄29.97⁄25⁄24⁄23.98）

Wireless
frequency

5.1～5.9GHz

Radio module OFDM 16QAM
Max transmission

distance

150m ( Line of sight)

Latency ≤1 millisecond
Power

consumption

≤9W ≤7.5W

Radio power 100mW ⁄

Input voltage

DC⁄ Battery: 7～36V DC⁄ Battery: 7～36V

Working
environment

Temperature: 0℃~+40℃

Dimension(without
antenna)

86.68×137.6×40(mm) 115.79×146×49.5(mm)

Net weight (with
antenna)

445g 549g
